SIREN CARE SZU1001 SIREN Diabetic Socks User Manual
Siren Care(Shanghai)information and technology company SIREN Diabetic Socks
User Manual
User Manual
Product Name: SIREN Diabetic Socks
Brand: Siren
Model: SZU1001
Manufacture: Siren Care(Shanghai)information and
technology company
User Assistance Information
Should you have any questions, please contact a customer service
representative at Siren Inc. They may be contacted either by:
General Warning and Cautions
The SIREN Diabetic Socks is designed for a person that has been
diagnosed with neuropathy of the feet. People that have neuropathy
(reduced feeling in their feet) are at a high-risk to develop foot ulcers
that can potentially lead to amputation. Clinical studies have shown that
before an ulcer breaks the surface of the skin, inflammation or heat may
develop. The SIREN Diabetic Socks is designed to detect and measure
this heat/inflammation earlier. The SIREN Diabetic Socks should be
used every day by the patient to detect the inflammation earlier. Once
the inflammation is detected, actions can be taken by the patient, in
consultation with their doctor, to potentially avoid the ulcer and further
complications such as infection, gangrene, and amputation. The SIREN
Diabetic Socks integrated micro thermometer in the fabric that is non-
invasive and is not painful to use. It is using non-replaceable battery
operated and the battery life is approximately six months (7 pairs),
assuming daily use.
IT IS RECOMMENDED THAT A PERSON WITH DIABETES AND
NEUROPATHY USE THE SIREN DIABETIC SOCK TO TAKE
TEMPERATURE MEASUREMENTS ON THEIR FEET EVERY DAY.
USER’S MANUAL
Glossary �
Diabetic Neuropathy – Diabetic neuropathy is a peripheral nerve disorder
caused by diabetes. The symptoms of diabetic neuropathy are often slight
at first; numbness, pain or tingling in the feet or legs may lead to weakness
in the muscles of the feet. The loss of sensation in the feet may increase the
possibility for foot injuries to go unnoticed and develop into ulcers or
lesions that become infected. � Inflammation – A local response to
cellular injury that is marked by capillary dilatation, leukocytic infiltration,
redness, heat, pain and that serves as a mechanism initiating the
elimination of noxious agents and of damaged tissue.

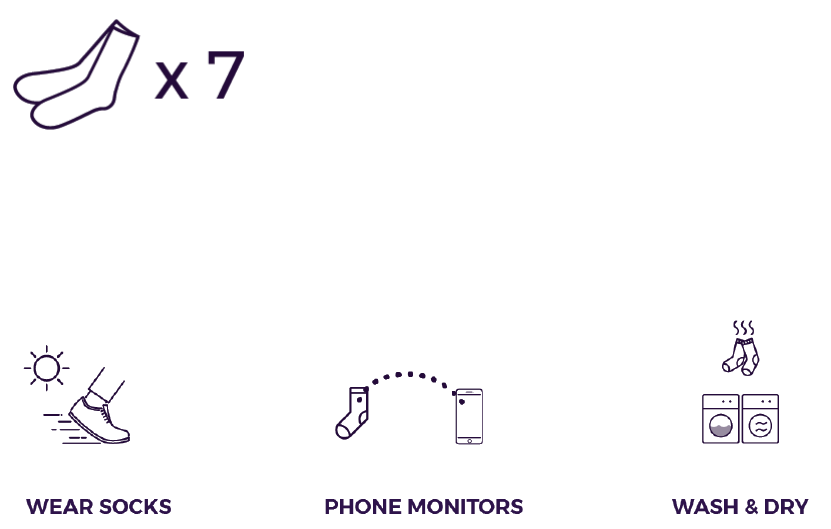

Included in the box
7 pairs of sock
How it Works
Wear the Siren DiabeticSocks every day, just like normal socks.
Check your feet with Siren App. All socks will be connected to your phone by
Bluetooth low energy technology.
Wash it in the end of the week.
Enjoy your life
Instructions for Setup

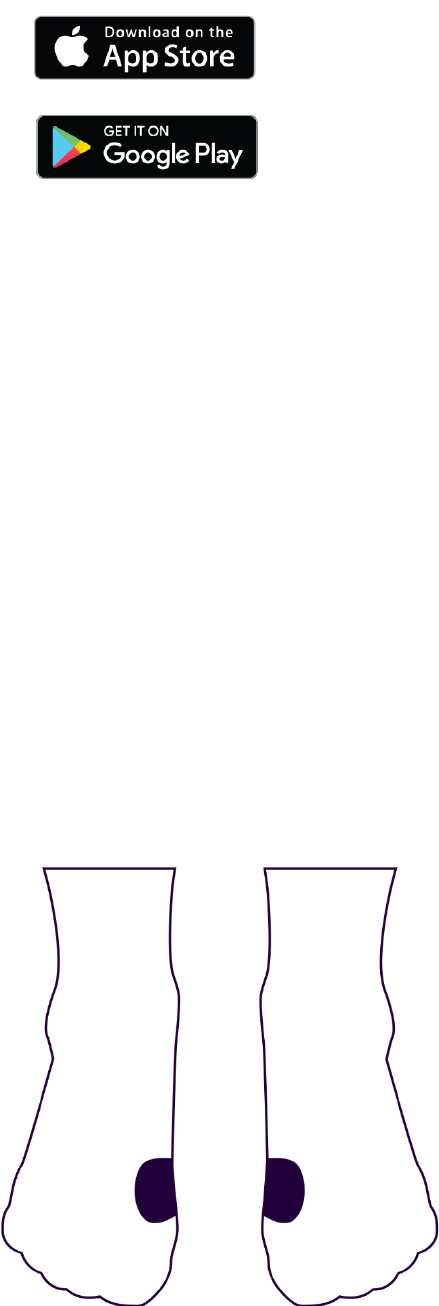

Step1: Download and Install Siren App
You can find the app at following address:
www.siren.care/app
Or you can directly download from Ios App store or google App store
Siren App is available for Android v4.4 upper and IOS v9.0 upper
Step2: Create your account follow App instruction
For SIREN Diabetic Socks E, user can only create account form the App. Please
make sure you have entered the right phone number, because later App will
require dig-code send to your phone to finish creating account.
Step3: Register your SIREN Diabetic Socks
After you created your account, App will request you to register your SIREN
Diabetic Socks under your account. Follow the instruction, scan the bar-code
which has been attached on the inside top. All 14 socks will be bundle to your
personal account, please note don’t give any socks under your account to
anyone else. If the bar-code can’t be recognized by your App, you can also
manually type it in. Please call Siren if your sock has been register by others or
the bar-code continue report error.
Step4: Wear is everyday
Step1-3 are not required one they have been done. Use SIREN Diabetic Socks is
as easy as normal Sock. Please use it every day so it can find injures earlier for
you.

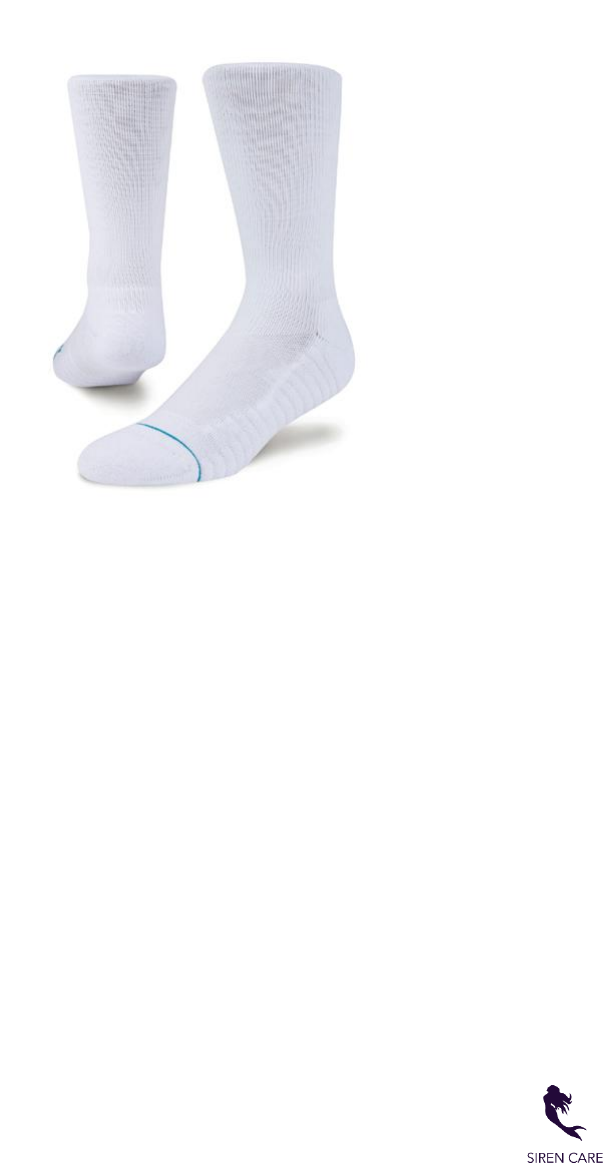

Please wear the sock correctly like the picture showing:
CARE AND MAINTENANCE
Wash: SIREN Diabetic Socks is machine washable
Dryer: Please dry SIREN Diabetic Socks under 63C / 145F degree (Medium / Low
heat mode)
Battery: Siren Diabetic is water proof, user don’t need to take out batteries when
washing or drying.
Store/Carry: Please put your Siren Diabetic socks together in the Siren package
box, so you can manage them better. If you take them with you on flight, you
should take them with you based on FFC principles.
Product Specification/Technical Information
Clinical Accuracy ± 1.0º F or ± 0.5º C
Temperature Range -10 to 40º C
Operating Environment -10 to 40º C
Resolution 0.1º F or 0.1 º C
Response Time Approximately 1 second
Battery life a pair of sock have 1 month for daily use, 6 months in standby mode.
So 7 pairs of sock can use for at least 7 month
Sizing M: Men shoe size 8.5-10.5 Women shoe size 10-12
Type: Crew
Environmental Conditions for Storage and Transportation: Temperature:
-10 - 40 º C, Humidity: 30 – 75% Altitude: 700 – 1060 hPa 0843
EC REP: MDSS GmbH, Schiffgraben 41, 30175 Hannover German
Limited Warranty and Disclaimer Information
Limited warranty
Siren Inc. warrants each SIREN Diabetic Socks against defects in materials or
workmanship for a period of 1 year from the date of purchase, and agrees to
repair or replace any defective product without charge. IMPORTANT: This
warranty does not cover damage resulting from accident, misuse or abuse, lack
of reasonable care, the affixing of any attachment not provided with the
product. Use of unauthorized replacement parts will void this warranty. Siren Inc.
will not pay for warranty service performed by a non-authorized repair service
and will not reimburse the customer for damage resulting from warranty service
performed by a non-authorized repair service. No responsibility is assumed for
any special, incidental or consequential damages. In order to obtain warranty
service, simply call Diabetica Solutions Inc. Customer Service, 415-855-1744, for
a Return Material Authorization Number (RMA). Then send the product, postage
or shipping prepaid, to Siren Inc. in accordance with the instructions given with
the RMA number. It is suggested that for your protection, you ship the product,
insurance prepaid. Damage occurring during shipment is not covered by this
warranty.
NOTE: Siren Inc. authorizes no other warranty, written or verbal. This warranty
gives you specific legal rights and you may also have other rights which vary
from state to state. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above exclusion and limitations
may not apply to you.
Disclaimer and venue
The SIREN Diabetic Socks is intended to act as an aid in caring your feet, and are
not intended to replace, be used without, or in lieu of, monitoring by a
responsible adult.
Warning: SIREN Diabetic Socks is not a medical device
Do not use SIREN Diabetic Socks as a diagnostic tool.
It does not diagnose, cure, lessen, monitor, treat, nor prevent disease or injury;

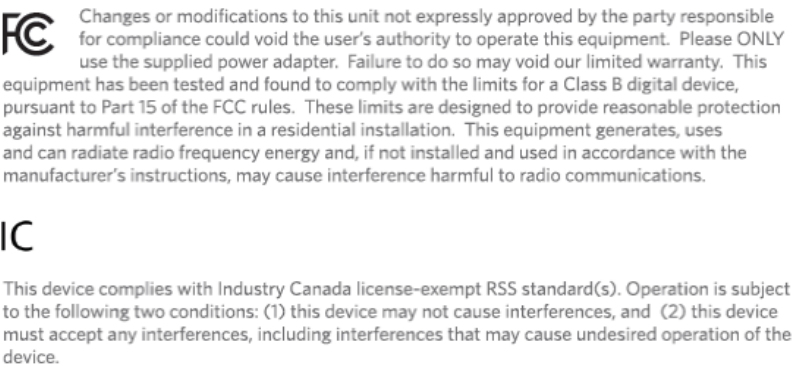

FCC COMPLIANCE STATEMENT
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
