CONTROLLER 4
RADIO REMOTE CONTROL 4 OUTPUTS
USER AND MAINTENANCE MANUAL
WARNINGS
This manual is an essential part of the device and it should be thoroughly kept for later consultation.
Carefully read the warnings contained in this manual, concerning safety and a proper preservation of the
product. These warnings are always to be carefully read before using the device. SISTEMATICA S.p.A.
declines all responsibility for any trouble arising from the non-compliance with these warnings.
• DO NOT TRAVEL WITH THE DEVICE SWITCHED ON
• CONNECT THE SYSTEM ONLY TO THE VEHICLE’S BATTERY
• BEFORE CARRYING OUT ANY MECHANICAL MAINTENANCE OPERATION (WELDING) ON THE
VEHICLE, DISCONNECT THE BATTERY CLIPS.
• AVOID ATTEMPTING TO REPAIR THE DEVICE BY YOURSELF. REPAIRS PERFORMED BY
UNSKILLED PEOPLE CAN CAUSE SERIOUS DAMAGES OR FAILURES. FOR ASSISTANCE,
APPLY TO YOUR LOCAL AUTHORIZED SERVICE CENTRE. USE ONLY ORIGINAL SPARE PARTS.
• ALWAYS KEEP AT A SAFE DISTANCE FROM THE MOVING PARTS.
SISTEMATICA S.p.A. Pag. 2/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it
TECHNICAL FEATURES
• Manufacturer: SISTEMATICA S.p.A.
• Dimensions: 80x75x55
• Outputs number: up to 4
• IP protection: IP67
• Operating temperature: -20°C ÷ +70°C
• Power supply voltage: 12/24 V ±10%
• Current consumption: - 18 mA at 12 V
- 14 mA at 24 V
• Max current per channel: 5 A
• Max total current: 20 A
• Communication interface (when applicable): CAN
BUS
• 8 bit microcontroller
• Reverse battery protection
• Internal antenna
SYSTEM CODING
Coding the system is an operation that is only necessary when the receiver has to be replaced or you want to use it
with a different SISTEMATICA radio remote control from the one it is coupled with at the time of purchase.
For a correct coding procedure, perform the following steps:
1. Disconnect the power to the receiver;
2. Open the receiver box, by unscreawing the 4 screws fixed on
its top;

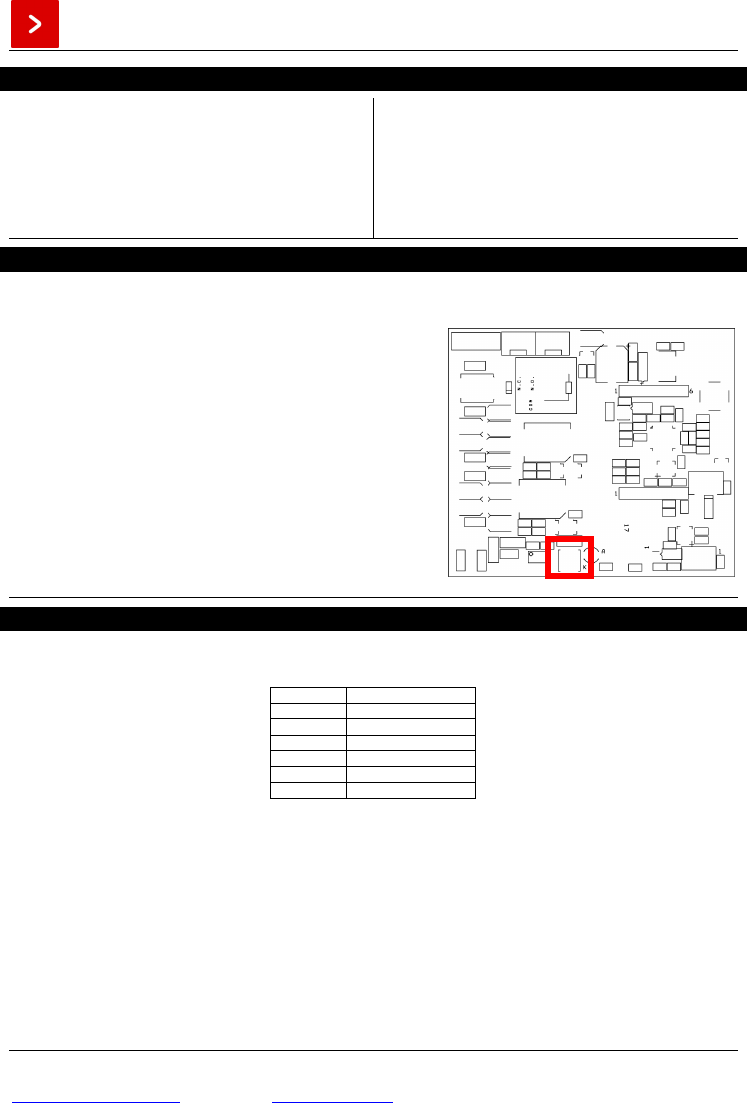

3. Locate and press the coding pushbutton on the receiver board
(blue button – fig. 1);
4. Put power into the receiver by keeping the coding pushbutton
pressed for 3-4 sec.; the yellow led on the receiver board
flashes two time per second; so release the coding pushbutton;
5. Press any 3 keys at the same time on the transmitter within 15
seconds since it has been switched on (also more time if it is
necessary; the yellow led stop to blink);
6. At this time, the transmitter is codified with the reveiver; check
all the system function by trying the movements of the system;
7. Close the receiver box.
Figure 1. Coding pushbutton
WIRING DESCRIPTION
The standard wiring is composed of a cable of lenght L=1mt with a termination in the receiver on one side and free
cables on the other side
COLOR FUNCTION
GREEN EV 1
YELLOW EV 2
GRAY EV 3
PINK EV 4
RED + ALIMENTATION
BLACK - ALIMENTATION
SISTEMATICA S.p.A. Pag. 3/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it
POSITIONING OF THE RECEIVER UNIT, DIMENSION AND DRILLING TEMPLATE

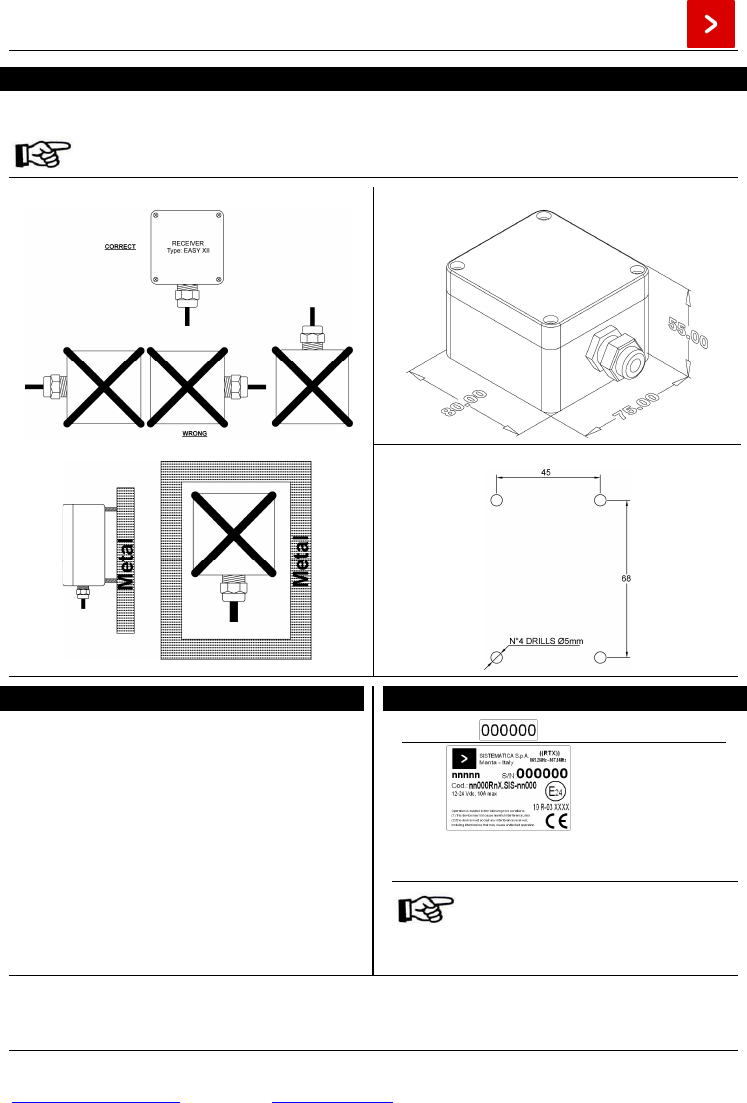

For a proper functioning, locate the receiver type CONTROLLER 4 with the cable output downwards, as shown in
the picture below:
The receiver is provided with an integrated antenna; be sure to locate it at sight, not inside any
metal box or screened by ferrous masses (ex. Protection carter...)
POSITIONING OF THE CONTROLLER 4
RECEIVER DIMENSION
DRILLING TEMPLATE DIMENSION
FUSE REPLACEMENT
The system is automatically protected from power
overload and from possible short-circuit on
corresponding outputs. For further protection is also
provided an internal fuse within the box. For replacing
the damaged fuse, please proceed as follows:
1. Disconnect the power to the receiver;
2. pen the receiver box, by unscreawing the 4 screws
fixed on its top;
3. Locate the damage fuse on the receiver board;
4. Take the damaged fuse out of its holder and insert
the new fuse (F1= 10 A);
5. Put power into the receiver; to check that the fuse
has been correctly replaced, try one or more
movements of the system;
6. Close the receiver box.

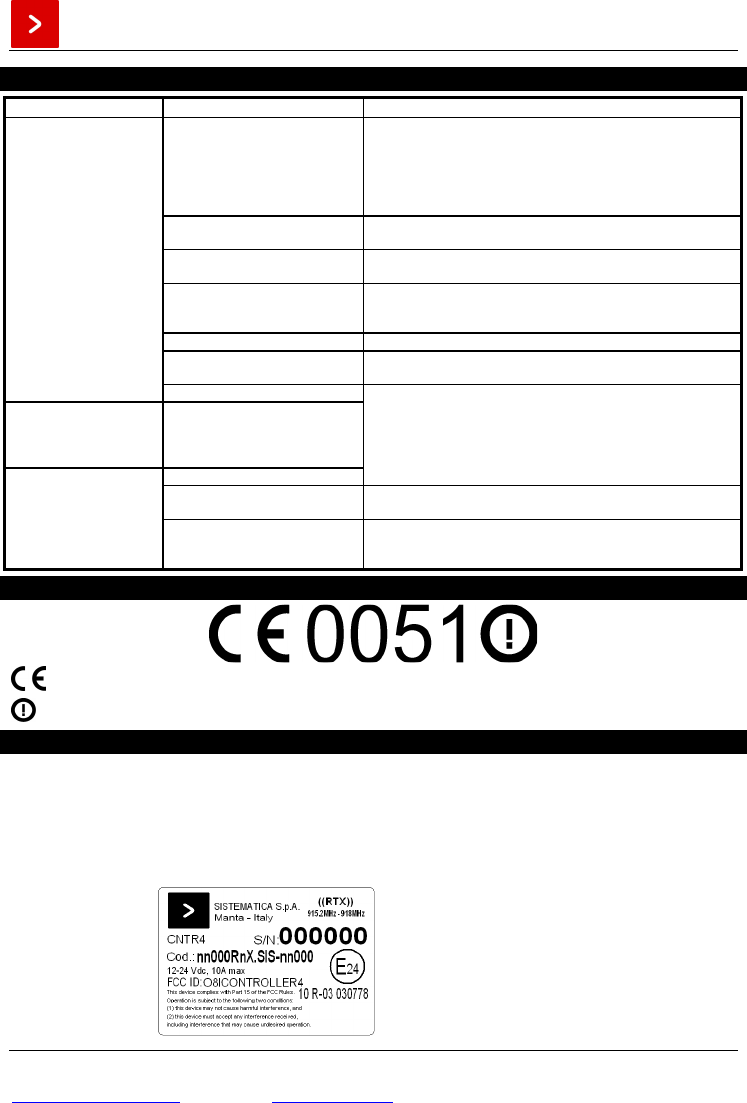

PRODUCT IDENTIFYING LABELS
Internal label
nnnnn: product model
S/N: product serial number
Cod.: product identification number
External label
Removal of the identifying labels
entails lapin of the guarantee
conditions and the responsabilità of
SISTEMATICA S.p.A. with respect to
component bodies
SISTEMATICA S.p.A. Pag. 4/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it
PROBLEM IDENTIFICATION AND SOLUTION
P
ROBLEM
POSSIBLE
CAUSES SOLUTIONS
Absence of power in the receiver
unit
-Check that the emergency mushroom button on the transmitter
(if present) is in the release position.
-Check that the vehicle batterie is correctly connected to the
receiver unit
-Check that the fuse inside the receiver unit is inctact, and if it is
not, replace it (see “FUSE REPLACEMENT”)
Incorrect connection of the
cabling to the utilities -Check the cabling to indicators, electro-valves etc.
Incorrect installation of the
receiver -The receiver must not be shielded by ferrous masses (see
“POSITIONING OF THE RECEIVER UNIT”)
Incorrect replacement of the
batteries
-Check that the batteries have been inserted correctly; if
necessary replace them (see “REPLACEMENT THE
BATTERIES” on the manual of the transmitter combined)
System not coded -Re-code the system (vedi “CODIFYING THE SYSTEM”)
Blown fuse -Replacement of the fuse on the receiver board (see “FUSE
REPLACEMENT”)
The system does not
respond to the controls
Flat batteries
The GREEN led on the
remote control does not
light up when a key is
pressed
Flat batteries
Batteries almost flat
-Replacement of the transmitter batteries (vedi “REPLACEMENT
THE BATTERIES” on the manual of the transmitter combined)
Using the transmitter beyond its
maximum range -Keep to a distance ≤ 120m from the receiver
The system responds to
the controls in a
discontinuous way Connection to the battery and to
the utilities made with cables of
unsuitable section or lenght
-Chech that the connection to the battery and the utilities are
made with cables of suitable section and lenght
CE MARK
Declaration of conformity for Sistematica S.p.A. products can be required at: info@sistematica.it
This product may be subjected to usage restriction. Please contact info@sistematica.it for any further questions.
FCC STATEMENTS
These devices complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) these devices may not cause harmful interference and
(2) these devices must accept any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to
these equipment. Such modifications could void the user’s authority to operate the equipments.
SISTEMATICA S.p.A. Grantee Code: O8I
TRENDRTX label example
FCC ID: O8ICONTROLLER4
