POWERDRIVE
RADIO REMOTE CONTROL 2 OUTPUTS
USER AND MAINTENANCE MANUAL
WARNINGS
This manual is an essential part of the device and it should be thoroughly kept for later consultation.
Carefully read the warnings contained in this manual, concerning safety and a proper preservation of the
product. These warnings are always to be carefully read before using the device. SISTEMATICA S.p.A.
declines all responsibility for any trouble arising from the non-compliance with these warnings.
• DO NOT TRAVEL WITH THE DEVICE SWITCHED ON
• CONNECT THE SYSTEM ONLY TO THE VEHICLE’S BATTERY
• BEFORE CARRYING OUT ANY MECHANICAL MAINTENANCE OPERATION (WELDING) ON THE
VEHICLE, DISCONNECT THE BATTERY CLIPS.
• AVOID ATTEMPTING TO REPAIR THE DEVICE BY YOURSELF. REPAIRS PERFORMED BY
UNSKILLED PEOPLE CAN CAUSE SERIOUS DAMAGES OR FAILURES. FOR ASSISTANCE,
APPLY TO YOUR LOCAL AUTHORIZED SERVICE CENTRE. USE ONLY ORIGINAL SPARE PARTS.
• ALWAYS KEEP AT A SAFE DISTANCE FROM THE MOVING PARTS.
SISTEMATICA S.p.A.
SISTEMATICA S.p.A.SISTEMATICA S.p.A.
SISTEMATICA S.p.A.
Pag. 2/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it
TECHNICAL FEATURES
• Manufacturer: SISTEMATICA S.p.A.
• Dimensions: 100x100x75
• Outputs number: 2
• IP protection: IP66
• Operating temperature: -20°C ÷ +70°C
• Power supply voltage: 12 V ±10%
• Power supply voltage: 24 V ±10%
• Current consumption (stanby): - 18 mA at 12 V
- 14 mA at 24 V
• Protection of battery inversion polarity
• Max current per channel: 5 A
• Max total current: 7,5 A
• Reverse battery protection
• Internal antenna
• Category receiver (EN 300-220-1): 2
SYSTEM CODING
Coding the system is an operation that is only necessary when the receiver has
to be replaced or you want to use it with a different SISTEMATICA radio remote
control from the one it is coupled with at the time of purchase.
1. For a correct coding procedure, perform the following steps:
2. Disconnect the power to the receiver;
3. Press one pushbutton on the right of the receiver box (figure 1);
4. Put power into the receiver by keeping the pushbutton pressed for 3-4 sec.;
so release the pushbutton;
5. Press any 3 keys at the same time on the transmitter within 15 seconds since
it has been switched on (also more time if it is necessary);
6. At this time, the transmitter is codified with the reveiver; check all the system
function by trying the movements of the system;
Figure 1. Pushbutton

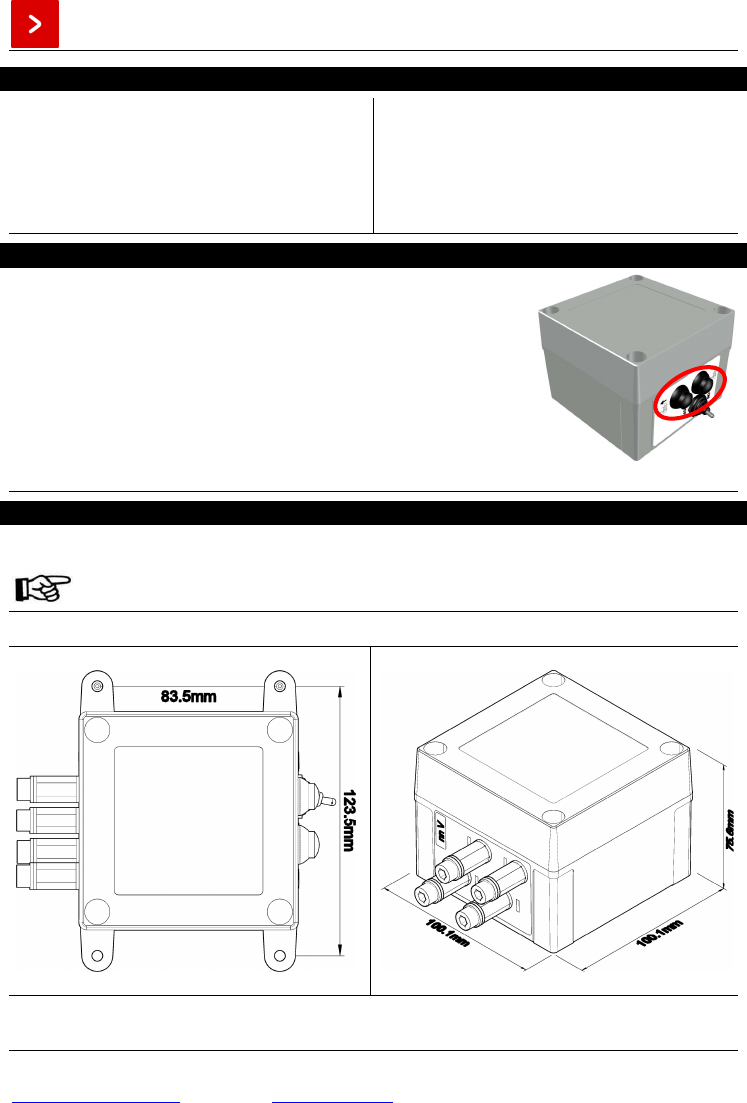

POSITIONING OF THE RECEIVER UNIT, RECEIVER DIMENSION
For a proper functioning, locate the receiver type POWERDRIVE with the cable output to the left and the two button
to the right, as shown in the picture below:
The receiver is provided with an integrated antenna; be sure to locate it at sight, not inside any
metal box or screened by ferrous masses (ex. Protection carter...)
The dimensions of the drilling template are correct only with the box positioned as shown in the figure 2.
EXAMPLE OF POSITIONING OF RECEIVER UNIT
Figura 2. Drilling template
RECEIVER DIMENSION
Figura 3. Box dimensions
SISTEMATICA S.p.A.
SISTEMATICA S.p.A.SISTEMATICA S.p.A.
SISTEMATICA S.p.A.
Pag. 3/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it

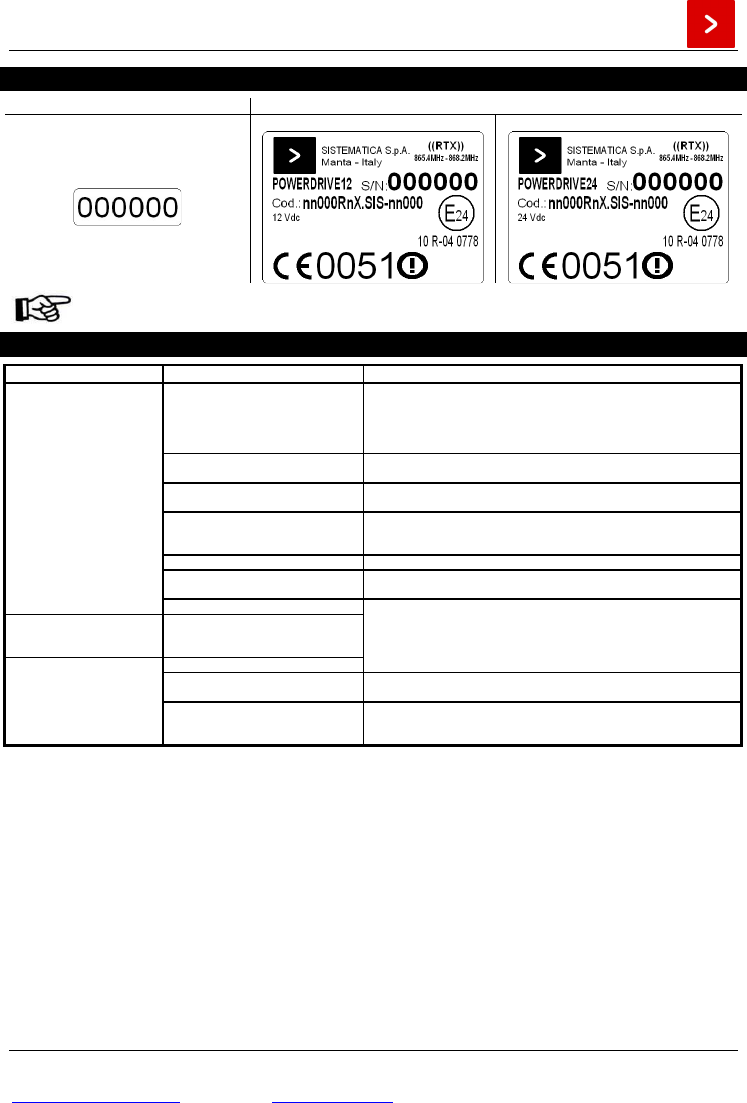

PRODUCT IDENTIFYING LABELS
Internal Label External Label
12 V 24 V
Removal of the identifying labels entails lapin of the guarantee conditions and the
responsability of SISTEMATICA S.p.A. with respect to component bodies
PROBLEM IDENTIFICATION AND SOLUTION
P
ROBLEM
POSSIBLE
CAUSES SOLUTIONS
The system does not respond
to the controls
Absence of power in the receiver unit
-Check that the emergency mushroom button on the transmitter (if present)
is in the release position.
-Check that the vehicle batterie is correctly connected to the receiver unit
-Check that the fuse inside the receiver unit is inctact, and if it is not, replace
it (see “FUSE REPLACEMENT”)
Incorrect connection of the cabling to
the utilities -Check the cabling to indicators, electro-valves etc.
Incorrect installation of the receiver -The receiver must not be shielded by ferrous masses (see “POSITIONING
OF THE RECEIVER UNIT”)
Incorrect replacement of the batteries -Check that the batteries have been inserted correctly; if necessary replace
them (see “REPLACEMENT THE BATTERIES” on the manual of the
transmitter combined)
System not coded -Re-code the system (vedi “CODIFYING THE SYSTEM”)
Blown fuse -Replacement of the fuse on the receiver board (see “FUSE
REPLACEMENT”)
Flat batteries
-Replacement of the transmitter batteries (vedi “REPLACEMENT THE
BATTERIES” on the manual of the transmitter combined)
The GREEN led on the
remote control does not light
up when a key is pressed Flat batteries
The system responds to the
controls in a discontinuous
way
Batteries almost flat
Using the transmitter beyond its
maximum range -Keep to a distance ≤ 120m from the receiver
Connection to the battery and to the
utilities made with cables of unsuitable
section or lenght
-Chech that the connection to the battery and the utilities are made with
cables of suitable section and lenght
SISTEMATICA S.p.A.
SISTEMATICA S.p.A.SISTEMATICA S.p.A.
SISTEMATICA S.p.A.
Pag. 4/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it

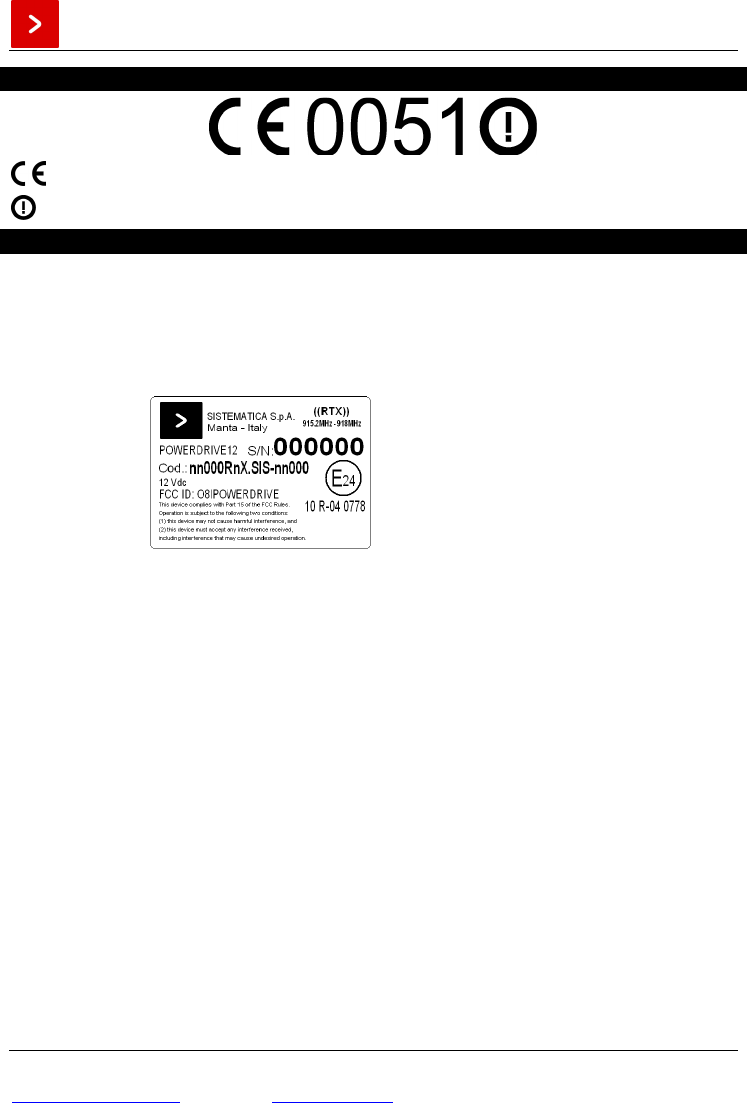

CE MARK
Declaration of conformity for Sistematica S.p.A. products can be required at: info@sistematica.it
This product may be subjected to usage restriction. Please contact info@sistematica.it for any further questions.
FCC STATEMENTS
These devices complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) these devices may not cause harmful interference and
(2) these devices must accept any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to
these equipment. Such modifications could void the user’s authority to operate the equipments.
SISTEMATICA S.p.A. Grantee Code: O8I
POWERDRIVE 12V label example
FCC ID: O8IPOWERDRIVE
