SIYUAN DIGITAL TECHNOLOGY SY007 Wireless Hunting & Security Alarm User Manual
SHENZHEN SIYUAN DIGITAL TECHNOLOGY CO.,LTD Wireless Hunting & Security Alarm
User Manual
- 0 -
Wireless Hunting & Security Alarm
Model:SY-007
INSTRUCTION MANUAL
Welcome to buy SY-007 wireless hunting & security alarm. For making
best use of all functions of the camera, please read this user’s manual
carefully before using it.
- 1 -

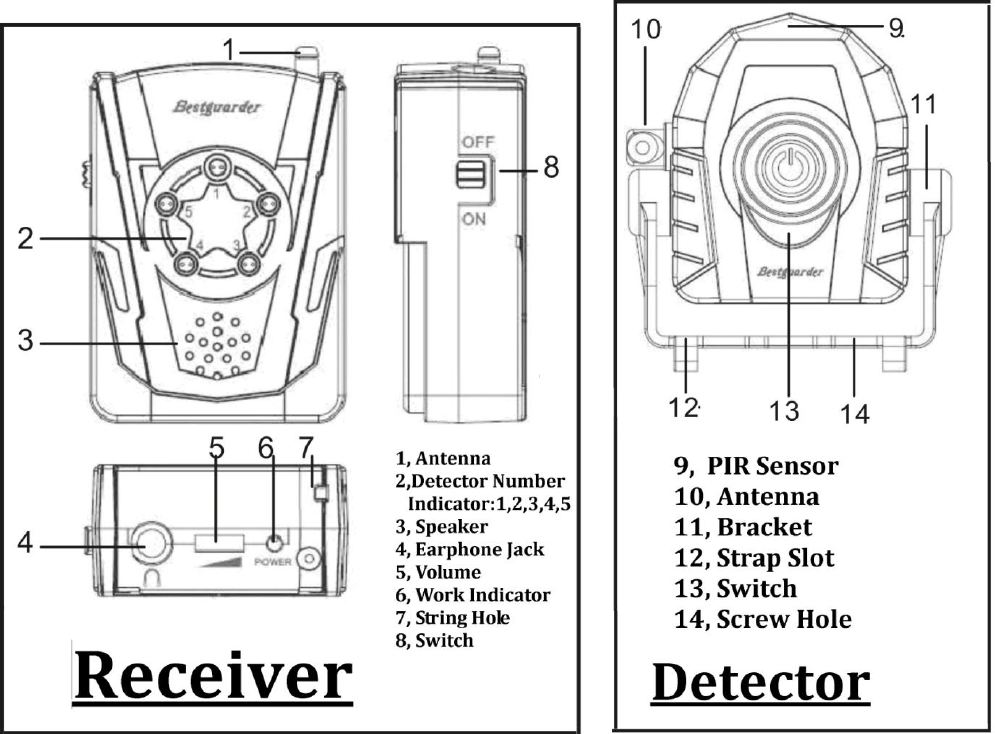

I. Overview
II. General Information

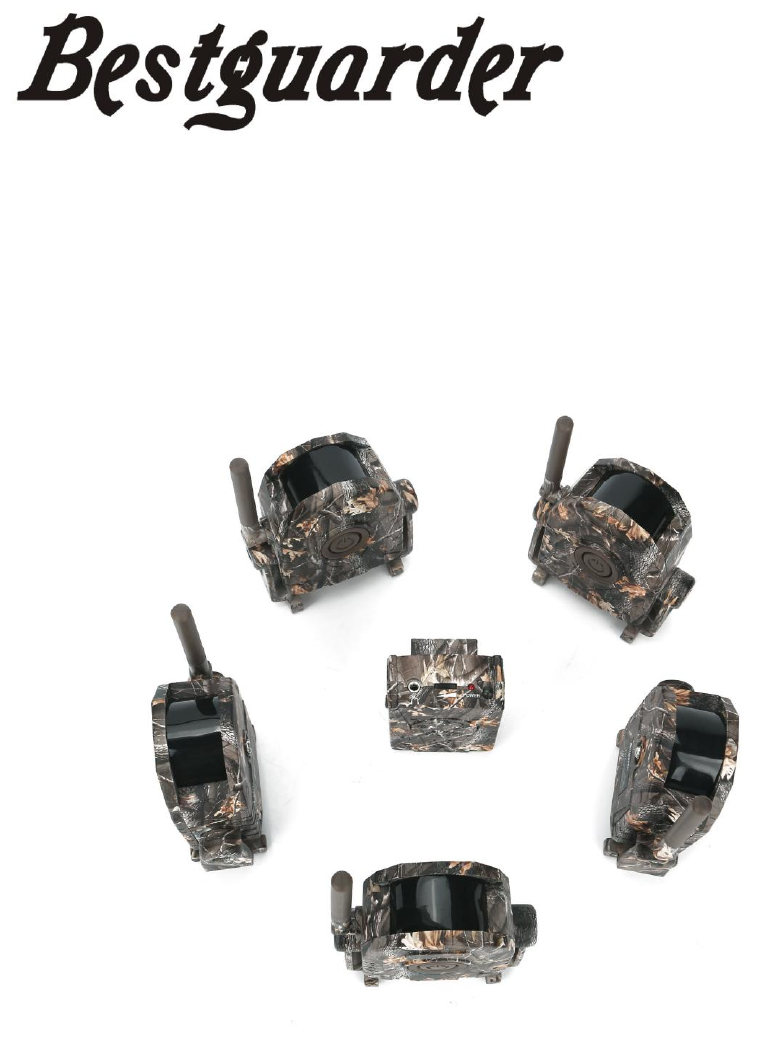

SY-007 wireless alarm for guard hunting and driven hunting, and security,
comprising receiver and detector specially designed for hunting of wild game,
home security.
Receiver can accept Max 5 detectors
Easy to use, receiver connect with detector automatically,
Three alarm mode of Receiver
Sound alarm
The receiver automatically goes into sound alarm 15s per trigger by detector.
Volume can be adjusted.
- 2 -
Vibration alarm
The receiver automatically goes into vibration alarm 15s per trigger by
detector.
Lighting alarm
The receiver automatically goes into lighting alarm and light flash 15s per
trigger by detector. Detector no. indicator is always lighting after a trigger, until
next trigger to flash.
III. Start Guide
★ Caution:
1, The Receiver is designed not to be weather resistant. Never attempt to raining,
immerse the unit in water or any other liquid. This will damage the unit and void
the warranty.
2, The Detector is designed only to be weather resistant IP66. Never attempt to
immerse the unit in water or any other liquid. This will damage the unit and void
the warranty.
3, Please use good quality 3*AAA batteries and take out batteries when camera is
free long time.

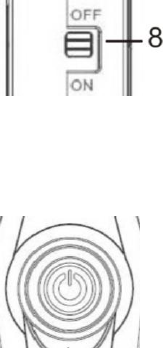

Power On
Receiver: Switch to On position after putting 3*AAA
batteries, receiver Vibrate 15s (Sound 15s/Indicator lighting
15s) after connecting detector (1-5pcs) automatically once
power on.
Detector No. indicator is always lighting after a trigger, until
next trigger to flash.
Detector: Press button 2seconds to power on, green LED is
lighting 2s then shut down. Detector connect receiver
automatically once power on.
Location of Detector
To get a optimal detect, it is recommend to mount a tree at 3,6,9 meters away
from the place to be monitored, and at a height of 0.3-2meters.
- 3 -
Be sure to avoid mounting detector in an environment where there is motion
associated with tree braches/cloth creating motion or an area where there is
high heat in the foreground.
V. Specification
Distance between receiver
and detector
≤100m
Detector PIR distance ≤12m
Wireless Radio Frequency 433.92MHz
PIR angle 70°
PIR trigger ≤0.5秒
Alarm sounds 15s, volume adjust
Vibration 15s
Power 3* AAA
Receiver battery life 100hours
Detector battery life 400hours
Receiver power consumption ≤8mA, 4.5V
Detector power consumption ≤2mA, 4.5V
Detector Watt ≤25mW
Receiver Size： 80x55 x40 mm
Detector Size： 140 x100 x40 mm
Operate/Storage temperature -20 - +60°C / -30 - +70°C
Humidity 5% - 90%
Water Resistance(Detector) IP66
Security Authentication FCC ID
- 4 -
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
