SK-VIEW Intelligent Wi-Fi operation
management platform
SK-View is a comprehensive Wi-Fi operation management platform, providing
comprehensive and professional Wi-Fi network and application management for
enterprises and operators. SK-View uses SNMP protocol, the private network
management protocol and the latest image interface technology. Its powerful
functions, simple operation and strong security can effectively manage WLAN devices
and mobile terminals. Compatible with third-party wireless AP management, SK-View
greatly reduces the workload and complexity of Wi-Fi network operation and
management. SK-View can easily and smoothly let the user view the Wi-Fi network
management from disorder to the transition of active control, exponentially improve
work efficiency, and let users really use the Internet to create greater economic
benefits.
•Flexible Management UI
SK-View network management platform adopts B/S architecture, simplifying the
complex network management work through the visual, instrumented, report
formed, intelligent and personalized network navigation management model.
•Impeccable Wireless Network Monitoring and Management
Through the configuration of wireless network discovery rules, SK-View can
flexibly according to user needs do real-time statistics on entire network wireless
devices and mobile terminal operation states, the network flow, bandwidth,
performance, alarm, and the Trap, and present to the user in graphical or report
way.
Product
Description
Highlights SKV4000 Hardware
SKV-View software
SK-VIEW intelligent Wi-Fi operation management platform

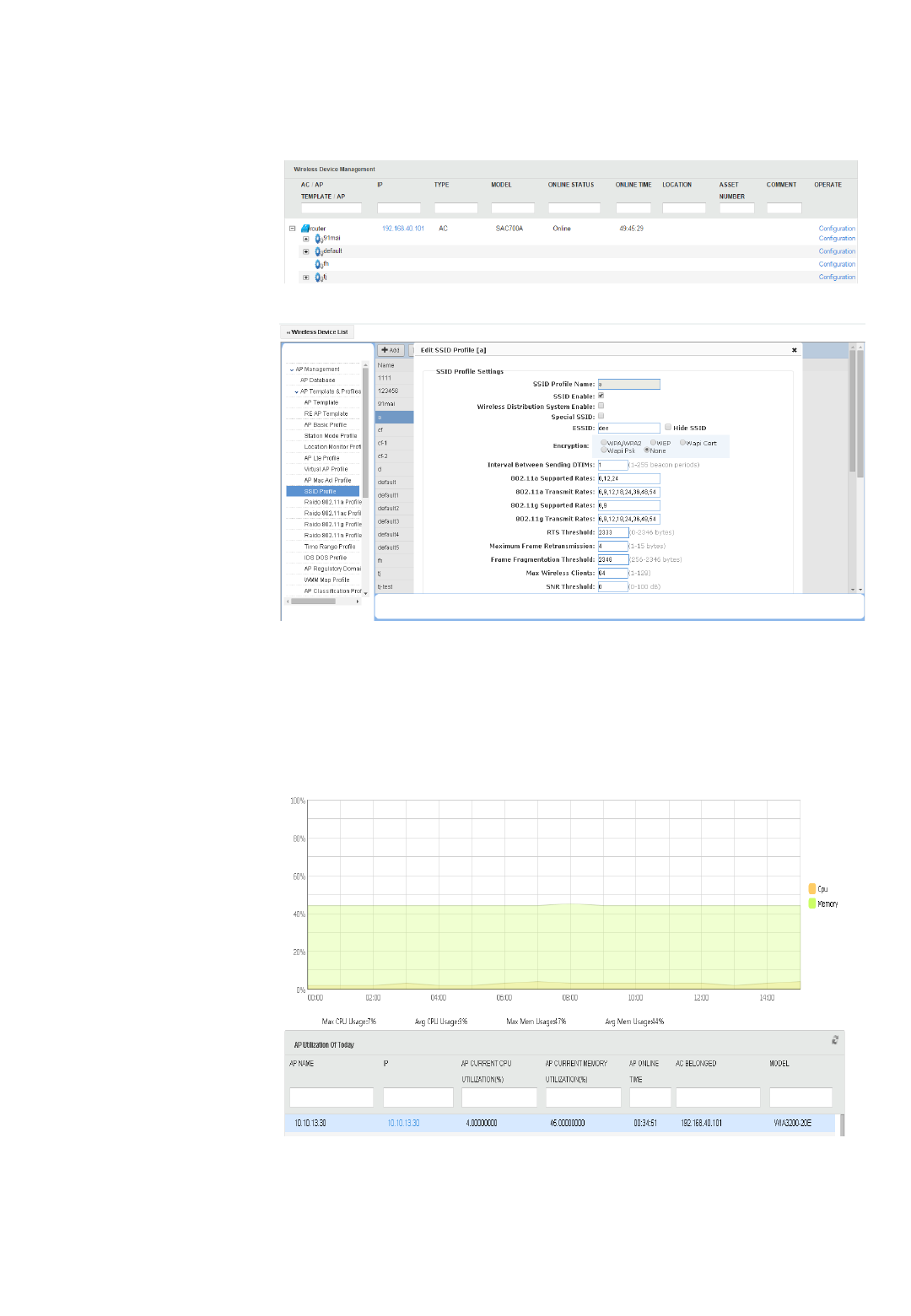

- Statistics on device utilization
SK-View supports the centralized remote configuration and management of AC and
AP.
•Comprehensive Network KPI Performance Indicators Display
SK-View regularly collects device related performance data, gives data
analysis and processing, and real time displays to the user through the ways
such as graphical presentation. Through the system default KPI display items,
users can real-time understand resources utilization of entire network devices.
2
SK-VIEW intelligent Wi-Fi operation management platform

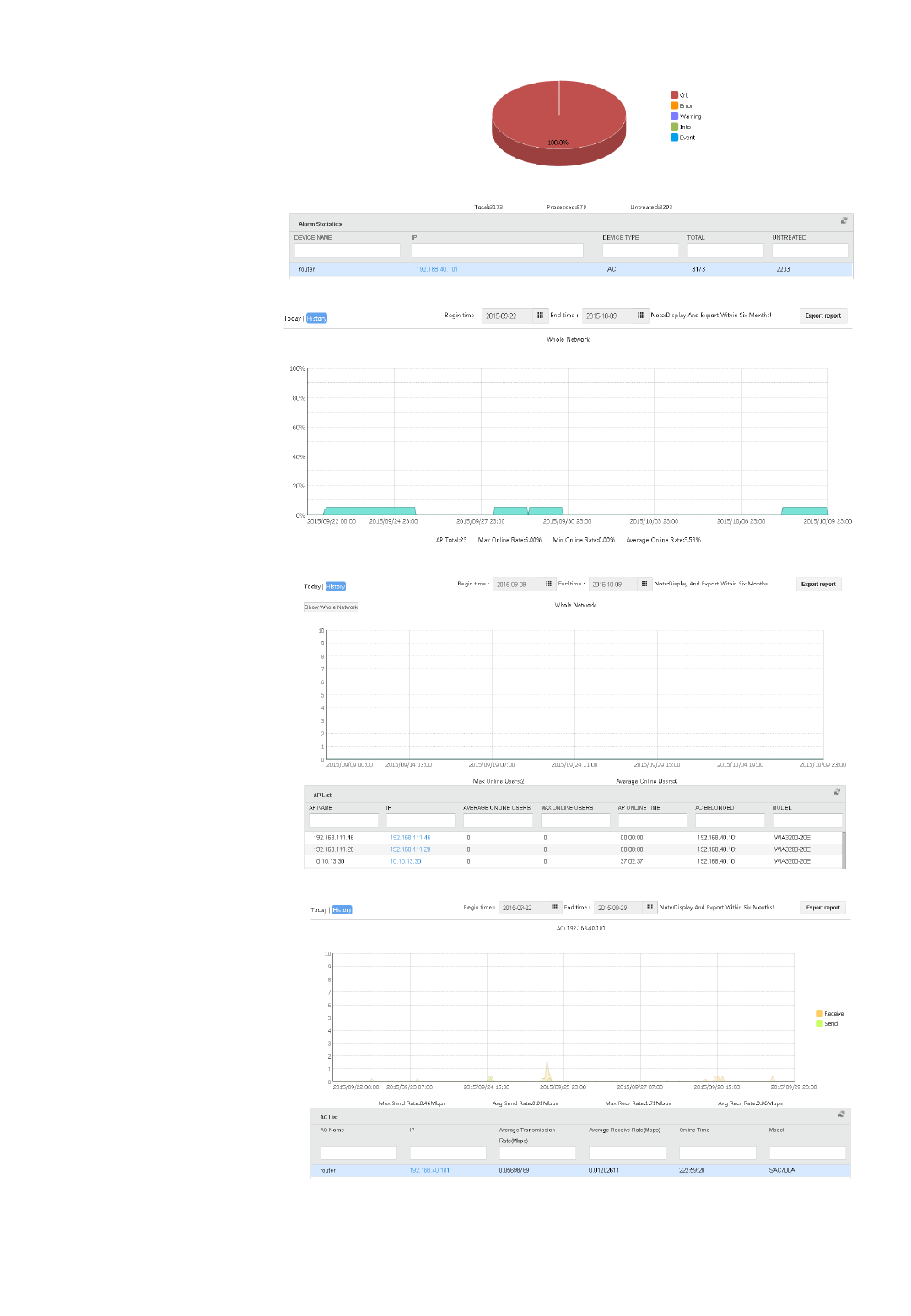

- Statistics on AP online tendency
- Statistics on user online tendency
- Statistics on device throughput
3
- Statistics on alarms
SK-VIEW intelligent Wi-Fi operation management platform
•Multi-user Grading, Separation of Powers, and Domain Management
Adopting the module design, SK-View software platform support multiple user
classification, separation of powers and the domain management mode; system
administrators can assign different system management authorities and the
manageable terminals for users in different levels ; login SK-View, users can
manage or view only within the scope of his authority AC or AP in the specified
range.

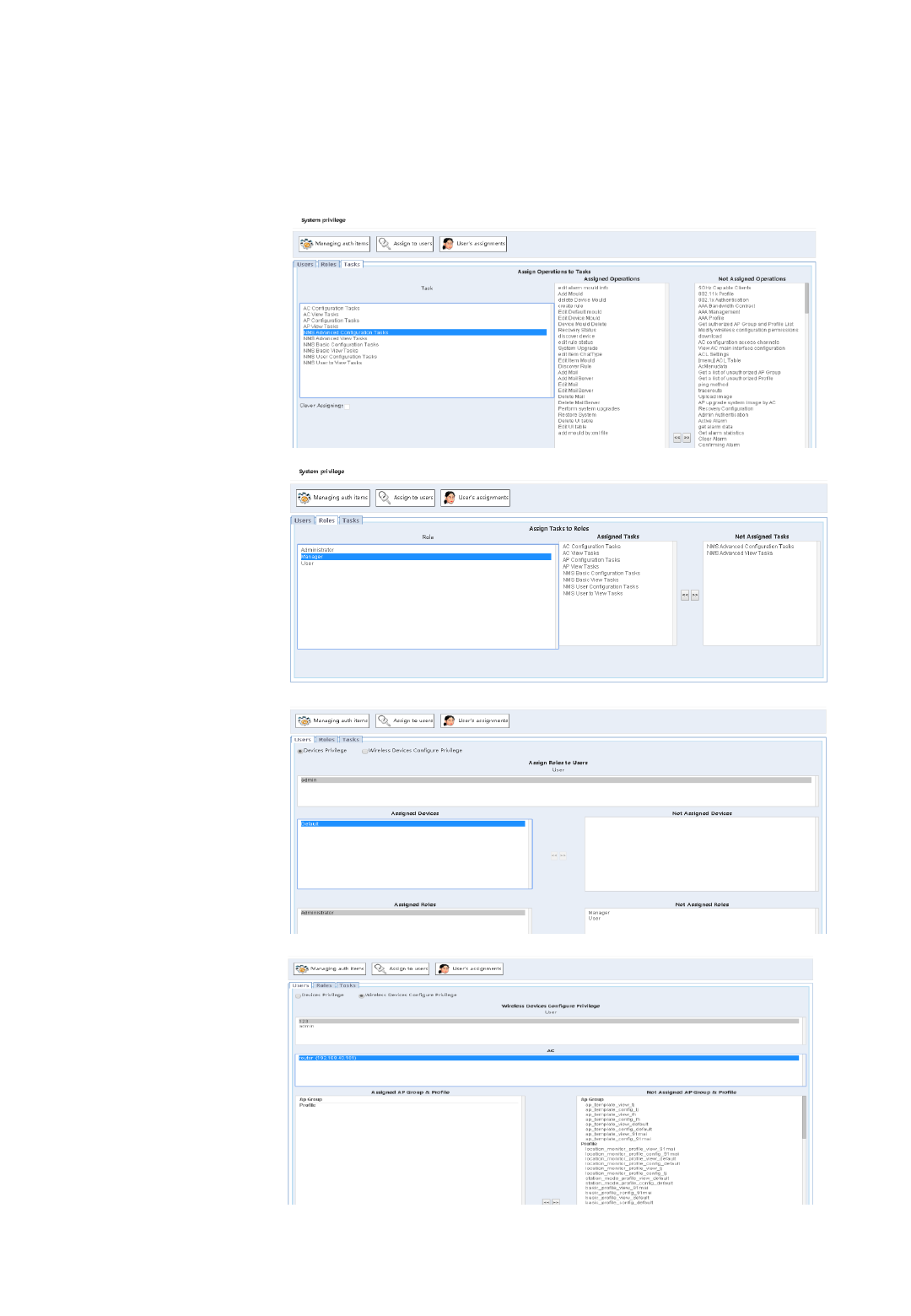

- Task management
- Role management
- Assigning user role
- Assigning wireless configuration authority
4
SK-VIEW intelligent Wi-Fi operation management platform

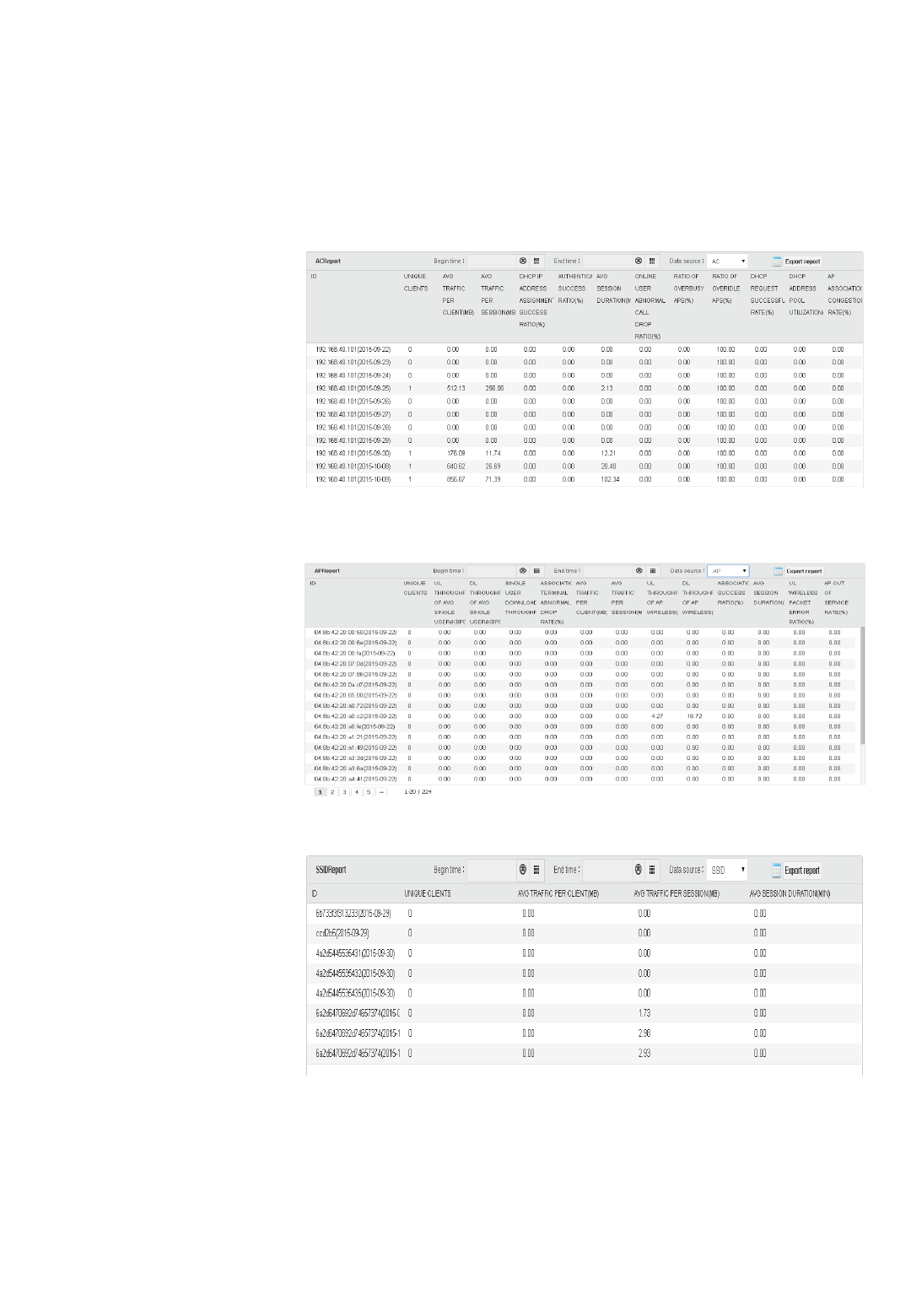

•Wireless operation report
SK-View supports to create daily, weekly, monthly and yearly report based on AC
or single AP and SSID. Administrators can master wireless network operation
status through report, providing useful data for the network optimization and
construction.
-AC operation report includes access users, average traffic per client, DHCP
request/assignment success ratio, authentication success ratio, average
session duration and so on.
-AP operation report includes AP access users, average upload/download
traffic of single user, managing terminal abnormal drop rate, managing
success rate, average session duration, AP out of service rate and so on.
- SSID operation report includes access users, average traffic per client,
average traffic per session and average session duration.
•Convenient and fast system deployment
Skspruce intelligent Wi-Fi operation management platform adopts software and
hardware integrated solution; user needn’t to buy extra servers. Administrators
can discover, manage and monitor entire network wireless device by adding AC
IP address in the system.
5
SK-VIEW intelligent Wi-Fi operation management platform
Application
scenarios

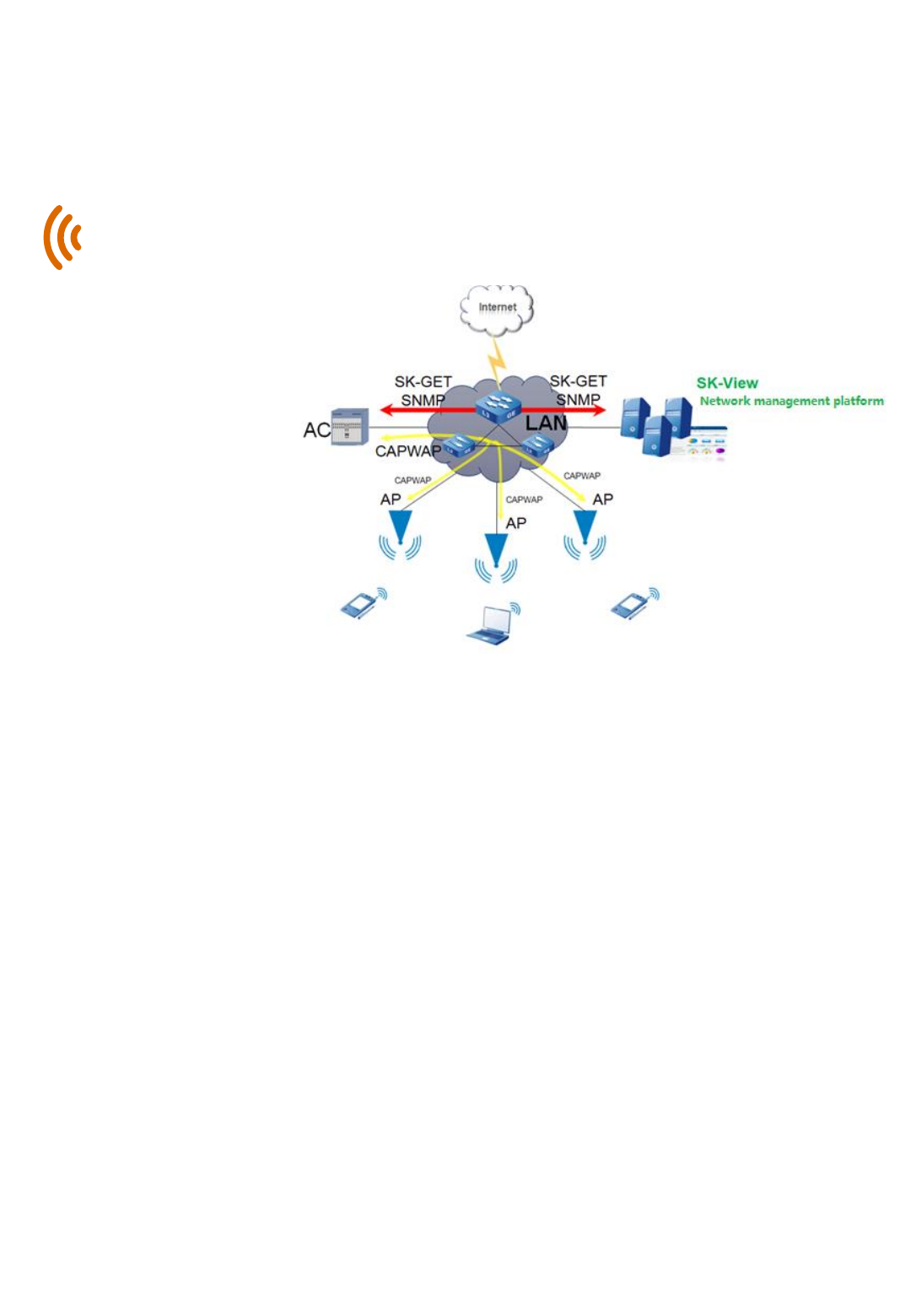

SK-View system deploys network using bypass mode, keeping the original
network structure, and fast completing system deployment and application.
6
SK-VIEW intelligent Wi-Fi operation management platform
Hardware
specifications

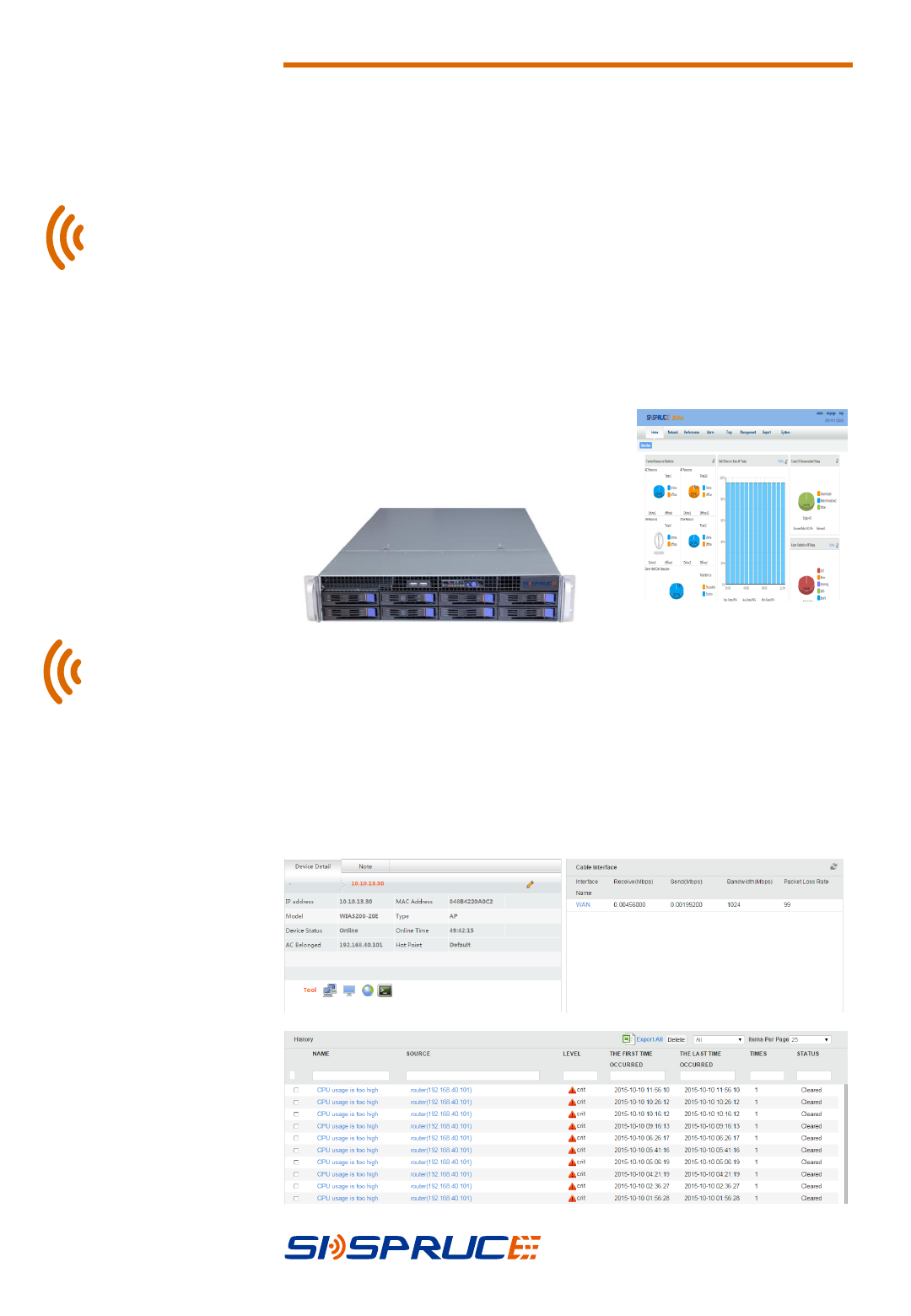

Host SKV4000
System IOS Linux
Hardware
parameter
CPU 2 x 1 x Intel E5-2660 (10Core/2.2 GHz)
RAM 8 x 16GB DDR3
HD System disk: 2 x 500 GB
Data disk: 8*600G
Console 1 x RJ45
MGMT 1 x RJ45(10/100/1000)
DATA 1 x RJ45(10/100/1000)
Power 2 x AC (100 V to 240 V@ 50 Hz -60 Hz
,
650 W）
Dimensions (H x W x
D) 89 mm x 433mm x 655mm x 89mm（
W
x L x H）
Weight ≤25 kg
Working
environment
Working temperature 0℃to 40℃
Working humidity 5% to 85%@40℃
Storage temperature -20℃to +75℃
Storage humidity 5% to 95%
Reliability MTBF ≥200000 hours
6
SK-VIEW intelligent Wi-Fi operation management platform
Software
specifications
Network management
Network overview
Device list
Device details
Device configuration management
Wire interface management
Wireless interface management
Other wire device management
Performance
management
UE resource
AC utilization
AP utilization
AC bandwidth tendency
AP bandwidth tendency
Alarm statistics
User online tendency
AP online tendency
AP out of service rate
Report management
AC/AP/SSID performance report
Daily report
Weekly report
Monthly report
Alarm management
Active alarm
History alarm
Event alarm
Alarm shield
Trap management New Trap
History Trap
User management
Authority task management
Role management
User role and authority management
System management
System status management
Log management
System network configuration
System upgrading
Software
specifications
Product Description
SKV4000
SK-View Hardware platform, SK-View basic software
included (node excluded), one year basic hardware
maintenance and software remote technical support
service included
SK-View-LIC-50 SK-View software license, support 50 AP nodes
SK-View-LIC-200 SK-View software license，support 200 AP nodes
SK-View-LIC-500 SK-View software license，support 500 AP nodes
SK-View-LIC-1000 SK-View software license，support 1000 AP nodes
SK-View-LIC-5000 SK-View software license，support 5000 AP nodes
