SKY WING Communication Electronics SK-BH-M76 Stereo Bluetooth headset User Manual

SKY WING Communication Electronics Co.,Ltd Stereo Bluetooth headset

User Manual

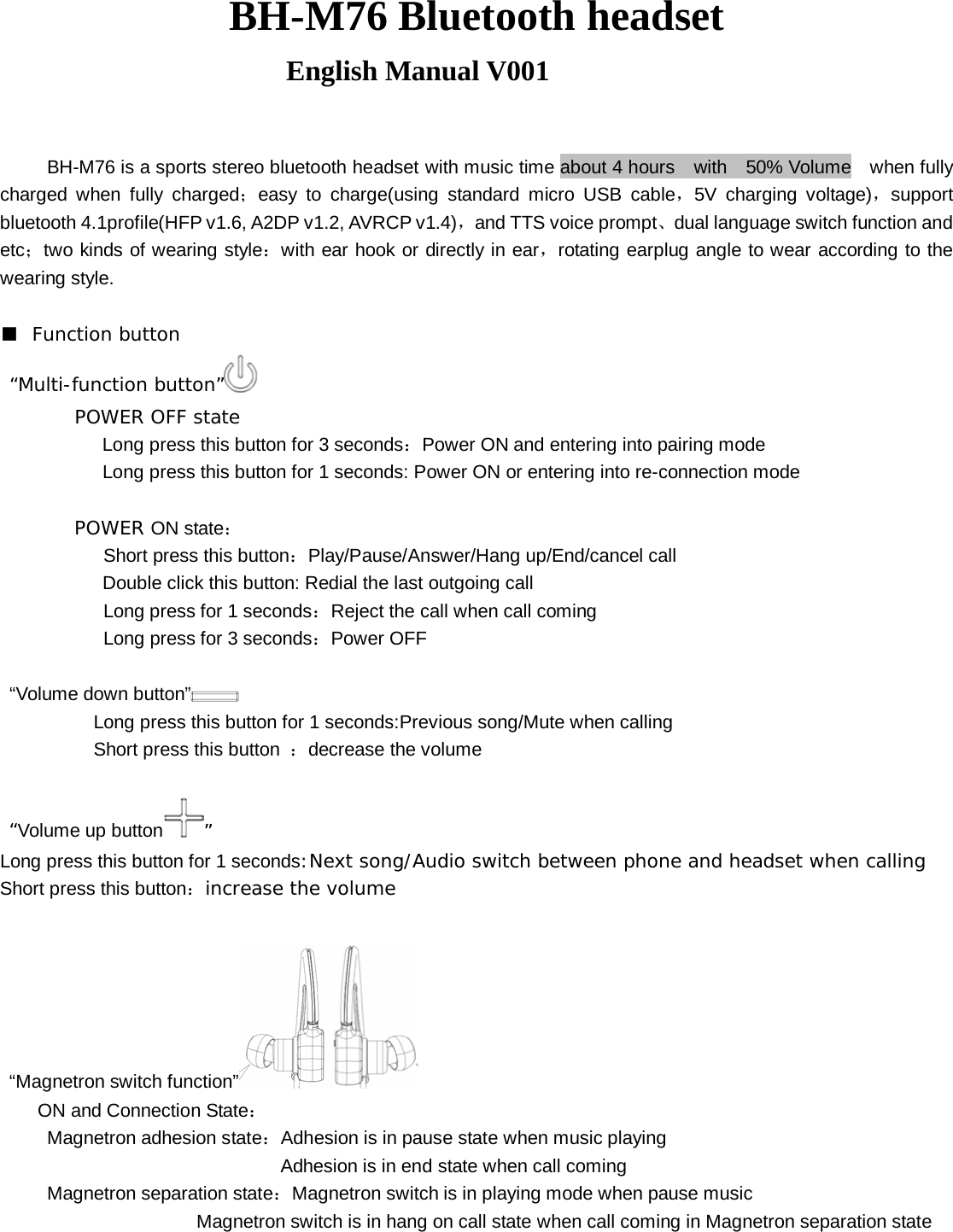

BH-M76 Bluetooth headset English Manual V001 BH-M76 is a sports stereo bluetooth headset with music time about 4 hours with 50% Volume when fully charged when fully charged；easy to charge(using standard micro USB cable，5V charging voltage)，support bluetooth 4.1profile(HFP v1.6, A2DP v1.2, AVRCP v1.4)，and TTS voice prompt、dual language switch function and etc；two kinds of wearing style：with ear hook or directly in ear，rotating earplug angle to wear according to the wearing style. ■ Function button “Multi-function button” POWER OFF state Long press this button for 3 seconds：Power ON and entering into pairing mode Long press this button for 1 seconds: Power ON or entering into re-connection mode POWER ON state： Short press this button：Play/Pause/Answer/Hang up/End/cancel call Double click this button: Redial the last outgoing call Long press for 1 seconds：Reject the call when call coming Long press for 3 seconds：Power OFF “Volume down button” Long press this button for 1 seconds:Previous song/Mute when calling Short press this button ：decrease the volume “Volume up button ” Long press this button for 1 seconds:Next song/Audio switch between phone and headset when calling Short press this button：increase the volume “Magnetron switch function” ON and Connection State： Magnetron adhesion state：Adhesion is in pause state when music playing Adhesion is in end state when call coming Magnetron separation state：Magnetron switch is in playing mode when pause music Magnetron switch is in hang on call state when call coming in Magnetron separation state

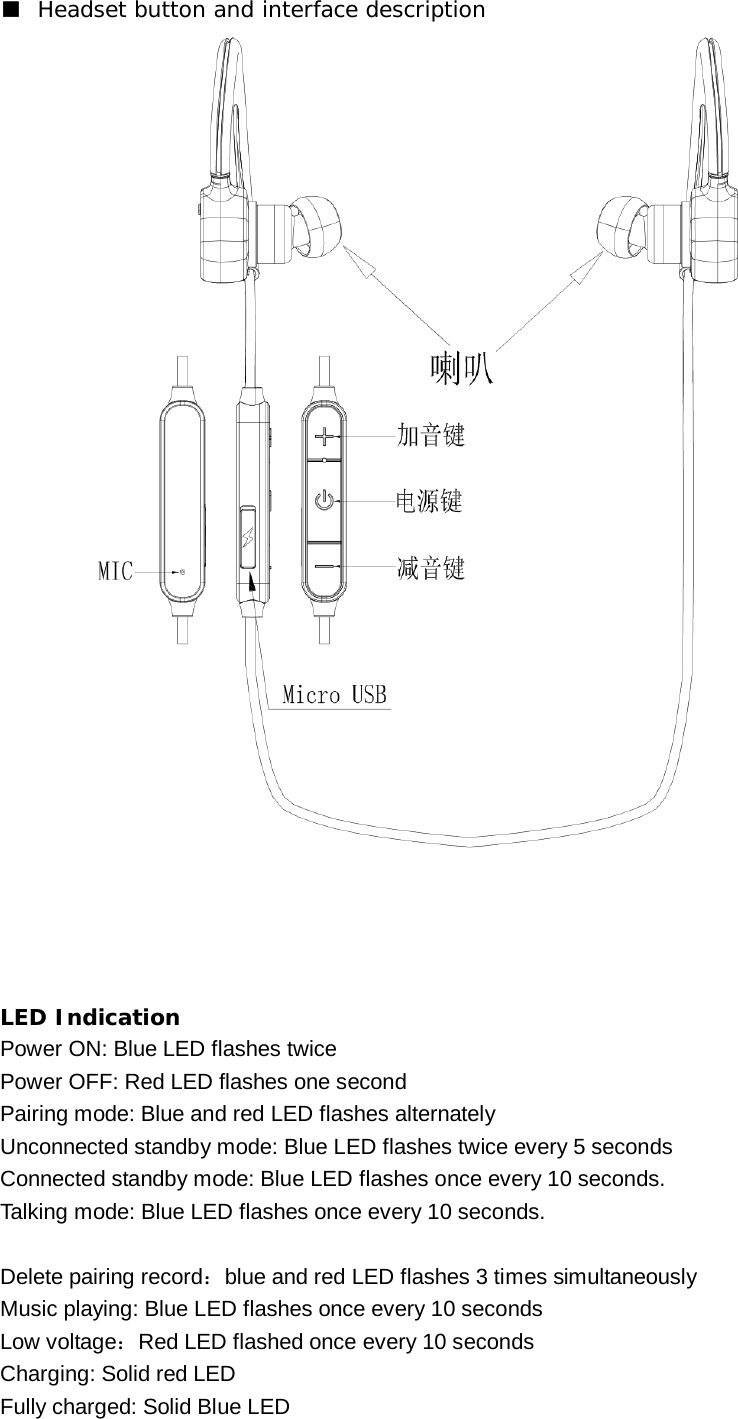

■ Headset button and interface description LED Indication Power ON: Blue LED flashes twice Power OFF: Red LED flashes one second Pairing mode: Blue and red LED flashes alternately Unconnected standby mode: Blue LED flashes twice every 5 seconds Connected standby mode: Blue LED flashes once every 10 seconds. Talking mode: Blue LED flashes once every 10 seconds. Delete pairing record：blue and red LED flashes 3 times simultaneously Music playing: Blue LED flashes once every 10 seconds Low voltage：Red LED flashed once every 10 seconds Charging: Solid red LED Fully charged: Solid Blue LED

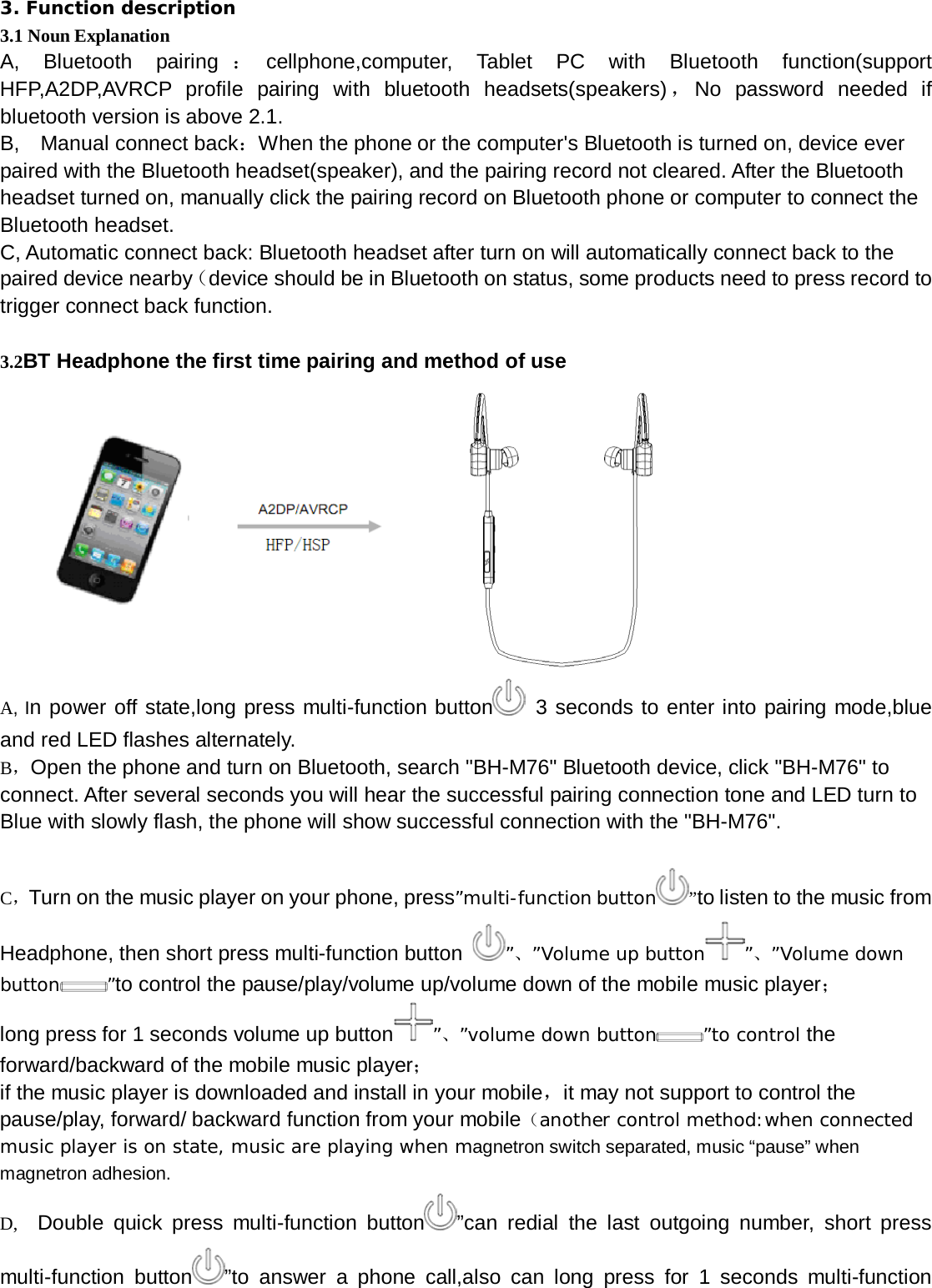

3. Function description 3.1 Noun Explanation A, Bluetooth pairing ：cellphone,computer, Tablet PC with Bluetooth function(support HFP,A2DP,AVRCP profile pairing with bluetooth headsets(speakers) ，No password needed if bluetooth version is above 2.1. B, Manual connect back：When the phone or the computer's Bluetooth is turned on, device ever paired with the Bluetooth headset(speaker), and the pairing record not cleared. After the Bluetooth headset turned on, manually click the pairing record on Bluetooth phone or computer to connect the Bluetooth headset. C, Automatic connect back: Bluetooth headset after turn on will automatically connect back to the paired device nearby（device should be in Bluetooth on status, some products need to press record to trigger connect back function. 3.2BT Headphone the first time pairing and method of use A, In power off state,long press multi-function button 3 seconds to enter into pairing mode,blue and red LED flashes alternately. B，Open the phone and turn on Bluetooth, search "BH-M76" Bluetooth device, click "BH-M76" to connect. After several seconds you will hear the successful pairing connection tone and LED turn to Blue with slowly flash, the phone will show successful connection with the "BH-M76". C，Turn on the music player on your phone, press”multi-function button ”to listen to the music from Headphone, then short press multi-function button ”、”Volume up button ”、”Volume down button ”to control the pause/play/volume up/volume down of the mobile music player； long press for 1 seconds volume up button ”、”volume down button ”to control the forward/backward of the mobile music player； if the music player is downloaded and install in your mobile，it may not support to control the pause/play, forward/ backward function from your mobile（another control method:when connected music player is on state, music are playing when magnetron switch separated, music “pause” when magnetron adhesion. D, Double quick press multi-function button ”can redial the last outgoing number, short press multi-function button ”to answer a phone call,also can long press for 1 seconds multi-function
button ”to reject a phone call,short press multi-function button ”when talking to hang up phone call； another control method:when call comes, magnetron switch separation is “ answer phone call”, magnetron switch adhesion is “hang up phone call” When talking, long press ”volume down button ”for 1 seconds to mute microphone，again long press for 1 seconds to cancel mute；long press ”volume up button ”for 1 seconds to switch the sound between headphone and phone when talking; in standby mode short press”multi-function button ”and ”volume down button to start the phone’s voice dialing function （E, If the mobile phone shows Bluetooth Headphone connected, but there is no sound or double click ”multi-function button ”can’t make a phone call, please turn off your Bluetooth and turn on again on your mobile phone, and click on "BH-M76" pairing connection record, then play music or make a phone call after manual connection is successful. F，In pairing mode or standby mode, long press for 1 seconds ”volume up button ”and ”volume down button ”to switch TTS speech between English and Chinese, next time power on the headphone will go with the after switched language. G，In standby mode short press”volume up button and ”volume down button ”simultaneously to have TTS to inform the remaining battery H，Three-way calling functions:when a new call comes during calling, short press” multi-function button ”to hang up current call and answer the new call;also can double-click” multi-function button ”to keep the current call and answer the new call; once again double-click multi-function button ”to switch talking between the current call and the new call. 3.3 Headset pairing method used again A, Long press ”multi-function button ”for 1 seconds and release, headphone enter into connect back mode, automaticlly connect back to the last connected device after turned on. B, After a successful connection, follow C,D,E operation in 3.2 again to use. C, In standby mode, long press for 3 seconds”multi-function button ”and ”volume up button ”at the same time until blue and red flashes 3 times then release to clear the pairing record in headphone(if in connection mode, it won’t disconnect after clearing the pairing record, after all is cleared, then follow 3.2 operation to use again. 3.4 Other Functions A，Phone connected will display the remaining battery of headphone. B，the Red LED long light when charging and turn to Blue LED long light after charging is completed. C，No connection more then 10 minutes or battery voltage is less than 3.05V, headphone will

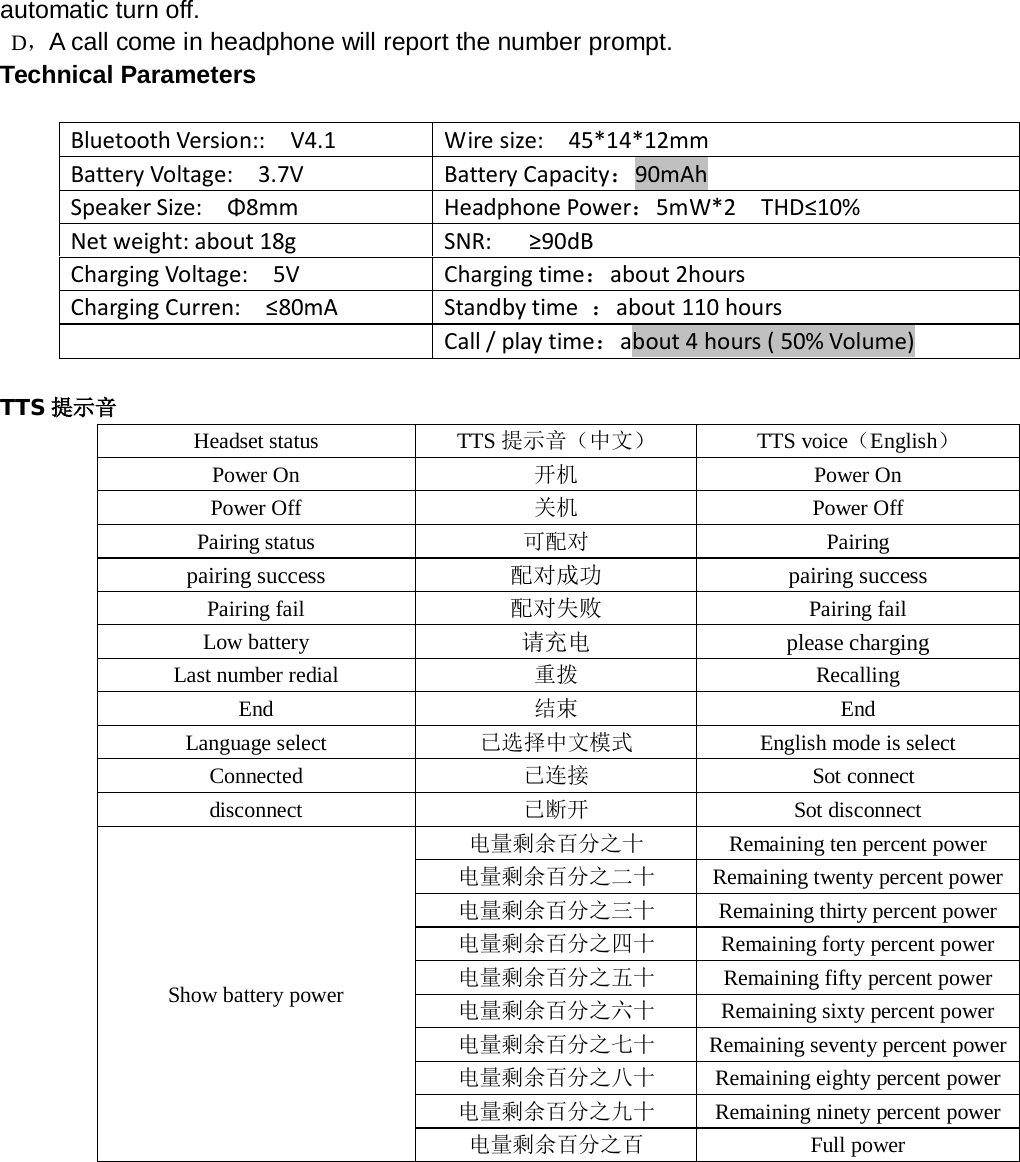

automatic turn off. D，A call come in headphone will report the number prompt. Technical Parameters Bluetooth Version:: V4.1 Wire size: 45*14*12mm Battery Voltage: 3.7V Battery Capacity：90mAh Speaker Size: Φ8mm Headphone Power：5mW*2 THD≤10% Net weight: about 18g SNR: ≥90dB Charging Voltage: 5V Charging time：about 2hours Charging Curren: ≤80mA Standby time ：about 110 hours Call / play time：about 4 hours ( 50% Volume) TTS 提示音 Headset status TTS提示音（中文） TTS voice（English） Power On 开机 Power On Power Off 关机 Power Off Pairing status 可配对 Pairing pairing success 配对成功 pairing success Pairing fail 配对失败 Pairing fail Low battery 请充电 please charging Last number redial 重拨 Recalling End 结束 End Language select 已选择中文模式 English mode is select Connected 已连接 Sot connect disconnect 已断开 Sot disconnect Show battery power 电量剩余百分之十 Remaining ten percent power 电量剩余百分之二十 Remaining twenty percent power 电量剩余百分之三十 Remaining thirty percent power 电量剩余百分之四十 Remaining forty percent power 电量剩余百分之五十 Remaining fifty percent power 电量剩余百分之六十 Remaining sixty percent power 电量剩余百分之七十 Remaining seventy percent power 电量剩余百分之八十 Remaining eighty percent power 电量剩余百分之九十 Remaining ninety percent power 电量剩余百分之百 Full power

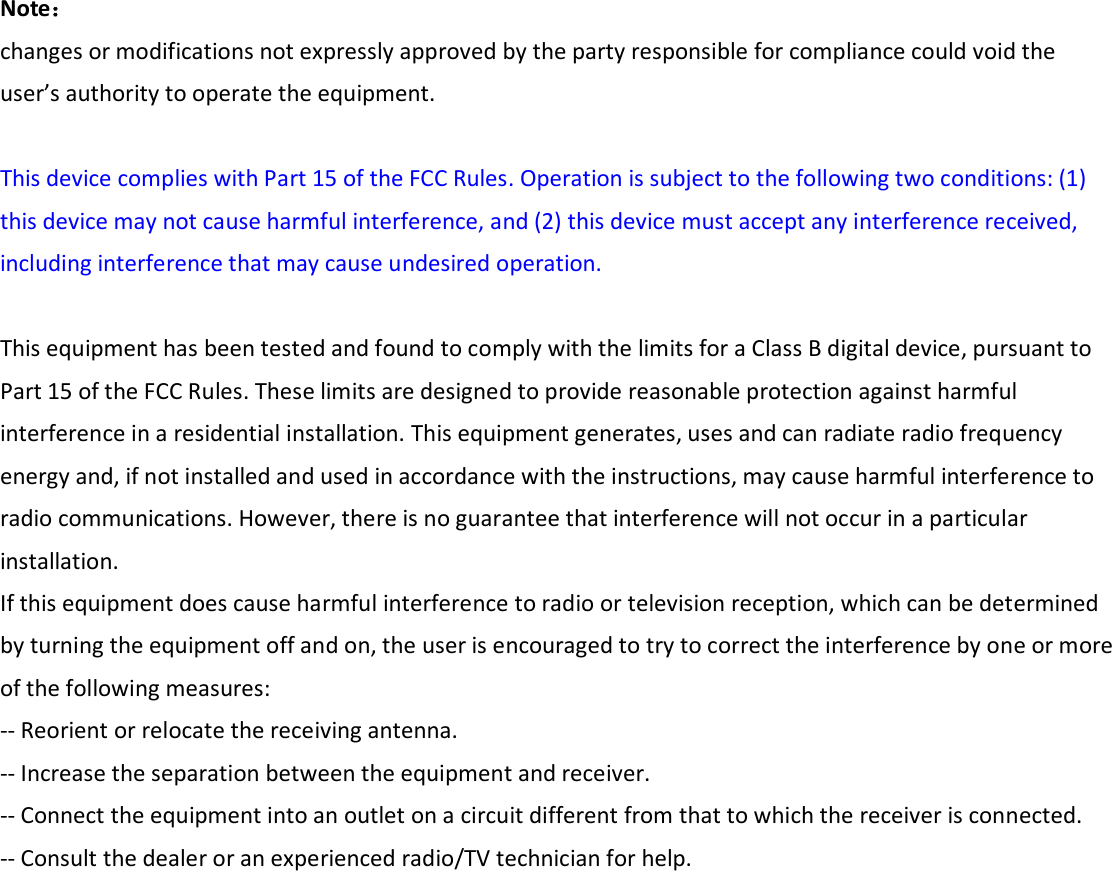

Note： changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
Notice: ●Do not allow children to play this product. ●Do not hit or beat the product. ●Do not forcibly on rotating horn head, in case of avoiding internal circuit is broken ●Please note waterproof, anti-high temperature, using in cold regions will lead to product’s performance degradation. ●Do not place the product into fire. ●Please do not block the network on the speaker. ● Do not disassemble if the speaker broken down. ● For any rust, peeling and other metal surface oxidation of natural phenomena.it’s not under the warranty. Product Warranty Card Buy this product, please fill in this card, and be properly preserved. Product Name: Date of purchase: User name: Phone: User Address: Distribution units: Distribution phone: Distribution Address: Signature:
