SKYPINE ELECTRONICS CNE6322A ALL IN ONE DVD PLAYER User Manual
SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. ALL IN ONE DVD PLAYER
User Manual

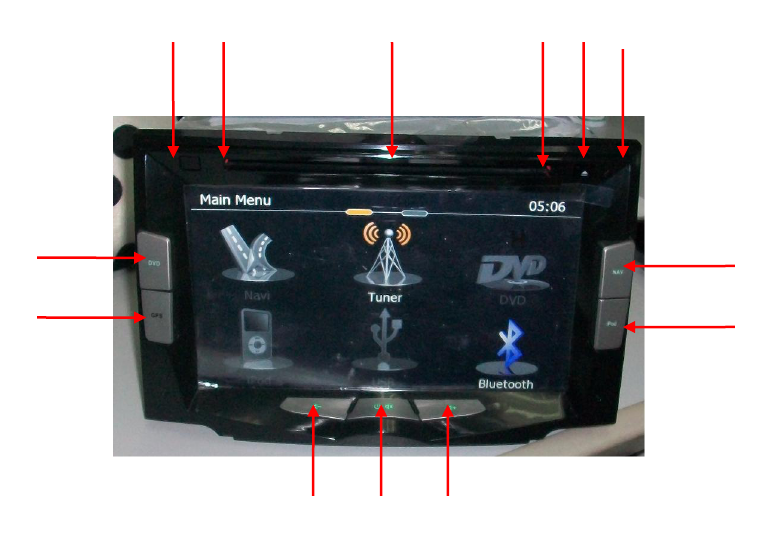

Panel
[1] The window to receive the signal from the remote-control.
[2] The Indicator Light. It will be green when there is a disc in it or red when there
is not any disc.
[3] Disc Slot.
[4]The Eject Button.
[6] Press to select DVD mode.
[7] What below it is the Micro-SD slot and the hole of reset.
[8] Press to switch between Navigation and playback.
[9] Press to select iPod mode.
[10] Press to reduce the volume.
[11] Press to increase the volume.
[12] Long-press it to power off the device and short-press it to get mute.

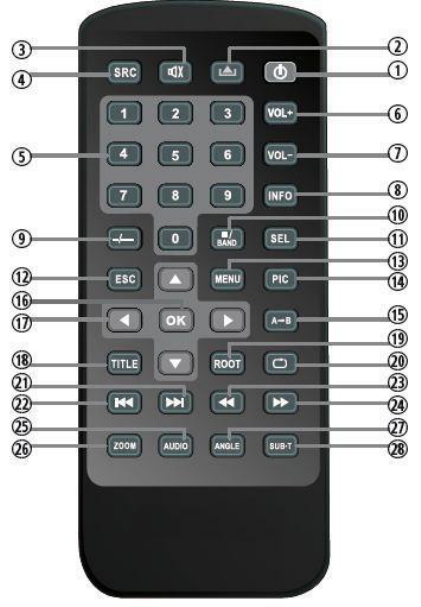

Remote Control Buttons
1
2
2
3
4
5
6
7
8
9
10
11
12
1. POWER -Device ON/OFF
2. EJECT -Eject disc
3. MUTE -Mute/Un-mute audio output
4. SRC -Change sources
5. KEYPAD -Input track/chapter/title
6. VOL (+) -Increase volume
7. VOL (-) -Decrease volume
8. INFO -Show DVD info
9. GOTO -Open numeric onscreen keypad
10. STOP/BAND -Stop DVD/change radio band
11. SEL -Open EQ
12. ESC -Close menu/EQ
13. MENU -Open main menu
14. PIC -No function
15. REPEAT A B -Set start and end point at DVD to repeat
16. OK -Play/Pause; Confirm
17. DIRECTION BUTTONS -Select item; move cursor
18. TITLE -Open DVD Title menu
19. ROOT -Open DVD main menu
20. REPEAT -Repeat track/chapter/title
21. SKIP NEXT -Jump to next track/preset/chapter/title
22. SKIP PREVIOUS -Jump to previous track/preset/chapter/title
23. FAST REVERSE -Fast reverse; 50kHz down at tuner mode
24. FAST FORWARD -Fast forward, 50kHz up at tuner mode
25. AUDIO -Change DVD audio language
26. ZOOM -Zoom in/out
27. ANGLE -Change DVD viewing angle
28. SUB-T -Change DVD subtitle
NOTE:
Some functions may not be available; depending on your chosen mode and type of
media.

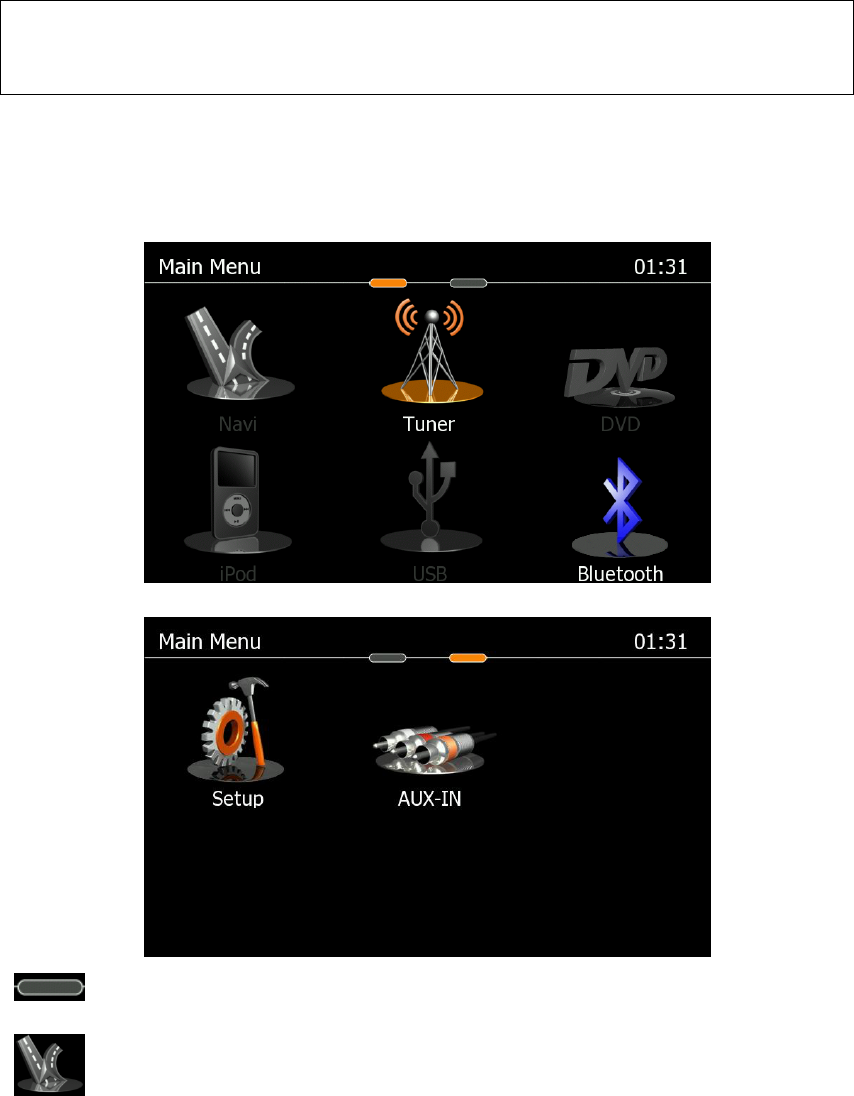

Main Menu

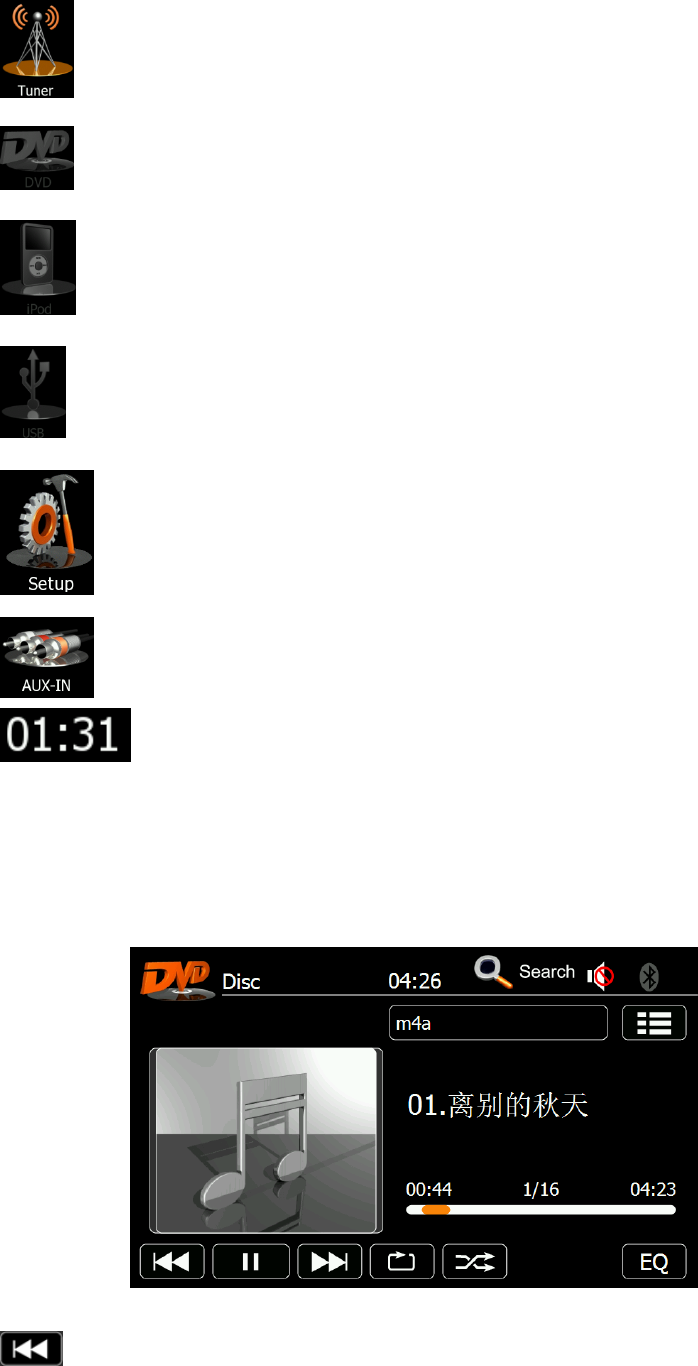

Press to show more source icons
Direct access to Navi when it light.
Direct access toTuner.
Direct access to DVDwhen it light.
Direct access to iPod when it light.
Direct access to USB when it light.
Direct access to Setup.
Direct access to AUX-IN.
System time,Press to Standby.
DVD
Playback page:
Control elements:
Previous track.
Play/Pause.
Next track.
Repeat.
Shuffle.
Switch to EQ page.
Switch to playlist page.
Switch to Search mode.
Display elements:
Source.
System time.
Current folder/playlist.
Album Art.
Progress bar.
Mute status.
Bluetooth status.

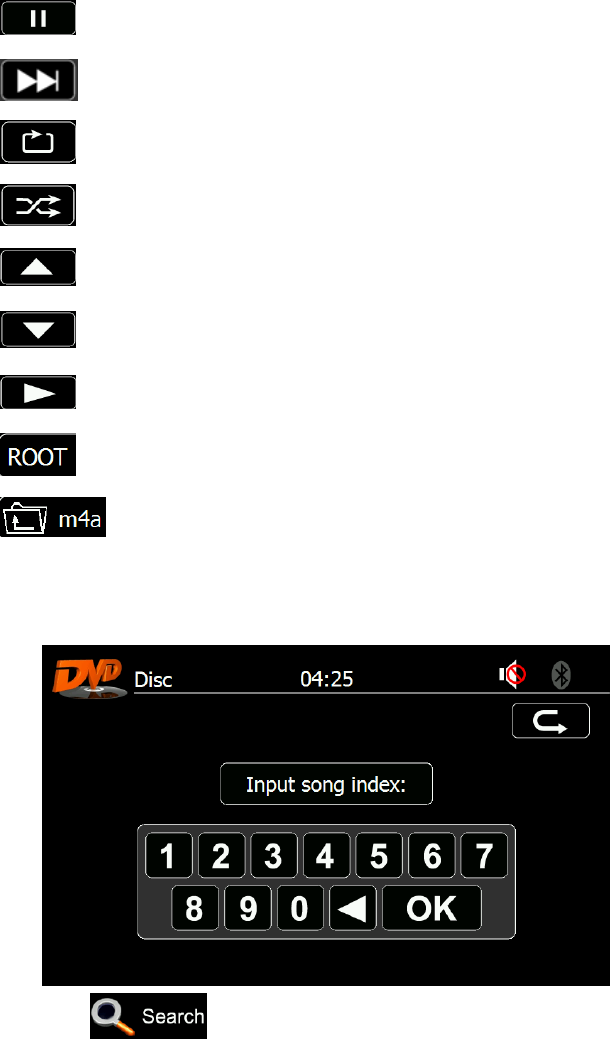

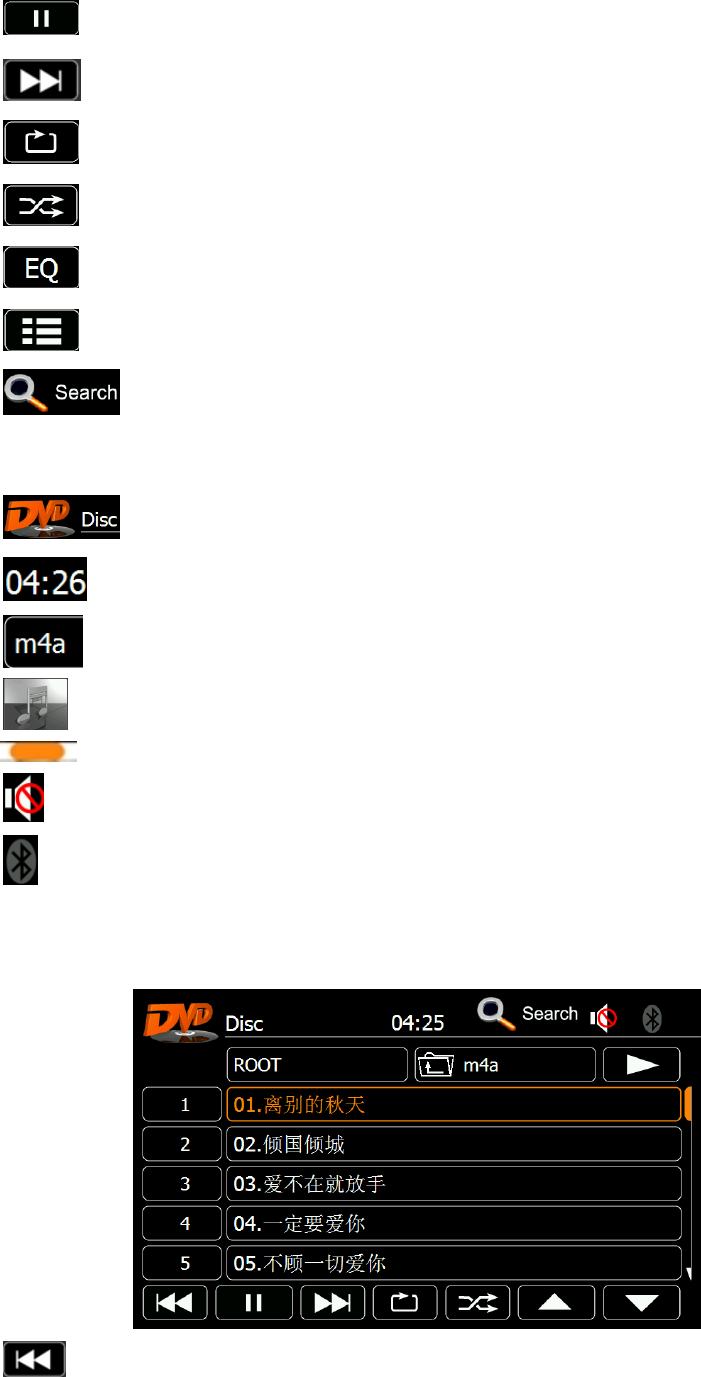

Playlist page Disc:
Previous track.
Play/Pause.
Next track.
Repeat.
Shuffle.
Cursor up
Cursor down.
Switch to playback page.
Go to root directory.
Current folder/playlist up.
Search mode:
Tapping pops up an numeric keyboard, allowing you to enter track
numbers. Numeric search is unique for Disc mode.
DVD Main menu：
Cursor up
Cursor down
Conform selected item

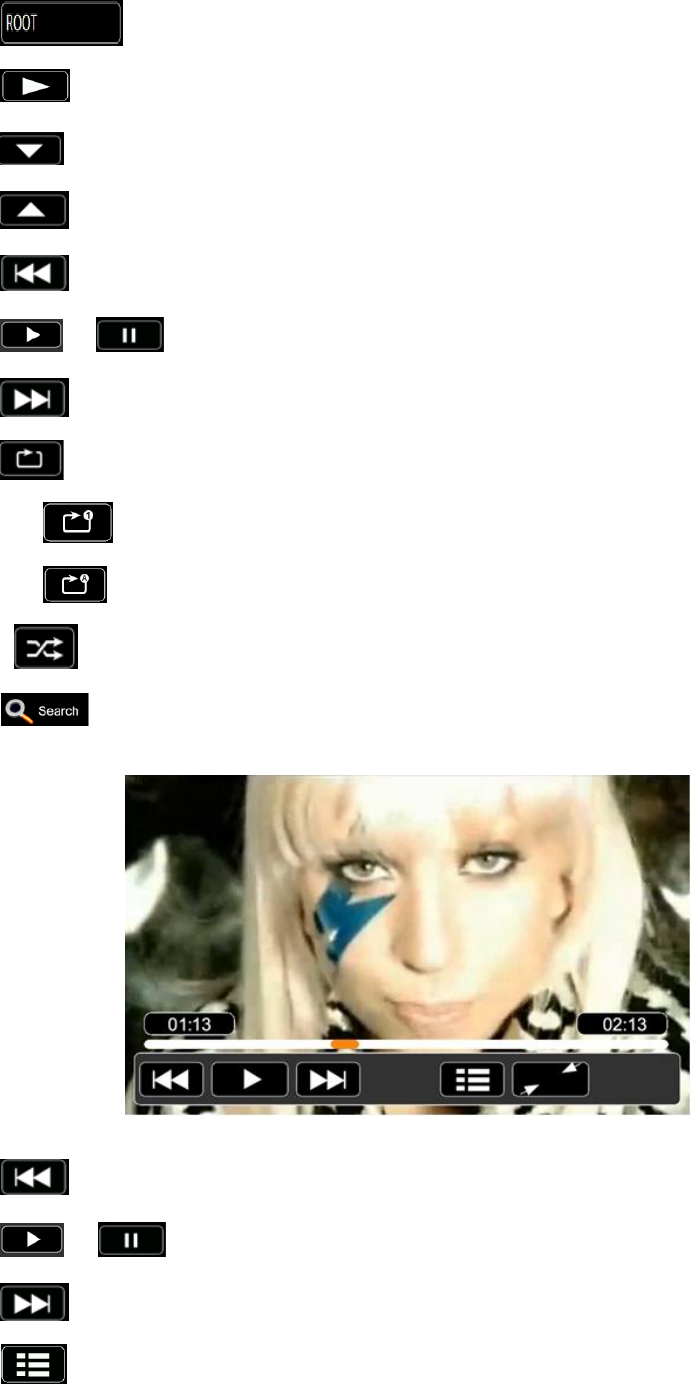

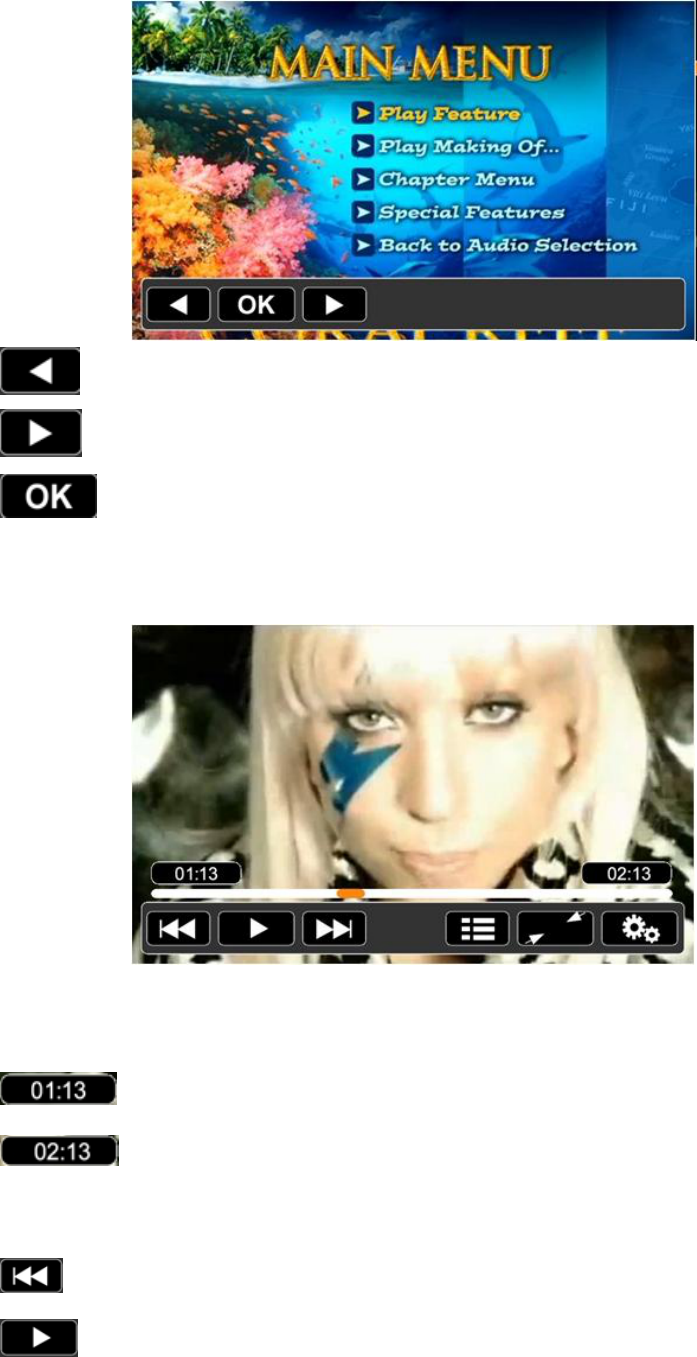

Elements to control playback of video files:
Display elements:
Current temporal position in track
Total duration of track
Control elements:
Previous title/track/chapter/Fast Backward (Long Press)
Play/Pause
Next title/track/chapter Fast forwards (Long Press)
To playlist/root menu of DVD
Full screen mode
DVD settings
Progress Bar
DVD search mode:

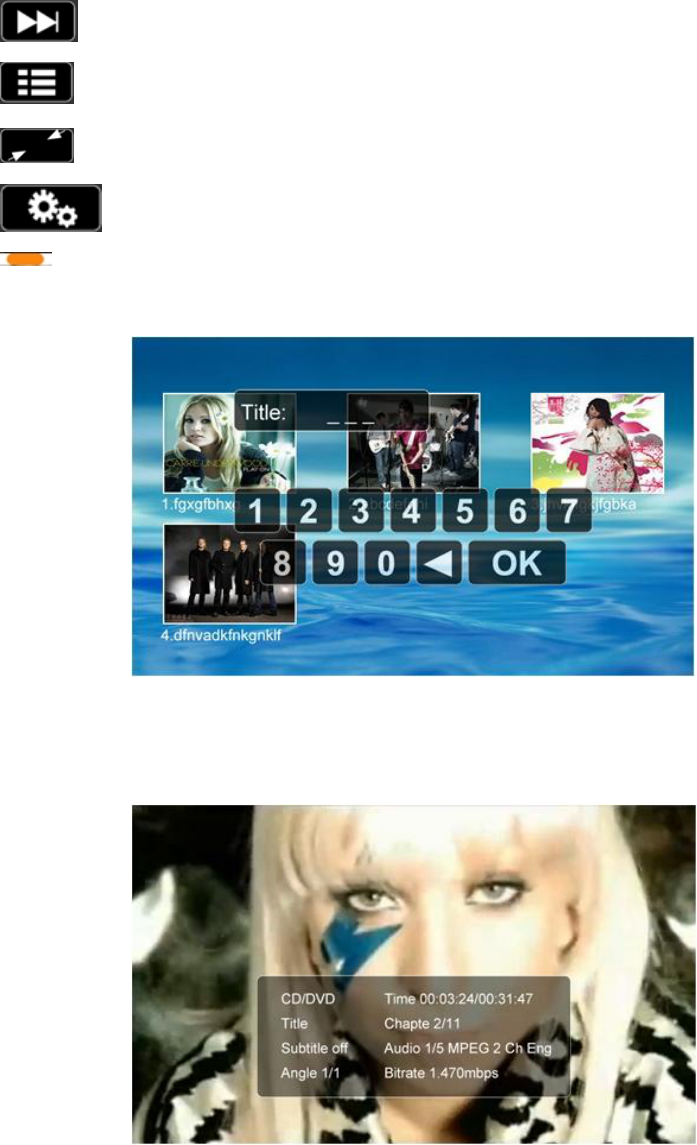

Tapping the Screen when play DVD, pops up an numeric keyboard, allowing you to
enter track numbers.
DVD play inform:
Picture playback screen:
Previous track.
Play/Pause.
Next track.
To playlist menu of DVD.
Full screen mode.
Rotate picture.

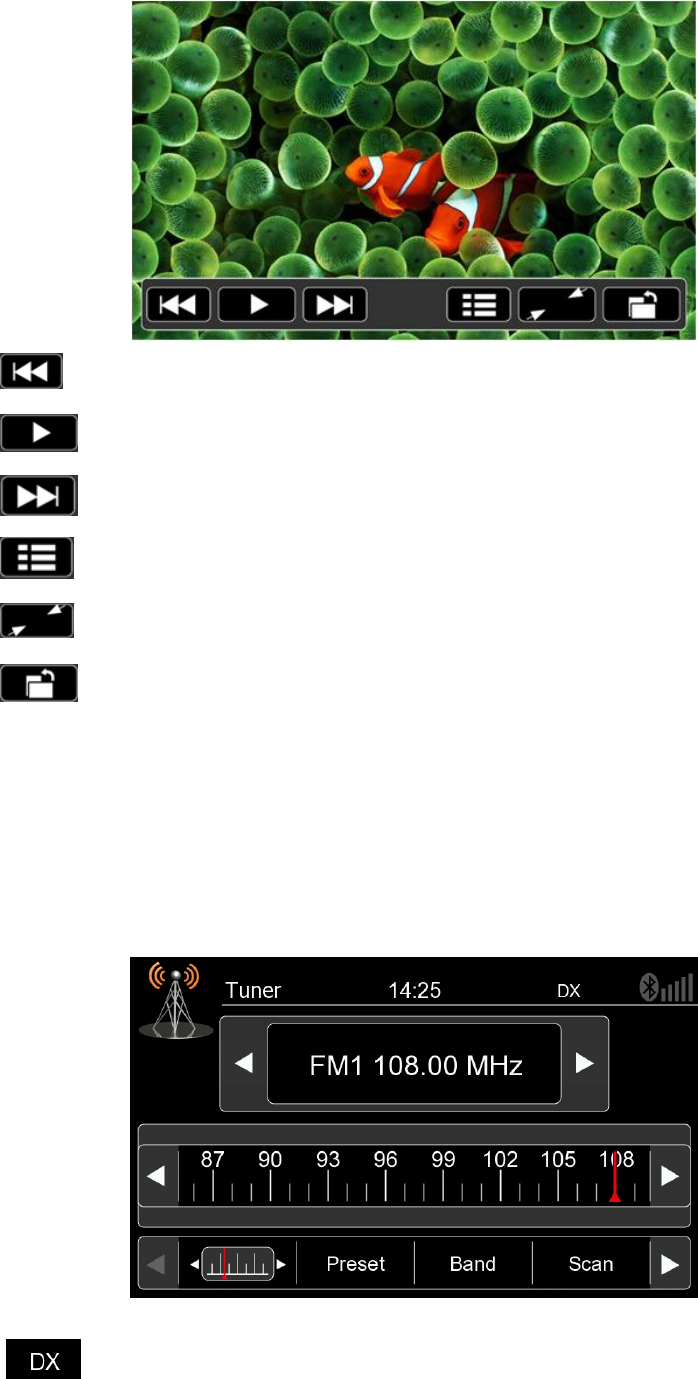

Tuner

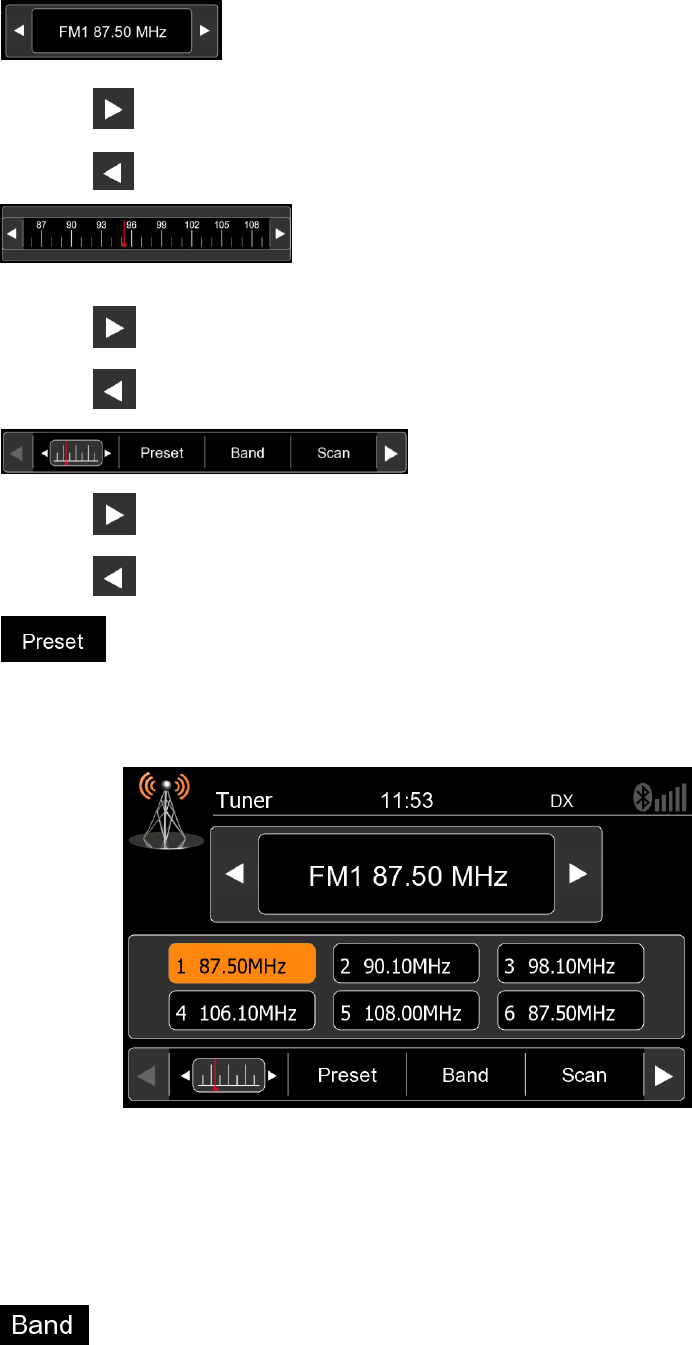

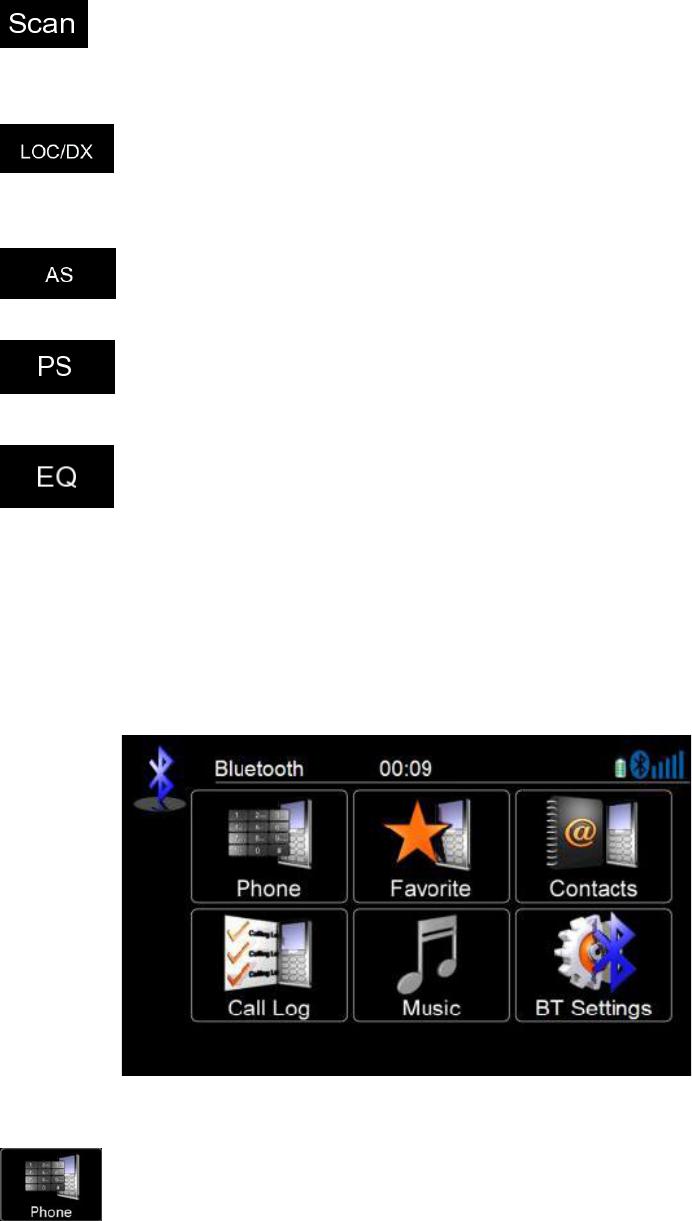

[ ]Loc/DX status;
[ ]Frequency or station name;
Press the [ ] icon to seek down;
Press the [ ] icon to seek up;
[ ]ManualTuning:Red line marks current frequency and
tap to select frequency;
Press the [ ] icon to increase the tuning frequency one step at a time;
Press the [ ] icon to decrease the tuning frequency one step at a time;
[ ]Function area.
Press the [ ] icon to scroll right;
Press the [ ] icon to scroll left;
[ ]Storing a Station;
Prsee it show the picture:
Six numbered preset buttons stored and recall stations for each band.Six stored
stations for the current band appear on the screen,touch the channel directly for
use.You can press the other buttons on the Radio panel to see the other six stations.
How to store a station:
1.Select a band(If needed),then select a station.Example:FM1103.6MHz
2.Touch and Hold for 3 seconds the desired preset number to store Radio station.
[ ]To select a radio band tap on a center button. Touch it on the Radio Panel
FM1,FM2,FM3 and AM1,AM2.
[ ]Touch to activate/deactivate Scan Mode.Intro-scan of all stations in
reception range.You can hear each station for a short moment. Lock to the one you
like by pressing scan again.
[ ] DX and Loc Stations Seeking(LOC).Touch LOC/DX to omit or allow
reception of stations with weak signals.If LOC is activated,it will exclusively finds
trong stations.The status appears on the screen.
[ ] Auto store. Press the icon on the screen to automatically scan and store
all stations in current six band.
[ ] Program Scan. Press the icon on the screen for scan the stations in the
six preset channels in the current band.
[ ] Touch to display EQ setting.
Bluetooth
Bluetooth main menu:
Tap icon to enter certain function.
[] Onscreen keypad
:
[ ]The column to display dialed number.
[ ]First incoming call
[ ]Second incoming call.
[ ]Back to BT Main menu
[ ]Keypad
[ ]Deletes last digit
[ ]Pick up call/Switch to second call
[ ]Hang up active call/Back to first call
[ ]Toggle to shift call between hands free and mobile phone ( privacy
mode )

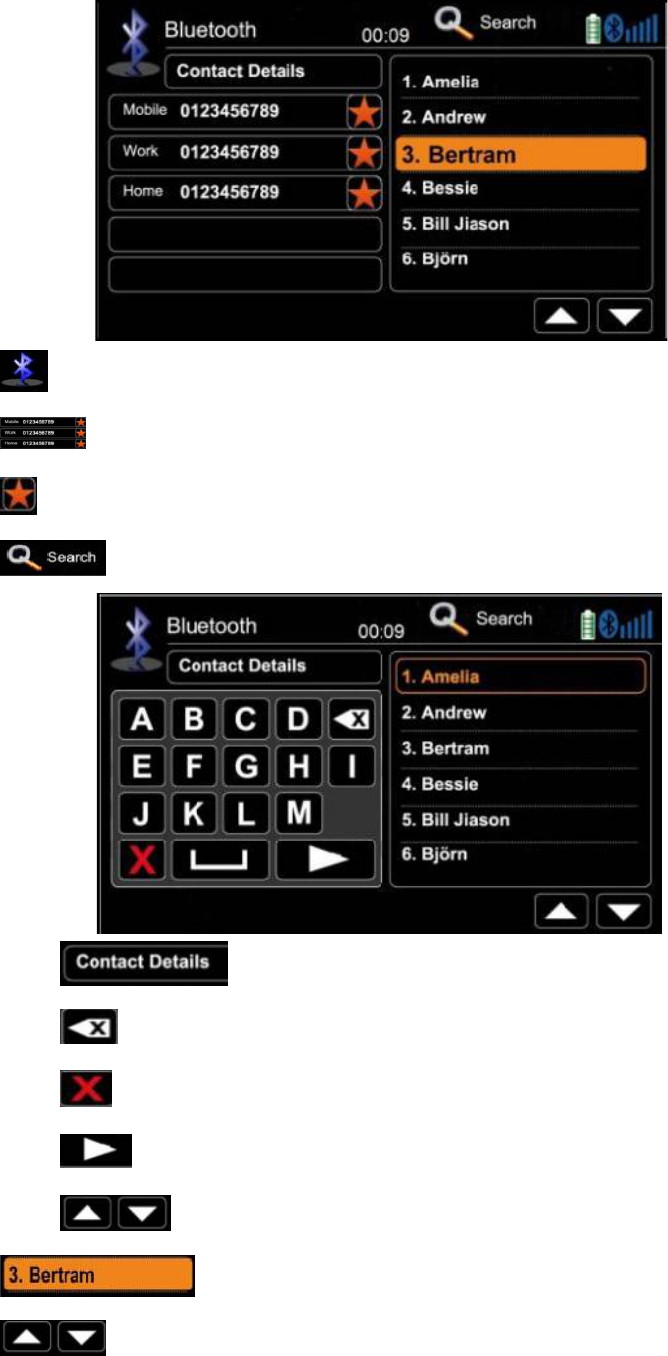

[] Contacts
[ ]Back to BT Main menu
[ ]Tap a contact number to start a call
[ ]Tap on star to save as favorite
[ ]Search
[ ]Display Input
[ ]Tap to delete last character
[ ]Quit keypad
[ ]Switch to next page of keypad
[ ]No function, when keypad is active
[ ]Choose contact name from list
[ ]Browse contact list up/down

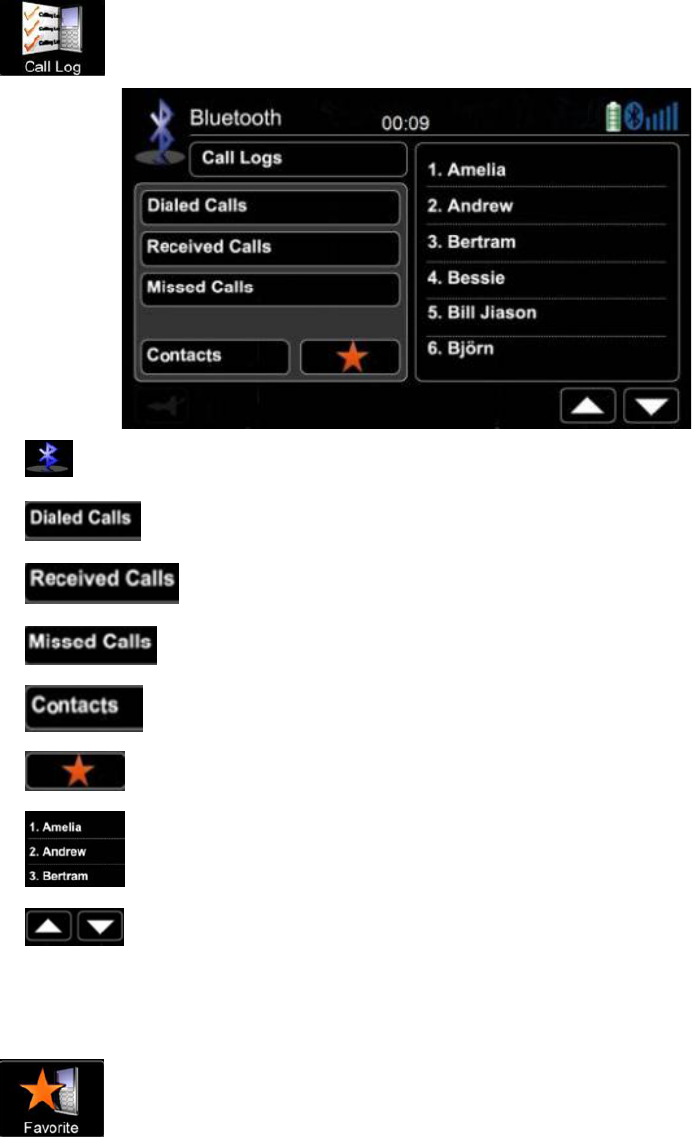

[ ]Call Log
[ ]Back to BT Main menu
[ ]Tap to display outgoing call list
[ ]Tap to display incoming call list
[ ]Tap to display missed call list
[ ]Go to contacts page
[ ]Go to favorites page
[ ]Tap on entry to call
[ ]Page up/down
NOTE:
If it’s the first time you use it,it will load informaintion from your cell phone.

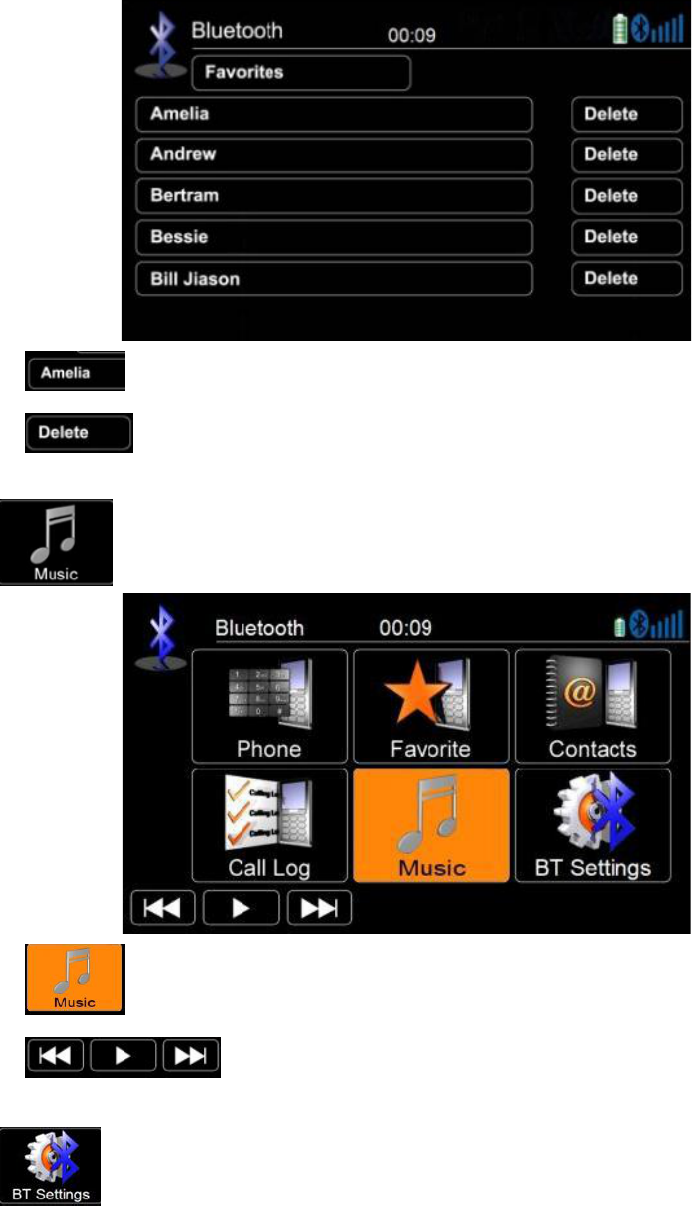

[] Favourites
[ ]Tap any name to call favourite
[ ]Delete favourite
[] A2DP (de-)activation:
[ ]A2DP On/Off (highlighted=ON)
[ ]Control Playback

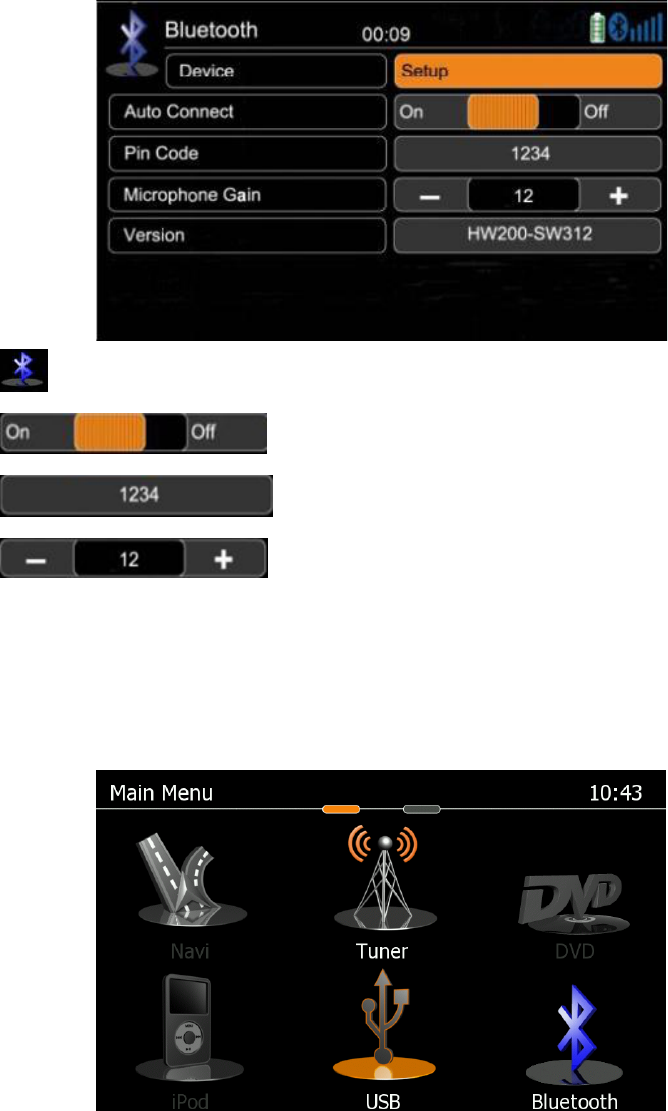

[ ] Bluetooth Settings

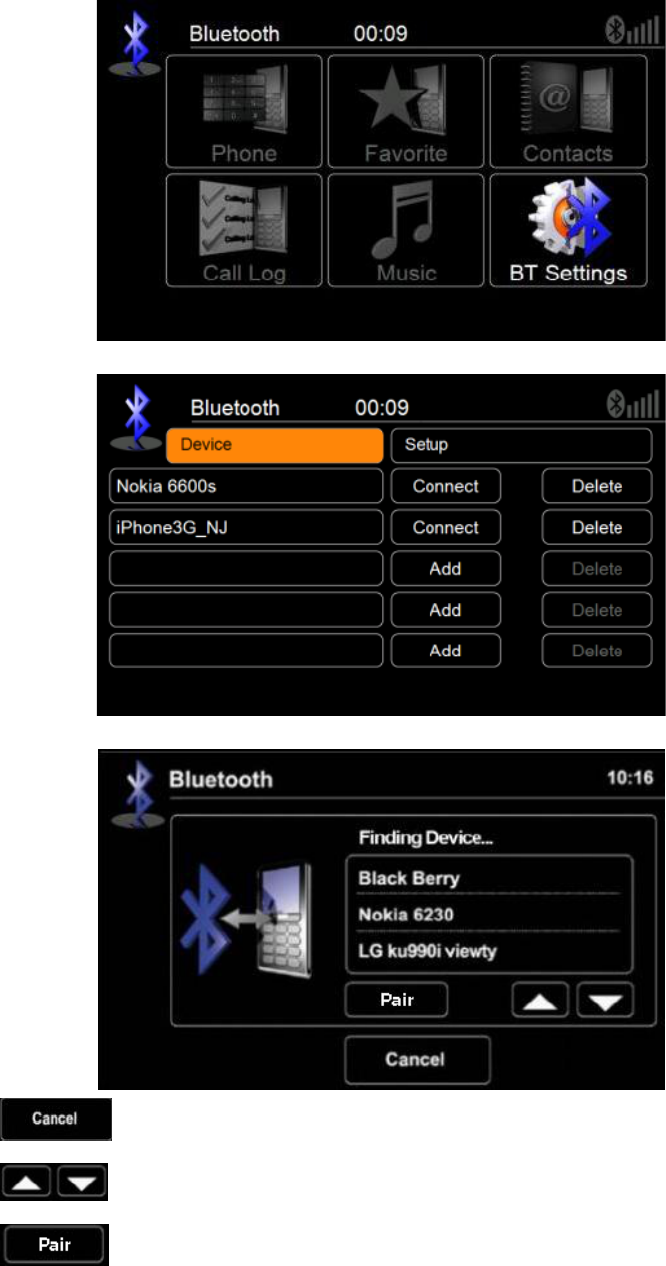

Function One: Pairing a mobile phone:
○
1 Enter BT settings > Device
○
2 Tap on “Add” to trigger a search for BT devices
○
3 Choose your mobile phone from the list or retry searching. Press “Add”.
[ ]Back to BT settings
[ ]Browse list (up/down)
[ ]Tap to input PIN for pairing
○

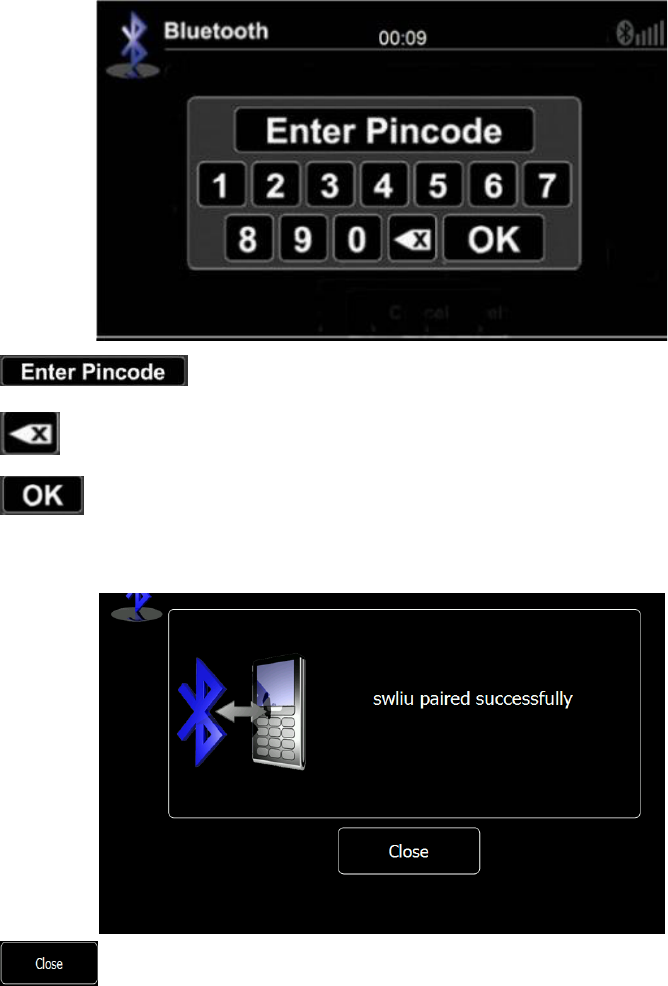

4 Enter pin code and tap OK or retry.
[ ]Pin code
[ ]Deletes the last digit
[ ]Acknowledge pin code and continue
○
5 Upon request enter identical pin code on your mobile and acknowledge.You should
now get a screen saying "Device successfully paired".
[ ]Tap it to back to the BT main menu.
Fuction Two: Setup
[ ]Back to BT Main menu
[]To set “Auto Connect” ON or OFF.
[ ]Tap to change the pin code
[ ]Tap +/-to adjust microphone gain
USB
1.Accessing USB mode:
Touch the USB icon on the TFT monitor.

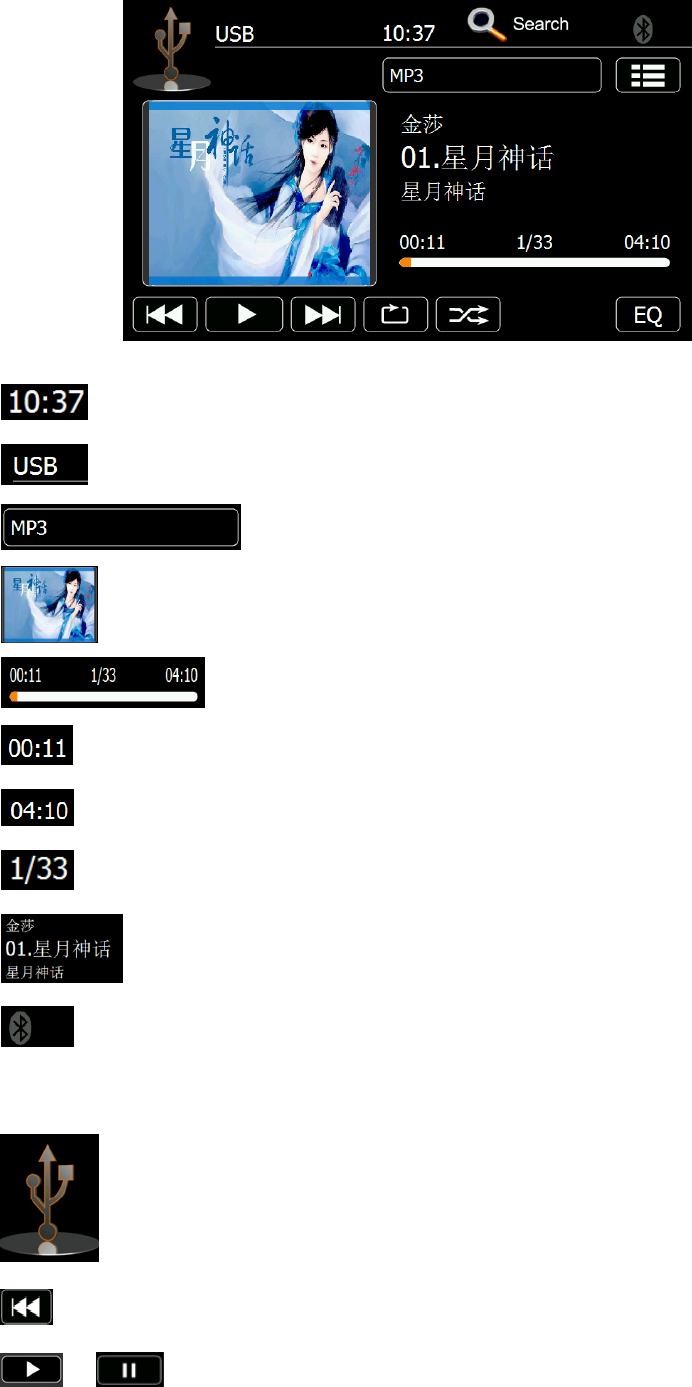

2. Playback page of USB Audio:
(1) Display elements:
[ ]:Current time.
[ ]:Current Source.
[ ]:Current folder/playlist.
[ ]:Album Art.
[ ]:Progress bar.
[]:Current temporal position in track.
[]:Total duration of track.
[ ]:Track index.
[ ]:ID3 tag information.(Note: Depends on the Disc your playing.)
[ ]:BT icon.
(2) Control elements:
[ ]:Return to the Main Menu by press the icon.
[]:Previous track.
[ ]or[]:Play/Pause.
[]:Next track.
[ ]:Repeat folder .Switch between [ ] and [ ] by press the icon.
(Note:[ ]:Repeat track.)
[ ]:Touch to Random play.
[]:Touch to go to Equalizer(EQ) setting.
[ ]:Touch to view track list page.

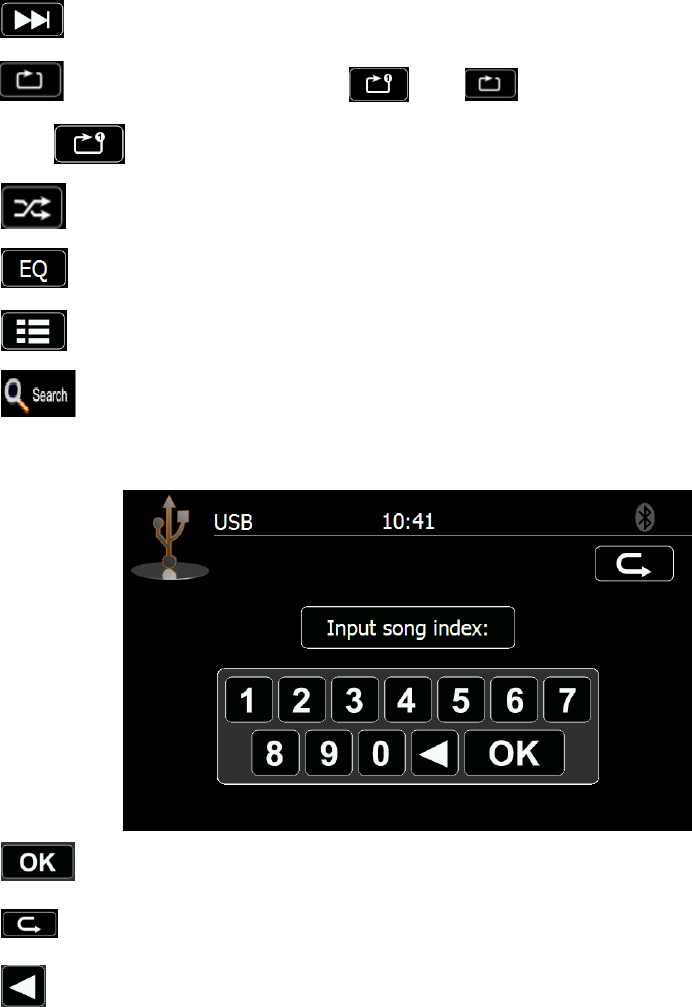

[ ]:Touch to display the numeric keypad on the screen and then use the
numeric keypad to access a track directly.
3. Search function:
[]:Enter track numbers, then press the icon to start searching.
[ ]:Return to playback page by press the icon.
[ ]:Clear.

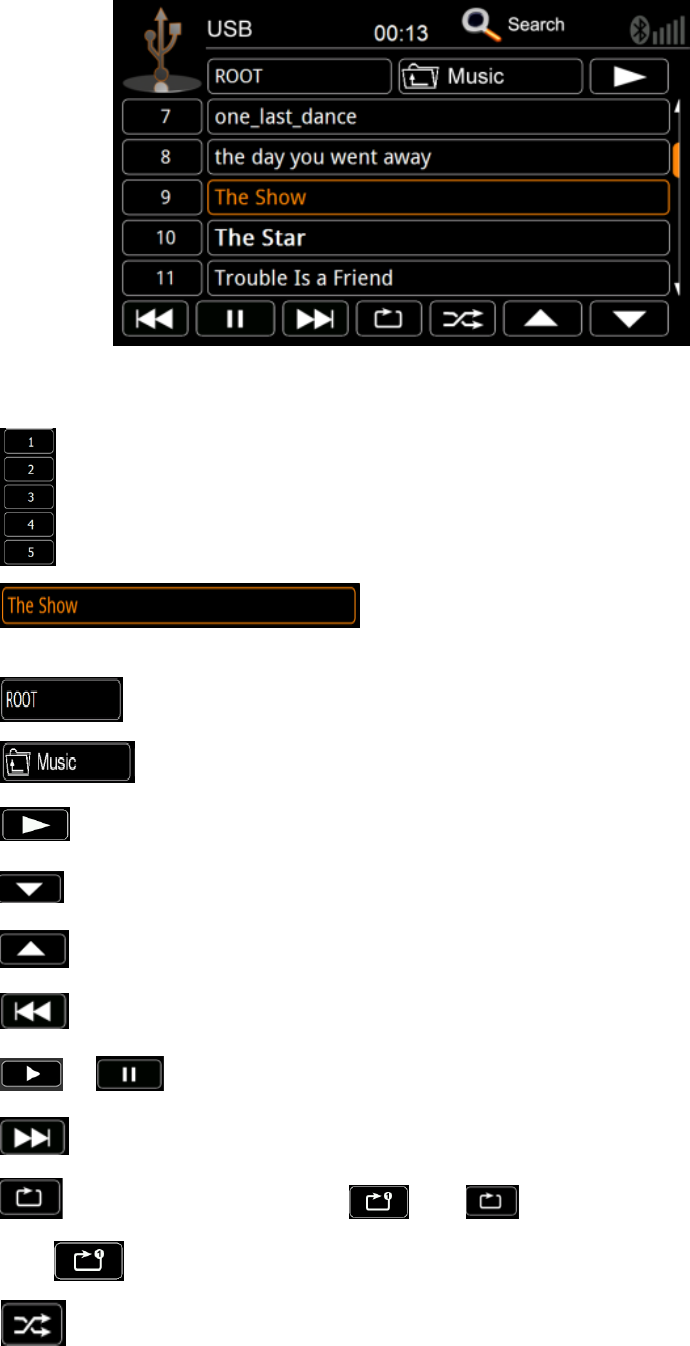

4.Playlist page of USB Audio/Picture/Video:
(1) Display elements:
[ ]:Track index.
[ ]: Track/folder/playlist. Touch to select a song.
(2) Control elements:
[ ]: Touch to view Root Display.
[ ]: Folder up (Note: Current folder is Music).
[ ]: Switch to playback page.
[ ]: Cursor down.
[ ]: Cursor up.
[ ]: Previous track.
[ ]or[]:Play/Pause.
[]:Next track.
[ ]:Repeat folder .Switch between [ ] and [ ] by press the icon.
(Note:[ ]:Repeat track.)
[ ]:Touch to Random play.
[ ]:Press to access USB Audio search function.
5. Playback page of USB Picture:
[]:Previous picture.
[ ]or[]:Play/Pause.
[]:Next picture.
[ ]:Touch to view picture list page.
[ ]:Touch to hide the locker bar.
[ ]:Touch to revolve the picture.

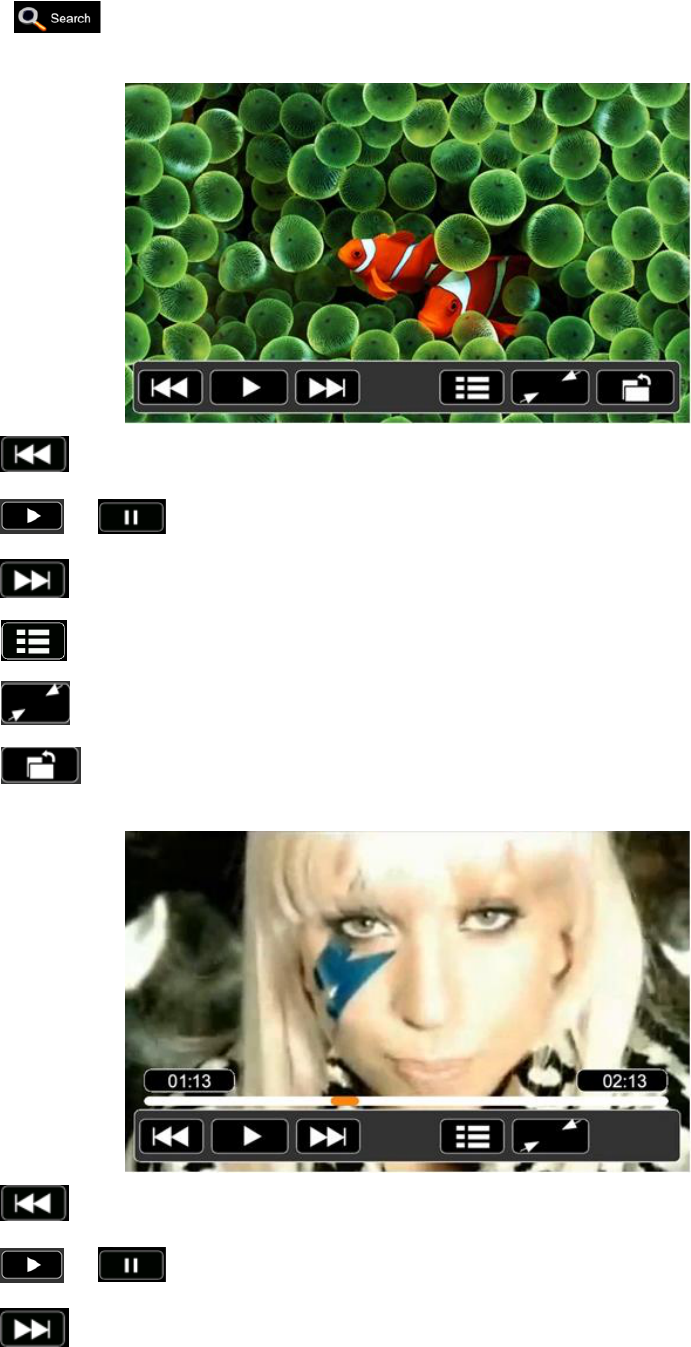

5. Playback page of USB Video:
[]:Previous video.
[ ]or[]:Play/Pause.
[]:Next video.
[ ]:Touch to view picture list page.
[ ]:Touch to hide the locker bar.
[ ]:Progress bar.
[]:Current temporal position in track.
[]:Total duration of track.
IPOD
1. Accessing IPOD mode:
Touch the IPOD icon on the TFT monitor.

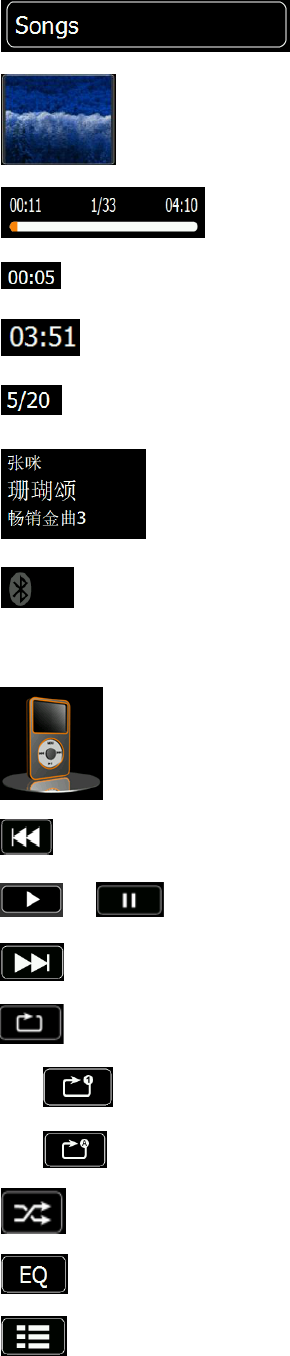

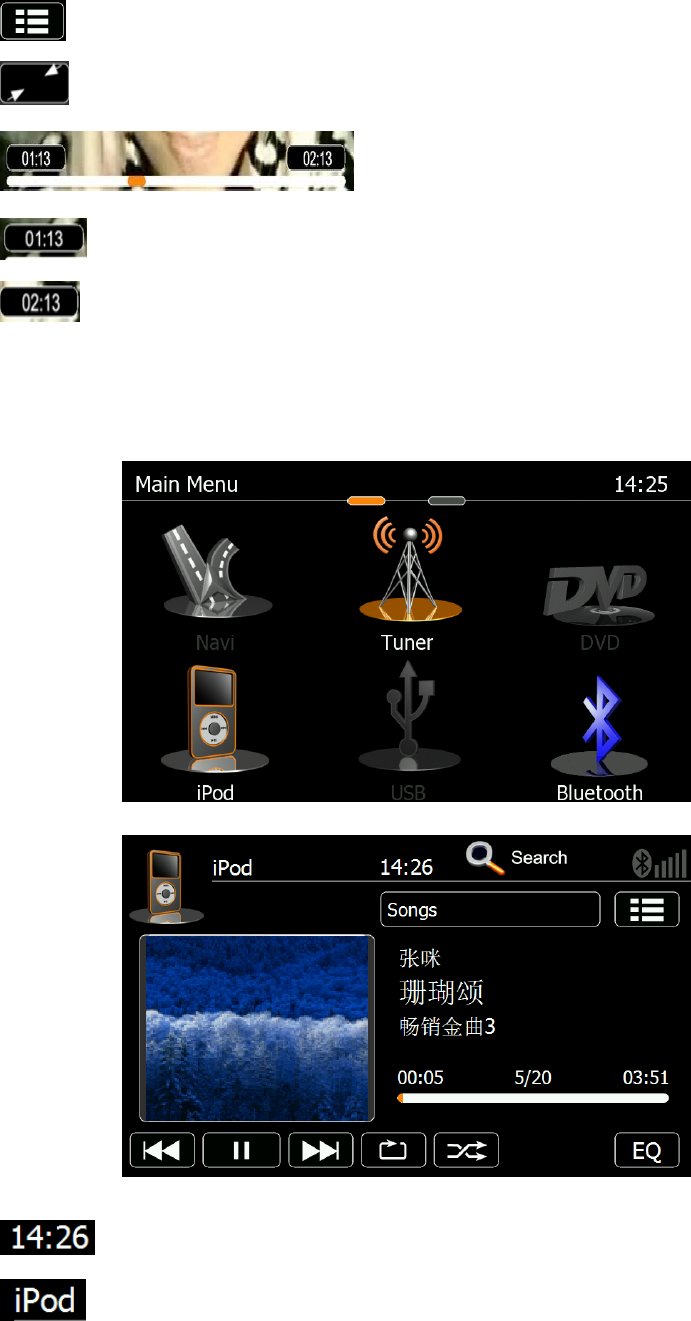

2. Playback page of IPOD AUDIO:
(1) Display elements:
[ ]:Current time.
[ ]:Current Source.
[ ]:Current folder/playlist.
[ ]:Album Art.
[ ]:Progress bar.
[]:Current temporal position in track.
[]:Total duration of track.
[ ]:Track index.
[ ]:ID3 tag information.(Note: Depends on the Disc your playing.)
[ ]:BT icon.
(2) Control elements:
[ ]:Return to the Main Menu by press the icon.
[]:Previous track.
[ ]or[]:Play/Pause.
[]:Next track.
[ ]:Repeat folder .
[]:Repeat track.
[]:Repeat all track.
[ ]:Touch to Random play.
[]:Touch to go to Equalizer(EQ) setting.
[ ]:Touch to view track list page.

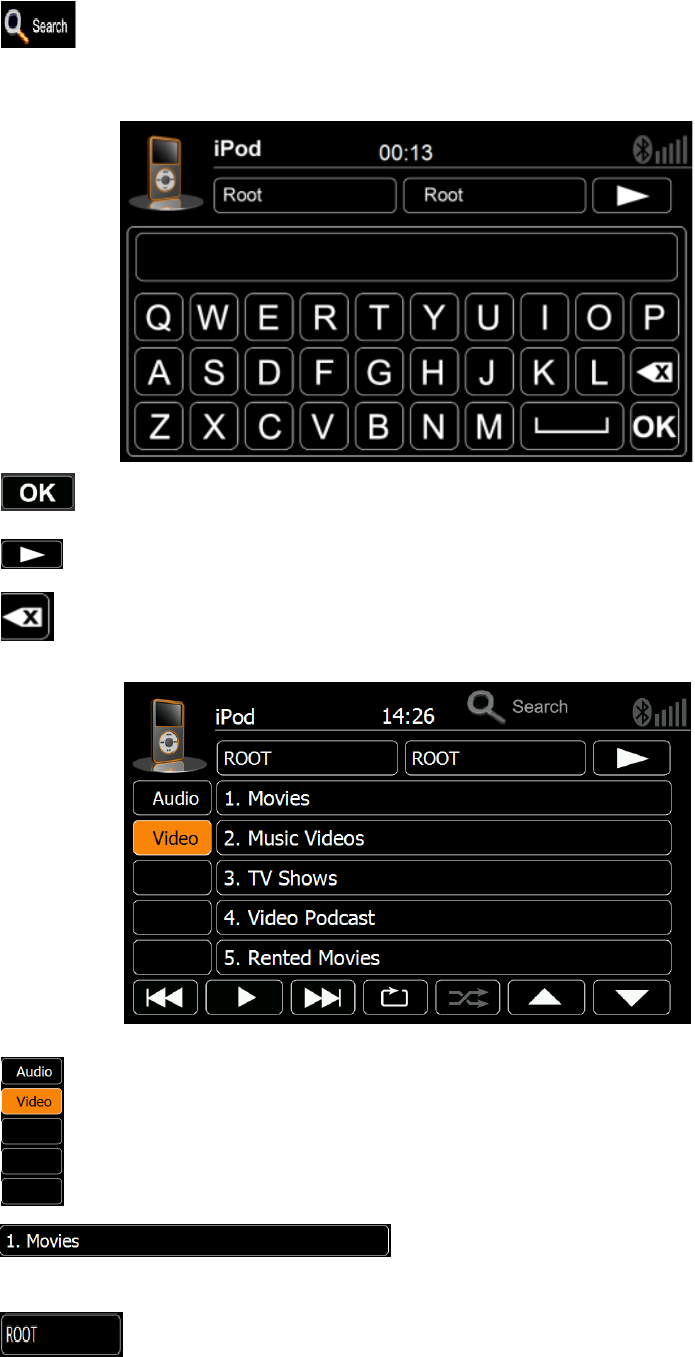

[]:Tapping on Search pops up an alphabetic keyboard ,allowing you to enter
an initial letter. Alphabetic search is unique for iPod mode.
3. Search function:
[]:Enter an initial letter, then press the icon to start searching.
[ ]:Return to playback page by press the icon.
[ ]:Clear.
4. Playlist page of IPOD Audio /Video:
(2) Control elements:
[ ]:For playlist of Video/Audio on iPod press the icon..
[ ]: Track/folder/playlist. Touch to select a
video/audio.
[]:Touch to view Root Display.
[]:.Folder up (Note: Current folder is Root).
[ ]:Switch to playback page.
[ ]:Cursor down.
[ ]:Cursor up.
[]:Previous track.
[ ]or[]:Play/Pause.
[]:Next track.
[ ]:Repeat folder .
[]:Repeat track.
[]:Repeat all track.
[ ]:Touch to Random play.
[ ]:Press to access IPOD Audio search function.
5. Playback page of IPOD Video:
NOTE: Please make sure the iPod video out is ON.
[]:Previous video.
[ ]or[]:Play/Pause.
[ ]: Next video.
[ ]:Touch to view picture list page.
[ ]:Touch to hide the locker bar.
[ ]:Progress bar.
[]:Current temporal position in track.
[]:Total duration of track.

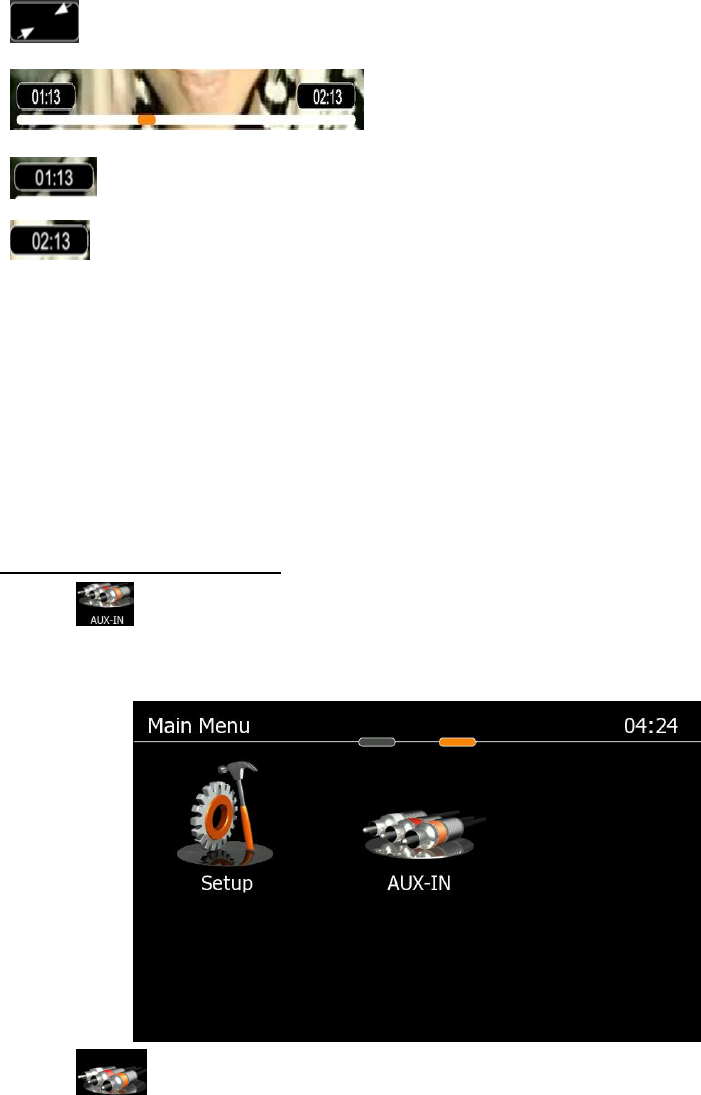

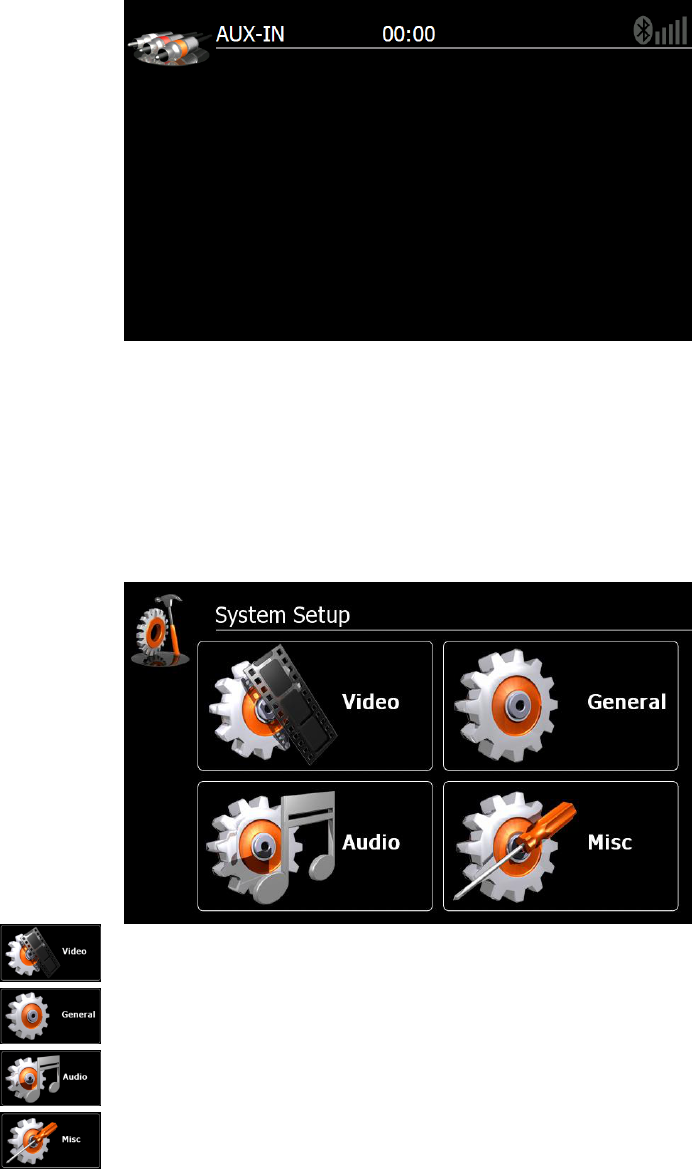

AUXIN
External peripheral devices, including a game console, camcorder, navigation unit,
iPod/iPhone, etc. can be connected to the AUX-IN connector on the front or back of
this unit using the A/V media cables.
Switching to AUX-IN mode
Touch [] button on Main Menu to select desired mode (when unit is reading).
If the external device connected to AUX-IN input have audio signal, the unit will
broadcast audio of external device.
Touch [ ] area to return to the Main Menu.
*You cannot directly control external devices connected to AUX-IN input.
Setup
Main setup screen:
[ ]See chapter Setup Video.
[ ]See chapter Setup General.
[ ]See chapter Setup Audio.
[ ]See chapter Setup Misc.
Setup:Video—TV Shape
Animated picture visualizes TV shape settings.
Name
Descriptor
Function
Choice/Range
TV Shape
Video display
setting
Change Screen size
Normal
Cinema
Setup:Video—Picture
Animated picture visualizes your settingduring adjusting TFT screen brightness.
Day-/Night TFT screen brightness iscontrolled by GPS time signal.
Name
Descriptor
Function
Choice/Range
TFT Brightness
control
Brightness Day
0...20
Brightness Night
0...20

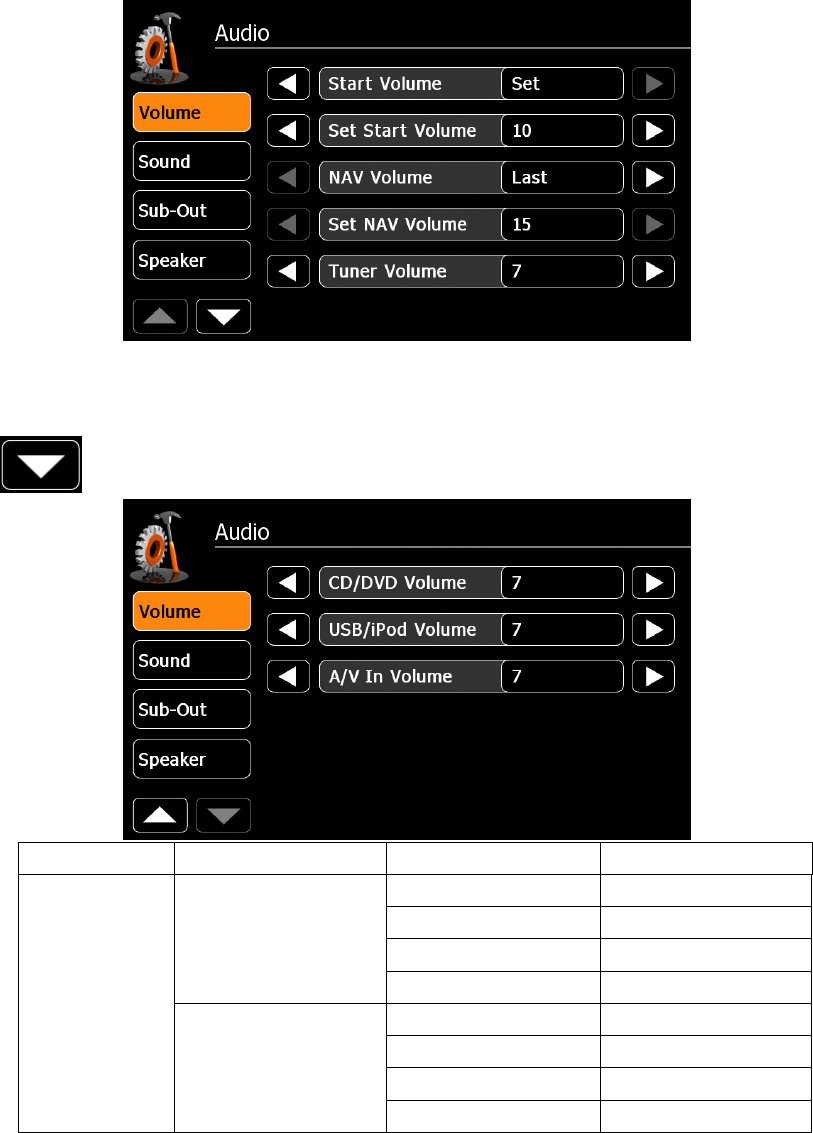

Setup:Audio—Volume
Audio mixer:
Choose "Last" to adjust to last volume.
Choose "Set" to adjust to an arbitrary value.
[ ]Level adjustments for sources:Adjust volume relative to other sources.
Name
Descriptor
Function
Choice/Range
Volume
Audio Mixer
Start Volume
Last,Set
Set Start Volume
0...40
NAV Volume
Last,Set
Set NAV Volume
10...40
Level
Adjustment of
sources
Tuner Volume
Rel.0...14
CD/DVD Volume
Rel.0...14
USB/iPod Volume
Rel.0...14
A/V In Volume
Rel.0...14

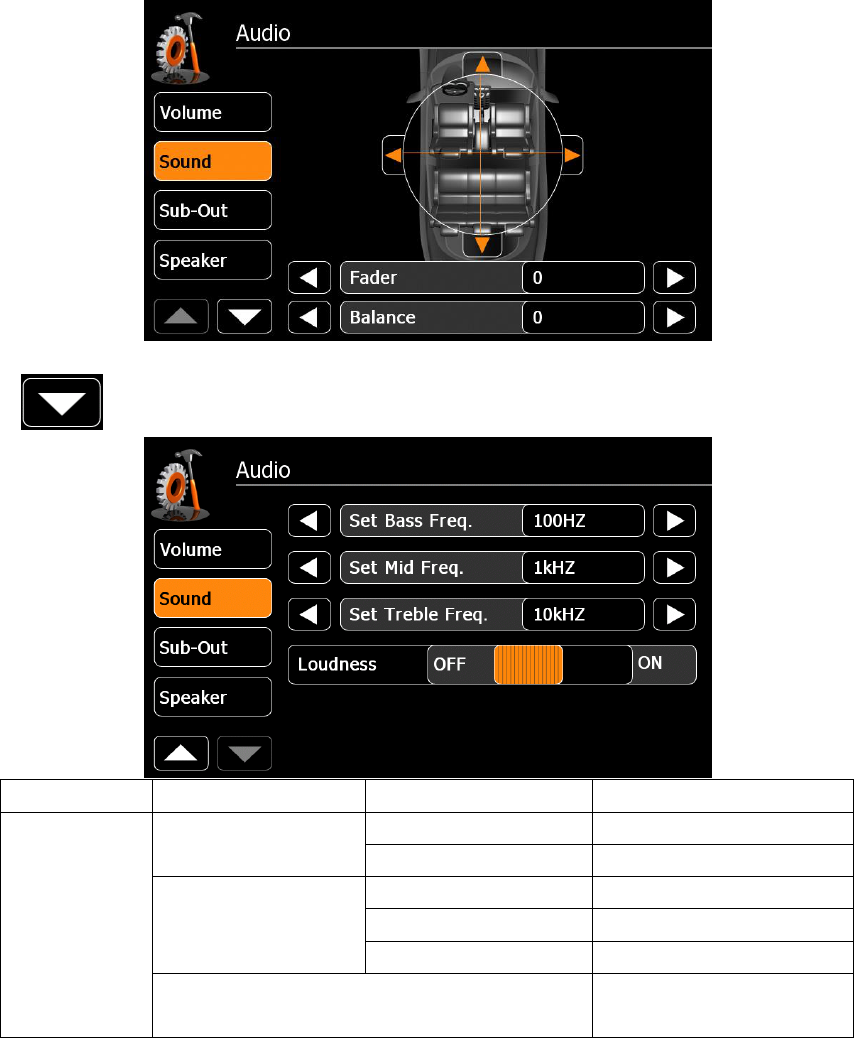

Setup:Audio—Sound
Animated picture visualizes fader and balance settings.
[ ]EQ frequency adjustments Adjust EQ bands.
Name
Descriptor
Function
Choice/Range
Sound
Level Assignment
Fader
front 9, center 0, rear -9
Balance
Left -9,center0,right 9
EQ frequencies
Set bass frequency
50, 100, 200Hz
Set mid frequency
0.5, 1, 2kHz
Set treble frequency
5, 10, 15 kHz
Loudness
On, Off

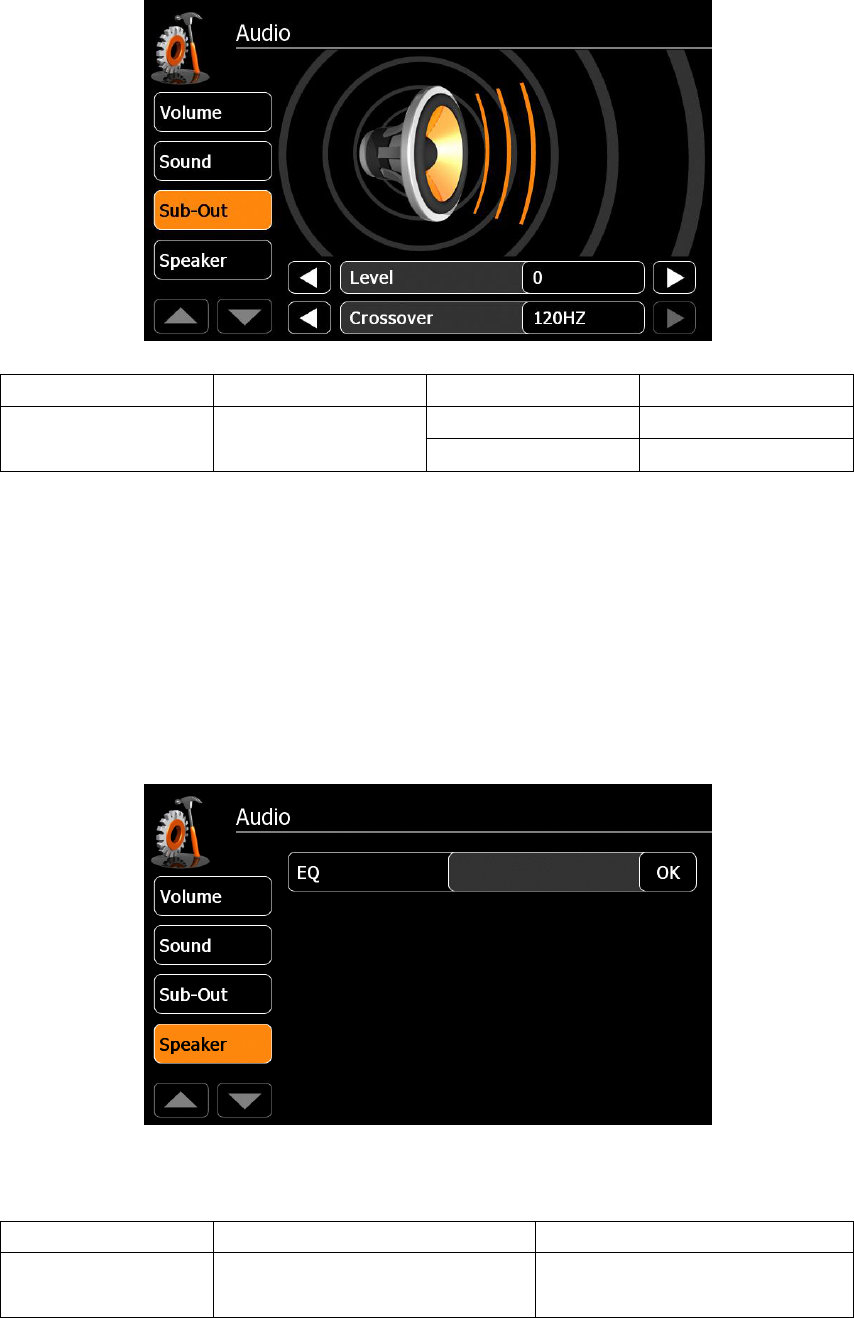

Setup:Audio—Sub-Out
Animated picture visualizessub-out level.
Name
Descriptor
Function
Choice/Range
Sub-Out
Sub-Out settings
Level
Rel. -7...+7
Crossover
55, 80, 120 Hz
Setup:Audio—Speaker
If your vehicle is already equipped withan integrated OE Sound system,
activate parameter "OE Sound system"in order to avoid audio distortion.
Tap "OK" at EQ to open equalizer page.
Name
Function
Choice/Range
Speaker
Speaker systemsettings
OK

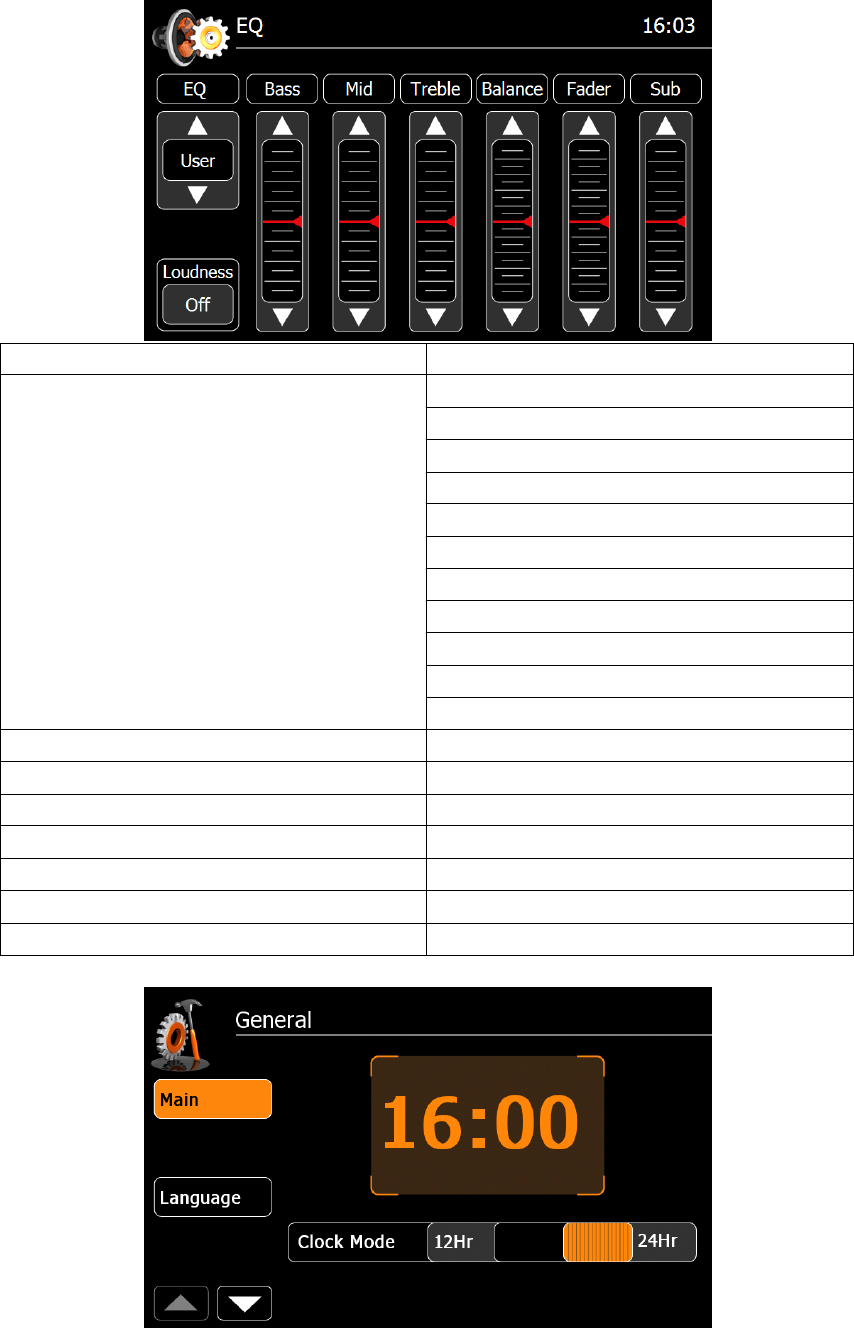

EQ:
Audio Function
Adjustable Range
EQ
User
Flat
Jazz
Pop
Classical
Rock
News
Urban
Rave
Movie
Techno
Loudness
OFF,ON
Bass
-7 to +7
Mid
-7 to +7
Treble
-7 to +7
Balance
L9 to R9
Fader
R9 to F9
Sub
-7 to +7

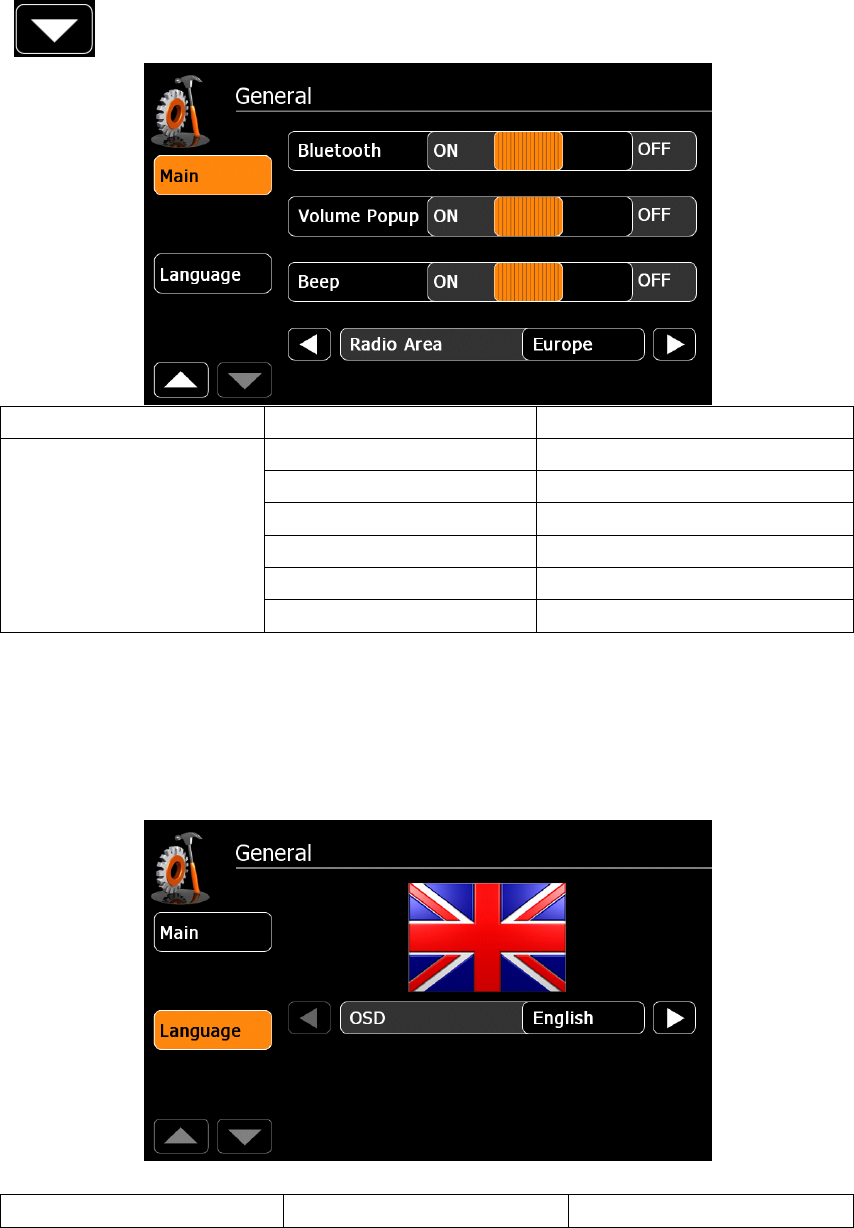

Setup:General—Main
System time gets periodically updated by GPS time stamp.
Press the time to update it.
]Press it to other sources.
Name
Function
Choice/Range
Main
Clock Mode
12Hr,24Hr
12Hr:AM/PM
AM,PM
Bluetooth
On, Off
Volume Popup
On, Off
Beep
On, Off
Radio Area
USA,Latin,Europe,Philippines
Setup:General—Language
Shown flag visualizes the chosen OSD language.
Language
OSD
Set OSD Language

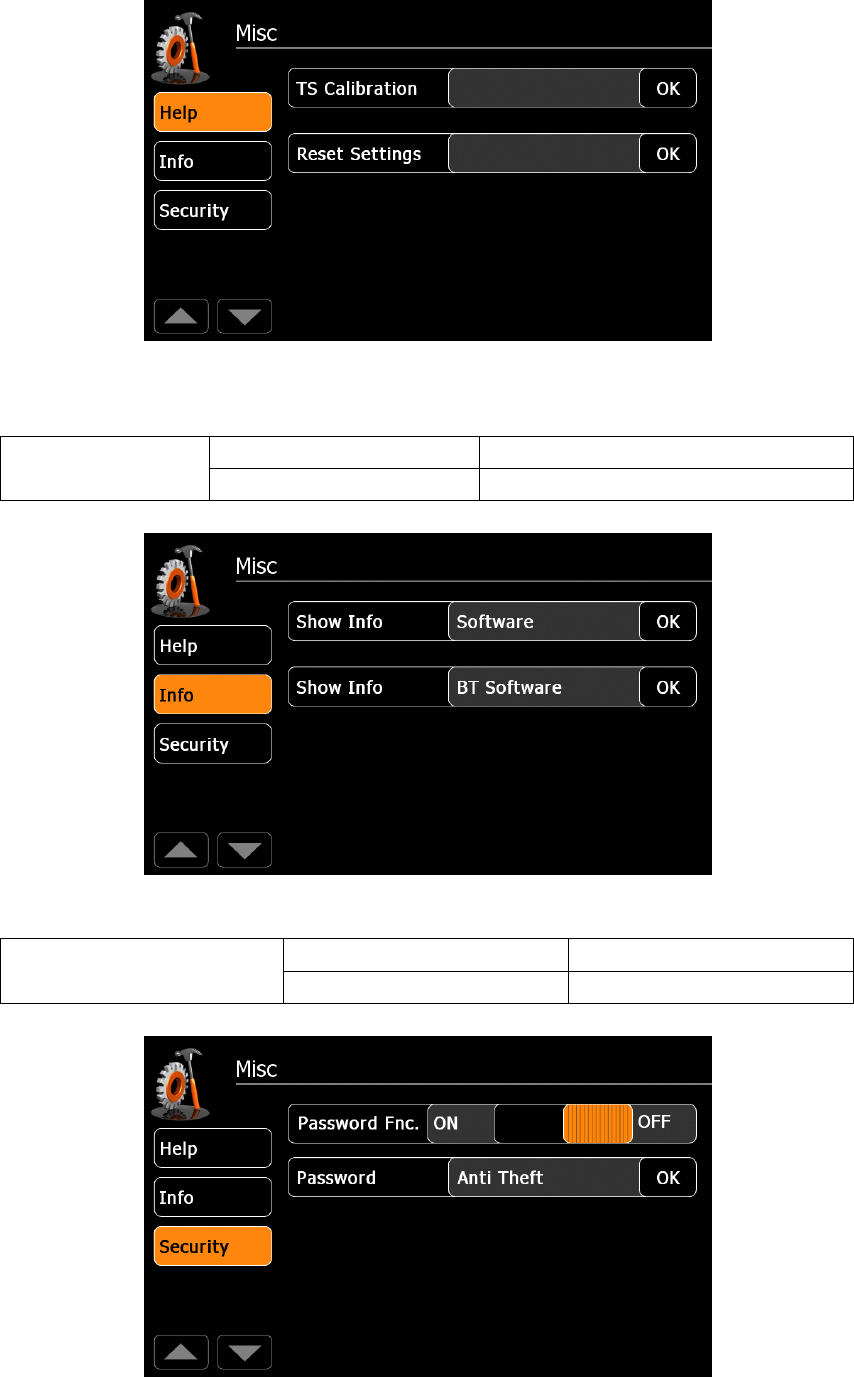

Setup:Misc—Help
You may export/import your systemsettings to/from a USB flash drive.
A feature, that comes in very handyafter a firmware update, or a completepower
disconnection.
Help
TS Calibration
OK starts touch screen calibration
Reset Settings
OK Loads factory settings
Setup:Misc—Info
Tap "OK" to display corresponding software version.
Info
Show Info
Software
Show Info
BT Software

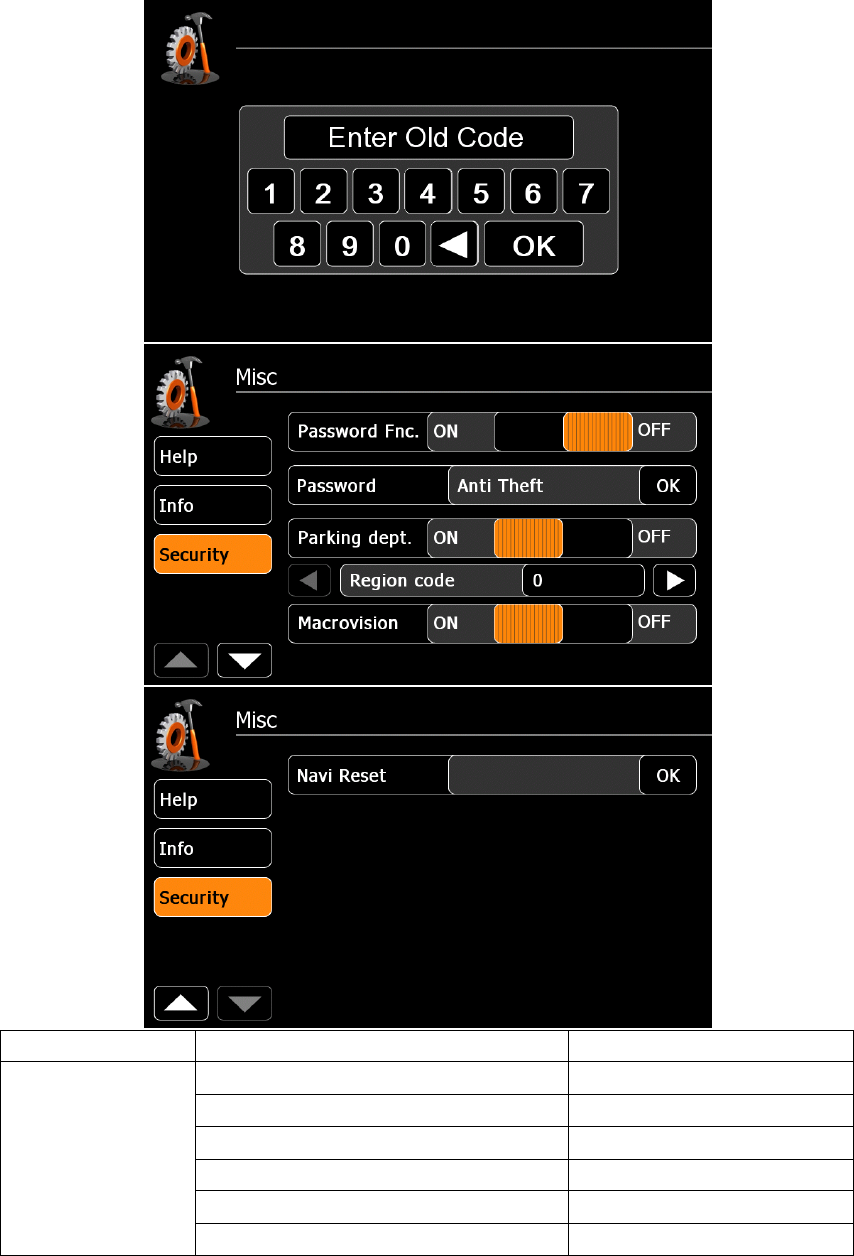

Setup:Misc—Security
Activate password function to secure device in case of temporary disconnection from
power supply (theft).Press OK,enter into “200905”
Name
Function
Choice/Range
Security
Password Fnc
ON,OFF
Password
OK sets password
Parking dept
ON,OFF
Region code：choose area code disk
0-6
Macrovision:pirate forbid
ON,OFF
Navi Reset
OK
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE：
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
