DVD MULTIMEDIA STATION WITH BUILT-IN NAVIGATION &6.0’’ TOUCH PANEL CONTROLNX405Owner’s manual

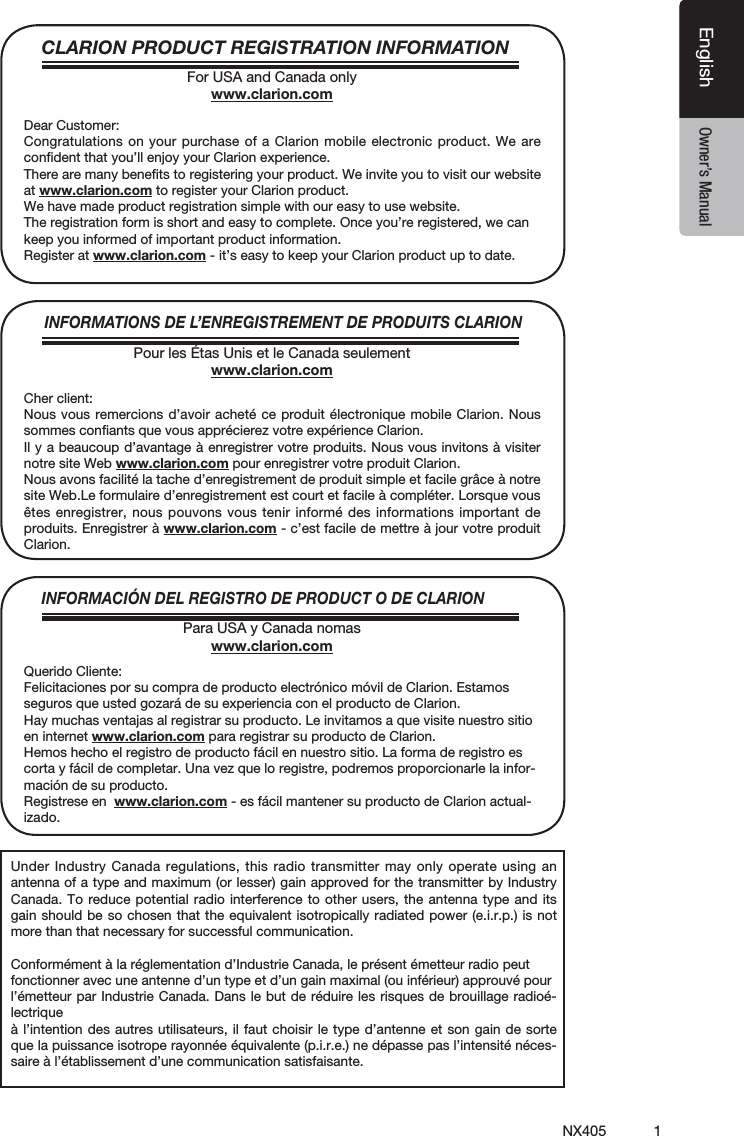

1NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualCLARION PRODUCT REGISTRATION INFORMATIONINFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARIONINFORMACIÓN DEL REGISTRO DE PRODUCT O DE CLARIONFor USA and Canada onlywww.clarion.comPour les Étas Unis et le Canada seulementwww.clarion.comPara USA y Canada nomaswww.clarion.comDear Customer:Congratulations on your purchase of a Clarion mobile electronic product. We are confident that you’ll enjoy your Clarion experience.There are many benefits to registering your product. We invite you to visit our website at www.clarion.com to register your Clarion product.We have made product registration simple with our easy to use website.The registration form is short and easy to complete. Once you’re registered, we can keep you informed of important product information.Register at www.clarion.com - it’s easy to keep your Clarion product up to date.Cher client:Nous vous remercions d’avoir acheté ce produit électronique mobile Clarion. Nous sommes confiants que vous apprécierez votre expérience Clarion.Il y a beaucoup d’avantage à enregistrer votre produits. Nous vous invitons à visiter notre site Web www.clarion.com pour enregistrer votre produit Clarion.Nous avons facilité la tache d’enregistrement de produit simple et facile grâce à notre site Web.Le formulaire d’enregistrement est court et facile à compléter. Lorsque vous êtes enregistrer, nous pouvons vous tenir informé des informations important de produits. Enregistrer à www.clarion.com - c’est facile de mettre à jour votre produit Clarion.Querido Cliente:Felicitaciones por su compra de producto electrónico móvil de Clarion. Estamos seguros que usted gozará de su experiencia con el producto de Clarion.Hay muchas ventajas al registrar su producto. Le invitamos a que visite nuestro sitio en internet www.clarion.com para registrar su producto de Clarion.Hemos hecho el registro de producto fácil en nuestro sitio. La forma de registro es corta y fácil de completar. Una vez que lo registre, podremos proporcionarle la infor-mación de su producto.Registrese en  www.clarion.com - es fácil mantener su producto de Clarion actual-izado.Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peutfonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pourl’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioé-lectriqueà l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité néces-saire à l’établissement d’une communication satisfaisante.

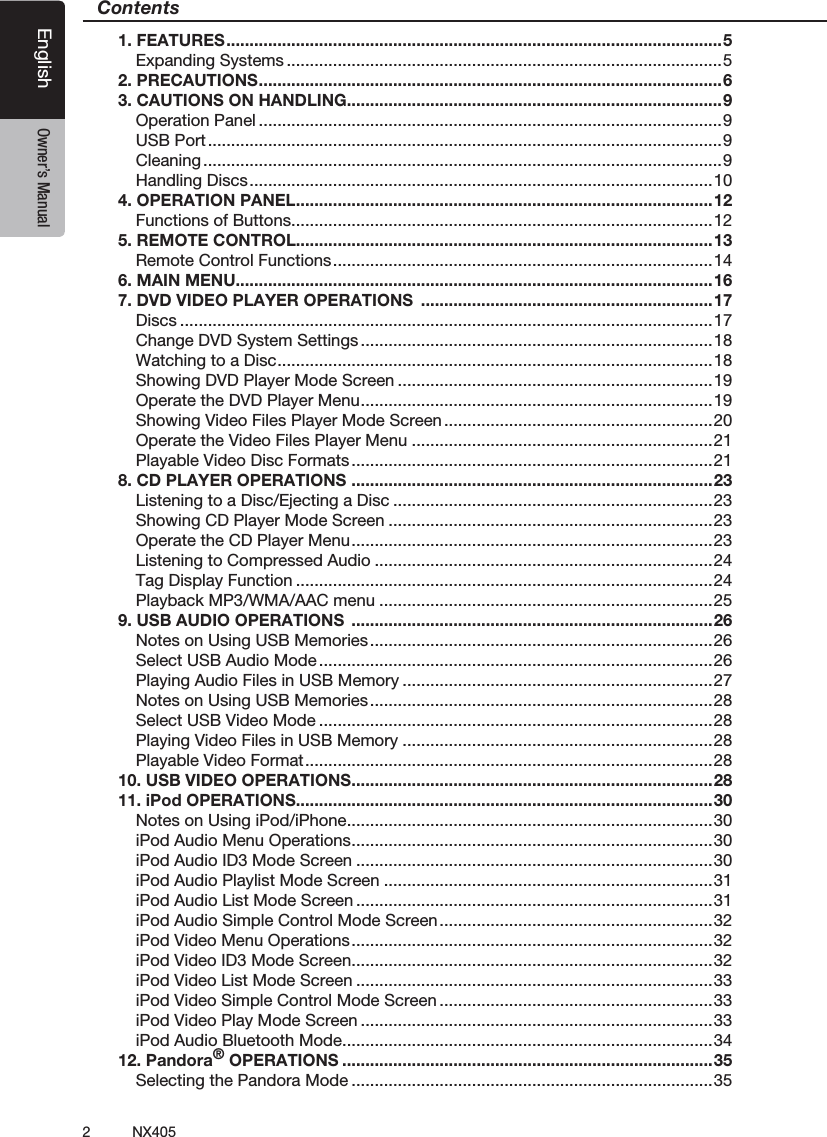

2NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualContents1. FEATURES ........................................................................................................... 5Expanding Systems ..............................................................................................52. PRECAUTIONS .................................................................................................... 63. CAUTIONS ON HANDLING.................................................................................9Operation Panel ....................................................................................................9USB Port ...............................................................................................................9Cleaning ................................................................................................................9Handling Discs ....................................................................................................104. OPERATION PANEL ..........................................................................................12Functions of Buttons ...........................................................................................125. REMOTE CONTROL..........................................................................................13Remote Control Functions .................................................................................. 146. MAIN MENU.......................................................................................................167. DVD VIDEO PLAYER OPERATIONS  ...............................................................17Discs ...................................................................................................................17Change DVD System Settings ............................................................................18Watching to a Disc .............................................................................................. 18Showing DVD Player Mode Screen ....................................................................19Operate the DVD Player Menu ............................................................................ 19Showing Video Files Player Mode Screen ..........................................................20Operate the Video Files Player Menu .................................................................21Playable Video Disc Formats ..............................................................................218. CD PLAYER OPERATIONS  ..............................................................................23Listening to a Disc/Ejecting a Disc .....................................................................23Showing CD Player Mode Screen ......................................................................23Operate the CD Player Menu .............................................................................. 23Listening to Compressed Audio .........................................................................24Tag Display Function ..........................................................................................24Playback MP3/WMA/AAC menu ........................................................................259. USB AUDIO OPERATIONS  ..............................................................................26Notes on Using USB Memories ..........................................................................26Select USB Audio Mode .....................................................................................26Playing Audio Files in USB Memory ...................................................................27Notes on Using USB Memories ..........................................................................28Select USB Video Mode .....................................................................................28Playing Video Files in USB Memory ...................................................................28Playable Video Format ........................................................................................ 2810. USB VIDEO OPERATIONS ..............................................................................2811. iPod OPERATIONS..........................................................................................30Notes on Using iPod/iPhone ...............................................................................30iPod Audio Menu Operations ..............................................................................30iPod Audio ID3 Mode Screen .............................................................................30iPod Audio Playlist Mode Screen .......................................................................31iPod Audio List Mode Screen .............................................................................31iPod Audio Simple Control Mode Screen ...........................................................32iPod Video Menu Operations .............................................................................. 32iPod Video ID3 Mode Screen ..............................................................................32iPod Video List Mode Screen .............................................................................33iPod Video Simple Control Mode Screen ...........................................................33iPod Video Play Mode Screen ............................................................................33iPod Audio Bluetooth Mode ................................................................................3412. Pandora® OPERATIONS ................................................................................35Selecting the Pandora Mode ..............................................................................35

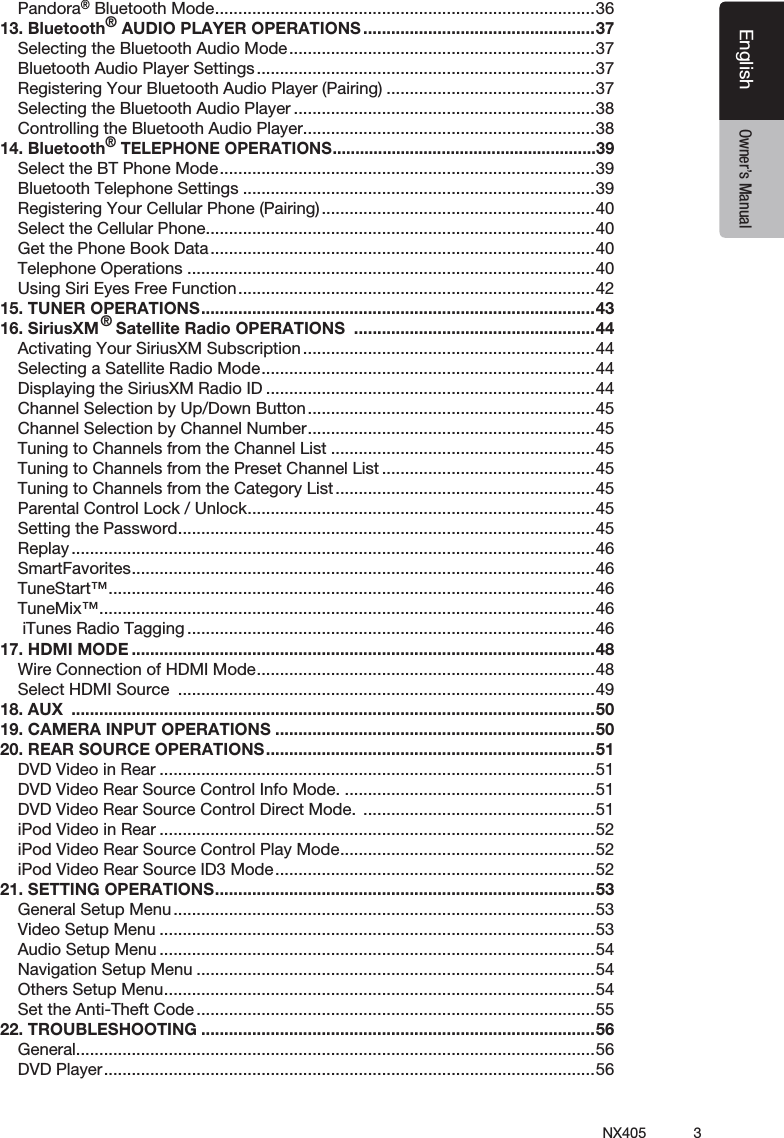

3NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualPandora® Bluetooth Mode .................................................................................. 3613. Bluetooth® AUDIO PLAYER OPERATIONS ..................................................37Selecting the Bluetooth Audio Mode ..................................................................37Bluetooth Audio Player Settings .........................................................................37Registering Your Bluetooth Audio Player (Pairing) .............................................37Selecting the Bluetooth Audio Player .................................................................38Controlling the Bluetooth Audio Player ...............................................................3814. Bluetooth® TELEPHONE OPERATIONS ..........................................................39Select the BT Phone Mode ................................................................................. 39Bluetooth Telephone Settings ............................................................................39Registering Your Cellular Phone (Pairing) ...........................................................40Select the Cellular Phone ....................................................................................40Get the Phone Book Data ...................................................................................40Telephone Operations ........................................................................................40Using Siri Eyes Free Function ............................................................................. 4215. TUNER OPERATIONS ..................................................................................... 4316. SiriusXM  Satellite Radio OPERATIONS  ....................................................44Activating Your SiriusXM Subscription ...............................................................44Selecting a Satellite Radio Mode ........................................................................ 44Displaying the SiriusXM Radio ID .......................................................................44Channel Selection by Up/Down Button ..............................................................45Channel Selection by Channel Number .............................................................. 45Tuning to Channels from the Channel List .........................................................45Tuning to Channels from the Preset Channel List ..............................................45Tuning to Channels from the Category List ........................................................45Parental Control Lock / Unlock ........................................................................... 45Setting the Password ..........................................................................................45Replay .................................................................................................................46SmartFavorites .................................................................................................... 46TuneStart™ ......................................................................................................... 46TuneMix™ ........................................................................................................... 46 iTunes Radio Tagging ........................................................................................4617. HDMI MODE ....................................................................................................48Wire Connection of HDMI Mode ......................................................................... 48Select HDMI Source  ..........................................................................................4918. AUX  .................................................................................................................5019. CAMERA INPUT OPERATIONS .....................................................................5020. REAR SOURCE OPERATIONS .......................................................................51DVD Video in Rear ..............................................................................................51DVD Video Rear Source Control Info Mode. ......................................................51DVD Video Rear Source Control Direct Mode.  ..................................................51iPod Video in Rear ..............................................................................................52iPod Video Rear Source Control Play Mode ....................................................... 52iPod Video Rear Source ID3 Mode .....................................................................5221. SETTING OPERATIONS .................................................................................. 53General Setup Menu ...........................................................................................53Video Setup Menu ..............................................................................................53Audio Setup Menu ..............................................................................................54Navigation Setup Menu ......................................................................................54Others Setup Menu ............................................................................................. 54Set the Anti-Theft Code ......................................................................................5522. TROUBLESHOOTING .....................................................................................56General ................................................................................................................56DVD Player .......................................................................................................... 56®

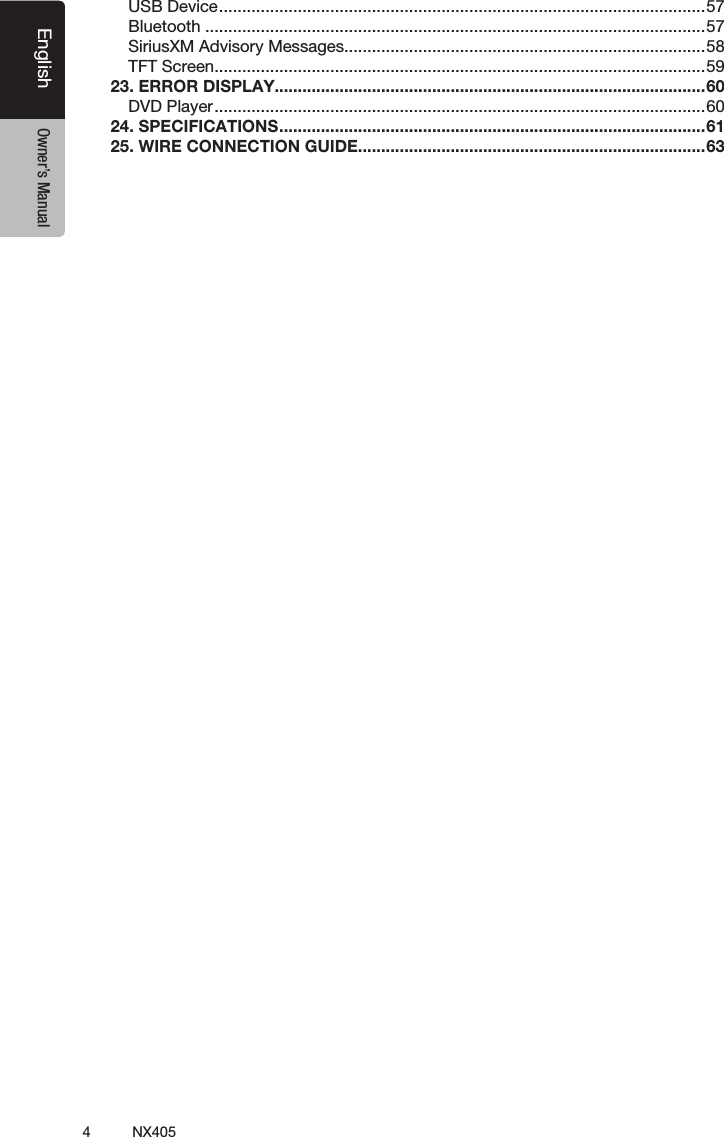

4NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualUSB Device ......................................................................................................... 57Bluetooth ............................................................................................................57SiriusXM Advisory Messages..............................................................................58TFT Screen ..........................................................................................................5923. ERROR DISPLAY.............................................................................................60DVD Player .......................................................................................................... 6024. SPECIFICATIONS ............................................................................................ 6125. WIRE CONNECTION GUIDE ...........................................................................63

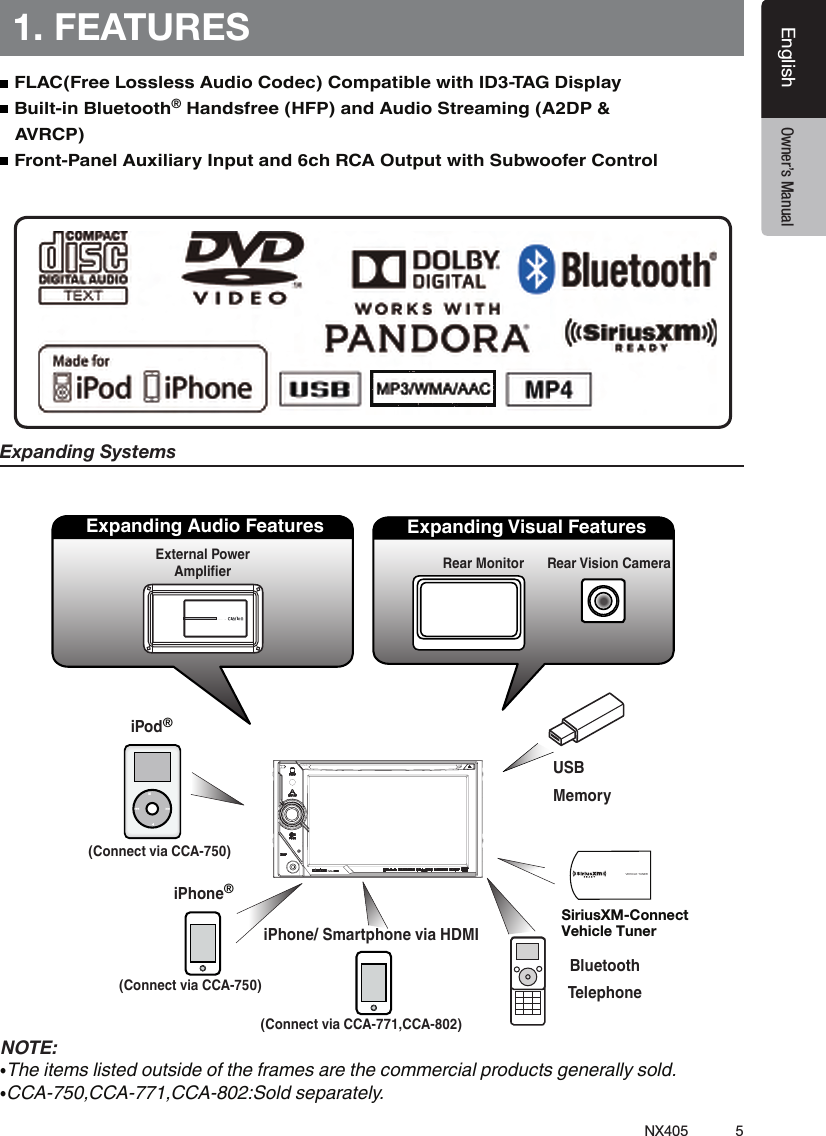

5NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual1. FEATURESExpanding SystemsNOTE:•The items listed outside of the frames are the commercial products generally sold.•CCA-750,CCA-771,CCA-802:Sold separately. FLAC(Free Lossless Audio Codec) Compatible with ID3-TAG Display   Built-in Bluetooth® Handsfree (HFP) and Audio Streaming (A2DP &    AVRCP) Front-Panel Auxiliary Input and 6ch RCA Output with Subwoofer Control    iPod®Expanding Visual FeaturesRear Monitor Rear Vision CameraExpanding Audio FeaturesExternal Power AmplieriPhone®USBMemoryBluetoothTelephone(Connect via CCA-750)(Connect via CCA-750)(Connect via CCA-771,CCA-802)iPhone/ Smartphone via HDMISiriusXM-Connect Vehicle TunerBlackEnglishNX501/NZ501  61EnglishOwner’s ManualRadio Antenna Jack6-Channel AmplifierLine Out SubwooferLine Out Rear RLine Out Rear LLine Out Front RLine Out Video Out Front LVideoAudio/RAudio/LVideo OutCameraYellowWhiteWhiteRedRedRedWhiteYellowPurpleGrayGrayRedBlackBlackBlackWhiteConnectorCableSteering WheelRemote Control TerminalSiriusXMYellowMonitorCCA-750 (sold separately)YellowWhiteRedRedAudio/RAudio/LRedWhiteGreenGPSAntennaExternalMicrophoneConnectionHD RadioHD Radio™ Tuner (THD400)NZ501Refer to EX MICHDSiriusXMSiriusXM Vehicle TuneriPod/iPhoneRear Vision CameraSWICAMERAVIDEO OUTVISUAL IN        VEHICLE TUNER

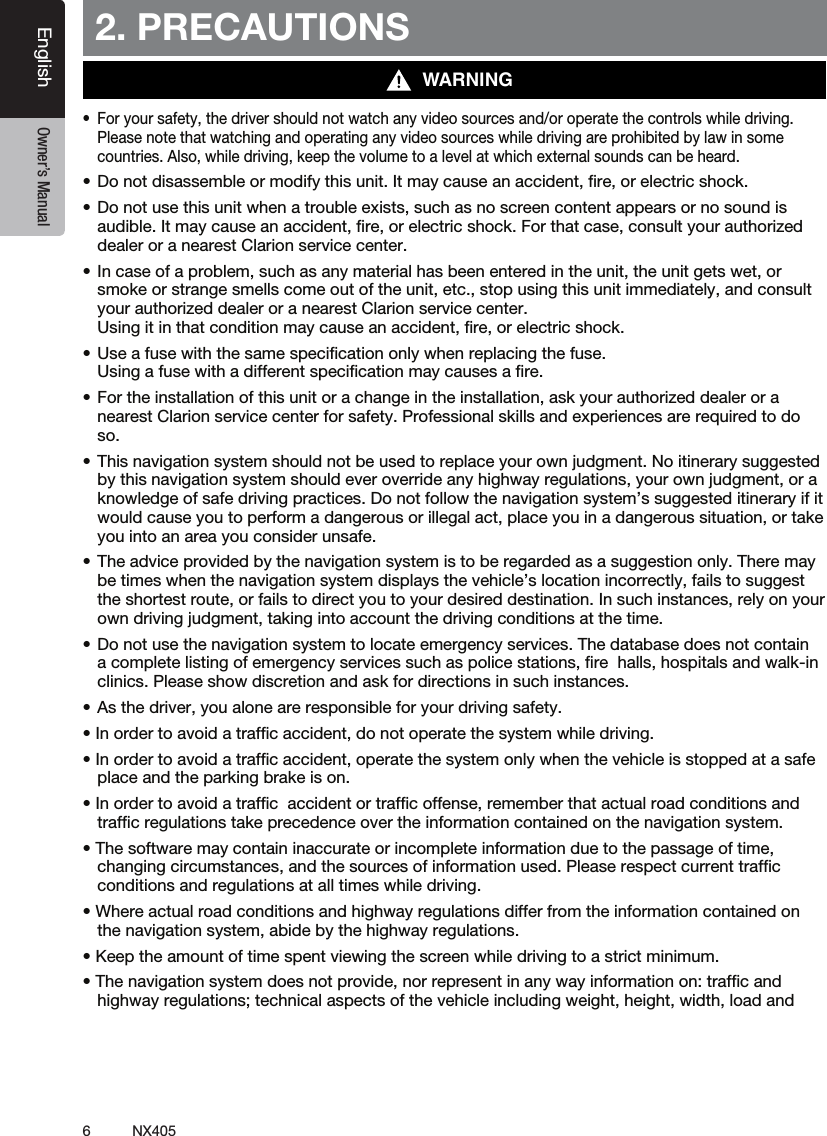

6NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual2. PRECAUTIONS• Foryoursafety,thedrivershouldnotwatchanyvideosourcesand/oroperatethecontrolswhiledriving.Please note that watching and operating any video sources while driving are prohibited by law in some countries. Also, while driving, keep the volume to a level at which external sounds can be heard.•Donotdisassembleormodifythisunit.Itmaycauseanaccident,re,orelectricshock.•Donotusethisunitwhenatroubleexists,suchasnoscreencontentappearsornosoundisaudible. It may cause an accident, fire, or electric shock. For that case, consult your authorized dealer or a nearest Clarion service center.•Incaseofaproblem,suchasanymaterialhasbeenenteredintheunit,theunitgetswet,orsmoke or strange smells come out of the unit, etc., stop using this unit immediately, and consult your authorized dealer or a nearest Clarion service center.  Using it in that condition may cause an accident, fire, or electric shock.•Useafusewiththesamespecicationonlywhenreplacingthefuse. Using a fuse with a different specification may causes a fire.•Fortheinstallationofthisunitorachangeintheinstallation,askyourauthorizeddealeroranearest Clarion service center for safety. Professional skills and experiences are required to do so.•Thisnavigationsystemshouldnotbeusedtoreplaceyourownjudgment.Noitinerarysuggestedby this navigation system should ever override any highway regulations, your own judgment, or a knowledge of safe driving practices. Do not follow the navigation system’s suggested itinerary if it would cause you to perform a dangerous or illegal act, place you in a dangerous situation, or take you into an area you consider unsafe.•Theadviceprovidedbythenavigationsystemistoberegardedasasuggestiononly.Theremaybe times when the navigation system displays the vehicle’s location incorrectly, fails to suggest the shortest route, or fails to direct you to your desired destination. In such instances, rely on your own driving judgment, taking into account the driving conditions at the time.•Donotusethenavigationsystemtolocateemergencyservices.Thedatabasedoesnotcontaina complete listing of emergency services such as police stations, fire  halls, hospitals and walk-in clinics. Please show discretion and ask for directions in such instances.•Asthedriver,youaloneareresponsibleforyourdrivingsafety.•Inordertoavoidatrafcaccident,donotoperatethesystemwhiledriving.•Inordertoavoidatrafcaccident,operatethesystemonlywhenthevehicleisstoppedatasafeplace and the parking brake is on.•Inordertoavoidatrafcaccidentortrafcoffense,rememberthatactualroadconditionsandtraffic regulations take precedence over the information contained on the navigation system.•Thesoftwaremaycontaininaccurateorincompleteinformationduetothepassageoftime,changing circumstances, and the sources of information used. Please respect current traffic  conditions and regulations at all times while driving.•Whereactualroadconditionsandhighwayregulationsdifferfromtheinformationcontainedonthe navigation system, abide by the highway regulations.•Keeptheamountoftimespentviewingthescreenwhiledrivingtoastrictminimum.•Thenavigationsystemdoesnotprovide,norrepresentinanywayinformationon:trafcandhighway regulations; technical aspects of the vehicle including weight, height, width, load and WARNING

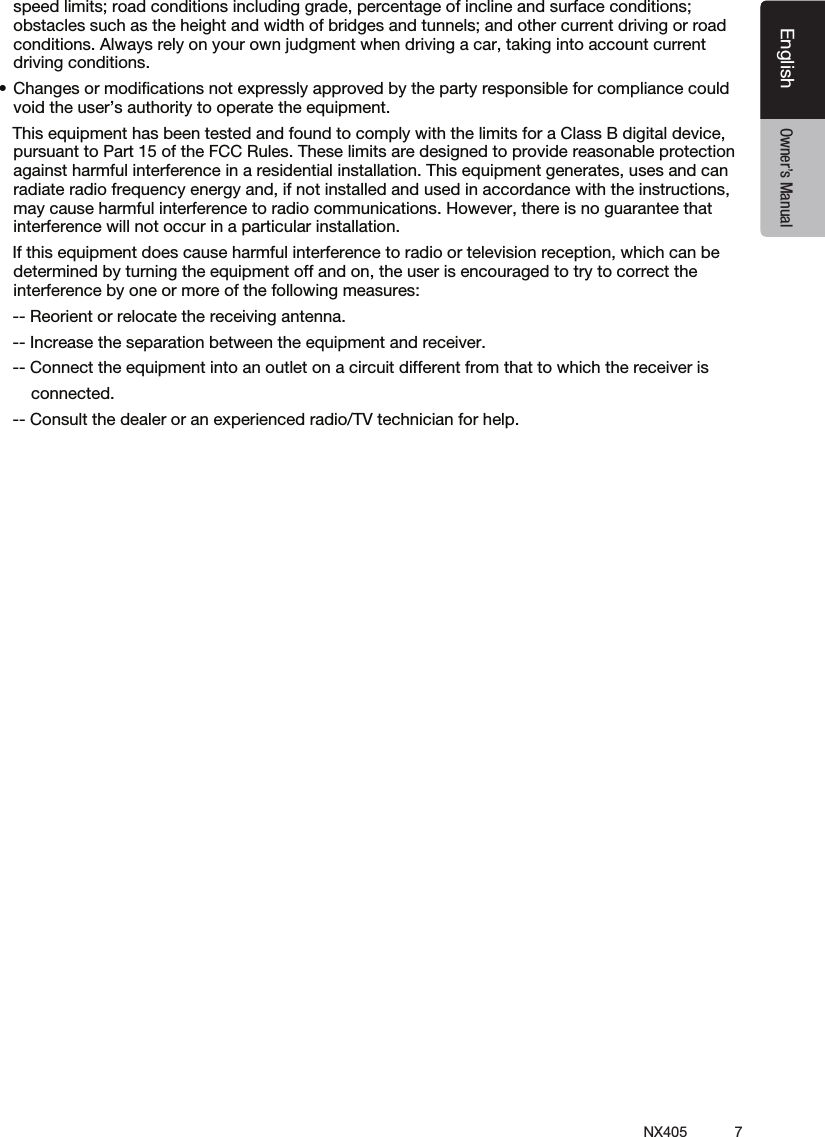

7NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manualspeed limits; road conditions including grade, percentage of incline and surface conditions; obstacles such as the height and width of bridges and tunnels; and other current driving or road conditions. Always rely on your own judgment when driving a car, taking into account current driving conditions.•Changesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid the user’s authority to operate the equipment.   This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.   If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   -- Reorient or relocate the receiving antenna.   -- Increase the separation between the equipment and receiver.   -- Connect the equipment into an outlet on a circuit different from that to which the receiver is       connected.   -- Consult the dealer or an experienced radio/TV technician for help.

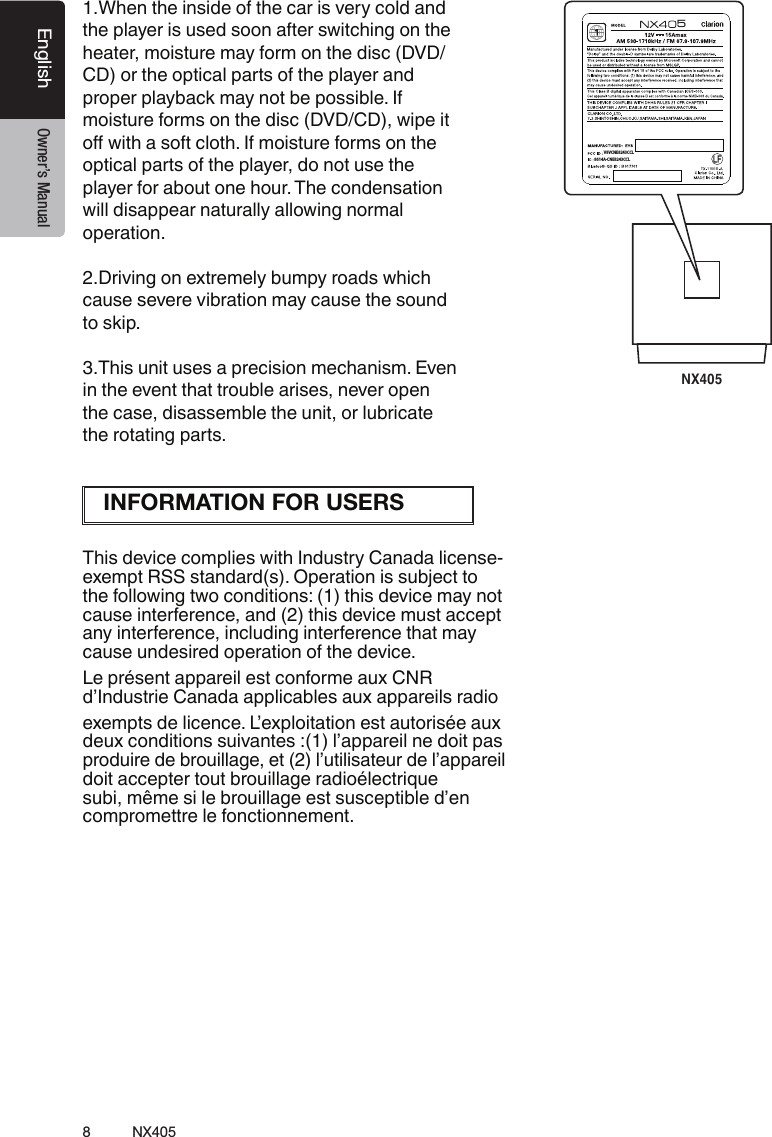

8NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual1.When the inside of the car is very cold and the player is used soon after switching on the heater, moisture may form on the disc (DVD/ CD) or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc (DVD/CD), wipe it o with a soft cloth. If moisture forms on the optical parts of the player, do not use the player for about one hour. The condensation will disappear naturally allowing normal operation.2.Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip.3.This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts.This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.NX405CNE-8239D-CL1:1机身大贴纸吕崇垚20140102技术说明:1、大小65x75mm,红色外框线为刀模线。2、材质,80g铜版纸,过哑胶。3、内容印刷黑色:PANTONE Black C。4、要求内容印刷正确、清晰,贴纸表面干净、整洁,不得有脏污、斑点、折痕;    切边务必整齐,不得歪斜。66BV8VCNE8243CCL8614A-CNE8243CCL7-8239-1014-00-015INFORMATION FOR USERS

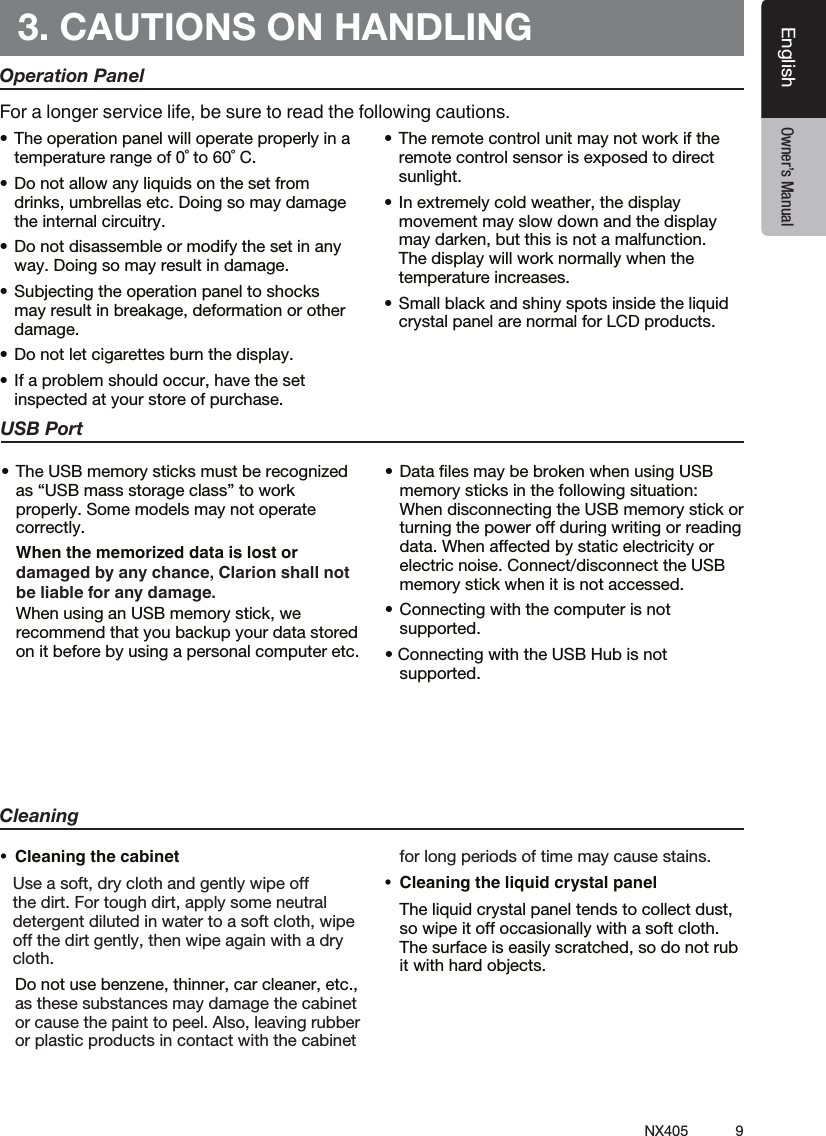

9NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual3. CAUTIONS ON HANDLINGOperation Panel•Theoperationpanelwilloperateproperlyinatemperature range of 0˚ to 60˚ C.•Donotallowanyliquidsonthesetfromdrinks, umbrellas etc. Doing so may damage the internal circuitry.•Donotdisassembleormodifythesetinanyway. Doing so may result in damage.•Subjectingtheoperationpaneltoshocksmay result in breakage, deformation or other damage.•Donotletcigarettesburnthedisplay.•Ifaproblemshouldoccur,havethesetinspected at your store of purchase.•Theremotecontrolunitmaynotworkiftheremote control sensor is exposed to direct sunlight.•Inextremelycoldweather,thedisplaymovement may slow down and the display may darken, but this is not a malfunction. The display will work normally when the temperature increases.•Smallblackandshinyspotsinsidetheliquidcrystal panel are normal for LCD products.For a longer service life, be sure to read the following cautions.Cleaning• Cleaningthecabinet   Use a soft, dry cloth and gently wipe off the dirt. For tough dirt, apply some neutral detergent diluted in water to a soft cloth, wipe off the dirt gently, then wipe again with a dry cloth.   Do not use benzene, thinner, car cleaner, etc., as these substances may damage the cabinet or cause the paint to peel. Also, leaving rubber or plastic products in contact with the cabinet for long periods of time may cause stains.• Cleaningtheliquidcrystalpanel  The liquid crystal panel tends to collect dust, so wipe it off occasionally with a soft cloth. The surface is easily scratched, so do not rub it with hard objects.USB Port•TheUSBmemorysticksmustberecognizedas “USB mass storage class” to work properly. Some models may not operate correctly.   When the memorized data is lost or damaged by any chance, Clarion shall not be liable for any damage.  When using an USB memory stick, we recommend that you backup your data stored on it before by using a personal computer etc.•DatalesmaybebrokenwhenusingUSBmemory sticks in the following situation:  When disconnecting the USB memory stick or turning the power off during writing or reading data. When affected by static electricity or electric noise. Connect/disconnect the USB memory stick when it is not accessed.•Connectingwiththecomputerisnotsupported.•ConnectingwiththeUSBHubisnotsupported.
10 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualHandling DiscsHandling•Newdiscsmayhavesomeroughnessaround the edges. If such discs are used, the player may not work or the sound may skip. Use a ball-point pen or the like to remove any roughness from the edge of the disc.Ball-point pen Roughness  Never stick labels on the surface of the disc or mark the surface with a pencil or pen.•Neverplayadiscwithanycellophanetape or other glue on it or with peeling off marks. If you try to play such a disc, you may not be able to get it back out of the DVD player or it may damage the DVD player.•Donotusediscsthathavelargescratches, are misshapen, cracked, etc. Use of such discs may cause missoperation or damage.•Toremoveadiscfromitsstoragecase,press down on the center of the case and lift the disc out, holding it carefully by the  edges.•Donotusecommerciallyavailablediscprotection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal mechanism.Storage•Donotexposediscstodirectsunlightorany heat source.•Donotexposediscstoexcesshumidityor dust.•Donotexposediscstodirectheatfromheaters.Cleaning•Toremovengermarksanddust,usea soft cloth and wipe in a straight line from the center of the disc to the circumference.•Donotuseanysolvents,suchascommercially available cleaners, anti-static spray, or thinner to clean discs.•Afterusingspecialdisccleaner,letthedisc dry off well before playing it.On Discs•Neverturnoffthepowerandremovetheunit from the car with a disc loaded.CAUTIONFor your safety, the driver should not insert or eject a disc while driving.

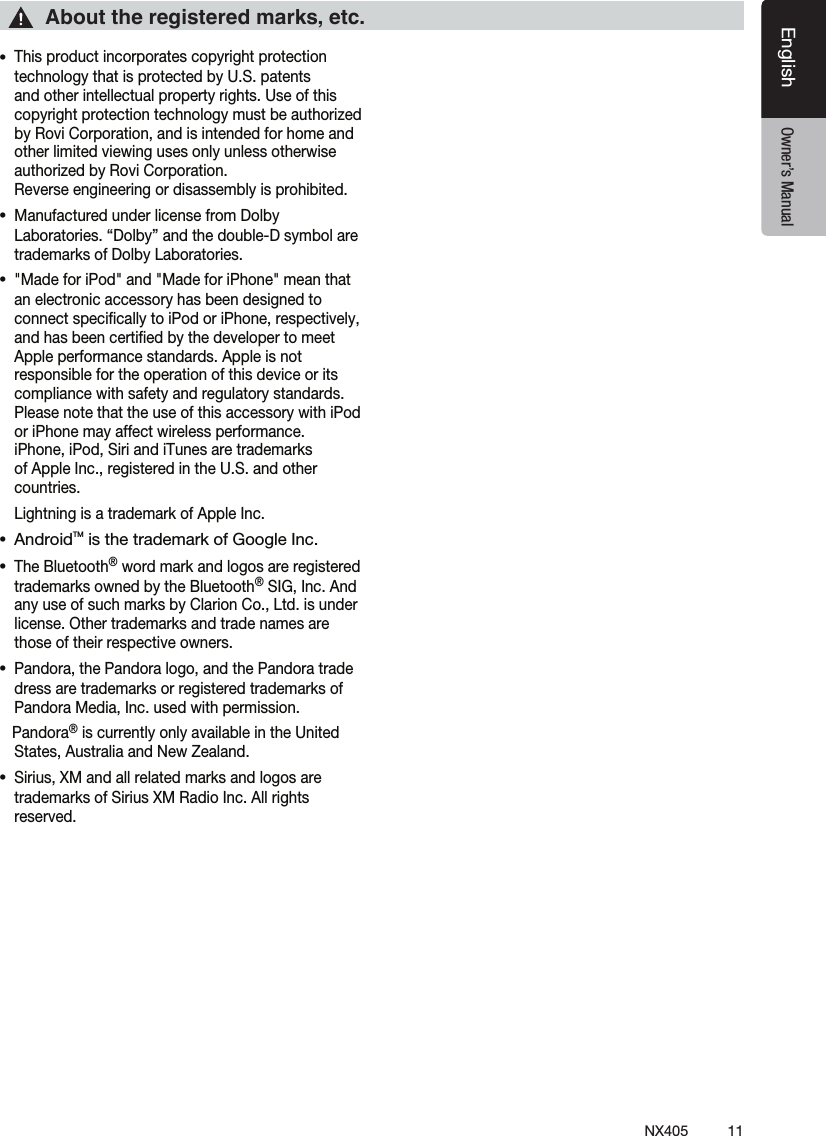

11NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual•This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation.  Reverse engineering or disassembly is prohibited.•Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.•"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.  iPhone, iPod, Siri and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.  Lightning is a trademark of Apple Inc. • AndroidTM is the trademark of Google Inc.•The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth® SIG, Inc. And any use of such marks by Clarion Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners. •Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. used with permission.   Pandora® is currently only available in the United States, Australia and New Zealand.•Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.About the registered marks, etc.

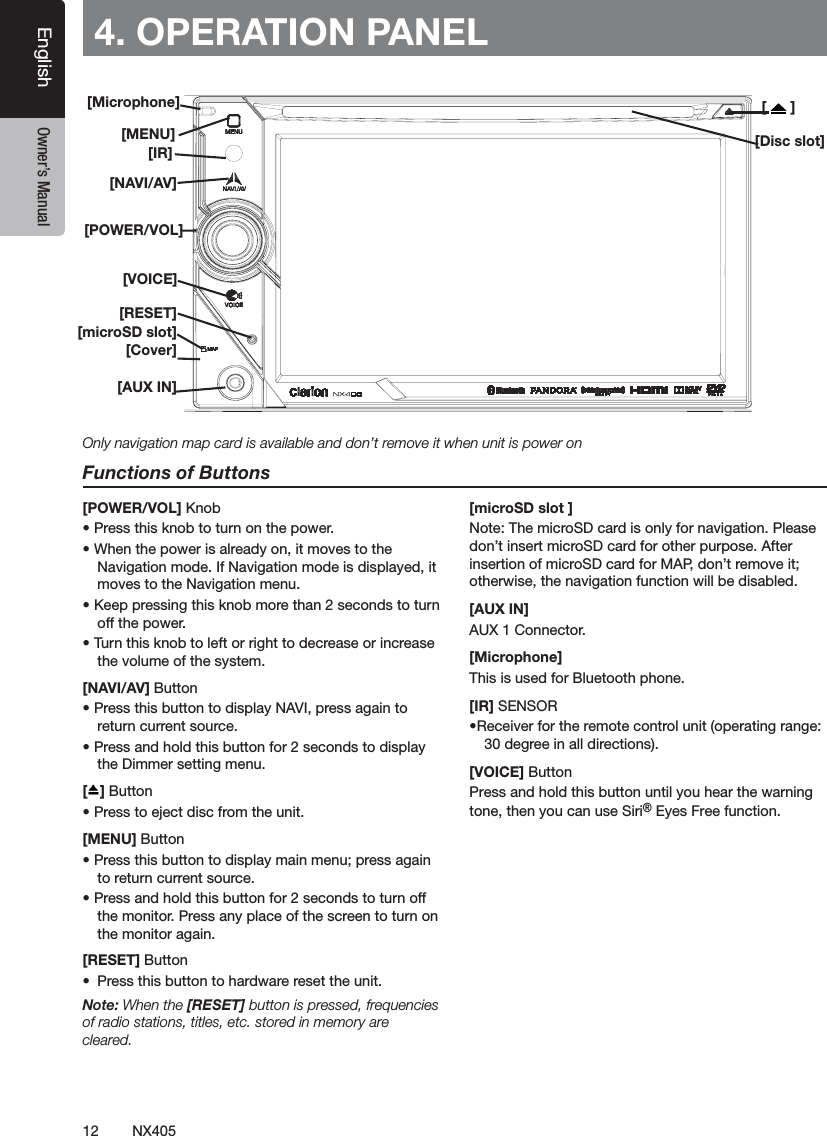

12 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual[Microphone][MENU][NAVI/AV][IR][Cover][AUX IN][RESET][microSD slot][POWER/VOL][Disc slot][   ]4. OPERATION PANELFunctions of Buttons[POWER/VOL] Knob• Press this knob to turn on the power. • When the power is already on, it moves to the Navigation mode. If Navigation mode is displayed, it moves to the Navigation menu.• Keep pressing this knob more than 2 seconds to turn off the power.• Turn this knob to left or right to decrease or increase the volume of the system.[NAVI/AV] Button• Press this button to display NAVI, press again to return current source.• Press and hold this button for 2 seconds to display the Dimmer setting menu.[ ] Button• Press to eject disc from the unit.[MENU] Button• Press this button to display main menu; press again to return current source. • Press and hold this button for 2 seconds to turn off the monitor. Press any place of the screen to turn on the monitor again.[RESET] Button•  Press this button to hardware reset the unit.Note: When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared.[microSD slot ]Note: The microSD card is only for navigation. Please don’t insert microSD card for other purpose. After insertion of microSD card for MAP, don’t remove it; otherwise, the navigation function will be disabled.[AUX IN] AUX 1 Connector.[Microphone] This is used for Bluetooth phone.[IR] SENSOR•Receiver for the remote control unit (operating range: 30 degree in all directions).[VOICE] ButtonPress and hold this button until you hear the warning tone, then you can use Siri® Eyes Free function.Only navigation map card is available and don’t remove it when unit is power on[VOICE]

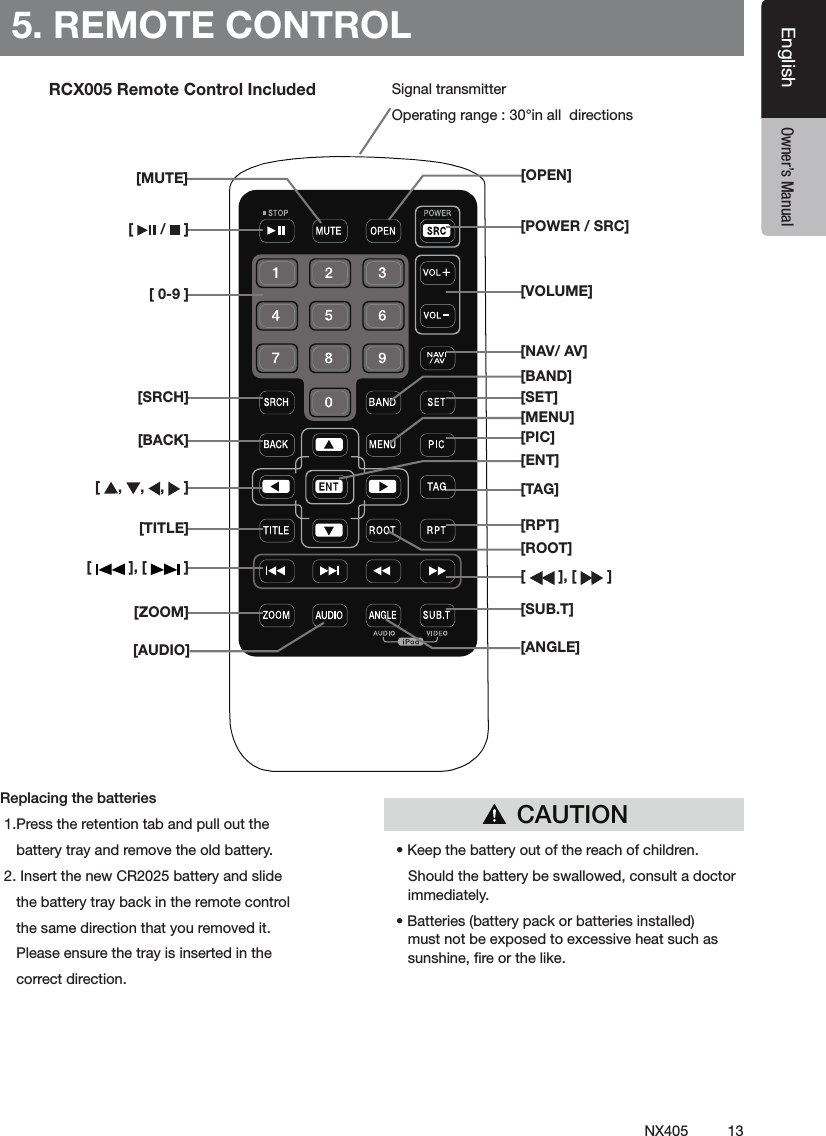

13NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual5. REMOTE CONTROLReplacing the batteries 1.Press the retention tab and pull out the     battery tray and remove the old battery. 2. Insert the new CR2025 battery and slide      the battery tray back in the remote control       the same direction that you removed it.    Please ensure the tray is inserted in the     correct direction.• Keep the battery out of the reach of children.   Should the battery be swallowed, consult a doctor immediately.• Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, re or the like.Signal transmitterOperating range : 30°in all  directions[   /   ][ 0-9 ][SRCH][BACK][  ,  ,  ,   ][TITLE][   ], [   ][ZOOM][MUTE][AUDIO][POWER / SRC][VOLUME][SET][PIC][TAG][RPT][   ], [   ][SUB.T][OPEN][ANGLE][NAV/ AV][MENU][BAND][ROOT][ENT]CAUTIONRCX005 Remote Control Included

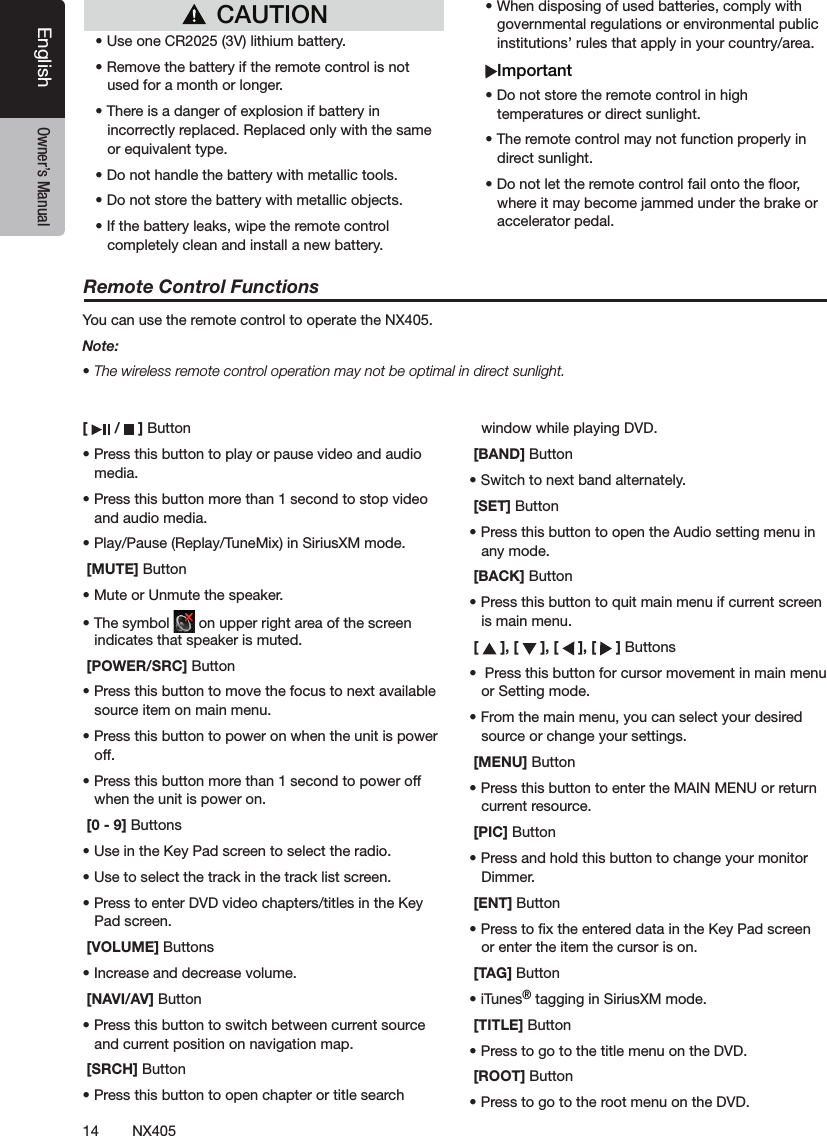

14 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual[   /   ] Button• Press this button to play or pause video and audio media.• Press this button more than 1 second to stop video and audio media.• Play/Pause (Replay/TuneMix) in SiriusXM mode. [MUTE] Button• Mute or Unmute the speaker.• The symbol   on upper right area of the screen indicates that speaker is muted. [POWER/SRC] Button• Press this button to move the focus to next available source item on main menu.• Press this button to power on when the unit is power off.• Press this button more than 1 second to power off when the unit is power on. [0 - 9] Buttons• Use in the Key Pad screen to select the radio.• Use to select the track in the track list screen.• Press to enter DVD video chapters/titles in the Key  Pad screen. [VOLUME] Buttons• Increase and decrease volume. [NAVI/AV] Button• Press this button to switch between current source and current position on navigation map. [SRCH] Button• Press this button to open chapter or title search window while playing DVD. [BAND] Button• Switch to next band alternately. [SET] Button• Press this button to open the Audio setting menu in any mode. [BACK] Button• Press this button to quit main menu if current screen is main menu. [   ], [   ], [   ], [   ] Buttons•  Press this button for cursor movement in main menu or Setting mode.• From the main menu, you can select your desired source or change your settings. [MENU] Button• Press this button to enter the MAIN MENU or return current resource. [PIC] Button• Press and hold this button to change your monitor Dimmer. [ENT] Button• Press to x the entered data in the Key Pad screen or enter the item the cursor is on. [TAG] Button• iTunes® tagging in SiriusXM mode. [TITLE] Button• Press to go to the title menu on the DVD. [ROOT] Button• Press to go to the root menu on the DVD.Remote Control FunctionsYou can use the remote control to operate the NX405.Note:• The wireless remote control operation may not be optimal in direct sunlight.CAUTION• Use one CR2025 (3V) lithium battery.• Remove the battery if the remote control is not used for a month or longer.• There is a danger of explosion if battery in incorrectly replaced. Replaced only with the same or equivalent type.• Do not handle the battery with metallic tools.• Do not store the battery with metallic objects.• If the battery leaks, wipe the remote control completely clean and install a new battery.• When disposing of used batteries, comply with governmental regulations or environmental public institutions’ rules that apply in your country/area.Important• Do not store the remote control in high temperatures or direct sunlight.• The remote control may not function properly in direct sunlight.• Do not let the remote control fail onto the oor, where it may become jammed under the brake or accelerator pedal.

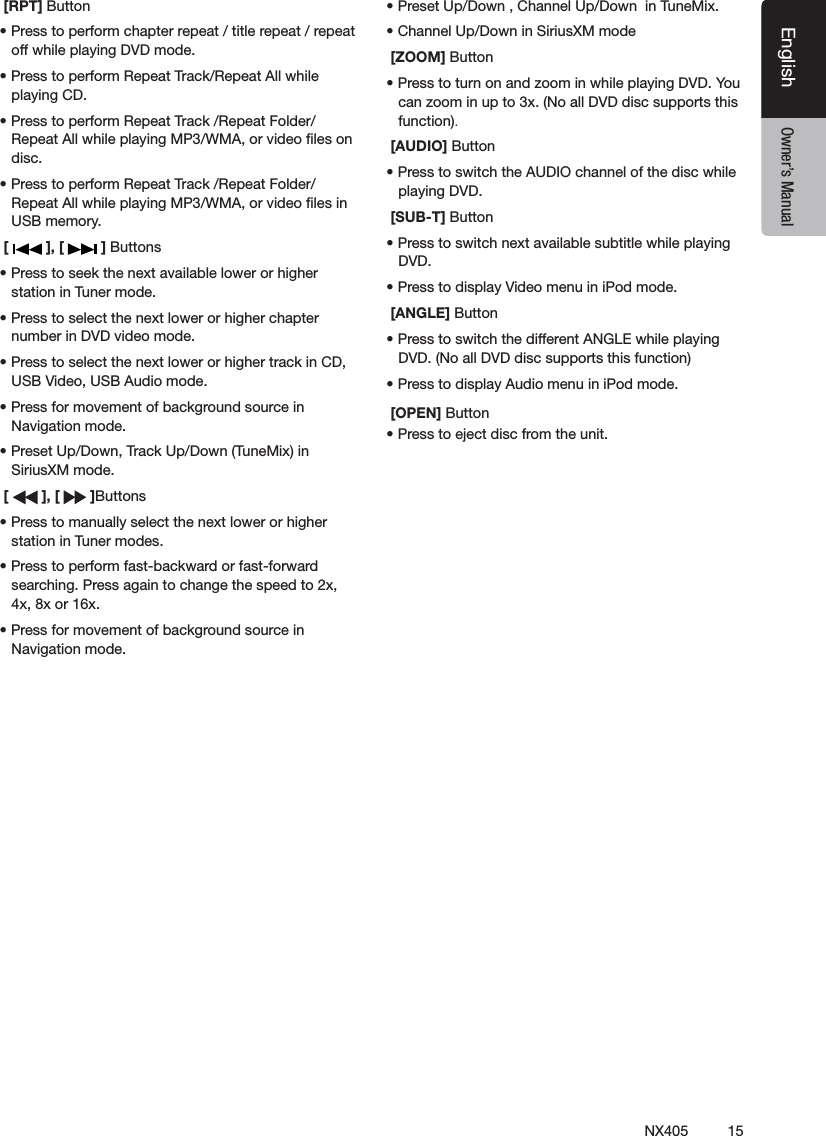

15NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual [RPT] Button• Press to perform chapter repeat / title repeat / repeat off while playing DVD mode.• Press to perform Repeat Track/Repeat All while playing CD.• Press to perform Repeat Track /Repeat Folder/Repeat All while playing MP3/WMA, or video les on disc.• Press to perform Repeat Track /Repeat Folder/ Repeat All while playing MP3/WMA, or video les in USB memory. [   ], [   ] Buttons• Press to seek the next available lower or higher station in Tuner mode. • Press to select the next lower or higher chapter number in DVD video mode.• Press to select the next lower or higher track in CD, USB Video, USB Audio mode.• Press for movement of background source in Navigation mode.• Preset Up/Down, Track Up/Down (TuneMix) in SiriusXM mode. [   ], [   ]Buttons• Press to manually select the next lower or higher station in Tuner modes.• Press to perform fast-backward or fast-forward searching. Press again to change the speed to 2x, 4x, 8x or 16x.• Press for movement of background source in Navigation mode.• Preset Up/Down,, Channel Up/Down  in TuneMix.• Channel Up/Down in SiriusXM mode  [ZOOM] Button• Press to turn on and zoom in while playing DVD. You can zoom in up to 3x. (No all DVD disc supports this function). [AUDIO] Button• Press to switch the AUDIO channel of the disc while playing DVD. [SUB-T] Button• Press to switch next available subtitle while playing DVD.• Press to display Video menu in iPod mode.  [ANGLE] Button• Press to switch the different ANGLE while playing DVD. (No all DVD disc supports this function)• Press to display Audio menu in iPod mode. [OPEN] Button• Press to eject disc from the unit.

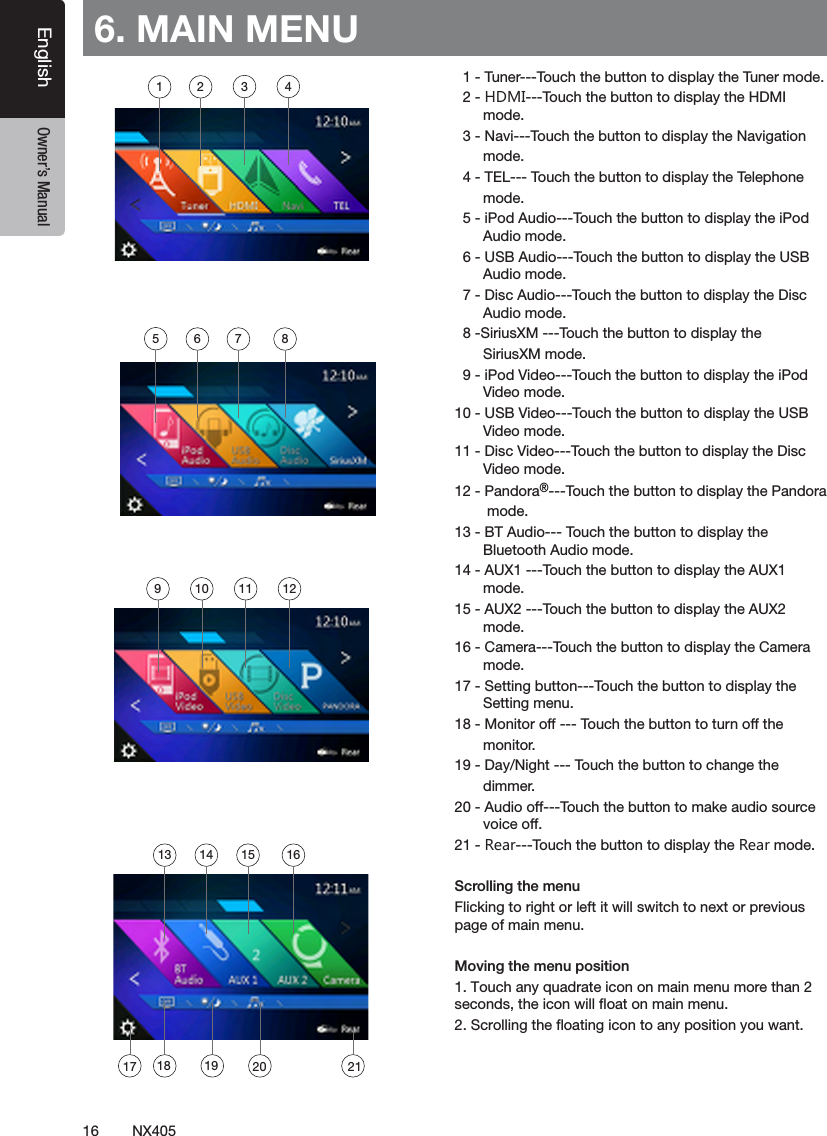

16 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual6. MAIN MENU  1 - Tuner---Touch the button to display the Tuner mode.  2 - HDMI---Touch the button to display the HDMI         mode.  3 - Navi---Touch the button to display the Navigation       mode.  4 - TEL--- Touch the button to display the Telephone       mode.  5 - iPod Audio---Touch the button to display the iPod         Audio mode.   6 - USB Audio---Touch the button to display the USB         Audio mode.  7 - Disc Audio---Touch the button to display the Disc         Audio mode.   8 -SiriusXM ---Touch the button to display the       SiriusXM mode.  9 - iPod Video---Touch the button to display the iPod         Video mode.10 - USB Video---Touch the button to display the USB         Video mode.11 - Disc Video---Touch the button to display the Disc         Video mode.12 - Pandora®---Touch the button to display the Pandora        mode.13 - BT Audio--- Touch the button to display the         Bluetooth Audio mode.14 - AUX1 ---Touch the button to display the AUX1         mode.15 - AUX2 ---Touch the button to display the AUX2         mode.16 - Camera---Touch the button to display the Camera         mode.17 - Setting button---Touch the button to display the         Setting menu.18 - Monitor off --- Touch the button to turn off the       monitor.19 - Day/Night --- Touch the button to change the       dimmer.20 - Audio off---Touch the button to make audio source         voice off.21 - Rear---Touch the button to display the Rear mode.Scrolling the menuFlicking to right or left it will switch to next or previous page of main menu.Moving the menu position1. Touch any quadrate icon on main menu more than 2 seconds, the icon will float on main menu. 2. Scrolling the floating icon to any position you want.1 2 3 456 7 89 10 11 1213 14 15 1617 18 2119 20

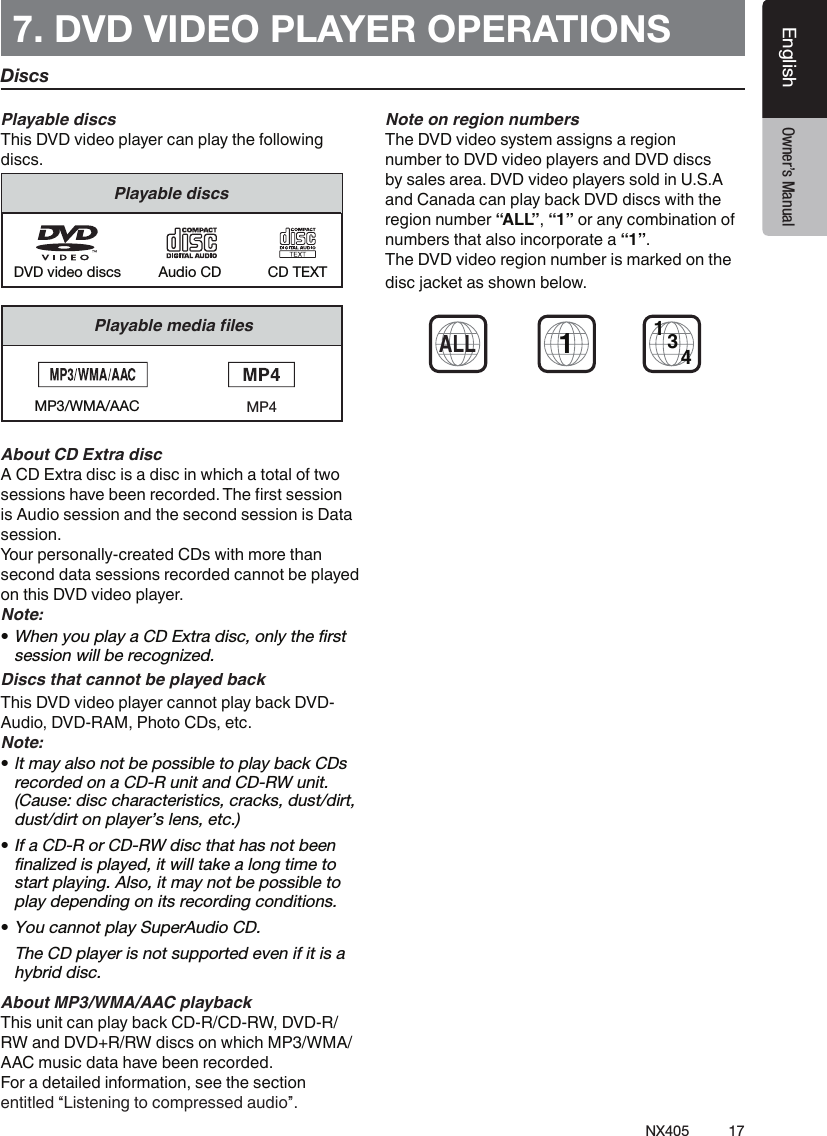

17NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual7. DVD VIDEO PLAYER OPERATIONS Playable discsThis DVD video player can play the following discs.Playable discsCD TEXTDVD video discs Audio CDPlayablemedialesMP3/WMA/AACAbout CD Extra discA CD Extra disc is a disc in which a total of two sessions have been recorded. The rst session is Audio session and the second session is Data session.Your personally-created CDs with more than second data sessions recorded cannot be played on this DVD video player.Note:•When you play a CD Extra disc, only the first session will be recognized.Discs that cannot be played backThis DVD video player cannot play back DVD-Audio, DVD-RAM, Photo CDs, etc.Note:• It may also not be possible to play back CDs recorded on a CD-R unit and CD-RW unit. (Cause: disc characteristics, cracks, dust/dirt, dust/dirt on player’s lens, etc.)•If a CD-R or CD-RW disc that has not been finalized is played, it will take a long time to start playing. Also, it may not be possible to play depending on its recording conditions.•You cannot play SuperAudio CD.   The CD player is not supported even if it is a hybrid disc.About MP3/WMA/AAC playbackThis unit can play back CD-R/CD-RW, DVD-R/ RW and DVD+R/RW discs on which MP3/WMA/AAC music data have been recorded.For a detailed information, see the section entitled “Listening to compressed audio”.Note on region numbersThe DVD video system assigns a region number to DVD video players and DVD discs by sales area. DVD video players sold in U.S.A and Canada can play back DVD discs with the region number “ALL”, “1” or any combination of numbers that also incorporate a “1”.The DVD video region number is marked on the disc jacket as shown below.1ALL134DiscsMP4

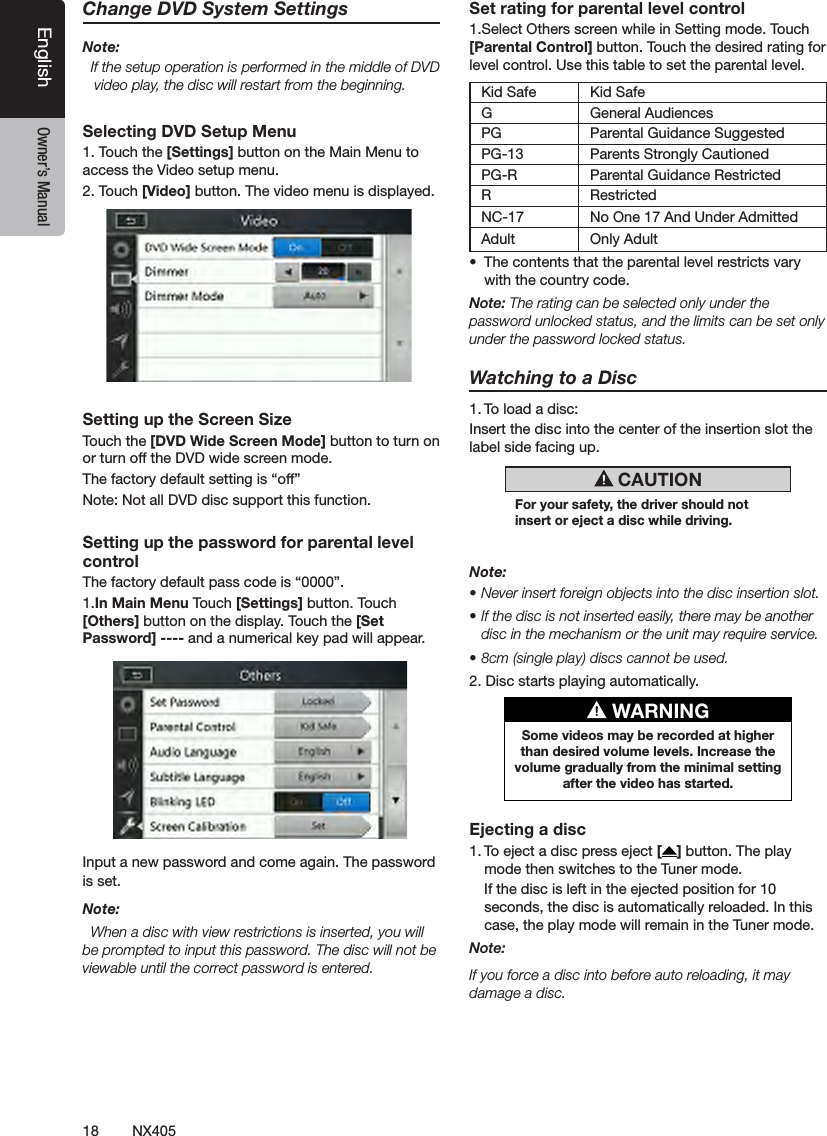

18 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualChange DVD System SettingsNote:  If the setup operation is performed in the middle of DVD video play, the disc will restart from the beginning.Selecting DVD Setup Menu1. Touch the [Settings] button on the Main Menu to access the Video setup menu.2. Touch [Video] button. The video menu is displayed.Setting up the Screen SizeTouch the [DVD Wide Screen Mode] button to turn on or turn off the DVD wide screen mode. The factory default setting is “off”Note: Not all DVD disc support this function.Setting up the password for parental level controlThe factory default pass code is “0000”.1.In Main Menu Touch [Settings] button. Touch [Others] button on the display. Touch the [Set Password] ---- and a numerical key pad will appear.Input a new password and come again. The password is set.Note:  When a disc with view restrictions is inserted, you will be prompted to input this password. The disc will not be viewable until the correct password is entered.Set rating for parental level control1.Select Others screen while in Setting mode. Touch [Parental Control] button. Touch the desired rating for level control. Use this table to set the parental level.Kid Safe Kid SafeG General AudiencesPG Parental Guidance SuggestedPG-13 Parents Strongly CautionedPG-R Parental Guidance RestrictedR RestrictedNC-17 No One 17 And Under AdmittedAdult Only Adult •  The contents that the parental level restricts vary with the country code.Note: The rating can be selected only under the password unlocked status, and the limits can be set only under the password locked status.Watching to a Disc1. To load a disc: Insert the disc into the center of the insertion slot the label side facing up. CAUTIONFor your safety, the driver should not insert or eject a disc while driving.Note:• Never insert foreign objects into the disc insertion slot.• If the disc is not inserted easily, there may be another disc in the mechanism or the unit may require service.• 8cm (single play) discs cannot be used.2. Disc starts playing automatically. WARNINGSome videos may be recorded at higher than desired volume levels. Increase the volume gradually from the minimal setting after the video has started.Ejecting a disc1. To eject a disc press eject [ ] button. The play mode then switches to the Tuner mode.  If the disc is left in the ejected position for 10 seconds, the disc is automatically reloaded. In this case, the play mode will remain in the Tuner mode.Note: If you force a disc into before auto reloading, it may damage a disc.

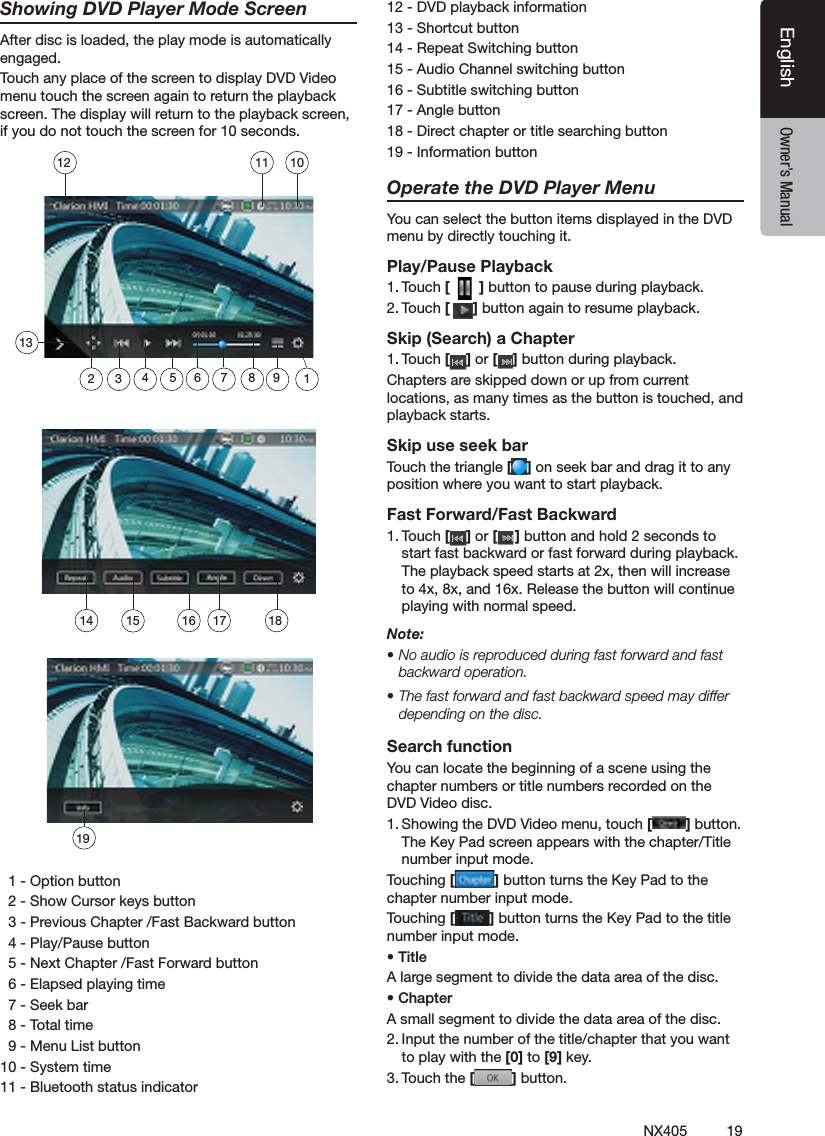

19NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualShowing DVD Player Mode ScreenAfter disc is loaded, the play mode is automatically engaged.Touch any place of the screen to display DVD Video menu touch the screen again to return the playback screen. The display will return to the playback screen, if you do not touch the screen for 10 seconds.   1 - Option button  2 - Show Cursor keys button  3 - Previous Chapter /Fast Backward button  4 - Play/Pause button  5 - Next Chapter /Fast Forward button  6 - Elapsed playing time  7 - Seek bar  8 - Total time  9 - Menu List button10 - System time11 - Bluetooth status indicator12 - DVD playback information13 - Shortcut button14 - Repeat Switching button15 - Audio Channel switching button16 - Subtitle switching button17 - Angle button18 - Direct chapter or title searching button19 - Information buttonOperate the DVD Player MenuYou can select the button items displayed in the DVD menu by directly touching it.Play/Pause Playback1. Touch [   ] button to pause during playback.2. Touch [ ] button again to resume playback.Skip (Search) a Chapter1. Touch [ ] or [ ] button during playback.Chapters are skipped down or up from current locations, as many times as the button is touched, and playback starts.Skip use seek barTouch the triangle [ ] on seek bar and drag it to any position where you want to start playback.Fast Forward/Fast Backward1. Touch [ ] or [ ] button and hold 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x. Release the button will continue playing with normal speed.Note:• No audio is reproduced during fast forward and fast backward operation.• The fast forward and fast backward speed may differ depending on the disc.Search functionYou can locate the beginning of a scene using the chapter numbers or title numbers recorded on the DVD Video disc.1. Showing the DVD Video menu, touch [ ] button. The Key Pad screen appears with the chapter/Title number input mode. Touching [ ] button turns the Key Pad to the chapter number input mode. Touching [ ] button turns the Key Pad to the title number input mode. • TitleA large segment to divide the data area of the disc.• ChapterA small segment to divide the data area of the disc.2. Input the number of the title/chapter that you want to play with the [0] to [9] key.3. Touch the [ ] button. 14 15 161918131011121235 6 894717

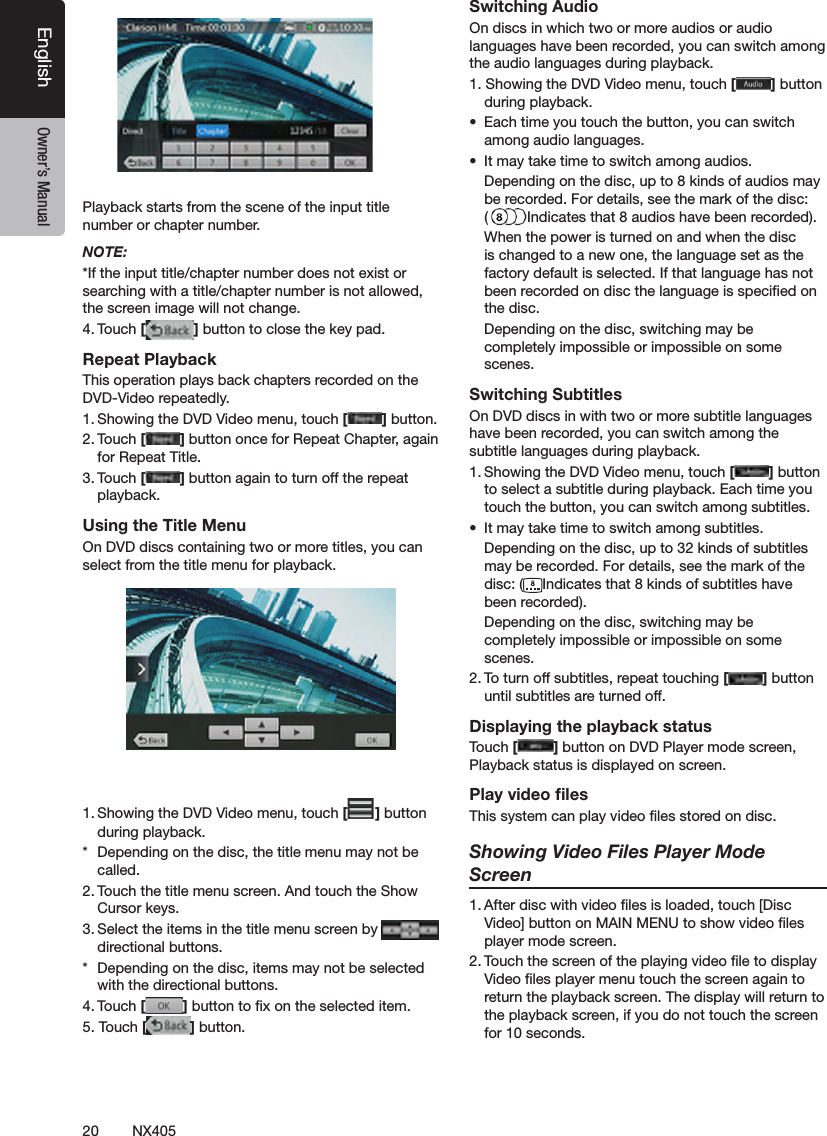

20 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual         Playback starts from the scene of the input title number or chapter number.NOTE:*If the input title/chapter number does not exist or searching with a title/chapter number is not allowed, the screen image will not change.4. Touch [ ] button to close the key pad.Repeat PlaybackThis operation plays back chapters recorded on the DVD-Video repeatedly.1. Showing the DVD Video menu, touch [ ] button.2. Touch [ ] button once for Repeat Chapter, again for Repeat Title.3. Touch [ ] button again to turn off the repeat playback.Using the Title MenuOn DVD discs containing two or more titles, you can select from the title menu for playback.1. Showing the DVD Video menu, touch [ ] button during playback.*  Depending on the disc, the title menu may not be called.2. Touch the title menu screen. And touch the Show Cursor keys.3. Select the items in the title menu screen by   directional buttons.*  Depending on the disc, items may not be selected with the directional buttons.4. Touch [ ] button to x on the selected item.5. Touch [ ] button.Switching AudioOn discs in which two or more audios or audio languages have been recorded, you can switch among the audio languages during playback.1. Showing the DVD Video menu, touch [ ] button during playback.•  Each time you touch the button, you can switch among audio languages.•  It may take time to switch among audios.  Depending on the disc, up to 8 kinds of audios may be recorded. For details, see the mark of the disc:  ( Indicates that 8 audios have been recorded).  When the power is turned on and when the disc is changed to a new one, the language set as the factory default is selected. If that language has not been recorded on disc the language is specied on the disc.  Depending on the disc, switching may be completely impossible or impossible on some scenes.Switching SubtitlesOn DVD discs in with two or more subtitle languages have been recorded, you can switch among the subtitle languages during playback.1. Showing the DVD Video menu, touch [ ] button to select a subtitle during playback. Each time you touch the button, you can switch among subtitles.•  It may take time to switch among subtitles.  Depending on the disc, up to 32 kinds of subtitles may be recorded. For details, see the mark of the disc: ( Indicates that 8 kinds of subtitles have been recorded).  Depending on the disc, switching may be completely impossible or impossible on some scenes.2. To turn off subtitles, repeat touching [ ] button until subtitles are turned off.Displaying the playback statusTouch [ ] button on DVD Player mode screen, Playback status is displayed on screen.Play video filesThis system can play video les stored on disc.Showing Video Files Player Mode Screen1. After disc with video les is loaded, touch [Disc Video] button on MAIN MENU to show video les player mode screen.2. Touch the screen of the playing video le to display Video les player menu touch the screen again to return the playback screen. The display will return to the playback screen, if you do not touch the screen for 10 seconds.

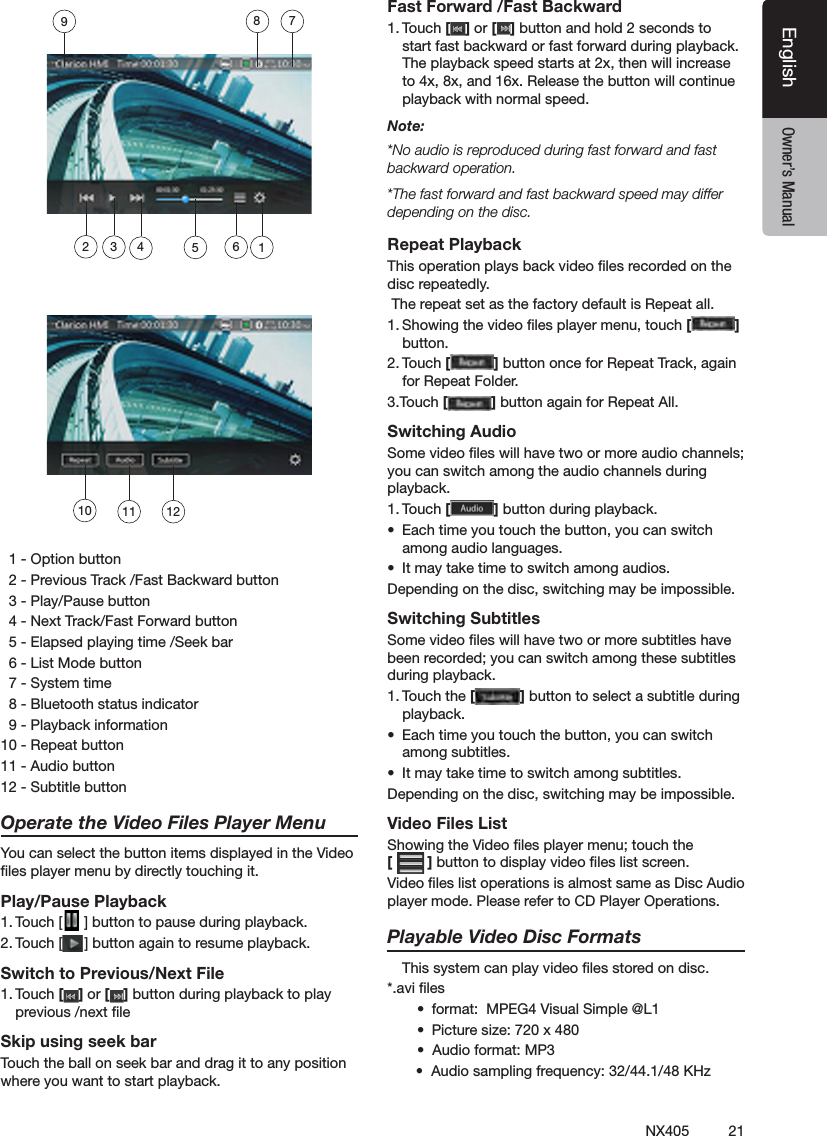

21NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual  1 - Option button  2 - Previous Track /Fast Backward button  3 - Play/Pause button  4 - Next Track/Fast Forward button  5 - Elapsed playing time /Seek bar  6 - List Mode button  7 - System time  8 - Bluetooth status indicator  9 - Playback information10 - Repeat button11 - Audio button 12 - Subtitle buttonOperate the Video Files Player MenuYou can select the button items displayed in the Video les player menu by directly touching it.Play/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Switch to Previous/Next File1. Touch [ ] or [ ] button during playback to play previous /next le Skip using seek barTouch the ball on seek bar and drag it to any position where you want to start playback.Fast Forward /Fast Backward1. Touch [ ] or [ ] button and hold 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x. Release the button will continue playback with normal speed.Note:*No audio is reproduced during fast forward and fast backward operation.*The fast forward and fast backward speed may differ depending on the disc.Repeat PlaybackThis operation plays back video les recorded on the disc repeatedly. The repeat set as the factory default is Repeat all.1. Showing the video les player menu, touch [ ] button.2. Touch [ ] button once for Repeat Track, again for Repeat Folder.3.Touch [ ] button again for Repeat All.Switching AudioSome video les will have two or more audio channels; you can switch among the audio channels during playback.1. Touch [ ] button during playback.•  Each time you touch the button, you can switch among audio languages.•  It may take time to switch among audios.Depending on the disc, switching may be impossible.Switching SubtitlesSome video les will have two or more subtitles have been recorded; you can switch among these subtitles during playback.1. Touch the [ ] button to select a subtitle during playback.•  Each time you touch the button, you can switch among subtitles.•  It may take time to switch among subtitles.Depending on the disc, switching may be impossible.Video Files ListShowing the Video les player menu; touch the  [ ] button to display video les list screen.Video les list operations is almost same as Disc Audio player mode. Please refer to CD Player Operations.Playable Video Disc Formats   This system can play video les stored on disc.*.avi les•  format:  MPEG4 Visual Simple @L1 •  Picture size: 720 x 480 •  Audio format: MP3       •  Audio sampling frequency: 32/44.1/48 KHz10 11 12123456789
22 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual*.mp4 les:•  format: MPEG4 Visual Simple @L1•  Picture size: 720 x 480•  Audio format: AAC•  Audio sampling frequency: 32/44.1/48 KHz*.mpg les       •  format: MPEG2•  Picture size: 720 x 480•  Audio format: MP3 •  Audio sampling frequency: 32/44.1/48 KHz

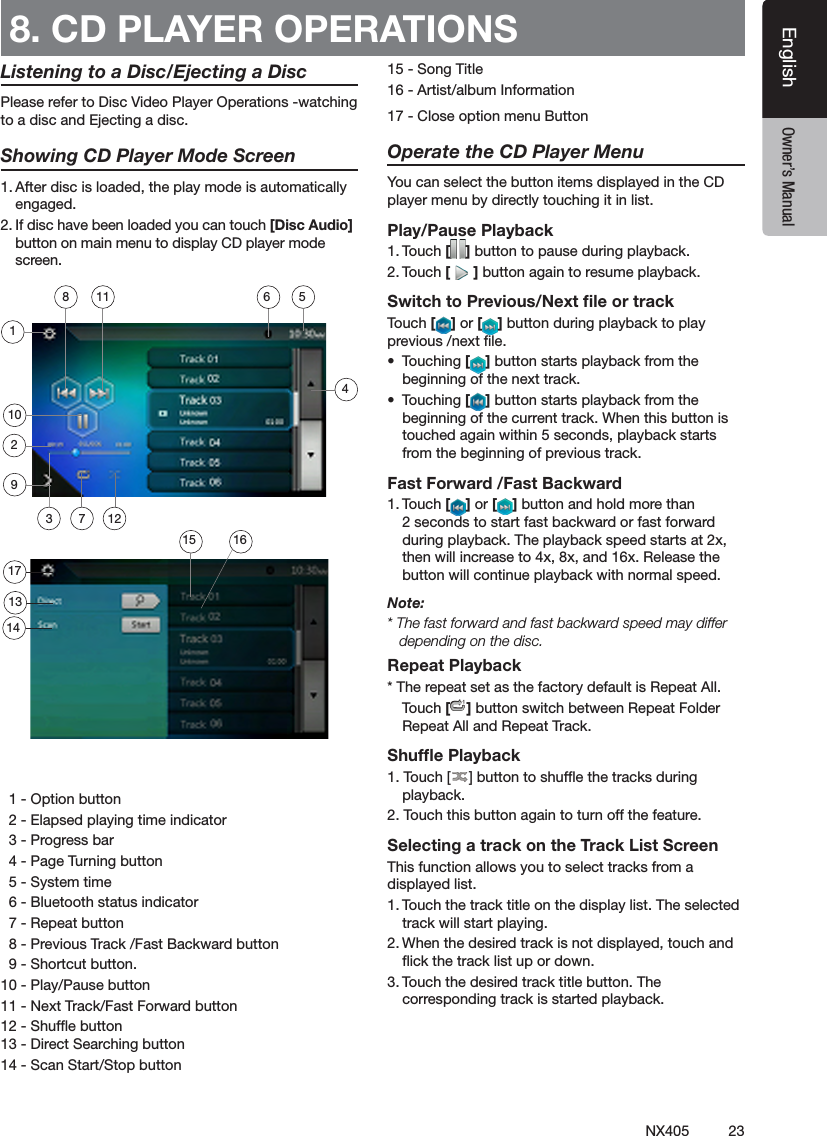

23NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualListening to a Disc/Ejecting a DiscPlease refer to Disc Video Player Operations -watching to a disc and Ejecting a disc.Showing CD Player Mode Screen1. After disc is loaded, the play mode is automatically engaged.2. If disc have been loaded you can touch [Disc Audio] button on main menu to display CD player mode screen.  1 - Option button  2 - Elapsed playing time indicator  3 - Progress bar  4 - Page Turning button  5 - System time  6 - Bluetooth status indicator  7 - Repeat button   8 - Previous Track /Fast Backward button  9 - Shortcut button.10 - Play/Pause button 11 - Next Track/Fast Forward button12 - Shufe button 13 - Direct Searching button14 - Scan Start/Stop button15 - Song Title16 - Artist/album Information17 - Close option menu ButtonOperate the CD Player MenuYou can select the button items displayed in the CD player menu by directly touching it in list.Play/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Switch to Previous/Next file or trackTouch [ ] or [ ] button during playback to play previous /next le.•  Touching [ ] button starts playback from the beginning of the next track.•  Touching [ ] button starts playback from the beginning of the current track. When this button is touched again within 5 seconds, playback starts from the beginning of previous track.Fast Forward /Fast Backward1. Touch [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x. Release the button will continue playback with normal speed.Note:* The fast forward and fast backward speed may differ depending on the disc.Repeat Playback* The repeat set as the factory default is Repeat All.    Touch [ ] button switch between Repeat Folder Repeat All and Repeat Track.Shuffle Playback1. Touch [ ] button to shufe the tracks during playback.2. Touch this button again to turn off the feature.Selecting a track on the Track List ScreenThis function allows you to select tracks from a displayed list.1. Touch the track title on the display list. The selected track will start playing.2. When the desired track is not displayed, touch and ick the track list up or down.3. Touch the desired track title button. The corresponding track is started playback.8. CD PLAYER OPERATIONS 4102113141236158511791617
24 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualScanning the Tracks1. Touch [ ] button to show [Scan  ] button.2. Touch [Scan  ] button during playback.•  It will play from next track, and each track will display for 10 seconds.•  The [Scan  ] button will switch to [Scan  ]button.3. Touch [Scan  ] button.•  It will continue playback from current track.•  [Scan  ] button will switch to [Scan  ] button.*  The function will scan all tracks orderly in current folder once. After Scan stopped playback will continue.Searching with the Track NumberThis operation allows searching using the track numbers recorded on the CDs.1. Touch [ ] button to show [ ] button.2. Touch [ ] button .The numerical keypad will appear on the screen and touch [ ] button.3. Input the track number that you want to play back with [0] to [9] key and touch [OK] button.Playback starts from the track of the input track number.•  If the input track number does not exist or searching with track number is not allowed, the screen image will not change.•  Touch the [ ] button will close the numerical keypad.•  Touch [ ] button will close the option window and display playback screen..Listening to Compressed AudioThis system can play audio les stored on disc.MP3/ WMA/ AACTag Display FunctionThis unit is an ID3 Tag compatible model.This unit supports the ID3 TAGs of the Version 2.4, 2.3, 1.1 and 1.0.In displaying, this unit gives priority to the Version 2.3 and 2.4 TAGs.Note:• Some CDs recorded on CD-R/RW mode may not be usable.Displaying  MP3/WMA/AAC TAG titlesTag information can be displayed for compressed audio le containing Tag information.Tag data: title, artist, albumPrecautions when creating MP3 disc•  File extensions1. Always add a le extension “.MP3” or “.mp3” to an MP3 le, and “.WMA” or “.wma” to a WMA and “.m4a” to a AAC le by using single byte letters. If you add a le extension other than specied or forget to add these le extension, the le cannot be played. In addition, if you use upper case and lower case letters (capital and small letters) mixed for le extensions, normal play may not be possible.2. Files other than MP3/WMA/AAC data cannot be played.  Playing les with a format not supported will be skipped, and the scan, random and repeat playback mode may be canceled.•  File and Disc Not SupportedFiles and discs with following extensions are not supported: *.AAC, *.DLF, *.M3U, *.PLS, *.MP3 PRO les, les with DRM, open session discs.•  Logical format (File system)1. When writing an MP3/WMA/AAC le on a disc, please select “ISO9660 level 1 or level 2 (without including expansion format)” as the writing software format. Normal playback may not be possible if the disc is recorded on another format.2. The folder name and le name can be displayed as the title during MP3/WMA/AAC play .•  Entering File and Folder NamesNames using the code list characters are the only le names and folder names that can be entered and displayed. Using any other character will cause the le and folder names to be displayed incorrectly.•  Folder structure1. A disc with a folder having more than 8 hierarchical levels will conict with the ISO9660 and playback will be impossible.•  Number of les or folders1. The maximum allowable number of folders is 200 (including root directory); the maximum allowable number of les is 1500 (max. 200 per folder). This represents the maximum number of tracks that can be played back.2. Tracks are played in the order that they were recorded onto a disc. (Tracks might not always be played in the order displayed on the PC).•  Some noise may occur depending on the type of encoder software used while recording.

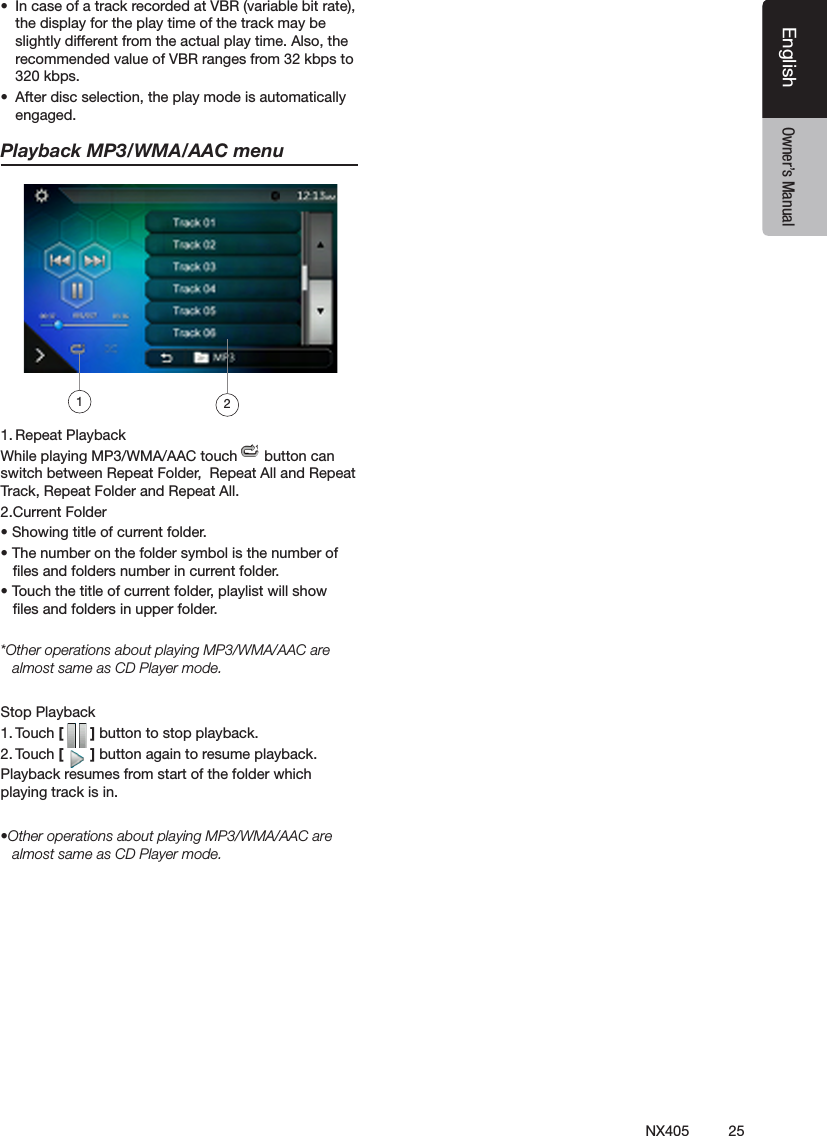

25NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual•  In case of a track recorded at VBR (variable bit rate), the display for the play time of the track may be slightly different from the actual play time. Also, the recommended value of VBR ranges from 32 kbps to 320 kbps.•  After disc selection, the play mode is automatically engaged.Playback MP3/WMA/AAC menu1. Repeat PlaybackWhile playing MP3/WMA/AAC touch   button can switch between Repeat Folder,  Repeat All and Repeat Track, Repeat Folder and Repeat All.2.Current Folder• Showing title of current folder.• The number on the folder symbol is the number of      les and folders number in current folder.• Touch the title of current folder, playlist will show     les and folders in upper folder.*Other operations about playing MP3/WMA/AAC are almost same as CD Player mode.Stop Playback1. Touch [   ] button to stop playback.2. Touch [   ] button again to resume playback.Playback resumes from start of the folder which playing track is in.•Other operations about playing MP3/WMA/AAC are almost same as CD Player mode.12

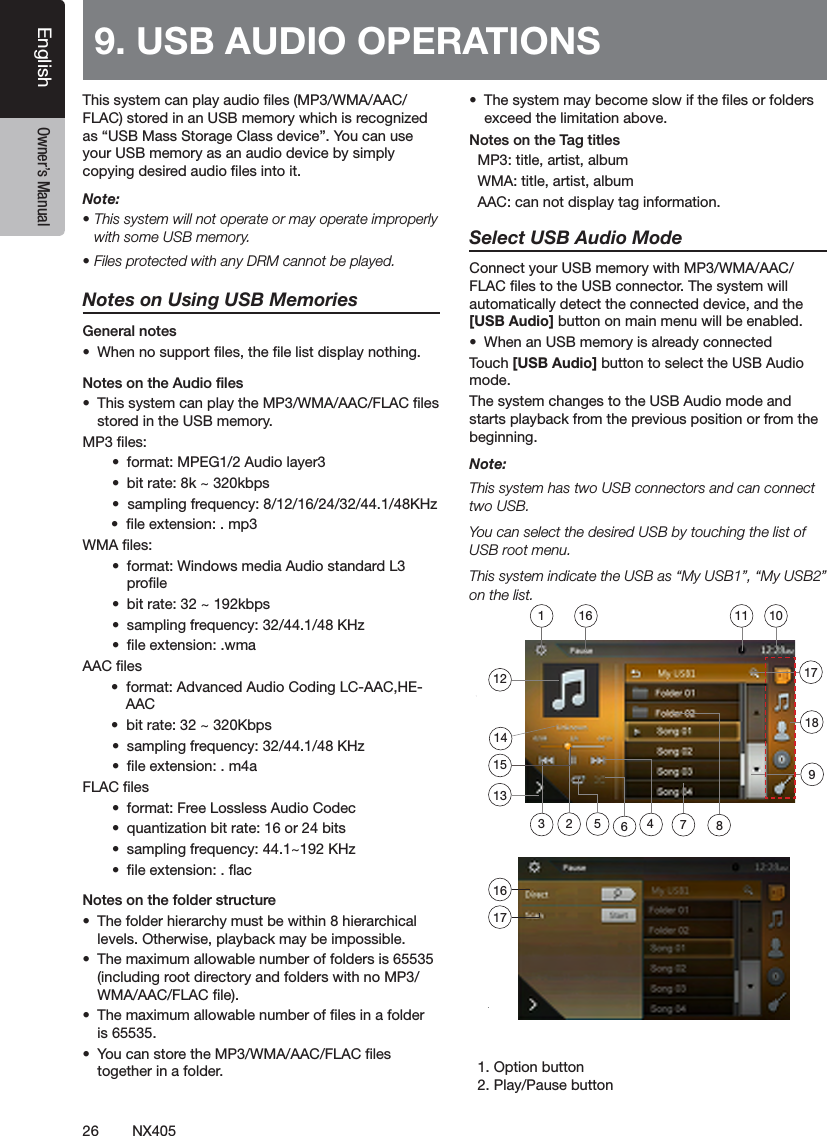

26 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualThis system can play audio les (MP3/WMA/AAC/FLAC) stored in an USB memory which is recognized as “USB Mass Storage Class device”. You can use your USB memory as an audio device by simply copying desired audio les into it.Note: • This system will not operate or may operate improperly with some USB memory.• Files protected with any DRM cannot be played.Notes on Using USB MemoriesGeneral notes•  When no support les, the le list display nothing.Notes on the Audio les•  This system can play the MP3/WMA/AAC/FLAC les stored in the USB memory.MP3 les:•  format: MPEG1/2 Audio layer3•  bit rate: 8k ~ 320kbps•  sampling frequency: 8/12/16/24/32/44.1/48KHz       •  le extension: . mp3WMA les:•  format: Windows media Audio standard L3 prole•  bit rate: 32 ~ 192kbps•  sampling frequency: 32/44.1/48 KHz•  le extension: .wmaAAC les       •  format: Advanced Audio Coding LC-AAC,HE-         AAC         •  bit rate: 32 ~ 320Kbps •  sampling frequency: 32/44.1/48 KHz•  le extension: . m4aFLAC les•  format: Free Lossless Audio Codec •  quantization bit rate: 16 or 24 bits•  sampling frequency: 44.1~192 KHz•  le extension: . acNotes on the folder structure•  The folder hierarchy must be within 8 hierarchical levels. Otherwise, playback may be impossible.•  The maximum allowable number of folders is 65535 (including root directory and folders with no MP3/WMA/AAC/FLAC le).•  The maximum allowable number of les in a folder is 65535.•  You can store the MP3/WMA/AAC/FLAC les together in a folder.•  The system may become slow if the les or folders exceed the limitation above.Notes on the Tag titles  MP3: title, artist, album  WMA: title, artist, album  AAC: can not display tag information.Select USB Audio ModeConnect your USB memory with MP3/WMA/AAC/FLAC les to the USB connector. The system will automatically detect the connected device, and the [USB Audio] button on main menu will be enabled. •  When an USB memory is already connectedTouch [USB Audio] button to select the USB Audio mode.The system changes to the USB Audio mode and starts playback from the previous position or from the beginning.Note:This system has two USB connectors and can connect two USB.You can select the desired USB by touching the list of USB root menu.This system indicate the USB as “My USB1”, “My USB2” on the list.    1. Option button  2. Play/Pause button9. USB AUDIO OPERATIONS 1617712135648239101111415161718

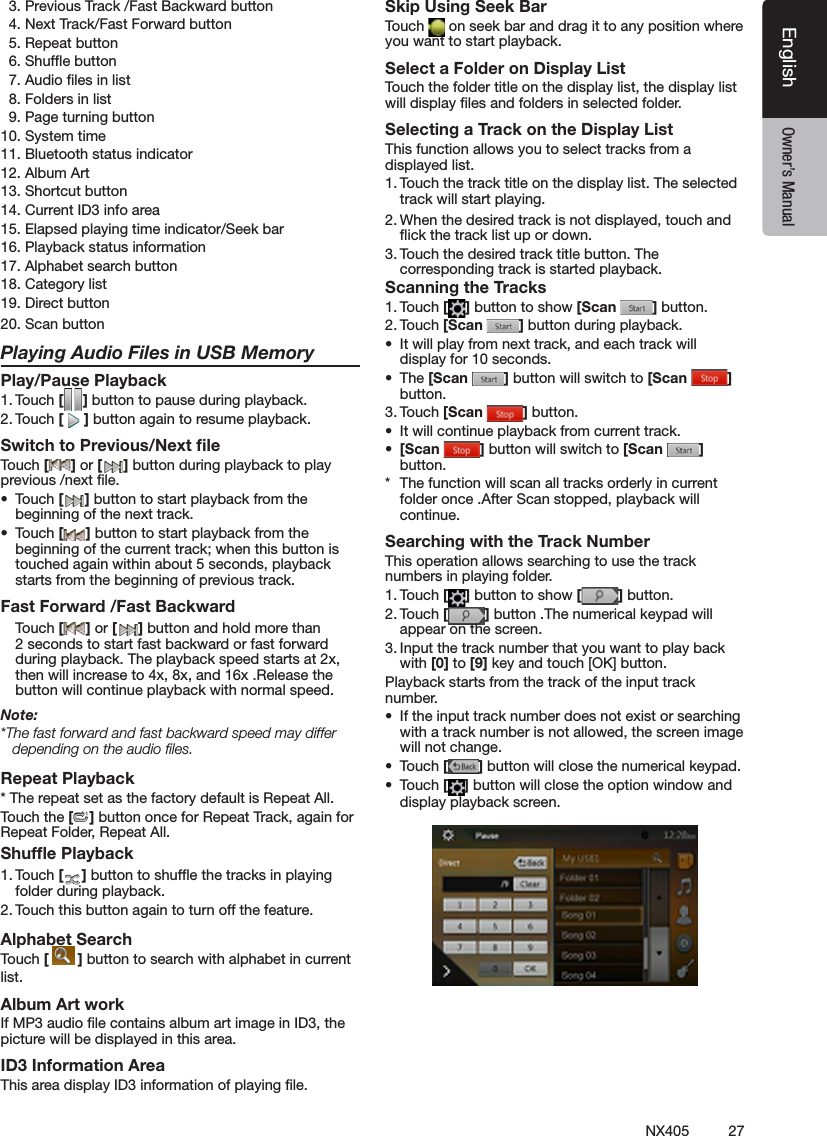

27NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual  3. Previous Track /Fast Backward button  4. Next Track/Fast Forward button  5. Repeat button  6. Shufe button  7. Audio les in list  8. Folders in list  9. Page turning button10. System time11. Bluetooth status indicator12. Album Art13. Shortcut button14. Current ID3 info area15. Elapsed playing time indicator/Seek bar16. Playback status information17. Alphabet search button18. Category list19. Direct button20. Scan button Playing Audio Files in USB MemoryPlay/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Switch to Previous/Next fileTouch [ ] or [ ] button during playback to play previous /next le.•  Touch [ ] button to start playback from the beginning of the next track.•  Touch [ ] button to start playback from the beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.Fast Forward /Fast Backward Touch [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x .Release the button will continue playback with normal speed.Note:*The fast forward and fast backward speed may differ depending on the audio files.Repeat Playback* The repeat set as the factory default is Repeat All.Touch the [ ] button once for Repeat Track, again for Repeat Folder, Repeat All.Shuffle Playback1. Touch [ ] button to shufe the tracks in playing folder during playback.2. Touch this button again to turn off the feature.Alphabet SearchTouch [  ] button to search with alphabet in currentlist.Album Art workIf MP3 audio le contains album art image in ID3, the picture will be displayed in this area.ID3 Information AreaThis area display ID3 information of playing le.Skip Using Seek BarTouch   on seek bar and drag it to any position where you want to start playback.Select a Folder on Display ListTouch the folder title on the display list, the display list will display les and folders in selected folder.Selecting a Track on the Display List This function allows you to select tracks from a displayed list.1. Touch the track title on the display list. The selected track will start playing.2. When the desired track is not displayed, touch and ick the track list up or down.3. Touch the desired track title button. The corresponding track is started playback.Scanning the Tracks1. Touch [ ] button to show [Scan  ] button.2. Touch [Scan  ] button during playback.•  It will play from next track, and each track will display for 10 seconds.•  The [Scan  ] button will switch to [Scan  ] button.3. Touch [Scan  ] button.•  It will continue playback from current track.•  [Scan  ] button will switch to [Scan  ] button.*  The function will scan all tracks orderly in current folder once .After Scan stopped, playback will continue.Searching with the Track NumberThis operation allows searching to use the track numbers in playing folder.1. Touch [ ] button to show [ ] button.2. Touch [ ] button .The numerical keypad will appear on the screen.3. Input the track number that you want to play back with [0] to [9] key and touch [OK] button.Playback starts from the track of the input track number.•  If the input track number does not exist or searching with a track number is not allowed, the screen image will not change.•  Touch [ ] button will close the numerical keypad.•  Touch [ ] button will close the option window and display playback screen.

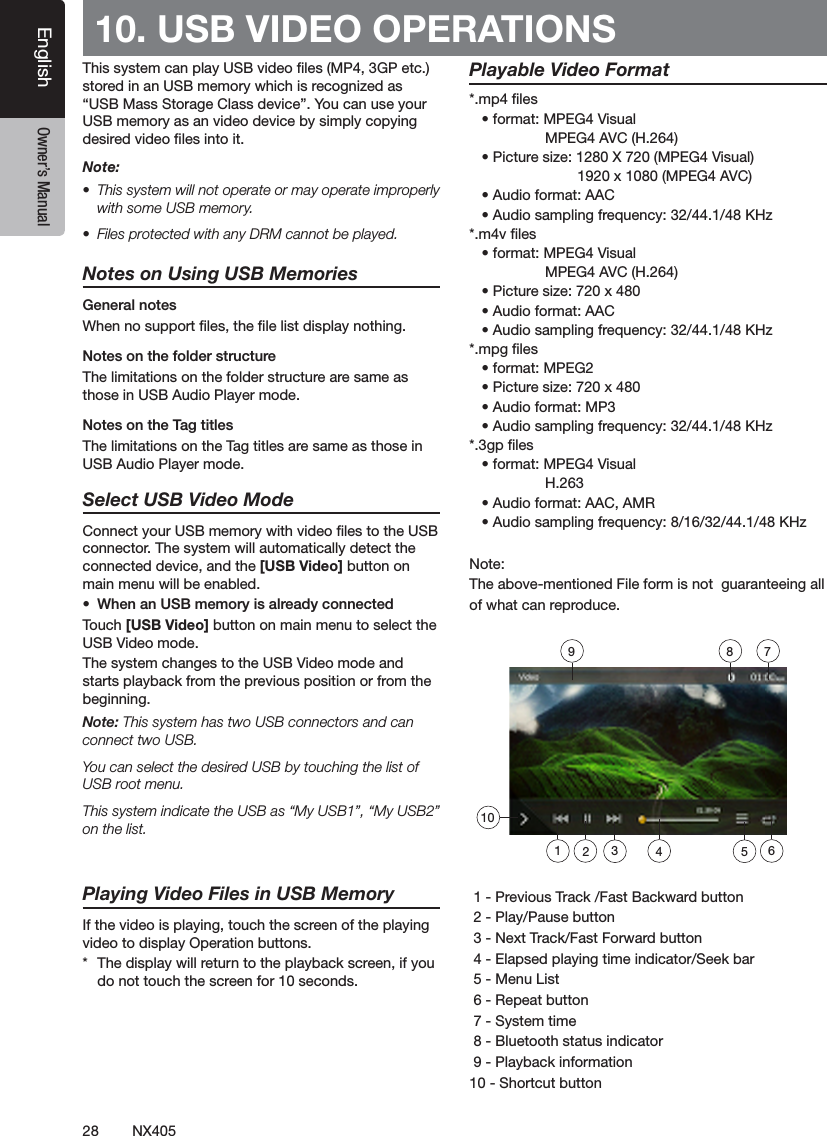

28 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual10. USB VIDEO OPERATIONSThis system can play USB video les (MP4, 3GP etc.) stored in an USB memory which is recognized as  “USB Mass Storage Class device”. You can use your USB memory as an video device by simply copying desired video les into it.Note:•  This system will not operate or may operate improperly with some USB memory.•  Files protected with any DRM cannot be played.Notes on Using USB MemoriesGeneral notesWhen no support les, the le list display nothing.Notes on the folder structureThe limitations on the folder structure are same as those in USB Audio Player mode.Notes on the Tag titlesThe limitations on the Tag titles are same as those in USB Audio Player mode.Select USB Video ModeConnect your USB memory with video les to the USB connector. The system will automatically detect the connected device, and the [USB Video] button on main menu will be enabled. •  When an USB memory is already connectedTouch [USB Video] button on main menu to select the USB Video mode.The system changes to the USB Video mode and starts playback from the previous position or from the beginning.Note: This system has two USB connectors and can connect two USB.You can select the desired USB by touching the list of USB root menu.This system indicate the USB as “My USB1”, “My USB2” on the list. Playing Video Files in USB MemoryIf the video is playing, touch the screen of the playing video to display Operation buttons. *  The display will return to the playback screen, if you do not touch the screen for 10 seconds.Playable Video Format*.mp4 les   • format: MPEG4 Visual                   MPEG4 AVC (H.264)   • Picture size: 1280 X 720 (MPEG4 Visual)                          1920 x 1080 (MPEG4 AVC)   • Audio format: AAC    • Audio sampling frequency: 32/44.1/48 KHz      *.m4v les   • format: MPEG4 Visual                   MPEG4 AVC (H.264)   • Picture size: 720 x 480   • Audio format: AAC    • Audio sampling frequency: 32/44.1/48 KHz   *.mpg les   • format: MPEG2   • Picture size: 720 x 480    • Audio format: MP3    • Audio sampling frequency: 32/44.1/48 KHz *.3gp les   • format: MPEG4 Visual                    H.263   • Audio format: AAC, AMR    • Audio sampling frequency: 8/16/32/44.1/48 KHz   Note: The above-mentioned File form is not  guaranteeing allof what can reproduce. 1 - Previous Track /Fast Backward button 2 - Play/Pause button 3 - Next Track/Fast Forward button 4 - Elapsed playing time indicator/Seek bar 5 - Menu List 6 - Repeat button 7 - System time 8 - Bluetooth status indicator 9 - Playback information10 - Shortcut button1012349 8 756

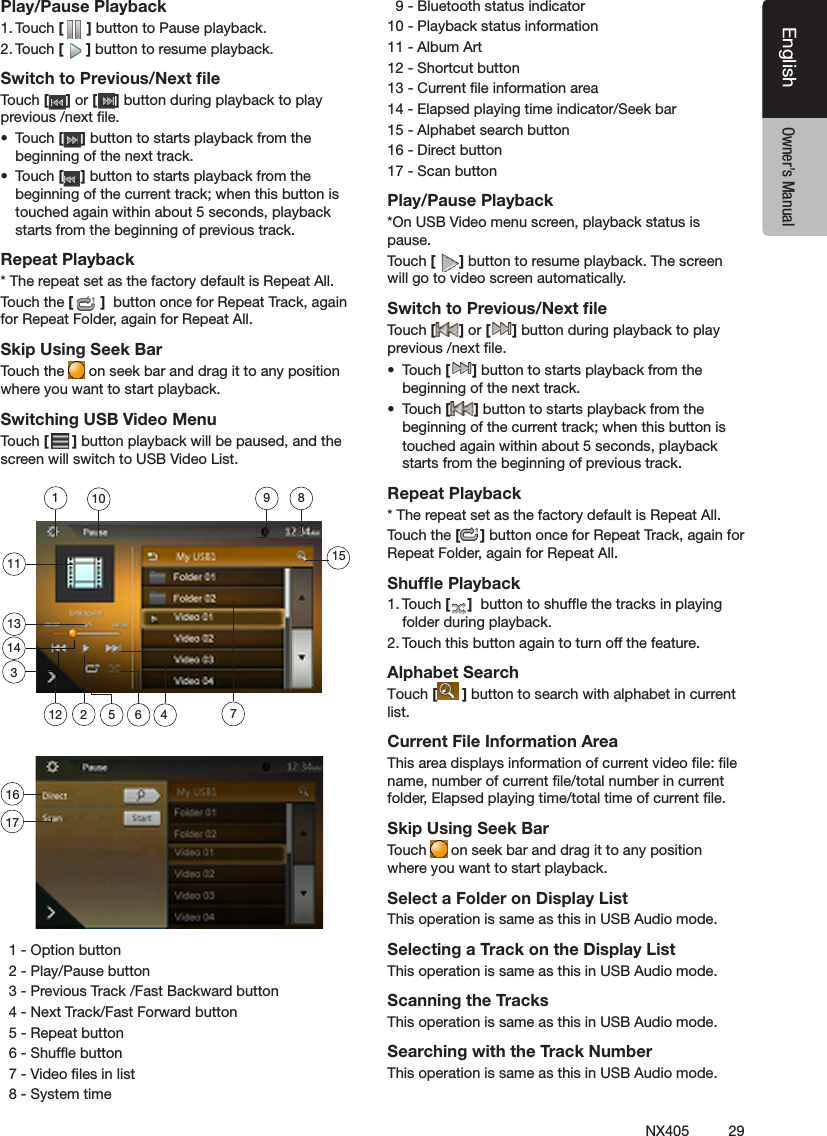

29NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualPlay/Pause Playback1. Touch [ ] button to Pause playback.2. Touch [ ] button to resume playback.Switch to Previous/Next fileTouch [ ] or [ ] button during playback to play previous /next le.•  Touch [ ] button to starts playback from the beginning of the next track.•  Touch [ ] button to starts playback from the beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.Repeat Playback* The repeat set as the factory default is Repeat All.Touch the [ ]  button once for Repeat Track, again for Repeat Folder, again for Repeat All.Skip Using Seek BarTouch the   on seek bar and drag it to any position where you want to start playback.Switching USB Video MenuTouch [ ] button playback will be paused, and the screen will switch to USB Video List.  1 - Option button   2 - Play/Pause button  3 - Previous Track /Fast Backward button  4 - Next Track/Fast Forward button   5 - Repeat button  6 - Shufe button   7 - Video les in list  8 - System time  9 - Bluetooth status indicator10 - Playback status information11 - Album Art12 - Shortcut button13 - Current le information area14 - Elapsed playing time indicator/Seek bar15 - Alphabet search button16 - Direct button  17 - Scan button Play/Pause Playback*On USB Video menu screen, playback status is pause.Touch [ ] button to resume playback. The screen will go to video screen automatically.Switch to Previous/Next fileTouch [ ] or [ ] button during playback to play previous /next le.•  Touch [ ] button to starts playback from the beginning of the next track.•  Touch [ ] button to starts playback from the beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.Repeat Playback* The repeat set as the factory default is Repeat All.Touch the [ ] button once for Repeat Track, again for Repeat Folder, again for Repeat All.Shuffle Playback1. Touch [ ]  button to shufe the tracks in playing folder during playback.2. Touch this button again to turn off the feature.Alphabet SearchTouch [ ] button to search with alphabet in current list.Current File Information AreaThis area displays information of current video le: le name, number of current le/total number in current folder, Elapsed playing time/total time of current le.Skip Using Seek BarTouch  on seek bar and drag it to any position where you want to start playback.Select a Folder on Display ListThis operation is same as this in USB Audio mode.Selecting a Track on the Display List This operation is same as this in USB Audio mode.Scanning the TracksThis operation is same as this in USB Audio mode.Searching with the Track NumberThis operation is same as this in USB Audio mode.1135 6 47289101314151121617

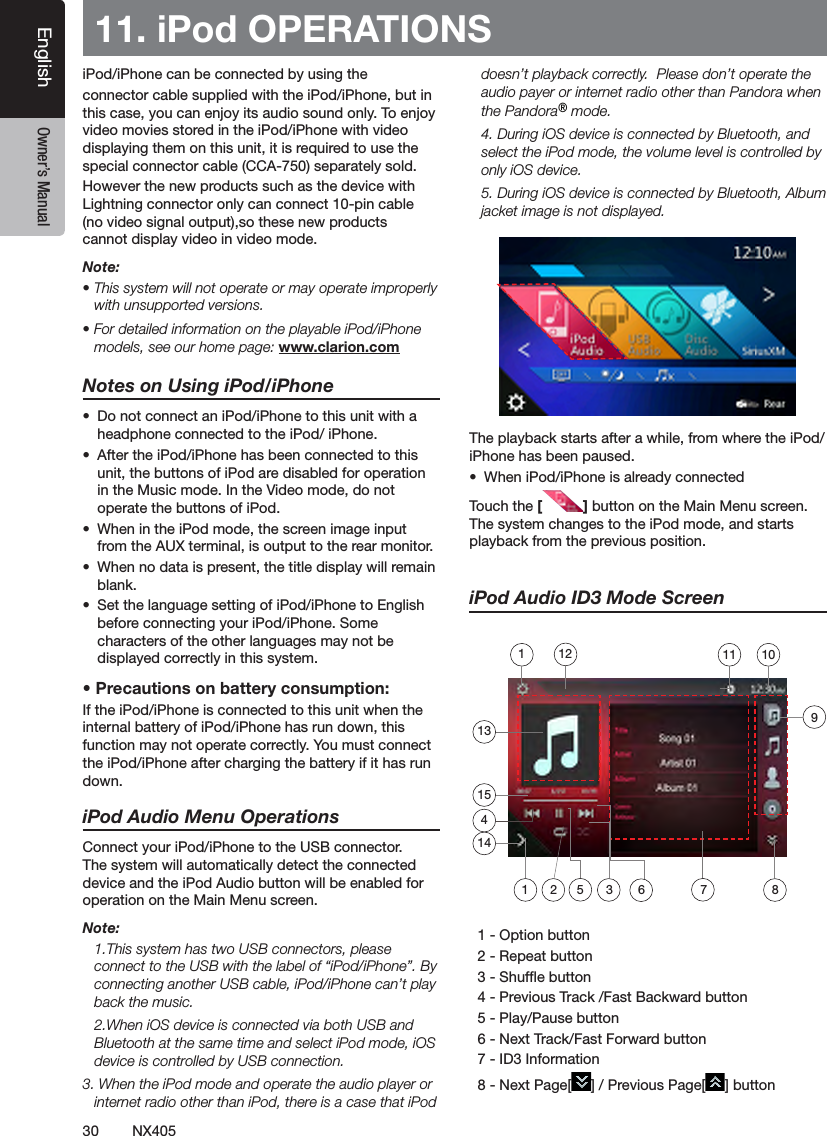

30 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual11. iPod OPERATIONSiPod/iPhone can be connected by using the connector cable supplied with the iPod/iPhone, but in this case, you can enjoy its audio sound only. To enjoy video movies stored in the iPod/iPhone with video displaying them on this unit, it is required to use the special connector cable (CCA-750) separately sold.However the new products such as the device with Lightning connector only can connect 10-pin cable (no video signal output),so these new products cannot display video in video mode.Note:• This system will not operate or may operate improperly with unsupported versions.• For detailed information on the playable iPod/iPhone models, see our home page: www.clarion.comNotes on Using iPod/iPhone•  Do not connect an iPod/iPhone to this unit with a headphone connected to the iPod/ iPhone.•  After the iPod/iPhone has been connected to this unit, the buttons of iPod are disabled for operation in the Music mode. In the Video mode, do not operate the buttons of iPod.•  When in the iPod mode, the screen image input from the AUX terminal, is output to the rear monitor.•  When no data is present, the title display will remain blank.•  Set the language setting of iPod/iPhone to English before connecting your iPod/iPhone. Some characters of the other languages may not be displayed correctly in this system.• Precautions on battery consumption:If the iPod/iPhone is connected to this unit when the internal battery of iPod/iPhone has run down, this function may not operate correctly. You must connect the iPod/iPhone after charging the battery if it has run down.iPod Audio Menu OperationsConnect your iPod/iPhone to the USB connector. The system will automatically detect the connected device and the iPod Audio button will be enabled for operation on the Main Menu screen.  Note:  1.This system has two USB connectors, please connect to the USB with the label of “iPod/iPhone”. By connecting another USB cable, iPod/iPhone can’t play back the music.  2.When iOS device is connected via both USB and Bluetooth at the same time and select iPod mode, iOS device is controlled by USB connection.3. When the iPod mode and operate the audio player or internet radio other than iPod, there is a case that iPod doesn’t playback correctly.  Please don’t operate the audio payer or internet radio other than Pandora when the Pandora® mode.  4. During iOS device is connected by Bluetooth, and select the iPod mode, the volume level is controlled by only iOS device.  5. During iOS device is connected by Bluetooth, Album jacket image is not displayed.The playback starts after a while, from where the iPod/iPhone has been paused.•  When iPod/iPhone is already connectedTouch the [ ] button on the Main Menu screen. The system changes to the iPod mode, and starts playback from the previous position.iPod Audio ID3 Mode Screen  1 - Option button   2 - Repeat button  3 - Shufe button  4 - Previous Track /Fast Backward button   5 - Play/Pause button  6 - Next Track/Fast Forward button   7 - ID3 Information  8 - Next Page[ ] / Previous Page[ ] button135 3 6 72114101112154981

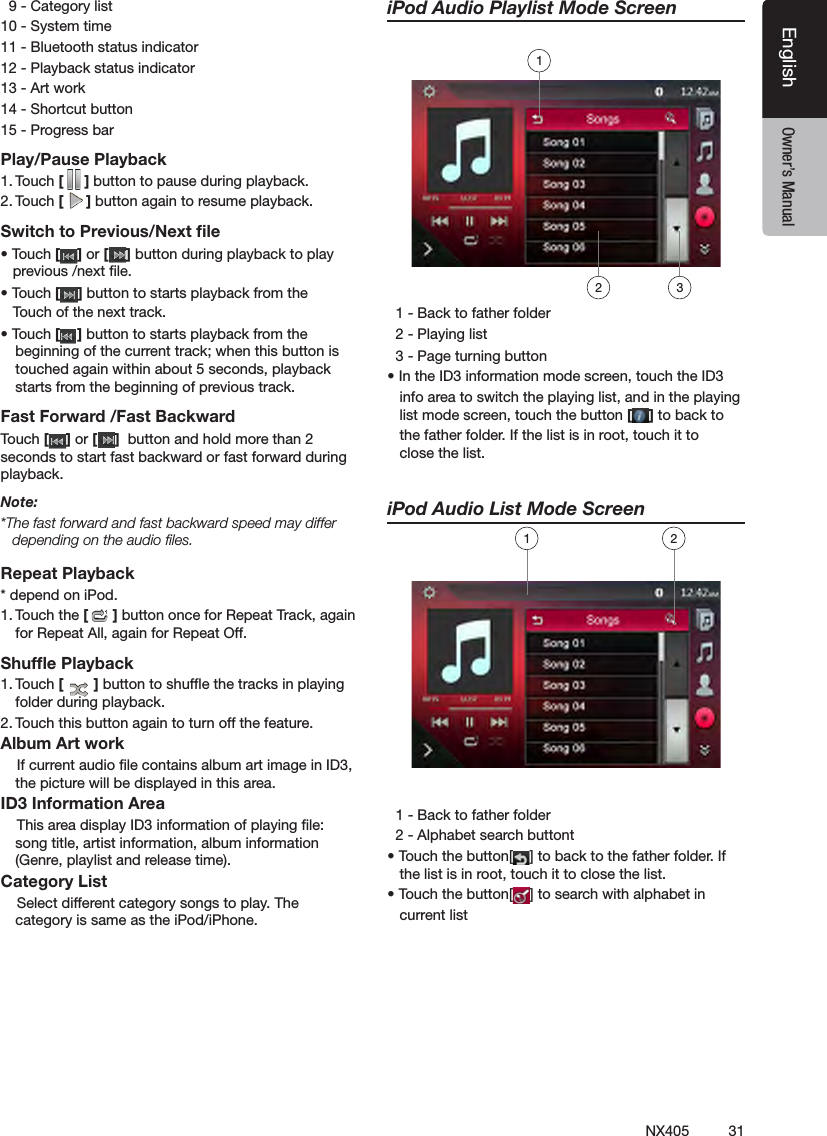

31NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual  9 - Category list10 - System time11 - Bluetooth status indicator12 - Playback status indicator13 - Art work14 - Shortcut button15 - Progress barPlay/Pause Playback1. Touch [ ] button to pause during playback.2. Touch [ ] button again to resume playback.Switch to Previous/Next file• Touch [ ] or [ ] button during playback to play      previous /next le.• Touch [ ] button to starts playback from the     Touch of the next track.• Touch [ ] button to starts playback from the beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.Fast Forward /Fast BackwardTouch [ ] or [ ]  button and hold more than 2 seconds to start fast backward or fast forward during playback.Note:*The fast forward and fast backward speed may differ depending on the audio files.Repeat Playback* depend on iPod.1. Touch the [ ] button once for Repeat Track, again for Repeat All, again for Repeat Off. Shuffle Playback1. Touch [ ] button to shufe the tracks in playing folder during playback.2. Touch this button again to turn off the feature.Album Art work    If current audio le contains album art image in ID3, the picture will be displayed in this area.ID3 Information Area    This area display ID3 information of playing le: song title, artist information, album information (Genre, playlist and release time).Category List    Select different category songs to play. The category is same as the iPod/iPhone.iPod Audio Playlist Mode Screen  1 - Back to father folder   2 - Playing list  3 - Page turning button• In the ID3 information mode screen, touch the ID3   info area to switch the playing list, and in the playing       list mode screen, touch the button [ ] to back to   the father folder. If the list is in root, touch it to    close the list.iPod Audio List Mode Screen  1 - Back to father folder   2 - Alphabet search buttont• Touch the button[ ] to back to the father folder. If     the list is in root, touch it to close the list.• Touch the button[ ] to search with alphabet in   current list2131 2

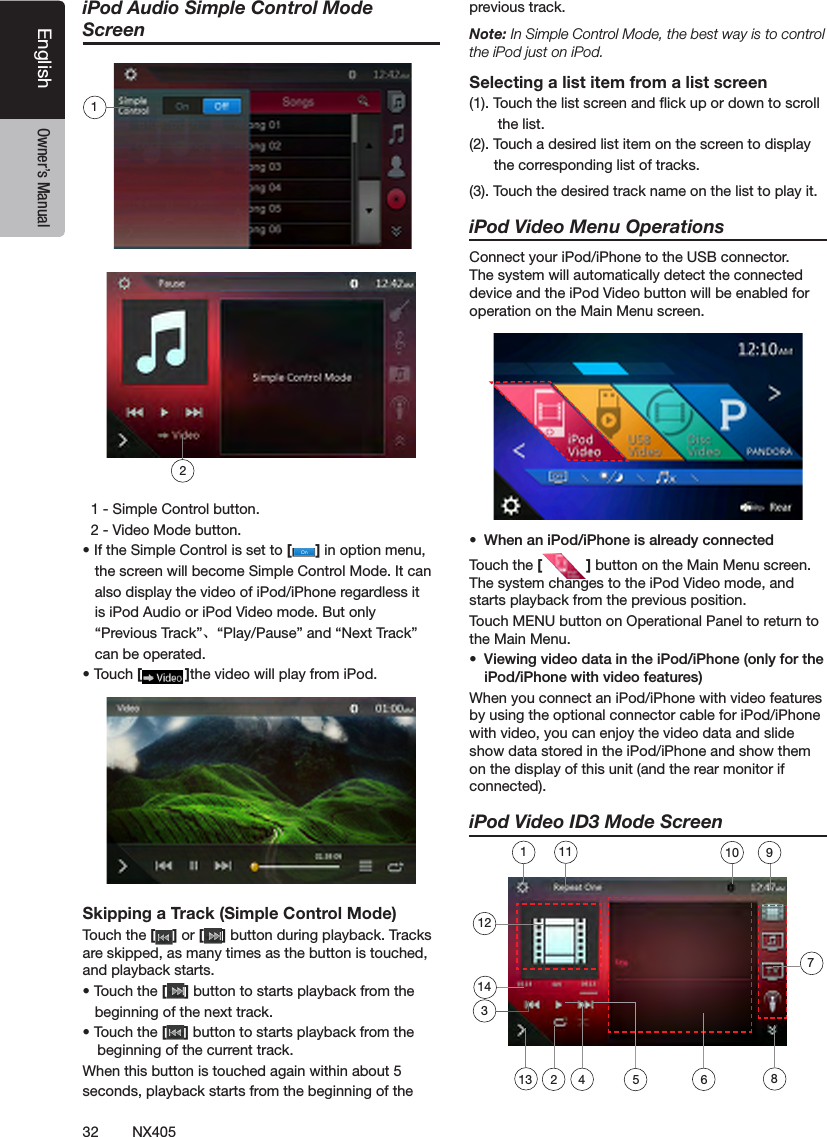

32 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualiPod Audio Simple Control Mode Screen  1 - Simple Control button.   2 - Video Mode button.• If the Simple Control is set to [ ] in option menu,   the screen will become Simple Control Mode. It can      also display the video of iPod/iPhone regardless it    is iPod Audio or iPod Video mode. But only     “Previous Track”、“Play/Pause” and “Next Track”    can be operated.• Touch [ ]the video will play from iPod.Skipping a Track (Simple Control Mode)Touch the [ ] or [ ] button during playback. Tracks are skipped, as many times as the button is touched, and playback starts.• Touch the [ ] button to starts playback from the          beginning of the next track.• Touch the [ ] button to starts playback from the beginning of the current track.When this button is touched again within about 5 seconds, playback starts from the beginning of the previous track.Note: In Simple Control Mode, the best way is to control the iPod just on iPod.Selecting a list item from a list screen(1). Touch the list screen and ick up or down to scroll         the list.(2). Touch a desired list item on the screen to display         the corresponding list of tracks.(3). Touch the desired track name on the list to play it. iPod Video Menu OperationsConnect your iPod/iPhone to the USB connector. The system will automatically detect the connected device and the iPod Video button will be enabled for operation on the Main Menu screen.• WhenaniPod/iPhoneisalreadyconnectedTouch the [ ] button on the Main Menu screen. The system changes to the iPod Video mode, and starts playback from the previous position.Touch MENU button on Operational Panel to return to the Main Menu.• ViewingvideodataintheiPod/iPhone(onlyfortheiPod/iPhonewithvideofeatures)When you connect an iPod/iPhone with video features by using the optional connector cable for iPod/iPhone with video, you can enjoy the video data and slide show data stored in the iPod/iPhone and show them on the display of this unit (and the rear monitor if connected).iPod Video ID3 Mode Screen 218712456213910111431

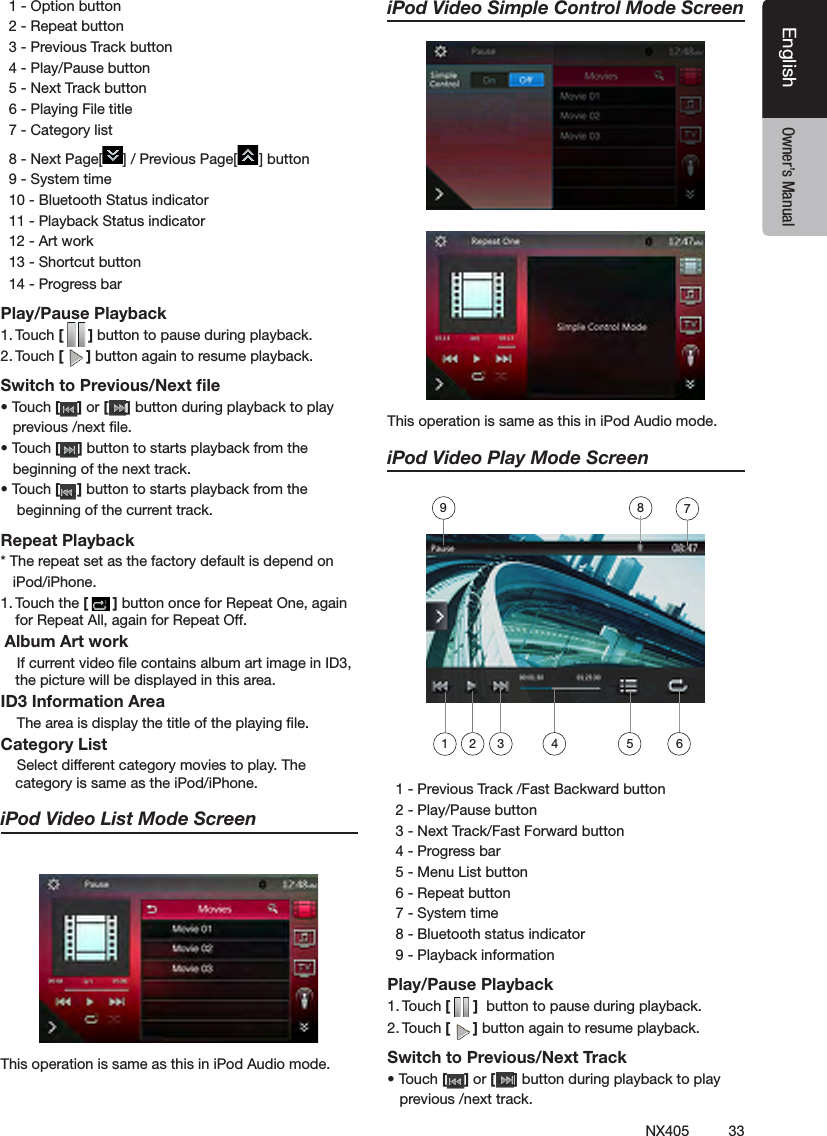

33NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual  1 - Option button   2 - Repeat button  3 - Previous Track button  4 - Play/Pause button   5 - Next Track button  6 - Playing File title   7 - Category list   8 - Next Page[ ] / Previous Page[ ] button  9 - System time  10 - Bluetooth Status indicator  11 - Playback Status indicator  12 - Art work   13 - Shortcut button  14 - Progress bar Play/Pause Playback1. Touch [ ] button to pause during playback. 2. Touch [ ] button again to resume playback.Switch to Previous/Next file• Touch [ ] or [ ] button during playback to play    previous /next file.• Touch [ ] button to starts playback from the    beginning of the next track.• Touch [ ] button to starts playback from the     beginning of the current track.Repeat Playback* The repeat set as the factory default is depend on    iPod/iPhone.1. Touch the [ ] button once for Repeat One, again for Repeat All, again for Repeat Off.   Album Art work    If current video file contains album art image in ID3, the picture will be displayed in this area.ID3 Information Area    The area is display the title of the playing file.Category List    Select different category movies to play. The category is same as the iPod/iPhone.iPod Video List Mode ScreenThis operation is same as this in iPod Audio mode.iPod Video Simple Control Mode ScreenThis operation is same as this in iPod Audio mode.iPod Video Play Mode Screen  1 - Previous Track /Fast Backward button   2 - Play/Pause button  3 - Next Track/Fast Forward button   4 - Progress bar   5 - Menu List button   6 - Repeat button   7 - System time   8 - Bluetooth status indicator  9 - Playback informationPlay/Pause Playback1. Touch [ ]  button to pause during playback. 2. Touch [ ] button again to resume playback.Switch to Previous/Next Track• Touch [ ] or [ ] button during playback to play     previous /next track.63 4 521789

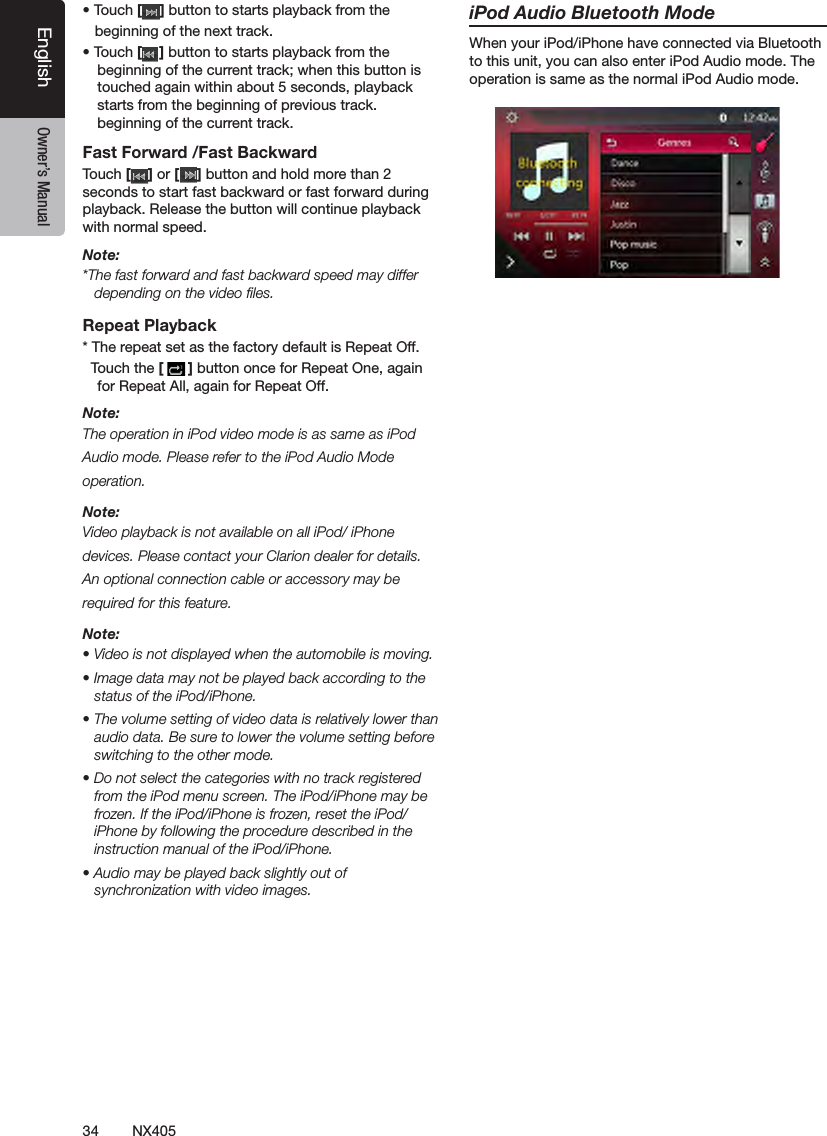

34 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual• Touch [ ] button to starts playback from the     beginning of the next track.• Touch [ ] button to starts playback from the beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.beginning of the current track.Fast Forward /Fast BackwardTouch [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback. Release the button will continue playback with normal speed.Note:*The fast forward and fast backward speed may differ depending on the video files.Repeat Playback* The repeat set as the factory default is Repeat Off.  Touch the [ ] button once for Repeat One, again for Repeat All, again for Repeat Off.Note:The operation in iPod video mode is as same as iPod Audio mode. Please refer to the iPod Audio Mode operation.Note:Video playback is not available on all iPod/ iPhone devices. Please contact your Clarion dealer for details. An optional connection cable or accessory may be required for this feature.Note:• Video is not displayed when the automobile is moving.• Image data may not be played back according to the status of the iPod/iPhone.• The volume setting of video data is relatively lower than audio data. Be sure to lower the volume setting before switching to the other mode.• Do not select the categories with no track registered from the iPod menu screen. The iPod/iPhone may be frozen. If the iPod/iPhone is frozen, reset the iPod/iPhone by following the procedure described in the instruction manual of the iPod/iPhone.• Audio may be played back slightly out of synchronization with video images.iPod Audio Bluetooth ModeWhen your iPod/iPhone have connected via Bluetooth to this unit, you can also enter iPod Audio mode. The operation is same as the normal iPod Audio mode.

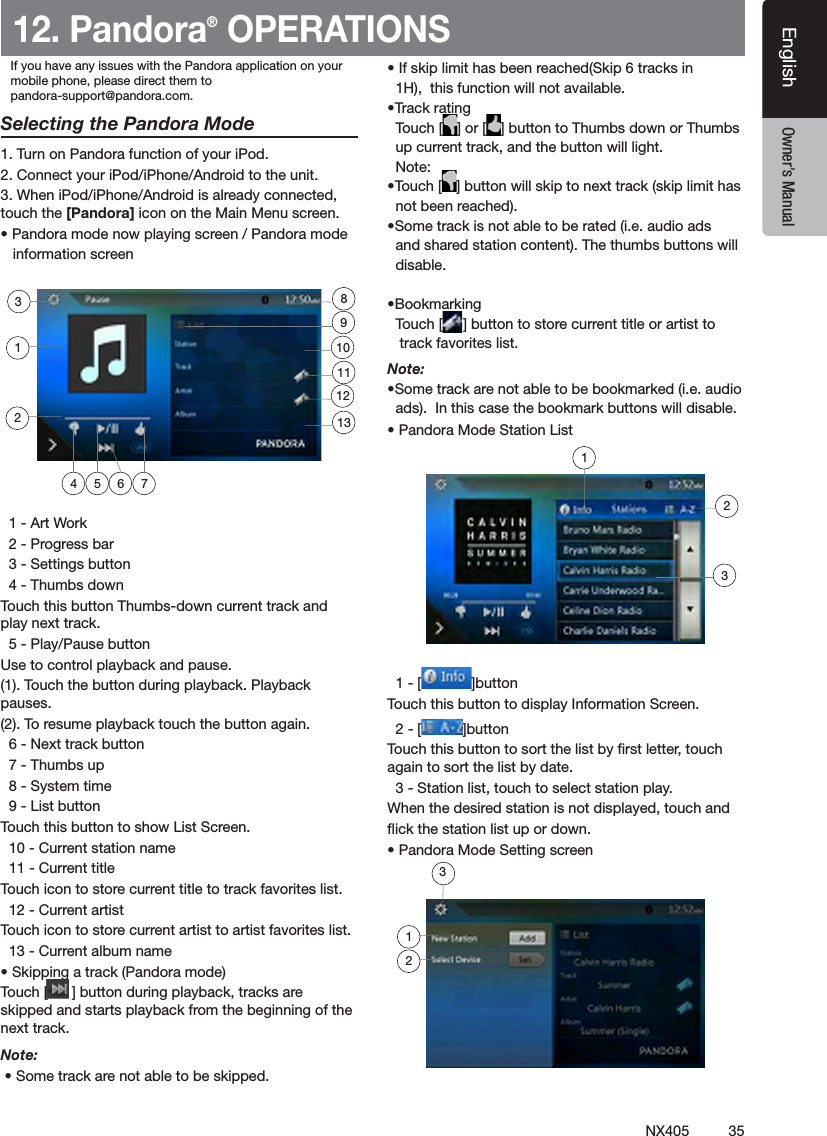

35NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual12. Pandora® OPERATIONSSelecting the Pandora Mode1. Turn on Pandora function of your iPod.2. Connect your iPod/iPhone/Android to the unit.3. When iPod/iPhone/Android is already connected, touch the [Pandora] icon on the Main Menu screen. • Pandora mode now playing screen / Pandora mode     information screen  1 - Art Work  2 - Progress bar  3 - Settings button  4 - Thumbs downTouch this button Thumbs-down current track and play next track.  5 - Play/Pause buttonUse to control playback and pause.(1). Touch the button during playback. Playback pauses.(2). To resume playback touch the button again.  6 - Next track button  7 - Thumbs up  8 - System time  9 - List buttonTouch this button to show List Screen.  10 - Current station name  11 - Current titleTouch icon to store current title to track favorites list.  12 - Current artistTouch icon to store current artist to artist favorites list.  13 - Current album name• Skipping a track (Pandora mode)Touch [      ] button during playback, tracks are skipped and starts playback from the beginning of the next track.Note:  • Some track are not able to be skipped. • If skip limit has been reached(Skip 6 tracks in   1H),  this function will not available.•Track rating  Touch [ ] or [ ] button to Thumbs down or Thumbs   up current track, and the button will light.  Note: •Touch [ ] button will skip to next track (skip limit has    not been reached).•Some track is not able to be rated (i.e. audio ads   and shared station content). The thumbs buttons will    disable.•Bookmarking  Touch [ ] button to store current title or artist to     track favorites list.Note: •Some track are not able to be bookmarked (i.e. audio   ads).  In this case the bookmark buttons will disable.• Pandora Mode Station List  1 - [ ]buttonTouch this button to display Information Screen.  2 - [ ]buttonTouch this button to sort the list by rst letter, touch again to sort the list by date.  3 - Station list, touch to select station play.When the desired station is not displayed, touch and ick the station list up or down.• Pandora Mode Setting screen4 5 762311129110138123If you have any issues with the Pandora application on yourmobile phone, please direct them topandora-support@pandora.com. 123

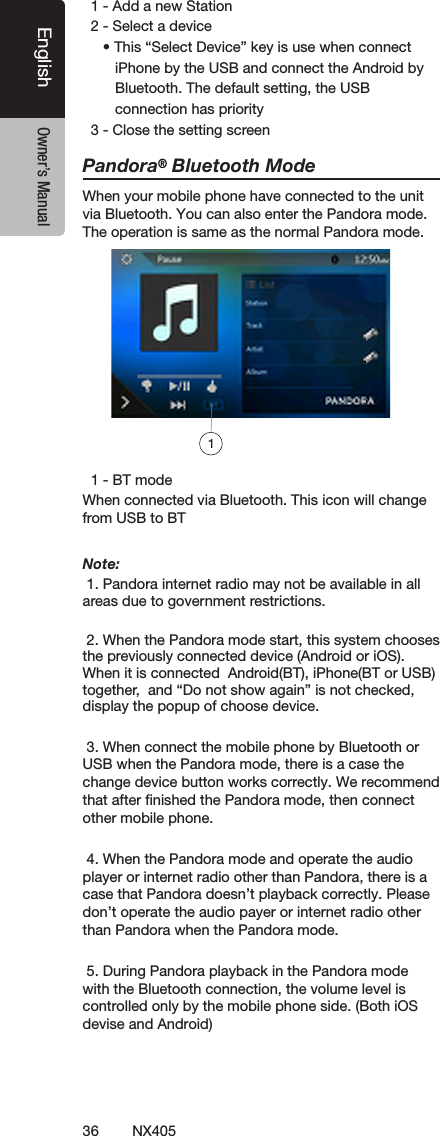

36 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual  1 - Add a new Station  2 - Select a device     • This “Select Device” key is use when connect        iPhone by the USB and connect the Android by        Bluetooth. The default setting, the USB        connection has priority  3 - Close the setting screenPandora® Bluetooth ModeWhen your mobile phone have connected to the unit via Bluetooth. You can also enter the Pandora mode.The operation is same as the normal Pandora mode.  1 - BT modeWhen connected via Bluetooth. This icon will change from USB to BTNote:  1. Pandora internet radio may not be available in all areas due to government restrictions. 2. When the Pandora mode start, this system chooses the previously connected device (Android or iOS).  When it is connected  Android(BT), iPhone(BT or USB) together,  and “Do not show again” is not checked, display the popup of choose device. 3. When connect the mobile phone by Bluetooth or USB when the Pandora mode, there is a case the change device button works correctly. We recommend that after finished the Pandora mode, then connect other mobile phone. 4. When the Pandora mode and operate the audio player or internet radio other than Pandora, there is a case that Pandora doesn’t playback correctly. Please don’t operate the audio payer or internet radio other than Pandora when the Pandora mode. 5. During Pandora playback in the Pandora mode with the Bluetooth connection, the volume level is  controlled only by the mobile phone side. (Both iOS devise and Android)1

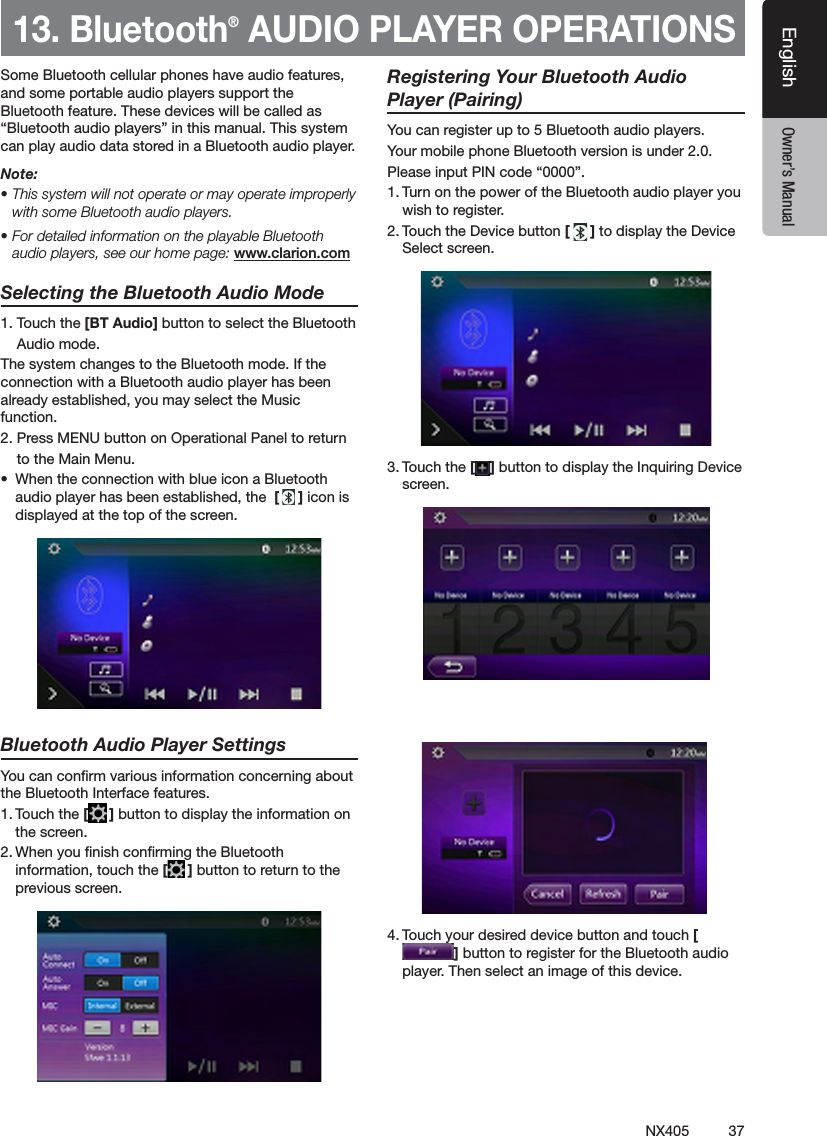

37NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual13. Bluetooth® AUDIO PLAYER OPERATIONSSome Bluetooth cellular phones have audio features, and some portable audio players support the Bluetooth feature. These devices will be called as “Bluetooth audio players” in this manual. This system can play audio data stored in a Bluetooth audio player.Note: • This system will not operate or may operate improperly with some Bluetooth audio players.• For detailed information on the playable Bluetooth audio players, see our home page: www.clarion.comSelecting the Bluetooth Audio Mode1. Touch the [BT Audio] button to select the Bluetooth    Audio mode. The system changes to the Bluetooth mode. If the connection with a Bluetooth audio player has been already established, you may select the Music function.2. Press MENU button on Operational Panel to return    to the Main Menu.•  When the connection with blue icon a Bluetooth audio player has been established, the  [ ] icon is displayed at the top of the screen.Bluetooth Audio Player SettingsYou can conrm various information concerning about the Bluetooth Interface features.1. Touch the [ ] button to display the information on the screen.2. When you nish conrming the Bluetooth information, touch the [ ] button to return to the previous screen.     Registering Your Bluetooth Audio Player (Pairing)You can register up to 5 Bluetooth audio players.Your mobile phone Bluetooth version is under 2.0.Please input PIN code “0000”.1. Turn on the power of the Bluetooth audio player you wish to register.2. Touch the Device button [ ] to display the Device Select screen.3. Touch the [ ] button to display the Inquiring Device screen.4. Touch your desired device button and touch [] button to register for the Bluetooth audio player. Then select an image of this device.

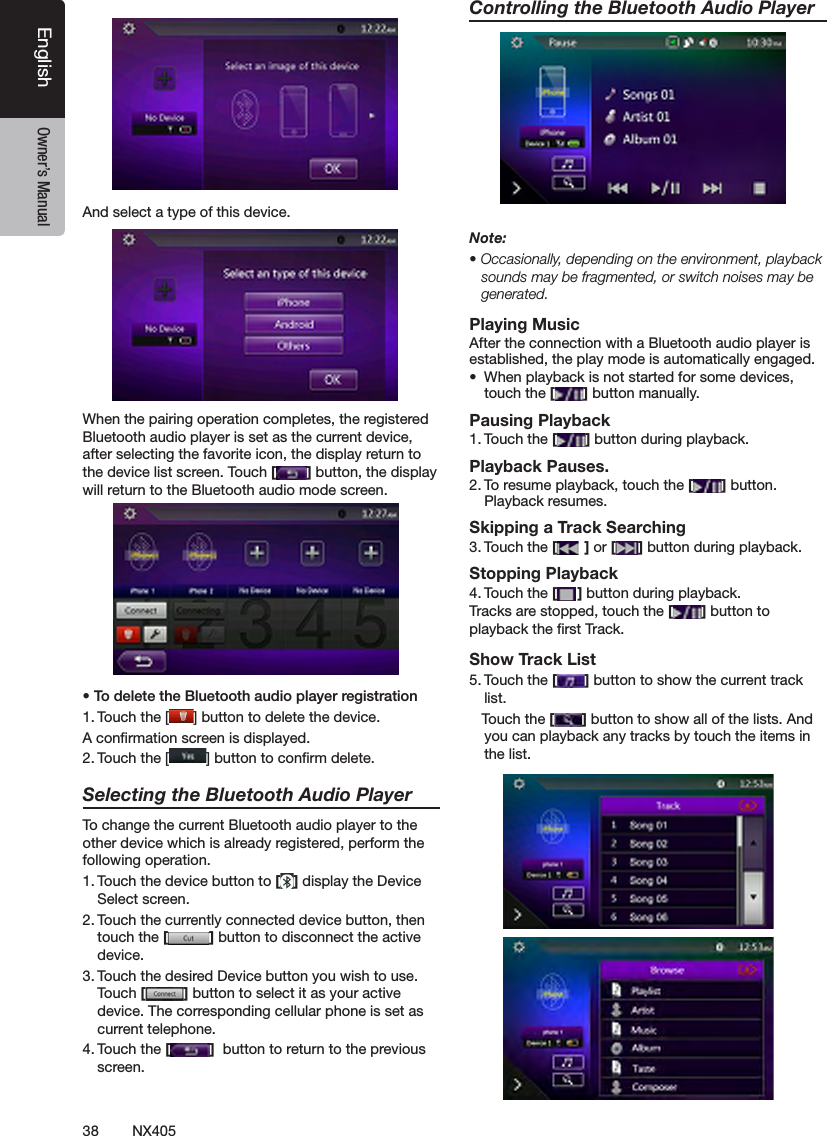

38 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualAnd select a type of this device.When the pairing operation completes, the registered Bluetooth audio player is set as the current device, after selecting the favorite icon, the display return to the device list screen. Touch [ ] button, the display will return to the Bluetooth audio mode screen.• To delete the Bluetooth audio player registration1. Touch the [ ] button to delete the device.A conrmation screen is displayed.2. Touch the [ ] button to conrm delete.Selecting the Bluetooth Audio PlayerTo change the current Bluetooth audio player to the other device which is already registered, perform the following operation.1. Touch the device button to [ ] display the Device Select screen.2. Touch the currently connected device button, then touch the [ ] button to disconnect the active device.3. Touch the desired Device button you wish to use. Touch [ ] button to select it as your active device. The corresponding cellular phone is set as current telephone.4. Touch the [ ]  button to return to the previous screen.Controlling the Bluetooth Audio PlayerNote:• Occasionally, depending on the environment, playback sounds may be fragmented, or switch noises may be generated.Playing MusicAfter the connection with a Bluetooth audio player is established, the play mode is automatically engaged.•  When playback is not started for some devices, touch the [ ] button manually.Pausing Playback1. Touch the [ ] button during playback.Playback Pauses.2. To resume playback, touch the [ ] button. Playback resumes.Skipping a Track Searching3. Touch the [ ] or [ ] button during playback.Stopping Playback4. Touch the [ ] button during playback.Tracks are stopped, touch the [ ] button to playback the rst Track.Show Track List5. Touch the [ ] button to show the current track list.   Touch the [ ] button to show all of the lists. And you can playback any tracks by touch the items in the list.

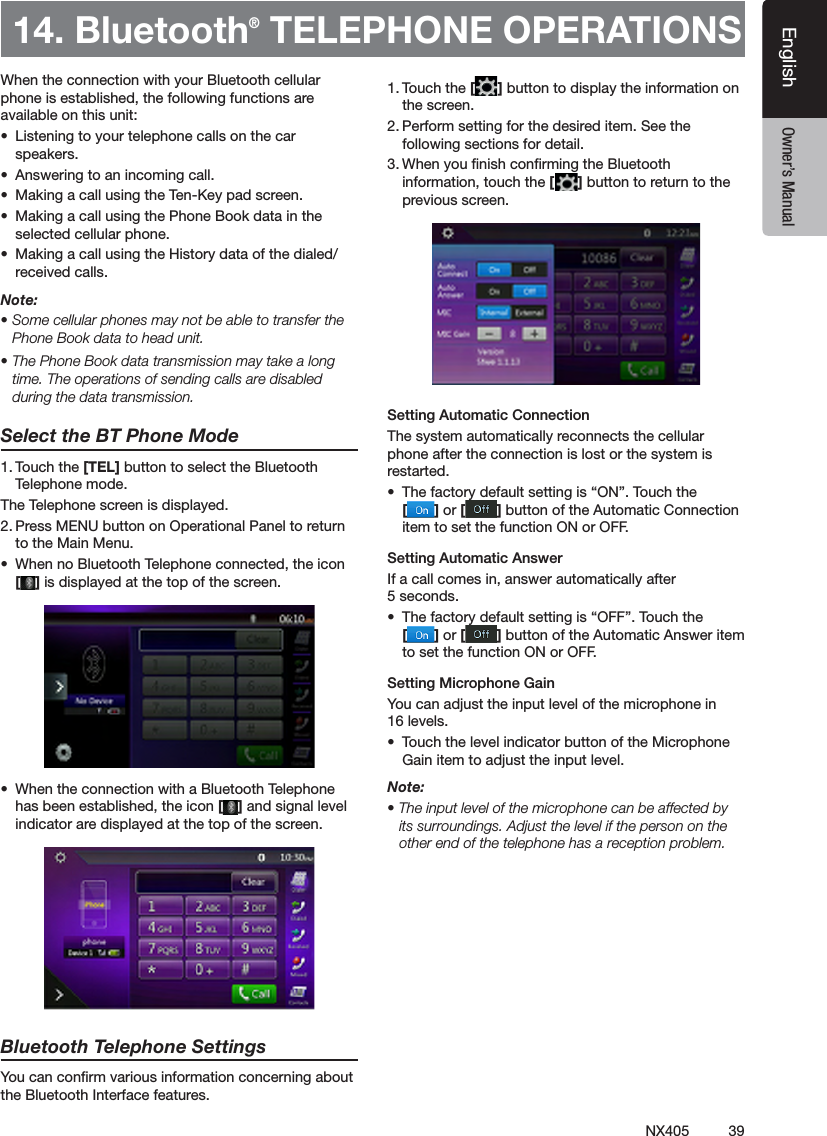

39NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualWhen the connection with your Bluetooth cellular phone is established, the following functions are available on this unit:•  Listening to your telephone calls on the car speakers.•  Answering to an incoming call.•  Making a call using the Ten-Key pad screen.•  Making a call using the Phone Book data in the selected cellular phone.•  Making a call using the History data of the dialed/received calls.Note:• Some cellular phones may not be able to transfer the Phone Book data to head unit.• The Phone Book data transmission may take a long time. The operations of sending calls are disabled during the data transmission.Select the BT Phone Mode1. Touch the [TEL] button to select the Bluetooth Telephone mode. The Telephone screen is displayed.2. Press MENU button on Operational Panel to return to the Main Menu. •  When no Bluetooth Telephone connected, the icon  [ ] is displayed at the top of the screen.•  When the connection with a Bluetooth Telephone has been established, the icon [ ] and signal level indicator are displayed at the top of the screen.Bluetooth Telephone SettingsYou can conrm various information concerning about the Bluetooth Interface features.1. Touch the [ ] button to display the information on the screen.2. Perform setting for the desired item. See the following sections for detail.3. When you nish conrming the Bluetooth information, touch the [ ] button to return to the previous screen.Setting Automatic ConnectionThe system automatically reconnects the cellular phone after the connection is lost or the system is restarted.•  The factory default setting is “ON”. Touch the  [ ] or [ ] button of the Automatic Connection item to set the function ON or OFF.Setting Automatic AnswerIf a call comes in, answer automatically after 5 seconds. •  The factory default setting is “OFF”. Touch the  [ ] or [ ] button of the Automatic Answer item to set the function ON or OFF.Setting Microphone Gain You can adjust the input level of the microphone in 16 levels.•  Touch the level indicator button of the Microphone Gain item to adjust the input level.Note:• The input level of the microphone can be affected by its surroundings. Adjust the level if the person on the other end of the telephone has a reception problem.14. Bluetooth® TELEPHONE OPERATIONS

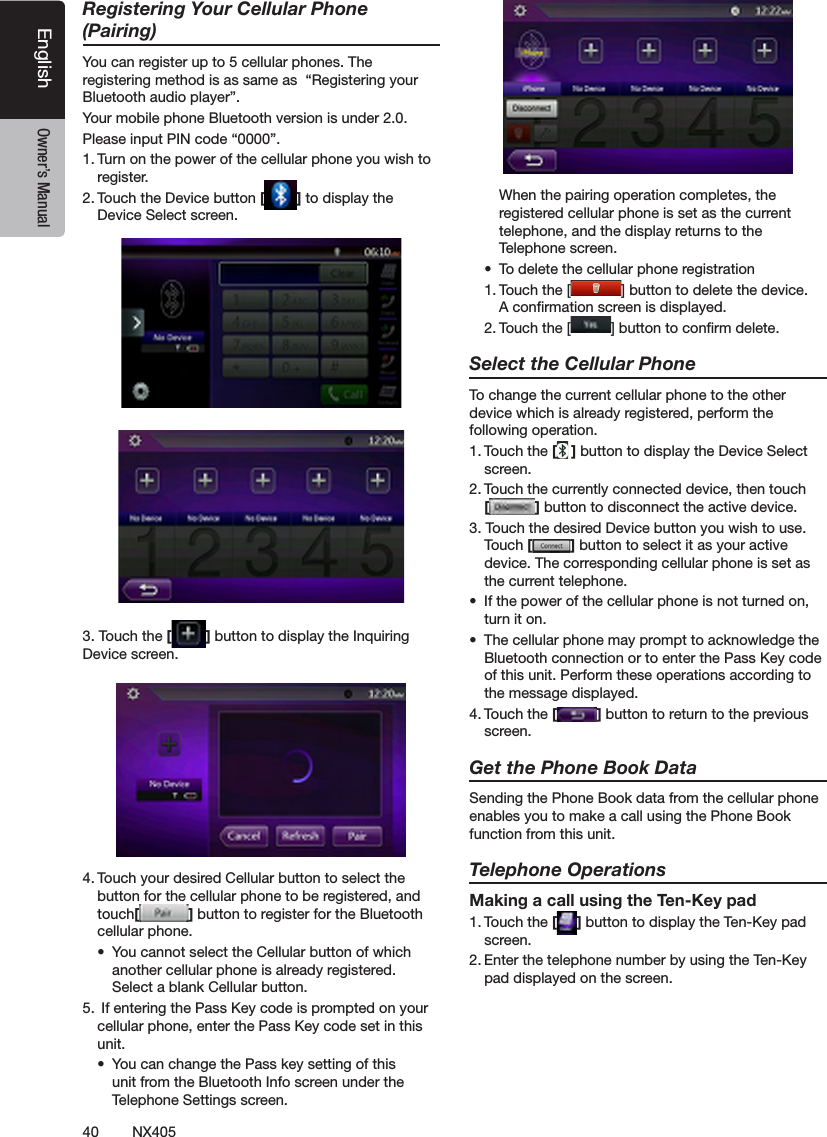

40 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualRegistering Your Cellular Phone (Pairing)You can register up to 5 cellular phones. The registering method is as same as  “Registering your Bluetooth audio player”.Your mobile phone Bluetooth version is under 2.0.Please input PIN code “0000”.1. Turn on the power of the cellular phone you wish to register.2. Touch the Device button [ ] to display the Device Select screen.3. Touch the [ ] button to display the Inquiring Device screen.4. Touch your desired Cellular button to select the button for the cellular phone to be registered, and touch[ ] button to register for the Bluetooth cellular phone.•  You cannot select the Cellular button of which another cellular phone is already registered. Select a blank Cellular button.5.  If entering the Pass Key code is prompted on your cellular phone, enter the Pass Key code set in this unit.•  You can change the Pass key setting of this unit from the Bluetooth Info screen under the Telephone Settings screen.  When the pairing operation completes, the registered cellular phone is set as the current telephone, and the display returns to the Telephone screen.•  To delete the cellular phone registration1. Touch the [ ] button to delete the device. A conrmation screen is displayed.2. Touch the [ ] button to conrm delete.Select the Cellular PhoneTo change the current cellular phone to the other device which is already registered, perform the following operation.1. Touch the [ ] button to display the Device Select screen.2. Touch the currently connected device, then touch  [ ] button to disconnect the active device.3. Touch the desired Device button you wish to use. Touch [ ] button to select it as your active device. The corresponding cellular phone is set as the current telephone.•  If the power of the cellular phone is not turned on, turn it on.•  The cellular phone may prompt to acknowledge the Bluetooth connection or to enter the Pass Key code of this unit. Perform these operations according to the message displayed.4. Touch the [ ] button to return to the previous screen.Get the Phone Book DataSending the Phone Book data from the cellular phone enables you to make a call using the Phone Book function from this unit.Telephone OperationsMaking a call using the Ten-Key pad1. Touch the [ ] button to display the Ten-Key pad screen.2. Enter the telephone number by using the Ten-Key pad displayed on the screen.

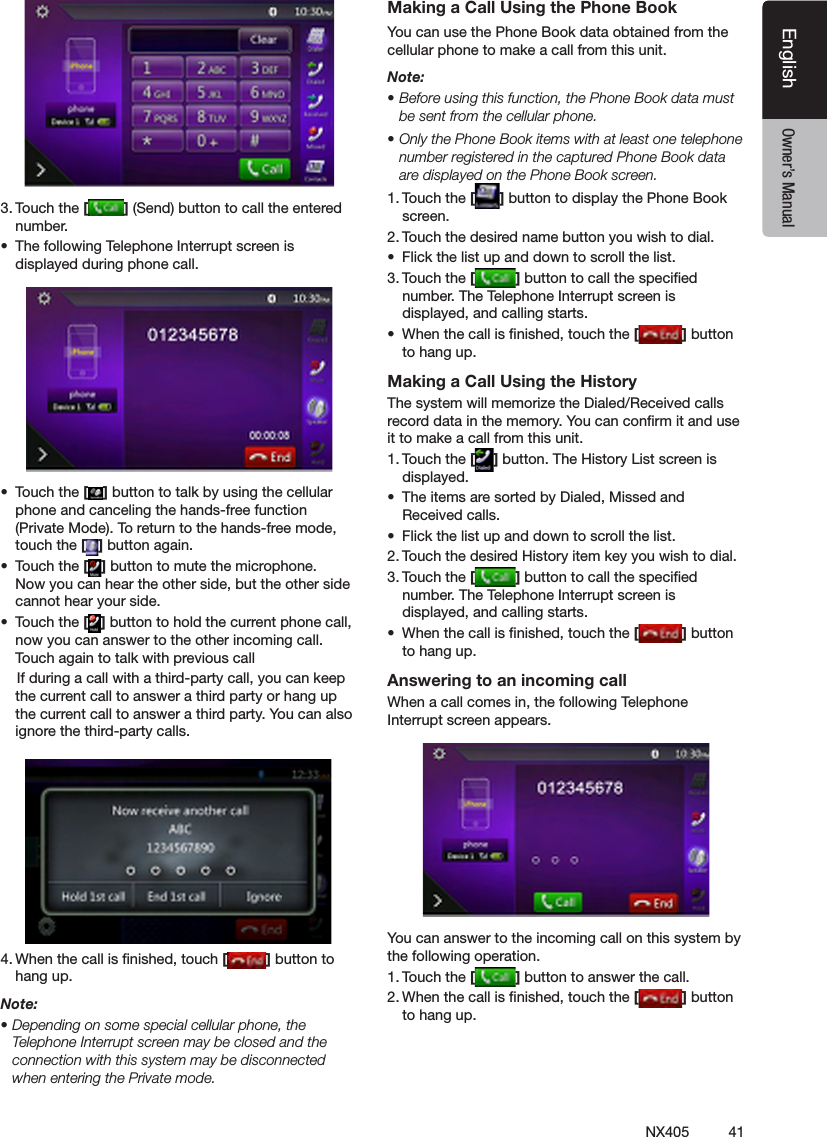

41NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual3. Touch the [ ] (Send) button to call the entered number.•  The following Telephone Interrupt screen is displayed during phone call.•  Touch the [ ] button to talk by using the cellular phone and canceling the hands-free function (Private Mode). To return to the hands-free mode, touch the [ ] button again.•  Touch the [ ] button to mute the microphone. Now you can hear the other side, but the other side cannot hear your side.•  Touch the [ ] button to hold the current phone call, now you can answer to the other incoming call. Touch again to talk with previous call    If during a call with a third-party call, you can keep the current call to answer a third party or hang up the current call to answer a third party. You can also ignore the third-party calls.      4. When the call is nished, touch [ ] button to hang up. Note:• Depending on some special cellular phone, the Telephone Interrupt screen may be closed and the connection with this system may be disconnected when entering the Private mode.Making a Call Using the Phone BookYou can use the Phone Book data obtained from the cellular phone to make a call from this unit.Note:• Before using this function, the Phone Book data must be sent from the cellular phone.• Only the Phone Book items with at least one telephone number registered in the captured Phone Book data are displayed on the Phone Book screen.1. Touch the [ ] button to display the Phone Book screen.2. Touch the desired name button you wish to dial.•  Flick the list up and down to scroll the list.3. Touch the [ ] button to call the specied number. The Telephone Interrupt screen is displayed, and calling starts.•  When the call is nished, touch the [ ] button to hang up.Making a Call Using the HistoryThe system will memorize the Dialed/Received calls record data in the memory. You can conrm it and use it to make a call from this unit.1. Touch the [ ] button. The History List screen is displayed.•  The items are sorted by Dialed, Missed and Received calls.•  Flick the list up and down to scroll the list.2. Touch the desired History item key you wish to dial.3. Touch the [ ] button to call the specied number. The Telephone Interrupt screen is displayed, and calling starts.•  When the call is nished, touch the [ ] button to hang up.Answering to an incoming callWhen a call comes in, the following Telephone Interrupt screen appears.You can answer to the incoming call on this system by the following operation.1. Touch the [ ] button to answer the call.2. When the call is nished, touch the [ ] button to hang up.

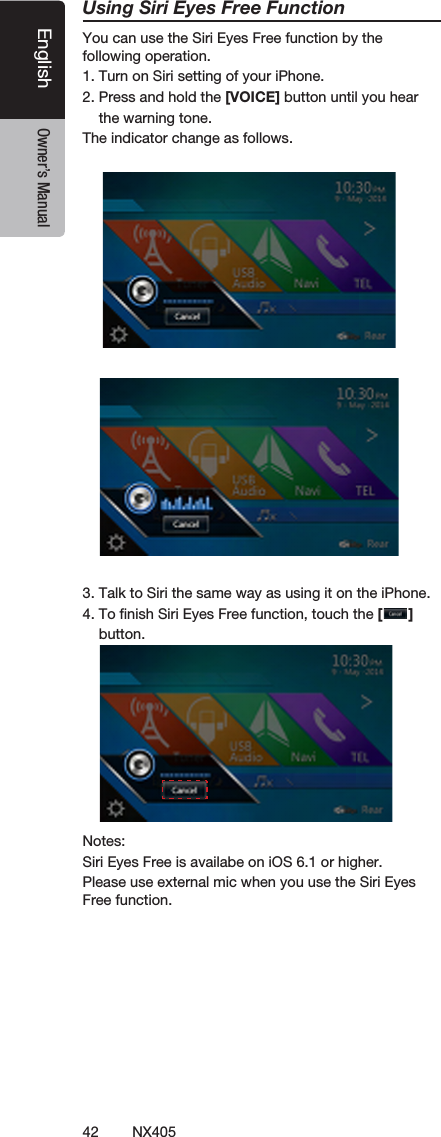

42 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualUsing Siri Eyes Free FunctionYou can use the Siri Eyes Free function by the following operation.1. Turn on Siri setting of your iPhone. 2. Press and hold the [VOICE] button until you hear    the warning tone.The indicator change as follows.     3. Talk to Siri the same way as using it on the iPhone.4. To finish Siri Eyes Free function, touch the [ ]    button.Notes: Siri Eyes Free is availabe on iOS 6.1 or higher.Please use external mic when you use the Siri Eyes Free function.

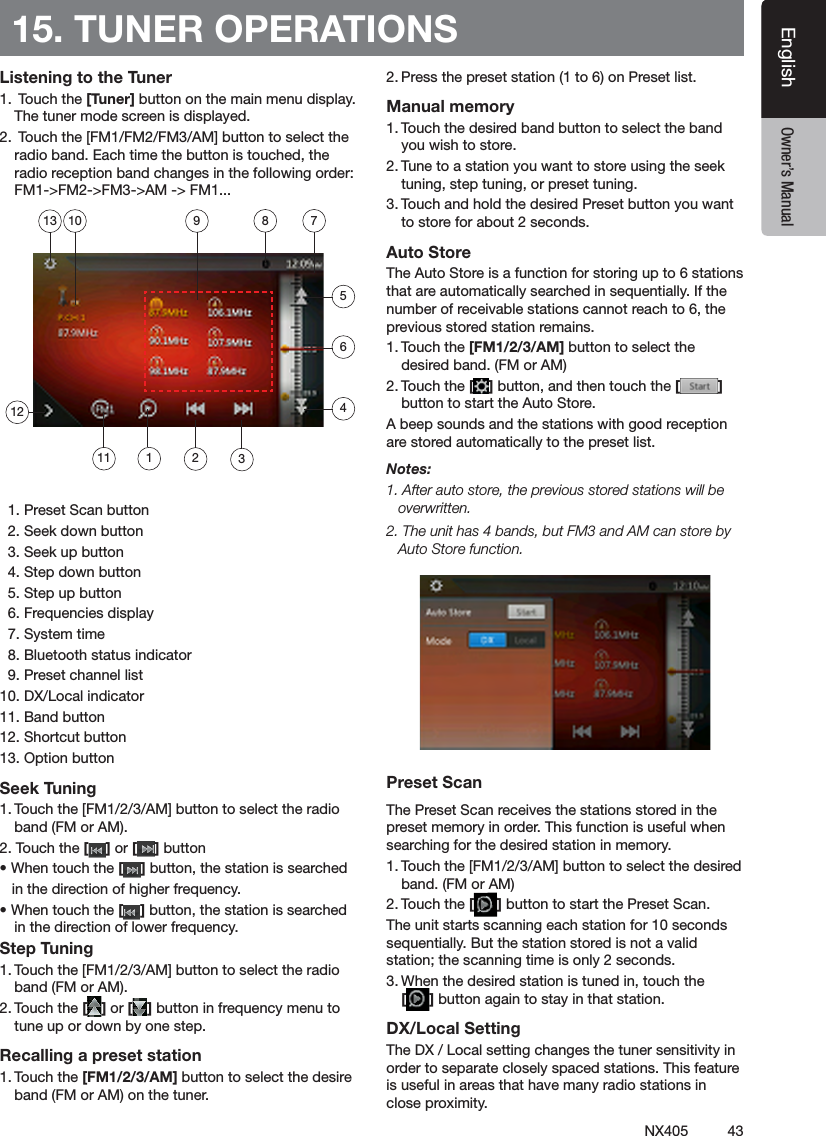

43NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual15. TUNER OPERATIONSListening to the Tuner1.  Touch the [Tuner] button on the main menu display. The tuner mode screen is displayed.2.  Touch the [FM1/FM2/FM3/AM] button to select the radio band. Each time the button is touched, the radio reception band changes in the following order: FM1->FM2->FM3->AM -> FM1...  1. Preset Scan button  2. Seek down button  3. Seek up button  4. Step down button  5. Step up button  6. Frequencies display  7. System time  8. Bluetooth status indicator  9. Preset channel list10. DX/Local indicator11. Band button12. Shortcut button13. Option buttonSeek Tuning1. Touch the [FM1/2/3/AM] button to select the radio band (FM or AM).2. Touch the [ ] or [ ] button • When touch the [ ] button, the station is searched   in the direction of higher frequency.• When touch the [ ] button, the station is searched in the direction of lower frequency.Step Tuning1. Touch the [FM1/2/3/AM] button to select the radio band (FM or AM).2. Touch the [ ] or [ ] button in frequency menu to tune up or down by one step.Recalling a preset station1. Touch the [FM1/2/3/AM] button to select the desire band (FM or AM) on the tuner.2. Press the preset station (1 to 6) on Preset list.Manual memory1. Touch the desired band button to select the band you wish to store.2. Tune to a station you want to store using the seek tuning, step tuning, or preset tuning.3. Touch and hold the desired Preset button you want to store for about 2 seconds.Auto StoreThe Auto Store is a function for storing up to 6 stations that are automatically searched in sequentially. If the number of receivable stations cannot reach to 6, the previous stored station remains.1. Touch the [FM1/2/3/AM] button to select the desired band. (FM or AM)2. Touch the [ ] button, and then touch the [ ] button to start the Auto Store.A beep sounds and the stations with good reception are stored automatically to the preset list.Notes:1. After auto store, the previous stored stations will be overwritten.2. The unit has 4 bands, but FM3 and AM can store by Auto Store function.Preset ScanThe Preset Scan receives the stations stored in the preset memory in order. This function is useful when searching for the desired station in memory.1. Touch the [FM1/2/3/AM] button to select the desired band. (FM or AM)2. Touch the [ ] button to start the Preset Scan.The unit starts scanning each station for 10 seconds sequentially. But the station stored is not a valid station; the scanning time is only 2 seconds.3. When the desired station is tuned in, touch the  [ ] button again to stay in that station.DX/Local SettingThe DX / Local setting changes the tuner sensitivity in order to separate closely spaced stations. This feature is useful in areas that have many radio stations in close proximity.11127891023465113

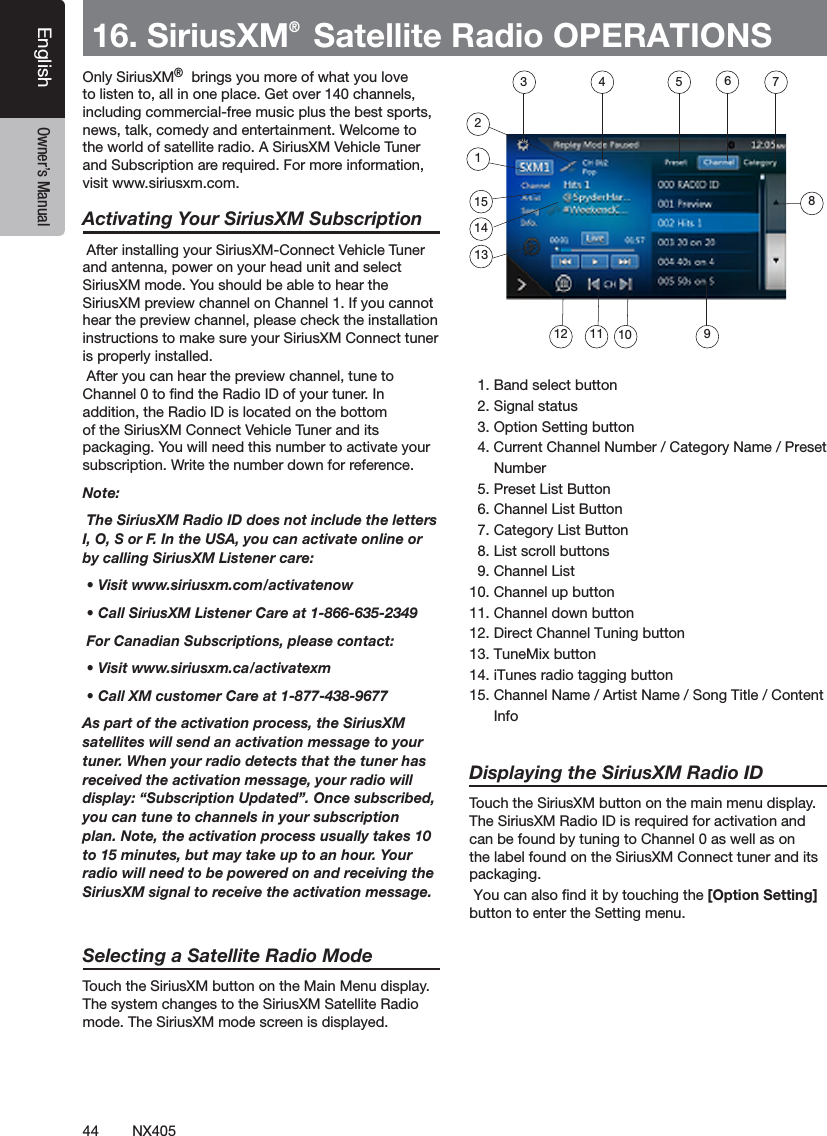

44 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual16. SiriusXM® Satellite Radio OPERATIONS Only SiriusXM®® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.Activating Your SiriusXM Subscription After installing your SiriusXM-Connect Vehicle Tuner and antenna, power on your head unit and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM Connect tuner is properly installed. After you can hear the preview channel, tune to Channel 0 to nd the Radio ID of your tuner. In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference.Note: The SiriusXM Radio ID does not include the letters I, O, S or F. In the USA, you can activate online or by calling SiriusXM Listener care:  • Visit www.siriusxm.com/activatenow • Call SiriusXM Listener Care at 1-866-635-2349 For Canadian Subscriptions, please contact: • Visit www.siriusxm.ca/activatexm • Call XM customer Care at 1-877-438-9677As part of the activation process, the SiriusXM satellites will send an activation message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display: “Subscription Updated”. Once subscribed, you can tune to channels in your subscription plan. Note, the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the activation message.Selecting a Satellite Radio ModeTouch the SiriusXM button on the Main Menu display. The system changes to the SiriusXM Satellite Radio mode. The SiriusXM mode screen is displayed.  1. Band select button  2. Signal status  3. Option Setting button  4. Current Channel Number / Category Name / Preset      Number  5. Preset List Button  6. Channel List Button  7. Category List Button  8. List scroll buttons  9. Channel List10. Channel up button11. Channel down button12. Direct Channel Tuning button13. TuneMix button14. iTunes radio tagging button15. Channel Name / Artist Name / Song Title / Content      InfoDisplaying the SiriusXM Radio IDTouch the SiriusXM button on the main menu display.The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its packaging. You can also find it by touching the [Option Setting] button to enter the Setting menu.  3 4 5 672115141312 11 10 98

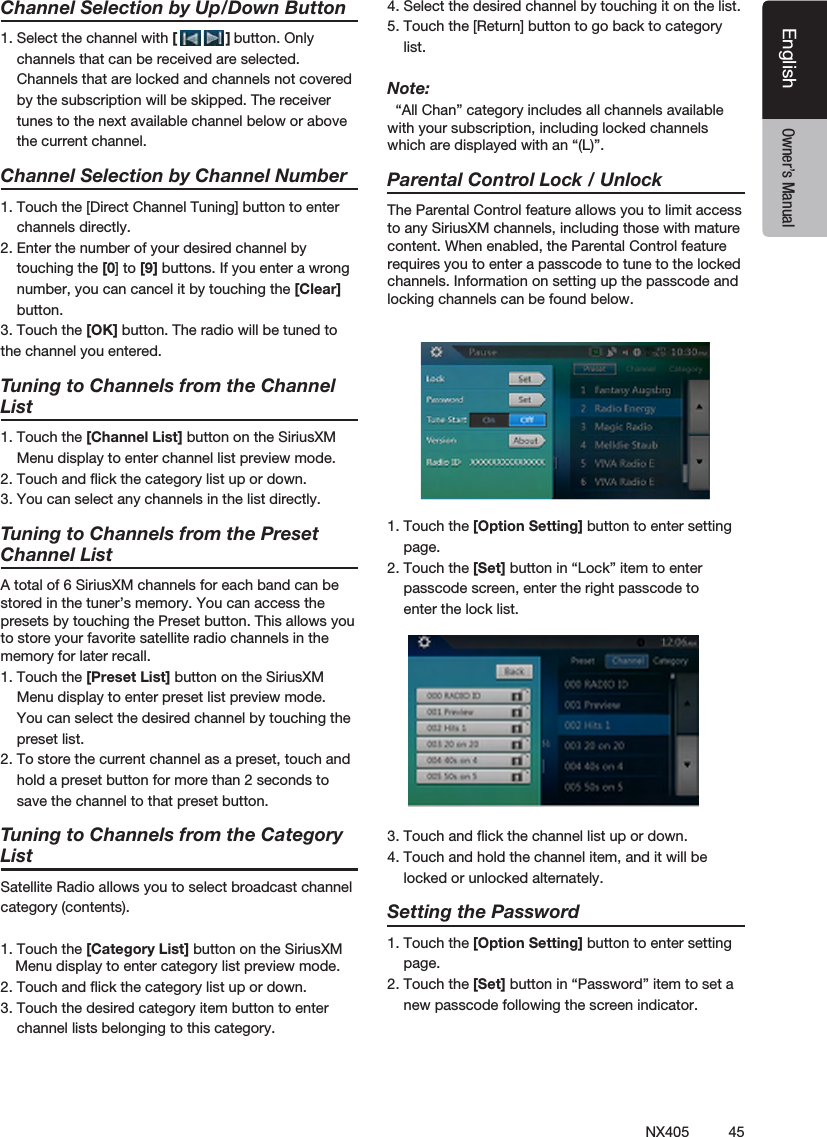

45NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualChannel Selection by Up/Down Button1. Select the channel with [            ] button. Only    channels that can be received are selected.     Channels that are locked and channels not covered    by the subscription will be skipped. The receiver    tunes to the next available channel below or above    the current channel.    Channel Selection by Channel Number1. Touch the [Direct Channel Tuning] button to enter    channels directly. 2. Enter the number of your desired channel by    touching the [0] to [9] buttons. If you enter a wrong      number, you can cancel it by touching the [Clear]    button.3. Touch the [OK] button. The radio will be tuned to the channel you entered.   Tuning to Channels from the Channel List1. Touch the [Channel List] button on the SiriusXM    Menu display to enter channel list preview mode.2. Touch and flick the category list up or down.3. You can select any channels in the list directly.Tuning to Channels from the Preset Channel ListA total of 6 SiriusXM channels for each band can be stored in the tuner’s memory. You can access the presets by touching the Preset button. This allows you to store your favorite satellite radio channels in the memory for later recall.1. Touch the [Preset List] button on the SiriusXM    Menu display to enter preset list preview mode.     You can select the desired channel by touching the    preset list.2. To store the current channel as a preset, touch and    hold a preset button for more than 2 seconds to    save the channel to that preset button.Tuning to Channels from the Category ListSatellite Radio allows you to select broadcast channelcategory (contents).1. Touch the [Category List] button on the SiriusXM Menu display to enter category list preview mode.2. Touch and flick the category list up or down.3. Touch the desired category item button to enter    channel lists belonging to this category.4. Select the desired channel by touching it on the list.5. Touch the [Return] button to go back to category    list.Note:  “All Chan” category includes all channels available with your subscription, including locked channels which are displayed with an “(L)”.  Parental Control Lock / UnlockThe Parental Control feature allows you to limit access to any SiriusXM channels, including those with mature content. When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels. Information on setting up the passcode and locking channels can be found below.1. Touch the [Option Setting] button to enter setting    page.2. Touch the [Set] button in “Lock” item to enter    passcode screen, enter the right passcode to    enter the lock list.3. Touch and flick the channel list up or down.4. Touch and hold the channel item, and it will be    locked or unlocked alternately.Setting the Password1. Touch the [Option Setting] button to enter setting    page.2. Touch the [Set] button in “Password” item to set a    new passcode following the screen indicator.

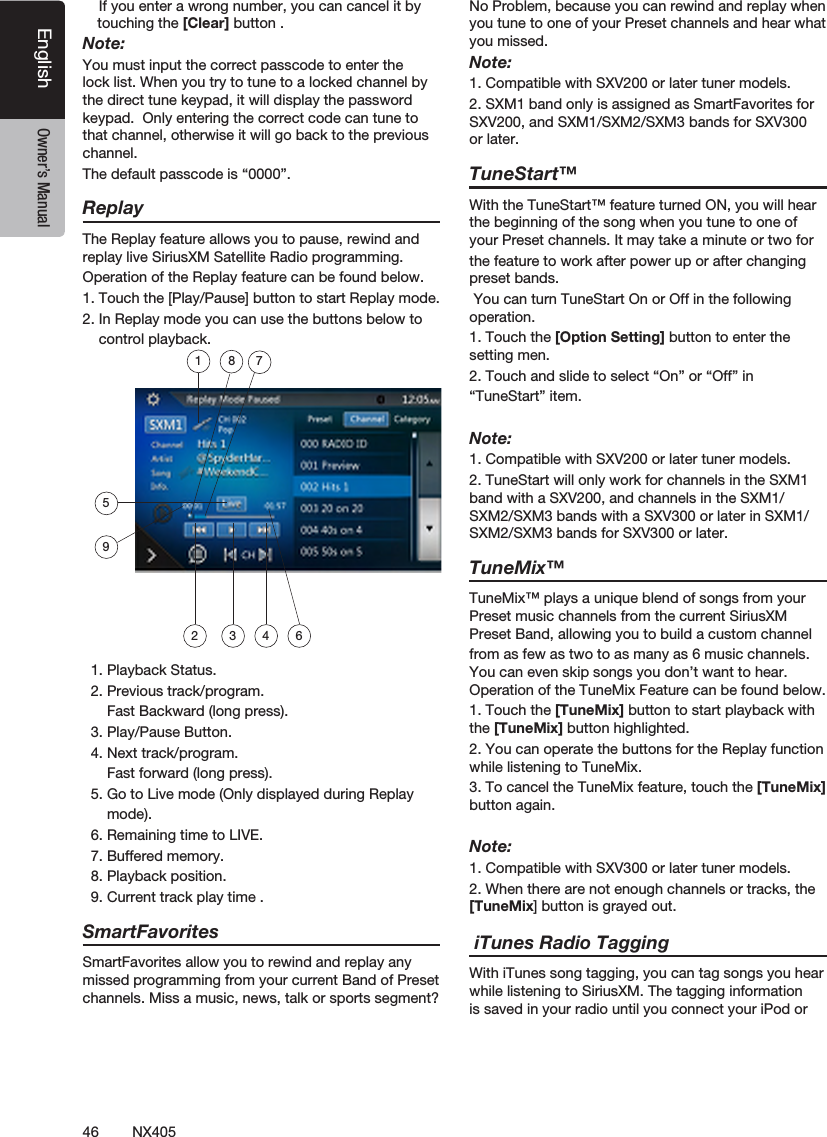

46 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual    If you enter a wrong number, you can cancel it by touching the [Clear] button .Note:You must input the correct passcode to enter the lock list. When you try to tune to a locked channel by the direct tune keypad, it will display the password keypad.  Only entering the correct code can tune to that channel, otherwise it will go back to the previous channel.The default passcode is “0000”.ReplayThe Replay feature allows you to pause, rewind and replay live SiriusXM Satellite Radio programming.Operation of the Replay feature can be found below.1. Touch the [Play/Pause] button to start Replay mode.2. In Replay mode you can use the buttons below to    control playback.  1. Playback Status.  2. Previous track/program.      Fast Backward (long press).  3. Play/Pause Button.  4. Next track/program.      Fast forward (long press).  5. Go to Live mode (Only displayed during Replay      mode).  6. Remaining time to LIVE.  7. Buffered memory.  8. Playback position.  9. Current track play time .SmartFavoritesSmartFavorites allow you to rewind and replay any missed programming from your current Band of Preset channels. Miss a music, news, talk or sports segment?No Problem, because you can rewind and replay when you tune to one of your Preset channels and hear what you missed.Note:1. Compatible with SXV200 or later tuner models.2. SXM1 band only is assigned as SmartFavorites for SXV200, and SXM1/SXM2/SXM3 bands for SXV300 or later.TuneStart™With the TuneStart™ feature turned ON, you will hear the beginning of the song when you tune to one of your Preset channels. It may take a minute or two forthe feature to work after power up or after changing preset bands.  You can turn TuneStart On or Off in the following operation.1. Touch the [Option Setting] button to enter the setting men.2. Touch and slide to select “On” or “Off” in “TuneStart” item.Note:1. Compatible with SXV200 or later tuner models.2. TuneStart will only work for channels in the SXM1 band with a SXV200, and channels in the SXM1/SXM2/SXM3 bands with a SXV300 or later in SXM1/SXM2/SXM3 bands for SXV300 or later.TuneMix™TuneMix™ plays a unique blend of songs from your Preset music channels from the current SiriusXM Preset Band, allowing you to build a custom channelfrom as few as two to as many as 6 music channels. You can even skip songs you don’t want to hear. Operation of the TuneMix Feature can be found below.1. Touch the [TuneMix] button to start playback with the [TuneMix] button highlighted.2. You can operate the buttons for the Replay function while listening to TuneMix.  3. To cancel the TuneMix feature, touch the [TuneMix] button again.  Note:1. Compatible with SXV300 or later tuner models.2. When there are not enough channels or tracks, the [TuneMix] button is grayed out.   iTunes Radio TaggingWith iTunes song tagging, you can tag songs you hear while listening to SiriusXM. The tagging information is saved in your radio until you connect your iPod or 18 752 3 4 69

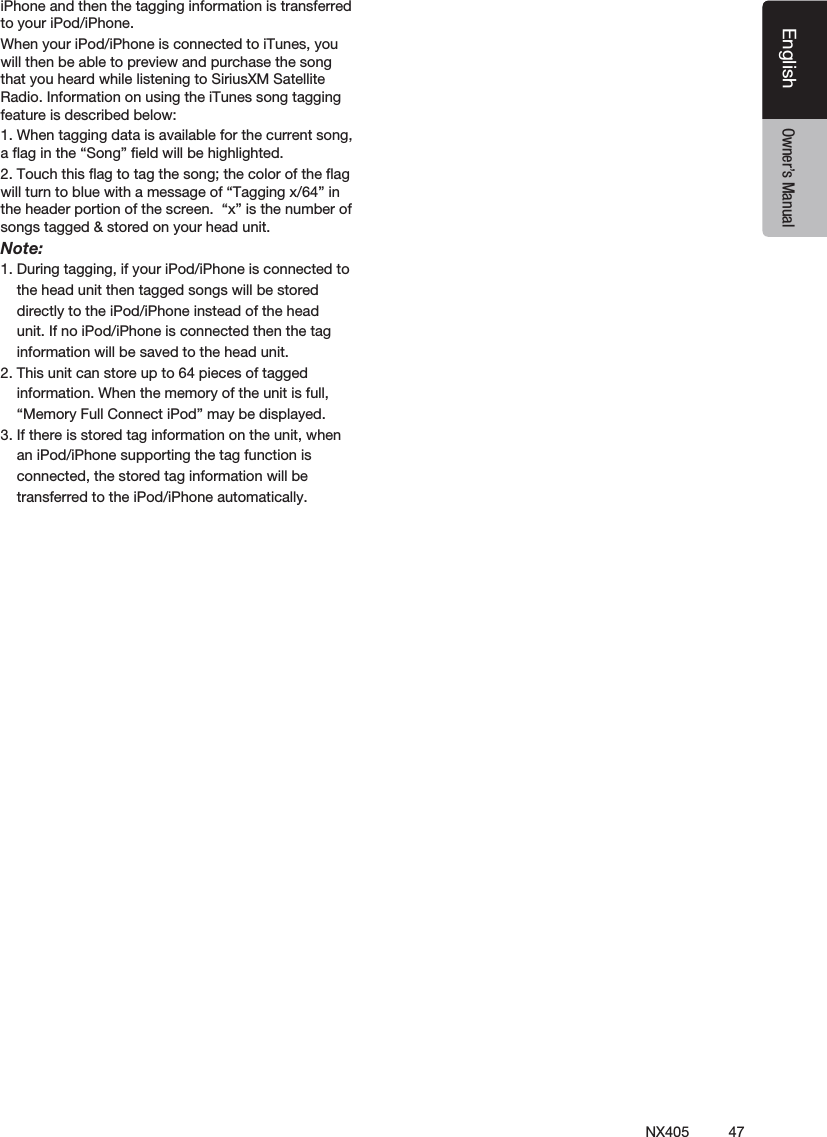

47NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualiPhone and then the tagging information is transferred to your iPod/iPhone. When your iPod/iPhone is connected to iTunes, you will then be able to preview and purchase the song that you heard while listening to SiriusXM Satellite Radio. Information on using the iTunes song tagging feature is described below:1. When tagging data is available for the current song, a flag in the “Song” field will be highlighted.2. Touch this flag to tag the song; the color of the flag will turn to blue with a message of “Tagging x/64” in the header portion of the screen.  “x” is the number of songs tagged & stored on your head unit.  Note: 1. During tagging, if your iPod/iPhone is connected to    the head unit then tagged songs will be stored    directly to the iPod/iPhone instead of the head    unit. If no iPod/iPhone is connected then the tag    information will be saved to the head unit.   2. This unit can store up to 64 pieces of tagged    information. When the memory of the unit is full,    “Memory Full Connect iPod” may be displayed.3. If there is stored tag information on the unit, when    an iPod/iPhone supporting the tag function is    connected, the stored tag information will be    transferred to the iPod/iPhone automatically.

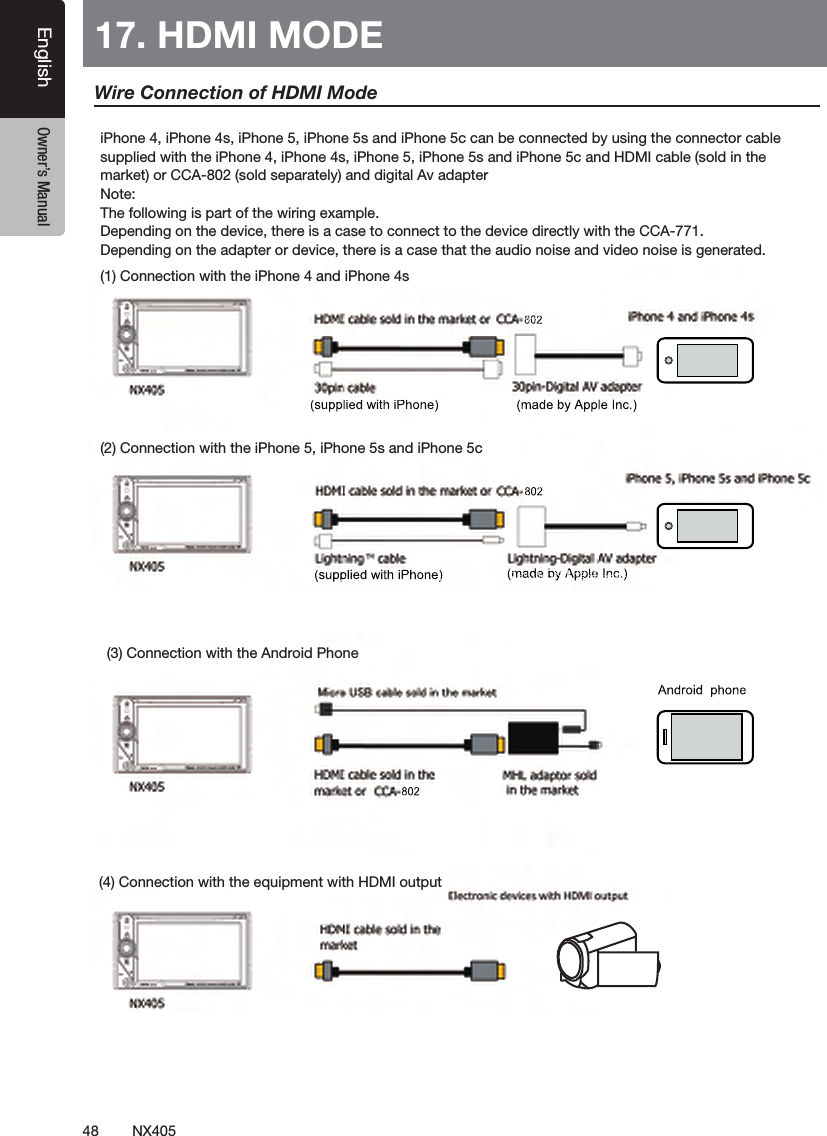

48 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual17. HDMI MODE(made by Apple Inc.)(supplied with iPhone)(made by Apple Inc.)(supplied with iPhone)802802Android  phone(sold separately)802802iPhone 4, iPhone 4s, iPhone 5, iPhone 5s and iPhone 5c can be connected by using the connector cablesupplied with the iPhone 4, iPhone 4s, iPhone 5, iPhone 5s and iPhone 5c and HDMI cable (sold in themarket) or CCA-802 (sold separately) and digital Av adapterNote:The following is part of the wiring example.Depending on the device, there is a case to connect to the device directly with the CCA-771.Depending on the adapter or device, there is a case that the audio noise and video noise is generated.Wire Connection of HDMI Mode(1) Connection with the iPhone 4 and iPhone 4s(2) Connection with the iPhone 5, iPhone 5s and iPhone 5c(3) Connection with the Android Phone(4) Connection with the equipment with HDMI output

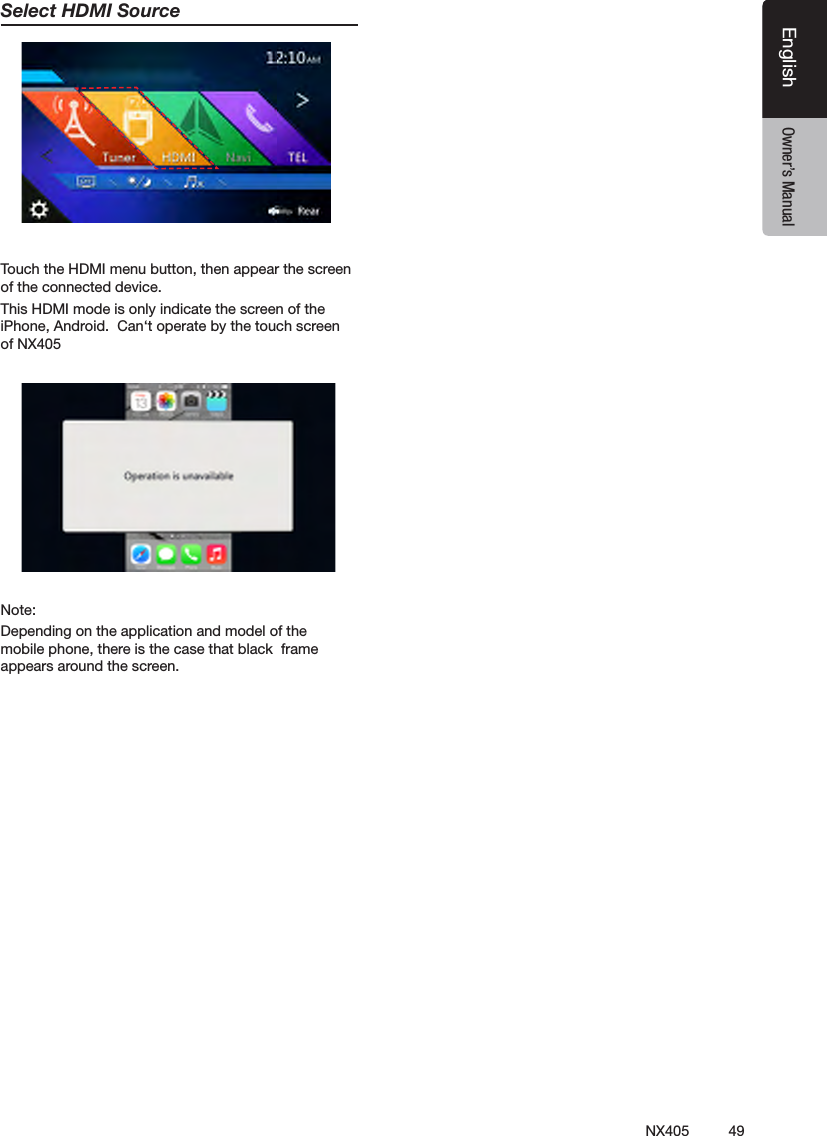

49NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualSelect HDMI Source Touch the HDMI menu button, then appear the screen of the connected device.This HDMI mode is only indicate the screen of the iPhone, Android.  Can‘t operate by the touch screen of NX405Note:Depending on the application and model of the  mobile phone, there is the case that black  frame appears around the screen.

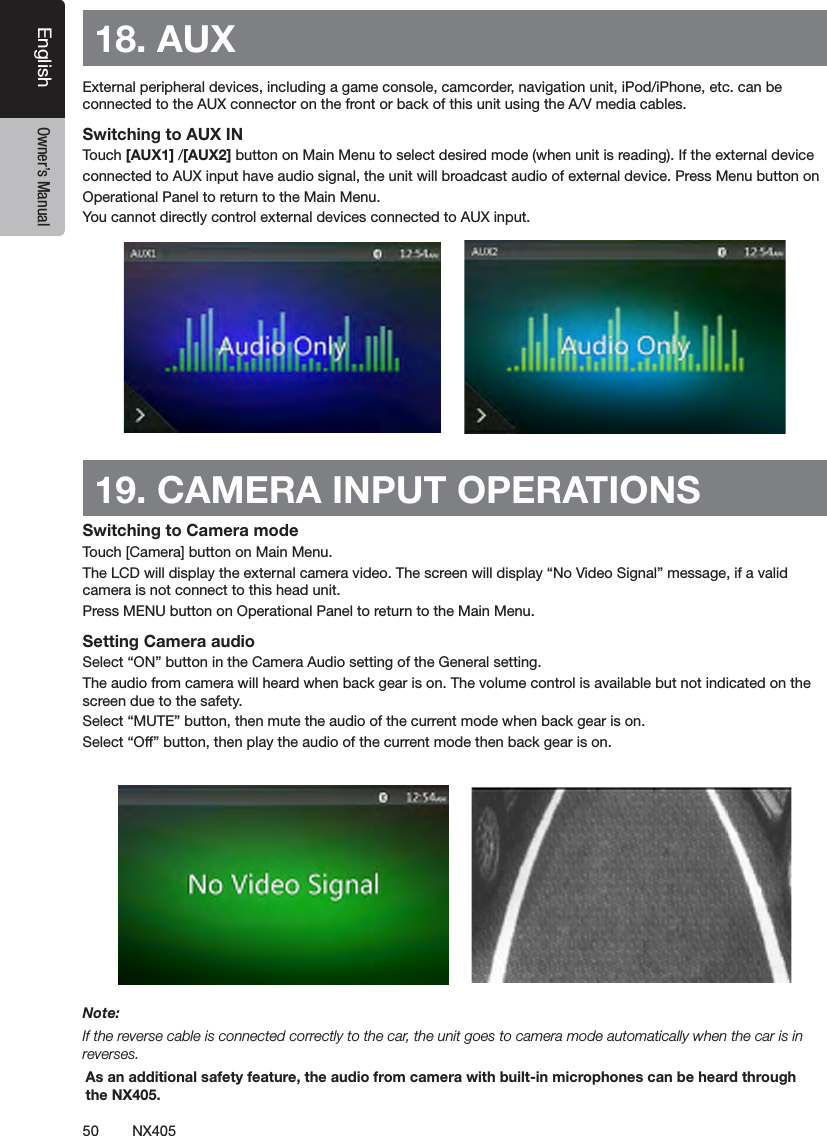

50 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual18. AUX External peripheral devices, including a game console, camcorder, navigation unit, iPod/iPhone, etc. can be connected to the AUX connector on the front or back of this unit using the A/V media cables.Switching to AUX IN Touch [AUX1] /[AUX2] button on Main Menu to select desired mode (when unit is reading). If the external device connected to AUX input have audio signal, the unit will broadcast audio of external device. Press Menu button on Operational Panel to return to the Main Menu.You cannot directly control external devices connected to AUX input.19. CAMERA INPUT OPERATIONSSwitching to Camera modeTouch [Camera] button on Main Menu.The LCD will display the external camera video. The screen will display “No Video Signal” message, if a valid camera is not connect to this head unit. Press MENU button on Operational Panel to return to the Main Menu.Setting Camera audioSelect “ON” button in the Camera Audio setting of the General setting.The audio from camera will heard when back gear is on. The volume control is available but not indicated on the screen due to the safety.Select “MUTE” button, then mute the audio of the current mode when back gear is on.Select “Off” button, then play the audio of the current mode then back gear is on. Note:If the reverse cable is connected correctly to the car, the unit goes to camera mode automatically when the car is in reverses.As an additional safety feature, the audio from camera with built-in microphones can be heard through the NX405.

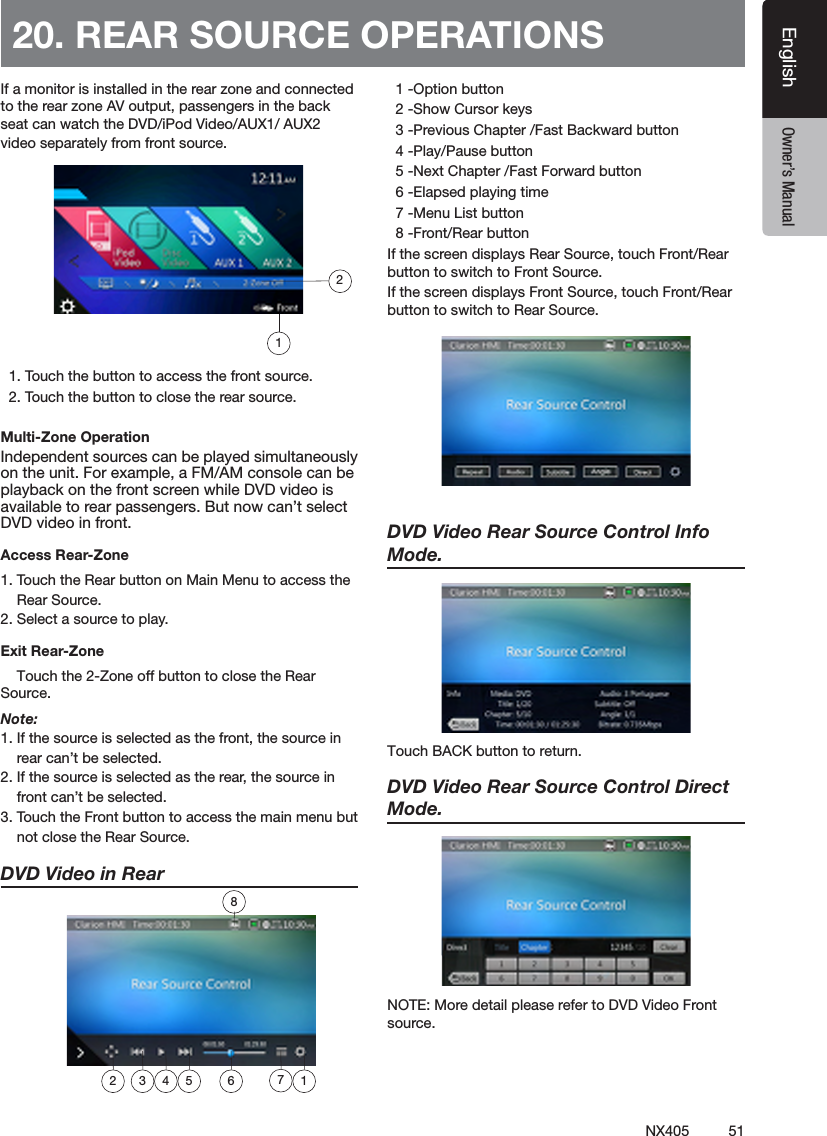

51NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualIf a monitor is installed in the rear zone and connected to the rear zone AV output, passengers in the back seat can watch the DVD/iPod Video/AUX1/ AUX2 video separately from front source.   1. Touch the button to access the front source.  2. Touch the button to close the rear source.Multi-Zone OperationIndependent sources can be played simultaneously on the unit. For example, a FM/AM console can be playback on the front screen while DVD video is available to rear passengers. But now can’t select DVD video in front.Access Rear-Zone1. Touch the Rear button on Main Menu to access the     Rear Source.2. Select a source to play.Exit Rear-Zone    Touch the 2-Zone off button to close the Rear Source. Note:1. If the source is selected as the front, the source in     rear can’t be selected.2. If the source is selected as the rear, the source in     front can’t be selected.3. Touch the Front button to access the main menu but     not close the Rear Source.DVD Video in Rear    1 -Option button  2 -Show Cursor keys  3 -Previous Chapter /Fast Backward button  4 -Play/Pause button  5 -Next Chapter /Fast Forward button  6 -Elapsed playing time  7 -Menu List button  8 -Front/Rear buttonIf the screen displays Rear Source, touch Front/Rear button to switch to Front Source.If the screen displays Front Source, touch Front/Rear button to switch to Rear Source.DVD Video Rear Source Control Info Mode. TouchBACKbuttontoreturn.DVD Video Rear Source Control Direct Mode. NOTE: More detail please refer to DVD Video Front source. 20. REAR SOURCE OPERATIONS1872 3 4 5 6 12

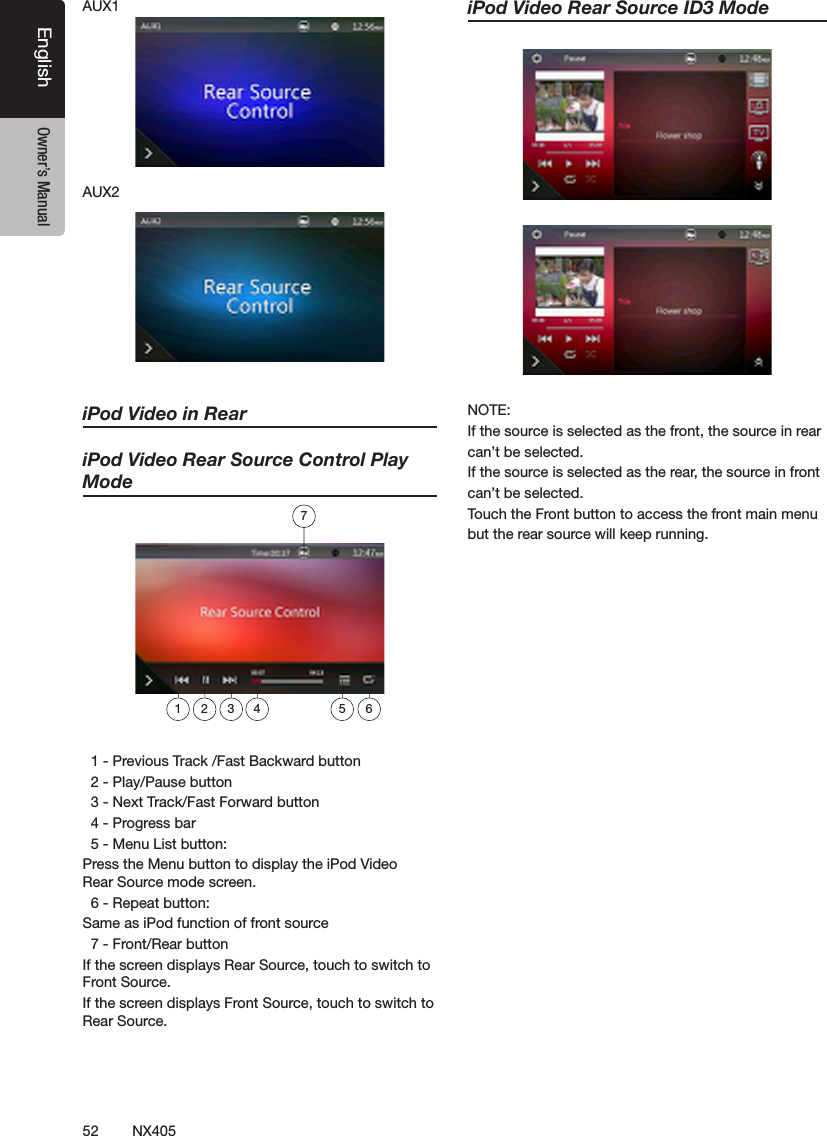

52 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualAUX1AUX2iPod Video in ReariPod Video Rear Source Control Play Mode  1 - Previous Track /Fast Backward button  2 - Play/Pause button  3 - Next Track/Fast Forward button  4 - Progress bar  5 - Menu List button:Press the Menu button to display the iPod Video             Rear Source mode screen.  6 - Repeat button:Same as iPod function of front source  7 - Front/Rear buttonIf the screen displays Rear Source, touch to switch to Front Source.If the screen displays Front Source, touch to switch to Rear Source.iPod Video Rear Source ID3 ModeNOTE: If the source is selected as the front, the source in rear can’t be selected.If the source is selected as the rear, the source in front can’t be selected.Touch the Front button to access the front main menu but the rear source will keep running.1 2 3 4 5 67

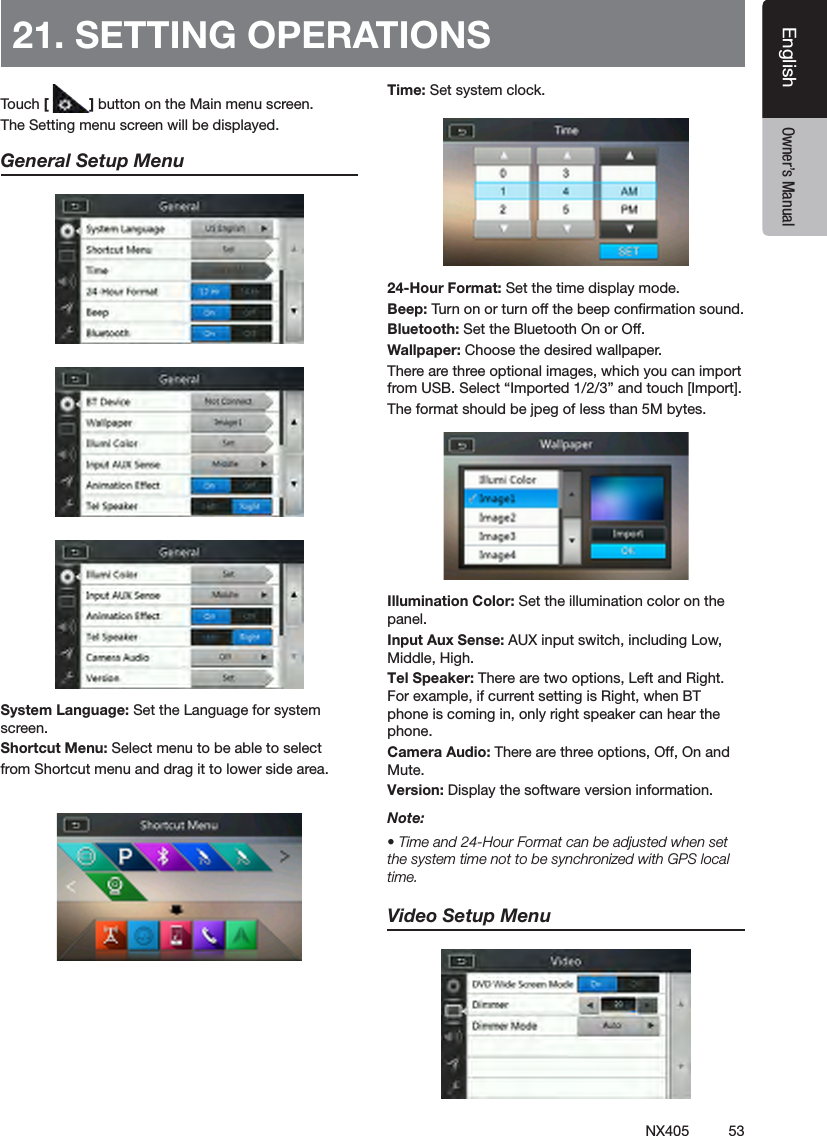

53NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual21. SETTING OPERATIONSTouch [ ] button on the Main menu screen.The Setting menu screen will be displayed.General Setup MenuSystem Language: Set the Language for system screen.Shortcut Menu: Select menu to be able to selectfrom Shortcut menu and drag it to lower side area.Time: Set system clock.24-Hour Format: Set the time display mode.Beep: Turn on or turn off the beep conrmation sound.Bluetooth: Set the Bluetooth On or Off.Wallpaper: Choose the desired wallpaper.There are three optional images, which you can import from USB. Select “Imported 1/2/3” and touch [Import]. The format should be jpeg of less than 5M bytes. Illumination Color: Set the illumination color on the panel.Input Aux Sense: AUX input switch, including Low, Middle, High.Tel Speaker: There are two options, Left and Right. For example, if current setting is Right, when BT phone is coming in, only right speaker can hear the phone. Camera Audio: There are three options, Off, On and Mute.Version: Display the software version information.Note:• Time and 24-Hour Format can be adjusted when set the system time not to be synchronized with GPS local time.Video Setup Menu

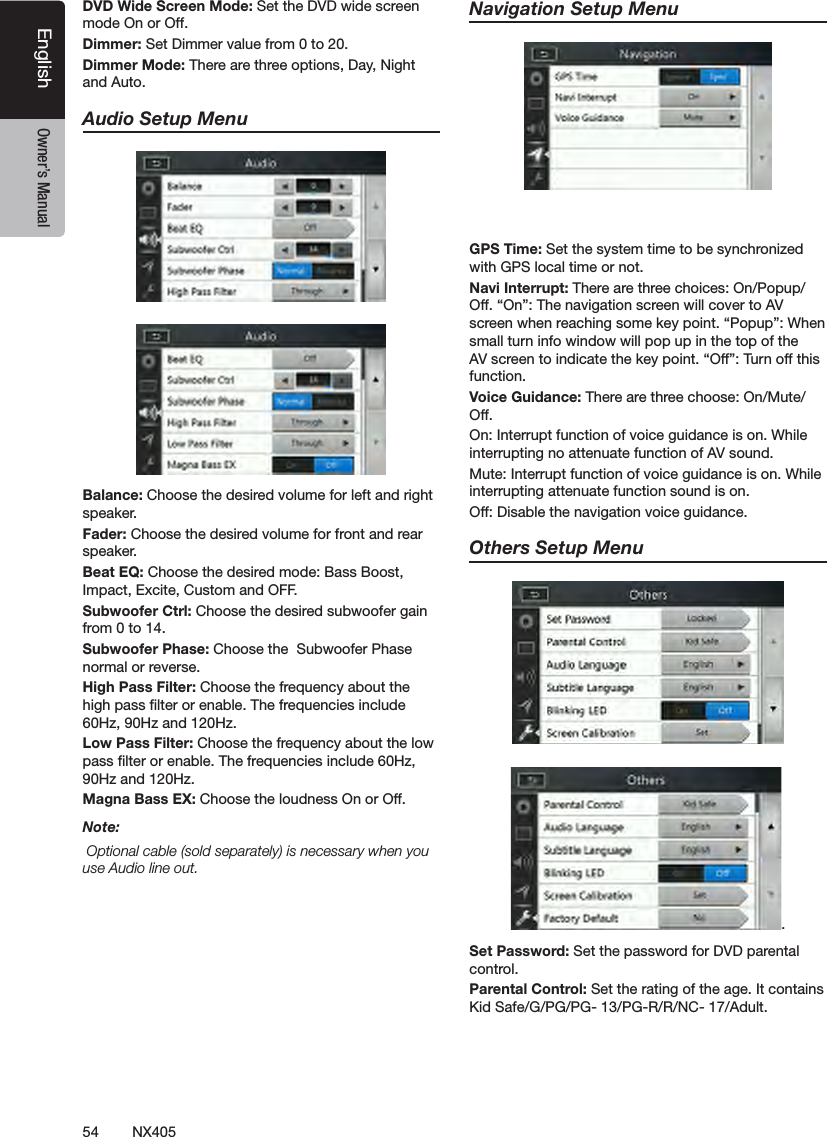

54 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualDVD Wide Screen Mode: Set the DVD wide screen mode On or Off.Dimmer: Set Dimmer value from 0 to 20.Dimmer Mode: There are three options, Day, Night and Auto.Audio Setup MenuBalance: Choose the desired volume for left and right speaker.Fader: Choose the desired volume for front and rear speaker.Beat EQ: Choose the desired mode: Bass Boost, Impact, Excite, Custom and OFF. Subwoofer Ctrl: Choose the desired subwoofer gain from 0 to 14.Subwoofer Phase: Choose the  Subwoofer Phase normal or reverse.High Pass Filter: Choose the frequency about the high pass lter or enable. The frequencies include 60Hz, 90Hz and 120Hz.Low Pass Filter: Choose the frequency about the low pass lter or enable. The frequencies include 60Hz, 90Hz and 120Hz.Magna Bass EX: Choose the loudness On or Off.Note: Optional cable (sold separately) is necessary when you use Audio line out.Navigation Setup Menu GPS Time: Set the system time to be synchronized with GPS local time or not.Navi Interrupt: There are three choices: On/Popup/Off. “On”: The navigation screen will cover to AV screen when reaching some key point. “Popup”: When small turn info window will pop up in the top of the AV screen to indicate the key point. “Off”: Turn off this function.Voice Guidance: There are three choose: On/Mute/ Off. On: Interrupt function of voice guidance is on. While interrupting no attenuate function of AV sound.Mute: Interrupt function of voice guidance is on. While interrupting attenuate function sound is on.Off: Disable the navigation voice guidance. Others Setup Menu.Set Password: Set the password for DVD parental control.Parental Control: Set the rating of the age. It contains Kid Safe/G/PG/PG- 13/PG-R/R/NC- 17/Adult.

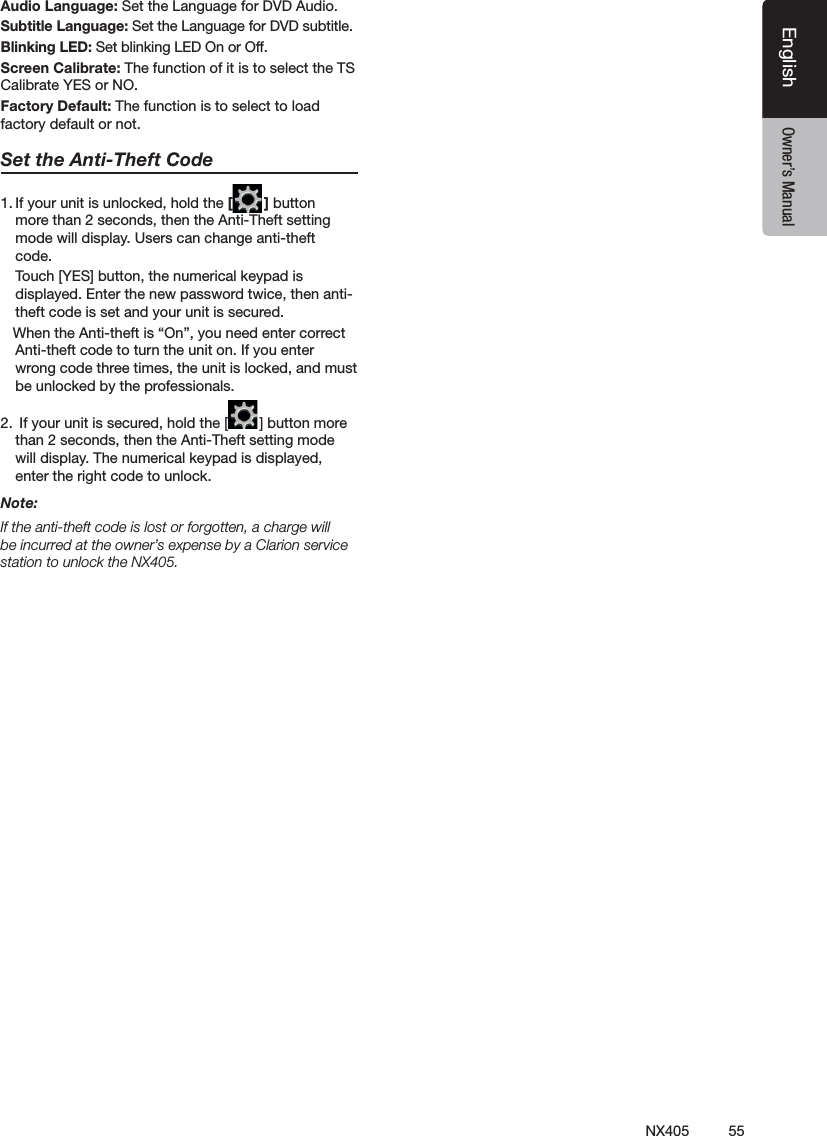

55NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualAudio Language: Set the Language for DVD Audio.Subtitle Language: Set the Language for DVD subtitle.Blinking LED: Set blinking LED On or Off. Screen Calibrate: The function of it is to select the TS Calibrate YES or NO.Factory Default: The function is to select to load factory default or not.Set the Anti-Theft Code1. If your unit is unlocked, hold the [ ] button more than 2 seconds, then the Anti-Theft setting mode will display. Users can change anti-theft code.   Touch [YES] button, the numerical keypad is displayed. Enter the new password twice, then anti-theft code is set and your unit is secured.   When the Anti-theft is “On”, you need enter correct Anti-theft code to turn the unit on. If you enter wrong code three times, the unit is locked, and must be unlocked by the professionals.2.  If your unit is secured, hold the [ ] button more than 2 seconds, then the Anti-Theft setting mode will display. The numerical keypad is displayed, enter the right code to unlock.Note:If the anti-theft code is lost or forgotten, a charge will be incurred at the owner’s expense by a Clarion service station to unlock the NX405.

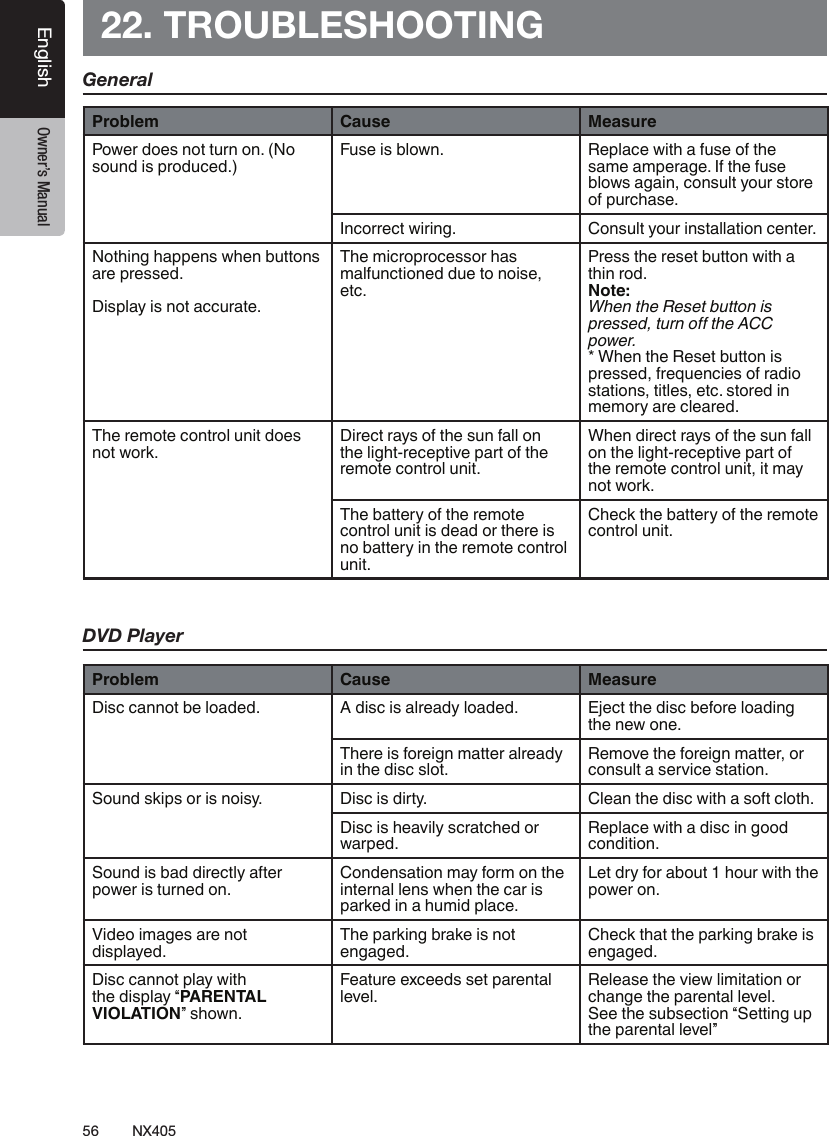

56 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual22. TROUBLESHOOTINGGeneralDVD PlayerProblem Cause MeasurePower does not turn on. (No sound is produced.)Fuse is blown. Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase.Incorrect wiring. Consult your installation center.Nothing happens when buttons are pressed. Display is not accurate.The microprocessor has malfunctioned due to noise, etc.Press the reset button with a thin rod.Note:When the Reset button is pressed, turn o the ACC power. * When the Reset button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared.The remote control unit does not work.Direct rays of the sun fall on the light-receptive part of the remote control unit.When direct rays of the sun fall on the light-receptive part of the remote control unit, it may not work.The battery of the remote control unit is dead or there is no battery in the remote control unit.Check the battery of the remote control unit.Problem Cause MeasureDisc cannot be loaded. A disc is already loaded. Eject the disc before loading the new one.There is foreign matter already in the disc slot.Remove the foreign matter, or consult a service station.Sound skips or is noisy. Disc is dirty. Clean the disc with a soft cloth.Disc is heavily scratched or warped.Replace with a disc in good condition.Sound is bad directly after power is turned on.Condensation may form on the internal lens when the car is parked in a humid place.Let dry for about 1 hour with the power on.Video images are not displayed.The parking brake is not engaged.Check that the parking brake is engaged.Disc cannot play with the display “PARENTAL VIOLATION” shown.Feature exceeds set parental level.Release the view limitation or change the parental level. See the subsection “Setting up the parental level”

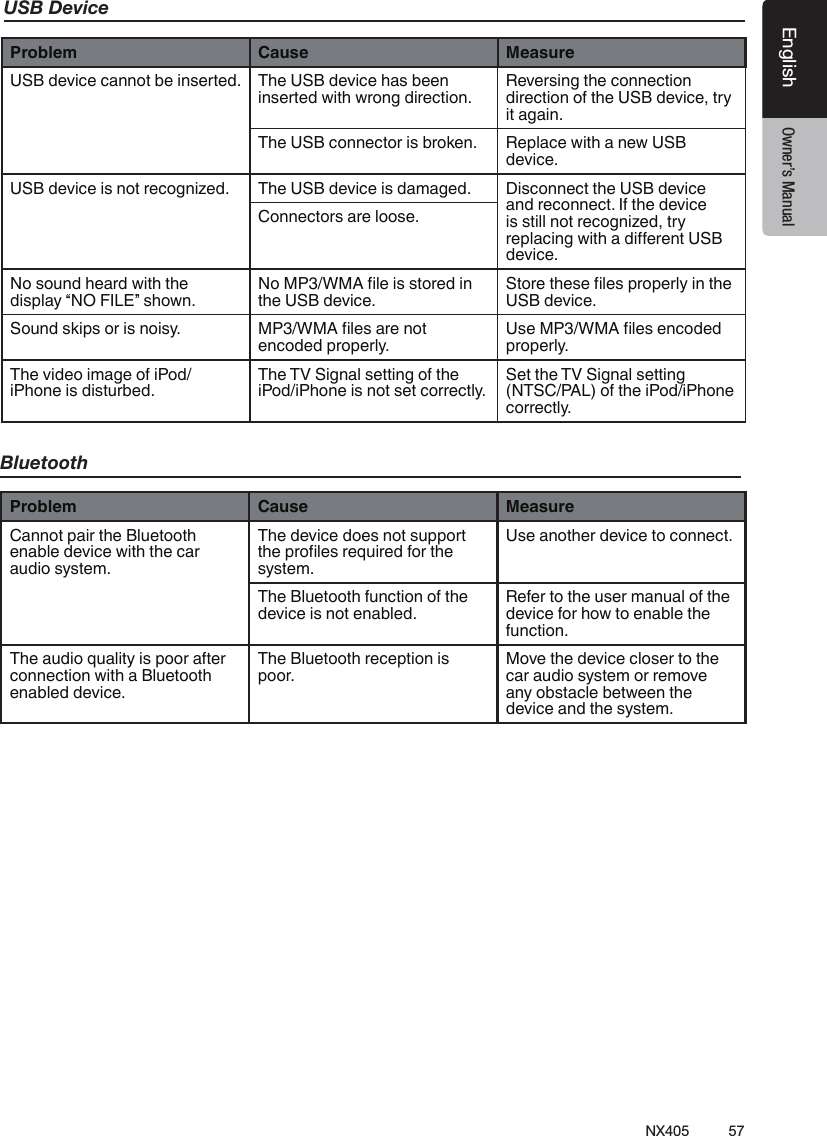

57NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualUSB DeviceProblem Cause MeasureUSB device cannot be inserted. The USB device has been inserted with wrong direction.Reversing the connection direction of the USB device, try it again.The USB connector is broken. Replace with a new USB device.USB device is not recognized. The USB device is damaged. Disconnect the USB device and reconnect. If the device is still not recognized, try replacing with a dierent USB device.Connectors are loose.No sound heard with the display “NO FILE” shown.No MP3/WMA le is stored in the USB device.Store these les properly in the USB device.Sound skips or is noisy. MP3/WMA les are not encoded properly.Use MP3/WMA les encoded properly.The video image of iPod/iPhone is disturbed.The TV Signal setting of the iPod/iPhone is not set correctly.Set the TV Signal setting (NTSC/PAL) of the iPod/iPhone correctly.BluetoothProblem Cause MeasureCannot pair the Bluetooth enable device with the car audio system.The device does not support the proles required for the system.Use another device to connect.The Bluetooth function of the device is not enabled.Refer to the user manual of the device for how to enable the function.The audio quality is poor after connection with a Bluetooth enabled device.The Bluetooth reception is poor.Move the device closer to the car audio system or remove any obstacle between the device and the system.

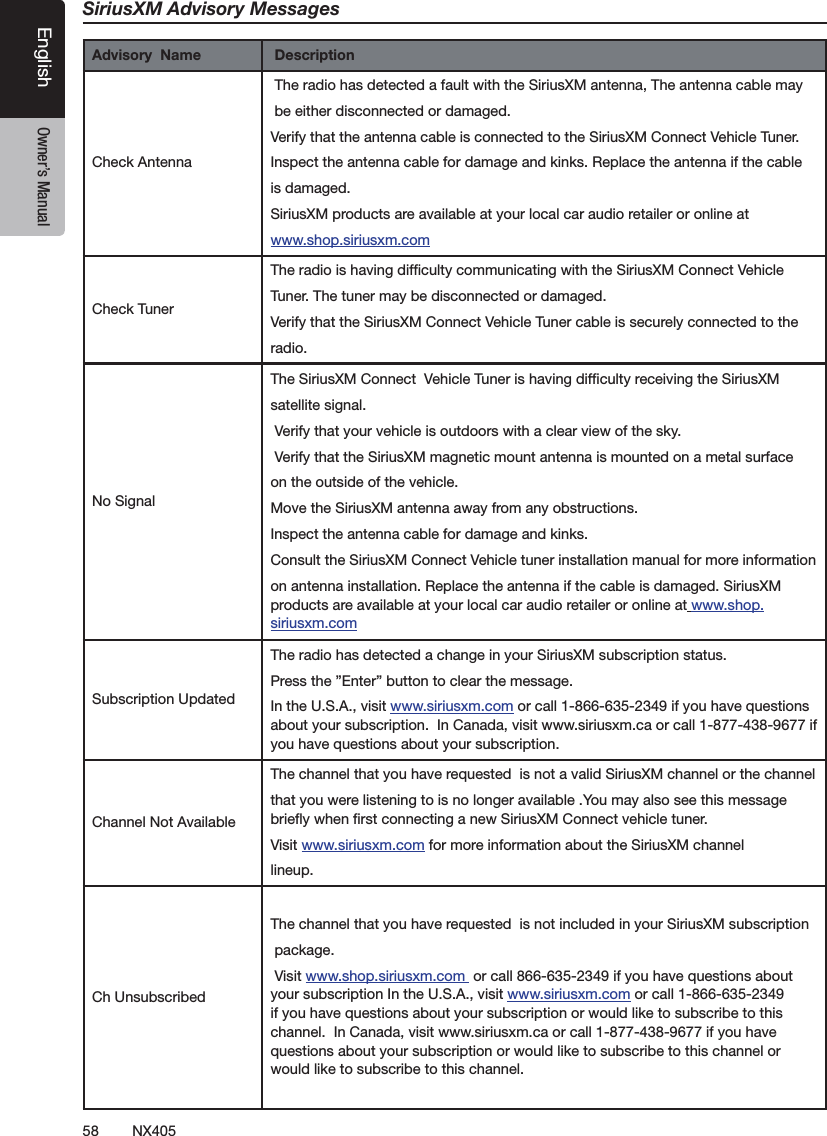

58 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualSiriusXM Advisory MessagesAdvisory  Name  DescriptionCheck Antenna The radio has detected a fault with the SiriusXM antenna, The antenna cable may be either disconnected or damaged.Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.Inspect the antenna cable for damage and kinks. Replace the antenna if the cableis damaged.SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.comCheck TunerThe radio is having difculty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged.Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to theradio.No SignalThe SiriusXM Connect  Vehicle Tuner is having difculty receiving the SiriusXM satellite signal. Verify that your vehicle is outdoors with a clear view of the sky. Verify that the SiriusXM magnetic mount antenna is mounted on a metal surfaceon the outside of the vehicle.Move the SiriusXM antenna away from any obstructions.Inspect the antenna cable for damage and kinks.Consult the SiriusXM Connect Vehicle tuner installation manual for more informationon antenna installation. Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.comSubscription UpdatedThe radio has detected a change in your SiriusXM subscription status.Press the ”Enter” button to clear the message.In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription.  In Canada, visit www.siriusxm.ca or call 1-877-438-9677 if you have questions about your subscription.   Channel Not AvailableThe channel that you have requested  is not a valid SiriusXM channel or the channel that you were listening to is no longer available .You may also see this message briey when rst connecting a new SiriusXM Connect vehicle tuner.Visit www.siriusxm.com for more information about the SiriusXM channel lineup. Ch UnsubscribedThe channel that you have requested  is not included in your SiriusXM subscription  package. Visit www.shop.siriusxm.com  or call 866-635-2349 if you have questions about your subscription In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription or would like to subscribe to this channel.  In Canada, visit www.siriusxm.ca or call 1-877-438-9677 if you have questions about your subscription or would like to subscribe to this channel or would like to subscribe to this channel.

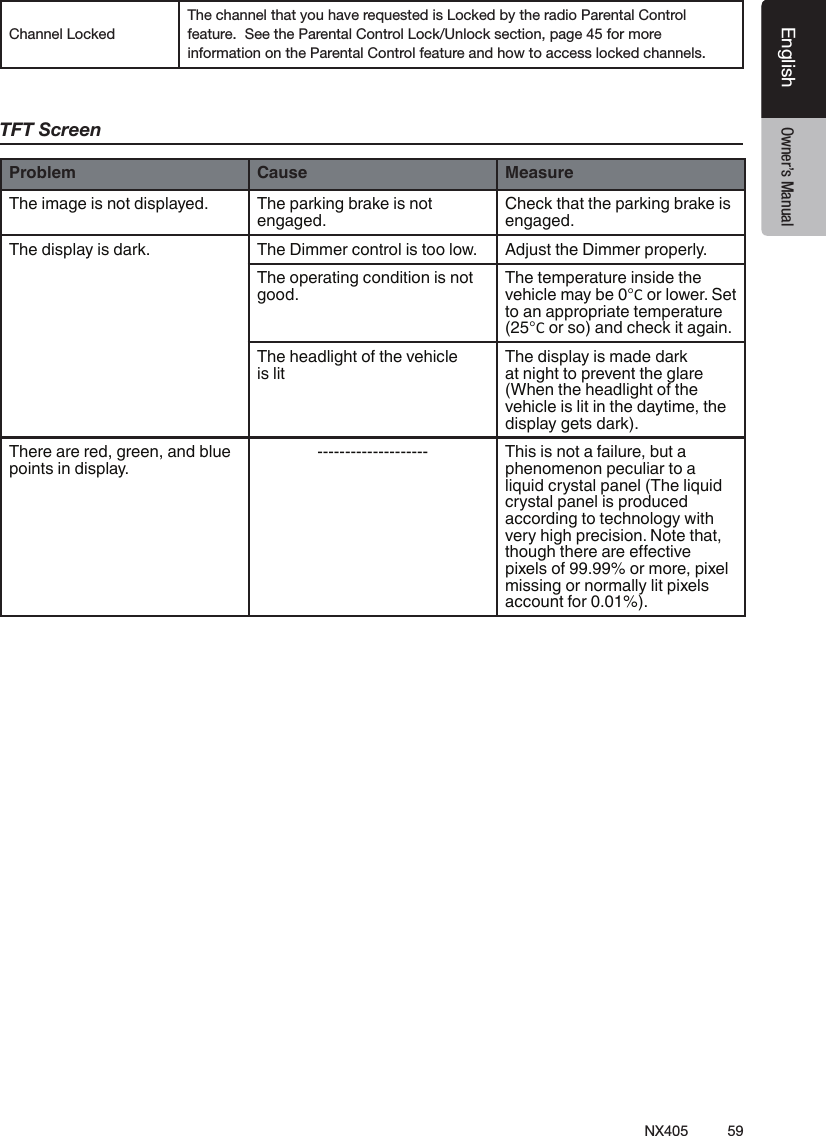

59NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualChannel LockedThe channel that you have requested is Locked by the radio Parental Control feature.  See the Parental Control Lock/Unlock section, page 45 for more information on the Parental Control feature and how to access locked channels.TFT ScreenProblem Cause MeasureThe image is not displayed. The parking brake is not engaged.Check that the parking brake is engaged.The display is dark. The Dimmer control is too low. Adjust the Dimmer properly.The operating condition is not good.The temperature inside the vehicle may be 0°C or lower. Set to an appropriate temperature (25°C or so) and check it again.The headlight of the vehicle is litThe display is made dark at night to prevent the glare (When the headlight of the vehicle is lit in the daytime, the display gets dark).There are red, green, and blue points in display.-------------------- This is not a failure, but a phenomenon peculiar to a liquid crystal panel (The liquid crystal panel is produced according to technology with very high precision. Note that, though there are eective pixels of 99.99% or more, pixel missing or normally lit pixels account for 0.01%).

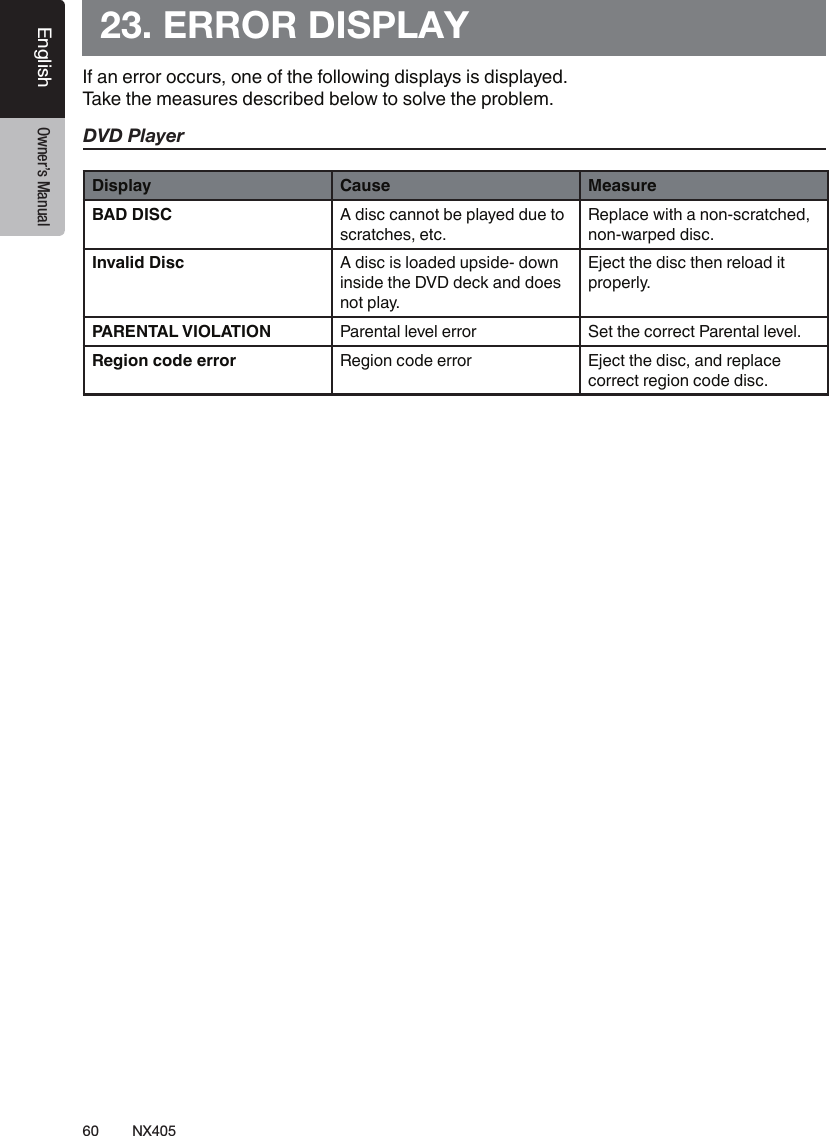

60 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual23. ERROR DISPLAYIf an error occurs, one of the following displays is displayed. Take the measures described below to solve the problem.DVD PlayerDisplay Cause MeasureBAD DISC A disc cannot be played due to scratches, etc.Replace with a non-scratched, non-warped disc.Invalid Disc A disc is loaded upside- down inside the DVD deck and does not play.Eject the disc then reload it properly.PARENTAL VIOLATION Parental level error Set the correct Parental level.Region code error Region code error Eject the disc, and replace correct region code disc.

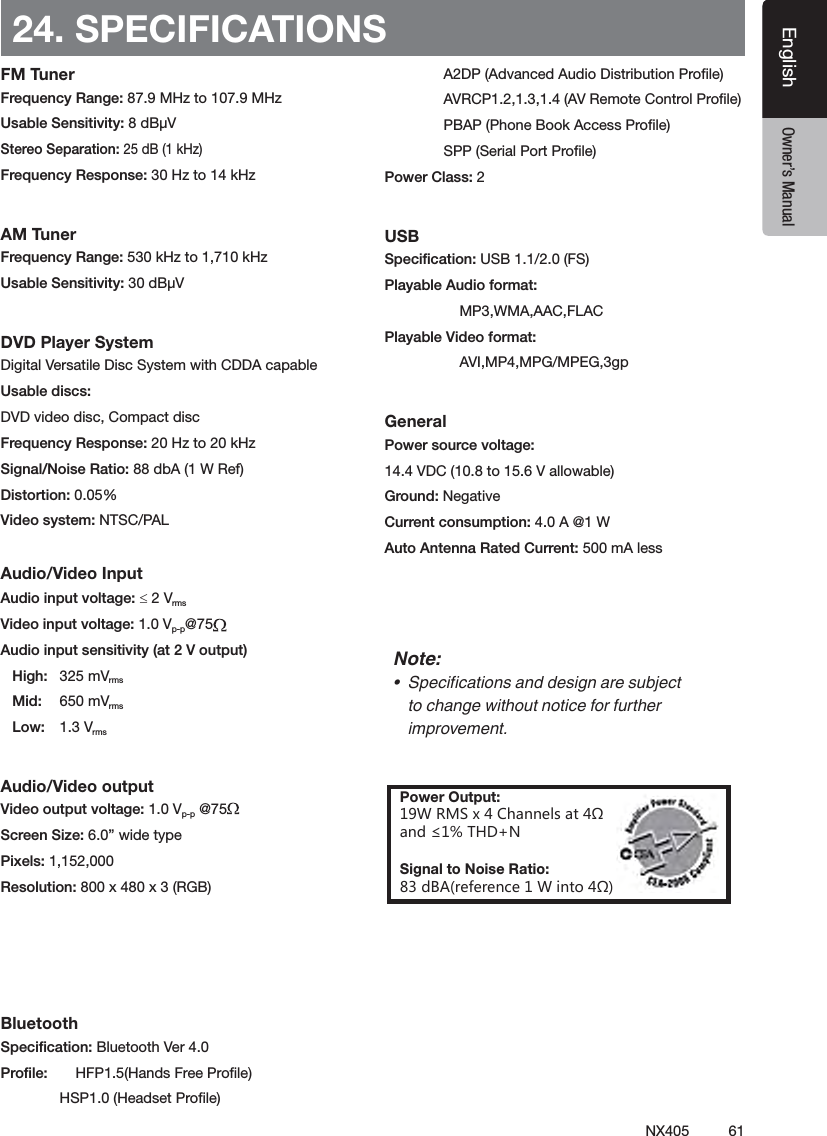

61NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual24. SPECIFICATIONSFM TunerFrequency Range: 87.9 MHz to 107.9 MHz Usable Sensitivity: 8 dBµVStereo Separation: 25 dB (1 kHz)Frequency Response: 30 Hz to 14 kHzAM TunerFrequency Range: 530 kHz to 1,710 kHz Usable Sensitivity: 30 dBµVDVD Player SystemDigital Versatile Disc System with CDDA capableUsable discs: DVD video disc, Compact discFrequency Response: 20 Hz to 20 kHz Signal/Noise Ratio: 88 dbA (1 W Ref)Distortion: 0.05%Video system: NTSC/PALAudio/Video InputAudio input voltage: ≤ 2 VrmsVideo input voltage: 1.0 Vp-p@75Audio input sensitivity (at 2 V output)High:  325 mVrmsMid:  650 mVrmsLow:  1.3 VrmsAudio/Video outputVideo output voltage: 1.0 Vp-p @75Screen Size: 6.0” wide typePixels: 1,152,000Resolution: 800 x 480 x 3 (RGB)BluetoothSpecification: Bluetooth Ver 4.0Profile:  HFP1.5(Hands Free Profile)   HSP1.0 (Headset Profile)    A2DP (Advanced Audio Distribution Profile)  AVRCP1.2,1.3,1.4 (AV Remote Control Profile)  PBAP (Phone Book Access Profile)  SPP (Serial Port Profile)Power Class: 2USBSpecification: USB 1.1/2.0 (FS)Playable Audio format:  MP3,WMA,AAC,FLACPlayable Video format:  AVI,MP4,MPG/MPEG,3gpGeneralPower source voltage:14.4 VDC (10.8 to 15.6 V allowable) Ground: NegativeCurrent consumption: 4.0 A @1 W Auto Antenna Rated Current: 500 mA less Note:• Specicationsanddesignaresubjecttochangewithoutnoticeforfurtherimprovement.Power Output:19W RMS x 4 Channels at 4Ωand ≤1% THD+NSignal to Noise Ratio:83 dBA(reference 1 W into 4Ω)

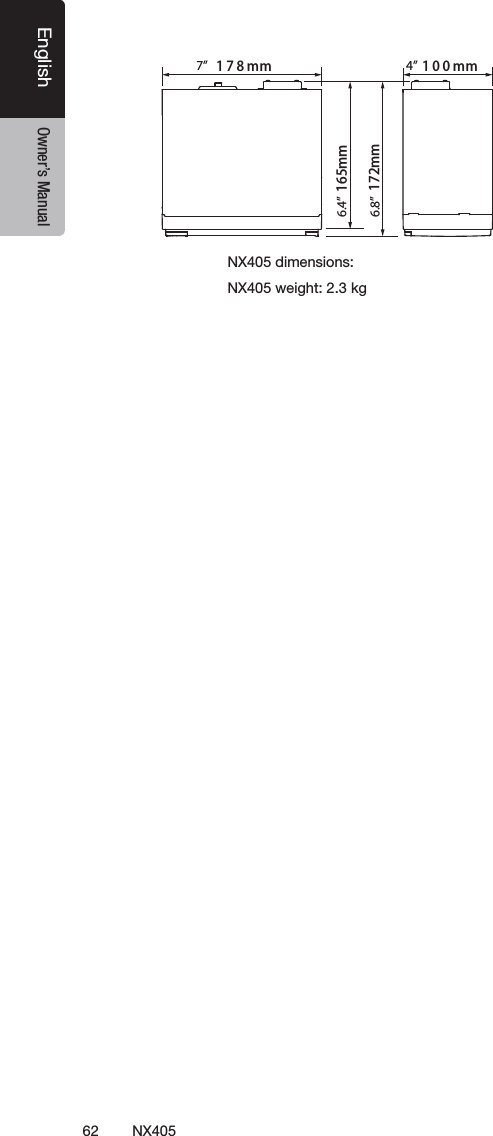

62 NX405EnglishEnglish Owner’s ManualEnglish Owner’s ManualNX405 dimensions:NX405 weight: 2.3 kg mm001mm871165mm172mm7’’ 4’’6.8’’6.4’’

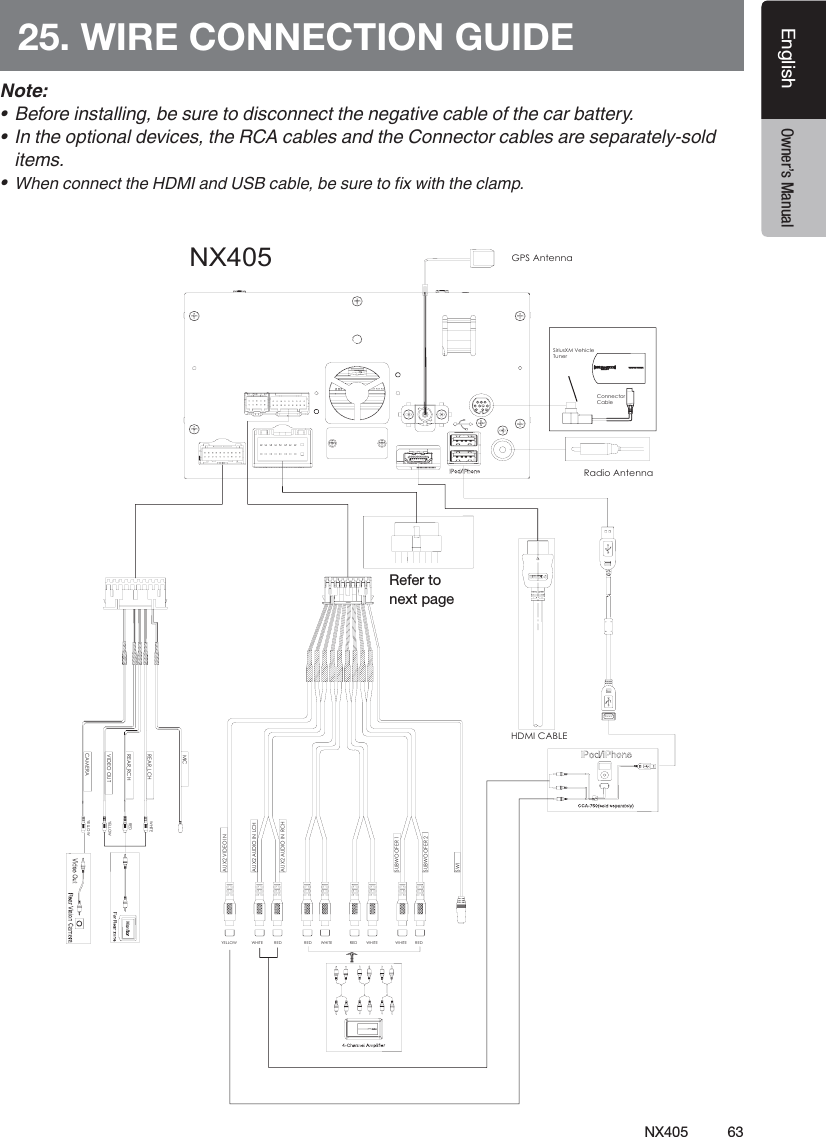

63NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual25. WIRE CONNECTION GUIDENote:•  Before installing, be sure to disconnect the negative cable of the car battery.•  In the optional devices, the RCA cables and the Connector cables are separately-sold items.• When connect the HDMI and USB cable, be sure to x with the clamp.NX405Radio AntennaGPS AntennaHDMI CABLESiriusXM Vehicle TunerAUX2 VIDEO INAUX2 AUDIO IN LCHAUX2 AUDIO IN RCHSUBWOOFER 1SUBWOOFER 2YELLOW WHITE RED WHITE WHITE WHITE DERDERDERSWICAMERAYELLOWMICYELLOWWHITEREDVIDEO OUTREAR_LCHREAR_RCHConnectorCable Refer to next page

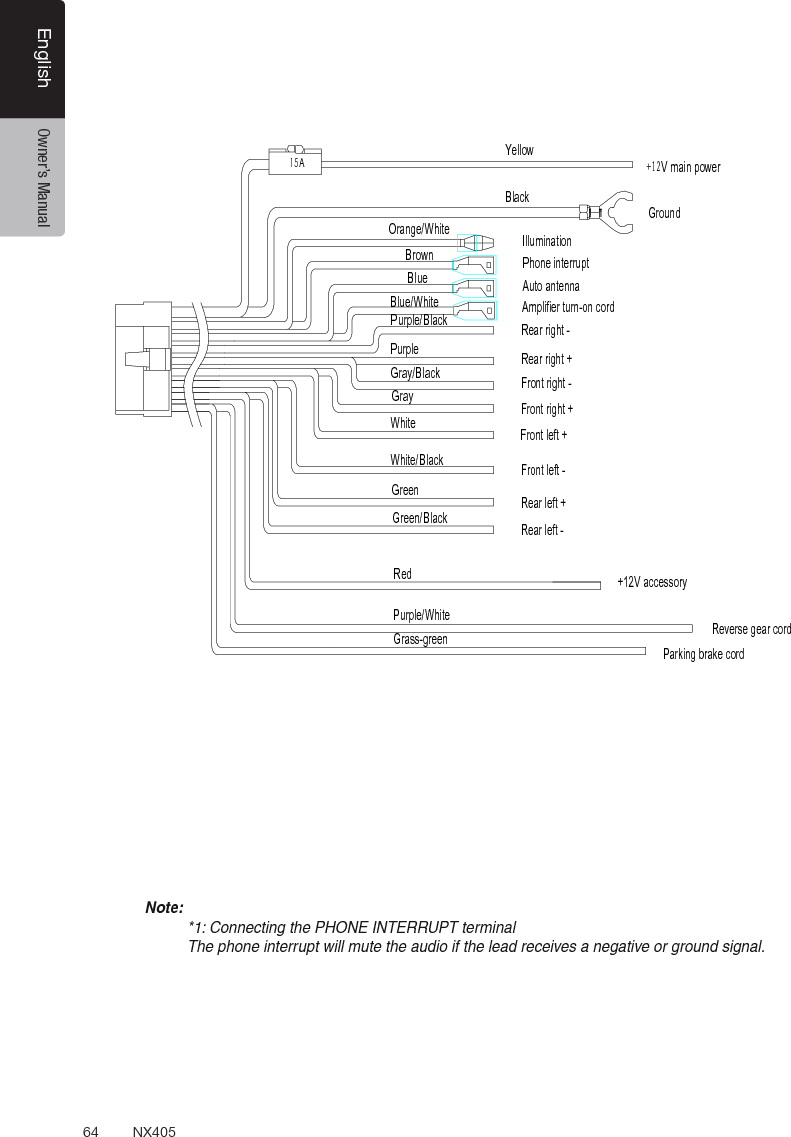

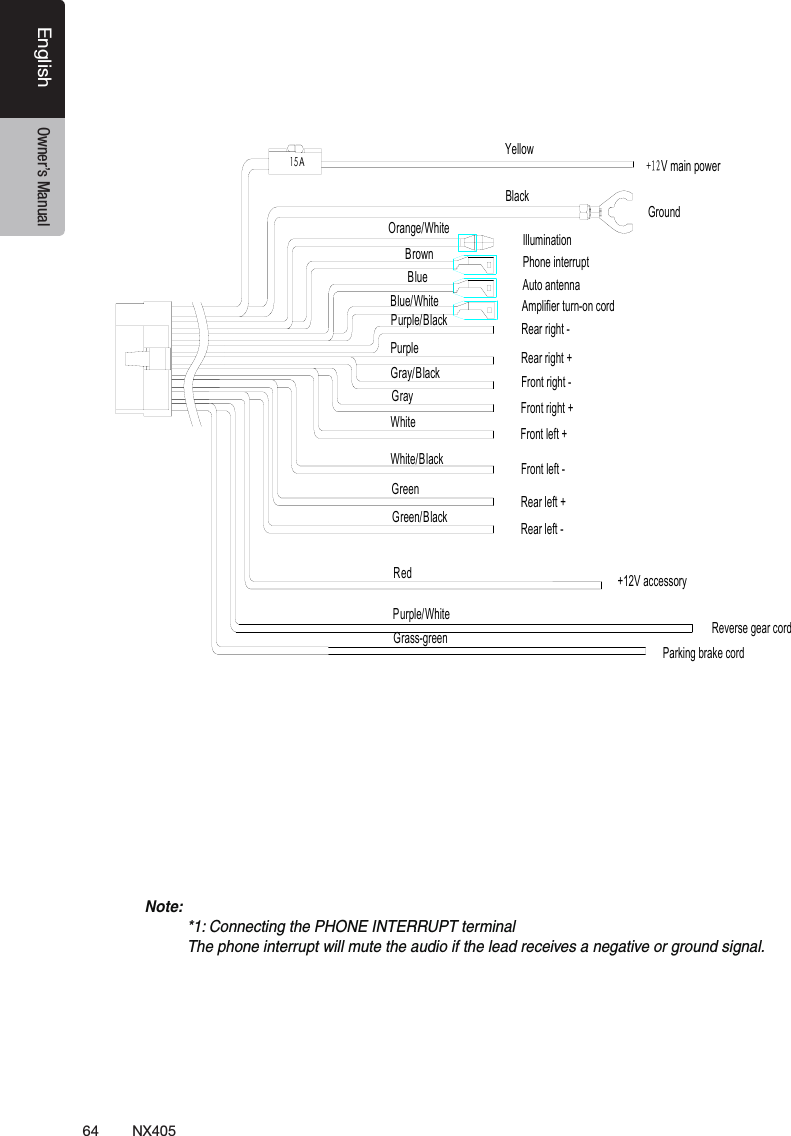

64 NX405EnglishEnglish Owner’s ManualEnglish Owner’s Manual15A+12V main powerGroundYellowBlackIlluminationOrange/WhiteBrown Phone interruptBlue Auto antennaAmplifier turn-on cordBlue/WhiteRear right -Purple/BlackPurpleGray/BlackGrayWhiteWhite/BlackGreenGreen/BlackRedPurple/WhiteGrass-greenRear right +Front right -Front right +Front left +Front left -Rear left +Rear left -+12V accessoryReverse gear cordParking brake cordNote:*1: Connecting the PHONE INTERRUPT terminalThe phone interrupt will mute the audio if the lead receives a negative or ground signal.
 Clarion Co., Ltd.All Rights Reserved. Copyright © 2014: Clarion Co., Ltd.
