SMD Funksteuerungs SMD-53200RX Radio Receiver Module 433 MHz AM User Manual 363796
SMD-Funksteuerungs GmbH Radio Receiver Module 433 MHz AM 363796
User Manual
TST SFFE2-C
2-channel radio receiver module 433 MHz AM
Remote-controlled opening and closing of industrial doors and barriers
Special features:
• plug-in module for control boards of FEIG ELECTRONIC
• frequency range AM 433 MHz
• teach in of max. 32 transmitters possible
• signal evaluation with microprocessor
• operation with cable antenna or 50 Ohm technique
• receiving display via LED
Technical data
Dimensions: wxh 100,65x49,21 mm
Mains voltage: 12-24 V DC
Current consumption: approx. 8 mA without RF module
Settings: 53200 mode 35 - 110 ms
Connections: 2x 5pin Molex type for supply
and command
1x 3pol. screw terminal for
antenna
Displays: 1x LED red for function check
Control elements. 2x learning press button
2x DIP-switch for latch function
(optional)
Construction:
Learning and delete process:
For the operation of this receiver a transmitter has to be
teached in. Firstly the transmitter has to checked by pressing
the transmission key and regarding the transmission LED.
Now, the learn button of the receiver must be pressed and
within 5 sec. after this the button of the transmission channel
which should be teached in. If the LED flashes and the
connected motor is running the learning process was
successful. According to this a second transmitter can by
teached in with the key for the second channel. In order to
delete the entire store the learn button must be pressed on the
receiver until red LED is on. (LED is on for the whole deleting
process). After LED is off the store is empty and new
transmitter(s) can be learned in again.
The factory setting of the receiver is in the codification 1, 2, 3,
8, 9, 10 =ON . This codification should be changed always
after the start up as following: Press the learn button for
approx. 10 seconds; as a result, the processor is deleted
completely. He signals this by short flashing of receiver LED.
The codification in the manual transmitter must now be
changed. Now, the learn button must be pressed on the
receiver and within 5 sec. after this the button of the
transmission channel which should be learned in. If the relay
switches and the LED flashes on the learning process was
successful. According to this principle it is possible to learn in
64 different transmitters. In order to delete the entire store the
learn button must be pressed on the receiver again approx. 10
seconds (flashing of LED). After this new transmitter(s) can be
learned in again.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could avoid the user's authority to
operate the equipment.
jb/vk 07/03 errors and technical changes remain reserved
Distributed by FEIG ELECTRONIC GmbH

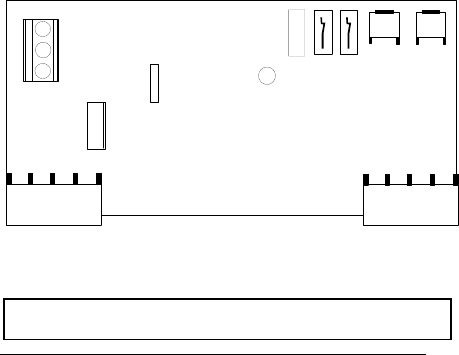

key2 key1
SW2 SW1
ST1
LED
cable antenna
50 Ohm antenna
GND
GND
+Vin
1.chan.
2.chan.
FCC ID:
Q
V2-SMD-53200RX
