SMD Funksteuerungs SMD-53200TX Remote Control Transmitter User Manual 363241

SMD-Funksteuerungs GmbH Remote Control Transmitter 363241

Users Manual

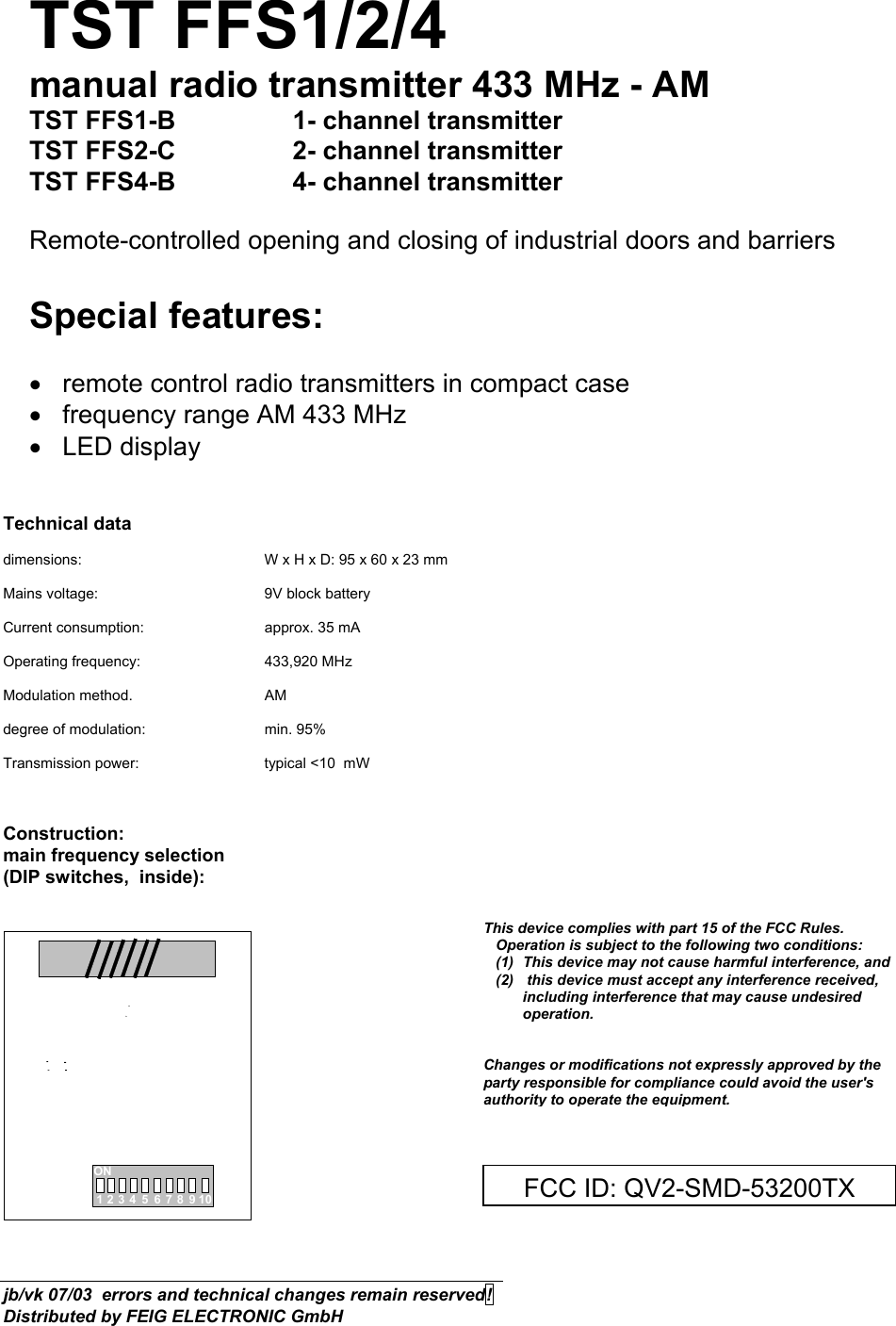

TST FFS1/2/4 manual radio transmitter 433 MHz - AM TST FFS1-B 1- channel transmitter TST FFS2-C 2- channel transmitter TST FFS4-B 4- channel transmitter Remote-controlled opening and closing of industrial doors and barriers Special features: • remote control radio transmitters in compact case • frequency range AM 433 MHz • LED display Technical data dimensions: W x H x D: 95 x 60 x 23 mm Mains voltage: 9V block battery Current consumption: approx. 35 mA Operating frequency: 433,920 MHz Modulation method. AM degree of modulation: min. 95% Transmission power: typical <10 mW Construction: main frequency selection (DIP switches, inside): ON12345678910 jb/vk 07/03 errors and technical changes remain reserved! Distributed by FEIG ELECTRONIC GmbH FCC ID: QV2-SMD-53200TXThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authority to operate the equipment.
