SMK Link Electronics VP49XXR07 RemotePoint Jade User Manual

SMK-Link Electronics RemotePoint Jade Users Manual

Users Manual

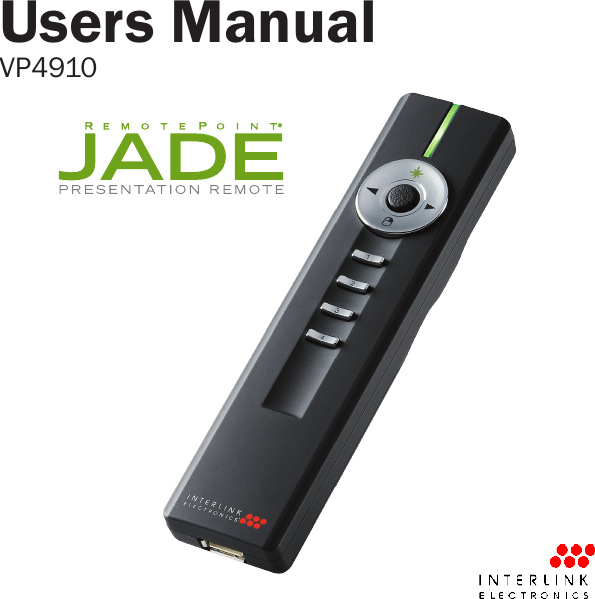

Users ManualVP4910

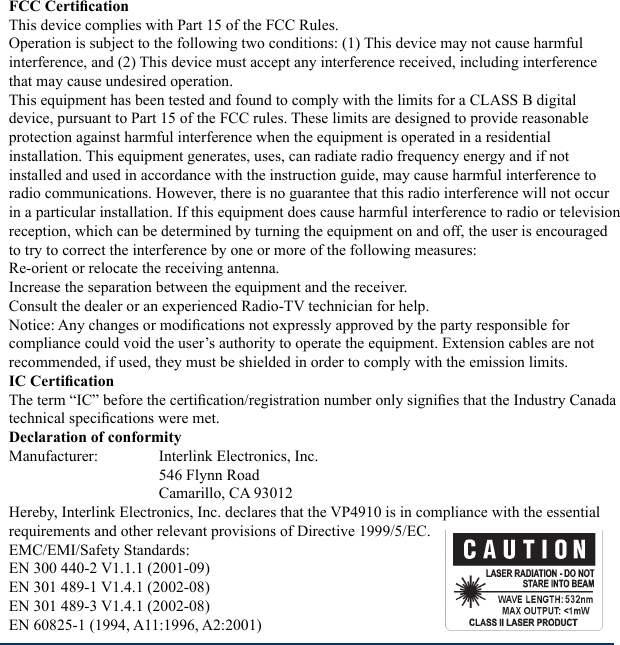

FCC CerticationThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a CLASS B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, can radiate radio frequency energy and if not installed and used in accordance with the instruction guide, may cause harmful interference to radio communications. However, there is no guarantee that this radio interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures:Re-orient or relocate the receiving antenna.Increase the separation between the equipment and the receiver.Consult the dealer or an experienced Radio-TV technician for help. Notice: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Extension cables are not recommended, if used, they must be shielded in order to comply with the emission limits.IC CerticationThe term “IC” before the certication/registration number only signies that the Industry Canada technical specications were met. Declaration of conformityManufacturer: Interlink Electronics, Inc. 546 Flynn Road Camarillo, CA 93012 Hereby, Interlink Electronics, Inc. declares that the VP4910 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. EMC/EMI/Safety Standards: EN 300 440-2 V1.1.1 (2001-09)EN 301 489-1 V1.4.1 (2002-08)EN 301 489-3 V1.4.1 (2002-08)EN 60825-1 (1994, A11:1996, A2:2001)

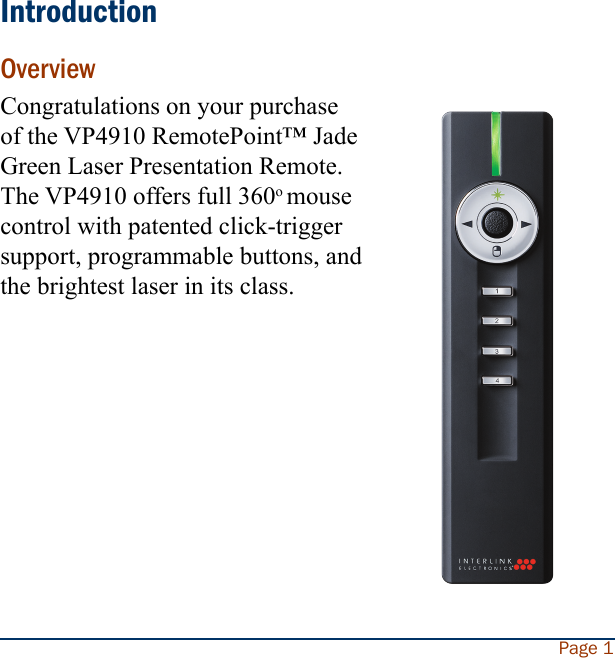

IntroductionOverviewCongratulations on your purchase of the VP4910 RemotePoint™ Jade Green Laser Presentation Remote. The VP4910 offers full 360o mouse control with patented click-trigger support, programmable buttons, and the brightest laser in its class.Page 1

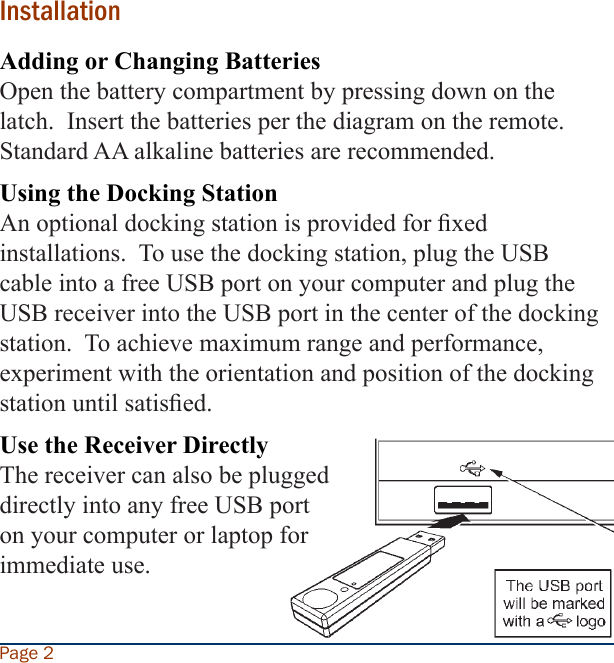

InstallationAdding or Changing BatteriesOpen the battery compartment by pressing down on the latch. Insert the batteries per the diagram on the remote. Standard AA alkaline batteries are recommended. Using the Docking StationAn optional docking station is provided for xed installations. To use the docking station, plug the USB cable into a free USB port on your computer and plug the USB receiver into the USB port in the center of the docking station. To achieve maximum range and performance, experiment with the orientation and position of the docking station until satised.Use the Receiver DirectlyThe receiver can also be plugged directly into any free USB port on your computer or laptop for immediate use.Page 2

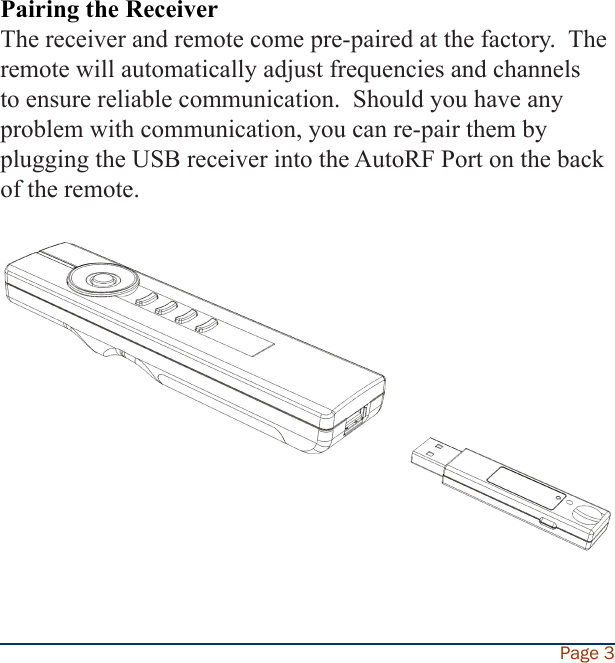

Pairing the ReceiverThe receiver and remote come pre-paired at the factory. The remote will automatically adjust frequencies and channels to ensure reliable communication. Should you have any problem with communication, you can re-pair them by plugging the USB receiver into the AutoRF Port on the back of the remote.Page 3

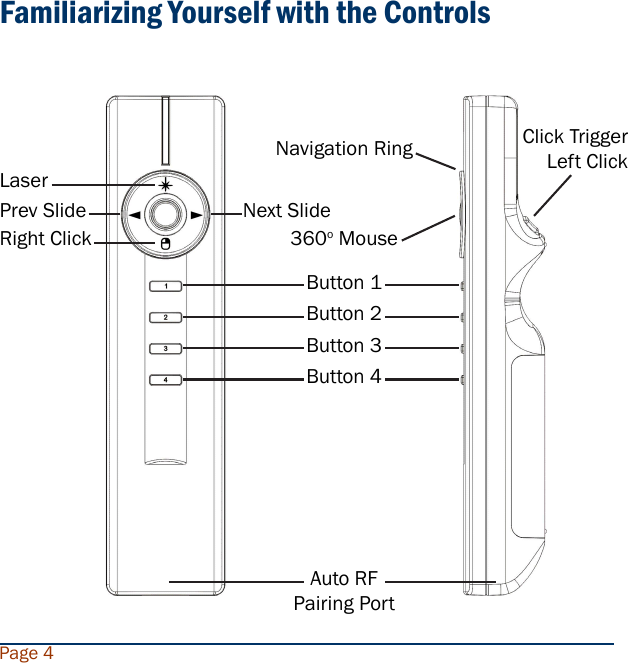

Familiarizing Yourself with the ControlsNavigation Ring360o MouseClick TriggerLeft ClickButton 1Next SlidePrev SlideRight ClickButton 2Button 3Button 4LaserAuto RFPairing PortPage 4

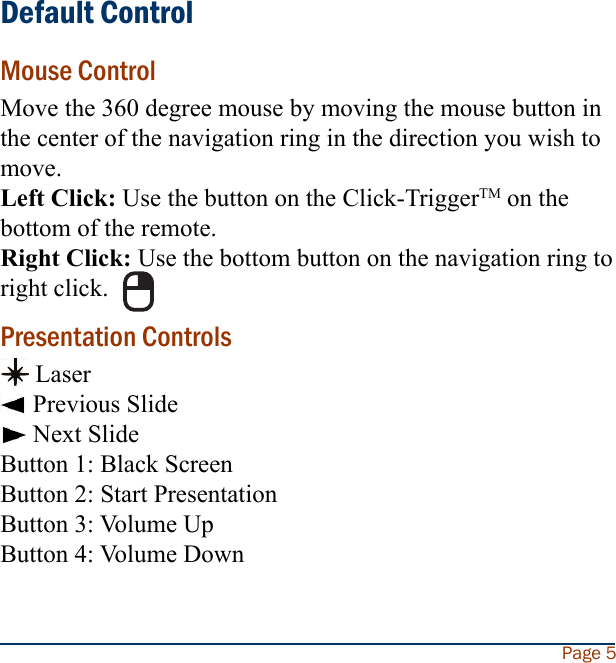

Default ControlMouse ControlMove the 360 degree mouse by moving the mouse button in the center of the navigation ring in the direction you wish to move.Left Click: Use the button on the Click-TriggerTM on the bottom of the remote.Right Click: Use the bottom button on the navigation ring to right click.Presentation Controls Laser Previous Slide Next SlideButton 1: Black ScreenButton 2: Start PresentationButton 3: Volume UpButton 4: Volume DownPage 5

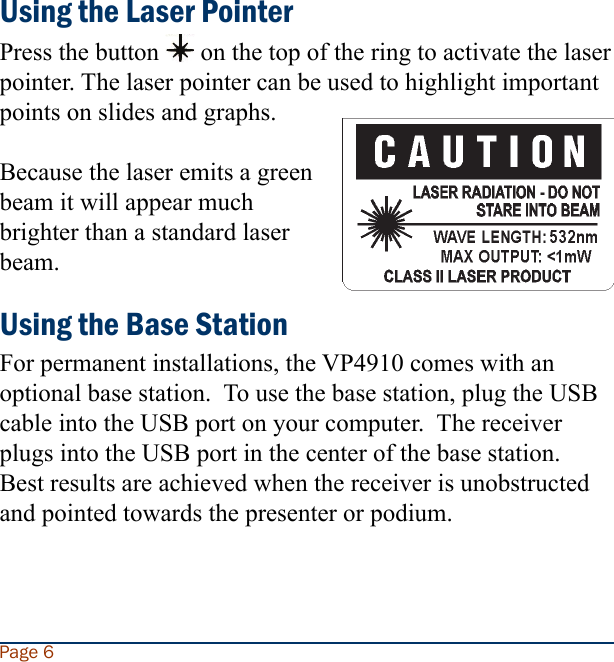

Using the Laser PointerPress the button on the top of the ring to activate the laser pointer. The laser pointer can be used to highlight important points on slides and graphs.Because the laser emits a green beam it will appear much brighter than a standard laser beam.Using the Base StationFor permanent installations, the VP4910 comes with an optional base station. To use the base station, plug the USB cable into the USB port on your computer. The receiver plugs into the USB port in the center of the base station. Best results are achieved when the receiver is unobstructed and pointed towards the presenter or podium. Page 6
Custom Programming VP4910 RemoteThe four buttons on the bottom of the VP4910 can be programmed to send a wide variety of keystrokes. The software is available online at http://www.interlinkelectronics.com/support/downloads.htmlThe remote can also be programmed to meet your own needs. To change the functions of the remote, select individual keys from the drop down menu. Once you have made your selection click “Program Receiver.”One programmed, the changes are written to non-volatile memory on the receiver. Once programmed those buttons will send those keys even on machines that aren’t running the setup utility softwarePage 7

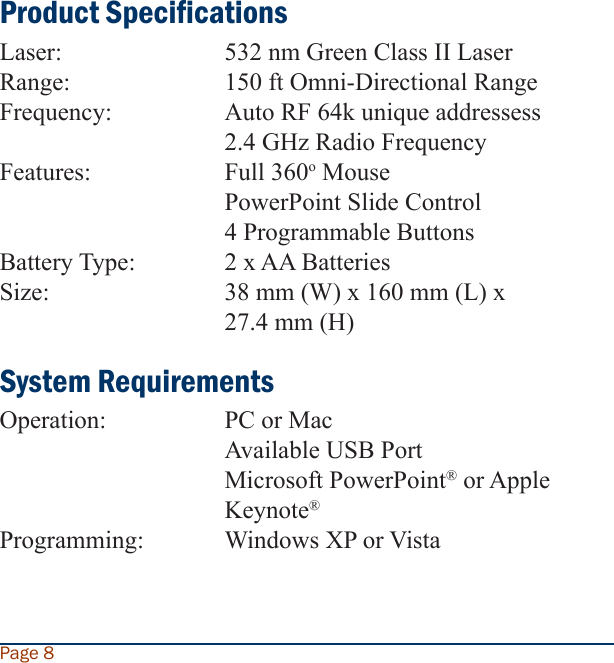

Product SpecicationsLaser: 532 nm Green Class II Laser Range: 150 ft Omni-Directional RangeFrequency: Auto RF 64k unique addressess 2.4 GHz Radio FrequencyFeatures: Full 360o Mouse PowerPoint Slide Control 4 Programmable ButtonsBattery Type: 2 x AA BatteriesSize: 38 mm (W) x 160 mm (L) x 27.4 mm (H)System RequirementsOperation: PC or Mac Available USB Port Microsoft PowerPoint® or Apple Keynote®Programming: Windows XP or VistaPage 8
For Product Support Please Contact 546 Flynn Road Camarillo, CA 93012 USA TEL 888 696 3500 FAX 805 484 5997 INTERLINKELECTRONICS.COM

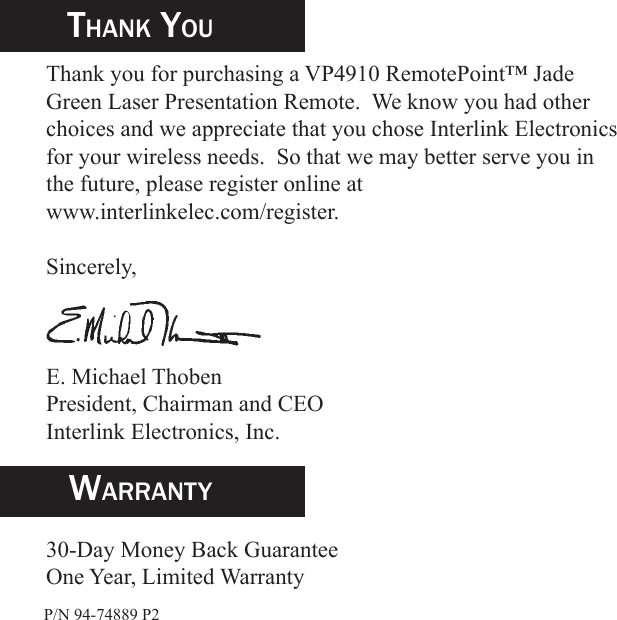

Thank you for purchasing a VP4910 RemotePoint™ Jade Green Laser Presentation Remote. We know you had other choices and we appreciate that you chose Interlink Electronics for your wireless needs. So that we may better serve you in the future, please register online at www.interlinkelec.com/register.Sincerely,E. Michael ThobenPresident, Chairman and CEOInterlink Electronics, Inc.Thank YouWarranTY30-Day Money Back GuaranteeOne Year, Limited Warranty P/N 94-74889 P2
