SMK Link Electronics VP64XXR06 Remote Control Receiver (Onyx) User Manual

SMK-Link Electronics Remote Control Receiver (Onyx) Users Manual

Users Manual

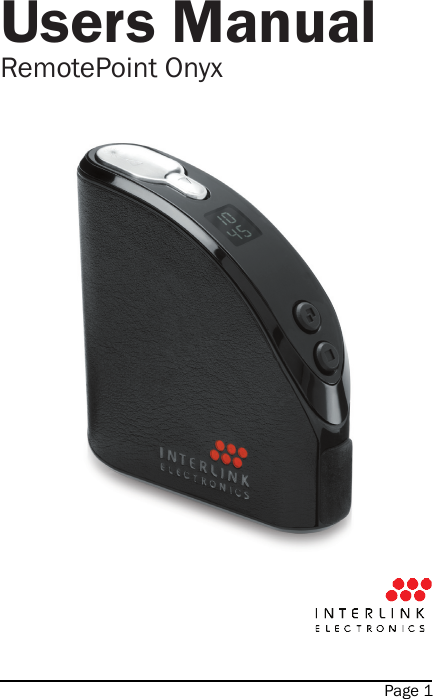

Page 1Users ManualRemotePoint Onyx

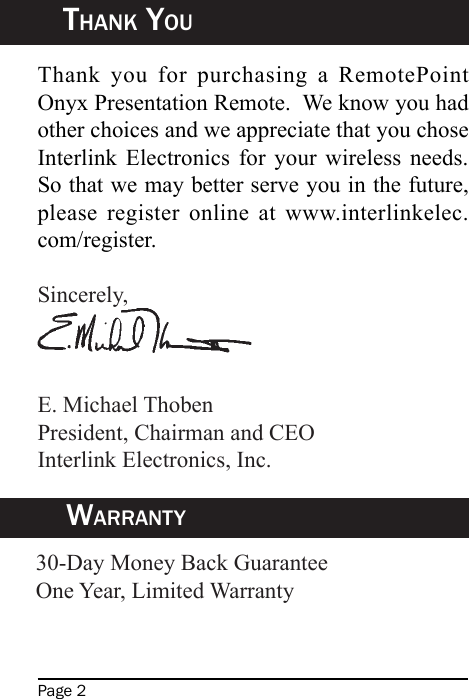

Page 2Thank YouWarranTYThank you for purchasing a RemotePoint Onyx Presentation Remote. We know you had other choices and we appreciate that you chose Interlink Electronics for your wireless needs. So that we may better serve you in the future, please register online at www.interlinkelec.com/register.Sincerely,E. Michael ThobenPresident, Chairman and CEOInterlink Electronics, Inc.30-Day Money Back GuaranteeOne Year, Limited Warranty

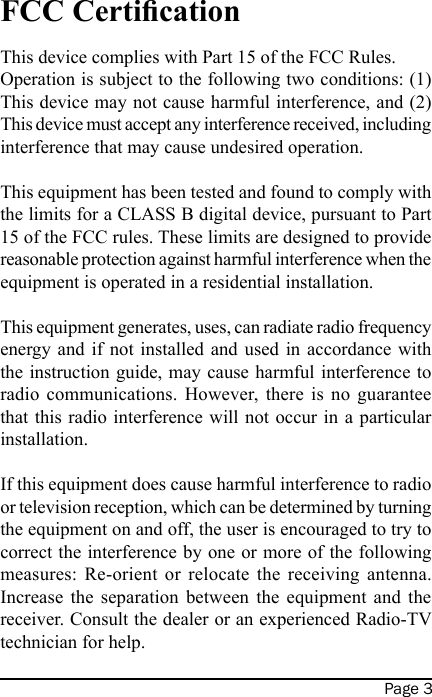

Page 3FCC CerticationThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a CLASS B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses, can radiate radio frequency energy and if not installed and used in accordance with the instruction guide, may cause harmful interference to radio communications. However, there is no guarantee that this radio interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: Re-orient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Consult the dealer or an experienced Radio-TV technician for help.

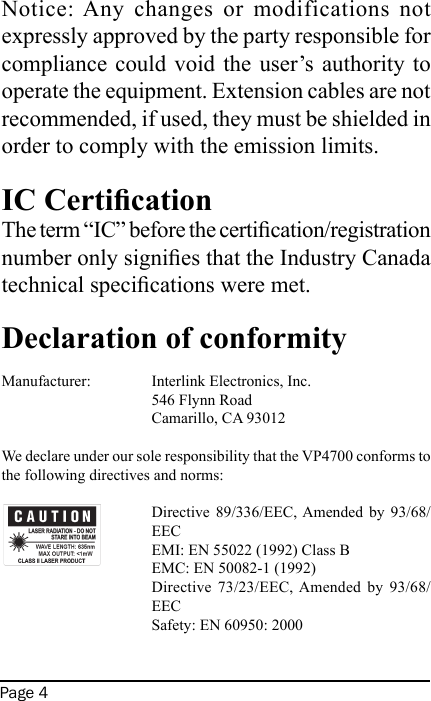

Page 4Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Extension cables are not recommended, if used, they must be shielded in order to comply with the emission limits.IC CerticationThe term “IC” before the certication/registration number only signies that the Industry Canada technical specications were met. Declaration of conformityManufacturer: Interlink Electronics, Inc. 546 Flynn Road Camarillo, CA 93012 We declare under our sole responsibility that the VP4700 conforms to the following directives and norms:Directive 89/336/EEC, Amended by 93/68/EECEMI: EN 55022 (1992) Class BEMC: EN 50082-1 (1992)Directive 73/23/EEC, Amended by 93/68/EECSafety: EN 60950: 2000

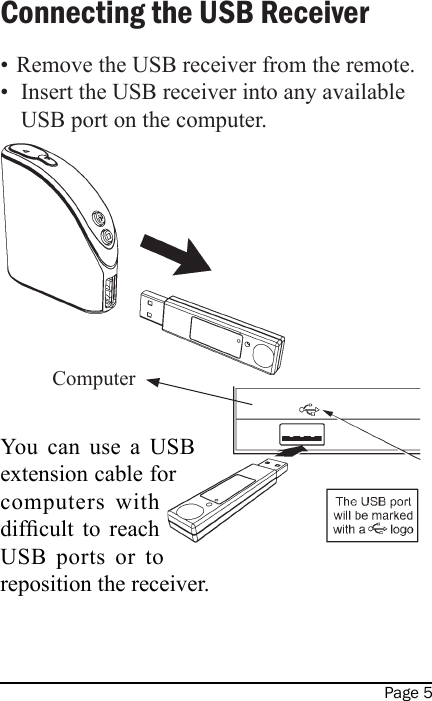

Page 5• Remove the USB receiver from the remote.• Insert the USB receiver into any available USB port on the computer.You can use a USB extension cable for computers with difcult to reach USB ports or to reposition the receiver.Connecting the USB ReceiverComputer

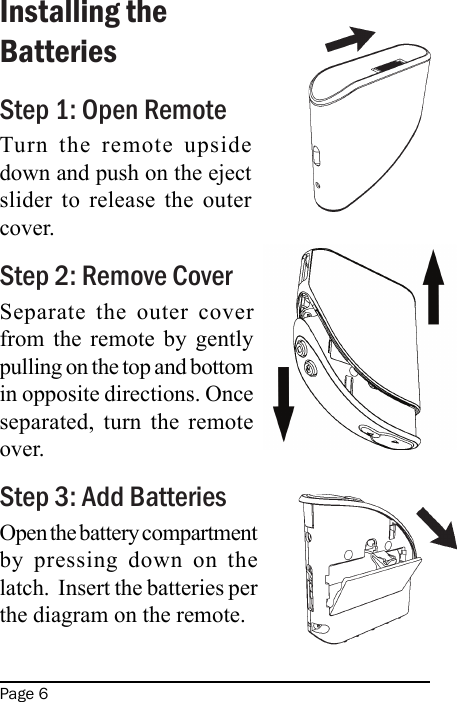

Page 6Installing the BatteriesStep 1: Open RemoteTurn the remote upside down and push on the eject slider to release the outer cover.Step 2: Remove CoverSeparate the outer cover from the remote by gently pulling on the top and bottom in opposite directions. Once separated, turn the remote over.Step 3: Add BatteriesOpen the battery compartment by pressing down on the latch. Insert the batteries per the diagram on the remote.

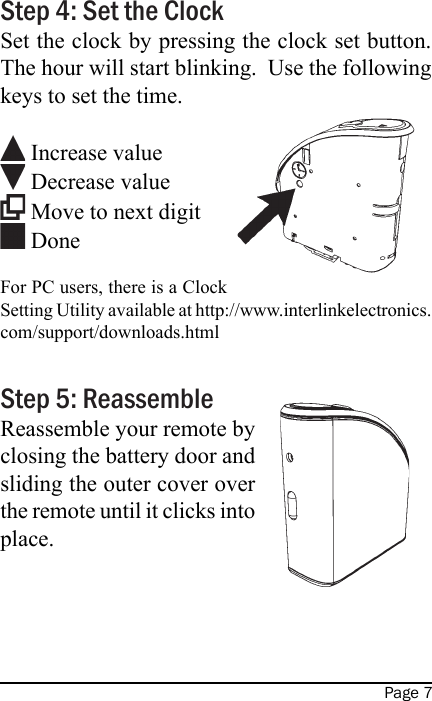

Page 7Step 4: Set the ClockSet the clock by pressing the clock set button. The hour will start blinking. Use the following keys to set the time. Increase value Decrease value Move to next digit Done For PC users, there is a Clock Setting Utility available at http://www.interlinkelectronics.com/support/downloads.htmlStep 5: ReassembleReassemble your remote by closing the battery door and sliding the outer cover over the remote until it clicks into place.

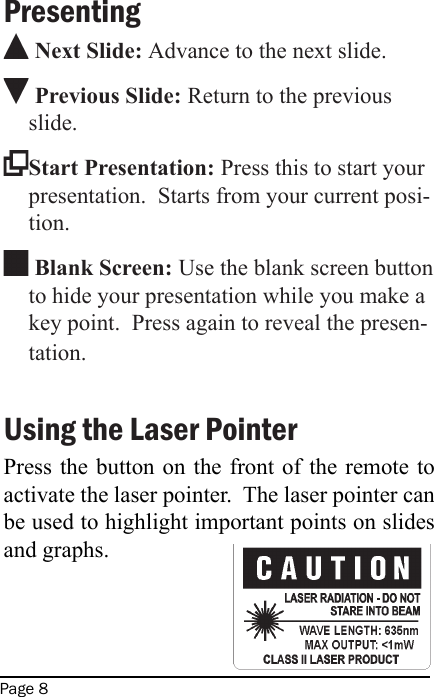

Page 8Presenting Next Slide: Advance to the next slide. Previous Slide: Return to the previous slide. Start Presentation: Press this to start your presentation. Starts from your current posi-tion. Blank Screen: Use the blank screen button to hide your presentation while you make a key point. Press again to reveal the presen-tation.Using the Laser PointerPress the button on the front of the remote to activate the laser pointer. The laser pointer can be used to highlight important points on slides and graphs.

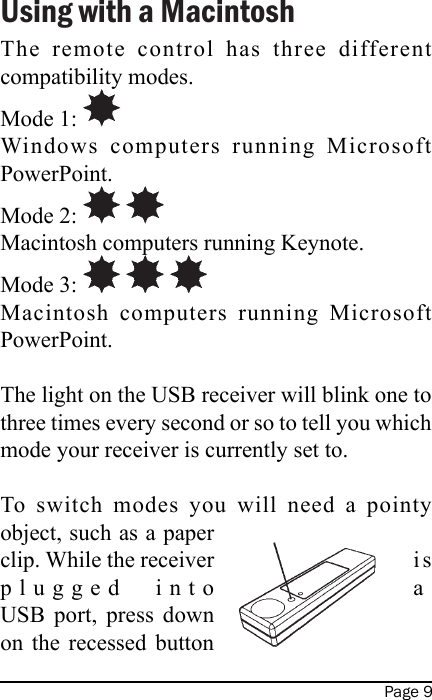

Page 9Using with a MacintoshThe remote control has three different compatibility modes.Mode 1: Windows computers running Microsoft PowerPoint.Mode 2: Macintosh computers running Keynote.Mode 3: Macintosh computers running Microsoft PowerPoint.The light on the USB receiver will blink one to three times every second or so to tell you which mode your receiver is currently set to.To switch modes you will need a pointy object, such as a paper clip. While the receiver i s plugged into a USB port, press down on the recessed button

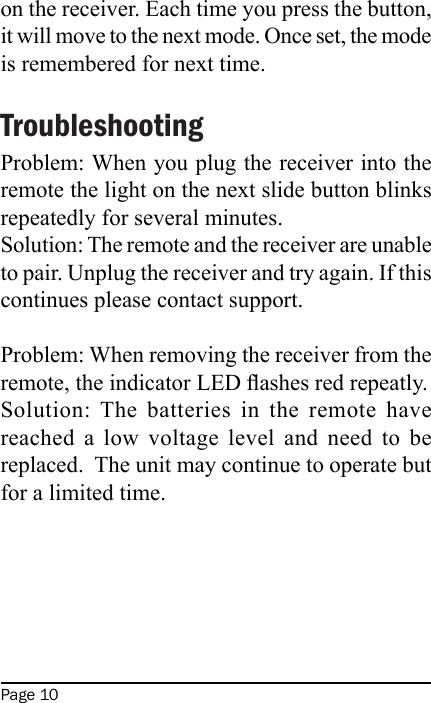

Page 10on the receiver. Each time you press the button, it will move to the next mode. Once set, the mode is remembered for next time.TroubleshootingProblem: When you plug the receiver into the remote the light on the next slide button blinks repeatedly for several minutes.Solution: The remote and the receiver are unable to pair. Unplug the receiver and try again. If this continues please contact support.Problem: When removing the receiver from the remote, the indicator LED ashes red repeatly.Solution: The batteries in the remote have reached a low voltage level and need to be replaced. The unit may continue to operate but for a limited time.

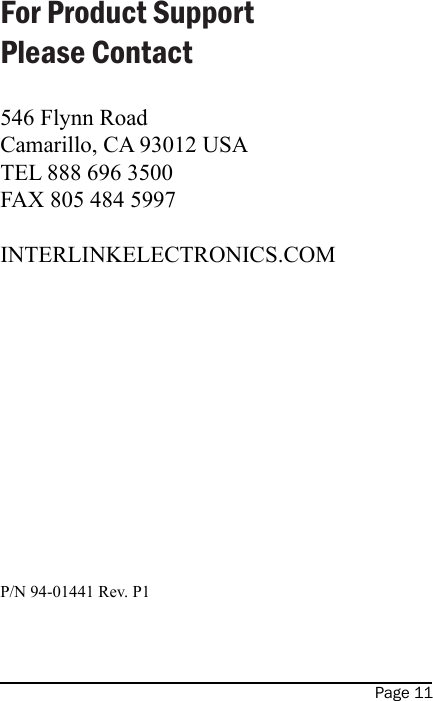

Page 11For Product Support Please Contact546 Flynn Road Camarillo, CA 93012 USATEL 888 696 3500 FAX 805 484 5997INTERLINKELECTRONICS.COMP/N 94-01441 Rev. P1
