SMK Link Electronics VP68XX10 Mighty Mouse User Manual 5293015

SMK-Link Electronics Mighty Mouse 5293015

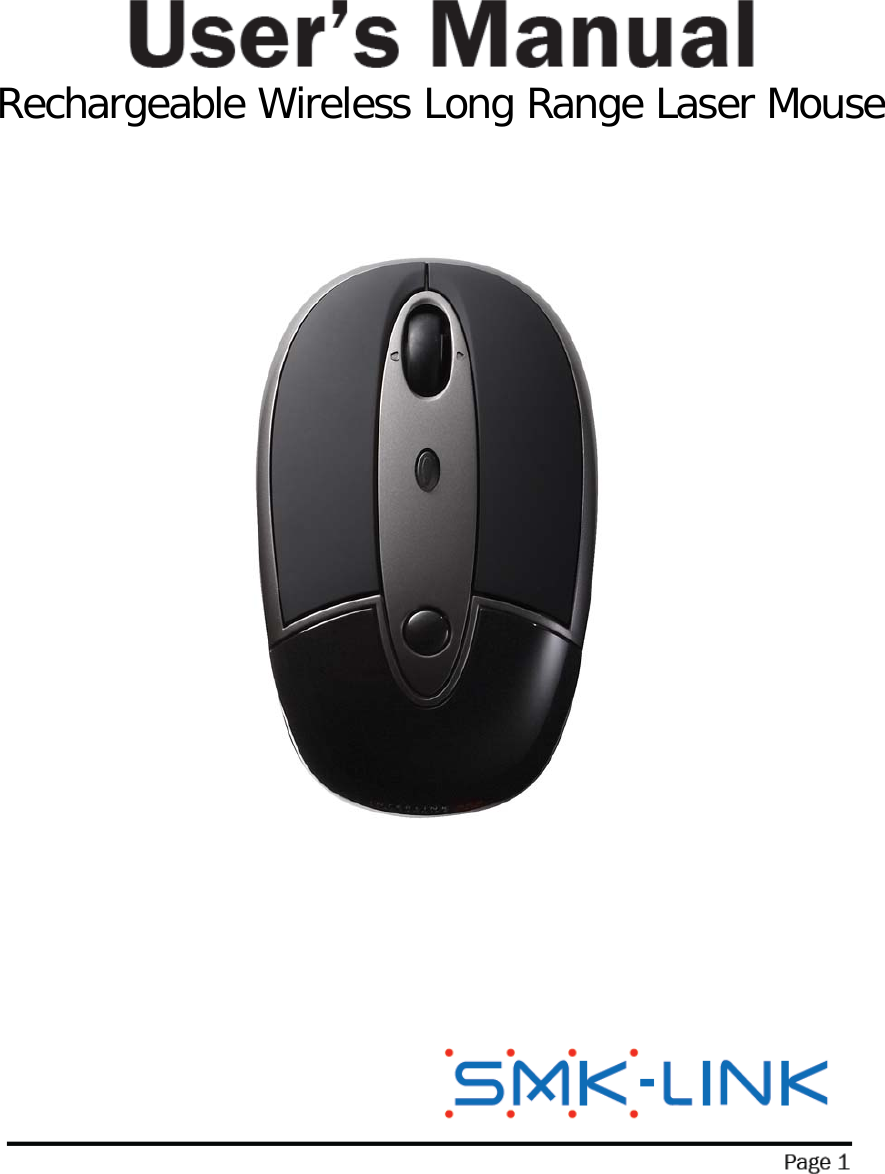

Users Manual

Rechargeable Wireless Long Range Laser Mouse

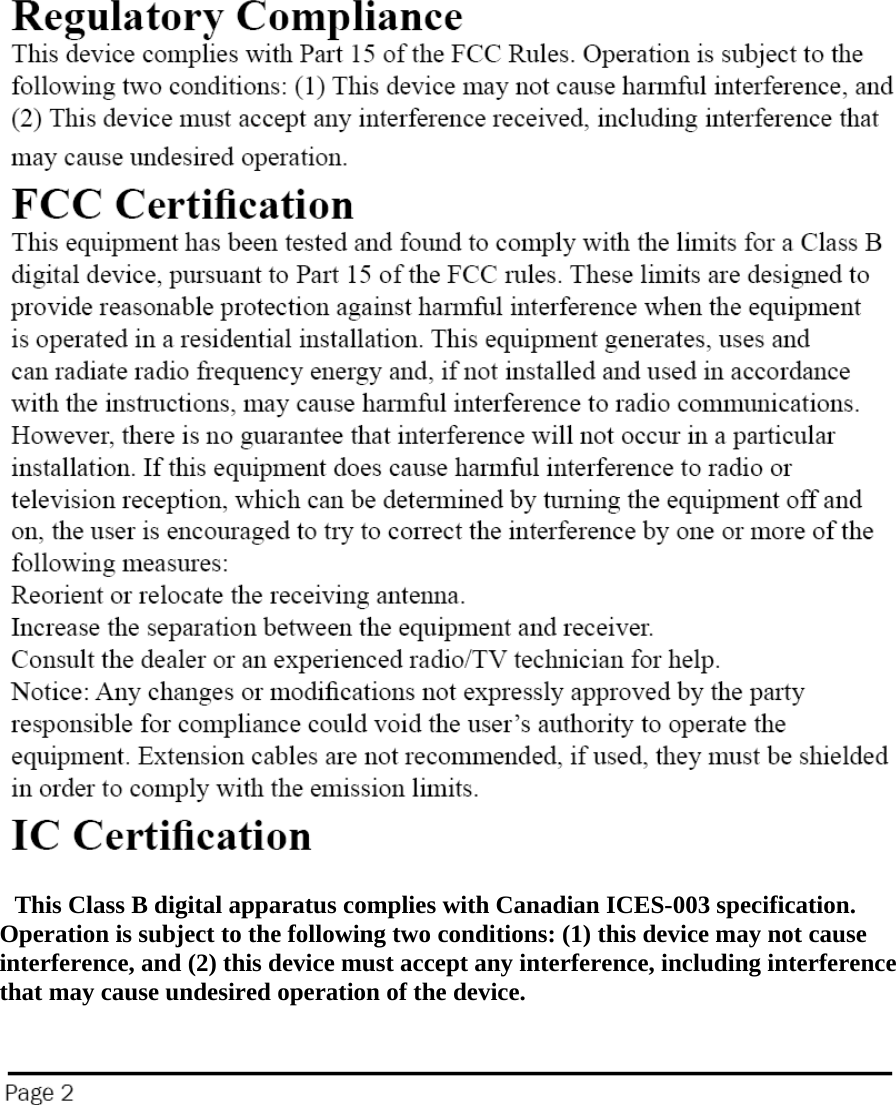

This Class B digital apparatus complies with Canadian ICES-003 specification. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

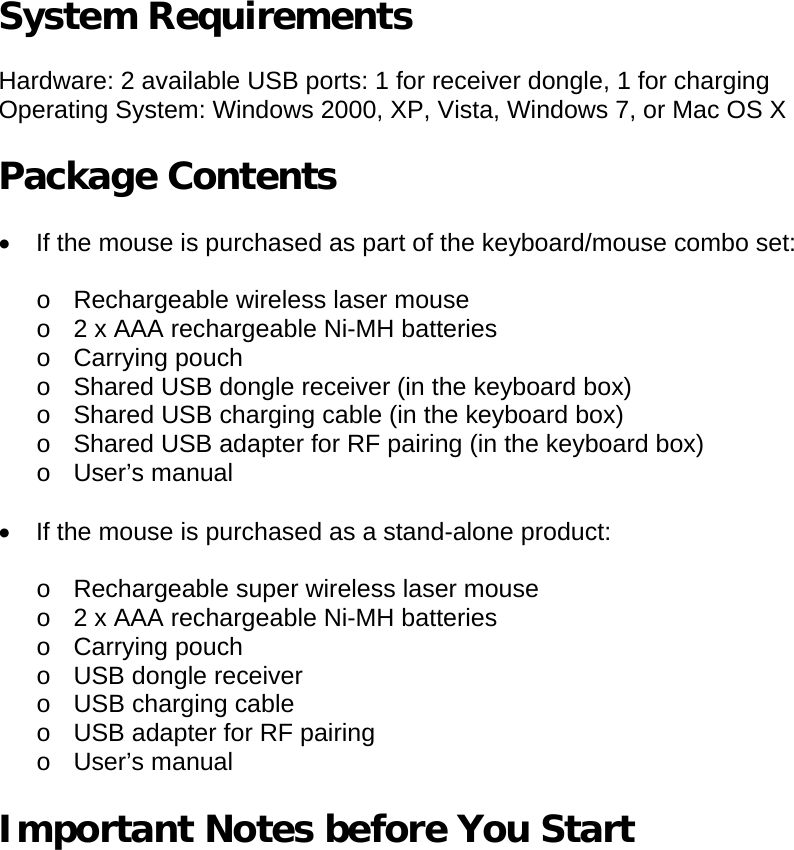

System Requirements Hardware: 2 available USB ports: 1 for receiver dongle, 1 for charging Operating System: Windows 2000, XP, Vista, Windows 7, or Mac OS X Package Contents • If the mouse is purchased as part of the keyboard/mouse combo set: o Rechargeable wireless laser mouse o 2 x AAA rechargeable Ni-MH batteries o Carrying pouch o Shared USB dongle receiver (in the keyboard box) o Shared USB charging cable (in the keyboard box) o Shared USB adapter for RF pairing (in the keyboard box) o User’s manual • If the mouse is purchased as a stand-alone product: o Rechargeable super wireless laser mouse o 2 x AAA rechargeable Ni-MH batteries o Carrying pouch o USB dongle receiver o USB charging cable o USB adapter for RF pairing o User’s manual Important Notes before You Start

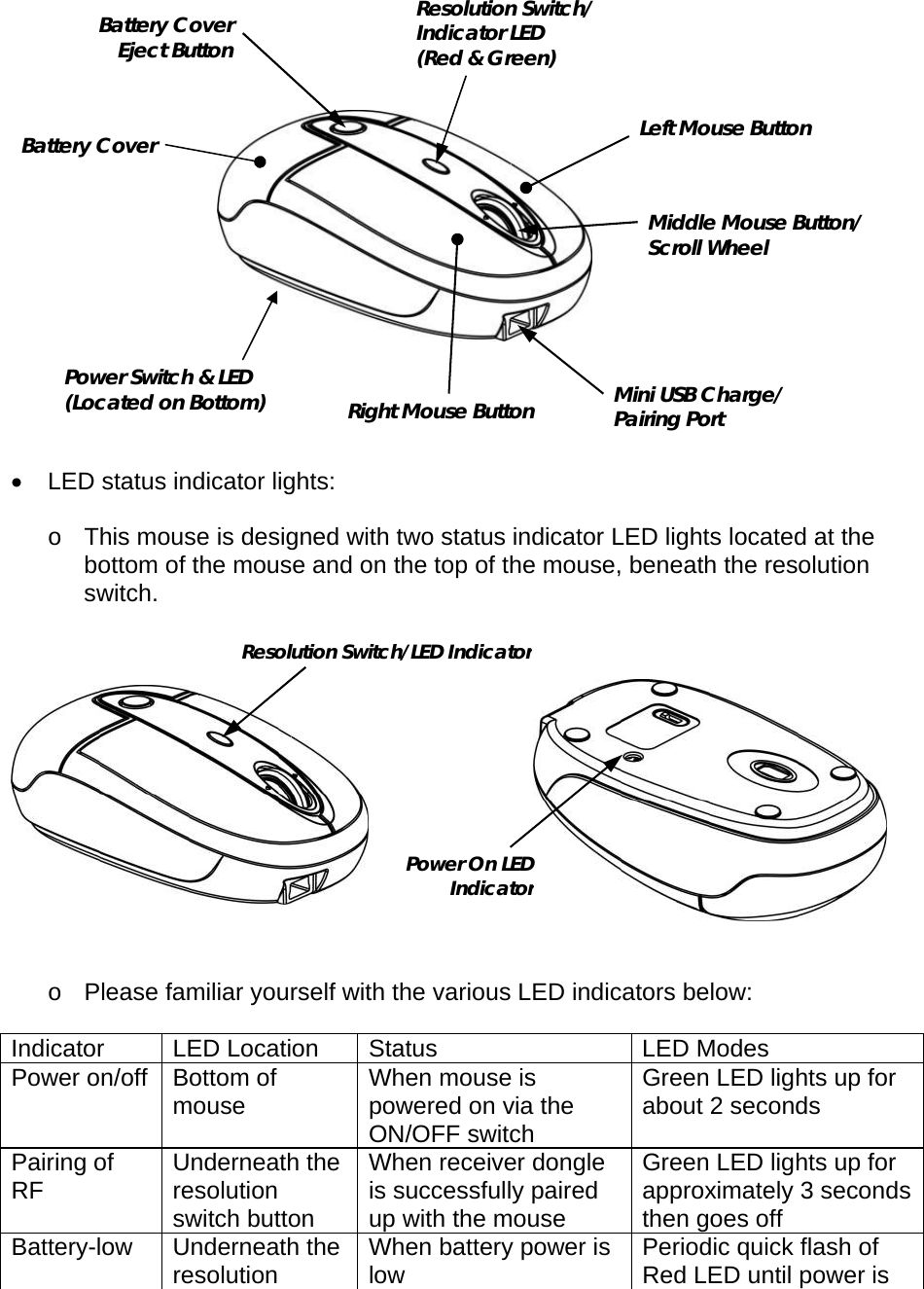

• LED status indicator lights: o This mouse is designed with two status indicator LED lights located at the bottom of the mouse and on the top of the mouse, beneath the resolution switch. o Please familiar yourself with the various LED indicators below: Indicator LED Location Status LED Modes Power on/off Bottom of mouse When mouse is powered on via the ON/OFF switch Green LED lights up for about 2 seconds Pairing of RF Underneath the resolution switch button When receiver dongle is successfully paired up with the mouse Green LED lights up for approximately 3 seconds then goes off Battery-low Underneath the resolution When battery power is low Periodic quick flash of Red LED until power is Right Mouse Button Left Mouse Button Middle Mouse Button/ Scroll Wheel Mini USB Charge/ Pairing Port Battery Cover Eject Button Resolution Switch/ Indicator LED (Red & Green) Power Switch & LED (Located on Bottom) Battery Cover Power On LED Indicator Resolution Switch/LED Indicator

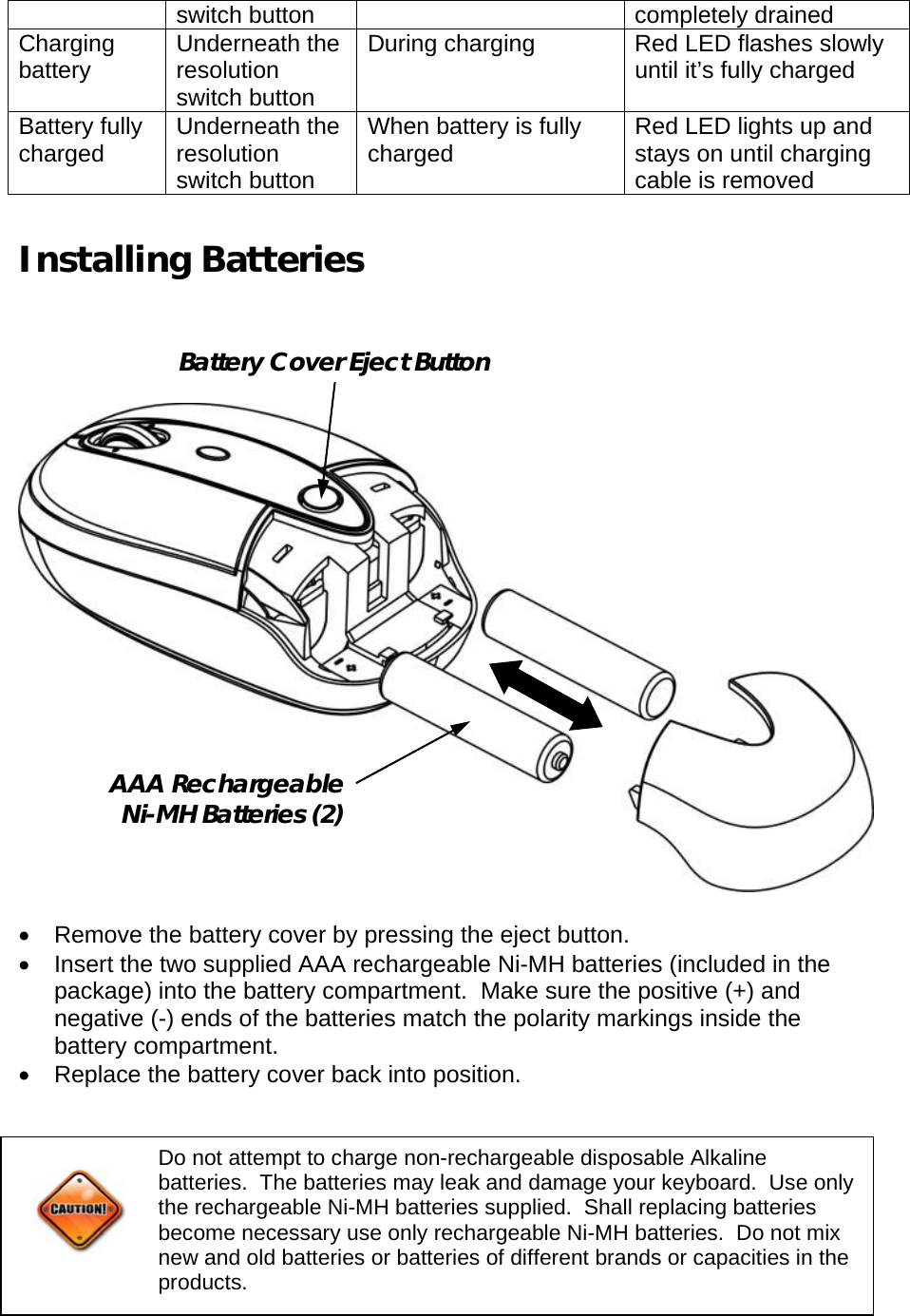

switch button completely drained Charging battery Underneath the resolution switch button During charging Red LED flashes slowly until it’s fully charged Battery fully charged Underneath the resolution switch button When battery is fully charged Red LED lights up and stays on until charging cable is removed Installing Batteries • Remove the battery cover by pressing the eject button. • Insert the two supplied AAA rechargeable Ni-MH batteries (included in the package) into the battery compartment. Make sure the positive (+) and negative (-) ends of the batteries match the polarity markings inside the battery compartment. • Replace the battery cover back into position. Battery Cover Eject Button AAA Rechargeable Ni-MH Batteries (2) Do not attempt to charge non-rechargeable disposable Alkaline batteries. The batteries may leak and damage your keyboard. Use only the rechargeable Ni-MH batteries supplied. Shall replacing batteries become necessary use only rechargeable Ni-MH batteries. Do not mix new and old batteries or batteries of different brands or capacities in the products.

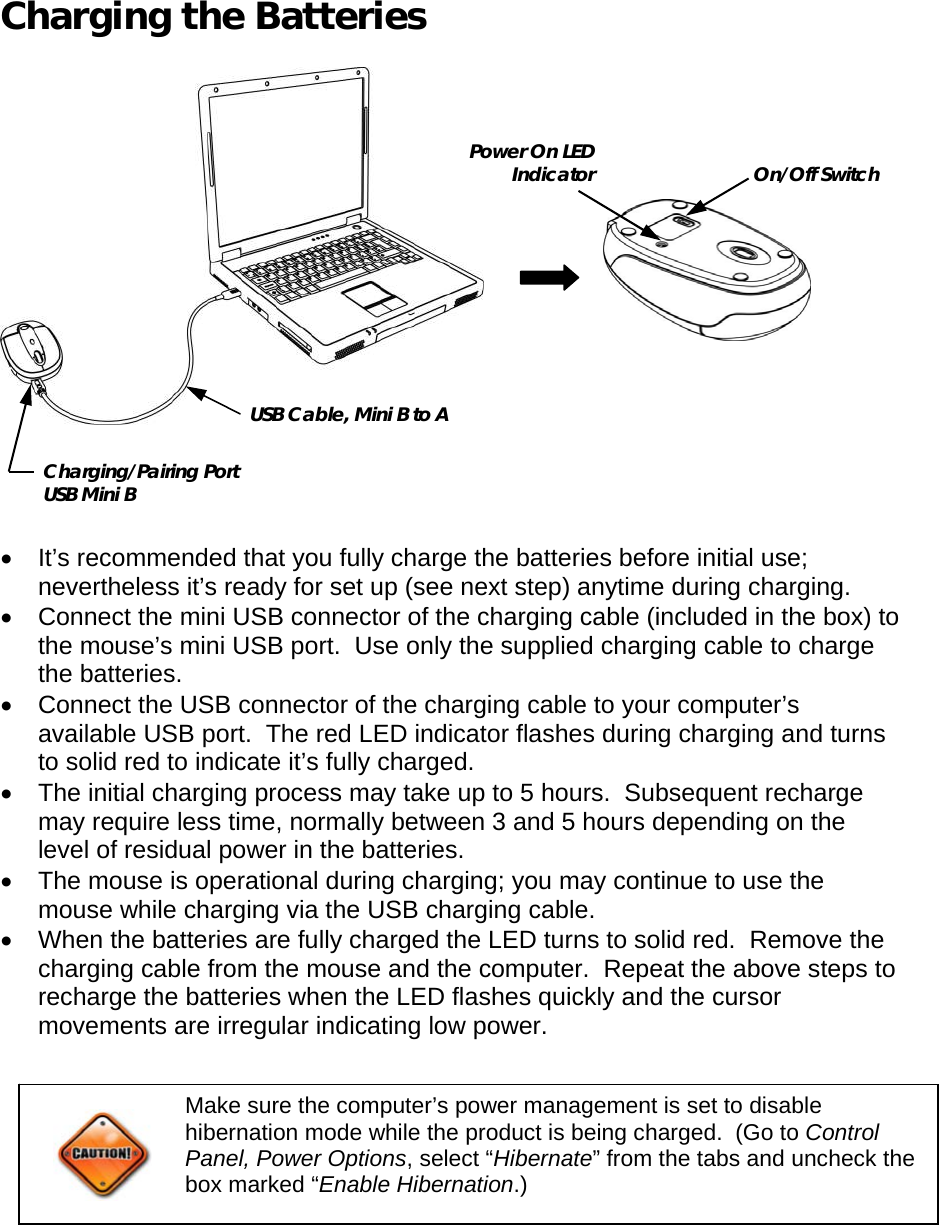

Charging the Batteries • It’s recommended that you fully charge the batteries before initial use; nevertheless it’s ready for set up (see next step) anytime during charging. • Connect the mini USB connector of the charging cable (included in the box) to the mouse’s mini USB port. Use only the supplied charging cable to charge the batteries. • Connect the USB connector of the charging cable to your computer’s available USB port. The red LED indicator flashes during charging and turns to solid red to indicate it’s fully charged. • The initial charging process may take up to 5 hours. Subsequent recharge may require less time, normally between 3 and 5 hours depending on the level of residual power in the batteries. • The mouse is operational during charging; you may continue to use the mouse while charging via the USB charging cable. • When the batteries are fully charged the LED turns to solid red. Remove the charging cable from the mouse and the computer. Repeat the above steps to recharge the batteries when the LED flashes quickly and the cursor movements are irregular indicating low power. USB Cable, Mini B to A Charging/Pairing Port USB Mini B On/Off Switch Power On LED Indicator Make sure the computer’s power management is set to disable hibernation mode while the product is being charged. (Go to Control Panel, Power Options, select “Hibernate” from the tabs and uncheck the box marked “Enable Hibernation.)

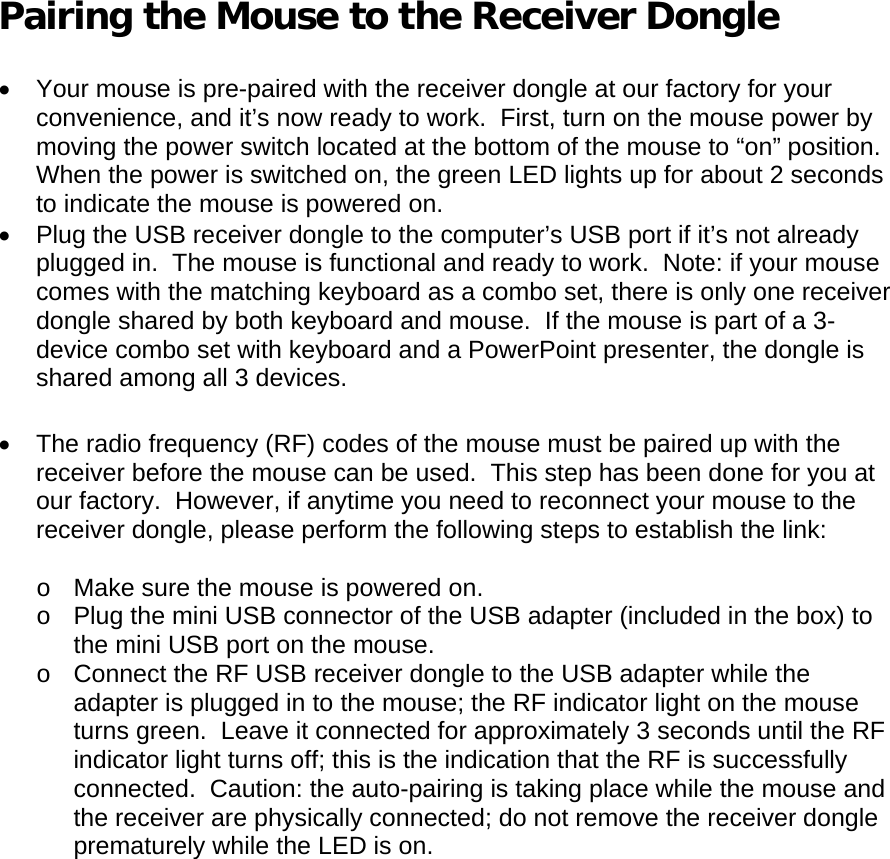

Pairing the Mouse to the Receiver Dongle • Your mouse is pre-paired with the receiver dongle at our factory for your convenience, and it’s now ready to work. First, turn on the mouse power by moving the power switch located at the bottom of the mouse to “on” position. When the power is switched on, the green LED lights up for about 2 seconds to indicate the mouse is powered on. • Plug the USB receiver dongle to the computer’s USB port if it’s not already plugged in. The mouse is functional and ready to work. Note: if your mouse comes with the matching keyboard as a combo set, there is only one receiver dongle shared by both keyboard and mouse. If the mouse is part of a 3-device combo set with keyboard and a PowerPoint presenter, the dongle is shared among all 3 devices. • The radio frequency (RF) codes of the mouse must be paired up with the receiver before the mouse can be used. This step has been done for you at our factory. However, if anytime you need to reconnect your mouse to the receiver dongle, please perform the following steps to establish the link: o Make sure the mouse is powered on. o Plug the mini USB connector of the USB adapter (included in the box) to the mini USB port on the mouse. o Connect the RF USB receiver dongle to the USB adapter while the adapter is plugged in to the mouse; the RF indicator light on the mouse turns green. Leave it connected for approximately 3 seconds until the RF indicator light turns off; this is the indication that the RF is successfully connected. Caution: the auto-pairing is taking place while the mouse and the receiver are physically connected; do not remove the receiver dongle prematurely while the LED is on.

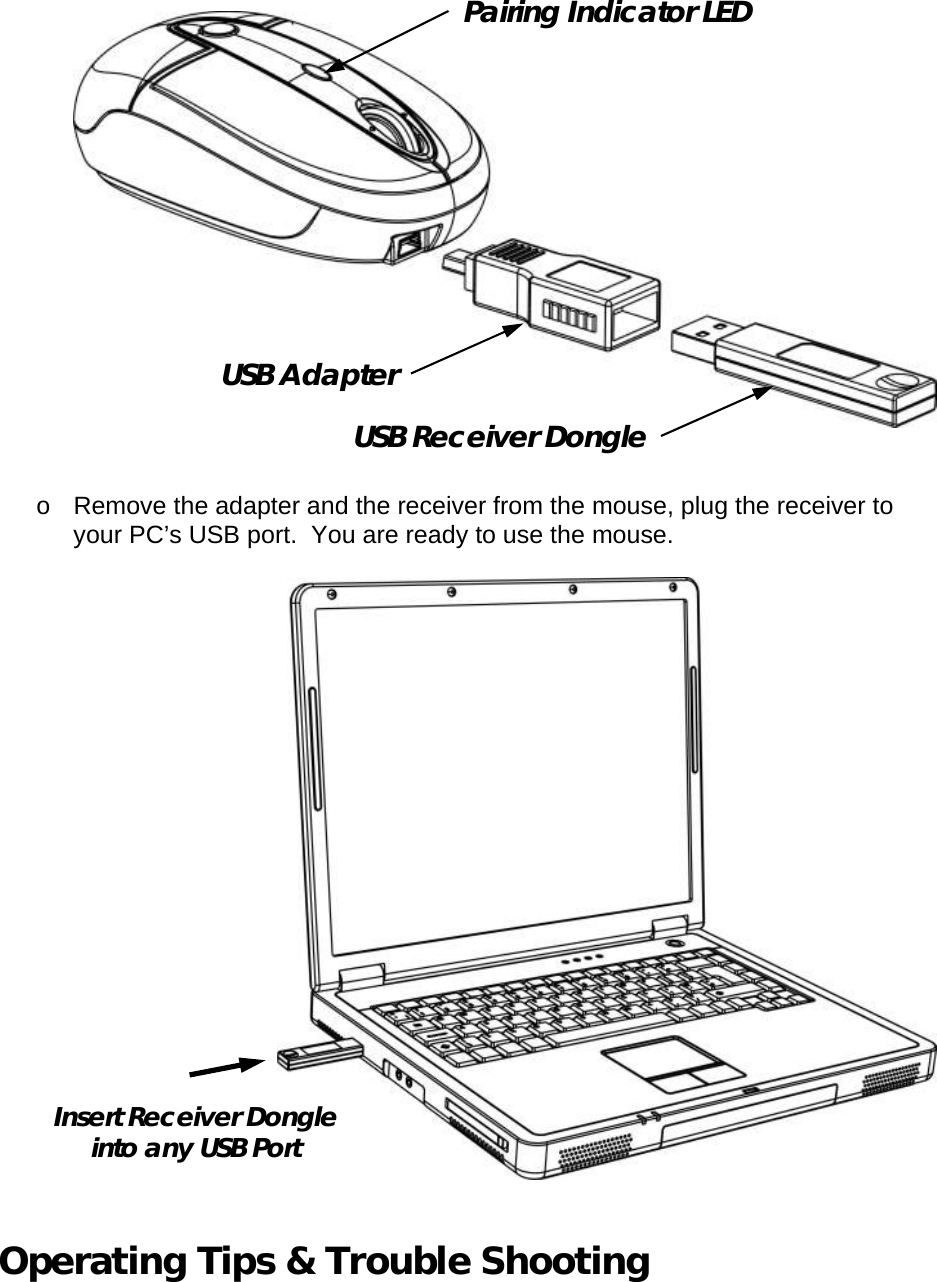

o Remove the adapter and the receiver from the mouse, plug the receiver to your PC’s USB port. You are ready to use the mouse. Operating Tips & Trouble Shooting USB Adapter USB Receiver Dongle Pairing Indicator LED Insert Receiver Dongle into any USB Port

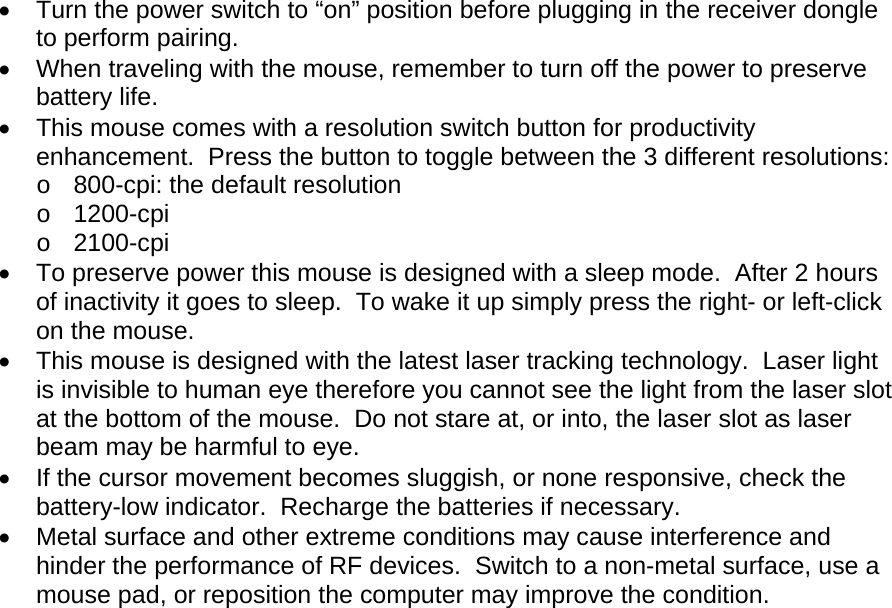

• Turn the power switch to “on” position before plugging in the receiver dongle to perform pairing. • When traveling with the mouse, remember to turn off the power to preserve battery life. • This mouse comes with a resolution switch button for productivity enhancement. Press the button to toggle between the 3 different resolutions: o 800-cpi: the default resolution o 1200-cpi o 2100-cpi • To preserve power this mouse is designed with a sleep mode. After 2 hours of inactivity it goes to sleep. To wake it up simply press the right- or left-click on the mouse. • This mouse is designed with the latest laser tracking technology. Laser light is invisible to human eye therefore you cannot see the light from the laser slot at the bottom of the mouse. Do not stare at, or into, the laser slot as laser beam may be harmful to eye. • If the cursor movement becomes sluggish, or none responsive, check the battery-low indicator. Recharge the batteries if necessary. • Metal surface and other extreme conditions may cause interference and hinder the performance of RF devices. Switch to a non-metal surface, use a mouse pad, or reposition the computer may improve the condition.
