SMK FC012 Half-Mini Card size TransferJet module User Manual InstallationManual

SMK Corporation Half-Mini Card size TransferJet module InstallationManual

Contents

InstallationManual

TJ101 Installation Manual

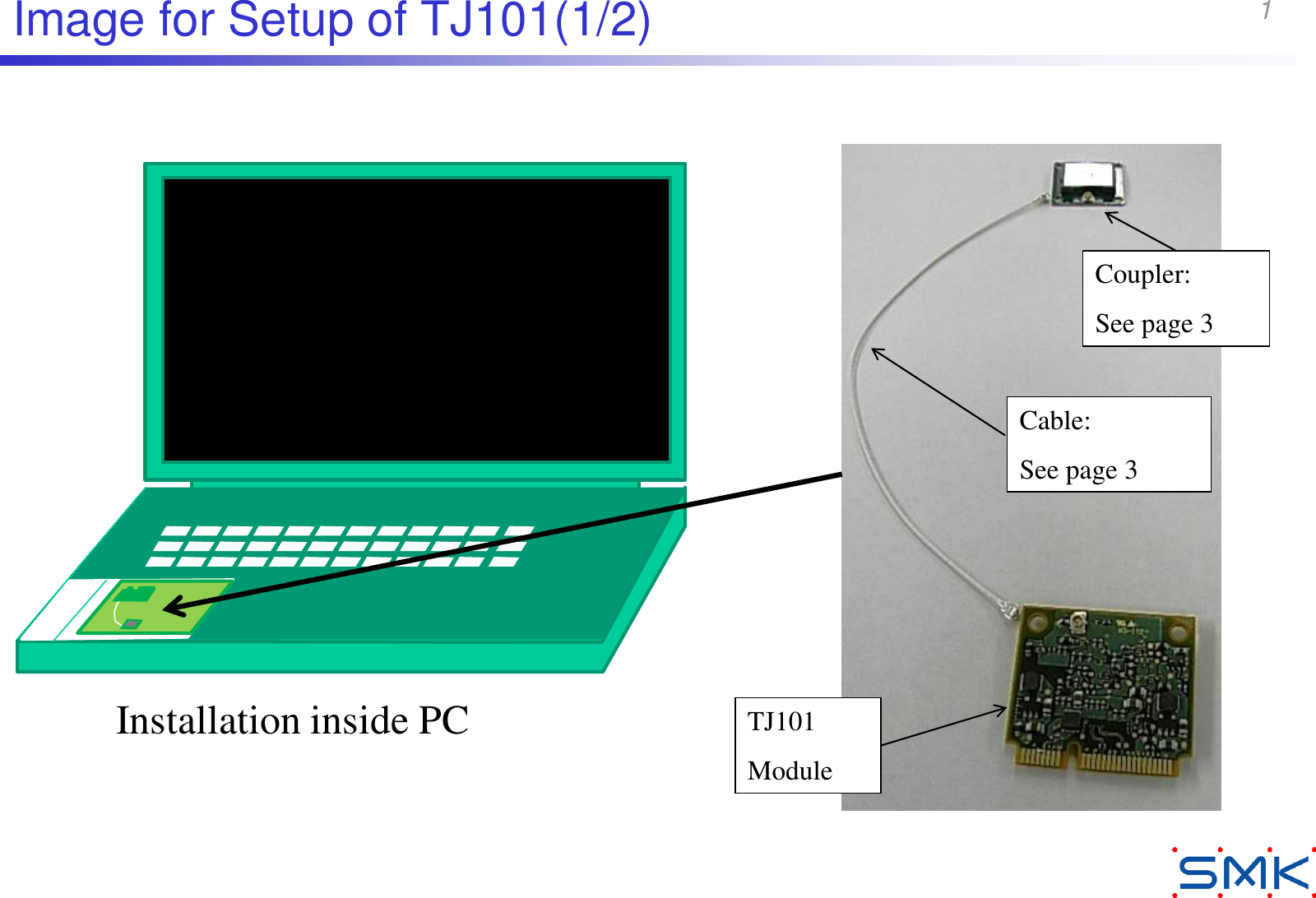

1Image for Setup of TJ101(1/2)Installation inside PCCoupler:See page 3Cable:See page 3TJ101Module

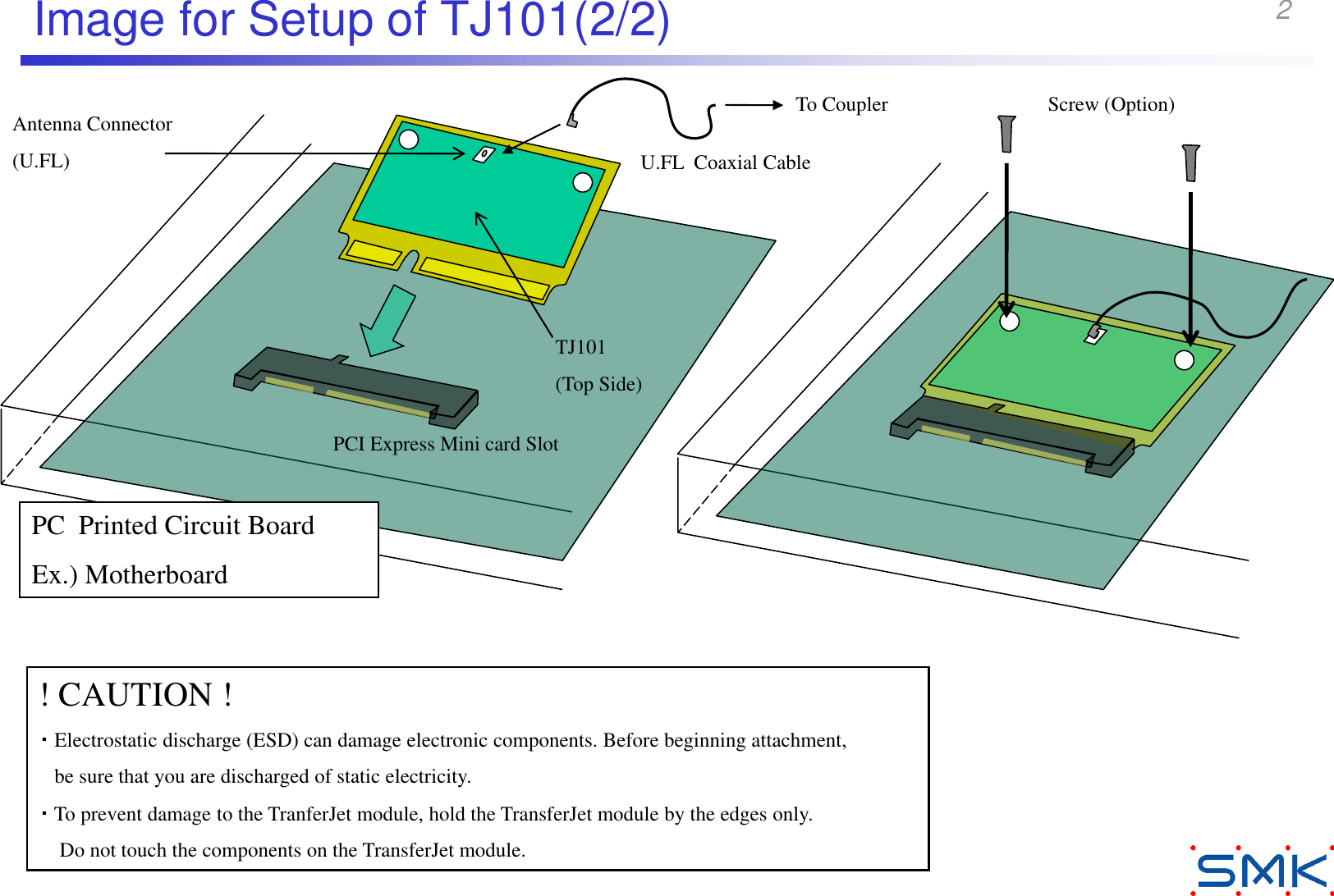

2Image for Setup of TJ101(2/2)! CAUTION !・Electrostatic discharge (ESD) can damage electronic components. Before beginning attachment, be sure that you are discharged of static electricity.・To prevent damage to the TranferJet module, hold the TransferJet module by the edges only. Do not touch the components on the TransferJet module.PCI Express Mini card SlotTJ101(Top Side)PC Printed Circuit BoardEx.) MotherboardAntenna Connector(U.FL)Screw (Option)U.FL Coaxial CableTo Coupler

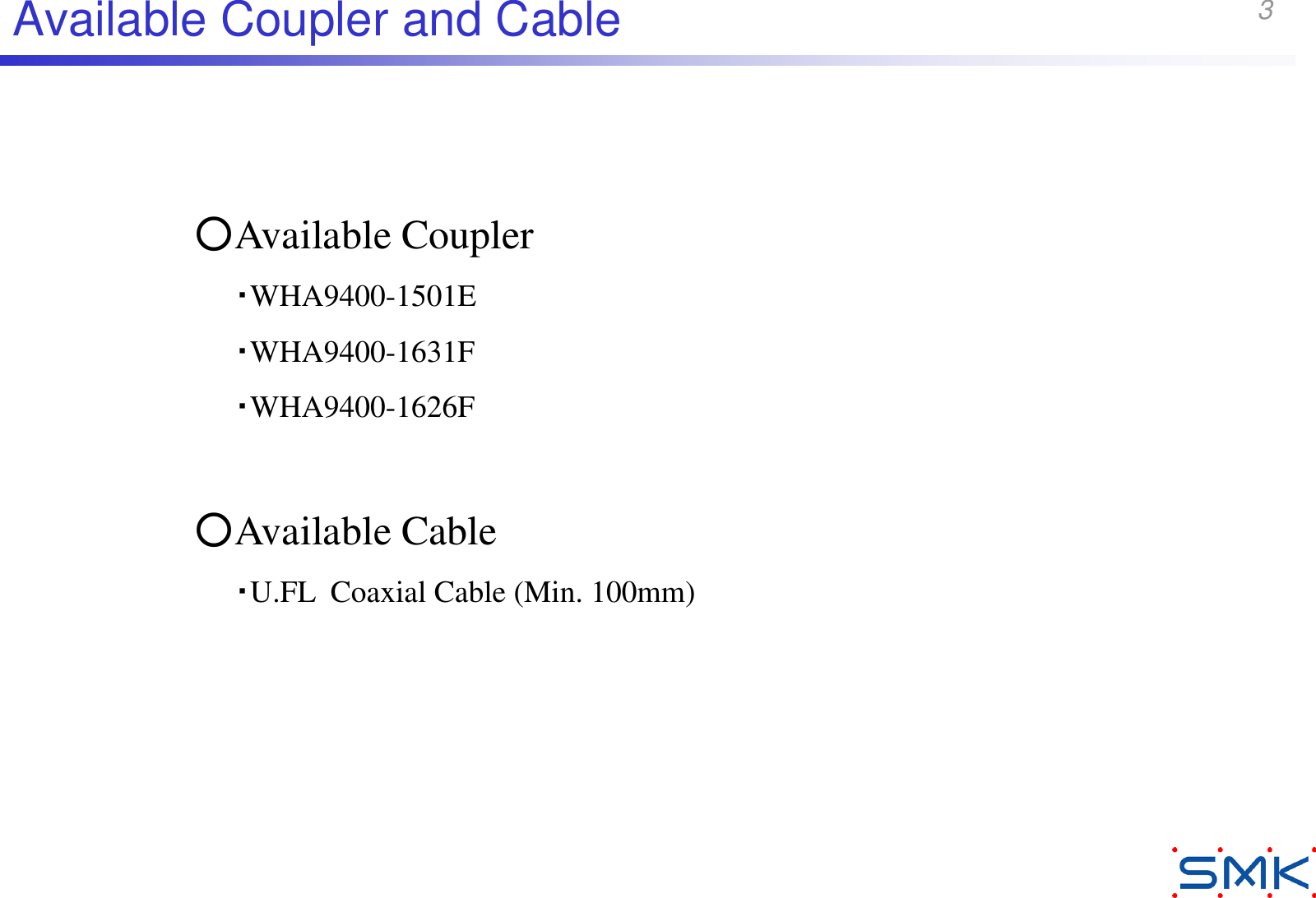

3Available Coupler and Cable○Available Coupler・WHA9400-1501E・WHA9400-1631F・WHA9400-1626F○Available Cable・U.FL Coaxial Cable (Min. 100mm)
http://www.smk.co.jp/
