SMK FC015 ZigBee RF4CE-compatible RF receiver User Manual
SMK Corporation ZigBee RF4CE-compatible RF receiver
SMK >
User Manual
859 FC
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan
Product Name: ZigBee RF4CE-compatible RF receiver
Model number: SSR-RFNANO
GENERAL
This product is a 2.4GHz RF USB Receiver that uses ZigBee RF4CE (Radio Frequency
for Consumer Electronics) technology.
This RF Receiver is used with RF4CE remote controller in order to control the equipment
(for example, Personal computer).
It enables N-to-N high reliability two-way communication, low power consumption,
coexistence with other 2.4GHz band RF, and security settings.
This new system features two-way communication and network functions by using radio
frequencies, enabling more convenient and easier operation. The receiver's small size
contributes to the increased space-saving capacity of this equipment.
SPEC.
・RF Standard : ZigBee®RF4CE specification version 1.00 compatible
・Supply Voltage Remote control : 3.4 to 5.5 VDC
・Operation Temperature Range : -20℃ to +70℃
・External Dimensions Remote control : 24mm x 16mm x 8mm
・Receiver I/F : USB
・Frequency Range : 2425 to 2475MHz (11 channel)
859 FC
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan

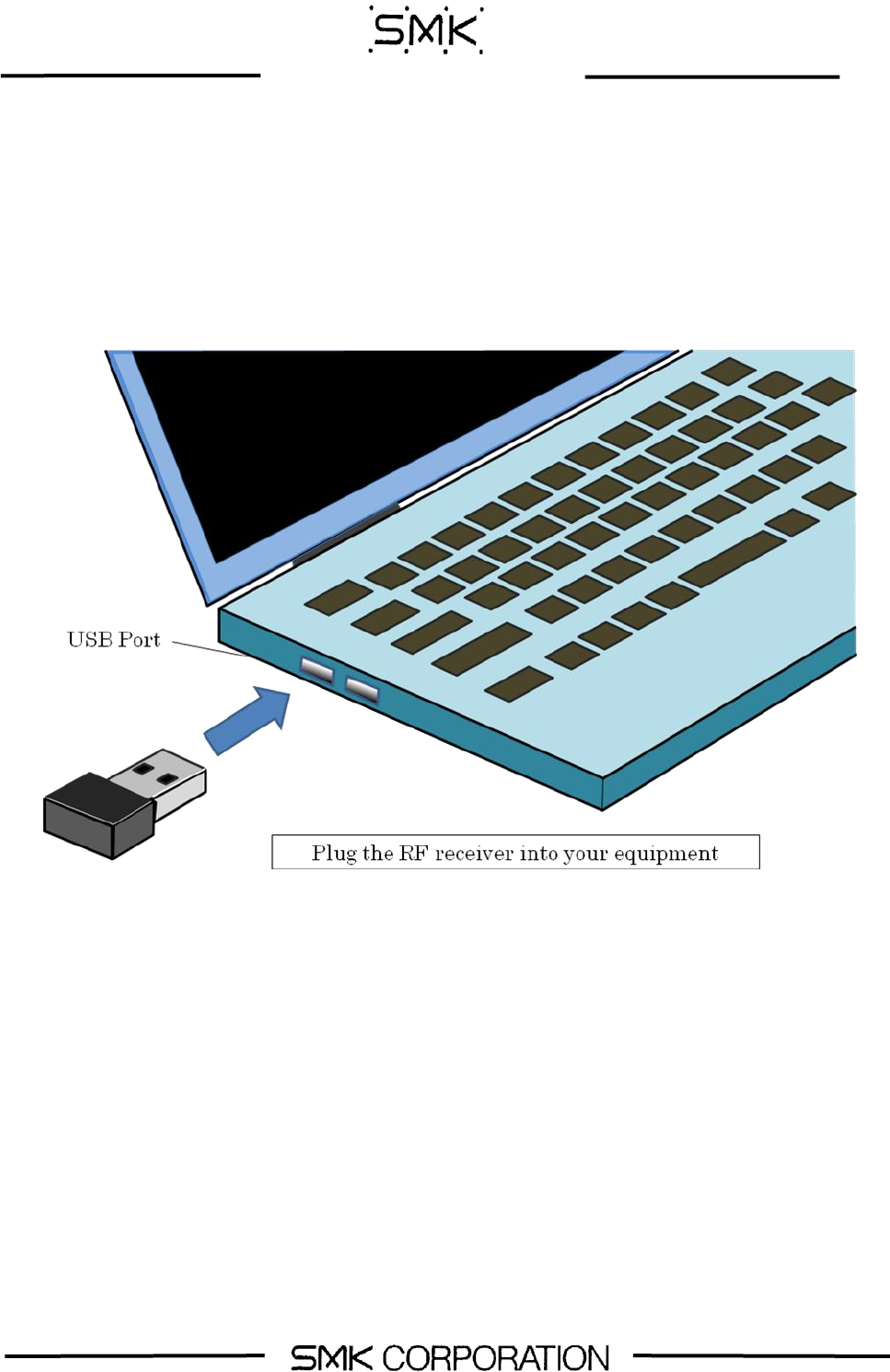

SETUP
859 FC
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan

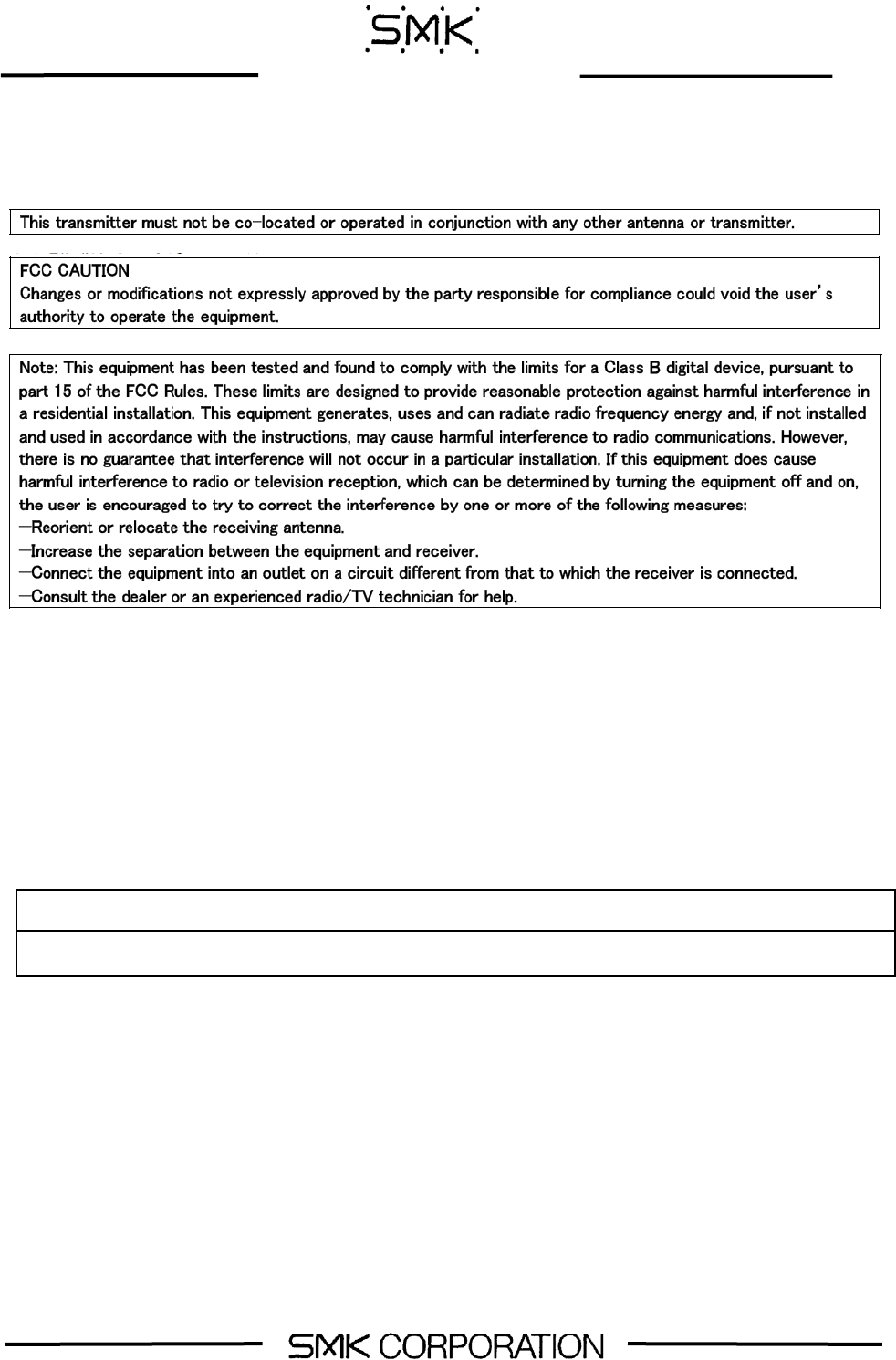

Regulatory Information
Manual Information
The following text shall be placed on the manual of end product.

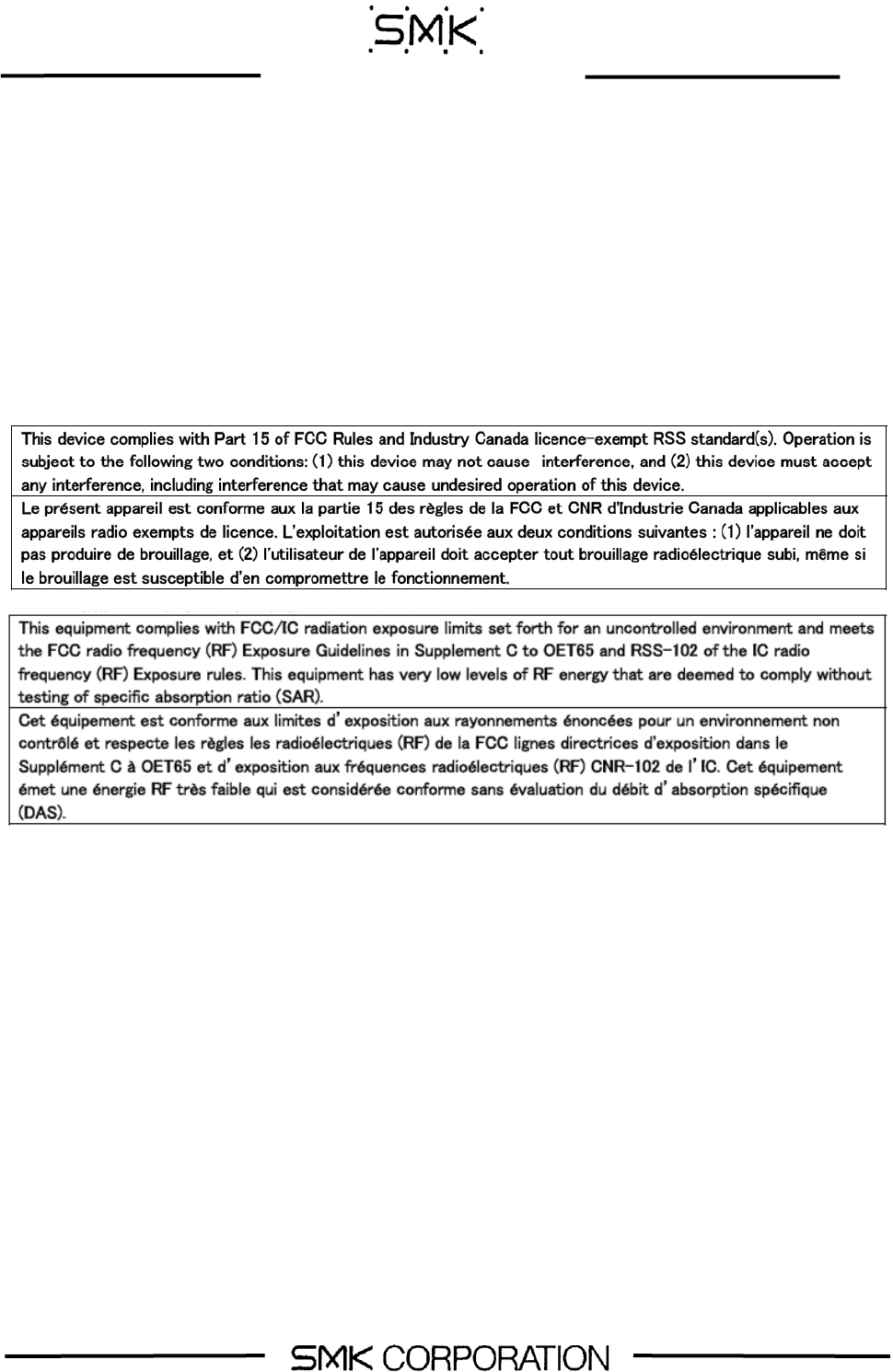

Common in USA-Federal Communications Commission (FCC) and Industrial
Canada (IC RSS-Gen and RSS-102)
859 FC
User Manual
5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan
USA-Federal Communications Commission (FCC) Only
Industrial Canada (IC RSS-Gen and ICES-003) Only
・RSS-Gen
（None）
・ICES003
※it is the responsibility of the manufacturer or importer to determine whether the notice should appear in one or
the other, or both, of the official languages, based upon the intended market, company marketing policies, and
any other applicable provincial or federal regulations.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
