SMK FC023 Bluetooth low energy Module User Manual BTS04 User Manual 20160930 6

SMK Corporation Bluetooth low energy Module BTS04 User Manual 20160930 6

(Short-Term Confidential) User Manual

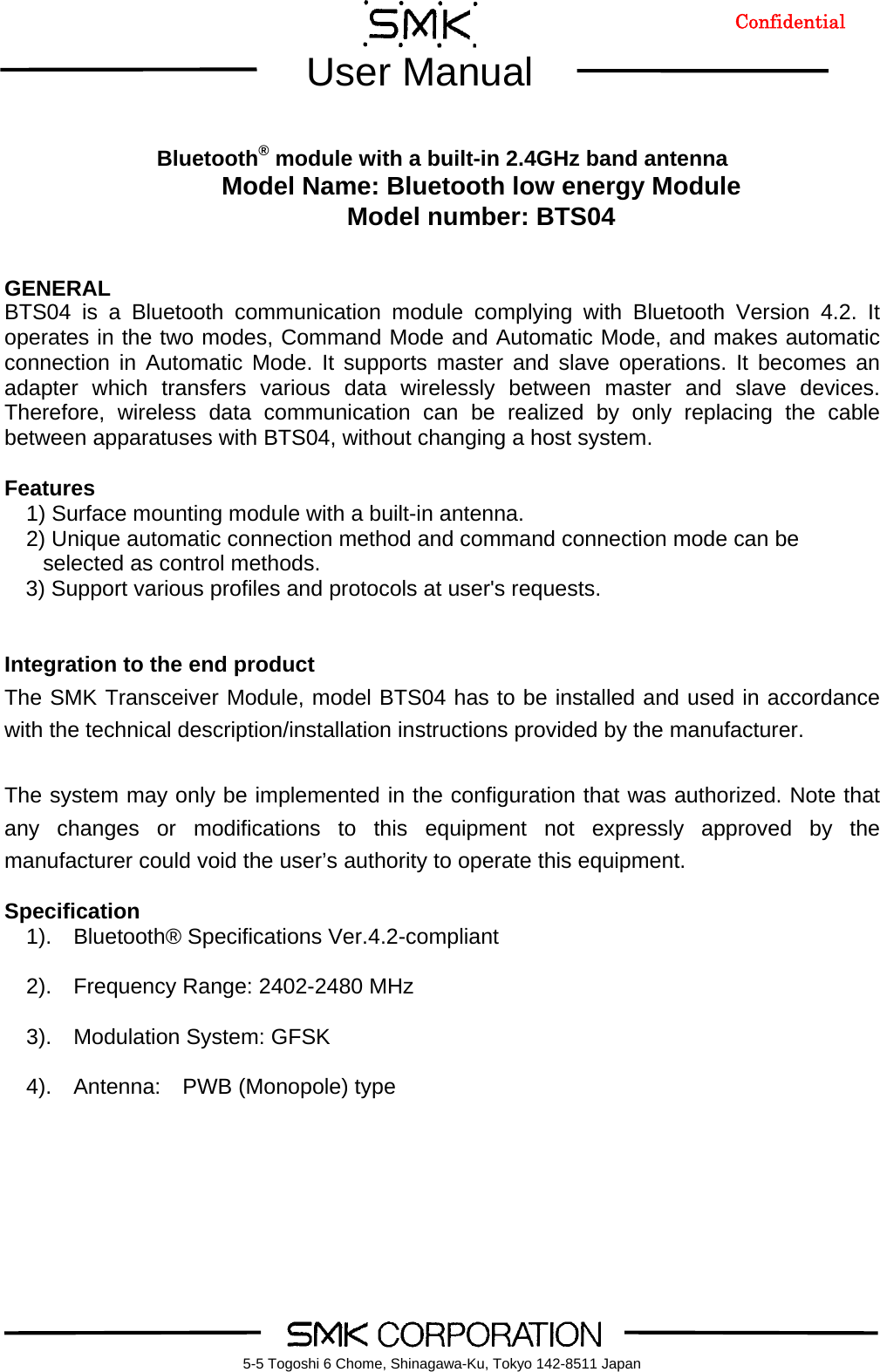

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Bluetooth® module with a built-in 2.4GHz band antenna Model Name: Bluetooth low energy Module Model number: BTS04 GENERAL BTS04 is a Bluetooth communication module complying with Bluetooth Version 4.2. It operates in the two modes, Command Mode and Automatic Mode, and makes automatic connection in Automatic Mode. It supports master and slave operations. It becomes an adapter which transfers various data wirelessly between master and slave devices. Therefore, wireless data communication can be realized by only replacing the cable between apparatuses with BTS04, without changing a host system. Features 1) Surface mounting module with a built-in antenna. 2) Unique automatic connection method and command connection mode can be selected as control methods. 3) Support various profiles and protocols at user's requests. Integration to the end product The SMK Transceiver Module, model BTS04 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Specification 1). Bluetooth® Specifications Ver.4.2-compliant 2). Frequency Range: 2402-2480 MHz 3). Modulation System: GFSK 4). Antenna: PWB (Monopole) type Confidential

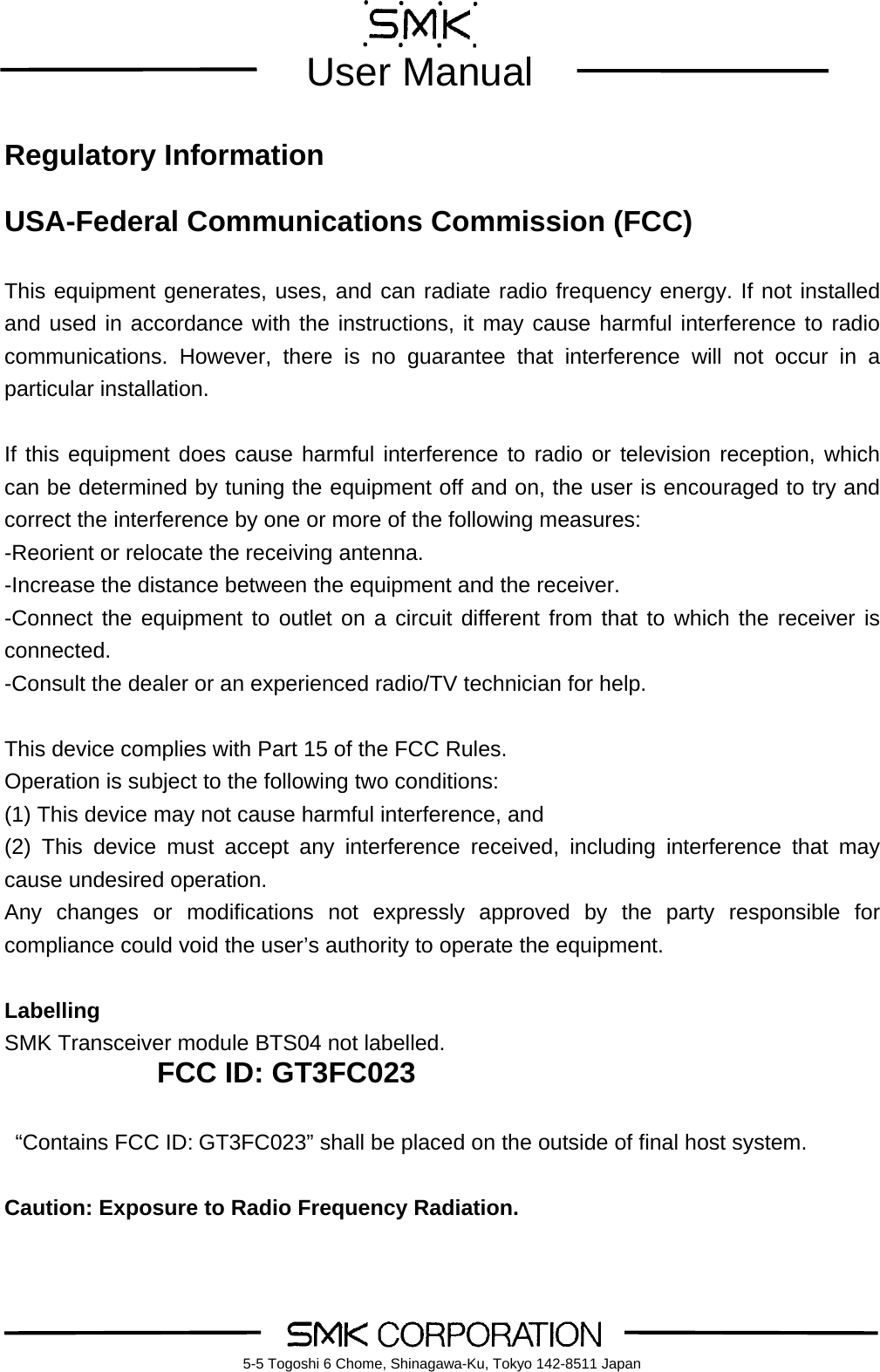

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japan Regulatory Information USA-Federal Communications Commission (FCC) This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labelling SMK Transceiver module BTS04 not labelled. FCC ID: GT3FC023 “Contains FCC ID: GT3FC023” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation.

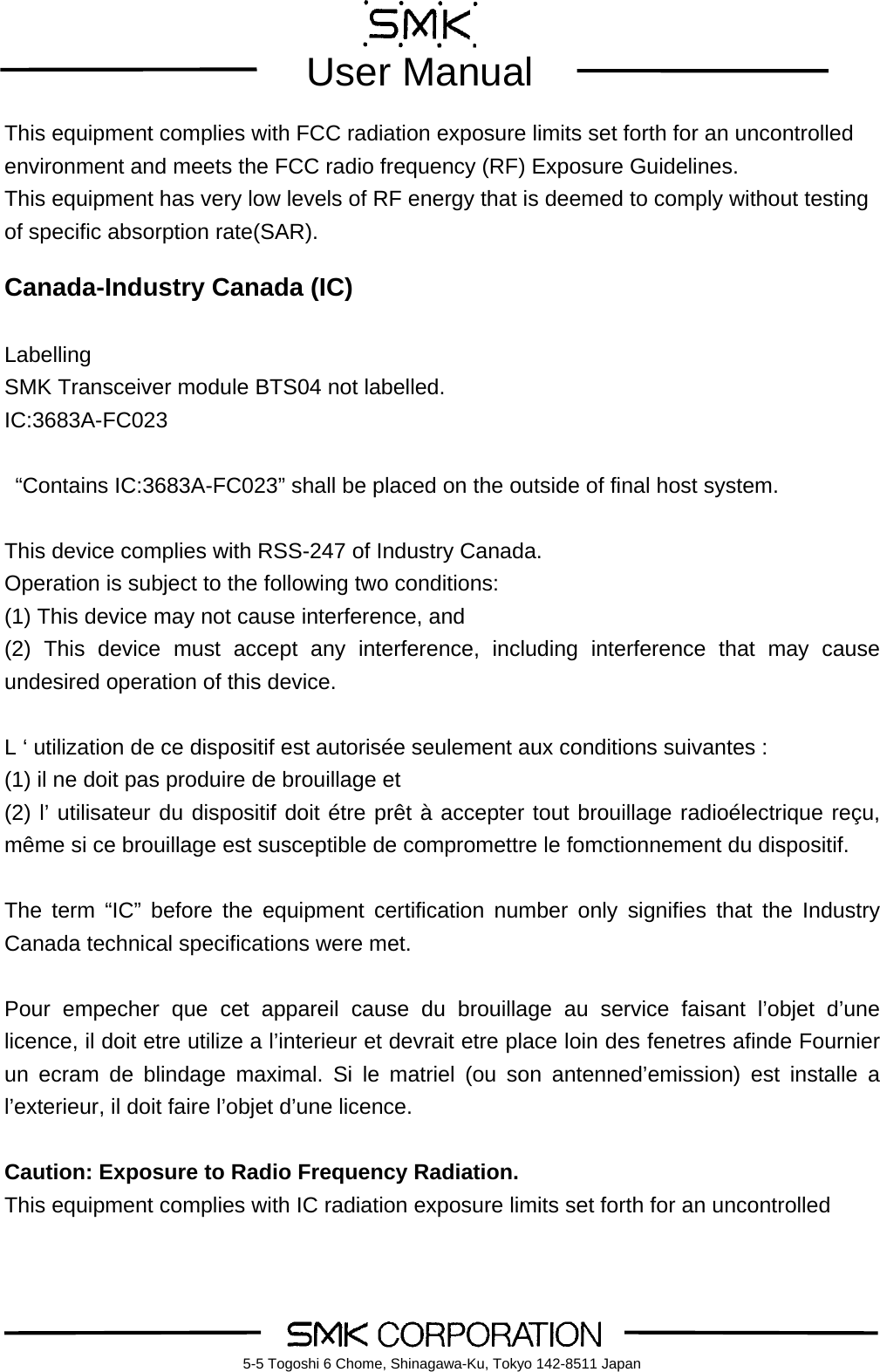

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 JapanThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate(SAR). Canada-Industry Canada (IC) Labelling SMK Transceiver module BTS04 not labelled. IC:3683A-FC023 “Contains IC:3683A-FC023” shall be placed on the outside of final host system. This device complies with RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. L ‘ utilization de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres afinde Fournier un ecram de blindage maximal. Si le matriel (ou son antenned’emission) est installe a l’exterieur, il doit faire l’objet d’une licence. Caution: Exposure to Radio Frequency Radiation. This equipment complies with IC radiation exposure limits set forth for an uncontrolled

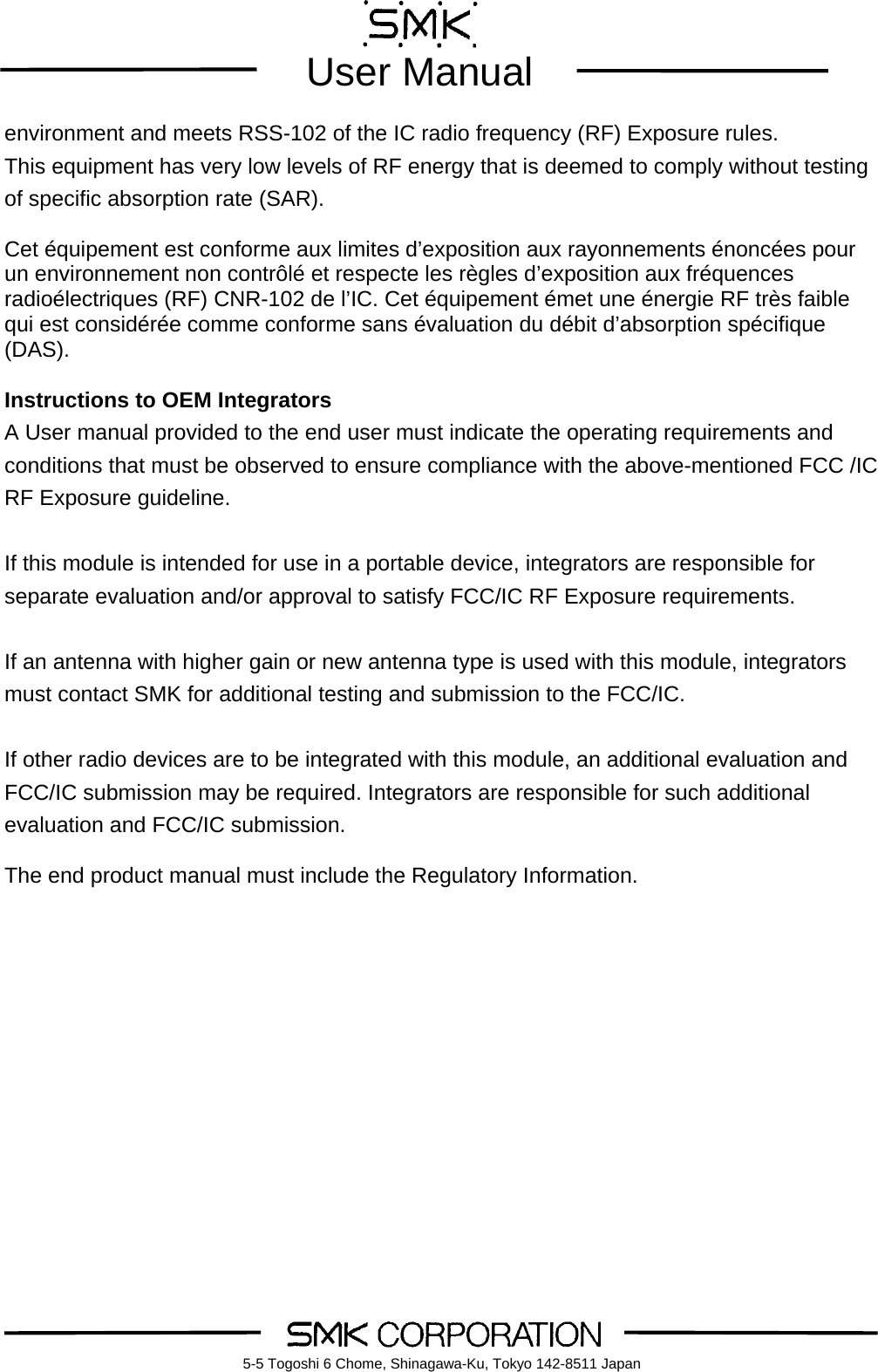

User Manual 5-5 Togoshi 6 Chome, Shinagawa-Ku, Tokyo 142-8511 Japanenvironment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée comme conforme sans évaluation du débit d’absorption spécifique (DAS). Instructions to OEM Integrators A User manual provided to the end user must indicate the operating requirements and conditions that must be observed to ensure compliance with the above-mentioned FCC /IC RF Exposure guideline. If this module is intended for use in a portable device, integrators are responsible for separate evaluation and/or approval to satisfy FCC/IC RF Exposure requirements. If an antenna with higher gain or new antenna type is used with this module, integrators must contact SMK for additional testing and submission to the FCC/IC. If other radio devices are to be integrated with this module, an additional evaluation and FCC/IC submission may be required. Integrators are responsible for such additional evaluation and FCC/IC submission. The end product manual must include the Regulatory Information.
