SMK FSK2LC Remote Control Device Transmitter User Manual

SMK Manufacturing, Inc. Remote Control Device Transmitter

UserManual.wiki >

FSK2LC User Manual

User manual

Remote User Guide

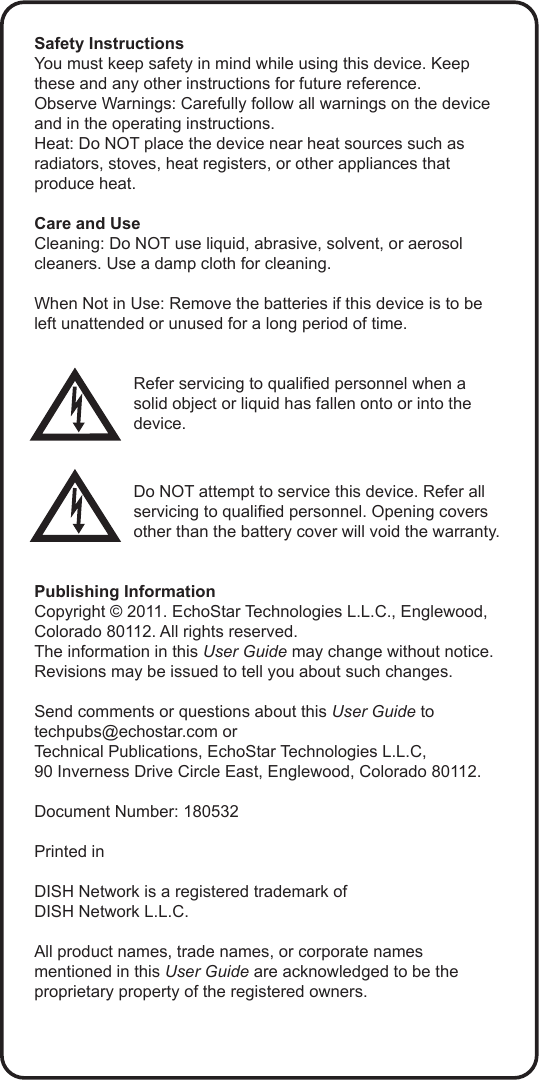

Safety InstructionsYou must keep safety in mind while using this device. Keep these and any other instructions for future reference.Observe Warnings: Carefully follow all warnings on the device and in the operating instructions.Heat: Do NOT place the device near heat sources such as radiators, stoves, heat registers, or other appliances that produce heat.Care and UseCleaning: Do NOT use liquid, abrasive, solvent, or aerosol cleaners. Use a damp cloth for cleaning.When Not in Use: Remove the batteries if this device is to be left unattended or unused for a long period of time.Refer servicing to qualied personnel when a solid object or liquid has fallen onto or into the device.Do NOT attempt to service this device. Refer all servicing to qualied personnel. Opening covers other than the battery cover will void the warranty.Publishing InformationCopyright © 2011. EchoStar Technologies L.L.C., Englewood, Colorado 80112. All rights reserved.The information in this User Guide may change without notice. Revisions may be issued to tell you about such changes.Send comments or questions about this User Guide to techpubs@echostar.com orTechnical Publications, EchoStar Technologies L.L.C, 90 Inverness Drive Circle East, Englewood, Colorado 80112.Document Number: 180532Printed inDISH Network is a registered trademark of DISH Network L.L.C.All product names, trade names, or corporate names mentioned in this User Guide are acknowledged to be the proprietary property of the registered owners.

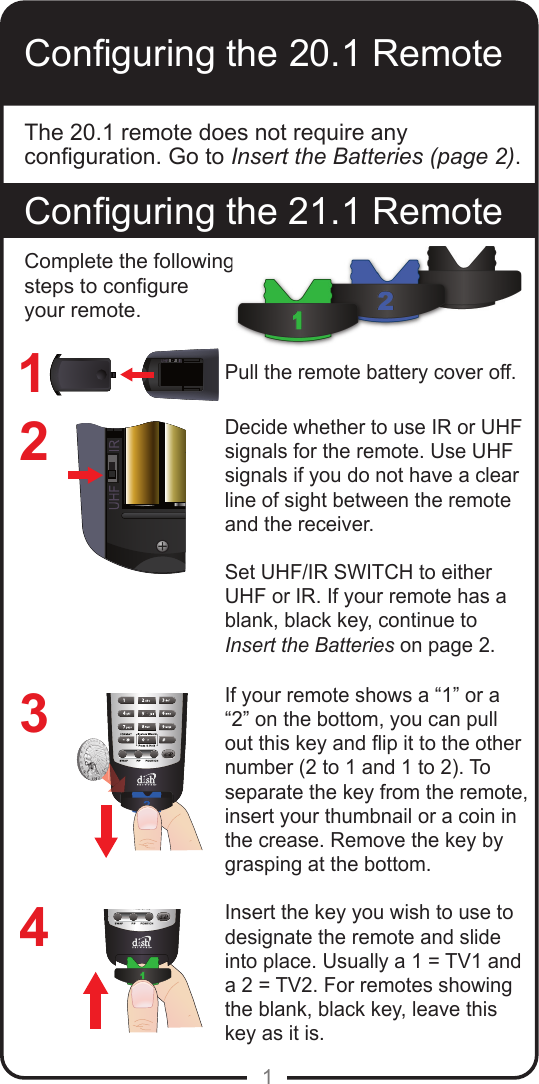

1Conguring the 20.1 RemoteConguring the 21.1 RemoteThe 20.1 remote does not require any conguration. Go to Insert the Batteries (page 2).1234Pull the remote battery cover off.Decide whether to use IR or UHF signals for the remote. Use UHF signals if you do not have a clear line of sight between the remote and the receiver. Set UHF/IR SWITCH to either UHF or IR. If your remote has a blank, black key, continue to Insert the Batteries on page 2.If your remote shows a “1” or a “2” on the bottom, you can pull out this key and ip it to the other number (2 to 1 and 1 to 2). To separate the key from the remote, insert your thumbnail or a coin in the crease. Remove the key by grasping at the bottom.Insert the key you wish to use to designate the remote and slide into place. Usually a 1 = TV1 and a 2 = TV2. For remotes showing the blank, black key, leave this key as it is.Complete the following steps to congure your remote.

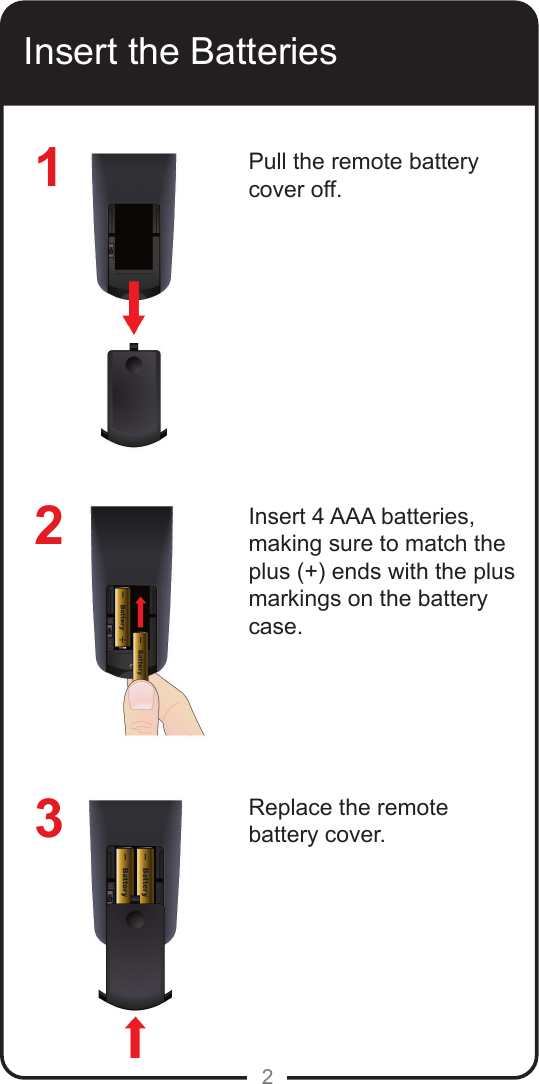

2Insert the BatteriesPull the remote battery cover off.Insert 4 AAA batteries, making sure to match the plus (+) ends with the plus markings on the battery case.Replace the remote battery cover.123

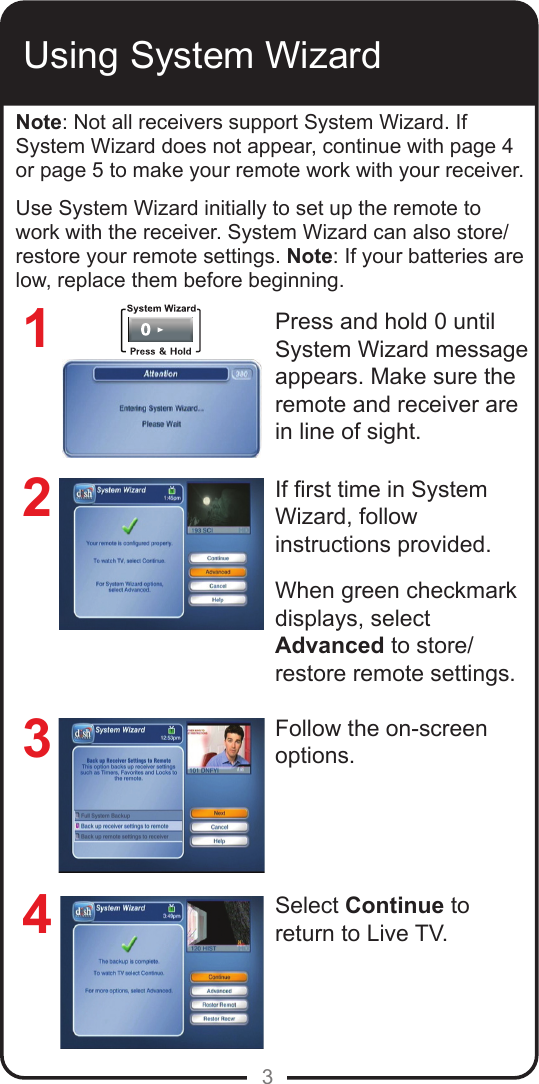

3Using System WizardNote: Not all receivers support System Wizard. If System Wizard does not appear, continue with page 4 or page 5 to make your remote work with your receiver. Use System Wizard initially to set up the remote to work with the receiver. System Wizard can also store/restore your remote settings. Note: If your batteries are low, replace them before beginning.Press and hold 0 until System Wizard message appears. Make sure the remote and receiver are in line of sight.If rst time in System Wizard, follow instructions provided. When green checkmark displays, select Advanced to store/restore remote settings. Follow the on-screen options.Select Continue to return to Live TV.1234

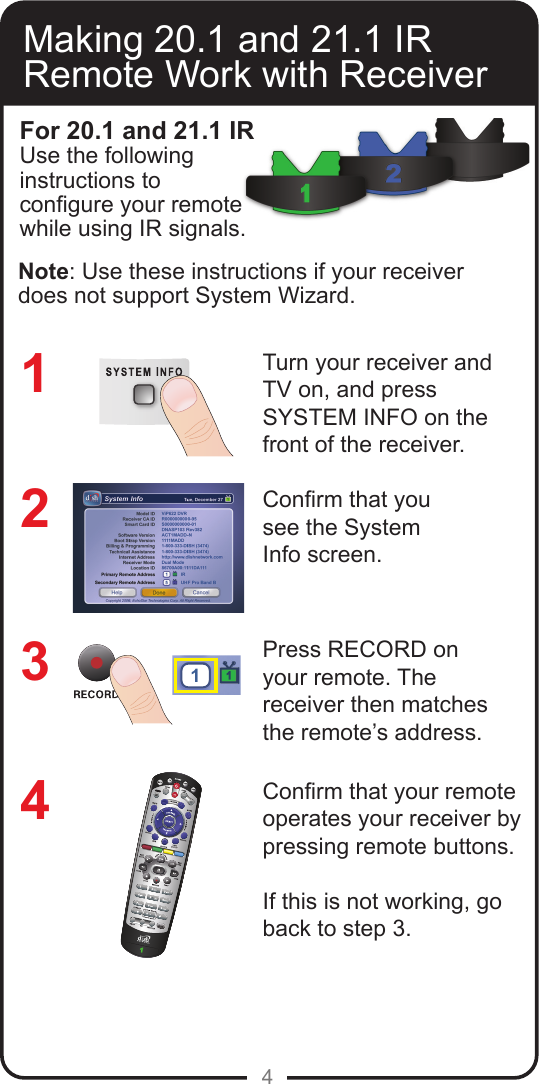

4Making 20.1 and 21.1 IR Remote Work with ReceiverTurn your receiver andTV on, and pressSYSTEM INFO on thefront of the receiver.Conrm that yousee the SystemInfo screen.Press RECORD onyour remote. The receiver then matches the remote’s address.Conrm that your remote operates your receiver by pressing remote buttons. If this is not working, go back to step 3.12341For 20.1 and 21.1 IRUse the following instructions to congure your remote while using IR signals. Note: Use these instructions if your receiver does not support System Wizard.

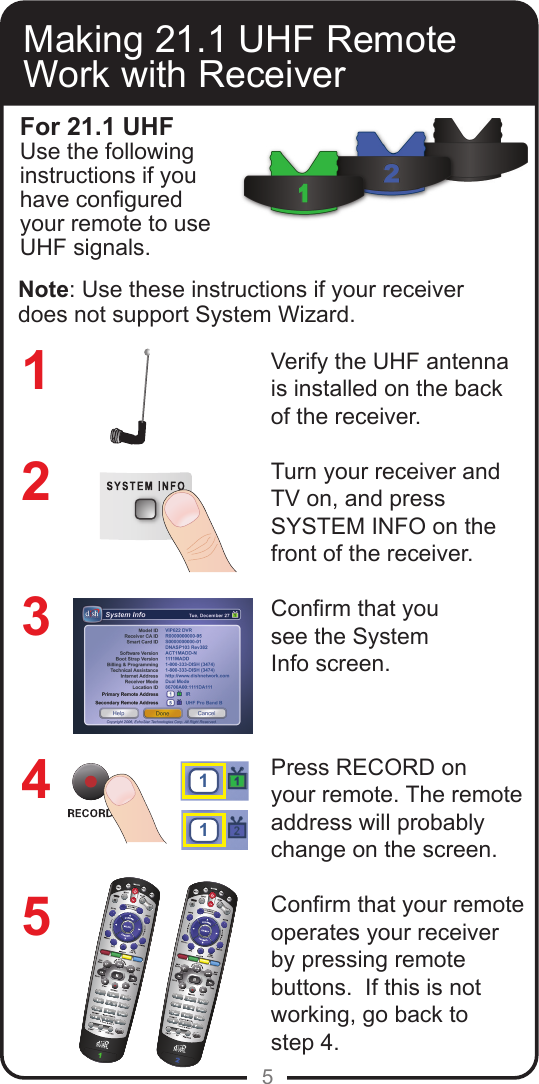

5Making 21.1 UHF Remote Work with ReceiverVerify the UHF antenna is installed on the back of the receiver.Turn your receiver andTV on, and pressSYSTEM INFO on thefront of the receiver.Conrm that yousee the SystemInfo screen.Press RECORD onyour remote. The remote address will probably change on the screen.Conrm that your remote operates your receiver by pressing remote buttons. If this is not working, go back to step 4.32145For 21.1 UHFUse the following instructions if you have congured your remote to use UHF signals.11Note: Use these instructions if your receiver does not support System Wizard.

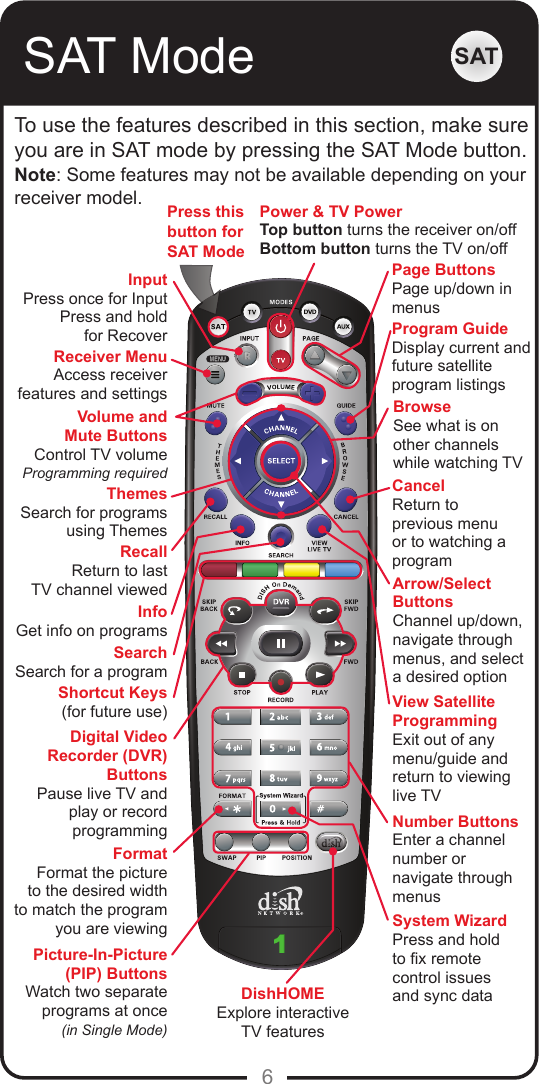

6SAT ModeTo use the features described in this section, make sure you are in SAT mode by pressing the SAT Mode button.Note: Some features may not be available depending on your receiver model.SATPower & TV PowerTop button turns the receiver on/offBottom button turns the TV on/offPress thisbutton for SAT ModeVolume and Mute ButtonsControl TV volumeProgramming requiredRecallReturn to last TV channel viewedPicture-In-Picture(PIP) ButtonsWatch two separateprograms at once(in Single Mode)Number ButtonsEnter a channel number or navigate through menusReceiver MenuAccess receiverfeatures and settingsInputPress once for InputPress and hold for RecoverThemesSearch for programsusing ThemesInfoGet info on programsSearchSearch for a programShortcut Keys(for future use)Digital VideoRecorder (DVR)ButtonsPause live TV and play or record programmingFormatFormat the pictureto the desired widthto match the program you are viewing System WizardPress and hold to x remote control issues and sync dataDishHOMEExplore interactive TV featuresArrow/Select ButtonsChannel up/down, navigate through menus, and select a desired optionView SatelliteProgrammingExit out of any menu/guide and return to viewing live TVCancelReturn to previous menu or to watching a programBrowseSee what is on other channels while watching TVProgram GuideDisplay current and future satellite program listingsPage ButtonsPage up/down in menus

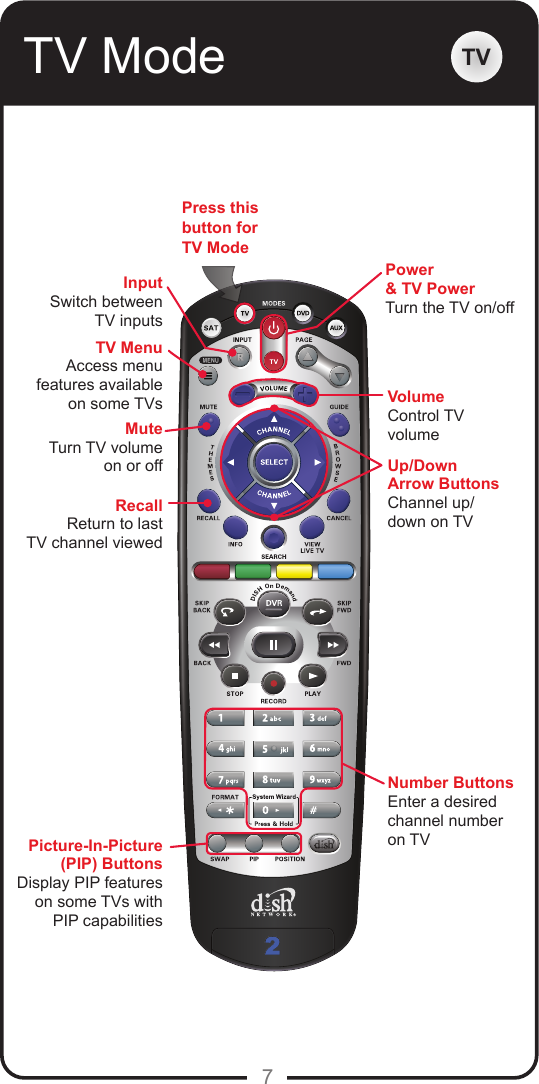

7TV Mode TVUp/DownArrow ButtonsChannel up/down on TVPower& TV PowerTurn the TV on/offVolumeControl TVvolumePress thisbutton for TV ModeMuteTurn TV volumeon or offRecallReturn to last TV channel viewedPicture-In-Picture(PIP) ButtonsDisplay PIP featureson some TVs with PIP capabilitiesNumber ButtonsEnter a desired channel number on TVTV MenuAccess menufeatures availableon some TVsInputSwitch betweenTV inputs

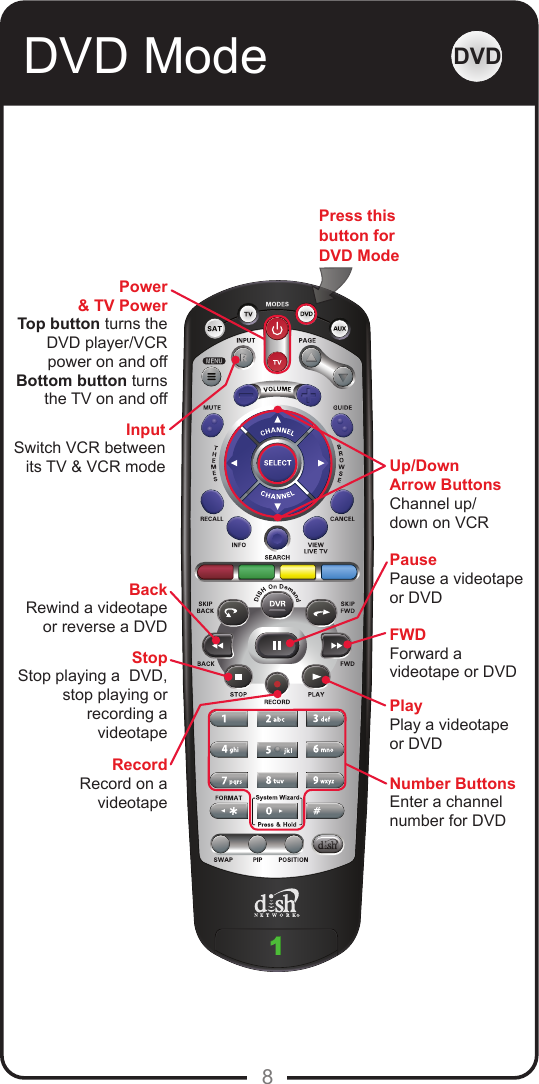

8DVD Mode DVDPower& TV PowerTop button turns theDVD player/VCRpower on and offBottom button turnsthe TV on and offUp/DownArrow ButtonsChannel up/down on VCRFWDForward a videotape or DVDPlayPlay a videotape or DVDNumber ButtonsEnter a channel number for DVDPausePause a videotape or DVDPress thisbutton for DVD ModeInputSwitch VCR betweenits TV & VCR modeBackRewind a videotapeor reverse a DVDStopStop playing a DVD, stop playing or recording a videotapeRecordRecord on a videotape

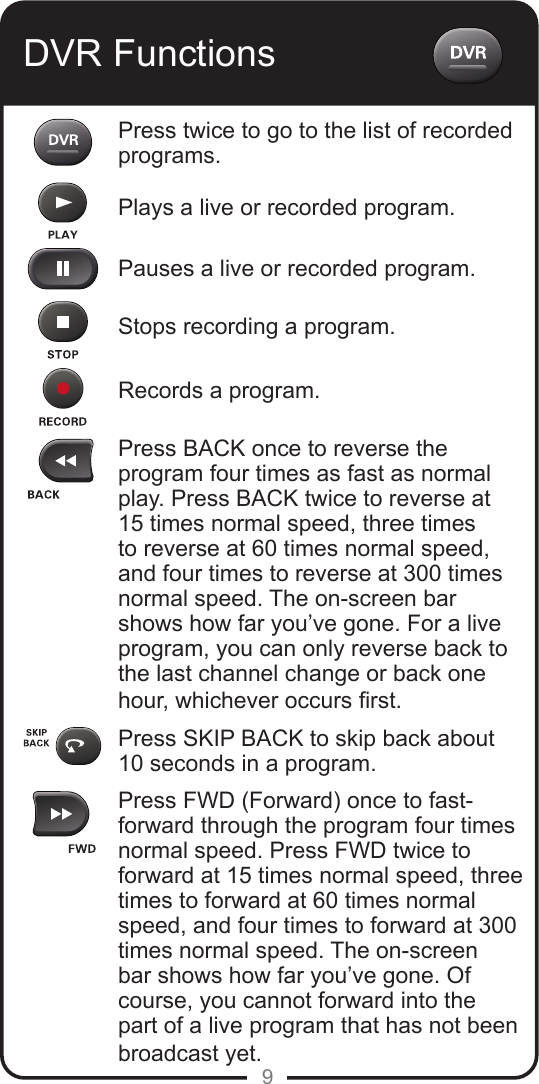

9DVR FunctionsPress twice to go to the list of recorded programs.Plays a live or recorded program.Pauses a live or recorded program.Stops recording a program.Records a program.Press BACK once to reverse the program four times as fast as normal play. Press BACK twice to reverse at 15 times normal speed, three times to reverse at 60 times normal speed, and four times to reverse at 300 times normal speed. The on-screen bar shows how far you’ve gone. For a live program, you can only reverse back to the last channel change or back one hour, whichever occurs rst.Press SKIP BACK to skip back about 10 seconds in a program.Press FWD (Forward) once to fast- forward through the program four times normal speed. Press FWD twice to forward at 15 times normal speed, three times to forward at 60 times normal speed, and four times to forward at 300 times normal speed. The on-screen bar shows how far you’ve gone. Of course, you cannot forward into the part of a live program that has not been broadcast yet.

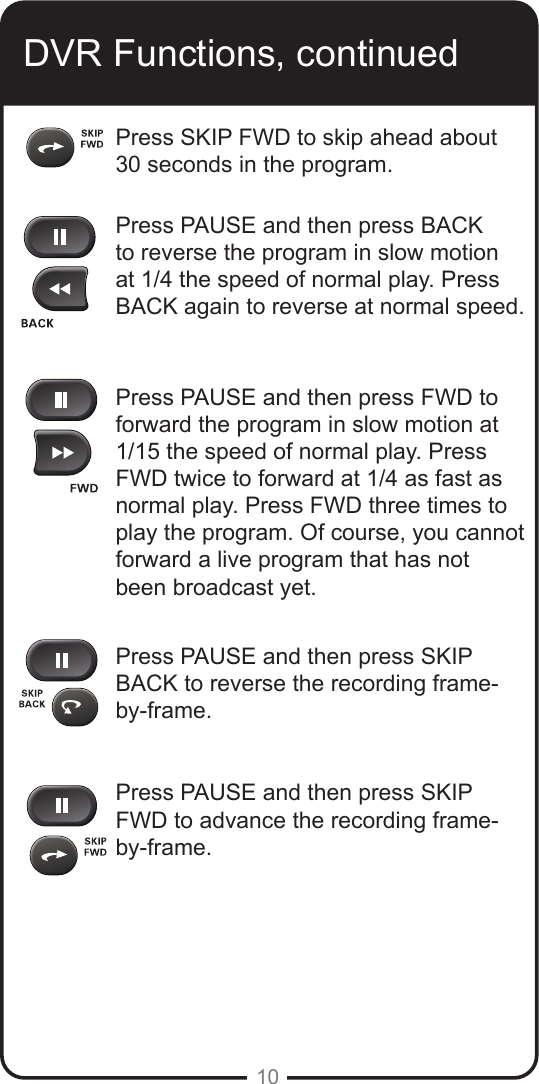

10DVR Functions, continuedPress SKIP FWD to skip ahead about 30 seconds in the program.Press PAUSE and then press BACK to reverse the program in slow motion at 1/4 the speed of normal play. Press BACK again to reverse at normal speed.Press PAUSE and then press FWD to forward the program in slow motion at 1/15 the speed of normal play. Press FWD twice to forward at 1/4 as fast as normal play. Press FWD three times to play the program. Of course, you cannot forward a live program that has not been broadcast yet.Press PAUSE and then press SKIP BACK to reverse the recording frame-by-frame.Press PAUSE and then press SKIP FWD to advance the recording frame-by-frame.

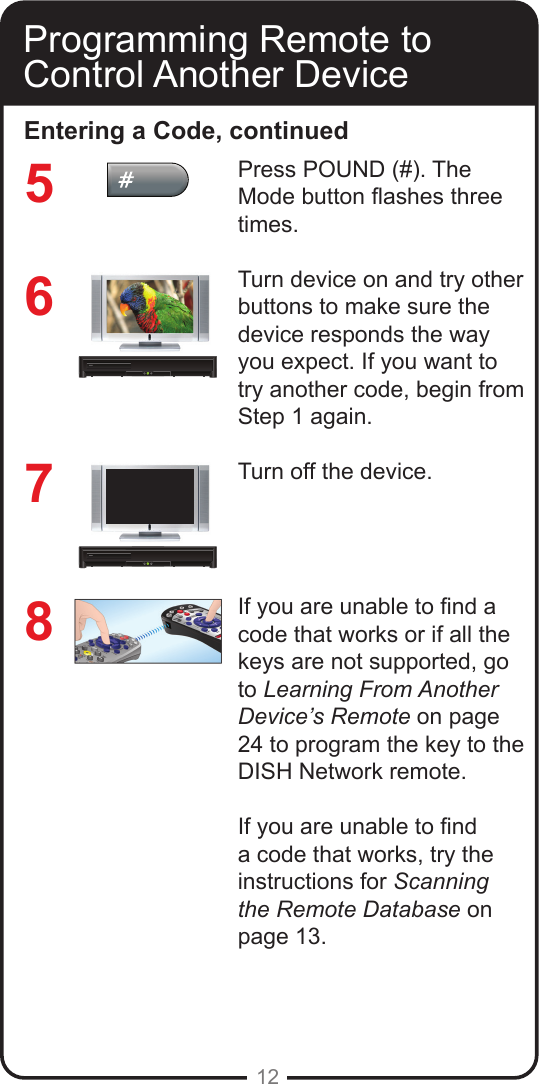

12Programming Remote to Control Another DeviceEntering a Code, continuedPress POUND (#). The Mode button ashes three times.Turn device on and try other buttons to make sure the device responds the way you expect. If you want to try another code, begin from Step 1 again.Turn off the device.If you are unable to nd a code that works or if all the keys are not supported, go to Learning From Another Device’s Remote on page 24 to program the key to the DISH Network remote.If you are unable to nd a code that works, try the instructions for Scanning the Remote Database on page 13.7658

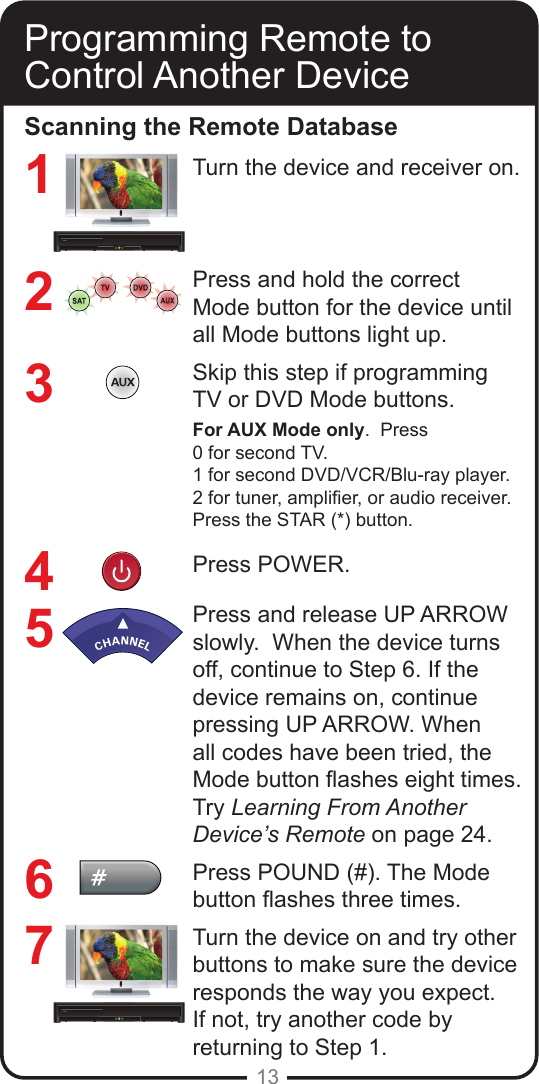

13Programming Remote toControl Another DeviceScanning the Remote DatabaseTurn the device and receiver on.Press and hold the correct Mode button for the device until all Mode buttons light up.Skip this step if programming TV or DVD Mode buttons.For AUX Mode only. Press0 for second TV.1 for second DVD/VCR/Blu-ray player.2 for tuner, amplier, or audio receiver.Press the STAR (*) button.Press POWER.Press and release UP ARROW slowly. When the device turns off, continue to Step 6. If the device remains on, continue pressing UP ARROW. When all codes have been tried, the Mode button ashes eight times. Try Learning From Another Device’s Remote on page 24.Press POUND (#). The Mode button ashes three times.Turn the device on and try other buttons to make sure the device responds the way you expect. If not, try another code by returning to Step 1. 1234567

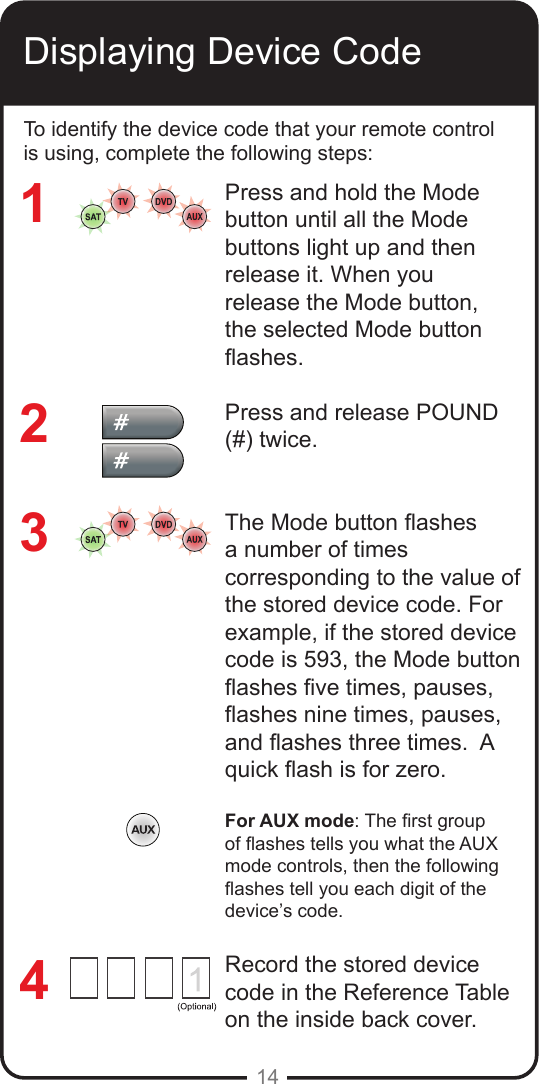

14Displaying Device CodeTo identify the device code that your remote control is using, complete the following steps:Press and hold the Mode button until all the Mode buttons light up and then release it. When you release the Mode button, the selected Mode button ashes.Press and release POUND (#) twice.The Mode button ashes a number of times corresponding to the value of the stored device code. For example, if the stored device code is 593, the Mode button ashes ve times, pauses, ashes nine times, pauses, and ashes three times. A quick ash is for zero.For AUX mode: The rst group of ashes tells you what the AUX mode controls, then the following ashes tell you each digit of the device’s code.Record the stored device code in the Reference Table on the inside back cover.3214

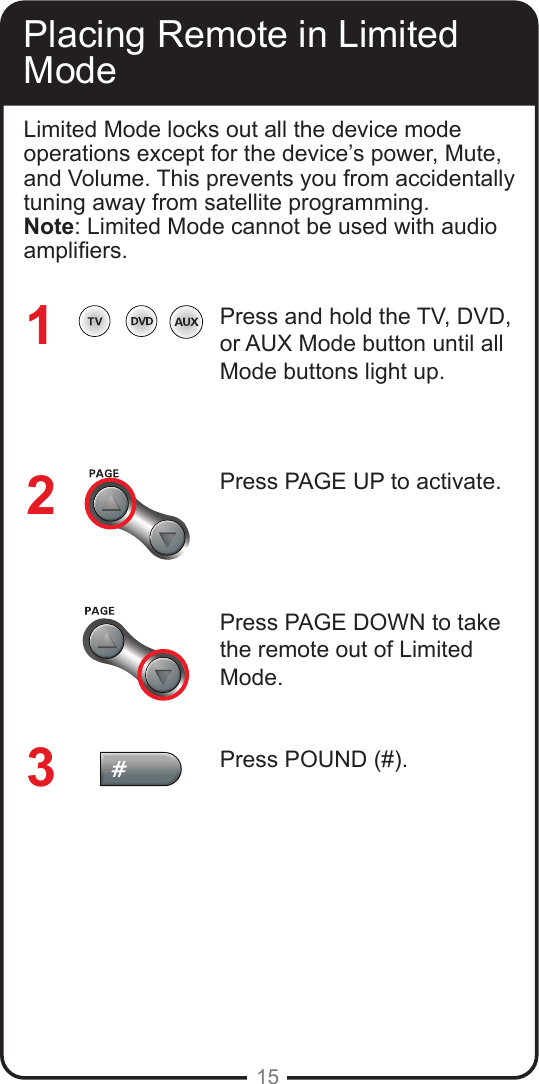

15Placing Remote in Limited ModeLimited Mode locks out all the device mode operations except for the device’s power, Mute, and Volume. This prevents you from accidentally tuning away from satellite programming. Note: Limited Mode cannot be used with audio ampliers.Press and hold the TV, DVD, or AUX Mode button until all Mode buttons light up.Press PAGE UP to activate.Press PAGE DOWN to take the remote out of Limited Mode.Press POUND (#).123

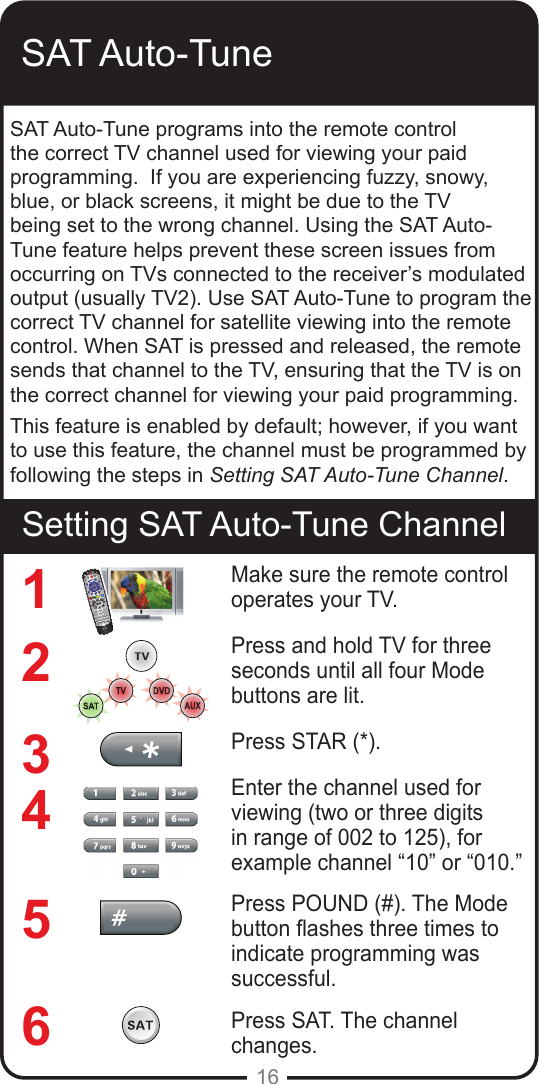

16SAT Auto-TuneSetting SAT Auto-Tune ChannelSAT Auto-Tune programs into the remote control the correct TV channel used for viewing your paid programming. If you are experiencing fuzzy, snowy, blue, or black screens, it might be due to the TV being set to the wrong channel. Using the SAT Auto-Tune feature helps prevent these screen issues from occurring on TVs connected to the receiver’s modulated output (usually TV2). Use SAT Auto-Tune to program the correct TV channel for satellite viewing into the remote control. When SAT is pressed and released, the remote sends that channel to the TV, ensuring that the TV is on the correct channel for viewing your paid programming. This feature is enabled by default; however, if you want to use this feature, the channel must be programmed by following the steps in Setting SAT Auto-Tune Channel.Make sure the remote control operates your TV.Press and hold TV for three seconds until all four Mode buttons are lit.Press STAR (*). Enter the channel used for viewing (two or three digits in range of 002 to 125), for example channel “10” or “010.” Press POUND (#). The Mode button ashes three times to indicate programming was successful.Press SAT. The channel changes.123456

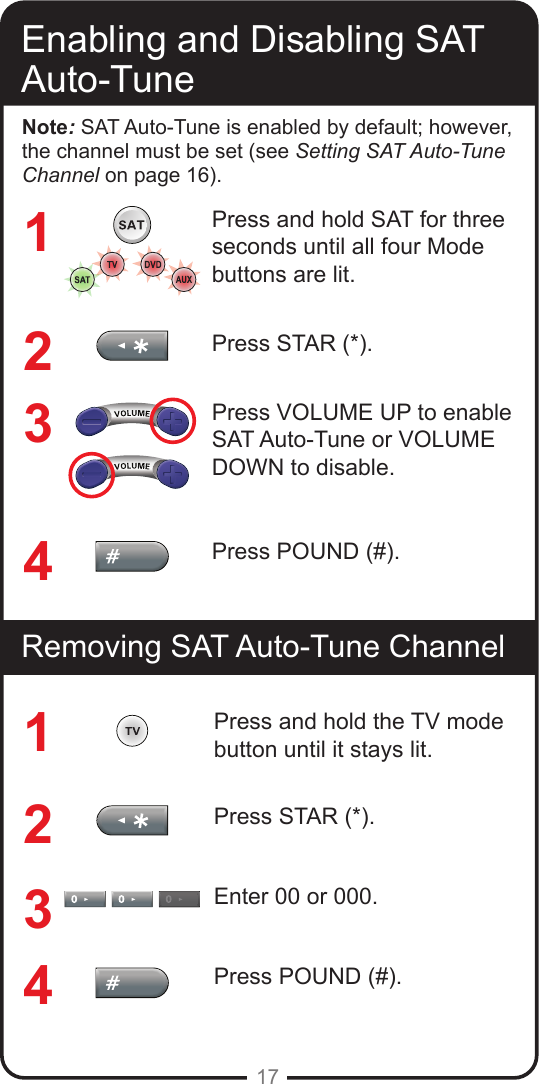

17Enabling and Disabling SAT Auto-TuneRemoving SAT Auto-Tune ChannelNote: SAT Auto-Tune is enabled by default; however, the channel must be set (see Setting SAT Auto-Tune Channel on page 16).Press and hold SAT for three seconds until all four Mode buttons are lit.Press STAR (*).Press VOLUME UP to enable SAT Auto-Tune or VOLUME DOWN to disable.Press POUND (#).Press and hold the TV mode button until it stays lit.Press STAR (*).Enter 00 or 000.Press POUND (#).11223344

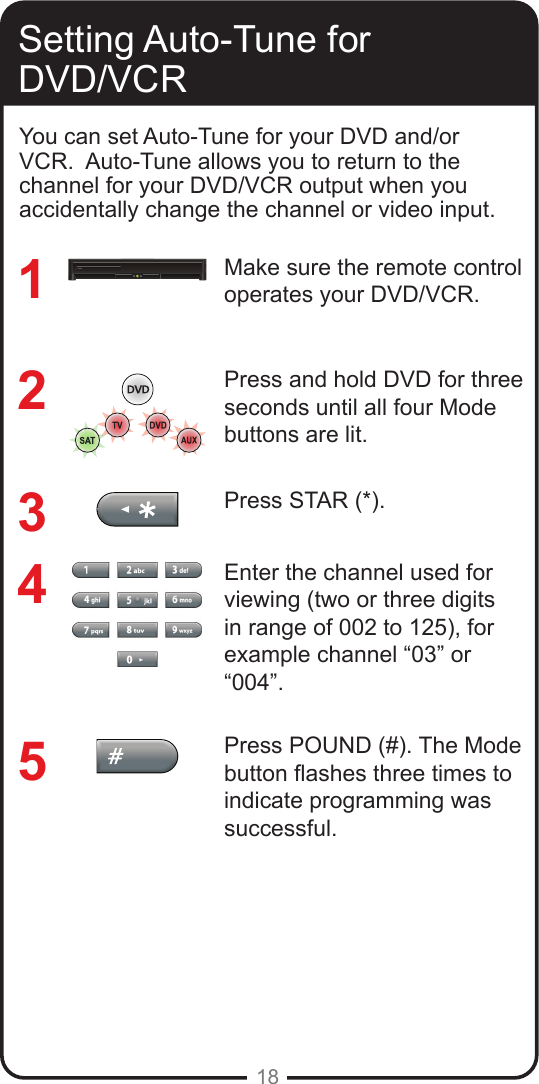

18Setting Auto-Tune for DVD/VCRMake sure the remote control operates your DVD/VCR.Press and hold DVD for three seconds until all four Mode buttons are lit.Press STAR (*). Enter the channel used for viewing (two or three digits in range of 002 to 125), for example channel “03” or “004”. Press POUND (#). The Mode button ashes three times to indicate programming was successful.12345You can set Auto-Tune for your DVD and/or VCR. Auto-Tune allows you to return to the channel for your DVD/VCR output when you accidentally change the channel or video input.

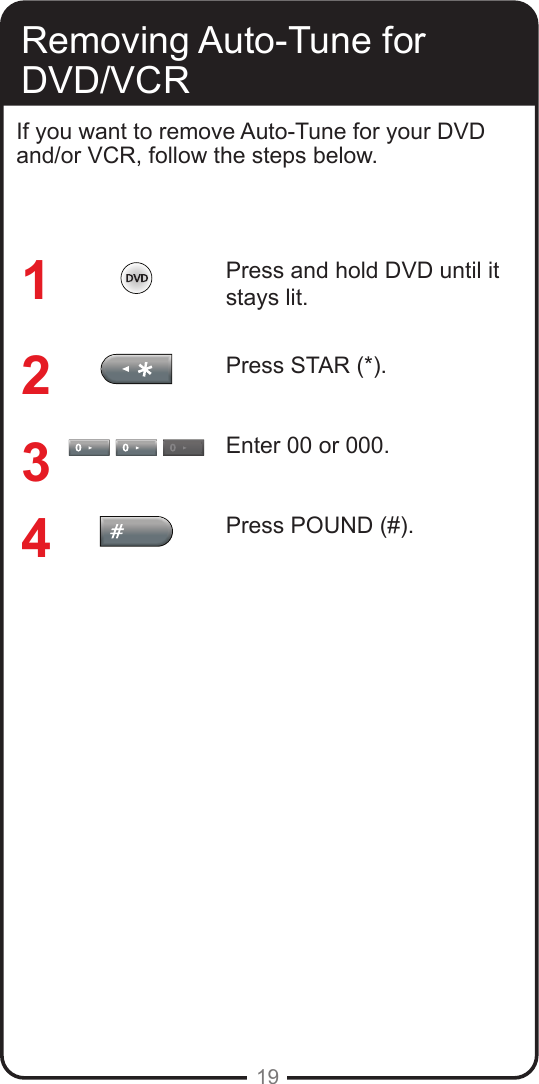

19Removing Auto-Tune for DVD/VCRIf you want to remove Auto-Tune for your DVD and/or VCR, follow the steps below. Press and hold DVD until it stays lit.Press STAR (*).Enter 00 or 000.Press POUND (#).1234

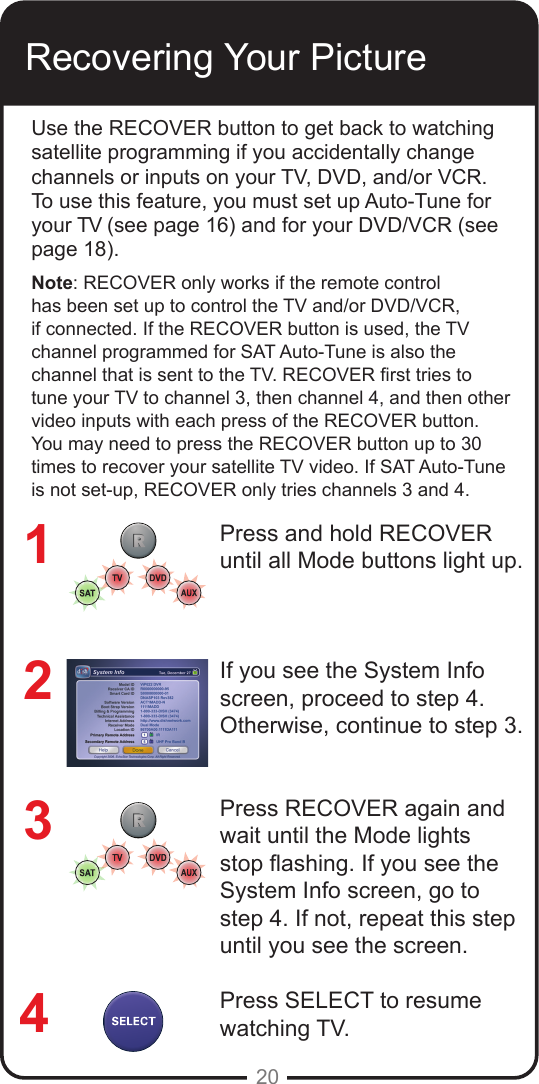

20Recovering Your PictureUse the RECOVER button to get back to watching satellite programming if you accidentally change channels or inputs on your TV, DVD, and/or VCR. To use this feature, you must set up Auto-Tune for your TV (see page 16) and for your DVD/VCR (see page 18).Note: RECOVER only works if the remote control has been set up to control the TV and/or DVD/VCR, if connected. If the RECOVER button is used, the TV channel programmed for SAT Auto-Tune is also the channel that is sent to the TV. RECOVER rst tries to tune your TV to channel 3, then channel 4, and then other video inputs with each press of the RECOVER button. You may need to press the RECOVER button up to 30 times to recover your satellite TV video. If SAT Auto-Tune is not set-up, RECOVER only tries channels 3 and 4.Press and hold RECOVER until all Mode buttons light up.If you see the System Info screen, proceed to step 4. Otherwise, continue to step 3.Press RECOVER again and wait until the Mode lights stop ashing. If you see the System Info screen, go to step 4. If not, repeat this step until you see the screen.Press SELECT to resume watching TV.1234

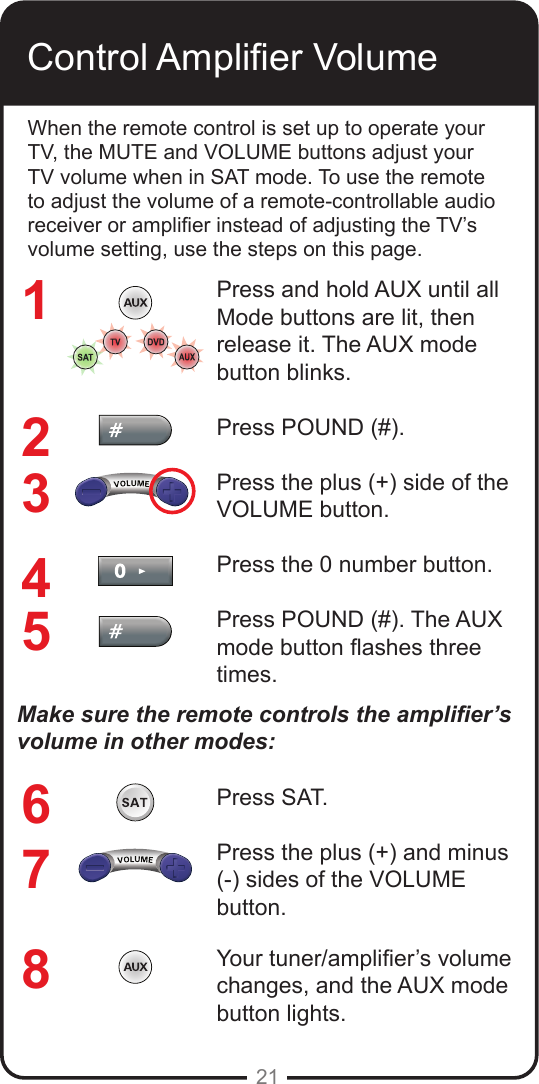

21Control Amplier VolumeWhen the remote control is set up to operate your TV, the MUTE and VOLUME buttons adjust your TV volume when in SAT mode. To use the remote to adjust the volume of a remote-controllable audio receiver or amplier instead of adjusting the TV’s volume setting, use the steps on this page.Press and hold AUX until all Mode buttons are lit, then release it. The AUX mode button blinks.Press POUND (#).Press the plus (+) side of the VOLUME button.Press the 0 number button.Press POUND (#). The AUX mode button ashes three times.Press SAT.Press the plus (+) and minus (-) sides of the VOLUME button.Your tuner/amplier’s volume changes, and the AUX mode button lights.12345678Make sure the remote controls the amplier’s volume in other modes:

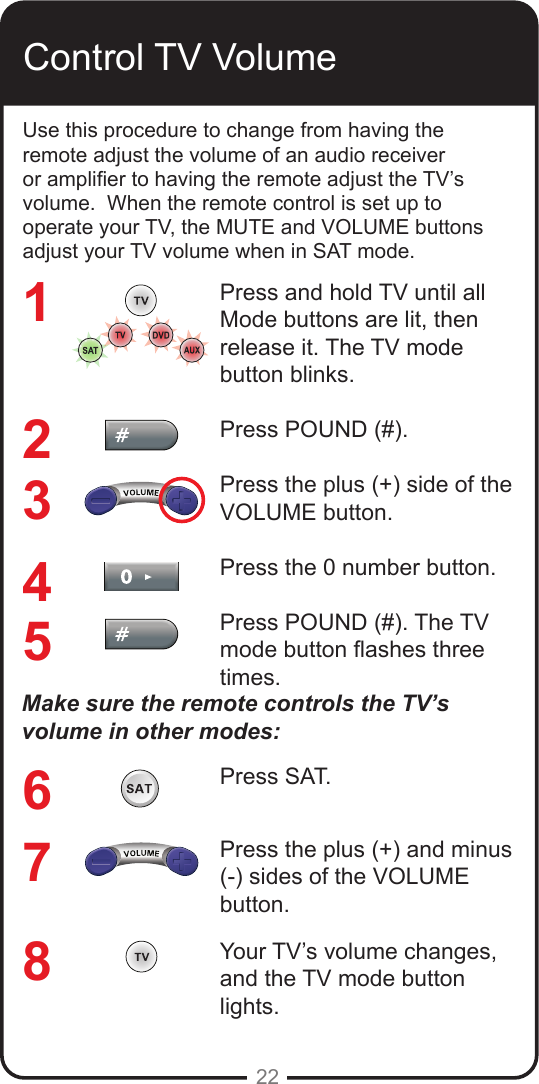

22Control TV VolumeUse this procedure to change from having the remote adjust the volume of an audio receiver or amplier to having the remote adjust the TV’s volume. When the remote control is set up to operate your TV, the MUTE and VOLUME buttons adjust your TV volume when in SAT mode. Press and hold TV until all Mode buttons are lit, then release it. The TV mode button blinks.Press POUND (#).Press the plus (+) side of the VOLUME button.Press the 0 number button.Press POUND (#). The TV mode button ashes three times.Press SAT.Press the plus (+) and minus (-) sides of the VOLUME button.Your TV’s volume changes, and the TV mode button lights.12345678Make sure the remote controls the TV’s volume in other modes:

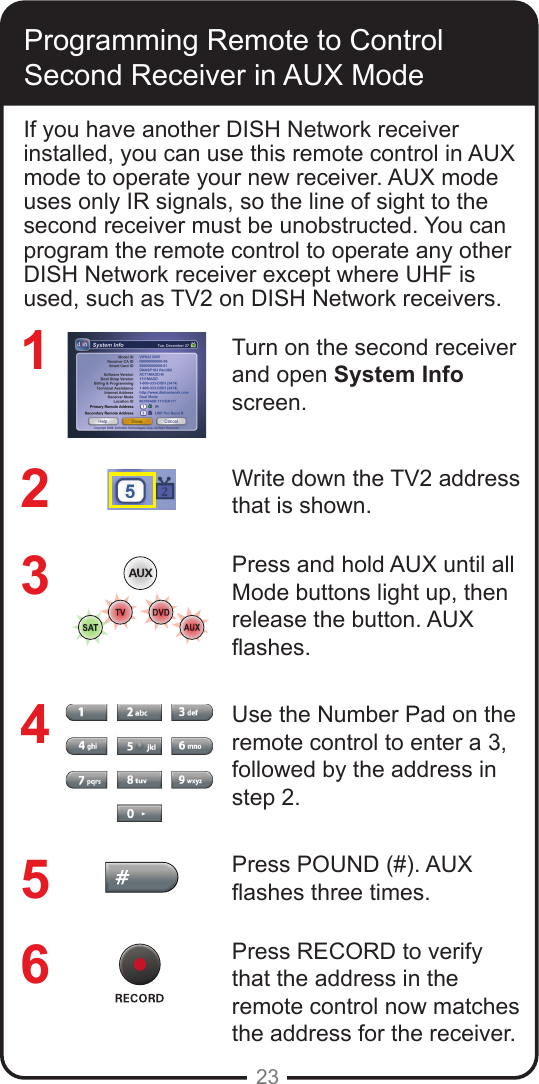

23Programming Remote to Control Second Receiver in AUX Mode If you have another DISH Network receiver installed, you can use this remote control in AUX mode to operate your new receiver. AUX mode uses only IR signals, so the line of sight to the second receiver must be unobstructed. You can program the remote control to operate any other DISH Network receiver except where UHF is used, such as TV2 on DISH Network receivers.Turn on the second receiver and open System Info screen.Write down the TV2 address that is shown.Press and hold AUX until all Mode buttons light up, then release the button. AUX ashes.Use the Number Pad on the remote control to enter a 3, followed by the address in step 2.Press POUND (#). AUX ashes three times.Press RECORD to verify that the address in the remote control now matches the address for the receiver.123456

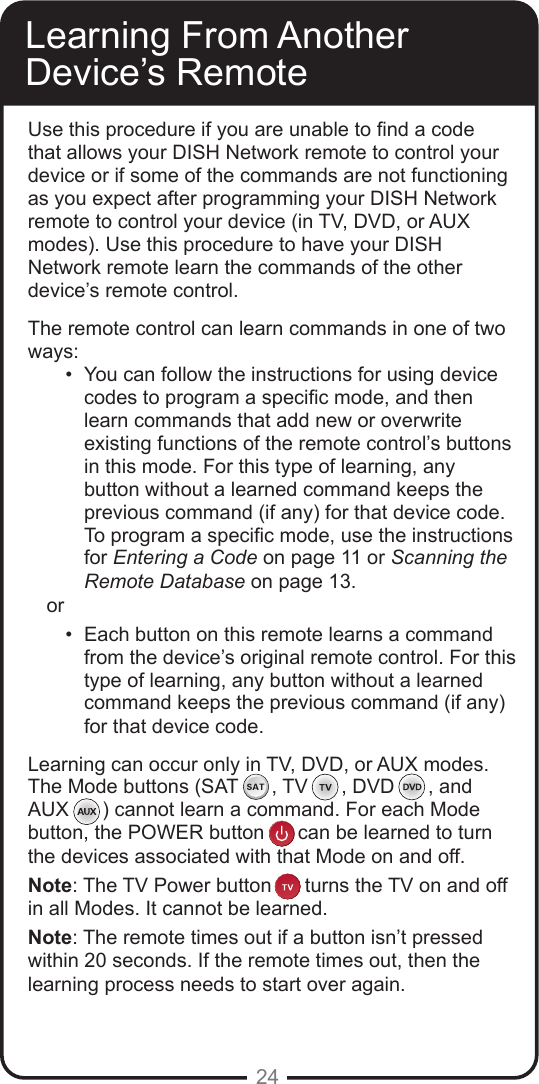

24Learning From Another Device’s RemoteUse this procedure if you are unable to nd a code that allows your DISH Network remote to control your device or if some of the commands are not functioning as you expect after programming your DISH Network remote to control your device (in TV, DVD, or AUX modes). Use this procedure to have your DISH Network remote learn the commands of the other device’s remote control. The remote control can learn commands in one of two ways:• You can follow the instructions for using device codes to program a specic mode, and then learn commands that add new or overwrite existing functions of the remote control’s buttons in this mode. For this type of learning, any button without a learned command keeps the previous command (if any) for that device code. To program a specic mode, use the instructions for Entering a Code on page 11 or Scanning the Remote Database on page 13.or • Each button on this remote learns a command from the device’s original remote control. For this type of learning, any button without a learned command keeps the previous command (if any) for that device code.Learning can occur only in TV, DVD, or AUX modes. The Mode buttons (SAT , TV , DVD , and AUX ) cannot learn a command. For each Mode button, the POWER button can be learned to turnthe devices associated with that Mode on and off.Note: The TV Power button turns the TV on and offin all Modes. It cannot be learned. Note: The remote times out if a button isn’t pressed within 20 seconds. If the remote times out, then the learning process needs to start over again.

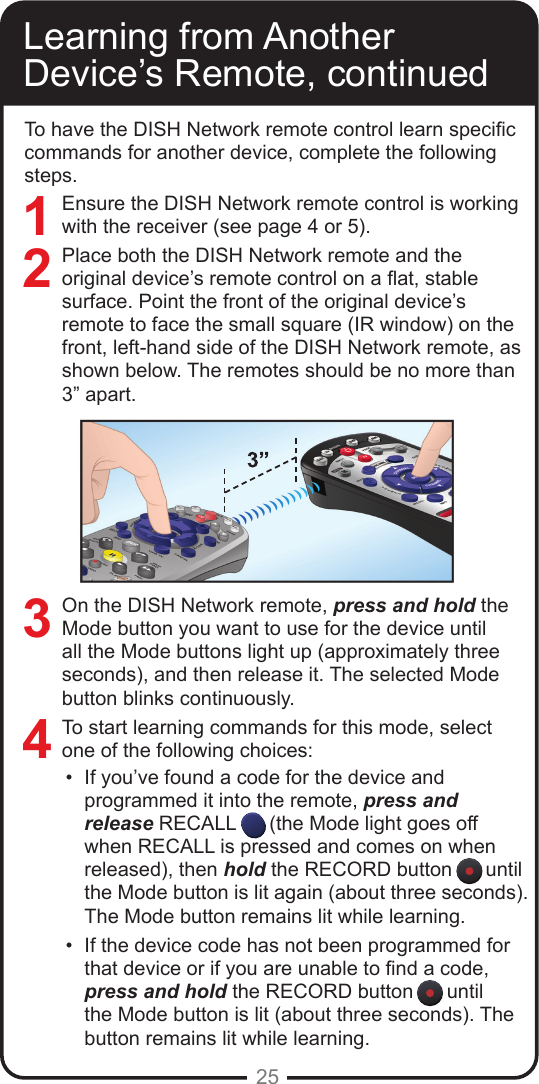

25To have the DISH Network remote control learn specic commands for another device, complete the following steps.Ensure the DISH Network remote control is working with the receiver (see page 4 or 5). Place both the DISH Network remote and the original device’s remote control on a at, stable surface. Point the front of the original device’s remote to face the small square (IR window) on the front, left-hand side of the DISH Network remote, as shown below. The remotes should be no more than 3” apart.On the DISH Network remote, press and hold the Mode button you want to use for the device until all the Mode buttons light up (approximately three seconds), and then release it. The selected Mode button blinks continuously.To start learning commands for this mode, select one of the following choices:• If you’ve found a code for the device and programmed it into the remote, press and release RECALL (the Mode light goes off when RECALL is pressed and comes on when released), then hold the RECORD button until the Mode button is lit again (about three seconds). The Mode button remains lit while learning.• If the device code has not been programmed for that device or if you are unable to nd a code, press and hold the RECORD button until the Mode button is lit (about three seconds). The button remains lit while learning. Learning from Another Device’s Remote, continued3421

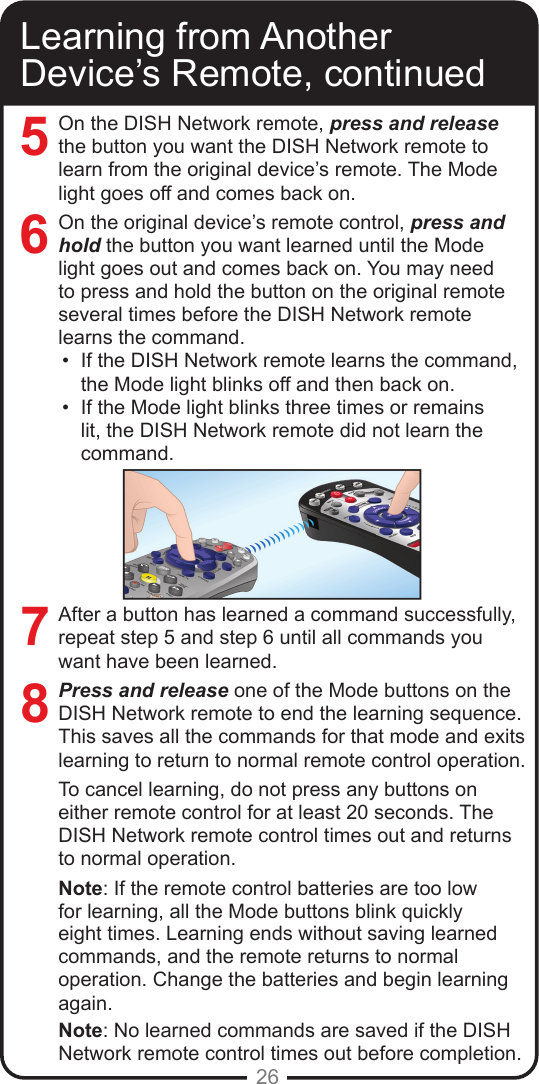

26Learning from Another Device’s Remote, continuedOn the DISH Network remote, press and releasethe button you want the DISH Network remote to learn from the original device’s remote. The Mode light goes off and comes back on.On the original device’s remote control, press and hold the button you want learned until the Mode light goes out and comes back on. You may need to press and hold the button on the original remote several times before the DISH Network remote learns the command.• If the DISH Network remote learns the command, the Mode light blinks off and then back on. • If the Mode light blinks three times or remains lit, the DISH Network remote did not learn the command.After a button has learned a command successfully, repeat step 5 and step 6 until all commands you want have been learned.Press and release one of the Mode buttons on the DISH Network remote to end the learning sequence. This saves all the commands for that mode and exits learning to return to normal remote control operation.To cancel learning, do not press any buttons on either remote control for at least 20 seconds. The DISH Network remote control times out and returns to normal operation.Note: If the remote control batteries are too low for learning, all the Mode buttons blink quickly eight times. Learning ends without saving learned commands, and the remote returns to normal operation. Change the batteries and begin learning again.Note: No learned commands are saved if the DISH Network remote control times out before completion.7685

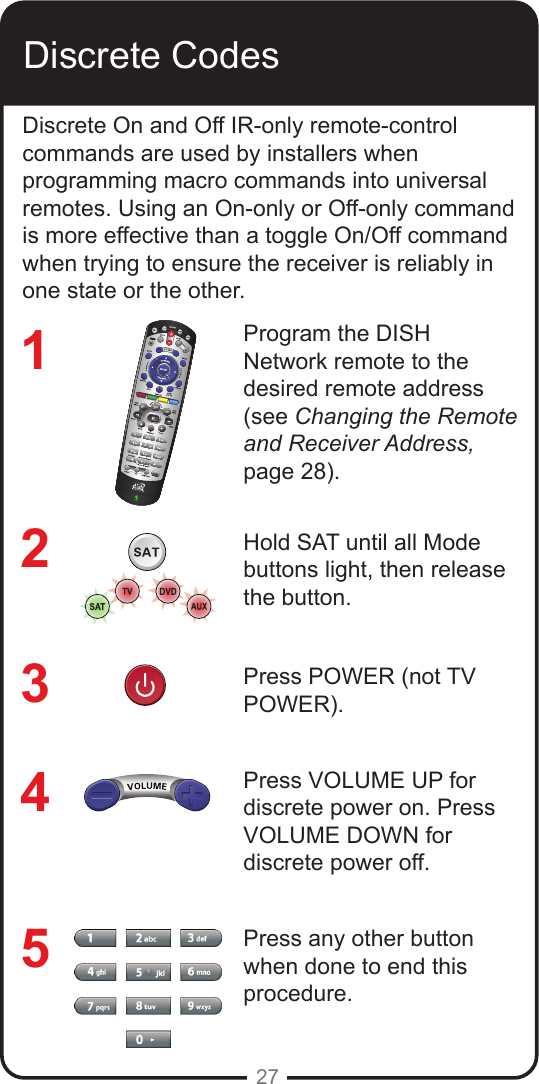

27Discrete CodesDiscrete On and Off IR-only remote-control commands are used by installers when programming macro commands into universal remotes. Using an On-only or Off-only command is more effective than a toggle On/Off command when trying to ensure the receiver is reliably in one state or the other.Program the DISH Network remote to the desired remote address (see Changing the Remote and Receiver Address, page 28).Hold SAT until all Mode buttons light, then release the button.Press POWER (not TV POWER).Press VOLUME UP for discrete power on. Press VOLUME DOWN for discrete power off.Press any other button when done to end this procedure.12345

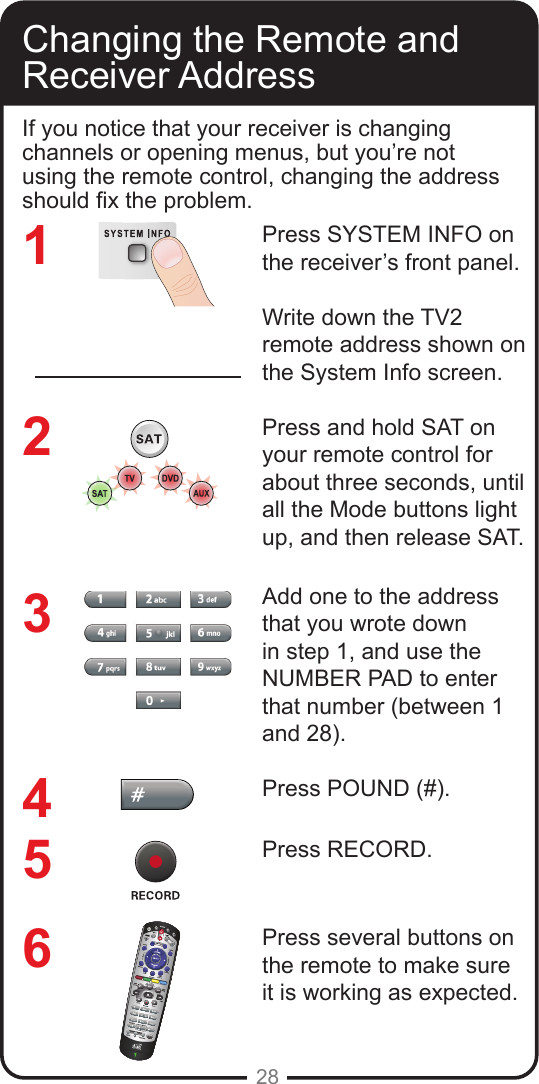

28Changing the Remote and Receiver AddressIf you notice that your receiver is changing channels or opening menus, but you’re not using the remote control, changing the address should x the problem.Press SYSTEM INFO on the receiver’s front panel. Write down the TV2 remote address shown on the System Info screen.Press and hold SAT on your remote control for about three seconds, until all the Mode buttons light up, and then release SAT.Add one to the address that you wrote down in step 1, and use the NUMBER PAD to enter that number (between 1 and 28).Press POUND (#).Press RECORD.Press several buttons on the remote to make sure it is working as expected.123456

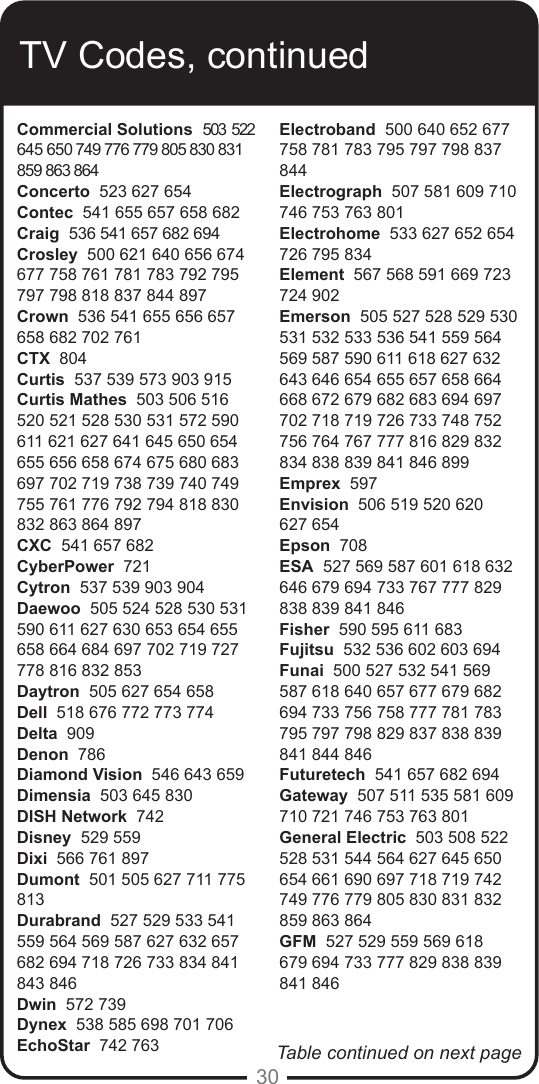

30TV Codes, continuedCommercial Solutions 503 522 645 650 749 776 779 805 830 831 859 863 864Concerto 523 627 654Contec 541 655 657 658 682Craig 536 541 657 682 694Crosley 500 621 640 656 674 677 758 761 781 783 792 795 797 798 818 837 844 897Crown 536 541 655 656 657 658 682 702 761CTX 804Curtis 537 539 573 903 915Curtis Mathes 503 506 516 520 521 528 530 531 572 590 611 621 627 641 645 650 654 655 656 658 674 675 680 683 697 702 719 738 739 740 749 755 761 776 792 794 818 830 832 863 864 897CXC 541 657 682CyberPower 721Cytron 537 539 903 904Daewoo 505 524 528 530 531 590 611 627 630 653 654 655 658 664 684 697 702 719 727 778 816 832 853Daytron 505 627 654 658Dell 518 676 772 773 774Delta 909Denon 786Diamond Vision 546 643 659Dimensia 503 645 830DISH Network 742Disney 529 559Dixi 566 761 897Dumont 501 505 627 711 775 813Durabrand 527 529 533 541 559 564 569 587 627 632 657 682 694 718 726 733 834 841 843 846Dwin 572 739Dynex 538 585 698 701 706EchoStar 742 763Electroband 500 640 652 677 758 781 783 795 797 798 837 844Electrograph 507 581 609 710 746 753 763 801Electrohome 533 627 652 654 726 795 834Element 567 568 591 669 723 724 902Emerson 505 527 528 529 530 531 532 533 536 541 559 564 569 587 590 611 618 627 632 643 646 654 655 657 658 664 668 672 679 682 683 694 697 702 718 719 726 733 748 752 756 764 767 777 816 829 832 834 838 839 841 846 899Emprex 597Envision 506 519 520 620 627 654Epson 708ESA 527 569 587 601 618 632 646 679 694 733 767 777 829 838 839 841 846Fisher 590 595 611 683 Fujitsu 532 536 602 603 694Funai 500 527 532 541 569 587 618 640 657 677 679 682 694 733 756 758 777 781 783 795 797 798 829 837 838 839 841 844 846Futuretech 541 657 682 694Gateway 507 511 535 581 609 710 721 746 753 763 801General Electric 503 508 522 528 531 544 564 627 645 650 654 661 690 697 718 719 742 749 776 779 805 830 831 832 859 863 864GFM 527 529 559 569 618 679 694 733 777 829 838 839 841 846Table continued on next page

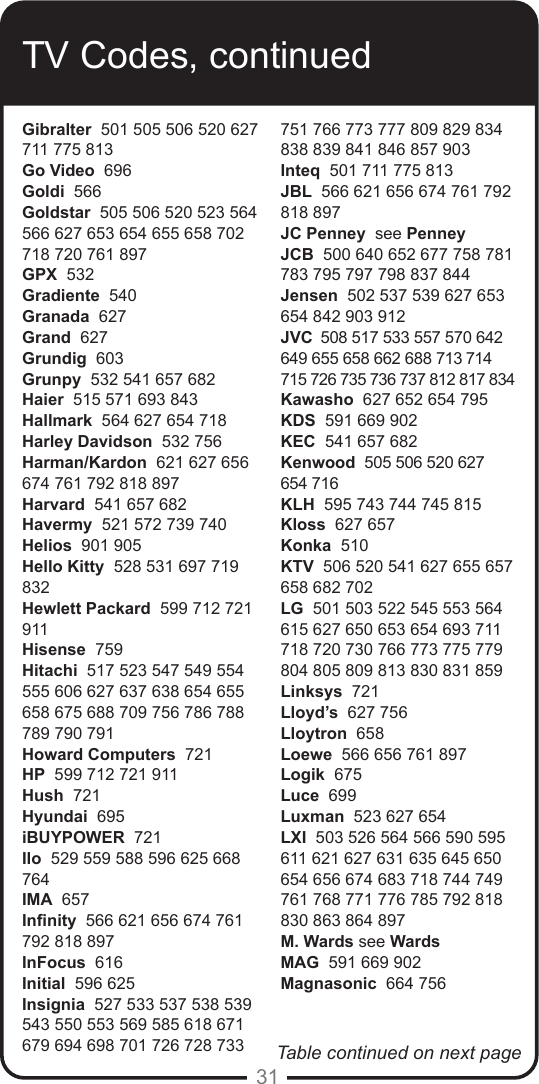

31TV Codes, continuedGibralter 501 505 506 520 627 711 775 813Go Video 696Goldi 566Goldstar 505 506 520 523 564 566 627 653 654 655 658 702 718 720 761 897GPX 532Gradiente 540Granada 627Grand 627Grundig 603Grunpy 532 541 657 682Haier 515 571 693 843Hallmark 564 627 654 718Harley Davidson 532 756Harman/Kardon 621 627 656 674 761 792 818 897Harvard 541 657 682Havermy 521 572 739 740Helios 901 905Hello Kitty 528 531 697 719 832Hewlett Packard 599 712 721 911Hisense 759Hitachi 517 523 547 549 554 555 606 627 637 638 654 655 658 675 688 709 756 786 788 789 790 791Howard Computers 721HP 599 712 721 911Hush 721Hyundai 695iBUYPOWER 721Ilo 529 559 588 596 625 668 764IMA 657Innity 566 621 656 674 761 792 818 897InFocus 616Initial 596 625Insignia 527 533 537 538 539 543 550 553 569 585 618 671 679 694 698 701 726 728 733 751 766 773 777 809 829 834 838 839 841 846 857 903Inteq 501 711 775 813JBL 566 621 656 674 761 792 818 897JC Penney see PenneyJCB 500 640 652 677 758 781 783 795 797 798 837 844Jensen 502 537 539 627 653 654 842 903 912JVC 508 517 533 557 570 642 649 655 658 662 688 713 714 715 726 735 736 737 812 817 834Kawasho 627 652 654 795 KDS 591 669 902KEC 541 657 682Kenwood 505 506 520 627 654 716KLH 595 743 744 745 815Kloss 627 657Konka 510KTV 506 520 541 627 655 657 658 682 702LG 501 503 522 545 553 564 615 627 650 653 654 693 711 718 720 730 766 773 775 779 804 805 809 813 830 831 859Linksys 721Lloyd’s 627 756Lloytron 658Loewe 566 656 761 897Logik 675Luce 699Luxman 523 627 654LXI 503 526 564 566 590 595 611 621 627 631 635 645 650 654 656 674 683 718 744 749 761 768 771 776 785 792 818 830 863 864 897M. Wards see WardsMAG 591 669 902Magnasonic 664 756Table continued on next page

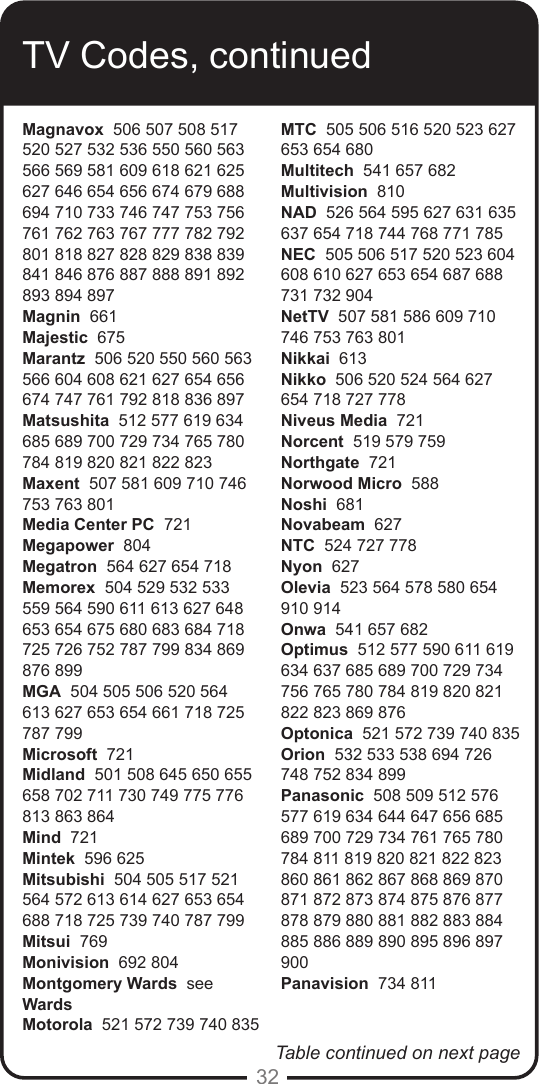

32TV Codes, continuedMagnavox 506 507 508 517 520 527 532 536 550 560 563 566 569 581 609 618 621 625 627 646 654 656 674 679 688 694 710 733 746 747 753 756 761 762 763 767 777 782 792 801 818 827 828 829 838 839 841 846 876 887 888 891 892 893 894 897Magnin 661Majestic 675Marantz 506 520 550 560 563 566 604 608 621 627 654 656 674 747 761 792 818 836 897Matsushita 512 577 619 634 685 689 700 729 734 765 780 784 819 820 821 822 823Maxent 507 581 609 710 746 753 763 801Media Center PC 721Megapower 804Megatron 564 627 654 718Memorex 504 529 532 533 559 564 590 611 613 627 648 653 654 675 680 683 684 718 725 726 752 787 799 834 869 876 899MGA 504 505 506 520 564 613 627 653 654 661 718 725 787 799Microsoft 721Midland 501 508 645 650 655 658 702 711 730 749 775 776 813 863 864Mind 721Mintek 596 625Mitsubishi 504 505 517 521 564 572 613 614 627 653 654 688 718 725 739 740 787 799Mitsui 769Monivision 692 804Montgomery Wards see WardsMotorola 521 572 739 740 835MTC 505 506 516 520 523 627 653 654 680Multitech 541 657 682Multivision 810NAD 526 564 595 627 631 635 637 654 718 744 768 771 785NEC 505 506 517 520 523 604 608 610 627 653 654 687 688 731 732 904NetTV 507 581 586 609 710 746 753 763 801Nikkai 613Nikko 506 520 524 564 627 654 718 727 778Niveus Media 721Norcent 519 579 759Northgate 721Norwood Micro 588Noshi 681Novabeam 627NTC 524 727 778Nyon 627Olevia 523 564 578 580 654 910 914Onwa 541 657 682Optimus 512 577 590 611 619 634 637 685 689 700 729 734 756 765 780 784 819 820 821 822 823 869 876Optonica 521 572 739 740 835Orion 532 533 538 694 726 748 752 834 899Panasonic 508 509 512 576 577 619 634 644 647 656 685 689 700 729 734 761 765 780 784 811 819 820 821 822 823 860 861 862 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 889 890 895 896 897 900Panavision 734 811Table continued on next page

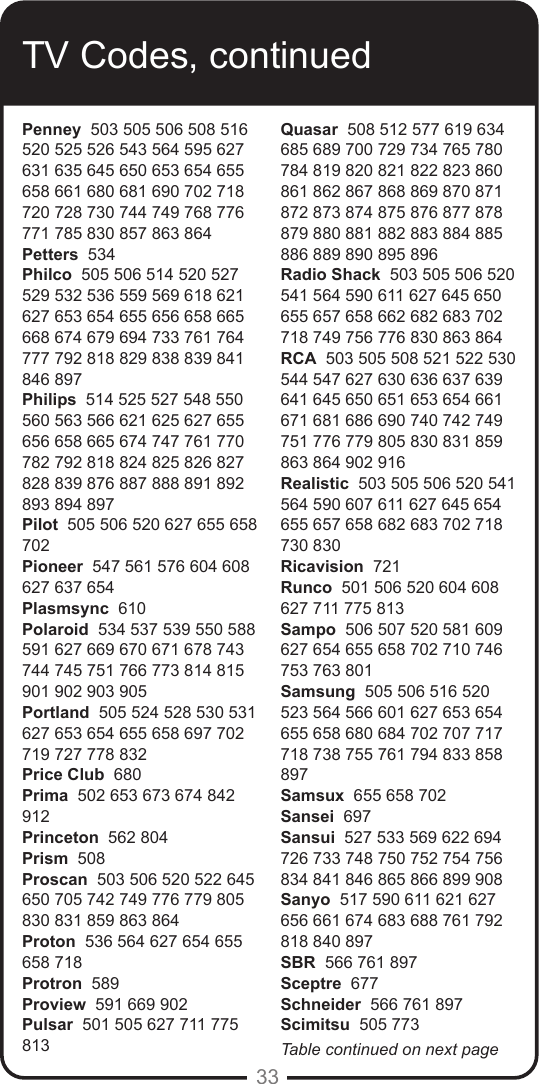

33TV Codes, continuedPenney 503 505 506 508 516 520 525 526 543 564 595 627 631 635 645 650 653 654 655 658 661 680 681 690 702 718 720 728 730 744 749 768 776 771 785 830 857 863 864Petters 534Philco 505 506 514 520 527 529 532 536 559 569 618 621 627 653 654 655 656 658 665 668 674 679 694 733 761 764 777 792 818 829 838 839 841 846 897Philips 514 525 527 548 550 560 563 566 621 625 627 655 656 658 665 674 747 761 770 782 792 818 824 825 826 827 828 839 876 887 888 891 892 893 894 897Pilot 505 506 520 627 655 658 702Pioneer 547 561 576 604 608 627 637 654Plasmsync 610Polaroid 534 537 539 550 588 591 627 669 670 671 678 743 744 745 751 766 773 814 815 901 902 903 905Portland 505 524 528 530 531 627 653 654 655 658 697 702 719 727 778 832Price Club 680Prima 502 653 673 674 842 912Princeton 562 804Prism 508Proscan 503 506 520 522 645 650 705 742 749 776 779 805 830 831 859 863 864Proton 536 564 627 654 655 658 718Protron 589Proview 591 669 902Pulsar 501 505 627 711 775 813Quasar 508 512 577 619 634 685 689 700 729 734 765 780 784 819 820 821 822 823 860 861 862 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 889 890 895 896Radio Shack 503 505 506 520 541 564 590 611 627 645 650 655 657 658 662 682 683 702 718 749 756 776 830 863 864RCA 503 505 508 521 522 530 544 547 627 630 636 637 639 641 645 650 651 653 654 661 671 681 686 690 740 742 749 751 776 779 805 830 831 859 863 864 902 916Realistic 503 505 506 520 541 564 590 607 611 627 645 654 655 657 658 682 683 702 718 730 830Ricavision 721Runco 501 506 520 604 608 627 711 775 813Sampo 506 507 520 581 609 627 654 655 658 702 710 746 753 763 801Samsung 505 506 516 520 523 564 566 601 627 653 654 655 658 680 684 702 707 717 718 738 755 761 794 833 858 897Samsux 655 658 702Sansei 697Sansui 527 533 569 622 694 726 733 748 750 752 754 756 834 841 846 865 866 899 908Sanyo 517 590 611 621 627 656 661 674 683 688 761 792 818 840 897SBR 566 761 897Sceptre 677Schneider 566 761 897Scimitsu 505 773Table continued on next page

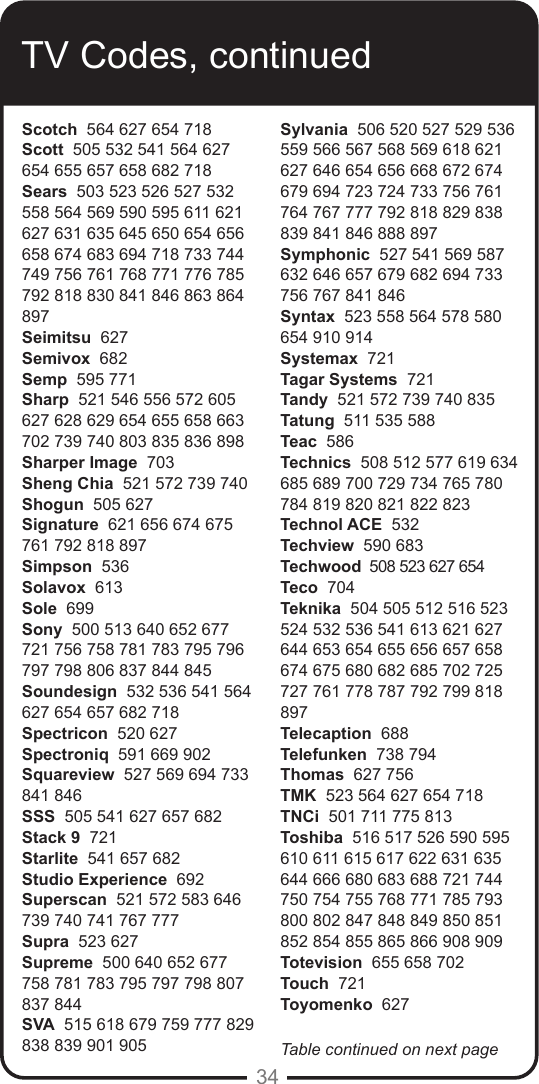

34Scotch 564 627 654 718Scott 505 532 541 564 627 654 655 657 658 682 718 Sears 503 523 526 527 532 558 564 569 590 595 611 621 627 631 635 645 650 654 656 658 674 683 694 718 733 744 749 756 761 768 771 776 785 792 818 830 841 846 863 864 897Seimitsu 627Semivox 682Semp 595 771Sharp 521 546 556 572 605 627 628 629 654 655 658 663 702 739 740 803 835 836 898Sharper Image 703Sheng Chia 521 572 739 740Shogun 505 627Signature 621 656 674 675 761 792 818 897Simpson 536Solavox 613Sole 699Sony 500 513 640 652 677 721 756 758 781 783 795 796 797 798 806 837 844 845Soundesign 532 536 541 564 627 654 657 682 718Spectricon 520 627Spectroniq 591 669 902Squareview 527 569 694 733 841 846SSS 505 541 627 657 682Stack 9 721Starlite 541 657 682Studio Experience 692Superscan 521 572 583 646 739 740 741 767 777Supra 523 627Supreme 500 640 652 677 758 781 783 795 797 798 807 837 844SVA 515 618 679 759 777 829 838 839 901 905Sylvania 506 520 527 529 536 559 566 567 568 569 618 621 627 646 654 656 668 672 674 679 694 723 724 733 756 761 764 767 777 792 818 829 838 839 841 846 888 897Symphonic 527 541 569 587 632 646 657 679 682 694 733 756 767 841 846Syntax 523 558 564 578 580 654 910 914Systemax 721Tagar Systems 721Tandy 521 572 739 740 835Tatung 511 535 588 Teac 586Technics 508 512 577 619 634 685 689 700 729 734 765 780 784 819 820 821 822 823Technol ACE 532Techview 590 683Techwood 508 523 627 654Teco 704Teknika 504 505 512 516 523 524 532 536 541 613 621 627 644 653 654 655 656 657 658 674 675 680 682 685 702 725 727 761 778 787 792 799 818 897Telecaption 688Telefunken 738 794Thomas 627 756TMK 523 564 627 654 718TNCi 501 711 775 813Toshiba 516 517 526 590 595 610 611 615 617 622 631 635 644 666 680 683 688 721 744 750 754 755 768 771 785 793 800 802 847 848 849 850 851 852 854 855 865 866 908 909Totevision 655 658 702Touch 721Toyomenko 627Table continued on next pageTV Codes, continued

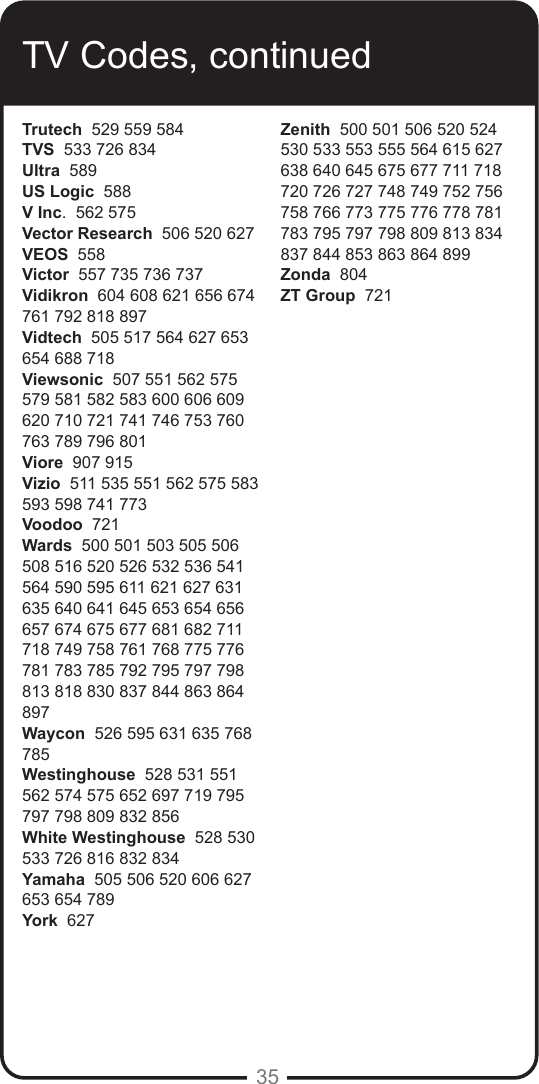

35TV Codes, continuedTrutech 529 559 584TVS 533 726 834Ultra 589US Logic 588V Inc. 562 575Vector Research 506 520 627VEOS 558Victor 557 735 736 737Vidikron 604 608 621 656 674 761 792 818 897Vidtech 505 517 564 627 653 654 688 718Viewsonic 507 551 562 575 579 581 582 583 600 606 609 620 710 721 741 746 753 760 763 789 796 801Viore 907 915Vizio 511 535 551 562 575 583 593 598 741 773Voodoo 721Wards 500 501 503 505 506 508 516 520 526 532 536 541 564 590 595 611 621 627 631 635 640 641 645 653 654 656 657 674 675 677 681 682 711 718 749 758 761 768 775 776 781 783 785 792 795 797 798 813 818 830 837 844 863 864 897 Waycon 526 595 631 635 768 785Westinghouse 528 531 551 562 574 575 652 697 719 795 797 798 809 832 856White Westinghouse 528 530 533 726 816 832 834Yamaha 505 506 520 606 627 653 654 789York 627Zenith 500 501 506 520 524 530 533 553 555 564 615 627 638 640 645 675 677 711 718 720 726 727 748 749 752 756 758 766 773 775 776 778 781 783 795 797 798 809 813 834 837 844 853 863 864 899Zonda 804ZT Group 721

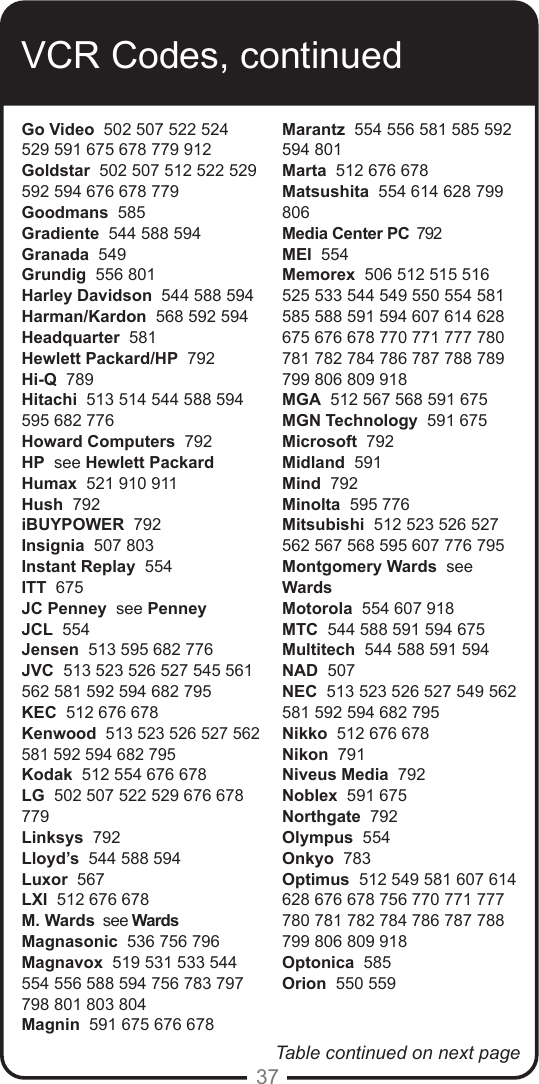

37VCR Codes, continuedGo Video 502 507 522 524 529 591 675 678 779 912 Goldstar 502 507 512 522 529 592 594 676 678 779Goodmans 585Gradiente 544 588 594Granada 549Grundig 556 801Harley Davidson 544 588 594Harman/Kardon 568 592 594Headquarter 581Hewlett Packard/HP 792Hi-Q 789Hitachi 513 514 544 588 594 595 682 776Howard Computers 792HP see Hewlett PackardHumax 521 910 911Hush 792iBUYPOWER 792Insignia 507 803Instant Replay 554ITT 675JC Penney see Penney JCL 554Jensen 513 595 682 776JVC 513 523 526 527 545 561 562 581 592 594 682 795KEC 512 676 678Kenwood 513 523 526 527 562 581 592 594 682 795Kodak 512 554 676 678LG 502 507 522 529 676 678 779Linksys 792Lloyd’s 544 588 594Luxor 567LXI 512 676 678M. Wards see WardsMagnasonic 536 756 796Magnavox 519 531 533 544 554 556 588 594 756 783 797 798 801 803 804Magnin 591 675 676 678Marantz 554 556 581 585 592 594 801Marta 512 676 678Matsushita 554 614 628 799 806Media Center PC 792MEI 554Memorex 506 512 515 516 525 533 544 549 550 554 581 585 588 591 594 607 614 628 675 676 678 770 771 777 780 781 782 784 786 787 788 789 799 806 809 918MGA 512 567 568 591 675MGN Technology 591 675Microsoft 792Midland 591Mind 792Minolta 595 776Mitsubishi 512 523 526 527 562 567 568 595 607 776 795Montgomery Wards see WardsMotorola 554 607 918MTC 544 588 591 594 675Multitech 544 588 591 594NAD 507NEC 513 523 526 527 549 562 581 592 594 682 795Nikko 512 676 678Nikon 791Niveus Media 792Noblex 591 675Northgate 792Olympus 554Onkyo 783Optimus 512 549 581 607 614 628 676 678 756 770 771 777 780 781 782 784 786 787 788 799 806 809 918Optonica 585Orion 550 559Table continued on next page

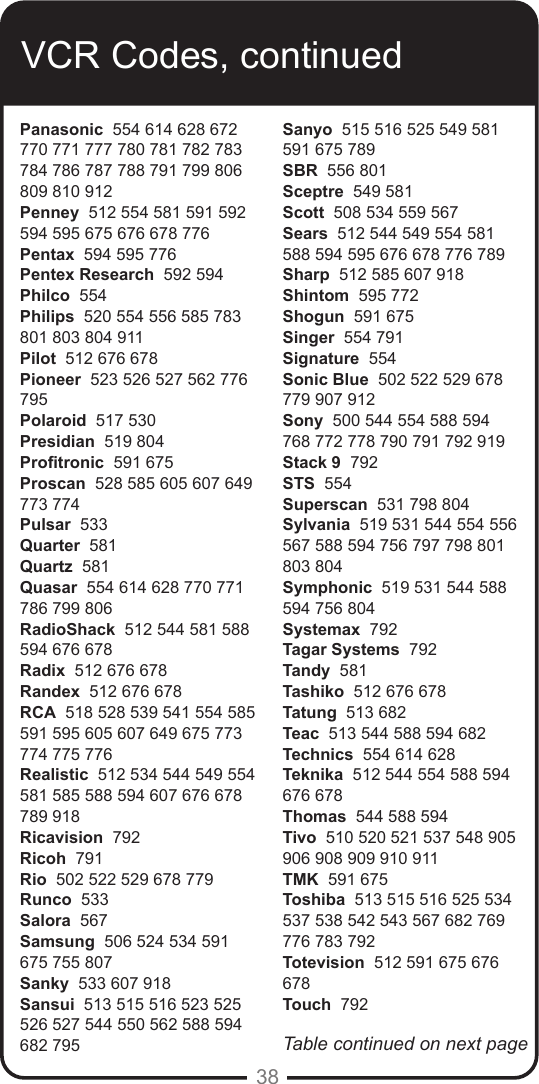

38Panasonic 554 614 628 672 770 771 777 780 781 782 783 784 786 787 788 791 799 806 809 810 912Penney 512 554 581 591 592 594 595 675 676 678 776Pentax 594 595 776Pentex Research 592 594Philco 554 Philips 520 554 556 585 783 801 803 804 911Pilot 512 676 678Pioneer 523 526 527 562 776 795 Polaroid 517 530Presidian 519 804Protronic 591 675 Proscan 528 585 605 607 649 773 774Pulsar 533Quarter 581Quartz 581Quasar 554 614 628 770 771 786 799 806RadioShack 512 544 581 588 594 676 678 Radix 512 676 678Randex 512 676 678RCA 518 528 539 541 554 585 591 595 605 607 649 675 773 774 775 776Realistic 512 534 544 549 554 581 585 588 594 607 676 678 789 918Ricavision 792Ricoh 791Rio 502 522 529 678 779Runco 533Salora 567 Samsung 506 524 534 591 675 755 807Sanky 533 607 918Sansui 513 515 516 523 525 526 527 544 550 562 588 594 682 795Sanyo 515 516 525 549 581 591 675 789SBR 556 801Sceptre 549 581Scott 508 534 559 567 Sears 512 544 549 554 581 588 594 595 676 678 776 789Sharp 512 585 607 918Shintom 595 772Shogun 591 675Singer 554 791Signature 554Sonic Blue 502 522 529 678 779 907 912Sony 500 544 554 588 594 768 772 778 790 791 792 919Stack 9 792STS 554Superscan 531 798 804Sylvania 519 531 544 554 556 567 588 594 756 797 798 801 803 804Symphonic 519 531 544 588 594 756 804Systemax 792Tagar Systems 792Tandy 581 Tashiko 512 676 678Tatung 513 682Teac 513 544 588 594 682Technics 554 614 628 Teknika 512 544 554 588 594 676 678Thomas 544 588 594Tivo 510 520 521 537 548 905 906 908 909 910 911TMK 591 675Toshiba 513 515 516 525 534 537 538 542 543 567 682 769 776 783 792Totevision 512 591 675 676 678Touch 792VCR Codes, continuedTable continued on next page

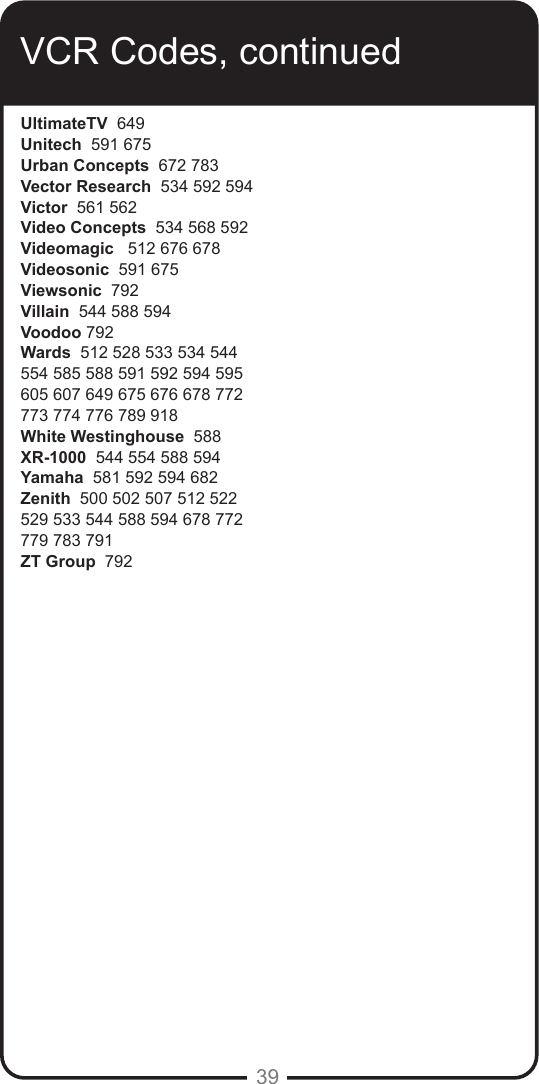

39VCR Codes, continuedUltimateTV 649Unitech 591 675Urban Concepts 672 783Vector Research 534 592 594Victor 561 562Video Concepts 534 568 592Videomagic 512 676 678Videosonic 591 675Viewsonic 792Villain 544 588 594Voodoo 792Wards 512 528 533 534 544 554 585 588 591 592 594 595 605 607 649 675 676 678 772 773 774 776 789 918White Westinghouse 588 XR-1000 544 554 588 594Yamaha 581 592 594 682Zenith 500 502 507 512 522 529 533 544 588 594 678 772 779 783 791ZT Group 792

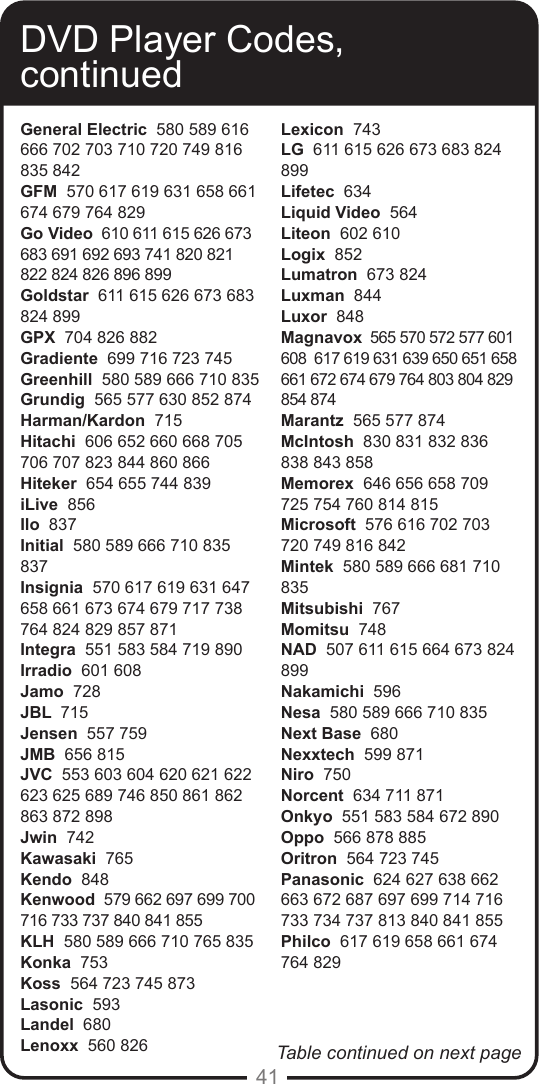

41DVD Player Codes, continuedGeneral Electric 580 589 616 666 702 703 710 720 749 816 835 842GFM 570 617 619 631 658 661 674 679 764 829Go Video 610 611 615 626 673 683 691 692 693 741 820 821 822 824 826 896 899Goldstar 611 615 626 673 683 824 899GPX 704 826 882Gradiente 699 716 723 745Greenhill 580 589 666 710 835Grundig 565 577 630 852 874Harman/Kardon 715Hitachi 606 652 660 668 705 706 707 823 844 860 866Hiteker 654 655 744 839iLive 856Ilo 837Initial 580 589 666 710 835 837Insignia 570 617 619 631 647 658 661 673 674 679 717 738 764 824 829 857 871Integra 551 583 584 719 890Irradio 601 608Jamo 728JBL 715Jensen 557 759JMB 656 815JVC 553 603 604 620 621 622 623 625 689 746 850 861 862 863 872 898Jwin 742Kawasaki 765Kendo 848Kenwood 579 662 697 699 700 716 733 737 840 841 855KLH 580 589 666 710 765 835Konka 753Koss 564 723 745 873Lasonic 593Landel 680Lenoxx 560 826Lexicon 743LG 611 615 626 673 683 824 899Lifetec 634Liquid Video 564Liteon 602 610Logix 852Lumatron 673 824Luxman 844Luxor 848Magnavox 565 570 572 577 601 608 617 619 631 639 650 651 658 661 672 674 679 764 803 804 829 854 874Marantz 565 577 874McIntosh 830 831 832 836 838 843 858Memorex 646 656 658 709 725 754 760 814 815Microsoft 576 616 702 703 720 749 816 842Mintek 580 589 666 681 710 835Mitsubishi 767 Momitsu 748NAD 507 611 615 664 673 824 899Nakamichi 596Nesa 580 589 666 710 835Next Base 680Nexxtech 599 871Niro 750Norcent 634 711 871Onkyo 551 583 584 672 890Oppo 566 878 885Oritron 564 723 745Panasonic 624 627 638 662 663 672 687 697 699 714 716 733 734 737 813 840 841 855 Philco 617 619 658 661 674 764 829 Table continued on next page

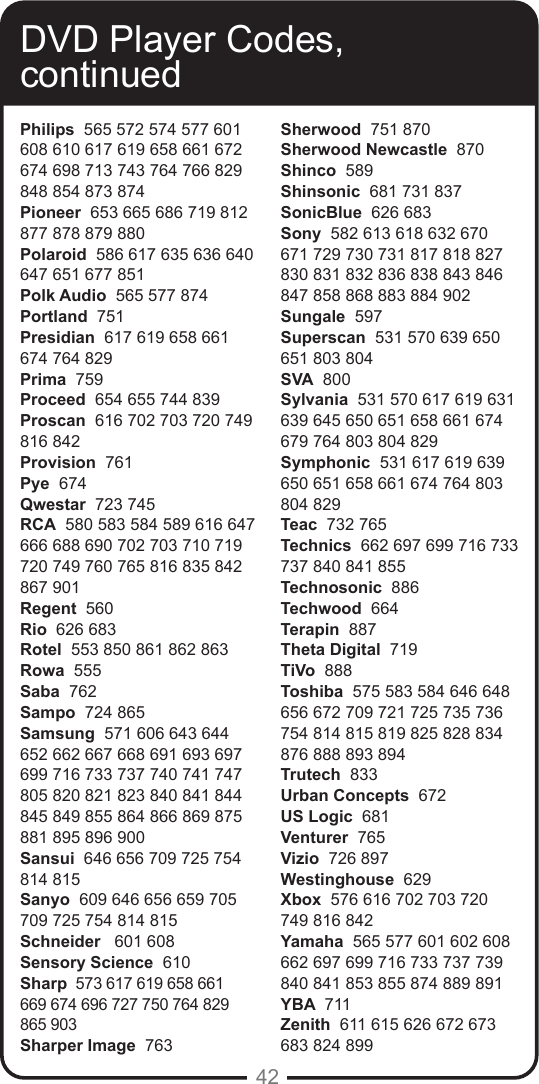

42DVD Player Codes, continuedSherwood 751 870Sherwood Newcastle 870Shinco 589Shinsonic 681 731 837SonicBlue 626 683Sony 582 613 618 632 670 671 729 730 731 817 818 827 830 831 832 836 838 843 846 847 858 868 883 884 902Sungale 597Superscan 531 570 639 650 651 803 804SVA 800Sylvania 531 570 617 619 631 639 645 650 651 658 661 674 679 764 803 804 829Symphonic 531 617 619 639 650 651 658 661 674 764 803 804 829Teac 732 765Technics 662 697 699 716 733 737 840 841 855Technosonic 886Techwood 664Terapin 887Theta Digital 719TiVo 888Toshiba 575 583 584 646 648 656 672 709 721 725 735 736 754 814 815 819 825 828 834 876 888 893 894Trutech 833Urban Concepts 672US Logic 681Venturer 765Vizio 726 897Westinghouse 629Xbox 576 616 702 703 720 749 816 842Yamaha 565 577 601 602 608 662 697 699 716 733 737 739 840 841 853 855 874 889 891YBA 711Zenith 611 615 626 672 673 683 824 899 Philips 565 572 574 577 601 608 610 617 619 658 661 672 674 698 713 743 764 766 829 848 854 873 874Pioneer 653 665 686 719 812 877 878 879 880Polaroid 586 617 635 636 640 647 651 677 851Polk Audio 565 577 874Portland 751Presidian 617 619 658 661 674 764 829Prima 759Proceed 654 655 744 839Proscan 616 702 703 720 749 816 842Provision 761Pye 674Qwestar 723 745RCA 580 583 584 589 616 647 666 688 690 702 703 710 719 720 749 760 765 816 835 842 867 901Regent 560Rio 626 683Rotel 553 850 861 862 863Rowa 555Saba 762Sampo 724 865Samsung 571 606 643 644 652 662 667 668 691 693 697 699 716 733 737 740 741 747 805 820 821 823 840 841 844 845 849 855 864 866 869 875 881 895 896 900Sansui 646 656 709 725 754 814 815Sanyo 609 646 656 659 705 709 725 754 814 815Schneider 601 608Sensory Science 610Sharp 573 617 619 658 661 669 674 696 727 750 764 829 865 903Sharper Image 763

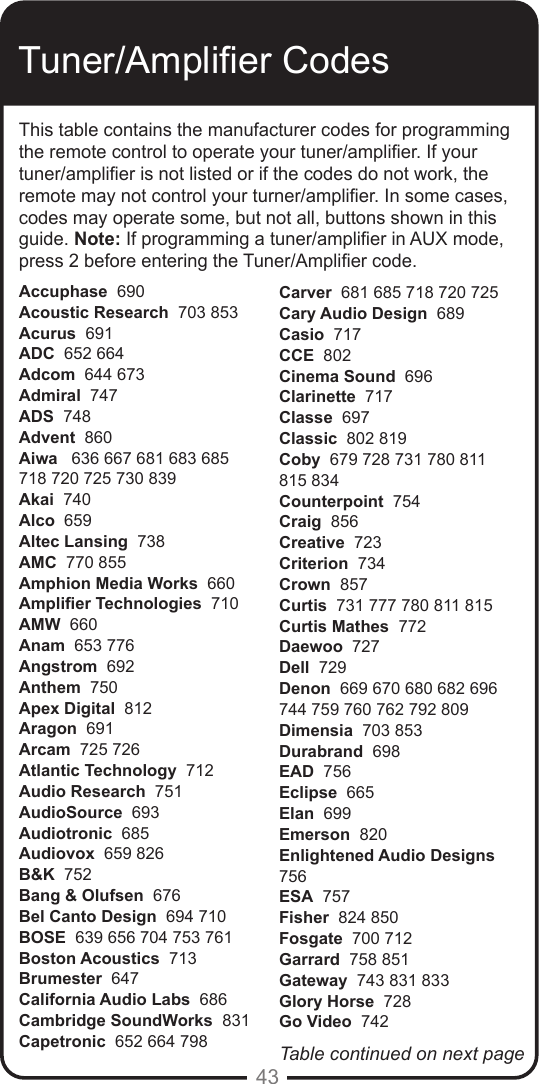

43Table continued on next pageTuner/Amplier CodesThis table contains the manufacturer codes for programming the remote control to operate your tuner/amplier. If your tuner/amplier is not listed or if the codes do not work, the remote may not control your turner/amplier. In some cases, codes may operate some, but not all, buttons shown in this guide. Note: If programming a tuner/amplier in AUX mode, press 2 before entering the Tuner/Amplier code.Accuphase 690Acoustic Research 703 853Acurus 691ADC 652 664Adcom 644 673Admiral 747ADS 748Advent 860Aiwa 636 667 681 683 685 718 720 725 730 839Akai 740Alco 659Altec Lansing 738AMC 770 855Amphion Media Works 660Amplier Technologies 710AMW 660Anam 653 776Angstrom 692Anthem 750Apex Digital 812Aragon 691Arcam 725 726Atlantic Technology 712Audio Research 751AudioSource 693Audiotronic 685Audiovox 659 826B&K 752Bang & Olufsen 676Bel Canto Design 694 710BOSE 639 656 704 753 761 Boston Acoustics 713Brumester 647California Audio Labs 686Cambridge SoundWorks 831Capetronic 652 664 798Carver 681 685 718 720 725Cary Audio Design 689Casio 717CCE 802Cinema Sound 696Clarinette 717Classe 697Classic 802 819Coby 679 728 731 780 811 815 834Counterpoint 754Craig 856Creative 723Criterion 734Crown 857Curtis 731 777 780 811 815Curtis Mathes 772Daewoo 727Dell 729Denon 669 670 680 682 696 744 759 760 762 792 809 Dimensia 703 853Durabrand 698EAD 756Eclipse 665Elan 699Emerson 820Enlightened Audio Designs 756ESA 757Fisher 824 850Fosgate 700 712 Garrard 758 851Gateway 743 831 833Glory Horse 728Go Video 742

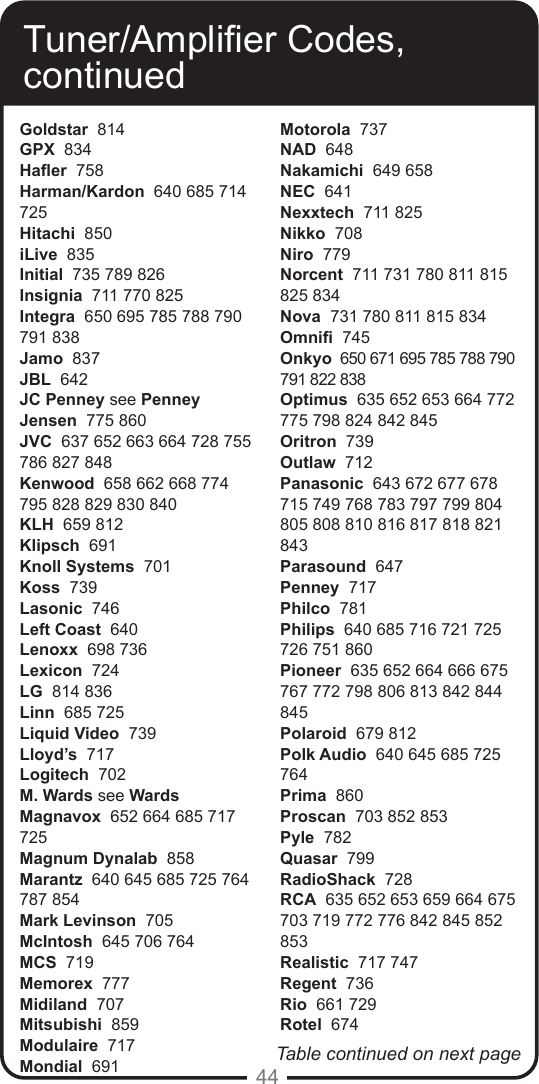

44Tuner/Amplier Codes, continuedGoldstar 814GPX 834Haer 758Harman/Kardon 640 685 714 725Hitachi 850iLive 835Initial 735 789 826Insignia 711 770 825Integra 650 695 785 788 790 791 838Jamo 837JBL 642JC Penney see PenneyJensen 775 860JVC 637 652 663 664 728 755 786 827 848Kenwood 658 662 668 774 795 828 829 830 840 KLH 659 812Klipsch 691Knoll Systems 701Koss 739Lasonic 746Left Coast 640Lenoxx 698 736Lexicon 724LG 814 836Linn 685 725Liquid Video 739Lloyd’s 717Logitech 702M. Wards see WardsMagnavox 652 664 685 717 725Magnum Dynalab 858Marantz 640 645 685 725 764 787 854Mark Levinson 705McIntosh 645 706 764MCS 719Memorex 777Midiland 707Mitsubishi 859Modulaire 717Mondial 691Motorola 737NAD 648Nakamichi 649 658NEC 641Nexxtech 711 825Nikko 708Niro 779Norcent 711 731 780 811 815 825 834Nova 731 780 811 815 834Omni 745Onkyo 650 671 695 785 788 790 791 822 838Optimus 635 652 653 664 772 775 798 824 842 845Oritron 739Outlaw 712Panasonic 643 672 677 678 715 749 768 783 797 799 804 805 808 810 816 817 818 821 843 Parasound 647Penney 717Philco 781Philips 640 685 716 721 725 726 751 860Pioneer 635 652 664 666 675 767 772 798 806 813 842 844 845Polaroid 679 812Polk Audio 640 645 685 725 764Prima 860Proscan 703 852 853Pyle 782Quasar 799RadioShack 728RCA 635 652 653 659 664 675 703 719 772 776 842 845 852 853Realistic 717 747Regent 736Rio 661 729Rotel 674Table continued on next page

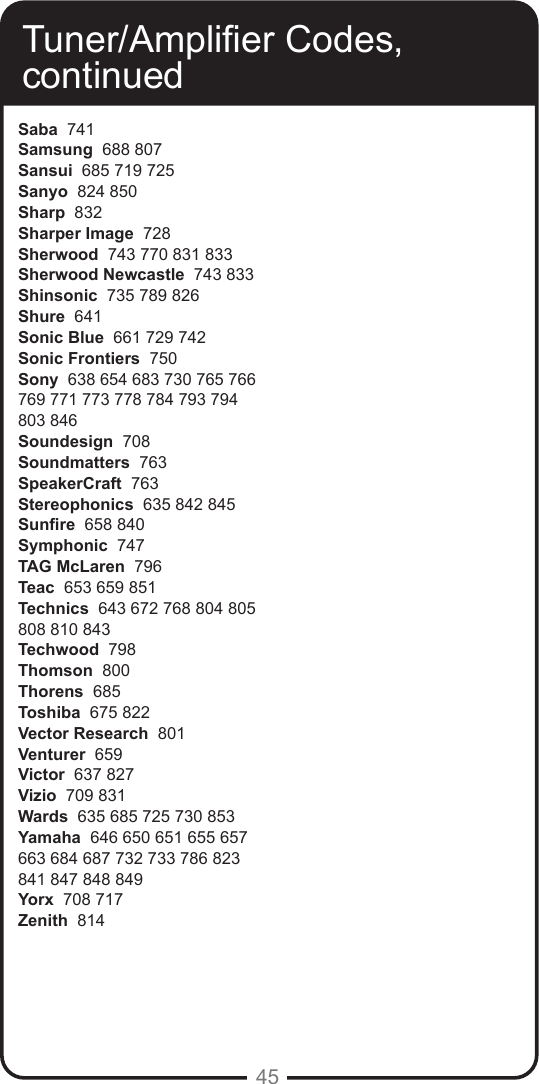

45Tuner/Amplier Codes, continuedSaba 741Samsung 688 807Sansui 685 719 725Sanyo 824 850Sharp 832 Sharper Image 728Sherwood 743 770 831 833Sherwood Newcastle 743 833Shinsonic 735 789 826Shure 641Sonic Blue 661 729 742Sonic Frontiers 750Sony 638 654 683 730 765 766 769 771 773 778 784 793 794 803 846Soundesign 708Soundmatters 763SpeakerCraft 763Stereophonics 635 842 845Sunre 658 840Symphonic 747TAG McLaren 796Teac 653 659 851Technics 643 672 768 804 805 808 810 843Techwood 798Thomson 800Thorens 685Toshiba 675 822Vector Research 801Venturer 659Victor 637 827Vizio 709 831Wards 635 685 725 730 853Yamaha 646 650 651 655 657 663 684 687 732 733 786 823 841 847 848 849Yorx 708 717Zenith 814

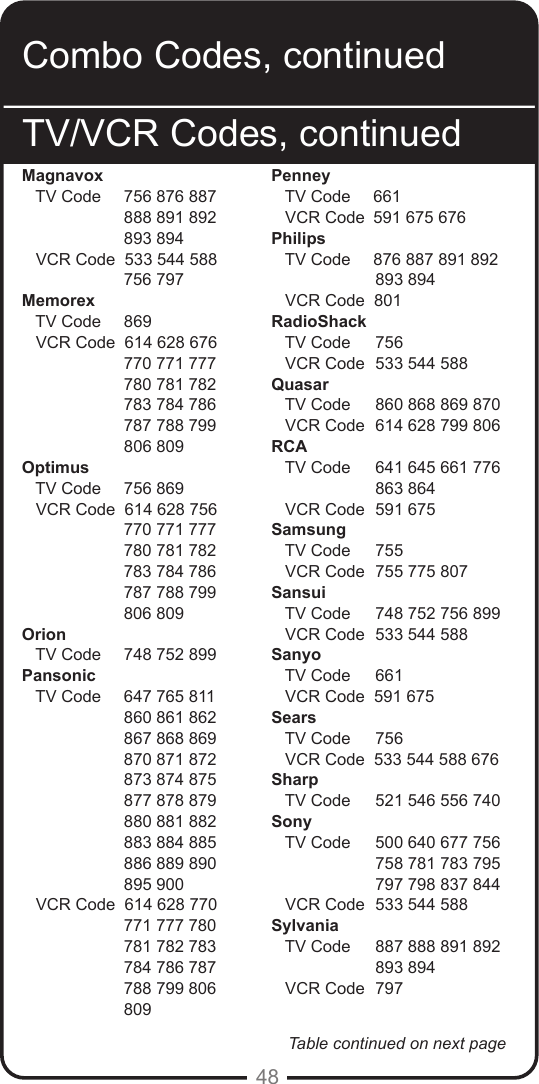

48Magnavox TV Code 756 876 887 888 891 892 893 894 VCR Code 533 544 588 756 797Memorex TV Code 869 VCR Code 614 628 676 770 771 777 780 781 782 783 784 786 787 788 799 806 809Optimus TV Code 756 869 VCR Code 614 628 756 770 771 777 780 781 782 783 784 786 787 788 799 806 809 Orion TV Code 748 752 899Pansonic TV Code 647 765 811 860 861 862 867 868 869 870 871 872 873 874 875 877 878 879 880 881 882 883 884 885 886 889 890 895 900 VCR Code 614 628 770 771 777 780 781 782 783 784 786 787 788 799 806 809Penney TV Code 661 VCR Code 591 675 676Philips TV Code 876 887 891 892 893 894 VCR Code 801RadioShack TV Code 756 VCR Code 533 544 588Quasar TV Code 860 868 869 870 VCR Code 614 628 799 806RCA TV Code 641 645 661 776 863 864 VCR Code 591 675Samsung TV Code 755 VCR Code 755 775 807Sansui TV Code 748 752 756 899 VCR Code 533 544 588Sanyo TV Code 661 VCR Code 591 675Sears TV Code 756 VCR Code 533 544 588 676Sharp TV Code 521 546 556 740Sony TV Code 500 640 677 756 758 781 783 795 797 798 837 844 VCR Code 533 544 588 Sylvania TV Code 887 888 891 892 893 894 VCR Code 797Table continued on next pageCombo Codes, continuedTV/VCR Codes, continued

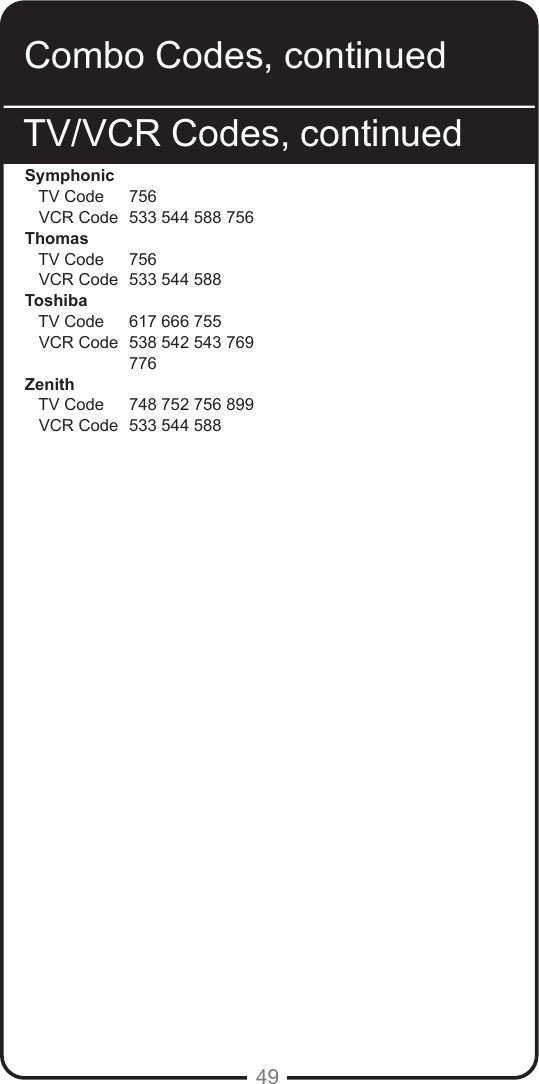

49Symphonic TV Code 756 VCR Code 533 544 588 756Thomas TV Code 756 VCR Code 533 544 588Toshiba TV Code 617 666 755 VCR Code 538 542 543 769 776Zenith TV Code 748 752 756 899 VCR Code 533 544 588Combo Codes, continuedTV/VCR Codes, continued

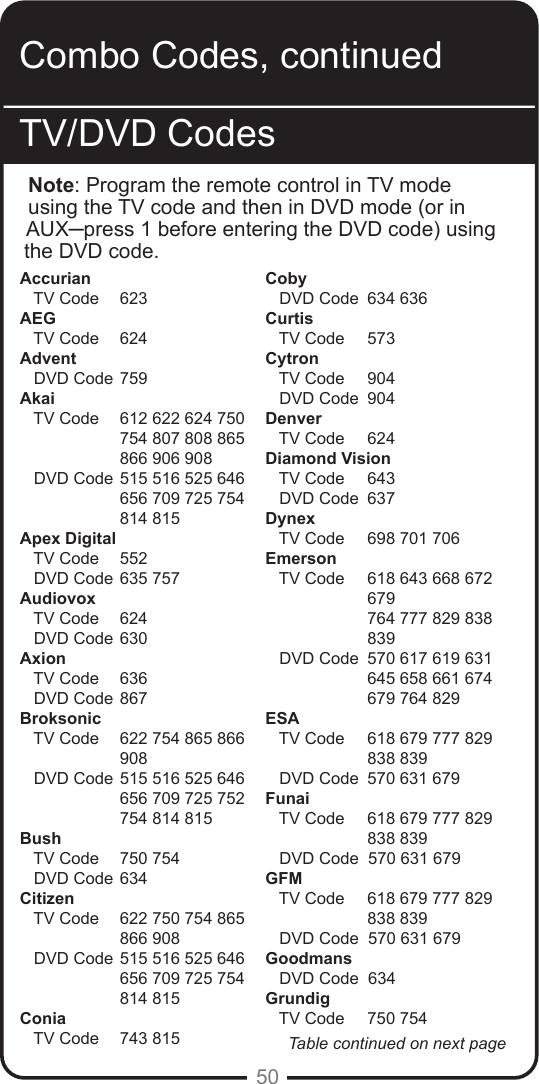

50Combo Codes, continuedAccurian TV Code 623AEG TV Code 624Advent DVD Code 759Akai TV Code 612 622 624 750 754 807 808 865 866 906 908 DVD Code 515 516 525 646 656 709 725 754 814 815Apex Digital TV Code 552 DVD Code 635 757Audiovox TV Code 624 DVD Code 630Axion TV Code 636 DVD Code 867Broksonic TV Code 622 754 865 866 908 DVD Code 515 516 525 646 656 709 725 752 754 814 815Bush TV Code 750 754 DVD Code 634Citizen TV Code 622 750 754 865 866 908 DVD Code 515 516 525 646 656 709 725 754 814 815Conia TV Code 743 815TV/DVD CodesNote: Program the remote control in TV mode using the TV code and then in DVD mode (or in AUX─press 1 before entering the DVD code) using the DVD code.Coby DVD Code 634 636Curtis TV Code 573Cytron TV Code 904 DVD Code 904Denver TV Code 624Diamond Vision TV Code 643 DVD Code 637Dynex TV Code 698 701 706Emerson TV Code 618 643 668 672 679 764 777 829 838 839 DVD Code 570 617 619 631 645 658 661 674 679 764 829ESA TV Code 618 679 777 829 838 839 DVD Code 570 631 679Funai TV Code 618 679 777 829 838 839 DVD Code 570 631 679 GFM TV Code 618 679 777 829 838 839 DVD Code 570 631 679Goodmans DVD Code 634Grundig TV Code 750 754Table continued on next page

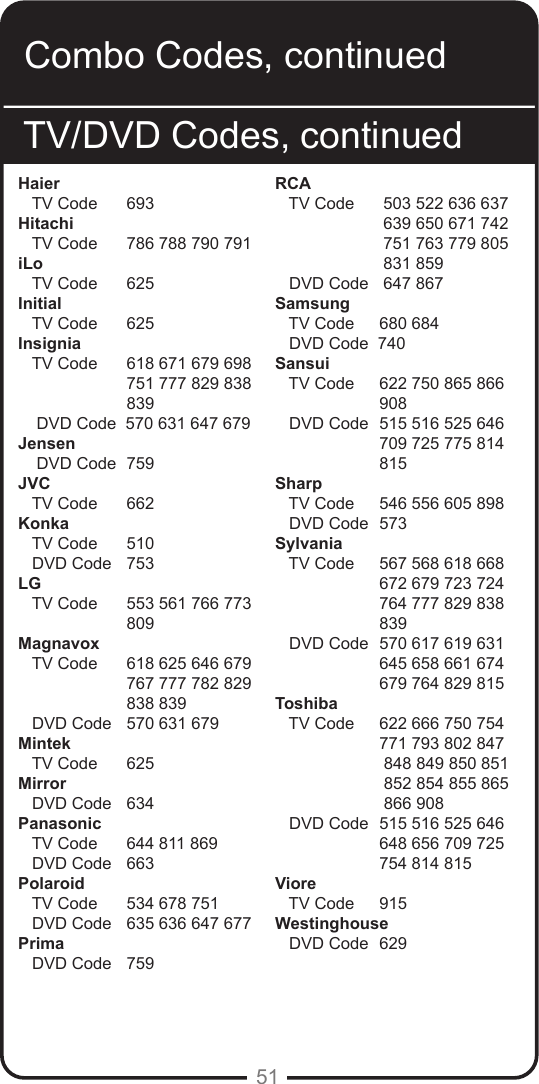

51Haier TV Code 693Hitachi TV Code 786 788 790 791iLo TV Code 625Initial TV Code 625Insignia TV Code 618 671 679 698 751 777 829 838 839 DVD Code 570 631 647 679 Jensen DVD Code 759JVC TV Code 662Konka TV Code 510 DVD Code 753LG TV Code 553 561 766 773 809Magnavox TV Code 618 625 646 679 767 777 782 829 838 839 DVD Code 570 631 679Mintek TV Code 625Mirror DVD Code 634Panasonic TV Code 644 811 869 DVD Code 663Polaroid TV Code 534 678 751 DVD Code 635 636 647 677Prima DVD Code 759RCA TV Code 503 522 636 637 639 650 671 742 751 763 779 805 831 859 DVD Code 647 867Samsung TV Code 680 684 DVD Code 740Sansui TV Code 622 750 865 866 908 DVD Code 515 516 525 646 709 725 775 814 815Sharp TV Code 546 556 605 898 DVD Code 573Sylvania TV Code 567 568 618 668 672 679 723 724 764 777 829 838 839 DVD Code 570 617 619 631 645 658 661 674 679 764 829 815Toshiba TV Code 622 666 750 754 771 793 802 847 848 849 850 851 852 854 855 865 866 908 DVD Code 515 516 525 646 648 656 709 725 754 814 815Viore TV Code 915Westinghouse DVD Code 629Combo Codes, continuedTV/DVD Codes, continued

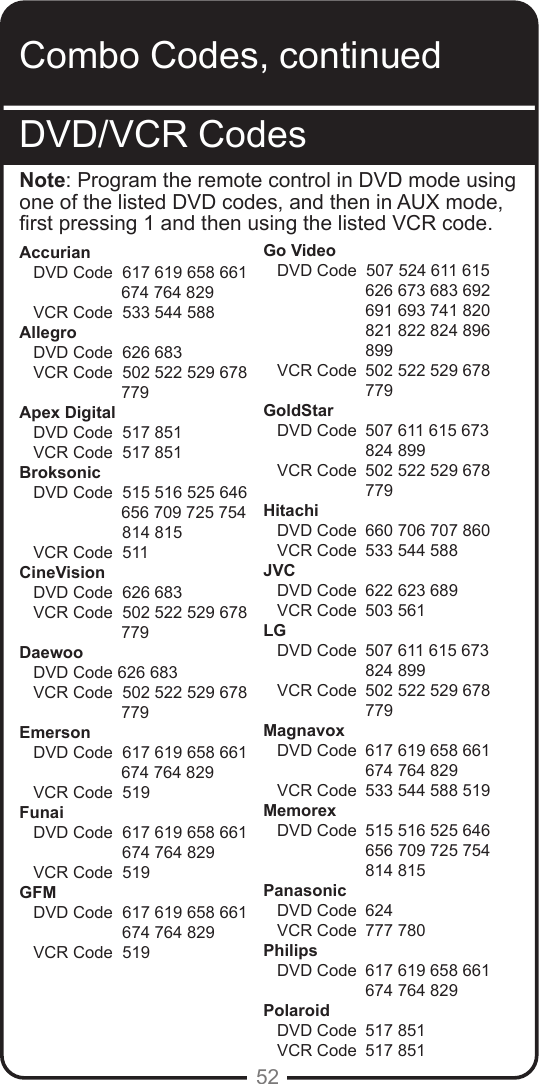

52DVD/VCR CodesCombo Codes, continuedNote: Program the remote control in DVD mode using one of the listed DVD codes, and then in AUX mode, rst pressing 1 and then using the listed VCR code.Accurian DVD Code 617 619 658 661 674 764 829 VCR Code 533 544 588Allegro DVD Code 626 683 VCR Code 502 522 529 678 779Apex Digital DVD Code 517 851 VCR Code 517 851Broksonic DVD Code 515 516 525 646 656 709 725 754 814 815 VCR Code 511CineVision DVD Code 626 683 VCR Code 502 522 529 678 779Daewoo DVD Code 626 683 VCR Code 502 522 529 678 779Emerson DVD Code 617 619 658 661 674 764 829 VCR Code 519Funai DVD Code 617 619 658 661 674 764 829 VCR Code 519GFM DVD Code 617 619 658 661 674 764 829 VCR Code 519Go Video DVD Code 507 524 611 615 626 673 683 692 691 693 741 820 821 822 824 896 899 VCR Code 502 522 529 678 779GoldStar DVD Code 507 611 615 673 824 899 VCR Code 502 522 529 678 779Hitachi DVD Code 660 706 707 860 VCR Code 533 544 588JVC DVD Code 622 623 689 VCR Code 503 561LG DVD Code 507 611 615 673 824 899 VCR Code 502 522 529 678 779Magnavox DVD Code 617 619 658 661 674 764 829 VCR Code 533 544 588 519Memorex DVD Code 515 516 525 646 656 709 725 754 814 815Panasonic DVD Code 624 VCR Code 777 780Philips DVD Code 617 619 658 661 674 764 829Polaroid DVD Code 517 851 VCR Code 517 851

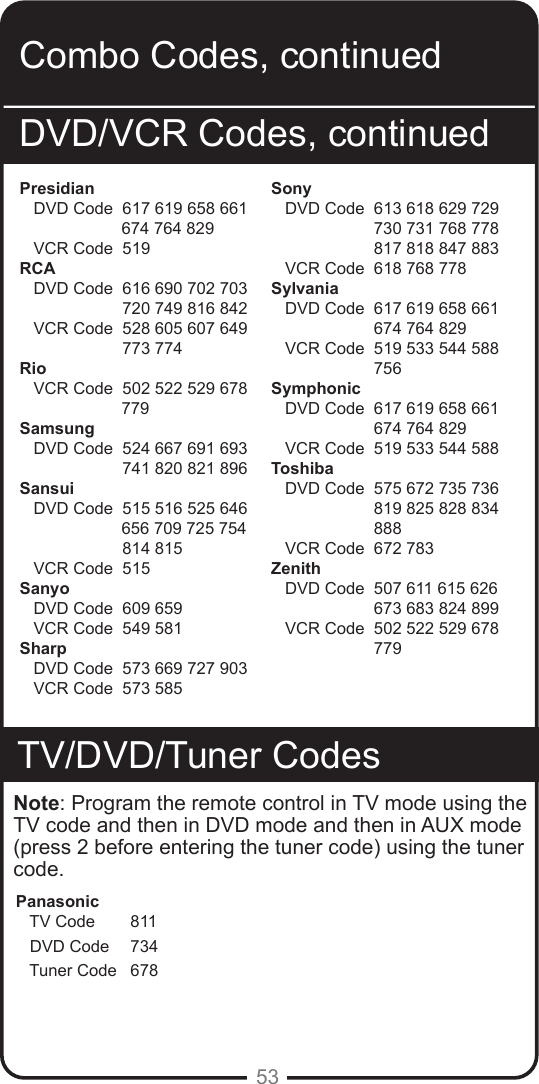

53Combo Codes, continuedDVD/VCR Codes, continuedTV/DVD/Tuner CodesNote: Program the remote control in TV mode using the TV code and then in DVD mode and then in AUX mode (press 2 before entering the tuner code) using the tuner code.Panasonic TV Code 811 DVD Code 734 Tuner Code 678 Presidian DVD Code 617 619 658 661 674 764 829 VCR Code 519RCA DVD Code 616 690 702 703 720 749 816 842 VCR Code 528 605 607 649 773 774Rio VCR Code 502 522 529 678 779Samsung DVD Code 524 667 691 693 741 820 821 896Sansui DVD Code 515 516 525 646 656 709 725 754 814 815 VCR Code 515Sanyo DVD Code 609 659 VCR Code 549 581Sharp DVD Code 573 669 727 903 VCR Code 573 585 Sony DVD Code 613 618 629 729 730 731 768 778 817 818 847 883 VCR Code 618 768 778Sylvania DVD Code 617 619 658 661 674 764 829 VCR Code 519 533 544 588 756 Symphonic DVD Code 617 619 658 661 674 764 829 VCR Code 519 533 544 588Toshiba DVD Code 575 672 735 736 819 825 828 834 888 VCR Code 672 783Zenith DVD Code 507 611 615 626 673 683 824 899 VCR Code 502 522 529 678 779

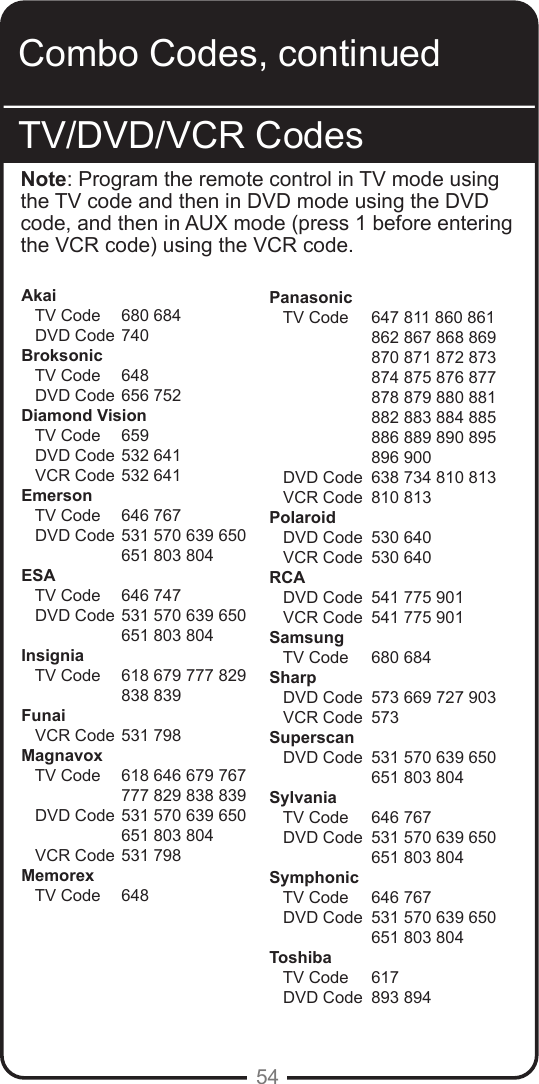

54Akai TV Code 680 684 DVD Code 740Broksonic TV Code 648 DVD Code 656 752Diamond Vision TV Code 659 DVD Code 532 641 VCR Code 532 641Emerson TV Code 646 767 DVD Code 531 570 639 650 651 803 804ESA TV Code 646 747 DVD Code 531 570 639 650 651 803 804Insignia TV Code 618 679 777 829 838 839Funai VCR Code 531 798Magnavox TV Code 618 646 679 767 777 829 838 839 DVD Code 531 570 639 650 651 803 804 VCR Code 531 798Memorex TV Code 648Panasonic TV Code 647 811 860 861 862 867 868 869 870 871 872 873 874 875 876 877 878 879 880 881 882 883 884 885 886 889 890 895 896 900 DVD Code 638 734 810 813 VCR Code 810 813Polaroid DVD Code 530 640 VCR Code 530 640RCA DVD Code 541 775 901 VCR Code 541 775 901Samsung TV Code 680 684Sharp DVD Code 573 669 727 903 VCR Code 573Superscan DVD Code 531 570 639 650 651 803 804Sylvania TV Code 646 767 DVD Code 531 570 639 650 651 803 804Symphonic TV Code 646 767 DVD Code 531 570 639 650 651 803 804Toshiba TV Code 617 DVD Code 893 894 TV/DVD/VCR CodesNote: Program the remote control in TV mode using the TV code and then in DVD mode using the DVD code, and then in AUX mode (press 1 before entering the VCR code) using the VCR code.Combo Codes, continued

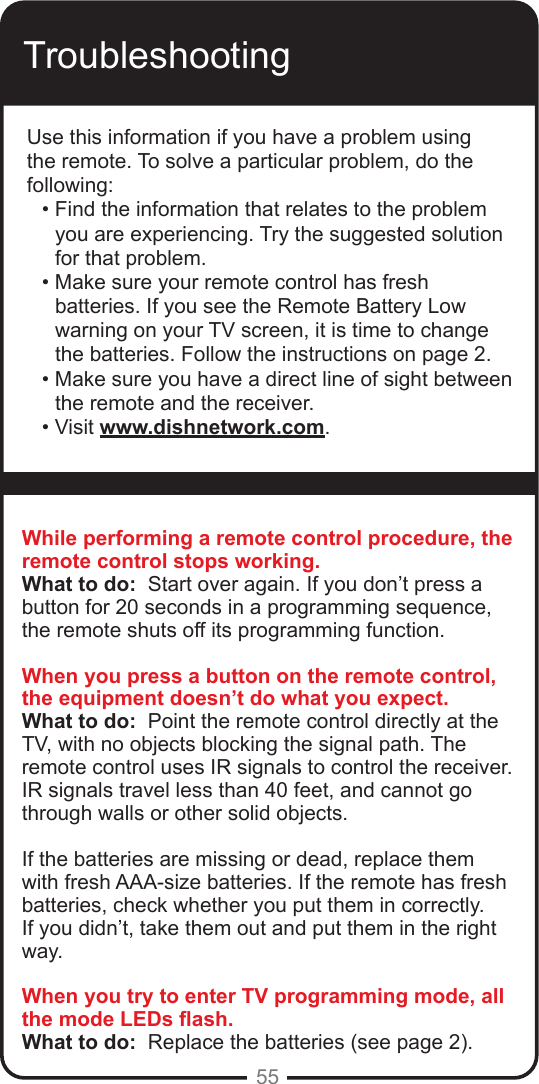

55TroubleshootingUse this information if you have a problem using the remote. To solve a particular problem, do the following:• Find the information that relates to the problem you are experiencing. Try the suggested solution for that problem.• Make sure your remote control has fresh batteries. If you see the Remote Battery Low warning on your TV screen, it is time to change the batteries. Follow the instructions on page 2.• Make sure you have a direct line of sight between the remote and the receiver.• Visit www.dishnetwork.com.While performing a remote control procedure, the remote control stops working.What to do: Start over again. If you don’t press a button for 20 seconds in a programming sequence, the remote shuts off its programming function.When you press a button on the remote control, the equipment doesn’t do what you expect.What to do: Point the remote control directly at the TV, with no objects blocking the signal path. The remote control uses IR signals to control the receiver. IR signals travel less than 40 feet, and cannot go through walls or other solid objects.If the batteries are missing or dead, replace them with fresh AAA-size batteries. If the remote has fresh batteries, check whether you put them in correctly. If you didn’t, take them out and put them in the right way.When you try to enter TV programming mode, all the mode LEDs ash.What to do: Replace the batteries (see page 2).

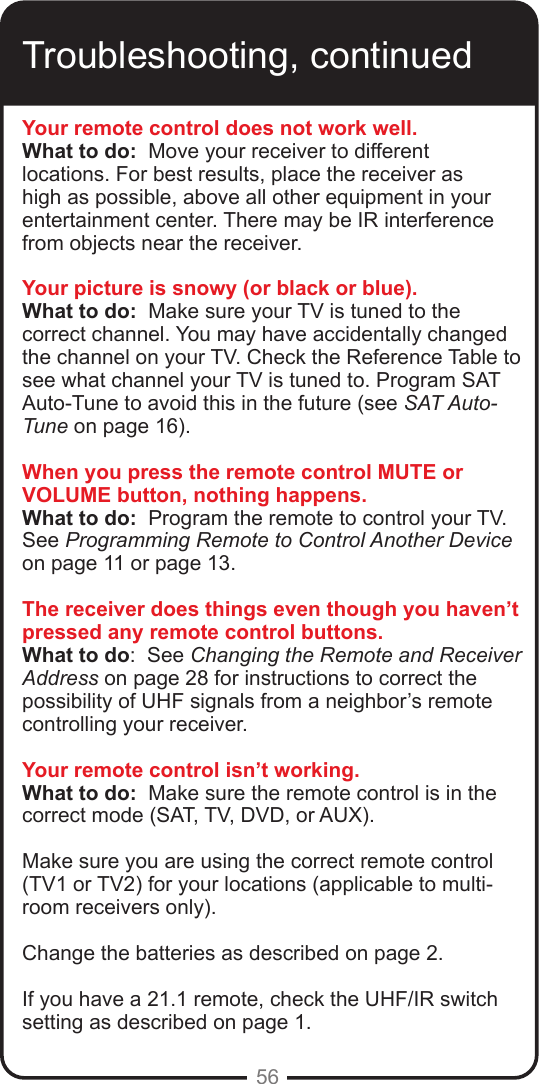

56Troubleshooting, continuedYour remote control does not work well.What to do: Move your receiver to different locations. For best results, place the receiver as high as possible, above all other equipment in your entertainment center. There may be IR interference from objects near the receiver.Your picture is snowy (or black or blue).What to do: Make sure your TV is tuned to the correct channel. You may have accidentally changed the channel on your TV. Check the Reference Table to see what channel your TV is tuned to. Program SAT Auto-Tune to avoid this in the future (see SAT Auto-Tune on page 16).When you press the remote control MUTE or VOLUME button, nothing happens.What to do: Program the remote to control your TV. See Programming Remote to Control Another Device on page 11 or page 13.The receiver does things even though you haven’t pressed any remote control buttons.What to do: See Changing the Remote and Receiver Address on page 28 for instructions to correct the possibility of UHF signals from a neighbor’s remote controlling your receiver.Your remote control isn’t working.What to do: Make sure the remote control is in the correct mode (SAT, TV, DVD, or AUX). Make sure you are using the correct remote control (TV1 or TV2) for your locations (applicable to multi-room receivers only). Change the batteries as described on page 2. If you have a 21.1 remote, check the UHF/IR switch setting as described on page 1.

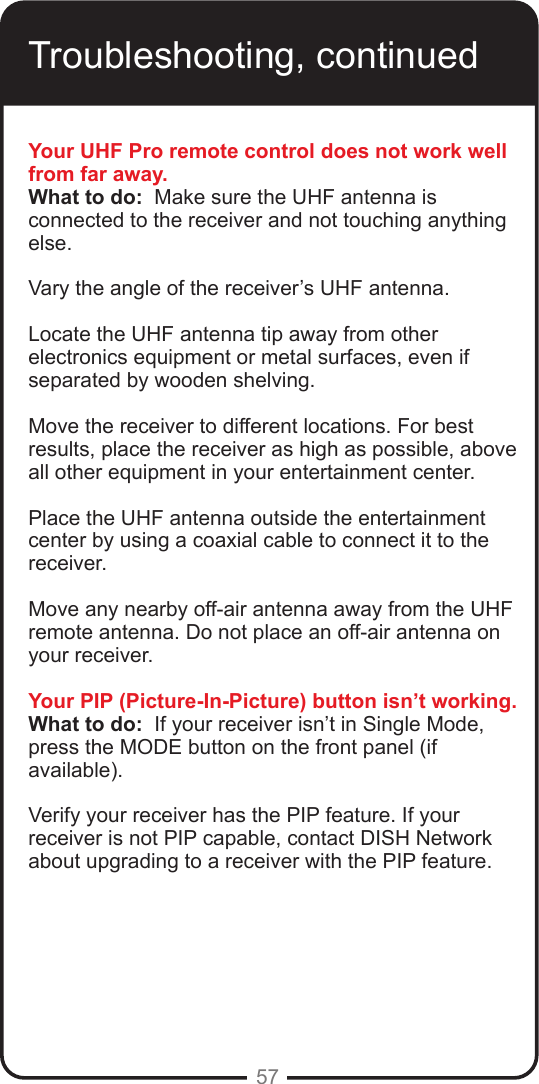

57Troubleshooting, continuedYour UHF Pro remote control does not work well from far away.What to do: Make sure the UHF antenna is connected to the receiver and not touching anything else. Vary the angle of the receiver’s UHF antenna. Locate the UHF antenna tip away from other electronics equipment or metal surfaces, even if separated by wooden shelving. Move the receiver to different locations. For best results, place the receiver as high as possible, above all other equipment in your entertainment center.Place the UHF antenna outside the entertainment center by using a coaxial cable to connect it to the receiver.Move any nearby off-air antenna away from the UHF remote antenna. Do not place an off-air antenna on your receiver.Your PIP (Picture-In-Picture) button isn’t working.What to do: If your receiver isn’t in Single Mode, press the MODE button on the front panel (if available). Verify your receiver has the PIP feature. If your receiver is not PIP capable, contact DISH Network about upgrading to a receiver with the PIP feature.

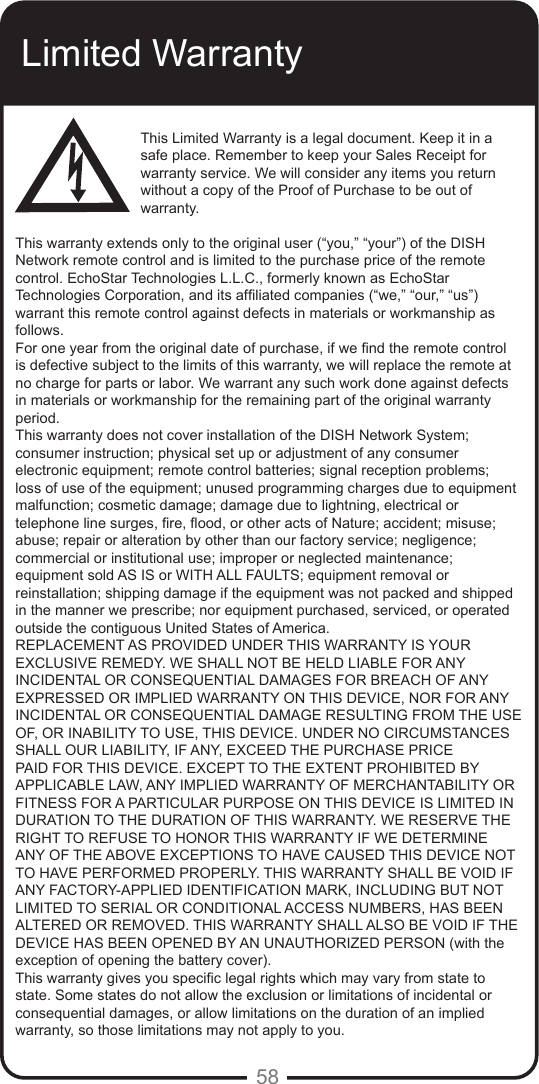

58Limited WarrantyThis Limited Warranty is a legal document. Keep it in a safe place. Remember to keep your Sales Receipt for warranty service. We will consider any items you return without a copy of the Proof of Purchase to be out of warranty.This warranty extends only to the original user (“you,” “your”) of the DISH Network remote control and is limited to the purchase price of the remote control. EchoStar Technologies L.L.C., formerly known as EchoStar Technologies Corporation, and its afliated companies (“we,” “our,” “us”) warrant this remote control against defects in materials or workmanship as follows.For one year from the original date of purchase, if we nd the remote control is defective subject to the limits of this warranty, we will replace the remote at no charge for parts or labor. We warrant any such work done against defects in materials or workmanship for the remaining part of the original warranty period.This warranty does not cover installation of the DISH Network System; consumer instruction; physical set up or adjustment of any consumer electronic equipment; remote control batteries; signal reception problems; loss of use of the equipment; unused programming charges due to equipment malfunction; cosmetic damage; damage due to lightning, electrical or telephone line surges, re, ood, or other acts of Nature; accident; misuse; abuse; repair or alteration by other than our factory service; negligence; commercial or institutional use; improper or neglected maintenance; equipment sold AS IS or WITH ALL FAULTS; equipment removal or reinstallation; shipping damage if the equipment was not packed and shipped in the manner we prescribe; nor equipment purchased, serviced, or operated outside the contiguous United States of America.REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. WE SHALL NOT BE HELD LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS DEVICE, NOR FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF, OR INABILITY TO USE, THIS DEVICE. UNDER NO CIRCUMSTANCES SHALL OUR LIABILITY, IF ANY, EXCEED THE PURCHASE PRICE PAID FOR THIS DEVICE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS DEVICE IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. WE RESERVE THE RIGHT TO REFUSE TO HONOR THIS WARRANTY IF WE DETERMINE ANY OF THE ABOVE EXCEPTIONS TO HAVE CAUSED THIS DEVICE NOT TO HAVE PERFORMED PROPERLY. THIS WARRANTY SHALL BE VOID IF ANY FACTORY-APPLIED IDENTIFICATION MARK, INCLUDING BUT NOT LIMITED TO SERIAL OR CONDITIONAL ACCESS NUMBERS, HAS BEEN ALTERED OR REMOVED. THIS WARRANTY SHALL ALSO BE VOID IF THE DEVICE HAS BEEN OPENED BY AN UNAUTHORIZED PERSON (with the exception of opening the battery cover).This warranty gives you specic legal rights which may vary from state to state. Some states do not allow the exclusion or limitations of incidental or consequential damages, or allow limitations on the duration of an implied warranty, so those limitations may not apply to you.

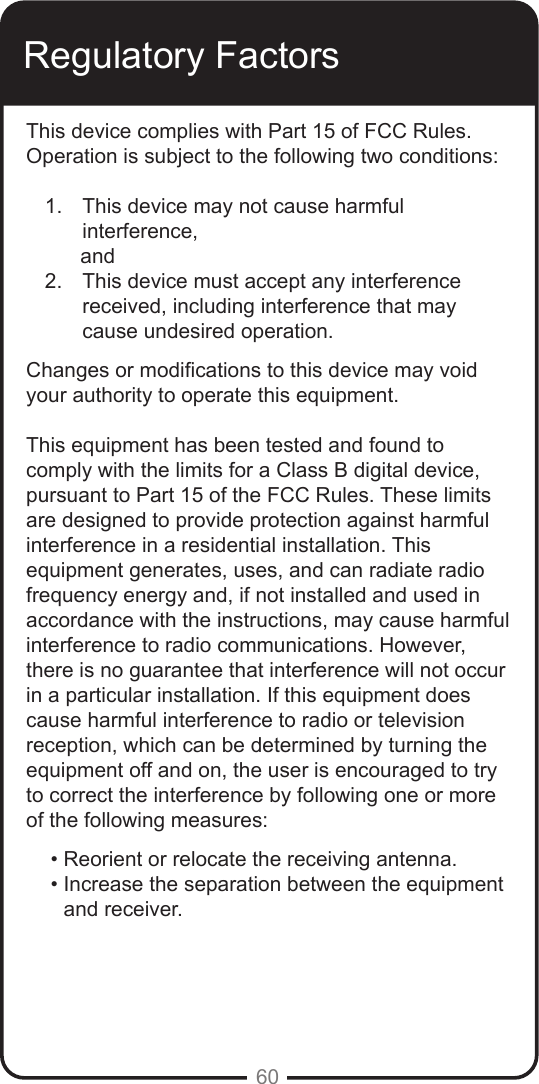

60Regulatory FactorsThis device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation.Changes or modications to this device may void your authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by following one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.

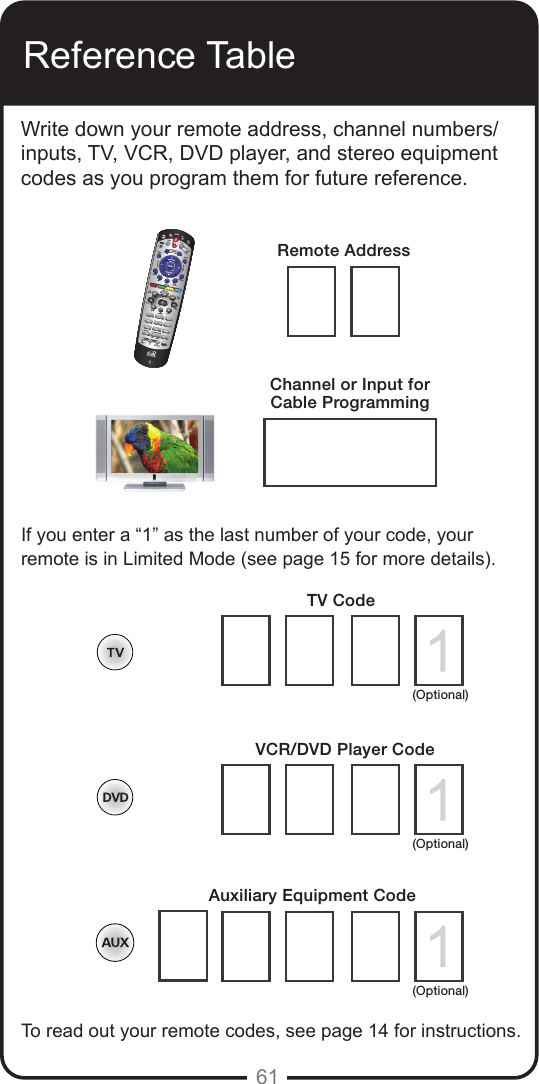

61Reference TableWrite down your remote address, channel numbers/inputs, TV, VCR, DVD player, and stereo equipment codes as you program them for future reference.If you enter a “1” as the last number of your code, your remote is in Limited Mode (see page 15 for more details).To read out your remote codes, see page 14 for instructions.(Optional)(Optional)Remote AddressChannel or Input for Cable ProgrammingTV CodeVCR/DVD Player CodeAuxiliary Equipment Code(Optional)

For all your customer needs,go to www.dishnetwork.com/chat or call the Customer Service center at 1-800-333-DISH (3474)180532
