User Manual
Installation Instructions PAGE:
1
OF
6
1055 Tierra Del Rey
Chula Vista, CA91910
DATE: 12/21/10
H:\lgateno\Customer\EchoStar\FSK_Module\Silabs\FCC\Rev_4\Installation_Instructions_1_20_11.doc
REVISIONS
REV DESCRIPTION CHECK ENG DATE
1.0 Release Leon Gateno 12/10/10
2.0 Add Testing of the module once inside the remote Leon Gateno 1/20/11
REMARKS:
Installation Instructions PAGE:
2
OF
6
1055 Tierra Del Rey
Chula Vista, CA91910
DATE: 12/21/10
H:\lgateno\Customer\EchoStar\FSK_Module\Silabs\FCC\Rev_4\Installation_Instructions_1_20_11.doc
INDEX
1 INTRODUCTION .......................................................................................................................................... 3
2 BLOCK DIAGRAM....................................................................................................................................... 3
3 PICTURES...................................................................................................................................................... 4
4 STATEMENT................................................................................................................................................. 5
Installation Instructions PAGE:
3
OF
6
1055 Tierra Del Rey
Chula Vista, CA91910
DATE: 12/21/10
H:\lgateno\Customer\EchoStar\FSK_Module\Silabs\FCC\Rev_4\Installation_Instructions_1_20_11.doc
1 INTRODUCTION
This document describes the installation of the module into a remote.
2 BLOCK DIAGRAM

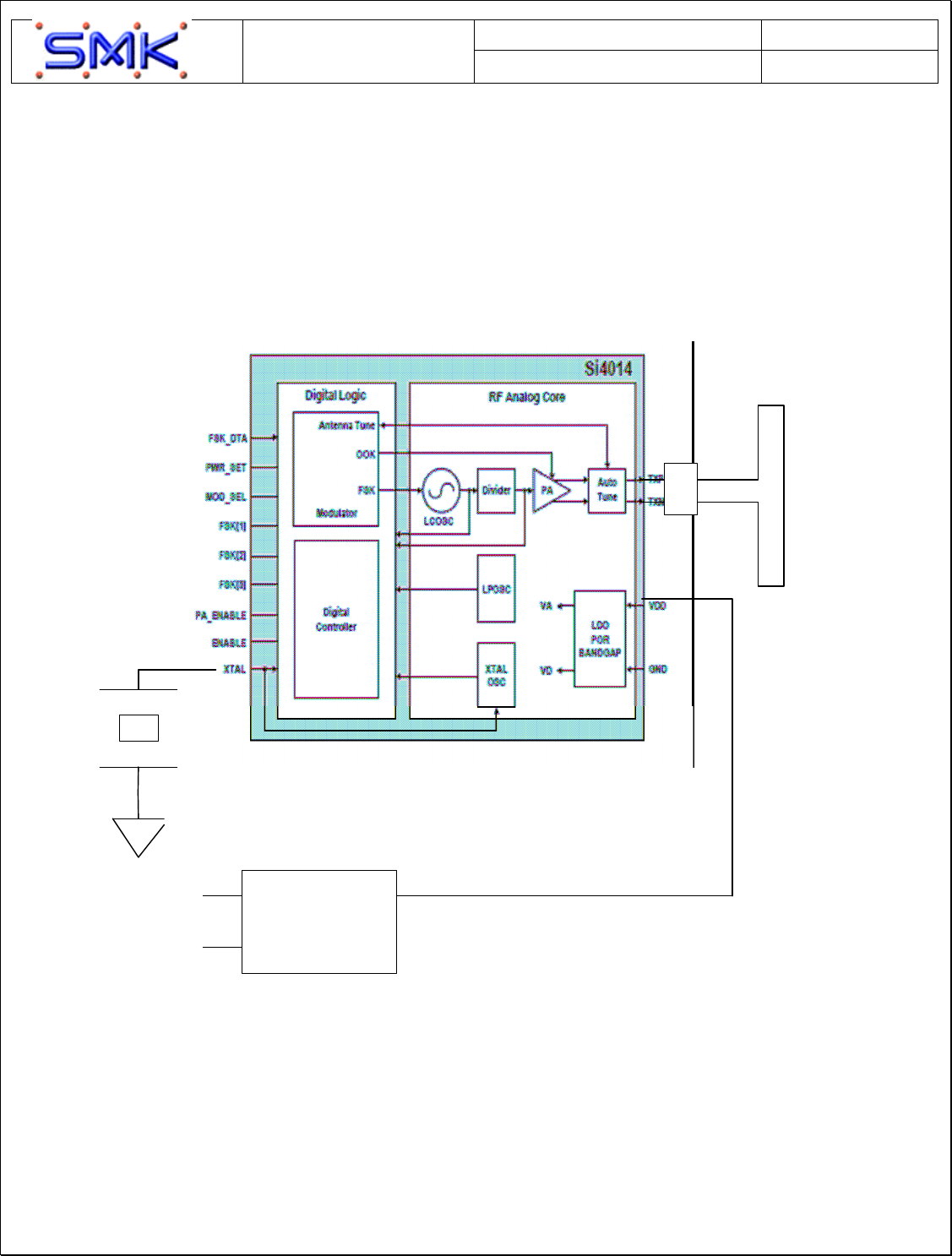

The following is a Block Diagram for the remote:
Linear Regulator 3.0Volts
Vdd in
Enable
Block Digram FSK Module
LG 12/7/10
The block diagram has two sections the BB and the RF. This device is been controlled by the remote control.
The BB consists of a small ASIC that is used to set up registers and control words. These are used for timing
purposes. The BB shares the same reference as the RF, which is a 10MHz crystal.
Installation Instructions PAGE:
4
OF
6
1055 Tierra Del Rey
Chula Vista, CA91910
DATE: 12/21/10
H:\lgateno\Customer\EchoStar\FSK_Module\Silabs\FCC\Rev_4\Installation_Instructions_1_20_11.doc
The RF section consist of the transmitter in the RFIC, the exception of the 10 MHz crystal , internal matching
networks , external filter and antenna.
The module also has a linear regulator with an output of 3 volts.
3 PICTURES

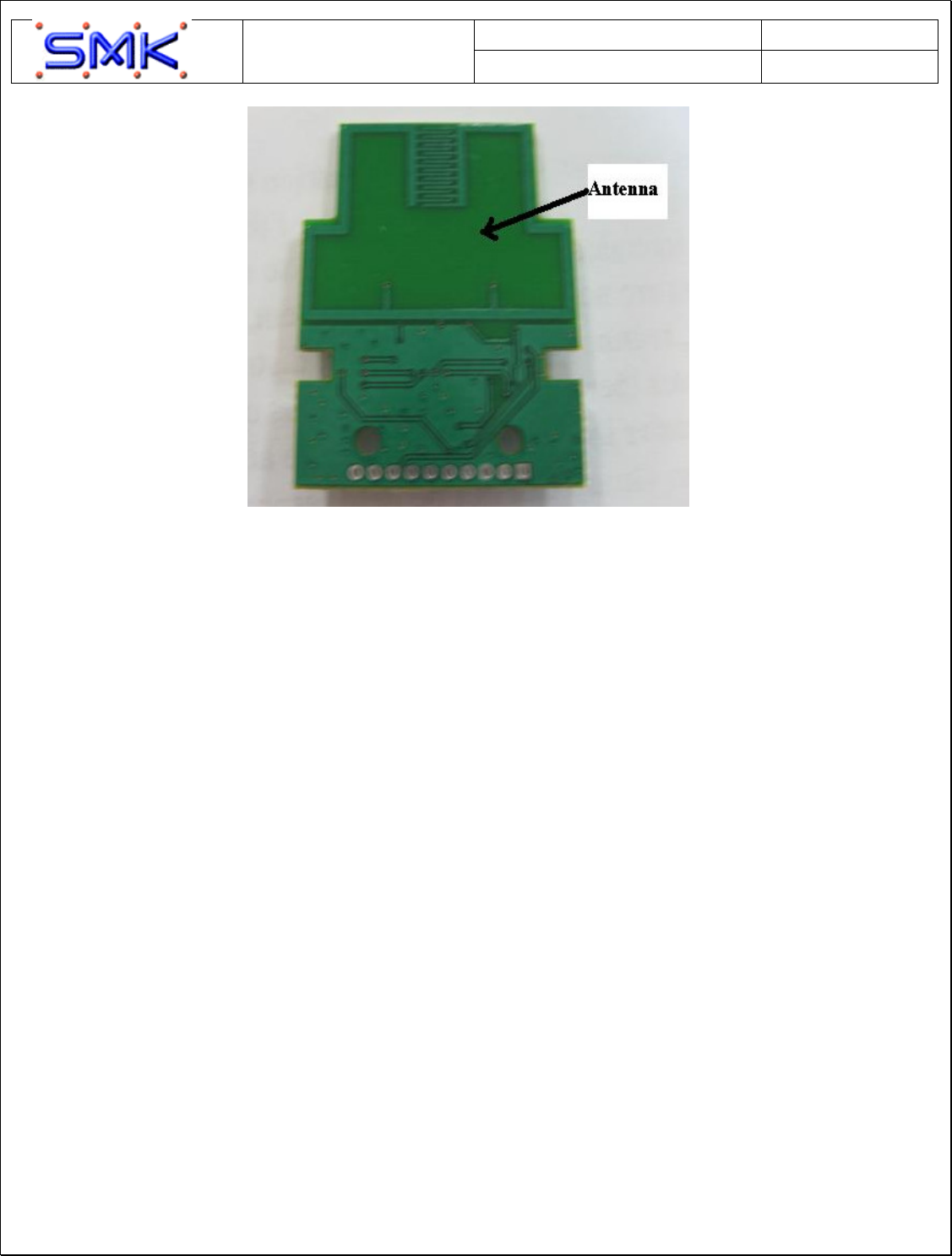

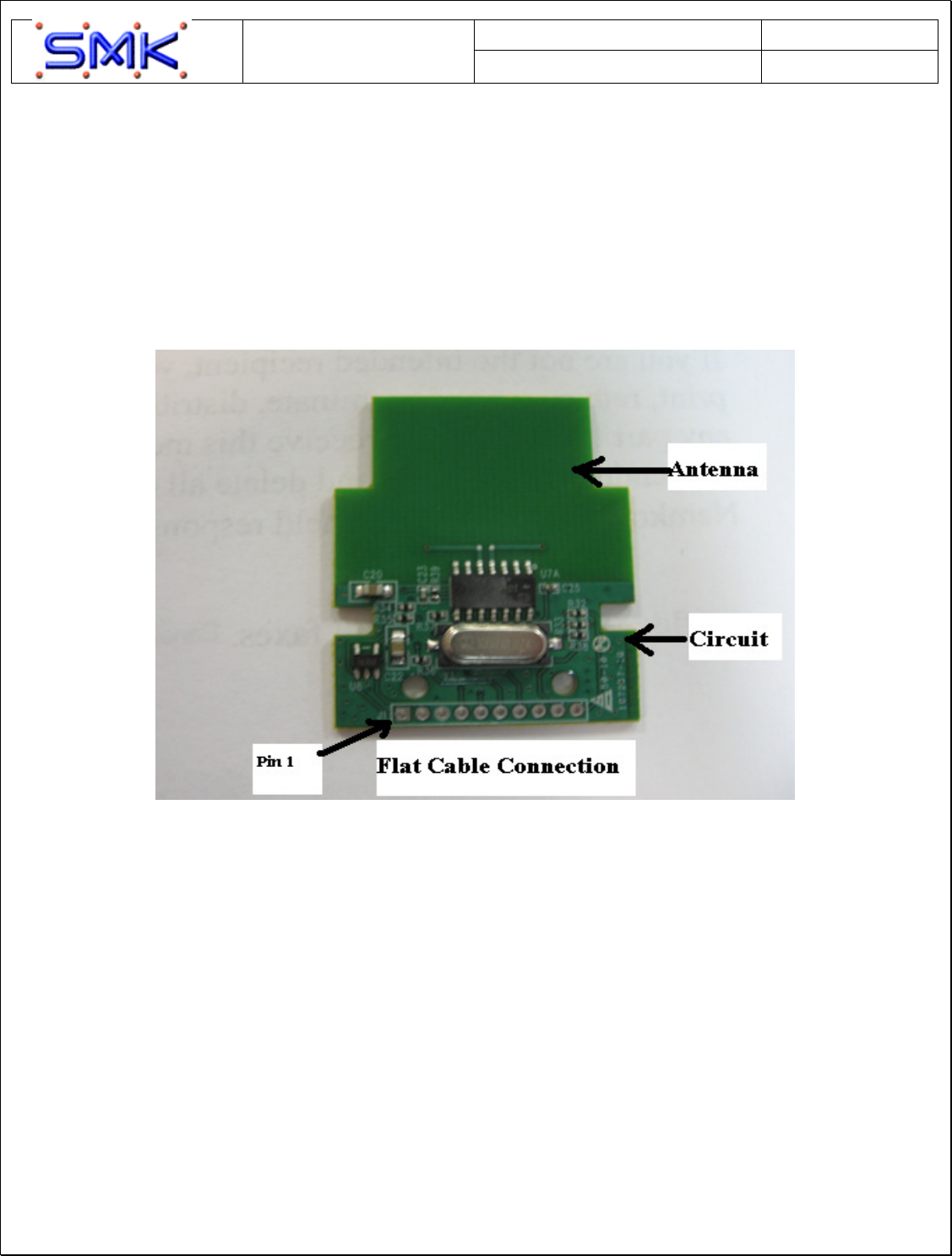

The following pictures describe the Module in terms of its components.
Installation Instructions PAGE:
5
OF
6
1055 Tierra Del Rey
Chula Vista, CA91910
DATE: 12/21/10
H:\lgateno\Customer\EchoStar\FSK_Module\Silabs\FCC\Rev_4\Installation_Instructions_1_20_11.doc
The mother board and the module are connected via the flat ribbon cable.
Steps for the installation of the remote:
a) Connect the pin one of the Remote connector to the pin one of the module. The connection is done via
a flat ribbon cable.
b) Bend the cable in order for the cable to fit in the remote
c) Install the module between the bottom Plastics and the remote.
d) The side with the ribbon cable should be facing towards the remote . The antenna side should face away
from the remote.
e) Once nit is inside the remote test the remote to make sure the module is working properly.
4 STATEMENT
Please make sure that the following statement is part of your owners manual:
INFORMATION TO USER
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
Installation Instructions PAGE:
6
OF
6
1055 Tierra Del Rey
Chula Vista, CA91910
DATE: 12/21/10
H:\lgateno\Customer\EchoStar\FSK_Module\Silabs\FCC\Rev_4\Installation_Instructions_1_20_11.doc
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Industry
Canada license-exempt RSS
standard(s). Operation is subject
to the following two conditions:
(1) this device may not cause
interference, and (2) this device
must accept any interference,
including interference that may
cause undesired operation of the
device.
Le présent appareil est conforme
aux CNR d'Industrie Canada
applicables aux appareils radio
exempts de licence. L'exploitation
est autorisée aux deux conditions
suivantes : (1) l'appareil ne
doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit
accepter tout brouillage
radioélectrique subi, même si le
brouillage est susceptible d'en
compromettre le fonctionnement.
Label the final product with:
Contains: FCC ID: QVEFSK4U
IC: 3683B-FSK4U
