SOAIY TECHNOLOGY S-75 Color Changing Bluetooth Speaker User Manual Users manual
SHENZHEN SOAIY TECHNOLOGY CO.,LTD Color Changing Bluetooth Speaker Users manual
Users manual

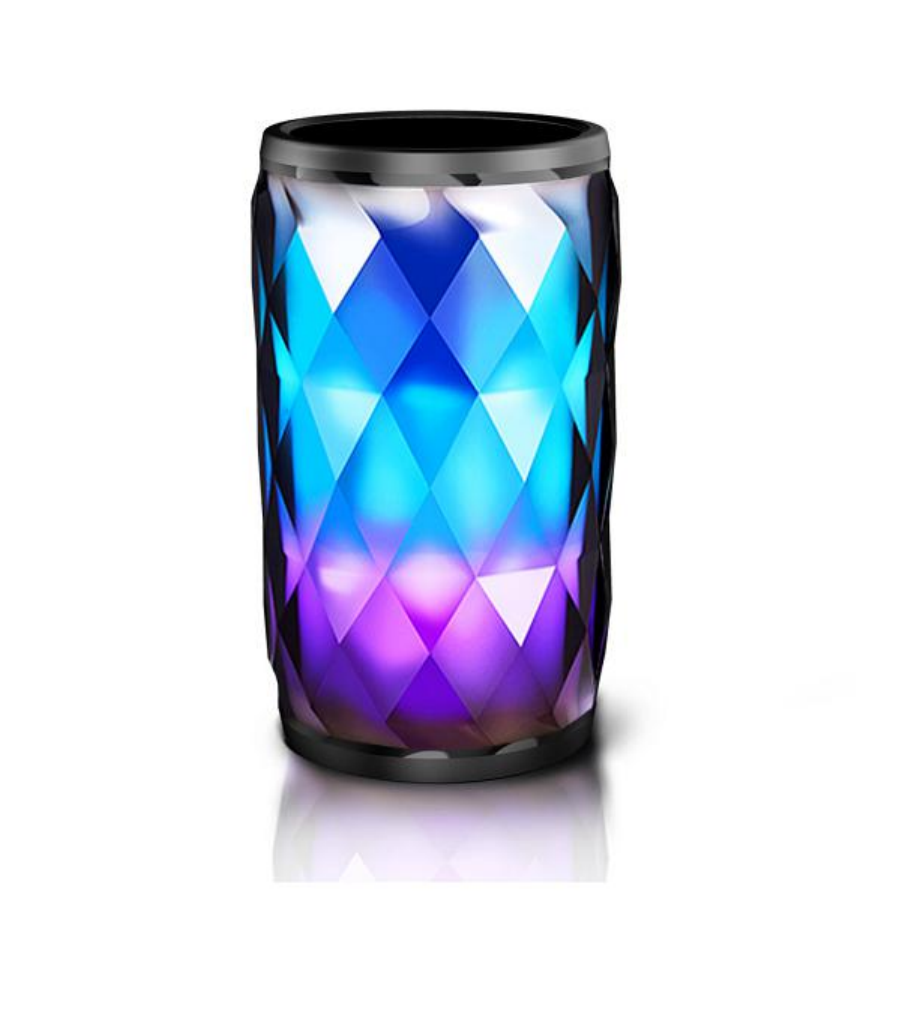

Color Changing Bluetooth Speaker
S-75
Quick Start Guide

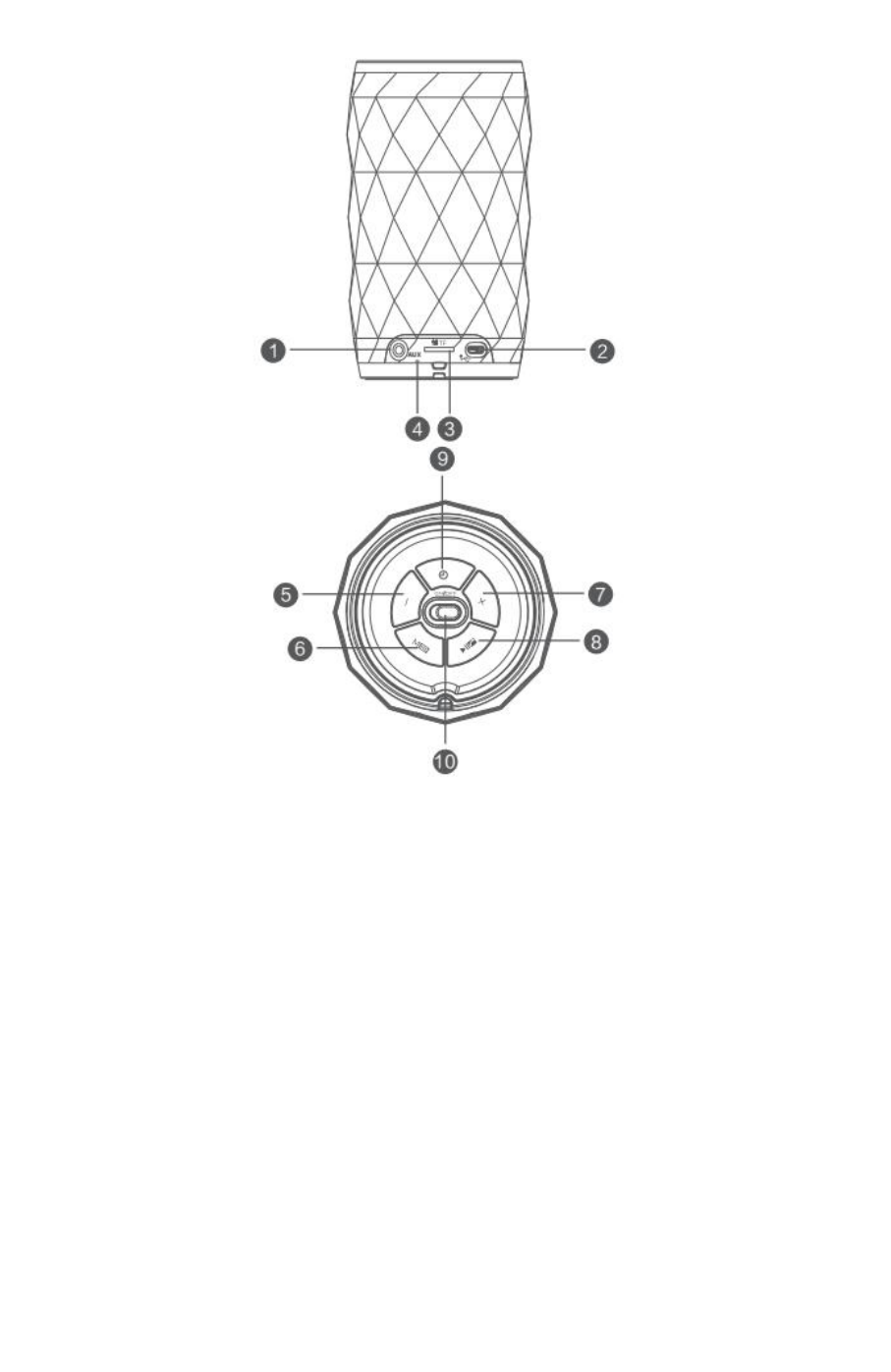

Appearance and Function key
AUX Audio Input
USB Interface
TF Card Slot
④Microphone Hole
⑤Volume Down / Previous Track
⑥Mode Switch/Battery level indicator
⑦Volume Up / Next Track
⑧Pause / Play
⑨Timing Power Off
⑩Power On / Off
Key Function Operation
1. Timing Power Off
Quick press key, green light will flash three times, then it will enter Timing Power
Off mode (last for 20 mins). If you want to cancel Timing Power Off function, please
press and hold it key for 3 seconds, then green light will last for 3 seconds, which
means cancel successfully.
2. “—”
Quick press for Volume-, press and hold it for Previous track.
3. “+”
Quick press for Volume+, press and hold it for Next track.
4. “ ”
Quick press means to switch three modes: Bluetooth, TF Card and AUX in.
Press and hold it , then the green light will be on (There are electricity display
totally 3 levels, if there are 2 levels of green light on, that means electricity is 66%; if
all on, that means full battery.)

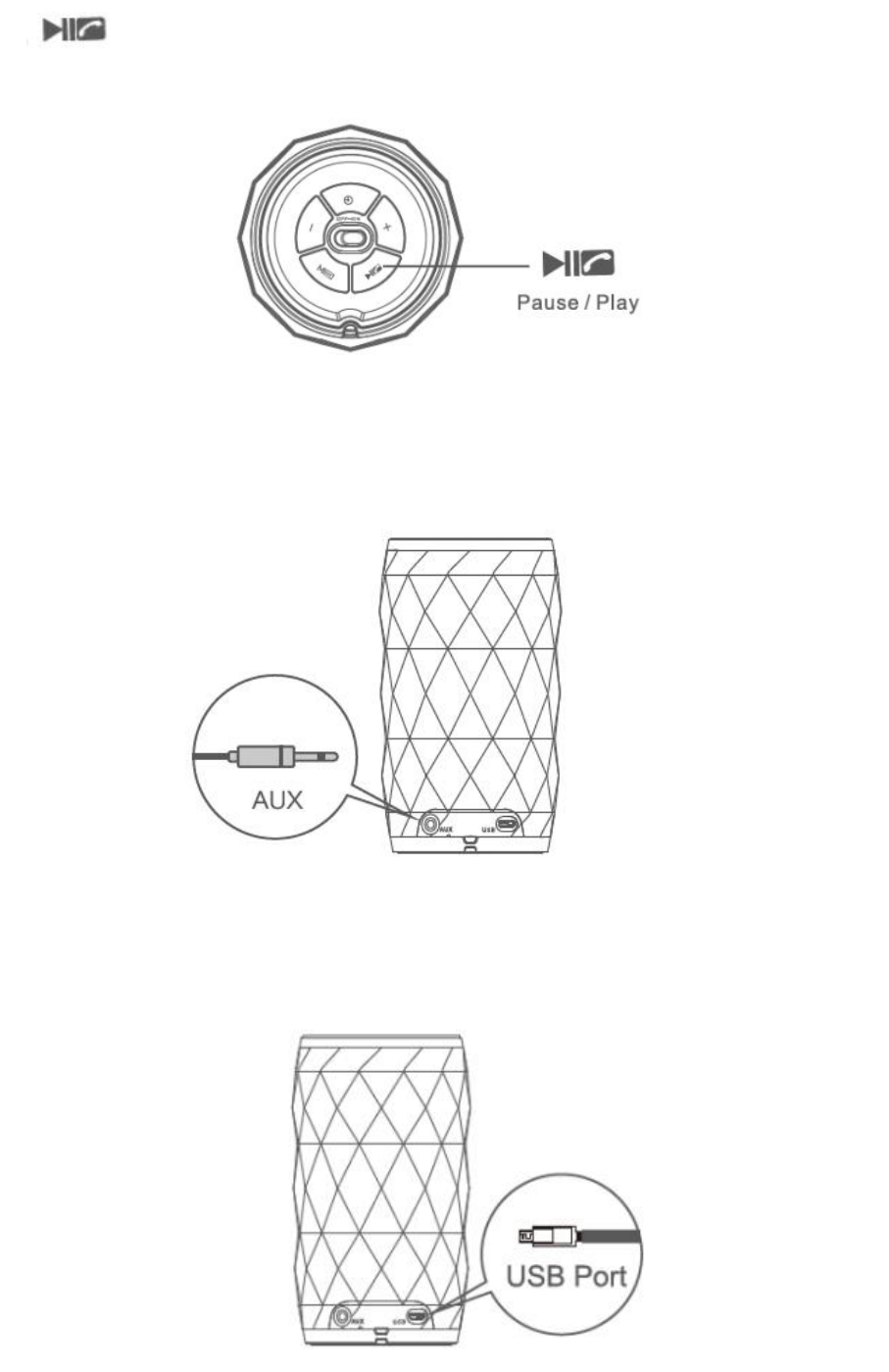

5.“ ”
Quick press Pause/Play key to play music or answer the incoming call. Press and
hold to reject the call.
6. MIC
Microphone for mobile hands free communication.
7. AUX
AUX Audio Input, which can connect with mobile phones or audio source for music
playback.
8. USB
Charging and data input interface, which can connect computer for USB sound card
function.
9. TF card
Insert the TF card into the speaker. It can playback the music files (MP3 format)
stored in the TF card.
10. Light Mode
There are six light modes. You can change the light mode by touching the top of the
speaker.
Gradient (Three colors)
Gradient (Two colors)
Neon
④Pulse with music
⑤Natural transaction between colors
⑥Tetris
P.S. When charging the speaker, the light flashes regularly. When the speaker gets
fully charged, the light mode stops changing colors and becomes three solid green
section. You can also touch the top panel of the speaker to go back to previous light
mode during charging process. Press & hold the top panel of the speaker for three
seconds to turn off this light mode, and press & hold it for three seconds again to turn
on the light.
