SOAIY TECHNOLOGY X6 Bluetooth Speaker User Manual x6
SHENZHEN SOAIY TECHNOLOGY CO.,LTD Bluetooth Speaker x6
User Manual
Bluetooth Speaker
QuickStartGuide
Hold the button for 3 seconds to turn on / off the
device. Speaker will make a sound when powering
on / off.
PowerON/OFFOperation 1
Charging the speaker before first use is recommended.
Speaker will power off after 5 minutes of inactivity.
Bluetooth Connection Operation 2
X6
Bluetooth Pairing: First Pairing (a)
(Can use the reset button to clear any existing
connections)
1) Turn on Bluetooth on phone/pc/tablet/etc...
2) Turn on Speaker (Make sure speaker has power)
3) Search for Bluetooth signal name: X6 (On your device)
4) Tap on X6 on the screen
Android users may need to reset phone if both channels
are unable to connect.
Connect the speaker with your mobile device via Bluetooth. Short Press button to answer the phone
call.After answering the call, press again to end the phone call.Double tap to reject a call.
Bluetooth button functions depends upon the Application and Operating System of Phone.
Pause/ Play
Keys Function Operation 3
Quick Press (less than 1 second) to
switch to the next song.
Press and hold to increase volume.
Song skipping is not available for
Auxiliary Cable (Aux mode)
Keys Function Operation 4
Quick Press (less than 1 second) to switch to
the previous song.
Press and hold to decrease volume.
Song skipping is not available for Auxiliary
Cable (Aux mode)
Keys Function Operation 5
Charging............
Pairing...............
Paired................
Fully Charged....
Indicator LED Lights 6
Flashing Red
Flashing Red and Blue
Solid Blue
Solid Red
30cm
Microphone Hole
To improve call quality, stay within 30cm from the microphone.
Calling from the same room may cause interference in sound quality.
7
Battery LED Indicators 8
Three Solid LED Indicators:
Battery is fully charged.
Two Solid LED Indicators:
Battery capacity is around
60%.
One Solid LED Indicator:
Battery capacity is less than
30%.
Recharging recommended.
AUXaudioinput
Reset button
Micro-USB charge input
Under the Dust Cover 9
AUX IN
Connect your device to the speaker with the
auxiliary cable.
Speaker volume buttons are functional.
Pause/Play button depends upon the operating
system of the phone.
Auxiliary connection drains the phone's battery
slower.
10
Reset Switch
Press reset button with the help of a
paper clip or something similar.
Reset will reset the speaker and
Bluetooth connection.
11
USB Interface
It is possible to charge from
a computer.
Computer's USB is generally
the slowest method.
Charging slowly means a
longer lasting battery.
USB is fairly universal as most USB plugs have
already been converted for 5V. Always check with
power source.
12
Charging is possible through: Computer, Power Bank,
Car Charger, Wall plug.
Package Contents
User Guide
X6 3.5mm Audio Cable
Micro-USB to USB Charge Cable
13
User Guide X6

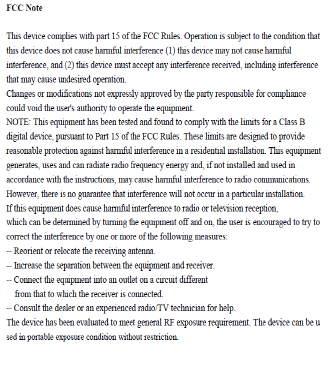

FCC ID: 2AECY-X6
Technical Data 14
Bluetooth Version 2.1+EDR Frequency Response 80Hz to 19KHz
OutputPower 3.5W+3.5WRMS Maximum SPL 88dB
Impedance 4ΩNetweight 210g
Dimension Chargingtime 2~3hours
Battery Playtime
L145*W30 *H66.3 mm
Li-ion battery
3.7V 1000mAh
5 hours
(default volume)
!Important Safety Instructions
ADD: 2&4/F,Bldg D,Fuxinlin Industrial park,Hangcheng Industrial
Zone,Xixiang Street,Bao’an District,Shenzhen,China
Website:www.soaiyaudio.com
Email:sales@soaiyaudio.com
Supervised by GuangzhouSoaiy Digital Technology Co.,Ltd
Manufactured by Shenzhen Soaiy Technology Co.,Ltd
www.soaiyaudio.com
▶If do not use this speaker for long time, please charge at least once within one month, in order to
prevent the lithium battery from causing and damaging because of excessive consumption.
▶Keep the speaker away from any sources of heat,and keep away from water.
▶Adjust the volume to a suitable level so as to avoid damaging your hearing, or the unit itself.
▶The red indicator will flash when the battery is low,Please charge the speaker in time.
