TBOS-II™ FIELD TRANSMITTER  Field transmitter (Radio/IR compatible) 868 (EU, South Africa)915 (US, Canada, Mexico, Australia)DRAFT

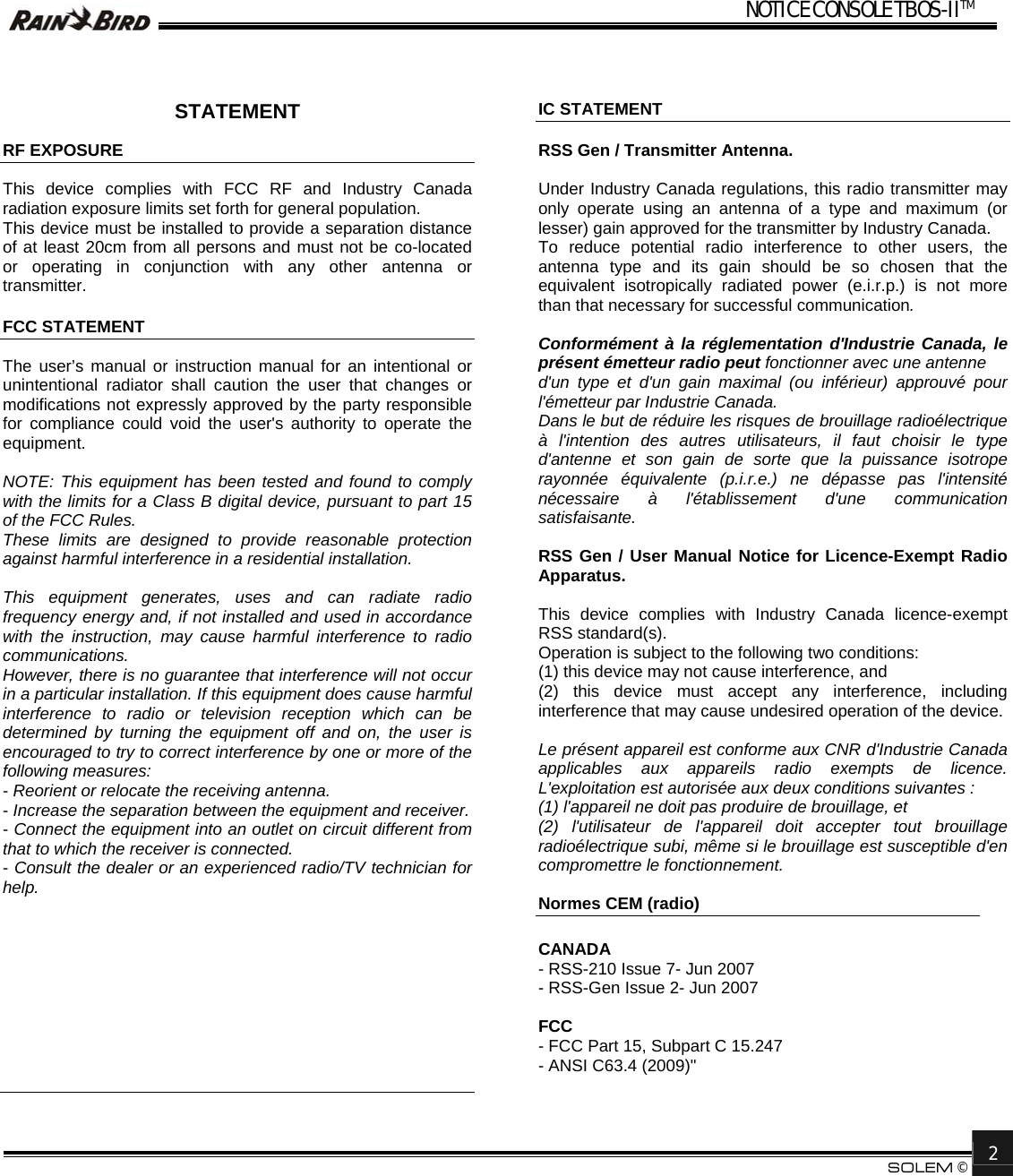

NOTICE CONSOLE TBOS-IITM       SOLEM ©  2    STATEMENT  RF EXPOSURE  This device complies with FCC RF and Industry Canada radiation exposure limits set forth for general population. This device must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.  FCC STATEMENT  The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.  These limits are designed to provide reasonable protection against harmful interference in a residential installation.   This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.           IC STATEMENT  RSS Gen / Transmitter Antenna.  Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.  To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.  Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.  Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.  RSS Gen / User Manual Notice for Licence-Exempt Radio Apparatus.  This device complies with Industry Canada licence-exempt RSS standard(s).  Operation is subject to the following two conditions:  (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et  (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  Normes CEM (radio)   CANADA - RSS-210 Issue 7- Jun 2007 - RSS-Gen Issue 2- Jun 2007   FCC - FCC Part 15, Subpart C 15.247 - ANSI C63.4 (2009)"

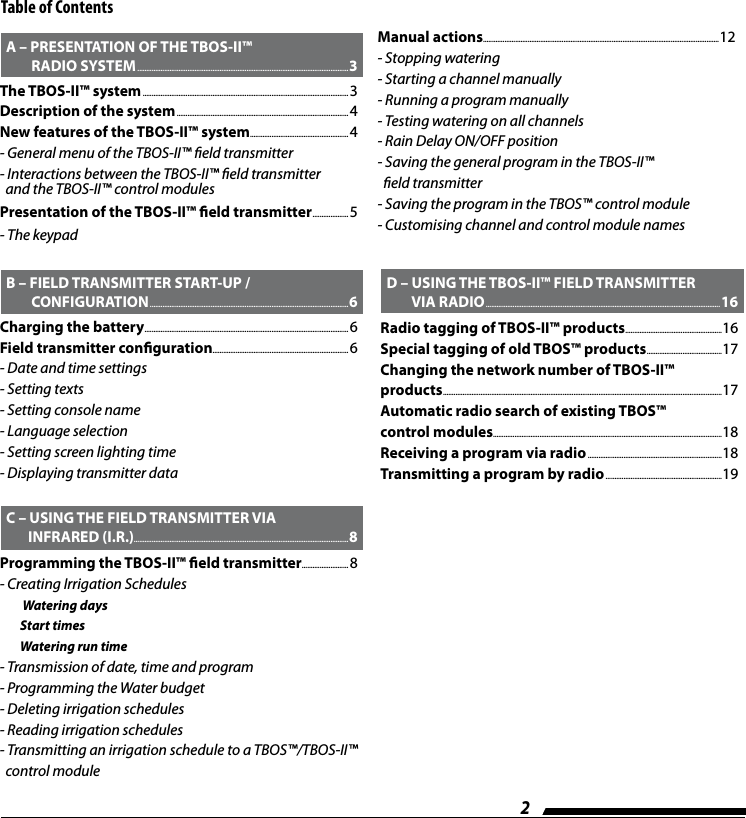

2Table of Contents  B – FIELD TRANSMITTER START-UP /            CONFIGURATION ...............................................................................................................6Charging the battery .................................................................................................................. 6Field transmitter conguration............................................................................ 6- Date and time settings- Setting texts- Setting console name- Language selection- Setting screen lighting time- Displaying transmitter data  C – USING THE FIELD TRANSMITTER VIA           INFRARED (I.R.)........................................................................................................................8Programming the TBOS-II™ eld transmitter .......................... 8- Creating Irrigation Schedules        Watering days        Start times        Watering run time- Transmission of date, time and program- Programming the Water budget- Deleting irrigation schedules- Reading irrigation schedules- Transmitting an irrigation schedule to a TBOS™/TBOS-II™   control module  A – PRESENTATION OF THE TBOS-II™            RADIO SYSTEM ......................................................................................................................3The TBOS-II™ system ...................................................................................................................3Description of the system ................................................................................................ 4New features of the TBOS-II™ system ....................................................... 4- General menu of the TBOS-II™ eld transmitter- Interactions between the TBOS-II™ eld transmitter    and the TBOS-II™ control modulesPresentation of the TBOS-II™ eld transmitter .................... 5- The keypadManual actions ....................................................................................................................................12- Stopping watering- Starting a channel manually- Running a program manually- Testing watering on all channels- Rain Delay ON/OFF position- Saving the general program in the TBOS-II™    eld transmitter- Saving the program in the TBOS™ control module- Customising channel and control module names  D – USING THE TBOS-II™ FIELD TRANSMITTER            VIA RADIO ................................................................................................................................... 16Radio tagging of TBOS-II™ products ......................................................16Special tagging of old TBOS™ products .......................................... 17Changing the network number of TBOS-II™  products ............................................................................................................................................................ 17Automatic radio search of existing TBOS™  control modules................................................................................................................................18Receiving a program via radio ...........................................................................18Transmitting a program by radio .................................................................19

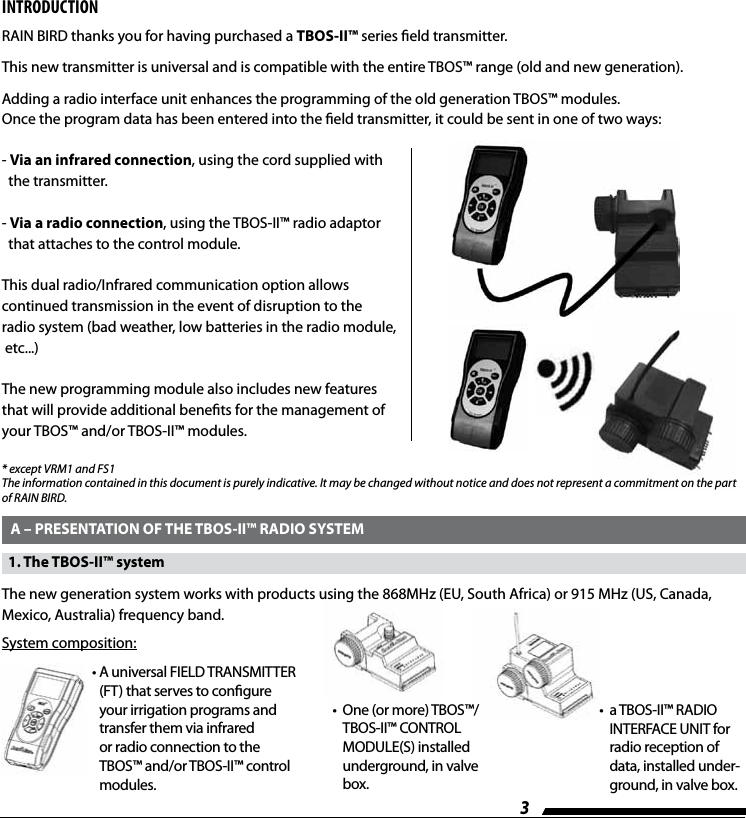

3INTRODUCTIONRAIN BIRD thanks you for having purchased a TBOS-II™ series eld transmitter.This new transmitter is universal and is compatible with the entire TBOS™ range (old and new generation).Adding a radio interface unit enhances the programming of the old generation TBOS™ modules.Once the program data has been entered into the eld transmitter, it could be sent in one of two ways: -   Via an infrared connection, using the cord supplied with    the transmitter.-   Via a radio connection, using the TBOS-II™ radio adaptor    that attaches to the control module.This dual radio/Infrared communication option allows continued transmission in the event of disruption to the radio system (bad weather, low batteries in the radio module, etc...)The new programming module also includes new features that will provide additional benets for the management of your TBOS™ and/or TBOS-II™ modules.  A – PRESENTATION OF THE TBOS-II™ RADIO SYSTEM* except VRM1 and FS1The information contained in this document is purely indicative. It may be changed without notice and does not represent a commitment on the part of RAIN BIRD.   1. The TBOS-II™ systemThe new generation system works with products using the 868MHz (EU, South Africa) or 915 MHz (US, Canada, Mexico, Australia) frequency band.•  A universal FIELD TRANSMITTER (FT) that serves to congure your irrigation programs and transfer them via infrared or radio connection to the TBOS™ and/or TBOS-II™ control modules.•   One (or more) TBOS™/TBOS-II™ CONTROL MODULE(S) installed underground, in valve box.•   a TBOS-II™ RADIO INTERFACE UNIT for radio reception of data, installed under-ground, in valve box.System composition:

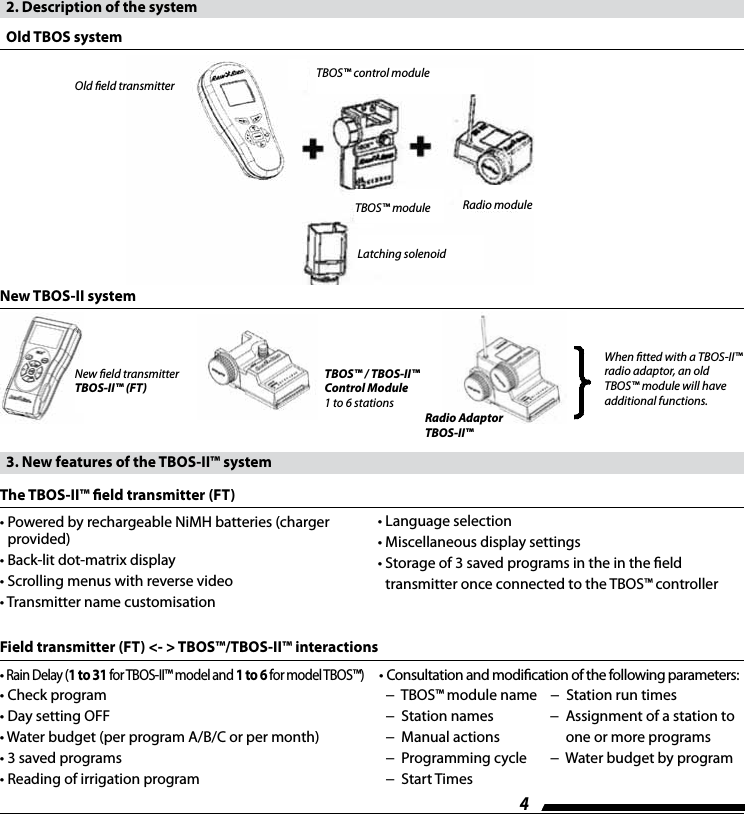

4   2. Description of the system  Old TBOS systemOld eld transmitter TBOS™ control moduleRadio moduleLatching solenoidTBOS™ moduleNew TBOS-II systemNew eld transmitter TBOS-II™ (FT)TBOS™ / TBOS-II™ Control Module1 to 6 stationsRadio Adaptor TBOS-II™When tted with a TBOS-II™ radio adaptor, an old TBOS™ module will have additional functions.•  Powered by rechargeable NiMH batteries (charger provided)• Back-lit dot-matrix display• Scrolling menus with reverse video• Transmitter name customisation  3. New features of the TBOS-II™ systemThe TBOS-II™ eld transmitter (FT)• Language selection• Miscellaneous display settings•  Storage of 3 saved programs in the in the eld  transmitter once connected to the TBOS™ controller• Rain Delay (1 to 31 for TBOS-II™ model and 1 to 6 for model TBOS™)• Check program• Day setting OFF• Water budget (per program A/B/C or per month)• 3 saved programs• Reading of irrigation programField transmitter (FT) <- > TBOS™/TBOS-II™ interactions• Consultation and modication of the following parameters:   −  TBOS™ module name    −  Station run times   −  Station names                 −  Assignment of a station to   −  Manual actions                    one or more programs  −  Programming cycle       −  Water budget by program  −  Start Times

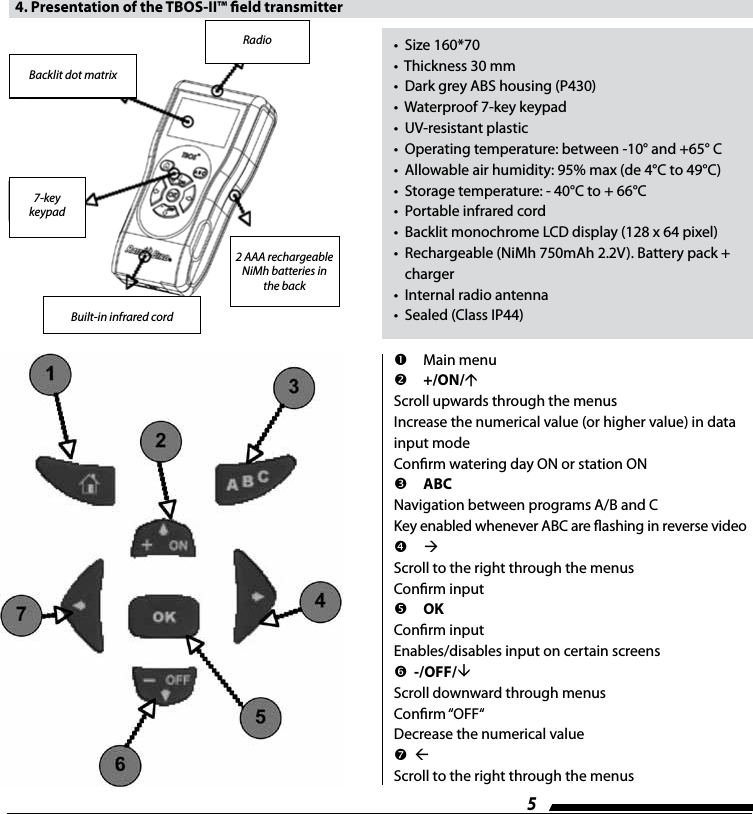

5Details of keypad  4. Presentation of the TBOS-II™ eld transmitter•  Size 160*70•  Thickness 30 mm•  Dark grey ABS housing (P430)•  Waterproof 7-key keypad•  UV-resistant plastic•  Operating temperature: between -10° and +65° C•  Allowable air humidity: 95% max (de 4°C to 49°C)•  Storage temperature: - 40°C to + 66°C•  Portable infrared cord•  Backlit monochrome LCD display (128 x 64 pixel)•   Rechargeable (NiMh 750mAh 2.2V). Battery pack +  charger•  Internal radio antenna•  Sealed (Class IP44)Backlit dot matrix7-key keypad Built-in infrared cord2 AAA rechargeable NiMh batteries in the backRadio  Main menu +/ON/Scroll upwards through the menusIncrease the numerical value (or higher value) in data input modeConrm watering day ON or station ON ABCNavigation between programs A/B and CKey enabled whenever ABC are ashing in reverse video Scroll to the right through the menusConrm input OKConrm inputEnables/disables input on certain screens  -/OFF/Scroll downward through menusConrm “OFF“Decrease the numerical value  Scroll to the right through the menus

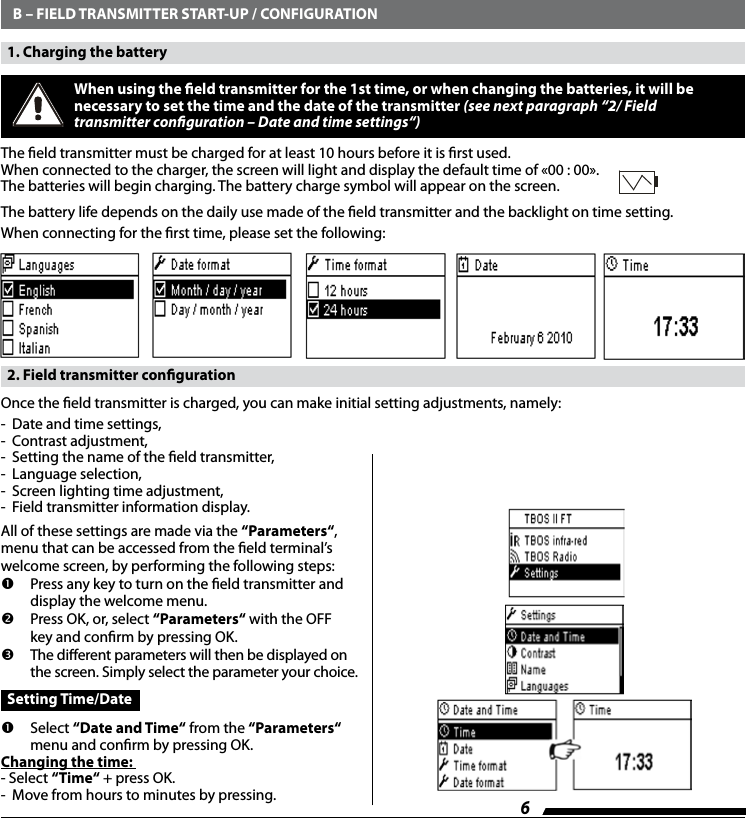

6   B – FIELD TRANSMITTER START-UP / CONFIGURATION  1. Charging the battery When using the eld transmitter for the 1st time, or when changing the batteries, it will be necessary to set the time and the date of the transmitter (see next paragraph “2/ Field  transmitter conguration – Date and time settings“)The eld transmitter must be charged for at least 10 hours before it is rst used.When connected to the charger, the screen will light and display the default time of «00 : 00». The batteries will begin charging. The battery charge symbol will appear on the screen. The battery life depends on the daily use made of the eld transmitter and the backlight on time setting.When connecting for the rst time, please set the following:   2. Field transmitter congurationOnce the eld transmitter is charged, you can make initial setting adjustments, namely:-  Date and time settings,-  Contrast adjustment,-  Setting the name of the eld transmitter,-  Language selection,-  Screen lighting time adjustment,-  Field transmitter information display.All of these settings are made via the ‘‘Parameters“, menu that can be accessed from the eld terminal’s welcome screen, by performing the following steps:   Press any key to turn on the eld transmitter and display the welcome menu.  Press OK, or, select ‘‘Parameters“ with the OFF key and conrm by pressing OK.  The dierent parameters will then be displayed on the screen. Simply select the parameter your choice.  Setting Time/Date   Select “Date and Time“ from the ‘‘Parameters“  menu and conrm by pressing OK.Changing the time: - Select “Time“ + press OK.-  Move from hours to minutes by pressing.

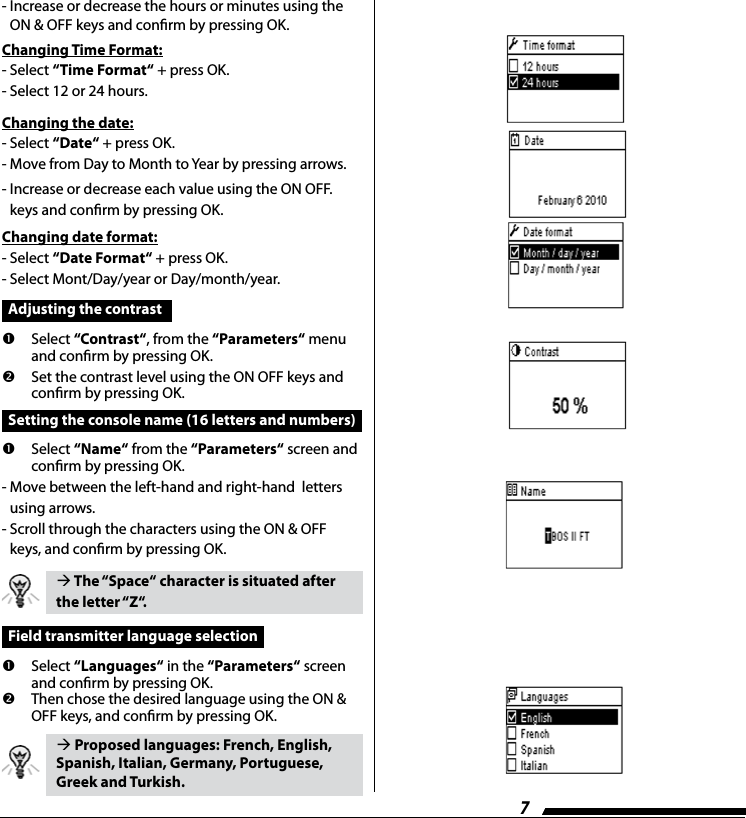

7-  Increase or decrease the hours or minutes using the ON & OFF keys and conrm by pressing OK.Changing Time Format:- Select “Time Format“ + press OK.- Select 12 or 24 hours.Changing the date:- Select “Date“ + press OK.- Move from Day to Month to Year by pressing arrows.-  Increase or decrease each value using the ON OFF. keys and conrm by pressing OK.Changing date format:- Select “Date Format“ + press OK.- Select Mont/Day/year or Day/month/year.  Adjusting the contrast   Select “Contrast“, from the “Parameters“ menu and conrm by pressing OK.   Set the contrast level using the ON OFF keys and conrm by pressing OK.  Setting the console name (16 letters and numbers)    Select  “Name“ from the “Parameters“ screen and conrm by pressing OK.-  Move between the left-hand and right-hand  letters using arrows.-  Scroll through the characters using the ON & OFF keys, and conrm by pressing OK. The “Space“ character is situated after the letter “Z“.  Field transmitter language selection      Select  “Languages“ in the “Parameters“ screen and conrm by pressing OK.     Then chose the desired language using the ON & OFF keys, and conrm by pressing OK. Proposed languages: French, English, Spanish, Italian, Germany, Portuguese, Greek and Turkish.

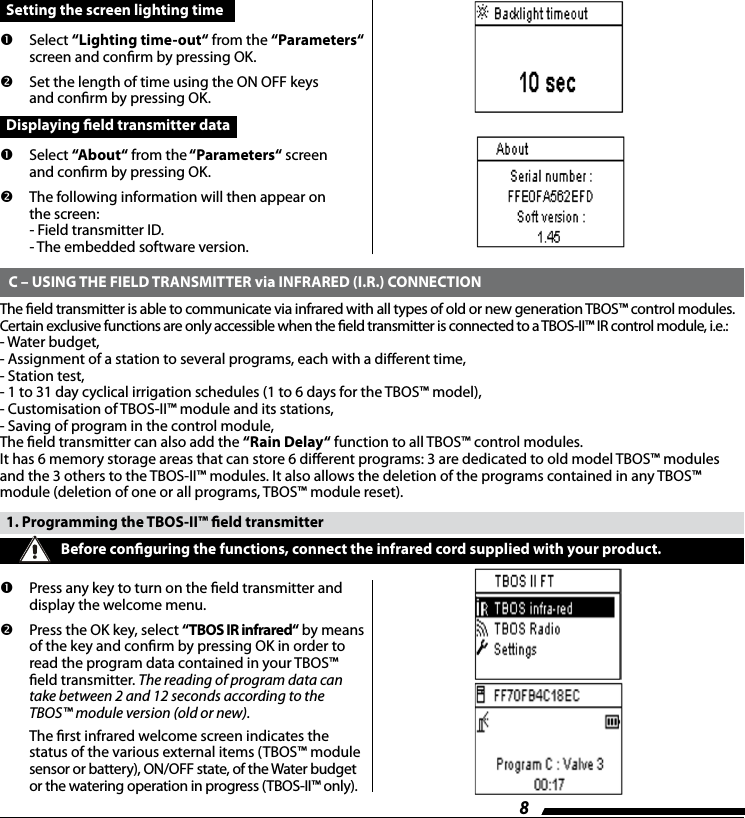

8  Setting the screen lighting time        Select  “Lighting time-out“ from the “Parameters“ screen and conrm by pressing OK.      Set the length of time using the ON OFF keys  and conrm by pressing OK.  Displaying eld transmitter data         Select  “About“ from the “Parameters“ screen  and conrm by pressing OK.        The following information will then appear on  the screen:         - Field transmitter ID.         - The embedded software version.  C – USING THE FIELD TRANSMITTER via INFRARED (I.R.) CONNECTIONThe eld transmitter is able to communicate via infrared with all types of old or new generation TBOS™ control modules.Certain exclusive functions are only accessible when the eld transmitter is connected to a TBOS-II™ IR control module, i.e.:- Water budget,- Assignment of a station to several programs, each with a dierent time,- Station test,- 1 to 31 day cyclical irrigation schedules (1 to 6 days for the TBOS™ model),- Customisation of TBOS-II™ module and its stations,- Saving of program in the control module,The eld transmitter can also add the “Rain Delay“ function to all TBOS™ control modules.It has 6 memory storage areas that can store 6 dierent programs: 3 are dedicated to old model TBOS™ modules and the 3 others to the TBOS-II™ modules. It also allows the deletion of the programs contained in any TBOS™ module (deletion of one or all programs, TBOS™ module reset).  1. Programming the TBOS-II™ eld transmitter       Press any key to turn on the eld transmitter and display the welcome menu.         Press the OK key, select “TBOS IR infrared“ by means of the key and conrm by pressing OK in order to read the program data contained in your TBOS™ eld transmitter. The reading of program data can take between 2 and 12 seconds according to the TBOS™ module version (old or new).  The rst infrared welcome screen indicates the  status of the various external items (TBOS™ module sensor or battery), ON/OFF state, of the Water budget  or the watering operation in progress (TBOS-II™ only).  Before conguring the functions, connect the infrared cord supplied with your product.

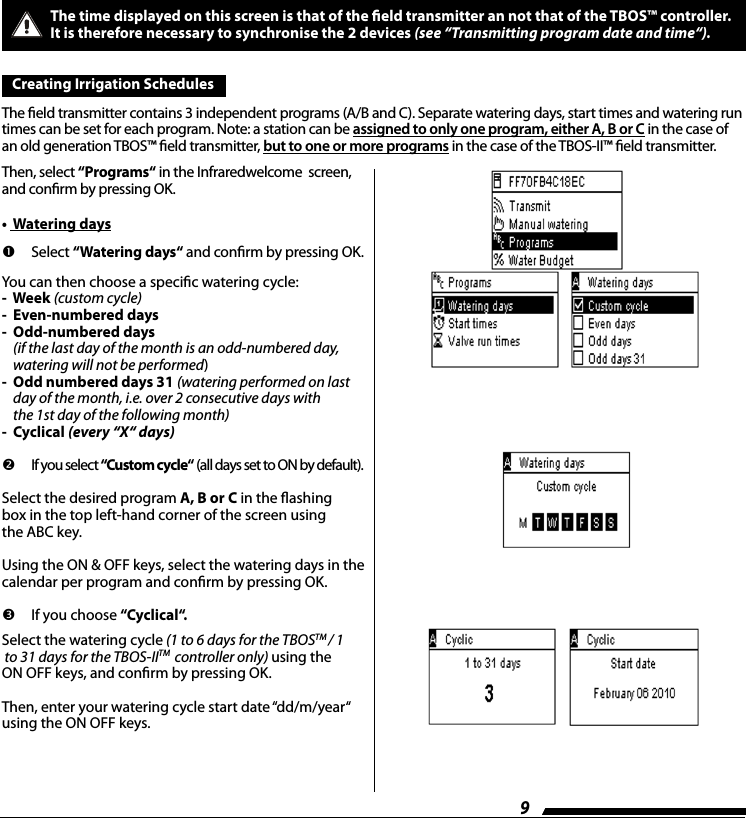

9The time displayed on this screen is that of the eld transmitter an not that of the TBOS™ controller.  It is therefore necessary to synchronise the 2 devices (see “Transmitting program date and time“). Creating Irrigation Schedules  The eld transmitter contains 3 independent programs (A/B and C). Separate watering days, start times and watering run times can be set for each program. Note: a station can be assigned to only one program, either A, B or C in the case of an old generation TBOS™ eld transmitter, but to one or more programs in the case of the TBOS-II™ eld transmitter.Then, select “Programs“ in the Infraredwelcome  screen, and conrm by pressing OK.       Select  “Watering days“ and conrm by pressing OK.You can then choose a specic watering cycle:-  Week (custom cycle)-  Even-numbered days-   Odd-numbered days (if the last day of the month is an odd-numbered day, watering will not be performed)-   Odd numbered days 31 (watering performed on last day of the month, i.e. over 2 consecutive days with  the 1st day of the following month)-  Cyclical (every “X“ days)   If you select “Custom cycle“ (all days set to ON by default).Select the desired program A, B or C in the ashing box in the top left-hand corner of the screen using the ABC key.Using the ON & OFF keys, select the watering days in the calendar per program and conrm by pressing OK.  If you choose “Cyclical“.Select the watering cycle (1 to 6 days for the TBOSTM / 1 to 31 days for the TBOS-IITM  controller only) using the ON OFF keys, and conrm by pressing OK.Then, enter your watering cycle start date “dd/m/year“ using the ON OFF keys.•  Watering days

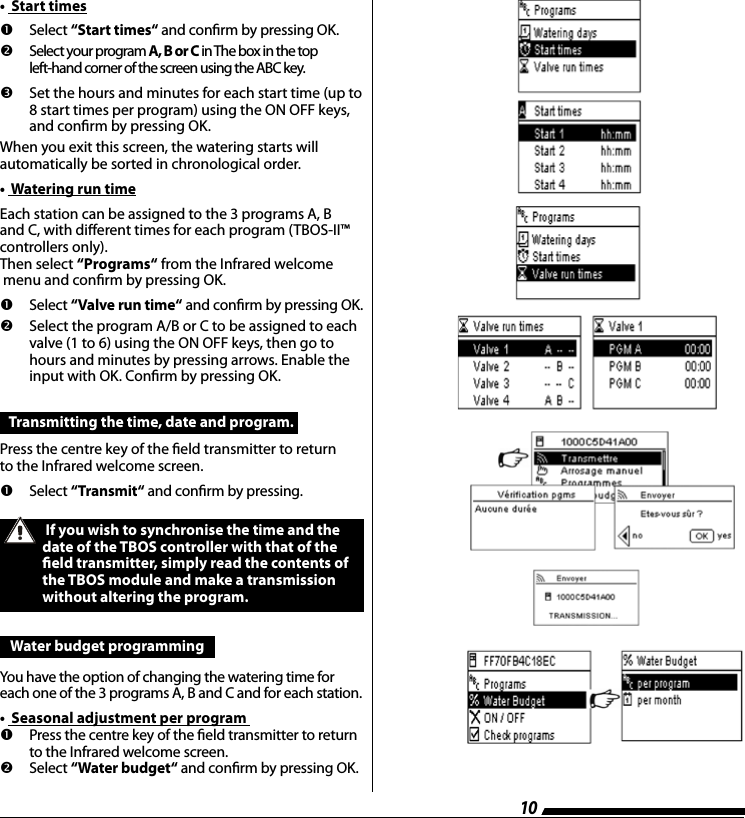

10       Select  “Start times“ and conrm by pressing OK.   Select your program A, B or C in The box in the top  left-hand corner of the screen using the ABC key.  Set the hours and minutes for each start time (up to 8 start times per program) using the ON OFF keys, and conrm by pressing OK.When you exit this screen, the watering starts will  automatically be sorted in chronological order.•  Watering run timeEach station can be assigned to the 3 programs A, B and C, with dierent times for each program (TBOS-II™controllers only).Then select “Programs“ from the Infrared welcome menu and conrm by pressing OK.       Select  “Valve run time“ and conrm by pressing OK.   Select the program A/B or C to be assigned to each valve (1 to 6) using the ON OFF keys, then go to hours and minutes by pressing arrows. Enable the input with OK. Conrm by pressing OK.•  Start timesTransmitting the time, date and program. Press the centre key of the eld transmitter to return  to the Infrared welcome screen.       Select  “Transmit“ and conrm by pressing. If you wish to synchronise the time and the date of the TBOS controller with that of the eld transmitter, simply read the contents of the TBOS module and make a transmission without altering the program.  Water budget programming You have the option of changing the watering time for each one of the 3 programs A, B and C and for each station.•  Seasonal adjustment per program        Press the centre key of the eld transmitter to return to the Infrared welcome screen.   Select “Water budget“ and conrm by pressing OK.

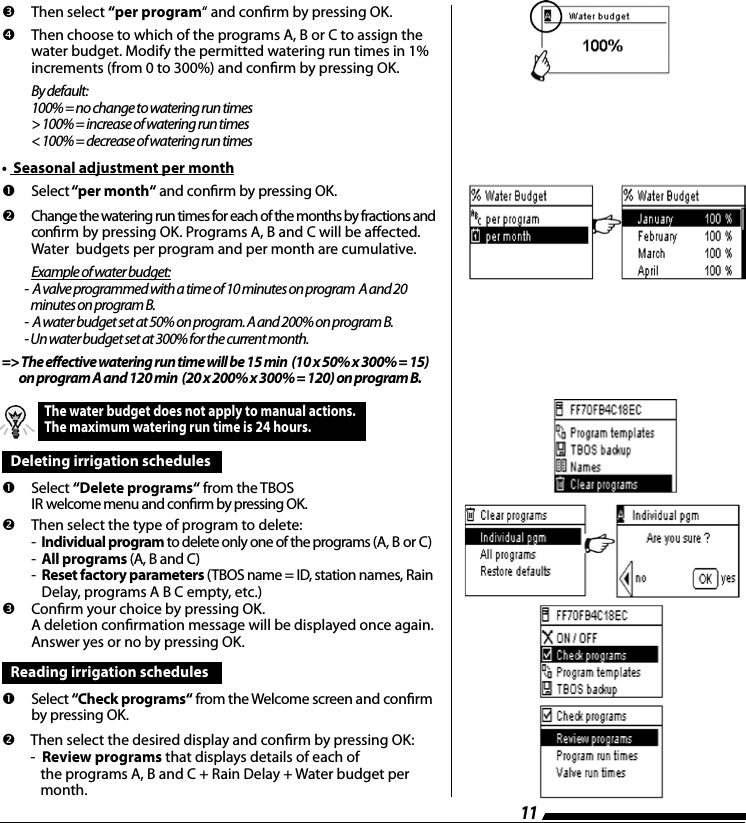

11       Then  select  “per program“ and conrm by pressing OK.    Then choose to which of the programs A, B or C to assign the water budget. Modify the permitted watering run times in 1% increments (from 0 to 300%) and conrm by pressing OK. By default: 100% = no change to watering run times > 100% = increase of watering run times < 100% = decrease of watering run times•  Seasonal adjustment per month       Select “per month“ and conrm by pressing OK.    Change the watering run times for each of the months by fractions and conrm by pressing OK. Programs A, B and C will be aected.  Water  budgets per program and per month are cumulative. Example of water budget:           -  A valve programmed with a time of 10 minutes on program  A and 20               minutes on program B.           -  A water budget set at 50% on program. A and 200% on program B.            - Un water budget set at 300% for the current month.=> The effective watering run time will be 15 min  (10 x 50% x 300% = 15)         on program A and 120 min  (20 x 200% x 300% = 120) on program B.The water budget does not apply to manual actions. The maximum watering run time is 24 hours.Deleting irrigation schedules       Select  “Delete programs“ from the TBOS IR welcome menu and conrm by pressing OK.    Then select the type of program to delete: -  Individual program to delete only one of the programs (A, B or C) -  All programs (A, B and C) -   Reset factory parameters (TBOS name = ID, station names, Rain Delay, programs A B C empty, etc.)      Conrm your choice by pressing OK.  A deletion conrmation message will be displayed once again.  Answer yes or no by pressing OK. Reading irrigation schedules        Select  “Check programs“ from the Welcome screen and conrm by pressing OK.    Then select the desired display and conrm by pressing OK: -  Review programs that displays details of each of    the programs A, B and C + Rain Delay + Water budget per    month.

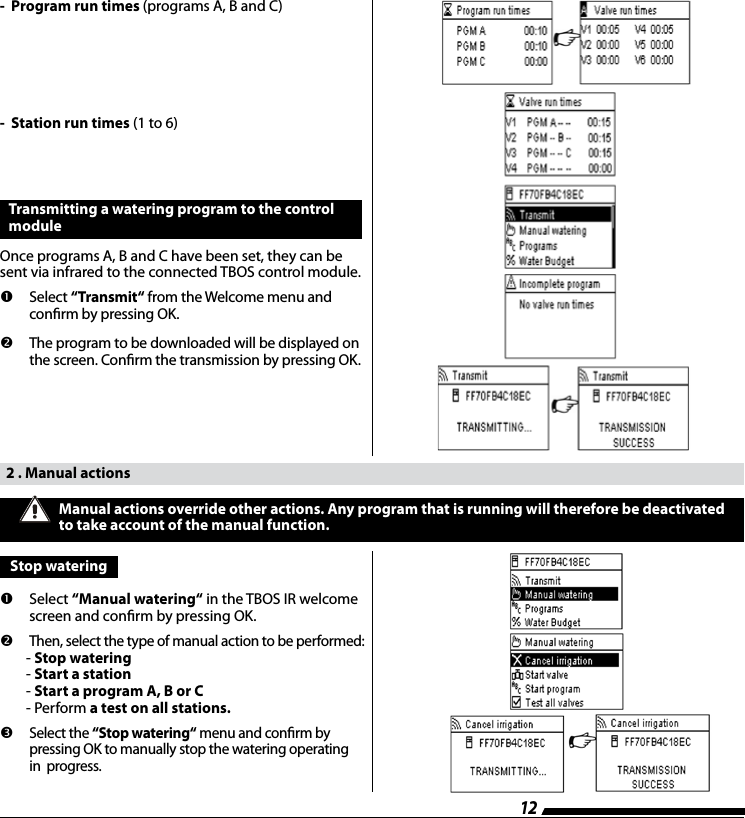

12-  Program run times (programs A, B and C)-  Station run times (1 to 6)Transmitting a watering program to the control module Once programs A, B and C have been set, they can be sent via infrared to the connected TBOS control module.        Select  “Transmit“ from the Welcome menu and conrm by pressing OK.        The program to be downloaded will be displayed on the screen. Conrm the transmission by pressing OK.  2 . Manual actions       Select  “Manual watering“ in the TBOS IR welcome screen and conrm by pressing OK.         Then, select the type of manual action to be performed:        - Stop watering        - Start a station        - Start a program A, B or C        - Perform a test on all stations.         Select the “Stop watering“ menu and conrm by pressing OK to manually stop the watering operating in  progress.Manual actions override other actions. Any program that is running will therefore be deactivated to take account of the manual function. Stop watering

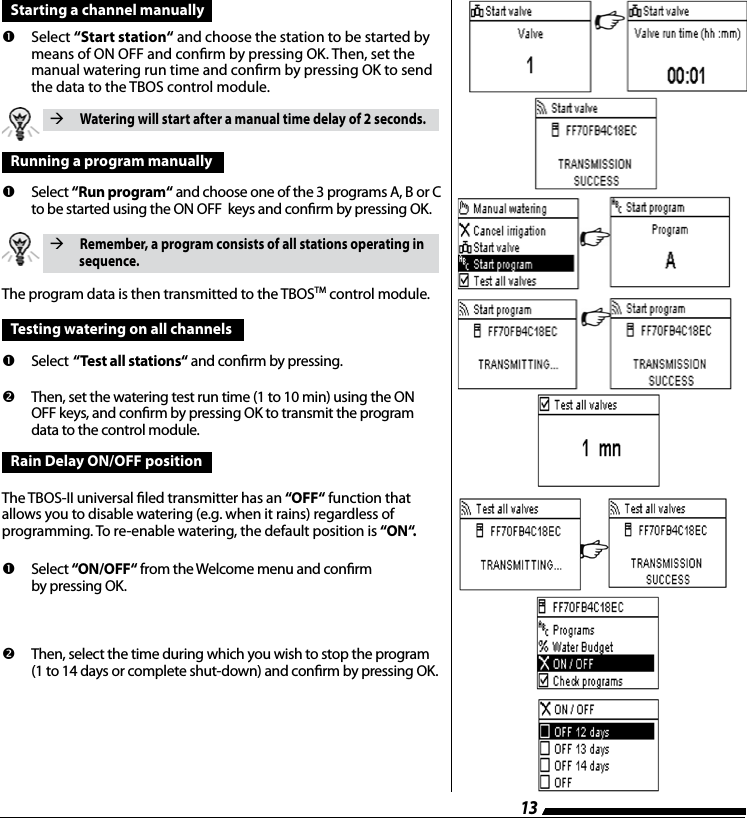

13Starting a channel manually         Select  “Start station“ and choose the station to be started by means of ON OFF and conrm by pressing OK. Then, set the manual watering run time and conrm by pressing OK to send  the data to the TBOS control module. Watering will start after a manual time delay of 2 seconds.Running a program manually         Select  “Run program“ and choose one of the 3 programs A, B or C to be started using the ON OFF  keys and conrm by pressing OK. Remember, a program consists of all stations operating in           sequence.The program data is then transmitted to the TBOSTM control module. Testing watering on all channels         Select  “Test all stations“ and conrm by pressing.         Then, set the watering test run time (1 to 10 min) using the ON OFF keys, and conrm by pressing OK to transmit the program data to the control module.Rain Delay ON/OFF positionThe TBOS-II universal led transmitter has an “OFF“ function that allows you to disable watering (e.g. when it rains) regardless of  programming. To re-enable watering, the default position is “ON“.         Select  “ON/OFF“ from the Welcome menu and conrm  by pressing OK.          Then, select the time during which you wish to stop the program (1 to 14 days or complete shut-down) and conrm by pressing OK.

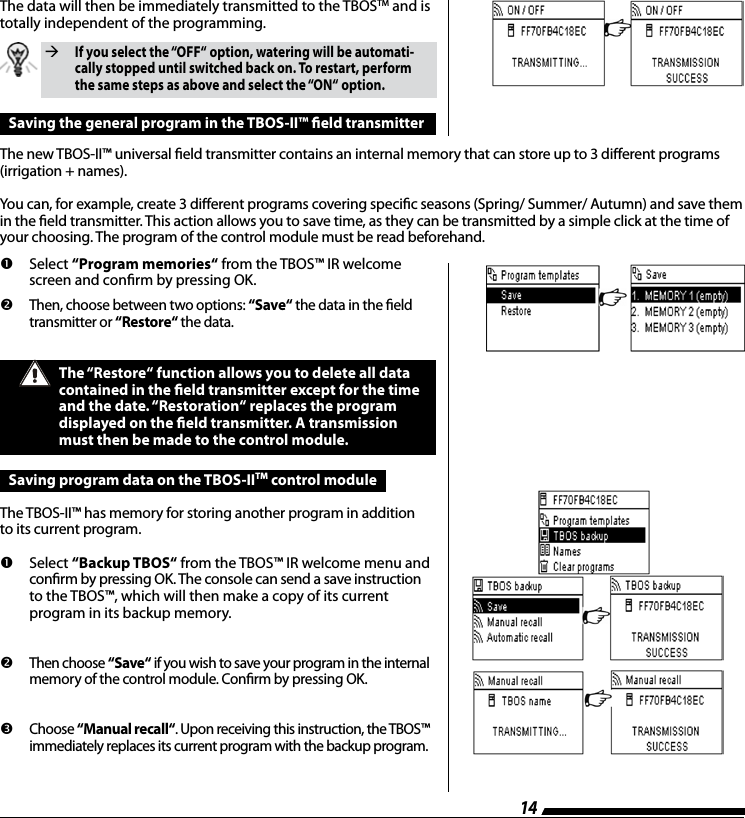

14The data will then be immediately transmitted to the TBOSTM and is totally independent of the programming.  If you select the “OFF“ option, watering will be automati-cally stopped until switched back on. To restart, perform the same steps as above and select the “ON“ option.Saving the general program in the TBOS-II™ eld transmitterThe new TBOS-II™ universal eld transmitter contains an internal memory that can store up to 3 dierent programs (irrigation + names).You can, for example, create 3 dierent programs covering specic seasons (Spring/ Summer/ Autumn) and save them in the eld transmitter. This action allows you to save time, as they can be transmitted by a simple click at the time of your choosing. The program of the control module must be read beforehand.       Select  “Program memories“ from the TBOS™ IR welcome screen and conrm by pressing OK.         Then, choose between two options: “Save“ the data in the eld transmitter or “Restore“ the data.The “Restore“ function allows you to delete all data contained in the eld transmitter except for the time and the date. “Restoration“ replaces the program  displayed on the eld transmitter. A transmission must then be made to the control module. Saving program data on the TBOS-IITM control moduleThe TBOS-II™ has memory for storing another program in addition  to its current program.        Select  “Backup TBOS“ from the TBOS™ IR welcome menu and conrm by pressing OK. The console can send a save instruction to the TBOS™, which will then make a copy of its current  program in its backup memory.         Then choose “Save“ if you wish to save your program in the internal memory of the control module. Conrm by pressing OK.         Choose “Manual recall“. Upon receiving this instruction, the TBOS™ immediately replaces its current program with the backup program.

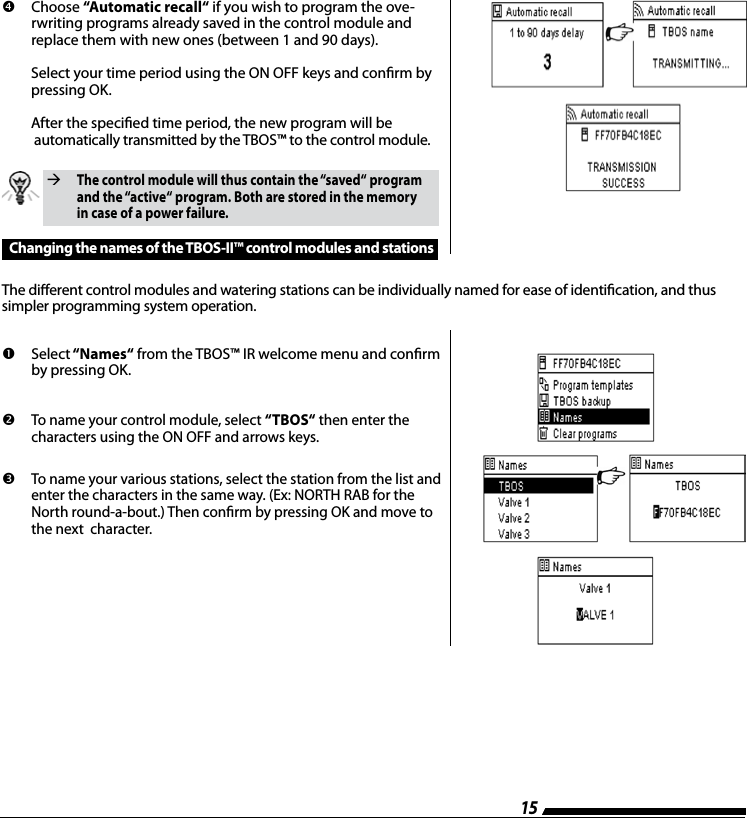

15        Choose  “Automatic recall“ if you wish to program the ove-rwriting programs already saved in the control module and replace them with new ones (between 1 and 90 days).   Select your time period using the ON OFF keys and conrm by   pressing OK.  After the specied time period, the new program will be    automatically transmitted by the TBOS™ to the control module.The dierent control modules and watering stations can be individually named for ease of identication, and thus simpler programming system operation.  The control module will thus contain the “saved“ program and the “active“ program. Both are stored in the memory in case of a power failure.Changing the names of the TBOS-II™ control modules and stations        Select “Names“ from the TBOS™ IR welcome menu and conrm by pressing OK.         To name your control module, select “TBOS“ then enter the characters using the ON OFF and arrows keys.         To name your various stations, select the station from the list and enter the characters in the same way. (Ex: NORTH RAB for the North round-a-bout.) Then conrm by pressing OK and move to the next  character.

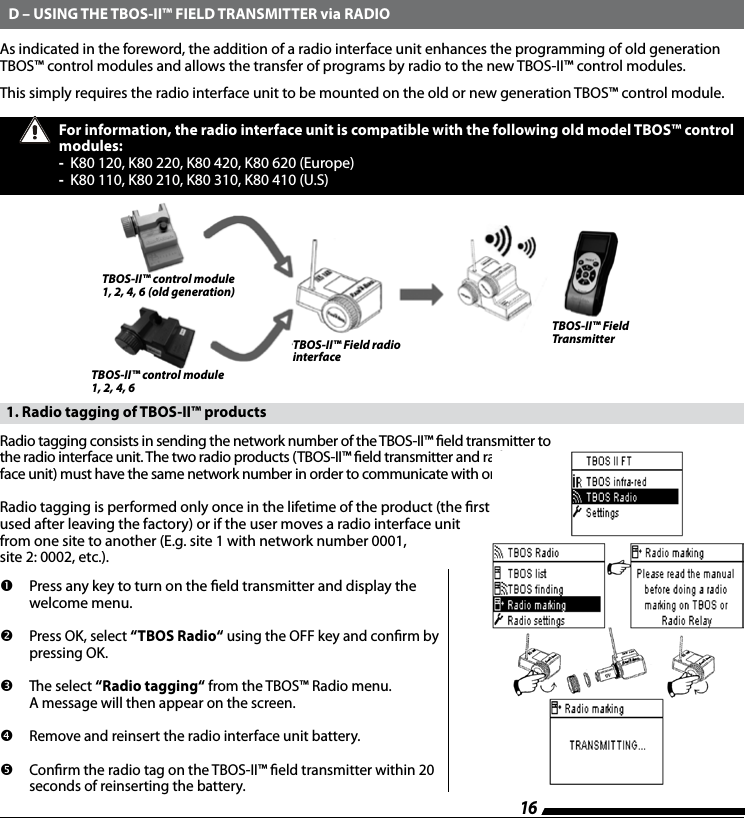

16As indicated in the foreword, the addition of a radio interface unit enhances the programming of old generation TBOS™ control modules and allows the transfer of programs by radio to the new TBOS-II™ control modules.This simply requires the radio interface unit to be mounted on the old or new generation TBOS™ control module.  D – USING THE TBOS-II™ FIELD TRANSMITTER via RADIOFor information, the radio interface unit is compatible with the following old model TBOS™ control modules: -  K80 120, K80 220, K80 420, K80 620 (Europe)-  K80 110, K80 210, K80 310, K80 410 (U.S)   1. Radio tagging of TBOS-II™ productsRadio tagging consists in sending the network number of the TBOS-II™ eld transmitter to the radio interface unit. The two radio products (TBOS-II™ eld transmitter and radio inter-face unit) must have the same network number in order to communicate with one another.Radio tagging is performed only once in the lifetime of the product (the rst time it is used after leaving the factory) or if the user moves a radio interface unit  from one site to another (E.g. site 1 with network number 0001,  site 2: 0002, etc.).         Press any key to turn on the eld transmitter and display the welcome menu.          Press OK, select “TBOS Radio“ using the OFF key and conrm by  pressing OK.          The select “Radio tagging“ from the TBOS™ Radio menu.  A message will then appear on the screen.         Remove and reinsert the radio interface unit battery.          Conrm the radio tag on the TBOS-II™ eld transmitter within 20 seconds of reinserting the battery.TBOS-II™ Field TransmitterTBOS-II™ Field radio interfaceTBOS-II™ control module 1, 2, 4, 6 (old generation)TBOS-II™ control module 1, 2, 4, 6

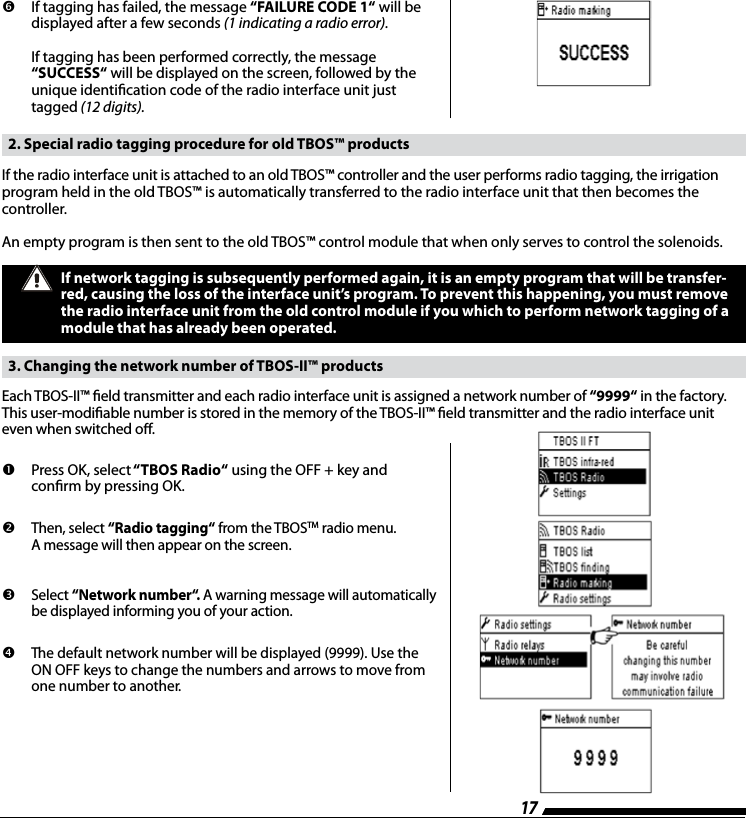

17         If  tagging  has  failed,  the  message  “FAILURE CODE 1“ will be  displayed after a few seconds (1 indicating a radio error).  If tagging has been performed correctly, the message  “SUCCESS“ will be displayed on the screen, followed by the unique identication code of the radio interface unit just tagged (12 digits).  2. Special radio tagging procedure for old TBOS™ products If the radio interface unit is attached to an old TBOS™ controller and the user performs radio tagging, the irrigation program held in the old TBOS™ is automatically transferred to the radio interface unit that then becomes the controller.An empty program is then sent to the old TBOS™ control module that when only serves to control the solenoids.If network tagging is subsequently performed again, it is an empty program that will be transfer-red, causing the loss of the interface unit’s program. To prevent this happening, you must remove the radio interface unit from the old control module if you which to perform network tagging of a module that has already been operated.   3. Changing the network number of TBOS-II™ products Each TBOS-II™ eld transmitter and each radio interface unit is assigned a network number of “9999“ in the factory. This user-modiable number is stored in the memory of the TBOS-II™ eld transmitter and the radio interface unit even when switched o.         Press OK, select “TBOS  Radio“ using the OFF + key and conrm by pressing OK.         Then, select “Radio tagging“ from the TBOSTM radio menu.  A message will then appear on the screen.          Select “Network number“. A warning message will automatically be displayed informing you of your action.        The default network number will be displayed (9999). Use the ON OFF keys to change the numbers and arrows to move from one number to another.

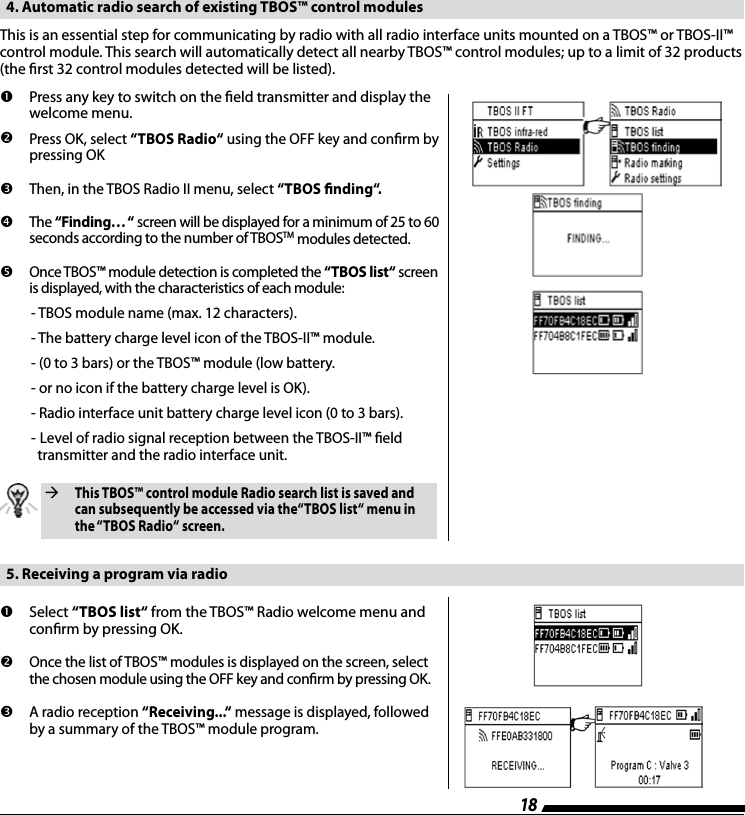

18  4. Automatic radio search of existing TBOS™ control modulesThis is an essential step for communicating by radio with all radio interface units mounted on a TBOS™ or TBOS-II™ control module. This search will automatically detect all nearby TBOS™ control modules; up to a limit of 32 products  (the rst 32 control modules detected will be listed).         Press any key to switch on the eld transmitter and display the welcome menu.         Press OK, select “TBOS Radio“ using the OFF key and conrm by  pressing OK           Then, in the TBOS Radio II menu, select “TBOS nding“.        The “Finding… “ screen will be displayed for a minimum of 25 to 60  seconds according to the number of TBOSTM modules detected.          Once TBOS™ module detection is completed the “TBOS list“ screen  is displayed, with the characteristics of each module:   - TBOS module name (max. 12 characters).  - The battery charge level icon of the TBOS-II™ module.  - (0 to 3 bars) or the TBOS™ module (low battery.  - or no icon if the battery charge level is OK).  - Radio interface unit battery charge level icon (0 to 3 bars).  -  Level of radio signal reception between the TBOS-II™ eld      transmitter and the radio interface unit.  This TBOS™ control module Radio search list is saved and can subsequently be accessed via the“TBOS list“ menu in the “TBOS Radio“ screen.  5. Receiving a program via radio         Select  “TBOS list“ from the TBOS™ Radio welcome menu and conrm by pressing OK.         Once the list of TBOS™ modules is displayed on the screen, select  the chosen module using the OFF key and conrm by pressing OK.           A radio reception “Receiving...“ message is displayed, followed  by a summary of the TBOS™ module program.

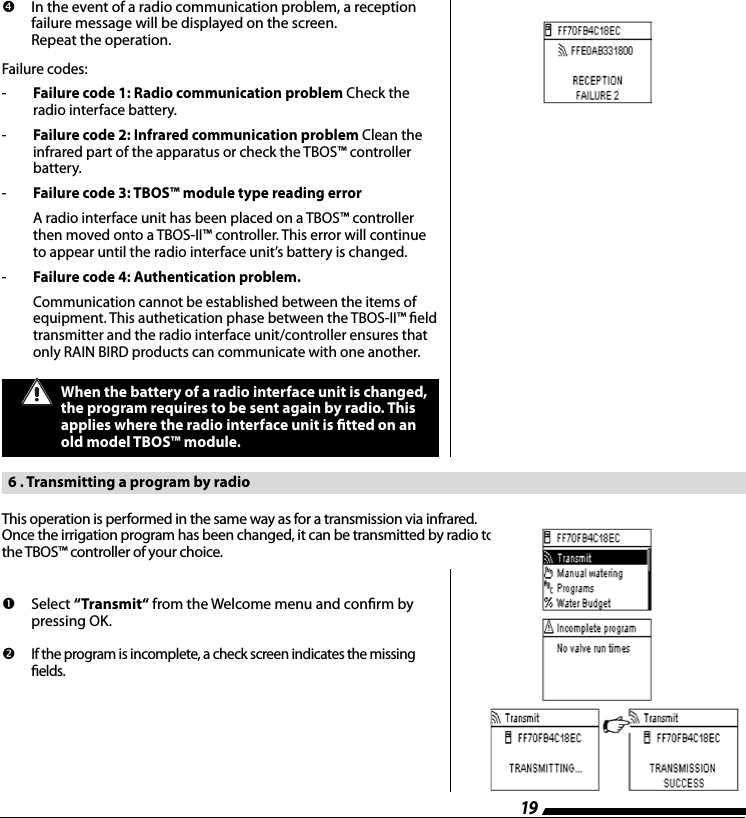

19         In the event of a radio communication problem, a reception failure message will be displayed on the screen.  Repeat the operation.Failure codes: -   Failure code 1: Radio communication problem Check the   radio interface battery.-  Failure code 2: Infrared communication problem Clean the   infrared part of the apparatus or check the TBOS™ controller  battery.-   Failure code 3: TBOS™ module type reading error    A radio interface unit has been placed on a TBOS™ controller   then moved onto a TBOS-II™ controller. This error will continue   to appear until the radio interface unit’s battery is changed.-  Failure code 4: Authentication problem.    Communication cannot be established between the items of   equipment. This authetication phase between the TBOS-II™ eld   transmitter and the radio interface unit/controller ensures that   only RAIN BIRD products can communicate with one another.When the battery of a radio interface unit is changed, the program requires to be sent again by radio. This applies where the radio interface unit is tted on an old model TBOS™ module.   6 . Transmitting a program by radio         Select  “Transmit“ from the Welcome menu and conrm by pressing OK.         If the program is incomplete, a check screen indicates the missing elds.This operation is performed in the same way as for a transmission via infrared.Once the irrigation program has been changed, it can be transmitted by radio to  the TBOS™ controller of your choice.

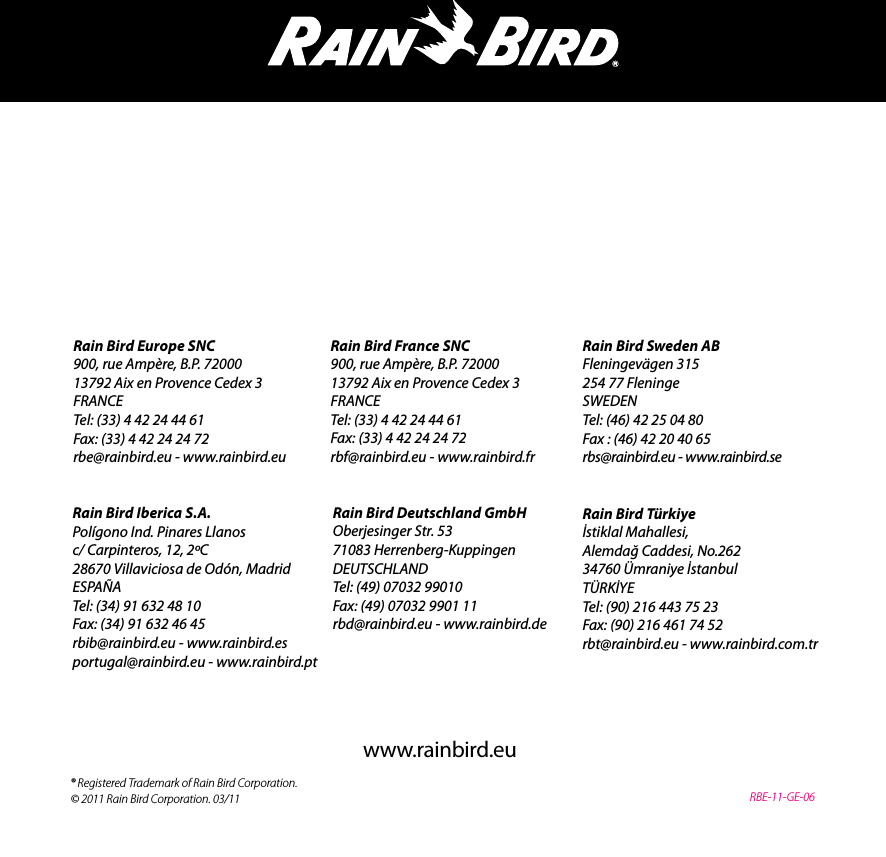

Rain Bird France SNC900, rue Ampère, B.P. 7200013792 Aix en Provence Cedex 3FRANCETel: (33) 4 42 24 44 61Fax: (33) 4 42 24 24 72rbf@rainbird.eu - www.rainbird.frRain Bird Europe SNC900, rue Ampère, B.P. 7200013792 Aix en Provence Cedex 3FRANCETel: (33) 4 42 24 44 61Fax: (33) 4 42 24 24 72rbe@rainbird.eu - www.rainbird.euRain Bird Türkiyeİstiklal Mahallesi,Alemdağ Caddesi, No.26234760 Ümraniye İstanbulTÜRKİYETel: (90) 216 443 75 23Fax: (90) 216 461 74 52rbt@rainbird.eu - www.rainbird.com.trRain Bird Sweden ABFleningevägen 315254 77 FleningeSWEDENTel: (46) 42 25 04 80Fax : (46) 42 20 40 65rbs@rainbird.eu - www.rainbird.seRain Bird Deutschland GmbHOberjesinger Str. 5371083 Herrenberg-KuppingenDEUTSCHLANDTel: (49) 07032 99010Fax: (49) 07032 9901 11rbd@rainbird.eu - www.rainbird.deRain Bird Iberica S.A.Polígono Ind. Pinares Llanosc/ Carpinteros, 12, 2ºC28670 Villaviciosa de Odón, MadridESPAÑATel: (34) 91 632 48 10Fax: (34) 91 632 46 45rbib@rainbird.eu - www.rainbird.esportugal@rainbird.eu - www.rainbird.pt® Registered Trademark of Rain Bird Corporation.© 2011 Rain Bird Corporation. 03/11www.rainbird.euRBE-11-GE-06
