SOLUM EL042D2 Electronic Shelf Label User Manual ESL TAG Sub EL000D2WR 180910

SOLUM CO.,LTD. Electronic Shelf Label ESL TAG Sub EL000D2WR 180910

User Manaul

S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 1/18
CUSTOMER APPROVAL SHEET
Company Name
MODEL EL042D2
CUSTOMER
APPROVAL
FCC ID 2AFWN-EL042D2
□ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 1.1 )
□ CUSTOMER REMARK :
Issued By Checked By Approved By
YJ Kim TH Lee BJJun
SOLUM CO.,LTD.
A-6th floor, 357, Guseong-ro, Giheung-gu, Yongin-si, Gyeonggi-do 16674, Korea
Tel: +82-31-8006-7691
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 2/18
S-Label Datasheet
S-Label (Electronic Shelf Label System)
REV 1.1
SoluM
2018-08-13
Summary
This datasheet presents the general performance and specifications of S-Label for ESL (Electronic
Shelf Label) system
© 2018SoluM. All rights reserved
The names of actual companies and products mentioned
herein may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of SoluM
This document is subject to change without notice.
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 3/18
Table of Contents
1 GENERAL DESCRIPTION ..................................................................................................... 5
1.1 FEATURES ............................................................................................................................ 6
1.2 TYPICAL APPLICATIONS ............................................................................................................ 6
1.3 APPEARANCE ......................................................................................................................... 6
2 SPECIFICATION .................................................................................................................. 7
2.1 PRODUCT SPECIFICATION ......................................................................................................... 7
2.2 RADIO (RF) SPECIFICATION ...................................................................................................... 8
2.3 NFC SPECIFICATION ............................................................................................................... 8
2.4 MECHANICAL DRAWING ............................................................................................................ 9
2.5 LABELS .............................................................................................................................. 12
3 PACKAGE ........................................................................................................................... 14
4 CAUTIONS FOR TREATMENT ............................................................................................. 16
4.1 USAGE ENVIRONMENT ............................................................................................................ 16
4.2 STORAGE AND USE ............................................................................................................... 16
4.3 BATTERY REPLACEMENT ......................................................................................................... 19
4.4 HOW TO CLEANING ............................................................................................................... 20
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 4/18
Document History
Rev. Date Revision history Page
1.0 22JUN 2018 Initial release -
1.1 13 Aug 2018 Add EU& 7.5”/11.6”
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 5/18
1 General Description
This S-Label product is a part of SOLUM S-Label (Electronic Shelf Label) system as well as S-Label
Gateway (S-Gate). S-Label system make up a system that electronically displays price and other
product information on S-Labels, which has been traditionally printed or written on paper in places like
retail markets.
S-Label receives product price/information updates from S-Gate and updates or changes its display of
price and other information.
S-Label is the product based on IEEE standard 802.15.4g for low power wireless communication
applications. S-Label consists of RF transceiver, RF circuitry and ARM Cortex M3 MCU offering IEEE
802.15.4g based network protocol and MAC protocol and other peripheral devices.

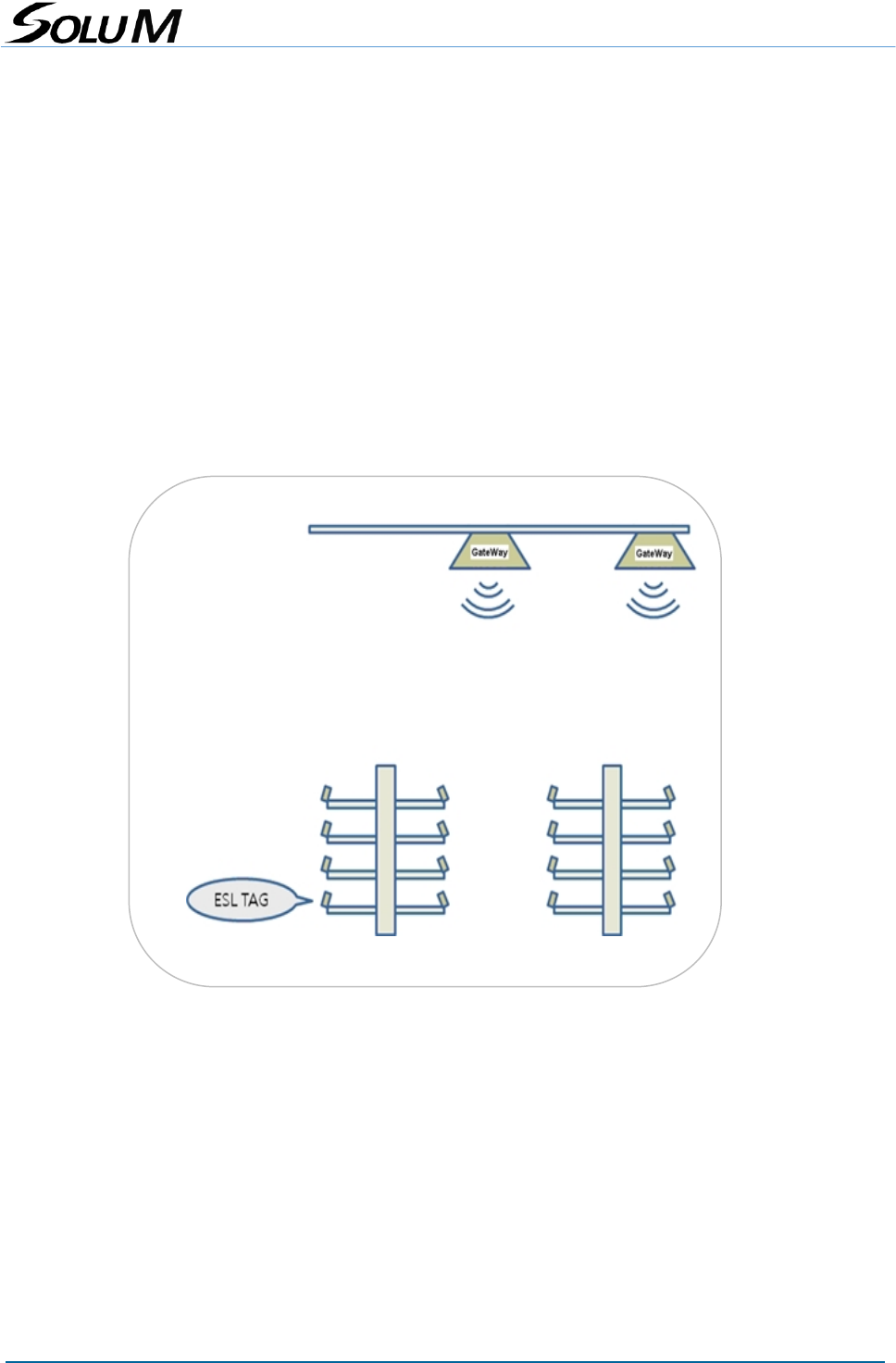

Figure 1ESL System
REV 1.
1.1
-
-
-
-
-
-
1.2
T
-
-
1.3
A
1
Features
Display : E-
Display C
o
Communic
a
Operatin
g
o
Low Power
Workin
g
co
NFC(13.56
M
T
ypical A
Retail indu
s
Intelli
g
entl
y
A
ppeara
n
S-Labe
l
Paper Displ
a
o
lor : Mon
a
tion : Wirel
e
o
n 860 ~ 92
Consumptio
ndition: Ind
o
M
Hz) : Optio
n
pplicatio
n
s
try with ele
c
y
communic
a
n
ce
l
Datash
e
SoluM Pr
o
a
y (EPD) (ac
t
o type (B
l
e
ss communi
0
MHz Unlice
n
n
o
or where w
i
n
al
n
s
c
tronic displ
a
a
tin
g
, mana
g

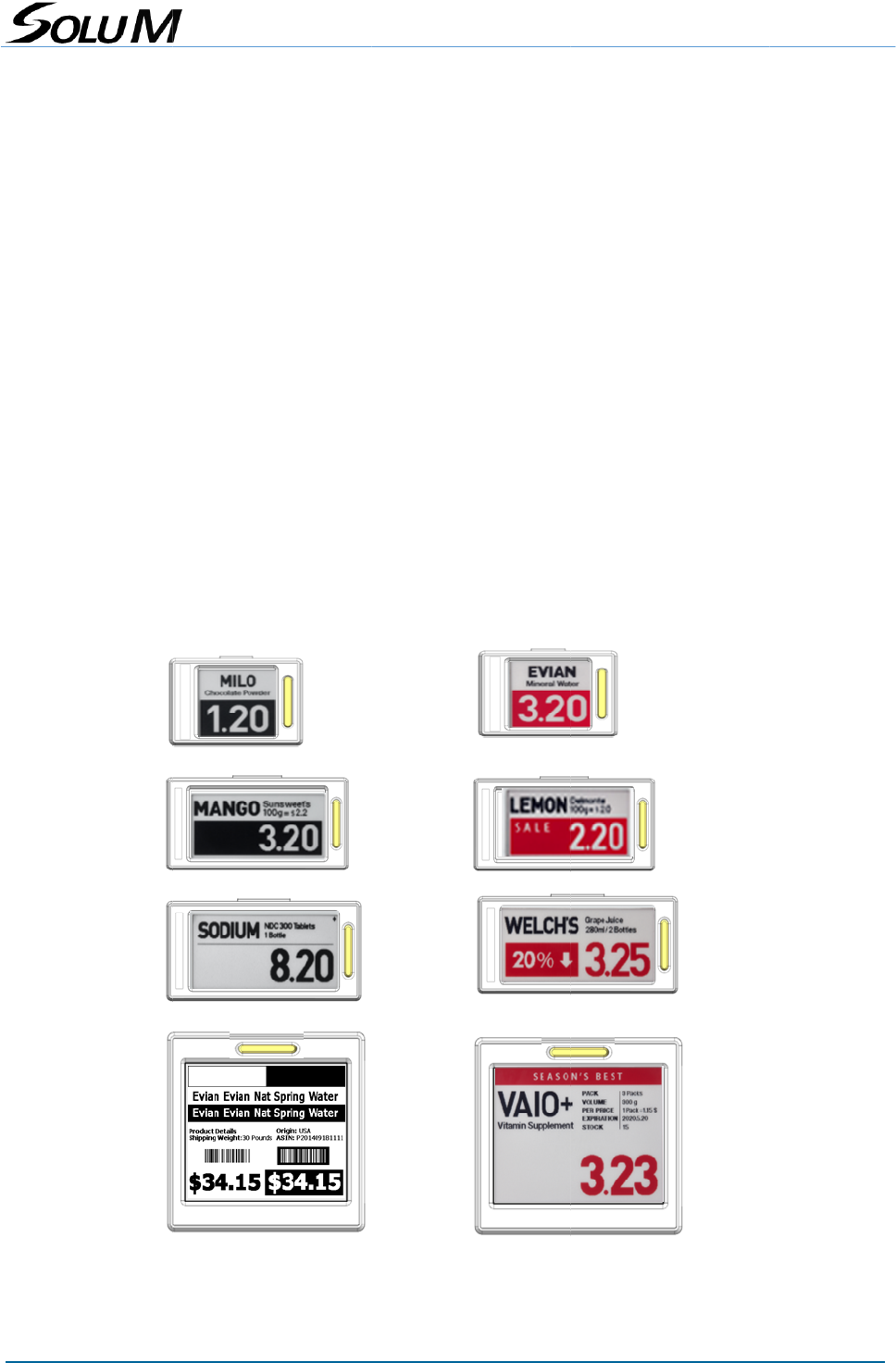

Figure 2
.
e
et (EL
0
o
prietary an
d
t
ive type) (
l
ack, White
cation base
d
n
sed ISM ba
n
i
reless com
m
a
ys, platform
in
g
, and opt
.
S-Label
Ap
0
00D2W
R
d
Confident
i
1.6”,2.2”,2.
9
), Red co
l
d
on IEEE 80
n
d for Zi
g
Be
e
m
unication is
s, solutions
a
imizin
g
pric
e
p
pearance
R
C/NUS
)
i
al
9
”,4.2”,7.5”,
1
l
or type (
B
2.15.4g
e
available.
a
nd services
e
and produ
c
)
1
1.6
”
)
B
lack, Whit
e
.
c
t informatio
n
6/1
8
e
, Red),
n
s.
8
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 7/18
2 Specification
2.1 Product Specification
Item Description
Size
1.6 Inch: 48.55 x 36.25 x 11.95 mm
2.2 Inch: 69.40 x 36.20 x 11.65 mm
2.9 Inch: 91.2 X 41.12 X 11.88mm
4.2 Inch: 103.50 X 92.67 X 14.50mm
Battery
CR2450 Lithium Battery (3V, 1~4PCS)
2.4 ~ 3.3Vdc (condition : In active status)
- CR2450 2pcs : 2.2”, 2.9” 4.2”
- ** Note: Battery capacity depends on temperature
Display
EPD PANEL Display (Graphic type)
- Mono: White / Black (BW)
- RedColor: White / Black / Red (BWR)
1.6 Inch: 200 x 200 Pixel (184dpi) / 27.60 x 27.60 mm – Mono
152 x 152 Pixel (140dpi) / 27.51 x 27.51 mm – Color
2.2 Inch: 212 x 104 Pixel (111dpi) / 47.76 x 22.92 mm
2.9 Inch: 296 x 128 Pixel (112dpi) / 66.90 x 29.06 mm
4.2 Inch: 400 x 300 Pixel (120dpi) / 84.40 x 63.30 mm
Housing Color White (Option; Black)
Information display Price, Unit, Symbol etc.
Communication Wireless communication based on IEEE 802.15.4g
(USA 902~928Mhz, EU 863~870)
Communication Distance Radius 30m ( Line of Sight)
Operation Temperature
(Mono Tag)
Normal Temperature TAG
0 ~ 40℃ (@20~60% RH)
Operation Temperature Normal Temperature TAG
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 8/18
(Color Tag) 0 ~ 30℃ (@35~60% RH)
Storage Temp. -20℃ ~ 40℃
2.2 Radio(RF) Specification
Items Parameter Spec. Unit Condition
Min Typ. Max
TX
Transmit Power 5 10 15 dBm
Modulation Quality
Deviation 70 . 130 % 70% < f < 130% @2FSK
Tx Current - - 16 mA Total current at max Tx power
RX Receiver Sensitivity -90 dBm PER < 1%
** Test Channel : 865 MHz (EU), 902 Mhz(US)
2.3 NFC Specification
Items Parameter spec. Units Condition
Min Typ Max
NFC Read Distance - 20 - mm TAG status
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 9/18

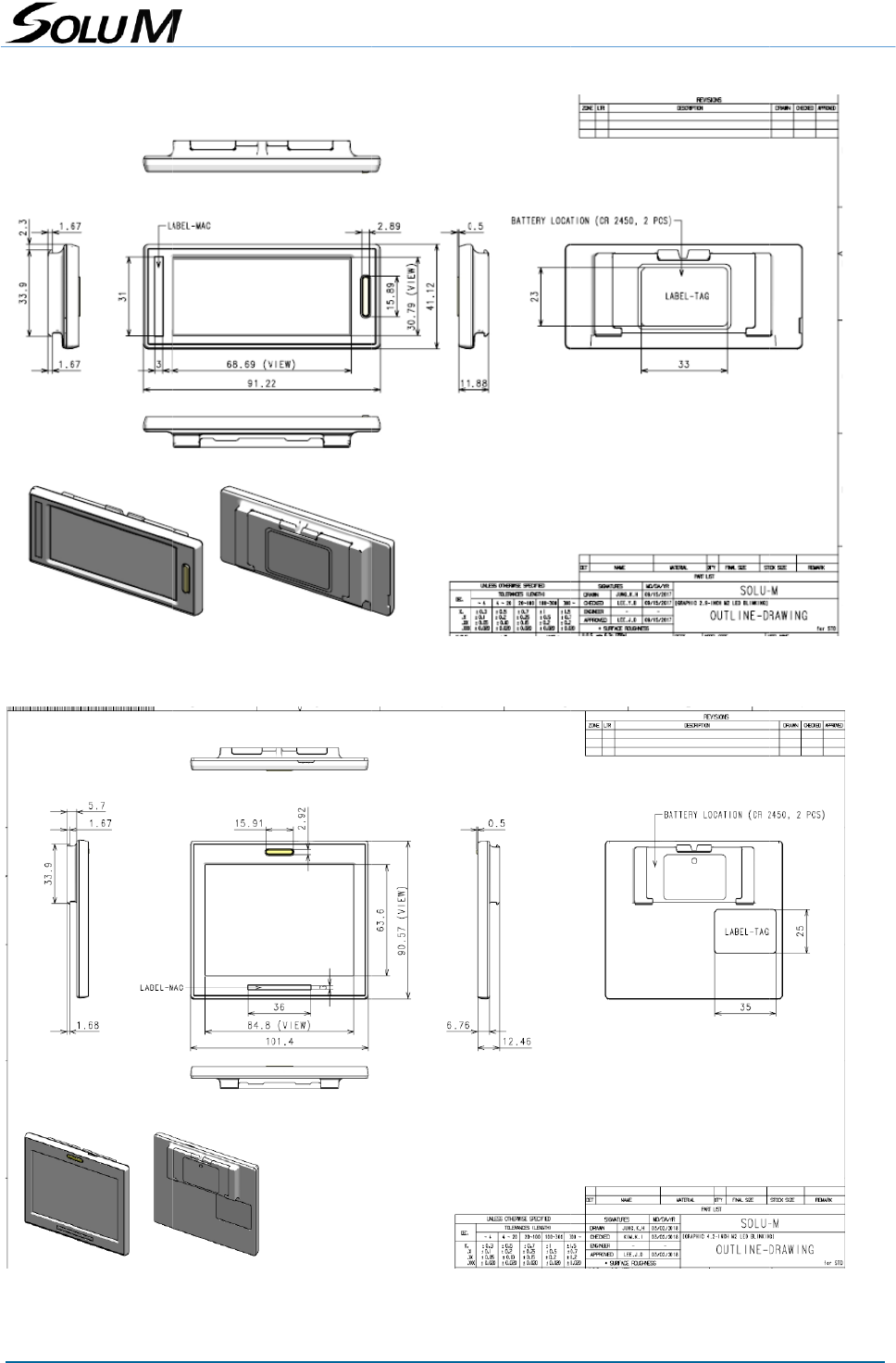

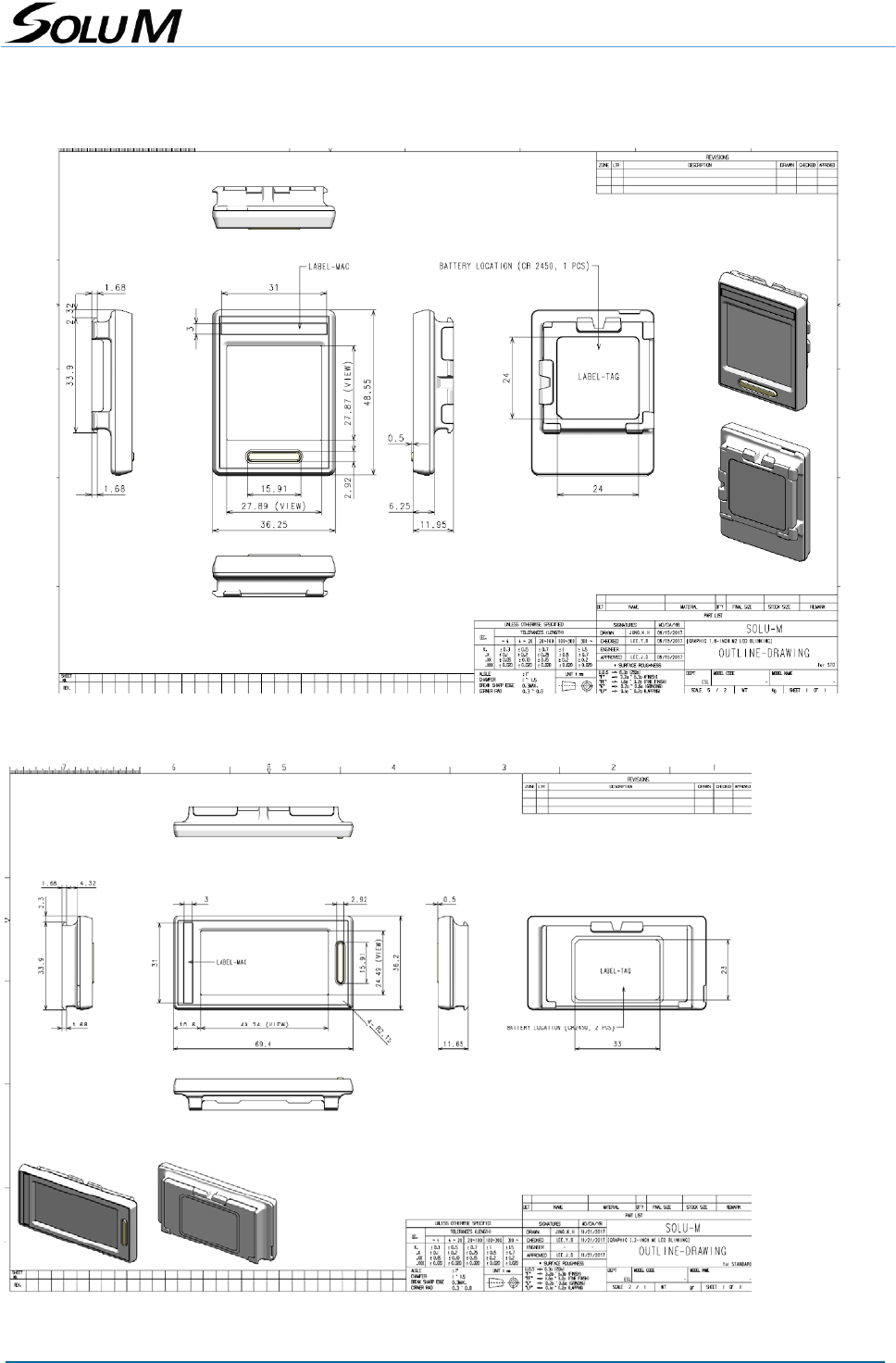

2.4 Mechanical Drawing
2.4.1 Case Dimension
Figure 3 1.6”Mechanical Dimension
Figure 4. 2.2”Mechanical Dimension
REV 1.
1
S-Labe
l
F
i
F
i
l
Datash
e
SoluM Pr
o
ig
ure 5. 2.
9
ig
ure 6. 4.
2
e
et (EL
0
o
prietary an
d
9
”Mechani
c
2
”Mechani
c
0
00D2W
R
d
Confident
i
al Dimensi
o
al Dimensi
o
R
C/NUS
)
i
al
o
n
o
n
)
10/1
8
8
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 11/18

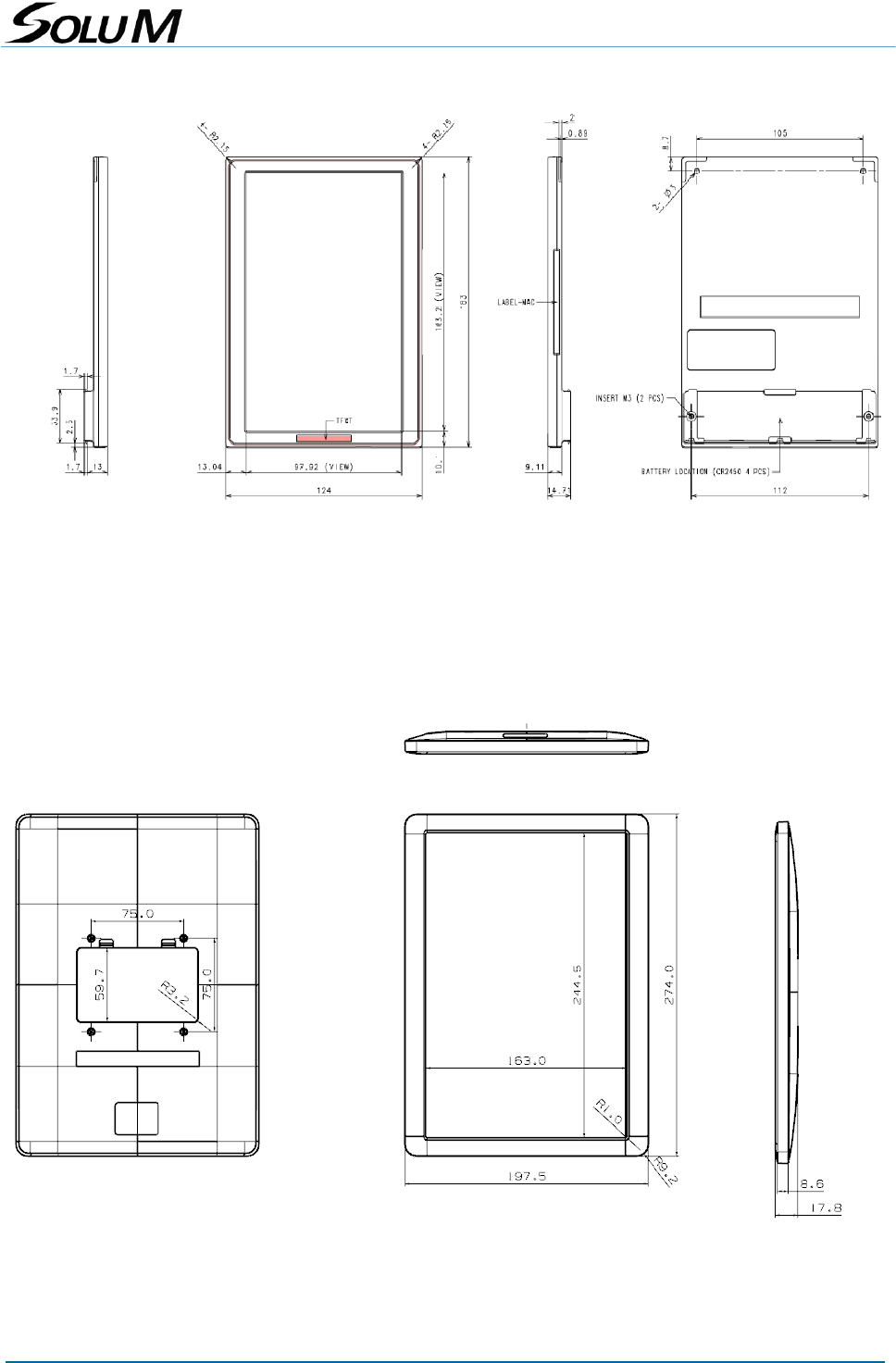

Figure 6.7.4”Mechanical Dimension
Figure 6.11.6”Mechanical Dimension
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 12/18
2.5 Labels

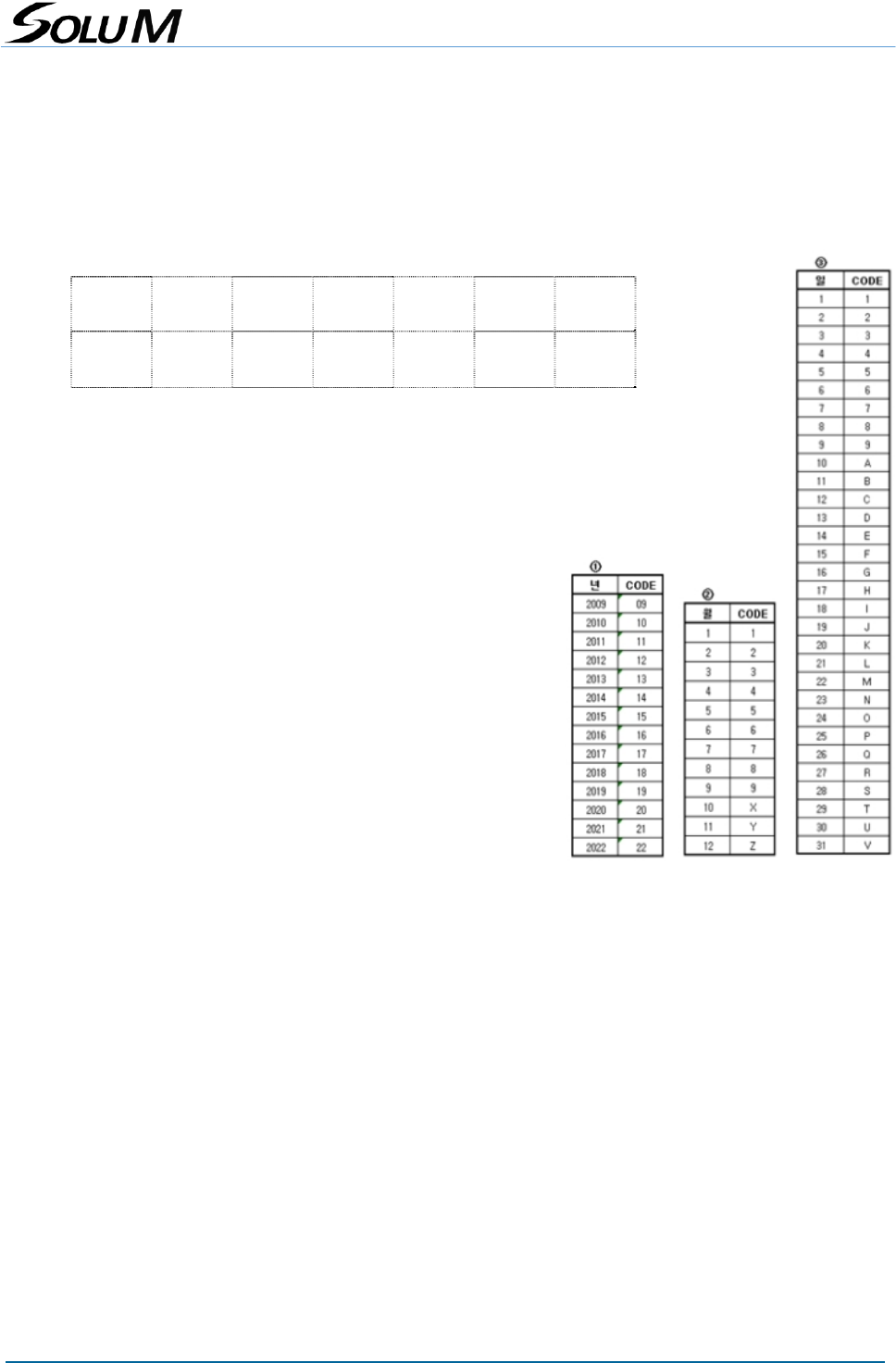

2.5.1 Serial Number Information
Serial 1, 2 Code Value
17 3 G T A A 2JW
① ② ③ ④ ⑤ ⑥ ⑦
① Year : Last two digits of manufacturing year.
(00 ~ 99, Example : 2017 is '17')
② Month : Manufacturing month
(1 ~ 9, X(10), Y(11), Z(12))
③ Date : Manufacturing date
(1 ~ 9, A(10) ~ V(31))
④ Vendor : Manufacturing vendor
(S : SEMTHAI, T : TSEM, V : SOLVINA , etc)
⑤ Line number : Manufacturing Line number
('A', 'B', 'C', etc)
⑥ Revision : Product revision number
(A : First, B : Second, C : Third, etc )
⑦ ZigBee IC Lot Number : Last 3 characters
Product and Mac Label Drawings
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 13/18
2.5.2 MAC Label
Figure 7 Product and Mac Labels
Product information is indicated in a printed sticker label. The information consists of MODEL (model
name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), CE certification mark,
FCC ID and Manufacture (SOLUM).
1) Model : EL0XXD2 (XX:Tag Display size (29; 2.9”) (42,4.2”))
2) P/N: EL0①②③④⑤⑥⑦ex ;
3) FCC ID: 2AFWN-EL0XXD2 (XX:Tag Display size (29; 2.9”) (42,4.2”))
4) MFD : (month).(date).(year) ex) APR.17.2017
5) S/N : Daily Production Quantity (6 digits) & Serial Number Information
(hexadecimal 10 digits)
6) MAC : barcode & barcode number (hexadecimal 12 digits)
ex) XXXXXXXXB23X
- 8 digits(1st ~ 8th) : XXXXXXXX (Increasing number : 00000000 ~ FFFFFFFF)
- 2 digites(9th ~ 10th) : B2 (TAG type, B2 : TI SUB &2.4GHz 2.9inch RED TAG)
- 1 digit(11th) : 3 (Attribute : 3 (Ultachip Drive IC & NFC)
- 1 digit(12th) : X (Checksum : XOR Calculation Value 1 ~ 13digits)
Model Name : EL0①②③④⑤⑥⑦⑧⑨⑩⑪⑫⑬ ex ;
- EL : Electronic Shelf Label
- ①②: Tag Display size (29; 2.9”) (42,4.2”)
- ③ :Design type-④ : CASE COLOR
- ⑤ : Display color
M - Mono Tag (BW)
R - Red color Tag (BWR)
⑥ FunctionN : NFC / C : LED+NFC /A : LED+Button+NFC
⑦ /Region NUS (North USA) EEU (EU) KKR (South Korea)
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 14/18
3 Package
TAG INNER BOX OUT- BOX PALLET
1.6" 90 270 10,800
2.2" 60 180 7,200
2.9" 50 150 6,000
4.2" 40 80 3,200
7.5” 25 50 2,000
11.6” 1 8 320

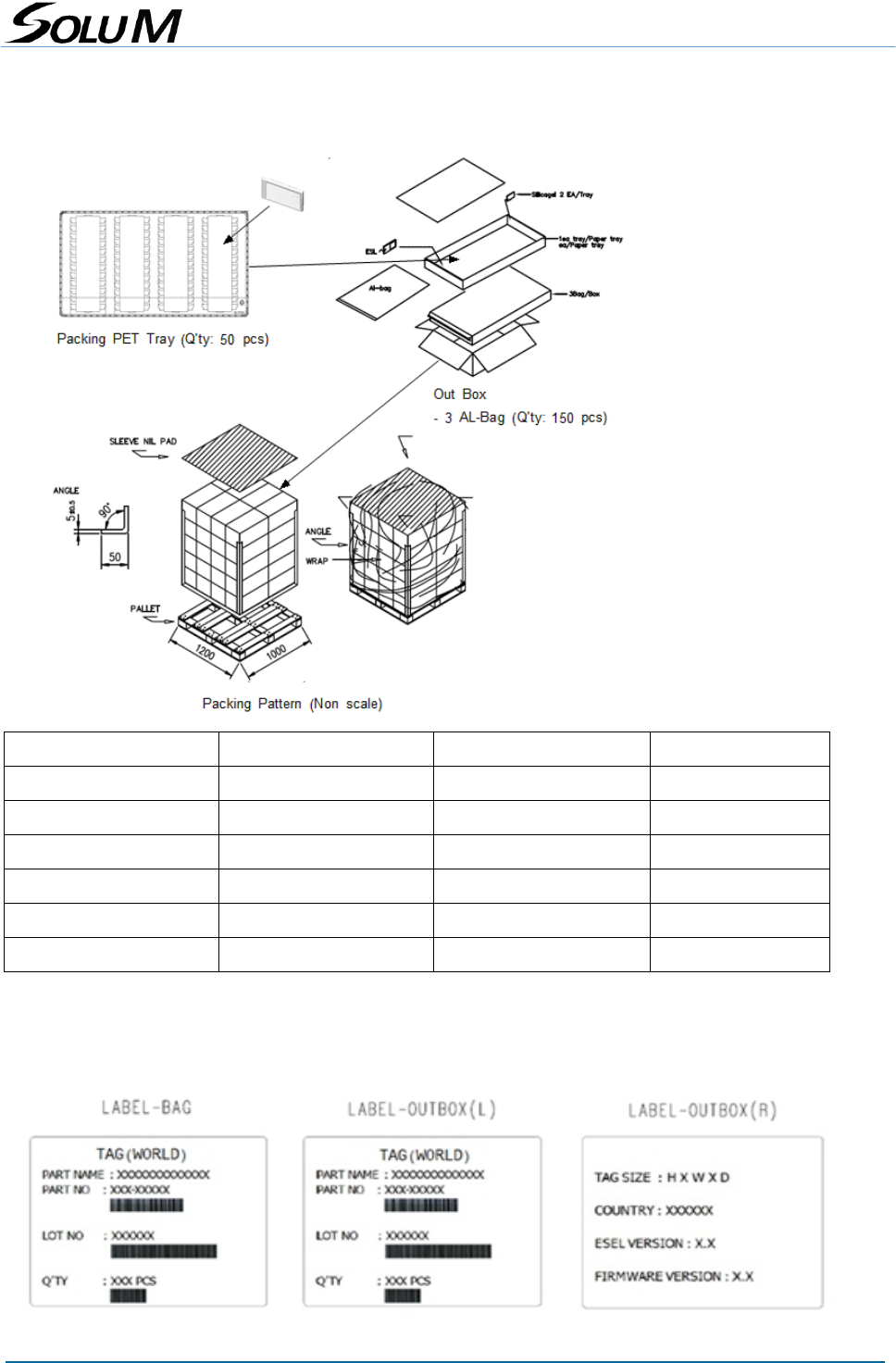

Figure 8 2.9” Package
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 15/18
Figure 9 Packing Label
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 16/18
4 Cautions for Treatment
Provisions should be made to protect against any damage to the product caused by improper
handling.
It is highly recommended that the product should be installed within 3 months from the date of
arrival in the logistics hub. Recommended storage condition is in 0-40 Celsius degree, 35-60% RH
environment.
This RF device operates on the under 1GHz frequency band and can produce radio interference. The
device, therefore, may not be used for applications where safety of human lives is concerned.
4.1 Usage Environment
Take extra cautions when using this RF device in the vicinity of other electronic devices and
appliances. Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves
emitted by this RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.
4.2 Storage and Use
Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the
device itself.
Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and damaged.
Use the product in temperatures ranging from 0℃ to +40℃. Parts and circuits may be
damaged if used or stored under temperature extremes.
The display panel needs extra care when handling.
- Do not apply any impacts on outside since e-Paper display is fragile.
- Continuous exposure to excessive moisture (over 60% RH) or UV makes display lifetime
shortened.
- Ghosting image may be appeared in temperature conditions of less than 15 Celsius degree.
Avoid areas with strong magnetism or subject to magnetism.
Contact between the device and a magnetic object can lead to malfunctions.
Do not place the product near heat-producing kitchen appliances like a stove or a microwave or
in the vicinity of highly pressurized containers.
External impact to the product, such as from being dropped, can damage the product or
battery casing can be separated.
Twisting and bending the product can damage the exterior casing and the internal components.
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 17/18
If this product operates abnormally in eliminating battery vinyl or replacing battery, you should
discharge it by contacting battery terminal (+) and (-).
This product uses Sub giga frequency frequency band for wireless communication network.
Radio communications can be limited or affected by other applications which share same
frequency band, such as RFID, Wireless Phone, etc.
Frequent communications, updates and screen renewals may reduce battery life time.
In cold area, may reduce battery life time.
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 18/18
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
- FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH
MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT
S-Label Datasheet (EL000D2WRC/NUS)
REV 1.1 SoluM Proprietary and Confidential 19/18
4.3 Battery Replacement
Audience
Authorized persons with the following knowledge are allowed to replace the battery.
- . Battery / -. Electronic assemblies like circuit board / -. Compliance of the
instruction
　 ※ Note : If not authorized person, it will not give any warranty.
(When need to replace the battery. Please contact authorized person and get
instructions.)
Instructions
- Risk of short circuit if battery is incorrectly installed/stored.
- Keep attention that your hands are dry before you start with replacement
- Keep away batteries from children and infants.
- Don’t heat, charge, bend, drop, short-circuit and disassemble battery.
- Don’t mix the used battery together with the new battery or different type of batteries.
※ Note : Battery rarely has a little stain or leak.
Steps
① Open the battery cover.
② Take out the batteries.
③ Put in the new batteries.
④ Check the batteries direction.
⑤ Put the battery cover back.
Battery Directional
Top: (+) Positive
Bottom: (-) Negative
Figure 21. Battery Directional
REV 1.
4.4
For
S
Note
For
W
W
W
1
How to c
l
S
pray Clea
Stand label
s
Li
g
htly spr
a
Clean wipe
Dry out lab
e
:
When spr
a
It may da
m
You can u
s
Recomme
Cotton te
a
W
et Tissu
e
Lay down ta
W
ipe usin
g
w
Dry out labe
W
e do not
S-Labe
l
l
eaning
ning:
s
not to lay
d
a
y to the sur
f
it usin
g
clot
h
e
ls
a
y the ta
g
s
,
m
a
g
e label
s
s
e mild, no
nd non-ab
r
a
towel
e
Cleaning
g
s or stand
l
w
et tissues
ls
g
uarantee
l
Datash
e
SoluM Pr
o
d
own labels
f
aces and w
a
h
or tissues.
,
make sur
e
s
directly,
c
n-alcoholi
c
r
asive clot
h
:
l
abels
any water
e
et (EL
0
o
prietary an
d
a
it few seco
n
e
not to flo
w
c
ircuit and
c
deter
g
ent
s
h
s: Microf
i
dama
g
ed l
a
0
00D2W
R
d
Confident
i
n
d
w
any liqui
battery.
s
or
g
lass
c
ber, Cotto
n
a
bels
R
C/NUS
)
i
al
d into insi
d
c
leaner.
n
T-shirt, C
o
)
d
e labels
o
tton hand
20/1
8
kerchief,
8

Navigation menu
