DATASHEET
Company Name
Macy’s
MODEL
ELS10AFWM0/NUS
CUSTOMER
APPROVAL
□ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 1.0)
□ CUSTOMER REMARK:
Issued By
Checked By
Approved By
WY HUR
HJ CHO
BJ Jun
SOLUM CO., LTD.
A-6th floor, 357, Guseong-ro, Giheung-gu, Yongin-si, Gyeonggi-do 16674, Korea
Tel: +82-31-8006-7691
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
2/24
S-Label Datasheet
S-Label (Electronic Label System)
REV 1.0
Solu-M
2017-12-19
Summary
This datasheet presents the general performance and specifications of S-Label for ESL (Electronic
Shelf Label) System.
© 2017 Solu-M. All rights reserved
The names of actual companies and products mentioned
herein may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of Solu-M
This document is subject to change without notice.
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
3/24
Table of Contents
1 GENERAL DESCRIPTION ..................................................................................................... 5
1.1 FEATURES .............................................................................................................................. 6
1.2 TYPICAL APPLICATIONS .............................................................................................................. 6
1.3 APPEARANCE ........................................................................................................................... 7
2 SPECIFICATION .................................................................................................................. 8
2.1 PRODUCT SPECIFICATION ........................................................................................................... 8
2.2 RADIO (RF) SPECIFICATION........................................................................................................ 9
2.3 MECHANICAL DRAWING ........................................................................................................... 10
2.4 LABEL MARKING ..................................................................................................................... 12
2.5 BARCODE SCANNING ............................................................................................................... 14
3 OPERATION TEST .............................................................................................................. 15
4 ESL OPERATION BY DISPLAY ........................................................................................... 17
5 PACKAGING ...................................................................................................................... 19
6 CAUTIONS FOR TREATMENT............................................................................................. 20
6.1 USAGE ENVIRONMENT ............................................................................................................. 20
6.2 STORAGE AND USE ................................................................................................................. 20

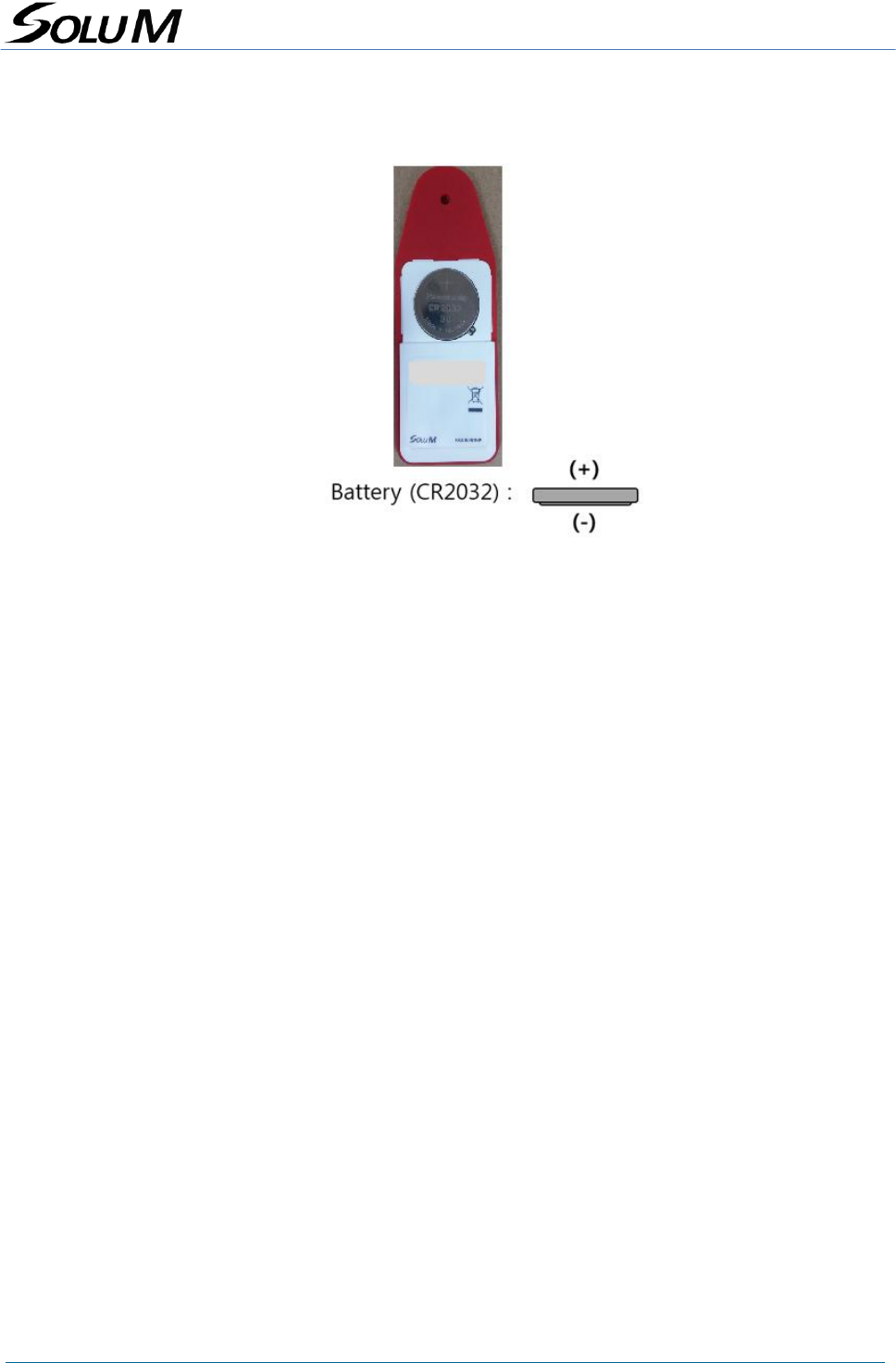

6.3 BATTERY REPLACEMENT ........................................................................................................... 21
6.4 FCC ................................................................................................................................... 23
6.5 CLEANING ............................................................................................................................ 24
Document History
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
4/24
Rev.
Date
Revision History
Page
1.0
19 Dec 2017
Initial release
-
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
5/24
1 General Description
S-Label product is part of SoluM S-Label (Electronic Shelf Label) System, also consisting of S-
Label Gateway (S-Gate), and Remote Controller (S-RC). The S-Label System electronically displays
price, product, and promotion information on S-Labels, which has been traditionally printed or written
on paper in places such as retail markets.
S-Label wirelessly receives data from S-Gate and updates the display with the new information
provided.
S-Label is based on IEEE standard 802.15.4 for low power wireless communication applications.
It consists of RF transceiver, RF circuitry and ARM Cortex M3 MCU offering IEEE 802.15.4 based
network protocol, and MAC protocol and other peripheral devices.

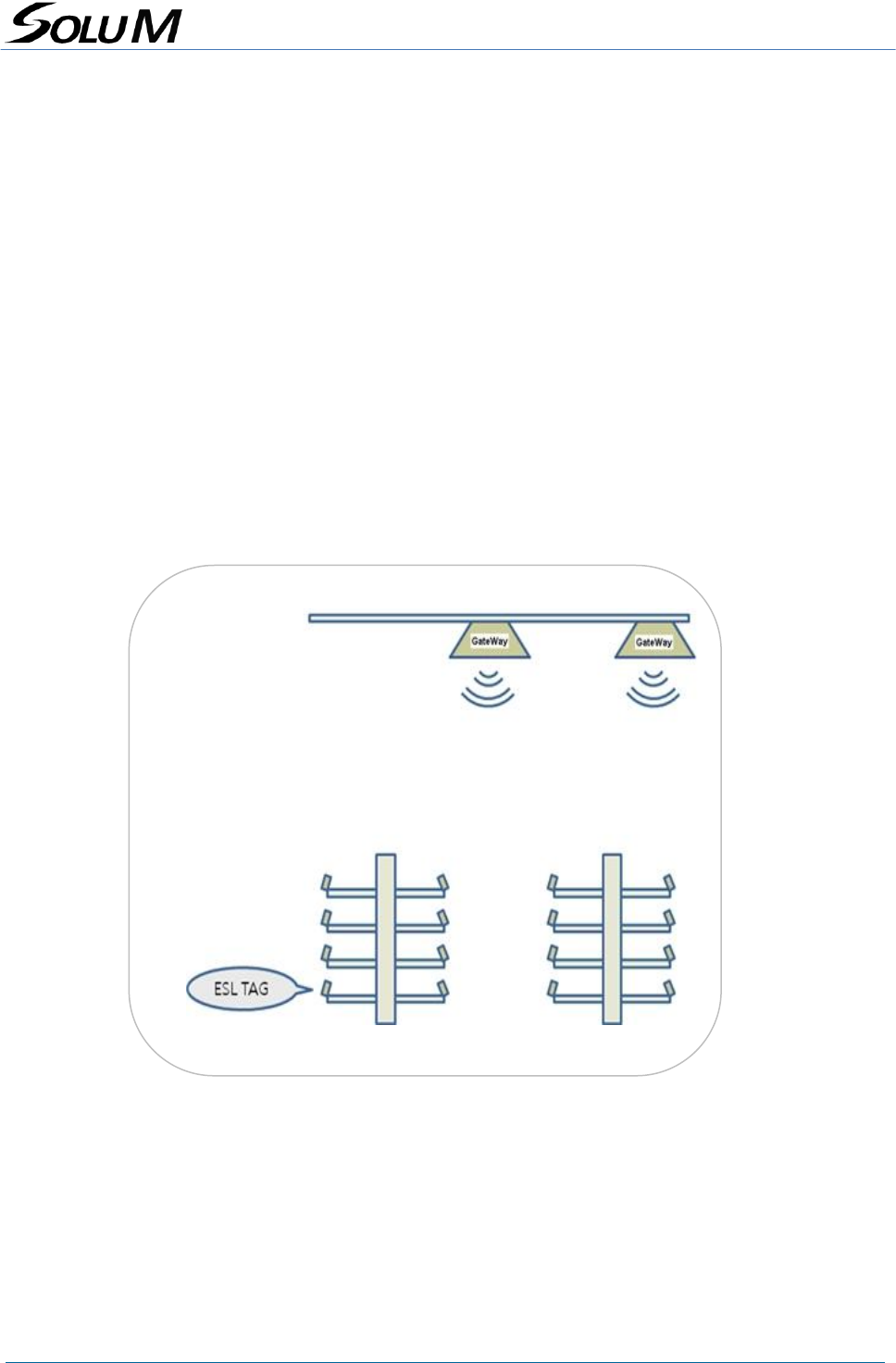

Figure 1. ESL System
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
6/24
1.1 Features
- Display: E-Paper Display (EPD) 7seg. Type (1.0” – 19.51 x 19.51mm)
- Display Color: Black, White
- Communication: Wireless communication based on IEEE 802.15.4
- Operating on 2.4GHz Unlicensed ISM band for ZigBee
- Low Power Consumption
- External Wakeup: RF Wakeup (using ISM Band [2.4GHz])
- Case Color : White & Red
- Working Condition: Indoor where wireless communication is available.
1.2 Typical Applications
- Retail industry with electronic displays, platforms, solutions and services.
- Intelligently communicating, managing, and optimizing price and product informations.
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
7/24

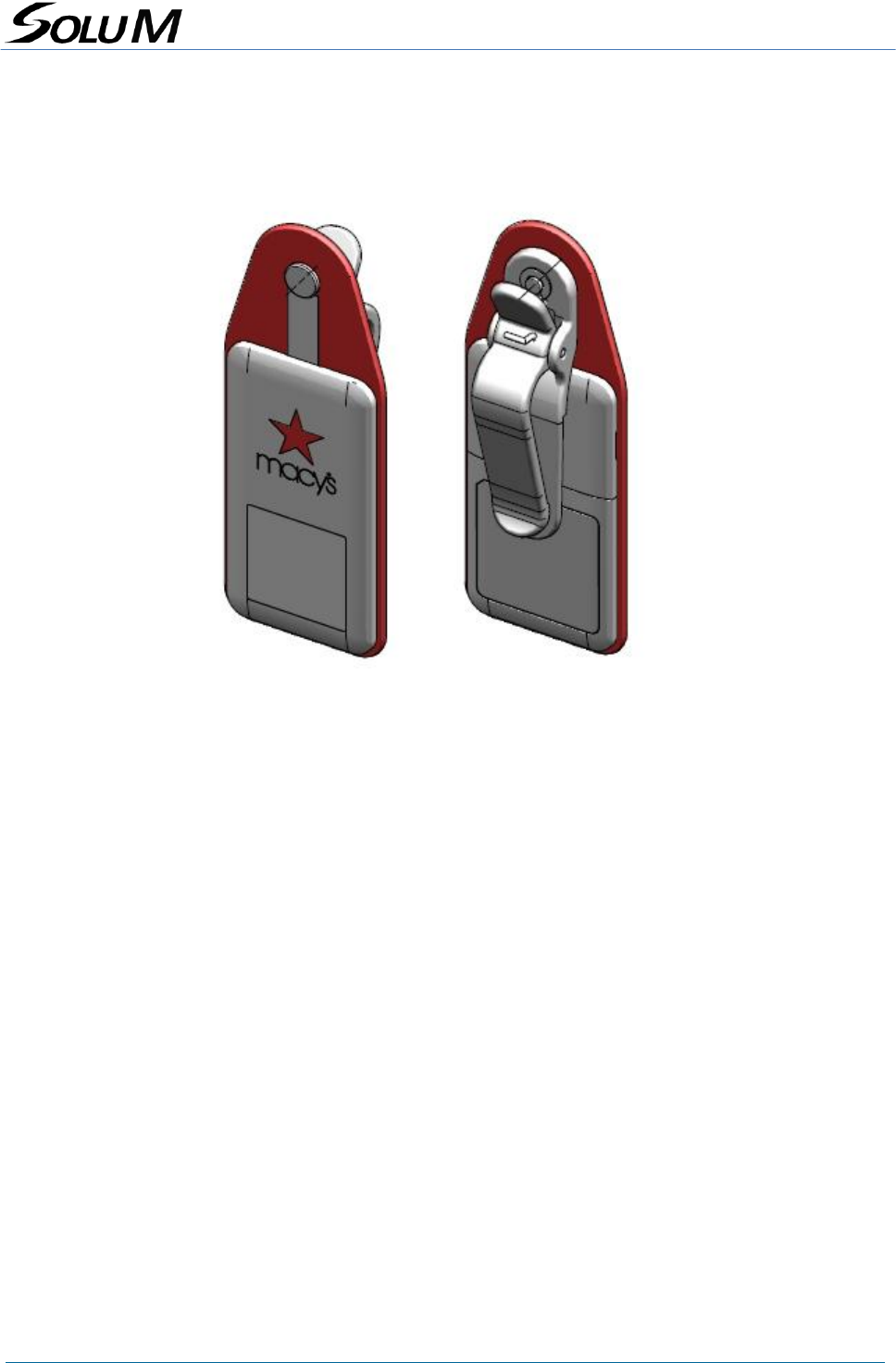

1.3 Appearance
Figure 2. Appearance
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
8/24
2 Specification
2.1 Product Specification
Item
Description
Size
1.24 x 3.31 x 0.23(Label) / 0.76inch(with clip)
31.6 x 84.09 x 5.9(Label) / 19.21mm(with clip)
Weight
17g
Battery
CR2032 Lithium Battery (3V, 1PC)
2.4 ~ 3.3Vdc (condition: In active status)
** Note: Battery capacity depends on temperature (especially in low
temp environment) and number of update count.
Display
EPD PANEL Display (7Seg. type)
- Color: Black / White
Color
Housing ; White
Silicon ; Red
Clip ; Milky white
Information display
Prices, save rate etc.
Communication
Wireless communication based on IEEE 802.15.4 (2405~2480MHz)
Communication Distance
Radius 20m (Line of Sight)
Operation Temperature
5 ~ 40 ℃
Storage Temp.
-20 ~ 40 ℃
Humidity
35 ~ 60% RH
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
9/24
2.2 Radio (RF) Specification
Item
Parameter
SPEC
Unit
Condition
Min
Typ
Max
TX
Transmit Power
-4
1.5
6
dBm
Error Vector Magnitude
-
10
28
%
When measured for 100 chips
Tx Current
-
33
mA
Total current at max Tx Power
RX
Receiver Sensitivity
-90
-
-
dBm
PER < 1%
** Test Channel: 2480MHz
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
10/24

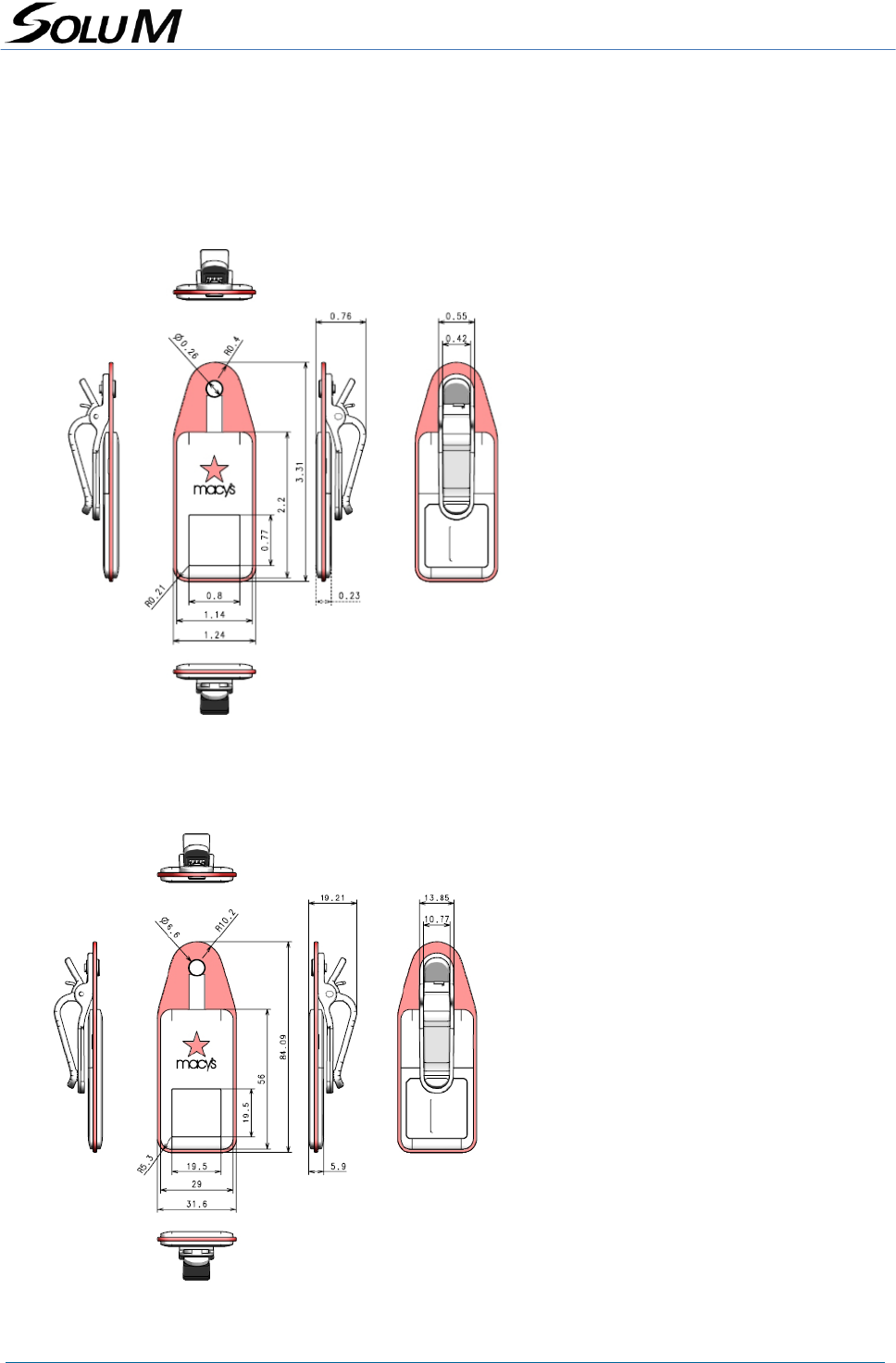

2.3 Mechanical Drawing
2.3.1 Product Dimension
Figure 3. Mechanical Dimension (unit: inch)
Figure 4. Mechanical Dimension (unit: mm)
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
11/24

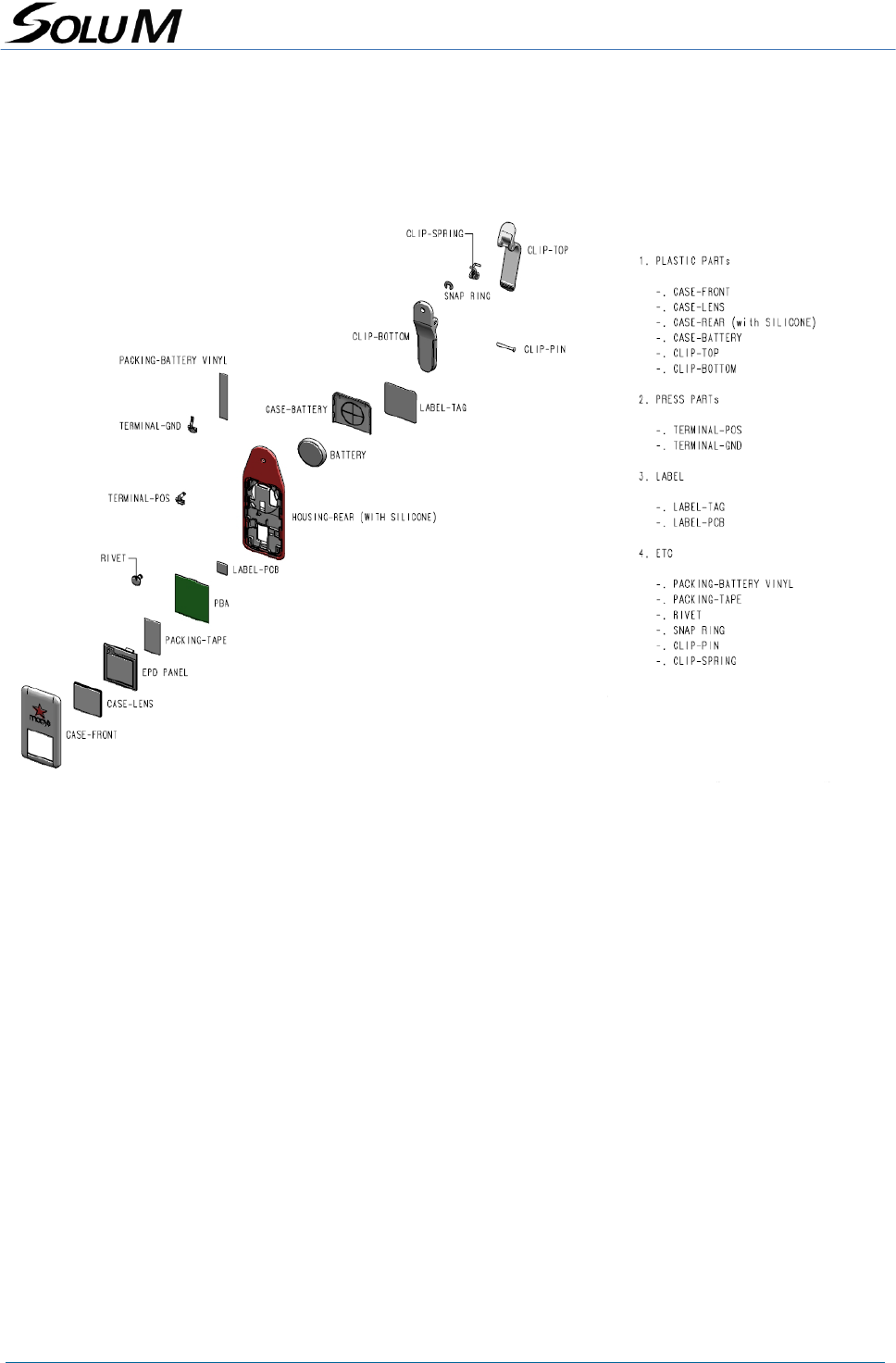

2.3.2 Exploded View
Figure 5. Exploded View
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
12/24
2.4 Label Marking

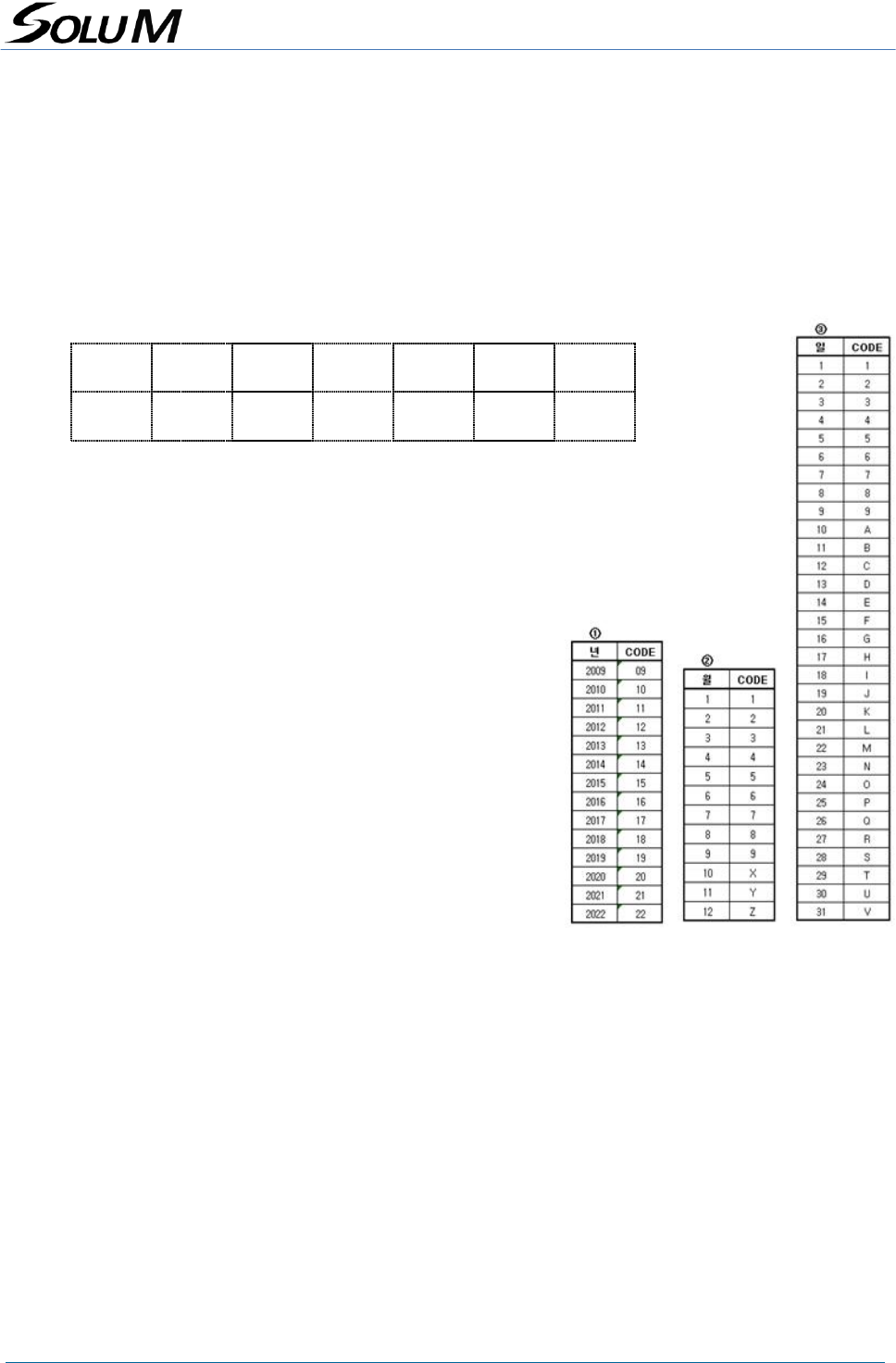

2.4.1 Serial Number Information
Serial 1, 2 Code Value
17
3
G
T
A
A
001
①
②
③
④
⑤
⑥
⑦
① Year: Last two digits of manufacturing year.
(00 ~ 99, Example: 2017 is '17')
② Month: Manufacturing month
(1 ~ 9, X(10), Y(11), Z(12))
③ Date: Manufacturing date
(1 ~ 9, A(10) ~ V(31))
④ Vendor: Manufacturing vendor
(S: SEMTHAI, T: TSEM, V: SOLVINA, etc)
⑤ Line number: Manufacturing Line number
('A', 'B', 'C', etc)
⑥ Revision: Product revision number
(A: First, B: Second, C: Third, etc)
⑦ ZigBee IC Lot Number: Last 3 characters
Product and Mac Label Drawings
* The six digit number in the start of the serial line is the daily quantity manufacturing count.
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
13/24
2.4.2
2.4.3 MAC Label
Figure 6. Product Label
Product information is indicated on the sticker label of the S-Labels. The information consists of
MODEL (model name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), CE
certification mark, FCC ID and Manufacturer (SoluM).
1) FCC ID: T.B.D
2) Model Name: ELS10AFWM0/NUS
3) MFD: (Month).(Date).(Year) i.e. Dec.19.2017
4) S/N: Serial Number Information (See Section 2.5.1)
5) MAC: barcode & barcode number (hexadecimal 12 digits)
- 8 digits (1st ~ 8th) : xxxxxxxx (Label I.D.)
- 3 digits (9th ~ 11th) : 041 (Label type)
- 1 digit (12th) : x (Checksum)
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
14/24

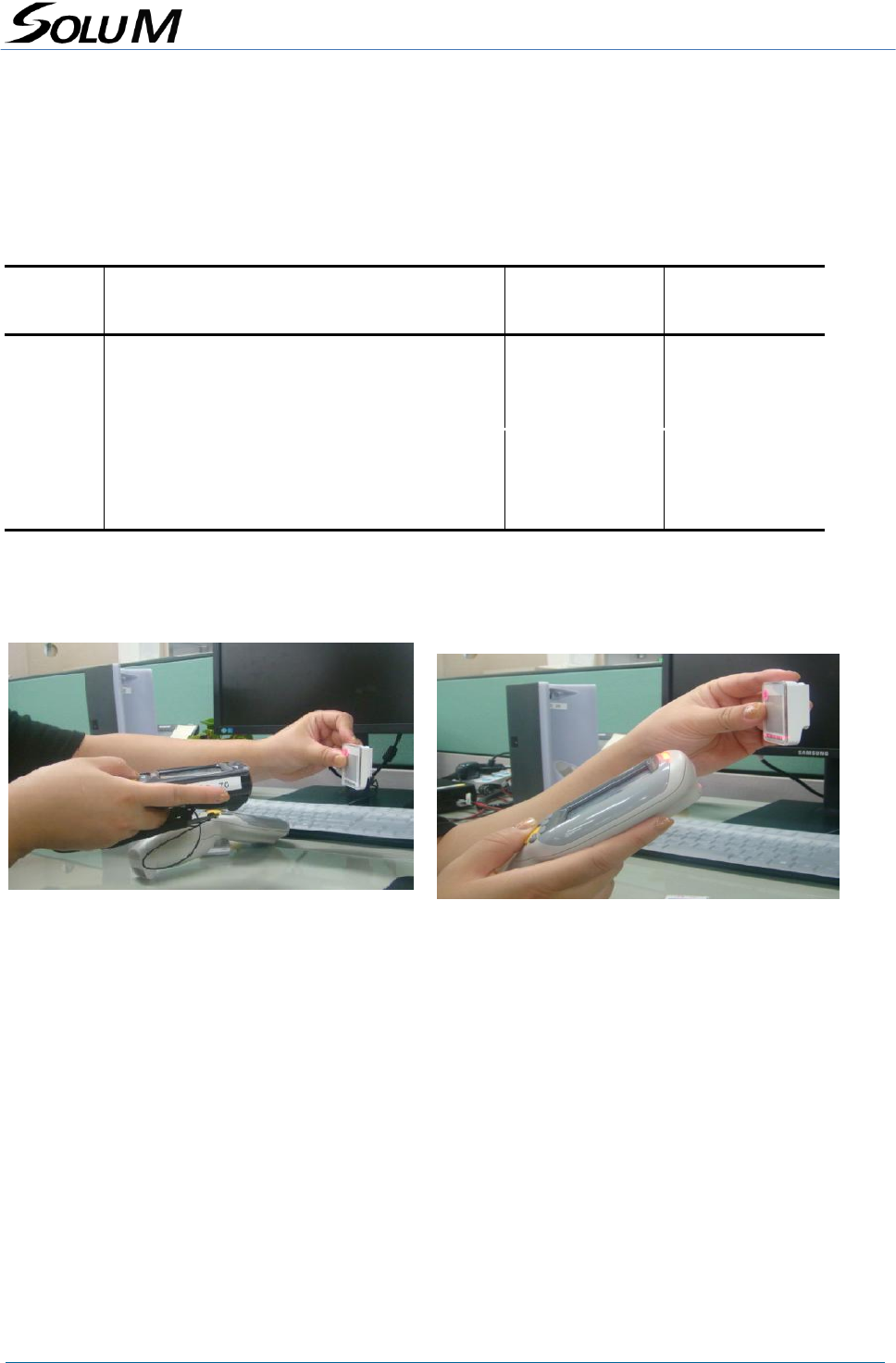

2.5 Barcode Scanning
2.5.1 Barcode Scanning Condition
Typical scan distance is 8 ~ 9cm and angle is horizontality.
Item
MODEL
Distance
Angle
Scanner
SYMBOL
(DS6708-SR20007ZZR)
8~9cm
Horizontal
DATALOGIC
(QUICKSCAN QD2430)
8~9cm
Horizontal
PDA
Motorola
(MC3190-SI2H04E0A)
8~9cm
Horizontal
Motorola
(MC17T-00)
6cm
30º
Motorola
(MC4597-BAPBA0000)
8~9cm
Horizontal
M3
(NA8NWCNMH40078)
8~9cm
Horizontal
<Horizontal> <30º>
Figure 7. Barcode Scanning
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
15/24
3 Operation Test
- Equipment: Gateway (S-Gate), R/C, Jig for power supply
- Target DUT: EPD S-Label

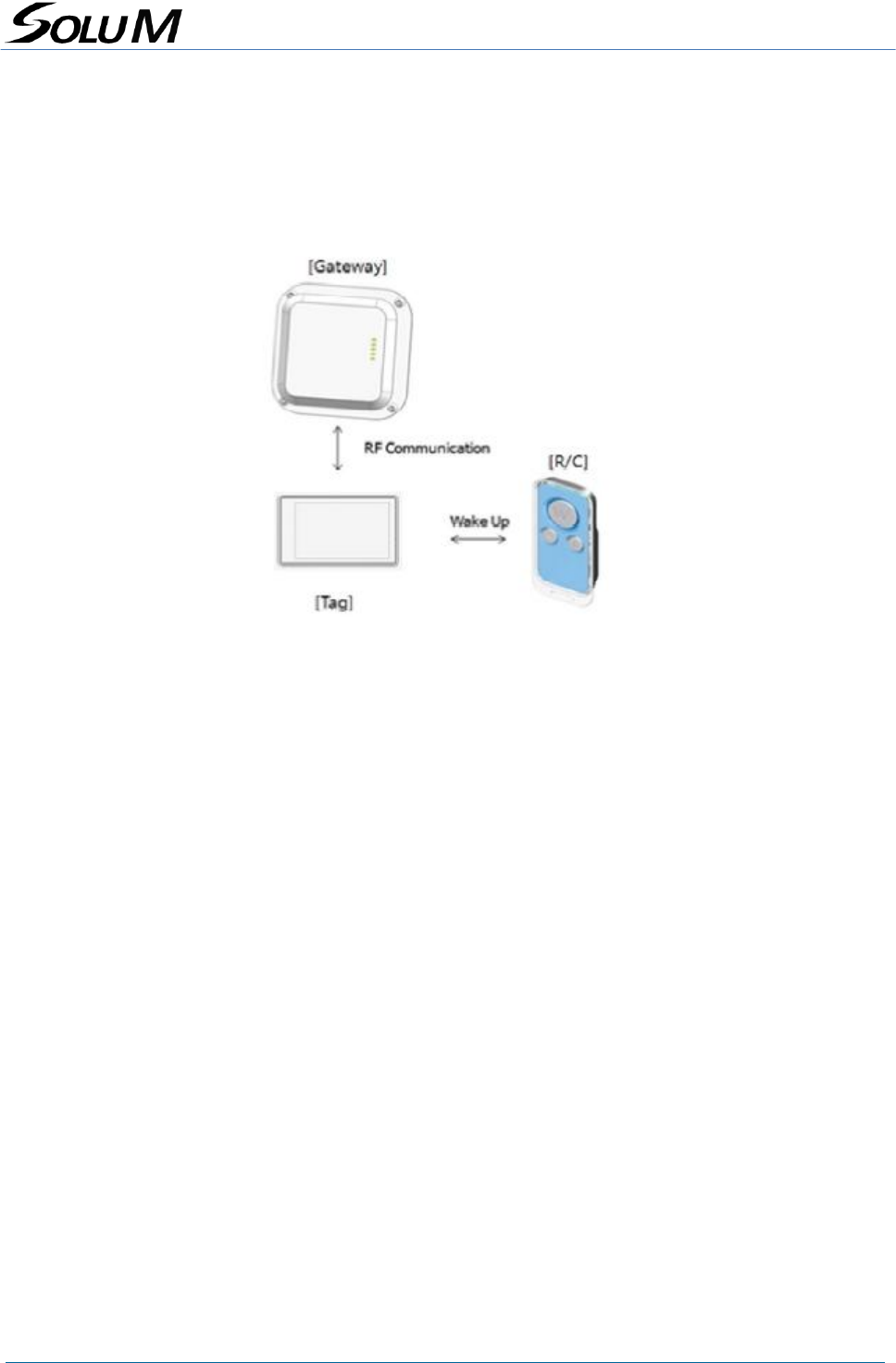

Figure 8. Operation Test
Test Scenario
① Install Tag on Jig
② Ready Gateway (S-Gate) and R/C
③ Wake up Tag with R/C
④ Tag starts to communicate with Gateway
⑤ Tag display the numeric information received from Gateway
⑥ Check Tag (EPD display status & MAC address value)
⑦ Wake up Tag with R/C
⑧ Check Tag (EPD display [blank display])
Criteria (Both conditions below should be satisfied)
① Good: You can see ‘Black’ → ‘White’ display
② Compare MAC Address displayed with the MAC Address on the S-Tag label itself
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
16/24

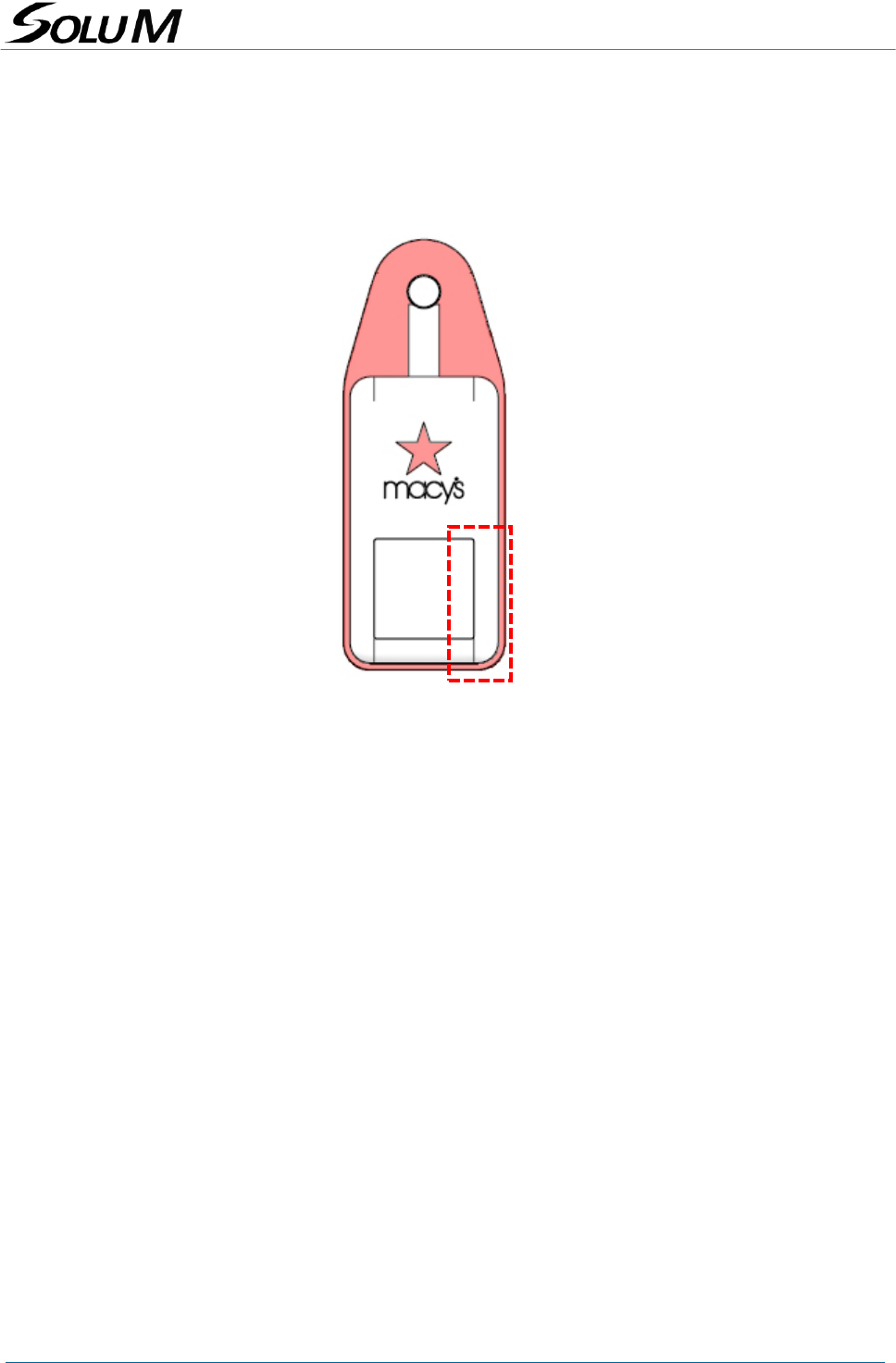

Position of Activation for S-Label
RED BOX: R/C Wake-up
Figure 9. Position of Activation for S-Label
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
17/24
4 ESL Operation by Display
Table will be updated. Below is sample reference.
Display
State
User Action
Initial display when shipped
from the manufacturer (blank
display).
None
Display Revision and MAC-Add
ress
Battery vinyl removal
Sync search
None
STATE 2 4
Activation received
None
r01
ABCD
r01
c
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
18/24
Price received
Un-assign
Un-assign S-Label using a
PDA
Sale price overflow
None
Unit price overflow
None
123.12
110.11
SAVE 10 %
123.12
110.11
SAVE 10 %
123.12
--- --
SAVE 10 %
--- --
110.11
SAVE 10 %
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
19/24

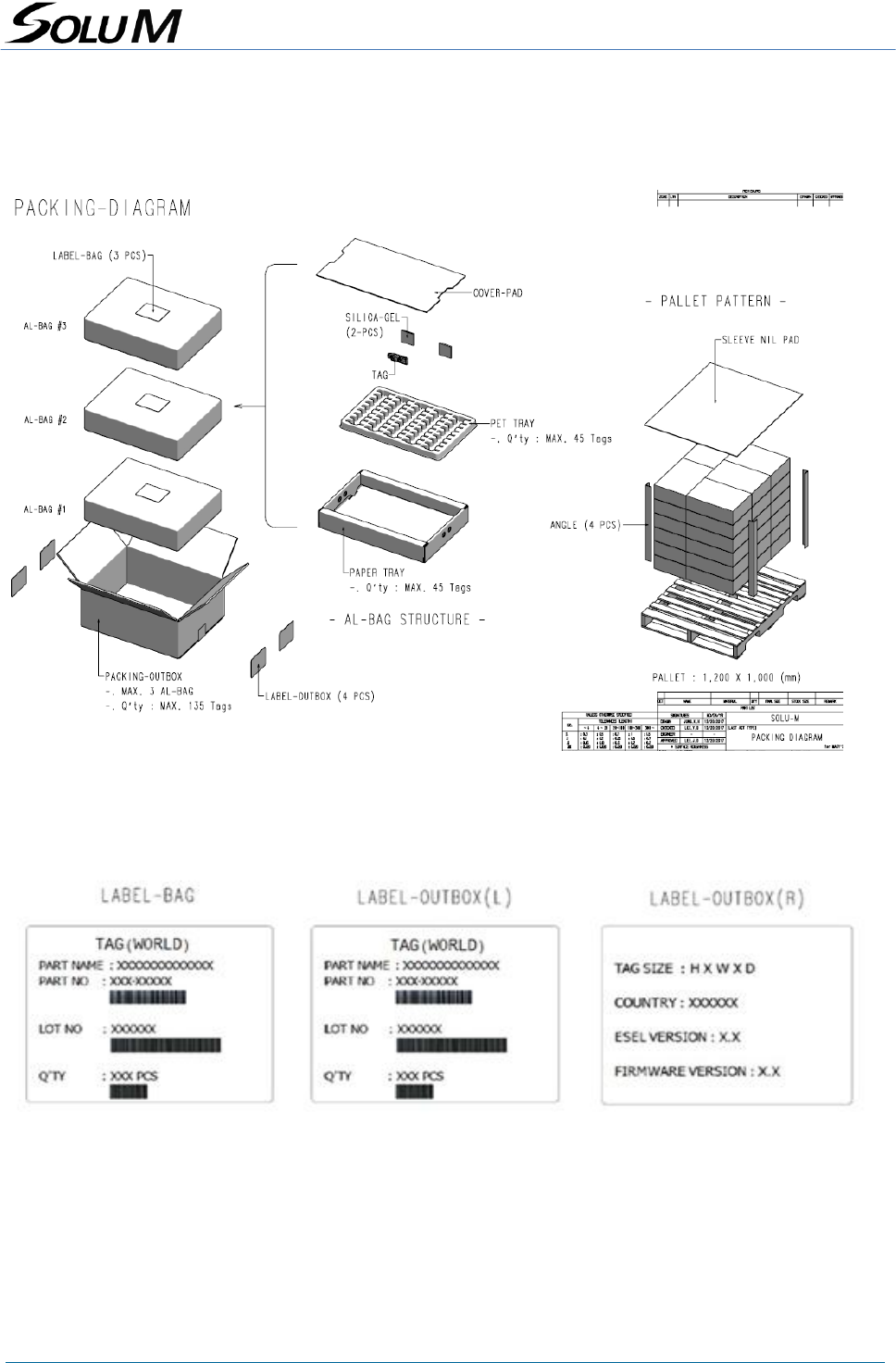

5 Packaging
Figure 10. Package
Figure 11. Packing Label
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
20/24
6 Cautions for Treatment
Provisions should be made to protect against any damage to the product caused by improper
handling. The purchaser assumes any responsibility for damage to the product caused by improper
handling.
It is highly recommended that the product should be installed within 3 months from the date of
arrival in the logistics hub. Recommended storage condition is -20~40 Celsius degree, 35-60% RH
environment.
6.1 Usage Environment
Take extra cautions when using this RF device in the vicinity of other electronic devices and
appliances. Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves
emitted by this RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and
signals.
6.2 Storage and Use
Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the
device itself.
Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and damaged.
Use the product in temperatures ranging from 5℃ to +40℃. Parts and circuits may be
damaged if operating or stored in extreme temperature.
The display panel needs extra care when handling.
- Do not apply any impacts on the e-Paper display as it is fragile.
- Continuous exposure to excessive moisture (over 60% RH) or UV shortens display lifetime.
- Ghosting image may appear in temperature conditions of less than 15 Celsius degree.
Avoid areas with strong magnetism or subject to magnetism.
Contact between the device and a magnetic object can lead to malfunctions.
Do not place the product near heat-producing kitchen appliances like a stove or a microwave or
in the vicinity of highly pressurized containers.
External impact to the product, such as from being dropped, can damage the product.
Twisting and bending the product can damage the exterior casing and the internal components.
If this product operates abnormally while removing battery or replacing battery, the product
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
21/24
should be discharged by contacting the battery terminals (+) and (-) in the product.
This product uses 2.4GHz frequency band for wireless communication network. Radio
communications can be limited or affected by other applications that share the same frequency
band, such as WiFi, Bluetooth, Zigbee, etc.
Frequent communications, updates and screen renewals may reduce battery life time.
Low temperature environments may reduce battery life.
6.3 Battery Replacement
Audience
- Authorized persons with the following knowledge are allowed to replace the battery:
Battery / Electronic assemblies like circuit board / Compliance of the instruction
※ Note: Warranty is voided if battery is replacement by unauthorized personnel.
(When replacing batteries, please contact authorized person)
Instructions
- Risk of short circuit if battery is incorrectly installed/stored.
- Check that your hands are dry before and at all times during the replacement process.
- Keep batteries away from children and infants.
- Do not heat, charge, bend, drop, short-circuit and/or disassemble battery.
- Do not mix used and new battery together or different battery types.
※ Note: Battery rarely has minor stain or leak.
Steps
① Open the battery cover.
② Take out the batteries.
③ Put in the new batteries.
④ Check the batteries direction.
⑤ Put the battery cover back.
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
22/24
Battery Directional
Top: (+) Positive
Bottom: (-) Negative
Figure 12. Battery Directional
(+)
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
23/24
6.4 FCC
WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to
this equipment may cause harmful interference unless the modifications are expressly approved in the
instruction manual. The user could lose the authority to operate this equipment if an unauthorized
change or modification is made.
ㄱ. THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE.
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
ㄴ. This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications, However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
S-Label Datasheet (ST-GR29MCN)
REV 1.0
Solu-M Proprietary
24/24

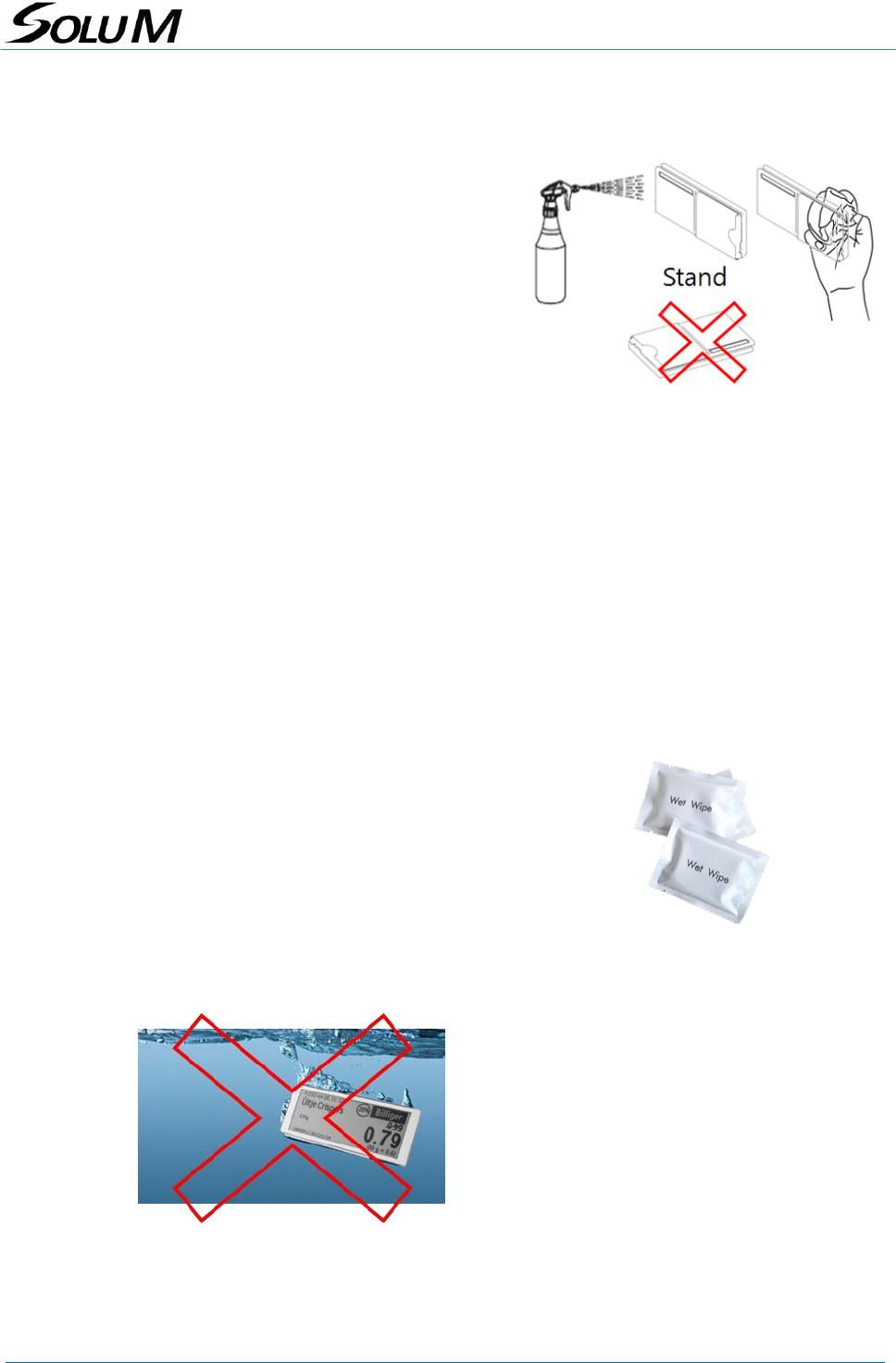

6.5 Cleaning
For Spray Cleaning:
Steps
① Stand labels. Do not lay the labels flat down.
② Lightly spray all surfaces and wait a few seconds.
③ Gentle wipe clean using a cloth or tissue.
④ Let the labels dry.
Notes:
When spraying S-Labels, make sure no liquid flows inside the S-Label.
Liquid contact to the inside of the S-label can damage circuitry and battery.
Use mild, non-alcoholic detergents or glass cleaner.
Recommend non-abrasive cloths: Microfiber, Cotton T-shirt, Cotton handkerchief, Cotton tea
towel
For Wet Tissue Cleaning:
Steps
① Stand or lay down the S-Labels.
② Wipe using wet tissues.
③ Let the labels dry.
We do not guarantee any water damaged labels
