S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 1/23
CUSTOMER APPROVAL SHEET
Company Name -
MODEL ST-GR2700N
CUSTOMER
APPROVAL
APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 1.0 )
CUSTOMER REMARK :
Issued By Checked By
Approved By
YJ Kim YB Lee JG Ryu
Solu-M
150, Maeyoung-ro(Maetan3-Dong), YoungTong-Gu, Suwon, Gyeonggi-Do, Korea
Tel : 82-31-210-5114
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 2/23
S-TAG Datasheet
S-Label (Electronic Label System)
REV 1.0
Samsung Electro-Mechanics
2016-04-21
Summary
This datasheet presents the general performance and specifications of S-Tag for S-Label ESL (Electronic
Shelf Label) system, which is based on IEEE 802.15.4.
© 2016 Solu-M. All rights reserved
The names of actual companies and products mentioned herein
may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of Samsung Electro-
Mechanics.
This document is subject to change without notice.
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 3/23
Table of Contents
1 GENERAL DESCRIPTION ..................................................................................................... 5
1.1 F
EATURES
......................................................................................................................... 6
1.2 T
YPICAL
A
PPLICATIONS
......................................................................................................... 6
1.3 A
PPEARANCE
...................................................................................................................... 7
2 SPECIFICATION .................................................................................................................. 8
2.1 P
RODUCT
S
PECIFICATION
....................................................................................................... 8
2.2 R
ADIO
(RF)
S
PECIFICATION
................................................................................................... 8
2.3 M
ECHANICAL
D
RAWING
......................................................................................................... 9
2.4 L
ABELS
............................................................................................................................ 11
2.5 B
ARCODE
S
CANNING
............................................................................................................ 13
3 OPERATION TEST .............................................................................................................. 14
4 ESL OPERATION BY DISPLAY ........................................................................................... 16
5 PACKAGE ........................................................................................................................... 19
6CAUTIONS FOR TREATMENT............................................................................................. 20
6.1 U
SAGE
E
NVIRONMENT
.......................................................................................................... 20
6.2 S
TORAGE AND
U
SE
.............................................................................................................. 20
6.3 B
ATTERY
R
EPLACEMENT
........................................................................................................ 21
6.4 H
OW TO CLEANING
............................................................................................................. 22
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 4/23
Document History
Rev. Date Revision history Page
1.0 21 APR 2016 Initial release -
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 5/23
1 General Description
This S-Tag product is a part of Samsung S-Label (Electronic Shelf Label) system as well as S-Label
Gateway (S-Gate), Remote controller (S-RC). S-Label system make up a system that electronically
displays price and other product information on S-Tags, which has been traditionally printed or written on
paper in places like retail markets.
S-Tag receives product price/information updates from S-Gate and updates or changes its display of price
and other information.
S-Tag is the product based on IEEE standard 802.15.4 for low power wireless communication
applications. S-Tag consists of RF transceiver, RF circuitry and ARM Cortex M3 MCU offering IEEE
802.15.4 based network protocol and MAC protocol and other peripheral devices.

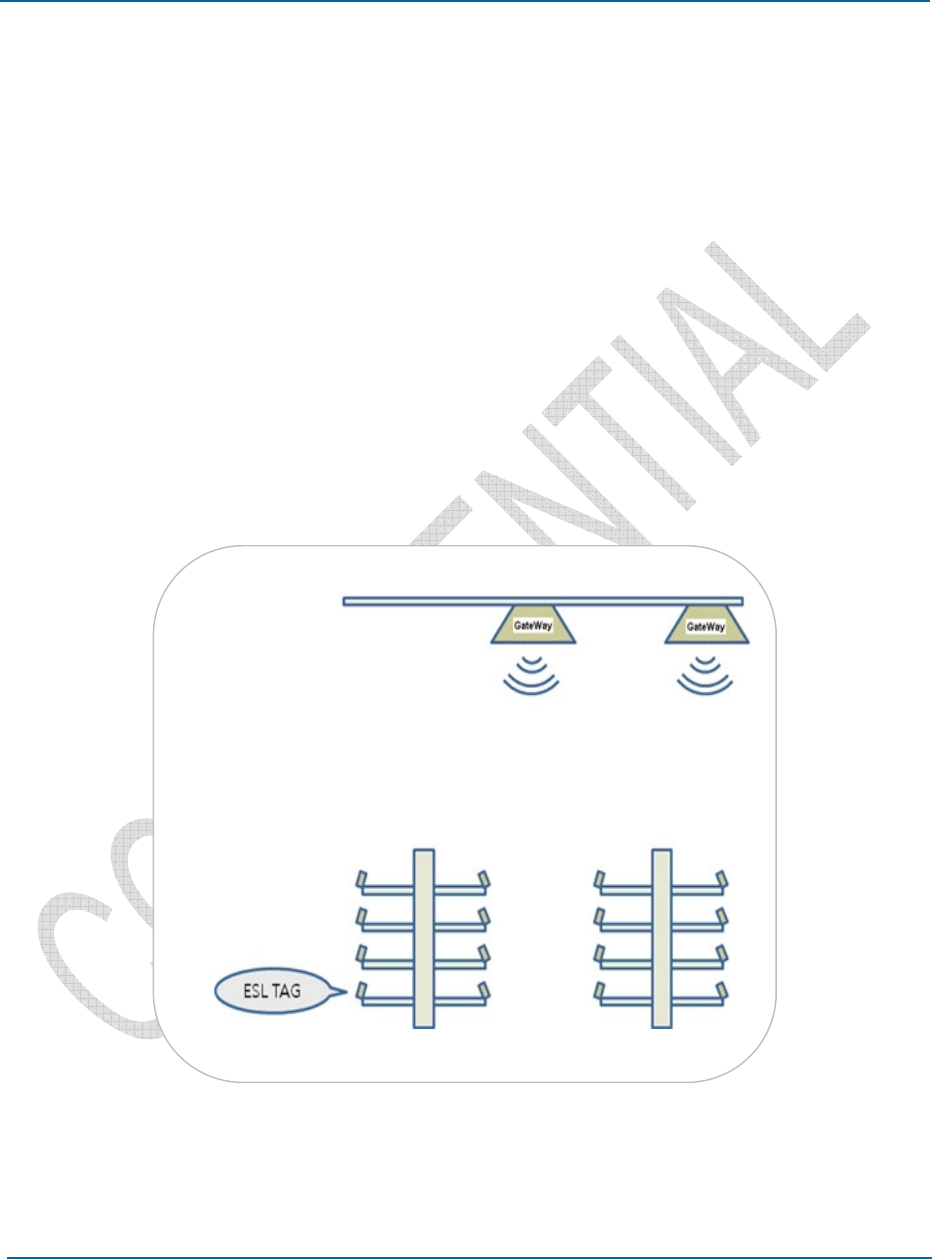

Figure 1 ESL System
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 6/23
1.1 Features
-Display : E-Paper Display (EPD) (active type) (57.28 x 38.19 mm)
-Display Color : Black, White, Red
-Display Resolution : 264 x 176 pixel (117dpi)
-Communication : Wireless communication based on IEEE 802.15.4
-Operating on 2.4GHz Unlicensed ISM band for ZigBee
-Low Power Consumption
-External Wakeup : RF Wakeup (using ISM Band[2.4GHz])
-Outline Dimension : 75.44 mm x 50.02 mm x 11.53 mm
-Case Color : White
-Working condition: Indoor where wireless communication is available.
1.2 Typical Applications
-Retail industry with electronic displays, platforms, solutions and services.
-Intelligently communicating, managing, and optimizing price and product informations.
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 7/23

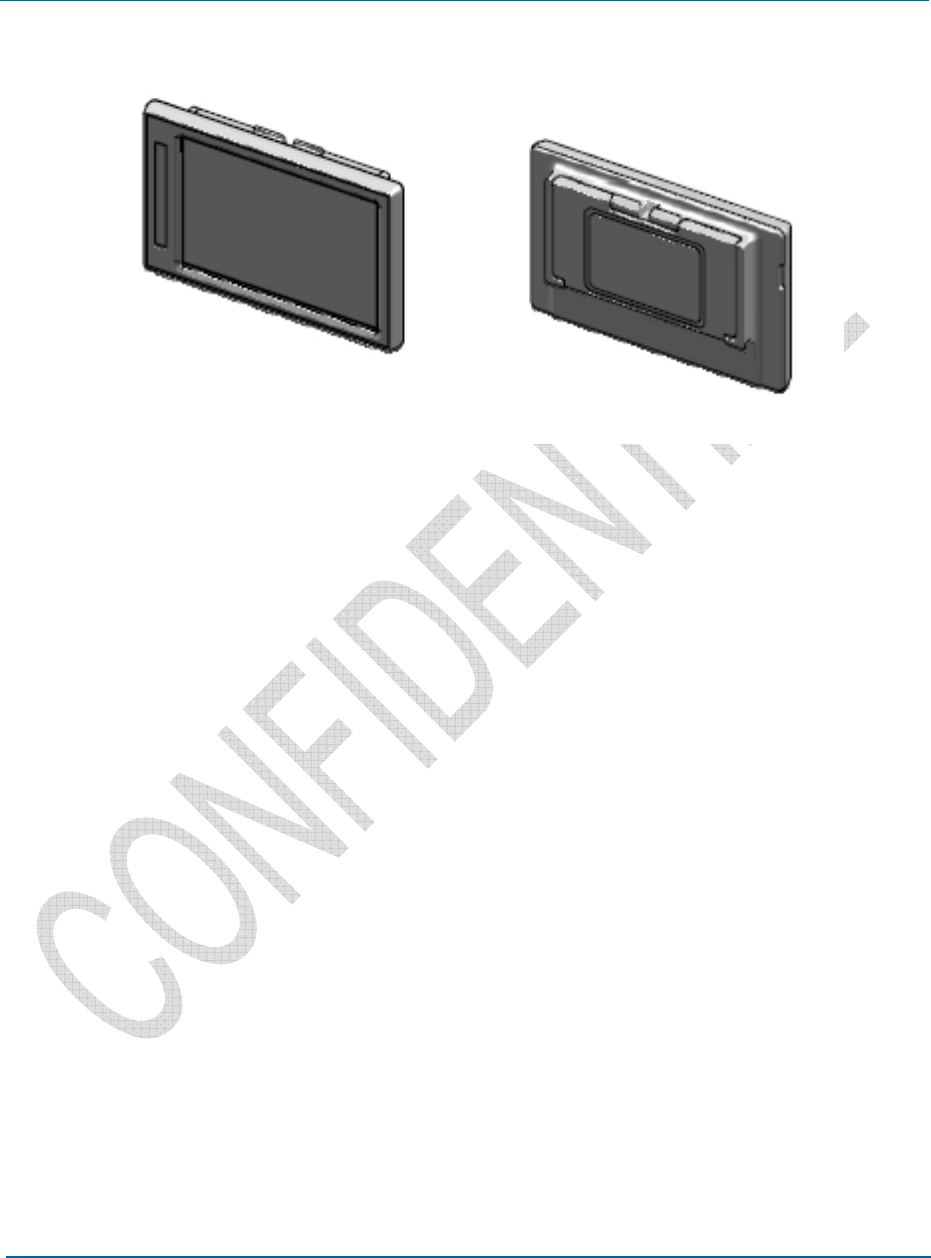

1.3 Appearance
Figure 2 Appearance
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 8/23
2 Specification
2.1 Product Specification
Item
Description
Size
75.44
mm x
50.02
mm x
11.53 mm
Battery (Life Time)
CR2450 Lithium Battery (3V
)
2.4 ~ 3.3Vdc (condition : In active status)
5 years available for 1 updates in a day at room temperature
(The Battery Life time is dependent on the operating conditions
for ESL [temperature, etc…])
Display
Electrical paper display (
active type
)
(
(
57.28
x 38.19
mm
)
Display Resolution : 264 x 176 pixel
Housing Color
White
Information display
Price, Unit,
Symbol
, Product
Information
etc.
Communication
Wireless communication based on IEEE 802.15.4
Communication
Distance
Radius
20m (Line of Sight)
Operation Temp. 0 ~ 40 C
Storage Temp. -25 ~ 60 C
Humidity 35 ~ 70% RH
2.2 Radio (RF)
1
Specification
Item
Parameter
SPEC
Unit
Condition
Min
Typ
Max
TX
Transmit Power
-
4
2
6
dBm
Error Vector Magnitude
-
1
0
30
%
When measured for 100 chips
Tx Current
-
3
5
mA
Total current at max Tx Power
RX
Receiver Sensitivity
-
90
-
-
dBm
PER <
1
%
1 Test Channel : 2480MHz
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 9/23
2.3
Mechanical Drawing
2.3.1 Case Dimension

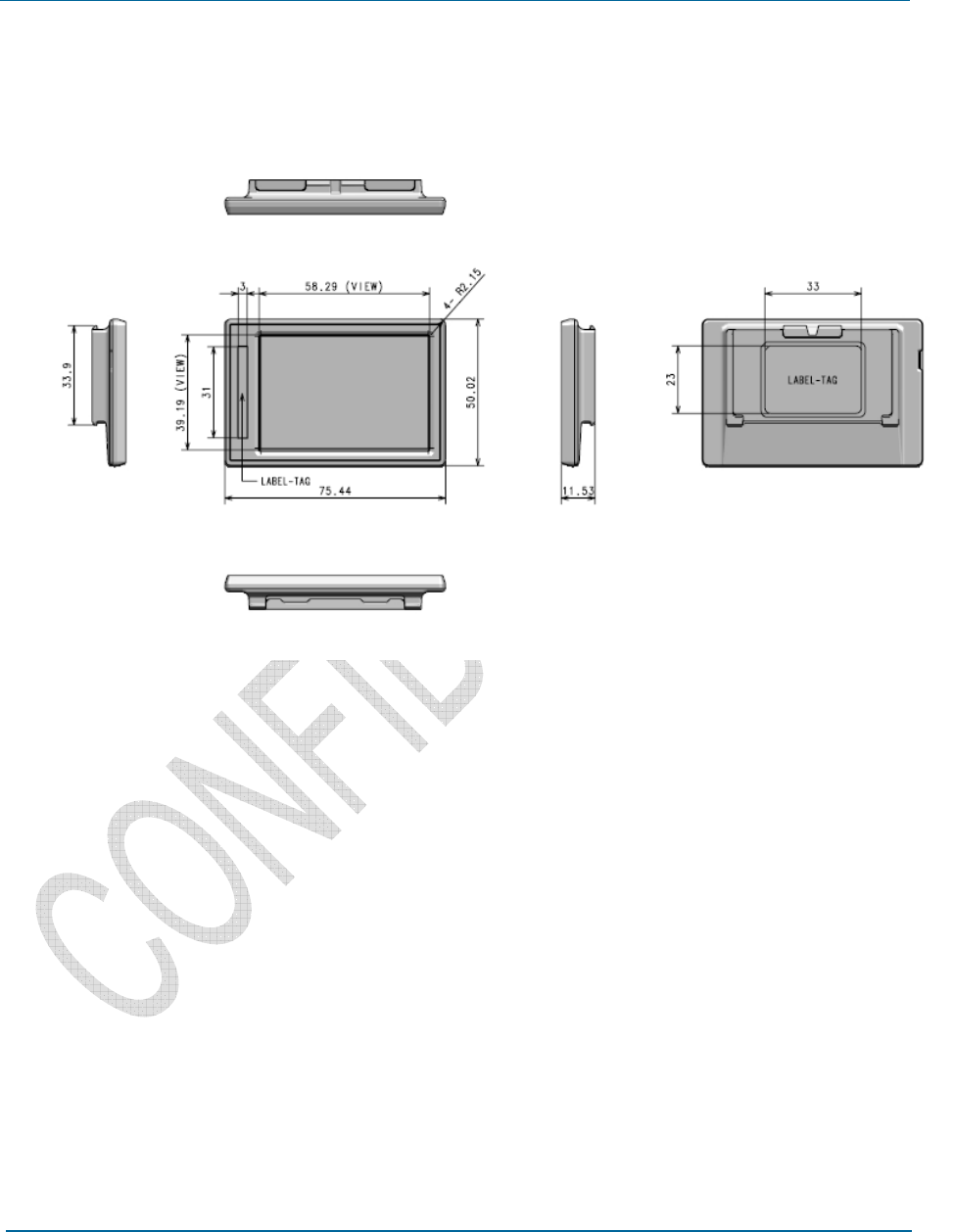

Figure 3 Mechanical Dimension
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 10/23

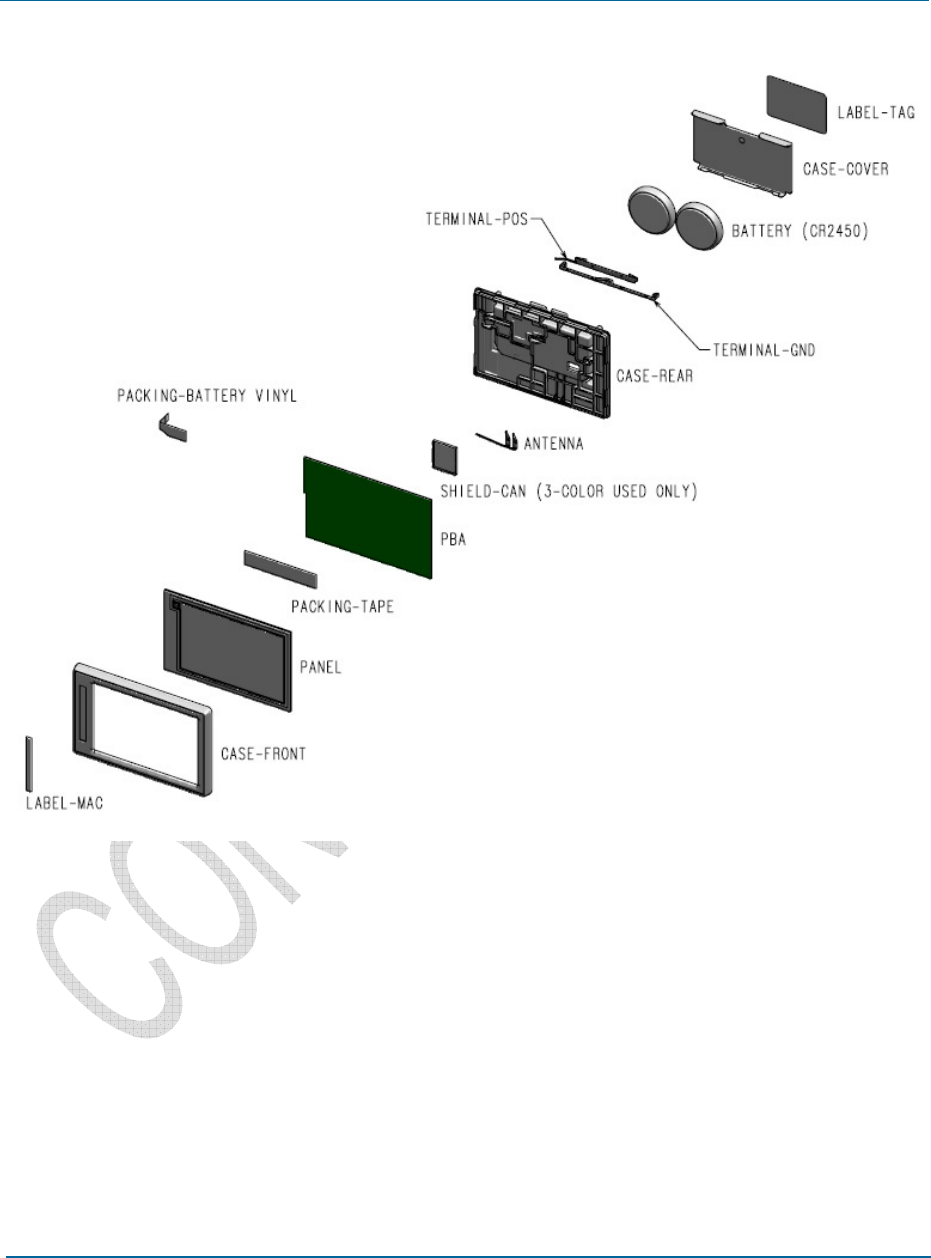

2.3.2 Exploded View
Figure 4 Exploded View
REV 1.0
2.4 Labels
2.4.1 Serial Number I
nformation
* Serial 1, 2 Code
Value
13 3 G S A A
2JW
Year : Last two
digits
(00 ~ 99,
example
Month :
Manufacturing
(1 ~ 9, X(10),
Y(11),
Date :
Manufacturing
(1 ~ 9, A(10) ~
V(31))
Vendor : One
character
(S : SEMTHAI, T
Line number :
One
('A', 'B', 'C', etc)
Revision :
Product
(A : First, B :
Second,
ZigBee IC Lot
Number
(ex : 2JW)
S-
TAG Datasheet(ST
Solu-M
nformation
Value
2JW
digits
of manufacturing year.
example
: 2013 is '13')
Manufacturing
month
Y(11),
Z(12))
Manufacturing
date
V(31))
character
of manufacturing vendor
: TSEM, etc)
One
character of Manufacturing Line
number
Product
revision number
Second,
C : Third, etc )
Number
: Last 3 characters
TAG Datasheet(ST
-GR2700N)
11/23
number
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 12/23

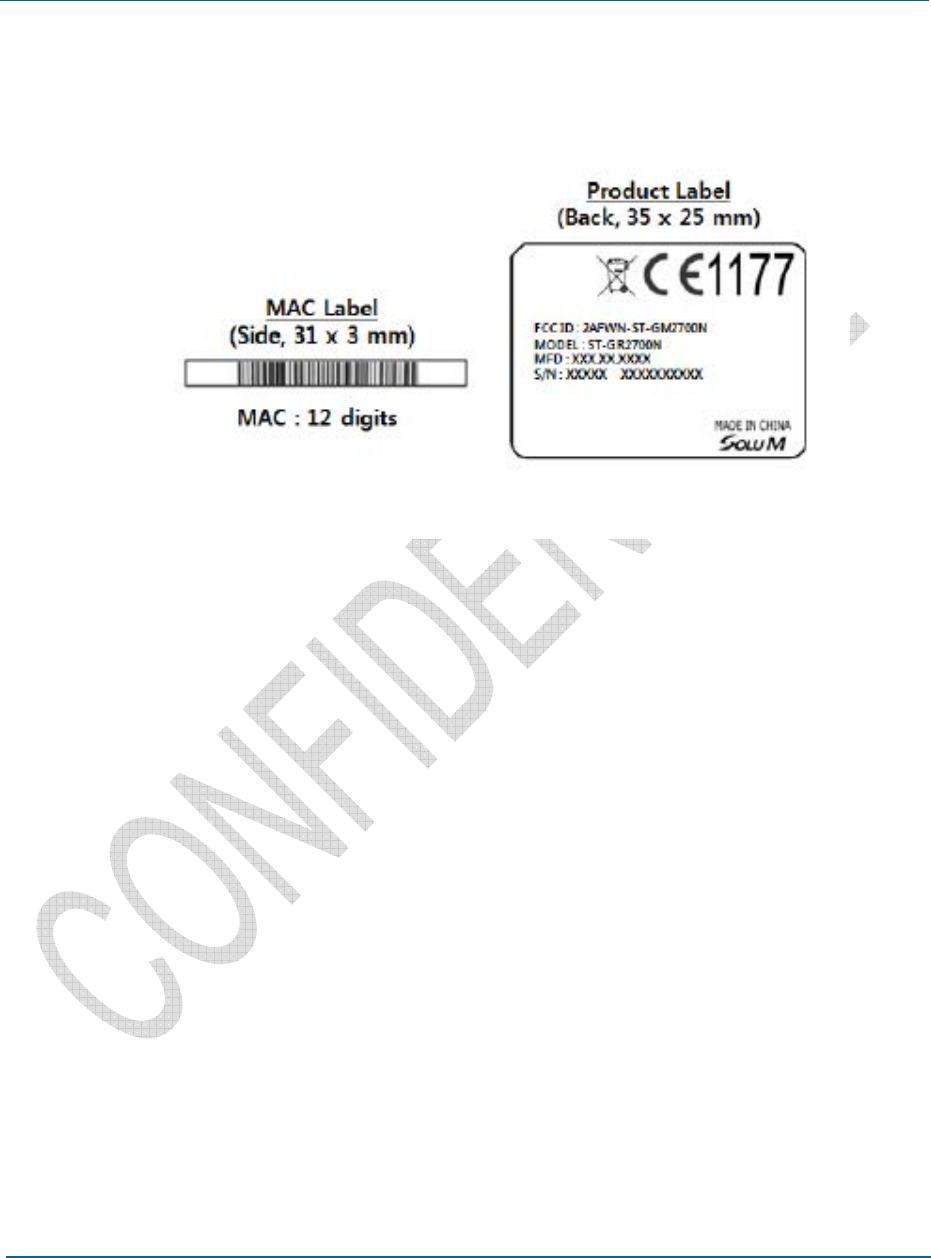

2.4.2 Product and Mac Label Drawings
Figure 5 Product and Mac Labels
Product information is indicated in a printed sticker label. The information consists of MODEL (model
name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), CE certification mark, FCC
ID and Manufacture (SoluM).
1) FCC ID : 2AFWN-ST-GM2700N
2) Model Name : ST-GR2700N
3) MFD : (Month).(Date).(Year) ex) May.16.2015
4) S/N : Serial Number Information
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 13/23

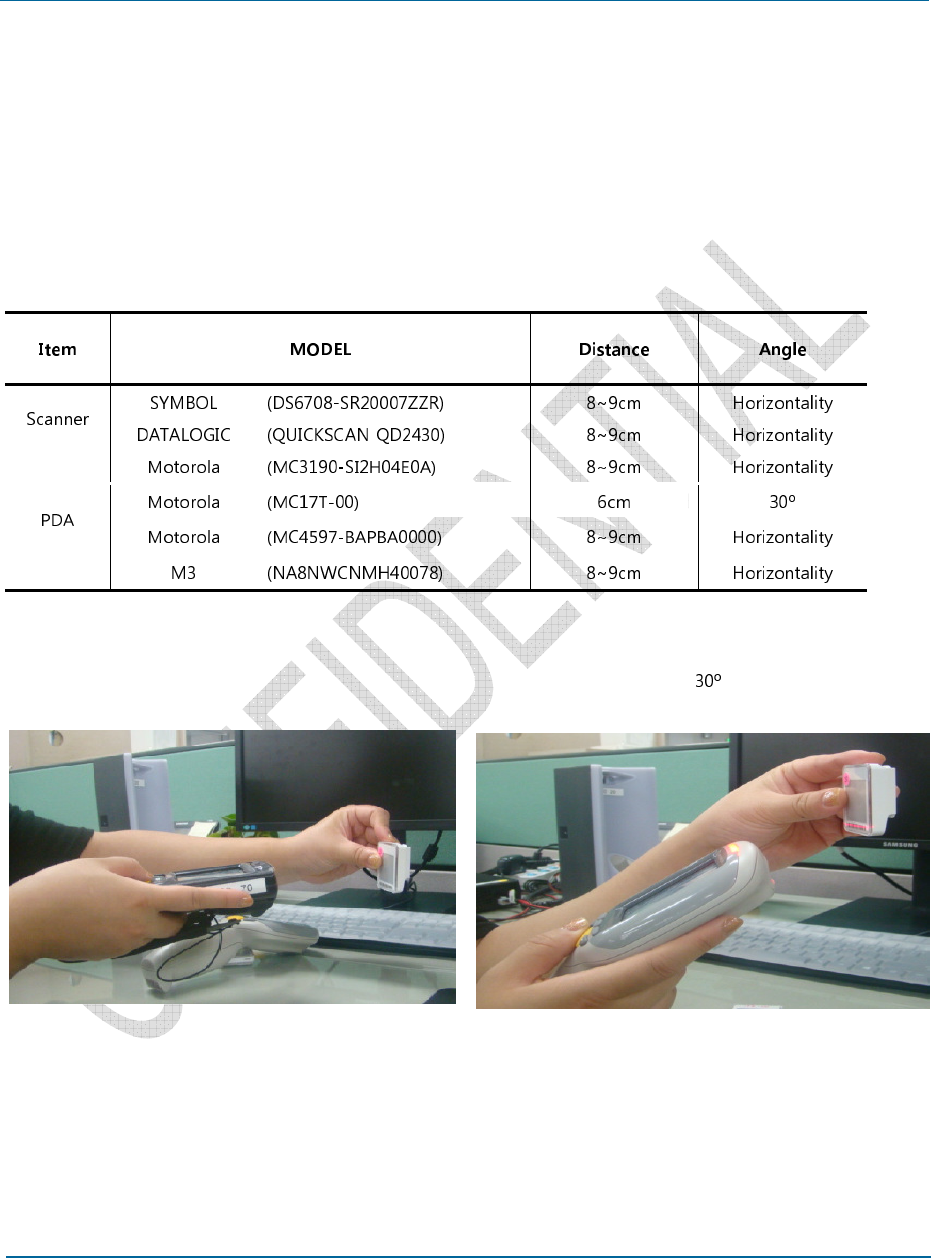

2.5 Barcode Scanning
2.5.1 Barcode Scanning Condition
Typically Scan distance is 8 ~ 9cm and angle is horizontality
Example)
<Horizontality> < >
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 14/23
3 Operation Test
Equipments : ESL Tag, Gateway, R/C

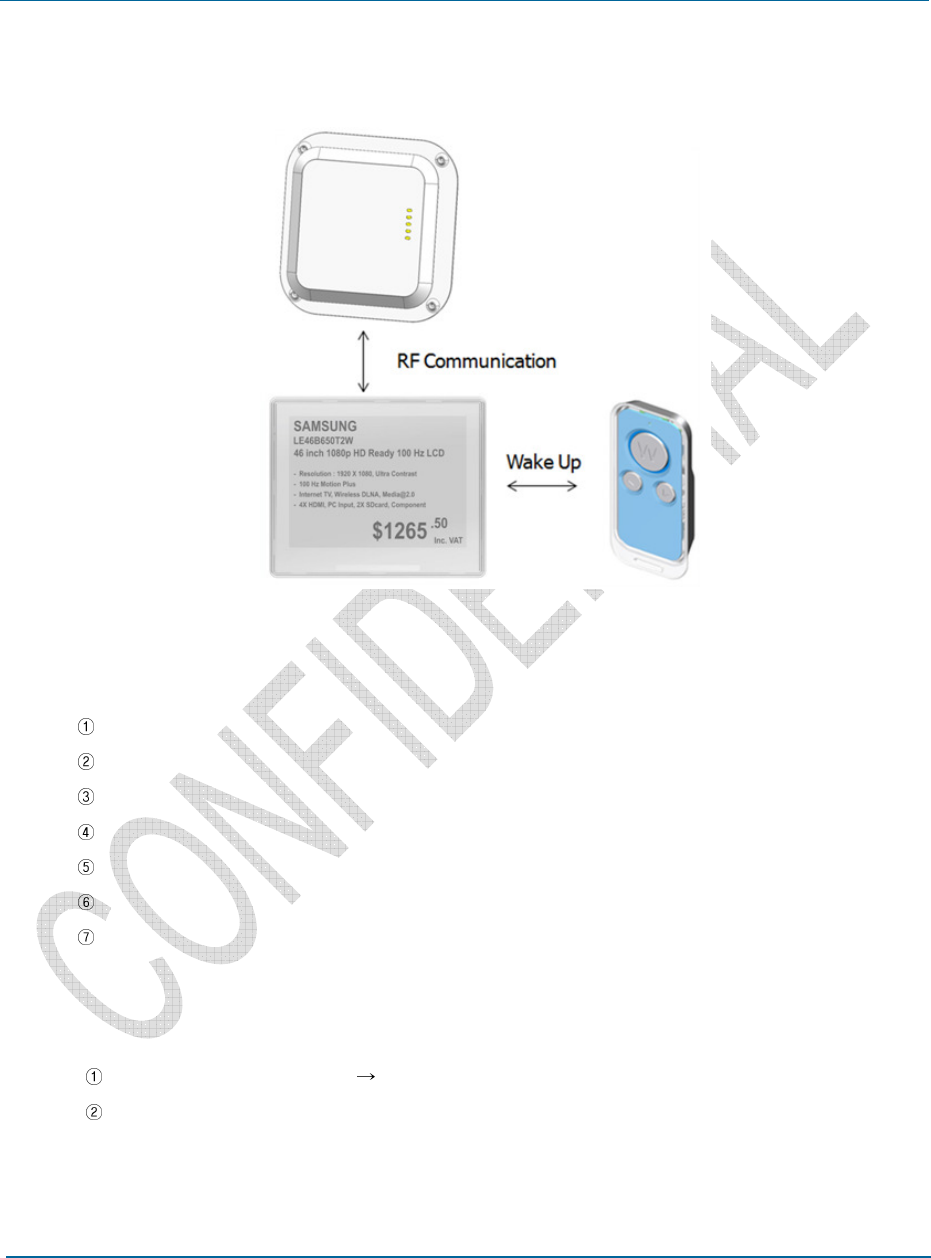

Figure 6 Operation Test
Test Scenario
Ready to Gateway and R/C
Wake up Tag with R/C
Tag start to communicate with Gateway
Tag display the numeric information received from Gateway
Check Tag(EPD display status & MAC address value)
Wake up Tag with R/C
Check Tag(EPD display(blank display))
Criterion (Below both two conditions should be all satisfied)
Good : You can see ‘Black’ ‘White’ display
Compare MAC address with that of label attached to Front or Back plane.
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 15/23
Wake up area

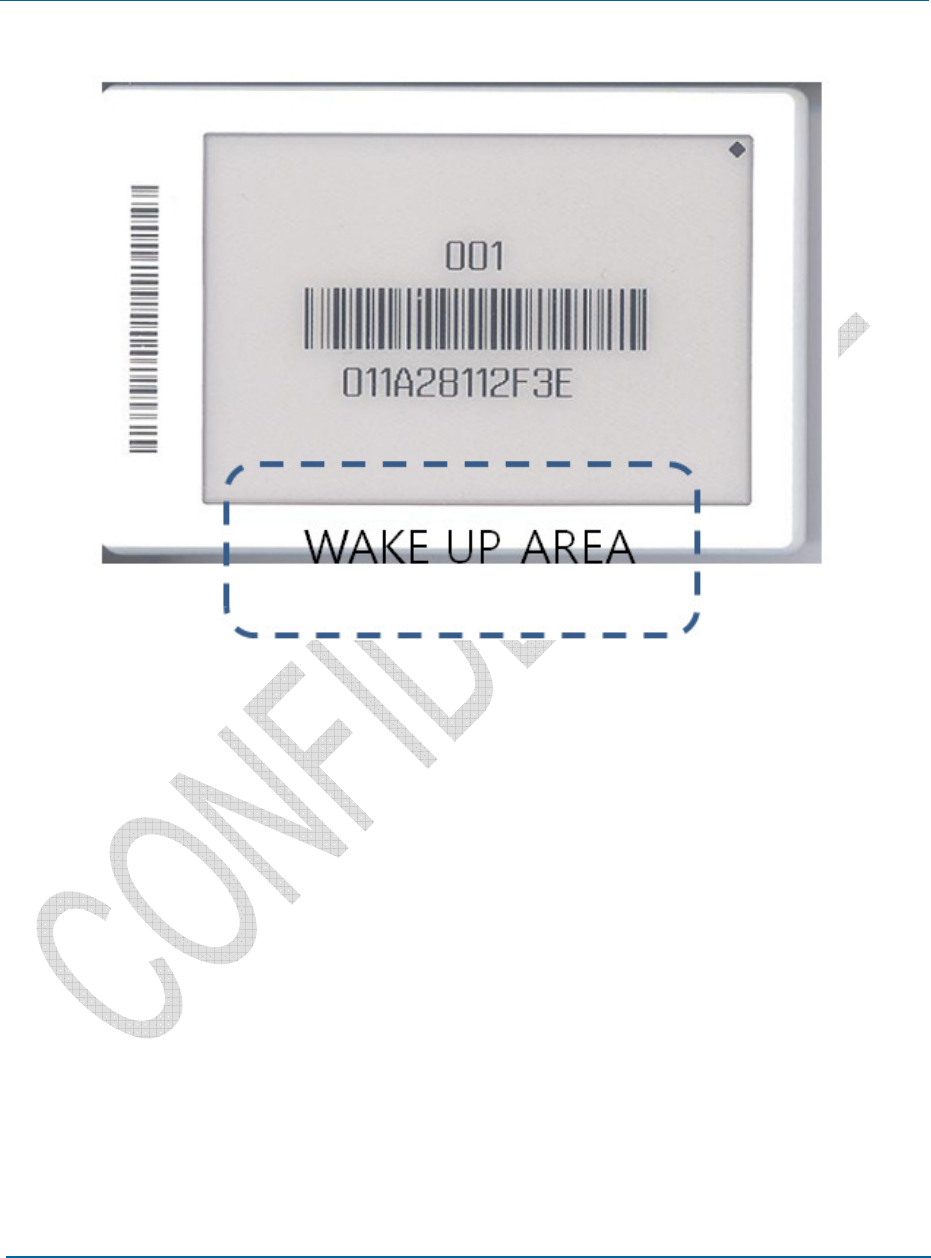

Figure 7 Wake up Area
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 16/23

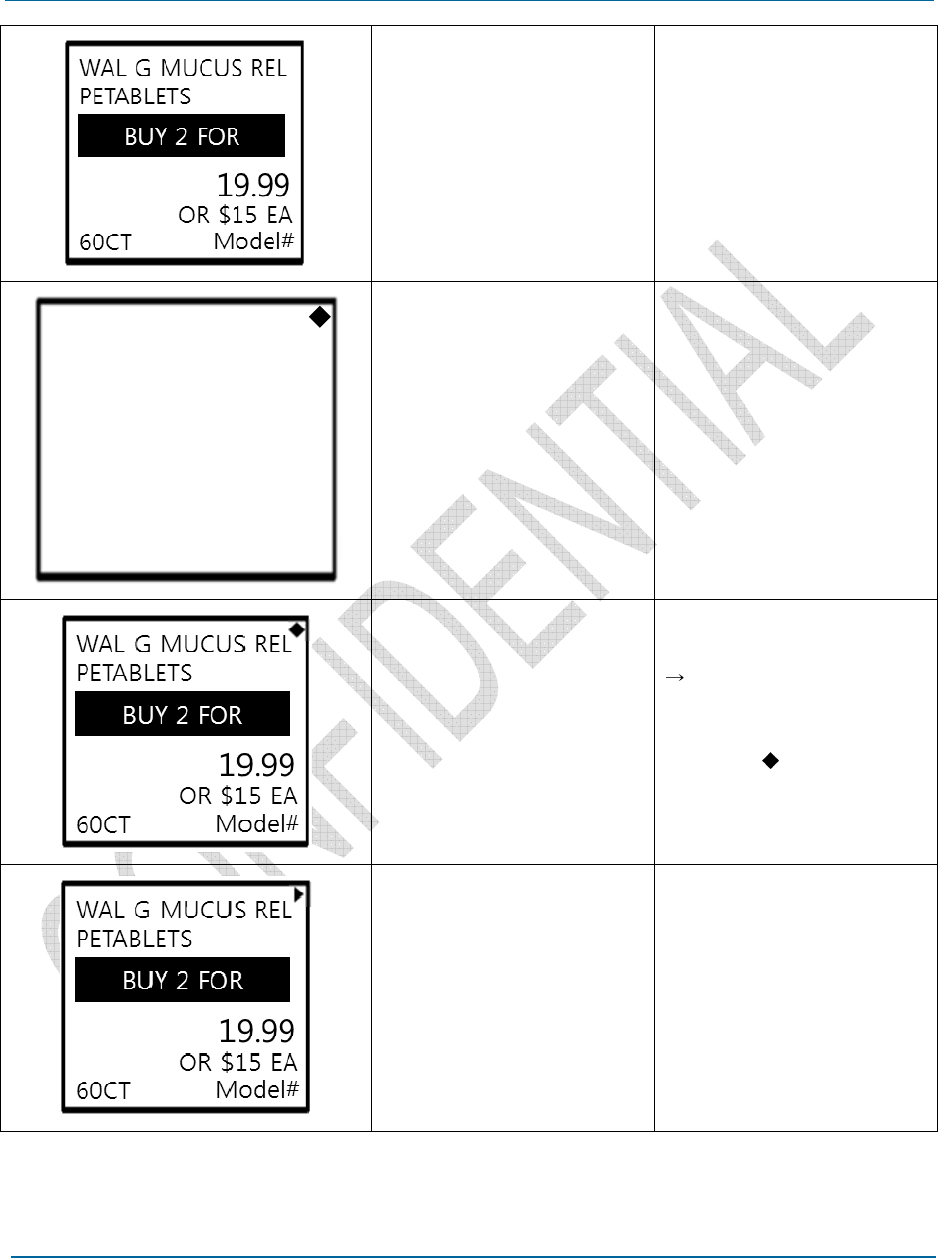

4 ESL Operation by display
It will be updated before 2nd release. Below is just a sample.
Display
State
User Action
STATE:
0
Initial display when shipped
from the manufacturer
(All white).
None
STATE: 1
No change.
To assign a tag using a PDA
STATE 1 2
Searching for GWs
(Tag version, MAC address
and triangle).
Assign Process
Remove tape on the tag
and then Tag can start to
search the gateway
automatically w/o beeper
ZZZ
XXXXXXXXXXXX
REV 1.0
ZZZ
XXXXXXXXXXXX
S-
TAG Datasheet(ST
Solu-M
STATE 2 4
A tag is connected to a GW
and received price
(Price)
None
STATE 2 3
A tag failed to locate a GW
(Tag version, MAC address).
Lost Status
STATE 4 5
Connection to a GW is lost
(price and Rectangle on
upper right corner)
Lost Status
Even Tag lost GW, price
and other information keep
to be displayed with lost
symbol
STATE 5 6
When connection is lost and
woken up by an RC
(blinks with the price and
Rectangle)
Starts to search GWs.
Woken up by a
XXXXXXXXXXXX
TAG Datasheet(ST
-GR2700N)
17/23
Lost Status
Lost Status
Even Tag lost GW, price
and other information keep
to be displayed with lost
symbol
‘ ’
Woken up by a
beeper
S-TAG Datasheet(ST-GR2700N)
REV 1.0
Solu-M
18/23
STATE 4
1
Initial display
(Tag version, MAC address).
To clear an assigned tag
using a PDA
ZZZ
XXXXXXXXXXXX
REV 1.0
5 Package
S-
TAG Datasheet(ST
Solu-M
TAG Datasheet(ST
-GR2700N)
19/23
S-TAG Datasheet(ST-GR2700N)
REV 1.0
Solu-M
20/23
6 Cautions for Treatment
Provisions should be made to protect against any damage to the product caused by improper handling.
It is highly recommended that the product should be installed within 3 months from the date of arrival in
the logistics hub. Recommended storage condition is in 0-40 Celsius degree, 35-70% RH environment.
This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device,
therefore, may not be used for applications where safety of human lives is concerned.
6.1 Usage Environment
Take extra cautions when using this RF device in the vicinity of other electronic devices and appliances.
Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves emitted by this
RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.
6.2 Storage and Use
Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the device
itself.
Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and damaged.
Use the product in temperatures ranging from 0 to +40 . Parts and circuits may be damaged if
used or stored under temperature extremes.
The display panel needs extra care when handling.
-Do not apply any impacts on outside since e-Paper display is fragile.
-Continuous exposure to excessive moisture (over 60% RH) or UV makes display lifetime
shortened.
-Ghosting image may be appeared in temperature conditions of less than 15 Celsius degree.
Avoid areas with strong magnetism or subject to magnetism.
Contact between the device and a magnetic object can lead to malfunctions.
Do not place the product near heat-producing kitchen appliances like a stove or a microwave or in
the vicinity of highly pressurized containers.
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 21/23
External impact to the product, such as from being dropped, can damage the product or battery
casing can be separated.
Twisting and bending the product can damage the exterior casing and the internal components.
If this product operates abnormally in eliminating battery vinyl or replacing battery, you should
discharge it by contacting battery terminal (+) and (-).
This product uses 2.4GHz frequency band for wireless communication network. Radio
communications can be limited or affected by other applications which share same frequency band,
such as WiFi, Bluetooth, Zigbee, etc.
Frequent communications, updates and screen renewals may reduce battery life time.
6.3 Battery Replacement
Audience
Authorized persons with the following knowledge are allowed to replace the battery.
- . Battery / -. Electronic assemblies like circuit board / -. Compliance of the instruction
Note : If not authorized person, it will not give any warranty.
(When need to replace the battery. Please contact authorized person and get instructions.)
Instructions
- Risk of short circuit if battery is incorrectly installed/stored.
- Keep attention that your hands are dry before you start with replacement
- Keep away batteries from children and infants.
- Don’t heat, charge, bend, drop, short-circuit and disassemble battery.
- Don’t mix the used battery together with the new battery or different type of batteries.
Note : Battery rarely has a little stain or leak.
Steps

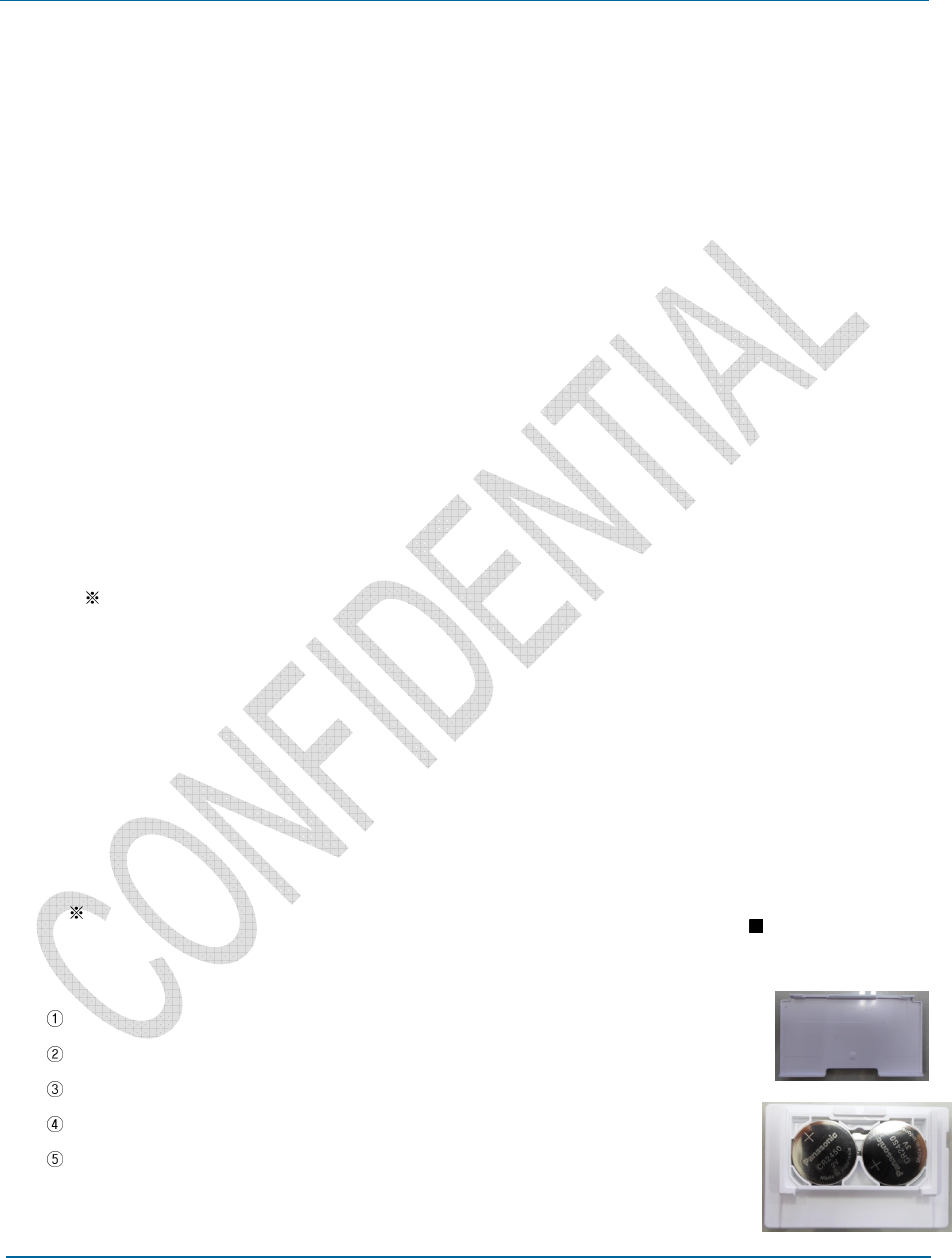

Open the battery cover.
Take out the batteries.
Put in the new batteries.
Check the batteries direction.
Put the battery cover.
Battery directional
[View] Top : (+) Positive
Bottom : (-) Negative
(+) (+)
REV 1.0
6.4 How to cleaning

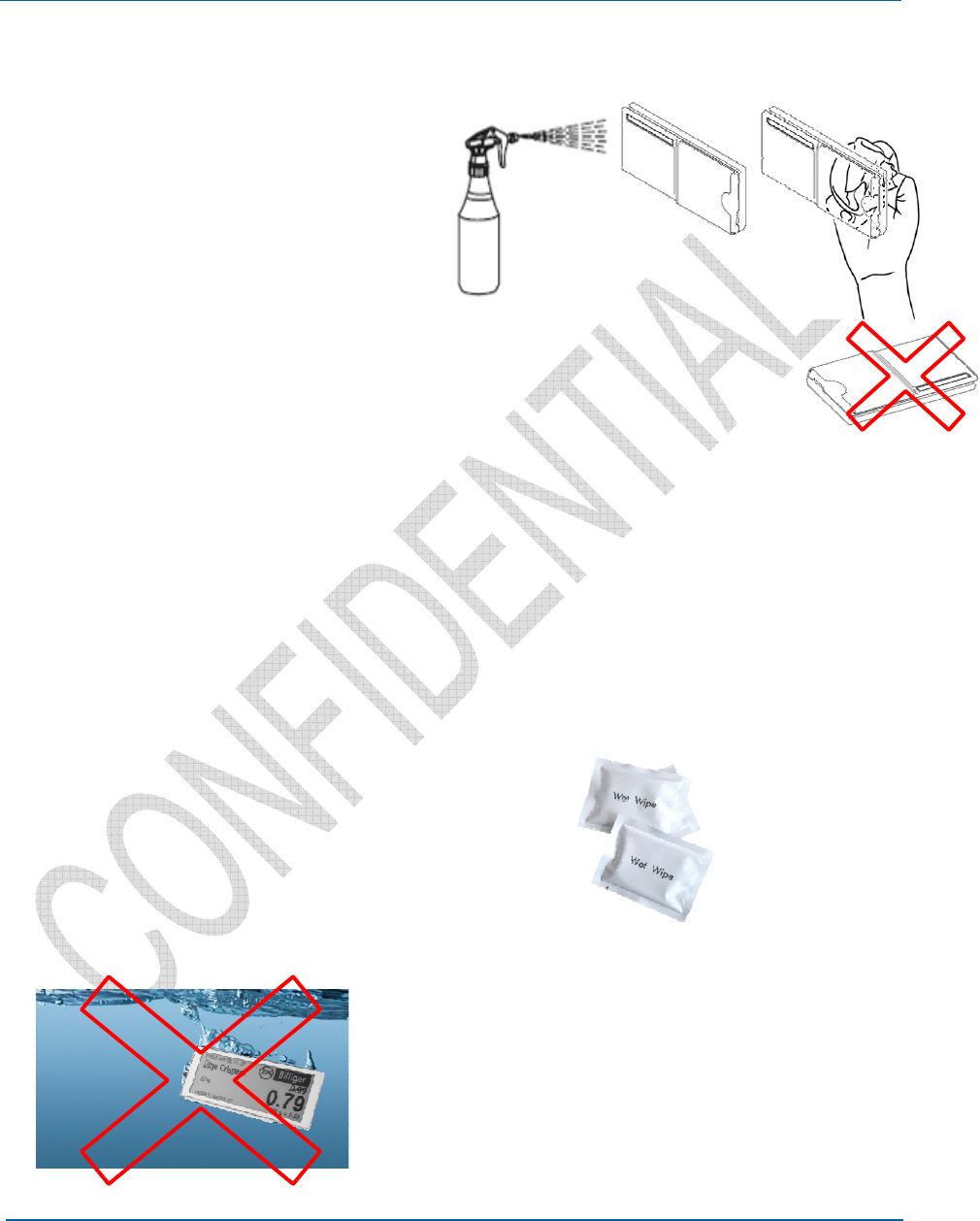

For Spray Cleaning:
Stand Tags not to lay down tags
Lightly spray surfaces and wait few second
Wipe dry using cloth or tissues.
Dry out tags
Note:
When spray the
tags, make sure not to flow any liquid into inside tags
It may damage tags directly, circuit and battery.
You can use mild, non
Recommend non-
abrasive cloths: Microfiber
Cotton tea towel
For Wet Tissue Cleaning:
Lay down tags or stand tags
Wipe using wet tissues
Dry out tags
We do not guarantee any water damaged tags
S-
TAG Datasheet(ST
Solu-M
Stand Tags not to lay down tags
Lightly spray surfaces and wait few second
Wipe dry using cloth or tissues.
tags, make sure not to flow any liquid into inside tags
It may damage tags directly, circuit and battery.
You can use mild, non
-alcoholic detergents or glass cleaner.
abrasive cloths: Microfiber
,Cotton T-
shirt ,Cotton handkerchief,
We do not guarantee any water damaged tags
Stand
TAG Datasheet(ST
-GR2700N)
22/23
tags, make sure not to flow any liquid into inside tags
shirt ,Cotton handkerchief,
Stand
S-TAG Datasheet(ST-GR2700N)
REV 1.0 Solu-M 23/23
WARNING : This equipment may generate or use radio frequency energy. Changes or modifications to
this
equipment may cause harmful interference unless the modifications are expressly approved in the
instruction
manual. The user could lose the authority to operate this equipment if an unauthorized change or
modification is made.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
Including interference that may cause undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications, However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution
This device complies with FCC radiation exposure limits for an uncontrolled
environment. Avoid operating this device at a distance less than 20cm from the user
