S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 1/23
CUSTOMER APPROVAL SHEET
Company Name -
MODEL ST-GR42003N
CUSTOMER
APPROVAL
□ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 1.0 )
□ CUSTOMER REMARK :
Issued By Checked By Approved By
YJ Kim YB Lee JGRyu
Solu-M
150, Maeyoung-ro(Maetan3-Dong), YoungTong-Gu, Suwon, Gyeonggi-Do, Korea
Tel : 82-31-210-5114
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 2/23
S-TAGDatasheet
S-Label (Electronic Label System)
REV1.0
Samsung Electro-Mechanics
2016-04-19
Summary
This datasheet presents the general performance and specifications of S-Tagfor S-Label ESL (Electronic
Shelf Label) system, which is based on IEEE 802.15.4.
© 2016Solu-M. All rights reserved
The names of actual companies and products mentioned herein
may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of Samsung Electro-
Mechanics.
This document is subject to change without notice.
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 3/23
Table of Contents
1 GENERAL DESCRIPTION ..................................................................................................... 5
1.1 FEATURES .............................................................................................................................. 6
1.2 TYPICAL APPLICATIONS .............................................................................................................. 6
1.3 APPEARANCE ........................................................................................................................... 7
2 SPECIFICATION .................................................................................................................. 8
2.1 PRODUCT SPECIFICATION ........................................................................................................... 8
2.2 RADIO (RF) SPECIFICATION ........................................................................................................ 8
2.3 MECHANICAL DRAWING ............................................................................................................. 9
2.4 LABELS ................................................................................................................................ 11
2.5 BARCODE SCANNING ............................................................................................................... 13
3 OPERATION TEST .............................................................................................................. 14
4 ESL OPERATION BY DISPLAY ........................................................................................... 16
5 PACKAGE ........................................................................................................................... 19
6 CAUTIONS FOR TREATMENT ............................................................................................. 20
6.1 USAGE ENVIRONMENT ............................................................................................................. 20
6.2 STORAGE AND USE ................................................................................................................. 20
6.3 BATTERY REPLACEMENT ........................................................................................................... 21
6.4 HOW TO CLEANING ................................................................................................................. 22
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 4/23
Document History
Rev. Date Revision history Page
1.0 19APR2016 Initial release -
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 5/23
1 General Description
This S-Tag product is a part of Samsung S-Label (Electronic Shelf Label) system as well as S-Label
Gateway (S-Gate), Remote controller (S-RC). S-Label system make up a system that electronically
displays price and other product information on S-Tags, which has been traditionally printed or written on
paper in places like retail markets.
S-Tag receives product price/information updates from S-Gate and updates or changesits display of price
and other information.
S-Tag is the product based on IEEE standard 802.15.4 for low power wireless communication applications.
S-Tag consists of RF transceiver, RF circuitry and ARM Cortex M3 MCU offering IEEE 802.15.4 based
network protocol and MAC protocol and other peripheral devices.

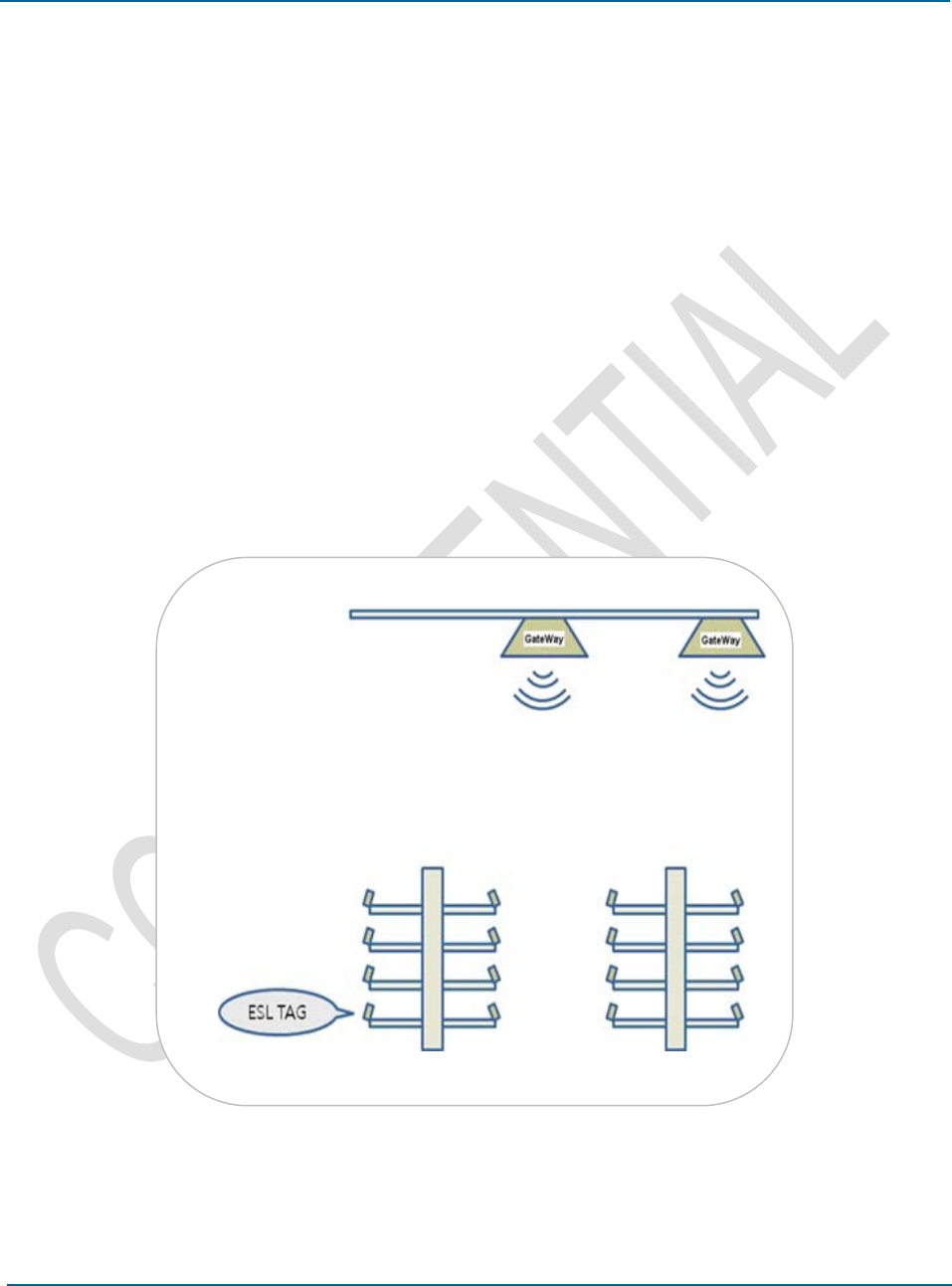

Figure 1ESL System
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 6/23
1.1 Features
- Display : E-Paper Display (EPD)(active type)(84.80mm x 63.60 mm)
- Display Color : Black, White, Red
- Display Resolution : 400 x 300 (DPI 120)
- Communication : Wireless communication based on IEEE 802.15.4
- Operating on 2.4GHz Unlicensed ISM band for ZigBee
- Low Power Consumption
- External Wakeup : RF Wakeup (using ISM Band[2.4GHz])
- Outline Dimension : 103.5mm x 87.5mm x 14.5 mm
- Case Color : White
- Working condition: Indoor where wireless communication is available.
1.2 Typical Applications
- Retail industry with electronic displays, platforms, solutions and services.
- Intelligently communicating, managing, and optimizing price and product informations.
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 7/23

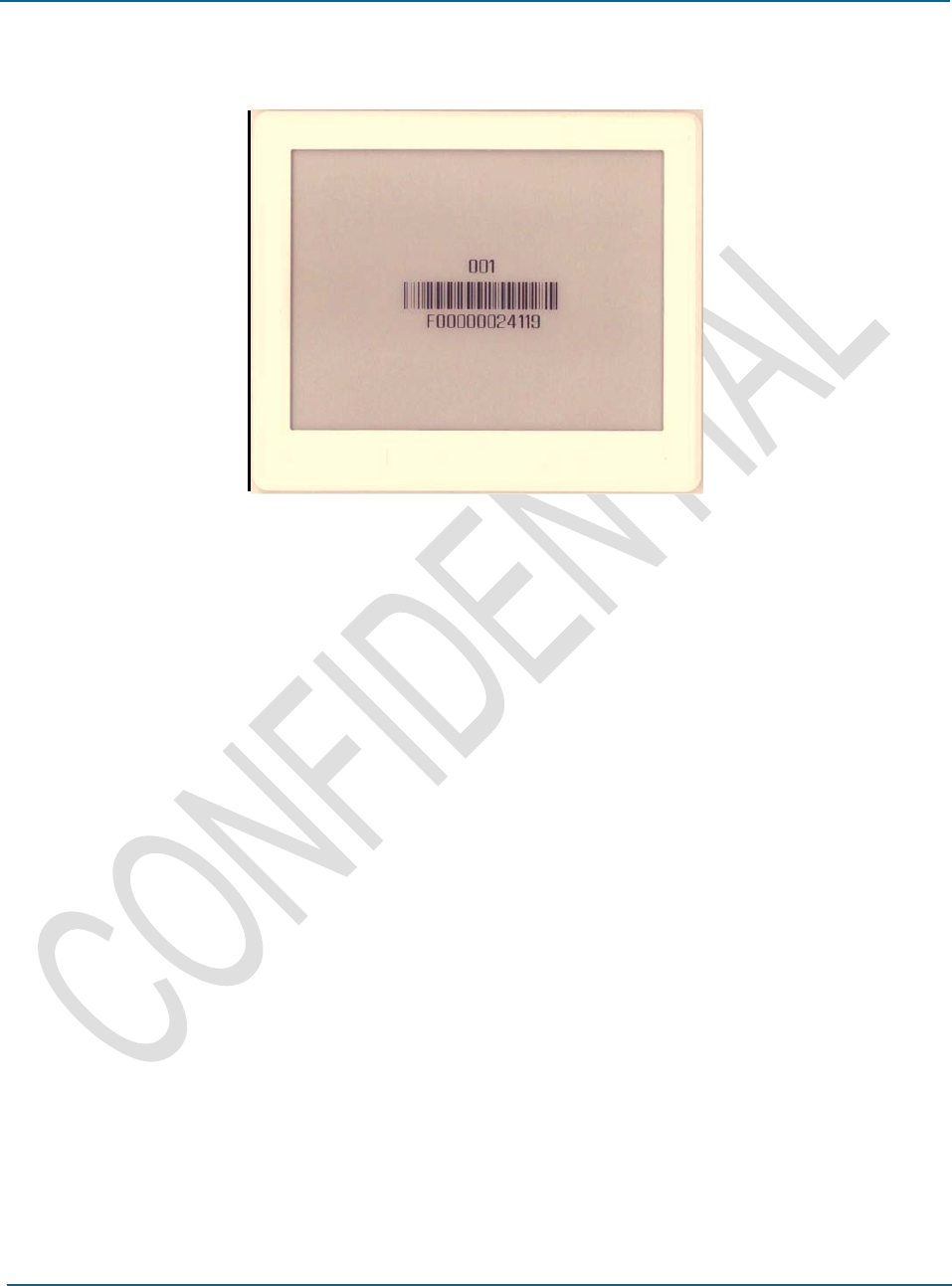

1.3 Appearance
Figure 2Appearance
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 8/23
2 Specification
2.1 Product Specification
Item
Description
Size 103.5mm x 87.5mm x 14.5 mm
Battery(Life Time)
CR2450 Lithium Battery (3V)
2.4 ~ 3.3Vdc(condition : In active status)
5 years available for2updates in a day at room temperature
(The Battery Life time is dependent on the operating conditions
for ESL [temperature, etc…])
Display Electrical paper display (active type) (84.80mm x 63.60 mm)
Display Resolution : 400 x 300 pixel
Housing Color
White
Information display Price, Unit, Symbol, Product Informationetc.
Communication Wireless communication based on IEEE 802.15.4
Communication Distance Radius 20m (Line of Sight)
Operation Temp. 0 ~ 40 °C
Storage Temp. -25 ~ 60 °C
Humidity 35 ~ 70% RH
2.2 Radio (RF)1
Item
Specification
Parameter
SPEC
Unit Condition
Min
Typ
Max
TX
Transmit Power
-4
2
8
dBm
Error Vector Magnitude - 10 30 % When measured for 100 chips
Tx Current
- 35 mA Total current at max Tx Power
RX Receiver Sensitivity -90 - - dBm PER < 1%
1Test Channel : 2480MHz
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 9/23
2.3 Mechanical Drawing
2.3.1 Case Dimension
Figure 3 Mechanical Dimension
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 10/23
2.3.2 Exploded View

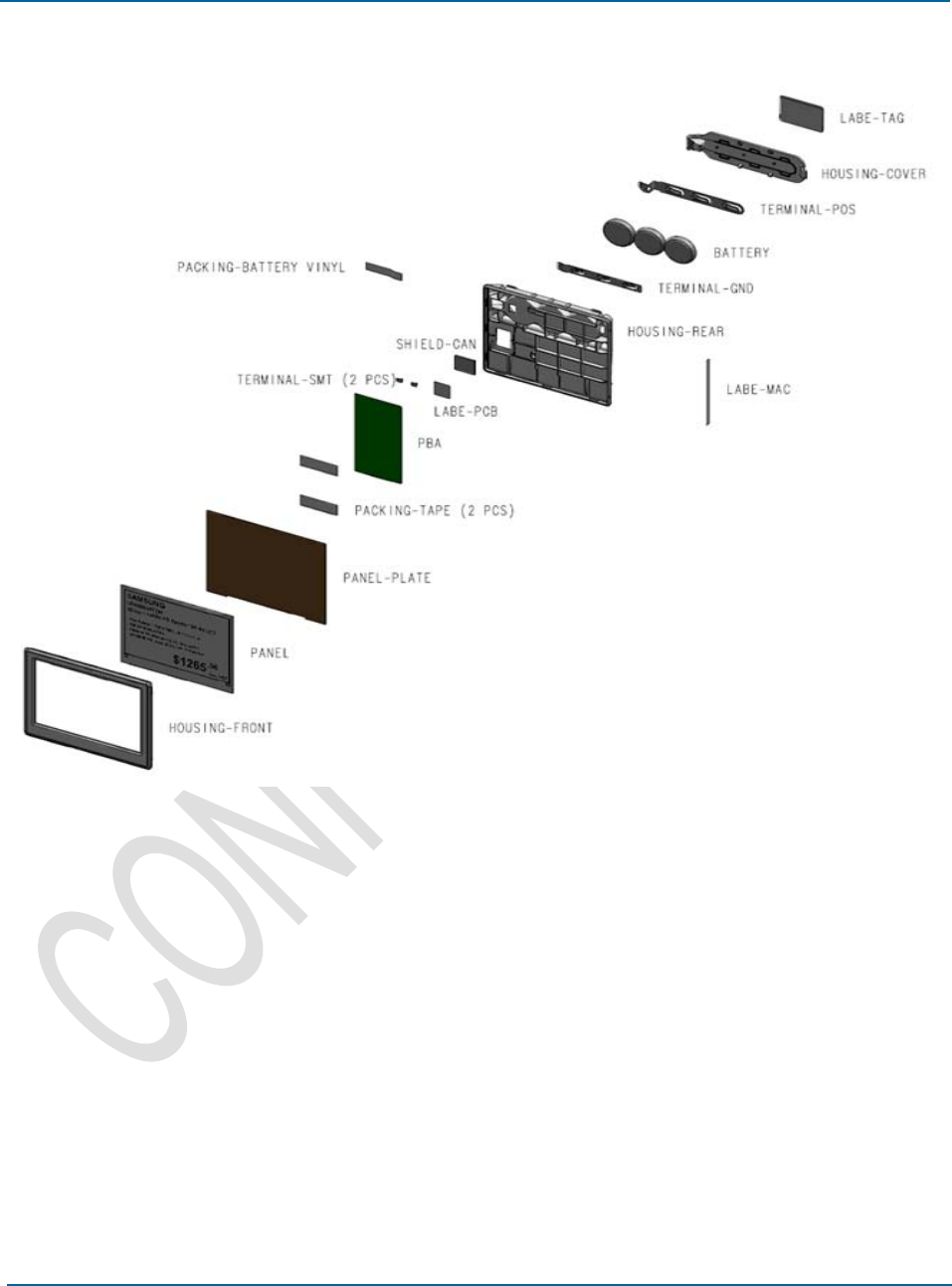

Figure 4Exploded View
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 11/23
2.4 Labels
2.4.1 Serial NumberInformation
*Serial1,2CodeValue
133GSAA2JW
①②③④⑤⑥⑦
①Year:Lasttwodigitsofmanufacturingyear.
(00~99,example:2013is'13')
②Month:Manufacturingmonth
(1~9,X(10),Y(11),Z(12))
③Date:Manufacturingdate
(1~9,A(10)~V(31))
④Vendor:Onecharacterofmanufacturingvendor
(S:SEMTHAI,T:TSEM,etc)
⑤Linenumber:OnecharacterofManufacturingLinenumber
('A','B','C',etc)
⑥Revision:Productrevisionnumber
(A:First,B:Second,C:Third,etc)
⑦ZigBeeICLotNumber:Last3characters
(ex:2JW)
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 12/23
2.4.2 Product and Mac Label Drawings
Figure 5 Product and Mac Labels
Product information is indicated in a printed sticker label. The information consists of MODEL (model
name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), CE certification mark, FCC
ID and Manufacture (SoluM).
1) FCC ID : E2X-ST-GM42003N
2) Model Name : ST-GR42003N
3) MFD : (Month).(Date).(Year) ex) May.16.2015
4) S/N : Serial Number Information
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 13/23

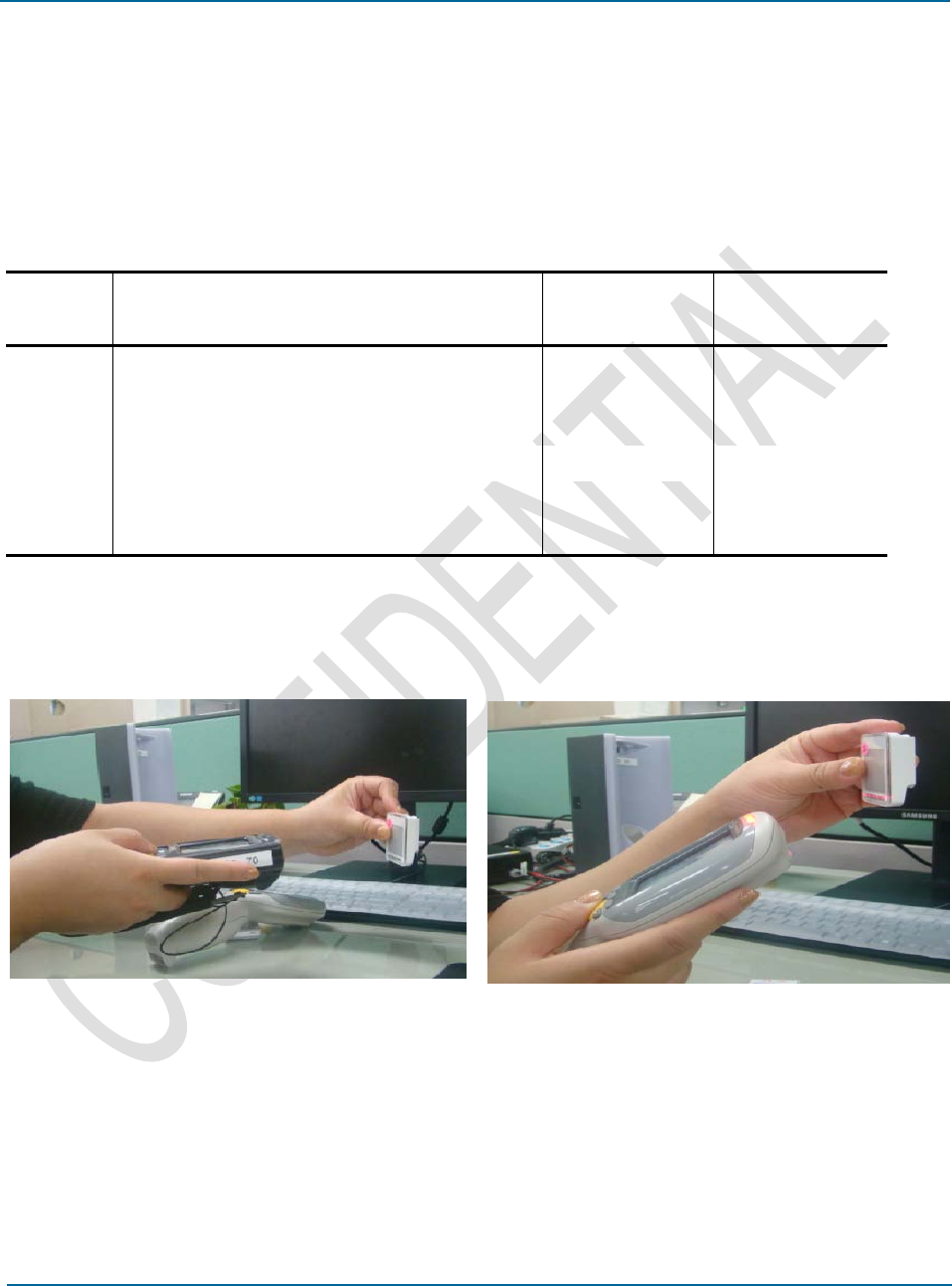

2.5 Barcode Scanning
2.5.1 Barcode Scanning Condition
Typically Scan distance is 8 ~ 9cm and angle is horizontality
Example)
Item
MODEL
Distance
Angle
Scanner SYMBOL (DS6708-SR20007ZZR) 8~9cm Horizontality
DATALOGIC (QUICKSCAN QD2430) 8~9cm Horizontality
PDA
Motorola (MC3190-SI2H04E0A) 8~9cm Horizontality
Motorola (MC17T-00) 6cm 30º
Motorola (MC4597-BAPBA0000) 8~9cm Horizontality
M3 (NA8NWCNMH40078) 8~9cm Horizontality
<Horizontality><30º>
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 14/23

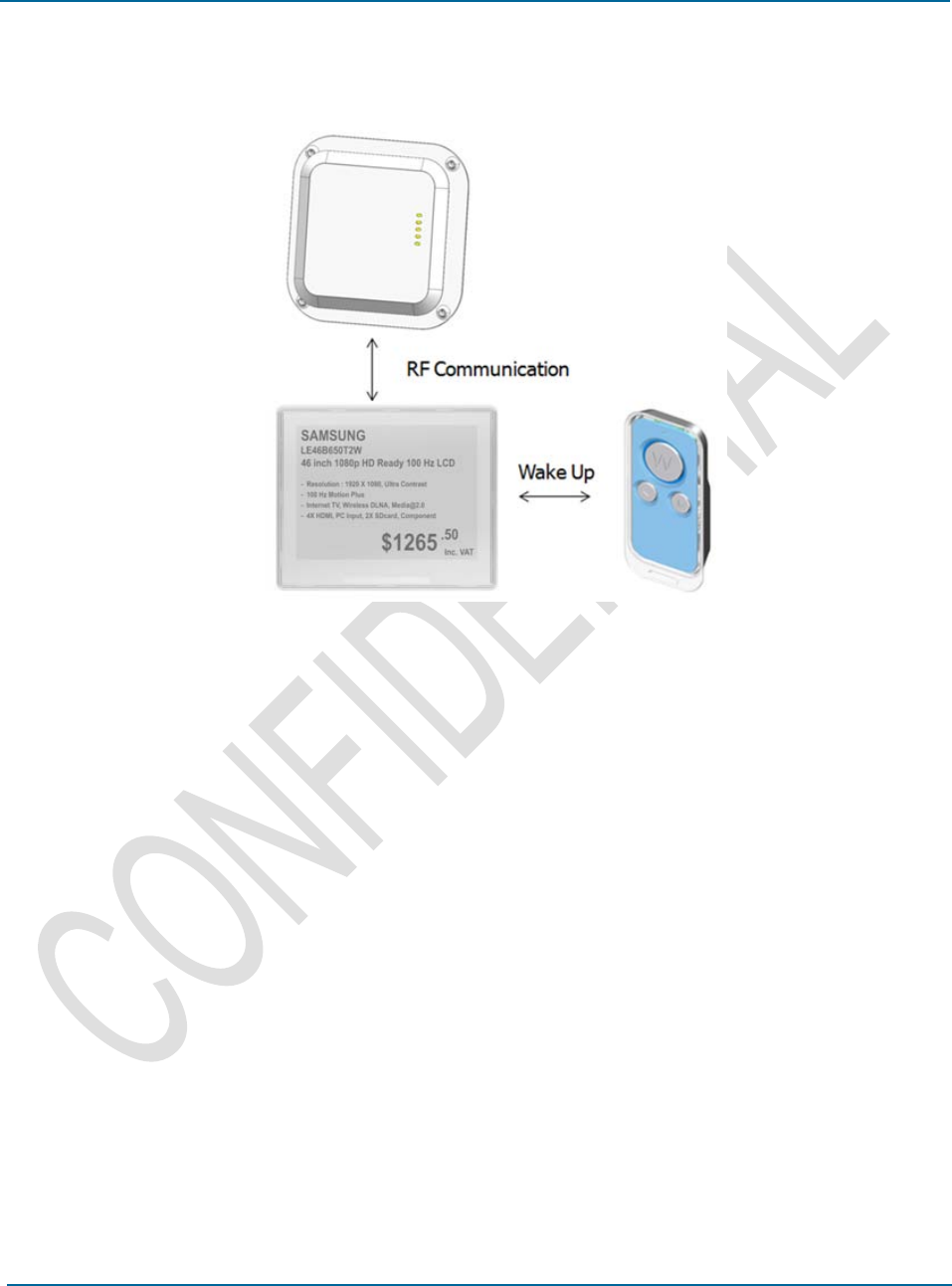

3 Operation Test
Equipments : ESL Tag, Gateway, R/C
Figure 6 Operation Test
Test Scenario
① Ready to Gateway and R/C
② Wake up Tag with R/C
③ Tag start to communicate with Gateway
④ Tag display the numeric information received from Gateway
⑤ Check Tag(EPD display status & MAC address value)
⑥ Wake up Tag with R/C
⑦ Check Tag(EPD display(blank display))
Criterion (Below both two conditions should be all satisfied)
① Good :You can see ‘Black’ →‘White’ display
② Compare MAC address with that of label attached to Front or Back plane.
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 15/23
Wake up area

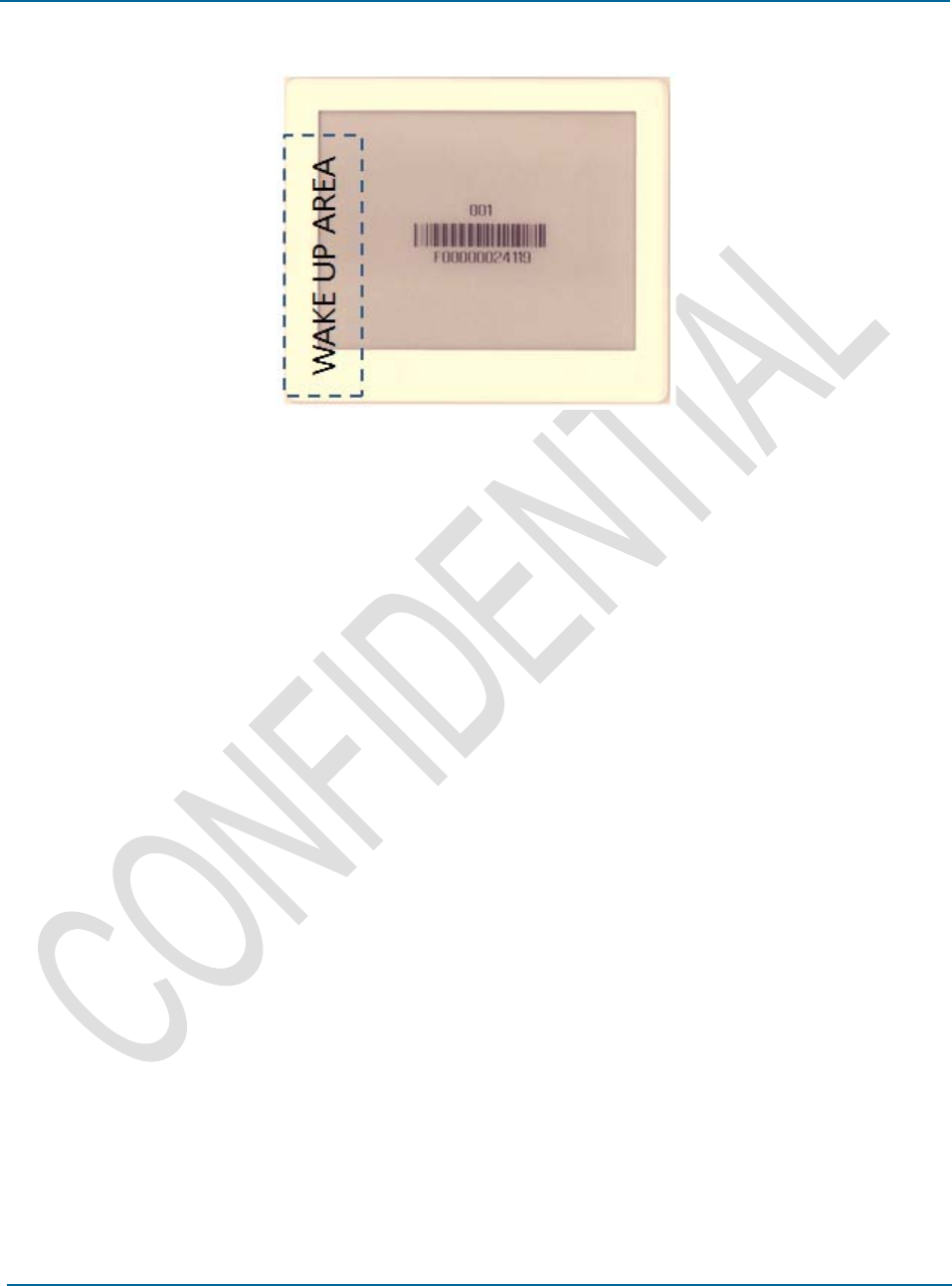

Figure 7Wake up Area
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 16/23
4 ESL Operation by display
It will be updated before 2nd release. Below is just a sample.
Display
State
User Action
STATE: 0
Initial display when shipped
from the manufacturer
(All white).
None
STATE: 1
No change.
To assign a tag using a PDA
STATE 1 2
Searching for GWs
(Tag version, MAC
addressand triangle).
Assign Process
→ Remove tape on the tag
and then Tag can start to
search the gateway
automatically w/o beeper
ZZZ
XXXXXXXXXXXX
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 17/23

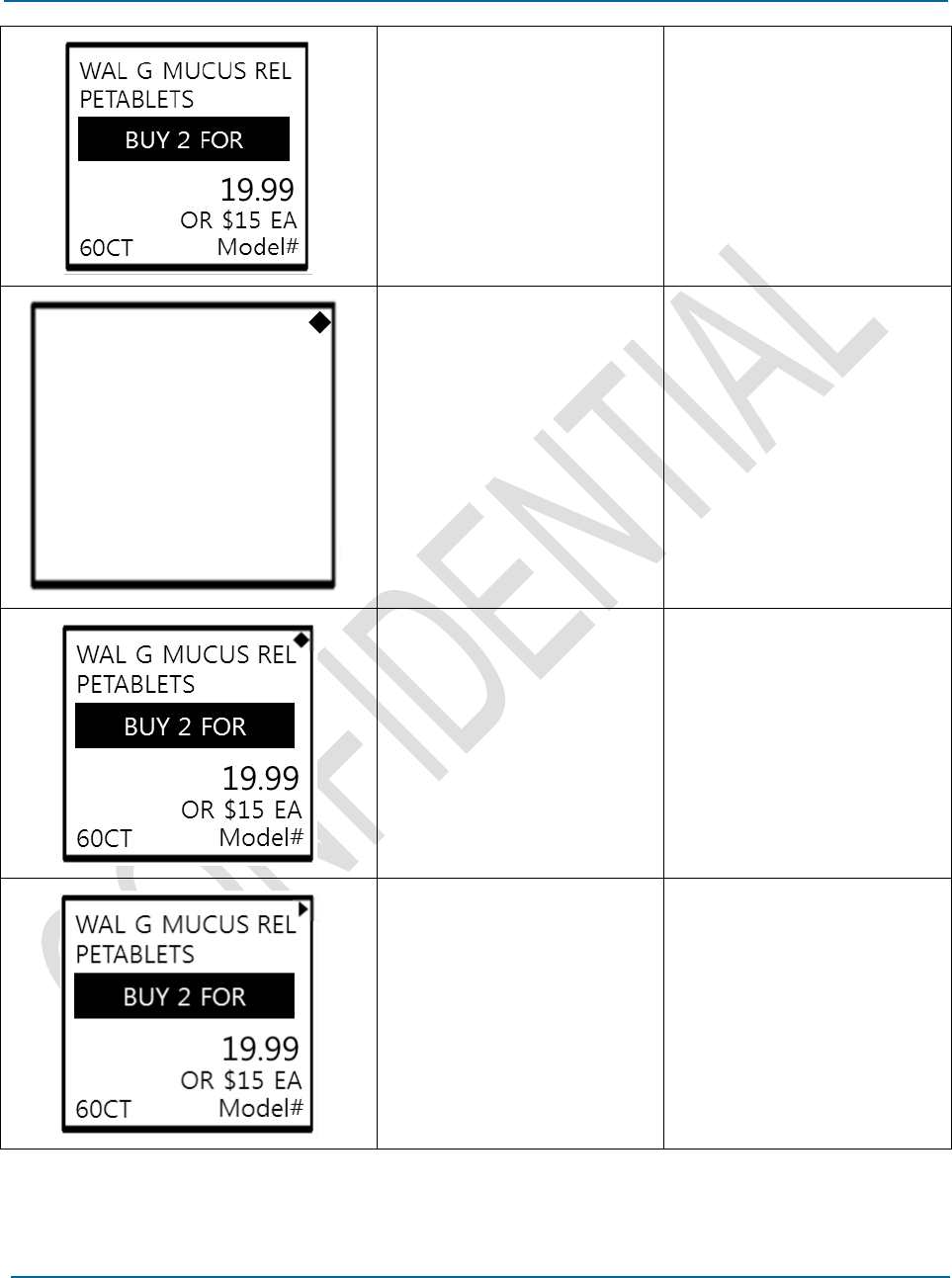

STATE 2
4
A tag is connected to a GW
and received price
(Price)
None
STATE 2 3
A tag failed to locate a GW
(Tag version, MAC address).
Lost Status
STATE 4 5
Connection to a GW is lost
(price and Rectangle on
upper right corner)
Lost Status
→ Even Tag lost GW, price
and other information keep
to be displayed with lost
symbol‘◆’
STATE 5 6
When connection is lost and
woken up by an RC
(blinks with the price and
Rectangle)
Starts to search GWs.
Woken up by abeeper
ZZZ
XXXXXXXXXXXX
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 18/23
STATE 4 1
Initial display
(Tag version, MAC address).
To clear an assigned tag
using a PDA
ZZZ
XXXXXXXXXXXX
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 19/23

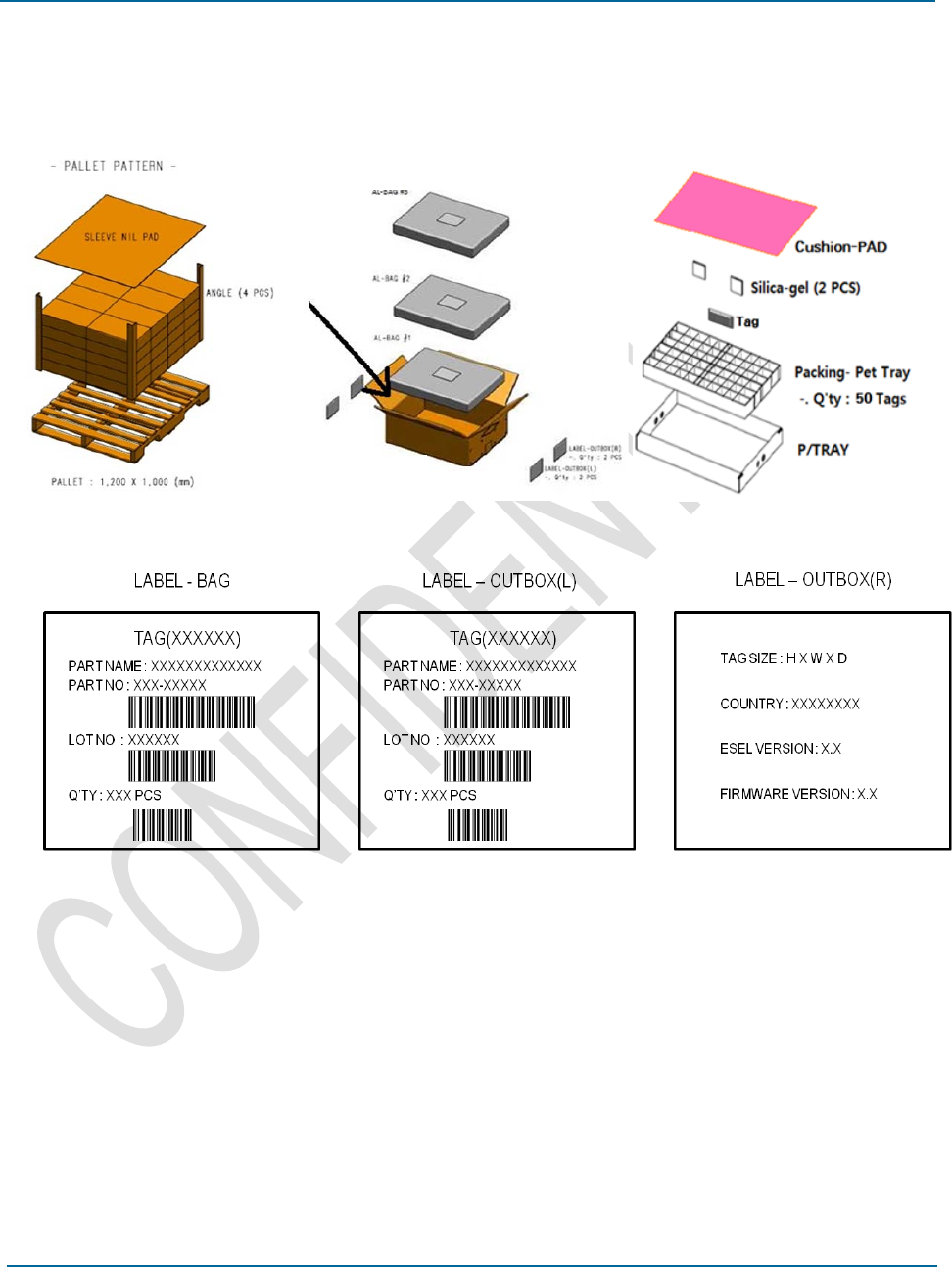

5 Package
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 20/23
6 Cautions for Treatment
Provisions should be made to protect against any damage to the product caused by improper handling.
It is highly recommended that the product should be installed within 3 months from the date of arrival in
the logistics hub. Recommended storage condition is in 0-40 Celsius degree, 35-70% RH environment.
This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device,
therefore, may not be used for applications where safety of human lives is concerned.
6.1 Usage Environment
Take extra cautions when using this RF device in the vicinity of other electronic devices and appliances.
Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves emitted by this
RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.
6.2 Storage and Use
Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the device
itself.
Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and damaged.
Use the product in temperatures ranging from 0℃ to +40℃. Parts and circuits may be damaged if
used or stored under temperature extremes.
The display panel needs extra care when handling.
- Do not apply any impacts on outside since e-Paper display is fragile.
- Continuous exposure to excessive moisture (over 60% RH) or UV makes display
lifetimeshortened.
- Ghosting image may be appeared in temperature conditions of less than 15 Celsius degree.
Avoid areas with strong magnetism or subject to magnetism.
Contact between the device and a magnetic object can lead to malfunctions.
Do not place the product near heat-producing kitchen appliances like a stove or a microwave or in
the vicinity of highly pressurized containers.
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 21/23
External impact to the product, such as from being dropped, can damage the productor battery
casing can be separated.
Twisting and bending the product can damage the exterior casing and the internal components.
If this product operates abnormally in eliminating battery vinyl or replacing battery, you should
discharge it by contacting battery terminal (+) and (-).
This product uses 2.4GHz frequency band for wireless communication network. Radio
communications can be limited or affected by other applications which share same frequency band,
such as WiFi, Bluetooth, Zigbee, etc.
Frequent communications, updates and screen renewals may reduce battery life time.
6.3 Battery Replacement
Audience
Authorized persons with the following knowledge are allowed to replace the battery.
- . Battery / -. Electronic assemblies like circuit board / -. Compliance of the instruction
※ Note : If not authorized person, it will not give any warranty.
(When need to replace the battery. Please contact authorized person and get instructions.)
Instructions
- Risk of short circuit if battery is incorrectly installed/stored.
- Keep attention that your hands are dry before you start with replacement
- Keep away batteries from children and infants.
- Don’t heat, charge, bend, drop, short-circuit and disassemble battery.
- Don’t mix the used battery together with the new battery or different type of batteries.
※ Note : Battery rarely has a little stain or leak.
Steps
① Open the battery cover.
② Take out the batteries.
③ Put in the new batteries.
④ Check the batteries direction.
⑤ Put the battery cover.
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 22/23

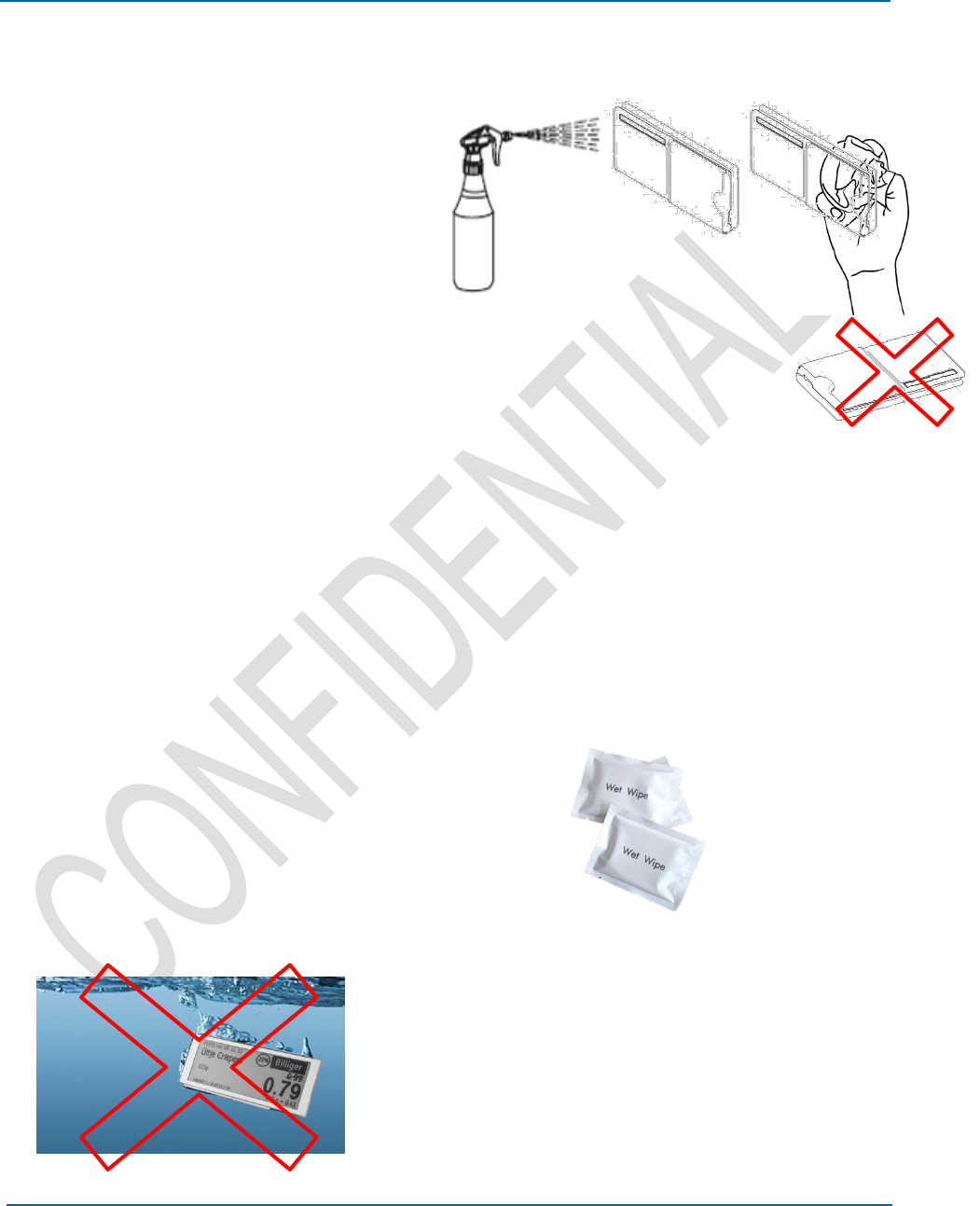

6.4 How to cleaning
For Spray Cleaning:
Stand Tags not to lay down tags
Lightly spray surfaces and wait few second
Wipe dry using cloth or tissues.
Dry out tags
Note:
When spray the tags, make sure not to flow any liquid into inside tags
It may damage tags directly, circuit and battery.
You can use mild, non-alcoholic detergents or glass cleaner.
Recommend non-abrasive cloths: Microfiber,Cotton T-shirt ,Cotton handkerchief,
Cotton tea towel
For Wet Tissue Cleaning:
Lay down tags or stand tags
Wipe using wet tissues
Dry out tags
We do not guarantee any water damaged tags
Stand
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 23/23
WARNING : This equipment may generate or use radio frequency energy. Changes or modifications to
thisequipment may cause harmful interference unless the modifications are expressly approved in the
instructionmanual. The user could lose the authority to operate this equipment if an unauthorized change
ormodification is made.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2) this device must accept any interference
received,Including interference that may cause undesired operation.
NOTE : This radio transmitter has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain and required antenna impedance
for each antenna type indicated. Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that necessary
for successful communication.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1)this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types
d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise
pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
S-TAG Datasheet(ST-GR42003N)
REV 1.0 Solu-M 24/23
fonctionnement.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment
must not be co-located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provide with antenna installation instructions and
consider removing the no-collocation statement.
Caution!
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
