Alliance 2W_Users manual
Confidential & Proprietary 1/27
Alliance 2W (Remote Unit)
Alliance_2W_L2ROU
User Manual
Confidential & Proprietary 2/27
REVISION HISTORY
Version Issue Date No. of
Pages Initials Details of Revision Changes
V 1.0 Feb. 23, 2016 Original
Technical Support
SOLiD serial numbers must be available to authorize technical support and/or to establish a return
authorization for defective units. The serial numbers are located on the back of the unit, as well
as on the box in which they were delivered. Additional support information may be obtained by
accessing the SOLiD Tehcnology, Inc. website at www.st.co.kr or send email at sjkim@st.co.kr
This manual is produced by Global Business Division Business Team 1. Printed in Korea.
Confidential & Proprietary 3/27
Contents
Section1 Safety & Certification Notice ................................................................. 5
Section2 System Overview .................................................................................... 9
2.1 Purpose ....................................................................................................... 10
2.2 Alliance 2W ................................................................................................. 11
2.3 Dimension ................................................................................................... 12
Section3 System Installation ............................................................................... 13
3.1 L2ROU Installation ..................................................................................... 13
3.1.1 L2ROU Enclosure installation ............................................................. 13
3.1.2 L2ROU Power Cabling ......................................................................... 18
3.1.3 Optical Cabling ..................................................................................... 19
3.1.4 GND Terminal Connection ................................................................... 20
3.1.5 Coaxial cable and Antenna Connection .............................................. 21
3.1.6 Insertion of L2RDU ............................................................................... 21
3.1.7 L2RDU Specifications Per band .......................................................... 22
Confidential & Proprietary 4/27
Contents of Figure
Figure 3.1 – L2ROU Outer Look ................................................................. 12
Figure 3.2 – How to install L2ROU ............................................................. 14
Figure 3.3 – Dimension used to install L2ROU on the WALL .................. 14
Confidential & Proprietary 5/27
Section1
Safety & Certification Notice
Confidential & Proprietary 6/27
“Only qualified personnel should handle the DAS equipment. Any person involved in
installation or service of the DAS should understand and follow these safety guidelines.”
- Obey all general and regional installation and safety regulations relating to work on high voltage
installations, as well as regulations covering correct use of tools and personal protective
equipment.
- The power supply unit in repeaters contains dangerous voltage level, which can cause electric
shock. Switch the mains off prior to any work in such a repeater. Any local regulations are to
be followed when servicing repeaters.
- When working with units outdoors, make sure to securely fasten the door or cover in an open
position to prevent the door from slamming shut in windy conditions..
- Use this unit only for the purpose specified by the manufacturer. Do not carry out any
modifications or fit any spare parts which are not sold or recommended by the manufacturer.
This could cause fires, electric shock or other injuries.
- Any DAS system or Fiber BDA will generate radio (RF) signals and continuously emit RF energy.
Avoid prolonged exposure to the antennas. SOLiD recommends maintaining a 3-foot minimum
clearance from the antenna while the system is operating.
- Do not operate this unit on or close to flammable materials, as the unit may reach high
temperatures due to power dissipation.
- Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or
abrasives on the DAS equipment. Alcohol may be used to clean fiber optic cabling ends and
connectors.
- To prevent electrical shock, switch the main power supply off prior to working with the DAS
System or Fiber BDA. Never install or use electrical equipment in a wet location or during a
lightning storm.
- Do not look into the ends of any optical fiber or directly into the optical transceiver of any digital
unit. Use an optical spectrum analyzer to verify active fibers. Place a protective cap over any
radiating transceiver or optical fiber connector to avoid the potential of radiation exposure.
- Allow sufficient fiber length to permit routing without severe bends.
- For pluggable equipment, make sure to install the socket outlet near the equipment so that it is
easily accessible.
- A readily accessible disconnect device shall be incorporated external to the equipment.
- This power of this system shall be supplied through wiring installed in a normal building.
Confidential & Proprietary 7/27
If powered directly from the mains distribution system, it shall be used additional protection,
such as overvoltage protection device.
- Only 50 ohm rated antennas, cables and passive equipment shall be used with this remote.
Any equipment attached to this device not meeting this standard may cause degradation and
unwanted signals in the bi-directional system. All components connected to this device must
operate in the frequency range of this device.
- Only 50 ohm rated antennas, cables and passive components operating from 150 - 3 GHz
shall be used with this device.
- The following notice: "The Manufacturer's rated output power of this equipment is for single
carrier operation. For situations when multiple carrier signals are present, the rating would have
to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause
interference to adjacent band users. This power reduction is to be by means of input power or
gain reduction and not by an attenuator at the output of the device."
- The head end unit must always be connected to the Base Station using a direct cabled
connection. This system has not been approved for use with a wireless connection via server
antenna to the base station.
- Access can only be gained by SERVICE PERSONS or by USERS who have been instructed
about the reasons for the restrictions applied to the location and about any precautions that
shall be taken; and
- Access is through the use of a TOOL or lock and key, or other means of security, and is on
trolled by the authority responsible for the location.
- Signal booster warning label message should include
- Certification
FCC: This equipment complies with the applicable sections of Title 47 CFR Parts
15,22,24,27 and 90(Class B)
Confidential & Proprietary 8/27
UL/CUL: This equipment complies with UL and CUL 1950-1 Standard for safety for
information technology equipment,including electrical business equipment
FDA/CDRH: This equipment uses a Class 1 LASER according to FDA/CDRH Rules.This
product conforms to all applicable standards of 21 CFR Chapter 1, Subchaper J, Part 1040
Confidential & Proprietary 9/27
Section2
System Overview
2.1 Purpose
2.2 Alliance 2W
Confidential & Proprietary 10/27
2.1 Purpose
Alliance 2W is a coverage system for in-building services delivering voice and data in high quality
and for seamlessly.
As a distributed antenna system, it provides analog and digital phone systems that are served in
multiple bands through one antenna.
The system covers general public institutions and private facilities.
Shopping malls
Hotels
Campus areas
Airports
Clinics
Subways
Multi-use stadiums, convention centers, etc.
The system helps improve in-building radio environments in poor condition and make better poor
RSSI and Ec/Io. By providing communication services at every corner of buildings, the system
enables users to make a call at any site of buildings.
The system uses both analog (AMPS) and digital (TDMA, CDMA and WCDMA) methods.
The Alliance 2W system supports communication standards and public interface protocols in
worldwide use.
Frequencies: VHF,UHF, 700MHz, 800MHz,850MHz 900MHz,1900MHz,2100MHz, etc.
Voice protocols: AMPS,TDMA, CDMA,GSM,IDEN, etc.
Data protocols: EDGE,GPRS,WCDMA,CDMA2000,Paging, etc.
Alliance 2W is in modular structure per frequency. To provide desired frequency in a building, all
you need to do is to insert a corresponding frequency module into each unit. As it delivers multiple
signals with one optical cable, the system, in one-body type, does not require additional facilities
whenever new frequency is added.
The system is featured with the following:
Flexibiltiy & Scalabiltiy
Support fiber-optic ports up to 39
Clustering multiple-buildings (campus) as one coverage
Modular structures
Modular frequency upgrade
Plug-in type module
Multi-Band, Multi Operator
Confidential & Proprietary 11/27
Signals with a plurality of service provider transmit simultaneously
Support multi-operator in a band
Low OPEX / CAPEX
Compact design
Upgradable design
Easy installation and maintenance
Web Based SNMP or GSM Modem or UDP support (Optional)
2.2 Alliance 2W
L2ROU receives TX optical signals from ODU or OEU and converts them into RF signals. The
converted RF signals are amplified through High Power Amp in a corresponding L2RDU,
combined with Multiplexer module and then radiated to the antenna port.
When receiving RX signals through the antenna port, this unit filters out-of-band signals in a
corresponding L2RDU and sends the results to Remote Optic Module to make electronic-optical
conversion of them. After converted, the signals are sent to a upper device of ODU or OEU.
L2ROU can be equipped with up to three L2RDUs (Remote Drive Unit) and the module is
composed of maximal Dual Band.
Confidential & Proprietary 12/27
2.3 Dimension

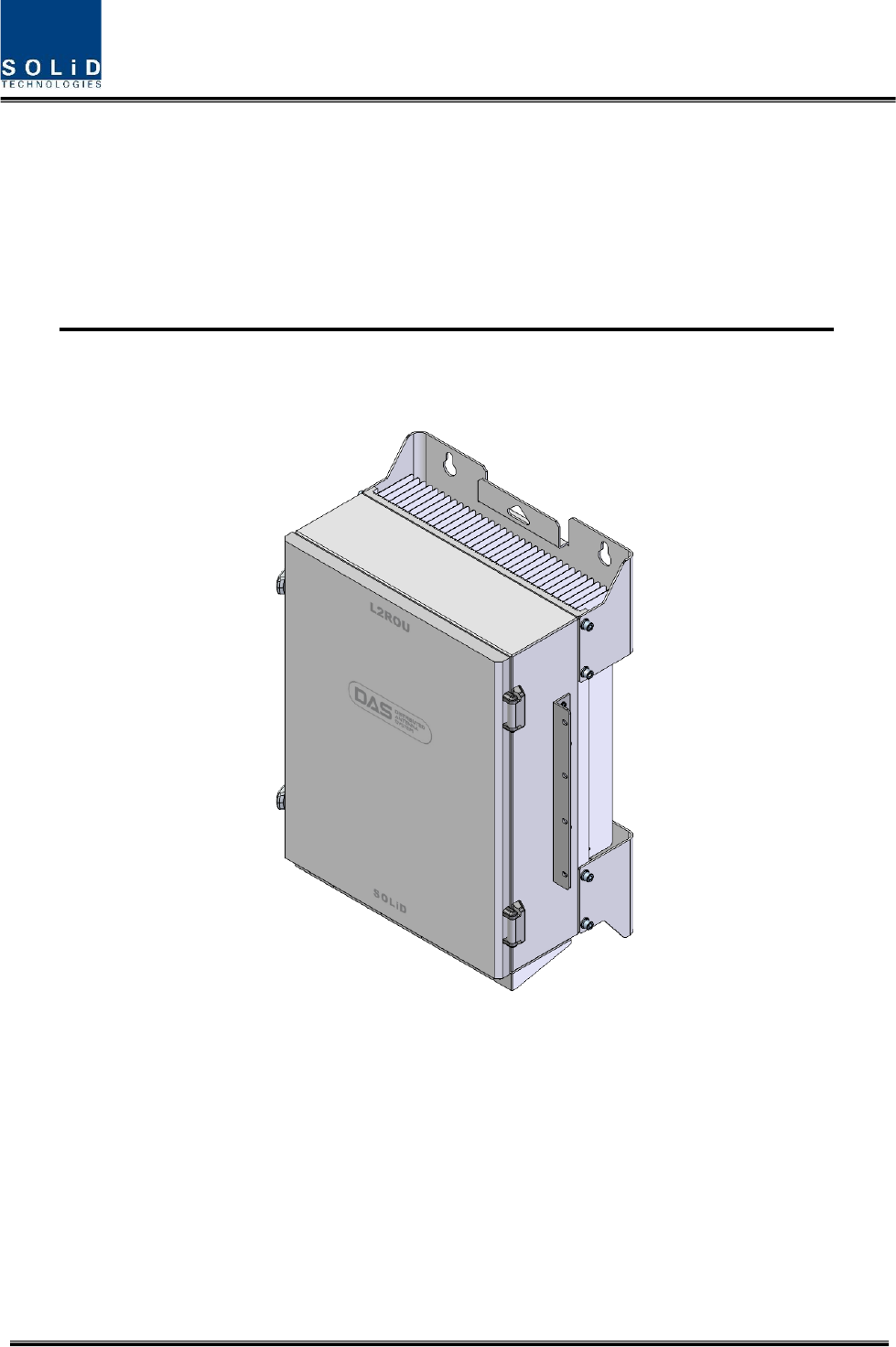

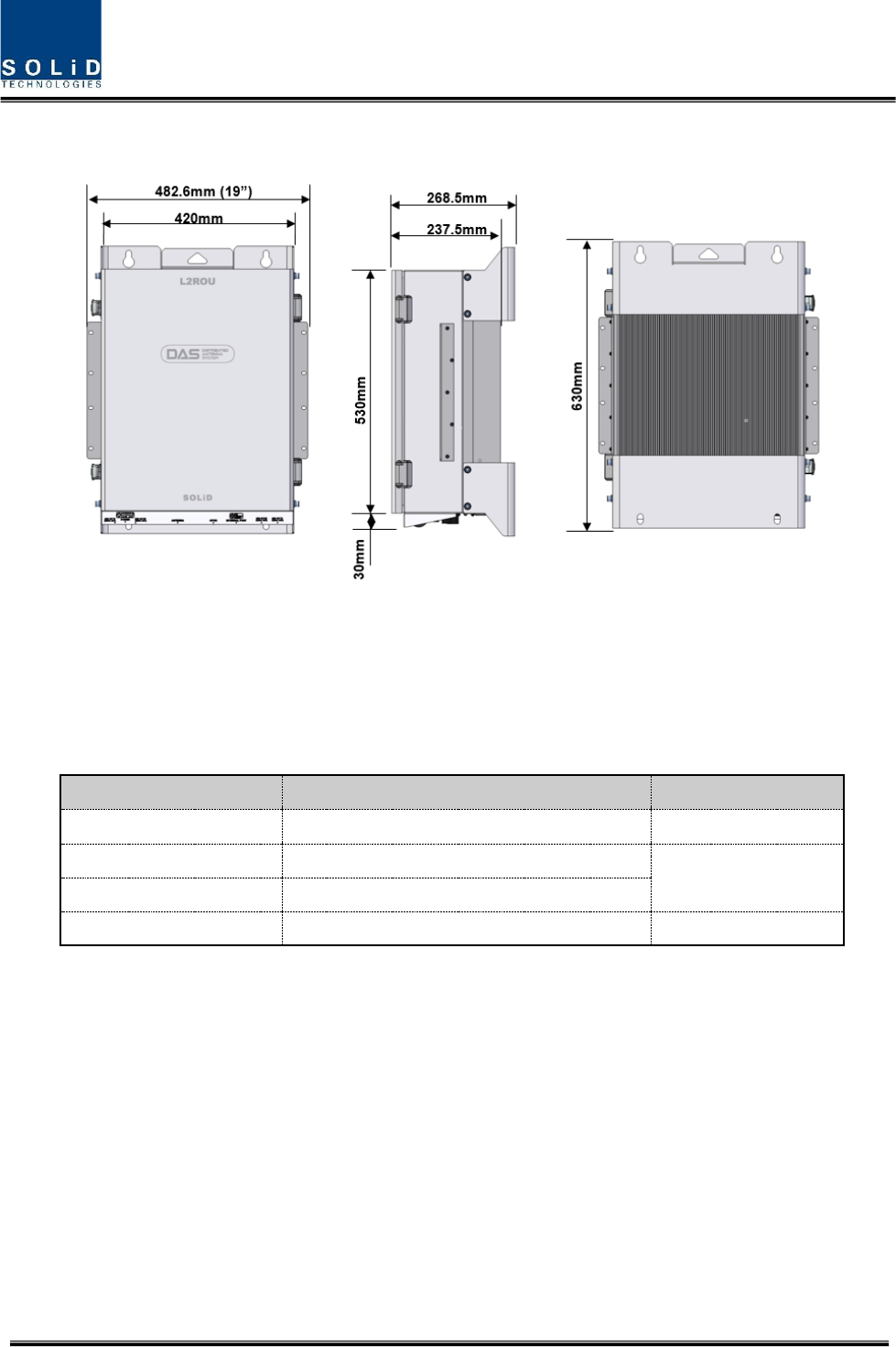

Figure 3.1 – L2ROU Outer Look
L2ROU is designed in a cabinet, and provides the following functions and features.
Item Spec. Remark
Size(mm) 482.6(19“) x 268.5 x560, Including Bracket
Weight 35.45 Kg Full Load
Power consumption 235 W
Operating Temperature -10 to +50°C Ambient Temperature
Confidential & Proprietary 13/27
Section3
System Installation
3.1 L2ROU Installation
3.1.1 L2ROU Enclosure installation
L2ROU is designed to be water- and dirt-proof. The unit has the structure of One-Body enclosure.
It satisfies water-proof and quake-proof standards equivalent of NEMA4.
L2ROU can be mounted into either of a 19” Standard Rack or on a Wall.
Basically, L2ROU has both of a Wall Mount Bracket and a Rack Mount Bracket.
Depending on the use of the Rack Mount Bracket, the bracket can be removed.
The following shows dimension of the fixing point for the Wall Mount Bracket.
Confidential & Proprietary 14/27

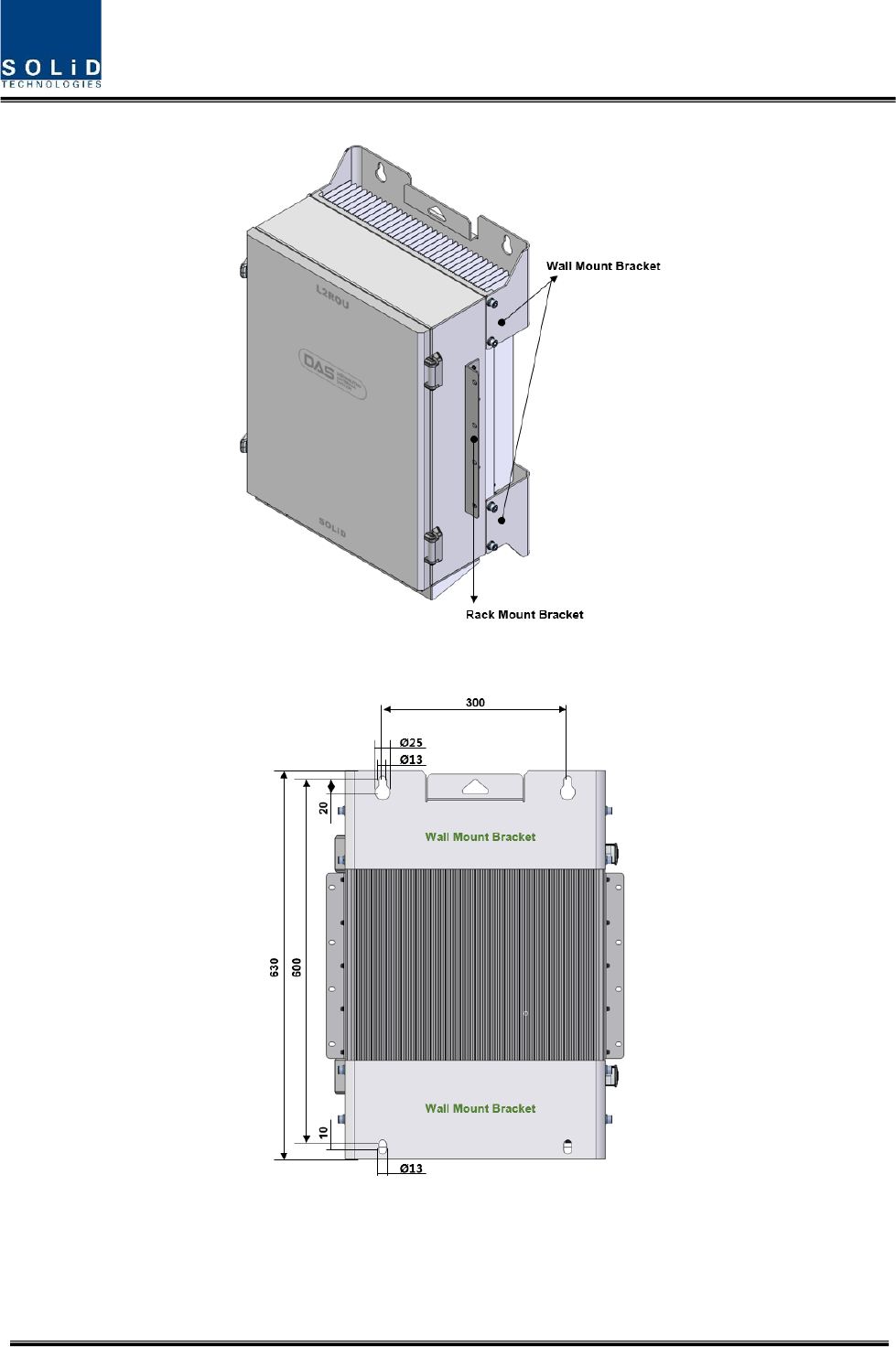

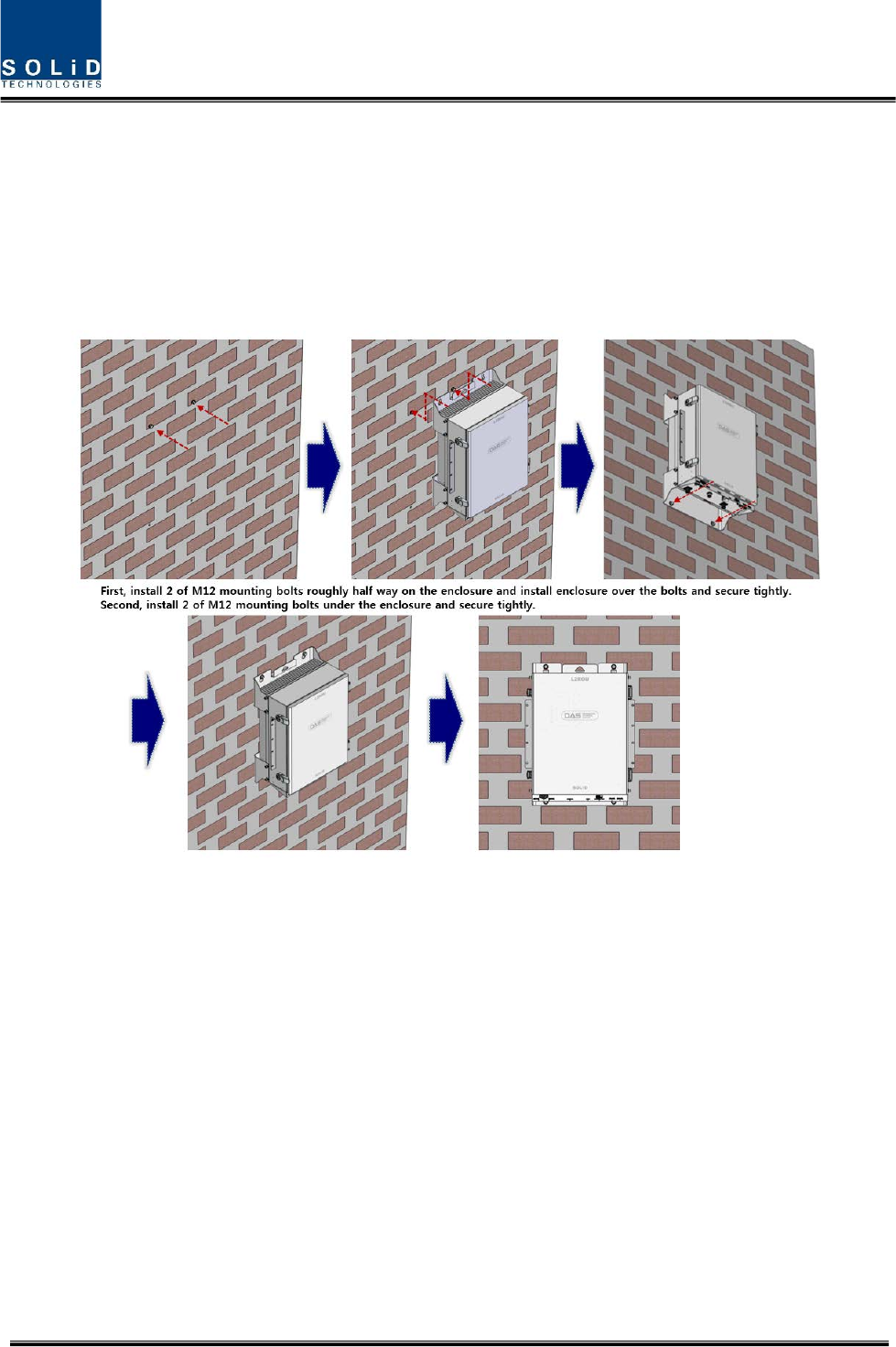

Figure 3.2 – How to install L2ROU
Figure 3.3 – Dimension used to install L2ROU on the WALL
Confidential & Proprietary 15/27
L2ROU Wall Mount Installation
Turn M12 Fixing Screws by half on the wall and fully fix the screw with a Wall Mount Bracket on
it.
For convenience, the Wall Mount Bracket has fixing holes to let you easily mount an enclosure.
Turn the M5 Wrench Bolt by half at each side of the Heatsink of the enclosure.
Put the enclosure with the M5 Wrench Bolt fixed on the fixing groove and fix the M5 Wrench Bolts
into the remaining fixing holes.
In this case, you will use 12 M5 Wrench Bolts in total except bolts used for the fixing groove.
Confidential & Proprietary 16/27

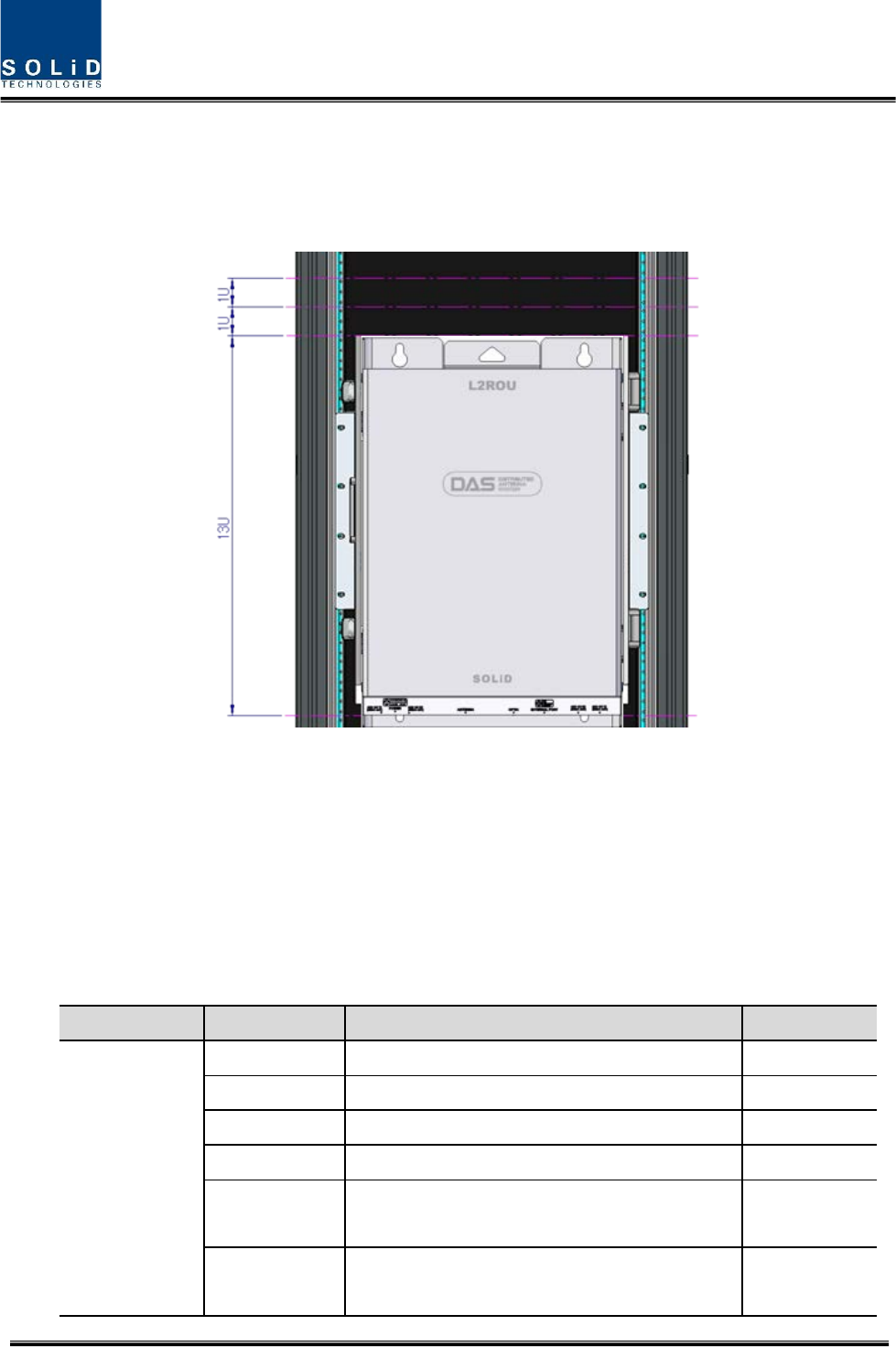

L2ROU Rack Mount Installation
Like other units, L2ROU is designed to be inserted into a rack. The unit occupies around 13U of
space except cable connection.
L2ROU component
L2ROU has the following components:
No. Unit Description Remark
Common Part
Enclosure Including Rack & Wall cradle 1EA
RCPU - 1EA
R_OPTIC With SC/ACP adaptor 1EA
RPSU Alternative DC-48V or AC 120V 1EA
Mux
(Combine Unit) - 1EA
Power Cable - MS Connector with 3 hole to AC 120 plug(AC)
- MS Connector with 2 lug termination(DC)
Confidential & Proprietary 17/27
Optional Part
L2RDU+BPF 1900P_AWS13, 8085_700FB, 2500_60TDD
2300_WCS (L2RDU)
Up to 3EA to
be inserted
Dry contact
Relay Sub
board
Used to connect L2ROU to external alarm
unit
Basically, the common part of L2ROU should have an enclosure and it is equipped with RCPU to
inquire and control state of each module, R_OPTIC to make both of electronic-optical and optical-
electronic conversions, RPSU to supply power for L2ROU and a Multi-Plexer to help share
multiple TX/RX signals through one antenna. It should have Power Cable for external rectifier or
to supply required power.
In addition, L2RDU can be inserted and removed to provide service for desired band (Optional).
Confidential & Proprietary 18/27

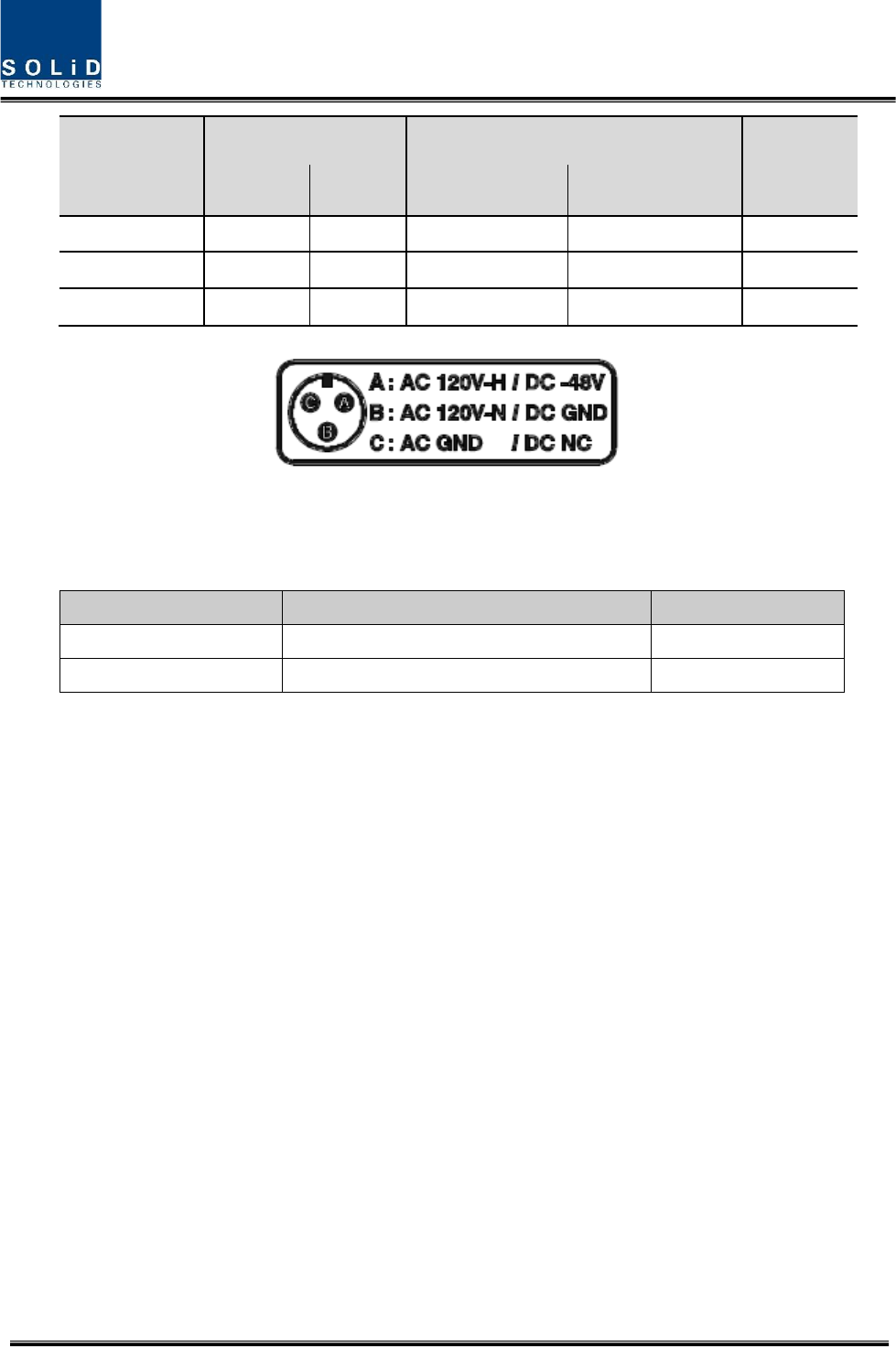

3.1.2 L2ROU Power Cabling
L2ROU supports both of DC-48V and AC120V of input power.
Model Name RPSU Type Remark
L2ROU_AC AC POWER SUPPLY AC 120V
L2ROU_DC DC POWER SUPPLY DC-48V
As RPSU for DC-48 and RPSU for AC120V are separated from each other, you need to select
one of them in case of purchase order.
RPSU for DC -48V and RSPU for AC 120V have the same configuration and capacity while each
of the units uses different input voltage from each other.

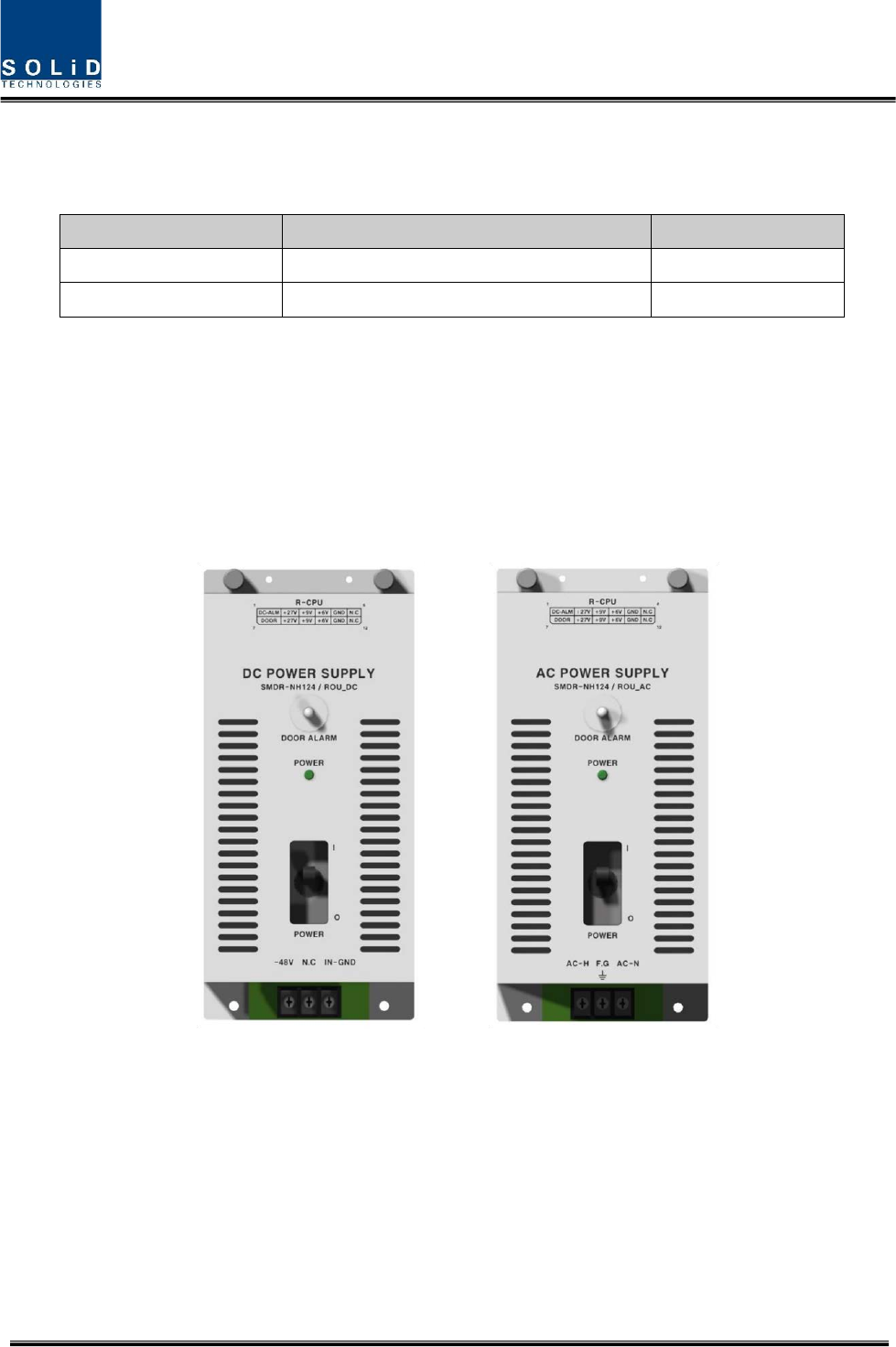

The following figure shows configuration of RPSUs for DC -48V and AC 120V.
Confidential & Proprietary 19/27
MC Connector
numbering
Lug Naming RPSU Terminal naming
Remark
AC DC AC DC
A AC_H -48V AC-H -48V
B AC_N GND AC-N IN_GND
C GND DC NC FG FG
Check if the connection is the same as one seen in the table above and make sure to turn the
power ON.
Model Name PSU Type Remark
L2ROU_AC AC POWER SUPPLY AC 120V
L2ROU_DC DC POWER SUPPLY DC-48V
3.1.3 Optical Cabling
L2ROU makes optical-electronic conversion of TX signals from upper ODU and OEU and makes
electronic- optical conversion of RX signals. L2ROU has one optical module in it. As WDM is
installed in the R_OPTIC module, two pieces of wavelength (TX:1310nm, RX:1550nm) can be
sent/received with one optical core at the same time. L2ROU has SC/APC of optical adaptor type.
For optical adaptor, SC/APC type can be used. To prevent the optical access part from being
marred with dirt, it should be covered with a cap during move. When devices are connected
through optical cables, you need to clear them using alcohocol to remove dirt.
Confidential & Proprietary 20/27

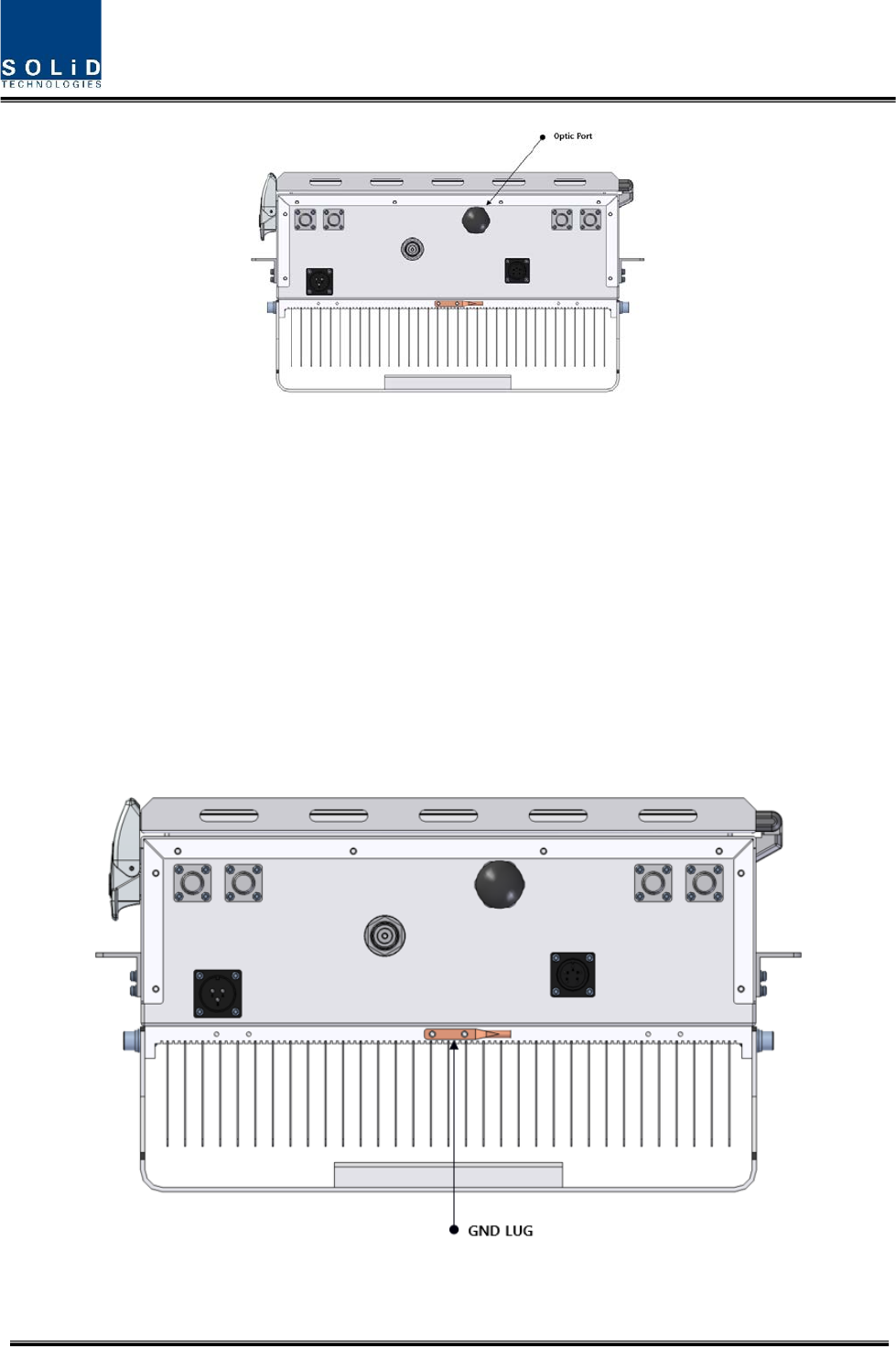

Optical cables should be inserted into Optic Port outside of L2ROU. Using an optical slack devices
in L2ROU, you need to coil around one or two roll of cables to be connected with the optical
adaptor of ROPTIC.
At this time, curvature of the optical cable should be at least 10Ø to prevent insertion loss from
being increased.
Through GUI, check if PD value of ROPTIC is in a tolerable range (+4~-1dBm).
3.1.4 GND Terminal Connection
L2ROU has one GND terminal port where is on bottom side, like below
- Take off the GND terminal port from enclosure and connect to ground cable, then fix it
the position of enclosure again
Confidential & Proprietary 21/27
- The opposite end of the ground cable should connect to the communication GND of
building
3.1.5 Coaxial cable and Antenna Connection
- The coaxial cables which are connected to antenna distribued network connect to
antenna port of L2ROU. Before connection, check the VSWR value of coaxial cable
whether it is within specification using SITEMASTER .
- At this time, check if the Return loss have above 15dB or VSWR have below 1.5
- The part of antenna connection fasten to port not to be loosed and not to be injected the
dusty and insects
- The antenna connected to L2ROU is only serviced in inbuilding
3.1.6 Insertion of L2RDU
L2ROU has slots to enable up to three L2RDU modules to be inserted into the unit.
You can insert a L2RDU into any slot. It is not possible to provide services with a L2RDU module
alone; you need to connect the module with Cavity BPF in any case.
The table below shows types of L2RDU and CAVITY BPF:
No Unit naming Cavity BPF RF CABLE
1 L2RDU
8085_700FB(2W) - TX CABLE 1EA
RX CABLE 1EA
2 L2RDU
1900P_AWS13(2W) - TX CABLE 1EA
RX CABLE 1EA
3 L2RDU
2500_60TDD
2.5TDD
BPF
TRX CABLE 1EA
(Common)
4 L2RDU
2300_WCS
2300WCS
BPF
TRX CABLE 1EA
(Common)
Confidential & Proprietary 22/27
3.1.7 L2RDU Specifications Per band
Standard Unit naming Description Frequency range
TX(MHz) RX(MHz)
LTE 700FB Long Term Evolution 729 to 756 699 to 716
777 to 787
iDEN + Cellular 8085 Public safety
Cellular 862 to 894 817 to 849
PCS 1900P PCS 1930 to 1995 1850 to 1915
AWS-1 + AWS-3 AWS13 AWS 2110 to 2180 1710 to 1780
WCS 2300_WCS WCS 2350 to 2360 2305 to 2315
TDD LTE 2500_60TDD TDD 2497.8~2687.4 2497.8~2687.4
700MHz Long Term Evolution
Parameters Typical Remarks
TX RX
Bandwidth 27MHz 27MHz
Output power +33dBm +0dBm Total
System Gain 53dB 50dB
input and output impedances 50 ohm 50 ohm
Confidential & Proprietary 23/27
800MHz+850MHz Public safety & Cellular
Parameters Typical Remarks
TX RX
Bandwidth 32MHz 32MHz
Output power +33dBm +0dBm Total
System Gain 53dB 50dB
input and output impedances 50 ohm 50 ohm
1900MHz PCS
Parameters Typical Remarks
TX RX
Bandwidth 65MHz 65MHz
Output power +33dBm +0dBm Total
System Gain 53dB 50dB
input and output impedances 50 ohm 50 ohm
1700MHz&2100MHz AWS-1 + AWS-3
Parameters Typical Remarks
TX RX
Bandwidth 70MHz 70MHz
Output power +33dBm +0dBm Total
System Gain 53dB 50dB
input and output impedances 50 ohm 50 ohm
Confidential & Proprietary 24/27
2300MHz 2300_WCS
Parameters Typical Remarks
TX RX
Bandwidth 10MHz 10MHz
Output power +33 dBm +0dBm Total
System Gain 52dB 30dB
input and output impedances 50 ohm 50 ohm
2500MHz 2.5TDD
Parameters Typical Remarks
TX RX
Bandwidth 189.6MHz 189.6MHz
Output power +32.5 dBm -20dBm @ RDU Port
System Gain 52dB 30dB
input and output impedances 50 ohm 50 ohm
Confidential & Proprietary 25/27
RF Radiation Exposure for FCC
This equipment complies with RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. RF exposure will be addressed at time of installation and the use of
higher gain antennas may require larger separation distances.
Part 27.50 and SRSP
Antennas must be installed in accordance with FCC 27.50 and SRSP 518. With 17dBi gain
antennas the height of the antenna above average terrain (HAAT) must not exceed 2500 m. For
different gain antennas refer to the relevant rules.
FCC notice
- Use of unauthorized antennas, cables, and/or coupling devices not conforming with ERP/EIRP
and/or indoor‐only restrictions is prohibited.
- Home/ personal use are prohibited.
Confidential & Proprietary 26/27
RSS-GEN, Sec. 7.1.2 – (transmitters)
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionneravec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour
l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l’intention desautres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la
puissance isotroperayonnée quivalente (p.i.r.e.) ne dépassepas l’intensité nécessaire à
l’établissement d’une communication satisfaisante.
RSS-GEN, Sec. 7.1.2 – (detachable antennas)
This radio transmitter (identify the device by certification number, or model number if Category
II)has been approved by Industry Canada to operate with the antenna types listed below with
the maximum permissible gain and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro
de modèle s’il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour
fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal
et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette
liste,ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour
l’exploitation de l’émetteur.
RF Radiation Exposure
This equipment complies with RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 200
cm with 7dBi antenna gain or 600 cm with 17dBi antenna gain between the radiator and your
body. This transmitter must not be co-located or operating in conjunction with any other antenna
Confidential & Proprietary 27/27
or transmitter. RF exposure will be addressed at time of installation and the use of higher gain
antennas may require larger separation distances.
RSS-102 RF Exposure
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance
minimum de au moins 200 cm avec le gain d'antenne 7dBi ou 600 cm avec 17dBi gain
d'antenne entre la source de radiation (l’antenne) et toute personne physique. Cet appareil ne
doit pas être installé ou utilisé en conjonction avec une autre antenne ou émetteur.
