SOLiD NH850C HPRD (High Power Remote Drive Unit) User Manual MB DAS
SOLiD, Inc. HPRD (High Power Remote Drive Unit) MB DAS
SOLiD >
User Manual
Confidential & Proprietary 1/41 THOR
THOR (Total Hybrid Optical Repeater)
HMRU / HARU
Installation and Operation Manual
Confidential & Proprietary 2/41 THOR
REVISION HISTORY
Version
Issue Date
No. of
Pages
Initials
Details of Revision Changes
V 1.0
SEP.01 , 2014
Original
Technical Support
SOLiD serial numbers must be available to authorize technical support and/or to establish a return
authorization for defective units. The serial numbers are located on the back of the unit, as well as on
the box in which they were delivered. Additional support information may be obtained by accessing the
SOLiD Tehcnology, Inc. website at www.solid.co.kr or send email at kiyoo@solid.co.kr
Confidential & Proprietary 3/41 THOR
Contents
Section1 Safety & Certification Notice ............................................................................................. 7
Section2 System Overview ............................................................................................................... 11
2.1 Purpose ..................................................................................................................................... 12
2.2 System overview ...................................................................................................................... 13
Section3 System Configuration and Functions .............................................................................. 14
3.1 HROU (High power Remote Optic Unit) ................................................................................. 15
3.1.2 Specifications of HROU..................................................................................................... 16
3.1.3 Block Diagram of HROU.................................................................................................... 16
3.1.3.1 HMRU block diagram ....................................................................................................... 16
3.1.3.2 HARU block diagram ......................................................................................................... 17
3.1.4 HROU parts ....................................................................................................................... 18
3.1.4.1 HROU inner look ............................................................................................................... 18
3.1.4.2 HROU part list ................................................................................................................... 19
3.1.5 Function by unit ................................................................................................................ 20
3.1.6 Bottom of HROU ............................................................................................................... 24
Section4 System Installation ........................................................................................................... 25
4.1 HROU Installation .................................................................................................................... 26
4..1.1 Tools ......................................................................................................................................... 26
4.2 HROU Enclosure installation ................................................................................................... 27
4.3 How to expand HARU at the HMRU ....................................................................................... 31
4.4 HROU Power Cabling .............................................................................................................. 33
4.5 HROU Ground cabling ............................................................................................................. 34
4.6 Mounting of HRDU .................................................................................................................. 36
Section5 Operation ....................................................
오류
!
책갈피가
정의되어
있지
않습니다
.
5.1 HROU Operation ................................................. 오류! 책갈피가 정의되어 있지 않습니다.
5.2 HROU Operation ................................................. 오류! 책갈피가 정의되어 있지 않습니다.
Section6 Specification ..................................................................................................................... 39
6.1 General Specification ............................................................................................................... 40
6.2 Electrical Specification ............................................................................................................. 41
6.3 Optical Specification ................................................................................................................ 41
6.4 Regulatory Conformity ........................................ 오류! 책갈피가 정의되어 있지 않습니다.
Confidential & Proprietary 4/41 THOR
6.5 Marking plate....................................................... 오류! 책갈피가 정의되어 있지 않습니다.
Confidential & Proprietary 5/41 THOR
Contents of Figure

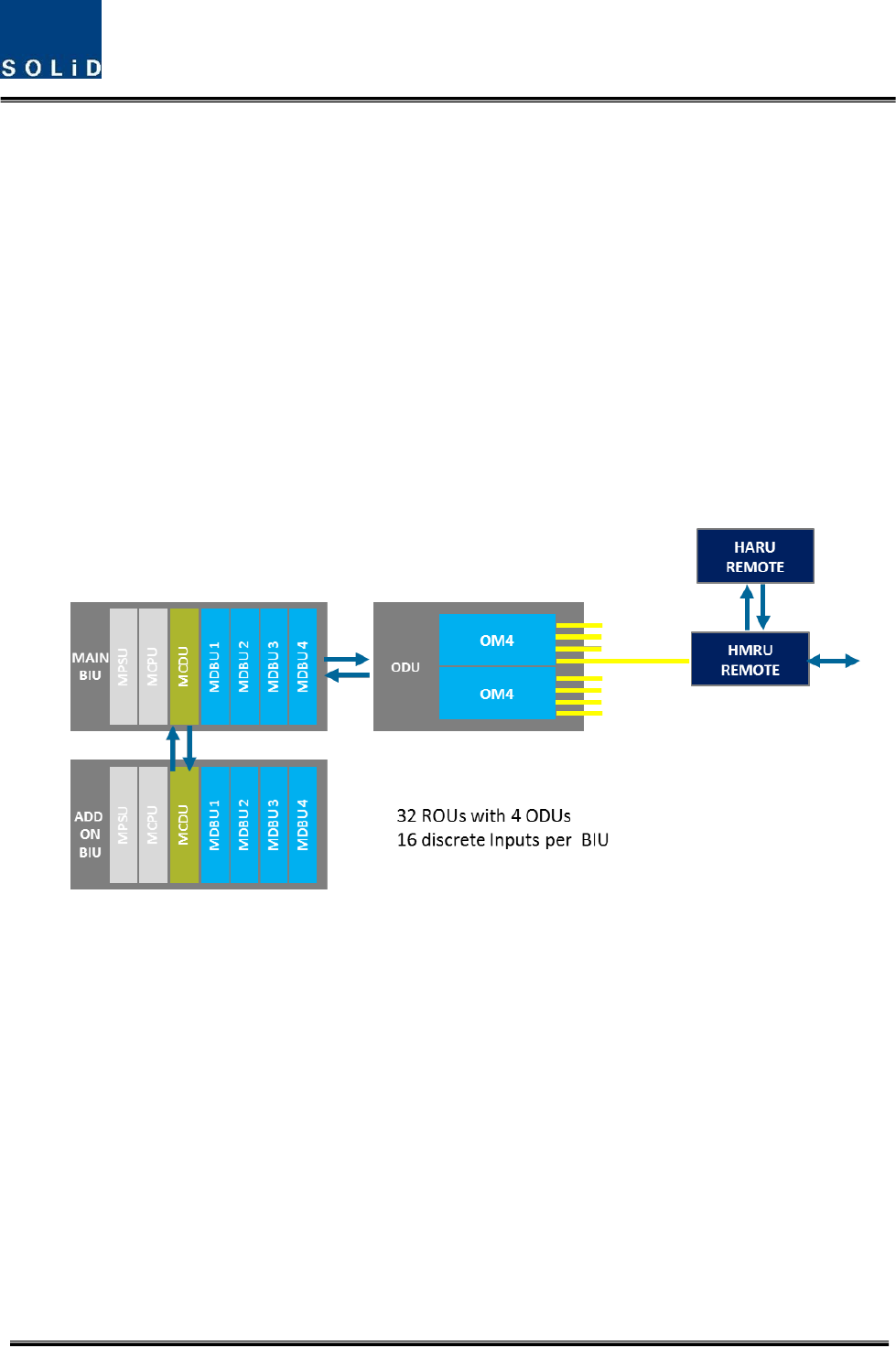

Figure 2.1 – Basic system topology............................................................................................. 13

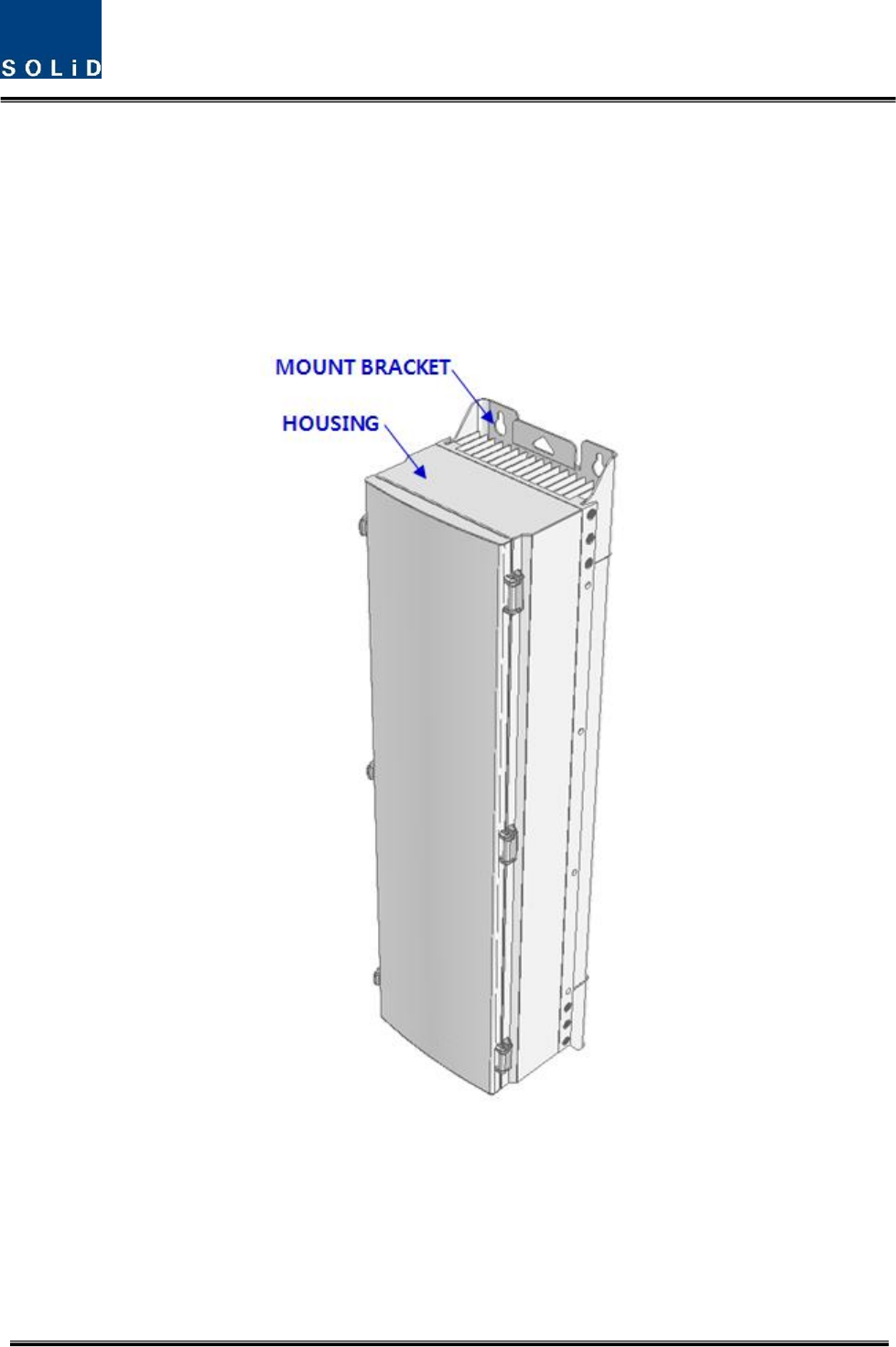

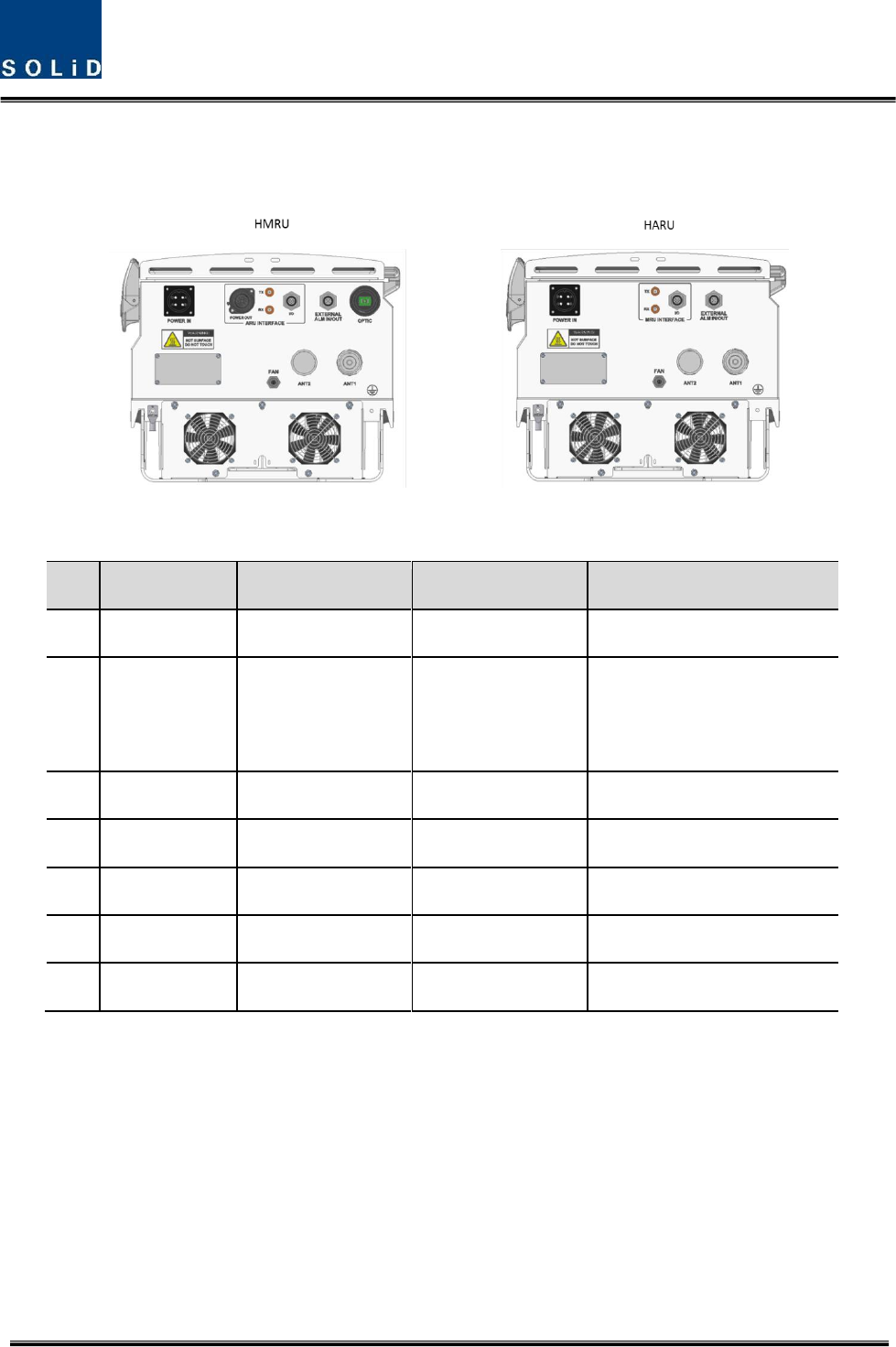

Figure 4.1 – HROU Outer Look.................................................................................................... 15
Figure 4.2 – HMRU Block diagram .............................................................................................. 16
Figure 4.3 – HARU Block diagram ............................................................................................... 17

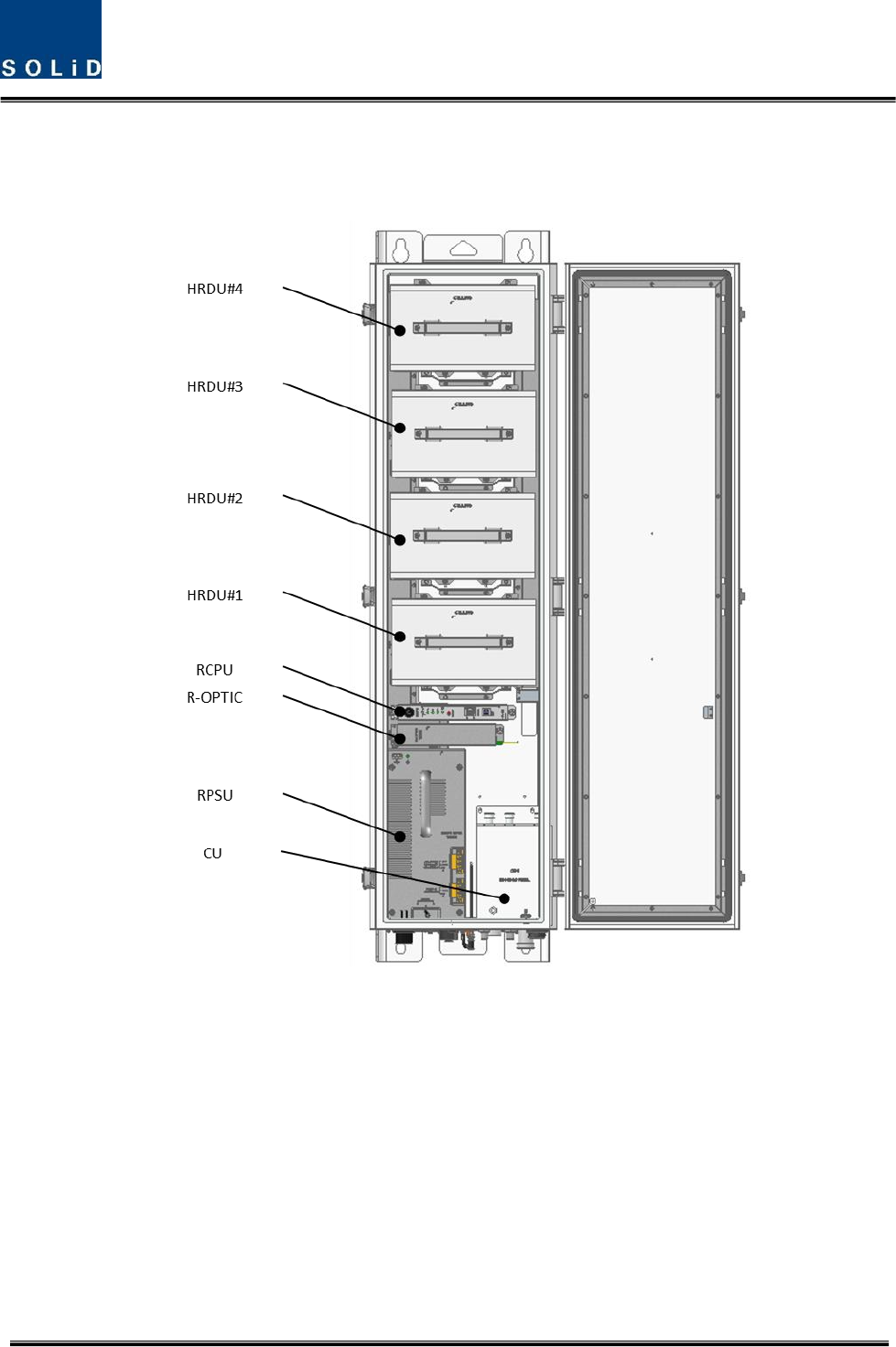

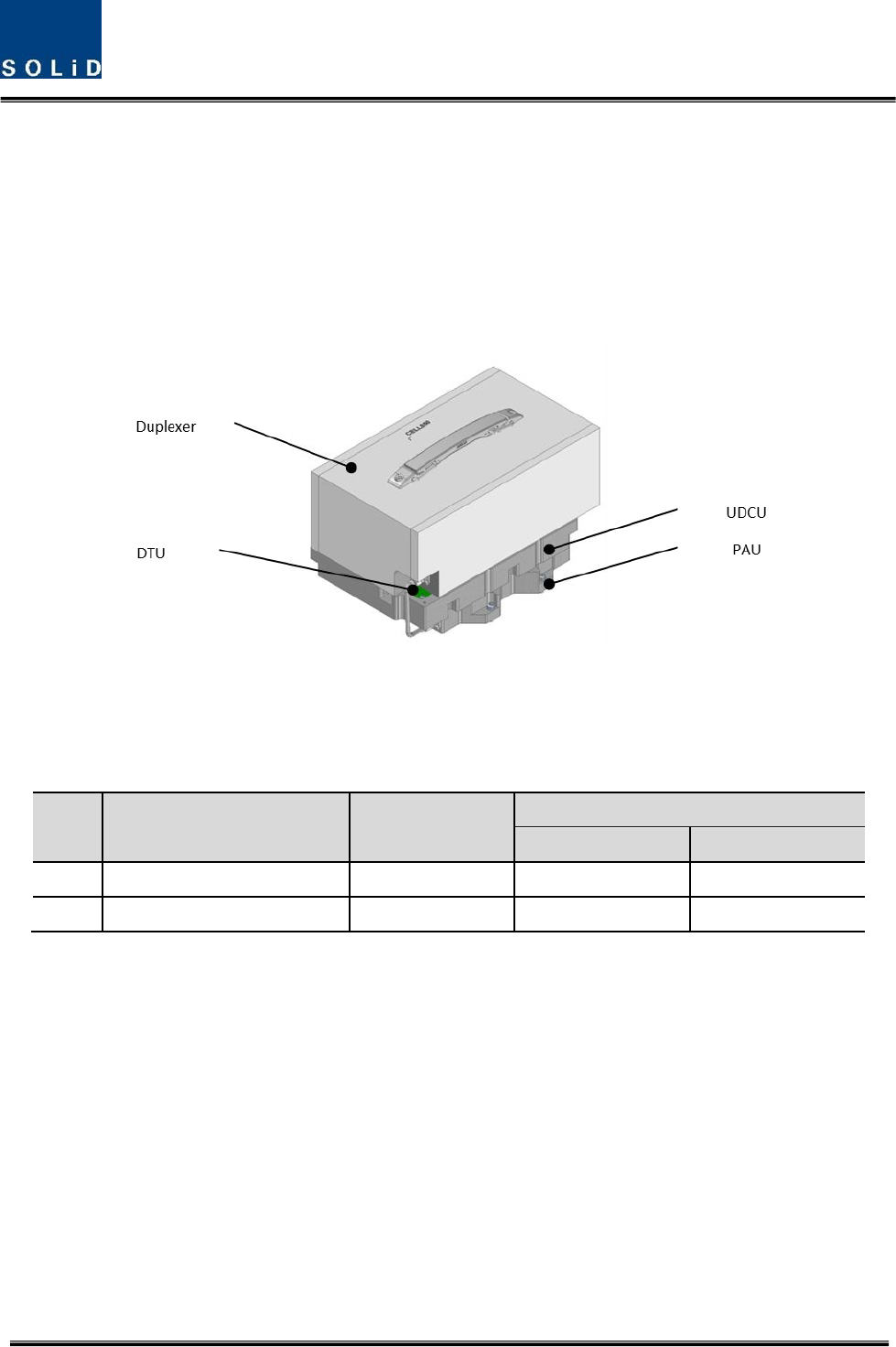

Figure 4.4 – HROU Inner Look .................................................................................................... 18
Figure 4.5 – HRDU Outer Look .................................................................................................... 20

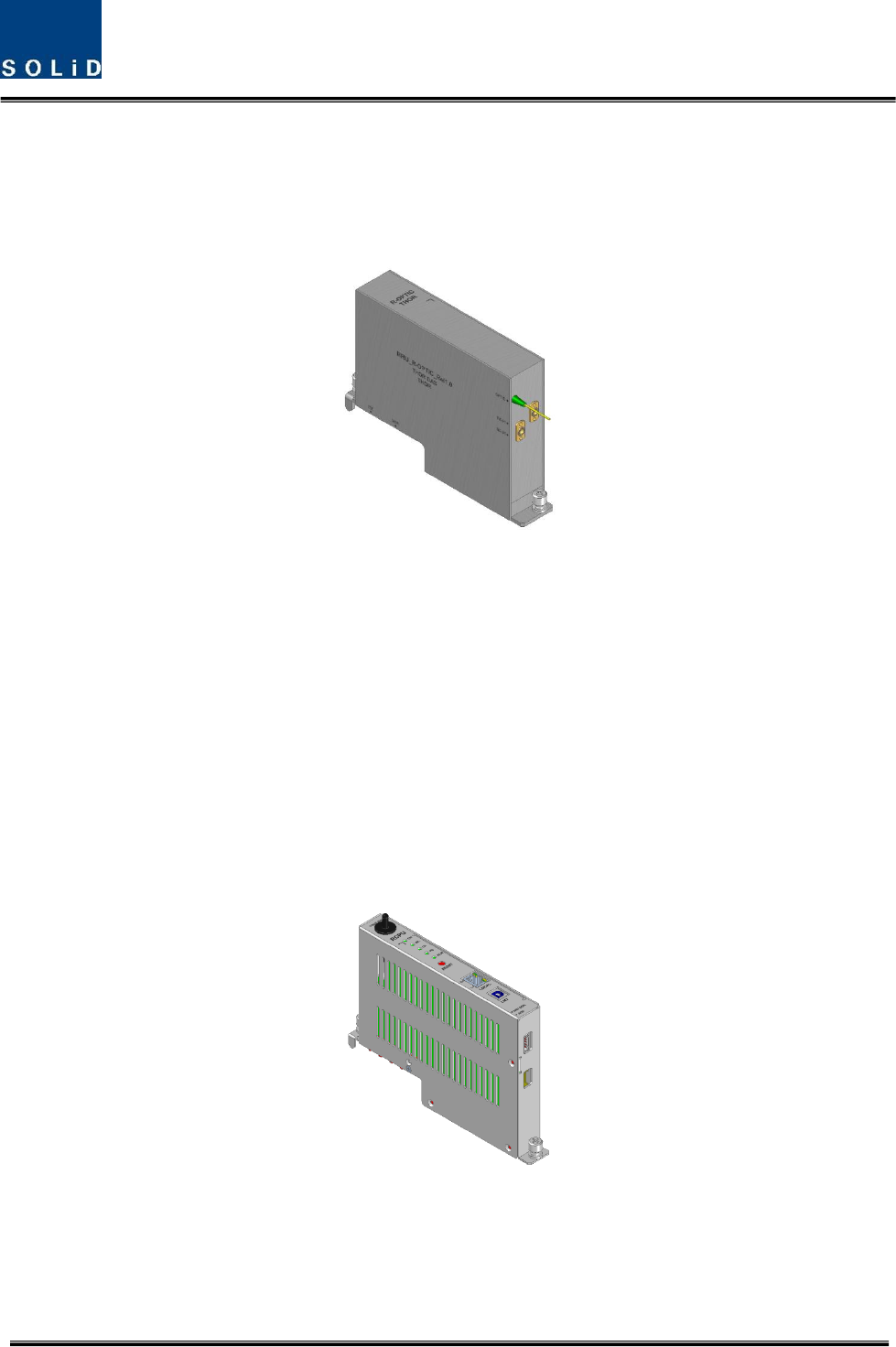

Figure 4.6 – RPSU Outer Look ..................................................................................................... 22
Figure 4.7 – R OPTIC Outer Look................................................................................................. 23
Figure 4.8 – RCPU Outer Look .................................................................................................... 23
Figure 4.10 – HROU Bottom Look ............................................................................................... 24

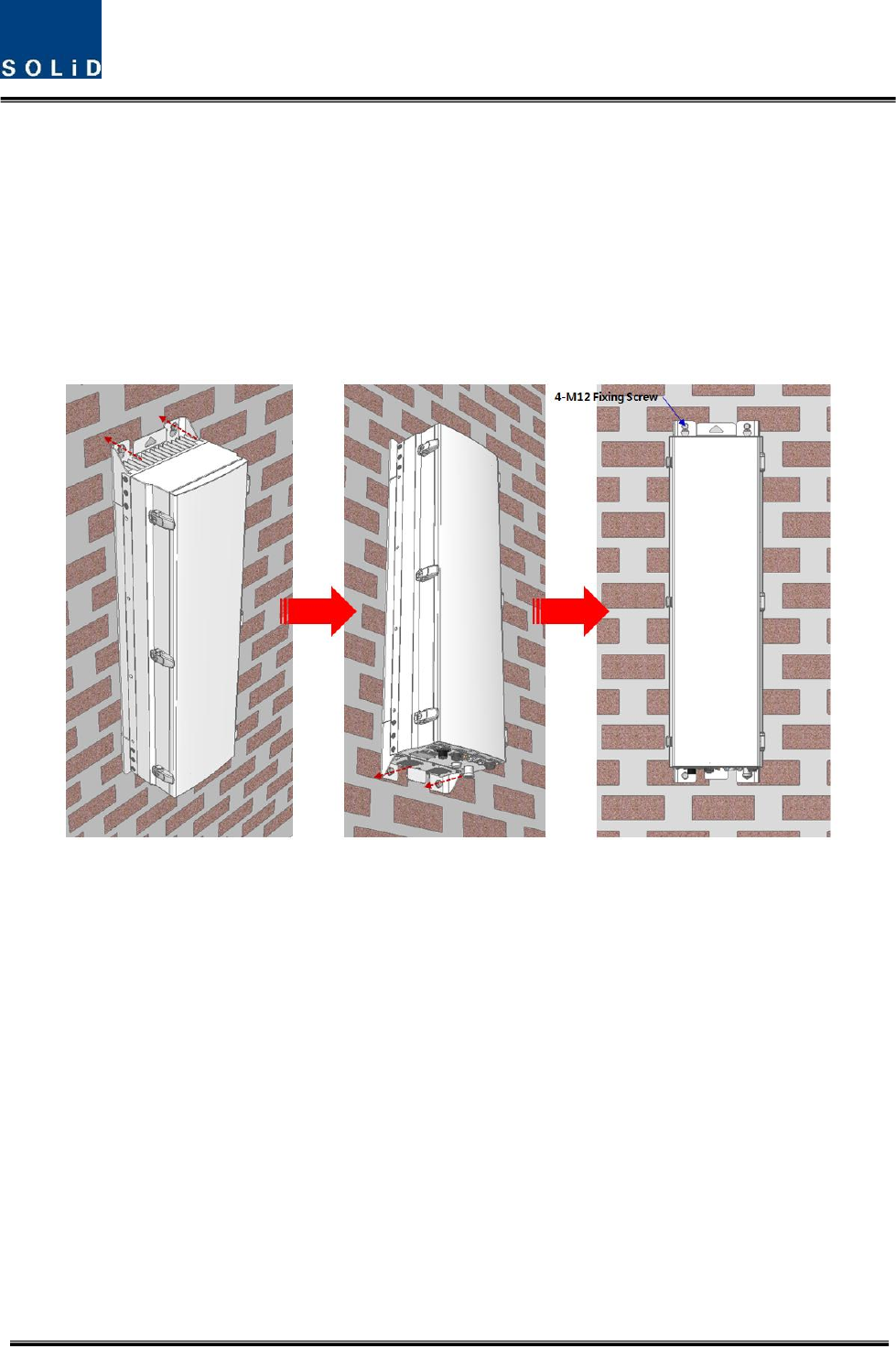

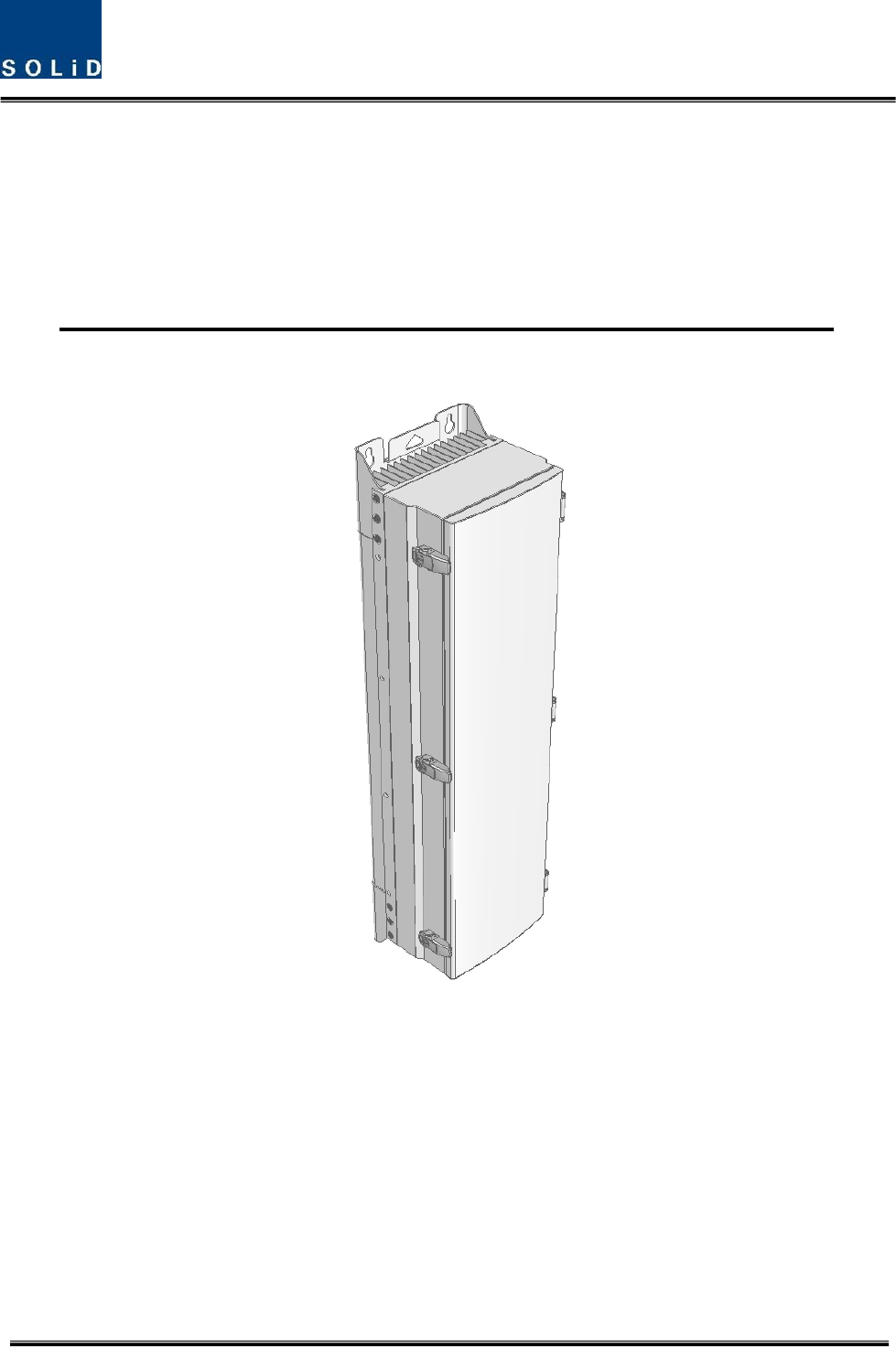

Figure 5.1 – How to install HROU ............................................................................................... 27

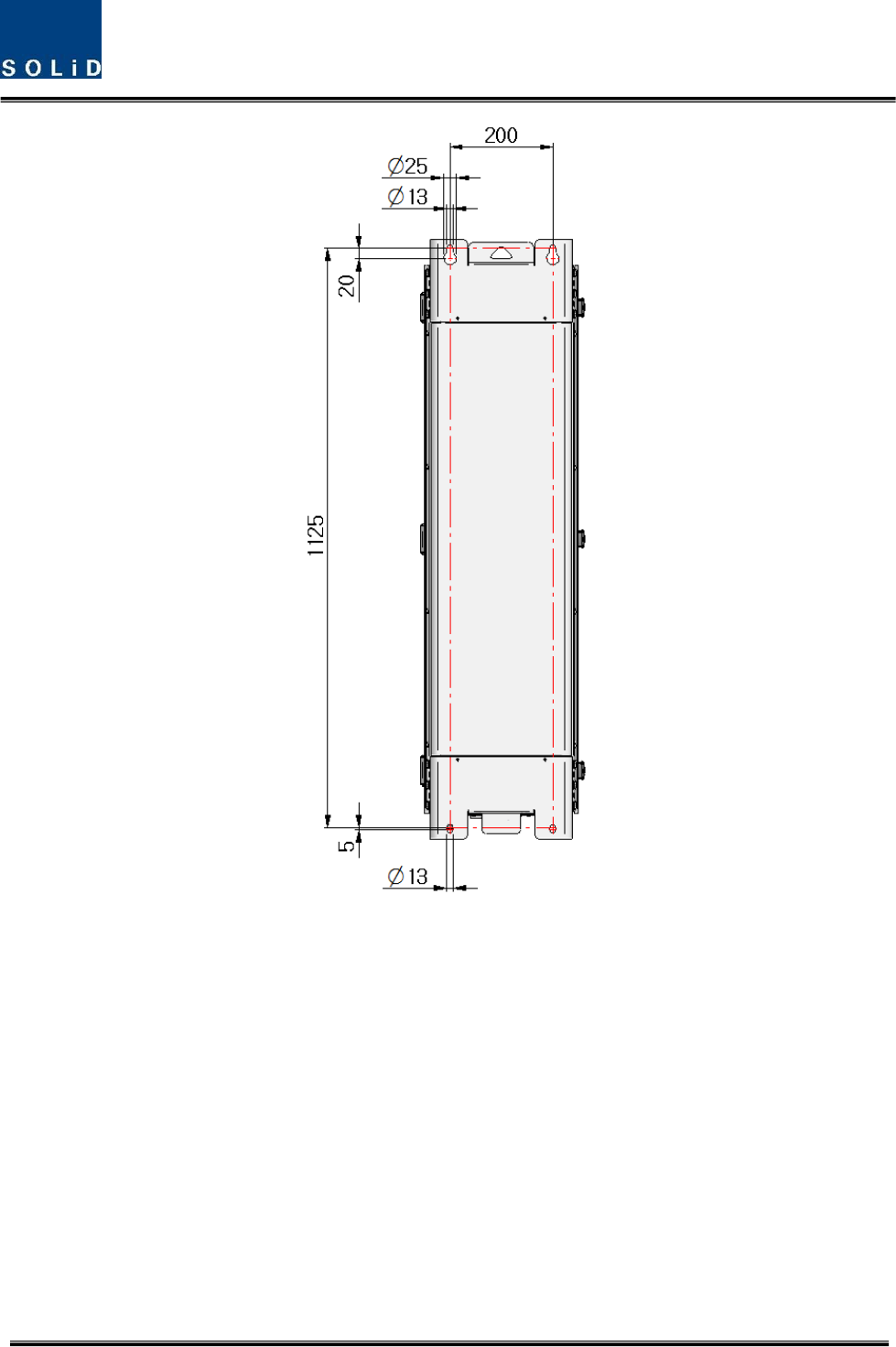

Figure 5.2 – Dimension used to install HROU on the WALL ....................................................... 28
Figure 5.3 – Procedures of installation ....................................................................................... 29

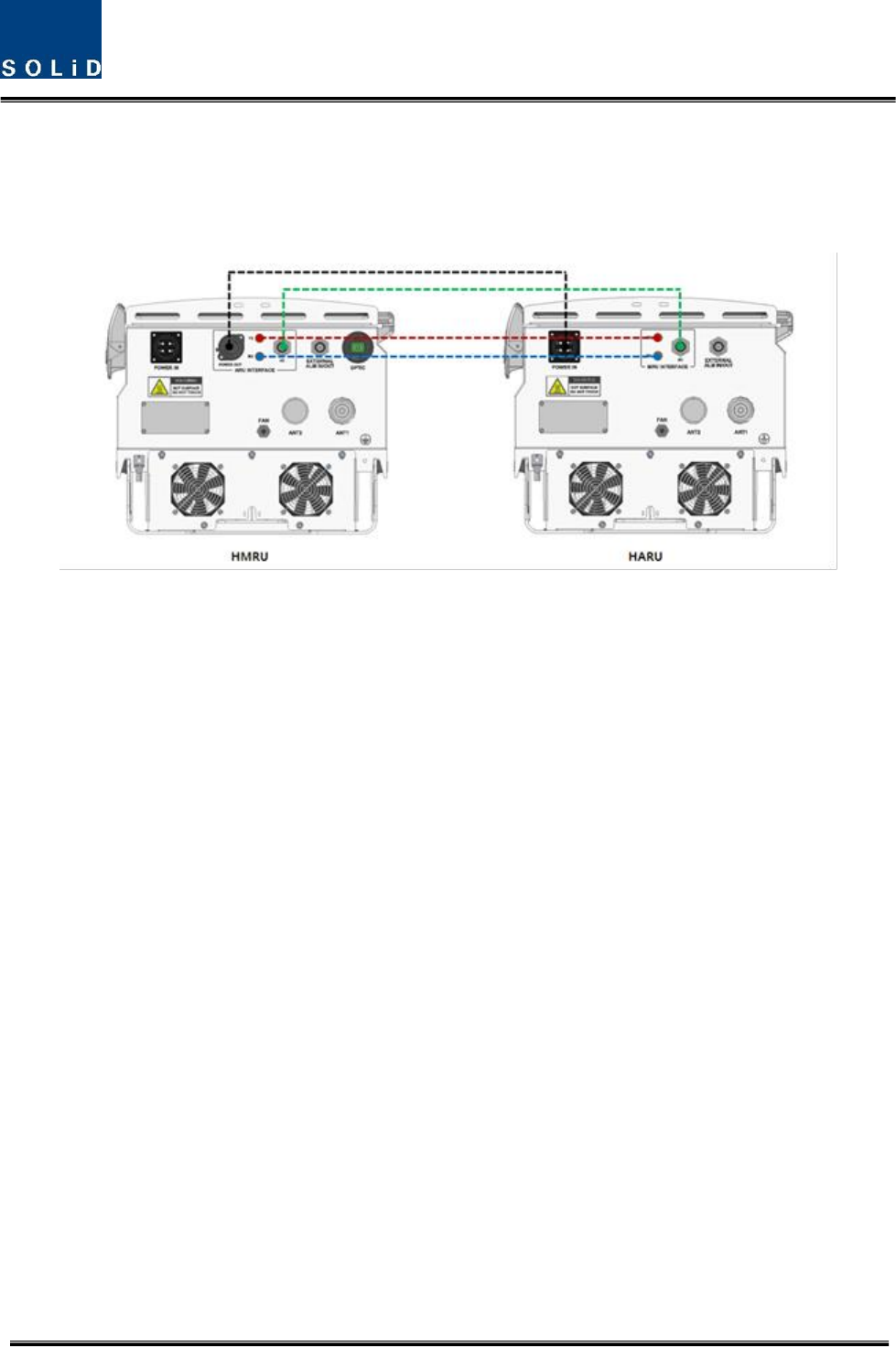

Figure 5.4 – Connection diagram between HMRU and HARU .................................................... 32

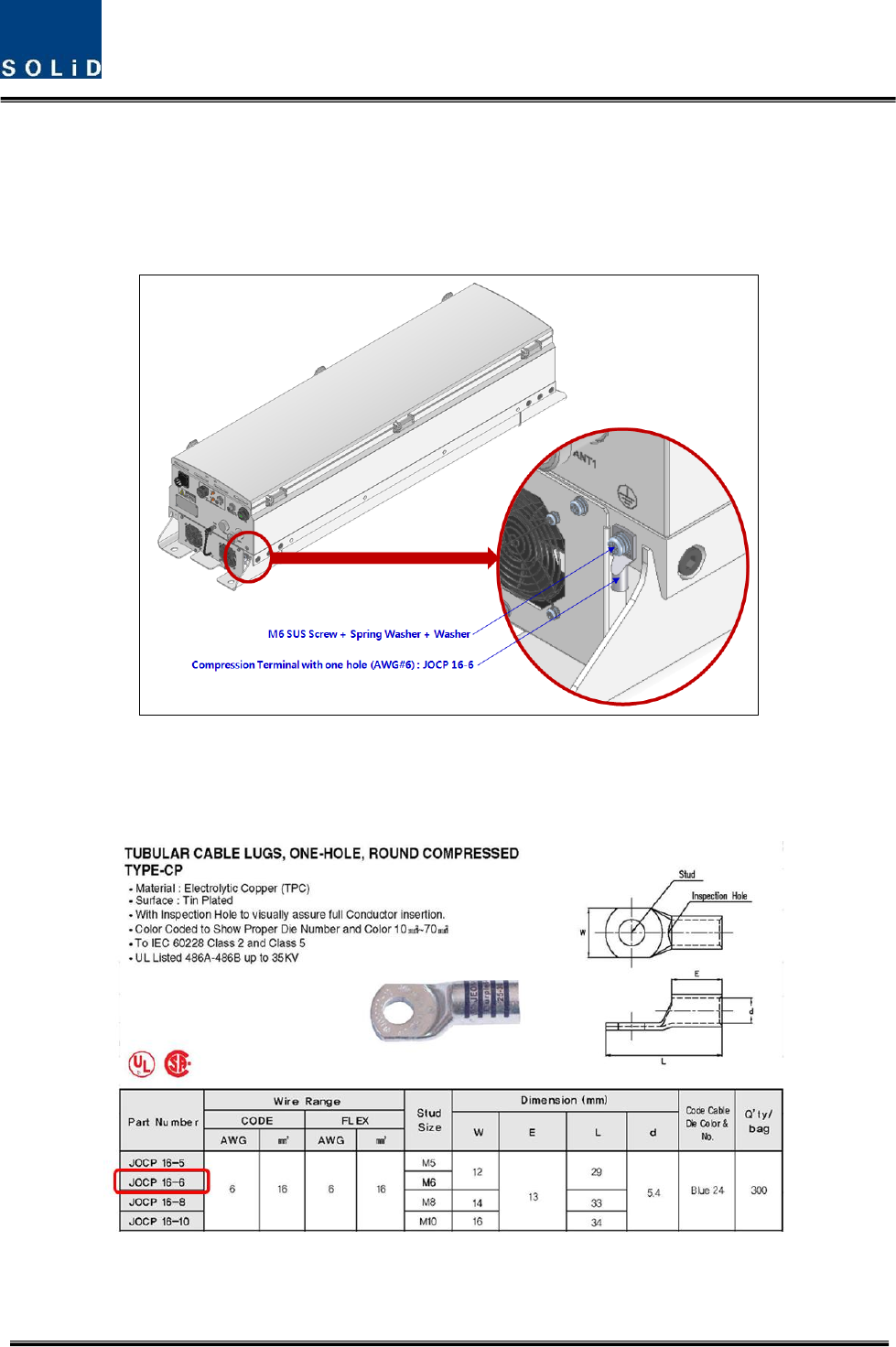

Figure 5.5 – Location of Ground Terminal .................................................................................. 34
Figure 5.6 – Information of Terminal.......................................................................................... 34
Figure 5.7 – How to install Ground Terminal .............................................................................. 35
Figure 5.9 – How to mount HRDU .............................................................................................. 36
Figure 5.10 – The Guide bar ....................................................................................................... 37
Figure 5.11 – Correct installed HRDU ......................................................................................... 38
Figure 5.12 – Connection diagram of HRDU2 ............................................................................. 38
Figure 6.1 – Level diagram ..................................... 오류! 책갈피가 정의되어 있지 않습니다.
Figure 6.2 – Information HROU and HRDU ID ....... 오류! 책갈피가 정의되어 있지 않습니다.
Confidential & Proprietary 6/41 THOR
Figure 6.3 – HRDU Setting window ........................ 오류! 책갈피가 정의되어 있지 않습니다.
Confidential & Proprietary 7/41 THOR
Section1
Safety & Certification Notice
Confidential & Proprietary 8/41 THOR
“Only qualified personnel are allowed to handle this unit. Read and obey all the warning
labels attached in this user manual”
Any personnel involved in installation, operation or service of the SOLiD Technology repeaters must
understand and obey the following:
- Obey all general and regional installation and safety regulations relating to work on high voltage
installations, as well as regulations covering correct use of tools and personal protective equipment.
- The power supply unit in repeaters contains dangerous voltage level, which can cause electric shock.
Switch the mains off prior to any work in such a repeater. Any local regulations are to be followed when
servicing repeaters.
- The repeater cover should be (door) securely fastened in open position, e.g. by tying it up, at outdoor
work in order to prevent door from slamming due to wind causing bodily harm or damage.
- Use this unit only for the purpose specified by the manufacturer. Do not carry out any modifications or
fit any spare parts which are not sold or recommended by the manufacturer. This could cause fires,
electric shock or other injuries.
- Any DAS system or Fiber BDA will generate radio (RF) signals and continuously emit RF energy. Avoid
prolonged exposure to the antennas. SOLiD recommends maintaining a 500cm minimum clearance from
the antenna while the system is operating.
- Due to power dissipation, repeater may reach a very high temperature. Do not operate this unit on or
close to flammable materials.
- Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
- Certification
FCC: This equipment complies with the applicable sections of Title 47 CFR Parts 15,22,24,27 and
90(Class B)
UL/CUL: This equipment complies with UL and CUL 1950-1 Standard for safety for information
technology equipment,including electrical business equipment
FDA/CDRH: This equipment uses a Class 1 LASER according to FDA/CDRH Rules.This product
conforms to all applicable standards of 21 CFR Chapter 1, Subchaper J, Part 1040
- A readily accessible disconnect device shall be incorporated external to the equipment
- This power of this system shall be supplied throughwiring installed in a normal building.If powered
directly from the mains distribution system, it shall be used additional protection, such as overvoltage
protection device.
- This equipment is classfied as Pollution degree 2
- Round terminals located on the rear of a 1.0mm2(16AWG) or more wires using permanently connected
to earth.
Confidential & Proprietary 9/41 THOR
- Access can only be gained by SERVICE PERSONS or by USERS who have been instructed about the
reasons for the restrictions applied to the location and about any precautions that shall be taken; and
- Access is through the use of a TOOL or lock and key, or other means of security, and is controlled by the
authority responsible for the location.
Notice : Be careful not to touch the Heat-sink part due to high temperature
- A readily accessible disconnect device shall be incorporated external to the equipment.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which
cause the user may be required to take adequate measures.
Caution
Do Not Open Except at Approved Field Force Protective Work Station
- Only 50 ohm rated antennas, cables and passive equipment shall be used with this remote.
Any equipment attached to this device not meeting this standard may cause degradation and
unwanted signals in the bi-directional system. All components connected to this device must
operate in the frequency range of this device.
- Only 50 ohm rated antennas, cables and passive components operating from 150 - 3 GHz shall
be used with this device.
- The head end unit must always be connected to the Base Station using a direct cabled
connection. This system has not been approved for use with a wireless connection via server
antenna to the base station.

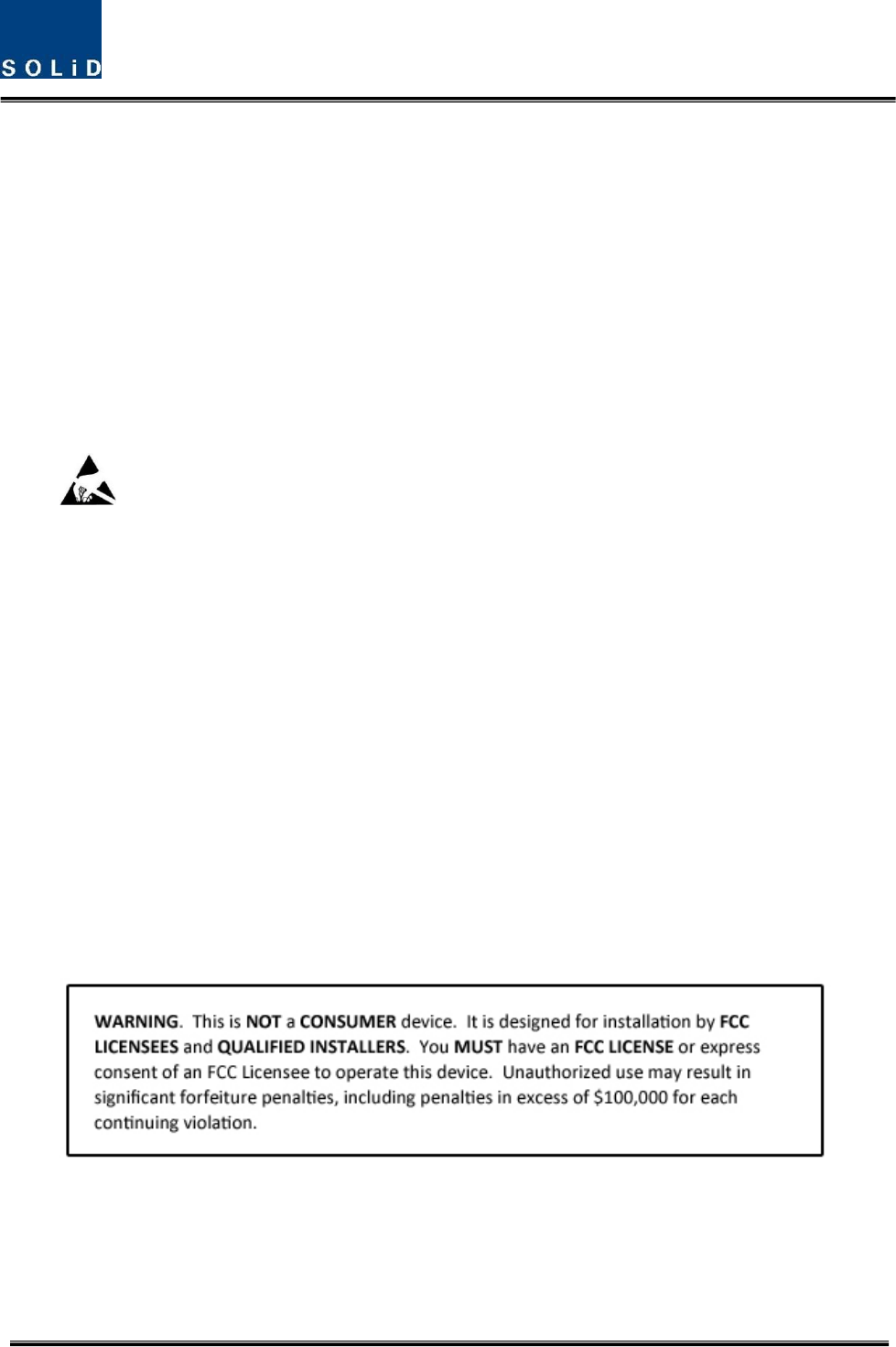

- Signal booster warning label message should include
Confidential & Proprietary 10/41 THOR
RSS-GEN, Sec. 7.1.2 – (transmitters)
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionneravec
une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention desautres
utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotroperayonnée
quivalente (p.i.r.e.) ne dépassepas l’intensité nécessaire à l’établissement d’une communication
satisfaisante.
RSS-GEN, Sec. 7.1.2 – (detachable antennas)
This radio transmitter (identify the device by certification number, or model number if Category II)has
been approved by Industry Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de
modèle s’il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner
avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance
requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste,ou dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
RF Radiation Exposure
This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 500 cm between the
radiator and your body. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. RF exposure will be addressed at time of installation and the use of higher
gain antennas may require larger separation distances.
RSS-102 RF Exposure
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance
minimum de au moins 500 cm entre la source de radiation (l’antenne) et toute personne
physique. Cet appareil ne doit pas être installé ou utilisé en conjonction avec une autre antenne
ou émetteur.
Confidential & Proprietary 11/41 THOR
Section2
System Overview
2.1 Purpose
2.2 System overview
Confidential & Proprietary 12/41 THOR
2.1 Purpose
THOR is a coverage system for outdoor services delivering voice and data in high quality and for
seamlessly.
As a distributed antenna system, it provides analog and digital phone systems that are served in multiple
bands. The system covers general public institutions and private facilities.
Shopping Malls
Hotels
Campus areas
Airports
Subways
Multi-use stadiums, convention centers, etc.
The system helps improve outdoor radio environments in poor condition and make better poor RSSI and
Ec/Io. By providing communication services at every corner of buildings, the system enables users to
make a call at any site.
The system uses both analog (AMPS) and digital (TDMA, CDMA and WCDMA) methods.
The THOR system supports communication standards and public interface protocols in worldwide use.
Frequencies: 700MHz, 800MHz,850MHz 900MHz, 1800MHz, 1900MHz,2100MHz, 2600MHz
etc.
Voice protocols: AMPS,TDMA, CDMA,GSM,IDEN, etc.
Data protocols: LTE,EDGE,GPRS,WCDMA,CDMA2000,Paging, etc.
THOR is in modular structure per frequency band. To provide desired frequency in the outdoor, all you
need to do is to insert a corresponding frequency module into each unit. As it delivers multiple signals
with one optical cable, the system, in one-body type, does not require additional facilities whenever
new frequency is added.
The system is featured with the following:
Flexibiltiy & Scalabiltiy
Support fiber-optic ports up to 32
Clustering multiple-buildings (campus) as one coverage
Modular structures
Modular frequency upgrade
Plug-in type module
Multi-Band, Multi Operator
Signals with a plurality of service provider transmit simultaneously
Support multi-operator in a band
Confidential & Proprietary 13/41 THOR
Low OPEX / CAPEX
Compact design
Upgradable design
Easy installation and maintenance
2.2 System overview
THOR is composed of devices given below.
HMRU(High power Main Unit)
HARU(High power Add-on Unit)
A HMRU can support up to one HARU. HMRU transmits/receives optical signal from/to ODU . The
budget of optical link is maximum 10dBo with OM1 supported 1optical port and can support up to 5dBo
with existing OM4 supported 4optical port. System topology is like below.
Figure 2.1 – Basic system topology
THOR have 20W composite output power every band. HHRDU that is integrated on package with
Duplexer, Power Amplifier and RF unit can be mounuted up to 4 in the enclosure.
THOR transports signals that multiple operators and multiple technologies are moved at a same time
from Base station to a remote location over the same fiber.
It is available in single and multi-band configuration supporting , 700MHz, 800MHz,850MHz 900MHz,
1800MHz, 1900MHz,2100MHz, 2600MHz etc in parallel.
It has been specificllay tested unter a various air interfaces such as iDEN, GSM, CDMA2000, EV-DO,
WCDMA, LTE ete.
Confidential & Proprietary 14/41 THOR
Section3
System Configuration and Functions
4.1 HROU (High power Remote Optic Unit)
Confidential & Proprietary 15/41 THOR
3.1 HROU (High power Remote Optic Unit)
HROU consists of two unit, one is HMRU(High power Main Remote Unit) and the other is HARU(High
power Add-on Remote Unit).
The biggest difference between HMRU and HARU is whether R-OPTIC module exist or not in the
enclosure.
HMRU receives TX optical signals from ODU and converts them into RF signals. The converted RF signals
are amplified through High Power Amp in a corresponding HRDU band combined with UDCU, PAU and
Cavity duplexer, and then radiated to the antenna port.
When receiving RX signals through the antenna port, this unit filters out-of-band signals in a
corresponding HRDU and sends the results to R-OPTIC to make electronic-optical conversion of them.
After converted, the signals are sent to a upper device of ODU. HMRU can be equipped with up to four
HHRDUs (High Remote Drive Unit) and the module supports single band only.
HARU receives TX RF signal from HMRU and amplifies through High Power Amp in a corresponding
HHRDU combined with UDCU, PAU and Cavity duplexer, and then radiated to the CU(Combining Unit)
When receiving RX signals through the antenna port, HHRDU filters out-of band signal in a
corresponding HHRDU and sends the results to MHRU through RF cable.
Figure 4.1 – HROU Outer Look
Confidential & Proprietary 16/41 THOR
3.1.2 Specifications of HROU
Item
Spec.
Remark
HMRU
HARU
Size(mm)
320 x 1165 x260
Including Bracket
Weight
39 Kg
37kg
Common Part
Power consumption
50W
40W
3.1.3 Block Diagram of HROU

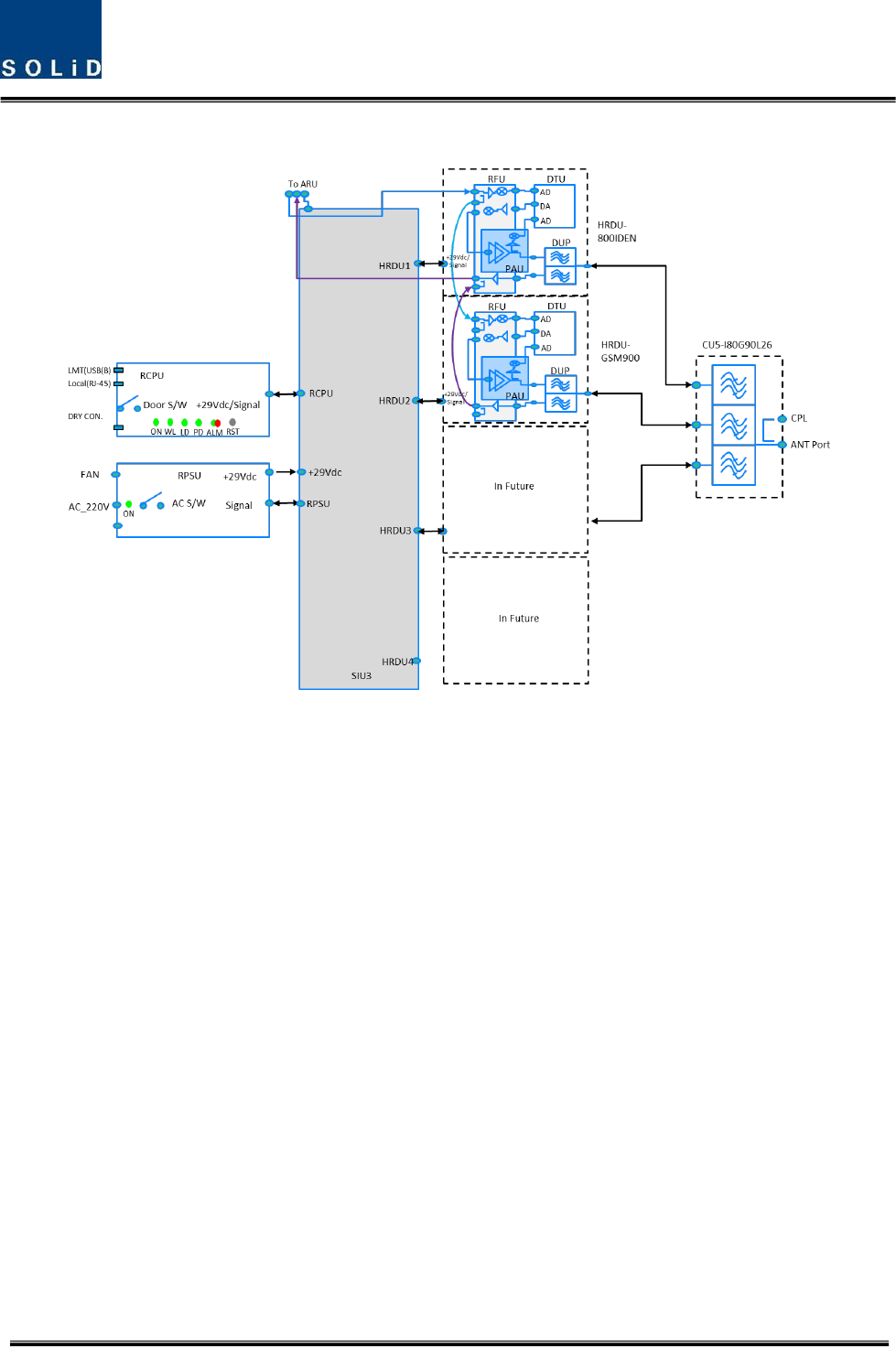

3.1.3.1 HMRU block diagram
Figure 4.2 – HMRU Block diagram
Confidential & Proprietary 17/41 THOR
3.1.3.2 HARU block diagram
Figure 4.3 – HARU Block diagram
Confidential & Proprietary 18/41 THOR
3.1.4 HROU parts
3.1.4.1 HROU inner look
Figure 4.4 – HROU Inner Look
Confidential & Proprietary 19/41 THOR
3.1.4.2 HROU part list
No.
Unit
Description
Remark
1
R-OPTIC
Remote Optic
Make RF conversion of TX optical signals;
Convert RX RF signals into optical signals;
Compensates optical loss
Communicates with BIU/OEU though the FSK modem
Optional
Only HMRU
2
RCPU
Remote Central Processor Unit
Monitoring status of each unit
Communicating with BIU/ODU
Support LED indicators on it to check alarm
Common
3
RPSU
Remote Power Supply Unit
Input power: 90~230V, Output power: 29V single voltage
Common
4
HRDU X4
High Remote Drive Unit
Consist of UDCU, PAU and cavity filter
Filter and high amplify TX signals;
Filter and amplify RX signals in low noise amplifier;
Remove out-of signals through cavity duplexer
Optional
Max 4
5
Enclosure
Enclosure to satisfy IP66;
Enable Wall/Rack Mount
Common
Confidential & Proprietary 20/41 THOR
3.1.5 Function by unit
1) High Remote Drive Unit (HRDU)
When receiving TX signals from each band through Remote Optic, HRDU filters the signals and amplifies
them with High Power Ampifier. The unit also filters RX signals given through cavity filter and amplifies
them to send the signals to Remote Optic.In the unit, there is ATT to adjust gain. HRDU consist of UDCU,
DTU, PAU and cavity duplexer like below figure and all modules are merged with one package
Figure 4.5 – HRDU Outer Look
HRDU devices are varied for each frequency band, including the following:
No
Unit naming
Description
Frequency
TX
RX
1
THOR-HRDU-850CEL
Single band
869-894MHz
824-849MHz
2
TBD

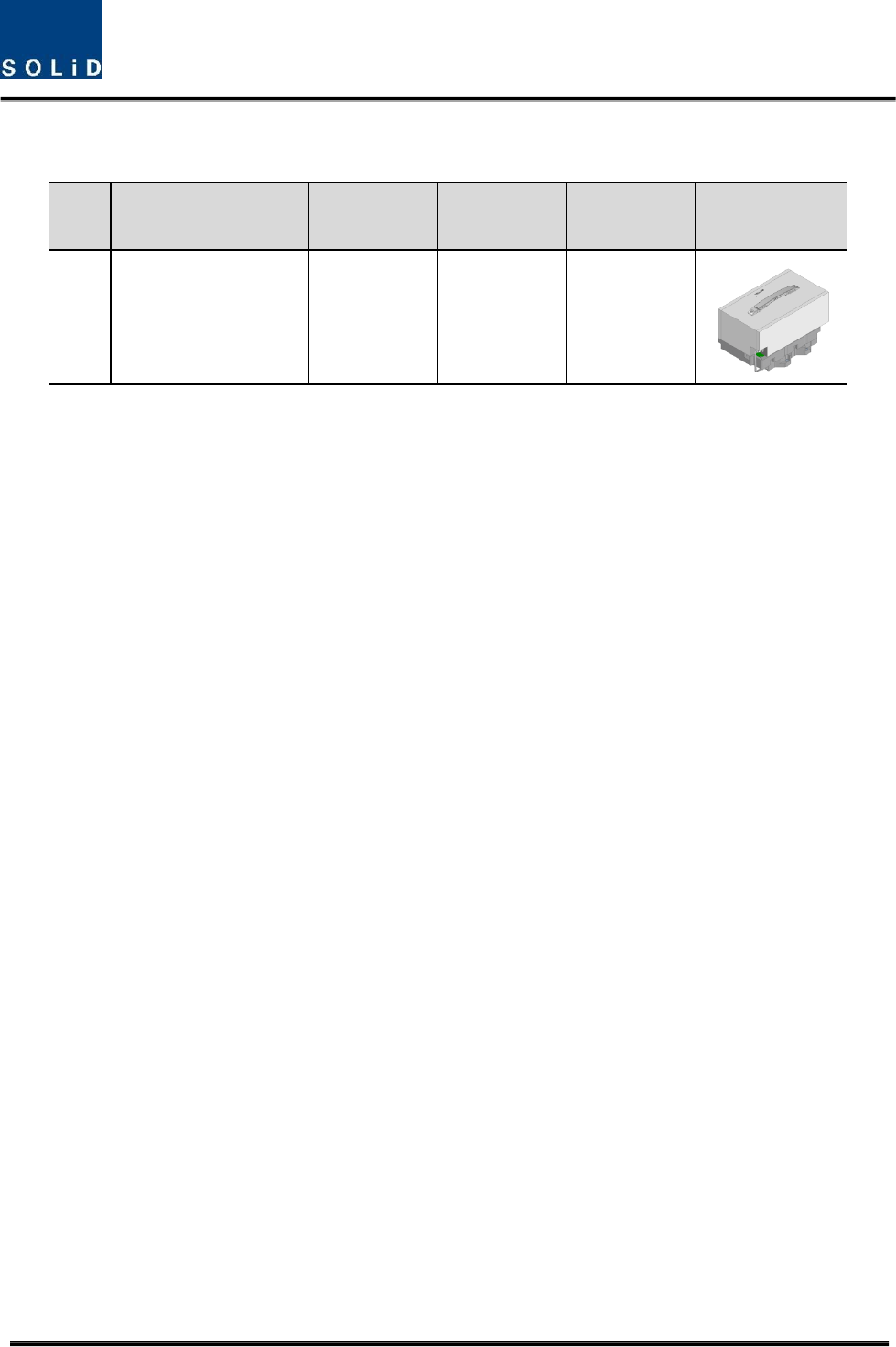

Confidential & Proprietary 21/41 THOR
No
Unit naming
Dimension
Weight
Power
consumption
Outlook
1
N20-HRDU-850C
233 X 155 X 143
5.6kg
150W
Confidential & Proprietary 22/41 THOR

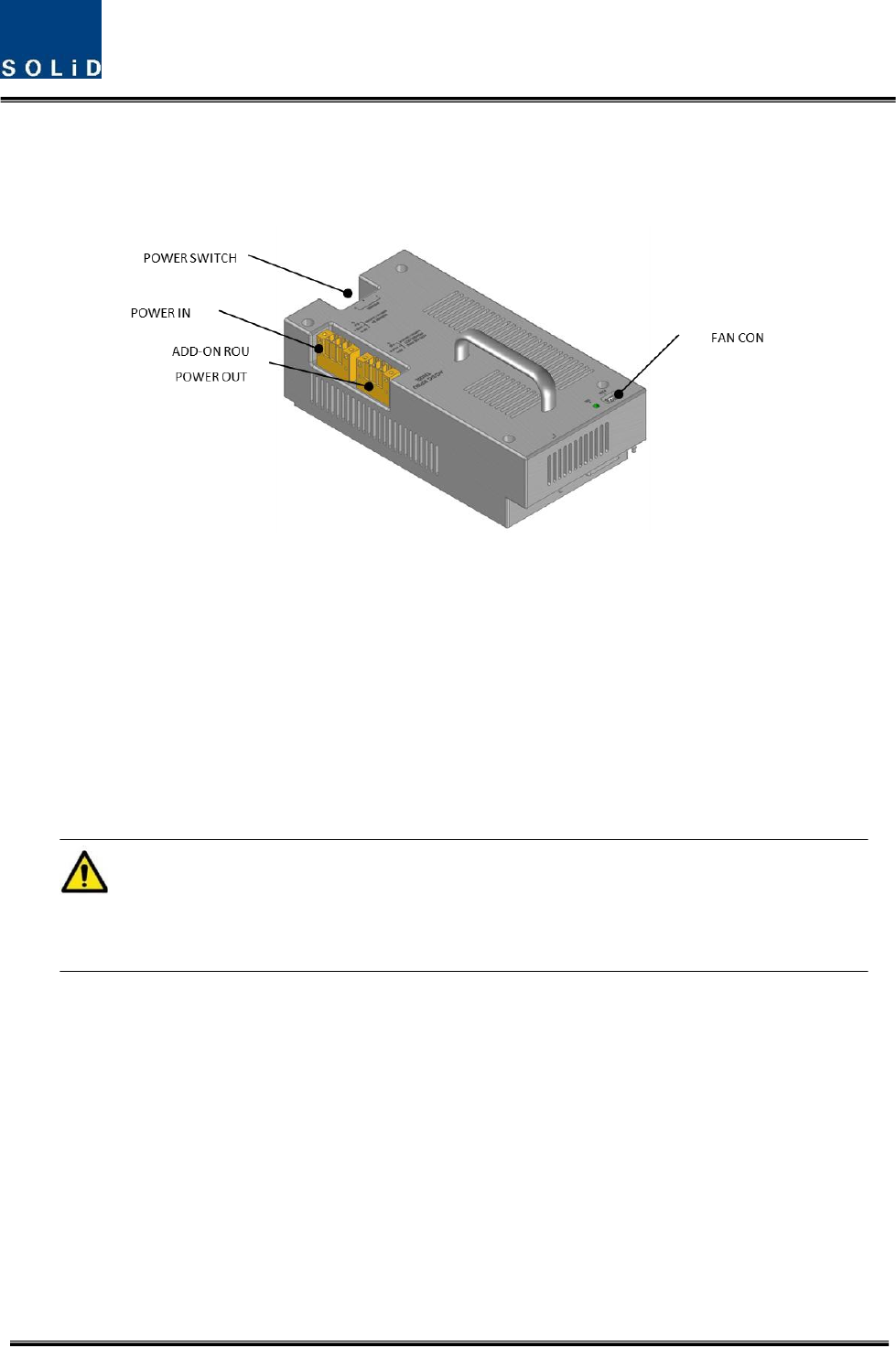

2) Remote Power Supply Unit (RPSU)
RPSU is provided of 110/220Vac at input and provide output +29V only singl voltage of DC power
basically.
Figure 4.6 – RPSU Outer Look
Functions:
Providing a circuit breaker to turn AC power ON/OFF
Providing DC power each HRDU
Providing DC power and signal to FAN tray
LED indicators for showing alarm staus of PSU
Caution
OMBLE POLE/NEUTRAL FUSING
Confidential & Proprietary 23/41 THOR
3) Remote Optic(R OPTIC)
Remote Optic converts optical signals into RF signals and performs vice versa. It also has internal ATT for
optical compensation to compensate for optical cable loss. It provides two path in pairs(TX/RX) to
transport RF signal to ARUs
Figure 4.7 – R OPTIC Outer Look
4) Remote Central Processor Unit (RCPU)
RCPU can monitor and control each module of HROU. This unit receives and analyzes upper
communication data from Remote Optic and reports the unit's own value to upper devices. At the front
of the module, it has LED indicator to show system status, letting you check any abnormalities at a time.
At the same front, it also has communication LED Indicators to show communication status with upper
devices. Through Local port, the unit enables you to check and control device status through PC and
laptop.
It provides three interface port with ARUs to communicate with these. It also provide dry contact port,
which is (1) output port and (1) input port
Figure 4.8 – RCPU Outer Look
Confidential & Proprietary 24/41 THOR
3.1.6 Bottom of HROU
1) Functions
Figure 4.10 – HROU Bottom Look
No
Port
HMRU
HARU
Remark
1
Optical Port
1EA
X
SC/APC, Waterproof
2
ARU Interface
1EA,
(1)CON,(2)SMA-
Female
1EA,
(1)CON,(2)SMA-
Female
3
ANT1
1EA
1EA
DIN-type female
4
ANT2
1EA
1EA
DIN-type female
6
AC Power IN
1EA
1EA
MS-Con, Waterproof
7
AC Power OUT
1EA
-
MS-Con, Waterproof
8
EXT-FAN
1EA
1EA
Waterproof-Con
Confidential & Proprietary 25/41 THOR
Section4
System Installation
5.1 HROU Installation
Confidential & Proprietary 26/41 THOR
This chapter describes how to install each unit and optical cables, along with power cabling method.
In detail, the chapter describes how to install shelves or enclosuers of each unit, Power Cabling method
and Optic Cabling and RF Interface. Furthermore, by showing power consumption of modules to be
installed in each unit, it presents Power Cabling budget in a simple way. Then, it describes the quantity
of components of modules to be installed in each unit and expansion method.
4.1 HROU Installation
4..1.1 Tools

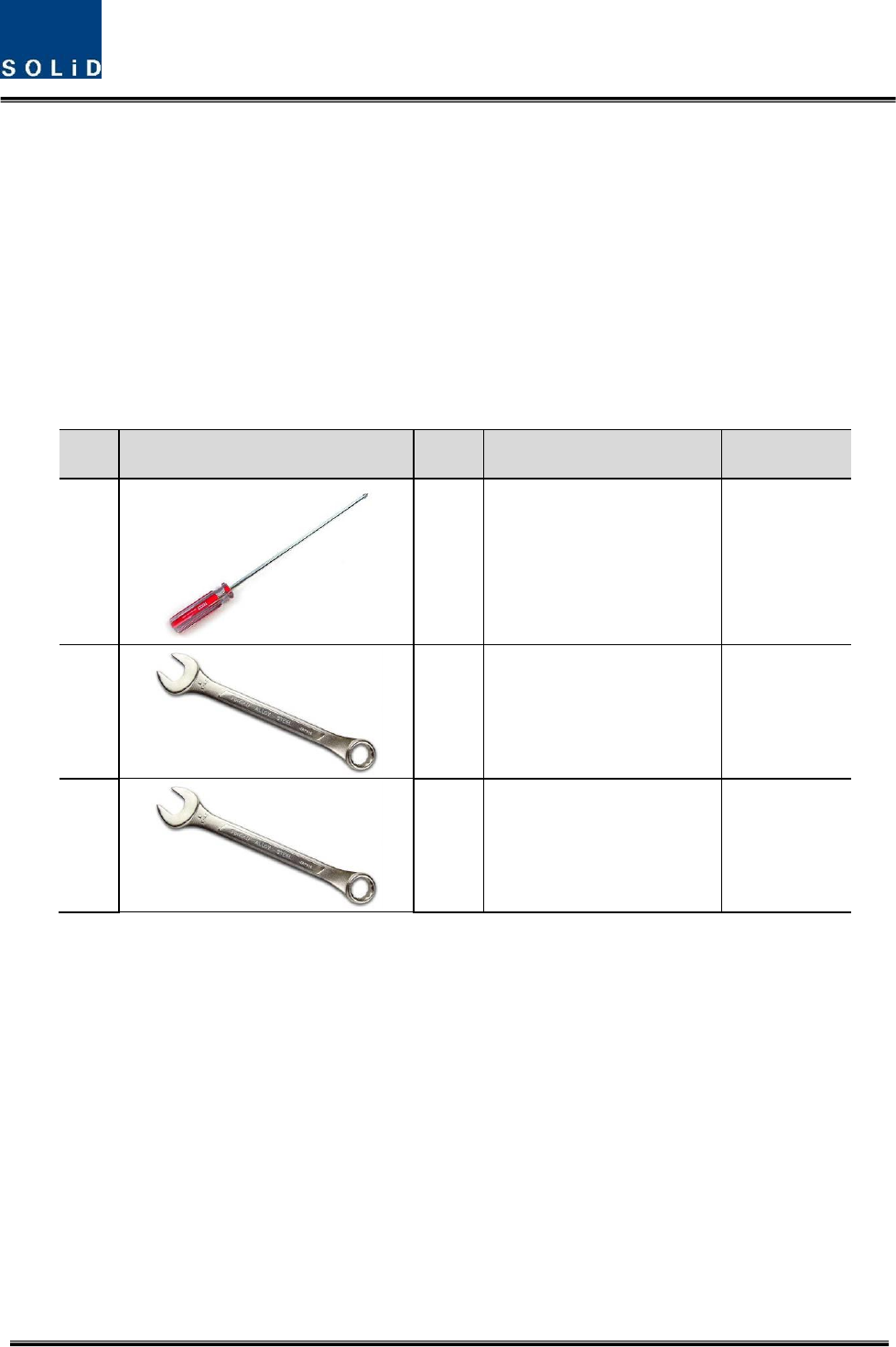

Tools needed for installation is table below
No
Tools
Q’ty
Specification
Remark
1
1
+, 3Ø
Length is more than 20mm
For fixing
HRDU
2
1
33mm
To tighten
antenna port
3
1
19mm
To CU N-type
port
Confidential & Proprietary 27/41 THOR
4.2 HROU Enclosure installation
HROU is designed to be water- and dirt-proof. The unit has the structure of one-Body enclosure. It
satisfies water-proof and quake-proof standards equivalent of NEMA4(IP66). The way to install for both
HMRU and ARU has same method. Basically HROU is attached with wall mountable bracket. HROU can
be mounted into either of wall or on a pole.
Figure 5.1 – How to install HROU
Confidential & Proprietary 28/41 THOR
Figure 5.2 – Dimension used to install HROU on the WALL
Confidential & Proprietary 29/41 THOR
HROU Wall Mount Installation
HROU’s installation bracket is attached on Enclosure when is delivered. It doesn’t need to remove
bracket to install enclosure. simply after installing 4 of M12 mounting bolts, secure 4 mounting bolts
tightly
First, install 2 of M12 mounting bolts roughly half way on the enclosure and install enclosure over the
bolts and secure tightly.
Second, install 2 of M12 mounting bolts under the enclosure and secure tightly
Figure 5.3 – Procedures of installation
Confidential & Proprietary 30/41 THOR
HROU components
HROU has the following components:
No.
Unit
Description
Remark
Common Part
Enclosure
Including Wall mounting bracket
1EA
RCPU
-
1EA
R_OPTIC
With SC/ACP adaptor(only HMRU)
1EA,optional
RPSU
AC 110/220V
1EA
FAN UNIT
2 FANs is inside
1EA
Power Cable1
- MS Connector with 4 hole(AC)
1EA, HMRU
Power Cable2
- MS connector for HMRU connection with MS con
and Circular connector on the each side of end
1EA, HARU
HMRU
HRDU
THOR-HRDU-850C
CU1-
L70C85P191
9A21
Basically, the common part of HROU should have an enclosure and it is equipped with RCPU to inquire
and control state of each module, R_OPTIC to make both of electronic-optical and optical-electronic
conversions, RPSU to supply power for HROU. It should have Power Cable for external rectifier or to
supply required power.
In addition, HRDU can be mounted and removed to provide service for desired band.
Confidential & Proprietary 31/41 THOR
4.3 How to expand HARU at the HMRU
HMRU can expand ARU up to 1. The three item is needed for connection between HMRU and HARU.
HARU’s components additively have 3 item except for enclosure like below

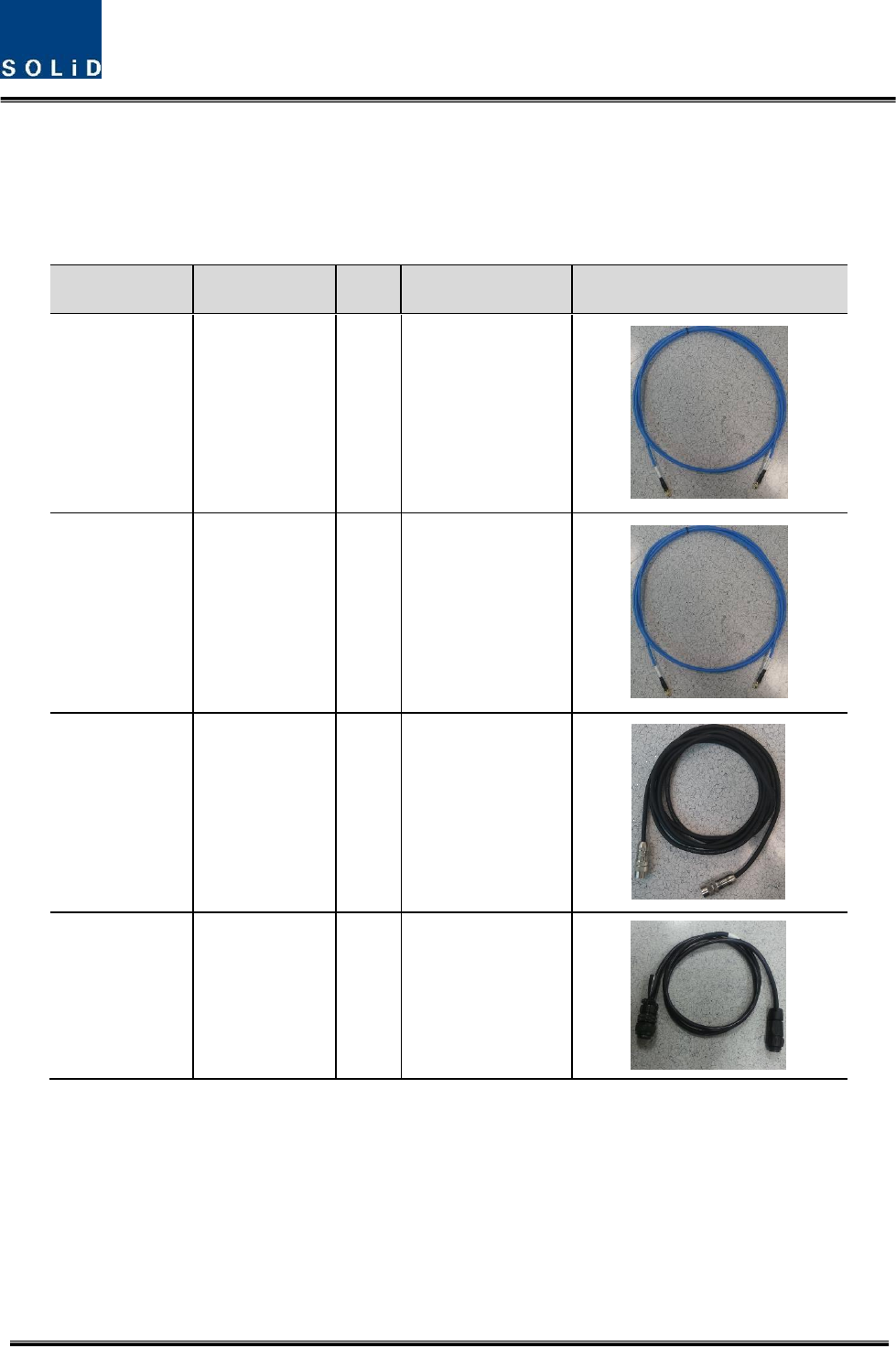

Accessories
Description
Qty
Specification
Remark
1
TX RF Cable
1
SBA(M) ST_1.5M
2
RX RF Cable
1
SMA(M) ST_1.5M
3
I/O Cable
1
IEC 61076-2-
101(8pin_F)
ST_1.5m
4
Power Cable
1
MIL-5015(18-10_F)
ST to Circular(eco
mate 3+PE_M)
ST_1.5m
Confidential & Proprietary 32/41 THOR
The following picture shows the connection diagrm between HMRU and HARUs
For expanding HARU at the HMRU within the proper cable length provided. The cables between HMRU
and HARU have each 1.5m length

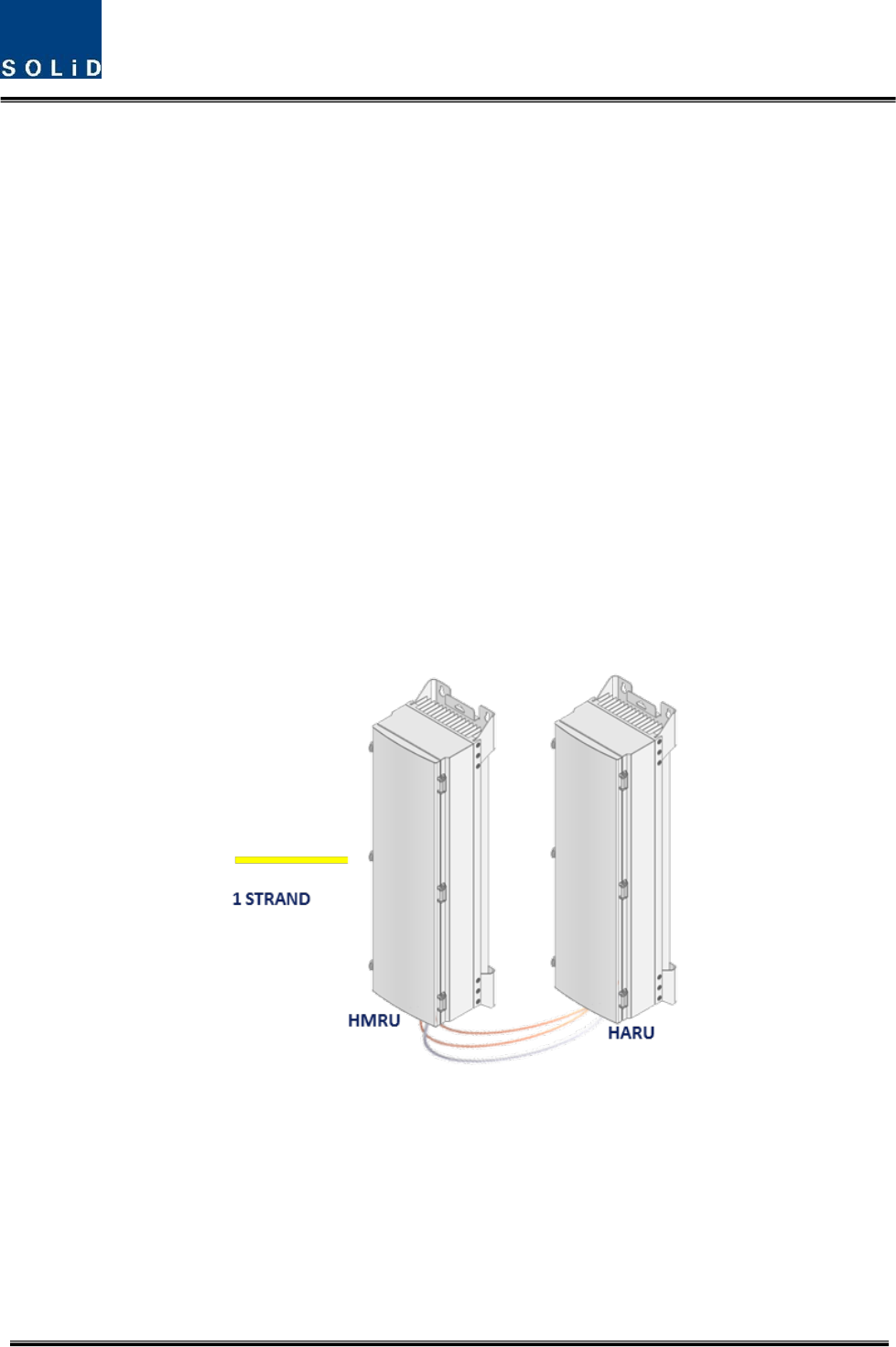

Figure 5.4 – Connection diagram between HMRU and HARU
Confidential & Proprietary 33/41 THOR
4.4 HROU Power Cabling
HROU supports AC110V/220V of input power. Provided outside power cable is only one type with
AWG#14 3m. Power cable is provided without power plug and it should be attached power plug based
on national’s power plug type

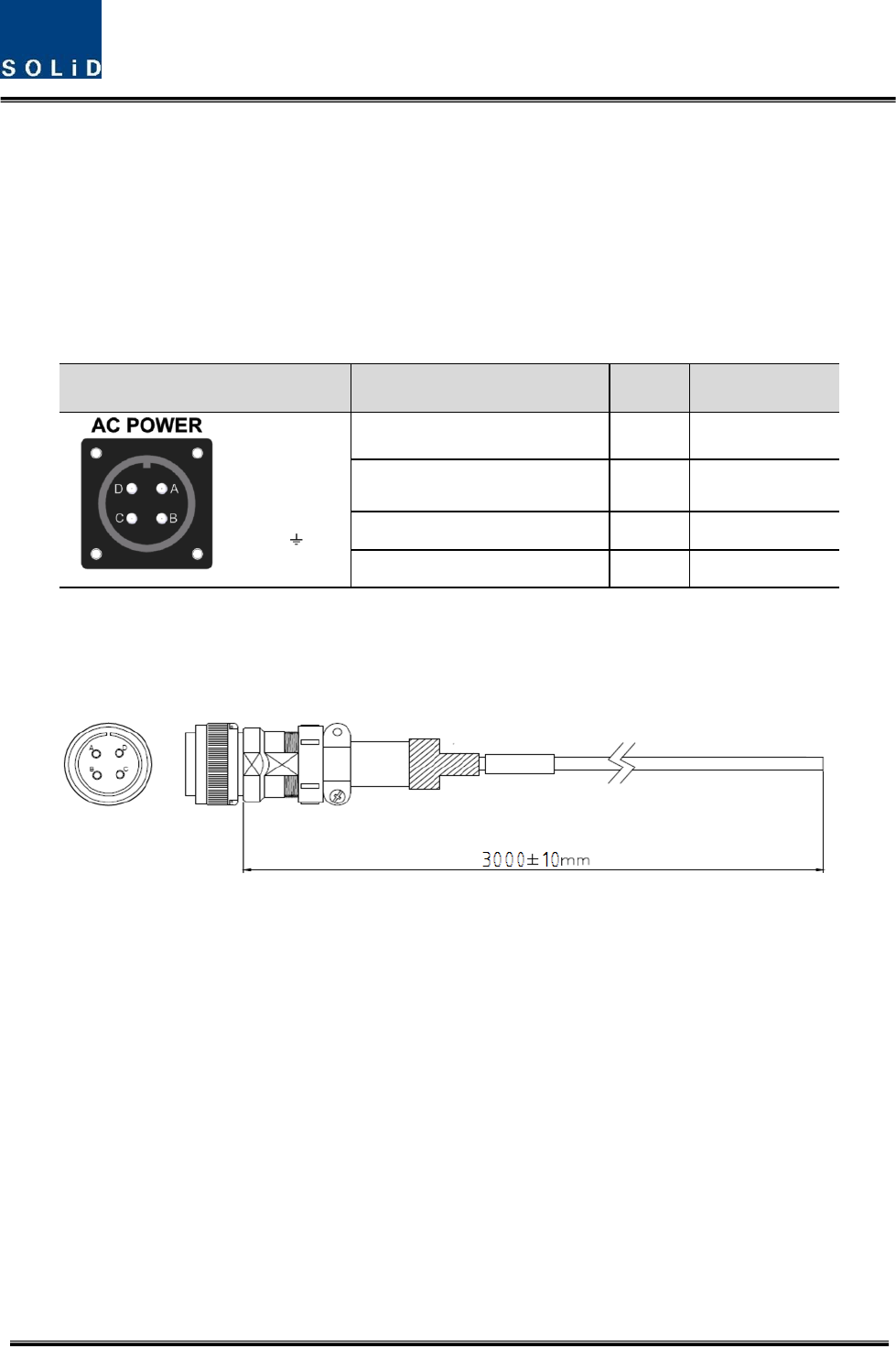

The pin discription of AC port is below. You should connect exact polarity of AC.
Port outlook
MS Connector numbering
Name
Description
A
AC_H
AC Hot
B
AC_N
AC Neutral
C
N.C
Not Connected
D
F.G
Frame Ground
Check if the connection is the same as one seen in the table above and make sure to turn the power ON.
Provided AC power cable’s outlook is below
A : AC_H
B : AC_N
C : N.C
D : F.G
Confidential & Proprietary 34/41 THOR
4.5 HROU Ground cabling

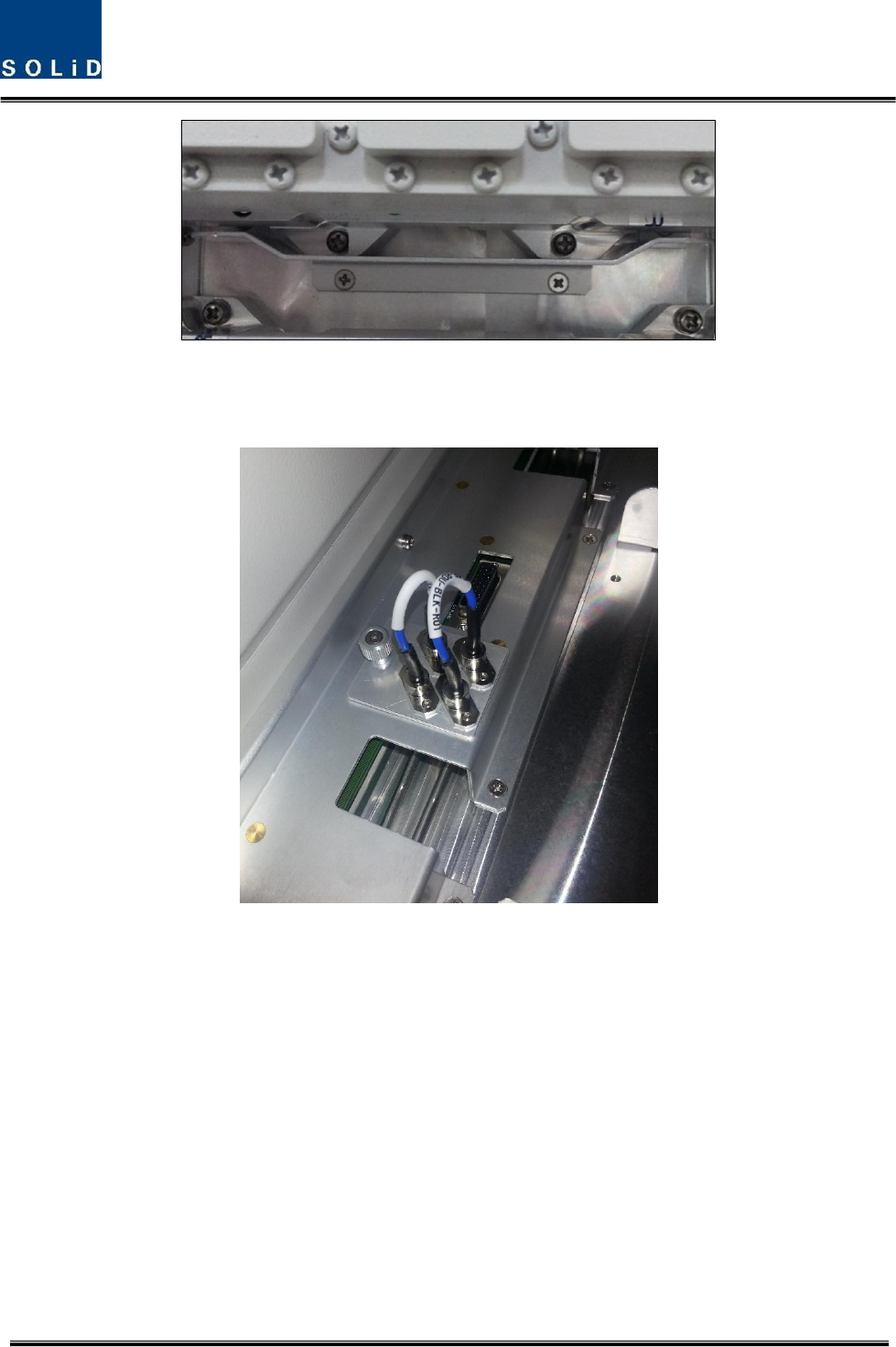

The Grounding terminal is located at the bottom of HROU enclosure fixed by M6 screw. Compression
terminal is attached already when is delivered. The recommended thickness of cable is AWG#6 copper
grounding wire
Figure 5.5 – Location of Ground Terminal
The specification of compression terminal is like below
Figure 5.6 – Information of Terminal
Confidential & Proprietary 35/41 THOR
The required part number is JOCT 16-6 supporting AWG 6. The way to install the grounding cable
comply with below procedures
Figure 5.7 – How to install Ground Terminal
The procedures are
1. Loosen a two M6 screws and then take compression terminal off
2. Insert AWG#6 Grounding Wire into terminal and then compress a terminal using tool
3. Assemble the terminal which made in step “2” using 2xM6 screws
4. Cut the ground wire to proper length and connect it to the earth ground source
Confidential & Proprietary 36/41 THOR
4.6 Mounting of HRDU
HROU has slots to enable up to four HRDU modules to be mounted in it.
You can mount a HRDU into deginated slot surely. It is not possible to provide services with a
HRDU module alone; you need to connect HRDU cavity duplexer antenna port with CU’s
deginated port.
Figure 5.9 – How to mount HRDU
Confidential & Proprietary 37/41 THOR

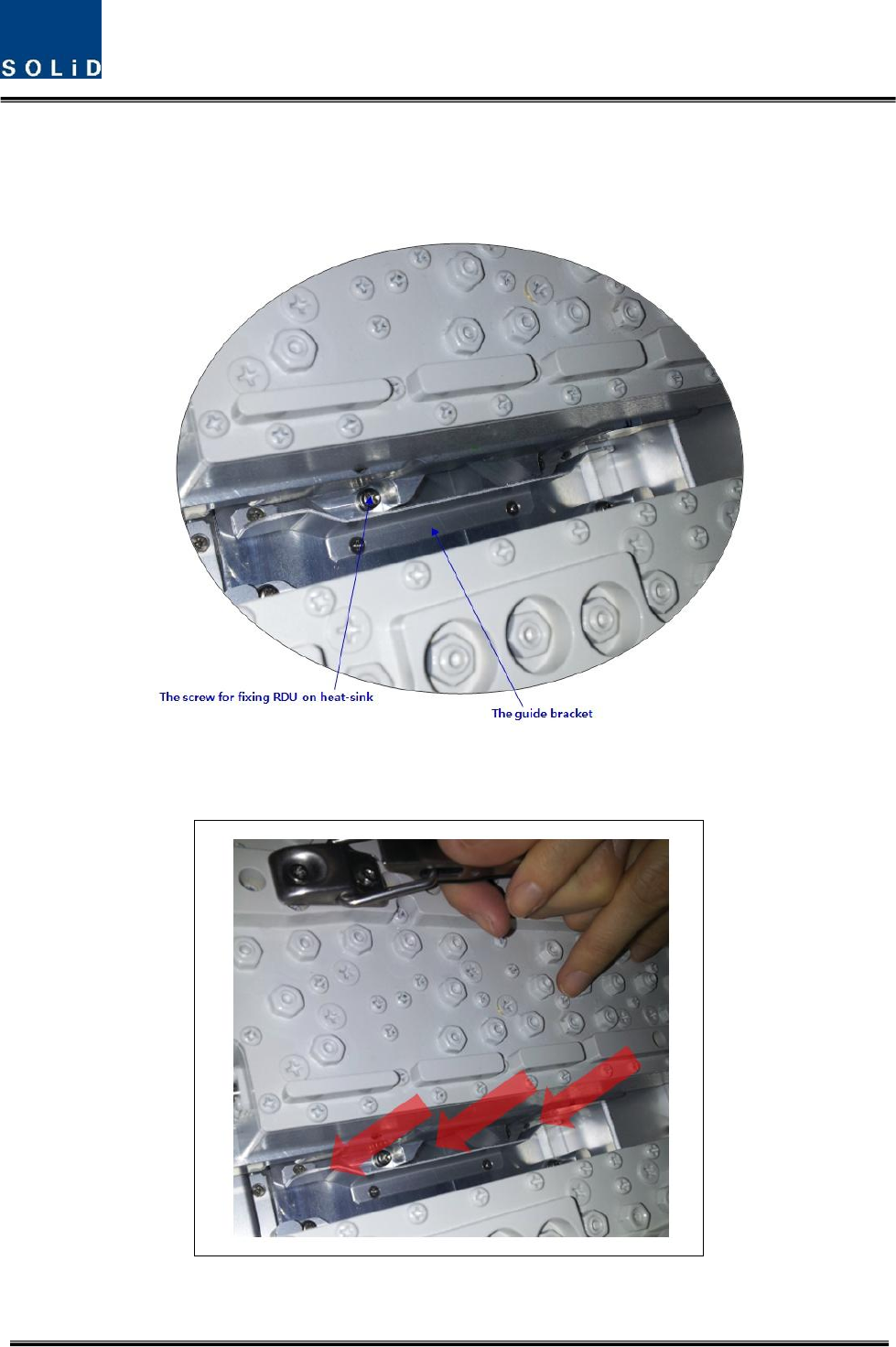

Because there are the guide bracket, it assists HRDU to move exact location. The screw for
fixing HRDU on the heat-sink is already attached on HRDU and so you can assemble HRDU
easily.
Figure 5.10 – The Guide bar
Insert HRDU at the deginated slot and secure 4 screws tightly using M3screw driver.
Confidential & Proprietary 38/41 THOR
Figure 5.11 – Correct installed HRDU
If there is empty HRDU slot. It nedd to install RDU Blank Unit like below picture. It can
insert/remove for ease by securing/loosing captive screw attached on RDU Blank Unit.
Figure 5.12 – Connection diagram of HRDU2
Confidential & Proprietary 39/41 THOR
Section5 Specification
Confidential & Proprietary 40/41 THOR
5.1 General Specification
General Data
Nominal Impedance
50 ohm
VSWR
1.5:1 at all in& out ports
Mounting Type
Wall Mounting
In & Output Port Type
DIN Female DIN Female (7/16)
Front Panel
LED Indicator
ON
Power on: Green, Power OFF : Gray
ALM
Power ON : Green / Alarm: Red
LD
Normal : Green, Alarm : Red
PD
Normal : Green, Alarm : Red
WL
Green LED flickering: Communication Status
Noise Figure
6dB
Ripple
±2dB
Maximum Power Consumption
630W at full load
MRU Dimension (W x H x D)
320 x 1165 x 260 mm
Total Max Weight
57 kg
Power Supply Range
110/220V ± 10% AC(90V ~ 230V)
Optical Data
Wavelength TX/RX
1310/1550nm
Maximum Optical Loss
10dBo
Fiber Optic Connector
SC/APC
Confidential & Proprietary 41/41 THOR
Environmental Data
Environmental Condition & IP Rating
IP66
Operating Temperature (°C)
-25° ~ +55°C
Operating Humidity
5~ 90% non-condensing
5.2 Electrical Specification
Part Name
Service
Band
Downlink (Tx)
Uplink (Rx)
Freq
(MHz)
Bandwidth
(MHz)
Output
Power
(dBm)
Freq
(MHz)
Bandwidth
(MHz)
TR_HRDU_850C
CDMA,LTE,WCDMA
869~894
25
44
824~849
25
5.3 Optical Specification
Unit Name
HR_R-OPTIC
Remark
Connector
RF
SMBL/PDM FEMALE / 50ohm
Analog
Optic
SC / APC (STEP FERRULE)
Power/Signal
D-SUB 3ROW 15P MALE
Laser Diode
1550nm(Coaxial Type)
Photo Diode
1310nm
Optic Loss
1dBo~ 5dBo@ OM4
1dBo~10dBo @ OM1
