ReplayTV_5500

User's Guide

Replay'IV5.5 UG.hook Page il I:riday, August I, 2003 10:58 AM

Package Contents

ReptayTV Digital Video Recorder

Remote Control

Two AA Batteries

User Guide

RF Cable

A/V (RCA) Cable

Telephone Cable

Infrared (IR) Blaster Cable

Quick Setup Guide

Additional cables for controlling satellite receivers are available at www.replaytv.com. You can also purchase a wireless phone

jack if there is no available phone .jack near your entertainment system.

Repla_ TV, Repl&_ TV Service, Repla} Zones, and QuickSklp are lrademarks or registered trademarks of Digital Netwo_s North America, Inc. ("DNN A"). All other produci or brand names as lhey appem"

al_ tr'adetttarks or regi_ered trademarks of tbelr respective holders.

3_als document contains proprietary in_rmarion of DNNA (_e "Company"). No part ofthls d_ument ma_ be copied, reproduced, transmitted, distributed, transcribed, stood in a retrieval sysiem, modified

or translated into any other language or computer language, or stlblicensed, in any form or by ally means electronlc, mecbanlcaI, magnetlc, o_ical, cbemlcal, tttanual or otberwis_ without lhe prior writ*

ten consem of_e lecbnlcal Support Manager a{ the Compaw, 2600 San rFomas Exp_ssway, Santa Ct_'a, CA 95051-0953. Furthe_ _is documen{ ma_ not be disseminated (or otheta_ ise made available)

tlsi ng telecoltlmunlcatlons fines or fi'equencles exce_ in a Limlted Access Environmen{ and only to persons authorized by the Company {o recelve and use this document and the in forlllatlon comalned

therein, For purposes of tbls cop) rlgbt, the term "Limited Access Envlromnent" shall mean a computer netwo_ (including, w fihout limitation, a local m_a network, a wide area network or an intranet) that

restricts access to personnel in a tellable _asblon (whlcb, a{ a {tllnlm urn, shall require each user Io enter a unique password in order to access foe nelwork) that can reasonabIy be expected to prevent access

to the document by persons other than authorized users. In addition _e training and inslrucrional procedures described in lhls document are confidential and proprleta_ intelligence of the Corn pa W and may

not be copied or used exce_ as pemtitted by lhe Company, Any unau_oril_zd or otherwise improper use of this documem or any of its material by any person will stl_ect that person to liabl fit) for dmnages.

Ihe Com[xm} shall not be liable for an} errors coniained berein or for any danlages arising out of or related to this document or the in formarion contained therein, even iftbe Compan} has been advised of

the pesslbility of such damages.

INs documem is intended tbr intbrmalional and instructional purposes only. Ihe Corn pan} reserves tbe right to make changes in tbe specifications and other informatfon contained in this document _ ithout

prior notification.

It is the intern of DNNA tba this product be used in f_ll compliance with he cop}rlght la_s oflhe United States. It is your responsibift} to c nnply _fih such Imps. Unau horized recording ol copyrlgbted

television programs or providing copies of such programs to others may, in certain circumstances, violate cop} rlgbt law and prior permission from copyright owners may be requlred fbr certain publlc per-

formances and certain comt_erclal uses.

P/N41005032C

Page iii I;rlday, August I, 2003 10:58 AM

Table of Contents

1-Getting Started 1

Welcome ........................................................................................................................................................................................................

•Before you Begin .............................................................................................................................................................................................. 1

•Feature Updates from the ReplayTV Service ................................................................................................................................................... 1

• Feature Highlights ............................................................................................................................................................................................ 2

Remote Control Overview ........................................................................................................................................................... 3

Front Panel Overview ......................................................................................................................................................................4

Rear Panel Overview ........................................................................................................................................................................5

• Turning on ReplayTV ....................................................................................................................................................................................... 6

• Putting ReplayTV in Standby Mode ................................................................................................................................................................ 6

2-Connections 7

Basic Connections ...............................................................................................................................................................................7

Planning your Setup .........................................................................................................................................................................9

Incorporating ReplayTV into your Entertainment System ............................................................................................................................... 9

Checking your Satellite Receiver ..................................................................................................................................................................... 9

Connecting RcplayTV to an A/V Receiver ...................................................................................................................................................... 9

Connecting RcplayTV to a VCR .................................................................................................................................................................... 10

Connecting a Video Camera or VCR to RcplayTV ....................................................................................................................................... 10

Connecting Cable Box and Satellite Receiver Conlrolle_ ............................................................................................................................. 10

Completing the On-screen Setup .................................................................................................................................................................... 12

Home Network Connections ...................................................................................................................................................12

Connecting ReplayTV to an Existing Network .............................................................................................................................................. 12

Router Setup ................................................................................................................................................................................................... 16

Entering Networking Information Manually on ReplayTV ........................................................................................................................... 16

Determining the ReplayTV IP Address .......................................................................................................................................................... 17

Determining the ReplayTV MAC (Media Access Control) Address ............................................................................................................. 17

Finding the Router IP Address ....................................................................................................................................................................... 17

Finding your Computer's Network Information ............................................................................................................................................ 18

III

Replay'IV5.5 UG.book Page iv I-'rid_, August I, 2003 10:58 AM

3 - Setup 19

About Menu Navigation ...............................................................................................................................................................19

Main Menu .................................................................................................................................................................................................20

Setup Menu ..............................................................................................................................................................................................21

•ReplayTV Nanle ............................................................................................................................................................................................. 21

• Del_ault Record Options .................................................................................................................................................................................. 21

• Network and Input Settings ............................................................................................................................................................................ 21

Video Output Settings .................................................................................................................................................................................... 21

Screen Saver and Pause Screen ...................................................................................................................................................................... 21

Parental Control .............................................................................................................................................................................................. 22

Add or Remove Channels ............................................................................................................................................................................... 22

MyReplayTV Registration ............................................................................................................................................................................. 22

Privacy Policy ................................................................................................................................................................................................. 22

System Information ........................................................................................................................................................................................ 23

Remote Control Setup ...................................................................................................................................................................23

• Remote Control Setup Codes ......................................................................................................................................................................... 24

• Setup Codes for TV/VCR Combinalions ....................................................................................................................................................... 26

• Setup Codes for TV/DVD Combinations ....................................................................................................................................................... 26

4 - Basic Operations 27

Basic Operations .................................................................................................................................................................................27

• Show Walching Options ................................................................................................................................................................................. 27

• Show Recording Options ................................................................................................................................................................................ 27

Controlling Live Television .......................................................................................................................................................28

Pausing live TV and Recorded Shows ........................................................................................................................................................... 28

Using Rewind and Fast Forward .................................................................................................................................................................... 28

Using Multispeed Slow Motion ...................................................................................................................................................................... 29

Using Frame Advance .................................................................................................................................................................................... 30

Using Instant Replay ...................................................................................................................................................................................... 30

Using QuickSkip ............................................................................................................................................................................................ 30

Using Jump ..................................................................................................................................................................................................... 31

Channel Guide .......................................................................................................................................................................................32

• Using the Channel Guide ................................................................................................................................................................................ 33

@Replay'[ V5.5 UG.book Page\ ];rlda3,Augus{ 1,2003 10:58AM

Recording Shows ................................................................................................................................................................................35

•Setting the Recording Options ........................................................................................................................................................................ 36

Find Shows ...............................................................................................................................................................................................38

Replay Zones ..........................................................................................................................................................................................39

• To Record a Show from a Replay Zone: ........................................................................................................................................................ 39

Using Manual Record .....................................................................................................................................................................4o

• Changing the Default Recording Options ...................................................................................................................................................... 40

• Cancelling a Recording .................................................................................................................................................................................. 41

• Replay Channels ............................................................................................................................................................................................. 41

• Resolving Conflicting Recordings ................................................................................................................................................................. 42

Replay Guide ...........................................................................................................................................................................................43

• Navigaling the Replay Guide ......................................................................................................................................................................... 44

Calegory Options ............................................................................................................................................................................................ 44

Replay Channel Options ................................................................................................................................................................................. 44

Replay Show Options ..................................................................................................................................................................................... 45

Walching a Recorded Show ........................................................................................................................................................................... 45

Keeping an Episode of a Show ....................................................................................................................................................................... 45

Shows at Risk of Deletion .............................................................................................................................................................................. 46

Saving Recordings to Videotape .................................................................................................................................................................... 46

5 - Advanced Features 47

Watching Shows Recorded on other ReplayTVs ................................................................................................47

• Playing Shows frolil Another In-home ReplayTV ......................................................................................................................................... 47

• Viewing Olher In-home Replay Guides ......................................................................................................................................................... 48

Screen Saver and Pause Screen ......................................................................................................................................... 49

• Installing ReplayTV Photo Transfer .............................................................................................................................................................. 49

• Using the Photo Viewer .................................................................................................................................................................................. 50

Remote Control Shortcuts ........................................................................................................................................................51

Show-walching Shortcuts ............................................................................................................................................................................... 51

Channel Guide Shortcuts ................................................................................................................................................................................ 51

Replay Guide Shortcuts .................................................................................................................................................................................. 52

Find Shows On-screen Keyboard Shortculs ................................................................................................................................................... 52

Slide Show Control Shortcuts ........................................................................................................................................................................ 52

Channel Surfing Display Shortcuts ................................................................................................................................................................ 52

Replay'IV5.5 UG.book Page vl I-'rid_, August I, 2003 10:58 AM

• Record Options Screen Shortcuts ................................................................................................................................................................... 52

6-Help 53

Troubleshooting ..................................................................................................................................................................................53

• Customer Service Informalion ....................................................................................................................................................................... 53

• Frequently Asked Questions ........................................................................................................................................................................... 53

Glossary .......................................................................................................................................................................................................58

Technical Specifications ..............................................................................................................................................................59

Limited Warranty and Software License ...................................................................................................................60

•Warranty ......................................................................................................................................................................................................... 60

• Software License Agreement ......................................................................................................................................................................... 61

Activation and Service Agreement ..................................................................................................................................63

• Your Privacy is Important to Us ..................................................................................................................................................................... 65

• Privacy Policy Q&A ....................................................................................................................................................................................... 66

FCC Compliance ...................................................................................................................................................................................69

•FCC Rules, Part 68 ......................................................................................................................................................................................... 70

Safety ............................................................................................................................................................................................................. 71

• Important safety Instructions ......................................................................................................................................................................... 71

• Safety/Regulatory Information ....................................................................................................................................................................... 73

Page l I;rlda3,Augus{ 1,2003 10:58AM

Chapter 1 Getting Started

•".Welcome

Congratulations on your purchase of the ReplayTV 5500. In case warranty service is required, please take a moment to attach your

receipt to this user's guide and write down your Serial Nmnber, located on the back panel of the ReplayTV 5500.

Serial Number:

Additional system information for your new ReplayTV 5500, including the Serial Numbel, can be found by performing the follow-

ing steps:

1 Press Menu to display the ReplayTV Main Menu.

2Select Setup.

3Select System Information.

Before you Begin

Make sure you have connected ReplayTV to your television and other components. Refer to the QuickSetup Guide or

"Connections" on page 7 for instructions.

Feature Updates from the ReplayTV Service

New features are occasionally delivered through the Ethernet and telephone connections (whichever you use). When this occurs

you may encounter screens that look a little different from those in this guide or you may find differences in the features covered. A

message will be sent to your ReptayTV notifying you when new features are available. Choose Messages from the Main Menu to

read about the new features.

For the vei2¢ latest user's guide and new feature instructions, visit www.reptaytv.com

Replay'lVS.5 UG.book Page 2 ]:rlda3, August I, 2003 10:58 AM

Feature Highlights

After you have experienced the exciting new world of personal television, you will never watch plain old television again. No vid-

eotapes. No hassles. No compromises. Pause live television. With ReplayTV, it's easy to quickly find and automatically record

your favorite television shows, so you can watch them whenever you want--on your schedule, not somebody else's. Also,

ReptayTV allows you to share content among multiple units in a home network.

Control live television. Pause, rewind, fast forward, play in slow motion, or watch an instant replay--all without missing a sin-

gle scene. See "Controlling Live Television" on page 28.

Automatically record every episode of your favorite shows, or constantly find and record shows that interest you. Schedule a

recording once and ReptayTV does the rest. See "Recording Shows" on page 35.

Use QuickSkip to jump past recorded segments 30 seconds at a time. See "Using QuickSkip" on page 30.

No need to channel surf any more. Use the Channel Guide to see what's on now and what's coming up later without repeatedly

changing channels. See "Using the Channel Guide" on page 33.

Locate shows that you want to watch without searching through pages of program schedules. The Find Shows feature locates

shows based on specific titles, actors, directors, and topics that you choose. See "Find Shows" on page 38.

Use an Ethernet connection to download Channel Guide information via broadband. It must be connected at all times. See

"Home Network Connections" on page 12.

Watch shows recorded on other ReplayTVs in your home. If you have more than one ReplayTV, you can watch shows in one

room that were recorded in another. OI, start watching a show in one room, then continue watching the show in another room,

right from where you left off. See "Watching Shows Recorded on other ReptayTVs" on page 47.

Transfer digital photos from your PC to your ReplayTV to create and view slide shows of your vacation or other photo collec-

tions. Additionally, you can display your photos when you press Pause or when the screen saver starts. See "Using the Photo

Viewer" on page 50.

Page 3 Frldaj, Augus{ I, 2003 10:58 AM

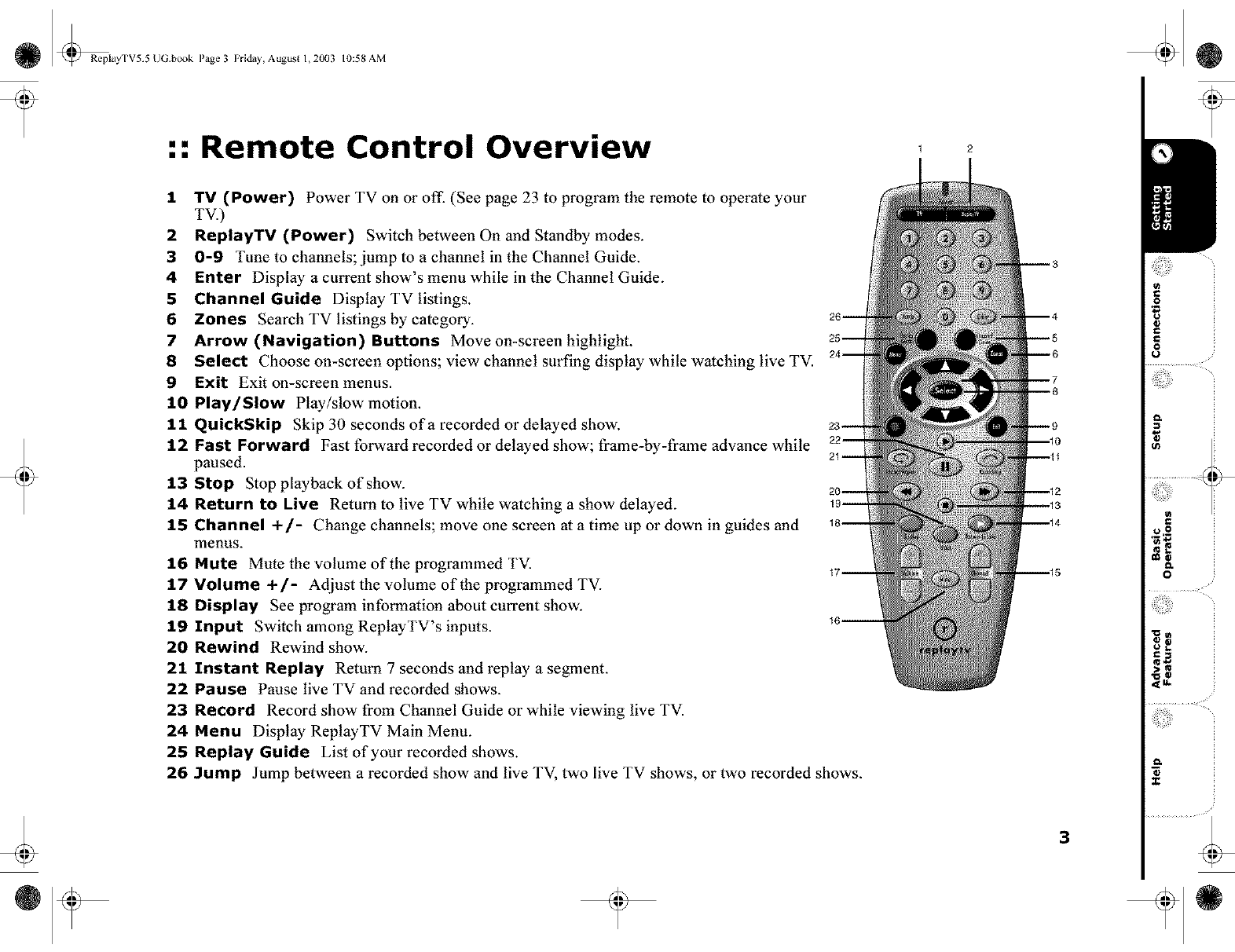

:: Remote Control Overview

1 TV (Power) Power TV on or off. (See page 23 to program the remote to operate your

TV.)

2 ReplayTV (Power) Switch between On and Standby modes.

3 0-9 Tune to channels; jump to a channel in the Channel Guide.

4 Enter Display a current show's menu while in the Channel Guide.

5 Channel Guide Display TVlistings.

6 Zones Search TV listings by category.

7 Arrow (Navigation) Buttons Move on-screen highlight.

8 Select Choose on-screen options; view channel surfing display while watching live TV.

9 Exit Exit on-screen menus.

10 Play/Slow Play/slow motion.

11 QuickSkip Skip 30 seconds of a recorded or delayed show.

12 Fast Forward Fast forward recorded or delayed show; frame-by-frame advance while

paused.

13 Stop Stop playback of show.

14 Return to Live Return to live TV while watching a show delayed.

15 Channel +/- Change channels; move one screen at a time up or down in guides and

menus.

16 Mute Mute the volume of the programmed TV.

17 Volume +/- Adjust the volume of the programmed TV.

18 Display See program infomaation about current show.

19 Input Switch among ReplayTV's inputs.

20 Rewind Rewind show.

21 Instant Replay Retm'n 7 seconds and replay a segment.

22 Pause Pause live TV and recorded shows.

23 Record Record show from Channel Guide or while viewing live TV.

24 Menu Display ReptayTV Main Menu.

25 Replay Guide List of your recorded shows.

26 Jump Jump between a recorded show and live TV, two live TV shows, or two recorded shows.

ii{iiiii_}i_i'

:: Front Panel Overview

1 2 3 4

1POWER button Manually switches between On and Standby modes.

2 POWER light Lights when ReplayTV is on,

3IR Receiver Point remote control here when operating your ReplayTV,

4 REC (Recording) light Lights when ReplayTV is recording a show,

@Replay'[ V5.5 UG.book Page 5 I;rlda), Augus{ I, 2003 10:58 AM

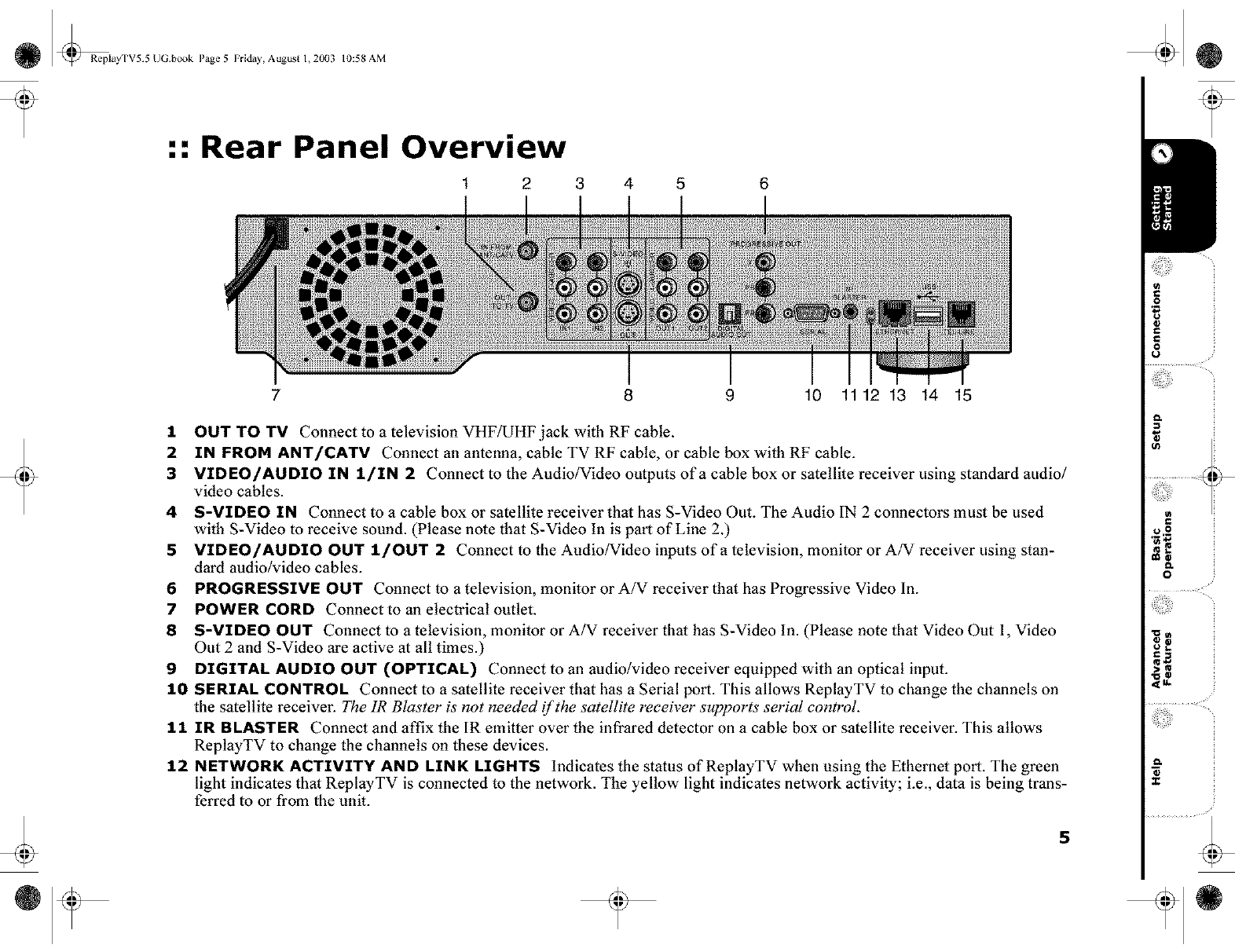

:: Rear Panel Overview

1 2 3 4 5 6

8 9 10 11 12 13 14 15

:It OUT TO TV Connect to a television VHF/UHF jack with RF cable.

2IN FROM ANT/CATV Connect an antenna, cable TV RF cable, or cable box with RF cable.

3 VIDEO/AUDIO IN l/IN 2Connect to the Audio/Video outputs of a cable box or satellite receiver using standard audio/

video cables.

4S-VIDEO IN Connect to a cable box or satellite receiver that has S-Video Out. The Audio IN 2 connectors must be used

with S-Video to receive sound. (Please note that S-Video In is part of Line 2.)

5VIDEO/AUDIO OUT 1/OUT 2Connect m the Audio/Video inputs of a television, monitor or A/V receiver using stan-

dard audio/video cables.

6PROGRESSIVE OUT Connect m a television, monitor or A/V receiver that has Progressive Video In.

7 POWER CORD Connect to an electrical outlet.

8S-VIDEO OUT Connect to a television, monitor or A/V receiver that has S-Video In. (Please note that Video Out 1, Video

Out 2 and S-Video are active at all times.)

9 DIGITAL AUDIO OUT (OPTICAL) Connect to an audio/video receiver equipped with an optical input.

:tO SERIAL CONTROL Connect to a satellite receiver that has a Serial port. This allows ReplayTV to change the channels on

the satellite receiver. The 1R Blaster is not needed if the satellite receiver supports serial control.

11 IR BLASTER Connect and affix the IR emitter over the infrared detector on a cable box or satellite receiver. This allows

ReptayTV to change the channels on these devices.

12 NETWORK ACTIVITY AND LINK LIGHTS Indicates the status of ReplayTV when using the Ethernet port. The green

light indicates that ReplayTV is connected to the network. The yellow light indicates network activity; i.e., data is being trans-

fela'ed to or from the unit.

ii{iiiii_}i_i'

Replay'lVS.5 UG.book Page 6 ]:rlda), Augusi I, 2003 10:58 AM

13 ETHERNET (10/100BaseT) Connect to a broadband home network, including a router, hub or switch.

14 USB PORT (Currently inactive.)

15 TEL LINE Connect directly to a phone jack.

Turning on ReplayTV

1 Press the ReplayTV Power button on the ReptayTV remote control.

2 Press the POWER button on the ReptayTV front panel.

Putting ReplayTV in Standby Mode

ReplayTV is in standby mode when it is plugged in with the power turned off. ReptayTV will record even if it is in standby

mode.

1 Press the ReplayTV Power button on the remote control.

2 Press the POWER button on the ReptayTV front panel.

Page 7 Frlda3, Augus{ I, 2003 10:58 AM

Chapter 2 Connections

:: Basic Connections

This chapter describes how to connect ReplayTV to your TV and other devices, including your home network. You will find

detailed connection options not found on the QuickSetup Guide. If you have not already, take a look at the Quick Setup Guide

before reading this chapter.

Cable Overview

You may not need to use all the cables provided with ReplayTV. Your setup will depend on the components (Cable box, satellite

receiver, VCR, home network, etc.) you use. During setup, you may be called upon to identify one or more of the following cables:

RF cable (included) delivers the signals broadcast by your cable TV company, or local stations. You can also

use lhis supplied cable to connect Replay'IV directly lo your television. Provides lmvest audio and video qual-

ity.

S-Video cable (not included) delivers high quality video signal from ReplayTV to your television or monitor.

Older-model TVs may not support S-Video. Because S-Video cable only provides the video signal, it must be

used in combinalion with both of the audio plugs (red and while) on an A/V cable.

Component Video cables (not included) connect from the Progressive Out (Y, Pb, Pr) jacks on ReplayTV to

deliver high quality video signals to your television or monitor. Older-model TVs may not have a Progressive

input. Because component video cables only provide the video signal, they must be used in combination with

both of the audio plugs (red and white) on an A/V cable. Provides the highest video quality.

A/V cable (included) delivers audio and video signals from ReplayTV to your television or monitor. The red

and white plugs deliver stereo audio. The yellow plug delivers video. Provides better audio and video quality

than eoaxial cable.

Replay'IVS.5 UG.book Page 8 Frlda3, August I, 2003 10:58 AM

Serial cable (not included) lets ReplayTV change the channels on DirecTV satellite receivers, many of which

use serial cables for communication.

IR blaster cable (included) lets ReplayTV change the channels on your cable box or satellite receiver if it does

not support the serial cable. The IR blaster emitters need to be al_]xed directly over the IR detector on your sat-

ellite receiver or cable box. See "Connecting the IR Blaster" on page 10.

9-pin to 15-pin adapter (not included) connects your satellite receiver to ReplayTV if the satellite receiver uses

a 15-pin serial cable.

RJ-11 to 9-pin adapter (not included) connects your satellite receiver to ReplayTV if the satellite receiver uses

a telephone cable in place of a serial cable. RCA models DRD221RD, DRD222RD, DRD223RD, and

DS2122RD all require use of this adapter.

Ethernet cable (not included) connects to the ETHERNET jack on ReplayTV, allowing you to connect

ReplayTV to a broadband network. If you have a home network, you should leave ReplayTV connected to it at m

all times, because ReplayTV will use it to receive Channel Guide listings.

Telephone cable (included) connects from the TEL LINE jack on ReplayTV to a phone jack. Leave the cable

connected to Replay'iV at all times to receive the daily Channel Guide listings. []

@Replay'l V5.5 UG.book Page9 I;rlda),Augusi 1,2003 10:58AM

:: Planning your Setup

Read this section before incorporating ReplayTV into your entertainment system.

Incorporating ReplayTV into your Entertainment System

ReptayTV controls and records the television signals you receive (satellite, cable, antenna, or a combination of all three). The sig-

nal(s) connect directly m the ReplayTV inputs. The outputs from ReplayTV connect to a television, monitm, or A/V receiver. You

can also connect a VCR to ReptayTV and save shows you have recorded to videotape. See "Saving Recordings to Videotape" on

page 46 for more information. ReptayTV is not intended to record signals sent by DVD players and video game systems. Connect

DVD players and video game systems directly to your television, not to ReptayTV.

Checking your Satellite Receiver

ReplayTV receives broadcast signals from satellite receivers through S-Video or A/V cables. ReptayTV can send channel-changing

signals to your satellite receiver through a serial cable or the supplied IR blaster. Use the IR blaster if your DirecTV satellite

receiver does not have a serial port or support serial control.

If the remote control for your satellite receiver has a "UHF" label, or if your satellite receiver uses a small antenna, your satellite

receiver is radio controlled. DISH Network satellite receivers are either UHF only, UHF and IR (infrared), or IR only. ReptayTV

does not support UHF-only receivers. Serial control is not supported by DISH receivers.

Connecting ReplayTV to an A/V

Receiver

1 Connect the incoming television signal to ReplayTV. Refer to the

Quick Setup Guide for detailed instructions.

2 Connect an A/V cable from the OUTPUT jacks on ReplayTV to the

AUDIO/VIDEO IN jacks on your A/V receivel, matching like col-

ors. Use an S-Video cable if your receiver has S-Video In.

3 Refer to the Quick Setup Guide to complete the remaining connec-

tions.

P.eplay'IV5.5 UG.book Page 10 I:rida), August I. 2003 10:58 AM

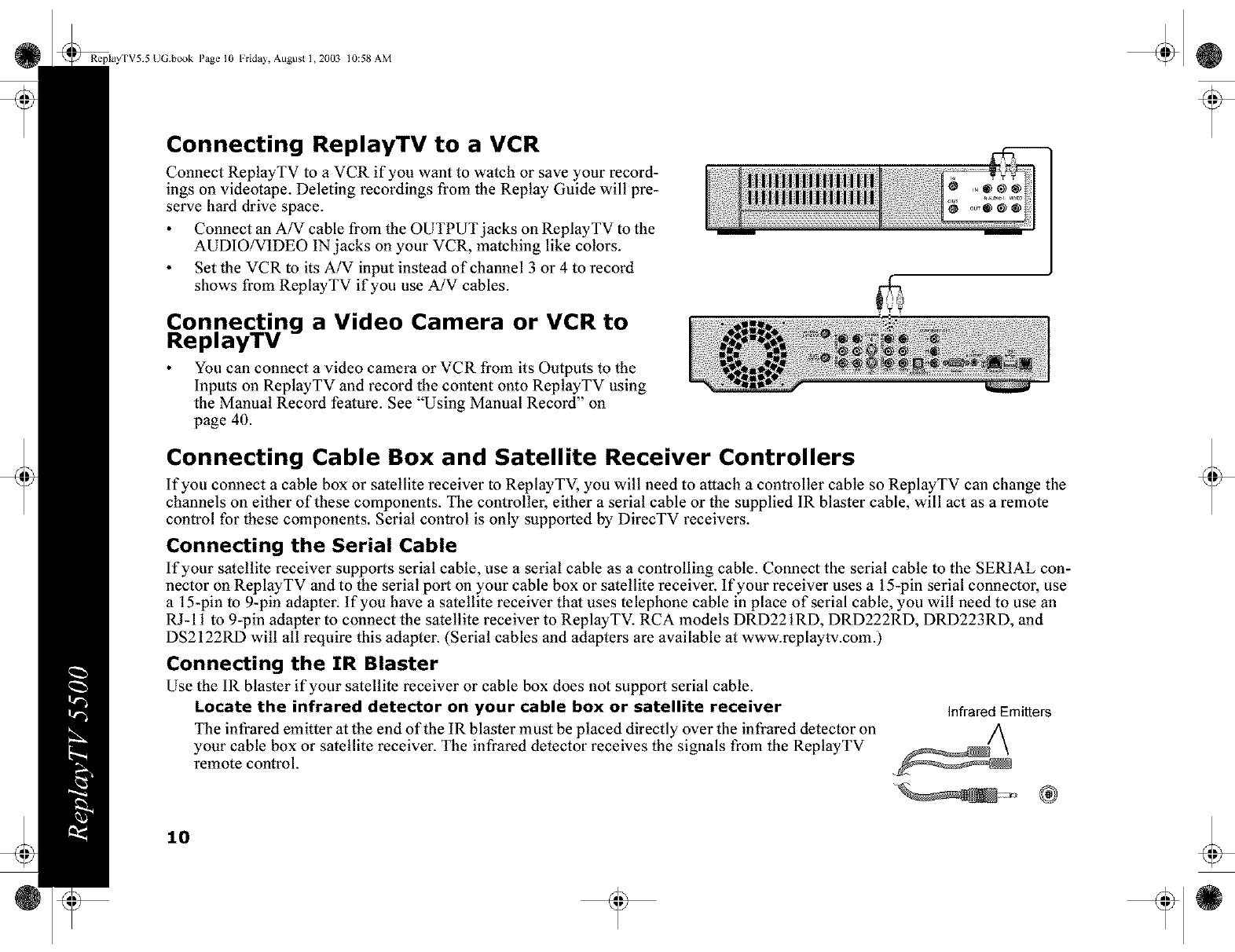

Connecting ReplayTV to a VCR

Connect ReplayTV to a VCR if you want to watch or save your record-

ings on videotape. Deleting recordings from the Replay Guide wilt pre-

serve hard drive space.

Connect an A/V cable from the OUTPUT jacks on ReplayTV to the

AUDIO/VIDEO IN jacks on your VCR, matching like colors.

Set the VCR to its A/V input instead of channel 3 or 4 to record

shows from ReplayTV if you use A/V cables.

Connecting a Video Camera or VCR to

eplayTV

You can connect a video camera or VCR from its Outputs to the

Inputs on ReplayTV and record the content onto ReptayTV using

the Manual Record featm'e. See "Using Manual Record" on

page 40.

Connecting Cable Box and Satellite Receiver Controllers

If you connect a cable box or satellite receiver to ReplayTV, you will need to attach a controller cable so ReplayTV can change the

channels on either of these components. The controtlel, either a serial cable or the supplied IR blaster cable, will act as a remote

control for these components. Serial control is only supported by DirecTV receivers.

Connecting the Serial Cable

If your satellite receiver supports serial cable, use a serial cable as a controlling cable. Connect the serial cable to the SERIAL con-

nector on ReplayTV and to the serial port on your cable box or satellite receiver. If your receiver uses a 15-pin serial connectol, use

a t5-pin to 9-pin adaptei: If you have a satellite receiver that uses telephone cable in place of serial cable, you will need to use an

RJ-11 to 9-pin adapter to connect the satellite receiver to ReplayTV. RCA models DRD221RD, DRD222RD, DRD223RD, and

DS2122RD will all require this adapter. (Serial cables and adapters are available at www.replaytv.com.)

Connecting the IR Blaster

Use the IR blaster if your satellite receiver or cable box does not support serial cable.

Locate the infrared detector on your cable box or satellite receiver

The infrared emitter at the end of the IR blaster must be placed directly over the infrared detector on

your cable box or satellite receiver. The infrared detector receives the signals from the ReptayTV

remote control.

Infrared Emitters

Page II I:rida3, August I, 2003 10:58 AM

If the infrared detector on the unit is not labeled, follow these steps:

1 Refer to the owner's manual of your cable box or satellite receiver. It may be shown there.

2 Look for an area of dark, nearly opaque plastic on the front of the unit. If you find this area,

look closely into it. You may be able to see the infrared detector behind it. If it is visible, you

should see a small square frame with a reddish area in the center. This is the infrared detector.

Skip to "Connect and affix the IR btastm:"

3 Shine a flashlight through the dark plastic area on the front of the unit. If you see the infrared

detector, skip to "Connect and affix the IR blaster."

4 Using the remote control for your cable box or satellite receiver, turn the power on and off'.

Do not use the ReplayTVremote control.

5 With the remote control in one hand, place the other hand over one section of the front of the

unit.

Try to turn the power on and off. If you succeed, your hand is not covering the infrared detec-

tor.

Move your hand to a different place on the front of the unit and repeat steps 5 and 6. Keep

repeating in this manner until you cannot turn the power on and off. At this point, your hand

is covering the infrared detector.

Connect and affix the IR blaster

Plug the IR blaster into the IR BLASTER connector on the back of ReptayTV.

Peel offthe protective cover from one of the emitters on the IR blaster. This will expose the

adhesive material on the infrared emitter for placement onto your cable box or satellite

receiver.

Affix the adhesive side of the infrared emitter to the dark plastic area directly over the center Locating the infrared detector

of the infrared detector.

_, • If you only want ReplayTV to control one device, hide the

unused emitter behind the equipment, away,from any detectors.

After you connect the IR blaster, you will test to see if it works by trying to turn on your cable box or

satellite receiver using the IR blaster. You will do this during the on-screen setup process by providing

ReplayTV with the setup code number for your cable box or satellite receiver. If the test fails, you may

still be able to use that code to change channels.

A,lCfixing the 1R blaster

Replay'IV5.5 UG.book Page 12 I-'rida), August I, 2003 10:58 AM

Completing the On-screen Setup

After completing all the connections to yore" components and home network (if you chose to do so), you will need to complete

ReptayTV's on-screen setup process. The setup process requires you to indicate the following:

If you are using a broadband or modem connection

Your ZIP code so ReplayTV will receive the correct channels for your area

The brand of your cable box or satellite receiver connected and the cables used to complete the connections

The setup code for your cable box or satellite receiver, if used, so ReplayTV can change the channels on these components

:: Home Network Connections

If you have a home network, you can connect ReplayTV to it using the ETHERNET connection. This connection will allow you to

watch shows recorded on another ReplayTV in your home, and transfer photos from your PC to ReplayTV. The following sections

provide instructions for setting up ReplayTV to use the networking features. Refer to "Advanced Features" on page 47 to learn how

to use the features.

ReptayTV needs its own IP address to communicate with other devices on your network. It will automatically search for an IP

address during the first-time Quick Setup process. If an IP address is not automatically found, you will have to enter it manually.

See "Entering Networking Information Manually on ReplayTV" on page 16.

Connecting ReplayTV to an Existing Network

1 If you are connecting ReplayTV to a broadband network, plug an Ethelqaet cable into the ETHERNET jack on ReplayTV and to

an available Ethernet .jack on your network (on a wall, hub, switch, or router).

2 Turn ReptayTV on. You wilt see the Quick Setup screen in a few minutes. ReplayTV wilt automatically request an IP address

from the network.

3 After a successful test, you will be asked to enter your ZIP code and continue with setup.

4If you have firewall software installed or a router with a built-in firewall, the default settings should work fine. See "Router

Setup" on page 16.

5 If ReplayTV does not find a DHCP server (nolanally your router), you will need to manually set up the network connection.

You will need to enter the following information manually:

IP address, Subnet Mask, Gateway address and DNS Server address.

Page 13 I-'rida3, August I, 2003 10:58 AM

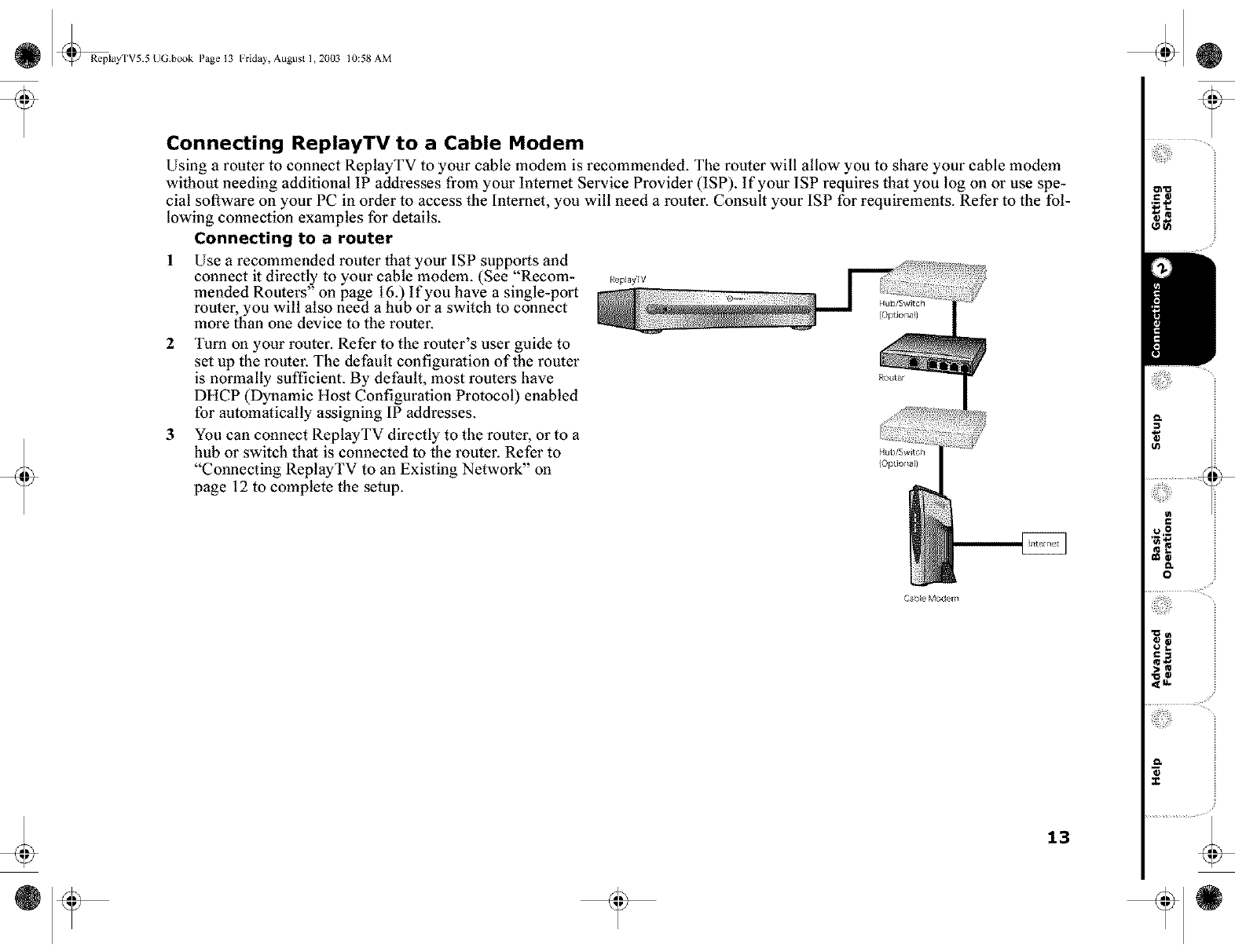

Connecting ReplayTV to a Cable Modem

Using a router to connect ReptayTV to your cable modem is recommended. The router will allow you to share your cable modem

without needing additional IP addresses from your Internet Service Provider (ISP). If your ISP requires that you log on or use spe-

cial software on your PC in order to access the Internet, you wilt need a router. Consult your ISP for requirements. Refer to the fol-

lowing connection examples for details.

Connecting to a router

1 Use a recommended router that your ISP supports and

connect it direct!,y to your cable modem. (See Recom-

mended Routers on page 16.) If you have a single-port

router, you will also need a hub or a switch to connect

more than one device to the router

2 Turn on your router. Refer to the router's user guide to

set up the router The default configuration of the router

is normally sufficient. By default, most routers have

DHCP (Dynamic Host Configuration Protocol) enabled

for automatically assigning IP addresses.

3You can connect ReptayTV directly to the router, or to a

hub or switch that is connected to the router. Refer to

"Connecting ReplayTV to an Existing Network" on

page 12 to complete the setup.

Rt playlV

Cable Modem

Replay'IV5.5 UG.book Page 14 I:rida3, August I, 2003 10:58 AM

Connecting directly to a cable modem (no router)

If you are connecting ReplayTV directly to a cable modem, you need to have an addi-

tional IP address from your ISP for ReptayTV. Before setting up ReplayTV, you

should verify with your ISP that a device like ReplayTV is supported. You may need to

specify the IP address on ReplayTV. See "Entering Networking Information Manually

on ReptayTV" on page 16 for more information.

ReplayTV

1 Verify that there is no special software or log on required for Internet access.

2 Verify that no settings other than the IP address, Subnet Mask, Gateway address, and

DNS Server address are required. (For example, some broadband connections require

that a DNS suffix be entered on your PC for Internet access to work.)

3 Check to see if your ISP requires the MAC address of devices like ReptayTV for Inter-

net connectivity. (Some ISPs require the MAC address of network devices in order to

automatically assign it an IP address. See "Determining the ReptayTV MAC (Media

Access Control) Address" on page 17.

4Refer to "Connecting ReplayTV to an Existing Network" on page 12 to complete the

setup.

Hub/Switch

Cable Modem

Page 15 I:rida3, August I, 2003 10:58 AM

Connecting ReplayTV to a DSL Modem

Connecting ReplayTV to a DSL modem is the same as connecting it to a cable modem with a few exceptions. Refer to "Connecting

ReptayTV to a Cable Modem" on page 13 with the following additions.

The DSL modem you own might be a DSL router. If you are not sure, contact your ISP or DSL modem provider. If it is a

routel, it can automatically assign an IP address to ReplayTV. If you have PPPoE (Point-to-Point Protocol over Ethernet) DSL

(you have to log on through software before you can access the Internet), you cannot connect ReplayTV directly to your DSL

modem unless it is also a router. PPPoE accounts require that the user log on with a username and password. Software is nor-

mally provided for your computer to do this. If you purchase a router to use with your PPPoE account, verify that it supports

PPPoE.

Using In-Home Video Sharing and Photo Viewer Without a Home Network

It's easy to copy pictures to ReplayTV or watch shows recorded on another ReplayTV in your home. To connect two or more

ReplayTVs, or to connect ReplayTV to your PC, you will need to purchase a hub or switch and an Ethernet cable for each

ReptayTV. You may also need to purchase an Ethernet network card for your PC.

Watching shows on another ReplayTV

1Plug both ReplayTVs into your hub/switch.

2 Set up both ReplayTVs to connect using the phone line.

Once both are set up, they will automatically "find" each other on your network. See "Watching Shows Recorded on other Replay-

TVs" on page 47.

Copying pictures from a PC to ReplayTV

Plug your PC and ReplayTV into your hub/switch,

Manually enter the network settings for the network card in your PC.

When set up to use the phone line, ReplayTV defaults to the following IP address range: 192,168,0,x. Set the IP address and

Subnet mask on your PC to 192.168,0.100 and 255,255.255.0, If you don't know how to enter the IP address on your network

card, consult Windows Help or the documentation for your network card. See "Installing ReplayTV Photo Transfer" on page 49

to view photos on your ReplayTV.

:¢

Replay'IV5.5 UG.book Page 16 I:rldab, August I, 2003 10:58 AM

Router Setup

Any router should work with ReplayTV, Default router settings are normally sufficient for ReplayTV to connect to the ReptayTV

Service. Refer to the following information only if you are experiencing connection issues.

Recommended Routers

Make Model

Netgear RT311

Netgear RP 114

SMC Barricade SMC7004BR

Linksys BEFWl IS4

1DHCP is enabled by default on most routers. Verify that it is enabled.

2 TCP ports 53 (DNS), 123 (NTP), and 80 (http) are normally open by default.Verify that they are open on your router. If your

PC that is connected to the same router can browse the Web, you can normally assume that ports 53 and 80 are open.

Entering Networking Information Manually on ReplayTV

The manual entry screen will display ifReptayTV is unable to obtain an IP address automatically during first-time setup.

1 Press Menu on the remote control and choose Setup.

2Choose Network and Input Settings from the Setup menu.

3 Choose Change Network.

4 Choose Change from Automated to Manual and enter the information.

Page 17 I-'rida3, August I, 2003 10:58 AM

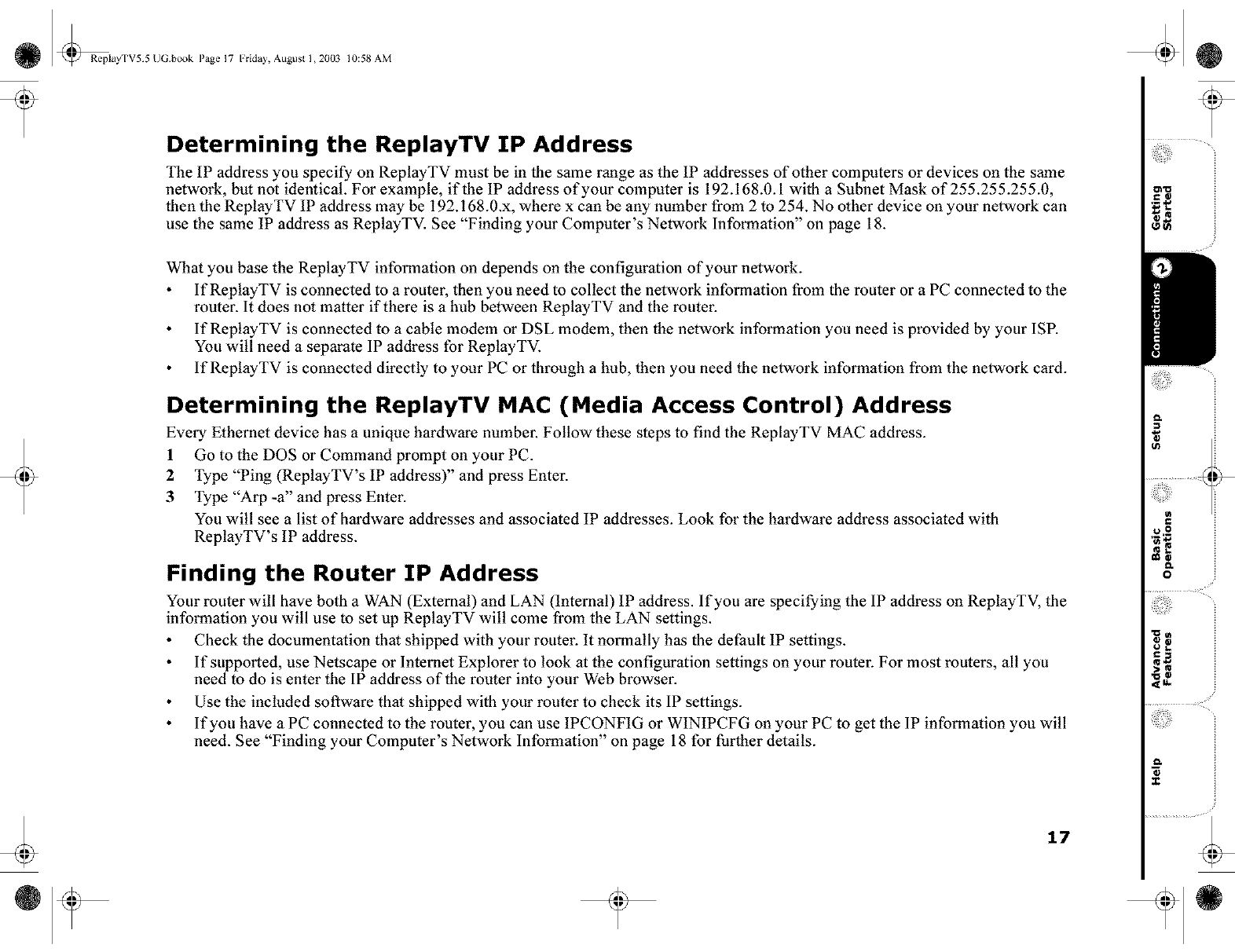

Determining the ReplayTV IP Address

The IP address you specify on ReptayTV must be in the same range as the IP addresses of other computers or devices on the same

network, but not identical. For example, if the IP address of your computer is 192.168.0.1 with a Subnet Mask of 255.255.255.0,

then the ReplayTV IP address may be 192.168.0.x, where x can be any number from 2 m 254. No other device on your network can

use the same IP address as ReptayTV. See "Finding your Computer's Network Information" on page 18.

What you base the ReplayTV information on depends on the configuration of your network.

IfReplayTV is connected to a routel, then you need to collect the network information from the router or a PC connected to the

router. It does not matter if there is a hub between ReplayTV and the router.

If ReptayTV is connected to a cable modem or DSL modem, then the network information you need is provided by your ISR

You will need a separate IP address for ReplayTV.

If ReptayTV is connected directly to your PC or through a hub, then you need the network information from the network card.

Determining the ReplayTV MAC (Media Access Control) Address

Every Ethernet device has a unique hardware number Follow these steps to find the ReplayTV MAC address.

1 Go to the DOS or Command prompt on your PC.

2 Type "Ping (ReplayTV's IP address)" and press Enter.

3 Type "Arp -a" and press Enter.

You will see a list of hardware addresses and associated IP addresses. Look for the hardware address associated with

ReptayTV's IP address.

Finding the Router IP Address

Your router will have both a WAN (External) and LAN (Internal) IP address. If you are specifying the IP address on ReplayTV, the

infon'nation you will use m set up ReptayTV will come from the LAN settings.

Check the documentation that shipped with your router. It nonnatly has the default IP settings.

If supported, use Netscape or Internet Explorer to look at the configuration settings on your router. For most routers, all you

need m do is enter the IP address of the router into your Web browser.

Use the included software that shipped with your router to check its IP settings.

If you have a PC connected to the router, you can use IPCONFIG or WINIPCFG on your PC to get the IP information you will

need. See "Finding your Computer's Network Infon'nation" on page 18 for further details.

u o

Replay'IV5.5 UG.book Page 18 Frid_3, Augusl I, 2003 10:58 AM

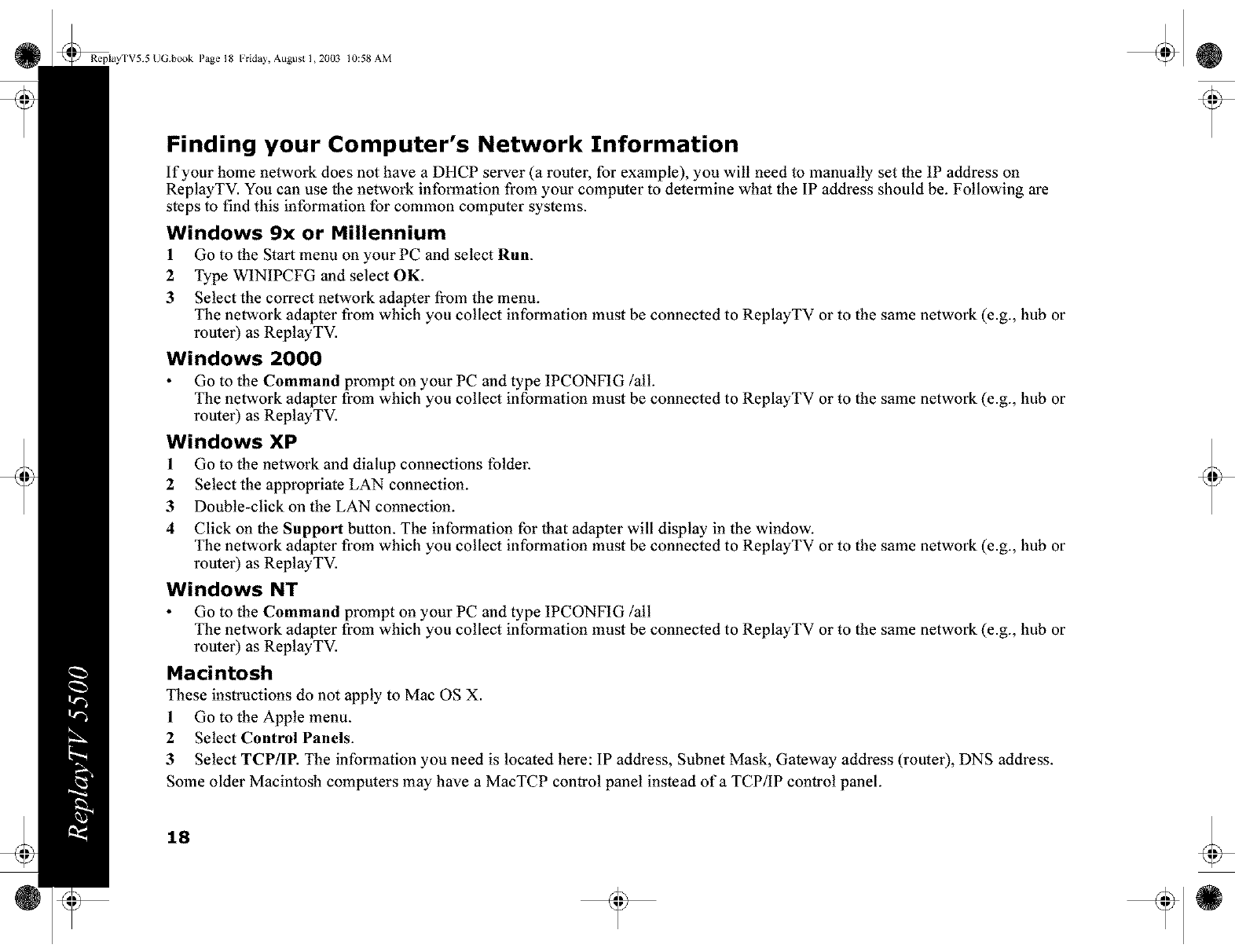

Finding your Computer's Network Information

If your home network does not have a DHCP server (a routm, for example), you will need to manually set the IP address on

ReptayTV. You can use the network infoi_aation from your computer to determine what the IP address should be. Following are

steps to find this information for common computer systems.

Windows 9x or Millennium

1 Go to the Start menu on your PC and select Run.

2Type WINIPCFG and select OK.

3Select the correct network adapter from the menu.

The network adapter from which you collect infoI'mation must be connected to ReplayTV or to the same network (e.g., hub or

router) as ReptayTV.

Windows 2000

Go to the Command prompt on your PC and type IPCONFIG/all.

The network adapter from which you collect infoI'mation must be connected to ReplayTV or to the same network (e.g., hub or

router) as ReplayTV.

Windows XP

1 Go to the network and dialup connections foldei:

2 Select the appropriate LAN connection.

3 Doubte-clickon the LAN connection.

4 Click on the Support button. The infoI_aation for that adapter will display in the window.

The network adapter from which you collect infoI'mation must be connected to ReplayTV or to the same network (e.g., hub or

router) as ReplayTV.

Windows NT

Go to the Command prompt on your PC and type IPCONFIG/all

The network adapter from which you collect infoI'mation must be connected to ReplayTV or to the same network (e.g., hub or

router) as ReplayTV.

Macintosh

These instructions do not apply to Mac OS X.

1 Go tothe Apple menu.

2 Select Control Panels.

3 Select TCP/IE The information you need is located here: IP address, Subnet Mask, Gateway address (router), DNS address.

Some older Macintosh computers may have a MacTCP control panel instead ofa TCP/IP control panel.

Page 19 I:rida3, August I, 2003 10:58 AM

Chapter 3

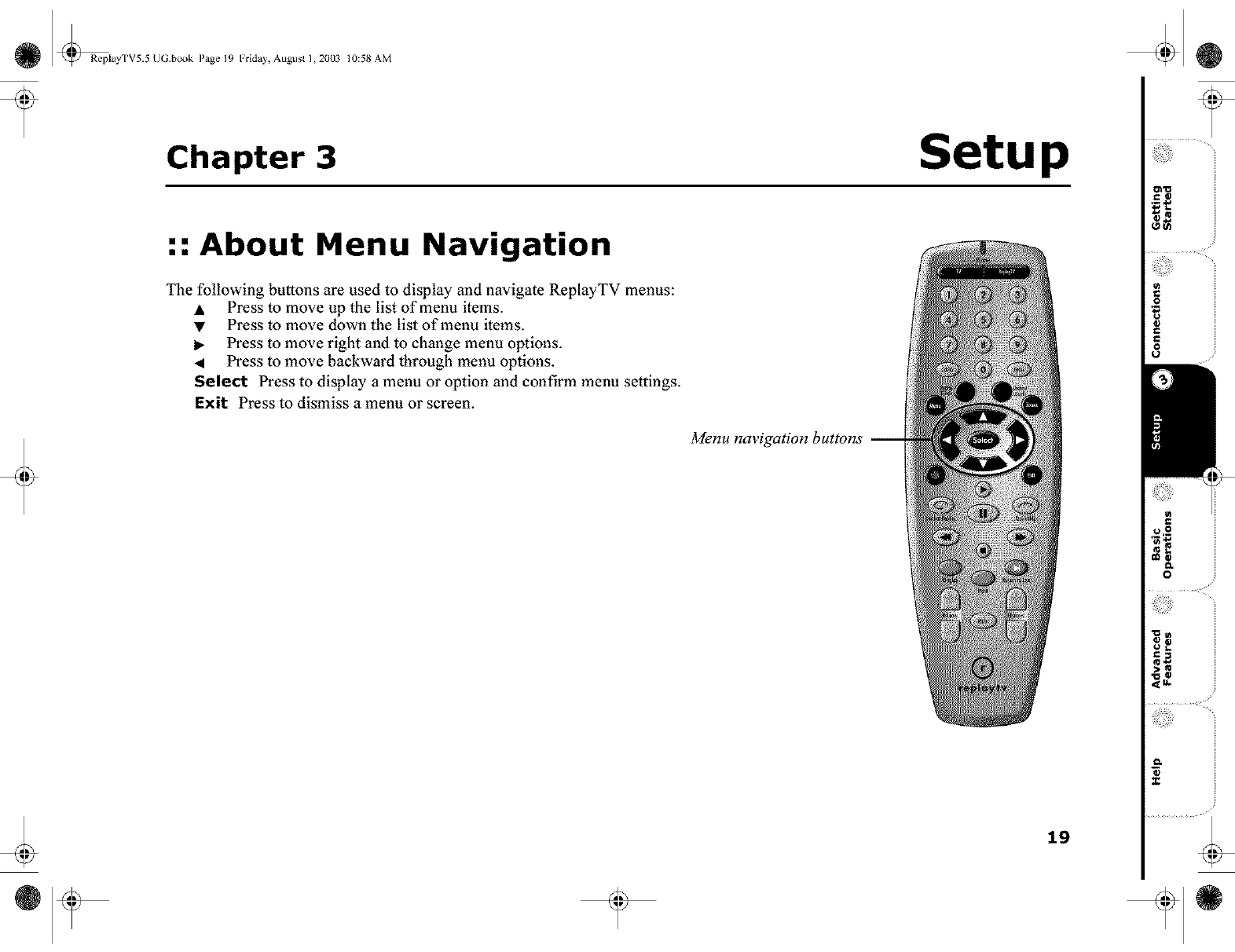

•". About Menu Navigation

The following buttons are used to display and navigate ReplayTV menus:

• Press to move up the list of menu items.

• Press to move down the list of menu items.

I_ Press to move right and to change menu options.

• Press to move backward through menu options.

Select Press to display a menu or option and confirm menu settings.

Exit Press to dismiss a menu or screen.

Menu navigation buttons

Setup

i uo i

Replay'IV5.5 UG.book Page 20 I:rida), August I, 2003 10:58 AM

•". Main Menu

Use the Main Menu to access ReptayTV's main fea-

tures. Press the Menu button to display the Main

Menu.

Channel Guide: The Channel Guide is ReplayTV's

on-screen program guide. The Channel Guide provides

12 days of cun'ent television listings for all of the TV

channels you receive. See "Channel Guide" on

page 32 for more information on the Channel Guide.

Replay Guide: Every show you schedule to record

and every recorded show is stored in the Replay Guide.

The Replay Guide is where to go to play, and delete

recorded programs. See "Replay Guide" on page 43

for more infoI'mation.

Photo Viewer: Use the Photo Viewer m view digital

photos copied from your PC to ReplayTV. See "Using

the Photo Viewer" on page 50 for more infm'mation.

Find Shows: Use Find Shows to quickly locate shows that you would like to record using keywords. See "Find Shows" on page 38

for more infoI'mation.

Manual Record: Set up time-based recordings that are independent of Channel Guide programming using Manual Record. See

"Using Manual Record" on page 40 for more infomaation.

Replay Zones: Use Replay Zones to quickly find shows within specific categories, such as movies, sports, and sitcoms. See

"Replay Zones" on page 39 for more information.

Messages: The ReplayTV Service will send messages about important news, and the latest features and enhancements as soon as

they become available. You will receive a welcome message after you complete the on-screen setup of ReplayTV.

Setup: Use Setup to customize ReplayTV. See "Setup Menu" on page 21 for more information.

Page 21 I:rida), August I, 2003 10:58 AM

•". Setup Menu

ReplayTV Name

Change the name of your ReplayTV. Naming your ReplayTV is only necessary if you have more than one ReplayTV on your home

network. You may name each ReptayTV a name of your choice.

Default Record Options

Change the recording options that are applied to shows you record. This includes the quality at which shows are recorded, how

many episodes of a show are kept before being replaced by the next episode, and in which category a show is stored.

Network and Input Settings

Update the A/V and networking information you provided during the on-screen setup process, or if you later add or remove A/V or

networking equipment.

You can also choose this option to change between use of a phone line and Ethernet connection. (For example, if you purchased

your ReplayTV and use the telephone line to receive Channel Guide listings and then later add a broadband network to your home.)

Choose Switch Connection from the Setup Summary screen if you switch from phone line to Ethernet use.

Video Output Settings

Select the TV channel to use for viewing ReplayTV video output if you connect ReplayTV to your TV using the OUT TO TV con-

nector. If you use the Progressive Video Out, select YPbPr to enable the component output.

Screen Saver and Pause Screen

Choose which photos are used when the screen saver is displayed and when you press the Pause button. See "Screen Saver and

Pause Screen" on page 49 for more information.

)

Replay'IV5.5 UG.book Page 22 Frida3, August I, 2003 10:58 AM

Parental Control

Parental Control offers you the ability to block video and audio of live TV shows or recorded shows based on the show rating or

content. In addition, it allows blocking of specific channels. Once you access Parental Control, a screen will be displayed where

you will be able to create or edit your 4-digit PIN (Personal Identification Number). Once you have created a new PIN or entered

the coiTect PIN a new screen will be displayed with the following options:

• Ratings and Content Settings

Choose which movie ratings, TV ratings, and content to block. Unrated shows can also be blocked. Info Screens with defini-

tions ofatl movie and TV ratings are easily accessible.

• Change Channel Restrictions

Block specific channels. Channel blocks have priority over "rating" and "content" blocks. If, for example, you unblock a chan-

nel, you remove all blocks until you change to another channel. All blocks would again be active when you return to the chan-

nel.

•Turn On/Off Parental Control

Turn Parental Control on/off:

• Change PIN

Display a screen where the PIN can be edited.

•Exit

Exit the Parental Control screen.

_o_ "When Parental Controls are enabled on ReplayTV, the settings

override the settings on your Tg

Add or Remove Channels

Add or remove channels from ReplayTV's Channel Guide. This featm'e is handy for removing channels that you do not subscribe

to.

MyReplayTV Registration

View the cun'ent Privacy Policy.

Page 23 I-'rida3, August I, 2003 10:58 AM

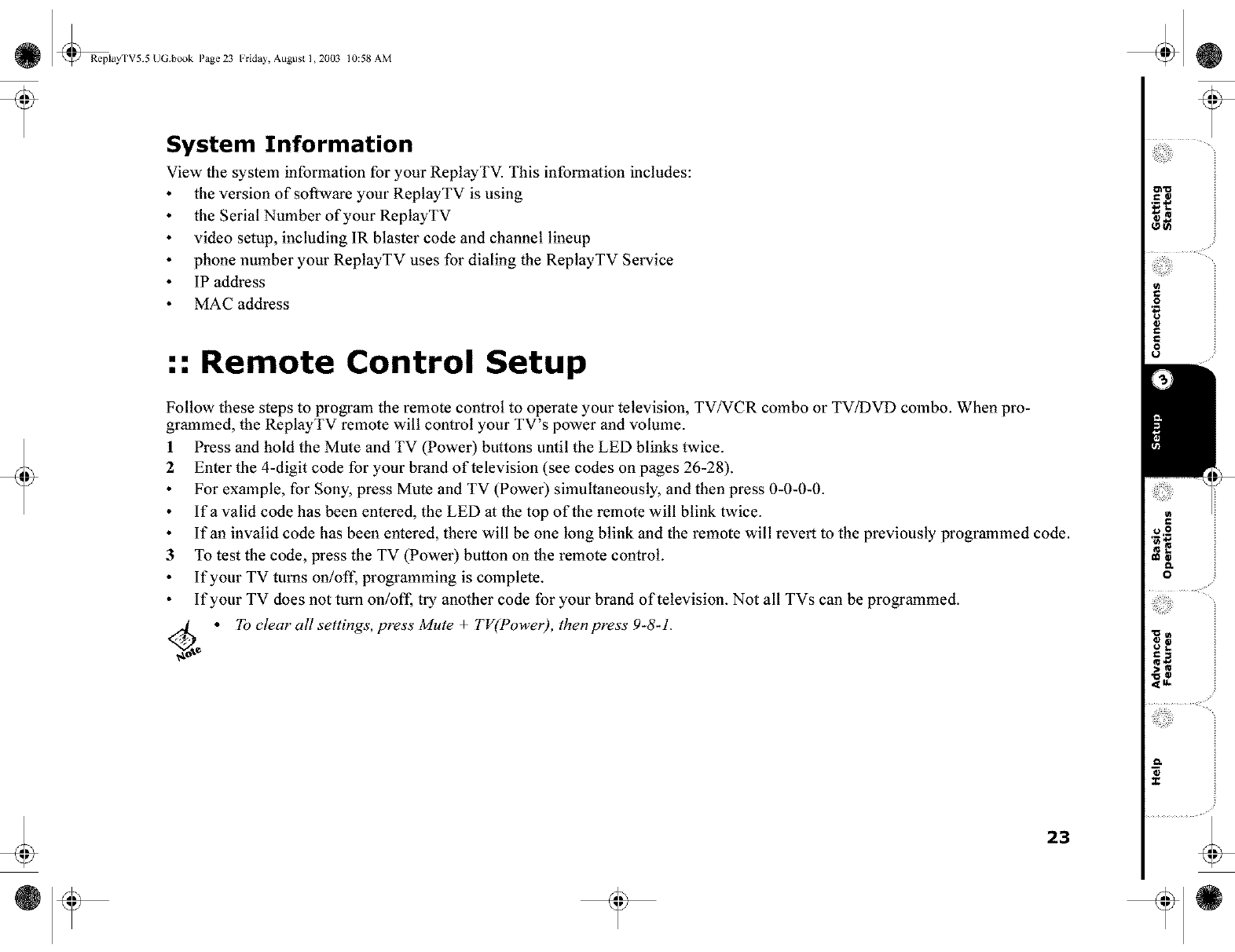

System Information

View the system information for your ReptayTV. This information includes:

the version of software your ReptayTV is using

the Serial Number of your ReptayTV

video setup, including IR blaster code and channel lineup

phone number your ReplayTV uses for dialing the ReptayTV Service

IP address

MAC address

•". Remote Control Setup

Follow these steps to program the remote control to operate your television, TV/VCR combo or TV/DVD combo. When pro-

grammed, the ReptayTV remote will control your TV's power and volume.

1 Press and hold the Mute and TV (Power) buttons until the LED blinks twice.

2 Enter the 4-digit code for your brand of television (see codes on pages 26-28).

For example, for Sony, press Mute and TV (Power) simultaneously, and then press 0-0-0-0.

Ifa valid code has been entered, the LED at the top of the remote will blink twice.

If an invalid code has been entered, there will be one long blink and the remote will revert to the previously programmed code.

3 To test the code, press the TV (Power) button on the remote control.

If your TV turns on/off, programming is complete.

If your TV does not turn on/off, try another code for your brand of television. Not all TVs can be programmed.

_o_ ° To clear all settings, press Mute +TV(Power), then press 9-8-1.

Replay'IV5.5 UG.book Page 24 Frid_3, Augusl I, 2003 10:58 AM

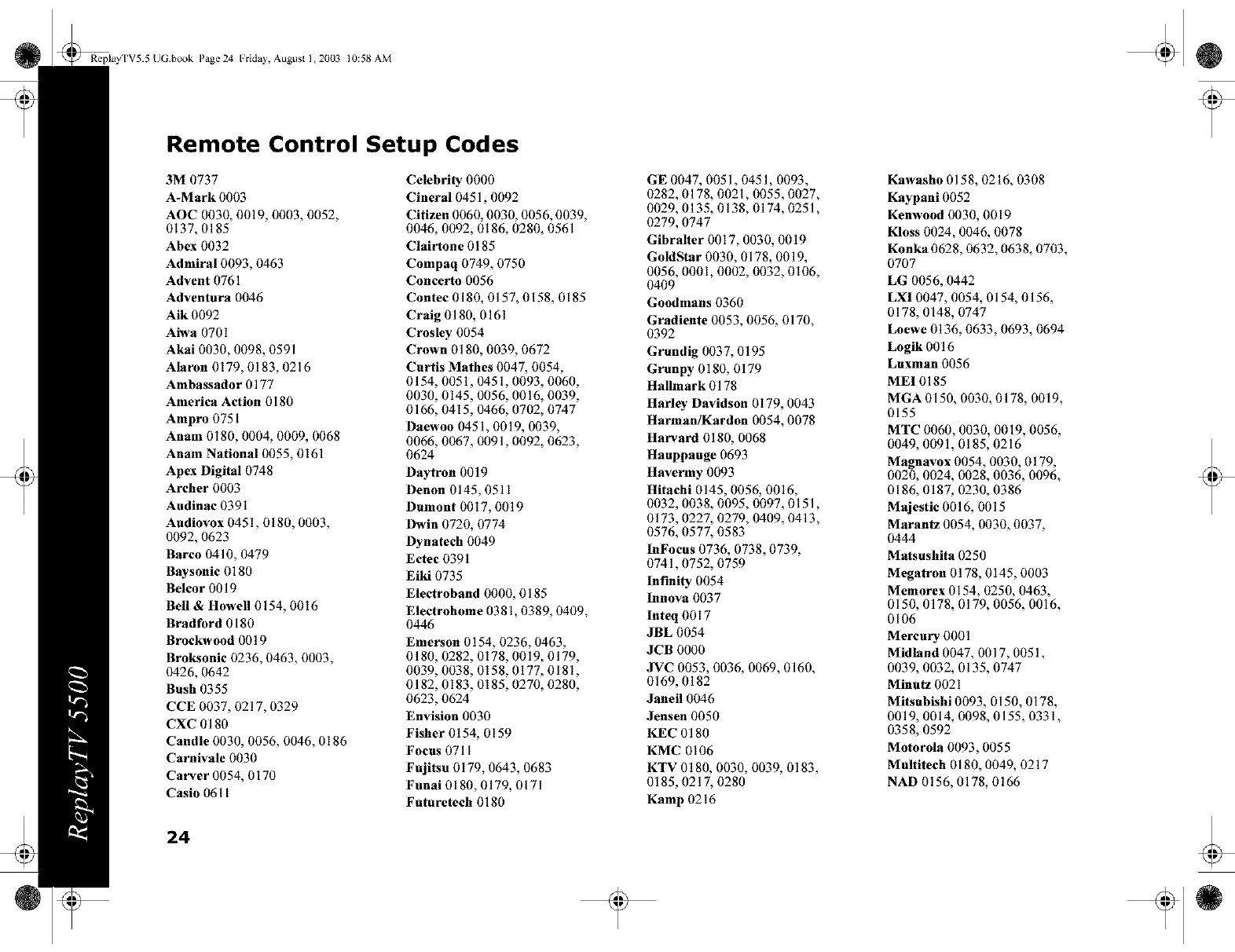

Remote Control Setup Codes

3M 0737

A-Mark 0003

AOC 0030, 0019, 0003, 0052,

0137, 0185

Abex 0032

Admiral 0093, 0463

Advent 0761

Adventura 0046

Aik 0092

Aiwa 0701

Akai 0030, 0098, 0591

Alaron 0179, 0183, 0216

Ambassador 0177

America Action 0180

Ampro 0751

Anam 0180, 0004, 0009, 0068

Anam National 0055, 0161

Apex Digital 0748

Archer 0003

Audina¢ 0391

Audiovox 0451,0180, 0003,

0092, 0623

Barco 0410, 0479

Baysoni¢ 0180

Beleor 0019

Bell & Howell 0154, 0016

Bradford 0180

Broekwood 0019

Broksonie 0236, 0463, 0003,

0426, 0642

Bush 0355

CCE 0037, 0217, 0329

CXC 0180

Candle 0030, 0056, 0046, 0186

Carnivale 0030

Carver 0054, 0170

Casio 0611

Celebrity 0000

Cinera10451,0092

Citizen 0060, 0030, 0056, 0039,

0046, 0092, 0186, 0280, 0561

Clairtone 0185

Compaq 0749, 0750

Concerto 0056

Contec 0180, 0157, 0158, 0185

Craig 0180, 0161

Crosley 0054

Crown 0180, 0039, 0672

Curtis Mathes 0047, 0054,

0154, 0051,0451, 0093, 0060,

0030, 0145, 0056, 0016, 0039,

0166, 0415, 0466, 0702, 0747

Daewoo 0451, 0019, 0039,

0066, 0067, 0091, 0092, 0623,

0624

Daytron 0019

Denon 0145, 0511

Dumont 0017, 0019

Dwin 0720, 0774

Dynateeh 0049

Ectec 0391

Eiki 0735

Eleetroband 0000, 0185

Electrohome 0381,0389, 0409,

0446

Emerson 0154, 0236, 0463,

0180, 0282, 0178, 0019, 0179,

0039, 0038, 0158, 0177, 0181,

0182, 0183, 0185, 0270, 0280,

0623, 0624

Envision 0030

Fisher 0154, 0159

Focus 0711

Fujitsu 0179, 0643, 0683

Funai 0180, 0179, 0171

Futuretech 0180

GE 0047, 005 I, 0451, 0093,

0282, 0178, 0021,0055, 0027,

0029, 0135, 0138, 0174,0251,

0279, 0747

Gibralter 0017, 0030, 0019

GoldStar 0030, 0178, 0019,

0056, 0001, 0002, 0032, 0106,

0409

Goodmans 0360

Gradiente 0053, 0056, 0170,

0392

Grundig 0037, 0195

Grunpy 0180, 0179

Hallmark 0178

Harley Davidson 0179, 0043

Harman/Kardon 0054, 0078

Harvard 0180, 0068

Hauppauge 0693

Havermy 0093

Hitachi 0145, 0056, 0016,

0032, 0038, 0095, 0097, 0151,

0173, 0227, 0279, 0409, 0413,

0576, 0577, 0583

lnFocus 0736, 0738, 0739,

0741, 0752, 0759

Infinity 0054

lnnova 0037

lnteq 0017

JBL 0054

JCB 0000

JVC 0053, 0036, 0069, 0160,

0169,0182

Janeil 0046

Jensen 0050

KEC 0180

KMC 0106

KTV 0180, 0030, 0039, 0183,

0185, 0217, 0280

Kamp 0216

Kawasho 0158, 0216, 0308

Kaypani 0052

Kenwood 0030, 0019

Kloss 0024, 0046, 0078

Konka 0628, 0632, 0638, 0703,

0707

LG 0056, 0442

LXI 0047, 0054, 0154, 0156,

0178, 0148, 0747

Loewe 0136, 0633, 0693, 0694

Logik 0016

Luxman 0056

MEI 0185

MGA 0150, 0030, 0178, 0019,

0155

MTC 0060, 0030, 0019, 0056,

0049, 0091, 0185, 0216

Magnavox 0054, 0030, 0179,

0020, 0024, 0028, 0036, 0096,

0186, 0187, 0230, 0386

Majestic O016, O015

Marantz 0054, 0030, 0037,

0444

Matsushita 0250

Megatron O178, O145, 0003

Memorex 0154, 0250, 0463,

O150, O178, O179, 0056, 0016,

0106

Mercury 0001

Midland 0047, 0017,0051,

0039, 0032, 0135, 0747

Minut_z 0021

Mitsubishi 0093, 0150, 0178,

0019, 0014, 0098, 0155,0331,

0358, 0592

Motorola 0093, 0055

Multiteeh 0180, 0049, 0217

NAD 0156, 0178, 0166

Page 25 Frida3, Augusl I, 2003 10:58 AM

NEC 0030, 0019, 0056, 0036,

0170, 0434, 0455, 0497, 0704

NTC 0092

Netsat 0037

Nikko 0030, 0178, 0092, 0317

Nisato 0391

Noblex 0430

Noshi 0018

On Command 0531, 0876

Onwa 0180

Optlmus 0154, 0250, 0166

Optlview 0756

Optonica 0093, 0165

Orion 0236, 0463, 0179

Ovation 0734

Panasonic 0250, 0051,0055,

0162, 0226, 0338, 0375

Penney 0047, 0156, 0051,0060,

0030, 0178, 002 I, 0019,0018,

0056, 0039, 0002, 0003, 0027,

0032, 01 I0, 0135, 0138, 0149,

0309, 0747

Philco 0054, 0463, 0030, 0145,

0019, 0020, 0028, 0096, 0302

Philips 0054, 0037

Pilot 0030, 0019, 0039

Pioneer 0038, 0166, 0172, 0679

Portland 0019, 0039, 0092

Princeton 0685, 0700, 0717

Prism 0051

ProPresenter 0728, 0733

Proscan 0047, 0747

Proton 0178,0003,0031,0052,

0466

Proxima 0734,0735,0737,

0742,0743

Pa_ar0017,0019

Quasar0250,0051,0165,

0055,0219

RCA 0047,0051,0093,0019,

0018, 0029, 0038, 0090, 0135,

0174, 0254, 0278, 0679, 0747

Radio Shack0047,0154,0165,

0180,0030,0178,0019,0056,

0039, 0032,0409, 0747

Realistic 0154,0165,0180,

0030,0178,0019,0056,0039,

0032

Rhapsody 0183,0185,0216

Ranco0017,0030,0251,0494,

0497,0603,0612

SKY0037

SSS 0180, 0019

Sampo0030,0039,0032,0052,

0100,0110

Samsang 0060,0030,0178,

0019,0056,0032,0037,0329,

0408, 0427,0482, 0702

Samsax 0039

Sansei0451

Sansui0463

Sanyo 0154, 0088, 0107,0146,

0159, 0232,0484

Scimi_u 0019

Scotch 0178

Scott 0236, 0180, 0178, 0019,

0179,0309

Sears 0047,0054,0154,0156,

0178,0179,0056,0015,0146,

0148,0149,0159,0168,0171,

0281,0747

Semivox 0180

Semp 0156

Sharp 0093, 0165, 0039, 0153,

0157,0220,0281,0386,0398,

0491,0688,0689

Shogun 0019

Signature 0016

Simpson 0186,0187

Sinadyne 0347

Sony 0000, 0011, 0080, 0111,

0273,0353,0699

Soundesign 0180,0178,0179,

0186

Speetricon 0003,0137

Squareview 0171

Starlite 0180

Sapre-Macy 0046

Supreme 0000

Sylvania 0054, 0030, 0020,

0028,0065,0096,0171,0381

Symphonic 0180,0171

TMK0178, 0056, 0177

TNCi0017,0709

"l_ndy 0093

1_shiko0588

1_tung 0055, 0003, 0049, 0396

1_chnics 0250,0051

1_chnolAce 0179

1_chnovox 0007

Techwood0051,0056,0003

lYknika0054, 0180, 0150,

0060,0019,0179,0056,0016,

0039,0092,0175,0186,0312,

0322

l¥1efunken 0056,0074,0101,

0702

Telemagic 0735

2¥ra 0031

Thomson 0209,0210

l_shiha 0154, 0156, 0060,

0036,0149

2_sonie 0185

l_tevision 0039

l¥ieal 0157

Ultra 0391

Universal0027

Vector Research 0030

Victor 0053

Video Concepts 0098

Vidikron 0054, 0242

Vidteeh 0178, 0019, 0036

Viking 0046, 0312

Wards 0054, 0165, 0030, 0178,

0021,0019,0179,0056,0016,

0020,0027,0028,0029,0080,

0096,0111,0174,0202

Waycon 0156

White Westinghouse 0463,

0623,0624

Yamaha 0030,0019

Zenith 0017,0463,0016,0092,

0624

Zonda 0003

i uo i

Replay'IV5.5UG.bookPage26Frid_3,AuguslI, 2003 10:58 AM

Setup Codes for TV/

VCR l_ombinations

Aiwa 0680

Broksonic 0479

Citizen 0278

Colt 0072

Daewoo 0278

Emerson 0278, 0479

Funai 0000

GE 0240

GoldStar 0037

Harley Davidson 0000

Hitachi 0000

Lloyd's 0000

Magnasonic 0278, 0593

Magnavox 0081,0000

Magnin 0240

Memorex 0162, 0037

Opfimas 0162, 0593

Orion 0479

Panasonic 0162

Penney 0037, 0240

Quasar 0162

RCA 0240

Sansai 0000, 0479

Sanyo 0240

Sears 0037, 0000

Sony 0032, 0000

Sylvania 0081

Symphonic 0000, 0593

"lbshiba 0845

White Westinghouse 0278

Zenith 0000, 0479, 0637

Setup_ Cod.es for TV/

DVD Combinations

Broksonic 0695

Konka 0719, 0720

Philips 0854

RCA 1022

Sansui 0695

Sylvania 0821

lbshiba 0695, 1045

Page 27 I:rida3, August I, 2003 10:58 AM

Chapter 4 Basic Operations

•". Basic Operations

ReptayTV gives you the power to watch television the way you have always wanted. Create your own channels, watch only what

you want to watch, and do it all on your own schedule-not someone else's. You can also control what you are watching like never

before.

Show Watching Options

Pause live television

Rewind and fast forward

Create slow-motion replays

Bypass unwanted programming 30 seconds at a time using QuickSkip

See an instant replay with the press of a button

Show Recording Options

Record what you are currently watching

Record every episode of your favorite shows

Find shows to record based on a keyword

Record from categories

Record segments of shows

ReplayTV makes recording your favorite shows easy. You can quickly find and record single shows, continuously record every epi-

sode of your favorite shows, and record shows based on themes you create or from Replay Zones-categories of shows organized

and updated by the ReplayTV Service.

If you have more than one ReplayTV on your home network, you can watch a show in one room that was recorded in another room.

_•Although ReplayTV does not need to be on to record television,

your eable box and/or satellite receiver must remain on.

I0,

Replay'IV5.5 UG.book Page 28 I:rldab, August I, 2003 10:58 AM

•".Controlling Live Television

The moment you turn on ReplayTV and your TV, ReplayTV automatically begins recording into a temporary space. ReplayTV will

continue to record even if you delay the broadcast by using the pause, rewind, or Instant Replay features. Recording only stops

when you change channels and begin watching a different show. The temporary space is then cleared and ReptayTV starts record-

ing again.

Pausing live TV and Recorded Shows

ReplayTV's pause feature lets you attend to interruptions without missing a moment of your favorite show. You can pause what-

ever you're watching, whether it's a live television broadcast or a recorded show in the Replay Guide. When you pause a live

broadcast, ReptayTV will continue recording it on the hard drive, so you won't miss a single moment. ReplayTV will remain

paused until it has run out of free space on its hard drive.

1 Press Pause on the ReplayTV remote control.

After you press Pause, an on-screen message wilt appear to indicate the remaining pause time available.

2 Press Play to continue playing the program from the point you paused.

3 Press Return to Live to return to the live broadcast.

Pause options include:

Press Display to view program information.

Press Exit to remove the on-screen display.

Press FAST FORWARD to use the frame advance feature.

Using Rewind and Fast Forward

ReptayTV gives you the power to Rewind or Fast Forward through both live and recorded programs. When using Rewind and Fast

Forward, remember how ReplayTV works: ReptayTV is always recording, but recording will stop, and then start again, whenever

you change channels. You cannot rewind a program to a point before you started watching it, nor can you fast forward a program to

a point beyond the live broadcast.

To use Rewind while watching a show:

1 Press Rewind for lx rewind.

2 Press Rewind again for 2x rewind.

3 Press Rewind again for 4x rewind.

4 Press Rewind again for 16x rewind.

5 Press Rewind again for 20x rewind.

O @Replay'I V5.5 UG.book Page 29 Frida), August I, 2003 10:58 AM

6Press Play, Stop or Fast Forward to stop rewinding.

To use Fast Forward while watching a show:

1 Press Fast Forward for 1x fast forward.

2 Press Fast Forward again for 2x fast forward.

3 Press Fast Forward again for 4x fast forward.

4Press Fast Forward again for 16x fast forward.

5Press Fast Forward again for 20x fast forward.

6Press Play, Stop, Rewind or Instant Replay to stop fast forwarding.

Using Multispeed Slow Motion

ReplayTV lets you watch both live and recorded programs in muttispeed slow motion.

To use Multispeed Slow Motion while watching a show:

1 Press Play for lx slow motion.

2 Press Fast Forward for 2x slow motion.

3 Press Fast Forward again for 3x slow motion.

4Press Rewind (if in 2x or 3x slow motion) to move back one slow motion speed.

To stop Multispeed Slow Motion:

1 Press Play to playback at noi'mat speed.

2 Press Return to Live to return to the live broadcast.

Replay'IV5.5 UG.book Page 30 Fridab, August I, 2003 10:58 AM

Using Frame Advance

Frame Advance lets you watch live or recorded programs a single frame at a time. This is a great feature for fast-moving scenes,

such as sporting events, when you want to slow things down and see every frame.

To use Frame Advance while watching a show:

1 Press Pause.

2 Press Fast Forward to advance a single frame.

3 Repeatedly press Fast Forward to advance frame-by-frame.

To stop Frame Advance:

1 Press Play to resume playback at normal speed.

2 Press Return to Live to return to the live broadcast.

Using Instant Replay

The Instant Replay feature lets you jump back seven seconds during a live or recorded show. It's the perfect way to ensure you

don't miss a single word of dialogue in your favorite movie, or if you want to watch a great play over again at the touch of a button.

You can also use the number bu_ons to jump back a specific number of minutes. For example, pressing the numbers 1-0 and then

the Instant Replay button will jump back exactly 10 minutes.

To use Instant Replay while watching a show:

1 Press Instant Replay on the ReplayTV remote control.

2Press Return to Live if you want to return to the live broadcast.

Using QuickSkip

You can use the QuickSkip feature to quickty jump 30 seconds ahead during live or recorded shows. QuickSkip is perfect for jump-

ing past undesired scenes without having to watch them as you would using fast forward. QuickSkip can only be used during live

broadcasts if you are watching the show delayed by more than 30 seconds.

You can also use the number buttons to jump ahead a specific number of minutes. For example, pressing the numbers 1-0 and then

the QuickSkip button will jump ahead exactly 10 minutes.

1 Press QuickSkip.

2If you skip forward too far, simply press Instant Replay to jump back.

Page 31 I-'rida3, August I, 2003 10:58 AM

Using Jump

Use Jump to move quickly between the channel you are currently watching and the last channel displayed. This includes jumping

between two recorded shows and a recorded show and a live show.

To use Jump while watching a show:

1 Press Jump to move to the last channel displayed.

2Press Jump again to return to the channel you were watching.

You can also go to an exact point in a show using Jump. For example, to go to the 10 minute mark in a show, press the numbers

1-0 and then the Jump button.

Replay'IV5.5 UG.book Page 32 I:rldab, August I, 2003 10:58 AM

:: Channel Guide

The Channel Guide is an interactive, on-screen program guide that lists 12 days of television programming for all of the channels

you receive. ReplayTV receives the latest Channel Guide information from the ReplayTV Service each day. As long as you keep an

active Ethernet or telephone line plugged into ReplayTV, you will always have 12 days of the most cun'ent listings available.

Program

information

Channels

Currently selected Shows on now Shows c later

show (blue) (green)

Program information: When

available, program information can

include show title, scheduled

airtime, episode title, FCC rating,

episode description, and actors'

names.

Program information includes the

time the show ended ReplayTV will

display up to 24 hours of previously

broadcast programming. If you

missed a show, you can select it in

the Channel Guide and instruct

ReplayTV to search for all the

episodes that are scheduled to air

Then, you can schedule Replay TV to

record a future airing of the show.

Channels: Indicates the broadeast

station for each particular channel.

Shows: Shows that have been

broadcast appear grey. Shows that

are on now are blue. Shows that are

airing in the future are green.

Page 33 I:rida3, August I, 2003 10:58 AM

Using the Channel Guide

1 Press Channel Guide on the ReplayTV remote control.

2 Press Menu, then select Channel Guide.

Navigate through the Channel Guide by pressing the Up, Down, Left and Right Arrow buttons. Notice the program information

changes to display the information for the currently highlighted show.

To go to a channel, enter the channel number and press the Select button.

To tune to a channel, highlight the channel and press the Select button.

To jump ahead 12 hours, press the Fast Forward button.

To go back 12 hours, press the Rewind button.

To move one screen at a time, press the Channel +/- buttons.

See "Channel Guide Shortcuts" on page 51.

Watching a Show that is Currently Airing

1 Press Channel Guide.

2 Highlight a blue show.

3 Press Select.

ReptayTV will tune directly to the channel you selected unless another channel is currently recording.

Channel Guide Options

Depending on the type of channel you have selected, the following options may be available when you press Select with afuture

show (green) highlighted:

Record this show: Schedule the selected show to record.

Record on networked ReplayTV: Schedule the selected show to record on another ReplayTV in your home.

Change record options: Adjust the recording options.

Turn off record: Turn offa scheduled recording.

Find all episodes: Locate all episodes of the show that are scheduled to air in the next 12 days.

Tune to channel "X": Tune your television to the highlighted channel.

Exit: Exit the Channel Guide pop-up menu.

Replay'IV5.5UG.bookPage34I-'rida),AugustI,200310:58AM

Viewing Other Show Information

You can see what is showing later on a channel you are currently watching, and see what is on other channels while watching live

TV by doing the following:

Press any of the AITow buttons or the Select button to see infolanation about the show you are currently watching. Press the

Right Arrow button repeatedly to view infolanation about future shows on the current channel.

Press the Up Arrow button to see what's on the next channel and the Down Arrow button to see what's on the previous channel.

To record a show, press the Record button.

Watching a Live Show While ReplayTV is Recording

Even ifReptayTV is recording a show, you can watch a live show at the same time. You can do this if you are using basic cable (no

box from your cable provider) or a rooftop antenna. Here's how:

1 Connect the incoming cable or antenna feed from the wall inyour home to the IN FROM ANT/CATV input on ReplayTV.

Connect a coaxial cable from the OUT TO TV connector on ReplayTV to the VHF/UHF input on your rV.

2 Turn offReptayTV.

3 Change the channel on your television to whatever live channel you want to watch. ReplayTV will continue recording.

Watching Shows Blocked by V-Chip Technology

Although ReplayTV supports V-Chip technology, your TV controls the actual V-Chip settings. Your TV may display a message

that the current program is blocked. If you want to watch or record a show that is blocked, you will need to unlock the parental con-

trol on your TV. Refer to your television owner's manual for more information.

Watching Shows with Closed-Captioning

ReplayTV records closed caption information. To view the closed captioning for a live or recorded show, enable the feature as you

normally would on your TV.

O @Replay'I V5.5 UG.book Page 35 I:rida), August I, 2003 10:58 AM

•". Recording Shows

To record the live show you are watching:

1 Press Record on the ReplayTV remote control.

2 Set the Record Options. See "Setting the Recording Options" on page 36 for more information on the Record Options.

Or, press Record to begin recording at the default recording settings.

To record a single episode of a show:

1 Press ChannelGuide.

2 Highlight an upcoming show (green).

3 Press Record.

To record multiple episodes of a show:

1 Press ChannelGuide.

2 Highlight a show.

3 Press Record.

4Press Record again.

This will record the selected show everyday of the week, every week, only on that channel, and in that time slot. If you want to

record the show on every channel and time slot, See "Find Shows" on page 38.

See "Resolving Conflicting Recordings" on page 42 if you see a conflict message when setting up a recording.

_ • One red dot appears next to a show if ReplayTV is scheduled to

record a single episode," two red dots appear if ReplayTV is

scheduled to record all episodes.

• A red line at the beginning of a show indicates you have set the

show to start recording early; a red line at the end of a show

indicates you have set the show to continue recording after its

schedule end time.

Gray dots represent suspended recordings (another show will

record in its place).

I0,

Replay'IV5.5 UG.book Page 36 I:rlda), August I, 2003 10:58 AM

Setting the Recording Options

All shows are recorded using the default recording settings, unless you change them. You can change these settings whenever you

choose to record the show you are cun'entty watching, or when you select a show to record in the Channel Guide. Recording set-

tings can also be changed before a show you set to record begins.

Recording One Show Only

To record a single show, choose Record: This show only.

The other options on this screen can bet set accordingly:

Select Keep until: Idelete, and the show remains indefinitely untilyou

choose to delete it. If you select Keep until: space needed, the show

remains umil it becomes the oldest show on the unit and space is

needed to record a new show. Only in this case will it be deleted to free

up room for the new show.

_o_ ° See "Setting the Recording Quality" on page 37 for an explana-

tion of the recording quality options. See "Advanced Settings"

on page 37 to see how you can fine-tune the recording features

of the shows you choose to record.

Recording First Run Episodes (Exclude Repeats)

To record first run episodes only, and skip the repeats, choose

Record: First rnn episodes. You can still record all episodes by choosing

Record: First run and repeats.

The other options on this screen can bet set accordingly:

Set Keep: XEpisodes to the number of episodes of this series of shows

that you would like to store on ReplayTV.

Protect recun'ing show episodes from being replaced by selecting

Delete oldest: Only for new episode, which means that shows in the

selected series of recordings will only be deleted to make room for new

episodes of the same show. This is based on how many episodes of the

show you choose to Keep. Choosing Delete oldest: If space needed

means the oldest episode in this series of recordings will be replaced by

other shows that need space to record.

Page 37 I:rida3, August I, 2003 10:58 AM

Setting the Recording Quality

Choose from Standard, Medium, and High.

Standard: Uses the least amount of recording space, but records at a level that is not recommended for fast-action shows.

Medium: Offers excellent picture quality but uses more recording space than Standard quality recordings.

High: Provides the highest quality recording but uses the most recording space. Notice that the reserved space (hours and min-

utes available) changes as you adjust the recording quality when you choose Keep: Until I delete. The higher the recording

quality is set, the less recording space is available for recording. To conserve space, use High sparingly, for example to record

fast-action shows where quality is vital.

Advanced Settings

The Advanced Settings screen provides ways for you to fine-tune the recording features of the shows you choose to record.

Start/End recording: Some shows do not always start and end at their scheduled times. Set the amount of time you want

ReplayTV to record before or after the scheduled show airs to be sure you don't miss a second of your shows. A red line wilt appear

on the show in the Channel Guide to indicate that you have extended the recording time.

Store in category: Select a category, either predefined or that you create, to store the recorded show. Your show will automatically

be placed in the category you choose so you can easily find and watch it.

Create a new category: Create a new category for storing recorded shows.

Record shows on: To avoid time conflicts with other shows, check only the days you want this show to record.

To adjust Advanced Settings after arecording has been set up:

1 Highlight a Replay channel in the Replay Guide and press the Select button.

2 Select Change record options then choose Advanced Settings.

3 Adjust the settings and select Done.

Recording Priorities

All shows that you schedule will record unless there is a time conflict with another show. In the event of a conflict, a screen will dis-

play so you can choose which show you prefer to record. If the drive fills up with recorded shows, the oldest show on the drive will

be removed to make room for a new recording. See "Resolving Conflicting Recordings" on page 42.

Replay'IV5.5 UG.book Page 38 I:rida), August I, 2003 10:58 AM

:: Find Shows

ReplayTV can search through the Channel Guide for shows so you don't have to. Find Shows is the perfect feature for those times

when there is a show you want to record, but don't know what time or channel it is on. You can also use it to find when your favor-

ite show will air next. OI, use Find Shows to search for a show based on a topic, interest, hobby, show title, or favorite actor or

director. Theme-based channels record a specific amount of programming (1/2 hour, 2 hours, etc.) based on keywords that you

choose.

1 Press Menu on the ReptayTV remote control.

2 Select Find Shows.

3 Enter one or more keywords.

4Select Done.

5Set Find Shows options.

6Select Done.

ReptayTV will search through your channel listings for shows matching the keyword. If you use multiple keywords, only

shows appropriate to both keywords will be listed. Select Change search options if you want to change the keyword or search

criteria.

7 Select Create the "Keyword(s)" Theme Channel. You can also highlight an individual show and press REC once to record

just this show, or twice to record all episodes of the show.

8 Set the recording options. See "Setting the Recording Options" on page 36 for more information.

9 Select Done. Your show will be recorded at the scheduled time.

QYou can still create a theme even if there are no matches found

in your seamh. For example, if you are looking,for a movie that

_\_ will not air for two weeks, it will not be found in your search

because the Channel Guide only contains 12 days of listings.

Page 39 Frida3, August I, 2003 10:58 AM

•". Replay Zones

You can quickly and easily find what's on TV, organized in user-friendly categories, using Replay Zones. Zone-based channels can

hold a specific amount of programming (1/2 hour, 2 hours, etc.).

To Record a Show from a Replay Zone:

1 Press Zones on the ReptayTV remote control.

2 Select a Replay Zone.

3 Select a category.

ReptayTV will search through your channel listings for shows appropriate to the chan-

nel.

4Select Create the"Zone Channel."

5Set the recording options. Refer to "Setting the Recording Options" on page 36

for more infoI'mation.

6Select Done. Your show will be recorded at the scheduled time.

QWhen setting Zone-based recording options, be sure to Keep

enough time to record the shows you expect the Zone to ,find.

For example, lf you only keep 30 minutes in the Science Fiction

Zone channel, the channel will never record a two-hour movie.

•Select the Movies category to,find all movies that are on now or

upcoming.

Use Zones to schedule movie or series premieres so you don't

miss the new shows.

¢/)

•1_ ¢/)

I0,

P.eplay'lV5.5 UG.book Page 40 I-'rlda), August I, 2003 10:58 AM

:: Using Manual Record

With Manual Record, you can record shows that do not fit into nolanal programming

blocks, such as sporting events, music videos, 24-hour news streams, or when you only

want to record a few minutes of a show. This feature also allows you to record your

home videos from a video camera or VCR so you can watch them using ReplayTV.

Recording by date, time and channel

Select Manual Record from the Main Menu and follow the on-screen instructions.

Choose single or repeat recording, date, time, and channel. You wilt also be able to

record from an input other than the cun'ent input.

Recording home videos from a video camera or VCR

1 Select Manual Record from the Main Menu and choose Single Recording.

2 Set the date and time you want the recording to begin. Continue to the screen where

you choose which channel to record from, and press Display.

3 Choose the input source to which the video camera or VCR is connected. See "Connecting a Video Camera or VCR to

ReplayTV" on page l0 for more infoi_aation.

4 Turn on your video camera or VCR before the scheduled recording time you set up.

5 ReplayTV will begin recording at the scheduled time you set up. Once the recording is completed, go to the Replay Guide to

watch your video.

Changing the Default Recording Options

If ReplayTV does not require you to set recording options when you sched-

ule a show recording, the show will be recorded using the Default Record

Options. Setting the recording options on this screen means that pressing

the Record button once in the Channel Guide applies the Single Record-

ings settings, and twice applies the Repeat Recordings settings. The Qual-

ity and Store in category settings apply to all shows you record. To change

the recording options:

1 Press the Menu button on the ReptayTV remote control.

2 Select Setup.

3 Select Default Record Options.

4Adjust the options.

5Select Done.

Page 41 I:rida3, August I, 2003 10:58 AM

Cancelling a Recording

To cancel a recording before it starts:

1 Press Channel Guide on the ReplayTV remote.

2Highlight the show you want to cancel.

You will know it's set to record because at least one red dot wilt appear next to the show.

3 Press Select.

4Select Turn off record from the on-screen menu.

To cancel a recording in progress:

Press Stop on the ReptayTV remote and follow the on-screen instructions.

To delete a recorded show in the Replay Guide:

1 Press Replay Guide on the ReptayTV remote.

2Highlight the show you want to delete.

3 Press Select.

4 Select Delete.

Replay Channels

Every show you record becomes a Replay channel and is stored in the Replay Guide. Some channels record all episodes of a show,

others are one-time recordings. Theme channels, or channels creating using a keyword, are set up using Replay Zones and the Find

Shows feature.

Replay'IV5.5 UG.book Page 42 Frida3, August I, 2003 10:58 AM

Resolving Conflicting Recordings

You can decide what will be recorded when scheduling a show at the same time as a previously scheduled recording. When record-

ings conflict, you will be notified of a conflict between a currently scheduled recording and the recording you are setting up.

you are trying to schedule

Currently scheduled recordings

that it conflicts with

Press the DISPLAY button to list all

of these shows

If there is a conflict with an existing single show recording, the day and date of the conflict are shown, for example "Tue 1/7." If the

conflict is with several episodes of a repeating recording, the number of shows that would conflict is shown, for example "6

shows."

• Sched ule new recording anyway

Choose this to record the show you're trying to schedule. The new show wilt record instead of the scheduled recordings with

which it conflicts.

• Record shows that don't conflict

If the new recording is a repeating recording, this additional option is available. This option sets up the new recordings and

keeps in place any scheduled recordings that don't conflict.

Sched ule on another ReplayTV

This option is only available if you have networked ReplayTVs. To schedule the show on another ReplayTV, choose the

ReptayTV on which you want to record from the menu that displays and press Select.

_o_ ° Gray dots represent suspended repeating recordings.

Page 43 I:rida3, August I, 2003 10:58 AM

:: Replay Guide

Think of the Replay Guide as your personal television station, broadcasting only the shows you want to watch. You can find every

show that ReplayTV has recorded for you in the Replay Guide. From the Replay Guide, you can schedule, play, and delete recorded

programs. ReptayTV also allows you to place your recorded shows into Categories, either predefined or that you create, for easy

management.

Program

Information

Categories

Replay

Channels

At Risk

Show

Recorded Shows

Remote ReplayTV Finder

Available Free Space

Remote Replay TV Finder: View and play

shows from other in-home networked

ReplayTVs. This is only available _f more

than one ReplayTV is on your network.

Seepage 4 Z

Program Information: When available,

program information about the show is

displayed.

Categories: Choose from provided

Categories or create your own to store

and organize your reeorded shows.

See page 44.

Replay Channels: The channel

associated with scheduled and recorded

shows. Replay channels control how

shows are recorded. See page 44.

At Risk Show: Shows that are at risk of

being replaeed by a new reeording appear

gray. See page 46.

Recorded Shows: Shows that have been

recorded. Every show that ReplayTV

records or has seheduled to record can be

found in the Replay Guide. Seepage 2Z

Available Free Space: Displays the

amount of recording time currently free at

the eurrent default recording quality.

Replay'IV5.5UG.bookPage44I:rida3,AugustI,200310:58AM

Navigating the Replay Guide

1 Press Replay Guide on the ReplayTV remote control.

2 Press Menu, then select Replay Guide.

Navigate through the Replay Guide by pressing the Up, Down, Left and Right Arrow buttons. Press the Fast Forward and Rewind

buttons from anywhere within the Replay Guide to view the next or previous category. When navigating through shows within a

category, notice the program information changes to display the infoi'mation for the currently highlighted show.

Use the Up and Down Arrow buttons to move among Channels and Shows, Categories, and the Remote ReplayTV Finder. You

can also use the Jump button to quickly go to and from each area within the Replay Guide.

_€ ° If there is only one ReplayTV on the network, the Remote

ReplayTV Finder will be inaccessible.

Category Options

Rename category: Change the name of a category.

Create new category: Add a new category to the Replay Guide.

Move left: Move the category to the left.

Move right: Move the category to the right.

Delete: Delete the selected category.

_• The AlI Shows category contains every show ReplayTV records

and cannot be deleted.

Replay Channel Options

Depending on the type of channel you have selected, the following options may be available.

Change record options: Adjust the recording options.

Rename channel: Create a new name for the channel.

Change category: Move the selected Replay channel to another category.

Change search options: Adjust how this channel searches for shows by its keyword.

Find all episodes: Locate all episodes of the show associated with the Replay channel.

Find matching shows: Find shows that match the theme.

Delete: Delete the selected Replay channel.

O @Replay'I V5.5 UG.book Page 45 I:rida), August I, 2003 10:58 AM

Replay Show Options

Play: Play the show from its current point.

Play from beginning: Play the show from the start.

Keep until I delete: Save the show in the Replay Guide. See "Keeping an Episode of a Show" below.

Save to VCR: Save the show to a videotape. See "Saving Recordings to Videotape" on page 46.

Find all episodes: Find upcoming episodes of the show.

Rename show: Change the name of the show. This is beneficial for shows recorded using Manual Record.

Delete: Delete the show.

Exit: Exit the Replay show pop-up menu.

Watching a Recorded Show

1 Press Replay Guide on the remote control.

2 Select a category.

3 Highlight the show you want to watch.

4 Press Select.

5 Select Play or Play from beginning.

Keeping an Episode of a Show

If you have scheduled ReplayTV to record all episodes of a particular show or to record a show based on a theme, the most current

episode may be recorded over the oldest episode. ReplayTV lets you keep episodes to prevent them from being recorded over

before you watch them.

To preserve a recording:

1 Press Replay Guide on the ReptayTV remote.

2 Highlight the show you want to preserve.

3 Press Select.

4 Select Keep until I delete.

If recording space permits, the show wilt be moved from its current Replay channel and saved in the Replay Guide.

Replay'IV5.5 UG.book Page 46 I:rldab, August I, 2003 10:58 AM

Shows at Risk of Deletion

Shows that are at risk of deletion are colored gray in the Replay Guide. Shows will be deleted when space is needed for new record-

ings. This allows you to decide whether to watch the show now or to preserve it by choosing "Keep until I delete" on the show's

menu. As long as there is more than four hours remaining (at the default recording quality), you will never see any of your shows at

risk.

If there are less than four hours of free space available, the oldest show(s) are identified and considered at risk of deletion. A show

is deemed "at risk" when the following occurs:

It is a single show recording and the Keep until option is set to "Space needed" ol, it is a repeating show recording and the

Delete oldest option is set to "if space needed."

It is a show that would be automatically deleted to make room should a four-hour show at the default quality be recorded.

Saving Recordings to Videotape

ReplayTV is not intended to be used as a long-term storage device. You can free up more recording space by transferring your

recordings to videotape and watching them on your VCR.

Before saving a recording to videotape, make sure your VCR is connected properly to ReplayTV. See "Connecting ReplayTV to a

VCR" on page 10 for more infomqation. If ReptayTV is connected to your VCR using A/V or S-Video cables, your VCR must be

set to Line or Aux Input. If your VCR is set to channel 3, it's using the RF/Coaxiat Input.

To save a recording to videotape:

1. Turn on your VCR.

2. Insert a videotape into your VCR.

3. Press Replay Guide.

4. Highlight the recording you want to save to videotape.

5. Press Select.

6. Select Save to VCR.

7. Select Continue to start the countdown.

8. Press Record on your VCR.

_, •While the recording is being saved to videotape, do not press

any buttons on the ReplayTVremote control. On-screen dis-

plays will be recorded _f they appea_

Page 47 I:rida3, August I, 2003 10:58 AM

Chapter 5 Advanced Features

:: Watching Shows Recorded on other ReplayTVs

By connecting ReplayTV to your home network, you can watch a show in the bedroom that was recorded in the living room. You

can also transfer digital photos from your PC to ReplayTV by installing the ReptayTV Photo Transfer Software available at

www.replaytv.com. See "Installing ReplayTV Photo Transfer" on page 49.

You can watch shows recorded on other ReplayTVs even _fyou

are using a modem to connect to the ReplayTV Service. See

"Using In-Home Video Sharing and Photo Viewer Without a

Home Network" on page 15.

Playing Shows from Another In-home ReplayTV

If you have more than one ReplayTV on your home network, you can play shows from another ReplayTV by accessing its Replay

Guide. Each ReplayTV on the network must have a unique name (Living Room, Kid's Room, Master Bedroom, etc.). You can

choose from the list of default names or create your own. Select ReplayTV Name from the Setup menu if you want to rename your

ReptayTV.

_e • Although it is technically possible to watch a show from one

ReplayTV on multiple remote units at the same time, for best

results it is recommended that you watch a remote show.from

only one ReplayTg

In addition to browsing remote Replay Guides, you will be able to:

Play a show on a remote ReplayTV from your local ReplayTV.

Delete a show on a remote ReplayTV from your local ReptayTV.

Schedule shows to record on a remote ReptayTV from your local ReptayTV.

Replay'IV5.5 UG.book Page 48 I:rida3, August I, 2003 10:58 AM

Viewing Other In-home Replay Guides

If more than one ReplayTV exists on your home network, you will see left and right arrows next to the ReplayTV name in the upper

right hand corner of the Replay Guide. This is called the Remote ReplayTV Finder. From here, you can view other networked

ReptayTVs in your home and watch the shows it recorded. You can even start watching a show in one room, and continue watching

the show in another room right from where you left off:

_, • If there is only one ReplayTV on the network, the left and right

arrows will not be displayed next to the ReplayTV name.

To View Another ReplayTV:

1 Use the Up Arrow or Jump button to move to the

Remote ReplayTV Finder. You can also press the

QuickSkip button from anywhere within the Replay

Guide to immediately access another Replay Guide.

Press QuickSkip repeatedly to continue through all in-

home ReplayTVs.

2 Use the Right and Left AITow buttons to choose

another ReplayTV that is connected to your network.

3 Choose the category you want to browse.

4Use the Down Arrow or Jump button to go to the

shows in the category.

5 Highlight a show you want to watch and press Select.

Operations on Remote Shows

Play: Play the selected show from its current point.

Play from beginning: Play the selected show from the

beginning. This option will only be available for remote

shows that have ah'eady been played on the remote

ReplayTV.

Find all episodes: Find upcoming episodes of the show.

Delete: Delete the selected show.

Categories ....

Replay

Channels

and their

recorded

shows

Remote ReplayTV Finder

_o_ "If the seleeted show is eurrently recording or being played by

another viewe_ you cannot delete the show. Pressing Stop

while watching a remote show that is currently recording will

stop playback but not stop the recording.

Page 49 I:rida3, August I, 2003 10:58 AM

:: Screen Saver and Pause Screen

The screen saver and pause screen feature on the Setup menu allows you to display your digital photos (JPEGs) when the screen

saver is activated or when you press the Pause button. To use your photos, you need to copy them from your PC to your ReplayTV

using the ReplayTV Photo Transfer software. See "Installing ReplayTV Photo Transfer" below. The photos are stored in the Photo

Viewer on the ReplayTV Main Menu once you have copied them to ReptayTV.

There is a default screen saver if you do not want to use your own photos. The screen saver will be activated if there is no input

from the ReptayTV remote control or front panel and the following circumstances apply:

1 Live TV is stopped or paused for 10 minutes.

2 A ReplayTV screen (Main Menu, Channel Guide, etc.) is displayed on the screen for 10 minutes.

Installing ReplayTV Photo Transfer

ReptayTV Photo Transfer is compatible with Windows 98, 98SE, ME, and 2000 and can be downloaded from www.reptaytv.com.

1 Go to www.reptaytv.com to install the Photo Transfer software.

2 The installation process will place a ReplayTV icon on your Window's desktop. Double-click the icon to open a window where

all ReptayTVs on the network will be listed. At the end of the installation, you will be able to view and print a "readme" file,

which explains how the ReplayTV photo hierarchy works.

You can create folders inside the "Photos ",folder but not inside

one of those folders. Each folder can hold a maximum o,/'200

jpeg photos. You must copy photo files into the folders you ere-

ate. Onlyjpeg photos are supported.

To transfer your photos to ReptayTV, simply copy your photos into the folders that you have created. Each folder (and its accompa-

nying photos) is considered a separate slide show and can be named appropriately: for example, "Fishing" or "Vacation." The slide

show feature is controlled with the Photo Viewel, accessed from the Main Menu. See "Using the Photo Viewer" on page 50.

To access the screen saver and pause screen settings:

1 Press Menu.

2 Select Setup from the Main Menu.

3 Select Screen Saver and Pause Screen from the Setup menu.

4 Choose which screen saver or pause screen you would like to use, then select Done.

P.eplay'lV5.5 UG.book Page 50 I:rldab, August I. 2003 10:58 AM

Using the Photo Viewer

1 Press Menu on the remote.

2 Select Photo Viewer from the Main Menu.

The Photo Viewer wilt open, listing your available slide shows.

Select the slide show you want to see and press the Select or Play button on the

remote to start playback. The photos in the slide show will be displayed in alpha-

betical order The slide show can be controlled by the remote control functions

listed below.

Rewind and Fast Forward: Speed up and slow down the presentation.

QuickSkip: Move to the next slide.

Instant Replay: Go back to the previous slide.

Pause: Pause the slide show.

Stop: Return to the Photo Viewer

Exit: Return to the Photo Viewei:

If Play is pressed after Stop, the slide show will begin again from the stopping

point.

Page 51 I-'rida3, August I, 2003 10:58 AM

:: Remote Control Shortcuts

Show-watching Shortcuts

To skip ahead a specific amount of time, enter the time in minutes then press QuickSkip.

To go back a specific amount of time, enter the time in minutes then press Instant Replay.

To go to a specific time within a recorded show, enter the time (for example, 02 to go to the second minute in the show), then

press the Jump button.

To skip to a certain time from the end of a show, enter the time in minutes then press Return to Live.

To go to the beginning of a recorded show, enter 0 then press Jump.

To go to the end of a recorded show, enter 999 then press Jump.

Channel Guide Shortcuts

To .jump ahead 12 hours, press the Fast Forward button.

To go back 12 hours, press the Rewind button.

To move one screen at a time, press the Channel +/- buttons.

To go to a channel, enter the channel number and press the Select button.

To tune to a current show, highlight the show and press the Select button.

To display a current show's pop-up menu, highlight the show and press Enter.

To go forward x number of days, enter the number of days you wish to skip, then press Fast Forward.

To go back x number of days, enter the number of days you wish to return, then press Rewind.

To go forward x number of hours, euter the number of hours you wish to skip, then press Quick Skip.

To go back x number of hours, enter the number of hours you wish to return, then press Instant Replay.

To go to a specific hour in the day, enter the hour (0-23), then press Jump.

To return to the current time, press Return to Live.

Replay'IV5.5 UG.book Page 52 I:rida), August I, 2003 10:58 AM

Replay Guide Shortcuts

To view the Replay Guide of the next ReplayTV on the network, press QuickSkip.

To view the Replay Guide of the previous ReplayTV on the network, press Instant Replay.

To return to viewing the local Replay Guide, highlight the Remote ReplayTV Finder and press Return to Live.

Press Jump to go from the show content area to the categories to the Remote ReplayTV Finder.

Press Return to Live with a category highlighted to go to the All Shows category.

Find Shows On-screen Keyboard Shortcuts

To move to the next screen after typing a keyword, press the REC button.

To erase a charactm, press the Rewind button.

To insert a space, press the Fast Forward button.

Slide Show Control Shortcuts

Select or Play: Start slide show playback.

Rewind and Fast Forward: Speed up and slow down the presentation.

QuickSkip: Move to the next slide.

Instant Replay: Go back to the previous slide.

Pause: Pause the slide show.

Stop: Return to the Photo Viewer If Play is pressed after Stop the slide show will begin again from the stopping point.

Exit: Return to the Photo Viewei:

Channel Surfing Display Shortcuts

To return to the current time, press Return to Live.

Record Options Screen Shortcuts

To confirm the settings without scrolling down to "Done," press REC.

To return to the Find Shows keyboard, press Rewind.

Page 53 I:rida3, August I, 2003 10:58 AM

Chapter 6 Help

•". Troubleshooting

Customer Service Information

The FAQs below will help you solve common issues with your ReptayTV 5500. If you do not find the answers you need here, you

can contact our Customer Service Department as follows:

E-Mail customercare@reptaytv.com

Web www.replaytv.com

Phone (800) 933-5899

Frequently Asked Questions

ReplayTV is connected to my TV,

but I do not see the Quick Setup

Screen. •

The picture quality is poor.

Video

Confirm that the correct line input is selected on your TV. (Press the TV/Video button on your TV to cycle through

inputs.)

Confirm that ReplayTV is not in standby mode by pressing the power button on the front of ReplayTV. Verify that

the blue Power light on the unit is illuminated.

lfyou are using the Component Video Out on ReplayTV, you need to connect the yellow video cable from the

A/V cable during the first-time Quick Setup process.

lfyou are using an A/V receiver in your setup, verify that the input source is the same as the output source going

to your television. For example, if you are using an S-Video output to connect ReplayTV to an A/V receiver, you

will need to use an S-Video output to connect your A/V receiver to your TV. This is a limitation of most A/V

receivers.

• Record shows at a higher quality level to see if the problem is resolved.

• Change video cables.

• Use higher quality video input and output connections. RF is the lowest quality. S-Video and Component are the

highest quality video cables.

• If you have basic cable, try a signal booster. A weak signal will cause picture quality to be degraded.

u,_0

Replay'IV5.5 UG.book Page 54 Frida), Augusl I, 2003 10:58 AM

When I try to change channels, l see

a blue screen that states "No video

signal," and the channel does not

change.

• Confirm that you subscribe to the channel.

• Verify that the A/V connections from your cable box/satellite receiver to ReplayTV are correct.

• Verify that the correct inputs to ReplayTV are salected in Setup. Verify that only one input is configured for each

satellite receiver or cable box connected to ReplayTV. Also, if using S-Video, verify that IN 2 is chosen. Verify

that all of your components are turned on.

• A weak signal can cause this problem. Try adding a signal booster and removing or replacing any splitters you

may have incorporated into your setup.

•'lYy different cables. Poor quality cables may cause this.

There is no color when watching • Verify your video cables are securely fastened. Loose cables can cause a loss of color.

recorded shows. • Change your video cables.

• If you have basic cable, try a signal booster. A weak video signal can cause color loss.

• 'lYy using a different input on Replay'fV or a different input on your TV.

• 'Dy connecting ReplayTV to a different TV.

Cable Box and Satellite Receiver Control

When I select a channel in the Chan-

nel Guide, the channel number does

not change on my satellite receiver

or cable box.

lfyou are using an IR blaster connection to control channel changing, verify that the IR blaster cable is securely

attached to the IR BLAS'I ER jack on ReplayTV, and that you have affixed the IR emitter directly over the IR

detector on your cable box or satellite receiver.

Shine a flashlight into the opaque IR front panel on your cable box or satellite receiver to verify the location of the

IR detector.

Confirm that you have selected the correct IR code for your cable box or satellite receiver. Even if an 1R code fails

to turn the unit on or off, it can still be used to successfully change channels.

'lYy all the other IR codes listed for your cable box or satellite receiver brand. If none work, try the codes listed

under "Other."

My cable box sometimes tails to • lfyou are using the lR blaster, your cable box receives lR commands from both the ReplayTV remote and the lR

change channels when using the blaster. Some cable boxes can be confused by this. You can block the commands from the ReplayTV remote con-

ReplayTV remote control, trol by affixing an opaque covering around the area where you have placed the IR emitter on your cable box. Do

not cover the IR emitter.

The IR blaster occasionally misses Sometimes the IR blaster sends too strong of a signal to your cable box or satellite receiver, causing it to miss a digit

channel change commands, in the channel-change sequence.

• Affix the IR emitter next to or 1/2 inch awayjkom the IR detector on your cable box or satellite receiver instead of

directly over it.

• Adjusting the settings for an IR blaster code can improve performance. Contact Customer Care for details on fine

tuning your IR blaster code.

I can't change channels on my DISH • ReplayTV cannot control your DISH receiver if it is UHF controlled. Check if your DISH receiver supports both

Networks satellite receiver. 1R and UHF. If it supports both, you need to change the remote ID value on the DISH receiver to I.

Page 55 Frida3, August I, 2003 10:58 AM

ReplayTV cannot change channels • You can only user the serial cable with some DirecTV receivers. The serial cable is not supported by DlS H receiv-

on my satellite receiver using the ers or cable boxes.

serial cable. • Verify that the serial cable is securely connected to both ReplayTV and your DirecTV receiver.

• If the Serial port on your DirecTV receiver is a phone jack, verify that the port has "low speed data" beneath it.

• Verify in ReplayTV's Setup that you chose Serial and not IR blaster when configuring inputs.

• If your satellite receiver allows you to change the settings for the serial port, verify that it is set to Low Speed

Data.

Lockup/Please Wait

ReplayTV does not respond when I • Press and hold the POWER button on the front of ReplayTV for I 0 seconds, then release. Replay'FV ,,viii restart

press buttons on the remote control, in a few moments.

Or, the image on my television • Unplug the power cord from the electrical outlet for 15 seconds then plug it back in. ReplayTV will restart and

screen is "frozen." power on in a few moments.

A "Please Wait" message displays

more than 2-5 minutes during first

time Quick Setup.

ReplayTV might not be communicating with your network. This may be caused by ReplayTV receiving non-standard

DHCP information.

• Unplug ReplayTV from both your network and electrical outlet.

• Disable DHCP on your network.

• Plug ReplayTV back in to an electrical outlet and complete the Quick Setup screens.

• Manually enter your Network Information: IP Address, Subnet Mask, Gateway, DNS Server I, DNS Server 2

(optional).

Connection/Network

ReplayTV is having trouble con-

necting using the phone line. •'lYy connecting manually to the ReplayTV Service. Exit all on-screen menus. Press the numbers 2-4-3 then the

Zones button on your remote. Choose "7 -Net Connect" on the screen that displays. ReplayTV will aUempt to

contact the service.

• s_wd_wnthespeed_fthem_dem.G_to_etupandthench_seNetw_rkand_nput_et_ngs.Ch_seChange

Telephone. Continue to the dialing prefix screen. Press the Zones button on your remote. Change the Max Con-

neet Speed to 336 or lower using the left or right arrow buttons.

• Choose a different phone number. Go to Setup and then choose Network and Input Settings_ Choose Change

Telephone. Continue to the list of phone numbers. Choose a different phone number. Try all of the numbers, if

necessary.

ta,O

Replay'IV5.5 UG.book Page 56 Frld_b, Augusl I, 2003 10:58 AM

My DHCP server is not found dur-

ing setup and I am foreed to enter

the information manually.

ReplayTV is connected directly to •

my Cable or DSL modem and it

can't connect.

My ReplayTV 5500s are not com-

municating properly on the network.

ReplayTV won't connect using my

broadband connection.

• ReplayTV may not work with all DHCP servers. In some cases, you will simply need to enter the IP address man-

ually.

• This may be temporary. Choose Back and try again 2 or 3 times.

• lfReplayTV doesn't detect a link with the network, it will give you the option to specify. Check the back of

ReplayTV for a solid green link light. Check the port on your muter or hub thai ReplayTV is connected to for a

link light, ff there's no link, try a different port on your router or hub as well as a different Elhernet cable.

• Perfoml a resel by holding down the power button on ReplayTV for 10-15 seconds. Unplug ReplayTV for 1

minute if that fails.

lfyou are not using a router, then you must purchase an IPaddress from your service provider that only ReplayTV

will use, Ifanother PC is using the IP address you enter on Replay'IN, ReplayTV will fail to connect.

Trya known working IP address. Disconnect one of your computers from the Cable or DSL modem and use its IP

information on Replay'IV.

lfyour PC must log on to useyour DSL connection, then ReplayTV willnot work directly connected to your DSL.

Youwill need a muter.

Your ISPmight require the MAC Address (Ethernet Hardware Address) of ReplayTV beforeReplayTV will work

through your Cable or DSL modem. See page 17for directions on locating ReplayTV's Mac Address.

lfthe ReplayTV 5500s do not "see" each other, some piece of network hardware might not be transmitting

ReplayTV's network discovery packets properly.

• Verify that your ReplayTVs are on and connected to your network.

• Verify that your ReplayTVs have an IP address entered manually or automatically. In general, the IP addresses

should be identical except for the last number.

• Restart each unit, one at a time.

• Renameeach unit.

• lfthere is a firewall moniloring your local network, disable it temporarily to see if it is preventing the ReplayTVs

from communicating with each other.

• lfthe ReplayTVs must communicate through a router, try connecting them directly to the same hub or switch.

• 'lYy connecting manually to the ReplayTV Service. Exit all on-screen menus. Press the numbers 2-4-3 then the

Zones button on your remote. Choose "7 - Net Connect" on the screen that displays. ReplayTV will atlempt to

contact the service.

• 'lYy reselting your network hardware. Unplug your hub, switch, or router and then try again.

• If ReplayTV is currently getting its IP address automatically, change to the Manual setting and use a different

DNS server. See "Entering Networking Information Manually on ReplayTV" on page 16 for more details. You can

get a list of public DNS servers at www.replaytv.com/support

• lfthis is the initial setup, try completing setup using the phone line.

@Replay'[ V5.5 UG.book Page 57 I:rida3, August I, 2003 10:58 AM

Miscellaneous

When setting up ReplayTV, the cor- • Contact ReplayTV Customer Care by phone at (800) 933-5899. Please provide the following information: l)

rect cable company does not appear Complex name (if applicable), 2) City, 3) State, 4) ZIP code, 5) Cable Pmvider's Name, 6) Cable Provider contact

as a menu item in Setup. information, and 7) Problem descriNion. In most cases, the correct information can be added to the ReplayTV Ser-

vice database within 48 hours.

The ReplayTV remote does not • Replace the batteries in the remote control with 2 new AA batteries.

respond when I press a button. • Unplug the power cable for 1 minute then plug it back in.

Some of my jpeg photos do not dis- • Open thejpeg file in another program and save it again.

play. • Verify that thejpeg is not progressive jpeg. This format is not supported.

Some channel or show information • There may be another channel lineup that's a better fit. Go to Setup and select the input you configured for your

in the Channel Guide is incorrect, cable or satellite connection. Continue until you get to the list of channel lineups. Follow the on-screen instruc-

tions to view the list of channels associated with each lineup.

• Contact Customer Care with the following information: Cable or Satellite compaw's name, Type of Service (dig.

ital, analog, etc.), Pmvider's phone number, city, state, zip, Apartment Complex name (if applicable), Specific

examples of incorrect channels or information. The Channel Guide can be updated in a few days.

u,_O

Replay'IV5.5 UG.book Page 58 Frid_3, Augusl I, 2003 10:58 AM

.."Glossary

Bridge - A Bridge allows 1he free flow of data from one type of physical medium to another. For example, a bridge is required 1oconnect a phoneline network to

an Ethernet network.

DHCP (Dynamic Host Configuration Protocol) - This is the method by which computers, and ReplayTV, automatically get IP addresses. By default,

ReplayTV will attempt to get its IP address automatically when it's starting up. It will attempt to renew this IP address every 24hrs. ReplayTV is considered a

DHCP client. ']['herouler that automatically assigns the IP address to ReplayTV is considered a DHCP server.

DMZ Host Page - A host on a network that prevents outside users from accessing data on your network. Depending on your router, it might be necessary to add

1he IP address of ReplayTV to the DMZ host page. This will place ReplayTV outside of the firewalk This may be necessary if the router is not properly routing

1he information it receives to ReplayTV.Check your router manual for more details on when using DMZ is appropriate.

DNS (Domain Name System) -A DNS server translates domain names like www.replaytv.com into their corresponding IP addresses.

DSL Router - A DSL router is simply a router that also functions as an external DSL modem. This DSL router would function as a DHCP server.

Gateway - The gateway address is the IP address of the computer or device on a local network thai gives you access to the lntarnet. If you are using a router, it's

1he internal (LAN) IP address of the router.

Hub - A hub is like a splitter. It turns one port into 4, 8, 16, etc. The hub provides more physical ports and nothing else. 'lhe hub has an uplink port that some-

times can be switched to a standard port. You would normally connecl your Cable or DSL modem 1o the uplink port. Your PCs or devices like ReplayTV would

plug into the non-uplink ports.

IP Address - This is a unique address that all computers and devices require to communicate over the lnternet. Computers on corporate and home networks most

likely use IP addresses to communicate with each olher. ReplayTV also requires an IP address to communicate. This address can be set manually or provided

automatically. Depending on your setup, this IP address might come from a router, or your ISP (lnternet Service Provider).

ISP (lnternet Service Provider) -A company that provides lnternet access through telecommunications lines.

MAC Address (Media Access Control) - The unique hardware number of devices on a network. Some lSPs require the MAC address of a network device in

order to automatically assign it an IP address.

Router - In order for your computer to communicate to the lntemet using abroadband conneclion, it not only requires a physical connection but also an IP

address. The router not only lets you share aphysical connection (like a hub or switch), italso lets you share asingle Interne1IP address with more than one com-

puter or device. Instead of needing three IP addresses for three computers in your home, you can purchase one for the router and the router will allow all three

computers in your home to share your Cable, DSL, ISDN, or Satellite connection. Some routers allow you 1oshare amodem connection in this way. lfyou pur-

chase a single port router, you will also need a hub or switch 1oconnecl more than one device 1othe router. If connecting a PC or ReplayTV directly to asingle

port router, you must use a crossover cable.

lfyou have PPPoE DSL (requires that you use software to Iogin for lnternet access), you need to verify that any router you purchase also supports PPPoE.

Subnet Mask - This address is a filter that determines what part of the network your computer or ReplayTV is on. For example, many touters use 192.168.0.1

for an lP address and 255.255.255.0 for a subnet mask. Any computers or devices on your local network thai has an IP address that malches 192.168.0.x will be

able to communicate with each other.

Switch - lfyou have a mix of I 0 and 100M bps devices or computers on your network, upgrading from a hub to a swilch can greatly improve performance. Also,

if you have many devices on your network, the switch will give you better performance than the hub.

@Replay'l V5.5 UG.book Page 59 I:rida3, August I, 2003 10:58 AM

•".Technical Specifications

VHF/UHF IN/OUT (RF)

VIDEO/AUDIO IN (STEREO) (RCA)

VIDEO/AUDIO OU'I (STEREO) (RCA)

S-VHS IN/OU'I (S-JACK)

TELEPHONE JACK (RJ-1 I)

IR BLASTER PORT

ETHERNET POP_T

IR BLASTER

SERIAL PORT (9 PIN)

DIGITAL AUDIO PORT

PROGRESSIVE OUT

POWER

DIMENSIONS

IN(1)/OUT(1)

2LINE

IN( I)/OUT( 1)

YES

120V/60Hz

3" (H) x 14" (D) x 16-7/8" (W)

tll

ta,O

Replay'IV5.5 UG.book Page 60 I:rldab, August I, 2003 10:58 AM

:: Limited Warranty and Software License

¢•Note:Foryoureonvenience, DigitalNetworksNorthAmerica,

lne. (DNNA) has established a frequently asked questions

section at http://www.replaytv.com. For service assistance or

resolution of a service problem, product information or help

with the operation of your ReplayTV, please contact

ReplayTV Technical Support at:

• Byphone: 1-800-933-5899

By email: techsupport_)replavt_ com

Warranty

Digital Networks North America lnc. ("DNNA") warrants your 5500 series ReplayTV (the "ReplayTV") and any included ReplayTV accessories against defects

in material or workmanship as follows:

LABOR: For a period of ninety (90) days from the date of purchase ("Warranty Period"), if the ReplayTV is determined to be defective, DNNA will, at its sole

discretion, repair or replace the unit with new or refurbished goods, or pay the labor charges to any Replay'IV authorized service facility. After the Warranty

Period, the customer is responsible for all labor charges.

PAPal'S: In addition, for a period of one (I) year from the date of purchase, DNNA will supply, at its sole discretion, a new or rebuilt ReplayTV unit in exchange

for a defective unit. DNNNs liability is limited solely to the repair or replacement of the defective product. If DNNA cannot reasonably repair or replace the

defective product then DNNA may, at its sole discretion, refund the current retail price for the product. DNNA warrants any replaced or repaired product for a

period of ninety (90) days from shipment, or through the end of the original warranty period, whichever is longer.

REFUB1SHED PRODUCT: DNNA warrants refurbished Woducts, marked and sold as such, for ninety (90) days from the original purchase date.

Warranty Service

'lb obtain warranty service, you must first obtain an RMA number (Return Merchandise Authorization) from a Technical Support Representative at DNNA. A

'l_chnical Support Representative may be reached at (800) 933-5899. Once an RMA number is obtained, your ReplayTV must be shipped freight wepaid, in

either its original packaging or packaging affording an equal degree of pretection, to the ReplayTV authorized distribution facility.

Important: When calling for an RMA number, please be prepared to answer some basic troubleshooting/setup related questions. It is helpful for you to call when

you are in front of your ReplayTV as you may be required to respond to operational instructions from a ReplayTV Technical Support Representative before

being issued an RMA.

Scope of and Limitation on Warranty

This warranty does not cover customer instruction, installation, set up adjustments or signal reception problems. 'l_is warranty does not cover cosmetic damage

due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to aw part of your ReplayTV. This warranty does not cover dam-

age due to improper operation or maintenance, connection to impreper voltage supply, or attempted repair by anyone other than a facility authorized by DNNA

to service your ReplayTV. This warranty does not cover consumables (such as fuses and batteries). This warranty is valid only in the United States and is non-

transferable. This warranty is invalid if the factory-applied serial number has been altered or removed from the ReplayTV.

Page 61 I:rida), August I, 2003 10:58 AM

REPAIR OR REPLACEMENT AS PROVIDED UNDER 'THIS WARRANTY lS THE EXCLUSIVE REMEDY OF 'THE CONSUMER. IN NO EVENT WILL

DNNA BE LIABLE FOR ANY AMOUNT GREATER THAN THE CURRENTLY SUGGESTED RETAIL PRICE OF THIS PRODUCT. DNNA SHALL NOT

BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS

PRODUCT EXCEI_f TO ']'HE EXTENT PROHIBITED BY APF'LICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS

FOR APARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the

above limitations or exclusions may not apply to you. 'This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.

Software License Agreement

1MPORFANT -- READ CAREFULLY: By selecting "1agree, please continue Setup" below and continuing with the setup process to begin using the software in

your ReplayTV Product ("Product'), you agree to be bound by the terms of this Software License Agreement (this "Agreement"). If you do not agree to the

terms of this Agreement, you may promptly return the Product to the point ofpurehase for a refund of your purchase price, or you may contact Digital Networks

North America, Inc. ("DNNA") for instructions on where to ship the Product, at DNNA's cost, for a full refund of the purchase price after inspection.

1. License Grant; Restrictions

Subject to the terms of this Agreement, DNNA grants you a non-exclusive, non-transferable license, without the right to sublicense, to use all software included

with the Product or subsequently provided to you, and related documentation (together, "Software") solely for your internal, noncommercial use and solely in

connection with your use of the Product and access to the ReplayTV Service ("RTVS"). You acknowledge and agree that DNNA may periodically update, mod-

ify or enhance the Software remotely through the RTVS, and that any registration or other information provided by you may be used or disclosed by DNNA pur-

suant to the terms of DNNA's ReplayTV Privacy Policy, as that policy may be modified by DNNA from time to time. You further agree that: (a) use of the

Software or the Product with any third party service competitive with the RTVS is a violation of this Agreement and is grounds for DNNA's termination thereof;

(b) you will not to attempt to modify, enhance, disassemble, decompile, reverse engineer or otherwise attempt to gain access to the source code to the Software;

and (c) you will not attempt to remove or unbundle the Software from the Product. Any resale or _ansfer of the Product by you will be subject to the terms and

conditions of this Agreement.

2. Ownership

DNNA and i_ licensors own and retain all proprietary rights, including all patent, copyright, trade secret, trademark and other intellectual property rights, in and

to the Software and any corrections, bug fixes, enhancements, updates or other modifications to the Software. You acknowledge that the license granted under

this Agreement does not provide you with title to or ownership of the Software, but only a right of limited use under the terms and conditions of this Agreement.

3. Confidential Information

You agree that the Software contains confidential information, including trade secrels, know-how and olher information, lhat is the exclusive property of DNNA.

You agree to keep this information confidential and to not use or disclose this information to any third party except as authorized by this Agreement.

4. No Warranties

TO THE MAXIMUM EXTENT PERMITTED BY LAW, DNNA MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFT-

WARE OR THE R]VS, INCLUDING WITHOU'I LIMITNTION ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, NON-INFRINGEMENT OF THIRD PARTY RIGHTS AND THOSE ARISING FROM A COURSE OF DEALING OR USAGE OF TRADE. NO

WARRANTY IS MADE TH,a2TUSE OF THE SOFTWARE OR THE RTVS WILL BE ERROR FREE OR UNINTERRUI_FED, TH.a;T ANY ERRORS OR

DEFECTS WILL BE CORRECTED, OR TH_a2TTHE FUNCTIONALITY OF THE SOFTWARE OR THE RTVS WILL MEET YOUR REQUIREMENTS.

BECAUSE SOME STATES/JURISDICTIONS DO NOT PERMIT ALL DISCLAIMERS OF WARRANTY, THESE LIMI'FNF1ONS MAY NOT APPLY TO

YOU.

ta,O

P.eplay'lV5.51.JG.book Page 62 Frid_3, Augusl I, 2003 10:58 AM

5. Limitation of Liability

THE ENTIRE RISK ARISING OUT OF THE USE OR PERFORMANCE OF 'IHE SOFTWARE AND 'THE PRODUCT REMAINS WITH YOU. TO THE

MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, DNNA AND ITS SUPPLIERS OR LICENSORS WILL NOT BE LIABLE FOR ANY CON-

SEQUENTIAL, INCIDENTAL, INDIRECT, SPECIAL, PUNITIVE, OR OTHER DAMAGES WH_iFSOEVER (INCLUDIN(_ WITHOUT LIMITATION,

DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUFq'ION, LOSS OF INFORMNFION OR DATA, OR OTHER PECUNIARY LOSS) ARISING

OU'I OF THIS AGREEMENT OR THE USE OF OR INABILITY TO USE THE SOFTWARE OR THE RTVS, EVEN IF DNNA OR ITS SUPPLIERS OR

LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME S'FNFES/JUR1SDICTIONS DO NOT ALLOW

THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE L1MITA_F1ON MAY NOT

APPLY TO YOU.

6. Termination

This Agreement and the licenses granted hereunder shall terminate automatically if you fail to comply with the limitations described in this Agreement. No

notice will be required from DNNA to effectuate such termination. On termination of this Agreement, you must destroy all copies of the Software and accompa-

wing documentation. The obligations of DNNA and You in Sections 2, 3, 4, 5, 6, 7 and 8 shall survive termination of this Agreement. Nothing in this Section 6

shall limit any other remedies that DNNA may have for your breach of this Agreement.

7. Export Controls; Government Restricted Rights

You acknowledge and agree that none of the Software or underlying information or technology may be downloaded or otherwise exported or re-exported (i) into

(or to a national or resident of) Angola, Cuba, lran, lraq, Libya, North Korea, Sudan, Syria, or any other country to which the U.S. has embargoed goods; or any-

one on the U.S. Treasury Department's list of Specially Designated Nationals or the U.S. Commerce Department's Table of Denial Orders. By using the Soft-

ware, you represent and warrant that you are not a national or resident of any such country or on any such list. The Software is a commercial product, developed

at private expense, and provided with restricted rights. Use, reproduction, release, modification or disclosure of the Software, or any part thereof, including tech-

nical data, by the Government is restricted in accordance with Federal Acquisition Regulation ("FAR") 12.212 for civilian agencies and Defense Federal Acqui-

sition Regulation Supplement ("DFARS") 227.7202 for military agencies.

8. Miscellaneous

This Agreement shall in all respects be governed by the laws of the State of California without reference to its principles of conflicts of laws. The United Nations

Convention on Contracts for the International Sales of Goods shall not apply to this Agreement. You hereby agree that all disputes arising out of this Agreement

shall be subject to the exclusive jurisdiction of and venue in the federal and state courts within Santa Clara County, California, and you hereby consent to the per-

sonal and exclusive jurisdiction and venue of these courts.

lfany of the provisions of this Agreement are held to be invalid under any applicable statute or rule of law, they are, to that extent, deemed omitted. The waiver

of any breach or default, or any delay in exercising any rights shall not constitute a waiver of any subsequent breach or default. This Agreement constitutes the

complete and exclusive agreement between you and DNNA with respect to the subject matter hereof, and supersedes all prior oral or written understandings,

communications or agreements. 'lNis agreement may not be modified except in writing duly signed by an authorized representative of DNNA.

It is the intent of DNNA that this product be used in full compliance with the copyright laws of the United States. Unauthorized recording and sending ofcartain

copyrighted material may be contrary to the provisions of the United States copyright laws. The rights of copyright holders are subject to limitations when per-

sons are engaged in "fair use" or are protected by other provisions of law. You are responsible for complying with these laws. This product incorporates copy-

right protection technology that is protected by U.S. patents and other intellectual property rights including, among others, Macrovision U.S. patents nos.

4,631,603; 4,577,216; 4,819,098; 4,907,093. Use of this copyright protection technology must be authorized by Macmvision, and is intended for home uses only

unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

O @Replay'I V5.5 UG.book Page 63 I:rida3, August I, 2003 10:58 AM

:: Activation and Service Agreement

This Agreement applies to your use of the ReplayTV Service and is a legally binding agreement between you, Digital Networks North America, Inc. (DNNA)

and its ReplayTV division (collectively "ReplayTV'). By clicking the button marked "1 Agree" below or by otherwise communicating your acceptance to

ReplayTV or by using the ReplayTV Service, you agree to all the terms and conditions in this Agreement. IMPORTANT NOTE: Your ReplayTV digital video

recorder works only by registering your recorder and receiving the Replay'IV Service offered and provided by ReplayTV. lfyou do not agree with all the terms

and conditions of this Agreement, you are not authorized to use the ReplayTV Service, and you may return the ReplayTV unit to ReplayTV or the authorized

retailer from whom you purchased the product for a full refund within one (I) month of the original purchase date.

1. Use of the Service

A. Authorized Product. You may access and use the ReplayTV Service only with a ReplayTV product authorized to receive the ReplayTV Service and you

agree that the ReplayTV unit and ReplayTV Service are being provided to you in the specific form delivered and any modifications or tampering with the autho-

rized product or the ReplayTV Service is unauthorized. If you make any modifications to or otherwise tamper with the authorized product or the ReplayTV Ser-

vice, your warranty will be void and your ReplayTV Service may be disconnected and terminated. ReplayTV will not be responsible for the legality of any

modification that you make or the resulting modified product or any problems or wrongdoing resulting from such modifications, including, but not limited to,

problems receiving or using the ReplayTV Service or the ReplayTV unit.

B. Personal Use Only. The Replay'IV Service is for personal, residential, non-commercial use. Any other use is not permitted under this Agreement. You may

not re-sell the ReplayTV Service in whole or in part, nor, except as part of your transfer of the ReplayTV unit as provided in this Agreement, may you transfer

the ReplayTV Service.

C. Eligible Subscribers. You represent that you are at least 18 years of age. You may permit minors to use the ReplayTV Service under your account, but you

agree that you are fully responsible for the minors' use of the ReplayTV Service.

D. Accurate Information. You must give us accurate and complete information when you register and use your ReplayTV Service. If you do not, ReplayTV

may terminate your account at any time.

E. ReplayTV's Privacy Policy. Replay'IV respects the privacy of your information and will not disclose any of your information except as permitted in

Replay'l V's Privacy Policy. Acurrent copy of ReplayTV's Privacy Policy is included in the Privacy Policy section of the main menu in the Replay'IV software

included on your ReplayTV unit and on the ReplayTV website www.replaytv.com. Please read it carefully before using your ReplayTV product. By using the

Replay'IV Service, you understand and agree with how Replay'IV handles your information as described in our Privacy Policy, and how the Privacy Policy may

be modified from time to time. Replay'IV will use commercially reasonable effbrts to notify you of any substantial and material changes to the Privacy Policy.

However, you are responsible for viewing the latest Privacy Policy which can be accessed through our website at www.replaytv.com.

K TV Programming. The ReplayTV Service gives you the ability to see and record televised programs. However, ReplayTV exercises no editorial or pro-

gramming control over these programs ("Third Party Content"). You understand that (a) ReplayTV does not guarantee the access to or recording of any particu-

lar program, (b) programming is not under ReplayTV's control, (c) ReplayTV is not responsible for and has no editorial control over any 'lNird Party Content,

and (d) Replay'IV has no control over the distribution of programs. You also understand that television programs, films, videotapes, and other materials may be

copyrighted. Unauthorized recording and sending of such material may be contrary to the provisions of the United States copyright laws. The rights of copyright

holders are subject to limitations when persons are engaged in "fair use" or are protected by other provisions of law. You are responsible for complying with

these laws.

G. Changes to ReplayTV Service. At its discretion, ReplayTV may automatically add, modify, or disable any feature or fhnctionality of the ReplayTV Service

or on the ReplayTV unit (when your unit connects to our server or at other times with or without notice). In addition, ReplayTV may modify the terms and con-

ditions of this Agreement from time to time (and will notify you of these changes to the Agreement by either sending a notice to your ReplayTV or, in

ReplayTV's sole discretion, to the address of record that ReplayTV has for you).

u._O

Replay'IV5.5 UG.book Page 64 I:rida3, August I, 2003 10:58 AM

H. Software. ReplayTV provided certain software with the ReplayTV unit you purchased, and may, at its option, provide replacement (for example, bug fixes,

updates or upgrades) and additional software to you from time to time (which may include by automatic downloads to the ReplayTV unit), in order for you to

access and use certain features of the ReplayTV Service. The ReplayTV Service may include software updates. ReplayTV reserves the right to add, delete or

modify features in any software update. Your use of all such software is subject to the terms of this Agreement. However, ira software license agreement is

included with any such software, then those terms (and not this Agreement) will govern your use of that software. You have a limited, non-exclusive right to use

the software only with the Replay'fV unit with which the sofiware was provided or for which it was downloaded. You may make one copy of the software you

download for backup purposes only, provided that such backup copy must include all copyright and other proprietary information and notices contained on the

original. You acknowledge and agree that the software is copyrighted and contains material that is protected by copyright, trademark, trade secret and other laws

and international treaty provisions relating to proprietary rights. You may not remove, change or hide any of ReplayTV's or its licensors' or suppliers' propri-

etary rights notices on or in the software or on output generated by the software. Except and only to the extent permitted by applicable law and this Agreement,

you may not copy, decompile, reverse engineer, disassemble, modify, rent, lease, loan, distribute, assign, transfer, or create derivative works from the software.

You acknowledge and agree that any unauthorized use, transfer, sublicensing or disclosure of the software may cause irreparable injury to ReplayTV, and under

such circumstances, ReplayTV shall be entitled to equitable relief, without posting bond or other security, including but not limited to, preliminary and perma-

nent injunctive relief.

1. Ownership; Certain Rights. ReplayTV and its licensors and suppliers retain title to and ownership of all the ReplayTV software. ReplayTV and its licensors

and suppliers own the intellectual property rights in and to the ReplayTV unit and the ReplayTV Service, including the copyrights and trademarks associated

with the ReplayTV unit and the ReplayTV Service.

2. Termination of Service; Your Indemnity Obligations

Replay'l V has the absolute right to immediately suspend or terminate your account, and terminate this Agreement, if you (a) breach any provision of this Agree-

ment or (b) misuse the ReplayTV Service. In addition, if ReplayTV is required to take action such as deactivating or terminating the provision of the ReplayTV

Service to you to comply with applicable laws or any compliance policy that DNNA may adopt from time-to-time, it may do so without violating the terms of

this Agreement. You further agree that you will defend, indemnify and hold harmless ReplayTV and its affiliates from and against any and all claims, actions,

suits, liabilities, losses, costs and expenses (including reasonable attorneys' fees) arising out of or relating to any of the actions described above that would entitle

ReplayTV to terminate this Agreement.

3. DISCLAIMERS AND LIMITATIONS OF LIABILITY

A. Warranty Disclaimer. THE REPLAYTV SERVICE IS PROVIDED "AS IS," "WITH ALL FAULFS," AND "AS AVAILABLE." REPLAYTV AND ITS

SUPPLIERS DISCLAIM ALL WARRANTIES OF ANY KIND REGARDING THE REPLAYTV SERVICE (INCLUDING THIRD PAPd'Y PROGRAMS),

WHETHER EXPRESS, IMPLIED, OR STATUTORY, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF TITLE, MERCHANT-

ABILffY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. ReplayTV makes no warranty that (a) the ReplayTV Service or its content

will meet your requirements, be uninterrupted, error-free, secure or timely; or (b) that the information obtained through the ReplayTV Service (including but not

limited to Third Party Programs) is accurate, current, complete or reliable. Some jurisdictions do not allow the disclaimer of implied warranties, so the above dis-

claimer may not apply to you. You may also have other legal rights that vary from state to state.

B. NO INCIDENTAL OR CONSEQUENTIAL DAMAGES. IN NO EVENT WILL REPLAYTV OR ffS LICENSORS OR SUPPLIERS BE LIABLE TO

YOU OR ANY THIRD pAPd['y FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, OR SPECIAL DAMAGES OF ANY KIND (WHETHER FOR

LOST PROFffS, LOSS OF DATA OR OTHERWISE) ARISING FROM OR RELATING TO YOUR USE OF THE REPLAYTV SERVICE OR THIS AGREE-

MEN'I; EVEN IF REPLAYTV HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

C. LIMITATIONS OF REPLAYTV'S LIABILITY. IN NO EVENT SHALL REPLAYTV'S AGGREGra2FE LIABILITY TO YOU (AND ANYONE ELSE

WHO USES THE REPLAYTV SERVICE THROUGH YOUR ACCOUNT), FOR ANY AND ALL CLAIMS ON ANY BASIS, WHETHER IN TORT, CON-

TRACT OR OTHERWI SE, EXCEED THE TO'ISa.L AMOUNT YOU PAID TO REPLAYTV FOR THE REPLAYTV UNI T AND THE REPLAYTV SERVICE.

YOU UNDERSTAND THAT THESE LIMITATIONS OF REPLAYTV'S AND REPLAYTV'S SUPPLIERS' AND LICENSORS' LIABILITY ARE A FUN-

DAMENTAL PART OF THIS AGREEMEN'I_ AND REPLAYTV WOULD NOT ENTER INTO THIS AGREEMENT WITHOUT SUCH LIMITATION. Some

states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Page 65 I:rida3, August I, 2003 10:58 AM

4. Miscellaneous

This Agreement (including referenced documents) constitutes the entire agreement regarding your use of the ReplayTV Service and supersedes any and all prior

statements, agreements or understandings with respect to the ReplayTV Service. This Agreement is governed by and will be interpreted in accordance with the

laws of the State of California without regard to its conflict of laws principles. If any provision of this Agreement is invalid, illegal or unenforceable, such provi-

sion will be deemed changed only to the extent necessary to make it valid, legal and enforceable; all other provisions of this Agreement will continue in full force

and effect. Any failure by ReplayTV to strictly enforce any provision of this Agreement will not waive ReplayTV's right to later enforce that provision or any

subsequent default or breach of the same or a different kind.

•". Privacy Policy

Your Privacy is Important to Us

Personal television and digital video recording are radically improving the way you watch TV. You are now in charge of your own television viewing experience.

Along with that, we want you to know how important your privacy is to us.

At DNNA, we believe privacy is a right, not a privilege. In other words, you should expect us to protect your privacy, and you should never have to worry about

it. We believe that a strict and clear-cut privacy policy is a key ingredient in growing our company and the personal television industry. This Privacy Policy is our

pledge to safeguard your privacy while woviding you with the best television viewing experience possible. There are separate wivacy terms governing our

MYREPLAYTV service that can be viewed at myreplaytv.com.

This is our Privacy Credo:

1 We see your privacy as a right and not just a privilege.

2 We respect your privacy and are committed to maintaining the privacy of your personal information.

3 We will tell you what information we collect about you and how we use that information.

4 We will give you a choice as to how your personal information will be used.

Sources of Information

best understand this Privacy Policy, please keep in mind that, apart from the MYREPLAYTV service, in_rmation may become available to us from three dif-

ferent sources:

1 www.replaytv.com Web site.

2 Digital video recorders featuring the ReplayTV Service(TM). These recorders are sold under brand names like Panasonic and also under the ReplayTV

brand. All of these recorders feature our ReplayTV Service.

3'l_lephone. You may call us and provide us with information.

Types of Information

It is important to know that there are three different types of information that may become available to us. 'l_ese can be used in different ways, as explained

below in the Q&A section of our Privacy Policy. The terms defined below are used throughout our Privacy Policy:

1 "Personally Identifiable Information" is private data about you as an individuak Examples of this data would be your name, address, telephone number,

email address, and other personal information that identifies you as you. We call this "Personal Information" for short.

2 "Non-Personal Information" is information about how you use our Web site and ReplayTV Service that is not connected to your particular name, address,

or other Personal Information. For example, Non-Personal Information could describe how many people viewed a particular page on our Web site or how

many people recorded the program "Friends" on their ReplayTV digital video recorders, without connecting that Information to the specific identities of

u,_O

Replay'IV5.5 UG.book Page 66 Frid_b, Augusl I, 2003 10:58 AM

those people. We currently do not collect such information from the Replay'fV Service or the ReplayTV unit, but it is possible that we may collect such

information in the future.

"Technical Status Data" can be classified either as error events or maintenance status events. For example, problems that the unit has connecting to the

ReplayTV Service or the number of times the unit reboots. This data is necessary to allow us to analyze your unit's technical performance and to help diag-

nose and fix problems with your unit.

Q: What information does DNNA collect from the www.replaytv.com and www.rioaudio.com Web sites?

A: When you visit certain areas of www.replaytv.com or www.rioaudio.com, we may ask you to register by providing Personal Information. For example, if you

buy a product, enter a contest, or subscribe to a mailing list from our site, we will ask you for certain Personal lnfomration in connection with that transaction.

We also collect Non-Personal Information from the Web site, including which pages you look at and other similar data. As do most Web sites, www.replay tv.com

and www.rioaudio.com use "cookies." A cookie is a small data file that a Web site can send to your browser to be stored automatically on your computer. Cook-

ies are commonly used to track your visits to a site so you don't have to log in on every page and to analyze how you use the site. This allows Web site operators

to serve you better.

When you register your ReplayTV unit at www.replaytwcom, we collect Personal Information. Our practices regarding the collection and use of this information

are described below in the sections about your digital video recorder usage.

Q: How does DNNA use the information it collects from the www.replaytv.com Web site?

A: We may use Personal Information collected through the Web site to complete a transaction you request. If you purchase a ReplayTV product, the Personal

Information collected for that transaction will be used to fill your order, get the product to you and bill you correctly. DNNA may also use your mailing address,

telephone number or email address to alert you to special offers, updated information and new services. If you don't want DNNA to contact you, you may opt-out

as discussed in the next question and answer below.

Non-Personal Information collected through our Web site is used for maintenance, monitoring and marketing uses, but Non-Personal Information will not be

linked to your identity without providing you an opportunity to opt out of such linking.

Q: What choices do I have regarding the collection and use of information from the www.replaytv.com and www.rioaudio.com Web sites?

A: When you submit Personal Information at our Web site, you can opt-out of receiving information from DNNA about Replay'IV and related products, promo-

tions, and services by checking or removing the check from appropriate boxes. You may also set your lnternet browser to reject cookies to limit the collection of

Non-Personal Information from our Web site, but this may affect your ability to use some parts of our Web site.

Q: Is registration information received over the telephone treated the same as information from the www.reldaytv.com or www.rioaudio.com Web

sites?

A: Yes, Personal Information collected over the telephone is treated the same way as Personal Information collected on the website.

Q: What information does DNNA collect about my digital video recorder use?

A: When you purchase a ReplayTV digital video recorder, we ask you to register the product so we can provide you with the best possible service. You may reg-

ister online at the www.replaytv.com Web site or by telephone. During registration, we ask you for Personal Information, including your name, address, phone

number, email address, and the serial number of your ReplayTV digital video recorder.

The ReplayTV digital video recorder is connected to your television and an Ethernet connection. During system setup and registration, we learn about how you

have connected your ReplayTV digital video recorder to your entertainment system and the programming signal sources available to you (antenna, cable, and/or

satellite). We also learn about where you are located, and use this infomration to determine what television channels and schedule are available to you. Each day,

the ReplayTV digital video recorder contacts DNNA to download a current TV schedule for you.

Other than as described above, we do not collect aW information about the viewing or recording habits of you or other users of your ReplayTV unit. We do

reserve the right in the future to collect certain Non-Personal Viewing Data, such as which programs users record, which features users use, and other similar

data about your use of the ReplayTV Service, but such information would only be collected in the form of Non-Personal Information. Should we decide to col-

lect this information, we would collect it on an aggregate basis, not connected to your Personal Information, though we could also sort such Non- Personal lnfor-

@Replay'I V5.5 UG.book Page 67 Frida3, Augusl I, 2003 10:58 AM

mation by demographic or other categories. If we ever began to collect information alxmt your viewing or recording habits that was connected to Personal

Information, we would always give you a chance to opt out from thai collection (unless we are unable to do so for legal reasons).

Q: How does DNNA use the information it collects about my digital video recorder use?

A: Currently, we only use Personal Information collected during registration of your ReplayTV digital video recorder for diagnostic or service purposes or to

complete a transaction requested by you. We can use it, for example, to see if your Replay'l V unit is working preperly. We can also use it when you contact our

Customer Care agents so they can help you with any service-related preblems, and for warranty eligibility and fulfillment purposes. Again, we would not link

this information to Non-Personal Information or use it in other ways without providing you with an opportunity to opt out of such use.

Q: What choices do Ihave regarding the collection and use of information about my digital video recorder use?

A: Registration of your ReplayTV digital video recorder is not required to use the unit.

From time to time, we may send all of our customers information about our products and services that we consider essential to providing you the ReplayTV Ser-

vice, including information about software upgrades, changes to the service, technical or administrative issues, legal matters, or other similar information. Users

of our products and services are not able to opt-out of these announcements.

If, in the future, we ever began collecting Personal Information connected to Non-Personal information about viewing habits, we will provide you an opportunity

to opt out of such collection.

Q: Does DNNA share my information (gathered from either my use of the www.replaytv.eom Web site, the www.rioaudio.eom website or digital video

recorder) with any third parties?

A: DNNA will not share your Personal Information with third parties without your consent, except in the very limited circumstances outlined in the next ques-

tion and answer below. Your Personal Information is not otherwise sold, marketed or shared with third parties without giving you the opportunity to opt out.

Should DNNA begin to start collecting Non-Personal Information from the ReplayTV digital video recorder or the ReplayTV Service, such Non-Personal lnfor-

marion may be shared with third parties for analysis or marketing purposes. For example, this information may be provided to advertisers or marketers who may

use it to target advertisements to your particular interests. Because it's Non-Personal, this information will not be linked to you without first giving you the

opportunity to opt out.

Q: Are there any special circumstances that may require my information (gathered from my use of www.replaytv.com Web site or my digital video

recorder or over the telephone) to be shared with third parties?

A: DNNA may disclose Personal lnfomlation and Non-Personal Information if required to do so by law, to protect and defend the rights or properly of DNNA,

the ReplayTV Service or our viewers, whether or not required to do so by law, or to protect the personal safety of our viewers or the public. DNNA reserves the

right to contact apprepriate authorities and disclose Personal or Non-Personal Information to them at its discretion when it appears that individuals using our

products or services are engaged in activities that may be illegal or violate the ReplayTV Activation and Service Agreement.

Should DNNA merge with or be acquired by another company, or if the business unit previding your service were sold to another company, then customer infor-

mation maintained by DNNA, including Personal and Non-Personal Information, if any, may be transferred to and used by the resulting combined company.

From time to time we may also share Personal Information with third parties who perform certain services and functions on our behalf. These parties only have

access to the Personal Information they need to perform their functions and we require them to use the information only in connection with the services they pro-

vide for us.

Q: Can I correct the information collected about me?

A: DNNA believes in and supports your right to access and correct the Personal Information you have provided us. '1_ do so, simply contact DNNA at 800-933-

5899 and we will make corrections that you request.

Q: Is all of my information kept securely?

A: DNNA has security measures in place that are designed to protect your information. All Personal Information and any Non-Personal Information is stored on

physically secured servers. Access to this information is strictly limited to individuals with a legitimate reason to have access and who have signed agreements

that prohibit the unauthorized use or disclosure of such information. In addition, all of DNNA's stored information is firewall protected in a manner designed to

prevent unauthorized "hacks" into our systems. While we cannot guarantee that loss, misuse or alteration of your data will not occur, we work hard to prevent

such occurrences.

o,O

Replay'IV5.5 UG.book Page 68 Frida), August I, 2003 10:58 AM

Q: Does DNNA collect personal information about children?

A: We are very concerned about the safety and privacy of children. Therefore, DNNA will not knowingly collect Personal Information from anyone under the

ageof 13.

Q: Will this Privacy Policy ever be changed? How can I find out about any changes to this Privacy Policy?

A: Our privacy policy could change in the future. As our business and services expand and change, we will update this policy to provide you with information

about changes to our privacy policy, including how we treat Personal Information collected through our services.

Updates to this policy, including opportunities to opt out of data collection, will be posted on our Web site, and sent to your ReplayTV digital video recorder

along with a message sent to your ReplayTV message box indicating the policy has been updated, but in most cases will nol be sent to you in any olher way. We

encourage you to review this policy periodically to review any changes that have been posted.

One thing that will never change at DNNA is our commitment to your privacy.

Q: What if I have other questions?

A: If you have any questions or comments about our use of your information or about this Privacy Policy, please contact us at 800-933-5899 or via e-mail at pri-

vacy@replaytv.com. We will be happy to give you more information.

lfyou have a complaint about our use of your information, please let us know. We will promptly investigate and will comply fully with the legal and regulatory

supervisory authorities responsible for enforcing our adherence to the privacy principles stated above.

Go to www.replaytv.com for the most up-to-date Privacy Policy.

Page 69 I-'rida3, August I, 2003 10:58 AM

•". FCC Compliance

This section describes the requirements for compliance with Federal Communications Commission (FCC) Rules.

FCC Registration and Requirements

The following paragraphs describe requirements and information based on FCC rules.

FCC Rules, Part 15

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. 'l hese limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna;

Increase the separation between the equipment and receiver;

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and

2 This device must accept any interference received, including interference that may cause undesired operation.

Company Name: DNNA_ Inc.

Address: 2600 San Tomas Expressway, Santa Clam, CA 95051-0953

'l_lephone: 800-933-5899

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARRY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S

AU'I HOR1TY TO OPERA1 E TrtE EQUIPMENT.

u,_O

Replay'IV5.5 UG.book Page 70 I:rida), August I, 2003 10:58 AM

FCC Rules, Part 68

1 This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the rear panel of this equipment is a label that contains,

among other information, a product identifier in the furmat US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.

2 The Federal Communications Commission (FCC) has established Rules which permit this device to be directly connected to the telephone network. Stan-

dardized jacks are used for these connections. ']['hisequipment should not be used on party lines or coin phones.

3 If this device is malfunctioning, it may also be causing harm to the telephone network; this device should be disconnected until the source of the problem

can be detemlined and until repair has been made. If this is not done, the telephone company may temporarily disconnect service. All repairs should be per-

formed by DNNA, lnc_or an authorized agent. It is the responsibility of users requiring service to report the need for service to DNNA, Inc. or to one of our

authorized agents. Service can be facilitated through ReplayTV Customer Care.

4The telephone company may make changes in its technical operation and procedures; if such changes affect the compatibility or use of this device, the tele-

phone company is required to give adequate notice of the changes. You will be advised of your right to file a complaint with the FCC.

5 lfthe telephone company requests information on what equipment is connected to their lines, inform them of:

a. The telephone number to which this unit is connected.

b. The ringer equivalence number (REN): 0.0B.

c. The USOC jack required: RJI IC.

d. ']['heFCC Registration Number: US: SNBM500BRTV5XXX

Items (b) and (d) are indicated on the label. The REN assigned to each terminal equipment provides an indication of the maximum number of terminals allowed

tu be connected tu a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum

of the Ringer Equivalence Numbers of all the devices does not exceed five.

Page 71 I:rida3, August I, 2003 10:58 AM

•". Safety

Important Safety Instructions

1 Read Instructions All the safety and operating instructions should be read before the pmducl is operated.

2 Retain Instructions The safety and operating instructions should be retained for future reference.

3 Heed Warnings All warnings on the product and in the operating instructions should be adhered 1o.

4 FOllOW Instructions All operating and use instructions should be followed.

5 Cleaning Unp_ugthisprodu_tfromthewa___ut_etbef_rec_eaning.D_notuse_iquid__eaners_raer_s__c_eaners.Use

a damp cloth for cleaning.

6 Attachments Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7 WARNING IWater and Moisture 'Ibreducetheriskoffireorelectricshock, do not expose this appliance

1orain or moisture. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,

PORTABLE CART WARNING

(Symbol provided by RETAC)

shall be placed on the apparatus. Do not use this product near waler-for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet base-

ment; or near a swimming pool; and the like.

8 Accessories Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or

adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product.

Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

A product and cart combination should be moved with care. Quick slops, excessive force, and uneven surfaces may cause the product and cart combination

1o overturn.

9 Ventilation Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over-

heating, and lhese openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other sim-

ilar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the

manufacturer's instructions have been adhered to.

10 Power Sources This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type

of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources,

refer to the operating instructions.

11 Grounding or Polarization This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than

1he other). This plug will fit into the power outlet only one way. This is a safety feature, lfyou are unable to insert the plug fully into the outlet, try reversing

1he plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12 Power-Cord Protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or

against them, paying particular attention to cords al plugs, convenience receptacles, and the point where they exit from the product.

13 Protective Attachment Plug The product is equipped with an attachment plug having overload protection. This is a safety feature. See

Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replace-

ment plug specified by the manufacturer that has the same overload protection as the original plug.

u,_O

Replay'IV5.5 UG.book Page 72 Frld_5, Augusl I, 2003 10:58 AM

14 Outdoor Antenna Grounding If an outside antenna or cable system is connected to the --_-.

product, be sure the antenna or cable system is grounded so as to provide some protection against volt- _

age surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, pro- i

vides inforruation with regard to proper grounding of the mast and supporting structure, greunding of _--_ _._NN_

the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-dis-

charge unit, connection to grounding electrodes, and requirements for the grounding electrode.

15 Lightning For added protection for this product during a lightning storru, or when it is left unat-

tended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or

cable system. This will prevent damage to the product due to lightning and power lines surges.

16 Power Lines An outside antenna system should not be located in the vicinity ofoverhead power

lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When

installing an outside antenna system, extreme care should be taken to keep from touching such power

lines or circuits as contact with them might be fatal.

17 Overloading Do not overload wall outlets, extension cords, or integral convenience receNacles

as this can result in a risk of fire or electric shock.

18 Object and Liquid Entry Never push objects of any kind into this preduct through openings as they may touch dangerous voltage points or

short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

19 Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer

all servicing to qualified service personnel.

20 Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following

conditions:

When the power-supply cord or plug is damaged,

lfliquid has been spilled, or objects have fallen into the product,

lfthe product has been exposed to rain or water,

If the product does not operate normally by following the operating instructions. Adjust only those contrels that are covered by the operating instruc-

tions as an impreper adjustment of other conlrols may result in damage and will often require extensive work by a qualified technician to restore the

product to its normal operation,

lfthe product has been dropped or damaged in any way, and

When the product exhibits a distinct change in perforruance-this indicates a need for service.

21 Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufac-

turer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22 Safety Check Upon completion of any service or repairs to this woduct, ask the service technician to perform safety checks to determine that the

product is in proper operating condition.

23 Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

24 Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that Wo-

duce heat.

Page 73 I:rida), August I, 2003 10:58 AM

Safety/Regulatory Information

Ca ution 'I_ prevent fire, shock hazard, or annoying interference, use only the recommended accessories.

'1%prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle, or other outlet

unless the blades can be fully inserted to prevent blade exposure. '1%reduce the risk of electric shock, do not

remove the unit cover or back. There are no serviceable parts inside. Refer servicing to qualified personnel

only.

User/Installer Caution Your authority to operate this FCC certified equipment could be voided

if you make changes or modifications not expressly approved by the manufacturer, who is responsible for

compliance with Part 15 FCC rules.

Note to CATV System Installer This reminder is provided to call the CATV system

installer's attention to Article 820-40 of the National Electronic Code that provides guidelines for proper

grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical.

Caution Always disconnect all telephone lines from the wall outlet before servicing or disassembling

this equipment.

_o U_E_Sn_V_'EA_LF _AmS INS_Dr

REFF_ _ TO QUA_IED _ICE PER_EI

_ his symbol is intended to alert

the user to the presence of

uiiinsulatc_t dangerous vcJttagr,

within the prod*tot's enclosure

that may be ot sufficient

magnitude to constitute risk of

fire or electric shock.

This symbol is intended to alert

the user to the presence of

important operating and

maintenance instructions in the

literature accompa_ying this

product,

u,_e

Replay'IV5.5 UG.book Page 74 I-'rida3, August I, 2003 10:58 AM

Page 75 Frid_3, Augusl I, 2003 10:58 AM

Index

Add or Remove Channels

Basic operations 27

Cable overview 7

Cancel recording 41

Category options 44

Channel Guide 32

Closed captioning 34

Component Video 7

Connecting a Video Cam-

era or VCR 10

Connecting ReplayTV to a

cable modem 13

Connecting ReplayTV to a

DSL Modem 15

Connecting ReptayTV to a

hub or switch 14

Connecting ReptayTV to a

router 13

Connecting ReptayTV to a

VCR 10

Connecting ReptayTV to an

A/V receiver 9

Connecting ReplayTV to an

existing network 12

Connecting the IR blaster

Connecting the serial cable

Customer Service Informa-

tion 53

Default Record Options 21,

Fast forward 28

Feature highlights 2

Feature updates 1

Find Shows 38

Frame Advance 30

Frequently Asked Ques-

tions 53

Front panel 4

Home networking 12

Instant Replay 30

IP address, ReplayTV 17

Jump 31

Main Menu 20

Manual Record 40

MyReptayTV 22

Navigation 19

Network and Input Settings

Networking in fola_aation,

manual entry 16

On-screen setup 12

Package contents ii

Parental Control 22

Pause 28

Pause screen 21, 49

Photo Viewer 50

Play show from another Re-

ptayTV 47

Preserve an episode 45

Progressive Out 5, 59

Progressive Video Out 21

QuickSkip 30

Rear panel 5

Record options 36

Recording 35

Recording conflicts 42

Recording priorities 41

Remote control 3

Remote control setup 23

Remote control shortcuts

Remote Replay Guide ac-

cess 48

Replay channel options 44

Replay Guide 43

Replay show options 45

Replay Zones 39

ReptayTV Name 21

ReplayTV Photo Transfer

software 49

Rewind 28

Router setup 16

Safety 71

Save to videotape 46

Screen saver 21, 49

Replay'IV5.5 UG.book Page 76 I:rldab, August I, 2003 10:58 AM

Setup Menu 21

Slow Motion 29

System Information 23

Technical specifications 58

Troubleshooting 53

Turning on ReptayTV 6

V-Chip 34

Video Output Settings 21

W,X,Y,Z

Watch a recorded show 45

Page 78 I-'rida3, August I, 2003 10:58 AM

replaytv

SONIC BLUE Hard Disk Recorder Manual L0312079

Navigation menu

Versions of this User Manual:

Views

Navigation
