Dear Customer:
English Owner’s Manual
CMS3
CLARION PRODUCT REGISTRATION INFORMATION
For USA and Canada only
www.clarion.com
Congratulations on your purchase of a Clarion mobile electronic product. We are confident
that you’ll enjoy your Clarion experience.
There are many benefits to registering your Clarion product.We invite you to visit our website
at www.clarion.com to register your Clarion product.
We have made product registration simple with our easy to use website. The registration
form is short and easy to complete. Once you’re registered, we can keep you informed of
important product information.
Register at www.clarion.com- it’s easy to keep your Clarion product up to date.
2
Contents
1. FEATURES......................................................................................................................3
2. PRECAUTIONS...............................................................................................................3
3. CAUTIONS ON HANDLING............................................................................................3
4. CONTROLS.....................................................................................................................4
About the Registered Marks, etc.....................................................................................4
Names of Buttons and Their Functions...........................................................................5
5. OPERATIONS..................................................................................................................6
Basic Operation...............................................................................................................6
System Menu...................................................................................................................7
Radio (AM/FM) Operation................................................................................................8
Weather Band Operation.................................................................................................9
SiriusXM Satellite Radio Operation................................................................................10
USB Mode Operation.....................................................................................................12
iPod/iPhone Mode Operation.........................................................................................13
6. TROUBLESHOOTING...................................................................................................16
7. SPECIFICATIONS.........................................................................................................17
INSTALLATION AND WIRE CONNECTION.....................................................................18
Aux Operation................................................................................................................14
Bluetooth Operation.......................................................................................................15
TURES
CMS3
English Owner’s Manual
TURES
1. This unit
that trouble arises, never open the case, disassemble
the unit, or lubricate the parts.
has precision parts inside. Even in the event

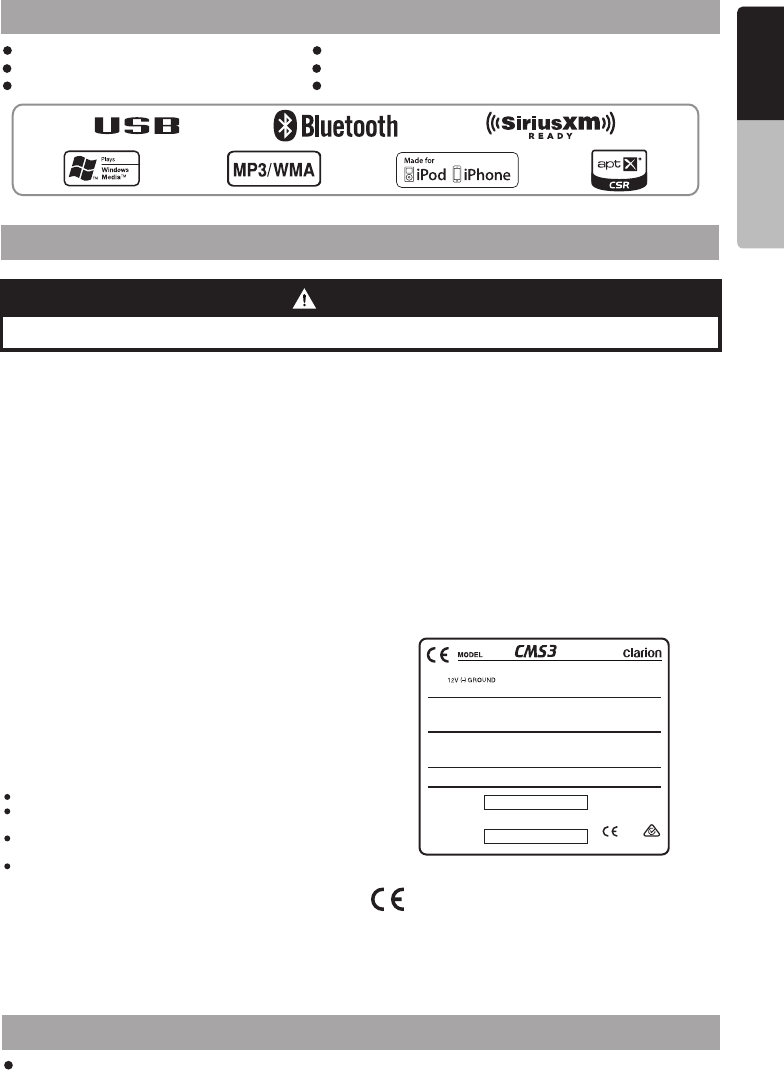

1. FEATURES
TM
SiriusXM-Ready Built-In Bluetooth
Weather Band Radio 50Wx4 Built-In Amplifier
Watertight Remote Compatible with iPod /iPhone ® ®
WARNING
For your safety, while boating, keep the volume to a level at which external sounds can be heard.
Exposure to extreme heat and direct sunlight may hinder the performance of your Clarion product.
In the event this happens, allow the unit to cool down before use.
3
2. FCC STATEMENT
2.1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
2.2. Changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate the equipment.
This quipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 20cm between the radiator & your
body
3. IC warning
3.1. This device complies with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including
interference that may cause undesired operation
of the device.
3.2. Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Note:
FCC Radiation Exposure Statement
®
®
3.3 Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.”
USA: AM530-1710kHz, FM 87.9-107.9MHz
EUROPE: AM531-1602kHz, FM87.5-108.0MHz
AUSTRALIA: AM531-1620kHz, FM87.5-108.0MHz
ASIA: AM531-1620kHz, FM87.5-108.0MHz
MADE IN CHINA
SERIAL NO.
MANUFACTURER: SMX
MANUFACTURED:
CLARION CORPORATION OF AMERICA
6200 GATEWAY DRIVE, CYPRESS, CA 90630, USA
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interfe rence, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC ID: AB7S-CM S3
IC : 11 88 8A - CM S3
2
This dev ice co mp l ies wi th Indu str y Ca nad a li cence -exempt RSS st andard( s).
Operat ion is su bject to t h e fol l ow ing tw o co ndi tions: (1) th is dev ice may no t
caus e in terferenc e, a nd (2) this dev ic e mus t acce pt any interfe rence,
incl uding in t erfe rence th a t may ca use un des ired oper ation of t h e dev ice.
CA NIC ES-3(B )/NM B-3(B )
:
This equipment is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC
2. PRECAUTIONS
0700
3. CAUTIONS ON HANDLING
0700
4. CONTROLS
English Owner’s Manual
CMS3
About the registered marks, etc.
Windows Media™ and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States and /
or other countries.
®
The Bluetooth word mark and Logos are owned
by the Bluetooth SIG, Inc. and any use of such
marks by Clarion Corporation of America is under
license. Other trademarks and trade names are
those of their respective owners.
"Made for iPod" and "Made for iPhone" mean
that an electronic accessory has been designed
to connect specifically to iPod or iPhone,
respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and
regulatory standards. Please note that the use
of this accessory with iPod or iPhone may affect
wireless performance. .
iPhone and iPod are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Black Box
RESET
4
Sirius, XM and all related marks and logos are
trademarks of SiriusXM Radio Inc. All rights
reserved.
© 2013 CSR plc and its group companies. The
aptX mark and the aptX logo are trade marks
of CSR plc or one of its group companies and
may be registered in one or more jurisdictions.
®

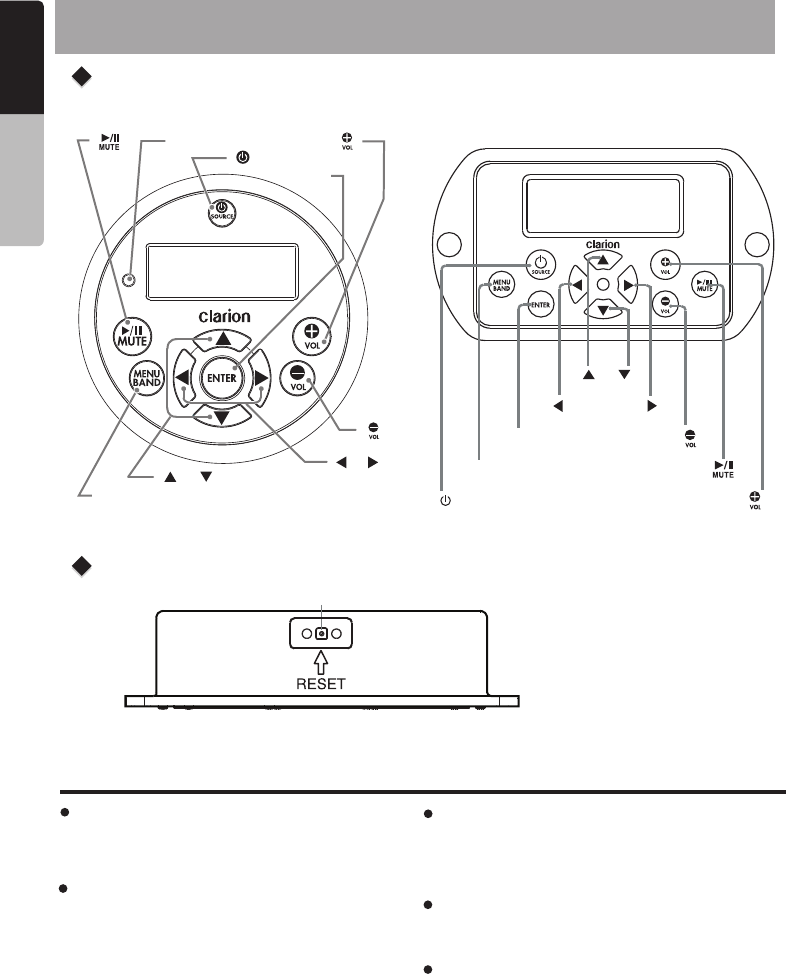

[MENU/BAND]
[ENTER]
[
[ /SOURCE]
]
[ ], [ ]
[ ]
[ ]
[ ], [ ]
IR-Receiver
Wired Remotes
[ /SOURCE]
[MENU/BAND]
[ENTER]
[ ]
[ ] [ ]
[ ]
[ ]
[ ]
[ ]
MW1MW3
5
CMS3
English Owner’s Manual

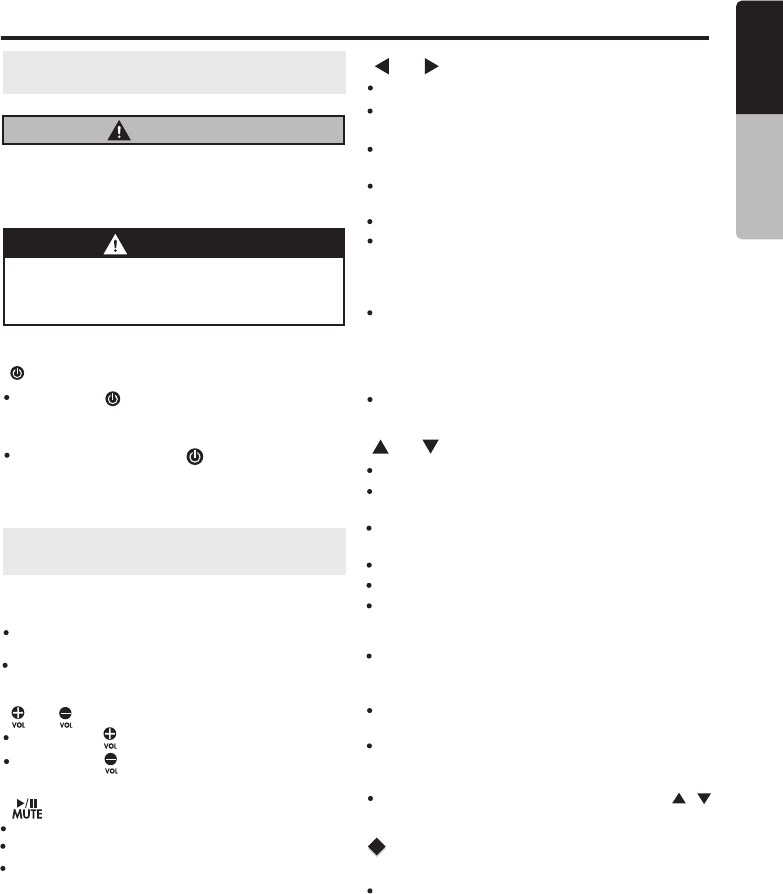

Name of Buttons and Their Functions
CAUTION
Lower the volume level before powering the
source unit off. The source unit stores the
last volume setting.
WARNING
EXPOSING THE UNIT TO WATER WITH
THE FRONT PANEL OPEN WILL CAUSE
DAMAGE OR UNIT MALFUNCTION!
[ / SOURCE] Button
[ ] / [ ] Button
[ ] / [ ] Button
[ ] / [ ] Button
[ ] Button
[MENU/BAND] Button
Press the [ /SOURCE] button to turn the
power on and press and hold it (1 sec.) to
turn the power off.
Press and release the [ /SOURCE] button
switch between available sources: FM, AM,
Weather Band, SiriusXM, USB/iPod, AUX and
BT Audio.
to
USB mode – Previous/Next track & Fast Forward
/Reverse (Press and hold)
USB mode – Folder Up/Down & Select (in Folder
search mode)
AM/FM/Weather Band mode–Station Up/Down
&Seek Up/Down (Press and hold)
AM/FM/Weather Band mode–Preset Station Up
/Down & Enter into Manual Store (Press and hold)
Press this button to access menu items for
necessary functions in every mode.
Press the [ ] button to increase the volume.
Press the [ ] button to decrease the volume.
iPod/iPhone mode – Previous/Next track & Fast
Forward/Reverse (Press and hold)
iPod/iPhone mode – Select (in Menu mode)
Note: If the above equipment is not connected,
corresponding mode cannot be selected.
SiriusXM mode – Channel Tune Up/Down,Fast
Channel Tune Up/Down (Press and hold), Move
cursor (Direct mode) & Enter the Parent Code
Window
SiriusXM Replay mode – Press and Release
the Left or Right Arrow to skip back or forward
one song/track.
Press and Hold will Fast Forward/Fast Rewind
through the Replay buffered content.
SiriusXM mode – Preset channel Up/Down,Category
Up/Down (in Category mode), Numeric Up/Down
(Direct mode), input Parent code interface
AUX In mode – No function
AUX In mode – No function
BT Audio mode – Previous/Next track & Fast
Forward/Reverse (Press and hold)
BT Audio mode – No function
In different modes, the menu items are different.
Please see the operation instructions of every
mode for more details.
MENU/BAND mode–Adjust the current item
MENU/BAND mode–Select the menu item
[ENTER] Button
Press this button to confirm operation selection
when available.
Press ENTER button to switch the display indication.
Note: Be sure to read this chapter while referring
to the front diagram in chapter “ 4. CONTROLS ”
Press to access the adjust menu. Press [ / ]
repeatedly to select the item to be adjusted.
Press this button to mute/unmute the audio output.
Press this button to Play or Pause.
In SiriusXM play screen, press the Play/Pause
button to enter Replay mode.
Black Box
[RESET] Button
Press RESET button with a ball point pen to:
1. Perform a complete system reset.
2. In the event that remote buttons do not respond or
operate correctly.
3. When an Error Code or Message is displayed.
English Owner’s Manual
6

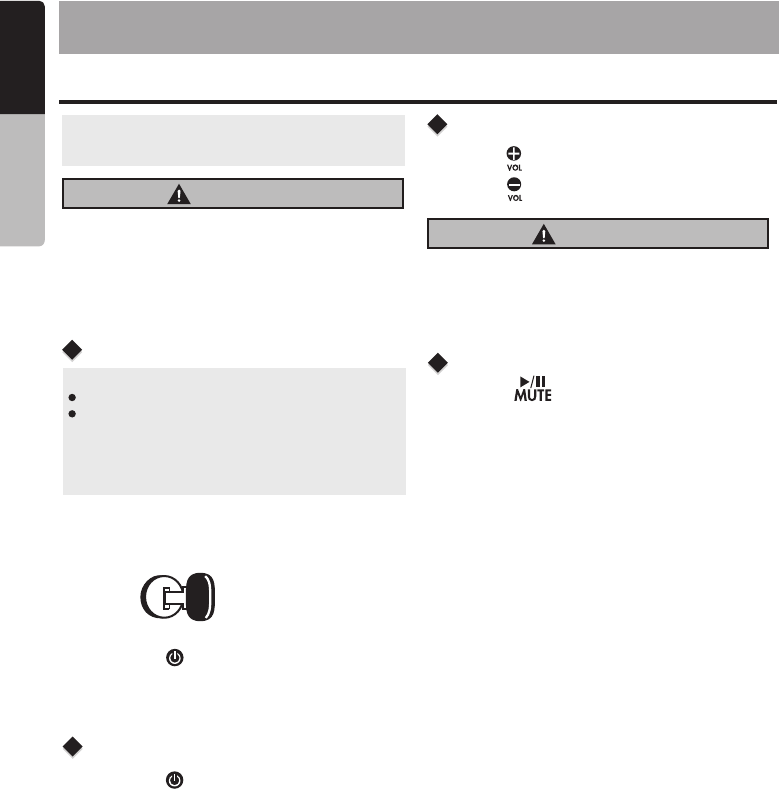

5. OPERATIONS
Basic Operation
CAUTION
CAUTION
When the unit is turned on, starting and
stopping the engine with its volume raised to
the maximum level it may cause hearing
damage. Be careful about adjusting the
volume.
While boating, please be aware of the
volume levels in residential, family areas
and local volume level ordinances.
Turning on and off the power
Selecting a mode
Adjusting the volume
Engine ON
position
Note: Be sure to read this chapter referring
chapter “ 4. CONTROLS ”
to the
Note:
Start the engine before using this unit.
Be careful about using this unit for a long time
without running the engine. If you drain the
vessel battery too far, you may not be able to
start the engine and this can reduce the service
life of the battery.
1. Start the engine. The power button / knob
illumination on the unit will light up.
2. Press the [ /SOURCE] button to turn the
power on and press and hold it (1 sec.) to
turn the power off.
1. Press the button to change
to the next available source.
[ /SOURCE]
*External equipment not connected to this unit
is not displayed.
1. Press [ ] button to increase the volume.
Mute
Press the [ ] button to turn the Mute On
and Off.
2. Press [ ] button to decrease the volume.
CMS3
7
English Owner’s Manual
System Menu
Bass
Loud On/Off
Subwoofer On/Off
EQ (Preset Equalizer Setting)
Balance
Press [MENU/BAND] button to access the System
Menu. Press [ ] button to exit the System Menu.
Press [ / ] repeatedly to select items to be
adjusted:
Fader
Subwoofer GAIN
Subw LPF
Middle
Treble
Aux In
Press the [ / ] buttons to change EQ:
Flat->Jazz->Pop->Classic->Rock->News->Urban
->Rave->Movie->Techno->User
Press the [ / ] buttons to select Loundness
between ON and OFF.
Press the [ / ] buttons to select Subwoofer
between ON and OFF.
Press the [ / ] buttons to adjust the Subwoofer
Gain range: 0 to 12
Press the [ / ] buttons to adjust the Subwoofer
Low Pass Filter range: 80HZ / 120HZ / 180HZ
Press the [ / ] buttons to adjust the Bass
level range: -7 to +7
Press the buttons to adjust the Mid-range
level range:-7 to +7
[ / ]
Press the buttons to adjust the Treble
level range:-7 to +7
[ / ]
Press the buttons to adjust the Balance
between the Left and Right speakers from L12
(full left) to R12 (full right).
[ / ]
Press the buttons to adjust the Fader
between the Rear and Front speakers from R12
(full rear) to F12 (full front).
[ / ]
Press the buttons to select the “LOW”,
“MIDDLE” or “HIGH”.
[ / ]
Press the buttons to select Beep tone
between ON and OFF.
[ / ]
Press the buttons to Disconnect and
Connect the Bluetooth.
[ / ]
Press the [ENTER] button to restore the factory default
settings.
Press the button to view the device hardware
and software versions.
[ENTER]
BT Disconnect/Connect
Reset Setting
About
Beep On/Off
CMS3
Radio (AM/FM) Operation
[ ] Tuning Up / [ ] Tuning
Down Buttons
Selecting the Tuner Mode
World Tuner
1. Press the [ ] / [ ] button change intervals
step by step.
Press the [ / SOURCE ] Source button to
select the AM/FM mode.
This unit is initially set to USA frequency intervals
of 10 kHz for AM and 200 kHz for FM. When using
it outside the USA, the frequency reception range
can be switched to the intervals below.
2. Press and hold the [ ] / [ ] button to seek
to the next strongest station.
Recalling a Preset Station
Presets
A total of 10 preset positions (P1~P10) exists to
store individual radio stations in memory.
Press [ ] / [ ] button to select the desired
preset station.
Auto Store
Only stations with sufficient signal strength will be
detected and stored in the memory.
LO/DX
1. Press the [ MENU/BAND ] button access
the System Menu.
2. Press the [ / ] button until "Auto Store"
is displayed.
3. Press the [ENTER] button to start automatically
select nine strong stations and store them into
nine presets. The new stations replace any
stations already stored in the band.
1. Press the
the System Menu.
3. Press the button until “LO/DX” is
displayed.
4. Press the [ / ] button to select local (LO)
or distant (DX) mode.
[ MENU/BAND ] button access
[ / ]
When LOCAL seeking is ON, only those radio
stations with strong radio signal would be received.
Area Selection
This option allows you to select the appropriate
frequency spacing for your area.
1. Press the
the System Menu.
2. Press the [ / ] button until
is displayed.
3. Press the [ENTER] to enter Area mode.
4. Press the [ / ] scroll through the Area
options:
"Area U.S.A", "Area Europe", "Area Asia",
"Area AUST (Australia)"
[ MENU/BAND ] button access
"Area U.S.A"
Note: Default is USA frequency. Once the
region is changed, all the stations in the preset
memory will be erased.
1. Select the desired station with seek tuning or
manual tuning.
2. Press and hold the [ / ] button
3. Press the [ / ] button to select a preset
number.
4. Press the [ ENTER ] button to store current
station into preset memory.
AM
FM
Frequency
spacing
Frequency
range
Frequency
spacing
Frequency
range
U.S.A
standard
Aisa
standard
Europe
standard
10kHz 9 Hzk
9 Hzk
530-1710
kHz
531-1620
kHz
531-1602
kHz
200 Hzk 50 Hzk
50 Hzk
87.9-107.9
MHz
87.5-108
MHz
87.5-108
MHz
Australia
standard
9 Hzk
531-1620
kHz
100 Hzk
87.5-108
MHz
8
English Owner’s Manual
Note: Press [MENU/BAND] button to exit .
CMS3
Note: Press [MENU/BAND] button to exit .
Weather Band Operation
[ ] Tuning Up / [ ] Tuning
Down Buttons
1. Press the [ ] / [ ] button to change
intervals step by step.
2. Press and hold the [ ] / [ ] button to
seek to the next strongest station.
Recalling a Preset Station
A total of 7 preset positions (WB1~WB7) exists to
store individual weather band stations in memory.
Press [ ] / [ ] button to select the desired
preset weather band station to recall the stored
frequency.
During listening of the weather band, press the
[MENU/BAND] button to access available options.
Scan
1. Press the
System Menu to select SCAN.
[ MENU/BAND ] button access the
9
English Owner’s Manual
Note: Only stations with acceptable reception
will lock to SCAN. Scan time is approximately
10 seconds.
2. Press the [ENTER] button to start scanning
available stations. Press again to stop.
CMS3
SiriusXM Satellite Radio Operations
®
Only SiriusXM® brings you more of what you
love to listen to, all in one place. Get over 140
channels, including commercial-free music plus
the best sports, news, talk, comedy and
entertainment. Welcome to the world of satellite
radio. A SiriusXM Vehicle Tuner and
Subscription are required. For more information,
visit www.siriusxm.com
Displaying the Radio ID
Before you listen to satellite radio, you must
subscribe to the service using the SiriusXM Radio
ID number.
1. Press [ /SOURCE] button to enter SiriusXM
mode.
2. Press [ ] or [ ] to select channel “0”. The
unit displays Radio ID.
Note:
1. The Radio ID is located on the bottom of the
SiriusXM Connect Vehicle Tuner.
2. Please note that the SiriusXM Radio ID does
not include the letters I, O, S or F.
3. Activate the SiriusXM Connect Vehicle Tuner
using one of the two methods below:
• Online: Go to “www.siriusxm.com/activatenow”.
• Phone: Call 1-866-635-2349.
• To activate SiriusXM Canada service go to
www.xmradio.ca and click on “ACTIVATE
RADIO” in the top or call XM customer care at
1-877-438-9677.
Channel Up [ ] Down [ ]
Operation
Recalling a Preset Station
1. Press the [ ] Right Arrow to advance to the
next channel.
Press the [ ] Left Arrow to go to previous
channel.
2. Press and hold in the [ ] Right Arrow to fast
forward search channel.
Press and hold in the [ ] Left Arrow to fast
backward search channel.
1. Press the [ / ] button to enter into the
Preset List.
2. Press the [ / ] button to select the desired
Preset you wish to access.
3. Press the [ENTER] button to confirm tune to
that channel.
Direct Tune
1. Press and hold the [ / ] button to enter
into the Manual Store
2. Press the [ / ] button to select a preset
number.
3. Press the [ENTER] button to store current
channel into preset.
Presets interface.
1. Press the
SiriusXM Menu.
2. Press the [ / ] button until “ ”
is displayed.
3. Press the [ENTER] button to enter Direct Tune
mode.
4. Press the [ / ] button to change the digit
or [ / ] button to change the number.
5. When the cursor is on the third digit, press the
[ ENTER ] button to confirm channel number
selection.
[ MENU/BAND ] button access the
SXM DIRECT-T
Go Live
1. Press the
the SiriusXM Menu.
2. Press the [ / ] button until "is
displayed.
3. Press the [ENTER] button to go to Live signal.
[ MENU/BAND ] button access
"Go Live
1. Press the
SiriusXM Menu.
2. Press the [ / ] button until "SXM CATEGORY"
is displayed.
3. Press the [ENTER] button to enter Category
Search mode.
4. Press [ / ] button to scroll available
categories.
5. Press [ / ] button to scroll channels with
in the category.
6. Press the [ENTER] button to confirm to tune to
that channel.
[ MENU/BAND ] button access the
Category Search
10
English Owner’s Manual
Presets
Note: Press [MENU/BAND] button to exit .
Channel scan receives the channel (in the current
category) in order. This function is useful when
searching for a desired channel in the current
category.
CMS3
Note: Press [MENU/BAND] button to exit .
Note:
In Category Search mode, press and hold the
[ ENTER ] button to switch channel data
(channel name, artist name, song title, content
info, category name).
SiriusXM Satellite Radio Operations
SiriusXM Replay™ function
During REPLAY playback
Fast rewind: Press and hold [ ].
Fast forward: Press and hold [ ].
Returning to the beginning of the current song:
Press [ ]. (If you press [ ] in the first 2
seconds of a song,you return to the beginning
of the previous song.)
Advancing to the beginning of the next song: press [ ].
3. Press the [MENU/BAND] button to enter into the
SiriusXM Menu to select the Go-Live function and
press the [ENTER] button to exit Replay mode.
Note:
If you continue to press the [ ] button until
the end, the Replay mode is canceled, and the
unit will change to live SiriusXM radio mode.
If you change channels while in Replay mode,
the unit will exit Replay mode to live Satellite
mode and clear the Replay memory.
Changing the Display
Text information, such as the channel name, artist
name, song title and content is available with each
SiriusXM channel. The unit can display this text
information as explained below:
In SiriusXM mode, press [ ENTER ] button. Each
time you press this button, the display changes as
shown below:
Channel name -> Artist Name -> Song Title ->
Content Info ->Category name
If there is no text information, nothing will be
displayed.
11
English Owner’s Manual
The Replay feature allows you to pause, rewind,
and replay of live SiriusXM Satellite Radio.
1. While listening to a SiriusXM channel, press the
[ ] button to enter Replay mode. The display
will show “PAUSE” when entering this mode.
2. Press the to resume playback of
the stored audio from the point at which it was
paused. During playback, the SiriusXM Tuner
will continue to store the channel audio until you
exit the Replay mode.
[ ] button
Parental Control
The SiriusXM Parental Control feature allows you
to prevent unauthorized access to mature content
channels. When enabled, the Parental Control
feature requires you to enter a passcode to tune
to the locked mature content channels. Information
on setting up the passcode, setting up the mature
content channels to be locked, and the method to
access the locked channels is described below.
Mature Channel
1. Press the [MENU/BAND] button to access
the SiriusXM Menu.
2. Press the [ / ] button until "MATURECH
UNLOCK" is displayed.
3. Press the [ ] button to change the digit
or [ / ] button to change the
number.
4. When the cursor is on the fourth digit, press
the [ENTER] button to confirm
selection.
Passcode
1. Press the [MENU/BAND] button to access
the SiriusXM Menu.
2. Press the [ / ] button until "MATURECH
LOCK" is displayed.
3. Press the [ ] button to change the digit
or [ / ] button to change the number.
4. Press the [ ENTER ] button to confirm
selection.Passcode
For setting up the mature content channels to
be locked:
For setting up the mature content channels to
be unlocked:
For setting up the mature content channels to
be unlocked:
Parental Passcode
1. Press the
2. Press
3. Press the [ENTER] button to access change
passcode mode.
4. Enter Old / New passcode,p
[MENU/BAND] button to access the
SiriusXM Menu.
the [ / ] button until "PARENTAL\CODE"
is displayed.
ress the [ ] button
to change the digit or [ / ] button to change
the number.
5. To confirm the New passcode, enter it a second
time.
6. The default passcode set for the Parental
is " 1111 ".
Control
Note: If the passcode mismatching, will display
"CODE ERROR" for 3 Seconds then return to
Old Code screen.
CMS3
Note:
1. Press the [MENU/BAND] button to access the
SiriusXM Menu.
2. Press the button until "SXM RESET"
is displayed.
3.
[ / ]
Press the [ENTER] button to confirm.
SiriusXM Factory default
SiriusXM factory default include：
Note:
In Category Search mode, press and hold the
[ ENTER ] button to switch channel data
(channel name, artist name, song title, content
info, category name).
Last channel tuned.
Presets reset.
Parental Control feature is disabled.
Parental Control code is reset.
Mature Channel Tuning enabled.
Display status reset
1. Press the [ ] Right Arrow to advance to the
next track/song.
Press the[ ] Left Arrow to go to previous
track/song.
This function allows you to select a folder containing
MP3/WMA files and start playing from the first track
in the folder.
Press the [ / ] button to select a folder.
2. Press and Hold in the [ ] Right Arrow to fast
forward through the track/song.
Press and Hold in the [ ] Left Arrow to fast
backward through the track/song.
Connect
[ ] Right Arrow / [ ] Left
Arrow Buttons
Folder Select
Play / Pause

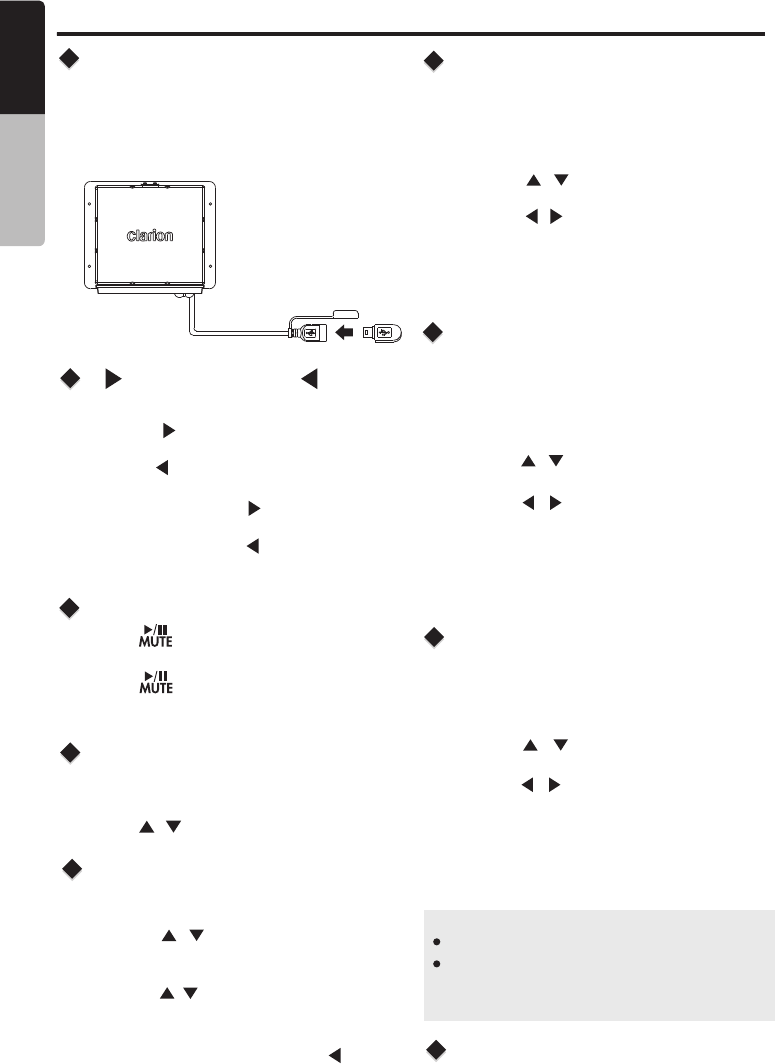

1. Insert a USB device into the USB pigtail.
2. To remove the USB device, you should first
select another source or turn off the power, in
order to avoid damaging the USB device.
Then remove the USB device. Please see
USB device compatibility on page 17.
Press the [ ] button to pause the track/song
that is currently playing.
Press the [ ] button to resume playing the
track/song that has been paused.
This function allows you to Repeat All tracks/
songs, Repeat the currently playing track/song,
or to turn the Repeat feature OFF.
Repeat Feature
This function allows you to play tracks/songs from
the current album, songs or artists in a random
order.
This function allows you to play the first 10 seconds
to each track on the device.
1. Press the
System Menu.
2. Press the [ / ] button until "SHUFFLE" is
displayed.
3. Press the [ / ] to scroll through the Shuffle
options.
"SHUFFLE OFF" or "SHUFFLE ON"
4. When the Random option you would like to use
appears on the display, Press the [ ENTER ]
button to select that Random option.
[ MENU / BAND ] access the
1. Press the
System Menu.
2. Press the [ / ] button until " INTRO " is
displayed.
3. Press the [ / ] to scroll through the Intro
options.
"INTRO OFF", or "INTRO ON"
4. When the Intro option you would like to use
appears on the display, Press the [ENTER]
button to select that Intro option.
[ MENU / BAND ] access the
Shuffle Feature
Intro Feature
USB Mode Operation
Search Function
1. Press the [ MENU / BAND ]
System Menu.
2. Press the [ / ] button until "SEARCH" is
displayed.
access the
Note:
Press [MENU/BAND] button to exit .
After 10 seconds of no action, you will return
to the play screen for the current source in
use.
12
English Owner’s Manual
3. Press the to enter to select Search.
4. Press the [ / ] button to to display folder or
file.
5. Press the [ENTER] button to select.
6. When displaying a File, press the [ ] button
to display the File's corresponding Folder
(return to last layer).
[ENTER]
1. Press the [ MENU / BAND ]
System Menu.
2. Press the [ / ] button until "REPEAT is
displayed.
access the
"
3. Press the [ / ] button to display
"TRACK" or "FOLDER".
4. Press the [ENTER] button to select that repeat
option.
"ALL" or
Press [ENTER] button to check ID3 information.
Display Button
CMS3

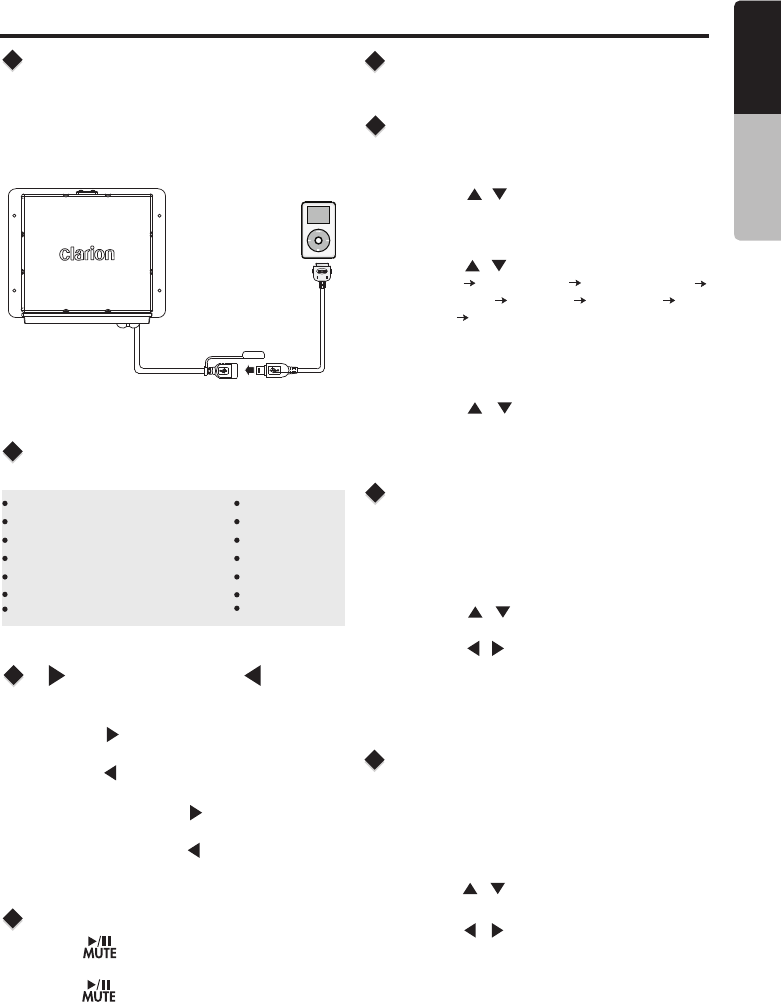

iPod/iPhone Mode Operation
1. Press the [ ] Right Arrow to advance to the
next track/song.
Press the [ ] Left Arrow to go to previous
track/song.
2. Press and hold in the [ ] Right Arrow to fast
forward through the track/song.
Press and hold in the [ ] Left Arrow to fast
backward through the track/song.
Press [ENTER] button to check iPod information.
BLACK
iPod
Connect
Compatible iPod/iPhone
[ ] Right Arrow / [ ] Left
Arrow Buttons
Play / Pause
Connect an iPod/iPhone to the USB pigtail using
a iPod/iPhone USB Cable. When connecting a
device, the unit will read the files automatically.
The track information displays on the screen once
playback start.
You can connect the following iPod/iPhone:
iPod nano (6G)
iPod nano (7G)
iPod touch (3G)
iPod touch (4G)
iPod touch (5G)
iPhone 3GS
iPhone 4
iPhone 4S
iPhone 5
iPhone 5C
iPhone 5S
iPhone 6
iPhone 6S
Minimum iOS 5.0 or higher
Press the [ ] button to pause the track/song
that is currently playing.
Press the [ ] button to resume playing the
track/song that has been paused.
Display Button
1. Press the [MENU/BAND] access the System
Menu.
2. Press the [ / ] button until "IPOD SEARCH"
is displayed.
3. Press the [ENTER] button to enter into the
Search mode.
4. Press the [ / ] button to select the among
PLAYLIST PODCASTS AUDIOBOOKS
COMPOSERS SONGS GENRES
ALBUMS ARTISTS.
5. Press the [ENTER] button to confirm selecting
Playlists or Podcasts or Audiobooks or
Composers or Songs or Genres or Albums or
Artists.
6. Press the [ / ] button to display items.
7. Press the [ENTER] button to confirm wanted
File to play.
13
English Owner’s Manual
Search Function
This function allows you to Repeat All tracks/
songs, Repeat the currently playing track/song,
or to turn the Repeat feature OFF.
Repeat Feature
1. Press the [ MENU / BAND ]
System Menu.
2. Press the [ / ] button until "REPEAT is
displayed.
access the
"
3. Press the [ / ] button to display
"ONE" or "ALL”.
4. Press the [ENTER] button to select that repeat
option.
"OFF" or
This function allows you to play tracks/songs from
the current album, songs or artists in a random
order.
1. Press the
System Menu.
2. Press the [ / ] button until "SHUFFLE" is
displayed.
3. Press the [ / ] to scroll through the Shuffle
options.
"SHUFFLE OFF" or "SHUFFLE ON"
4. When the Random option you would like to use
appears on the display, Press the [ ENTER ]
button to select that Random option.
[ MENU / BAND ] access the
Shuffle Feature
CMS3
1. Press the [ MENU / BAND ] to access the
System Menu.
2. Press the [ / ] button until “AUX IN LOW”
is displayed.
3. Press the [ / ] button to select the “LOW”,
“MIDDLE” or “HIGH”.
AUX Input sensitivity
setting
The AUX RCA inputs in this system are provided
to allow playback of sounds and music from
external devices connected to this unit.
AUX Operation
Press the [ / SOURCE] button to select the
“AUX In”.
Change the following settings to select the
sensitivity when sounds from external devices
connected to this unit are difficult to hear even
after adjusting the volume.
Note: When AUX mode is selected, AUX IN
sensitivity can be adjusted.
14
English Owner’s Manual
iPod/iPhone Mode Operation
Use this function if you wish to operate through
your iPod/iPhone connected to this unit via the
USB Cable.
The factory default setting is OFF.
1. When in iPod / iPhone mode, press the
2. Press the [ / ] button until "SIMPLE
CONTROL" is displayed.
3. Press the [ENTER] button to select.
4. Press the [ / ] to display "BY UNIT" or
"BY IPOD".
5. Press the [ENTER] to confirm the selection.
[MENU/BAND] access the System Menu.
Simple Control Mode
When performing iPod/iPhone operations using
Simple Control, make the operations slowly. If
repetitive operations are performed too quickly,
unforeseen errors may occur.
When performing iPod/iPhone operations using
Simple Control, please do not operate the iPod/
iPhone and the unit at the same time, otherwise
unexpected events may occur.
Some iPod/iPhone models do not support this
function. Please consult Clarion Customer
Service or Clarion website to confirm which
models are supported
Note:
CMS3
Bluetooth Operation
Audio Streaming Operations
What is audio streaming?
Play / Pause a track
Pairing the Bluetooth Device
Disconnect / Re-Connect
Audio streaming is a technique for transferring audio
data such that it can be processed as a steady and
continuous stream. Users can stream music from
their external audio player to their audio system
wirelessly and listen to the tracks through the boat’s
speakers.
CAUTION
Please avoid operating your connected mobile phone
while audio streaming as this may cause noise or
sound choppy on the song playback. Audio
streaming may or may not resume after telephone
interrupt as this is dependent on mobile phone.
1. Press the [ MENU / BAND ] button to access the
System Menu.
2. Press the [ / ] button until “BT DISCONN”
or “CONNECT” is displayed.
3. Press the [ENTER] button to confirm the selection.
Press the [ ] button to pause the track/song
that is currently playing.
Press the [ ] button to resume playing the
track/song that has been paused.
1. Press the [ ] Right Arrow to advance to the next
track/song.
Press the[ ] Left Arrow to go to previous track/song.
2. Press and hold in the [ ] Right Arrow to fast
forward through the track/song.
Press and hold in the [ ] Left Arrow to fast
backward through the track/song.
[ ] Right Arrow / [ ] Left
Arrow Buttons
Playing order will depend on BT Audio player. When
[ ] button is pressed, some Bluetooth devices will
restart the current track depends on the duration of
playback. During music streaming playback, “BT
Audio” will be shown on the display. When BT Audio
device is disconnected, “BT Disconnect” will be
shown on the display . Some Bluetooth audio players
may not have play/pause synchronized with this unit.
Please make sure both device and main unit are in
the same play/pause status in BT Audio mode.
Note:
Not all Bluetooth enabled devices will support the fast
forward and fast backward function.
ID3 Display
During music streaming playback, press [ENTER]
to view the ID3 display information:
ALBUM->TITLE->ARTIST...
15
English Owner’s Manual
1. From your Bluetooth enabled device, turn the
Bluetooth ON and search for Bluetooth devices.
2. When a list of available Bluetooth devices appear
on your Bluetooth device, select "Clarion".
3. "Successful” will appear on the CMS3 display.
4. The unit will automatically enter the BT Audio
source and you can now start streaming audio
from your Bluetooth enabled device.
Note: If the mobile phone doesn't support SSP (Simple
Secure Pairing) Profile, please enter the pass code of "0000".
Search Function
1. Press the [ MENU / BAND ]
System Menu.
2. Press the [ / ] button to select "DIR SEARCH"
access the
3. Press the [ / ] button to select Directory /
File, then press [ENTER] to confirm.
4. When displaying a File, press the [ ] button
to display the File's corresponding Folder
(return to last layer).
This function allows you to Repeat All tracks/
songs, Repeat the currently playing track/song,
or to turn the Repeat feature OFF.
Repeat Feature
1. Press the [ MENU / BAND ]
System Menu.
2. Press the [ / ] button until "REPEAT is
displayed.
access the
"
3. Press the [ / ] button to display
"TRACK" or "FOLDER".
4. Press the [ENTER] button to select that repeat
option.
"ALL" or
This function allows you to play tracks/songs from
the current album, songs or artists in a random
order.
1. Press the
System Menu.
2. Press the [ / ] button until "SHUFFLE" is
displayed.
3. Press the [ / ] to scroll through the Shuffle
options.
"SHUFFLE OFF" or "SHUFFLE ON"
4. When the Random option you would like to use
appears on the display, Press the [ ENTER ]
button to select that Random option.
[ MENU / BAND ] access the
Shuffle Feature
Note:
Press [MENU/BAND] button to exit .
After 10 seconds of no action, you will return
to the play screen for the current source in
use.
CMS3

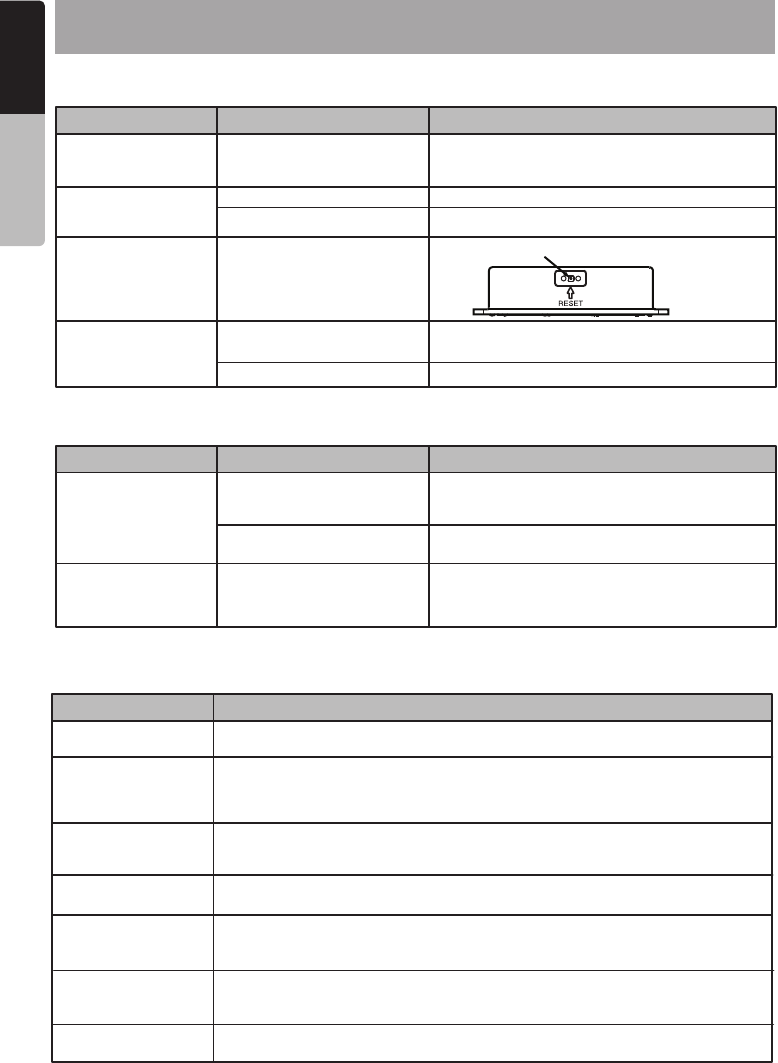

6. TROUBLESHOOTING
Problem
Problem
Cause
Cause
Measure
Measure
The unit will
not power on
Cannot pair the
Bluetooth enabled
device with the
audio system.
No sound
The audio quality is
poor after connection
with a Bluetooth-
enabled device.
The is
responding
remote not
Auto seek function
can not find any
stations
Volume is set too low
Wiring is not properly connected
The Bluetooth reception is poor.
The built-in internal processor
is not operating properly
The antenna cable is not
connected
The signals are too weak
Increase the volume to audible level
Correct wiring connections
Press the RESET button with a ball point pen
Insert the antenna cable securely
Select a station manually
The vessels accessory
switch is not on
The device does not support
the profiles required for the
system.
The Bluetooth function of the
device is not enabled.
If the power supply is properly connected
to the vessel’s accessory terminal,
switch the ignition key to “ACC”
Use another device to connect.
Refer to the user manual of the device for how
to enable the function.
GENERAL
Bluetooth
Message
CHEK TUNER
CHAN UNSUB
CHK ANTENA
CH UNAVAIL
NO SIGNAL
CH LOCKED
SUBSCRIPTN
UPDATED
Ensure the SiriusXM antenna cable is connected to the SiriusXM tuner
correctly. Check the SiriusXM antenna wire for breaks or sharp bends.
Replace the antenna if necessary. Press RESET located….. If the message
remains, the antenna may have been damaged.
This channel is not a valid SiriusXM channel.
The channel number has been entered incorrectly, or the channel was
removed from the SiriusXM channel lineup
The vehicle must be outside, and the antenna must have a clear view of the
southern sky.The magnetic antenna must be mounted on the outside of the
vehicle for the best reception.
The selected channel has been locked by a mature channel has been
selected.
A prompt to enter the unlock code will appear.
An update to your SiriusXM subscription has been received by the SiriusXM
tuner. Press any button to continue.
Check the SiriusXM tuner connection on the back of the unit to ensure that
its correctly connected.
This channel is not included in your SiriusXM subscription plan.
Call 1-866-635-2349 to subscribe.
Description
SiriusXM Advisory Messages
Move the device closer to the audio system or
remove any obstacle between the device and
the system.
16
English Owner’s Manual
CMS3
7. SPECIFICATIONS
FM Tuner
Power Output:
20W × 4 RMS (4 Ω @14.4V
≤1% THD+N)
Signal to Noise Ratio:
74dB (reference: LPF 1 W into 4 )
Frequency Range: USA 87.9 - 107.9MHz
Europe 87.5 - 108.0MHz
Asia 87.5 - 108.0MHz
Australia 87.5 - 108.0MHz
Usable Sensitivity: 4 V (S/N=30dB)
Image Rejection: >45dB
Stereo Separation: >25dB
AM Tuner
Frequency Range: USA 530 -1710KHz
Europe 531 - 1602KHz
Asia 531 - 1629KHz
Australia 531- 1629KHz
Usable Sensitivity: 40dB (S/N=20dB)
Weather Band Selection
CH.1 162.400MHz CH.2 162.425MHz
CH.3 162.450MHz CH.4 162.475MHz
CH.5 162.500MHz CH.6 162.525MHz
CH.7 162.550MHz
Audio
USB
Maximum Power Output: 50W x 4
USB: 2.0 High Speed
USB Port: 1.0A
USB Voltage: 5.0V
Maximum MP3/WMA Songs: 65535
Maximum MP3/WMA Folder: 255
Maximum Songs per Folder: 65535
Maximum USB Memory Size: 32G
USB Flash Drive and Hard FAT/FAT32
Drive Compatible Format:
Bass Control (60Hz): ± 7dB
Treble Control (10kHz): ± 7dB
Middle Control: (1kHz): ± 7dB
General
Power Supply Voltage: 12V DC (10.8 to 15.6V
allowable)
Grounding System: Negative Ground
Speaker Impedance: 4-8 ohms per channel
Note: Specifications and design are subject to
change without notice for further improvement.
Bluetooth
Specification: Bluetooth Version. 3.0+EDR
(Enhanced Data Rate)
Supported Profiles: A2DP (Advanced Audio
Distribution Profile)
aptX (CD Quality audio
bandwidth matching and
reproduced)
AVRCP 1.4 (Audio/Video
Remote Control Profile)
SPP (Serial Port Profile)
SSP (Simple Secure Pairing)
Send/Receive Sensitivity: Class 2
17
English Owner’s Manual
CMS3
oo
Working temperature: -20 C ~ +55 C
INSTALLATION AND
CONNECTION
WIRE
1. BEFORE STARTING
1. This set is exclusively for use in vessels with
a negative ground 12 V power supply.
2. Read these instructions carefully.
3. Be sure to disconnect the battery “ ” terminal
before starting. This is to prevent short circuits
during installation. (Figure 1)

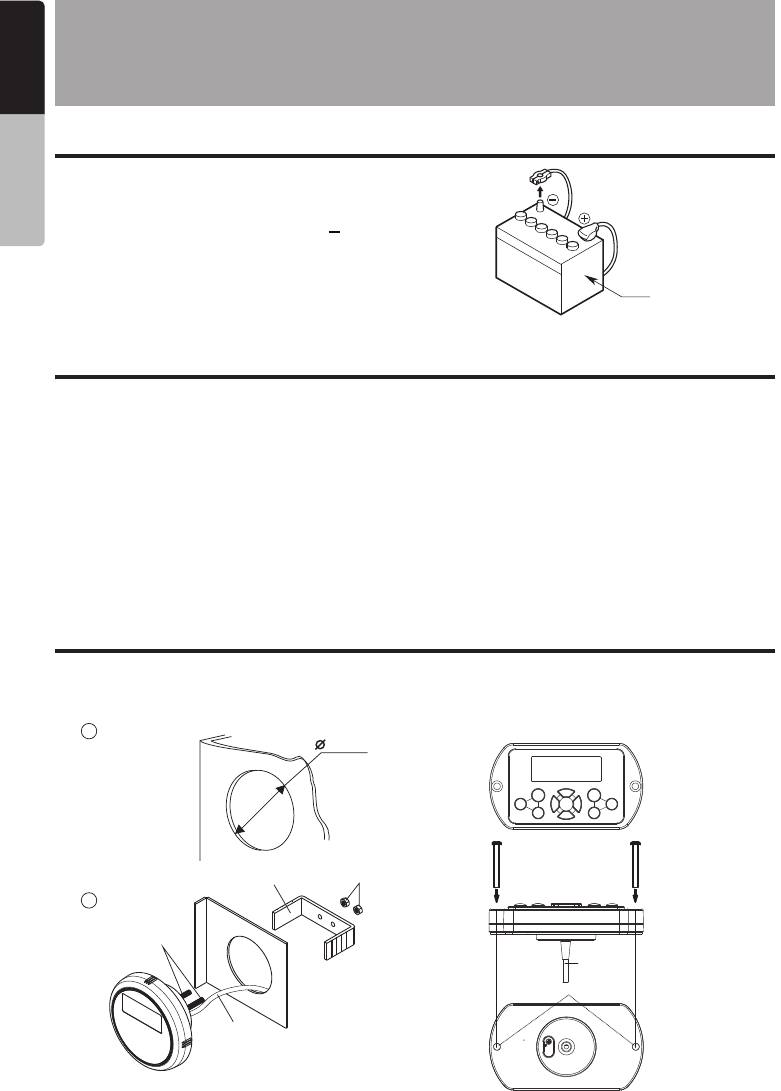

2. INSTALLATION CAUTIONS
3. OPTIONAL MARINE WIRED REMOTE INSTALLATION
Battery
Figure 1
1. In order to avoid any interference, do not install the tuner module or control unit in the proximity of
the engine compartment.
2. The use of unauthorized parts can cause permanent damage to the unit.
3. Always check your wire connections to ensure proper installation before turning on the unit.
4. Consult with your nearest dealer for proper installation or if common parts need to be used.
Seek assistance if modifications or drilling holes to your vessel is needed.
5. Do not install the unit where it will be subjected to excessive moisture, dust, dirt, foreign particles
or vibration. Areas of high temperature from the engine, direct sunlight, heater or hot air should
also be avoided.
6. Do not install the unit in a location where it will interfere with the vessel operation, or it will injure the
passengers if there is a sudden or emergency stop.
The control unit should be mounted to a dry, clean and flat surface. Ensure the rear gasket is fully
sealed to the mounting surface without distorting the unit.
18
English Owner’s Manual
CMS3
Screw Hole
MW1MW3
8-Pin DIN Cable
Make the mounting
hole as follows.
1
3 1/8 Inch
2
Metal Bracket M4 Nut
Hex Head
Screw 4x30
8-Pin
DIN Cable
4. BLACK BOX INSTALLAION
1. Select an area with sufficient ventilation for the mounting of the black box in order to prevent the
module from overheating. You may mount the black box in a horizontal or vertical position. If the
black box is mounted in a vertical position, do not mount the module with the harness exit points
directly facing up to prevent water collecting in these areas.
BLACK BOX MOUNTING

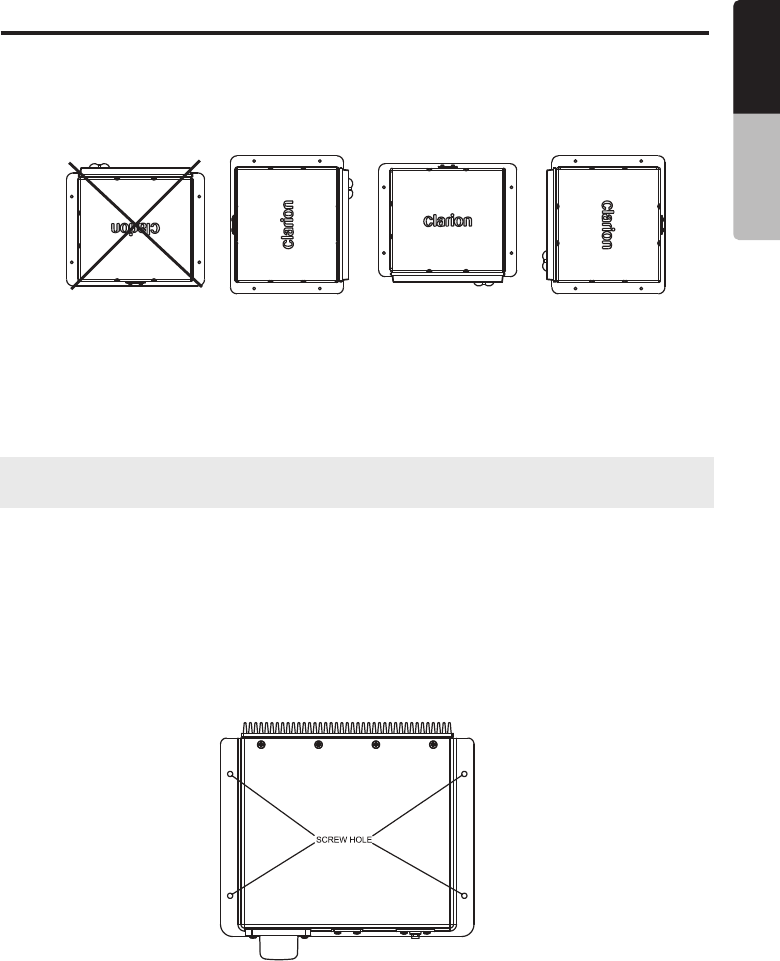

2. Please refer to the diagram below for the mounting screw hole positions. Always use the shortest
length of screw possible.
3. During installation, use the 4 rubber mounting stoppers (included in the package) for the bottom of
the module. This provides clearance from surface moisture and provides sufficient ventilation for
the heat sink.
4. Extension wires/cables may be needed to route the harness and cable throughout the vessel.
Note: Retain some slack in the harness/ cables to prevent damage to the wires. It is recommended
relieve stress in all cables and harnesses.
5. Always read through the wiring diagram in this manual first, and follow all the wiring diagrams
carefully. The connections should be secured and insulated with crimp connectors or electrical
tape to ensure proper connections.
6. Once the wiring connections are completed, connect the negative terminal on the battery, turn the
vessel accessory ON and power on the unit to check if it is operating correctly. If abnormalities
occur, disconnect the battery negative terminal, recheck all wiring and try again. Please refer to the
troubleshooting section for assistance.
19
English Owner’s Manual
CMS3
5. WIRE CONNECTION
MW1
Wired Remote
1231
2
3
ORIENTATION
12 PIN MOLEX Connector
Wire Code
BLACK
PURPLE/BLACK
PURPLE
BLUE/WHITE
GREY/BLACK
GREY WHITE
WHITE/BLACK
ORANGE/WHITE
GREEN
GREEN/BLACK
RED
WIRED
REMOTE
English Owner’s Manual
4
7
10
5
8
11
6
9
12
4
7
10
5
8
11
6
9
12
SECTION A-A SECTION B-B
1
7
12
11
10
9
8
4
5
6
3
2
GREEN
PIN NO. WIRE DEFINTIONWIRE COLOR AWG
SPEAKER REAR LEFT (+)
GREEN/BLACK
RED
WHITE
WHITE/BLACK
ORANGE/WHITE
GREY
GREY/BLACK
BLUE/WHITE
PURPLE
PURPLE/BLACK
BLACK
SPEAKER REAR LEFT (-)
ACCESSORY/IGNITION
SWITCHED (+12V)
SPEAKER FRONT LEFT (+)
SPEAKER FRONT LEFT (-)
ILLUMINATION
SPEAKER FRONT RIGHT (+)
SPEAKER FRONT RIGHT (-)
SPEAKER REAR RIGHT (+)
SPEAKER REAR RIGHT (-)
AMPLIFIER REMOTE
TURN ON (+)
GROUND (-)
18
18
16
16
18
18
18
18
18
18
18
18
1231
2
3
ORIENTATION
BLACK BOX
RESET BUTTON
RUBBER STOPPER
L-CH R-CH L-CH R-CH L-CH
WHITE
R-CH
RED
AUX
REAR
CHANNEL
SUBWOOFER
DISPLAY
CONTROLLER
FUSE
15A
RED
L-CH R-CH
FRONT
CHANNEL
AUX IN
LEFT
AUX IN
RIGHT
LINE OUT
LEFT
LINE OUT
LEFT
LINE OUT
RIGHT
LINE OUT
RIGHT
USB
SIRIUS XM
WIRED
REMOTE
12 PIN MOLEX Connector
ANTENNA BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
PURPLE
GREY
RED
WHITE
RED
WHITE
RED
WHITE
RED
20 CMS3
Display Controller
cable is not used
MWRXCRET Cables
(Clarion Marine Wired
Remote cables sold separately)
MW3
Wired Remote
WIRED
REMOTE
CMS3
05/2016
Clarion Corporation of America
All Rights Reserved. Copyright © 2016:
Printed in China
Clarion Corporation of America
