MARINE DIGITAL MEDIA BLACK BOX RECEIVER

WITH WATERTIGHT DISPLAY CONTROLLER

Owner’s manual & Installation manual

Dear Customer:

CLARION PRODUCT REGISTRATION INFORMATION

For USA and Canada only

www.clarion.com

Congratulations on your purchase of a Clarion mobile electronic product. We are confident

that you’ll enjoy your Clarion experience.

There are many benefits to registering your Clarion product.We invite you to visit our website

at www.clarion.com to register your Clarion product.

We have made product registration simple with our easy to use website. The registration

form is short and easy to complete. Once you’re registered, we can keep you informed of

important product information.

CMS4

English Owner’s Manual

Contents

1. FEATURES.......................................................................................................................3

2. PRECAUTIONS................................................................................................................3

3. CAUTIONS ON HANDLING.............................................................................................3

4. CONTROLS......................................................................................................................4

About the Registered Marks, etc......................................................................................4

Names of Buttons and Their Functions............................................................................5

Choosing Your Source Unit Configuration.......................................................................5

5. OPERATIONS..................................................................................................................7

Basic Operation................................................................................................................7

Settings............................................................................................................................8

Radio (AM/FM/Weather Band) Operation......................................................................10

SiriusXM Satellite Radio Operation................................................................................11

USB Mode Operation.....................................................................................................13

iPod/iPhone/iPad Mode Operation.................................................................................14

6. TROUBLESHOOTING...................................................................................................18

7. SPECIFICATIONS..........................................................................................................20

INSTALLATION AND WIRE CONNECTION......................................................................21

Bluetooth Operation.......................................................................................................15

Pandora Operation.........................................................................................................16

Aux Operation.................................................................................................................17

Camera Operation..........................................................................................................17

TURES

2. PRECAUTIONS.

TURES

3. CAUTIONS ON HANDLING

1. FEATURES

SiriusXM-Ready Built-in Bluetooth with aptX 4 Zones / 4 Sources

AM/FM/WB Tuner 70Wx4 Built-In Amplifier Pandora

Watertight Remote Made for iPod/iPhone/iPad Camera connection

WARNING

For your safety, while boating, keep the volume to a level at which external sounds can be heard.

Exposure to extreme heat and direct sunlight may hinder the performance of your Clarion product.

In the event this happens, allow the unit to cool down before use.

CMS4

USA: AM530-1710kHz, FM 87.9-107.9MHz

EUROPE: AM531-1602kHz, FM87.5-108.0MHz

AUSTRALIA: AM531-1620kHz, FM87.5-108.0MHz

ASIA: AM531-1620kHz, FM87.5-108.0MHz

MADE IN CHINA

SERIAL NO.

MANUFACTURED:

CLARION CORPORATION OF AMERICA

6200 GATEWAY DRIVE, CYPRESS, CA 90630, USA

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interfe rence, and

(2) This device must accept any interference received, including interference that

may cause undesired operation.

This dev ice complies with Industr y Canada licence-exempt RS S standard(s).

Operation is subject to t he follow ing two c onditions: (1) th is device may not

cause interfe rence, and (2) this dev ice mu st ac cept an y interference,

including interference that may ca use undesired operation of th e device.

FCC ID : AB7 S-CMS4

IC: 11888A-C MS4

CAN ICE S-3(*)/NM B-3(*)

2.1A

CMS4 3

English Owner’s Manual

1. This unit

that trouble arises, never open the case, disassemble

the unit, or lubricate the parts.

has precision parts inside. Even in the event

2. FCC STATEMENT

2.1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

2.2. Changes or modifications not expressly approved

by the party responsible for compliance could void

the user's authority to operate the equipment.

This quipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interfe r ence in a res idential in s tallati o n.

This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

This equipment complies with FCC radiation exposure

limits set forth for an uncontrolled environment. This

equipment should be installed and operated with

minimum distance 20cm between the radiator & your

body

3. IC warning

3.1. This device complies with Industry Canada licence-

exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference, including

interference that may cause undesired operation

of the device.

3.2. Changes or modifications not expressly approved by

the party responsible for compliance could void the

user's authority to operate the equipment.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV

technician for help.

Note:

FCC Radiation Exposure Statement

3.3 Le présent appareil est conforme aux CNR d'Industrie

Canada applicables aux appareils radio exempts de

licence. L'exploitation est autorisée aux deux conditions

suivantes :

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.”

0700

4. CONTROLS

About the registered marks, etc.

Windows Media™ and the Windows logo are trademarks, or registered trademarks of

Microsoft Corporation in the United States and / or other countries.

The Bluetooth word mark and Logos are owned by the Bluetooth SIG, Inc. and any use of such

marks by Clarion Corporation of America is under license. Other trademarks and trade names

are those of their respective owners.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed

to connect specifically to iPod or iPhone, respectively, and has been certified by the developer

to meet Apple performance standards. Apple is not responsible for the operation of this device

or its compliance with safety and regulatory standards. Please note that the use of this accessory

with iPod or iPhone may affect wireless performance. iPhone and iPod are trademarks of Apple

Inc., registered in the U.S. and other countries.

Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc. All rights

reserved.

[PREVIOUS

TRACK/REWIND]

[SOURCE/ ] [PLAY/PAUSE]

Pandora, the Pandora logo and other Pandora marks are trademarks or registered trademarks

of Pandora Media Inc. , or its subsidiaries worldwide.

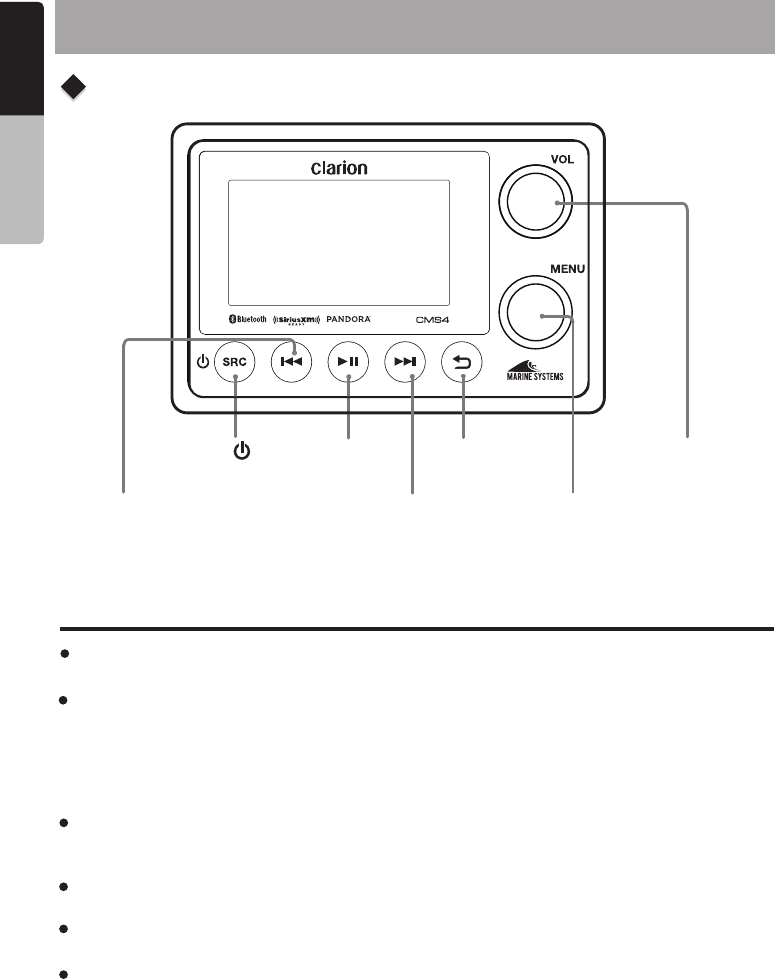

Display Controller

[NEXT TRACK

/FAST FORWARD]

[BACK]

[MENU-ENTER/

SETTINGS MENU]

[VOLUME-MUTE

/MUTE ALL ZONES*]

The first time Qualcomm® aptX™ appears in the text or major heading of a document, the

entire Qualcomm® aptX™ name should be used, and it should be followed by the word

“audio.” On first use, the Qualcomm mark should be followed by the ® symbol, and the aptX

mark should be followed by the ™ symbol. In “aptX,” the letter “X” must be capitalized. Never

abbreviate, shorten, or alter the mark. Do not pluralize it or make it possessive. The aptX

mark should never be used in domain names, except those owned by Qualcomm

Technologies International, Ltd. or its affiliated companies.

Multi-Zone Mode only

CMS4

English Owner’s Manual

Choosing Your Source Unit Configuration

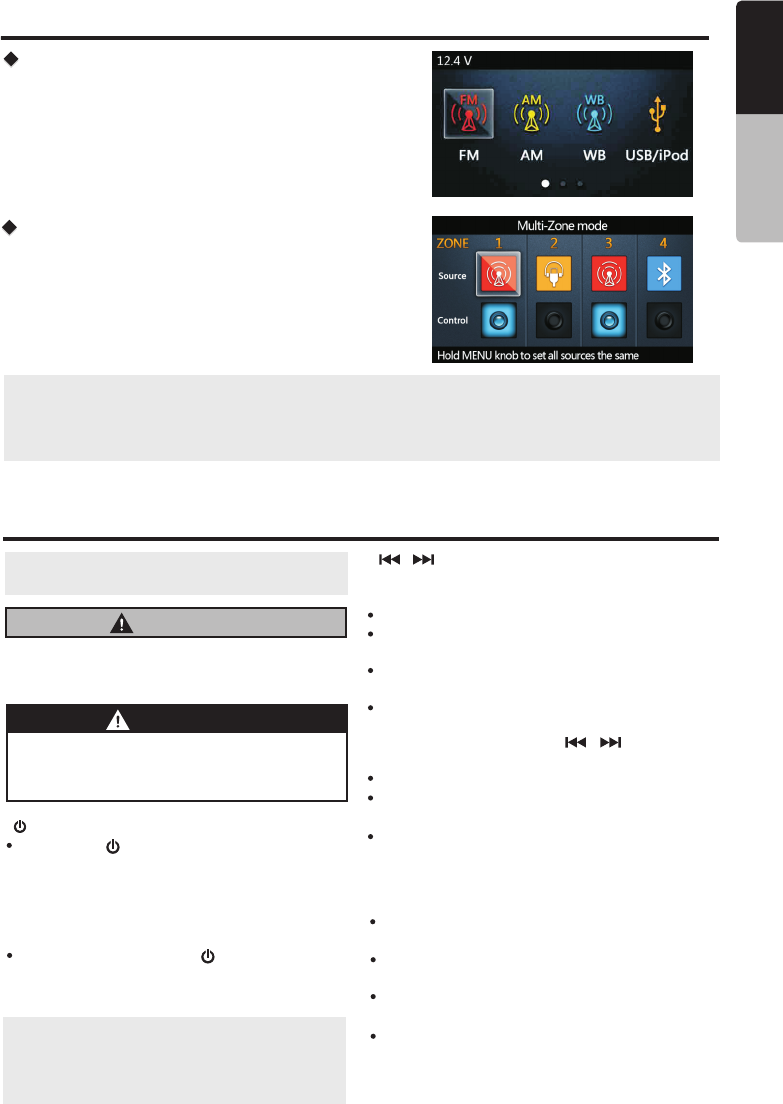

Standard Mode

Standard mode is ideal for basic installations that utilize

a single audio source with speakers configuration.

Utilizing this configuration you can have Front and Rear

speakers with the ability to control fade, a secondary set

of speakers unaffected by fading and a fixed connection

at full output.

Multi-Zone Mode

Multi-Zone mode is ideal for installations that require

multiple sources to play simultaneously from different

speakers. Using this configuration you can control up

to 4 independent zones with 4 sources such as FM, BT,

USB, SiriusXM. All 4 zones are variable with independent

volumes, EQ, gain and other configurable zone settings.

Note:

When using Multi-Zone with multi-source, radio band sources are limited to a single band

(FM/AM/WB) across all zones utilizing radio. Example: If Zone 1 and Zone 2 are set to AM and

Zone 3 is set to FM, both Zone 1 and Zone 2 will now become FM and vice versa.

Name of Buttons and Their Functions

CAUTION

Lower the volume level before powering the

source unit off. The source unit stores the

last volume setting.

WARNING

EXPOSING THE UNIT TO WATER WITH

THE FRONT PANEL OPEN WILL CAUSE

DAMAGE OR UNIT MALFUNCTION!

[ / SRC] Button

Press the [ / SRC ] button to turn the power

on and press and hold it (2 sec.) to bring up the

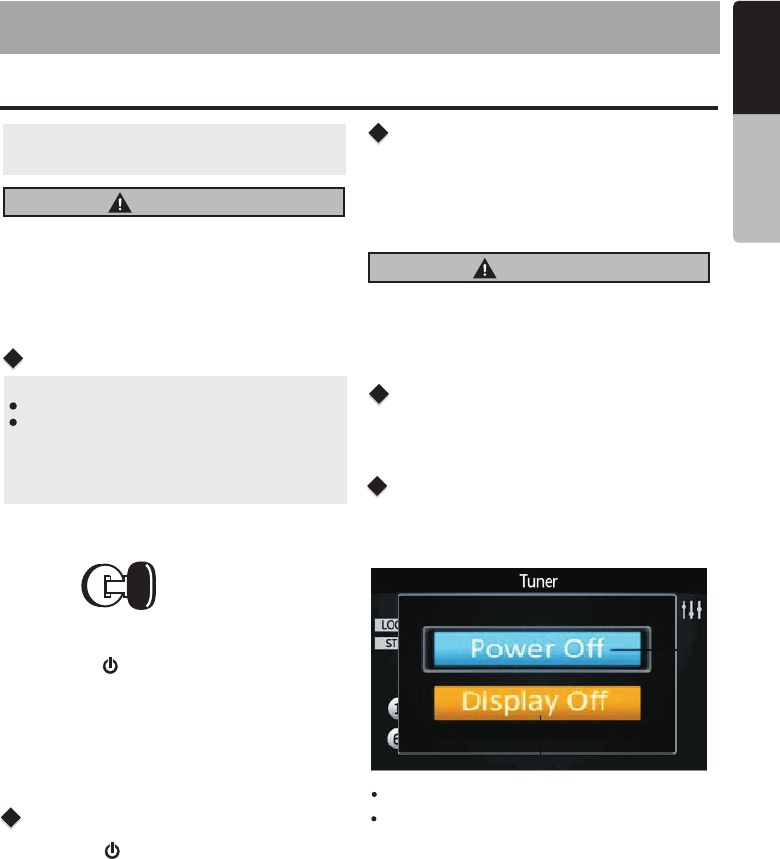

Power off / Display off selection. Select Power

off to completely power down the CMS4 unit.

Select Display off to keep the CMS4 operating

with the display backlight off.

Press and release the button

switch between available sources: FM, AM,

Weather Band, USB/iPod, Aux, Bluetooth,

Pandora, SiriusXM and Camera.

[ / SRC ] to

Note: If the above equipment is not

connected, the corresponding mode may not

function. When using CMS4 in Mult-Zone

mode, only zones currently in control will

have their sources changed.

Note: Be sure to read this chapter while referring

to the front diagram in chapter “ 4. CONTROLS ”

[ / ] Buttons

Pressing these buttons will perform the following

operations based on their current mode:

Menu Screen - No function in this mode

AM/FM/WB - Auto Seek Tuner Forwards

/ Backwards

SiriusXM - Skip Forward/Skip Backwards, Press

and hold Fast Forward/Rewind 5/10/30 seconds

USB/iPod - Next Track/Previous Track, Press

and hold Fast Forward/Rewind. When accessing

USB Browser, press the will function

as page down/page up.

[ / ]

AUX - No function in this mode

Bluetooth - Next Track/Previous Track, press

and hold Fast Forward/Rewind

Pandora - SkipTrack/Replay Track, press and

hold Thumbs Up/Thumbs Down

[ VOL ] Knob

Rotate the [ VOL ] knob clock-wise to increase

the volume.

Rotate the [ VOL ] knob

decrease the volume.

counter-clock-wise to

Standard mode - Press the [ VOL ] knob to

mute the audio. Press again to restore audio.

Multi-zone mode - Press the knob to

mute all zones currently being controlled.

Press and hold to mute all zones, regardless if

being controlled. Press again to restore audio.

[ VOL ]

CMS4 5

English Owner’s Manual

Name of Buttons and Their Functions

[ ] Back Button

Home Screen - Launch source selection mode

Menu Screen - Return to previous screen/menu

Pressing this button will perform the following

operations based on the current screen:

[ MENU ] Knob

USB Press to access content menu. -

AM/FM/Weather Band Rotate clock-wise/

counter clock-wise to manually seek stations

Up/Down. Press to access content menu.

MENU Rotate clock-wise to select

menu item below current selection. Rotate

counter clock-wise to select menu item above

current selection. Press the [MENU] knob to

select current menu item.

Screen -

iPod/iPhone/iPod

menu.

- Press to access content

SiriusXM Rotate clock-wise to select Next

channel. Rotate counter clock-wise to select

previous channel.

SiriusXM Replay Press the button and select

Jump to Live to exit SiriusXM Replay mode

AUX In No function -

BT Audio - Press to access content menu.

Home Screen - When in the Standard mode

home screen, rotate the [MENU] knob to

highlight available sources. Press the [MENU]

knob to select the source. When in the

Multi-zone mode home screen, rotate the

[MENU] knob to highlight the Source and

Control boxes. Press the [MENU] knob to

execute the function. When selecting a source,

press and hold the [MENU] knob to

automatically set all zones to that source.

Volume Screen - When in Standard mode and

while the volume level is still shown,rotate the

[MENU] knob clock-wise or counter clock-wise

to adjust front/rear audio fading. When in

Multi-zone mode and while the volume levels

are still shown, rotate the [MENU] knob to

select individual zone audio controls.

Note: In any source, Press the [MENU] knob to

access current source settings. Press and hold

the [MENU] knob to access CMS4 device

settings.

[ ] Play/Pause Button

Press this button to Play / Pause current track.

SiriusXM Replay - Press to enter Replay mode.

CMS4

English Owner’s Manual

5. OPERATIONS

Basic Operation

CAUTION

When the unit is turned on, starting and

stopping the engine with its volume raised to

the maximum level it may cause hearing

damage. Be careful about adjusting the

volume. While boating, please be aware of the

volume levels in residential, family areas

and local volume level ordinances.

Turning on and off the power

Selecting a mode

Adjusting the volume

Engine ON

position

Note: Be sure to read this chapter referring

chapter “ 4. CONTROLS ”

to the

Note:

Start the engine before using this unit.

Be careful about using this unit for a long time

without running the engine. If you drain the

vessel battery too far, you may not be able to

start the engine and this can reduce the service

life of the battery.

1. Start the engine.

2. If the CMS4 does not automatically turn on,

Press the [ /SRC] button to turn the power

on. Press and hold it (2 sec.) to bring up the

Power Off/Display Off selection. Select Power

Off to completely power down the CMS4 unit.

Select Display Off to keep the CMS4 operating

with the display backlight off.

1. Press the button to change to

the next available source.

[ / SRC ]

*If a Bluetooth device is not connected to

the CMS4, it is not displayed.

1. Rotate [ VOL ] knob clock-wise to increase

the volume.

Mute

Press the button to turn the Mute On and

Off.

[ VOL ]

2. knob counter clock-wise to

decrease the volume.

Rotate [ VOL ]

Power Off / Display Off

This feature will allow the user to Power Off the

unit or to turn the Display OFF in the event the

display is too bright for current lighting conditions.

Power Off – Select to turn off the unit

Display Off – Select to turn off the backlight of

the display, but the button and knob illumination

will remain until a button or knob action occurs.�

CMS4 7

English Owner’s Manual

Settings

You can customize the various settings of this unit

from the Settings screen.

When in Standard mode, press the [ ] button

to access the Home screen, rotate the [ MENU ]

knob to select the Settings option, then press the

[MENU] knob access into the Settings Mode. You

can rotate the [MENU] knob to select the options,

then press the [MENU] knob to confirm.

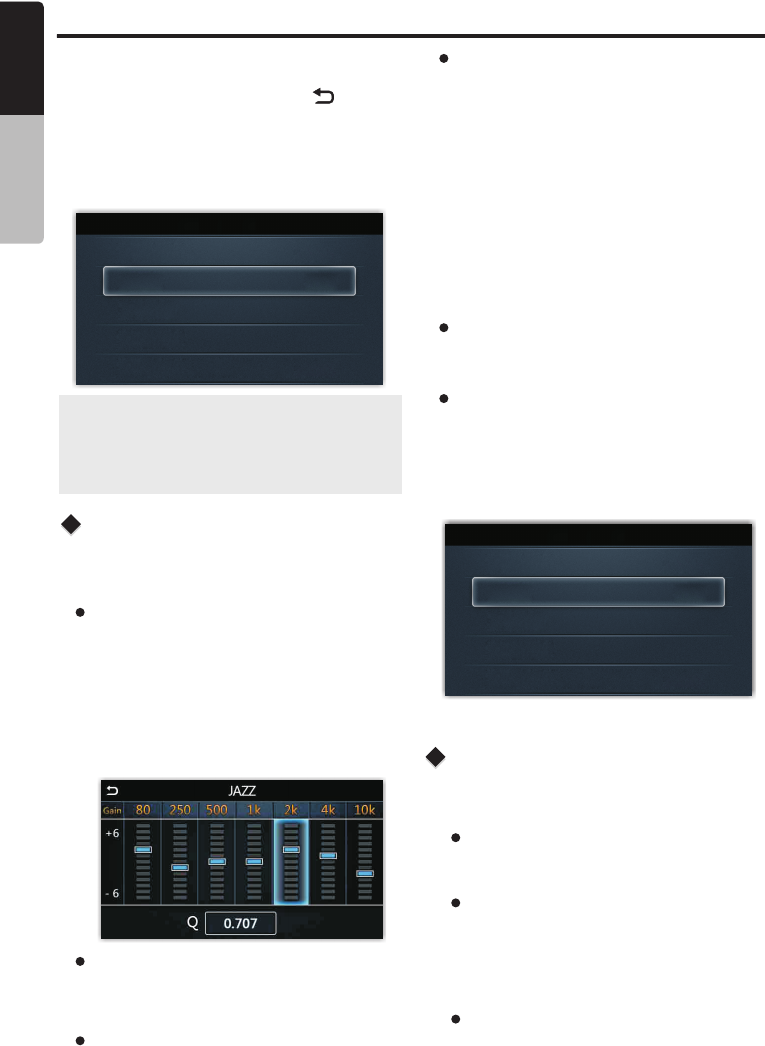

Settings

AUDIO

SYSTEM

BLUETOOTH

INFO

Audio Settings

Note:

Press and hold the [MENU] knob to quickly

access the Settings menu. This is the only

way to access the Settings menu when using

the Multi-zone mode.

Press and hold the

menu. Rotate the knob to select items to

be adjusted:

[MENU] knob to enter Settings

[MENU]

Preset EQ

1. Rotate the [MENU] knob to change the EQ:

FLAT->JAZZ->POP->CLASSIC->ROCK->

NEWS->URBAN->RAVE->MOVIE->

TECHNO->USER

2. When USER EQ is selected, press the

[MENU] knob to cycle through each of the 7

EQ bands and rotate the [MENU] knob to

adjust each band.

Balance

Fader (Standard Mode Only)

Loudness

Source Gain

Crossover

Rotate the knob to adjust the Balance

between the right and left speakers from R12

(full right) to L12 (full left).

[MENU]

Rotate the knob to adjust the Fader

between the front and rear speakers from R12

(full rear) to F12 (full front).

[MENU]

Press the [MENU] knob to set Loudness to ON

or OFF.

Press the [MENU] knob to

Gain menu, and rotate the [MENU] knob to

select the items, then press the [MENU] knob to

change the value:

access the Source

Crossover function.

Press the [MENU] knob to turn On or Off the

HPF menu, and rotate the [MENU] knob to

select the below items to adjust:

Press the [MENU] knob to access the Front

SLOPE - Press the [MENU] knob to change

the value: 12dB / 24dB

FREQUENCY - Press the [MENU] knob to

change the value: 60Hz/80Hz

/120Hz/ALL

LEVEL - Press the [MENU] knob to highlight

and rotate it to adjust the level

between 0 ~ 20.

Source Gain

FM TUNER +3dB

AM TUNER -3dB

WB TUNER +3dB

USB/iPod +3dB

BLUETOOTH -2dB

System Settings

Press and hold the

menu. Rotate the knob to select items to

be adjusted:

[MENU] knob to enter Settings

[MENU]

Dimmer

Theme

Screen Saver

Press the [ MENU ] knob

to adjust the LCD

display backlight level between High or Low.

This option allows the user to select theme for

the LCD display. Auto is the default setting and

is triggered through the dimmer wire on the

CMS4 black box unit. Press the [ MENU ] knob

to toggle between Day, Night or Auto

Press the [MENU] knob the screen to toggle saver

mode: Clock/Slide Show/Off.

Screen saver will be enabled after [30/60/90/120]

seconds of no device operation

FM TUNER->AM TUNER->WB TUNER->USB/iPod

->BLUETOOTH->PANDORA->SIRIUSXM->AUX

CMS4

English Owner’s Manual

Settings

LED Color

Beep

Time

Time Format

Camera Audio

Tuner Region

Audio Mode

Factory Reset

This unit is equipped with user configurable

color LED. Once in the LED COLOR menu,

rotate the [MENU] knob to select the LED

Color. Press the [MENU] knob to complete the

LED COLOR selection. .

Press the [MENU] knob to select between

ON and OFF.

Press the [MENU] knob to enter clock setting

mode. Use the [MENU] knob to set the clock,

then press the [ ] button to confirm.

Press the [MENU] knob to choose a time

format: 12H or 24H.

Press the [MENU] knob to enter Camera

Audio menu, rotate the [MENU] knob to

select:

Press the [MENU] knob to enter the Tuner Region

menu, rotate the [MENU] knob to select the region:

“EUROPE", “USA", ASIA" or "AUSTRALIA"

Press the [MENU] knob to enter the Audio

Mode screen, rotate the [MENU] knob to

select Standard or Multi-zone mode.

Press the [MENU] knob to restore the factory

default settings.

YES - The Aux audio is played while the

Camera image is shown the display

controller's screen. This will cause the Aux

source to become unavailable as an audio

playback source.

NO - The auxiliary audio input is not utilized

while displaying the camera image on the

display controller's screen.

Bluetooth Settings

Info Settings

Press the

Settings menu. Use the knob to select the

items:

[MENU] knob to enter the Bluetooth

[MENU]

Press the

information.

[MENU] to view the system version knob

Auto Connect

Device Name

Press the [ MENU ] knob

Bluetooth auto connect On or Off:

to change the

Press the [ MENU ] knob

paired device.

to View the name of

ON - If the paired device is within range, the

system reconnects automatically.

OFF-Bluetooth devices will need to be

reconnected manually.

CMS4 9

English Owner’s Manual

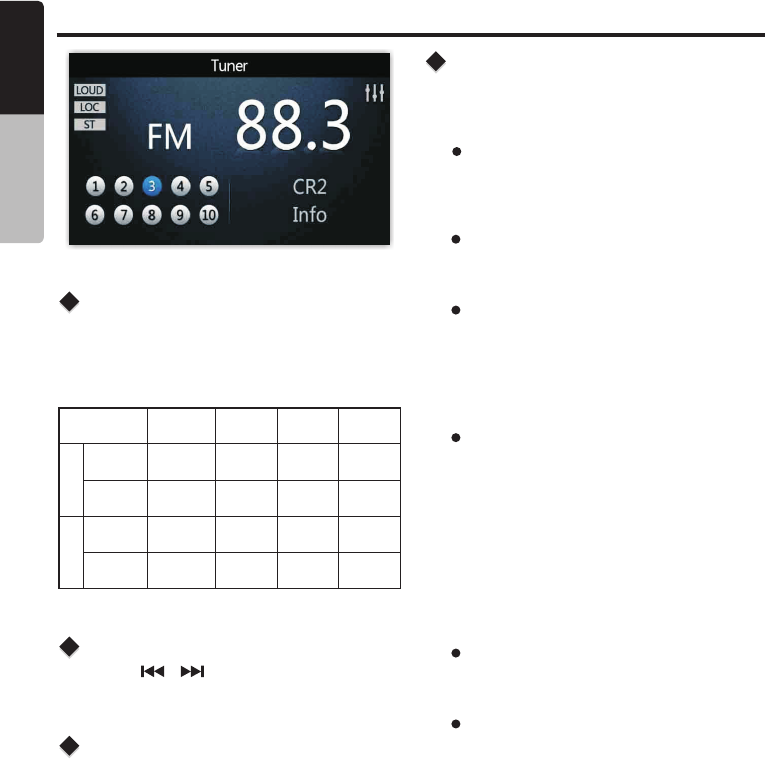

Radio (AM/FM/Weather Band) Operation

World Tuner

This unit is initially set to USA frequency intervals

of 10 kHz for AM and 200 kHz for FM. When using

it outside the USA, the frequency reception range

can be switched to the intervals below.

Frequency

spacing

Frequency

range

Frequency

spacing

Frequency

range

U.S.A

standard

Aisa

standard

Europe

standard

10kHz 9 Hzk

9 Hzk

530-1710

kHz

531-1620

kHz

531-1602

kHz

200 Hzk 50 Hzk

50 Hzk

87.9-107.9

MHz

87.5-108

MHz

87.5-108

MHz

Australia

standard

9 Hzk

531-1620

kHz

100 Hzk

87.5-108

MHz

Auto Seek

Manual Seek

Press the [ / ] buttons to automatically

search for the next radio station.

Rotate the [MENU] knob to manually change

intervals step by step.

Tuner Settings

Press the [ MENU ] knob to access the Tuner

settings menu. Use the [ MENU ] knob to select

the below functions:

Presets

Rotate the [MENU] knob to select which preset

station to listen to, then press [MENU] knob to

confirm.

Save As Preset

Auto Store

Local On/Off

RDS On/Off

PTY

Use the [ MENU ] knob to select the preset

position to save the current frequency.

Only stations with sufficient signal strength will

be detected and stored as a preset. Press the

[MENU] knob to automatically select ten strong

stations and store them into ten presets. The

new stations replace presets.

To receive more radio stations or only stations

with strong signal, you can adjust the tuner

sensitivity.

Press the [ MENU ] knob to turn On or Off the

RDS Mode.

Use the [MENU] knob to select the desired PTY

mode.

Press the [ MENU ] knob to turn On or Off the

Local Seek Mode.

ON - Only stations with a strong signal can be

played back.

OFF - Stations with strong and weak signals can

be played back.

CMS4

English Owner’s Manual

SiriusXM Satellite Radio Operations

Only SiriusXM® brings you more of what you

love to listen to, all in one place. Get over 140

channels, including commercial-free music plus

the best sports, news, talk, comedy and

entertainment. Welcome to the world of satellite

radio. A SiriusXM Vehicle Tuner and

Subscription are required. For more information,

visit www.siriusxm.com

Displaying the Radio ID

Channel Tune

Before you listen to satellite radio, you must

subscribe to the service using the SiriusXM Radio

ID number.

1. Press the [ / SRC ] button to enter SiriusXM

mode.

2. Press the [ ] or [ ] buttons select

channel “0”. The unit displays the Radio ID.

1. Press the [ ] button or rotate the [MENU]

knob clockwise to advance to the next channel.

2. Press the [ ] button or rotate the [MENU]

knob counter-clockwise to to go to the previous

channel.

Note:

1. The Radio ID is located on the bottom of the

SiriusXM Connect Vehicle Tuner.

2. Please note that the SiriusXM Radio ID does

not include the letters I, O, S or F.

3. In the USA, to activate the SiriusXM Connect

Vehicle Tuner go online to

/activatenow or call 1-866-635-2349.

4. In Canada, to activate the SiriusXM Connect

Vehicle Tuner go online to

activatexm or call 1-877-438-9677.

www.siriusxm.com

www.siriusxm.ca/

During REPLAY playback

Fast rewind: Press and hold [ ].

Fast forward: Press and hold [ ].

To return to the beginning of the current song:

Press [ ].

To advance to the beginning of the next song:

press [ ].

3. Press the [ ] button to end Replay mode.

Note:

If you continue to press the [ ] button until

the end,the Replay mode is canceled, and the

unit will change to live SiriusXM radio mode.

If you change channels while in Replay mode,

the unit will exit Replay mode to live Satellite

mode and clear the Replay memory.

Replay mode will not exit if you change to

another source and then back to SiriusXM.

SiriusXM Replay function

The Replay feature allows you to pause,rewind,

and replay live SiriusXM Satellite Radio.

1. While listening to a SiriusXM channel, press the

[ ] button to enter Replay mode. The display

will show “PAUSE” when entering this mode.

2. Press the button to resume playback of

the stored audio from the point at which it was

paused. During playback,the SiriusXM Tuner

will continue to store the channel audio until

you exit the Replay mode.

[ ]

SiriusXM Settings

Press the [MENU] button under SiriusXM mode to

access SiriusXM settings, rotate the [MENU] button

to select below functions:

Jump To Live

Preset

Save As Preset

Channel Browse

Press the [MENU] button to go to Live signal.

1. Press the [MENU] button to access the

SiriusXM Preset list.

2. Rotate the [MENU] knob to select the desired

Preset you wish to access.

3. Press the [MENU] button to confirm you want

to tune to that chaneel.

1. Press the [MENU] button to access the

SiriusXM Save As Preset list.

2. Rotate the [MENU] knob to select the desired

Preset number you want to store the preset in.

3. Press the [MENU] button to store the current

channel into preset.

1. Press the [MENU] button to activate the Channel

Browse mode.

2. Press the

[ ] or [ ] button to view:

Channel->Artist->Song->Info

Note: Press the [ ] button to exit.

Text information, such as the channel name,

artist name, song title and content is available

with each SiriusXM channel. The unit can display

this text information as explained below:

CMS4 11

English Owner’s Manual

Note: If the passcodes do not match , the

radio will display "CODE DID NO MATCH

PLEASE ENTER AGAIN " for 3 seconds

and then it will return to the Old Code

screen.

SiriusXM Satellite Radio Operations

Category

Direct Tuning

Parental Controls

Channel scan receives the channel (in the

current category) in order. This function is

useful when searching for a desired channel

in the current category.

1. Press the [MENU] button to access the

SiriusXM Category broswer mode.

2. When a desired channel is tuned in, press

the [MENU] button to continue receiving

that channel.

1. Press the [MENU] button to access the

SiriusXM Direct Tuning mode.

2. Press the [MENU] button to change the digit

location or rotate the [MENU] knob to change

the number.

3. Press the [MENU] button to confirm channel

number selection.

Parental Control allows you to prevent

unauthorized access to selected channels you

select. When enabled, the Parental Control

feature requires you to enter a passcode to

unlock any locked channels.

Note:

If the current station does not have an

associated category, then Category Scan

mode can not be accessed.

1. Press the [MENU] button to access the

SiriusXM Parental Controls mode.

2. Press the [MENU] button to turn On or Off

the Parental Controls.

3. Rotate the [MENU] knob to select the

default passcode is “1111”.

1. Press the [MENU] button to access the

SiriusXM Parental Controls mode.

2. Rotate the [MENU] knob to select “LOCK

CHANNELS”, press the [MENU] knob to

access the enter code.

3. Rotate the [MENU] knob to enter the

passcode, then press the [MENU] button

to confirm.

1. Press the [MENU] button to access the

SiriusXM Parental Controls mode.

2. Rotate the [MENU] knob to select

“CHANGE CODE”, press the [MENU] to

access the change code menu.

3. Enter Old / New passcode, press the

[MENU] button to change the digit location

and rotate the [MENU] knob to change the

number.

4. To confirm the New passcode, enter it a

second time.

Lock Channels

Change Code

CMS4

English Owner’s Manual

1. Press the [ ] to go to the next track.

Press the [ ] button to go to previous track.

button

2. Press and hold the button to fast

forward through the track.

Press and hold the button to rewind

through the track.

[ ]

Connect

Selecting a Track

Play / Pause

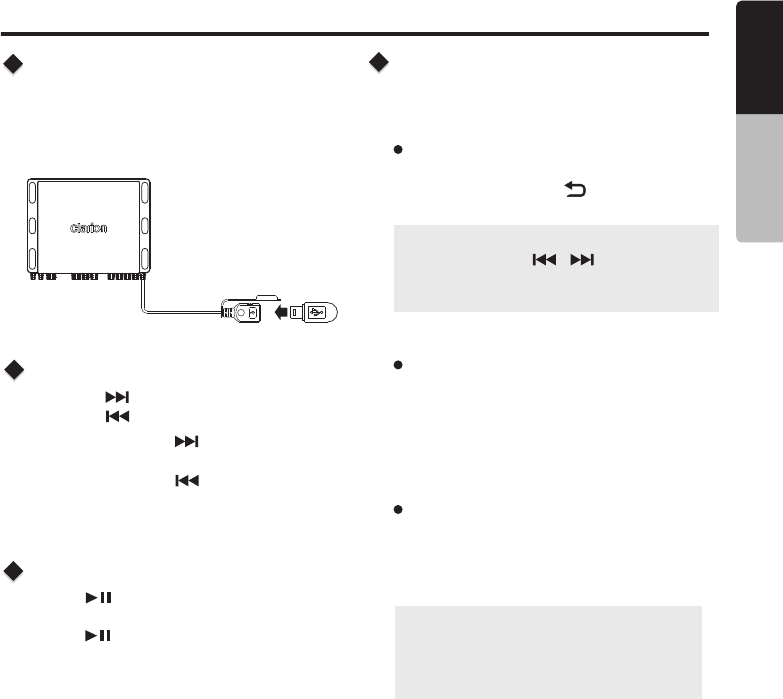

1. Insert a USB drive into the USB pigtail.

2. To remove the USB device, you should first

select another source or turn off the power,

in order to avoid damaging the USB device.

Then remove the USB device.

Press the [ ] button to pause the track is

currently playing.

Press the [ ] button to resume playing the

track that has been paused.

USB Mode Operation

USB Settings

Press the [ MENU ] knob to access the USB

settings menu. Rotate the [MENU] knob to select

the following functions:

Browse

Repeat

Shuffle

Use the [MENU] knob to browse folders or files

to play back. Press the [ ] button to navigate

back through the menu.

Press the [MENU] knob to select Repeat options:

“ALL” or “TRACK” or “FOLDER”.

Press the [MENU] knob to turn On or Off the

shuffle function.

Note:

Enabling shuffle mode will change

Repeat to the default mode of ALL

tracks.

This function allows you to Repeat All track

(Default), Repeat the currently playing track,or

to Repeat the tracks in the current folder.

This function allows you to play tracks in a

random order.

Black

Note:

Pressing the [ / ] buttons will

allow you to quickly skip through pages

of folders when browsing.

CMS4 13

English Owner’s Manual

iPod/iPhone/iPad Mode Operation

iPod

Connect

Compatible Apple Devices

Connect an iPod/iPhone/iPad to the USB pigtail

using aUSB Cable. When connecting a device,

the unit will read the files automatically. The track

information displays on the screen once playback

starts.

You can connect the following devices:

iPod nano (6G)

iPod nano (7G)

iPod touch (3G)

iPod touch (4G)

iPod touch (5G)

iPhone 3GS

iPhone 4

iPhone 4S

iPhone 5

iPhone 5C

iPhone 5S

iPhone 6

iPhone 6S

iPhone 7

iPhone 7Plus

Minimum iOS 5.0 or higher

1. Press the [ ] to advance to the next

track.

Press the [ ] button to go to previous track.

button

2. Press and hold the button to fast forward

through the track.

Press and hold the button to rewind

through the track.

[ ]

Slecting a Track

Play / Pause

Press the [ ] button to pause the track that

is currently playing.

Press the [ ] button to resume playing the

track that has been paused.

iPod Settings

Press the [MENU] knob to access the iPod settings

menu, rotate the [MENU] knob to select the following

functions:

Browse

Repeat

Shuffle

1. Press the [MENU] knob to access the iPod

Browse mode.

2. [MENU] knob to

3. the [MENU] knob to select navigate the

menus and select options.

4. Press the [ ] button to navigate back

through the menu.

Use the select a category:

PLAYLIST ARTISTS ALBUMS GENRES

SONGS COMPOSERS AUDIOBOOKS

PODCASTS

Use

Press the [MENU] knob to select Repeat

options: “OFF” or “ONE” or “ALL”.

Press the [ MENU ] knob to turn On or Off the

shuffle function.

Note:

Press the [ ] button to exit .

This function allows you to Repeat All tracks,

Repeat the currently playing track, or to turn

the Repeat feature OFF.

This function allows you to play tracks / songs

from the current album, songs or artists in a

random order.

Black

Note:

Pressing the [ / ] buttons will

allow you to quickly skip through pages

of folders when browsing.

CMS4

English Owner’s Manual

Bluetooth Operation

What is audio streaming?

Pairing a Bluetooth Device

Audio streaming is a technique for transferring

audio data such that it can be processed as a

steady and continuous stream. Users can stream

music from their external audio player to their

audio system wirelessly and listen to the tracks

through the vehicle's speakers.

CAUTION

Please avoid operating your connected mobile

phone while audio streaming as this may cause

noise or choppiness during playback. Audio

streaming may or may not resume after

telephone interrupt as this is dependent on the

mobile phone.

Playing order will depend on BT Audio player.

When the [ ] button is pressed, some

Bluetooth devices will restart the current track

depending on how long the track has been

playing. During music streaming playback,

“BT Audio” will be shown on the display.

When BT Audio device is disconnected,

“BT Disconnect” will be shown on the

display. Some Bluetooth audio players may

not have play/pause synchronized with this

unit. Please make sure both device and main

unit are in the same play/pause status in BT

Audio mode.

Note:

Not all Bluetooth enabled devices will support

the fast forward and rewind function.

1. From your Bluetooth enabled device, turn Bluetooth

ON and search for Bluetooth devices.

2. When a list of available Bluetooth devices appear,

select "”.

3. "Connected OK” will appear on the CMS4 display.

4. The unit will automatically enter the BT Audio source

and you can now start streaming audio from your

Bluetooth enabled device.

CMS4

Note:

If the mobile phone doesn't support the SSP

(Simple Secure Pairing) Profile, please enter

the pass code of "0000".

Play / Pause

Press the [ ] button to pause the track currently

playing.

Press the [ ] button to resume playing the track

that has been paused.

1. Press the [ ] to go to the next song.

Press the [ ] button to go to previous track.

button

2. Press and hold the button to fast forward

through the track.

Press and hold the button to rewind

through the track.

[ ]

Selecting a Track

Bluetooth Settings

Press the [MENU] knob to access the Bluetooth

settings menu, rotate the [MENU] knob to select

the following functions:

Browse

Repeat

Shuffle

1. Press the [MENU] knob to access the BT

Audio Browse mode.

2. Rotate the [MENU] knob to make folder or

song selections. Press the [MENU] knob to

enter the folder list.

3. Rotate the [MENU] knob to select the desired

song and press the [MENU] knob to start

playing.

Press the [MENU] knob to select the Repeat

options: “ALL” or “TRACK” or “FOLDER”.

This function allows you to Repeat All tracks,

Repeat the currently playing track, or to turn

the Repeat feature OFF.

This function allows you to play tracks in a

random order.

Press the [MENU] knob to turn On or Off the

shuffle function.

Note:

Pressing the buttons will allow

you to quickly skip through pages of folders

when browsing.

[ / ]

CMS4 15

English Owner’s Manual

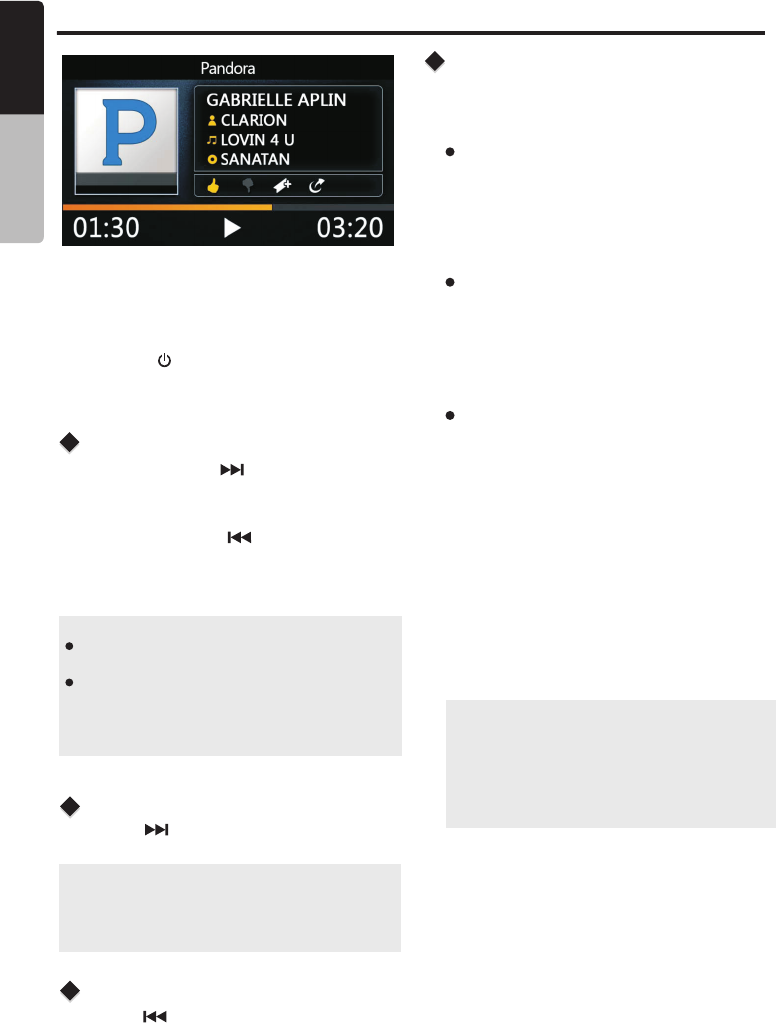

You can stream Pandora internet radio by

connecting an iOS or Android device that has

the Pandora mobile application already installed.

To start streaming, connect the with

Pandora already launched.

Press the [ /SRC] button to select the

Pandora source.

devices

Pandora Operation

Pandora Settings

Press the [MENU] knob to access the Pandora

setting menu, rotate the [MENU] knob to select

the following functions:

1. Press and hold the [ ]

Giving a track the thumbs up will tell Pandora to

play more tracks like that one.

button for thumbs up.

2. Press and hold the [ ]

down. Giving a track the thumbs down will skip

to the next track, and Pandora will remember

not to play that track on the station again.

button for thumbs

Thumbs Up/Thumbs Down

Note:

You can personalize your stations by “thumbs

up” or “ thumbs down”.

If you give a track the thumbs down after the

skip limit has been exceeded, your feedback

will be saved but the current track will continue

to play.

Note:

Pandora limits the number of skips allowed on

their service. If you attempt to skip tracks beyond

the limit, “SKIP LIMIT” is displayed.

Press the [ ] button for the next tracks in

station.

Press the [ ] button to replay the currently

playing track. This is a feature supported by a

Pandora Plus subscription.

Skip

Replay

Bookmark

Stations

Stations Manage

1. Press the [MENU] Bookmark

setting mode.

knob to access the

knob

Rotate the [MENU] knob to select the Track

or Artist.

3. Press the [MENU] to start the bookmark.

1. Press the [MENU] Stations

setting mode.

knob to access the

Rotate the [MENU] knob to select the Stations

options.

3. Press the [MENU] to confirm the selection.knob

1. Press the [MENU] Stations

Manage Settings menu.

knob to access the

Rotate the [MENU] knob to select the Stations

Manage Settings options.

Create From Artist: Allows you to create a

station from the artist that you are currently

listening to.

Create From Track: Works similarly by

creating a station from the current track

being played.

Create From Genre: This will give you music

genres to select from to create your station.

Delete: Will delete the now playing station.

3. Press the [MENU] knob to confirm.

Note:

If the name of the station you wish to

create form a track title or an artist name

is the same as the station name currently

playing , “NOW PLAY” appears on the

display and the station will not be created .

CMS4

English Owner’s Manual

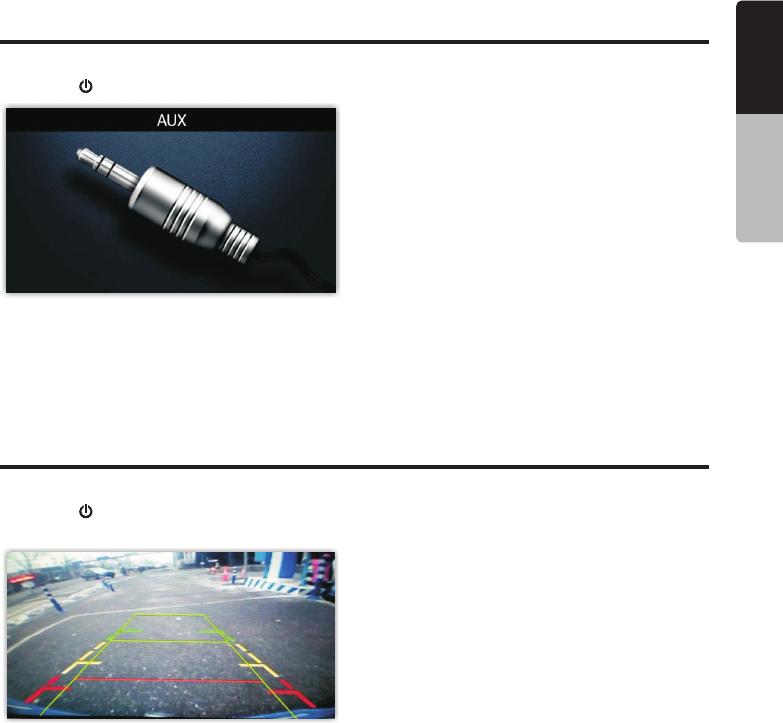

The AUX RCA input is provided to allow audio playback from external devices.

The unit features an optional Security Camera input function.

AUX Operation

Camera Operation

Press the [ /SRC] button and select “AUX”.

Press the [ /SRC] button and select “Camera”. The camera can be viewed on the unit’s TFT

screen plus the camera output can be viewed on the screen.

CMS4 17

English Owner’s Manual

6. TROUBLESHOOTING

Problem

Cause

Measure

The unit will

not power on

Cannot pair the

Bluetooth enabled

device with the

audio system.

No sound

The audio quality is

poor after connection

with a Bluetooth-

enabled device.

The remote is

responding

not

Auto seek function

can not find any

stations

Volume is set too low

Wiring is not properly

connected

The Bluetooth reception is poor.

The built-in internal processor

is not operating properly

The antenna cable is not

connected

The signals are too weak

Increase the volume to audible level

Correct wiring connections

Hold the Power / SRC button and select

Power Off. Press the Power / SRC button to

power back on and check if the remote is

functioning properly.

Insert the antenna cable securely

Select a station manually

The vehicle's accessory

switch is not on

The device does not support

the profiles required for the

system.

The Bluetooth function of the

device is not enabled.

If the power supply is properly connected

to the accessory terminal, switch the

ignition key to “ACC”

vehicle's

Use another device to connect.

Refer to the user manual of the device for how

to enable the function.

GENERAL

Bluetooth

Move the device closer to the audio system or

remove any obstacle between the device and

the system.

Problem Cause Measure

USB device cannot

be inserted.

USB device is not

recognized.

No sound heard with

the display “No File”

shown.

Sound skips or is

noisy.

The USB device is damaged.

No MP3/WMA file is stored in

the USB device.

MP3/WMA files are not

encoded properly.

The USB device has been

inserted with wrong

direction.

The USB connector is

broken.

Reversing the connection direction of the USB

device, try it again.

Replace with a new USB device.

USB

Disconnect the USB device and reconnect. If

the device is still not recognized, try replacing

with a different USB device.

Store these files properly in the USB device.

Use MP3/WMA files encoded properly.

Connectors are loose.

CMS4

English Owner’s Manual

6. TROUBLESHOOTING

Message

Chek Tuner

Channel Not

Subscribed

Check Antenna

Channel Not

Available

No Signal

Channel Locked

Subscription

Updated

The radio has detected a fault with the SiriusXM antenna. The antenna

cable may be either disconnected or damaged. Verify that the antenna cable

is connected to the SiriusXM Connect Vehicle Tuner. Inspect the antenna

cable for damage and kinks. Replace the antenna if the cable is damaged.

SiriusXM products are available at your local car audio retailer or online at

www.shop.siriusxm.com.

The channel that you have requested is not a valid SiriusXM channel or the

channel that you were listening to is no longer available. You may also see

this message briefly when first connecting a new SiriusXM Connect Vehicle

tuner. Visit www.siriusxm.com for more information about the SiriusXM

channel lineup.

The SiriusXM Connect Vehicle Tuner is having difficulty receiving the

SiriusXM satellite signal. Verify that your vehicle is outdoors with a clear

view of the sky. Verify that the SiriusXM magnetic mount antenna is

mounted on a metal surface on the outside the vehicle. Move the SiriusXM

antenna away from any obstructions. Inspect the antenna cable for damage

and kinks. Consult the SiriusXM Connect Vehicle tuner installation manual

for more information on antenna installation. Replace the antenna if the

cable is damaged. SiriusXM products are available at your local car audio

retailer or online at www.shop.siriusxm.com.

The channel that you have requested is Locked by the radio Parental

Control feature. See the section on Parental Control, page 12 for more

information on the Parental Control feature and how to access locked

channels.

An update to your SiriusXM subscription has been received by the SiriusXM

tuner. Press any button to continue. Visit www.siriusxm.com or call 866-635-

2349 if you have questions about your

subscription.

The radio is having difficulty communicating with the SiriusXM Connect

Vehicle Tuner. The tuner may be disconnected or damaged. Verify that the

SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.

The channel that you have requested is not included in your SiriusXM

subscription package or the channel that you were listening to is no longer

included in your SiriusXM subscription package. Visit www.siriusxm.com or

call 866-635-2349 if you have questions about your subscription package or

would like to subscribe to this channel.

Description

SiriusXM Advisory Messages

CMS4 19

7. SPECIFICATIONS

FM Tuner

Power Output:

20W × 4 RMS (4 Ω @14.4V

≤1% THD+N)

Signal to Noise Ratio:

74dB (reference: LPF 1 W into 4 )

Frequency Range: USA 87.9 - 107.9MHz

Europe 87.5 - 108.0MHz

Asia 87.5 - 108.0MHz

Australia 87.5 - 108.0MHz

Usable Sensitivity: 4 V (S/N=30dB)

Image Rejection: >45dB

Stereo Separation: >25dB

AM Tuner

Frequency Range: USA 530 -1710KHz

Europe 531 - 1602KHz

Asia 531 - 1629KHz

Australia 531- 1629KHz

Usable Sensitivity: 40dB (S/N=20dB)

Weather Band Selection

CH.1 162.400MHz CH.2 162.425MHz

CH.3 162.450MHz CH.4 162.475MHz

CH.5 162.500MHz CH.6 162.525MHz

CH.7 162.550MHz

Audio

USB

Maximum Power Output: 50W x 4

USB: 2.0 Full Speed

USB Port: 2.1A

USB Voltage: 5.0V

Maximum MP3/WMA Songs: 65535

Maximum MP3/WMA Folder: 255

Maximum Songs per Folder: 65535

Maximum USB Memory Size: 32G

USB Flash Drive and Hard FAT16/FAT32

Drive Compatible Format:

Speaker Impedance: 4~8Ω

General

Power Supply Voltage: 14.4V DC (10.8 to 15.6V

allowable)

Grounding System: Negative Ground

Note: Specifications and design are subject to

change without notice for further improvement.

Bluetooth

Specification: Bluetooth Version. 3.0+EDR

(Enhanced Data Rate)

Supported Profiles: A2DP (Advanced Audio

Distribution Profile)

aptX (CD Quality audio

bandwidth matching and

reproduction)

AVRCP 1.4 (Audio/Video

Remote Control Profile)

SPP (Serial Port Profile)

SSP (Simple Secure Pairing)

Send/Receive Sensitivity: Class 2

CMS4

English Owner’s Manual

INSTALLATION AND

CONNECTION

WIRE

1. BEFORE STARTING

1. This set is exclusively for use in vessels with

a negative ground 12 V power supply.

2. Read these instructions carefully.

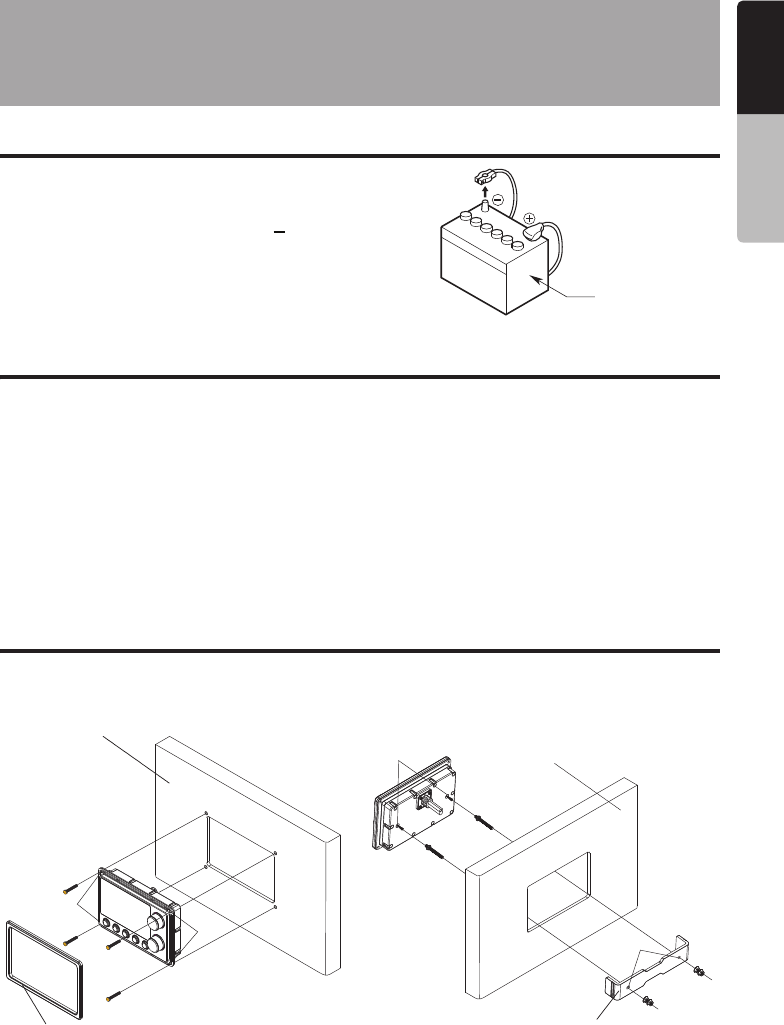

3. Be sure to disconnect the battery “ ” terminal

before starting. This is to prevent short circuits

during installation. (Figure 1)

2. INSTALLATION CAUTIONS

3. OPTIONAL MARINE WIRED REMOTE INSTALLATION

Battery

Figure 1

1. In order to avoid any interference, do not install the tuner module or control unit in the proximity of

the engine compartment.

2. The use of unauthorized parts can cause permanent damage to the unit.

3. Always check your wire connections to ensure proper installation before turning on the unit.

4. Consult with your nearest dealer for proper installation or if common parts need to be used.

Seek assistance if modifications or drilling holes to your vessel is needed.

5. Do not install the unit where it will be subjected to excessive moisture, dust, dirt, foreign particles

or vibration. Areas of high temperature from the engine, direct sunlight, heater or hot air should

also be avoided.

6. Do not install the unit in a location where it will interfere with the vessel operation, or it will injure the

passengers if there is a sudden or emergency stop.

The control unit should be mounted to a dry, clean and flat surface. Ensure the rear gasket is fully

sealed to the mounting surface without distorting the unit.

Trim Plate

Dashboard

Method 1

Dashboard

Mounting Bracket

Screw Hole

Screw

Hole

Method 2

CMS4 21

English Owner’s Manual

4. BLACK BOX INSTALLAION

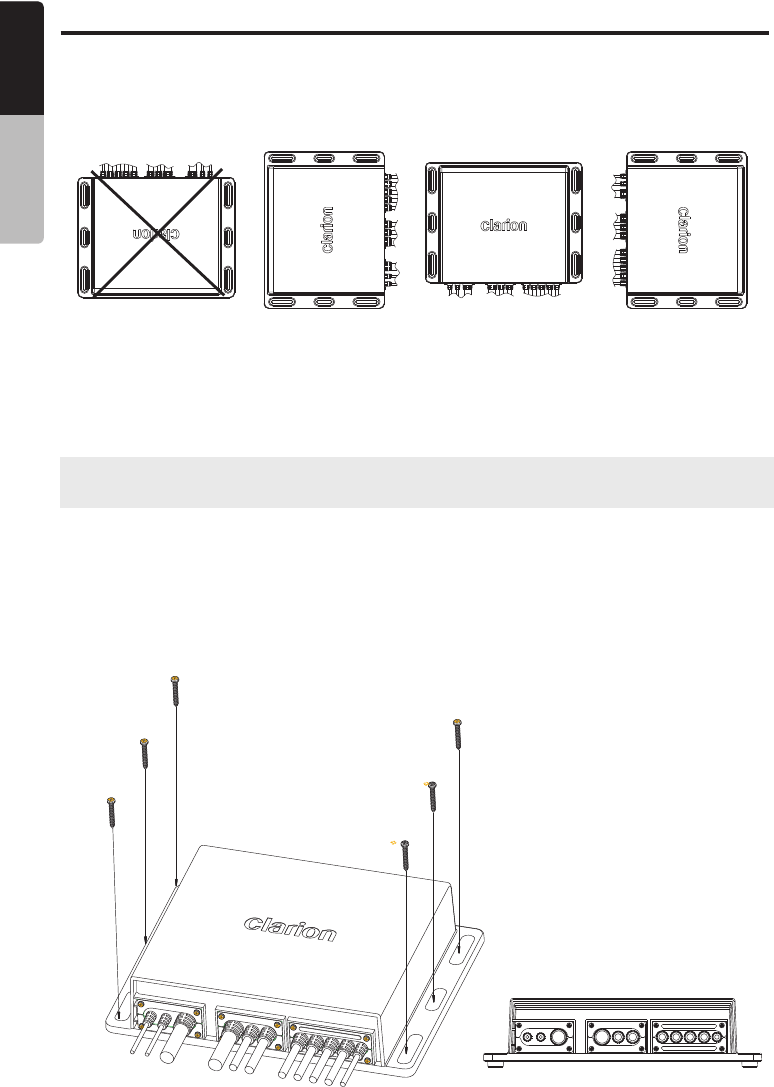

1. Select an area with sufficient ventilation for the mounting of the black box in order to prevent the

module from overheating. You may mount the black box in a horizontal or vertical position. If the

black box is mounted in a vertical position, do not mount the module with the harness exit points

directly facing up to prevent water collecting in these areas.

2. Please refer to the diagram below for the mounting screw hole positions. Always use the shortest

length of screw possible.

3. During installation, use the 6 rubber mounting stoppers (included in the package) for the bottom of

the module. This provides clearance from surface moisture and provides sufficient ventilation for

the heat sink.

4. Extension wires/cables may be needed to route the harness and cable throughout the vessel.

Note: Retain some slack in the harness/ cables to prevent damage to the wires. It is recommended

relieve stress in all cables and harnesses.

5. Always read through the wiring diagram in this manual first, and follow all the wiring diagrams

carefully. The connections should be secured and insulated with crimp connectors or electrical

tape to ensure proper connections.

6. Once the wiring connections are completed, connect the negative terminal on the battery, turn the

vessel accessory ON and power on the unit to check if it is operating correctly. If abnormalities

occur, disconnect the battery negative terminal, recheck all wiring and try again. Please refer to the

troubleshooting section for assistance.

BLACK BOX MOUNTING

CMS4

English Owner’s Manual

SECTION A-A SECTION B-B

GREEN

PIN NO. WIRE DEFINTIONWIRE COLOR AWG

SPEAKER REAR LEFT (+)

GREEN/BLACK

RED

WHITE

WHITE/BLACK

YELLOW

GREY

GREY/BLACK

BLUE/WHITE

PURPLE

PURPLE/BLACK

BLACK

ORANGE/WHITE

PURPLE/WHITE

BLUE

SPEAKER REAR LEFT (-)

ACCE SSORY/IGN ITION SWITCHE D (+12V)

SPEAKER FRONT LEFT (+)

SPEAKER FRONT LEFT (-)

BATTERY (+12V)

SPEAKER FRONT RIGHT (+)

SPEAKER FRONT RIGHT (-)

SPEAKER REAR RIGHT (+)

SPEAKER REAR RIGHT (-)

AMPL IFIER REMOT E TURN ON (+)

GROUND (-)

(+12V)DIMMER

CAMERA TRIGGER (+)

POWER ANTENNA

ORIENTATION

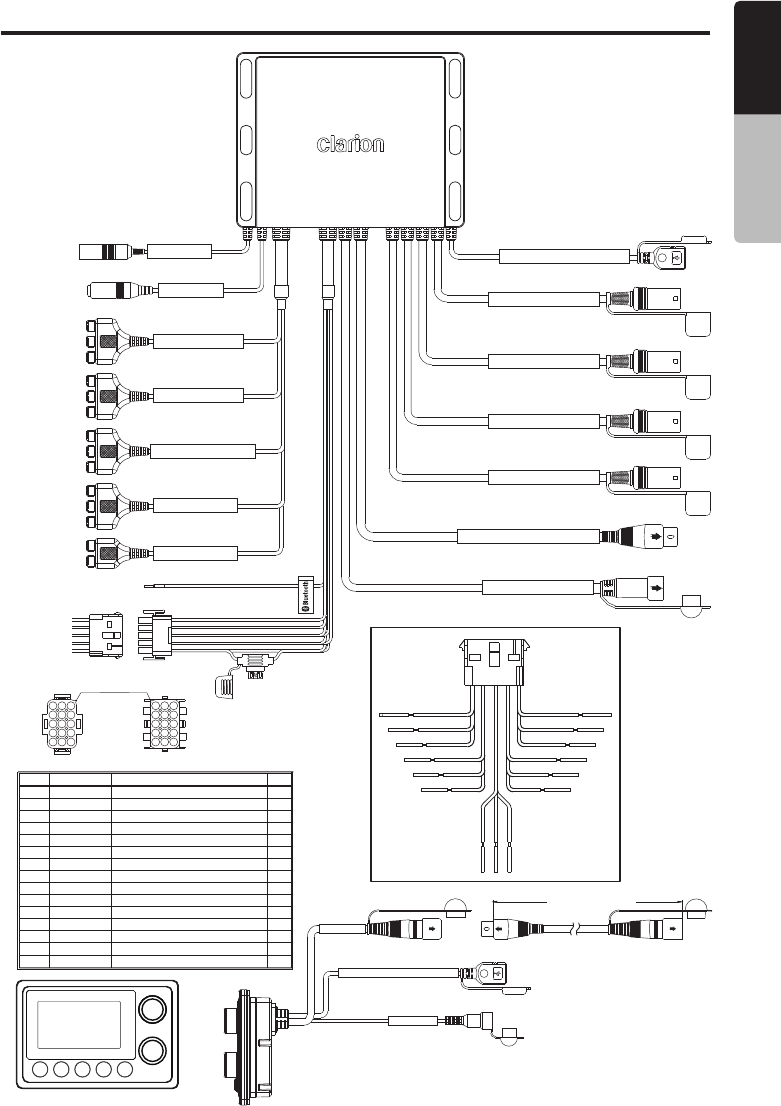

5. WIRE CONNECTION

Black

SWC Black

ANTENNA

Steering Wheel

Remote Control

Terminal

FRONT/ZONE1

REAR/ZONE2

VARIABLE/ZONE3

FIXED/ZONE4

AUX IN

Black-Subwoofer Grey

Red-Line Out Right

White-Line Out Left

Black

Black-Subwoofer

Red-Line Out Right

White-Line Out Left

Purple

Green

Red

Red-Aux In Right

White-Aux In Left

Bluetooth Antenna Brown

FUSE

15A

RED

15 PIN MOLEX Connector

USB 2.1A/BB UPDATE

Black

WIRED REMOTE 1

WIRED REMOTE 2

WIRED REMOTE 3

WIRED REMOTE 4

Black

DISPLAY CONTROLLER

Black

SIRIUS XM

Black

123

456

789

10 11 12

13 14 15

321

654

987

15 PIN MOLEX

Connector

Wire Code

BLUE

PURPLE/WHITE

ORANGE/WHITE

BLACK

PURPLE/BLACK

PURPLE WHITE

WHITE/BLACK

YELLOW

GREEN

GREEN/BLACK

RED

GREY

GREY/BLACK

BLUE/WHITE

Male Extension Cable Female

3048mm (10 feet)

Female

BLACK BOX

DISPLAY CONTROLLER UPDATE

CAMERA

YELLOW

DISPLAY CONTROLLER

CMS4 23

English Owner’s Manual

CMS4

10/2016

Clarion Corporation of America

Printed in China

Clarion Corporation of America

SOUNDMAX ELECTRONICS CMS4 Marine source unit User Manual

Soundmax Electronics Limited Marine source unit

User Manual

Navigation menu

Namespaces

Views

Navigation
