User Manual

MODERN SOUND FOR YOUR CLASSIC
www.retromanufacturing.com
USER’S MANUAL
Version 1
motor4_manual-8.indd 1 5/5/17 11:43
1
TABLE OF CONTENTS
WELCOME 3
WHAT’S IN THE BOX 4
PRECAUTIONS 5
INSTALLATION INSTRUCTIONS 8
WIRING DIAGRAM 11
OPERATING YOUR RADIO
BASIC OPERATION 15
TONE CONTROLS 18
SYSTEM SETTINGS 20
USB DEVICE INSTRUCTIONS 25
BLUETOOTH® INSTRUCTIONS 28
SIRIUSXM INSTRUCTIONS 30
SIRIUSXM TROUBLESHOOTING 34
TROUBLESHOOTING 35
FREQUENTLY ASKED QUESTIONS 36
SPECIFICATIONS 39
LIMITED WARRANTY 40
REPLACEMENT PARTS 41
INSTALLATION NOTES 42
motor4_manual-8.indd 1 5/5/17 11:43
2
Copyright © 2017 Retro Manufacturing, LLC
LICENSING
For clarity in identifying your model of iPod, please see Apple’s document
“Identifying iPod® models” at http://support.apple.com/kb/HT1353.
“Made for iPod®” and “Made for iPhone®” mean that an electronics accessory has been
designed to connect specically to iPod® or iPhone® respectively, and has been certied by the
developer to meet Apple performance standards. Apple is not responsible the operation of this
device or its compliance with safety and regulatory standards. Please note that the use of this
accessory with iPod® or iPhone® may affect wireless performance. Apple is not responsible for the
operation of the device or its compliance with safety and regulatory standards.
iPod® and iPhone® are trademarks of Apple Inc., registered in the U.S. and other countries.
Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc.
All rights reserved.
Windows Media® and the windows logo are trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
The Bluetooth® word mark and logos are owned by the Bluetooth® SIG, Inc., and any use of such
marks by Retro Manufacturing, LLC are under license. Other trademarks and trade names are
those of their respective owners.
Made for iPod®
(Correct function of earlier versions
cannot be guaranteed.)
iPod Touch (5th generation): Ver. 9.3.5
iPod Touch (4th generation): Ver. 6.1.2
iPod Touch (3rd generation): Ver. 5.1
iPod Touch (2nd generation): Ver. 4.2.1
iPod Nano (6th generation): Ver. 1.1
iPod Nano (5th generation): Ver. 1.0.2
iPod Nano (4th generation): Ver. 1.0.4
iPod Nano (3rd generation): Ver. 1.1.3
iPod Classic (160 GB) (Late 2009): Ver. 2.0.4
iPod Classic (120 GB): Ver. 2.0.1
iPod Classic (80 GB, 160 GB): Ver. 1.1.2
Made for iPhone®
(Correct function of earlier versions
cannot be guaranteed.)
iPhone SE: Ver. 10.1.1
iPhone 6s Plus: Ver. 10.1.1
iPhone 6s: Ver. 10.1.1
iPhone 6 Plus: Ver 10.1.1
iPhone 6: Ver. 10.1.1
iPhone 5s: Ver. 10.1.1
iPhone 5: Ver. 10.1.1
iPhone 4s: Ver. 9.3.5
iPhone 4: Ver. 7.1.2
iPhone 3Gs: Ver. 6.1.6
iPhone 3G: Ver. 4.2.1
motor4_manual-8.indd 2 5/5/17 11:43
3
WELCOME
Thank you for purchasing a RetroSound® SiriusXM-Ready™ radio.
Motor 4 has the advanced features you expect from a
modern car stereo. The RetroSound® radio consists of two
main parts: the radio face and the Motor 4 body.
General Features
The only SiriusXM-ready™ classic car radio
(SiriusXM Connect vehicle tuner and subscription required)
Made for iPod®/iPhone®
Built-in Bluetooth
®
for hands-free calling and audio streaming (microphone included)
Wireless Audio Browsing from your iPhone
®
or Android device
Plays MP3, WMA and FLAC les via USB inputs
Selectable 32,000 color LCD illumination with user presets
AM/FM tuner with 30 presets and RDS
Selectable international tuner frequencies
Built-in MOSFET amplier (25 watts RMS/45 watts peak x 4 channels)
3 EQ presets plus user-controlled bass, mid-range,
treble, fader, and balance adjustment
Patented InniMount system for maximum installation exibility
Available with period-correct knobs and bezel for your vehicle
Inputs: 2 rear-mounted standard USB ports and auxiliary inputs
Outputs: 6-channel pre-amp outputs (front, rear, subwoofer)
Separate power antenna and amplier turn-on lead(s)
2 year warranty
The information enclosed in this user’s manual is to be used as a guide to assist
you with installation and operation of your radio. This guide does not cover
every installation possibility, vehicle, or every aspect of the installation process.
Retro Manufacturing, LLC, RetroSound®, or its subsidiaries, assume no
responsibility for any installation. This manual may be updated from time to time.
Visit our website for the latest updates: www.retromanufacturing.com.
motor4_manual-8.indd 3 5/5/17 11:43
4
Copyright © 2017 Retro Manufacturing, LLC

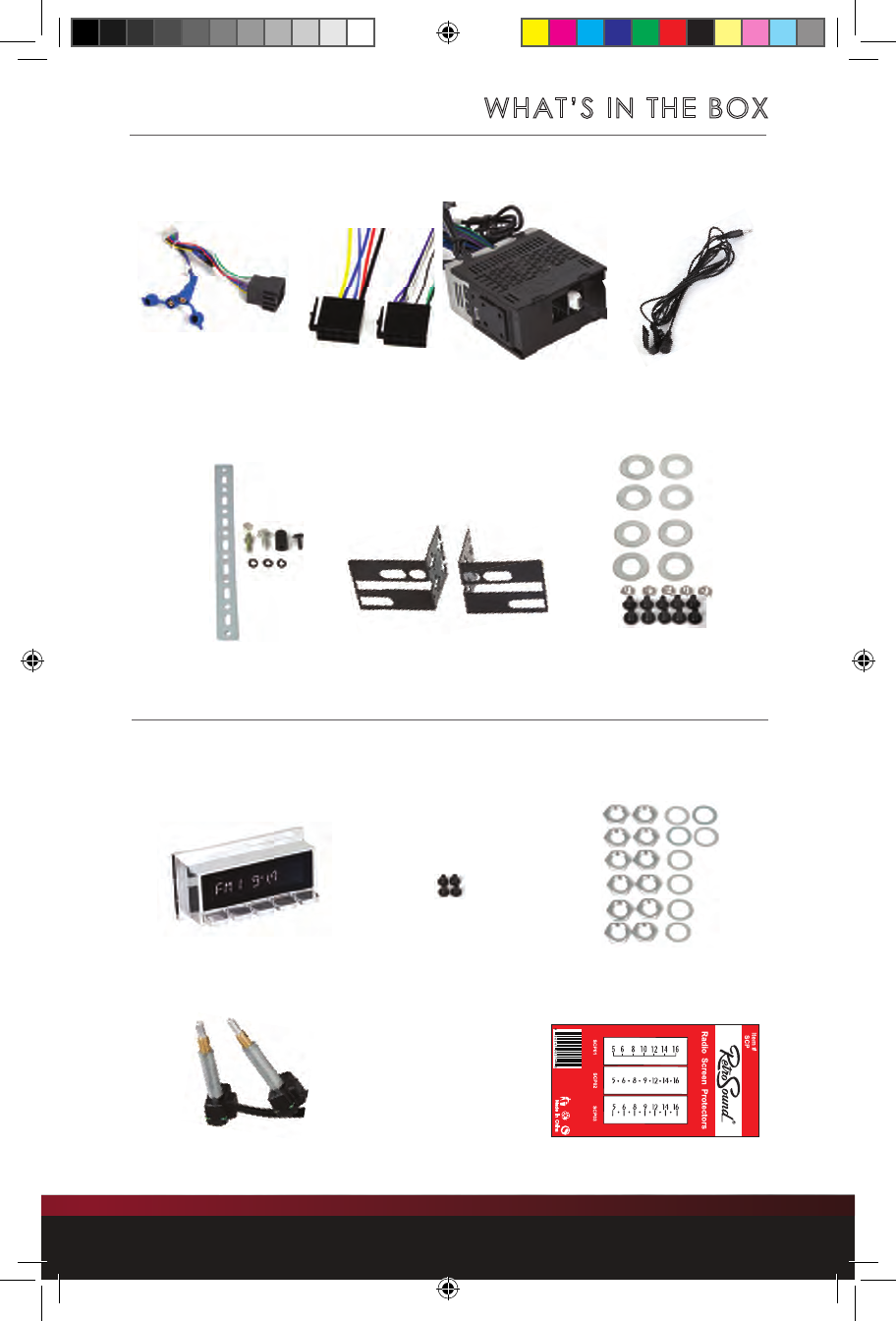

WHAT’S IN THE BOX
The items shown below are packaged with your Motor 4 box.
The items shown below are packaged with your radio face box.
Main Wiring Harness
(plugs into back of radio)
In niMount Brackets
Power and Speaker
Wiring Harnesses
(both plug into
Main Wiring Harness)
Motor 4 Radio Body Bluetooth
®
Microphone
Metal Mounting Backstrap
and Hardware
Bracket Mounting Hardware
Vintage Radio Dial Screen Protectors
(select models only)
Radio Face Shaft Mounting Hardware
Radio Face
Mounting Screws
Shafts
motor4_manual-8.indd 4 5/5/17 11:43
5
PRECAUTIONS
PLEASE OBSERVE THESE PRECAUTIONS WHEN INSTALLING
AND USING THIS UNIT:
This user’s manual does not cover all possible installation scenarios.
If you feel you can’t install this unit yourself, take it to a local car
audio professional. If you have questions about installing your
radio, contact us at tech@retromanufacturing.com
or by calling 888.325.1555.
• Do not disassemble or modify the unit or attempt to
repair the unit yourself. If the unit needs to be repaired,
consult your dealer or Retro Manufacturing, LLC.
• Do not use the unit when it is out of order. If the unit is out of
order or is in an abnormal state (has foreign objects in it, is
exposed to water, smokes or smells), turn it off immediately
and consult your dealer or Retro Manufacturing, LLC.
Refer fuse replacement to qualied service personnel.
When the fuse fails, eliminate the cause and have it
replaced by a qualied service technician with the fuse
prescribed for this unit. Incorrect replacement of the fuse
may lead to smoke, re and damage to the unit.
If the unit does not turn on, check the connections rst.
Then check the fuse in your vehicle’s fuse panel and the
fuse at the unit’s wiring harness. Do not expose the unit to
direct sunlight or excessive heat. Excessive heat will raise the
interior temperature of the unit, which may damage it.
• Do not use the unit where it is exposed to moisture or
dust. Exposure of the unit to moisture or dust may lead
to smoke, re or other damage to the unit and will void
your warranty. Make sure the unit does not get wet
in car washes or on rainy days. Exposure to moisture
will damage the unit and void your warranty.
motor4_manual-8.indd 5 5/5/17 11:43
6
Copyright © 2017 Retro Manufacturing, LLC
PRECAUTIONS
Refer wiring and installation to qualied service personnel.
Installation of this unit requires special skills and experience.
Retro Manufacturing, LLC is not liable for any problems resulting
from improper installation of the unit. Please be sure to follow
the instructions carefully while attempting installation.
Follow the instructions to wire the unit. Failure to follow the
instructions could cause damage to the unit, re, injury or death.
• Be careful not to damage the leads. Prevent them from
being caught in the vehicle chassis or from being damaged
by screws or moving parts such as seat rails. Do not scratch,
pull, bend or twist the leads. Do not install them near heat
sources or place heavy objects on them. If the wiring must
be routed around sharp metal edges, protect them by
wrapping them with vinyl tape or similar protections.
NOTE: Cutting the main wiring harness, antenna lead,
USB or auxiliary cables will void the warranty of your radio.
• We recommend only using the designated parts and
tools when installing this unit. If mounting the radio face
or body remotely, use extreme caution not to damage
internal parts when choosing brackets and screws.
• Do not interfere with safety-related vehicle components.
Do not wire or afx this unit to the fuel tank, brakes,
suspension, steering wheel, pedals, etc. Check for electric
wiring, piping and other items before installing the unit.
• Never install the unit in a location where it
interferes with your eld of vision.
• Use the supplied metal backstrap to secure the rear
of the unit. Failure to secure the back of the unit will
damage the shafts and void your warranty.
motor4_manual-8.indd 6 5/5/17 11:43
7
PRECAUTIONS
Never splice into the power lead to supply
other equipment with power.
After installation and wiring, always check the normal
operation of other electrical equipment.
Make sure that no wires interfere with driving
or getting in and out of the vehicle.
Insulate all exposed wires to prevent short-circuiting or electric shock.
Do not operate the unit for prolonged periods
with the engine off. Prolonged operation with the
engine turned off will drain the battery.
Keep the volume of your radio at a level that allows
you to hear outside noises such as emergency sirens
and train crossing warnings. Prolonged exposure to
high volume levels may also result in hearing loss.
This unit requires 12 volts to both the red and yellow power leads.
The unit will not work without 12 volts to both of these leads.
Always disconnect the negative (-) battery cable before
beginning installation. Verify the battery ground by checking
that one wire is connected to the vehicle’s starter mounting
bolt or engine block and the other to the vehicle’s chassis using
at least 8 gauge wire. Make sure the alternator or generator
connections are secure and free from corrosion, rust or dirt.
This unit is designed for operation with a negative ground
12 volt DC battery system. Do not operate this unit with
other battery systems, especially an 18 or 24 volt DC or a
positive ground system. If you have a 6 volt system, you
need to either convert to 12 volt DC or purchase a separate
inverter that would increase the voltage to 12 volts.
NOTE: The inverter needs to be rated at 10 amps or higher
in order for the radio to operate properly.
motor4_manual-8.indd 7 5/5/17 11:43
8
Copyright © 2017 Retro Manufacturing, LLC
STEP 1: Install the Radio Face
Plug the ribbon cable included with the Motor 4 radio body
into the radio face. After plugging in the radio face, attach
it to the radio body (if it is not already attached) and tighten
with the four radio face mounting screws provided in the
radio face box (the screws are very small and are included
in the hardware kit included with your Motor 4 box).
The RetroSound® logo on the Motor 4 radio body should be facing
upwards. Take care to not install the face to the body upside down.
NOTE: Optionally, the radio face can be mounted remotely up to nine feet away
from the Motor 4 radio body using an optional Face to Body Extension Cable (sold
separately). In some installation applications, a bracket (not included) can be used
to mount the radio face to the radio body at an angle.
INSTALLATION INSTRUCTIONS

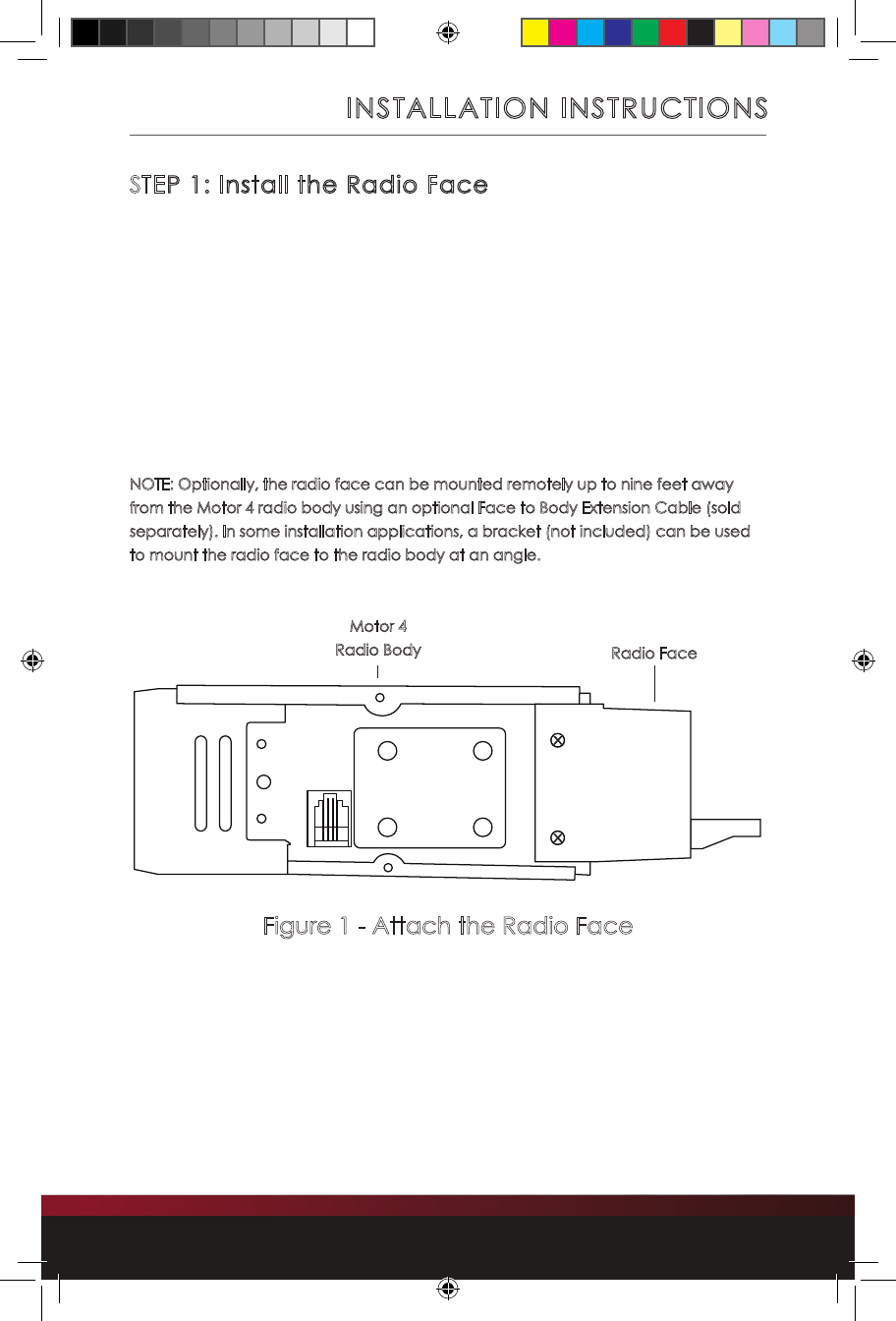

Figure 1 - Attach the Radio Face
Radio Face
Motor 4
Radio Body
motor4_manual-8.indd 8 5/5/17 11:43
9
INSTALLATION INSTRUCTIONS
STEP 2: Install InfiniMount Brackets
Attach each InniMount bracket to the correct side of the radio
body using the supplied screws (the brackets are marked with
a “L” for left and a “R” for right). Before tightening the screws,
you need to adjust the brackets up, down, forward or backward
(see Figure 2). You may also rotate, cut, or bend the brackets to
achieve the perfect t. Complete the assembly with at least two
screws tightened on each side.*
*In some installations the brackets must be moved far enough forward or backwards
or rotated so that only two screws will align with the threaded screw holes
on the radio. Two screws are sufcient to hold the brackets in place.
NOTE: You may need to cut, trim or bend the brackets to achieve a perfect t. You
can even drill new mounting holes into the bracket if you need to. The InniMount
system is designed to be modied. Modifying your brackets will NOT void your warranty.
R

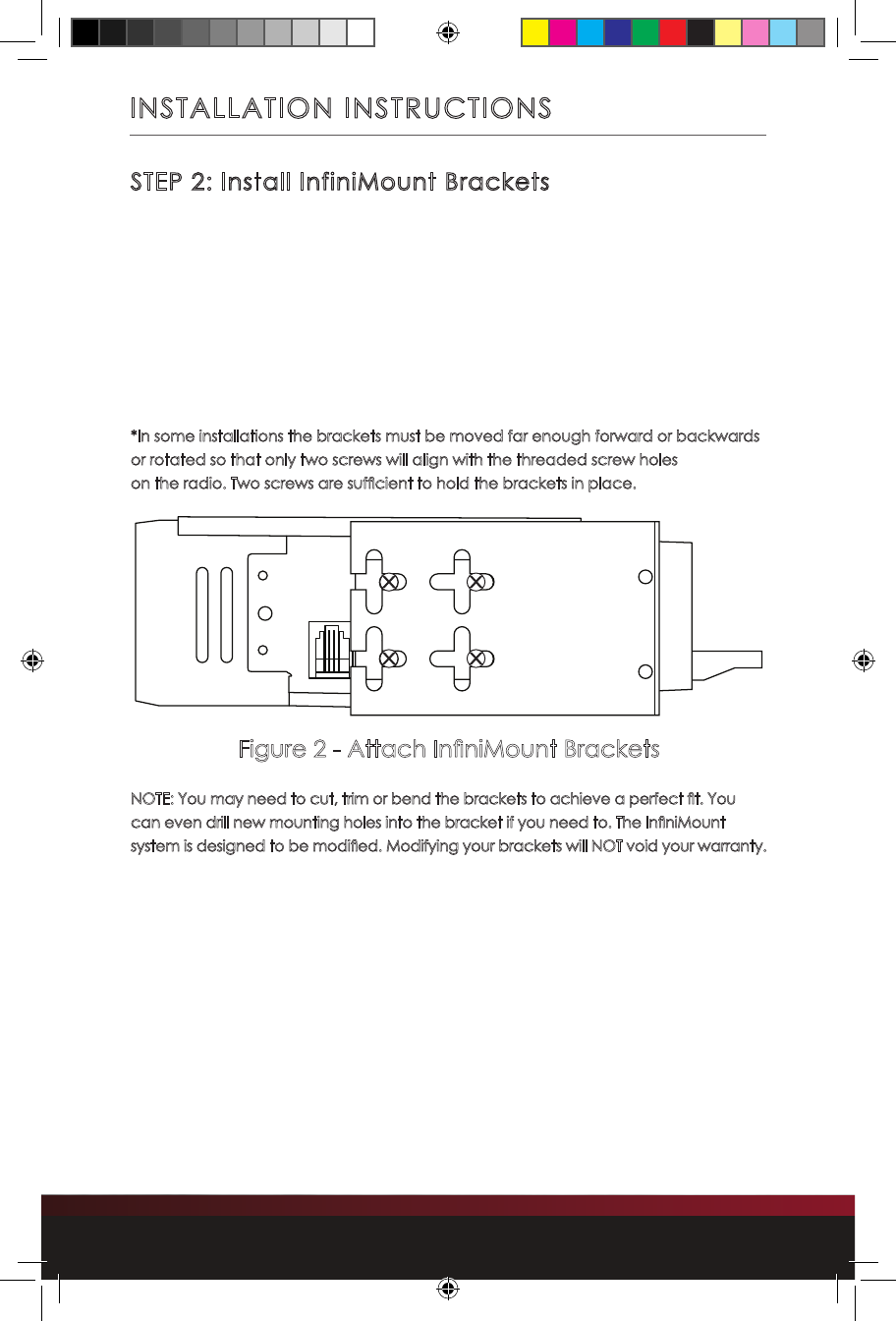

Figure 2 - Attach InniMount Brackets
motor4_manual-8.indd 9 5/5/17 11:43
10
Copyright © 2017 Retro Manufacturing, LLC
INSTALLATION INSTRUCTIONS

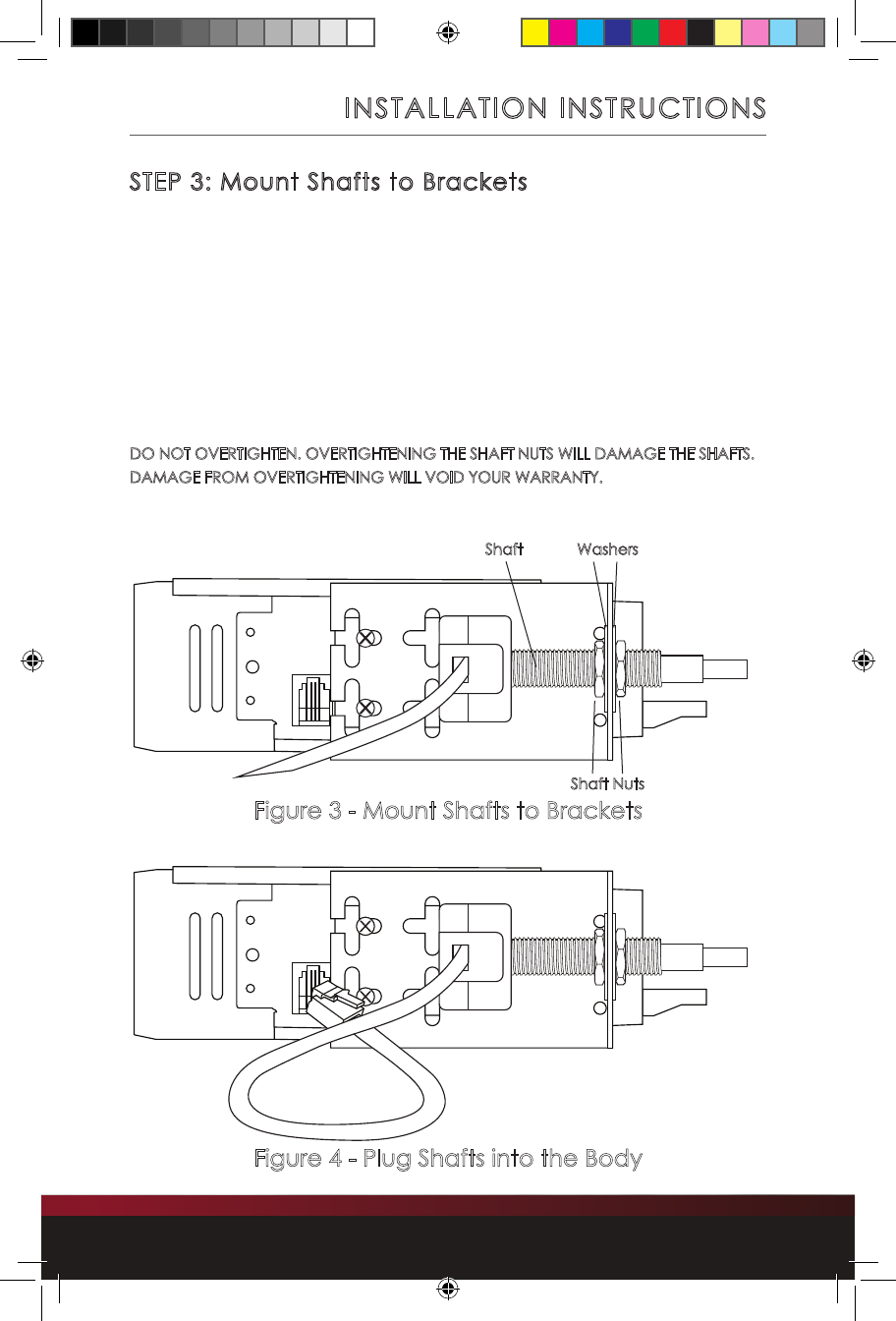

STEP 3: Mount Shafts to Brackets
To match the the location of your shafts to the proper width of your
vehicle’s dash, measure the distance between your existing shaft
holes from center to center.
Mount a shaft to each bracket using the supplied shaft nuts
and washers. Finger tighten the shaft nuts to prepare for the nal
installation (see Figure 3). Once you ensure the proper width, snug
down the screws and nuts (DO NOT OVERTIGHTEN).
DO NOT OVERTIGHTEN. OVERTIGHTENING THE SHAFT NUTS WILL DAMAGE THE SHAFTS.
DAMAGE FROM OVERTIGHTENING WILL VOID YOUR WARRANTY.
Finally, plug the shafts into each side of the main unit (see Figure 4).
Figure 3 - Mount Shafts to Brackets
Shaft Washers
Shaft Nuts
Figure 4 - Plug Shafts into the Body
motor4_manual-8.indd 10 5/5/17 11:43
11
INSTALLATION INSTRUCTIONS

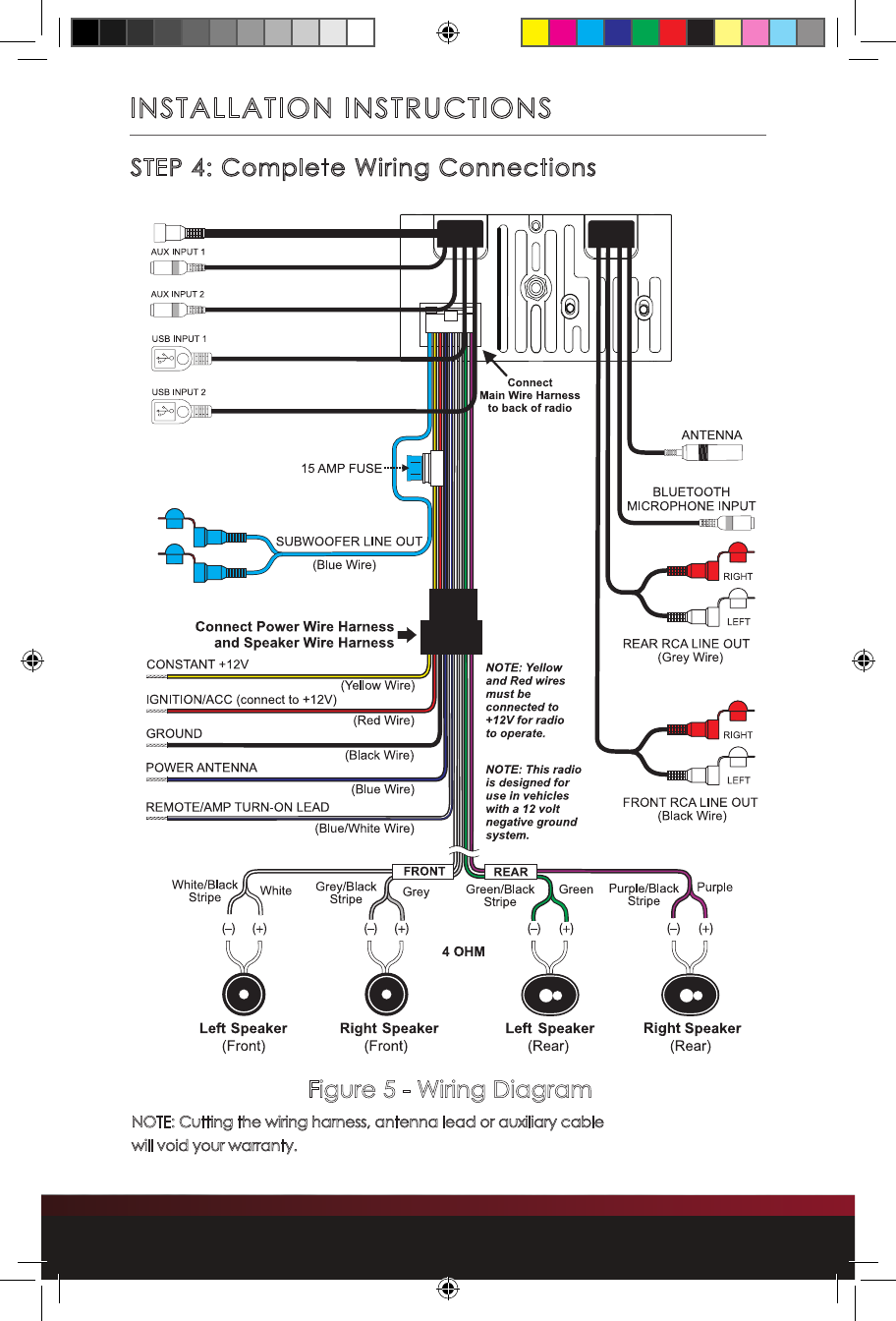

Figure 5 - Wiring Diagram
NOTE: Cutting the wiring harness, antenna lead or auxiliary cable
will void your warranty.
STEP 4: Complete Wiring Connections
SIRIUSXM INPUT
motor4_manual-8.indd 11 5/5/17 11:43
12
Copyright © 2017 Retro Manufacturing, LLC
NOTE: This unit requires +12 volts to both the red and yellow wires to operate properly.
Locate the three wiring harnesses: main wiring harness, power
wiring harness and speaker wiring harness (see “What’s in the Box”
on page 4). First connect the main wiring harness to the back of
the radio body. Then connect both the power and speaker wiring
harnesses to the black female plug of the main wiring harness.
Next, connect the bare wire ends of your power and speaker wires
to the appropriate power and speaker locations in your vehicle
(see Figure 5). Have your radio installed by a professional if this part
of the install is too difcult, or contact us if you have questions.
Bluetooth® Microphone
Your Bluetooth® microphone enables you to place hands-free
phone calls through your radio. The Bluetooth® microphone input
is located at the rear of the Motor 3 radio body. To use your
Bluetooth® microphone, you will need plug it into the plug at the
rear of the radio body and route it to an accessible location such
as the A-pillar or the steering column.
Rear Auxiliary (AUX) Inputs
Two auxiliary inputs are located at the rear of the radio
body. These auxiliary inputs allow you to listen to any external
source with a standard headphone output. An example of
an external source would be a MP3 player, iPod® or iPhone®,
portable CD player or portable satellite radio receiver.
NOTE:
If the auxiliary cables provided are not long enough, you may use our USB/AUX
Extension Cable (sold separately) to extend the reach of one cable. This cable also allows
the installation of one USB and auxiliary port into the factory location of the cigarette
lighter for a factory look and easy access. A male to male 3.5mm auxiliary cable is
required to connect your device to the auxiliary port on your radio.
INSTALLATION INSTRUCTIONS
motor4_manual-8.indd 12 5/5/17 11:43
13
INSTALLATION INSTRUCTIONS
Rear USB Inputs
Two USB connector cables are located at the rear of the radio
body. During installation, you must route the cables to an
accessible location.
NOTE:
If the USB cables provided are not long enough, you may use our USB/AUX
Extension Cable (sold separately) to extend the reach of one cable. This cable also allows
the installation of one USB and auxiliary port into the factory location of the cigarette
lighter for a factory look and easy access.
SiriusXM Input
The SiriusXM input is located at the rear of the radio body. Instructions
for wiring and installing your SiriusXM Connect vehicle tuner are
included with your SiriusXM Connect vehicle tuner box.
STEP 5: Finish the Installation
IF USING A BEZEL, place the bezel on the face of the radio, then install
the assembled radio from behind the dash until the bezel and radio
face are ush with the front of the dash and the radio shafts protrude
through the shaft openings in the dash. Using the supplied washers
and shaft nuts (see “What’s In the Box” on page 4), secure the radio
to the dash.
IF USING A FACEPLATE, slide the radio into the hole from behind the
dash, then align the faceplate over the radio shafts from the front.
Using the supplied washers and shaft nuts (see “What’s In the Box” on
page 4), secure the faceplate to the dash and the radio.
DAMAGE RESULTING FROM OVERTIGHTENING THE SHAFT NUTS
WILL VOID YOUR WARRANTY.
Finally, you’ll need to secure the rear of the radio using the supplied
backstrap and hardware (see “What’s in the Box” on page 4). The
backstrap mounts using the threads in the rear of the radio body and
can be bent and adjusted to align with the mounting point of the
original factory radio behind the dash. Now you can install your knobs.
motor4_manual-8.indd 13 5/5/17 11:43
14
Copyright © 2017 Retro Manufacturing, LLC
INSTALLATION INSTRUCTIONS

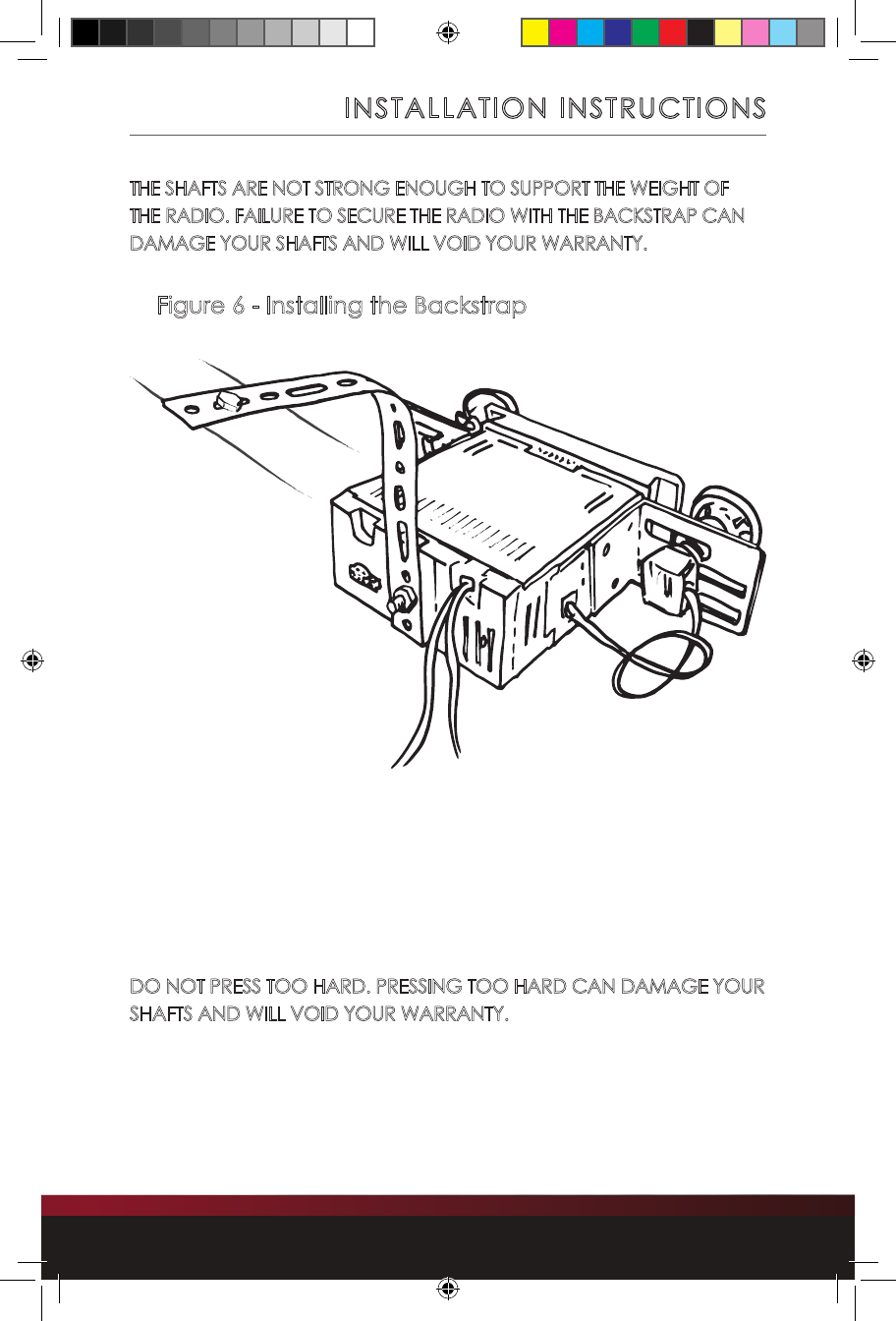

Figure 6 - Installing the Backstrap
View from behind dash
THE SHAFTS ARE NOT STRONG ENOUGH TO SUPPORT THE WEIGHT OF
THE RADIO. FAILURE TO SECURE THE RADIO WITH THE BACKSTRAP CAN
DAMAGE YOUR SHAFTS AND WILL VOID YOUR WARRANTY.
Finally, slide the rear knobs over the shafts, rotating them into the
correct position, and push them into place. Mount the front knobs by
gently pressing them onto the shaft.
DO NOT PRESS TOO HARD. PRESSING TOO HARD CAN DAMAGE YOUR
SHAFTS AND WILL VOID YOUR WARRANTY.
motor4_manual-8.indd 14 5/5/17 11:43
15
OPERATING YOUR RADIO
BASIC OPERATION

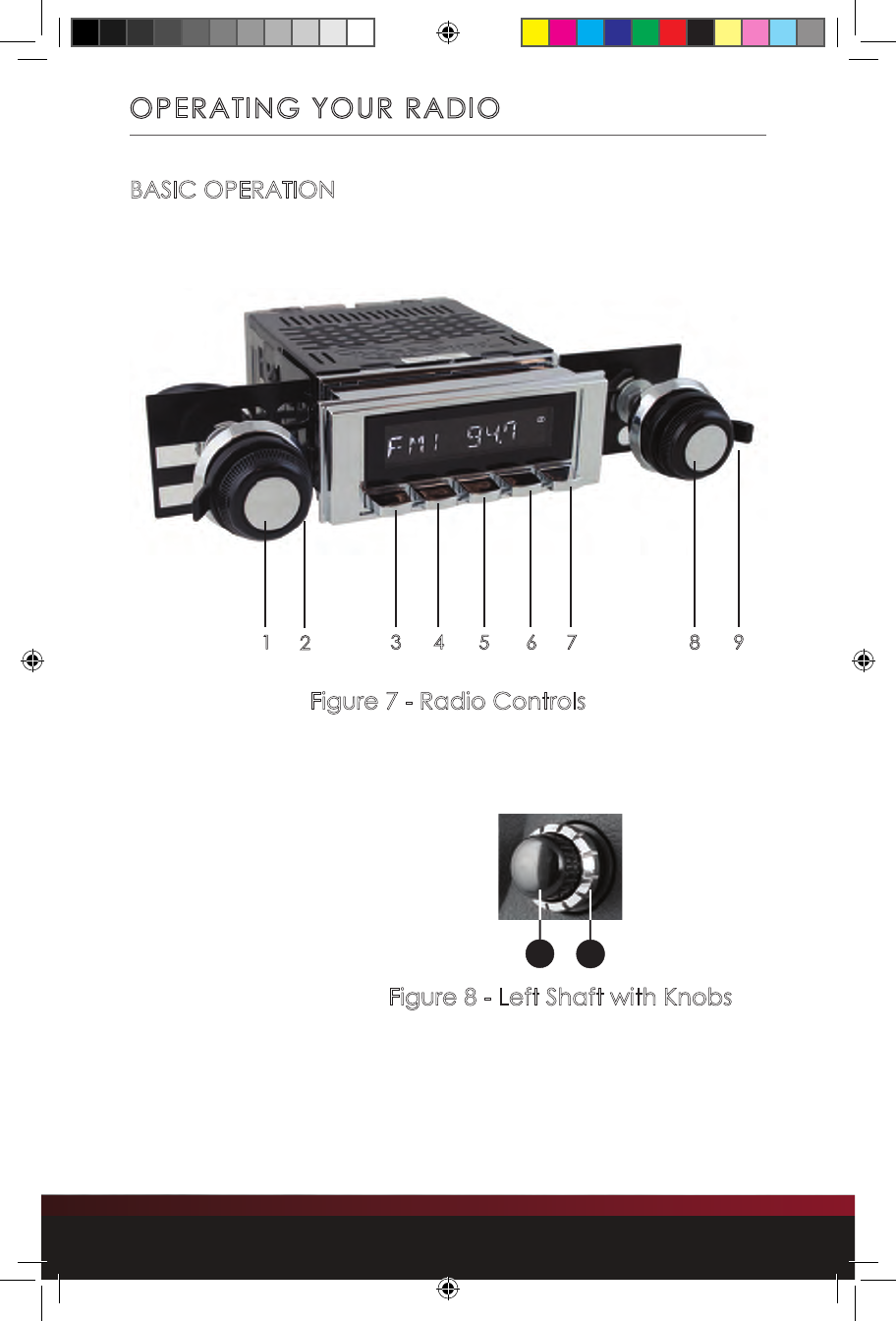

Figure 7 - Radio Controls
Figure 8 - Left Shaft with Knobs
1
2
123 4 5 6 7 8 9
1. Left-Front Knob
2. Left-Rear Knob
3. Push-Button
4. Push-Button
5. Push-Button
6. Push-Button
7. Push-Button
8. Right-front Knob
9. Right-Rear Knob
motor4_manual-8.indd 15 5/5/17 11:43
16
Copyright © 2017 Retro Manufacturing, LLC
OPERATING YOUR RADIO
GENERAL OPERATION
Power On/Off
Press the left-front knob (#1) to turn the unit on.
RETROSOUND will appear on the screen.
Press and hold the left-front knob (#1) to turn the unit off.
GOODBYE will appear on the screen to con rm that it has turned off.
Volume
Rotate the left-front knob (#1) to adjust the volume between 0-46.
Source Mode
Rotate the left-rear knob (#2) clockwise to select from available
listening sources: RADIO, AUX 1, AUX 2, USB 1, USB 2, BT Audio, SiriusXM.
NOTE: The USB source modes will not appear unless a USB device is plugged in.
The auxiliary and USB inputs are located at the back of the radio
body. The auxiliary inputs may be used to play music from any
portable device with a standard headphone output, such as a MP3
player, iPod® or iPhone®, portable CD player or portable satellite
radio receiver. The USB inputs allow you to control your iPod®/
iPhone® or play music from a ash drive. To use these inputs, the
cables must be routed to an accessible area during installation.
Radio Tuning
Rotate the right-front knob (#8) to tune to the next or previous
AM/FM frequency.
NOTE: When the radio is tuned to a strong stereo FM station, the stereo indicator will
appear on the upper right corner of the LCD screen (two oval circles).
motor4_manual-8.indd 16 5/5/17 11:43
17
Radio Bands
Turn the right-rear knob (#9) counter-clockwise to toggle through
ve radio bands (two AM and three FM).
Storing Radio Presets
There are six radio presets for each radio band. For presets one
through ve, tune to the desired radio station and then press and
hold the appropriate push-button (#3-7) to store into memory. To
store preset number six, tune to the station you want to store, then
rotate and hold right-rear knob (#9) clockwise to store.
Selecting Radio Presets
To recall radio presets, press the appropriate push-button (#3-7) in the
selected radio band. To recall preset six, rotate the right-rear knob
(#9) clockwise and release it.
Mute/Pause
Press the right-front knob (#8) to mute/unmute or pause/play
depending on the source mode.
OPERATING YOUR RADIO
motor4_manual-8.indd 17 5/5/17 11:43
18
Copyright © 2017 Retro Manufacturing, LLC
TONE CONTROLS
The Tone Controls sub-menu allows advanced tonal adjustments,
balance and fader controls and preset equalizer options. To
access this sub-menu, press the left-front knob (#1). Repeatedly
press the left-front knob to cycle through the available options.
To adjust within the sub-menu, rotate the left-front knob (#1)
clockwise or counter-clockwise.
Digital Signal Processor (DSP)
This sub-menu toggles the Digital Signal Processor (DSP) on and off.
Factory default is DSP OFF. Activating DSP allows you to choose one of
three preset equalization settings:
CLASSIC This setting offers subtle sonic adjustments
that lend themselves to classical music.
POP This setting accentuates bass and treble
frequencies and is suitable for popular music.
ROCK This setting accentuates treble frequencies
and is suitable for rock music.
Bass
This sub-menu (bass) adjusts bass tones between +7 to -7.
Middle
This sub-menu (MIDDLE) adjusts mid tones between +7 to -7.
Treble
This sub-menu (treble) adjusts treble tones between +7 to -7.
OPERATING YOUR RADIO
motor4_manual-8.indd 18 5/5/17 11:43
19
Balance
This sub-menu (bal) adjusts the stereo balance to the left or the right.
This may be helpful in compensating for the position of the driver
in relation to the vehicle’s speakers. Adjustment range is from 0-12
between the left and right speakers.
Fader
This sub-menu (fader) adjusts the sound between the front and
rear speakers. Adjustment range is from 0-12 between front and
rear speakers.
XBAS
This sub-menu (XBAS) boosts bass and treble for listening at low
volumes. This should only be used at low volume levels and should be
set to XBAS OFF at higher volumes.
Subwoofer ON/OFF
This sub-menu (SUB) toggles the subwoofer RCA output on or off.
Subwoofer Volume
This sub-menu (SUB VOL) adjusts the volume of the subwoofer
between 0-12 and will only appear when SUB ON is selected in the
Subwoofer menu.
Subwoofer Crossover Frequency
This sub-menu (Sub 120H) adjusts the frequency crossover point of the
subwoofer between 80Hz, 120Hz or 160Hz.
Bass Crossover Frequency
This sub-menu (BAS 80H) adjusts the frequency crossover of the bass-
tones between 60Hz, 80Hz, 100Hz or 200Hz.
OPERATING YOUR RADIO
motor4_manual-8.indd 19 5/5/17 11:43
20
Copyright © 2017 Retro Manufacturing, LLC
Middle Crossover Frequency
This sub-menu (Mid 1.0K) adjusts the frequency crossover
of the mid-tones between 0.5KHz, 1.0KHz, 1.5KHz or 2.5KHz.
Treble Crossover Frequency
This sub-menu (TRE 10.0K) adjusts the frequency crossover
of the treble-tones between 10.0KHz, 12.5KHz, 15.0KHz or 17.5KHz.
SYSTEM SETTINGS
The System Settings sub-menu system enables access to numerous
additional features of your radio. Press and hold the right-front knob
(#8) for three seconds to access the System Settings sub-menu. Then
rotate the right-front knob (#8) to scroll through the available sub-
menu options. Once in a specic sub-menu, press the right-front knob
(#8) to change the options.
Auto Seek/Manual
This sub-menu toggles between Auto Seek or Manual tuning when
listening to the radio. In Auto Seek mode, the radio will tune to the
next available station when tuning.
A Store
This sub-menu is only available when the source mode is set to RADIO
and will automatically ll all radio presets on all radio bands with the
strongest stations. To activate this feature, once in the system settings,
rotate the right-front knob (#8) until A STORE appears on the screen,
then press the right-front knob (#8) to activate. This process can take
up to one minute.
OPERATING YOUR RADIO
motor4_manual-8.indd 20 5/5/17 11:43
21
Local/Distant
This sub-menu changes the sensitivity of the FM tuner. When
listening to the FM tuner, selecting between LOCAL and DISTANT can
aid in listening to weak FM stations or compensate for stations that
have too strong a signal.
Clock
This sub-menu sets the clock. To adjust hours, rotate the right-front
knob (#8). Adjusting past 12 will toggle the AM/PM indicators. Once
the hour is set, press the right-front knob (#8) to move to minutes.
Rotate to adjust minutes, then press the right-front knob (#8) to
access the 12/24 menu.
Clock 12/24
This sub-menu adjusts the clock from a twelve hour clock to a
twenty-four hour clock. The factory default setting is for a twelve
hour clock (CLK 12).
Display Frequency/Clock
This sub-menu adjusts the priority screen view between radio
frequency (DISP FREQ) and clock (CLK).
Clock ON/OFF
This sub-menu toggles off the clock when the radio is turned off.
Default is CLK ON.
Beep On/Off
This sub-menu toggles the audible beep conrmation that sounds
during operation of the radio. Select BEEP ON to hear the audible
beep, and BEEP OFF to disable the audible beep.
OPERATING YOUR RADIO
motor4_manual-8.indd 21 5/5/17 11:43
22
Copyright © 2017 Retro Manufacturing, LLC
Display Color (SCAN)
This sub-menu changes the display color. The default setting is SCAN,
which will scan through all of the available colors. To customize your
display color, look for the word SCAN in the sub-menu (if a custom
color has already been chosen, look for that color name in the sub-
menu), then press the right-front knob (#8) to select one of the preset
colors: white, green 1, green 2, green 3, orange, red, pink, purple 1,
purple 2, blue 1, blue 2, user, Scan.
To create a custom color, select USER in the preset color menu, then
rotate the right-front knob (#8) once. The display will say RGB. Now
press the right-front knob (#8) once. This will allow you to edit the RGB
values for 32,000 color variations. Rotate the right-front knob (#8) to
adjust the reds, then press the same knob (#8) to move to the greens.
Repeat this process to adjust the greens and the blues.
NOTE: If you lower all RGB settings down to “00” the display will go black, and you will
need to reset the radio by disconnecting all power from the unit for 2 minutes.
Dimmer
This sub-menu adjusts the radio’s display brightness between high
(DIMM HIGH), mid (DIMM MID) and low (DIMM LOW).
Radio Data System (RDS) ON/OFF
This sub-menu toggles the RDS function on or off. The default is RDS ON.
RDS tuners can automatically tune in stations according to the style
of music (or talk) they broadcast. Some RDS tuners can even break in
with trafc alerts or emergency broadcasts.
RDS enables your receiver to display text messages (usually call letters
and format info) that many FM stations include on a sub-carrier
signal within their normal broadcast signal. The RDS function is always
active, and if the FM station you are listening to is broadcasting RDS
information, the radio station call letters, song info, artist info and
other messages will appear. Not all FM stations use RDS nor will all RDS
functions work in every location.
OPERATING YOUR RADIO
motor4_manual-8.indd 22 5/5/17 11:43
23
Program Type (PTY)
This sub-menu enables you to select up to 31 pre-dened program
types nding similar programming by genre.
To change your program type, cycle through the sub-menu system
by rotating the right-front knob (#8) until you see PTY. Now press
the right-front knob (#8) to activate, then rotate the right-front
knob (#8) to select from the program type list. Press the right-front
knob (#8) to enable your selection.
Now you will see PTY SEEK on the screen which indicates that the
radio is searching the FM band for stations with your selected
program type. If none are found, it will revert back to the last
station selected.
Alternative Frequency (AF) ON/OFF
This sub-menu enables the radio to automatically search for another
frequency that provides the same station when the signal gets weak.
Trafc Announcements (TA) ON/OFF
This sub-menu toggles the trafc announcements function on or off.
The trafc announcements function is part of RDS and allows FM
stations to broadcast trafc announcements that scroll across the
screen or audible trafc alerts to your radio. Press the right-front knob
(#8) to choose between TA ON or TA OFF and allow the display to time
out to enable your choice.
Clock Time (CT) ON/OFF
This sub-menu toggles the clock time feature on or off. If the radio
station supports clock time, your radio will synchronize its clock with
the radio station’s clock.
OPERATING YOUR RADIO
motor4_manual-8.indd 23 5/5/17 11:43
24
Copyright © 2017 Retro Manufacturing, LLC
Bluetooth® ON/OFF (BT)
This sub-menu toggles Bluetooth® on or off. Bluetooth® must be
enabled in order to connect a Bluetooth® device.
Bluetooth® Connect/Disconnect
This sub-menu enables the radio to be discoverable on your
Bluetooth® device. Choose BT CONNEC to allow your device to
connect, and BT DISCON to disable Bluetooth® connections.
To connect your device, choose BT CONNEC, then search for
“RETROSOUND” in your phone’s Bluetooth® device list.
Enter password “0000” if prompted.
Area USA/EUR/AUS/JAP/RUS
This sub-menu enables you to adjust to broadcasts in your country.
Factory default setting is United States (USA). Turn the right-front knob
(#8) to toggle between Europe (EUR), Australia (AUS), Japan (JAP) and
Russia (RUS). You will see your selected tuner mode: AREA USA, AREA
EUR, AREA AUS, AREA JAP, AREA RUS.
Volume Last/Adjust
This sub-menu adjusts the turn-on volume level. The factory default
setting is VOL LAST, which sets the turn-on volume level to the last
volume level used. VOL ADJUST allows you to preset the turn-on volume
level from 0-46 regardless of the last volume level used.
Radio Information
This sub-menu cycles through various technical information about
your unit.
Reset
This sub-menu resets your SiriusXM settings back to default values.
OPERATING YOUR RADIO
motor4_manual-8.indd 24 5/5/17 11:43
25
USB DEVICE INSTRUCTIONS
Connecting a USB Device
The USB 1 and USB 2 inputs are located at the rear of the radio
body. The USB cables must be routed to a convenient and
accessible location for connecting USB devices.
Once you’ve turned on your radio and connected your ash drive,
iPod®/iPhone® or supported USB device to one of the USB inputs, the
radio will display USB 1 or USB 2 for three seconds. Then the radio will
nd your songs and automatically begin playing them.
The icon appears on the LCD during USB playback.
About MP3/WMA/FLAC Files
MP3 (MPEG Audio Layer-3),WMA (Windows Media Audio) and FLAC (Free Lossless Audio
Codec) is a format for compressed audio les. When your radio is in USB mode (USB 1 or
USB 2), you can play MP3 and unprotected (no DRM) WMA les on a ash drive.
Common facts about these compressed-sound formats:
High bit rate and high sampling frequencies are
recommended for high sound quality.
Selecting VBR (Variable Bit Rate) is not recommended because playing
time is not displayed properly and there may be some audible skipping
artifacts. The playback sound quality differs depending on the encoding
circumstances. For details, refer to the user manual of your encoding software.
When adding MP3 les to your ash drive, it is recommended
to set the bit rate to “xed” at 128 kbps or better.
When adding WMA les to your ash drive, it is recommended to
set the bit rate to “xed” at 64 kbps. Do not set the copy protect
attribute on the WMA le or you will not be able to play the track.
Motor 4 will read only FAT or FAT32 formatted ash drives.
This radio will NOT read NTFS formatted drives.
Motor 4 will read les placed in the root directory rst before
playing les in the folder structure of the drive.
Motor 4 will play your MP3 or WMA les in the same order that you
copy them to your USB device – the les copied rst will play rst.
motor4_manual-8.indd 25 5/5/17 11:43
26
Copyright © 2017 Retro Manufacturing, LLC
USB DEVICE INSTRUCTIONS
Caution! Except for private use, duplicating audio data (including MP3/WMA) or
distributing, transferring or copying it, whether free or paid for without permission of
the original copyright holder is strictly prohibited by law and international treaty.
Viewing MP3/WMA Song Information
When playing MP3/WMA les from the USB source, you can
view the track name, album name and artist (ID-3) information
automatically from these les. Once the USB drive is inserted, the
following info will scroll across the screen in the following order:
F-DIR (folder directory), MP3 FILE (le name of song), ALBUM (name of
album) ARTIST (name of artist), SONG (name of song).
To access the clock when in USB mode, turn the left-rear knob (#2)
counter-clockwise. The clock will time out after a few seconds and
will revert to the ID-3 information. Turning the left-rear knob (#2)
counter-clockwise again will revert to viewing the ID-3 information
on-screen.
NOTE: FLAC format does not support ID-3 information and will not display the artist or
song information. Not all music software handles ID-3 information the same way. Some
software will produce MP3 les with ID-3 information that is not readable by Motor
4. If this occurs, you may need to use a converter or ID-3 editor to change the ID-3
information for the artist, album and song information to display properly on your radio.
motor4_manual-8.indd 26 5/5/17 11:43
27
USB DEVICE INSTRUCTIONS
USB Playback Mode
The preset buttons (#3-7) on the front of the radio’s control face will
enable you to play/pause, listen to 10 seconds of each song (INTro),
randomly shufe all songs (RDM) and navigate folders.
To play or pause, press button (#3).
To activate/deactivate scan, press button (#4).
To activate/deactivate shufe, press button (#5).
To go to the previous folder, press button (#6).
To go to the next folder, press button (#7).
To switch to the next song, rotate the right-front knob (#8) clockwise.
To switch to the previous song, rotate the right-front knob (#8)
counter-clockwise.
To activate/deactivate repeat, rotate the right-rear knob (#9)
clockwise.
motor4_manual-8.indd 27 5/5/17 11:43
28
Copyright © 2017 Retro Manufacturing, LLC
BLUETOOTH® DEVICE INSTRUCTIONS
Bluetooth® Instructions
Bluetooth® Hands-Free and A2DP Streaming Operation
You can make or receive phone calls using a Bluetooth® enabled
phone connected to your radio, and control basic functions via the
radio interface. During a call, the radio music source will be muted
and the call broadcast through your car speaker system. You can
also listen to music stored on a A2DP enabled Bluetooth® device.
Pairing a Bluetooth® Device
When connecting a Bluetooth® device for the rst time, you must
rst pair the device with the unit. For most devices, pairing only
needs to be done once.
1. To pair your device rst make sure the Bluetooth®
function is turned on in the radio sub-menu.
2. Then, change the BT DISCON function to BT
CONNEC to make your radio discoverable (ensure
Bluetooth® is enabled on your device).
3. Next, search for a new Bluetooth® device from the
phone (this may take up to 30 seconds) and select
“RETROSOUND” from the Bluetooth® device list.
4. If prompted, enter “0000” for the PIN. If successful,
PAIRING OK” will be displayed on the LCD screen.
The paired device will then connect to your radio automatically.
On some devices, you may need to select “SET AS AUTHORIZED” or
similar to ensure your radio will automatically pair on future usage.
PAIRED NOTIFICATION DISPLAY: When the Bluetooth® device is
paired with your radio, the Bluetooth® icon will appear on the
LCD screen. This will occur whenever you use the system while the
paired device is within range.
motor4_manual-8.indd 28 5/5/17 11:43
29
BLUETOOTH® DEVICE INSTRUCTIONS
Placing a Call
1. Dial the desired number on the paired phone.
2. Once dialing is in progress, CALLING will appear on the screen.
3. Once the call is in progress, TALK will appear on the
screen along with the elapsed call time (TALK 00:00).
Receiving a Call
1. If a call is incoming, any audio playback from the current
source will either be muted or paused (depending on the
source) and PHONE IN will be shown on the screen along
with the caller ID if it is enabled by the phone/carrier.
2. To accept the call, rotate the left-rear knob (#2)
counter-clockwise.
Ending a Call
1. To end the call, rotate the left-rear knob (#2)
counter-clockwise.
NOTE: We recommend mounting the microphone on the sun visor, A-pillar, steering
column or somewhere inside the vehicle close to the driver. The microphone is very
sensitive, and you may speak at normal volume when using hands-free operation.
Streaming Music From Your Device
2. Once your device is paired with your radio, make
sure the source mode is set to BT AUDIO.
3. Next, select your desired playback source
on your device (iTunes®, Pandora®, etc) and
play the music as you normally would.
NOTE: Some devices will allow you to browse folders and skip songs by turning the
right-front knob (#4). Rotate the right-rear knob (#3) counter-clockwise to access the
browsing sub-menu. Menu items Artist, Album, Song, Folder, Etc. Turn the right-front
knob (#4) to cycle through the menu, and press the right-front knob (#4) to make
your selection.
motor4_manual-8.indd 29 5/5/17 11:43
30
Copyright © 2017 Retro Manufacturing, LLC
SIRIUSXM INSTRUCTIONS
SIRIUSXM SATELLITE RADIO
Only SiriusXM brings you more of what you love to listen
to – all in one place. Get over 140 channels – including
commercial-free music plus the best sports, news, talk,
comedy and entertainment. Welcome to the world of
satellite radio. A SiriusXM Connect tuner and subscription are
required. For more information, visit www.siriusxm.com.
Activating your SiriusXM Subscription
After installing your SiriusXM Connect tuner and antenna, power on
your radio and select the SiriusXM source mode. You should be able
to hear the SiriusXM preview channel on channel 1. If you can’t hear
the preview channel, check your tuner’s installation instructions to
make sure your SiriusXM Connect tuner is properly installed.
Once you can hear the preview channel, tune to channel 0 to
nd the Radio ID of your tuner. The radio ID can also be found on
the bottom of the SiriusXM Connect tuner and its packaging. You
will need this number to activate your subscription. Write down the
number and store it in a safe place for reference.
NOTE: the SiriusXM Radio ID does not include the letters I, O, S or F.
In the USA, you can activate online at www.siriusxm.com/
activatenow or by calling SiriusXM Listener Care at 866.635.2349.
In Canada, you can activate online at www.siriusxm.ca/activatexm
or by calling XM Customer Care at 877.438.9677.
As part of the activation process, the SiriusXM satellites will send an
activation message to your tuner. When your radio detects that the
tuner has received the activation message, your radio will display a
message to conrm that the subscription updated. Once subscribed,
you can tune to channels available in your subscription plan. The
activation process usually takes 10 to 15 minutes, but may take up
to an hour. Your radio will need to be powered on and receiving the
SiriusXM signal to receive the activation message.
motor4_manual-8.indd 30 5/5/17 11:43
31
SIRIUSXM INSTRUCTIONS
OPERATING SIRIUSXM FEATURES
SiriusXM Preset Bands
You can store ve SiriusXM channels in three bands for a total of 15
presets. To toggle between the SiriusXM bands, rotate the right-
rear knob (#9) counter-clockwise.
Tuning
Rotate the right-front knob (#8) to change channels up or down.
Rotate and hold the right-rear knob (#9) to rapid tune up or down.
Storing SirusXM Presets
There are ve presets for each SiriusXM band. To set a preset, tune to
the desired radio station, then press and hold the appropriate push-
button (#3-7) to store into memory.
Selecting SiriusXM Presets
To recall SiriusXM presets, press the appropriate push-button (#3-7) in
the selected radio band.
Replay™ Function
The Replay™ feature allows you to play, pause, skip, fast forward
and rewind.
Pause/Resume
To pause SiriusXM playback and enter Replay™ mode, press
the right-front knob (#8). The screen will display IR PAUSEd when
entering this mode.
To resume playback from the point at which it was paused, press
the right-front knob (#8) again. During playback, the channel
audio will continue to be stored until Replay™ mode is exited.
motor4_manual-8.indd 31 5/5/17 11:43
32
Copyright © 2017 Retro Manufacturing, LLC
Playback Controls
To fast forward, press and hold button (#7). To rewind,
press and hold button (#6).
To skip forward press button (#7). To skip backward,
press button (#6).
NOTE: Changing channels or source modes while in Replay mode will exit
Replay mode and clear Replay memory.
To exit Replay™ mode and return to live satellite radio,
press button (#3).
Display Settings
Each SiriusXM channel will broadcast text information such as the
channel name, artist, song title and content. To cycle through the
display information, rotate the left-rear knob (#2) counter-clockwise.
Each time the knob is rotated counter-clockwise, the display will
change as shown: Channel > Band > Channel Name > Artist Name >
Song Title > Content Info > Category Name > Clock.
SIRIUSXM SUB-MENU SYSTEM
The SiriusXM sub-menu system can only be accessed while in the
SiriusXM source mode by rotating the right-rear knob (#9) clockwise
once. To cycle to the next category, rotate the right-front knob (#8)
clockwise. To select a specic sub-menu, press the right-front knob
(#8). To exit the sub-menu, rotate the right-rear knob (#9) clockwise.
The SiriusXM sub-menu system includes:
Category (specic music/news/sports channels)
Direct (direct tuning to a desired station)
Mature OFF (toggles Mature Channel Lock on or off)
Matu Code (changes the Mature Channel Lock passcode)
Signal (SiriusXM signal strength)
SIRIUSXM INSTRUCTIONS
motor4_manual-8.indd 32 5/5/17 11:43
33
SIRIUSXM INSTRUCTIONS
Category
This feature enables the ability to search for channels based upon
their specic category. Once you have entered this sub-menu,
rotate the right-front knob (#8) clockwise to cycle through the
categories. Once you nd the desired category, press the right-front
knob (#8) to make your selection. Now you can rotate the right-front
knob (#8) to cycle through every channel within that category.
Direct (Direct Channel Tune)
This feature enables the ability to directly tune to any channel by
entering the channel number. Once you have entered this sub-
menu, rotate the right-front knob (#8) to cycle to the rst number.
Press the right-front knob (#8) to select this number, then rotate the
right-front knob (#8) to cycle to the next number. Once you have
found the channel you want, press the right-front knob (#8) to select.
Mature (Mature Channel Lock)
This feature enables the ability to limit access to SiriusXM channels
with mature content. When enabled, the Mature Channel Lock
feature requires you to enter a passcode to tune to the locked
channels. The default code is 1111. Rotate the right-front knob (#8)
to scroll to the rst number. Press the right-front knob (#8) to select
this number, then rotate the right-front knob (#8) to cycle to the
next number. Repeat this process for the remaining numbers.
Mature Code (Lock/Unlock code)
The Mature Channel Lock code can be changed by entering the
mature code sub-menu. The default code is 1111. Once you have
entered the Mature Code sub-menu, rotate the right-front knob (#8)
to scroll to the rst number. Press the right-front knob (#8) to select this
number. Rotate the right-front knob (#8) to cycle to the next number,
then press the right-front knob (#8) to make the next selection.
Signal
This sub-menu displays the current SiriusXM signal strength.
motor4_manual-8.indd 33 5/5/17 11:43
34
Copyright © 2017 Retro Manufacturing, LLC
If SiriusXM does not appear to be functioning properly and one of these advisory
messages appears on the display, try some of these troubleshooting tips.
CHK TNR (Check Tuner)
This message indicates an issue with your SiriusXM Connect Tuner.
Check that your tuner is securely plugged into the back of the radio
Check the wires between your unit and the SiriusXM tuner for damage
Check the tuner to insure that it is not damaged
CHEK ANT (Check Antenna)
This message indicates an issue with your SiriusXM antenna connection.
Check that your SiriusXM antenna is plugged into the tuner
and that the connection is secure
Check that the SiriusXM antenna is not damaged
If the antenna connections are secure and the advisory message is still
displayed, turn the radio off and back on to reset the advisory message
BUSY (No Signal)
This message indicates that your SiriusXM tuner is acquiring the audio or program
information from the satellite. If this message does not go away after a few seconds,
the satellite signal is too weak at your current location. To solve this issue:
Make sure the antenna is mounted away from metal objects
Move the vehicle to a new location – especially if your vehicle is parked
underground or in a parking garage
CH UNAVL (Channel Unavailable)
This message indicates that the current channel is unavailable.
This can happen for a number of reasons:
The channel may no longer be available on SiriusXM
The channel may not be available with your current SiriusXM subscription package
CH LOCKED (Mature Channel Locked)
This message indicates that the channel has been locked
by the Mature Channel Lock.
Tune to a channel that is not locked by the Mature Channel Lock
Disable the Mature Channel Lock (see page 33 for instructions)
SIRIUSXM TROUBLESHOOTING
motor4_manual-8.indd 34 5/5/17 11:43
35
TROUBLESHOOTING
Problem Possible Cause Action to Solve
Problem
Radio will not turn
on (no lights,
no sound)
12 volt Batt+ wire
not connected
or incorrect voltage
Check all connections for
proper voltage with a volt
meter. Voltage range:
12-15 volts
Check +12 volt
accessory wire
connection
+12 volt accessory wire not
connected or incorrect
voltage
Ground wire
not connected Check ground
connection
Fuse on Batt+ is blown Replace blown fuse
No sound heard
from unit but unit
lights up
Volume turned
all the way down Increase radio volume
Internal amp in
protection mode Check speaker leads
for any grounded or
shorted wires
Wrong source mode selected Make sure the unit is in the
desired source mode
(RADIO, AUX 1, AUX 2, USB 1,
USB 2, BT AUDIO, SiriusXM)
Unit blows fuses Possible short in wiring Incorrect fuse used, make sure
only fuses with correct 15 amp
ratings are used and check all
wiring connections for
possible short
Battery hooked up
backwards Make sure battery is properly
connected
USB Error Invalid media / device type Ensure that the le format
and device is acceptable
for playback
System Reset
To restore/reset the unit to factory defaults, remove all power from the unit,
wait at least 2 minutes and then reconnect power. Resetting your unit will not
remove your station presets but will reset the clock.
motor4_manual-8.indd 35 5/5/17 11:43
36
Copyright © 2017 Retro Manufacturing, LLC
Do your radios work on 6 volt systems or on positive
ground systems?
No. Our radios are 12 volt, negative ground only. After-market
converters and inverters are available but must have at least 10
amps of continuous output.
I’m having problems getting the radio to turn on.
RetroSound® radios require 12 volts to both power leads. The red
lead (+12 volt accessory) goes to a switched power source, and
the yellow to a constant +12 volt power source. Using a volt meter,
check the voltage when the key is turned from “off” to “on”. If
there is a signicant drop in the voltage, the circuit the yellow lead
is attached to cannot handle the additional draw of the radio.
You will need to nd another circuit that can handle the additional
draw of the radio, or you will need to go directly to the battery.
What speaker wire do you recommend I use?
We recommend using 16 gauge wire for the speakers.
I have all 4 speakers connected to your radio and the display is lit
up like it is working, but there’s no sound coming out.
This usually indicates one of two things:
• Speaker wires touching each other or the vehicle chassis at
some point. Check each speaker lead from radio to speaker.
• Speaker impedance below 4 ohms. Older speakers are
usually not compatible with modern electronics.
A full line of compatible speakers are available on our website
www.retromanufacturing.com.
FREQUENTLY ASKED QUESTIONS
motor4_manual-8.indd 36 5/5/17 11:43
37
FREQUENTLY ASKED QUESTIONS
My car originally came with a switch to control my automatic
antenna. Can I use the RetroSound® radio’s remote antenna
wire to control my antenna?
No you cannot. Your factory antenna is known as “semi-automatic.”
It requires a switch to either extend or retract the antenna. You must
retain this switch to control your antenna; the RetroSound® radio’s
power antenna wire is for more modern “fully-automatic” antennas
not requiring a separate switch. Compatible fully-automatic antennas
are available on our website www.retromanufacturing.com.
The sound output is all mid-range, with very little bass and a
strangled-sounding upper range. What is wrong?
One of your speaker wires is connected backwards. This is called
being “out of phase.” Check to make sure positive is wired to
positive and negative to negative on all your speakers.
Will cutting or bending the InniMount brackets void the warranty
or harm the unit?
No. The RetroSound® patented InniMount bracket system has
been designed specically to be bent, cut and modied to simplify
radio installation. Modication to the radio’s brackets is actually
encouraged to ensure proper t.
If you have questions about modifying the bracket system, you can
contact us at tech@retromanufacturing.com or call us at 888.325.1555.
How much should I tighten the shaft nuts when installing the
brackets and mounting the radio to the dash?
Gently snug them down. DO NOT OVERTIGHTEN the shaft nuts. The
shaft nuts are NOT the only means of securing the radio to the dash.
There is a backstrap included which works with the shaft nuts to
secure the radio to the dash. Please note that overtightening the
shaft nuts could break the shafts. Retro Manufacturing, LLC will not be
responsible for broken shafts due to overtightening of the shaft nuts.
motor4_manual-8.indd 37 5/5/17 11:43
38
Copyright © 2017 Retro Manufacturing, LLC
FREQUENTLY ASKED QUESTIONS
I have your radio with an amp connected, but hear a
whining/buzzing sound through the speakers when I step
on the accelerator.
If you have an external amplier installed and experience a high-
pitched noise that varies with the engine’s RPM, there are many
possible solutions:
Make sure the amplier’s gain controls are not turned all
the way up. Ampliers amplify everything, including noise.
Try grounding the amplier near where it is installed.
Try a lter on the amplier’s 12 volt power lead. Make
sure to use a lter that includes a ground wire.
• On rare occasions, noise can be introduced through
the antenna lead. If disconnecting the antenna makes
the noise go away, you need to replace or repair
the antenna plug where it goes into the radio.
When I plug in my ash drive the screen says USB ERR,
and it won’t play the les I placed on the drive.
Make sure the les on the drive are .mp3 or unprotected
.wma (Windows Media Audio) les. iTunes les are
.m4a format and need to be converted to .mp3
format, which can easily be done using iTunes.
Verify the capacity of the ash drive. Motor
4 will play 1 gig to 32 gig ash drives.
Make sure the ash drive is not NTFS formatted. Always
use the FAT32 format (most drives are formatted with
FAT32 from the factory). Be sure to do a full format rather
than a quick format, and check that none of the les or
folders have names longer than 64 characters. It is very
important that none of the audio les have DRM. Use only
MP3 les or unprotected Windows Media format les.
motor4_manual-8.indd 38 5/5/17 11:43
39
SPECIFICATIONS
FM
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS 87.5-107.9MHz
Antenna Terminal External Antenna Connector
Usable Sensitivity 12.5 dBf
Selectivity 75 dB @ 400kHz
Signal to Noise Ratio 62 dB (stereo), 67 dB (mono)
Harmonic Distortion @ 1 kHz 0.8% (stereo), 0.5% (mono)
Separation 32 dB @ 1kHz
Frequency Response 30-16,000 Hz
AM (EU and US Tuning Capable)
Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) 530-1710 kHz
Antenna Terminal External Antenna Connector
General
Dimensions (radio face & push-buttons only) 3.5”W x 1.5” H x 1.05” D
Dimensions (radio body) 3.96”W x 1.98”H x 4.30”D
Power Requirements 10.5-14.4 volts
Current Consumption (during operation) Max. 15A
Current Consumption (car off) <3.5 mA
Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) 25x4 watts RMS / 45x4 watts Max Power
Output Impedance 4ohm
Low Level Output (4 channels) 2.85 volts
EROM Non-Volatile Memory
AUX 1 Input >300 mV / 6
AUX 2 Input >300 mV / 6
USB 1 Input 5V (USB female input)
USB 2 Input 5V (USB female input)
NOTE: All specications are subject to change without notice.
motor4_manual-8.indd 39 5/5/17 11:43
40
Copyright © 2017 Retro Manufacturing, LLC
Limited Warranty
If your unit does not work properly because of defects in materials or workmanship, Retro
Manufacturing, LLC (collectively referred to as “the warranter”) will for the length of the period
indicated in the chart below at its option either (a) repair your unit with new or refurbished parts,
or (b) replace it with a new or refurbished unit. The warranty period starts with the date of original
purchase. The decision to repair or replace will be made by the warranter.
CATEGORIES PARTS
Motor 4 Radio Two (2) Years
During the “Parts” warranty period, there will be no charge for parts. You must mail in your
unit prepaid during the warranty period. This warranty only applies to products purchased
and serviced in the United States or Puerto Rico. This warranty is extended only to the original
purchaser of a new product which was not sold “as is.”
A purchase receipt or other proof of the original purchase date is required for warranty service.
To handle a warranty issue, contact us at tech@retromanufacturing.com or 888.325.1555 for a
Return Authorization (RA) number. All returns and warranty issues must be accompanied by a
Return Authorization number. Any product received without a RA number will be refused.
LIMITED WARRANTY-LIMITS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT
COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER
damages which occurred during shipment, failures which are caused by products not supplied
by the warranter, failures which result from accident, misuse, abuse, neglect, bug infestation,
mishandling, misapplication, alteration, faulty installation, set-up adjustment, maladjustment of
consumer control, improper maintenance, improper antenna, inadequate signal reception or
pickup, power line surge, improper voltage supply, lightning, modication, commercial use (such
as use in hotels, ofces, restaurants, or other business uses) or rental use of the product, or service
by anyone other than Retro Manufacturing, LLC, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY”. THE
WARRANTER IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM
THE USE OF THIS UNIT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples,
this excludes damages for lost time, cost of having someone remove or re-install an installed
unit if applicable, travel to and from the servicer, and loss of media, data or other memory
contents. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF
THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This
warranty gives you specic legal rights and you may also have other rights which vary from state
to state. If a problem with this unit develops during or after the warranty period, you may contact
your dealer or Retro Manufacturing, LLC.
LIMITED WARRANTY
motor4_manual-8.indd 40 5/5/17 11:43
41
Replacement Parts
We also make speakers, kick-panels, ampliers,
antennas and accessories. See our full line of products
at www.retromanufacturing.com.
If you need replacement parts visit our website or contact us at
sales@retromanufacturing.com or call 888.325.1555
(See “What’s in the Box” on page 4 to conrm the part(s) needed).
NOTE: If you return a radio to us for credit, any missing parts will be debited.
Replaceable Items
• Main Wiring Harness
• Power Wiring Harness
• Speaker Wiring Harness
• Metal Backstrap
• Metal Hardware Pack
• Plastic Washer Kit
• Shafts
InniMount Brackets (pair)
• Bezel / Faceplate
• Knobs
Purchase Notes
Record the place and date of purchase for future reference.
Model No.
Serial No.
Purchase Date
Purchased From
Keep this information and your sales receipt in a safe place.
motor4_manual-8.indd 41 5/5/17 11:43
motor4_manual-8.indd 42 5/5/17 11:43
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference,and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between
the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body
MODERN SOUND FOR YOUR CLASSIC
Retro Manufacturing, LLC, 7470 Commercial Way, Henderson, NV 89011
p) 888.325.1555 | f) 702.483.2229 | www.retromanufacturing.com
motor4_manual-8.indd 43 5/5/17 11:43

Navigation menu
