SOUNDMAX ELECTRONICS NA1610 AV Media Receiver User Manual NA1610 Eng IM Y 150126
Soundmax Electronics Limited AV Media Receiver NA1610 Eng IM Y 150126
User Manual
NA1610
AV Media Receiver
User Manual
Enjoy the Lifestyle of In-Car Entertainment
FCC Compliance Statement:
This device complies with Part 15 of the FCC rules. Operation is
subjected to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications or change to this equipment.
Such modifications or change could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure
requirement.
To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
FCC ID :2AB7S-NA1610
CONTENTS
Contents
Please read all instructions carefully before operation, to ensure your complete
understanding and to obtain the best possible performance from the unit.
1
Thank you for purchasing Nakamichi products.
INTRODUCTIONS
..............................................................................
.....................................................................................
Overview the unit
Get Started
2
3
4
AV MEDIA
Listening to the radio.........................................................................
Playing of Music................................................................................
USB Smart Phone 1A Charge................................................................
Enjoying the movie............................................................................ 7
8
9
AUDIO ADJUSTMENT
Speaker/Subwoofer .
Equalizer.........................................................................................
..........................................................................
Mirror Phone/Analog TV/DVBT Box.......................................................................
EXTERNAL BOX
NAVIGATION
REFERENCE
Navigation Settings...........................................................................
Specifications..................................................................................
10
11
13
14
15
Basic operations ...............................................................................
Viewing the photo.............................................................................
BLUETOOTH
Using bluetooth................................................................................................... 12
5
6
Power
Mute
Dimmer
List browser
Home
Confirm
Up/Down
Tune for radio station
Skip/search for track
Fast backward/forward playback
Adjust the function
Volume level
Return/Exit
Setting menu
EQ mode
iX-BASS (booster function)
Dynamic bass boost sound
DVD playback control
Radio band
play/Pause
2
INTRODUCTIONS

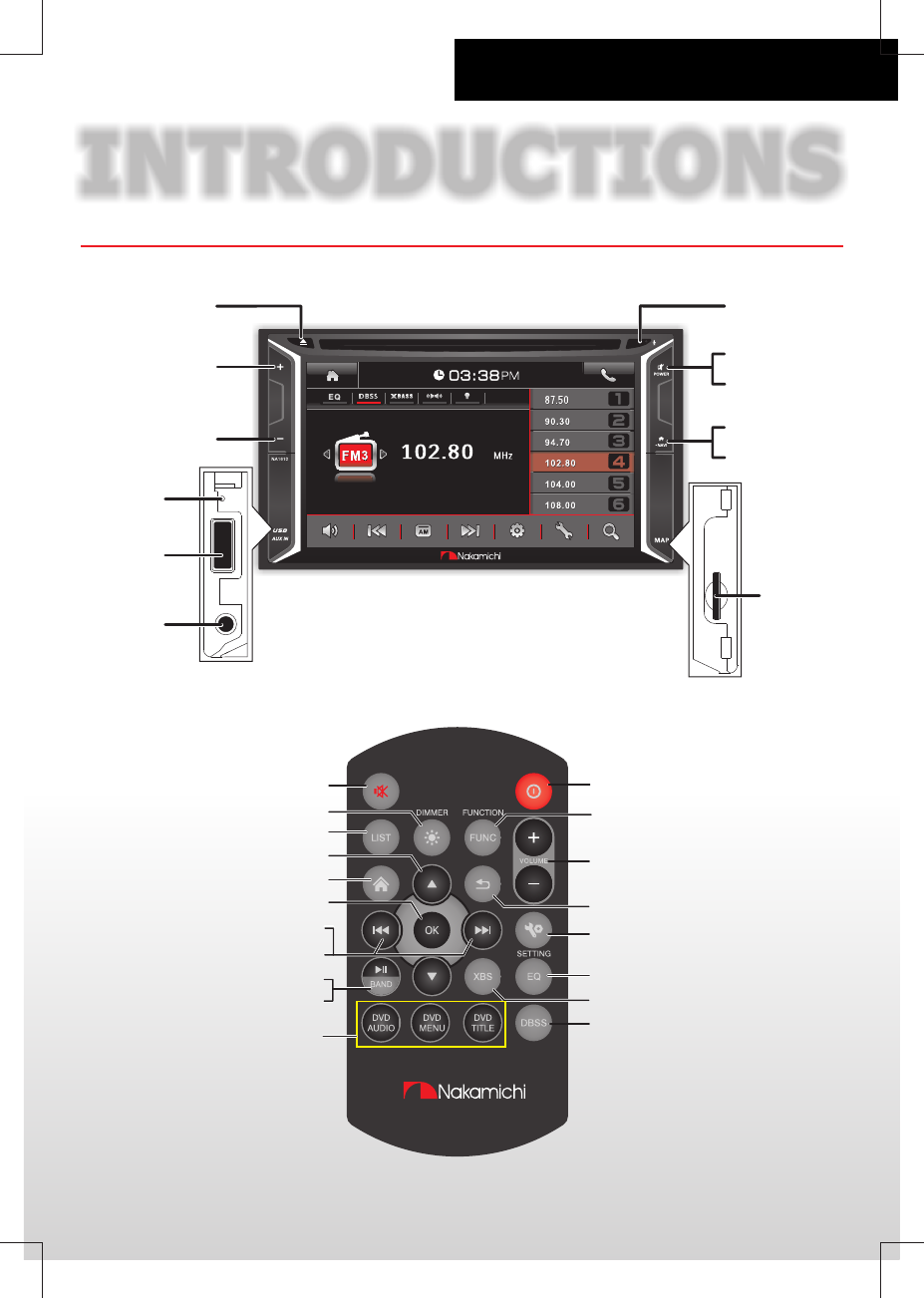

Overview the unit
Increase
Volume
Decrease
Volume
Eject
Reset
Reset
USB
Socket
Aux In
Socket
Power
Navigation
Hold:
Hold:
Mute
Home
Press:
Press:
Mic
GPS Map
Card
Socket
INTRODUCTIONS

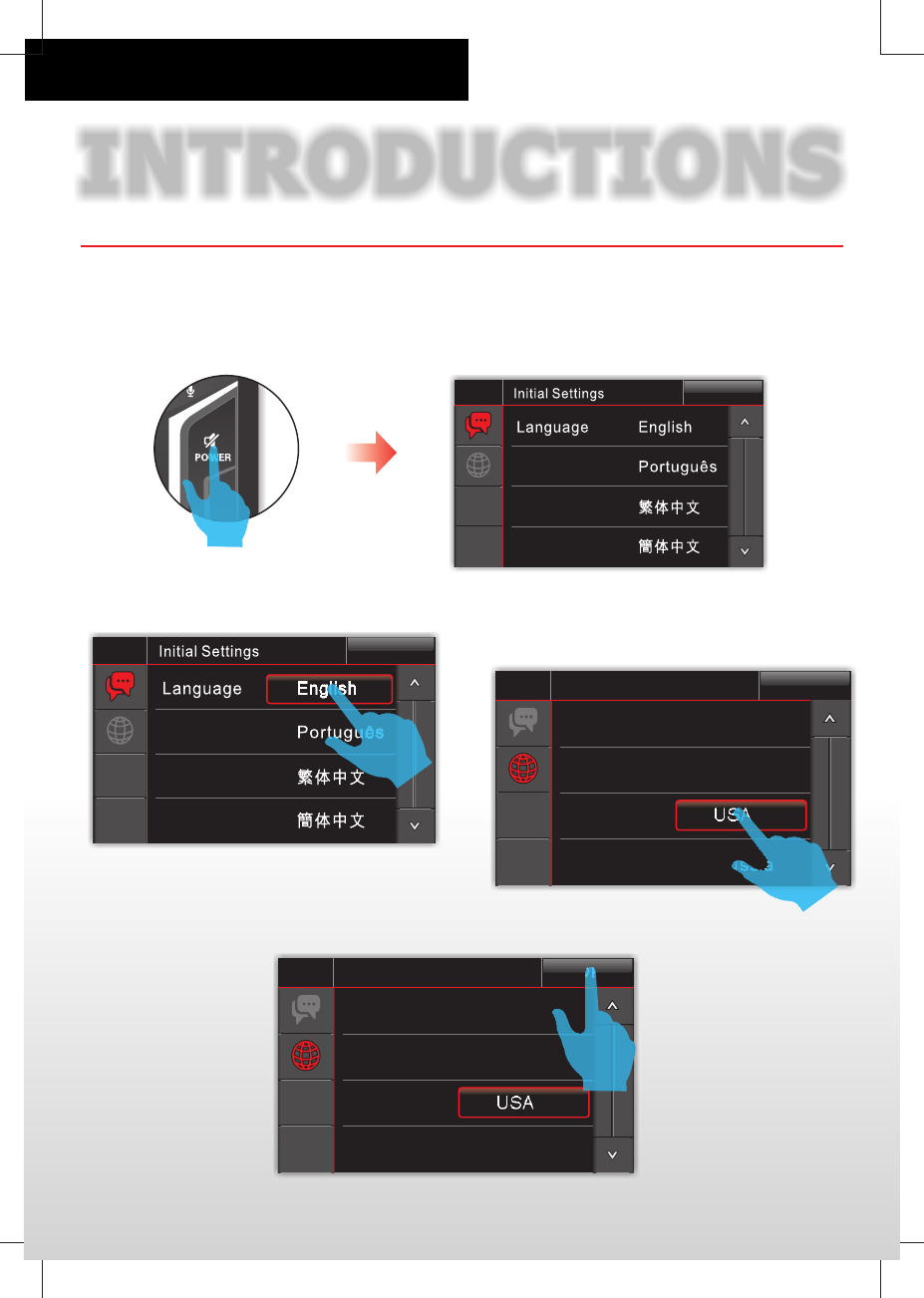

Get started
Please select the suitable Language & country/region for this unit,
otherwirse the unit can not work properly.
Initial Se ttings
Radio Area Latin
Europe
USA
Russia
OK
2. Tap to select suitable a language
1. Press this button to power On the unit, The available OSD are displayed.
3. Tap to select suitable a country
/region
4. Tap OK button to confirm
Initial Se ttings
Radio Area Latin
Europe
USA
Russia
OK
3

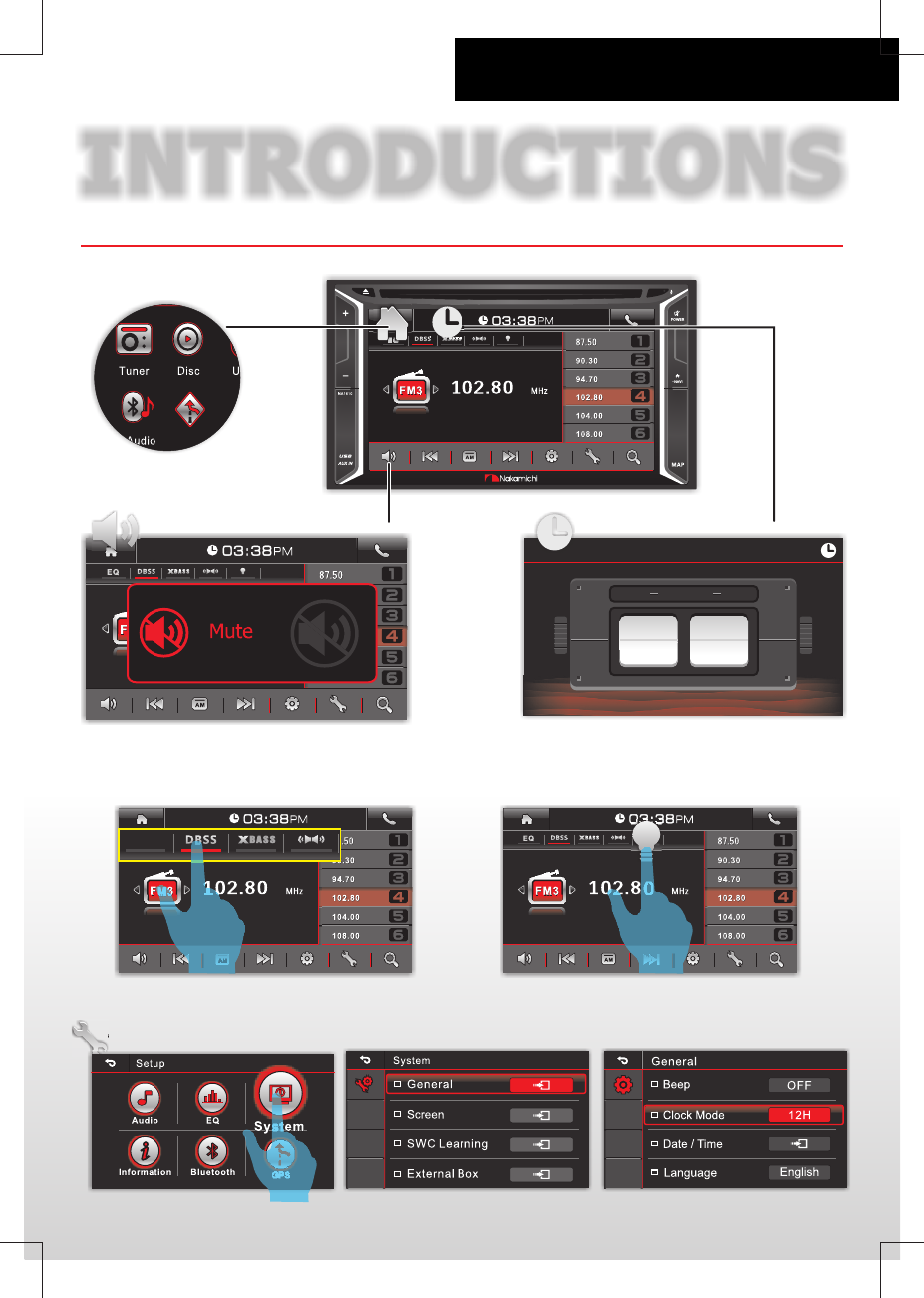

INTRODUCTIONS
Basic operations
4
Access to Setup Menu Access to system settings Access to General settings
Adjust the dimmer level Audio Control
PM
02 34
PM
2013 FEB 23
Access to CLOCK
B A S SB A S S
EQ
Access to HOME
GPS
Tap to MUTE
AV MEDIA

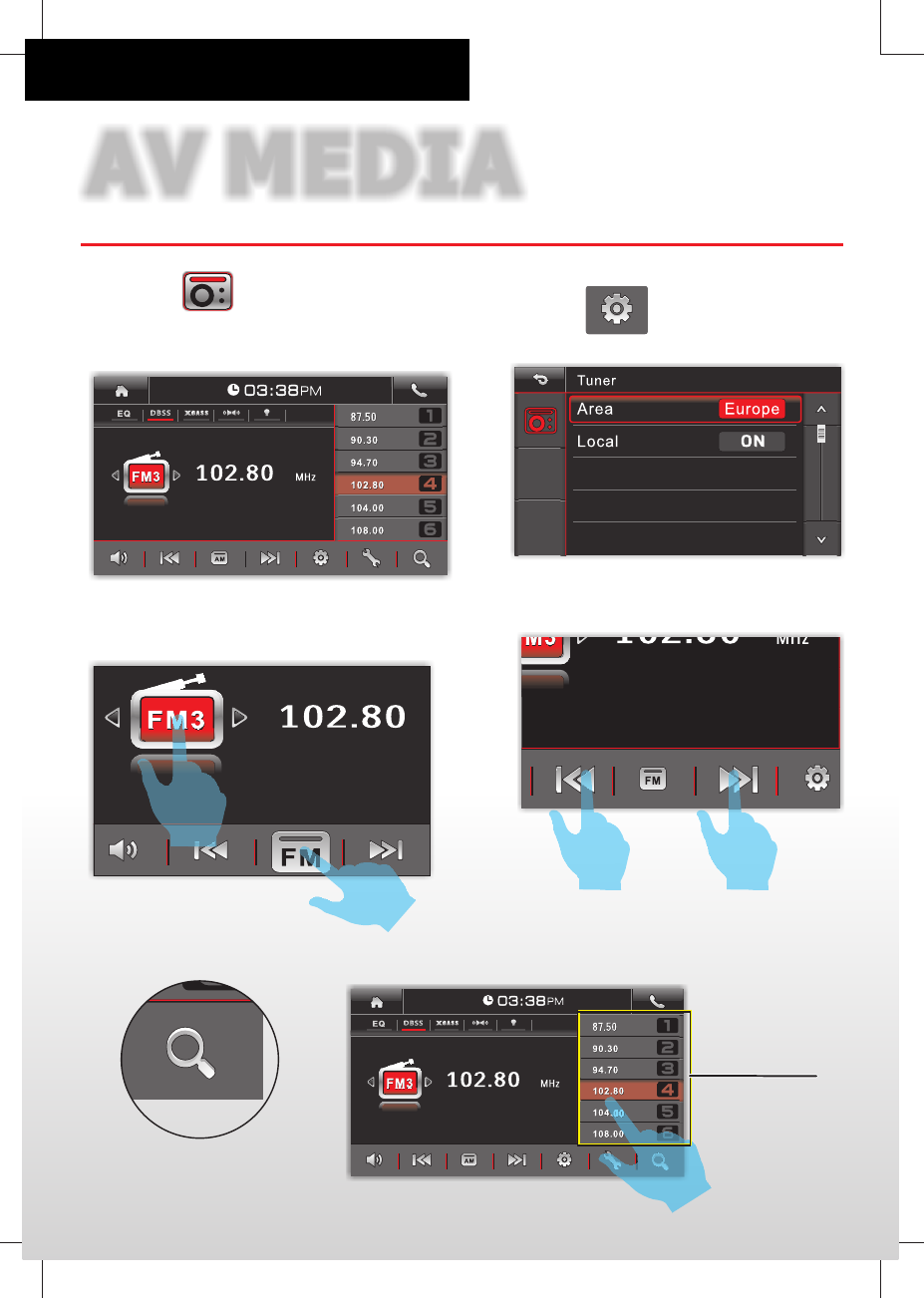

Listening to the radio
Tap BAND to change to FM or AM
Tap on button on the TFT
screen access into the tuner
function.
Tap on button into the
Tuner Function menu.
or
Press and hold to MANUAL SEEK
Press to AUTO SEEK
Tap to Auto Store Press and hold to Store stations
Preset List
5
AV MEDIA
6
Adjust the different REPEAT mode
Quick Browser
Tap UP/DOWN
Tap PLAY/PAUSE

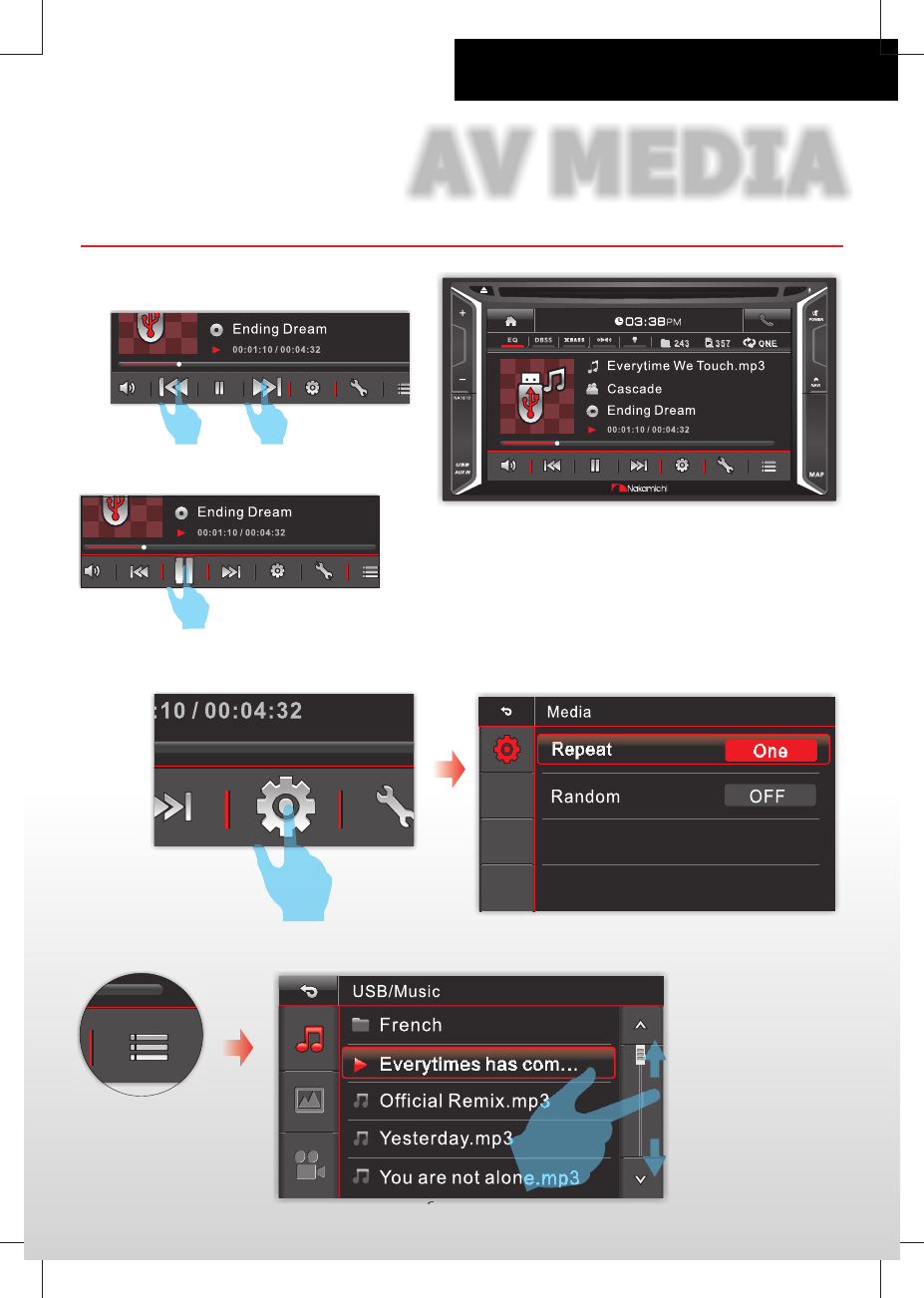

Playing of Music
AV MEDIA
7

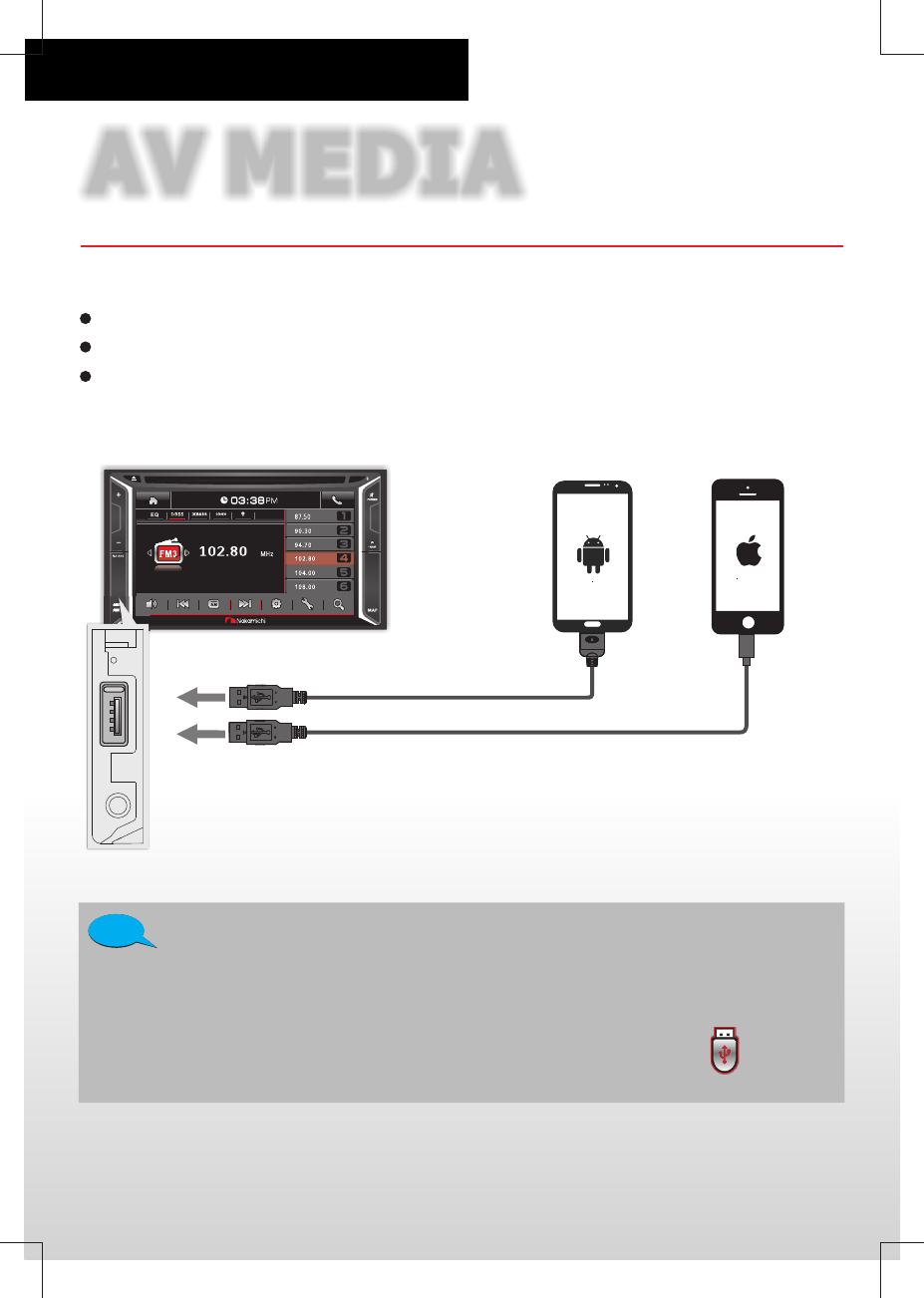

USB Smart Phone 1A Charge
9
This unit can support USB Samrt Phone 1A Charge.
Open the USB Socket cover to left.
Insert the iPhone or Smart Phone device into the USB socket.
Once is recognized, the iPhone or Smart Phone begins to charge.
TIPS 1. The device only can charge Phones, but cannot play or
decode music files stores inside the Smart Phones.
2. Connect the desire playback device USB to the USB
socket, access to the HOME, then tap the to start
playback mode.
USB Cable (Not included)
Andriod iPhone
USB Cable (Not included)
AV MEDIA

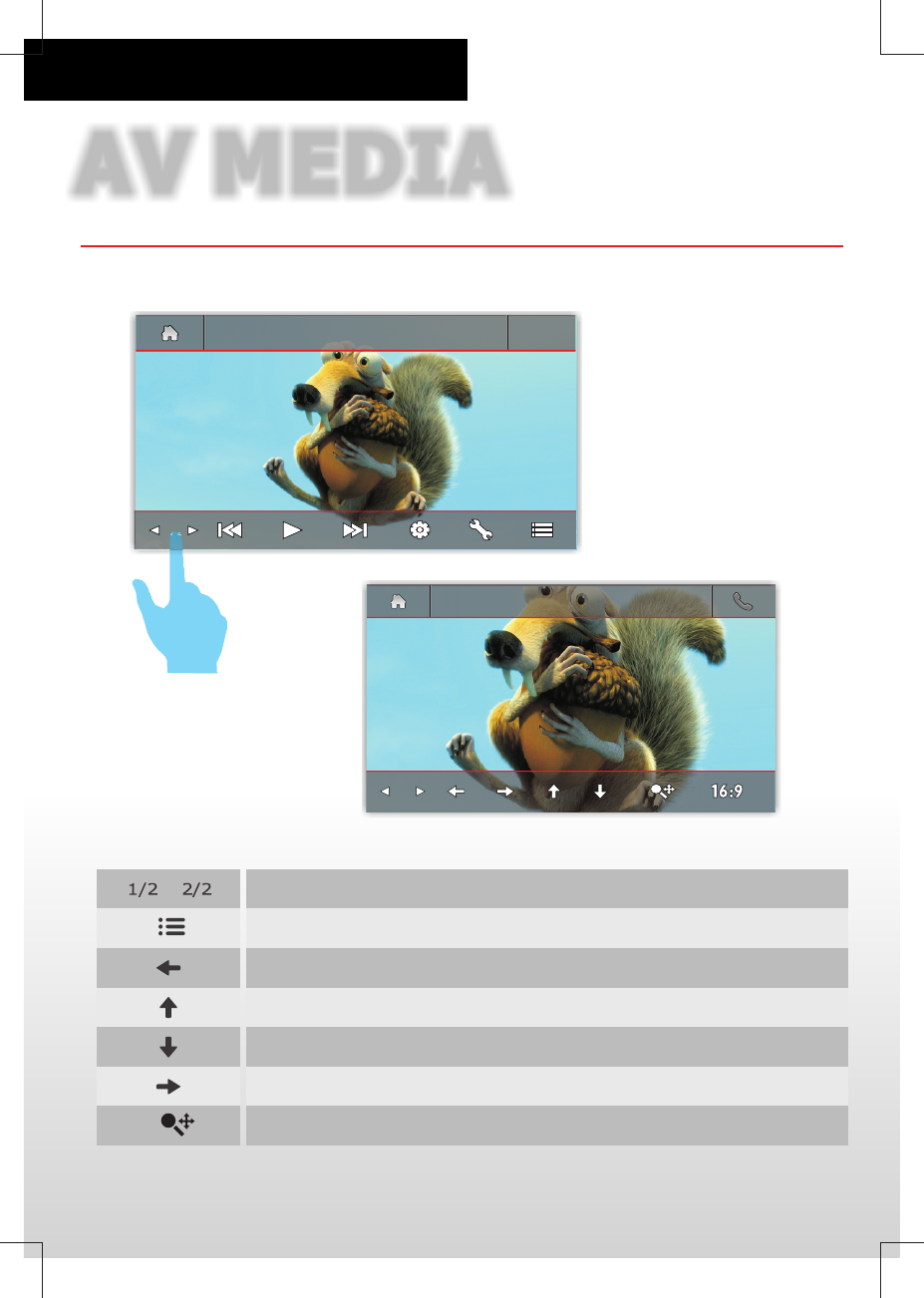

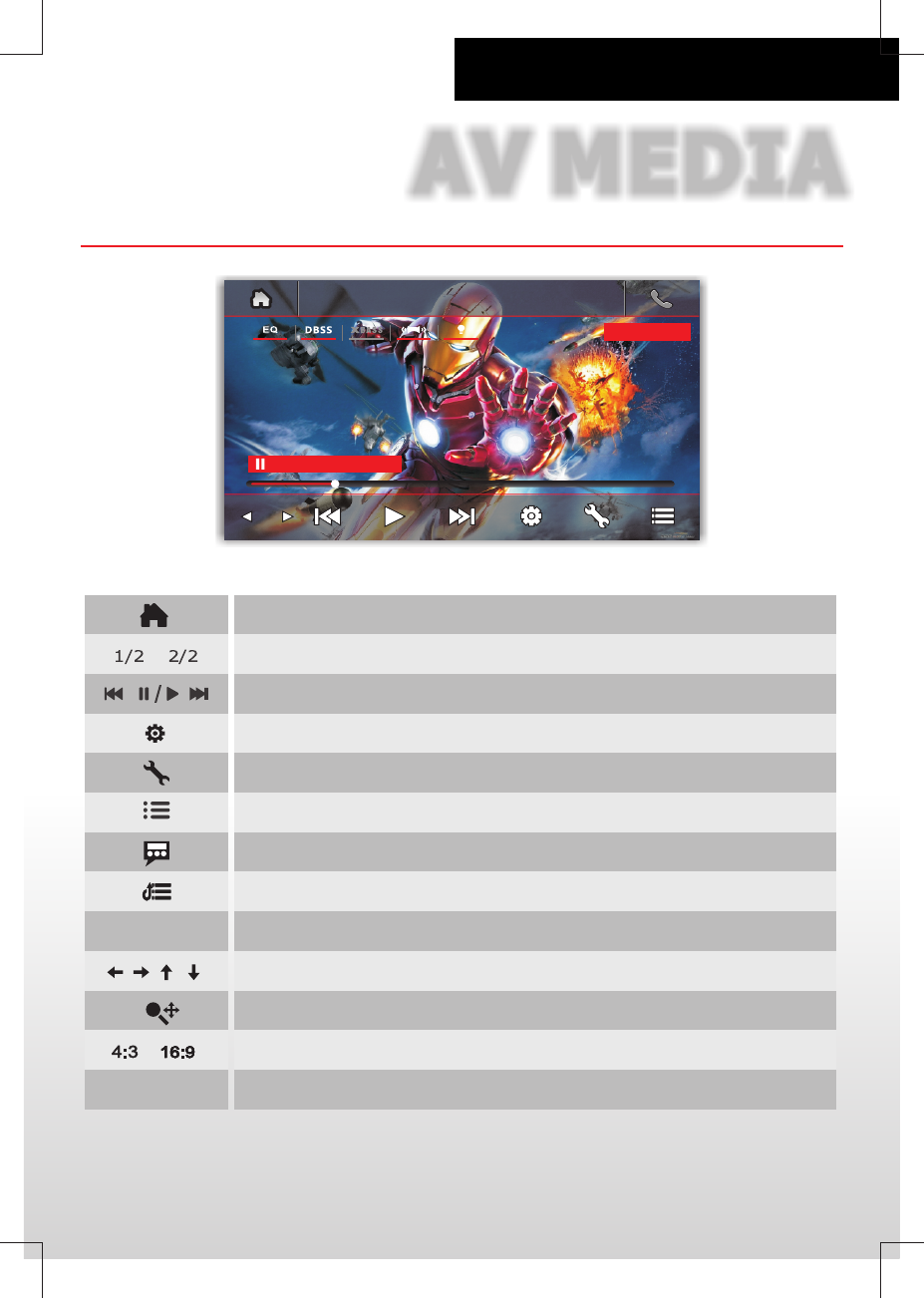

Enjoying the movie
Change function bar
8
Select the audio type. (For DVD-VR: the audio channel)Select
Top Menu or Browser
Previous, Pause / Next Play,
Home menu
DVD
1/2
Pause
T:2/5 C:1/20
00:01:10 / 00:04:32
Media function menu.
access to system menu
GOTOGOTO Access into the search mode (DVD only).
Repeat playback mode
Up/Down/Left/Right
Zoom the video & photo
Select aspect ratio
AV MEDIA
9
Viewing the photo
Move left the zooming frame
Move up the zooming frame
Move down the zooming frame
Move right the zooming frame
2/2
1/20
1/2
1/20
Change function bar
Top Menu or Browser
Zoom the photo
AUDIO ADJUSTMENT
Speaker/Subwoofer
Speaker settings
Adjust Fader/Balance Value From
-12 to +12
Access to Audio Menu
Access to System Menu
10
80Hz
Touch to turn On / Off the subwoofer
Tap on / buttons to adjust value of
subwoofer level.
SUB-WOOFER settings
Low Pass Filter Transfer
Function
160Hz
120Hz
0dB 80Hz
80Hz
Subwoofer
Level
6dB
12dB LPF
160Hz
160Hz
120Hz
120Hz
6dB
11
6 Preset EQUALIZER
AUDIO ADJUSTMENT
Equalizer
Resume to factory default value
Tap on button to adjust the level:
[BASS]: bass level range -15dB to +15dB.
[MIDDLE]: middle level range -15dB to +15dB.
[TREBLE]: treble level range -15dB to +15dB.
Reset
BASS
+12dB
MID DLE
-2dB
TREBLE
+8dB
EQ
BASS
0dB
MIDDLE
0dB
TREBL E
0dB
User Pop Rock Cl ass ic Ja zz Vol cal
Rese t
EQ
BASS
+12dB
MIDDLE
-2dB
TREBLE
+8dB
User Pop Ro ck Classic Jazz Volcal
Reset
Pop
BLUETOOTH
12

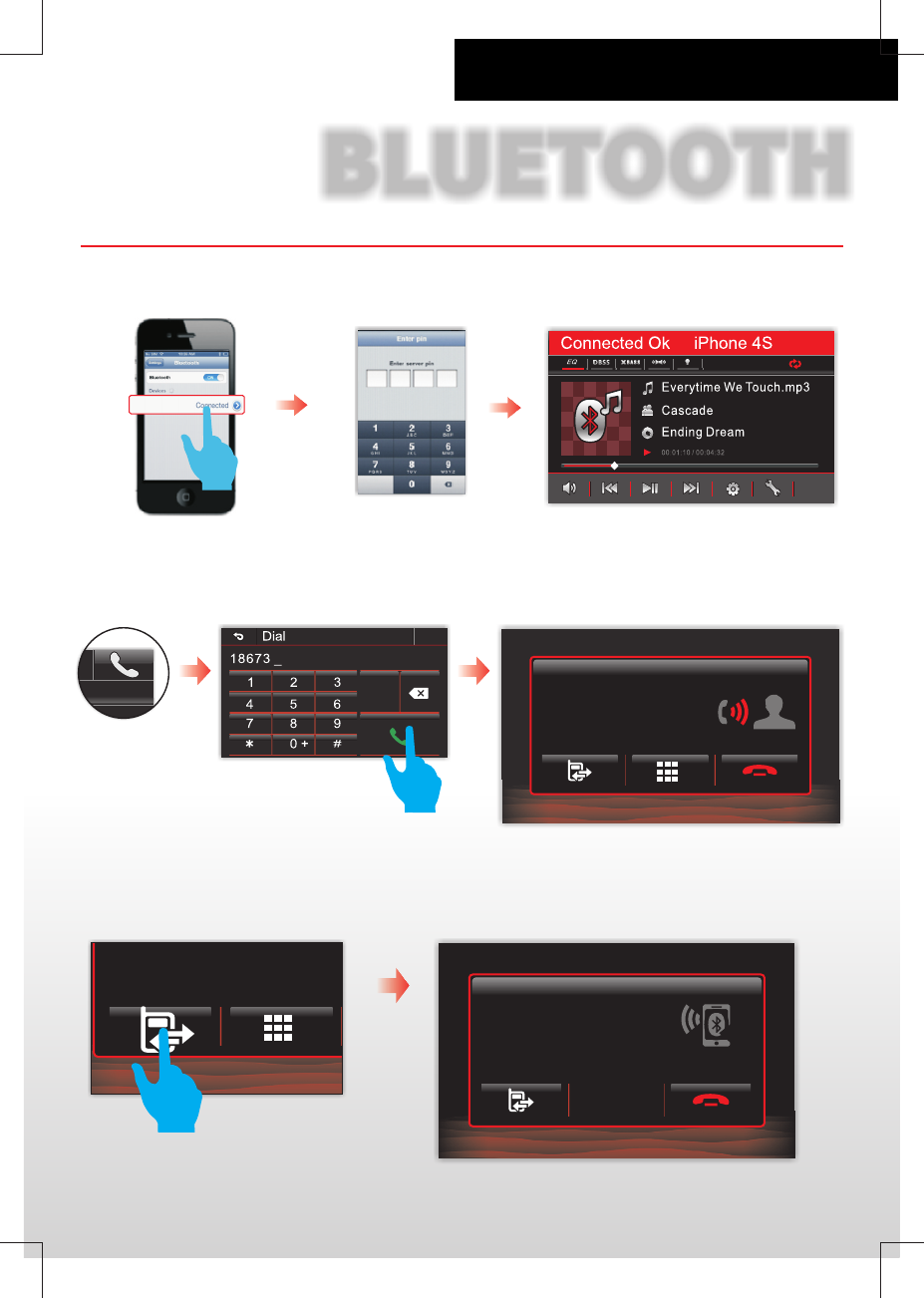

Using bluetooth
Pairing code "0000"
How to pair & connect device ?
Making A Call
NAKAMICHI
Call Transfer
to Ce llphone !
Call Transfer
Connecting
Calling...
0860101872903
0 0 0 0
Calling...
0860101872903
13
External Box
Mirror Phone/Analog TV/DVBT Box
TIPS
This unit can support connecting the External box: Mirror Phone Box /
Analog TV Box / DVBT Box.
EXT
BO X
Before operating the External
Box function, please go to
Setup Menu to select proper
type of the external box.
Access to Setup Menu Access to System Menu
To select proper type mode
TIPS 1. Access to HOME, tap or to active the Mirror
Phone Box / Analog TV / DVBT function.
2. For the detailed operation of each mode, please refer the User
Guide.
EXT
BOX
TVTVTVTVTVTV
13
GPS GPS
NAVIGATION
14
Navigation Settings
TIPS 1. If the GPS Navigation mode is
off, tap , the right OSD
will display.
GPS
Access to Setup Menu Access to GPS Setting
Navigation Voice Setting
Turn Off the Navigation Voice
2.
the “Navigation User Manual”
For the detailed operation, please refer
15
REFERENCE
Specifications
TFT Monitor section
Screen Size
Display Resolution :800x480 dots
Contrast Ratio :500
Disc System :DVD/CD/VCD
Disc Diameter :12cm
Frequency Response :20Hz - 20kHz
Signal/Noise Ratio :>75 dB
:Less than 0.3%Total Harmonic
Distortion
Channel Separation :>55 dB
Video Signal Format :NTSC/PAL
Video Output
Decoding Format
:1+/-0.2V p-p
:
MPEG2
MP3/avi/WMA/MPG1/
USB interface section
USB Standard :USB 2.0 Full Speed
File System :FAT 16/32
Maximum
Current :DC 5V 1A
D/A Converter :24Bit
Navigation Section
Reception system
Reception frequency
Bluetooth section
: Bluetooth Standard
version 3.0
Communication
System
Output : Bluetooth Standard
Power Class 2
: Approx. 5meters
Maximum
Communication Range
Frequency Band : 2.4 GHz
: HFP/HSP/A2DP/AVRCP
Compatible
Porfiles
Bluetooth
: SBC (Sub Band Codec)
Supported Codecs
Radio section
Frequency FM range : 87.5 - 107.9 MHz
Frequency AM(MW) range : 530-1710 KHz
Usable sensitivity : 2 uV ( )FM
: 80 uV (AM)(MW)
Video section
Color System of
External Video Input
: NTSC/PAL/SCEAM
External Video Input
(RCA/3.5m Jack)
: 1 Vp-p /75Ω
External Audio Input Level
(RCA)
: 1 V/10KΩ
Audio section
Maximum Power : 50Wx4
Continuous Power Output
(RMS)
: 22 Wx4
Preout Level V( ) : 2 V/10kΩ
Preout Impedance : 600Ω
Speaker Impedance : 4-8 Ω
General
Operating Voltage : 14.4V(10.5-16 V)
Dimension(WxHxD) : 178x102x172mm
Operational Temperature
Range
: -10°C-+60°C
Weight : 1.9 kg
Disc player section
:6.2 inches
:20 channel multi-channel
reception system
:1575.42MHz
:
(<1%THD)
600mv/10KΩExternal Audio Input Level
(3.5mm Jack)
Sensitivity :-130dBm
Decoding Format :
MPEG2
MP3/avi/WMA/MPG1/
Position update
frequency
:
second
Approx.once per
C2015 Nakamichi
Design and specifications are subject to change
without notice
www.nakamichicaraudio.com
