SOUNDMAX ELECTRONICS NA87 Car Audio System player User Manual NA87 ENG IM Y 151202
Soundmax Electronics Limited Car Audio System player NA87 ENG IM Y 151202
User Manual
Car Audio System Player
NA87
INSTRUCTION MANUAL
MP3 WMA USB SD AUX-IN BT
1A USB Universal Charge
Safety
To prevent a short circuit, never put or leave any metallic objects
(such as coins or metal tools) inside the unit.
Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or
soft cloth. Failure to observe this precaution may result in damage to
the monitor or unit.
Cleaning the connector: Wipe off dirt on the connector of the unit and
faceplate. Use a cotton swab or cloth.
WARNING
Important to know...
Maintenance
Caution: Adjust the volume so that you can hear sounds
outside the car. Driving with the volume too high may cause an
accident.
Condensation: When the car is air-conditioned, moisture may
collect on the laser lens. This may cause disc read errors. In this case,
remove the disc and wait for the moisture to evaporate.
The illustrations in this manual are examples used to explain more
clearly how the controls are used. Therefore, what appears on the
illustrations may differ from what appears on the actual
equipment.
If you experience problems during installation, consult your
Nakamichi dealer.
When you purchase external components, check with your
Nakamichi dealer to make sure that they work with your model and
in your area.
Stop the car before operating the unit.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20 cm between the
radiator & your body.
This quipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Note:
2 EN
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
FCC Compliance Statement:
This device complies with Part 15 of the FCC rules. Operation is
subjected to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC ID :2AB7S-NA87

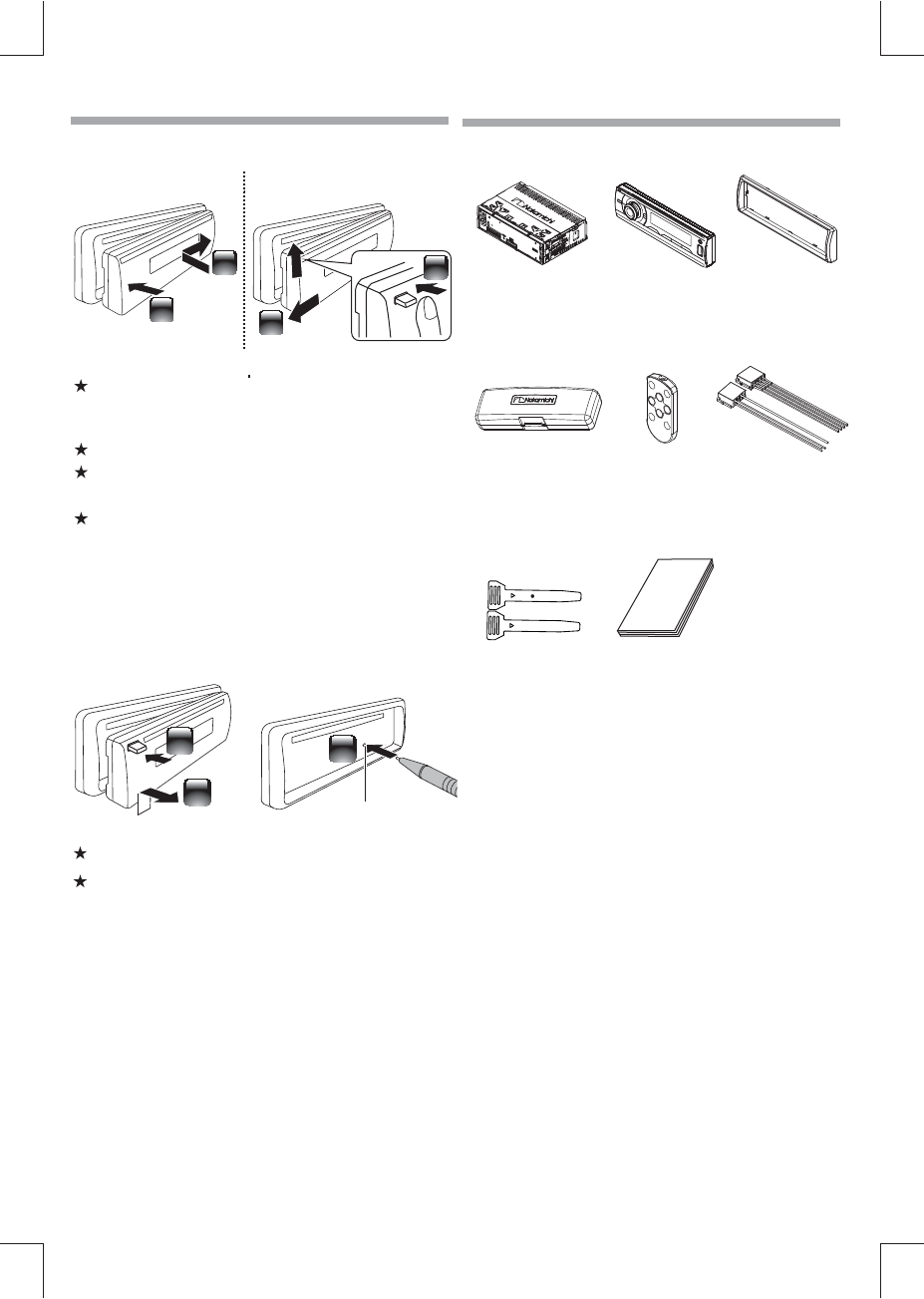

How to reset your unit
3
Reset
2
To prevent deterioration, do not touch the terminals of the unit and
faceplate with your fingers.
1
If this unit fails to operate properly, press the reset button.
The unit returns to factory settings when the reset button is pressed.
Do not expose the faceplate to direct sunlight, excessive heat, or
humidity. Also avoid places with too much dust or the possibility of
water splashing.
What’s in the box
Check and identify the contents of your package:
Keep the faceplate in its casing while detached.
The faceplate is a precision piece of equipment and can be
damaged by shocks or jolts.
How to attach/detach the faceplate
Preparation
1
2
1
2
Attach Detach
EN 3
Main unit
(with sleeve)
Carrying case
(for front panel)
Disassembly tool
(2pcs)
Front panel
Remote
control
Trim plate
ISO male
connector
User manual
Installation / Connection
Basic Procedure
1 Remove the key from the ignition switch, then disconnect
the terminal of the car battery.
2 Make proper input and output wire connections.
3 Install the unit to your car.
4 Reconnect the terminal of the car battery.
5 Reset the unit.
W arning
The unit can only be installed in a car with a 12 V DC power supply, negative
ground.
If you connect the ignition wire (red) and the battery wire (yellow) to the car
chassis (ground), you may cause a short circuit, that in turn may start a fire.
Always connect those wires to the power source running through the fuse box.
Disconnect the battery’s negative terminal and make all electrical
connections before installing the unit.
Insulate unconnected wires with vinyl tape or other similar material. To
prevent a short circuit, do not remove the caps on the ends of the
unconnected wires or the terminals.
Be sure to ground this unit to the car’s chassis again after installation.
If the power is not turned ON, the speaker wire may have a short-circuit or
touched the chassis of the vehicle and the protection function may have
been activated. Therefore, the speaker wire should be checked.
Caution
If your car’s ignition does not have an ACC position, connect the ignition
wires to a power source that can be turned on and off with the ignition key. If
you connect the ignition wire to a power source with a constant voltage
supply, as with battery wires, the battery may die.
Install this unit in the console of your vehicle. Make sure the faceplate will
not hit the lid of the console (if any) when closing and opening.
After the unit is installed, check whether the brake lamps, blinkers, wipers,
etc. on the car are working properly.
Mount the unit so that the mounting angle is 30° or less.
If the fuse blows, first make sure the wires are not touching to cause a short
circuit, then replace the old fuse with one that has the same rating.
When only two speakers are being connected to the system, connect the
connectors either to both the front output terminals or to both the rear
output terminals (do not mix front and rear).
Mounting and wiring this product requires skills and experience. For
safety’s sake, leave this work to professionals.
If you experience problems during installation, consult your Nakamichi
dealer.
Connect the speaker wires correctly to the terminals to which they
correspond. The unit may be damaged or fail to work if you share
the wires or ground them to any metal part in the car.

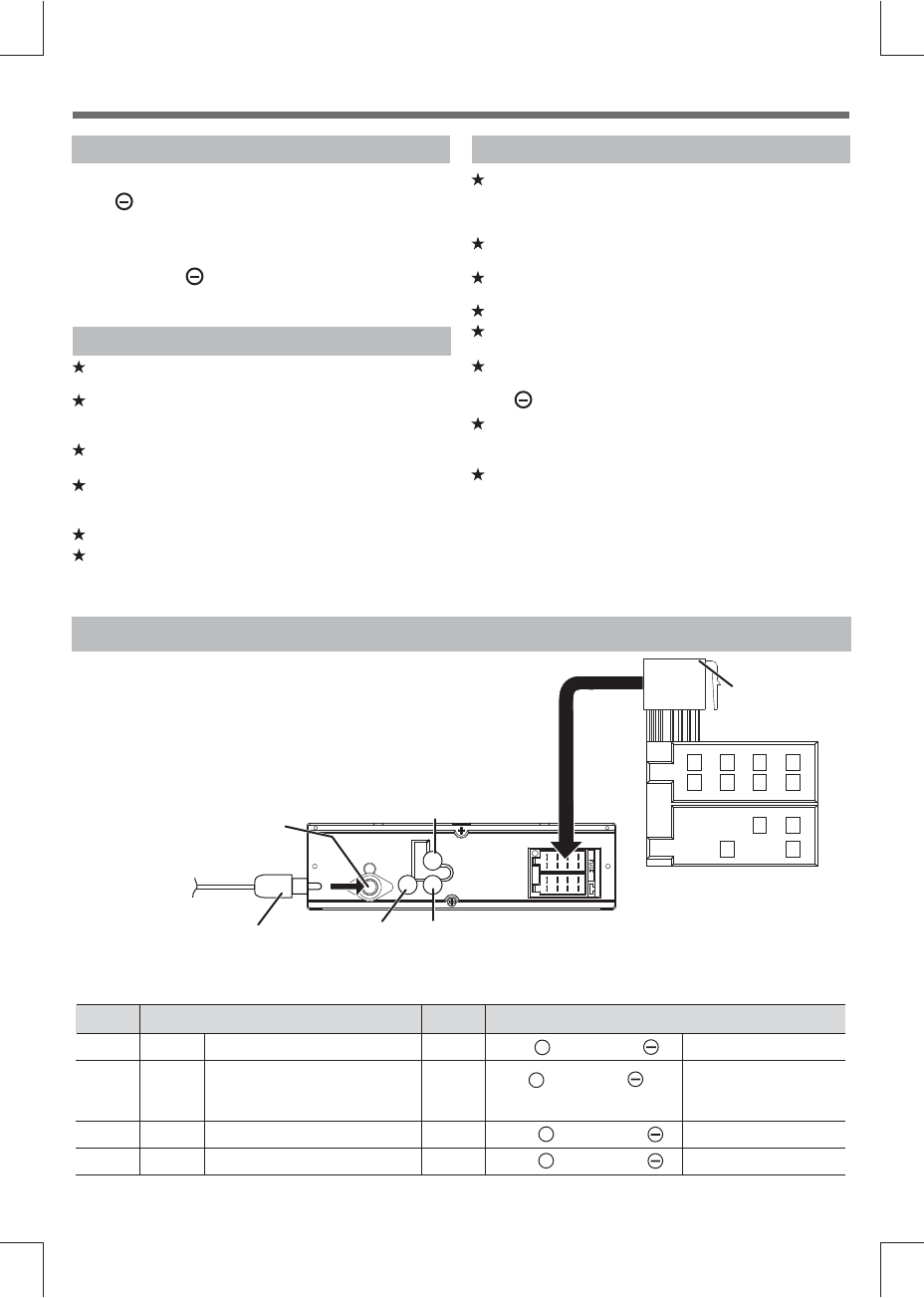

W iring Connection
ISO Connector Wiring Chart
Pin Color and function Pin Color and function
A5
A4
A8
A7
Yellow
Black
Red
Blue
Connect to system control
of the power AMP or auto antenna
relaycontrol terminal(Max 150MA 12VDC)
terminal
Battery(+)
Ignition(ACC)
Ground
B1/B2
B3/B4
/ Violet/Black
Violet +
/ Grey/Black
Grey +
/ White/Black
/ Green/Black
White
Green
+
+
B5/B6
B7/B8
Right rear speaker
Right front speaker
Left front speaker
Left rear speaker
FM/AM Antenna Socket
Antenna Jack n(ot included)
Rear RCA
Output (Left)
Rear RCA Output
(Right)
ISO Connector
1
2
3
4
5
6
7
8
4
5 7
8
A
B
L
R
Rear
Subwoofer Output
4 EN
2
3
4
Control panel
Trim plate
mm
182
53 mm
Screw
Dashboard
Sleeve
1
3
Trim plate
Sleeve
Control panel
1
2
1

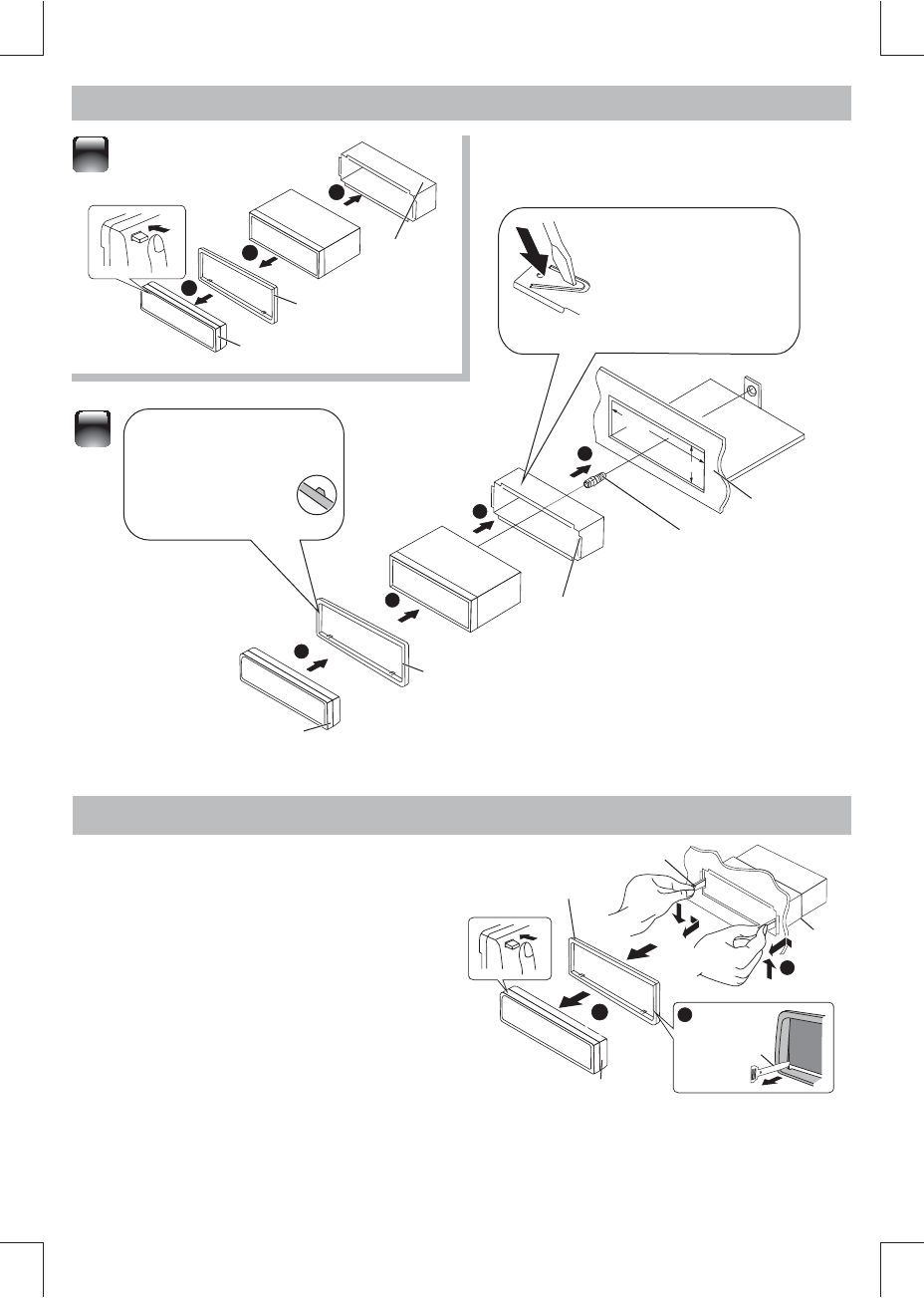

Removing the unit
Bend the appropriate
tabs to hold the sleeve
firmly in place.
2Before attaching, make
sure the direction of the
escutcheon is correct.
(Wider hooks on the
bottom side.)
1 Detach the control panel.
2 Engage the catch pin on the removal tools into the holes on
both sides of the escutcheon, then pull it out.
3 Insert the disassembly tools deeply into the slots on each
side, then follow the arrows instructions as shown on the
right.
Disassembly
Sleeve
Disassembly
Trim plate
Control panel
12
3
Installing the unit
( not included in this packing )
EN 5

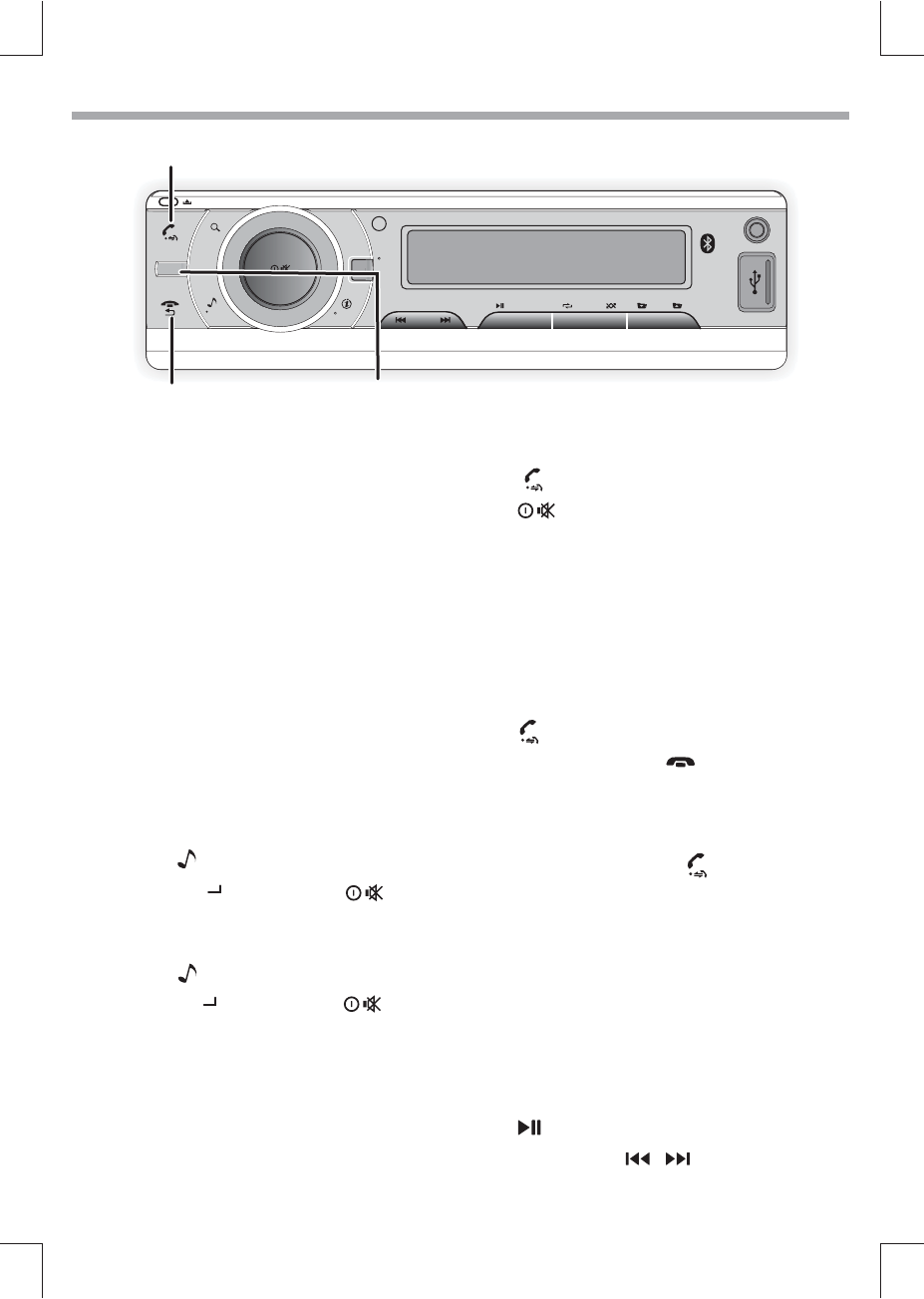

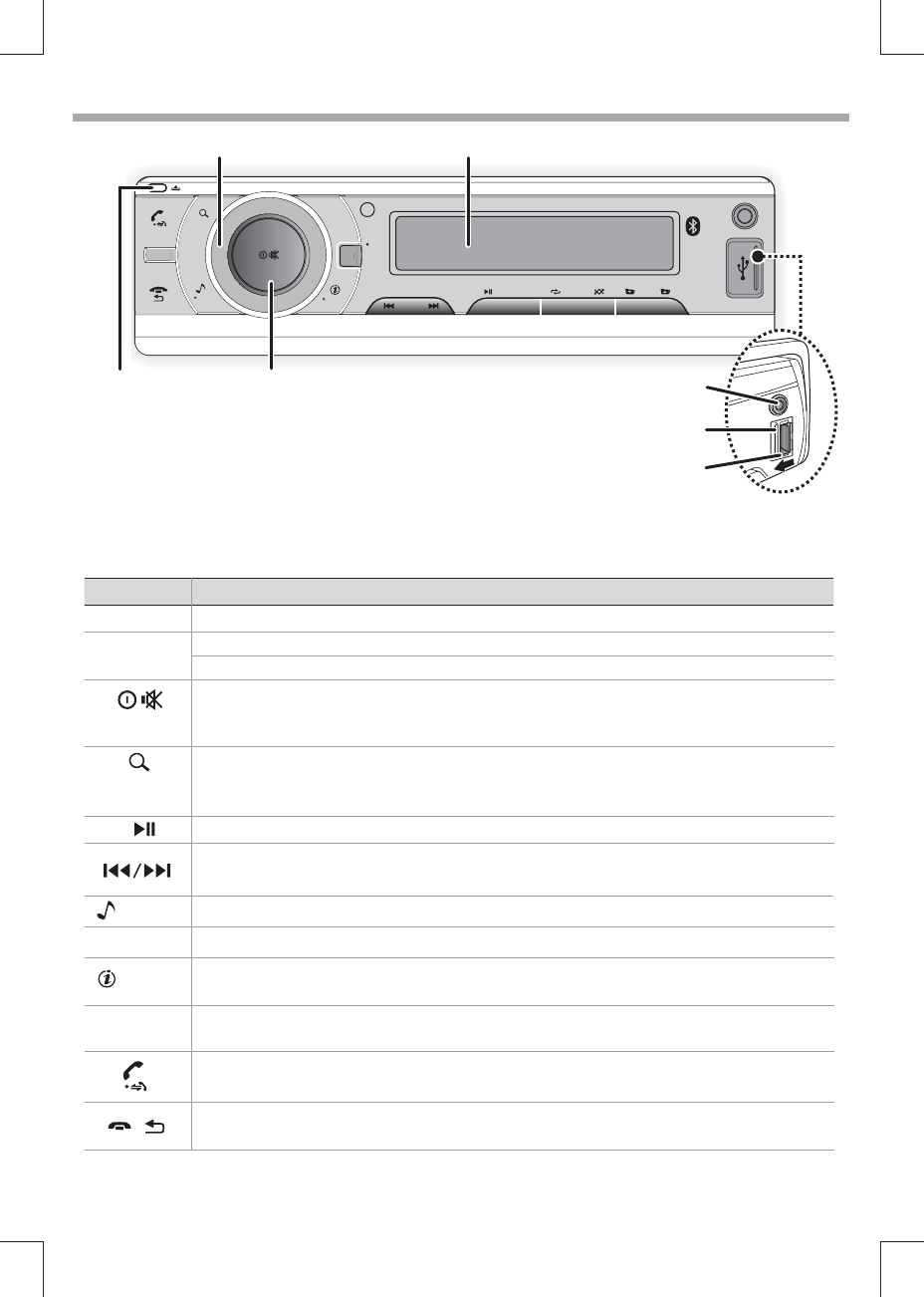

When you press or hold the following button(s)...
Main unit General operation
SRC
■
■
■
■
■
■
■
■
■
■
■
Select the available sources (Radio, USB, SD, BT AUDIO or MP3-LINK ), if the power is turned on.
Rotatory
Volume knob
Rotate it to increase or decrease the volume.
Select items.
Power / Mute Confirms selection.
Under Media playback mode to view play informations.
BAND
■Select the FM bands (FM1/ FM2/ FM3) or AM1 (MW1) / AM2 (MW2) .
■Under media playback to access into search mode.
Pause/resume playback of a USB / SD device.
■Under Radio mode to enter into the Auto Seek mode, press and hold to enter into the Manual Seek mode.
■Under Media playback mode to skip track / file, press and hold to fast forward / backward.
MENU
To access into the Audio Menu mode, press and hold to enter into the System Menu mode.
Turn On or Off dynamic bass boost sound.
Turn On or Off the Xbass bosster function.
During the talking, press and hold to transfer the call.
DBSS
Turn mute or restore volume.
Turn the unit on. Press and hold again to turn the unit off.
1
SUB-W
Press to view the Clock. Press & hold to turn On or Off the Subwoofer function.
Returns to the previous item.
To reject / end the call.
EQ / XBASS
Basic Operation
To adjust the EQ (Preset Equalizer) setting.
To answer / accept the call.
/
MENU
SUB-W
DBSS
XBASS
BAND
SRC EQ
123 456

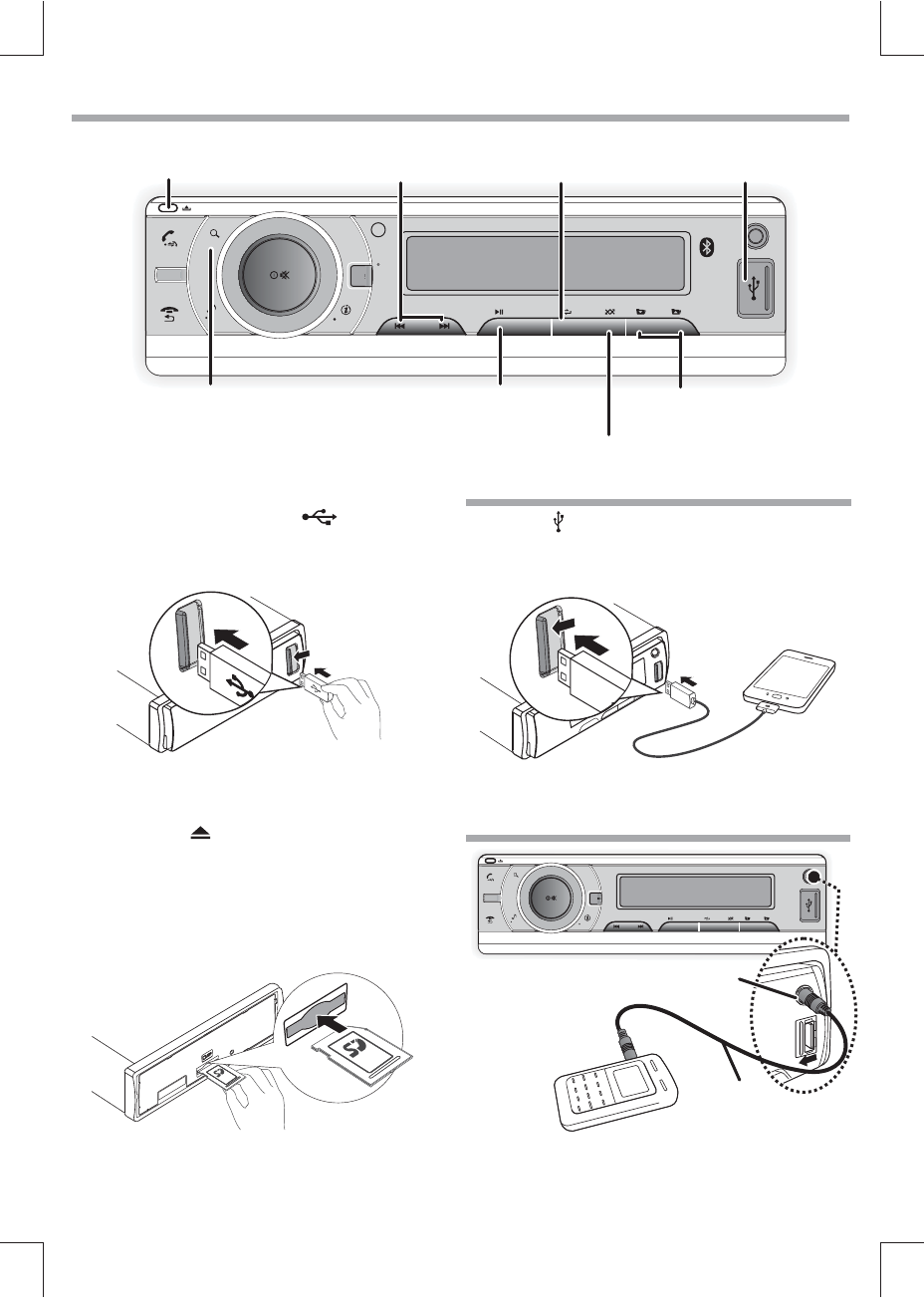

Detaches the
control panel
Rotary Volume Knob Display Window
Power / Mute
USB terminal
Aux-In jack
Push open the cover
■Press and hold to activate the Auto Store function.
6 EN

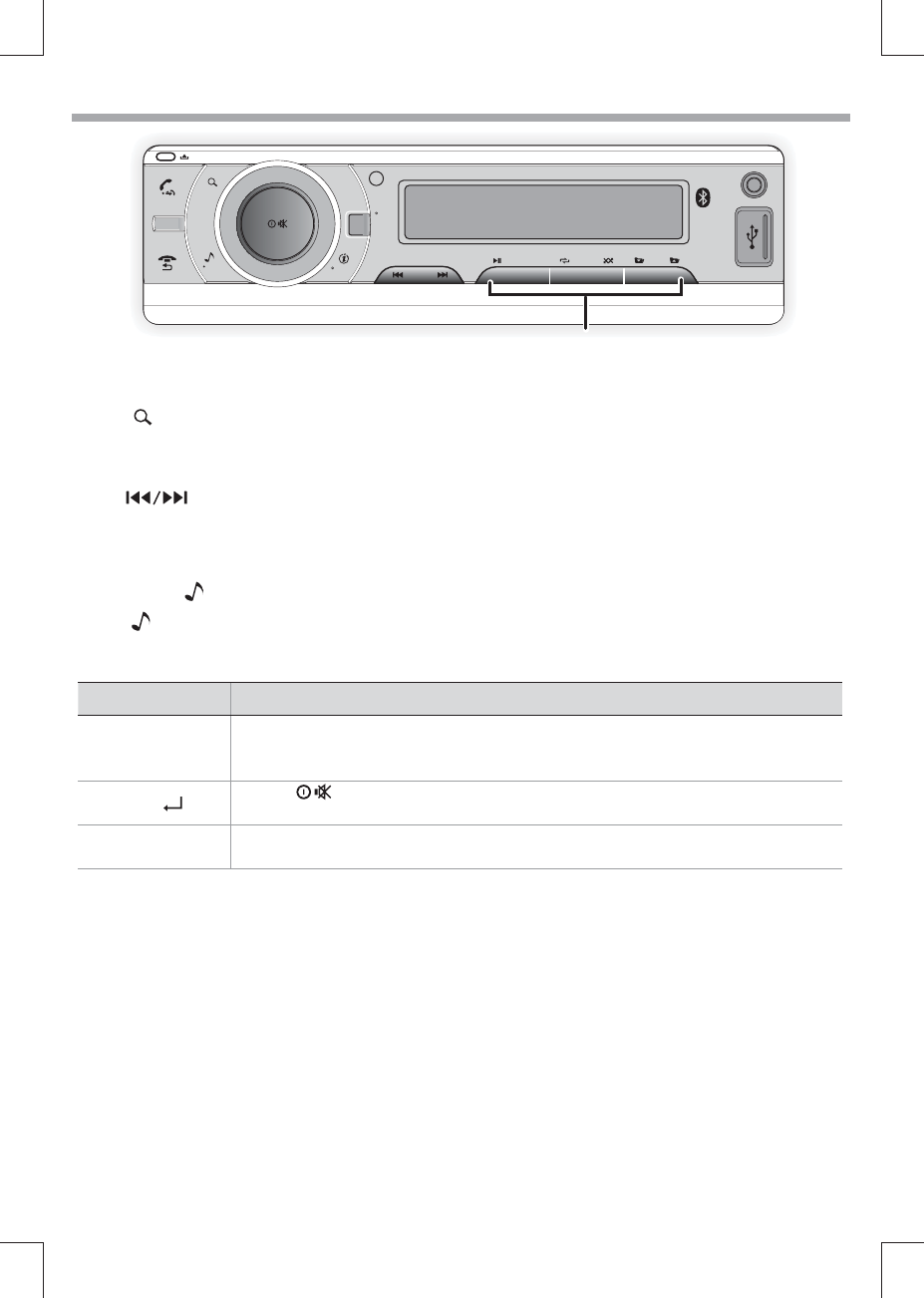

Function Settings
1 Press to access into the [AUDIO MENU] mode, press and hold to enter into the [MENU] mode.
2 Press repeatedly to select the item to be adjusted.
3 Turn the encoder volume knob to select a value / option.
MENU
[AUDIO MENU]...
[MENU]...
Item Selectable Setting
Item Selectable Setting
BASS ADJUST
TREBLE ADJUST
BASS LEVEL
CLOCK SET
TREBLE LEVEL
CLOCK FORMAT
BEEP TONE
BALANCE
FADER
Adjust the level -7 to +7.
Adjust the Hours and Minutes
Adjust the level -7 to +7.
Select the time format 12H or 24H
Turn On or Off this beep sound
Adjust the balance between the right and left speakers from 10R (full right) to
10L (full left).
Adjust the fader between the front and rear speakers from 10R (full rear) to
10F (full front).
MENU
CLOCK
EN 7
Listening to the Radio
2 Press to search for a station.
Adjust [MENU] mode settings
While listening to the radio...
Item Selectable Setting
AREA
LOC ON/OFF ON: Search for radio stations with strong signals only.
OFF: Search for radio stations with strong and weak signals.
Select suitable country region of the radio: USA; LATIN; EUROPE; RUSSIA(Oirt); M-EAST; ASIA; JAPAN;
AUST (Australia)
To receive more radio stations or only stations with strong signal, you can adjust the radio sensitivity.
1 Press and hold to enter into the [MENU] mode.
2 Press repeatedly to select the item to be adjusted.
3 Turn the encoder volume knob to select a value / option.
MENU
■
■
STORE Press the to access into Auto Store mode, the six strongest stations of the selected band are
saved in preset channel automatically: FM1, FM2, FM3(1-6), AM1, AM2.
MENU
SUB-W
DBSS
XBASS
BAND
SRC EQ
123 456
Hold for about 2 seconds to memorize the current station .
Press briefly to recall memorized station.
■
■
MENU
1 Press repeatedly to a band ( FM1, FM2, FM3,
AM1(MW1) or AM2 (MW2)). Press and hold to activate the
Auto Store function.
BAND
8 EN
Listening to a USB/SD device
MENU
SUB-W
DBSS
XBASS
BAND
SRC EQ
123 456
Detaches the
control panel
Press to select a track / file.
Press and hold for fast forward / backward.
■
■
Press into search mode Press to pause. Press again to resume playback.
Press to repeat one track,
press again repeat a folder.
Press to start random play, press again to random a folder.
Press to move next/previous folder.
USB terminal
Playing a USB device
1 Slide the USB socket cover market to the left.
2 Insert the USB device into the USB socket.
Playing a SD memory card
1 Press the Panel (Release) button.
3 Insert the card into the card slot.
2 Push the left side of the panel rightward
4 Close the front panel.
3 Press the “SRC” button to select the USB mode to start playing.
5 Press the “SRC” button to select the SD mode to start playing.
EN 9
1 Press the SRC to select AUX-IN mode.
2 Turn on the external component and start playing.
1A USB Universal Charge
MENU
DBSS
XBASS
BAND
SRC
EQ
123 456
Auxiliary input jack
3.5 mm Cable
(not included)
Listening to the other external components
SUB-W
3 Once the Smart Phone is connected and recognized, the Smart
Phone begins to charge.
1 Slide the USB socket to left.
2 Insert the Smart Phone device into the USB socket.
MENU
SUB-W
DBSS
XBASS
BAND
SRC EQ
123 456
Operation of Bluetooth Hands-Free
Press to answer / accept the call.
Press and hold to transfer the call.
■
■
Press to reject / end the call.
Getting Started
You can make or receive phone calls with Bluetooth-enabled
phones through the unit. You can also listen to music from a
Bluetooth-enabled device.
Before use the Bluetooth device, you need to pair the device to
the unit. Pairing needs only to be done once.
1 Open your mobile phone and switch bluetooth on.
1 Press and hold
to enter into the [MENU] mode.
1 Press and hold to enter into the [MENU] mode.
2 Search for other bluetooth device with your device.
2 Once the [DIS-CON ] is displayed, press to activate
the manual Disconnect mode.
2 Once the [RE-CON ] is displayed, press to activate
the manual Re-connect mode.
4 Input the password “0000”
5 [Paired] will be displayed on the screen if pairing is
successful, and the paired device will connect to the car audio
system automatically.
3 Select “NAKAMICHI” in the pairing list.
Making a Call
Receiving a Call
Call Transfer
Bluetooth Audio Streaming A2DP
You can dial number through the mobile phone.
Pairing the Bluetooth devices
Disconnect the bluetooth
Re-connect the bluetooth
MENU
1 Use the Mobile Phone to dial and make an outgoing call.
1 Press on front panel to redial.
2 Press , unit will display [CALLING], and the unit starts
dialing the number dialed last time.
2 Once completed the dialing, [CALLING] is displayed.
To redial number
1 If there is incoming call, the phone number is displayed. if the
incoming call has no phone number, [PHONE IN] is displayed.
2 Press to answer / accept the call.
3 When conversation ends, press to terminate the call.
You can transfer voice from loudspeaker to mobile phones during ca ll .
If the connected Bluetooth device supports Advanced Audio
Distribution Profile (A2DP), you can listen to the music stored on
the device through the unit. If the device also supports Audio
Video Remote Control Profile (AVRCP) profile, you can use the
control on the unit or its remote control to play music stored on
the device.
During talking, press and hold voice transfers from
loudspeaker to mobile phone.
1 Press SRC repeatedly to select [BT AUDIO].
2 Press to start play, press it again to pause.
3 To track up/down, press / .
MENU
To make an outgoing call on this unit, the bluetooth connection
between the unit and the phone must be active.
Remark:
Press to change to "BT AUDIO" mode
10 EN
When you press or hold the following button(s)...
Main unit General operation
Press increas the volume.
Press decreas the volume.
■Under Radio mode to enter into the Auto Seek mode, press and hold to enter into the Manual Seek
mode.
■Under Media playback mode to skip track / file, press and hold to fast forward / backward.
Turn mute or restore volume.
Press turn the unit on or off.

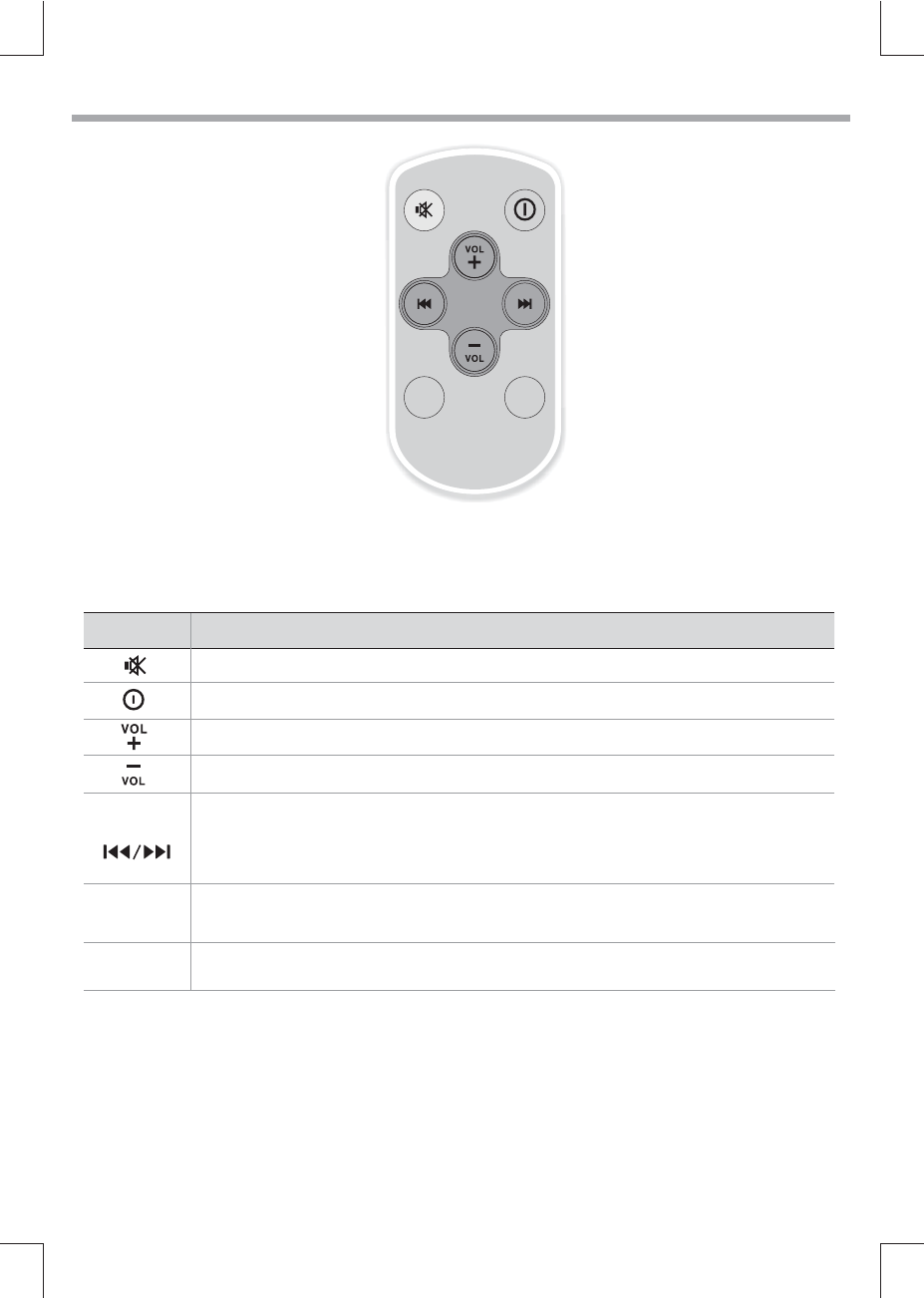

Remote Control Operation
AUDIO
SRC
SRC
AUDIO
Selects the available sources (Radio, USB (USB-iPod/iPhone), SD, BT AUDIO or Aux-In ), if the
power is turned on.
Press to access into the Audio Menu mode.
EN 11
Product Information
Power Supply: 12V DC (10.5-14.4V), negative ground
Fuse: 15A
Suitable Speaker Impedance: 4 -8
General
Aux-In level: 800mV
Audio Section
Maximum Power Output: 50W x 4 Channels
Pre-AMP Output Voltage: 1.5V
Subwoofer Output Voltage: 1.5 V
USB devices
Memory Card
USB Flash Memory: USB 1.1 & 2.0 Compatible
Support type of memory card: SD/SDHC
About Audio file
MP3/WMA bit rate: 32-320kbps and varible bit rate
MP3 sampling frequencies: 8-48kHz
WMA sampling frequencies: 32kHz, 44.1kHz, 48kHz
ID3 tag v1.0 or later
USB or memory file system: FAT16, FAT32
■
Bluetooth
Output power: Class 2
Frequency band: 2.4000GHz-2.4835GHz ISM Band
Range: 3 meters (free space)
Standard: Bluetooth 2.0 specification
Continous Power Output: 22W x 4 RMS
■
■
■
■
Output Current: 1000 mA (1A)
Output Voltage: 5 V DC
USB Smart Phone 1A charging
12 EN
Supported WAV audio files
■
FM tuner section
AM tuner section
Frequency Range: 87.5 -107.9MHz
Frequency Range: 530 - 1710KHz
Usable Sensitivity: Better than 40dB at S/N 20dB
Usable Sensitivity: Better than 8dB at S/N 30dB
(USA)
(USA)
87.5 - 108MHz (Middle East)
87.5 - 108MHz (Europe)
87.5 - 108MHz (Latin)
87.5 - 108MHZ (Oirt FM1 & FM2 )
87.5 - 108MHz (ASIA)
76 - 90MHz (Japan)
87.5 - 108MHz (Australia)
522 - 1620KHz (Middle East)
522 - 1620KHz (Europe)
530 - 1710KHz (Latin)
522 - 1620KHz (Oirt)
522 - 1620KHz (ASIA)
522 - 1629KHz (Japan)
522 - 1620KHz (Australia)
65-74 MHZ (Oirt FM3 )
2.402-2.480GHz ISM Band
www.nakamichicaraudio.com
