SOYAL TECHNOLOGY AR-661UG-L Handheld Type UHF RFID User Manual
SOYAL TECHNOLOGY CO., LTD. Handheld Type UHF RFID
User manual
1
AR-661UG-L UHF RFID Reader User’s Manual
Overview
As a long-range hand-held radio frequency identification (RFID) reader, the AR-661UG-L is
a 900MHz (UHF band) UHF RFID reader operable at various operating bands specified by
individual countries. It also complies with all standard protocols defined in ISO18000-6C (EPC
GEN2).
Features
Support 900MHz (UHF band) and comply with tags specified in ISO18000-6C (EPC GEN2).
Compact appearance design, built-in antenna and RF module, convenient to carry.
Card code directly display on the LCD screen.
Built-in 80 set storage space .
Sensing range more than 1 meter .
Special energy-saving design reduces power consumption.
Avoid the interference of other radio frequencies with the look-up table frequency-hopping
spread spectrum(FHSS)
Pass R&D patent for EMI reduction in many countries.
Pass NCC/FCC certification
Built-in lithium battery without the need of external power supply. Work continuously for at
least 4 hours in normal use after fully charged.
Micro USB interface for connection with the power bank.
Apply to single data processing.
Points for attention
1. The product pattern is certified by the FCC. Unauthorized modification of the frequency,
power, or originally designed functions and characteristics of the RFID reader are prohibited.
2. Lithium battery inside, keep product away from hot environments (over 60°C) such as inside
a car due to the built-in lithium battery.
3. Lithium battery inside, store product in an environment below 40°C if not in use for some
time.
4. Do not over discharge or overcharge product to prevent battery from damage and reduce
battery life.
Recommended uses
UHF RFID registration management system.
Logistics related management.
Certification
NCC :
FCC :
2
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible
for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause
undesired operation of the device.
RF exposure:
To comply with the FCC RF exposure compliance requirements, this device and its antenna must
not be co-located or operating in conjunction with any other antenna or transmitter.
For body worn operation, this reader has been tested and meets FCC RF exposure guidelines
when used with an accessory that contains no metal and that positions the handheld type UHF
RFID Reader a minimum of 5 mm from the body. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
3
Product Specifications
Input voltage Built-in lithium battery
UHF Antenna gain 0.5dBi (linear polarization)
Antenna receiving 50 ohm U.FL.
Operating frequency 902-928 MHz
Emission power 24.7 dBm
Modulation scheme PR-ASK, ASK
Current <300mA ( Max )
Protocol EPC Gen2 (ISO 18000-6C)
Receiving sensitivity -81 dBm
Sensing range >50cm
Operating temperature 0℃~ +45 ℃
Storage temperature 45℃( 1 month )
Humidity 5-90%
Dimensions 110x95x32mm
Weight 250g

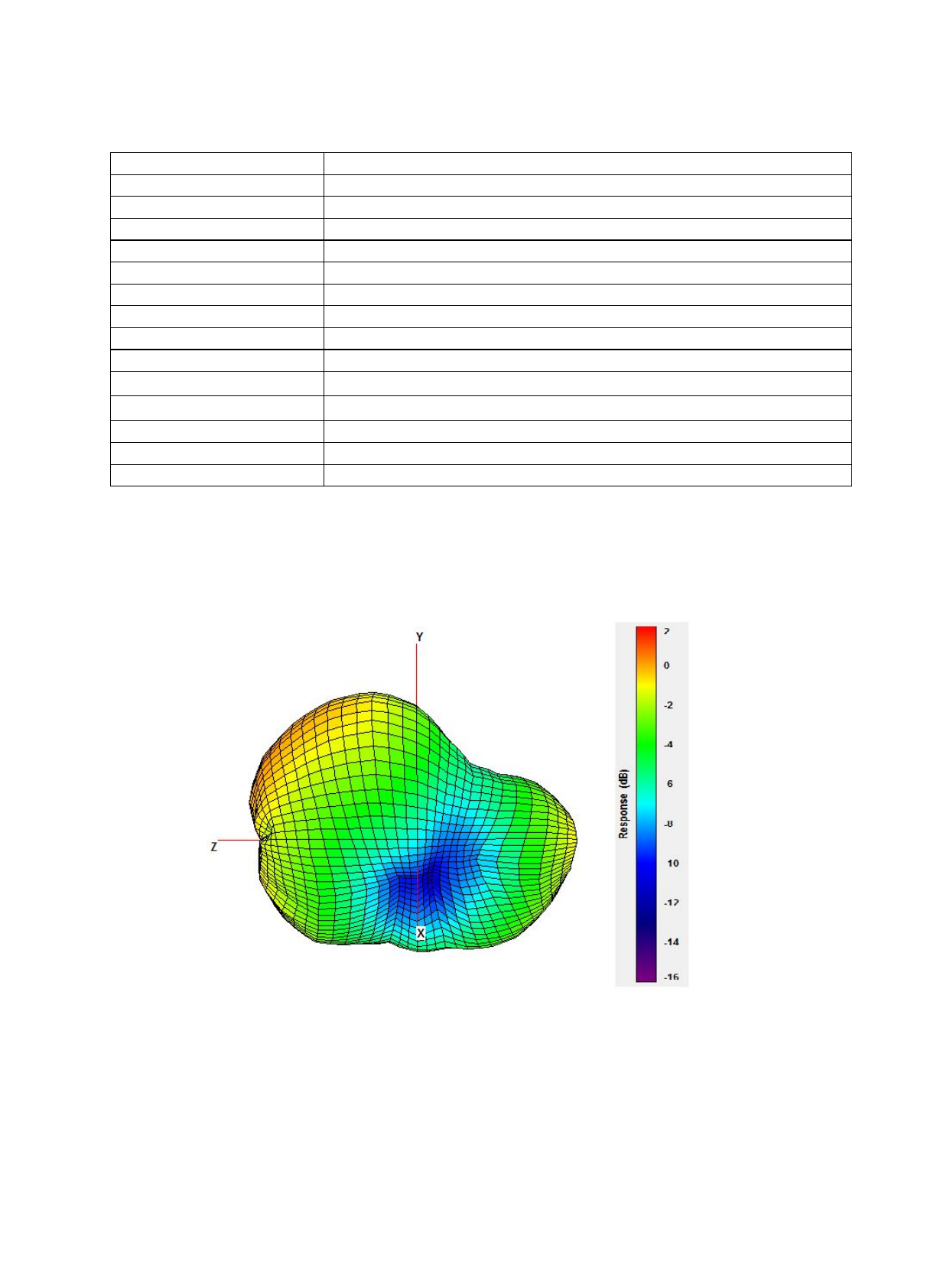

Antenna Pattern
4

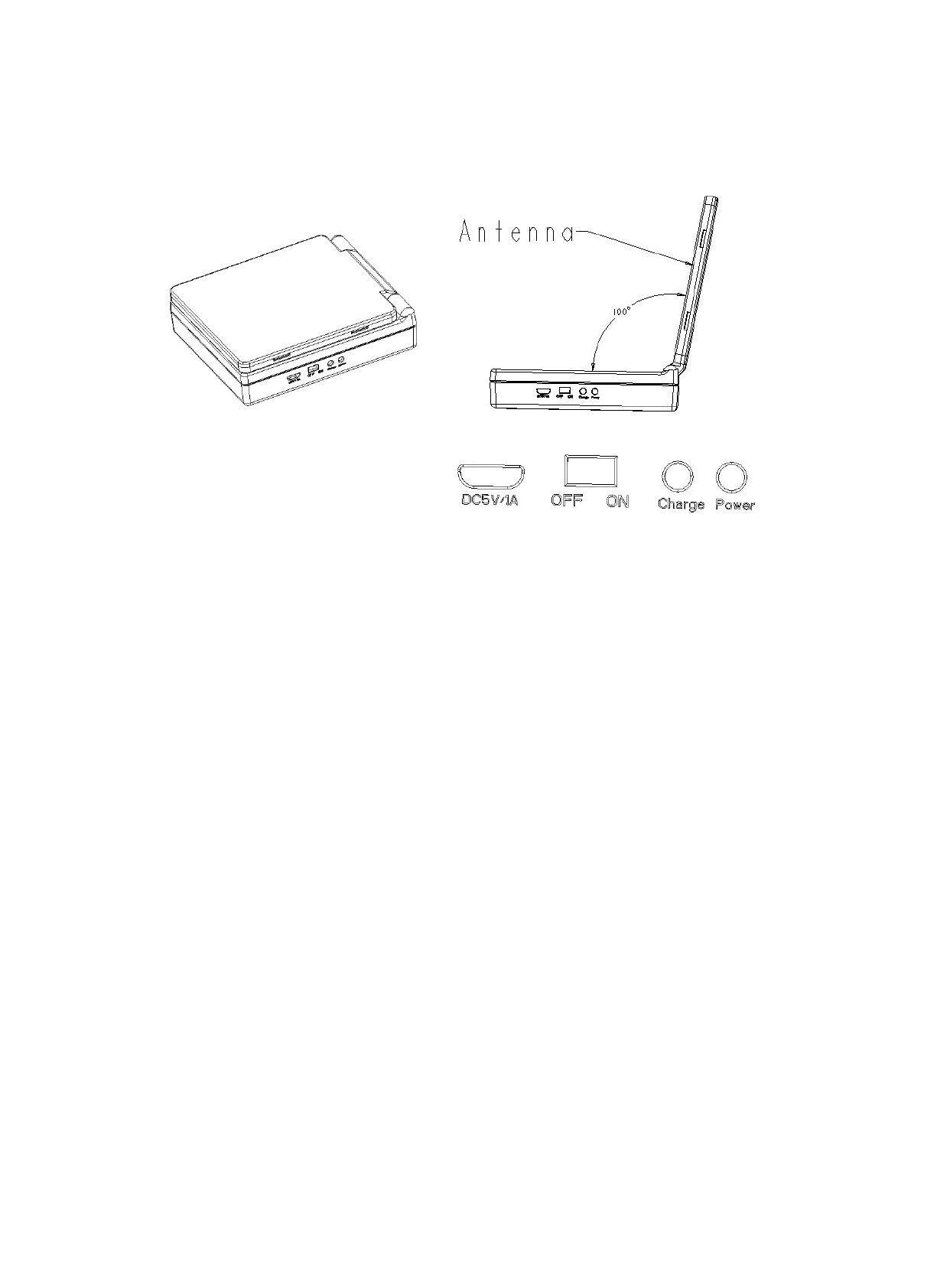

Appearance
1. Charger input.
1.1. Charger specifications: DC 5V/1A
1.2. Micro USB compatible with the smartphone and tablet charging interface.
1.3. Support power bank to operate and charge the UHF RFID reader at the same time.
1.4. Work continuously for at least 4 hours in normal use after fully charged.
2. Power switch
2.1. ON: Turn on the UHF RFID reader.
2.2. OFF: Turn off the UHF RFID reader.
3. Charge indicators
3.1. Red: Charge in progress.
3.2. Amber: Fully charged and remove charger to prevent overcharge.
3.3. No signal: No charging behavior.
4. Power indicators
4.1. Blue: The battery of the UHF RFID reader is discharging.
4.2. No signal: The UHF RFID reader is off or the batter level is low.
5. Antenna
5.1. Antenna gain is 0.44dBi.
5.2. Please aim the antenna at the tag to facilitate reading data in the tag.
5.3. Rotate at 100° for users to aim at the tag more easily.
5
Contents
AR-661UG-L UHF RFID Reader....................................................1
User’s Manual..................................................................................1
Warranty
1. This product is covered by a one-year warranty from the date of purchase.
2. Warranty covers free inspections and repair of the product to good condition if there are
problems or poor product condition.
3. Warranty does not cover product damage due to an act of God (e.g. flood, fire, earthquake,
typhoon, thunder strike, etc.).
4. Warranty does not cover willful damage (e.g. scratch, fall, impact, etc.) or damage due to
negligence (loss, loosened screws, etc.).
5. Warranty will be voided if labels on the case are removed or damaged.
