SQT Electronics R116 2.4GHz Wireless receiver User Manual SK 626AG SPEC

Shenzhen SQT Electronics Co., Ltd. 2.4GHz Wireless receiver SK 626AG SPEC

User Manual

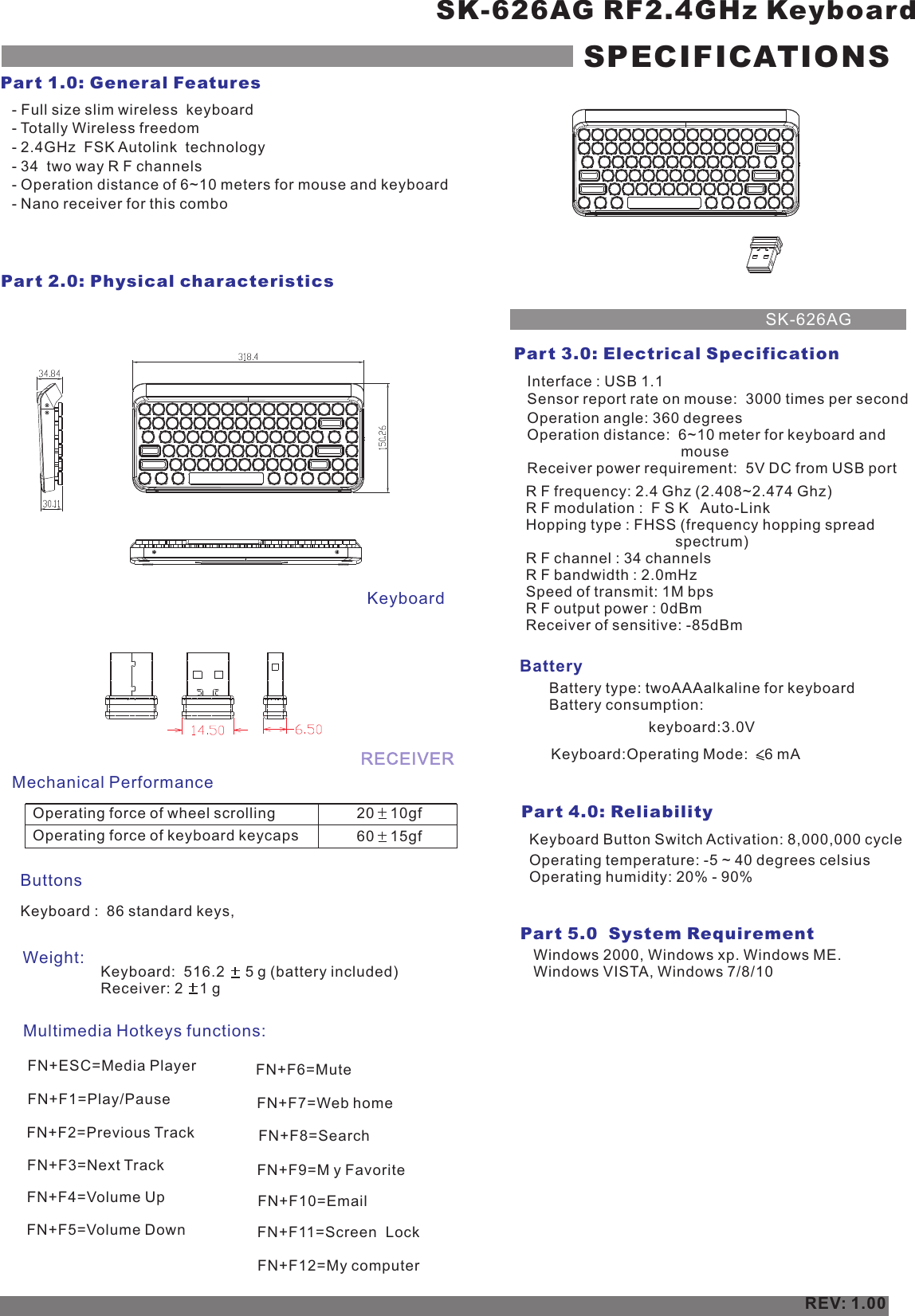

- Full size slim wireless keyboard- Totally Wireless freedom- 2.4GHz FSK Autolink technology- 34 two way R F channels- Operation distance of 6~10 meters for mouse and keyboard- Nano receiver for this comboSK-626AG RF2.4GHz KeyboardSPECIFICATIONSPar t 1.0: General FeaturesPar t 2.0: Physical characteristics Operating force of wheel scrolling 20 10gf ButtonsWeight:Par t 3.0: Electrical SpecificationBatteryPar t 4.0: Reliability Operating temperature: -5 ~ 40 degrees celsius Operating humidity: 20% - 90%REV: 1.00Par t 5.0 System Requirement Windows 2000, Windows xp. Windows ME. Windows VISTA, Windows 7/8/10Operating force of keyboard keycaps 60 15gf Keyboard : 86 standard keys,Keyboard Button Switch Activation: 8,000,000 cycle Keyboard:Operating Mode: 6 mA Interface : USB 1.1Sensor report rate on mouse: times per second 3000 Operation angle: 360 degreesOperation distance: 6~10 meter for keyboard and mouseReceiver power requirement: 5V DC from USB portR F frequency: 2.4 Ghz (2.408~2.474 Ghz)R F modulation : F S K Auto-LinkHopping type : FHSS (frequency hopping spread spectrum)R F channel : 34 channelsR F bandwidth : 2.0mHzSpeed of transmit: 1M bpsR F output power : 0dBmReceiver of sensitive: -85dBmSK-626AGMechanical PerformanceKeyboardKeyboard: 516.2 5 g (battery included) Receiver: 2 1 g Multimedia Hotkeys functions:Battery type: twoAAAalkaline for keyboardBattery consumption: RECEIVERkeyboard:3.0VFN+ESC=Media Player FN+F1=Play/PauseFN+F2=Previous Track FN+F4=Volume UpFN+F3=Next Track FN+F6=Mute FN+F7=Web homeFN+F5=Volume DownFN+F8=SearchFN+F9=M y FavoriteFN+F10= EmailFN+F11=Screen LockFN+F12= My computer

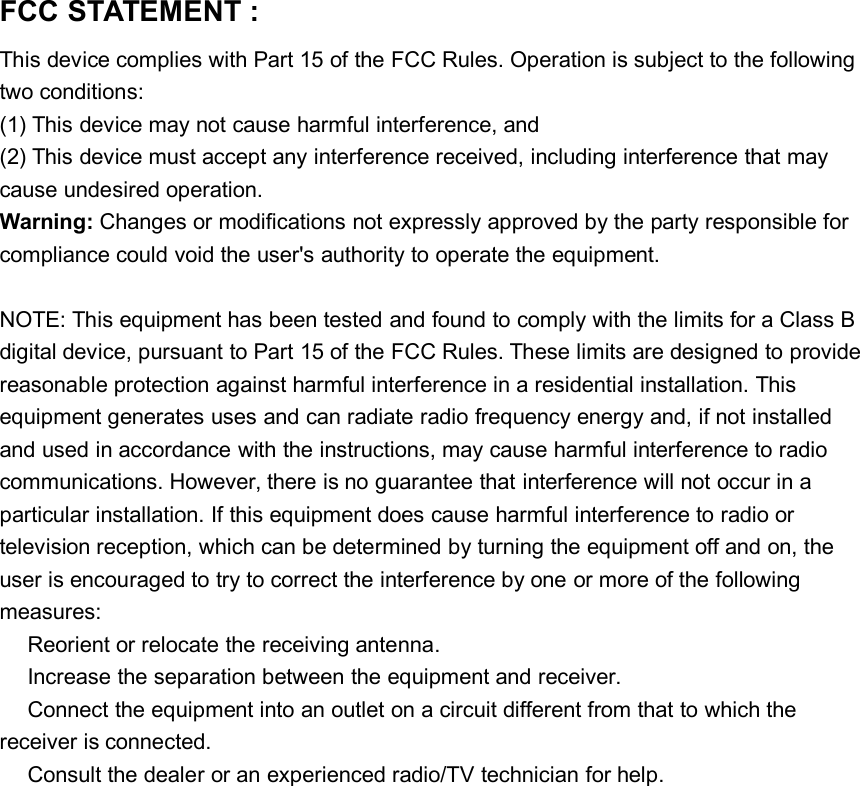

FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that maycause undesired operation.Warning: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.Consult the dealer or an experienced radio/TV technician for help.
