SQT Electronics SM388AG 2.4GHz Wireless Mouse User Manual SM 388AG SPEC

Shenzhen SQT Electronics Co., Ltd. 2.4GHz Wireless Mouse SM 388AG SPEC

15_SM-388AG UserMan r1

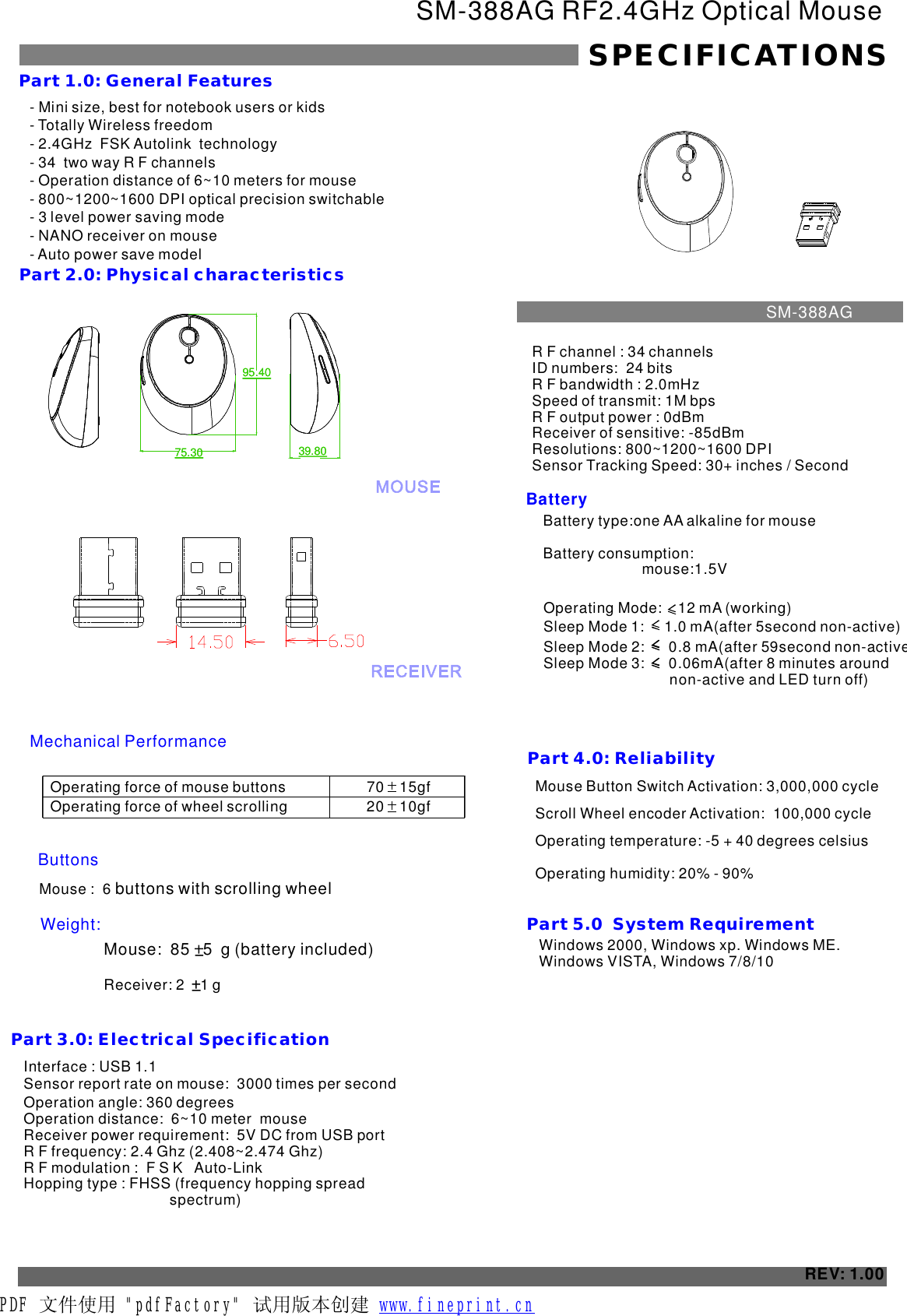

- - Totally Wireless freedom- 2.4GHz FSK Autolink technology- 34 two way R F channels- Operation distance of 6~10 meters for mouse - 800~1200~1600 - Mini size, best for notebook users or kidsDPI optical precision switchable 3 level power saving mode- NANO receiver on mouse- Auto power save modelSM-388AG RF2.4GHz Optical MouseSPECIFICATIONSPart 1.0: General FeaturesPart 2.0: Physical characteristics Operating force of mouse buttonsOperating force of wheel scrolling70 15gf 20 10gf ButtonsMouse : 6 buttons with scrolling wheel Weight:Part 3.0: Electrical SpecificationBatteryPart 4.0: Reliability Mouse Button Switch Activation: 3,000,000 cycleScroll Wheel encoder Activation: 100,000 cycleOperating temperature: -5 + 40 degrees celsius Operating humidity: 20% - 90%REV: 1.00Part 5.0 System Requirement Windows 2000, Windows xp. Windows ME. Windows VISTA, Windows 7/8/10Interface : USB 1.1Sensor report rate on mouse: times per second 3000 Operation angle: 360 degreesOperation distance: 6~10 meter mouseReceiver power requirement: 5V DC from USB portR F frequency: 2.4 Ghz (2.408~2.474 Ghz)R F modulation : F S K Auto-LinkHopping type : FHSS (frequency hopping spread spectrum)R F channel : 34 channelsID numbers: 24 bitsR F bandwidth : 2.0mHzSpeed of transmit: 1M bpsR F output power : 0dBmReceiver of sensitive: -85dBmResolutions: 800~1200~1600 DPI Sensor Tracking Speed: 30 inches / Second+SM-388AGMechanical PerformanceMouse: 85 5 g (battery included) Receiver: 2 1 g Battery type:one AA alkaline for mouse Battery consumption: Operating Mode: 12 mA (working) Sleep Mode 1: 1.0 mA(after 5second non-active) Sleep Mode 2: 0.8 mA(after 59 non-active)Sleep Mode 3: 0.06mA(after 8 minutes around non-active and LED turn off) secondmouse:1.5V75.3095.4039.8075.3095.4039.80PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn

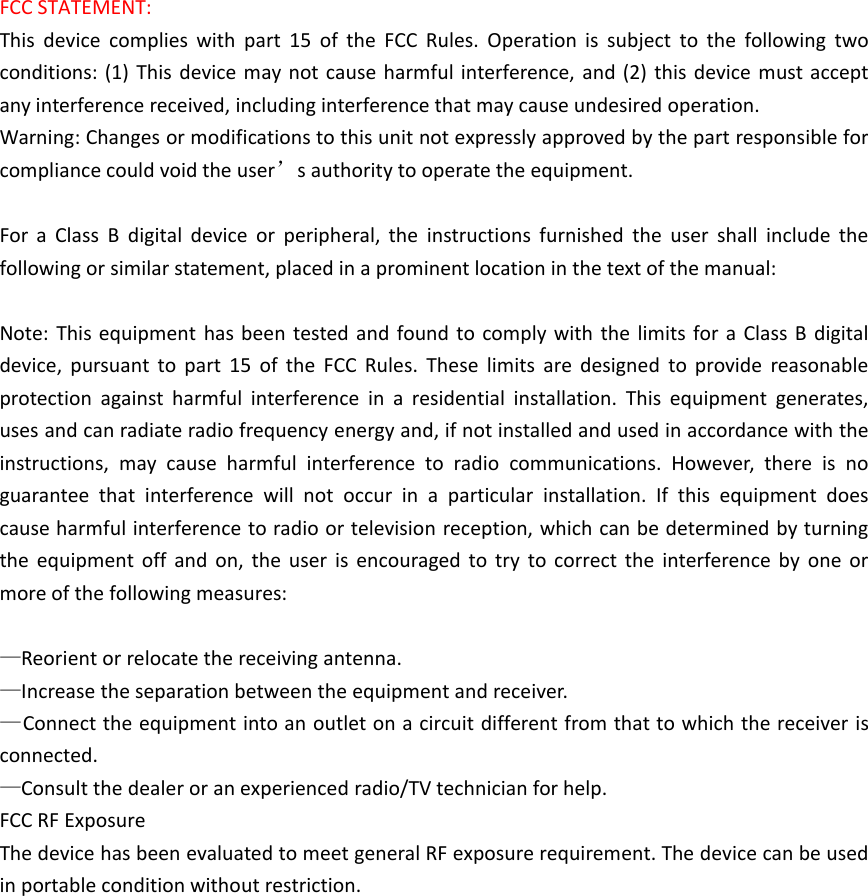

FCC STATEMENT:This device complies with part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.Warning: Changes or modifications to this unit not expressly approved by the part responsible forcompliance could void the user’s authority to operate the equipment. For a Class B digital device or peripheral, the instructions furnished the user shall include thefollowing or similar statement, placed in a prominent location in the text of the manual:Note: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.—Consult the dealer or an experienced radio/TV technician for help.FCC RF ExposureThe device has been evaluated to meet general RF exposure requirement. The device can be usedin portable condition without restriction.
