SQT Electronics SMK-20306AGMN 2.4GHz WIRELESS MOUSE User Manual sm306AG H43 PAN3205

Shenzhen SQT Electronics Co., Ltd. 2.4GHz WIRELESS MOUSE sm306AG H43 PAN3205

User Manual

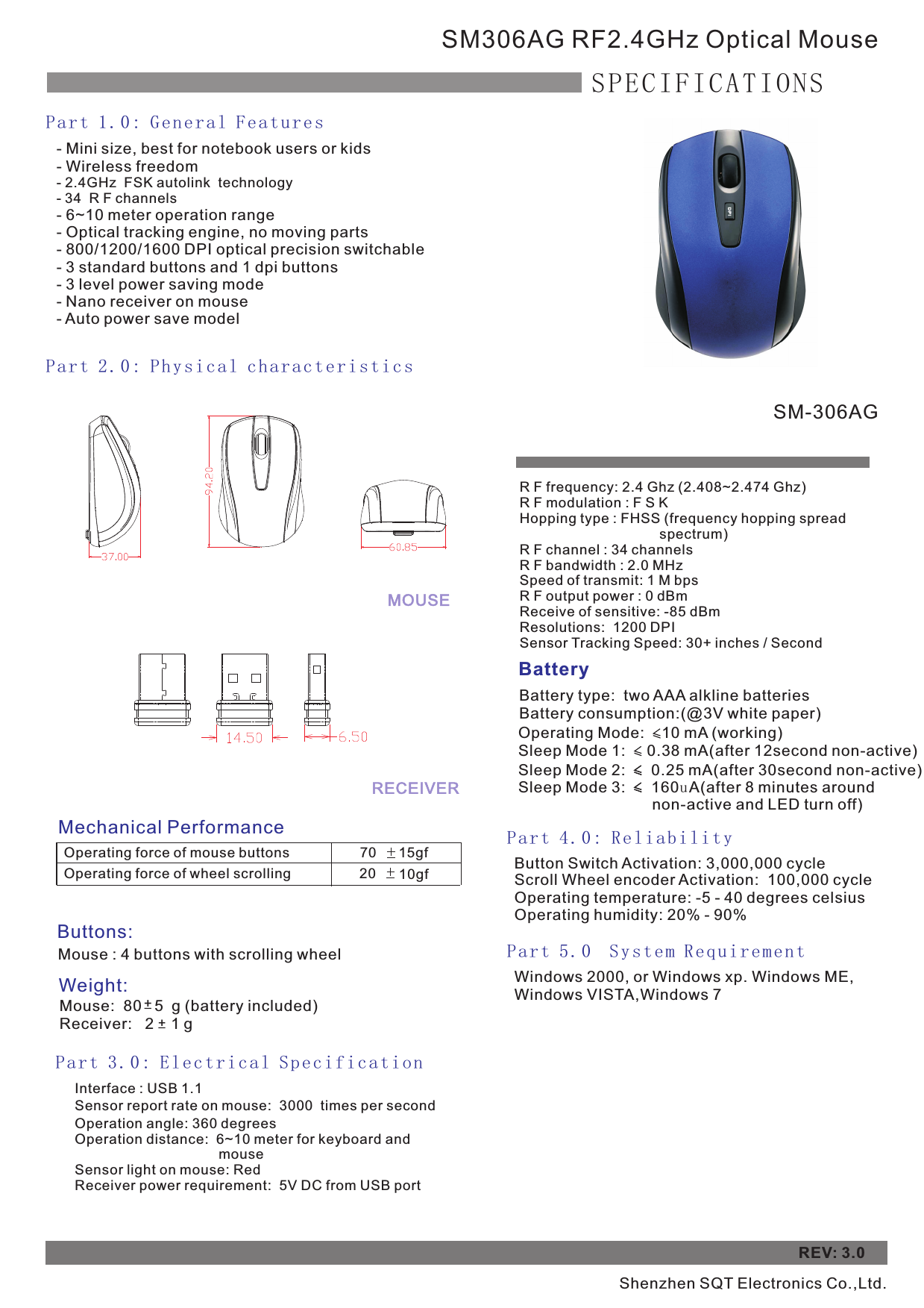

- Mini size, best for notebook users or kids- Wireless freedom- 2.4GHz FSK autolink technology- 34 R F channels - 6~10 meter operation range- Optical tracking engine, no moving parts- 800/1200/1600 DPI optical precision switchable - 3 standard buttons and 1 dpi buttons - 3 level power saving mode- Nano receiver on mouse- Auto power save model SM306AG RF2.4GHz Optical MouseSPECIFICATIONSPart 1.0: General FeaturesPart 2.0: Physical characteristics Mechanical PerformanceOperating force of mouse buttonsOperating force of wheel scrolling70 15gf 20 10gf Buttons:Mouse : 4 buttons with scrolling wheel Weight:Mouse: 80 5 g (battery included) Receiver: 2 1 gPart 3.0: Electrical SpecificationBatteryBattery type: two AAA alkline batteriesBattery consumption:(@3V white paper)Operating Mode: 10 mA (working) Sleep Mode 1: 0.38 mA(after 12second non-active) Sleep Mode 2: 0.25 mA(after non-active)Sleep Mode 3: 160uA(after 8 minutes around non-active and LED turn off) 30secondPar t 4 . 0: Re l i abi l i ty Button Switch Activation: 3,000,000 cycleScroll Wheel encoder Activation: 100,000 cycleOperating temperature: -5 - 40 degrees celsius Operating humidity: 20% - 90%REV: 3.0Par t 5 . 0 Sys t e m Req u i rem e n t Windows 2000, or Windows xp. Windows ME,Windows VISTA,Windows 7MOUSERECEIVER+_+_Interface : USB 1.1Sensor report rate on mouse: 3000 times per second Operation angle: 360 degreesOperation distance: 6~10 meter for keyboard and mouseSensor light on mouse: RedReceiver power requirement: 5V DC from USB portR F frequency: 2.4 Ghz (2.408~2.474 Ghz)R F modulation : F S KHopping type : FHSS (frequency hopping spread spectrum)R F channel : 34 channelsR F bandwidth : 2.0 MHzSpeed of transmit: 1 M bpsR F output power : 0 dBmReceive of sensitive: -85 dBm Resolutions: 1200 DPISensor Tracking Speed: 30+ inches / SecondSM-306AGShenzhen SQT Electronics Co.,Ltd.
