FLED-ISCNTR-RF
S.R.Smith iStar Controller for White Only and Color
Changing iStar compatible light sources

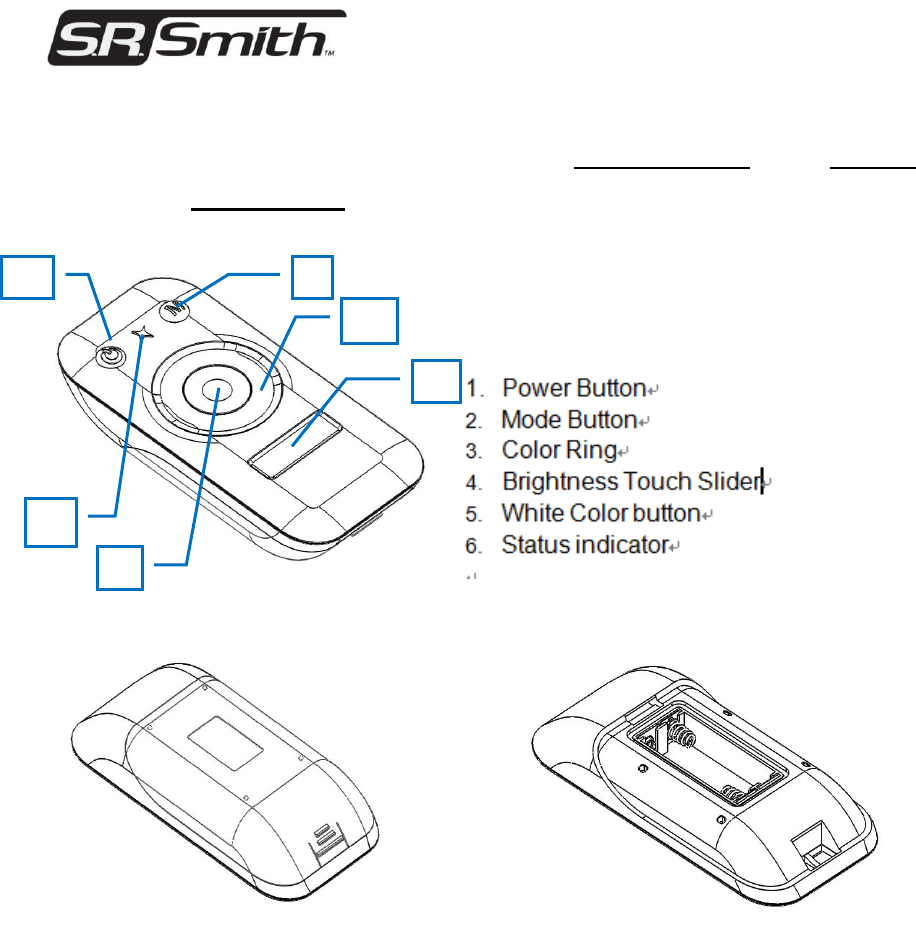

Front of remote control
Back of remote control Battery compartment
Preparation for use
1. Open the battery compartment cover.
a) Press inward the bottom snap at the bottom of the battery compartment and raise the
cover.
b) Connect 2 complimentary AAA batteries with correct polarity in the battery
compartment.
c) Put the battery cover on and press any button; the remote control is working properly if
the LED indicator flashes 3 times in succession.
d) If LED indicator is not lit, check the battery polarity or check to see if the batteries are
inoperative.
e) Coding the remote control
2
1
6
5
3
4
S.R. Smith, LLC ♦ 1017 SW Berg Parkway P.O. Box 400 Canby, OR 97013
♦ phone: 800-824-4387 ♦ fax: 503.266.4334
Page 2 of 3
Turn on the power to the control box and ensure it is working properly, press the blue
key (Mode) of the remote control and hold for 5 seconds, coding begins when the digital
tube displays "RF". Press the brightness button (Coding) of the control box for 3 seconds;
when the digital tube displays OK and the blue LED indicator of the remote control flashes 3
times, coding is completed.
Press the buttons or touch area of the remote control; in a successful procedure, the digital tube
of the control box will give a corresponding display.
Operation of remote control
[Power On/Off]
Press the power switch, the power will be cut off and the control box will cut off the power of
the LED indicator; the control box will go to standby and the digital tube displays "OFF".
When the control box is in the standby mode, the LED light connected to the control box will
illuminate when pressing the power switch again. The digital tube displays "On".
[Mode adjustment]
The mode code progressively increases when users press the Mode button once, and the control
box will control the LED light to execute 8 preset scenarios in turn. The digital displays the
numerical code of current mode.
[Color adjustment]
Slid the touch area of the color ring, the control box will change the color of the control LED
light into the selected color in the corresponding color ring.
[White adjustment] Touch the central area of the color ring, the color of the control LED light
will change into white.
[Brightness adjustment]
Slid the touch area of the brightness bar of the remote control to adjust the current brightness of
the LED Light; slid the touch area of the brightness from right to left to adjust light levels down
and vice versa. 4 levels each increase or decrement; the digital tube displays the current status
value of the brightness.
IC Caution.
RSS-Gen Issue 3 December 2010"&"CNR-Gen 3e éditionDécembre 2010:
- English:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
S.R. Smith, LLC ♦ 1017 SW Berg Parkway P.O. Box 400 Canby, OR 97013
♦ phone: 800-824-4387 ♦ fax: 503.266.4334
Page 3 of 3
(2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le
brouillageest susceptible d'encompromettre le fonctionnement.
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between theequipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
