快速指南：Quick Guide
I. Safe Items
To avoid being hit or fall by other items;
Do not put the product in the environment with too high/ low temperature or too moist;
Do not use it in the thunderstorm weather;
Keep away from chemicals;
Do not dismantle, repair or produce it without approval.
II. Configuration List
1. The SSP-Z100 2. Quick Guide 3. USB cable
III. Appearance

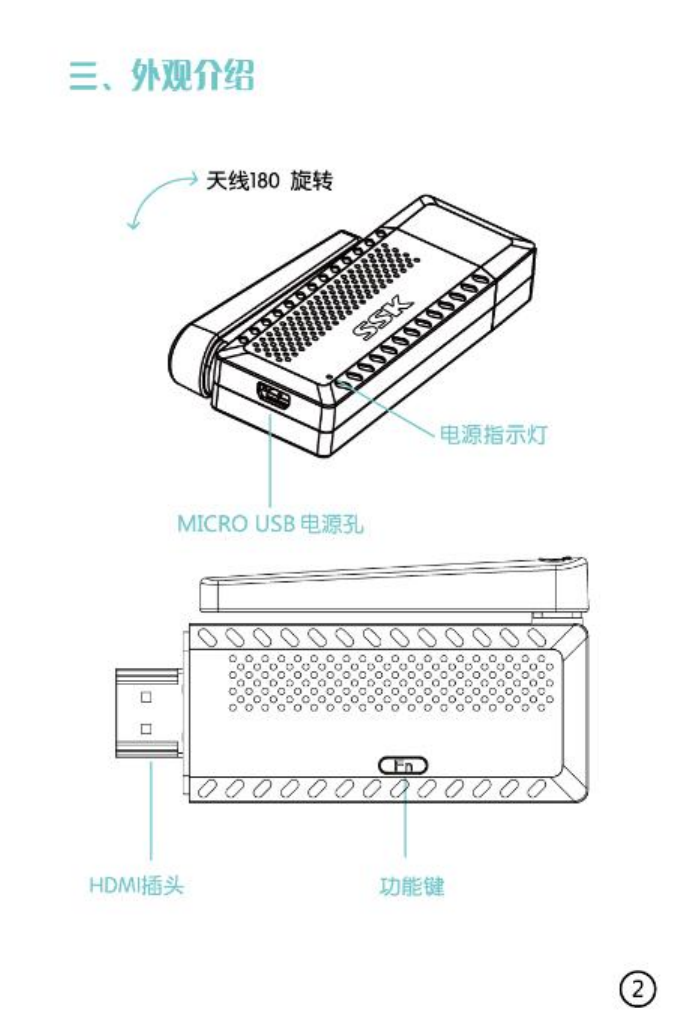

180°rotating antenna
LED indicator
Micro USB port
HDMI plug
Fn (mode switch button)
电源：power
IV. Setting

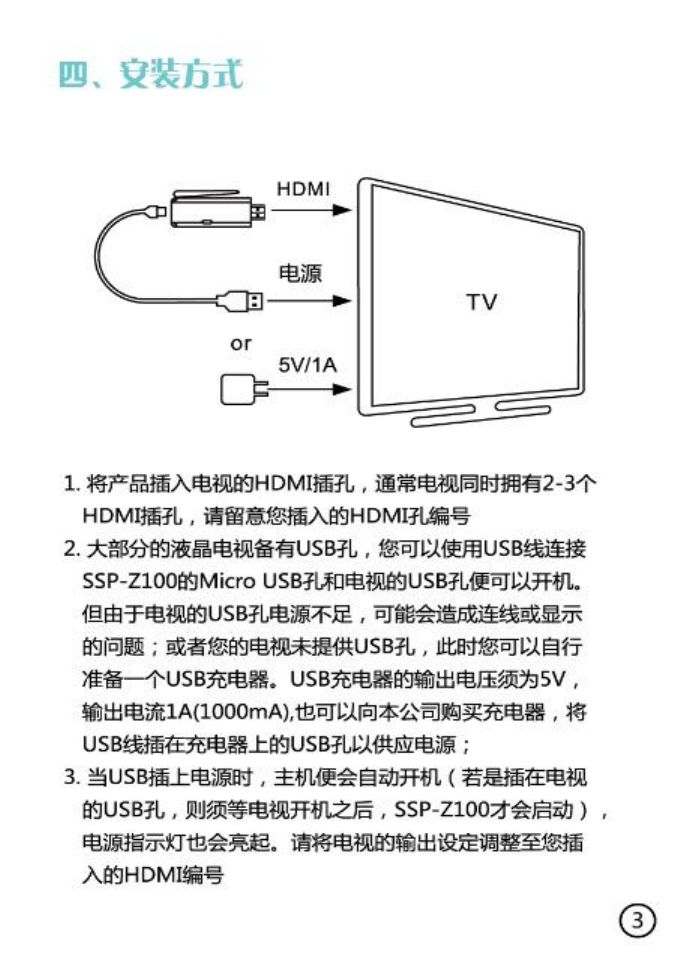

1. Plug the product into HDMI port of the TV, and please pay attention to the HDMI number
whereas there usually are 2-3 HDMI ports on a TV set.
2. Most LCD TVs have USB port(s), the product can be started up by connect the micro USB port
of SSP-Z100 with the USB port by USB cable. If there were not enough USB ports, you can
power on the product by a USB adapter. The output voltage should be 5V, output current
should be 1A (1000Ma). And you can also buy the USB adapter from our company for
charging.
3. The product will start up automatically when connect it with the power adapter (if it is
connected with TV, it will not start up till the TV turns on), and the LED indicator will light on
at the same time. Then adjust your TV output setting to the HDMI number which you
plugged into.
V. Mode Introduction

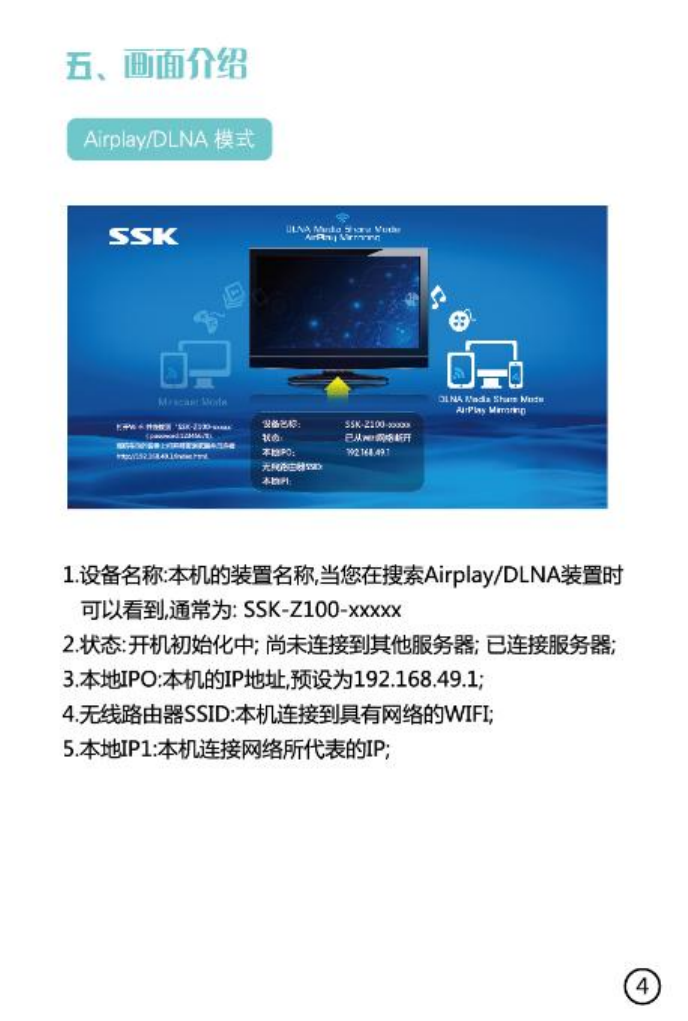

Airplay/DLAN mode
1. Item name: SSK-Z100-XXXXX can be seen when you search for Airplay/DLNA products;
2. Status: Boot initialization, unattached to other server, connected to the server;
3. Local IPO: Local IP address of the item, presetting: 192.168.49.1;
4. Wireless route SSID: the product connects to WiFi with network;
5. Local IP1: The IP which the product connected with.
Miracast mode：
1. Item name: SSK-Z100-XXXXX can be seen when you search for Miracast products;
2. Status: Waiting for connection, connecting, assigning IP, initializing display, ready to
display;
3. Name of RemDev: Display the device you use, such as Android will be: Android_xxxxxx;
4. MAC of RemDev: Display the MAC address of the device you use;
5. IP of RemDev:The IP address assigned to the device you use.
VI. Miracast Working Mode
OS and supported devices:
1) Mobile phones and tablet PCs with Android system (Android 4.4 or above)
2) Computers with Windows (Windows 8.1 or above)
Let’s take the Android system as an example. Firstly, you need to have a mobile phone or
tablet PC with wireless display function. The product supports wireless display technology
which is compatible with Miracast, please find the setting supports of your phone or tablet to
learn if your device has wireless display function compatible with Miracast. After start-up,
please make sure the connecting mode is Miracast mode, if it is Airplay/DLAN mode, press
the Fn button to change it to the Miracast mode. Then open the wireless display function of
your device to connect. Different mobile phones or devices have different opening ways of
the wireless display function, so please set according to the settings of your devices.

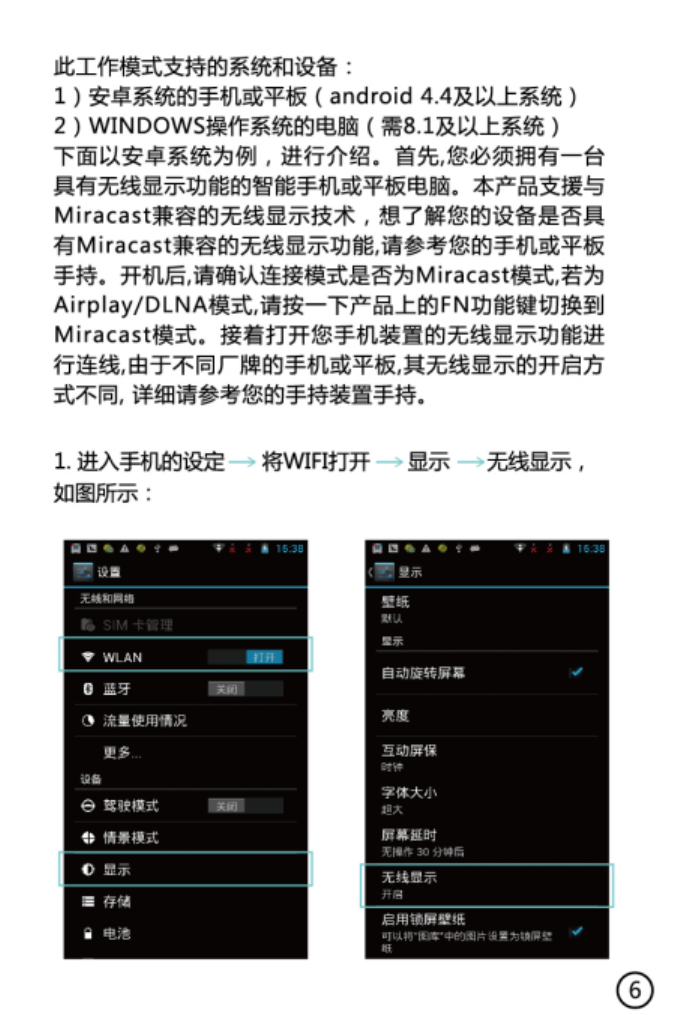

1. Open the setting of your deviceTurn on WiFiDisplayWireless Display (as the pic
shows)

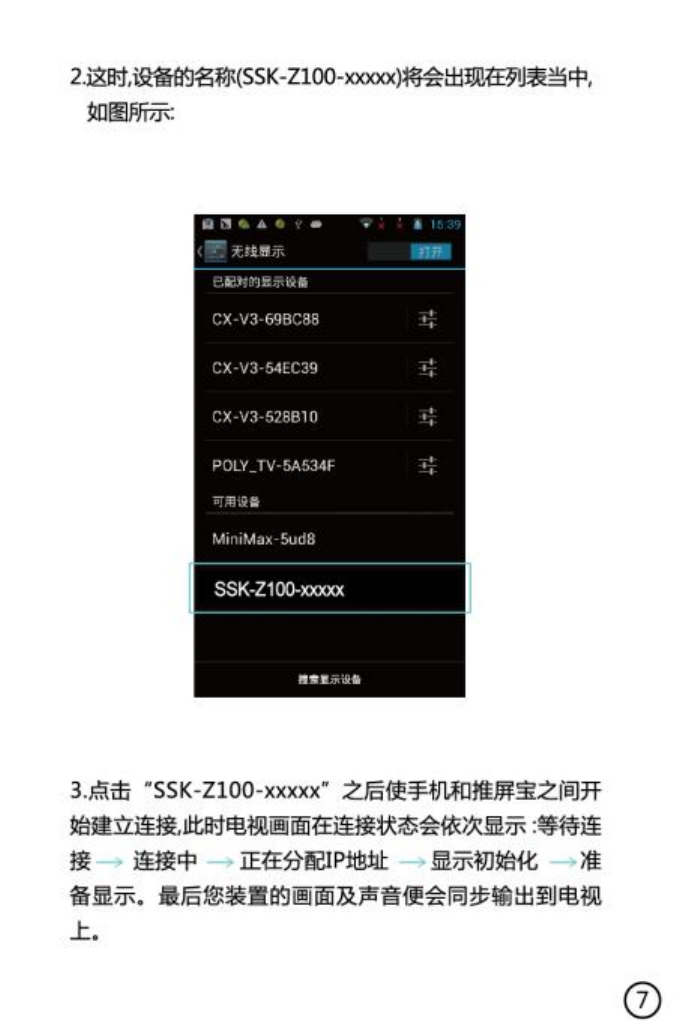

2. Then the name of device(SSK-Z100-xxxxx) will be on the list ( as the following shows)
3. Click “SSK-Z100-XXXXX” to connect your device and the product, then the display of the
TV will be successively: Waiting for connectionConnectingIP distributingDisplay
initializingready to display. Then the images and voices will be transmitted to the TV at
the same time.
VII. Airplay/DLNA Working Mode
OS and devices Airplay working mode support:
1) Mobile phones and tablet PCs with IOS (IOS 7.0 or above)
2) Computers with MAC OS
Let’s take iPhone as an example.
Turn on the WiFi of your iPhone, searching for and setting the device to connect to
“SSK-Z100-xxxxx” (the default password is 12345678)
Press HOME button, go back to the main page, scan down-up menu to use Airplay function, open
image Mirror.
DLAN mode can stream the multi-media files of your device though TV --- non-mirrored or
synchronized, and the files can only be played on TV. First, there should be an equipment with
DLAN function, which most Android phones, Tablets have, and also you can choose Third-party
software which has DLNA function, such as, iMediaSharePersond, which can be found in Play
market or AppStore. Different DLNA software supports different video format, which decided by
their property. Please refer the settings of your phones, tablets or the third-party software to
learn more about DLNA function of your devices. And this mode support Airplay streaming play,
too (Please visit Apple website to know more about it).
VIII. Detailed Introduction
How to connect to external network
When you use DLNA, you might find that WiFi cannot access to internet after connecting to
SSP-Z100, and only multi-media files in the devices can be played. The reason for this is that the
product SSP-Z100 does not connect to external network.
On SSP-Z100
The way to connect to external network:
1. Connect WiFi of your device with that of SSP-Z100, item name: SSK-Z100-xxxxx,
password:12345678;
2. Open the setting page of the explorer of your device by entering 192.168.49.1;
3. Click icon to search for available WiFi (If there is no response or the page cannot be
found, please refresh the browser);
4. Click the WiFi you want to link and press connect key;
5. After connecting with the WiFi, which is displaying on browser, and the TV will show the
connecting information at the same time;
6. Then, after connecting with SSP-Z100, your device can access to external network though
SSP-Z100, and you can visit online website and operate DLNA function.

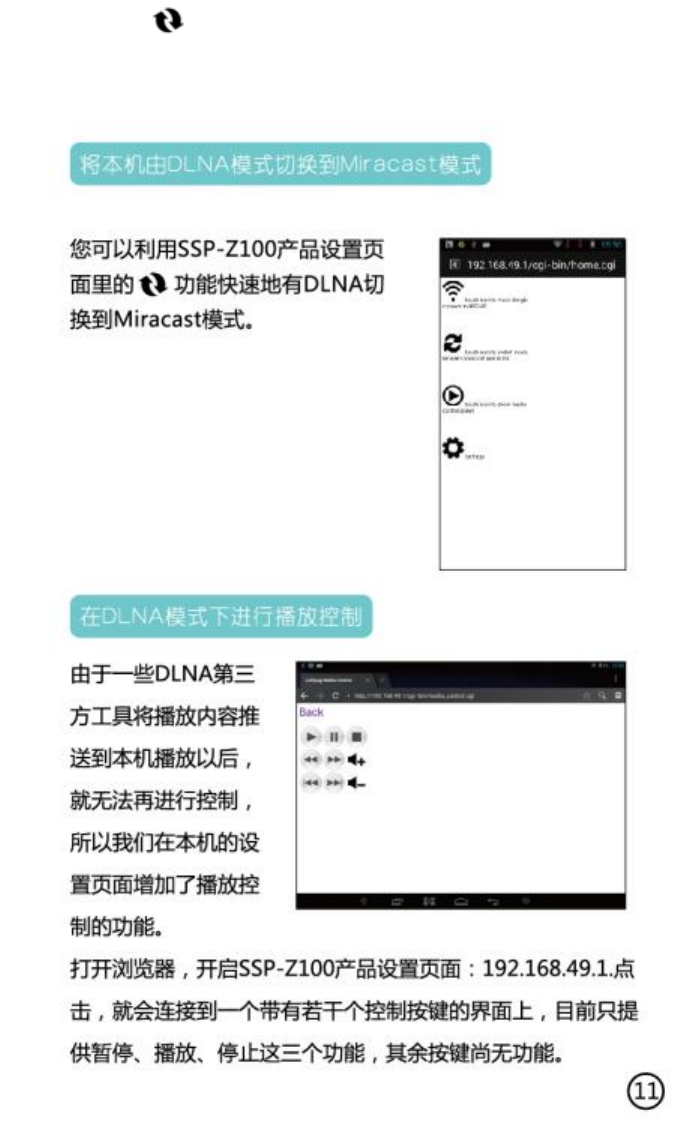

How to switch DLNA mode to Miracast mode
Click the icon on the setting page of SSP-Z100 to quickly switch DLNA mode to Miracast
mode.
How to play control in DLNA mode
Play control function is added on the setting page of the device, because videos transmitted from
some ALNA third party software might lose play control function after being played by SSP-Z100.
Fire up the browser, open the setting page of SSP-Z100: 192.168.49.1, and click, then it will be
linked to the interface with many control play icons, and only icons of pause, play, stop work,
others donot at present.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment shall be installed and operated with minimum distance 20cm
between the radiator & body.
