1. Introduction
The 2WMMR is a plug and play multi channel/frequency RF Transceiver unit operates at
450-470MHz ISM band.
The 2WMMR unit is designated to transceiver/collect wireless transmissions of water
meter.
The 2WMMR includes module Bluetooth FCC ID S7APARANIESD1XXV2 or module
WI-FI FCC ID MCQ-50M880
The 2WMMR includes the following on board interfaces which are used to send the
collected data:
TCP/IP stack and 10/100 BASE-T Ethernet connection
USB
RS232
Telematics Witreless Proprietary
2WMMR User V1 October 27, 2013
Page 5 of 10
2. About 2WMMR
2.1.

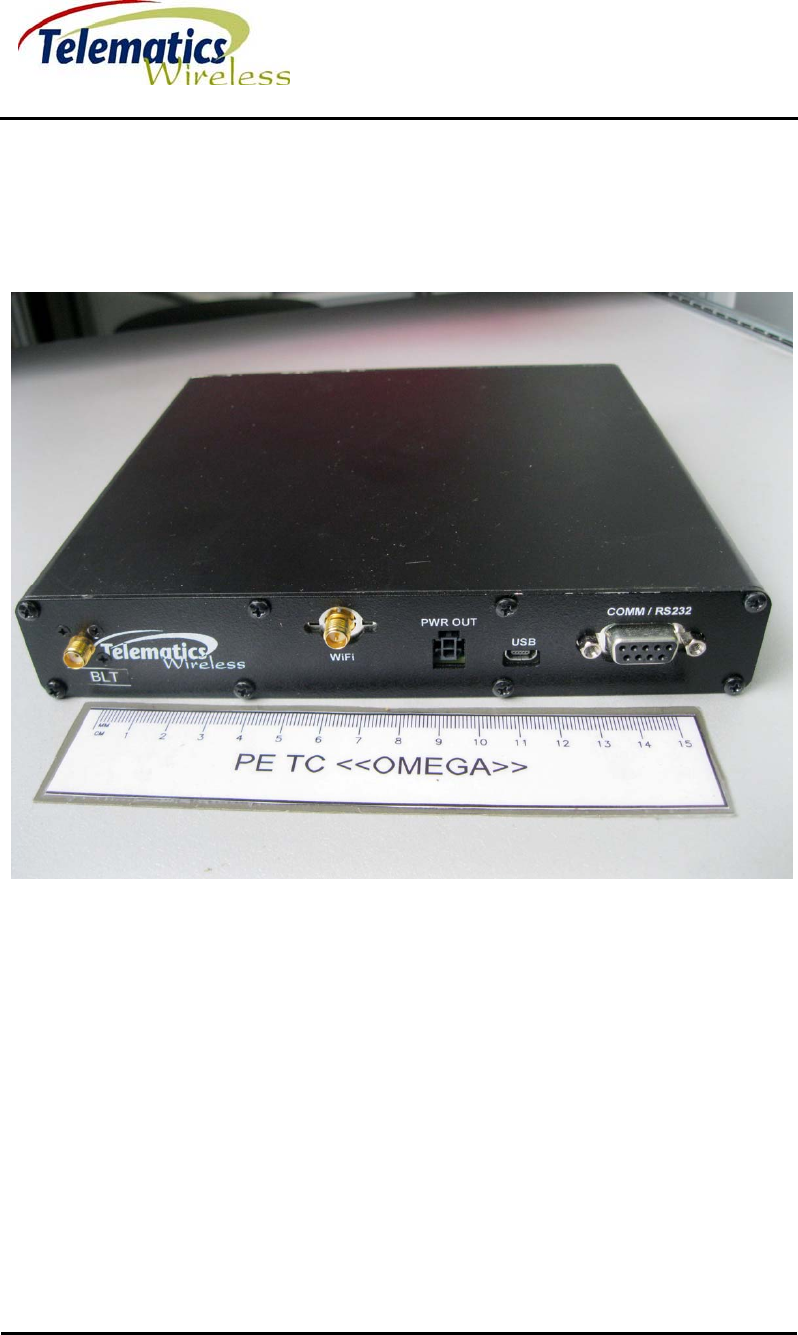

Pront Panel
Telematics Witreless Proprietary
2WMMR User V1 October 27, 2013
Page 6 of 10
2.2.

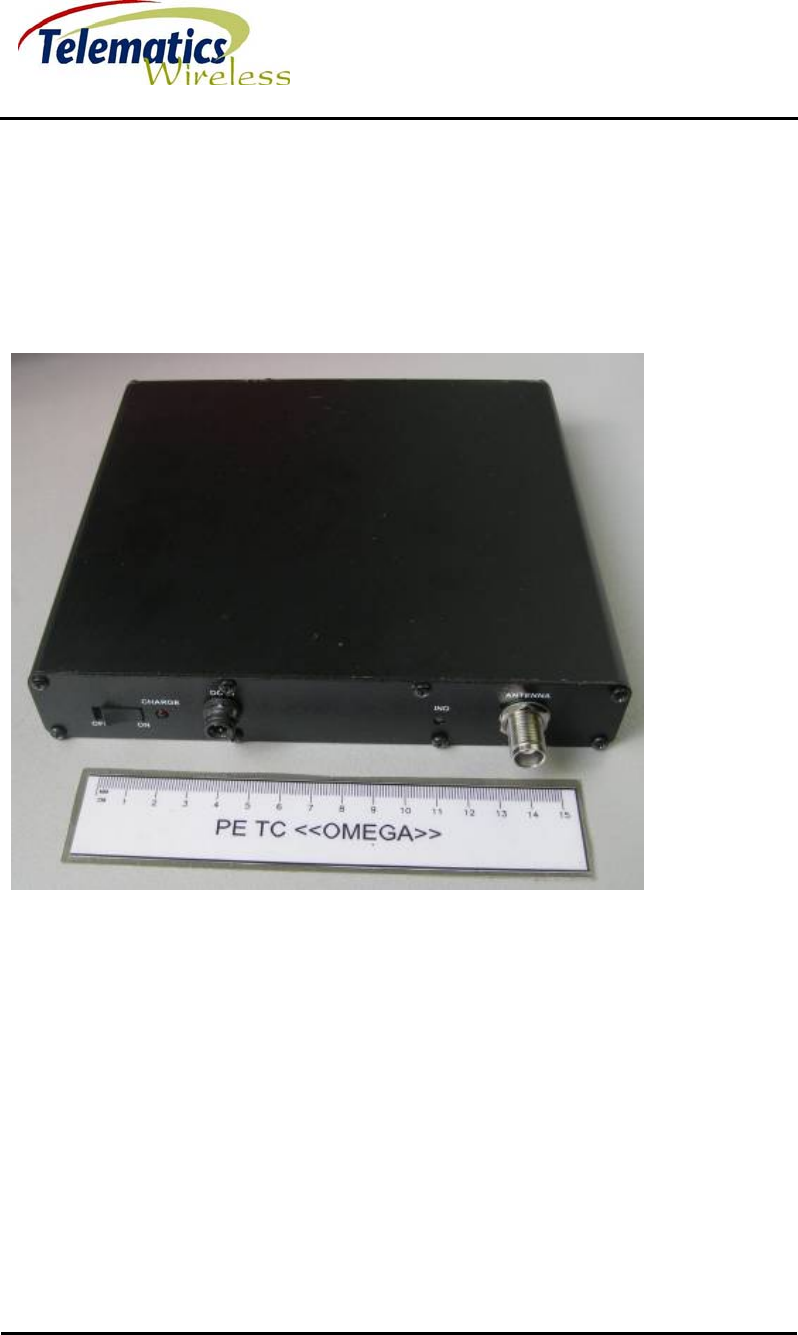

Rear Panel
Telematics Witreless Proprietary
2WMMR User V1 October 27, 2013
Page 7 of 10
Telematics Witreless Proprietary
2WMMR User V1 October 27, 2013
Page 8 of 10
2.3.

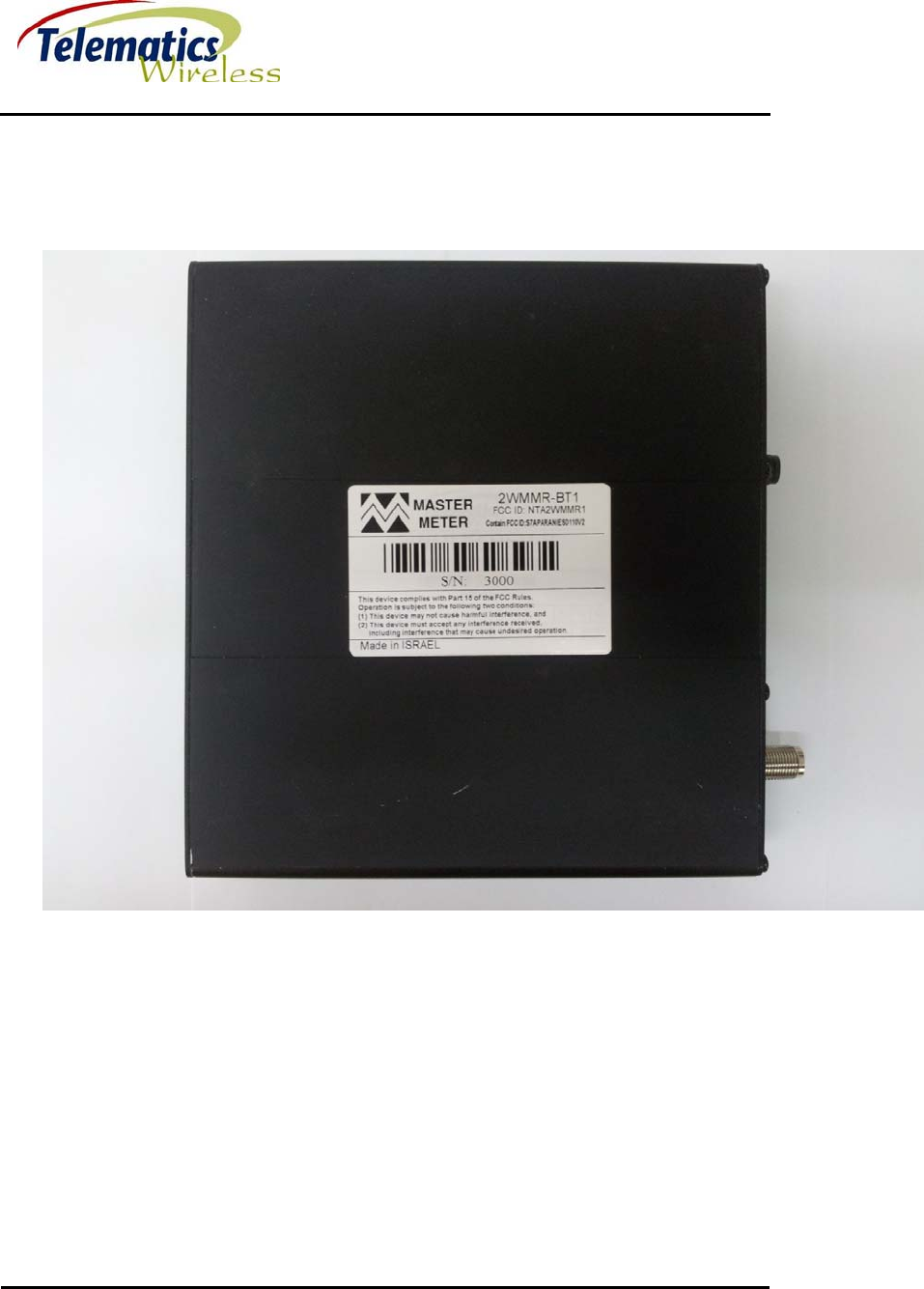

FCC Label
Telematics Witreless Proprietary
2WMMR User V1 October 27, 2013
Page 9 of 10
2.4 RF Electrical Specification
Table 2.4.1 Parameters of the Receiver
Parameter Value
Receive frequency Programmable 450-470 MHz
Sensitivity (BER 1E-3) -123 dBm (for 4.8 kbps)
Modulation 4GFSK
Frequency deviation 1.2 kHz
Bit rate 4.8 kbps
Coding NRZ/Manchester
Frequency stability (including initial stability,
temperature and aging)
<0.5 ppm
Table 2.4.2 Parameters of the Transmitter
Parameter Value
Transmit Frequency 450-470 MHz
Modulation 4GFSK
Bit rate 4.8 kbps
Chip rate 2.4 kChip/sec
Bandwidth 6.25 kHz
Frequency stability (including initial
stability, temperature and aging)
<0.5 ppm
Peak Output power 35 dBm or 20dBm (programmable)
Harmonics < - 65 dBc
Telematics Witreless Proprietary
2WMMR User V1 October 27, 2013
Page 10 of 10
2.5
Environmental Conditions
Operating Temperature: -20° C to + 85° C
Storage Temperature: -40° C to +85° C
Humidity: Up to 95%
