Wired Booster - LG
Installation
Instructions
FCC ID: NTAWBLG1
IC: 4732A–WBLG1
29-Jun-11
101 REGENCY PARKWA
Y
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
CAUTION
The User and the Installer should be aware that changes and modifications to the
equipment not expressly approved by Master Meter could void warranty and the
user's authority to operate the equipment.
Professionally trained personnel should install the equipment.
The antenna used for this transmitter must be installed to normally provide
minimum separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter
ATTENTION
The digital portion of the transceiver has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1.) Reorient or relocate the receiving antenna.
2.) Increase the separation between the equipment and receiver.
3.) Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4.) Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of FCC Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
INTRODUCTION
The 2WB-LG end unit for water meters provides two-way communication capabilities over the
Landis & Gyr Gridstream TM RF Network.
The 2WB-LG is battery operated unit in the unlicensed 902-928MHz band. The unit complies with
Part 15 of the FCC rules
Following are the main features of the 2WB-LG unit:
Periodically transmission of the water meter readings (1-4 times per day)
On request reads for last-time meter reads
Alarm report & data logging
Remote, over-the-air firmware upgrades
Remote unit configurations
Confirmation of network connectivity
The 2WB-LG may be connected to the following meters (but not limited to):
Segentia TM
Invensys TM
Hersey 5/8" TM
ABB TM
Neptune ARB_V TM
Neptune ARB -2 TM
Sensus TM
Schlumberger ARB_V TM
3G LCD (Arad technologies) TM
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
INSTALLATION

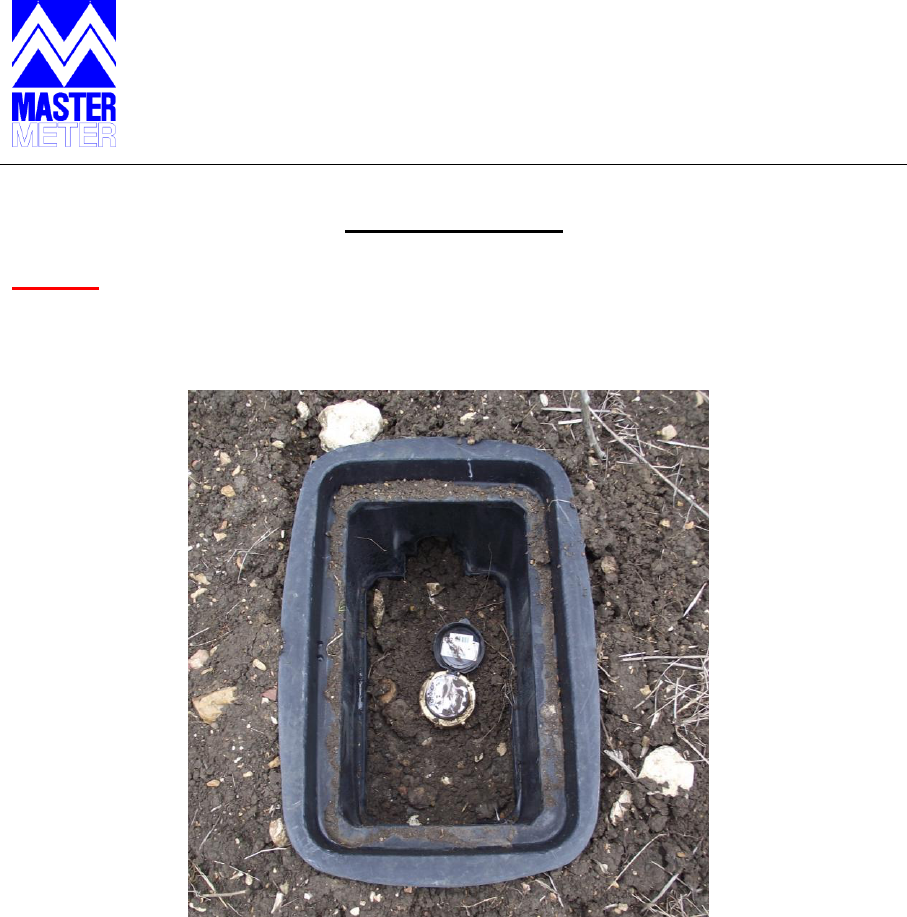

Step #1
Remove the Pit-Set Lid
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100

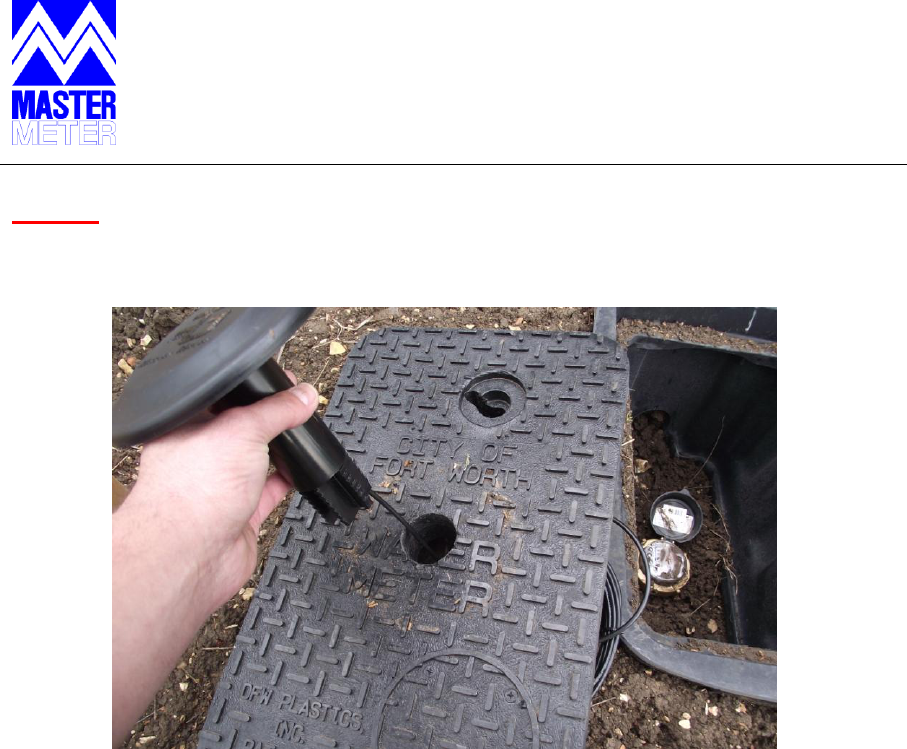

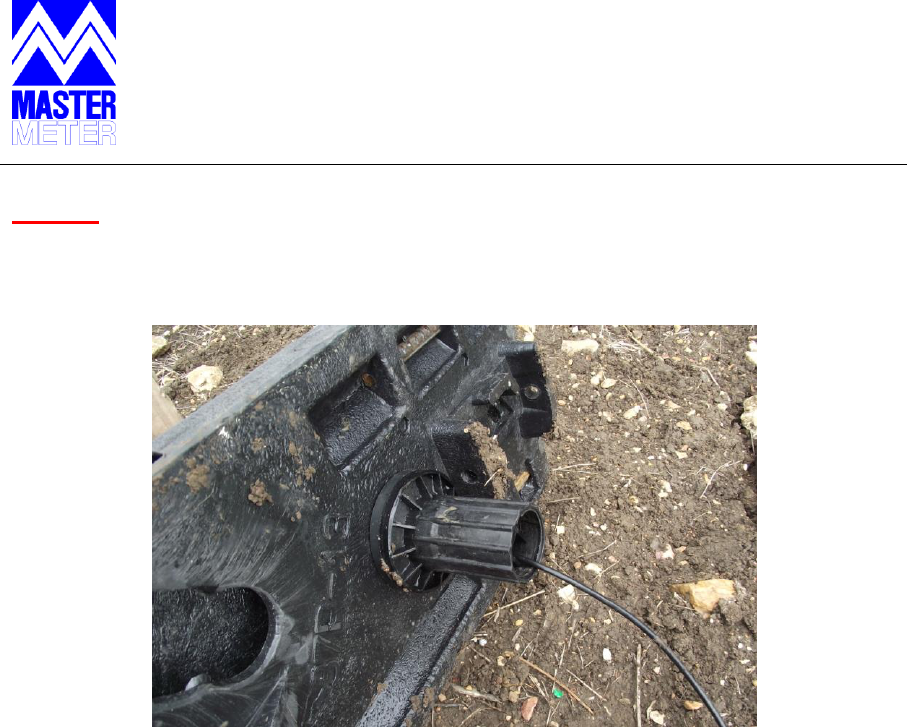

Step #2
Pass the cable through the Lid hole and Install the Booster into the Pit-Set Lid
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100

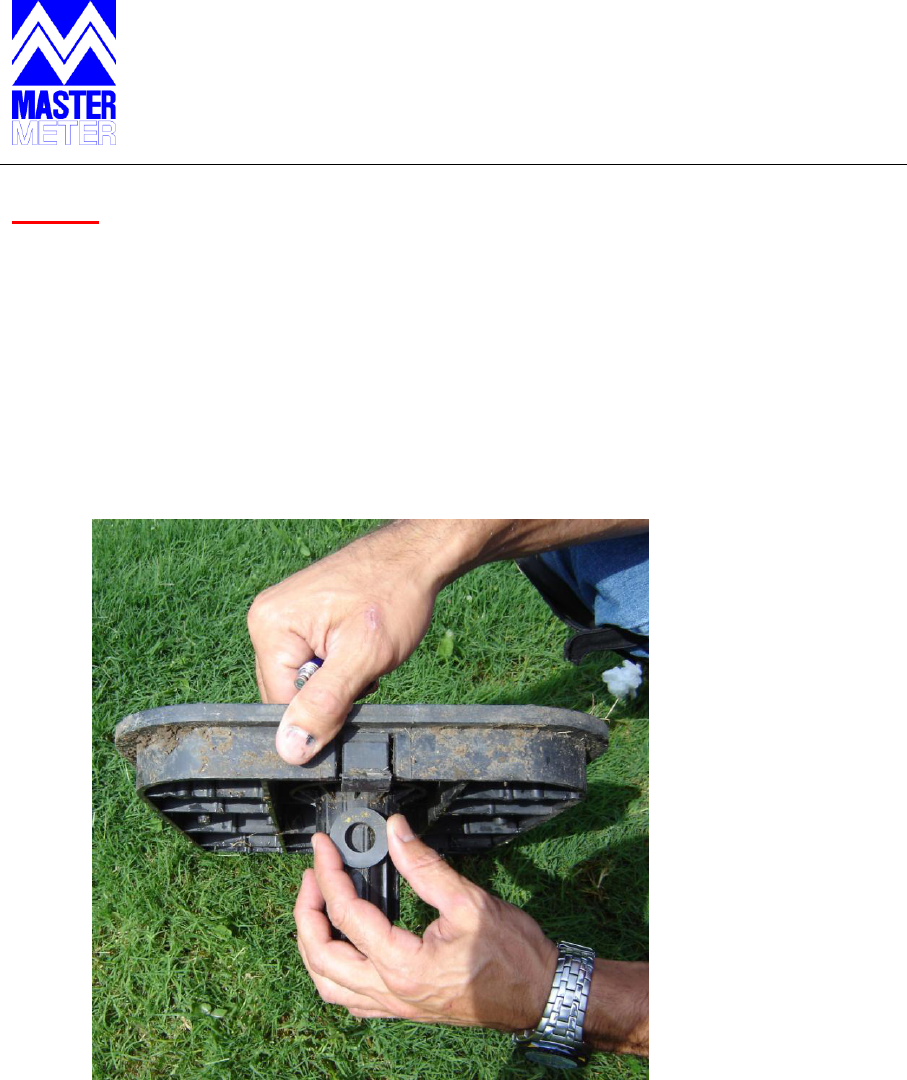

Step #3
Fasten the Booster to the Pit-Set Lid using the fixing tube provided
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100

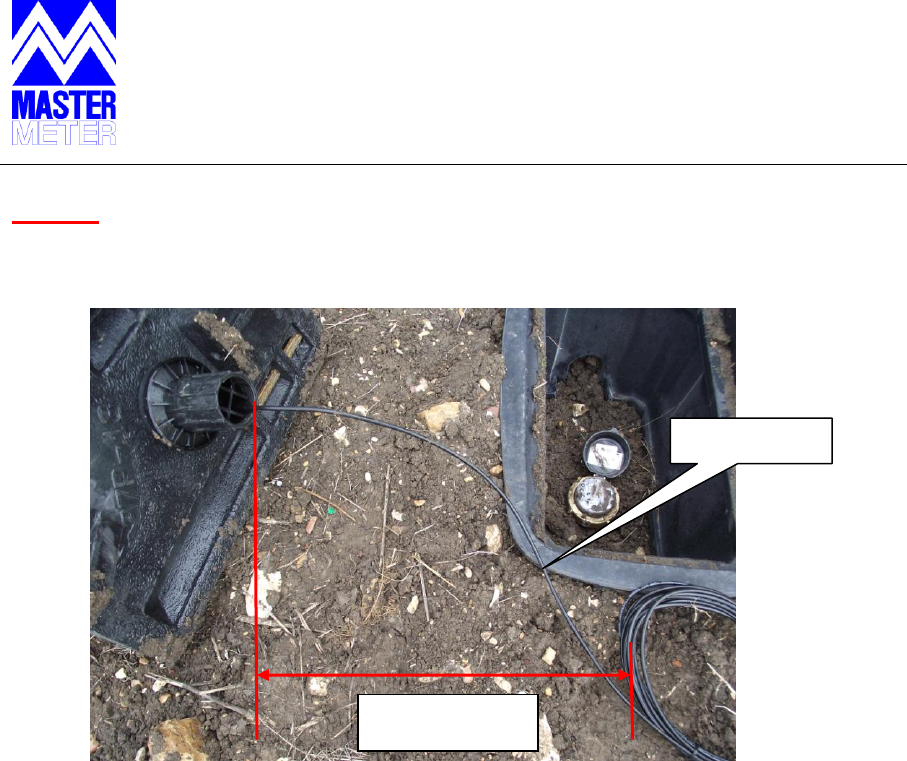

Step #4
Ensure that the cable will be loose for at least half meter from the Booster
0.5 meter
Loose cable
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100

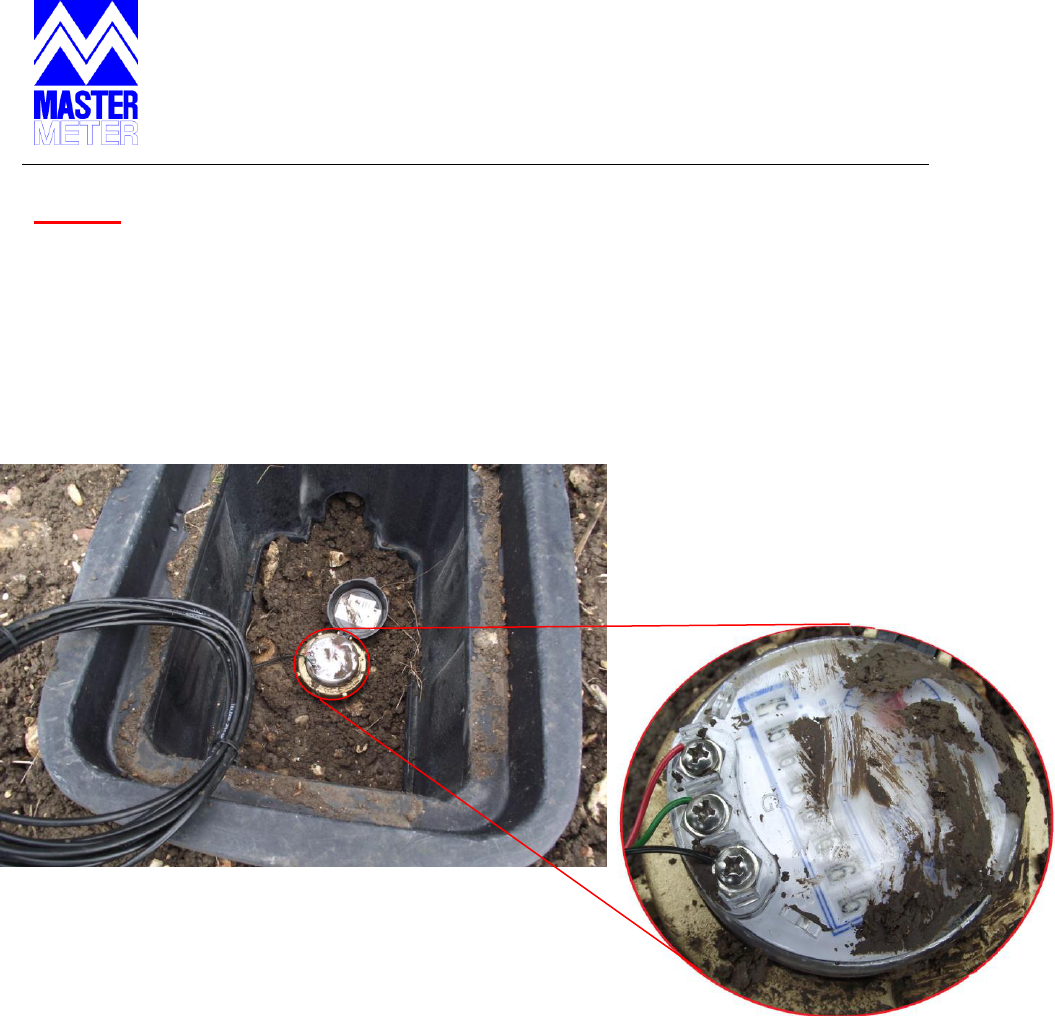

Step #5
Connect the cable to the water unit inside the Pit-Set, pay attention to
connect it right (According to the unit)
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
Step #6
Unit activation:
1. Locate the Booster Unit near the Pit-Set
2. Face the Magnet on the Booster Cone
3. Remove the magnet after 5 seconds
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100

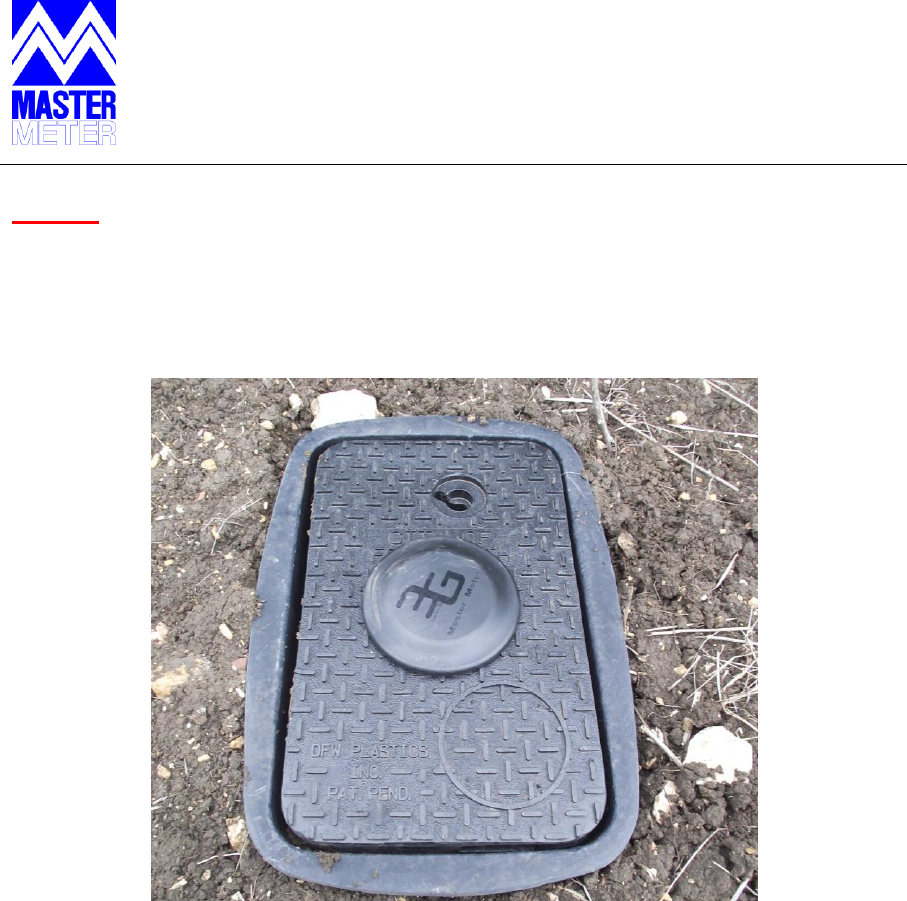

Step #6
Position the assembled Pit-Set Lid with the Booster unit back on the Pit
