Wall Mount
Booster
Installation
Instructions
FCC ID: NTAWMB1
2 January 2012
101 REGENCY PARKWA
Y
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
Introduction
The Wall Mount Booster (WMB) collects via RF channel up to 2 Master Meter Dialog 3G registers
(see list below).
The collected data is transmitted by the WMB towards a Fix Reader by the RF channel using a
Frequency Hopping modulation.
The WMB operates in the unlicensed 902-928 MHz band. The unit complies with Part 15 of the
FCC rules.
The WMB has no external connection and is powered by batteries.
The WMB can collect the following Master Meter registers:
TMW
ETMW (WB Mode)
DTMW DS (WB Mode)
Universal DS (WB Mode)
101 REGENCY PARKWA
Y
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
CAUTION
The User and the Installer should be aware that changes and modifications to the
equipment not expressly approved by Master Meter could void warranty and the
user's authority to operate the equipment.
Professionally trained personnel should install the equipment.
The antenna used for this transmitter must be installed to normally provide
minimum separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter
ATTENTION
The digital portion of the transceiver has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1.) Reorient or relocate the receiving antenna.
2.) Increase the separation between the equipment and receiver.
3.) Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4.) Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: The Wall Mount Booster is designed only for Master Meter meters with
Dialog registers.
101 REGENCY PARKWA
Y
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
Installation
1. Mount the WMB back side on a Wall or a Poll.
2. Install the unit away from a metallic surface (1 cm)

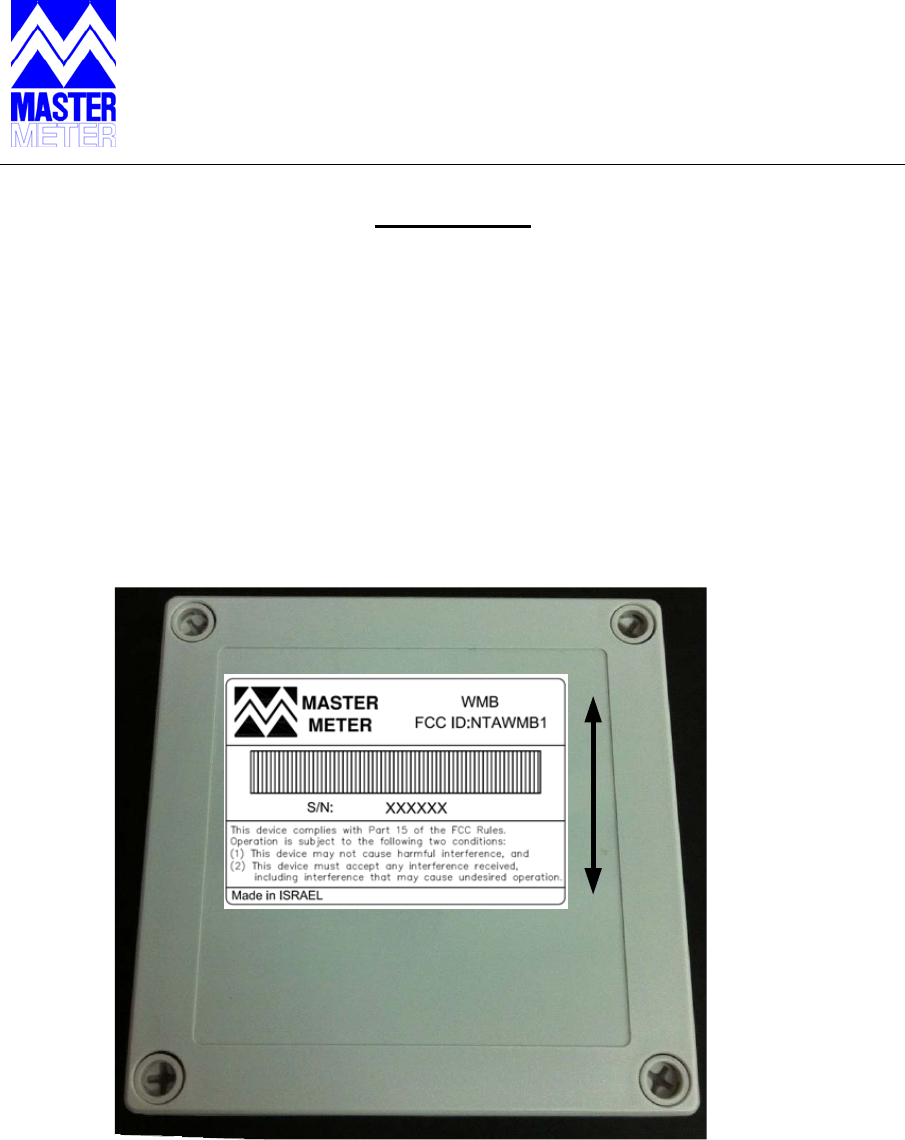

3. The arrow (front side) must point up/down.
4. Activate the unit by Master Meter Hand Held unit
