ST Engineering Telematics Wireless XMETER2 Water Meter Transceiver User Manual Revised 110402

Telematics Wireless Ltd. Water Meter Transceiver Users Manual Revised 110402

Contents

Users Manual Revised 110402

Draft
User Manual
TMW-H
Note:
The digital portion of the transceiver has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, ma
y
cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
C
onnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Draft
Installation
Following information will be included in the User Manual
- The user and the installer should be aware that changes and modifications not
expressly approved by Tadiran Telematics could void the user’s authority to
operate the equipment.

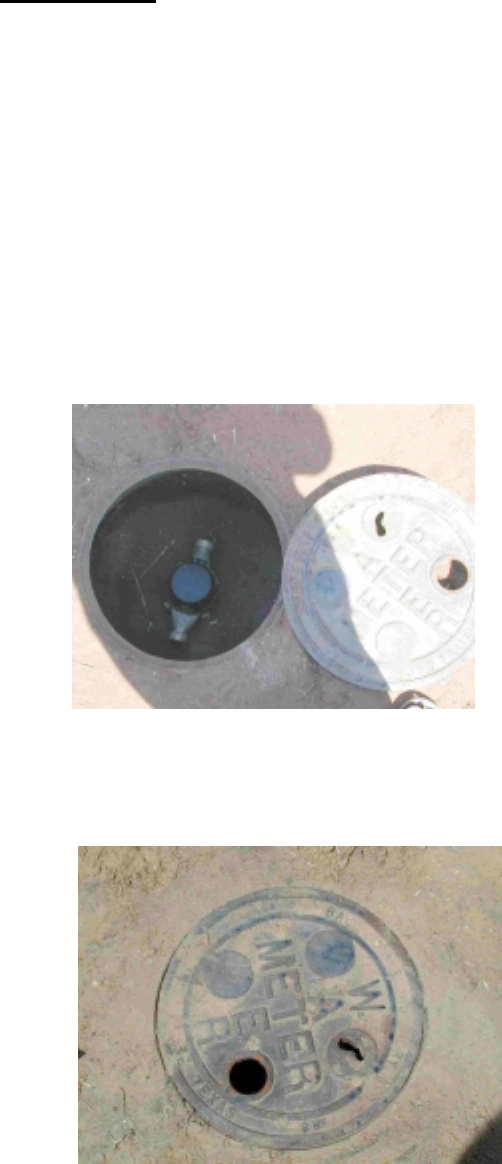

- This equipment shall be installed by professional personnel. The equipment
shall only be installed at the bottom of the water meter pit having metal
enclosure with metal cover, as described in the following pictures:
-
The unit is installed as shown in the center of the bottom of the pit.
The metal pit must be completely buried in the ground with its cover at ground
level as shown above.
