ST Engineering Telematics Wireless XMETER3 Water Meter Transceiver User Manual NTAXMETER3 rev4 1

Telematics Wireless Ltd. Water Meter Transceiver NTAXMETER3 rev4 1

Contents

Updated Installation Manual

Draft
User Manual
TMW-40D
TMW-40D FCC ID: NTAXMETER3
Manufacturer: Tadiran-Telematics Ltd.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Note:
The digital portion of the transceive
r has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particul
ar installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Draft
Installation
Following information will be included in the User Manual
- The user and the installer should be aware that changes and modifications not
expressly approved by Tadiran Telematics could void the user’s authority to
operate the equipment.

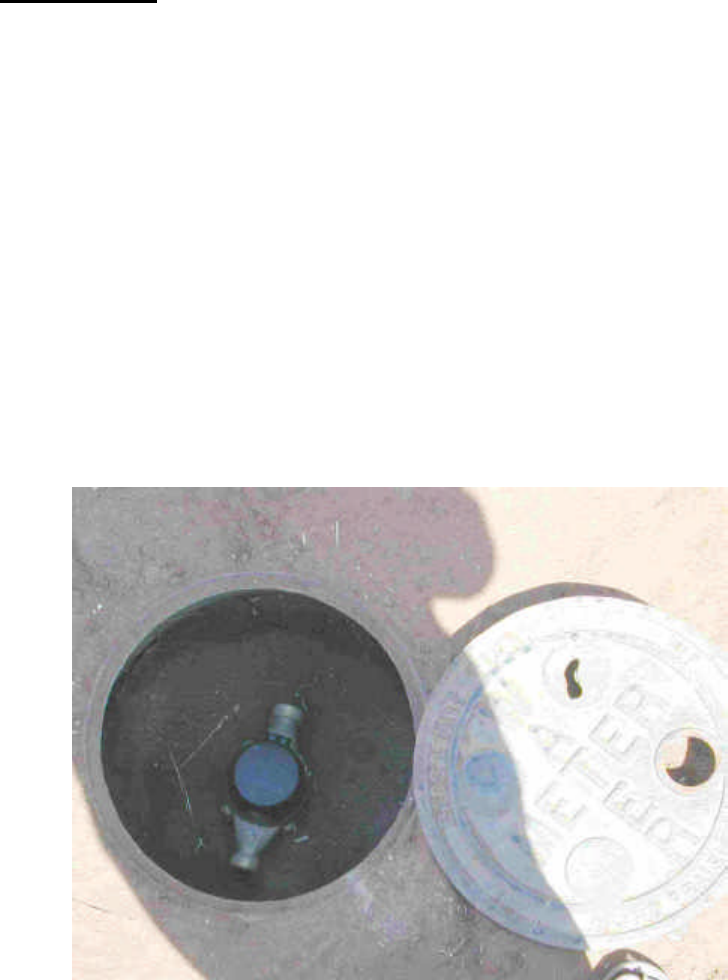

- This equipment shall be installed by professional personnel. The equipment
shall be installed at the bottom of the water meter pit as described in the
following picture:
-
The unit is installed as shown in the center of the bottom of the pit.
Draft

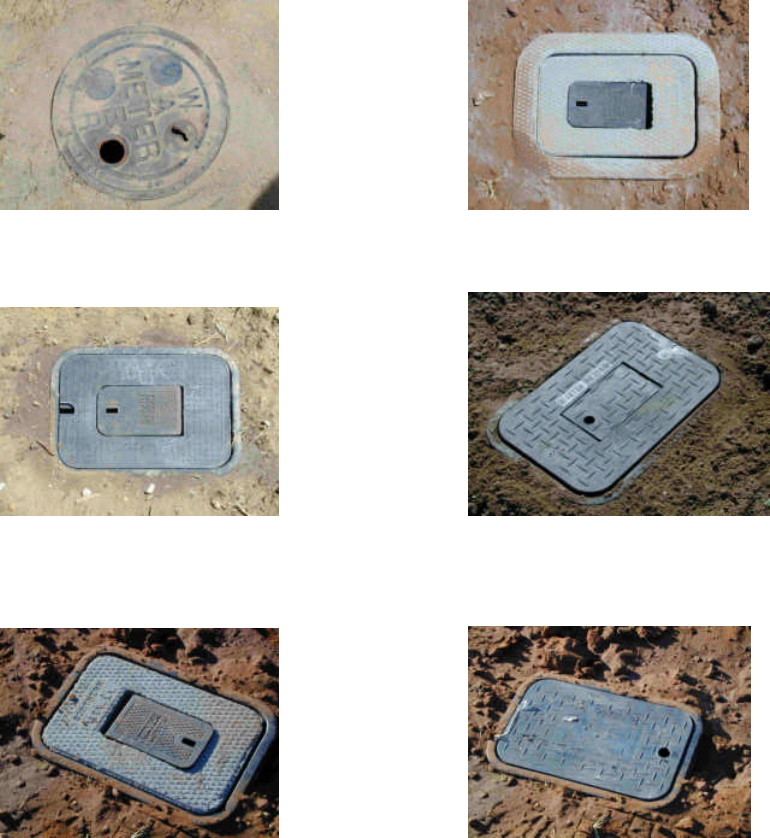

- There are 3 types of the pits: metal, concrete and plastic. The covers of the pits
are made of metal, concrete or plastic and may or may not include small
rectangular lid at the center of the cover. The lids can be either metal or
plastic. Possible configurations of the pits and its covers are shown on the
following pictures:
Metal Pit Concrete Pit w. concrete cover
and metal lid
Plastic Pit w. plastic cover Plastic Pit w. plastic cover and
and metal lid plastic lid
Plastic Pit w. concrete cover Plastic Pit w. plastic cover and
and metal lid no lid
Draft

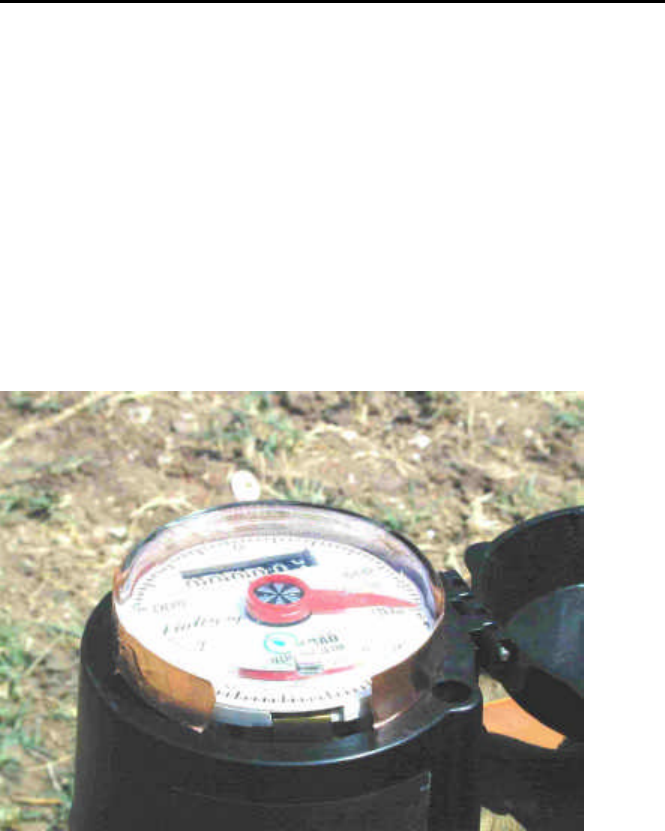

Special instructions for installation in the concrete or plastic pits.
When installing the equipment in the pit made of plastic or concrete, regardless of the
type of the cover, a special adhesive sticker shall be attached to the meter as described
in the drawings (see attached picture).
The sticker is copper foil sticker (e.g. type 3M 1181, PPI 9115 or compatible),
intended for permanent adhesion. Stickers used for the product are produced with
special adhesive and are designed to withstand the installation conditions during the
lifetime of the product.
Only stickers, supplied as a part of the installation kit of the meter, shall be used. Use
of stickers unauthorized by the manufacturer is prohibited.
