1. Introducing the Device
Congratulations on your purchase of this Avoca 7” tablet.
This tablet creates a great experience surfing the web and
provides a wide variety of mobile computing at your fingertips.
Built around the Google Android 4.2 operating system, Avoca
gives you access to thousands of applications to enhance your
mobile experience. With integrated wireless access and a highly
responsive touchscreen, you can read books and newspapers on
the go; access the latest news, sports, and weather; manage your
multimedia and business files; browse the web, and lots more.
info@avocasupport.com2 www.avocasupport.com
2. Introducing the Device
This user manual contains important safety instructions
and information for proper use of the device. Please follow the
instructions in this manual carefully.
Avoid using this product in the following environments:
high and low temperatures, humid environments, dusty
environments, areas with strong magnetic fields and
prevent long-term exposure to the sun. In particular
please avoid leaving the device in the car during summer
if the doors are closed. Please don’t be in high
temperature, especially in summer don't put the device in
the car when Windows are closed.
Avoid shocks and do not let the device fall, as otherwise
it may cause damage to the device.
To clean the product, gently wipe the product using a
moist cotton cloth; the use of other chemical cleaning is
prohibited unless they are specifically designed for this
purpose. This product should be kept away from water
droplets splashes, so cups filled with liquids should not
be placed near the product. Do not use alcohol, thinners
or petrol to clean the display.
If using the headset for a long time, high volume may
cause permanent damage to hearing.
info@avocasupport.com3 www.avocasupport.com
When using the touch screen the following conditions
must be followed:
9 For optimal use of the touch screen, remove the
screen protection film before using your device.
9 To avoid scratching the touch screen, do not use
sharp tools.
9 Do not allow the touch screen to come into
contact with other electrical devices. Electrostatic
discharges can cause the touch screen to
malfunction.
9 Do not allow the touch screen to come into
contact with water. The touch screen may
malfunction in humid conditions or when
exposed to water.
9 Your touch screen has a layer that detects small
electrical charges emitted by the human body. For
best performance, tap the touch screen with your
fingertip. The touch screen will not react to
touches of sharp tools, such as a stylus or pen
which could damage and mark the screen.
When charging the tablet the following conditions
should be adhered to:
9 Please use only the supplied battery, charger and
accessories, the use of any other type of product
would be a breach of warranty regulations, and
may be dangerous.
9 Do not drop or cause an impact to the charger or
the battery.
9 Do not handle a damaged or leaking Lithium Ion
info@avocasupport.com4 www.avocasupport.com
(Li-Ion) battery. For safe disposal of your Li-Ion
batteries, contact your nearest authorised
recycling centre.
9 Handle and dispose of batteries and chargers with
care. Never dispose of batteries or devices in a
fire. Follow all local regulations when disposing
of used batteries or devices.
9 Never place batteries or devices on or in heating
devices, such as microwave ovens, cookers, or
radiators. Batteries may explode when
overheated.
9 Never crush or puncture the battery. Avoid
exposing the battery to high external pressure,
which can lead to an internal short circuit and
overheating.
9 USB is only for use of transferring of data and
not recharging the device.
9 If you have any questions about the use of this
product, please contact your local dealer or the
customer service center of Avoca.
info@avocasupport.com5 www.avocasupport.com
3. Boxed Contents
1. AVOCA 7 Tablet
2. 5V 2A Power Adapter
3. User Manual
4. USB Cable (for connecting to a PC)
5. USB Adapter Cable (for connecting external USB devices)
6. Warranty Card
4. Hardware Specifications
CPU Rockchip 3168
Operating System Google Android 4.2
Memory 512MB
Storage 8 GB
Display 9'' TFT Touch Panel
(16:9; Resolution 900*480 )
Audio Devices Built-in speaker & microphone
Power
Battery 3000mAh/3.7V
Adapte DC Output 5V/2A
info@avocasupport.com6 www.avocasupport.com
r
G- Sensor Automatic steering display screen
Wi-Fi 802.11 b/g /n supported
Camera 0.3 Mega Pixel ( front )
MicroSD Maximum 32GB supported
I/0 Micro SD card slot, Earphone jack, Reset,
DC in, Mini USB
Multimedia Video RM, RMVB, MKV, FLV, MPG, MP4,
3GP, DAT, MOV, H.264
Audio WMA, WAV, AAC, OGG, APE, FLAC,
AC3
The company reserves the right to improve the product, product
specification and design. The information given is subject to
change without prior notice.
【Remark】All pictures in this manual is just for your
reference only.
info@avocasupport.com7 www.avocasupport.com

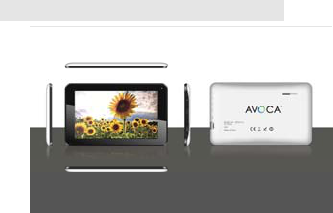

5. Overview
1. Speaker
2. Power Button
3. Headphones
4. Mini USB
5. Power In
6. Volume +/- button
7. Micro SD Slot
8. Reset Button
4
8
1
2
3
5
7
6
info@avocasupport.com8 www.avocasupport.com
5.1 POWER
Startup: Long Press and hold the power button, the
system will enter the main interface.
Shutdown: In the main menu interface, Press the power
button about 5 seconds to shutdown, the system can hint
"power off" option, Click "ok". You can safely shut
down.
Lock screen: Short press Power button to lock screen or
unlock screen.
【Remark】When power is empty, system will shut down
automatically.
5.2 Illegal turn off the device, restart will scan and restore
the disk, it may take longer time to enter into system
5.3 Earphone jack: 3.5 mm standard earphone jack
5.4 TF card: TF-CARD slot: external T-FLASH card
5.5 Mini USB: Mini USB jack: you can use it to connect the
computer for data transmission, and external connection
USB flash drive
5.6 Reset: When the Tablet is under the condition of the crash,
info@avocasupport.com9 www.avocasupport.com
use a small objects to short press RESET button, Tablet
will be forced to shut down.
6. First Use
6.1 Battery management and charge
Before first use, please check the device's battery is fully
charged. If not connect the adaptor and apply power.
The first two occasion’s full charge may take
approximately 6 hours, after that it will reduce to around
4 hours to charge.
【Remark】: This tablet uses a Built-in type polymer battery,
Charge must be via standard adaptor (Input: AC110~240V
50/60Hz Max:180MA. Output: DC5V/2A.
During charging the battery icon will scroll until finished
at this point the battery icon will become green and stop
rolling.
In order to prolong the service life of the machine, it is
suggested the run the battery power completely down
before recharging the device.
【Remark】: 1. If the tablet is not used for a long period of time,
info@avocasupport.com10 www.avocasupport.com
to avoid power consumption damage, charge/play the battery
once a month.
6.2. After low battery shut down, connect battery charger,
device will remind low battery and charging. Wait some
time until the battery has enough power to enter into
main menu.
6.3. For optimum charging time the tablet should be in
standby mode. If the tablet is being used during charging,
screen consumption will cause longer charging time.
7. Connection with PC

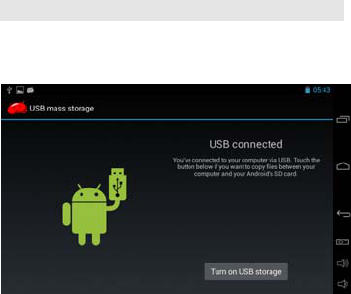

Use USB cable to connect device to PC, device will pop
up the USB connection window, click Turn on USB
storage to connect to PC
info@avocasupport.com11 www.avocasupport.com
Once connected, you can copy, delete the file on the
device and memory card.
8. Equipment Operation Interface
8.1 Main interface description.

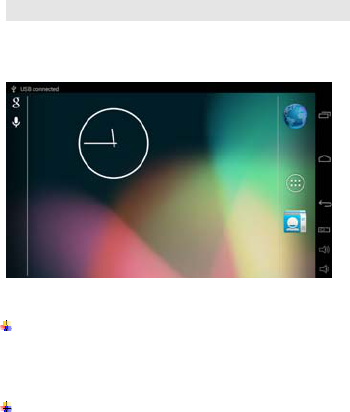

After startup will enter the main interface
In the main interface, you can:
Management of main interface software ICONS:
o Press and hold icons for three seconds,
icon will enlarge and you can then drag
anywhere within the interface.
To delete ICONS:
o Press and hold icons for three seconds,
icon will enlarge, proceed to drag to the
recycle bin icon. Recycle bin icon will
info@avocasupport.com12 www.avocasupport.com
become red, release finger press and icon
will be deleted.
8.2 Using the touch panel
Following the main touch screen area as described,
below are some quick tips when using the touch screen.
No matter which interface you have displayed on the
screen, you can return to main screen by pressing the soft
key on the bottom of the main screen.
In different applications, by tapping the back soft key
on the bottom of touch screen, you can return to
its interface on the up floor.
In different applications, by tapping the menu key
on the bottom of touch screen, the following screen
will appear displaying the settings interface as follows:
info@avocasupport.com13 www.avocasupport.com

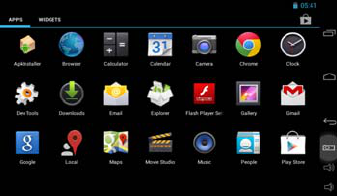

In the main interface, you can touch the icon to open the
applications.
info@avocasupport.com14 www.avocasupport.com
9. Equipment Basic Settings

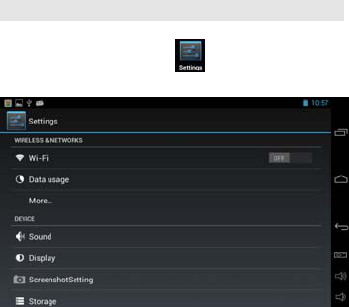

Settings: Click setting icons , enter setting interface
9.1 Wireless Networks.
Wi-Fi is a wireless networking technology that can
provide Internet access at distances of up to 100 meters,
depending on the Wi-Fi router and your surroundings.
To use Wi-Fi, you need to connect to a wireless access
point, or "hotspot." Some hotspots are open and you can
simply connect to them. Others implement security
features that require a password to be entered in order to
ensure that only authorized users can connect.
info@avocasupport.com15 www.avocasupport.com
To enable Wi-Fi, slide the Wi-Fi switch to
the right of Wi-Fi to the On position.
Once Wi-Fi has been turned on, the
Touchpad will automatically scan for
available Wi-Fi networks and display the
names of those it finds. Secured networks
are indicated with a Lock icon. If the
Touchpad finds a network that you
connected to previously, it will automatically
connect to it.
Find the right network and select it by
touching the entry. If the network is secured,
you are prompted to enter a password. Make
sure you enter the correct password,
otherwise the tablet will not be able to
connect to the network.
info@avocasupport.com16 www.avocasupport.com

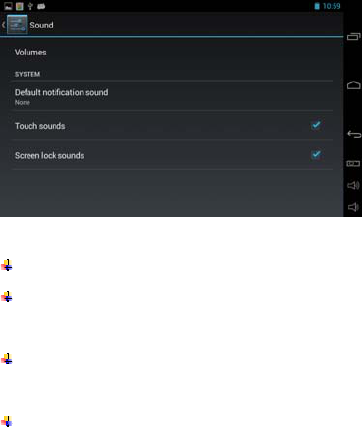

9.2 Sound
Allows access to all sound settings available within the
tablet:
Volume: configure the default volume settings
Silent Mode: allows you to Mute the tablet.
Default: Allows a different sound for notifications
to be selected
Touch Sounds: allows you to turn the sound caused
by touching the screen off.
Screen lock: allows you to turn the sound caused by
unlocking the screen off.
info@avocasupport.com17 www.avocasupport.com

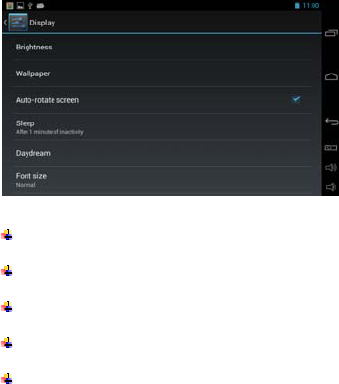

9.3 Display
This option allows access to all the display settings
available within the Tablet.
Brightness. Allows you to configure the default
brightness of the screen.
Wallpaper. Select different desktop wallpaper
from Gallery, Live Wallpapers or Wallpaper.
Auto Rotate Screen. Enable or disable automatic
screen rotation when the tablet is rotated.
Sleep. Set the time period before the tablet enters
sleep mode from never to 30 minutes.
Font size. Set the time period before the tablet
enters sleep mode from never to 30 minutes.
info@avocasupport.com18 www.avocasupport.com
9.4 Battery
The Battery option shows the current charge of the
battery, how the battery has been used over the period of
time shown and whether the Touchpad is currently
charging.
info@avocasupport.com19 www.avocasupport.com
9.5 Applications
The Apps option allows you to see information about the
applications that are installed on the tablet.
Downloaded Shows all Apps which have been
downloaded and installed.
ON SD CARD Shows all Apps which have been
installed on any mounted micro SD card.
RUNNING Shows all Apps which are currently
running.
ALL Shows all Apps including system Apps
which are part of the Operating System.
To uninstall an App, select the application from the list
by touching it, and then select Uninstall.
info@avocasupport.com20 www.avocasupport.com
【Remark】You can only uninstall Apps which have been
installed on the Touchpad during use. Any Apps that were
pre-installed on the system from manufacture are not able to be
uninstalled.
9.5 Language and Input.
The Language & input option allows you to select
between different languages, also you can change the
keyboard to different language and configure Voice
Search and Text-to-speech output.
info@avocasupport.com21 www.avocasupport.com
9.6 Backup & Reset
The Backup & reset option allows you to backup
settings and other data associated with one or more of
your Google Accounts. So that if you need to replace or
factory reset your device, you can restore your data for
any accounts that were previously backed up. It also
allows you to enable a factory reset which will
completely wipe all data stored on the tablet and set it
back to the state it was when it left the factory.
9.7 Date & Time
The Date & time option allows you to configure the date
and time settings for your tablet.
info@avocasupport.com22 www.avocasupport.com
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
info@avocasupport.com23 www.avocasupport.com
NOTE: This equipment has been tested and found to comply
with the limits for aClass B digital device, pursuant to Part 15
of the FCC Rules.
These limits aredesigned to provide reasonable protection
Against harmful interference in aresidential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with theinstructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception,which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
info@avocasupport.com24 www.avocasupport.com
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
