RS1-G5, RS3-G5, RS4-G5
RS7-G5 (2-Way Paging System)
REMOTE START SYSTEM
OPERATING INSTRUCTIONS
CONGRATULATIONS on your choice of a Cool Start™ Remote Engine Starter and Keyless Entry with DP
Technology by Crimestopper Security Products Inc. This booklet contains the information necessary for operating
your system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc.
The RS1-G5, RS3-G5 & RS4-G5 system comes with (2) 1-way AM remotes
The RS7-G5 FM system comes with a 2-Way LCD Pager and a 1-Way FM remote.
OPTIONAL Features are to be connected only if desired or agreed upon by the customer and the installing dealer
i.e. Door Locks, Trunk Pop, Dome Light Illumination, Horn-Honk, Anti-Grind, etc. These features may also require
additional parts and/or labor fees. Consult with your installer beforehand to be sure of what is going to be installed
with your particular system. This device complies with FCC Rules part 15. Operation is
subject to the following two conditions: 1) This device may not
cause interference, and (2) this device must accept any
interference that may be received, including interference that
may cause undesired operation. The manufacturer is not
responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
REV 7.13.15
![](/img.php?id=2790779&img=bg2.png)
2
TABLE OF CONTENTS
Operation Cautions & Warnings…….……………..….………………………………….…………….….…………2
Using the Remote Control (1, 4 and 5 button)….……………….……………………….………....………….....3-4
Using the 2-Way Pager……………………………………………….……………………….………....…………...5-6
Setting the Clock and Beep or Vibrate Selection…………………………………………………….……….….6-7
Status LED………………………………………………………………………………………………..……….….……8
Remote Engine Control…………….…..……………………………………………………………….…….…..…8-11
Turbo Timer Mode……………………………….……………………………………...……………….…………..….12
Manual Transmission Mode……………………………….……………………………………...…………………..13
Convenience and Safety Features……………………………….………………………………….…...……....14-15
Transmitter Programming….…………….…………………………………………….……………….…………16-17
2 Vehicle Operation.…………………………………….………………...…………………………………….………18
No Factory Keyless Entry after Remote Start…………..………………………………………………………….19
Remote Start Diagnostics……………………………………………………………………………………………..19
2-Way Data Port and Smart Phone Data Port………………………………………………………………………20

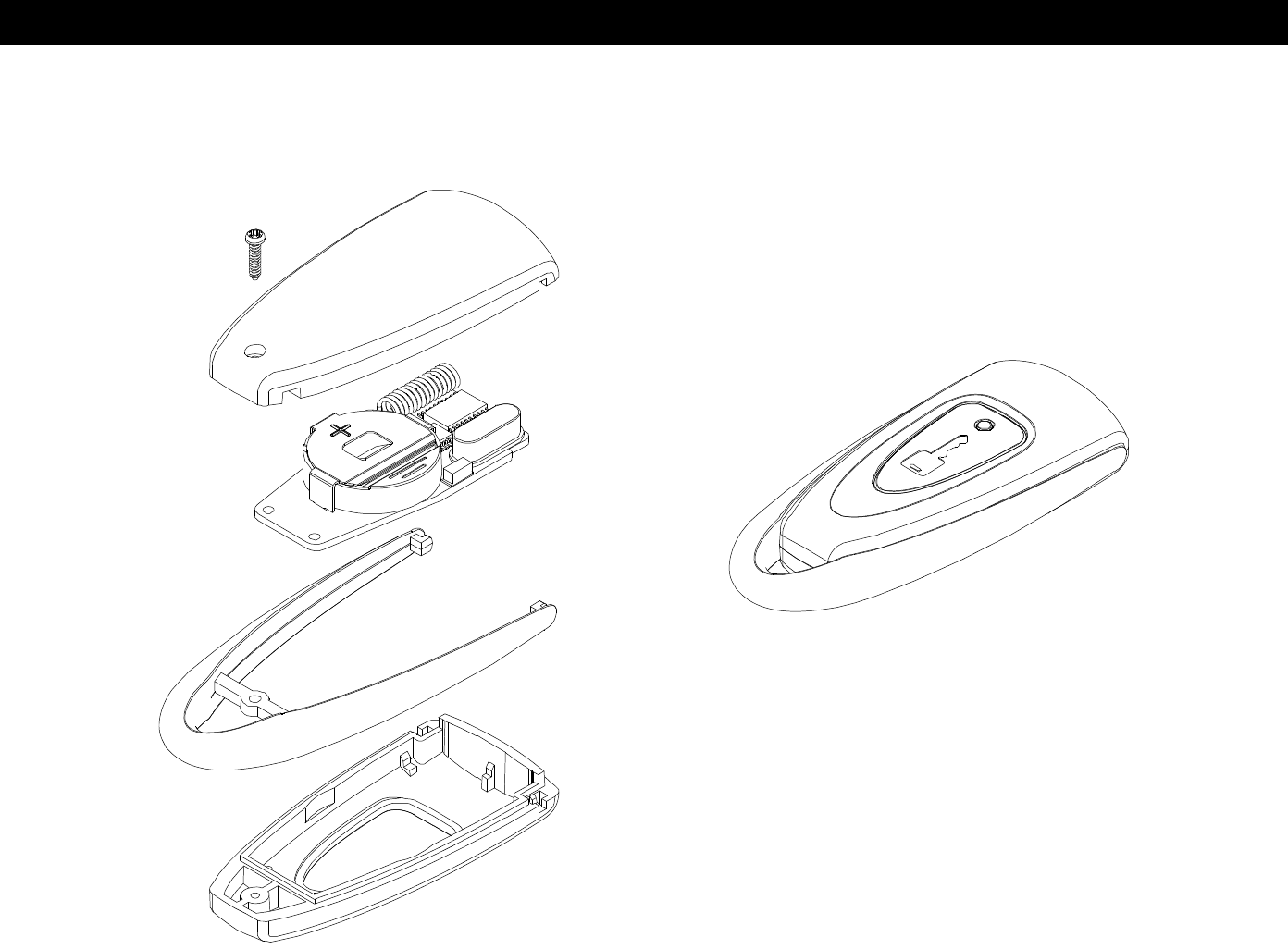

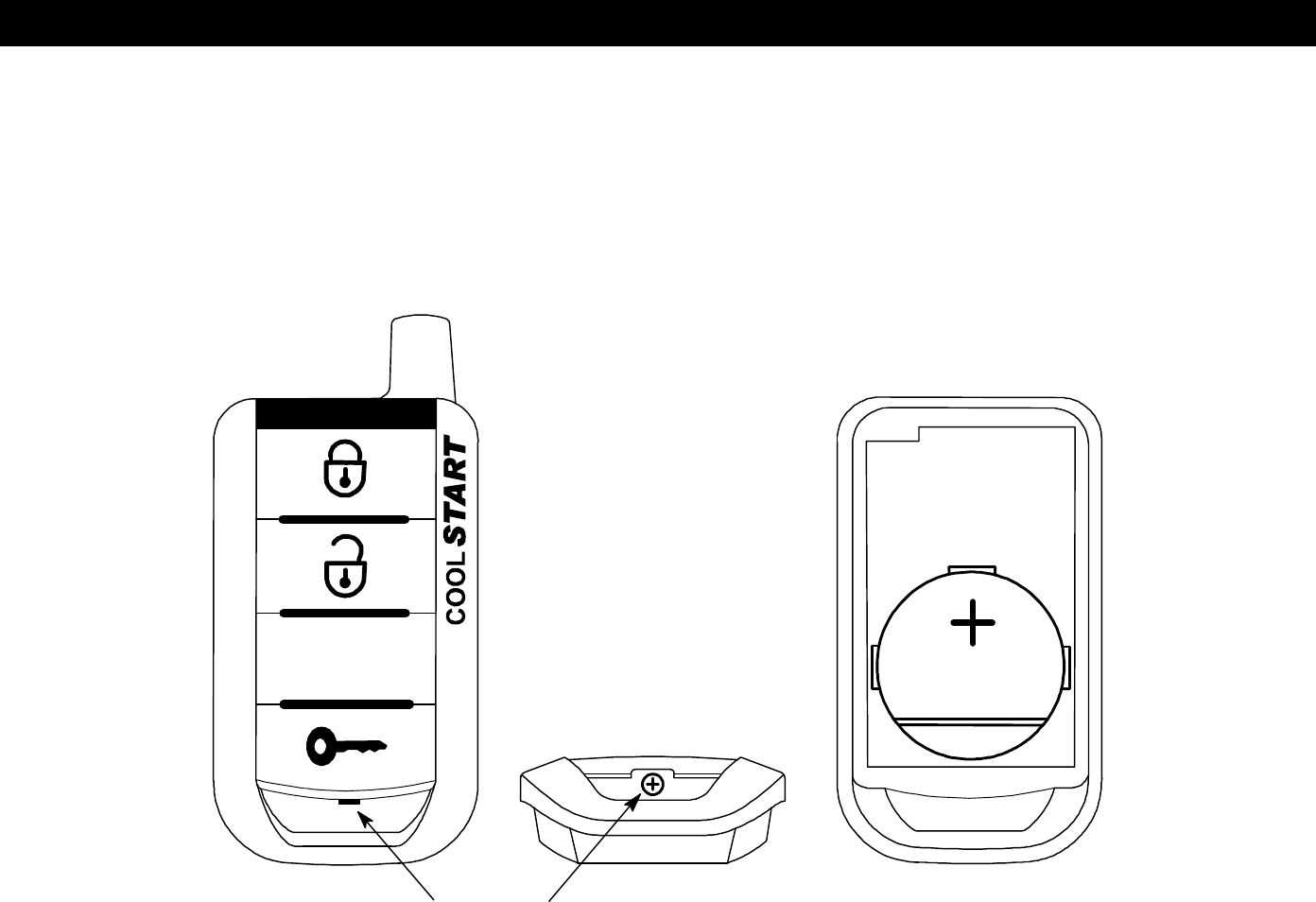

Remote Battery Replacement (1, 4 and 5 button remote)……...…………………..…………….………….21-23
OPERATION CAUTIONS & WARNINGS
CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting
from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in which
all items, such as parking brake and all associated components, door switches, transmission shift linkage, throttle
linkage, and all engine safety features, are in perfect working condition.
IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this system
and its safety features. B) Check for proper operation of the system prior to accepting delivery of the vehicle from
the installation facility. C) Check and maintain the condition of the vehicle and all items relative to the proper
operation of this system and its safety features. D) Always leave the doors and windows closed and locked to
protect against accidents and theft.
DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there is
adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide
fumes
![](/img.php?id=2790779&img=bg3.png)
3
USING THE REMOTE CONTROL

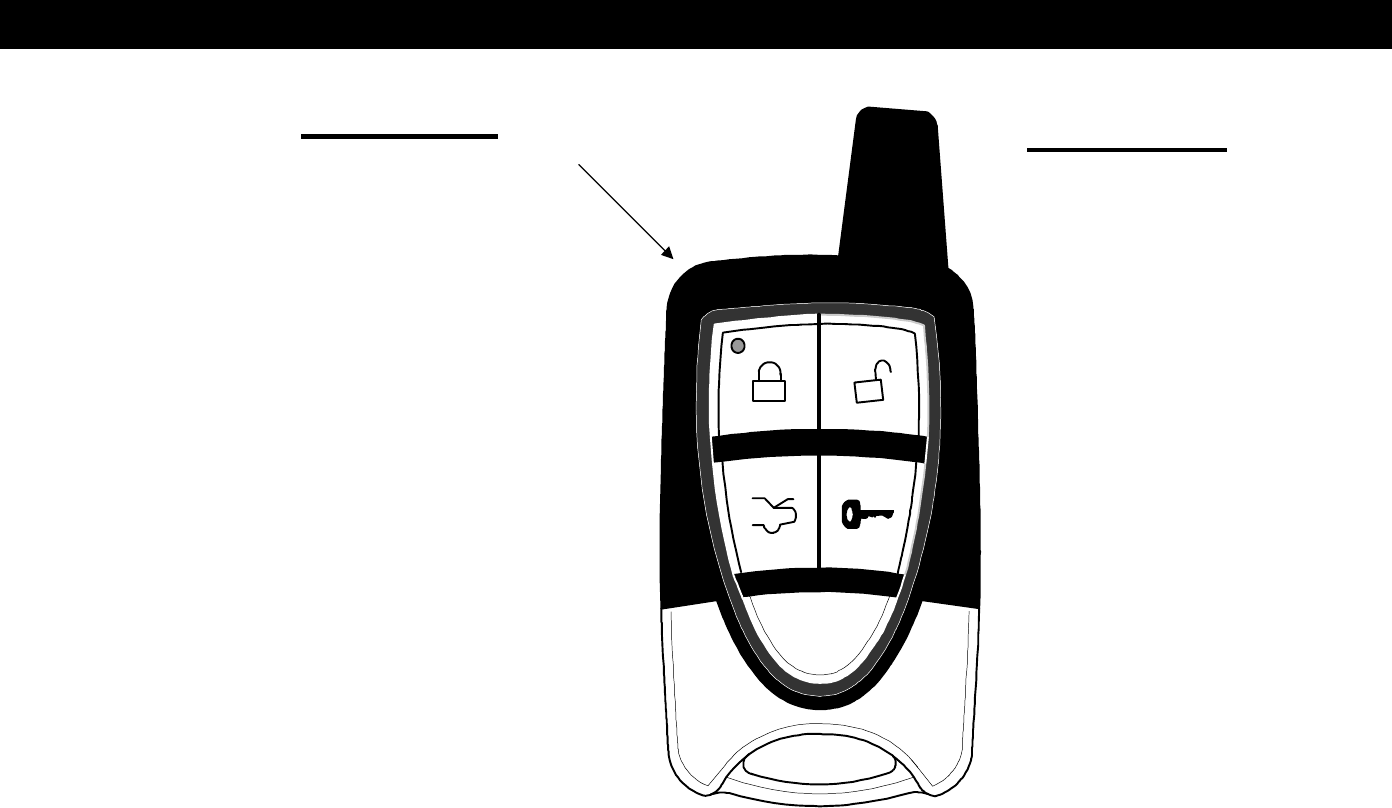

RS1-G5 RS3-G5

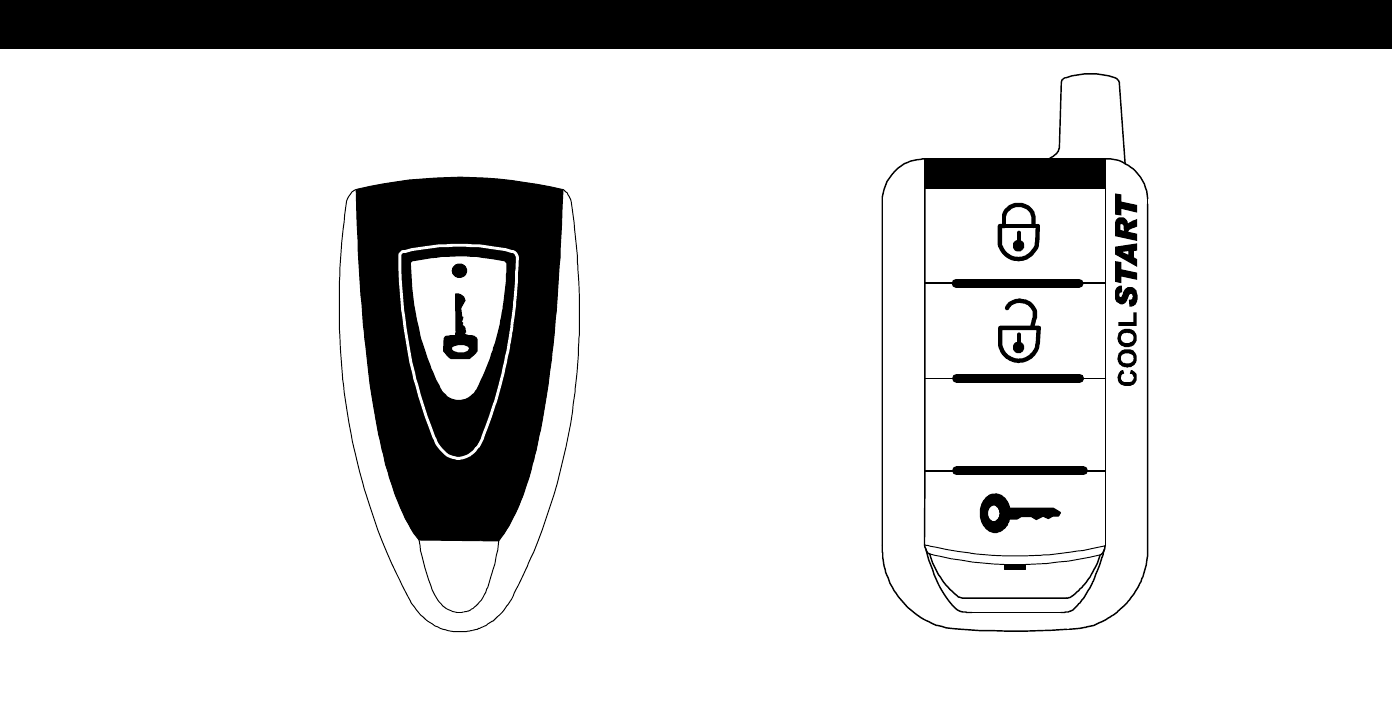

RS1-G5: The transmitter supplied with this system is a single button remote control.
RS3-G5: The transmitter supplied with this system has 4 vertical buttons – Lock, Unlock, Vehicle Select and Start.
To eliminate the possibility of accidentally starting the vehicle, there are (3) choices for button press selection.
Option # 6 will allow you to change whether the Remote Starter is activated by a:
1. Double Press – 2 presses of Start button.
2. *Single ½ second press (Default).
3. Press and Hold Start button 2 seconds.
*Default = 1 single press Start*
Please consult your installer to change programmable options
VEH
![](/img.php?id=2790779&img=bg4.png)
4

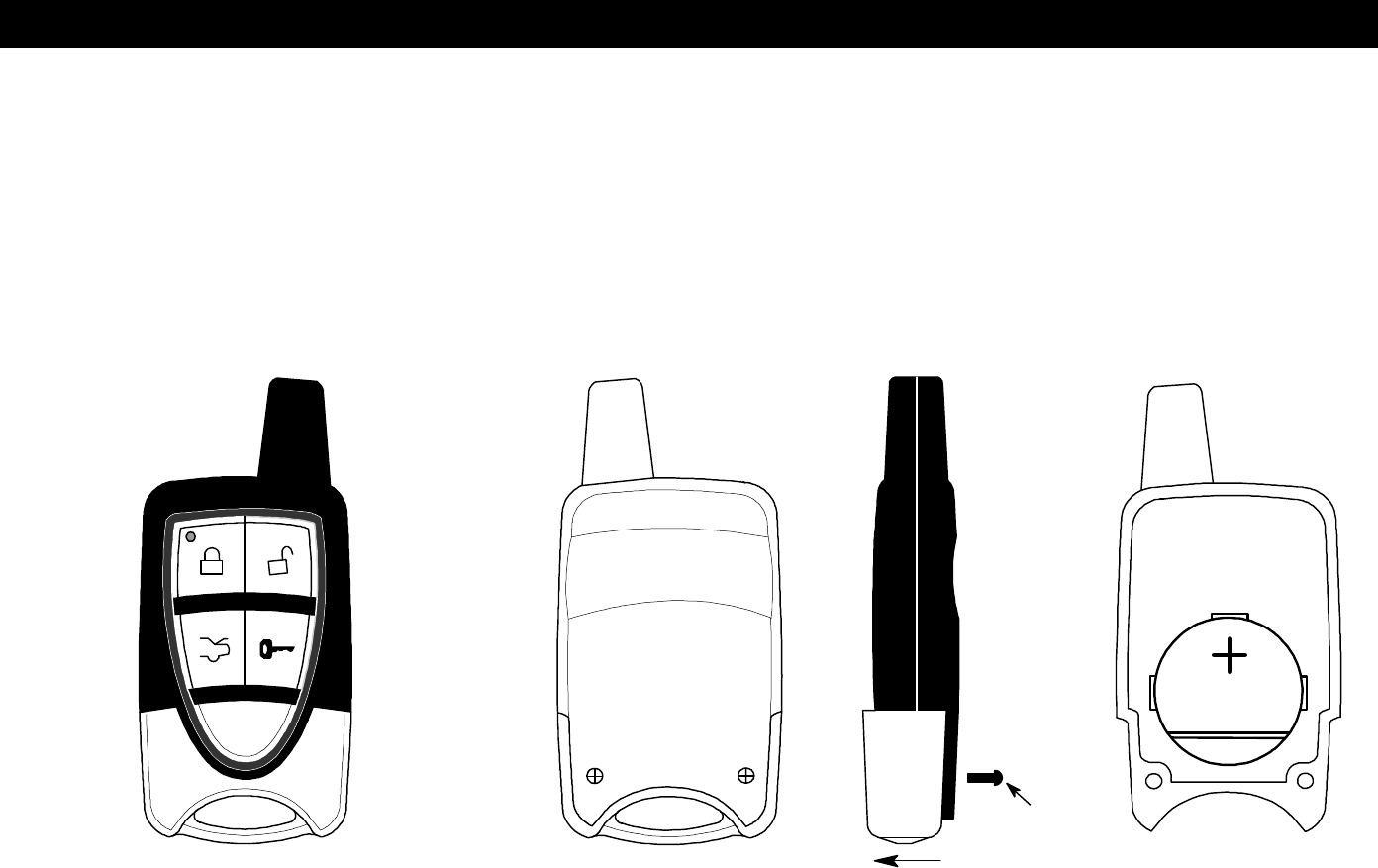

USING THE 5 BUTTON REMOTE CONTROL
VEH
UNLOCK
START
DISARM /
ARM /
LOCK
TRUNK
VEHICLE
SELECT
REMOTE VALET = LOCK + UNLOCK (4 seconds)
Option 27 has 3 choices for Remote Valet.
1. Double Press.
2. 4 Second Press (Default).
3. OFF (no Remote Valet).
NOTE: The VEH button can be used to keep remote control from accidentally operating your vehicle..
FM 1-WAY
VEH 1 = Green LED
VEH 2 = Red LED
AUX Outputs thru Data
AUX 1 = Trunk + Lock
AUX 2 = Trunk + Unlock
AUX 3 = Trunk + Start
AUX 4 = Lock + Start
(Requires Canbus Data Module)
AM 1-WAY
VEH 1 = Blue LED
VEH 2 = Red LED
![](/img.php?id=2790779&img=bg5.png)
5

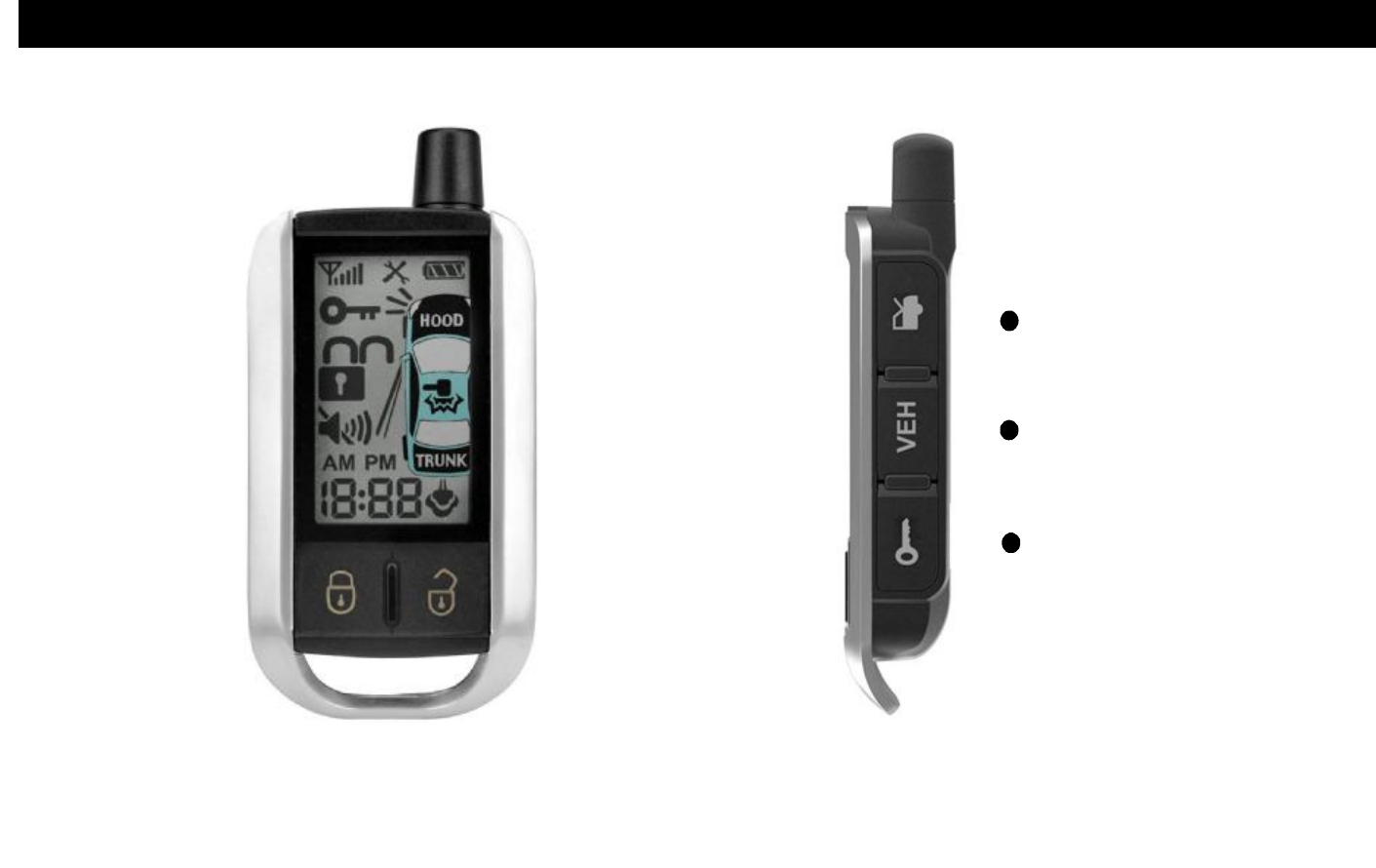

USING THE 2-WAY PAGER TRANSMITTER
POWER OFF FUNCTION
To turn Power ON, press and hold unlock button 2 seconds.
To turn Power OFF, press and hold unlock button 5 seconds.
Valet Mode
Battery Life
Sensor Warning
Sensor Trigger
Transmit Signal
Trunk Open
Remote Started
Hood Open
Door Open
Lock/Unlock
(Arm/Disarm)
Ignition ON
Silent no beeps
CLOCK /
LCD SCREEN ICONS
(Small Hammer)
(Big Hammer)
Note:
Some Icons on the LCD display only function
on the Combo Alarm with Remote Start
LOCK / ARM UNLOCK / DISARM
(Tools)
Run Count Down
USB Charger
SIDE BUTTONS
TRUNK
VEHICLE
REMOTE
(Under Side Cover)
START
SELECT
RELEASE
AUX Outputs thru Data
AUX 1 = Trunk + Lock
AUX 2 = Trunk + Unlock
AUX 3 = Trunk + Start
AUX 4 = Lock + Start
This remote can control up to 4 AUX
functions thru data depending on the
vehicle and data module. This is typically
used for operating left and right sliding
doors. (Requires Canbus Data Module)
![](/img.php?id=2790779&img=bg6.png)
6
USING THE 2-WAY PAGER TRANSMITTER
The 2-Way LCD Pager remote transceiver is used to send and receive information from the vehicle. The
Control Module transmits High Frequency FM signals from the vehicle to your pager over long distances. Your
range will vary depending on location, terrain, and local RF noise/interference. This system is not guaranteed to
page you if you are behind concrete walls, underground, in a large structure, or in an area with high levels of
electronic interference. Handle the pager/remote with care. The LCD display and/or the electronics may be
damaged if subjected to abuse.
BATTERY CHARGING
The 2-Way LCD remote has a battery charge indicator on top right corner of display. The battery voltage affects the
distance of the remote control. The system comes with a standard Mini USB charging cable that plugs into the side

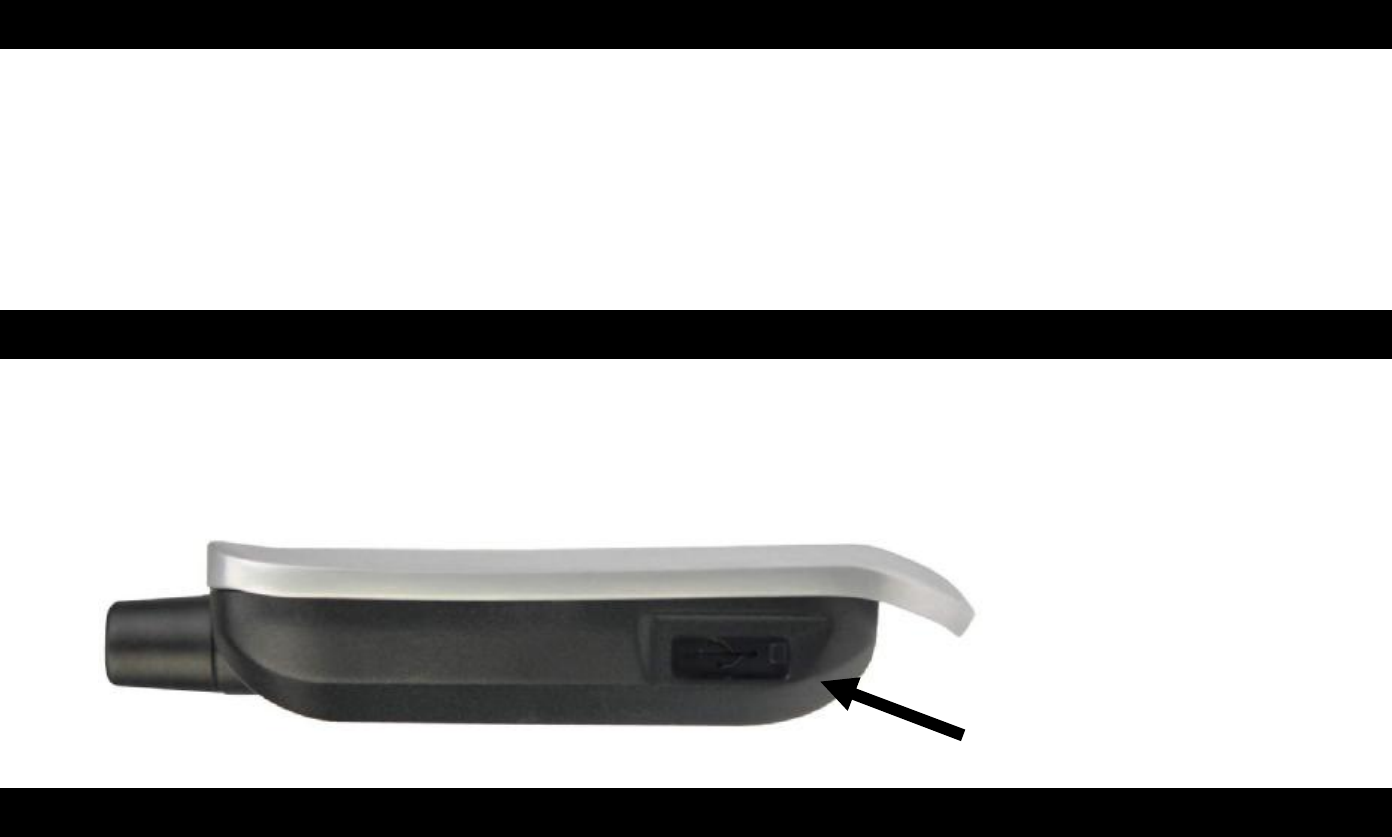

of remote control. To access to USB plug, slide the cover to the left shown below.

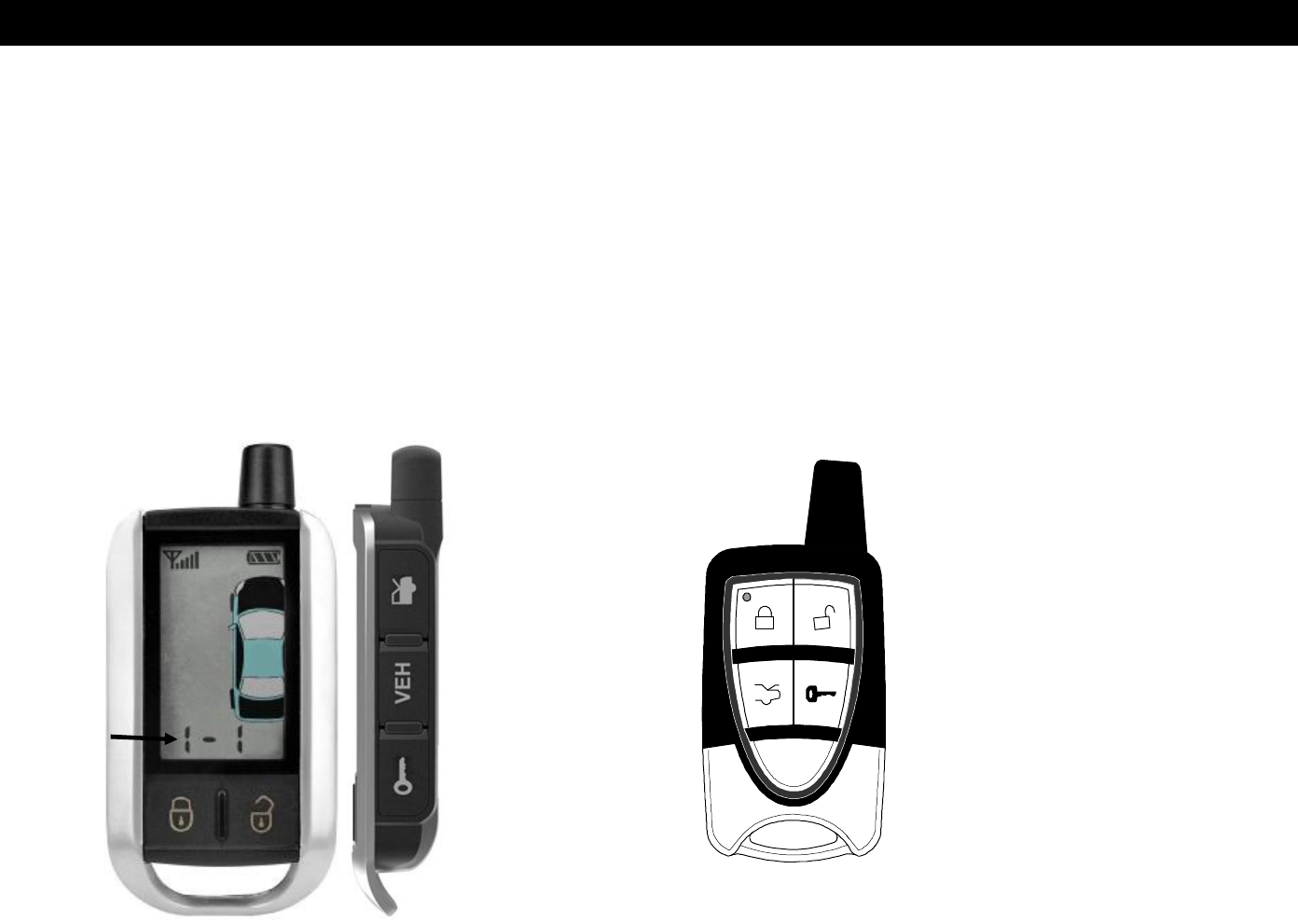

SETTING THE CLOCK (2-WAY- LCD REMOTE)
1. Press VEH Button on the side of the remote control 5 times.
2. The remote will beep and the AM or PM display will begin flashing.
3. Press the Trunk Button to go to the next item – AM - PM - Hour- Minutes.
4. Press the Lock Button to Increase time.
5. Press the Unlock Button to decrease time.
6. Press the Start Button to Disable or Enable Beep and Vibration. See next page.
7. Press the VEH Button to Save and Exit Setup or wait 8 seconds, the LCD light will turn off.
USB Charging Port
![](/img.php?id=2790779&img=bg7.png)
7

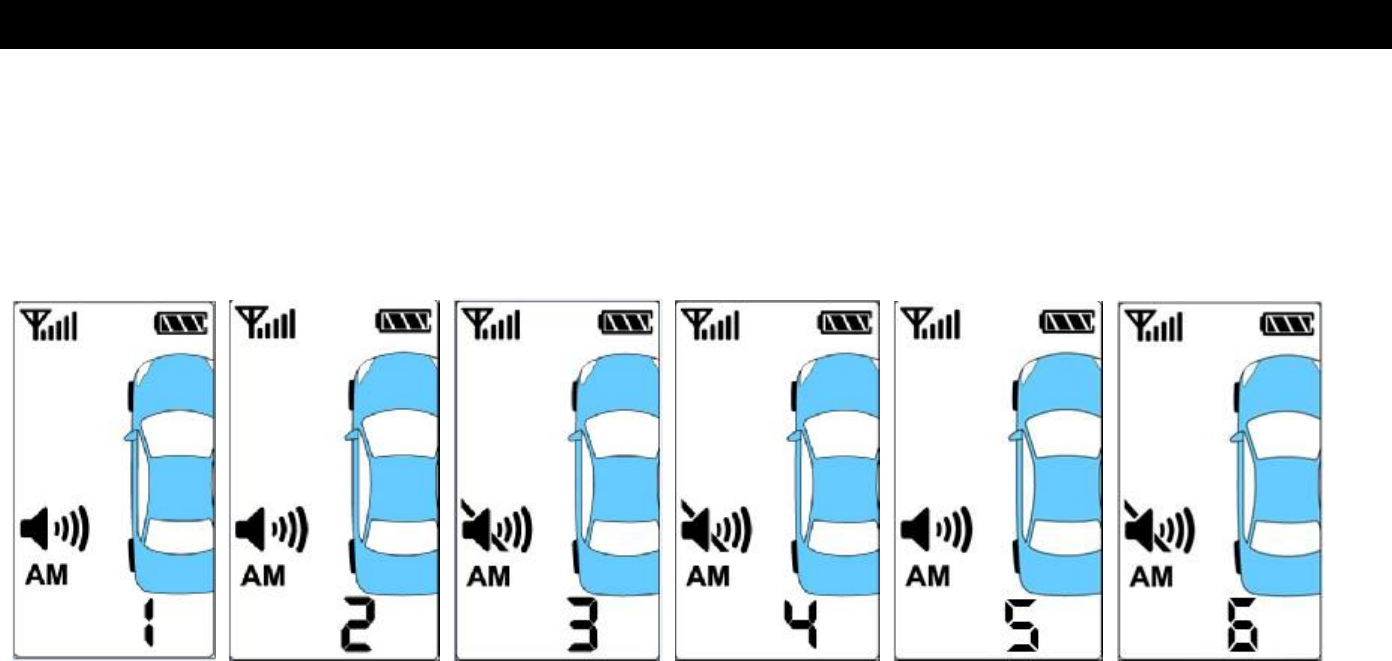

REMOTE BEEP & VIBRATE SELECTION
The LCD pager remote BEEPS and VIBRATES when it receives a signal from the vehicle. The Beeps and
Vibration are selectable (on/off). To enter program mode,
1. Press VEH Button on the side of the remote control 5 times.
2. The remote will beep and the AM or PM display will begin flashing.
3. Press the Start button to choose the mode of “Beep ON/OFF & Vibrate ON/OFF”.
4. Press the VEH Button to Save and Exit Setup or wait 8 seconds, the LCD light will turn off.
Mode 1: Beep ON & Vibrate ON. Remote Start Run Time Reminder Beep ON & Vibrate ON.
Mode 2: Beep ON & Vibrate OFF. Remote Start Run Time Reminder Beep ON & Vibrate OFF.
Mode 3: Beep OFF & Vibrate ON. Remote Start Run Time Reminder Beep OFF & Vibrate ON.
Mode 4: Beep OFF & Vibrate OFF. Remote Start Run Time Reminder Beep OFF & Vibrate OFF.
Mode 5: Beep ON & Vibrate OFF. Remote Start Run Time Reminder Beep OFF & Vibrate OFF.
Mode 6: Beep OFF & Vibrate ON. Remote Start Run Time Reminder Beep OFF & Vibrate OFF.
![](/img.php?id=2790779&img=bg8.png)
8
STATUS LED
LED Operation: (Optional, requires Installation of LED)
LED will flash when locking your doors with remote.
LED will remain solid in Valet Service Mode.
REMOTE ENGINE CONTROL
REMOTE START Button Press Selection (Option # 6):
To eliminate the possibility of accidentally starting the vehicle, there are (3) options for button press selection. This
option allows you to change whether the Remote starter is activated by a:
4. Double button - ½ second presses.
5. *Single ½ second press (Default).
6. Press and Hold 2 seconds.
*Default = 1 single press*

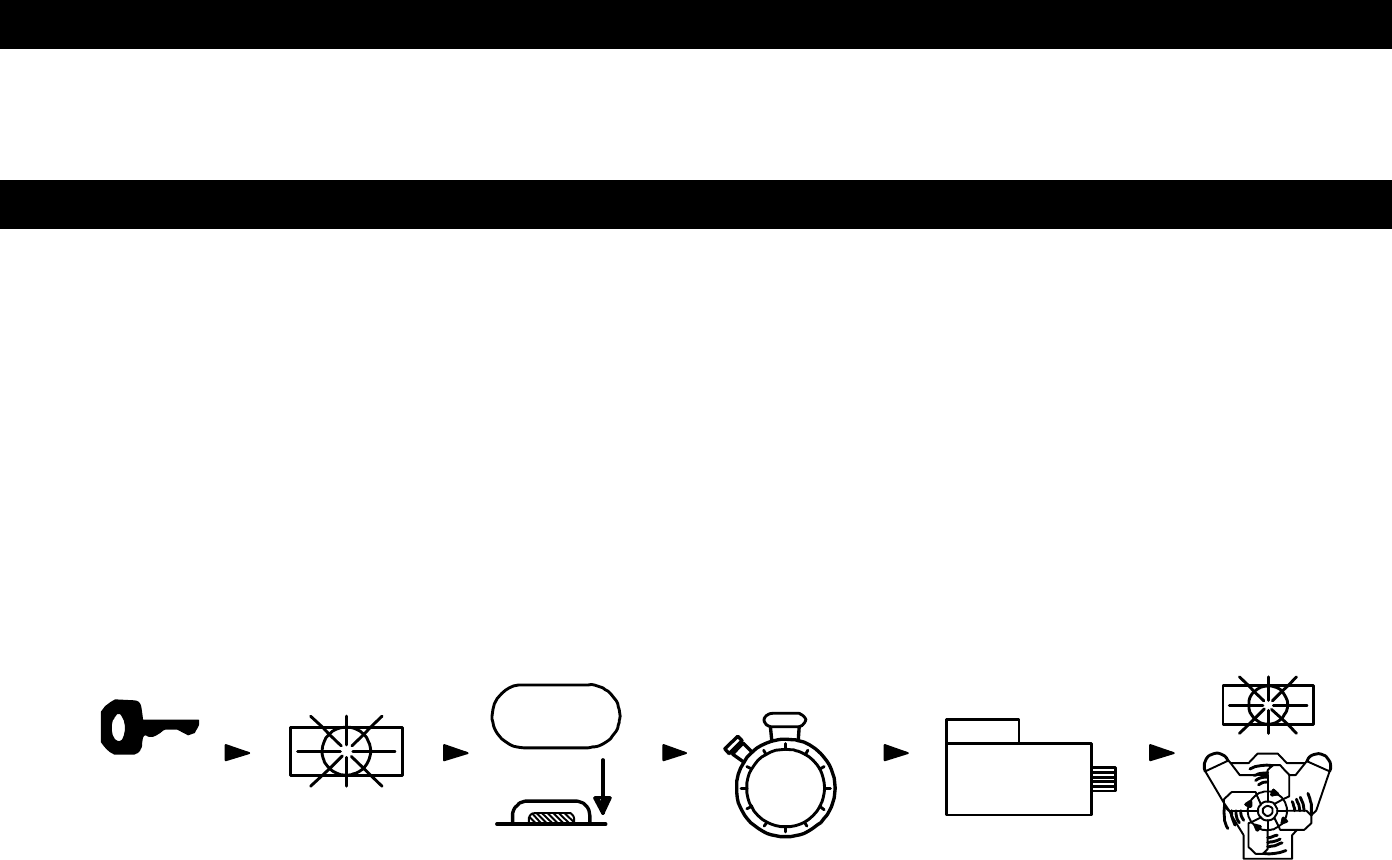

REMOTE ENGINE STARTING - SUCCESSFUL START:
1) Press the remote start button for at least 1/2 second (*default). Parking lights flash once, return solid, and the
Ignition/Acc circuits turn on.
2) After a few seconds the Starter Motor engages. The parking lights and Acc circuits will turn off while cranking.
3) Engine Starts and Runs. Parking Lights and Acc turns back on, and the doors lock.
4) Engine will remain running for programmed run time until reset with Brake pedal. If needed, the engine can be
turned off with remote transmitter by pressing and releasing the Start button.
Note: When the vehicle remote starts, the 2-Way Pager will display the engine run in place of the Clock.
AFTER
IGN
3
STARTER
THEN
FLASH 1X
SOLID
SOLID
SEC.
PRESS START
![](/img.php?id=2790779&img=bg9.png)
9
REMOTE ENGINE CONTROL
REMOTE ENGINE STARTING - UNSUCCESSFUL START
In the event that the engine does not start on the first attempt, the system shuts down for a few seconds, then
attempts to restart the engine a 2nd and 3rd time. For hard starting engines, the unit will allow a starter crank time of
up to 4 seconds maximum. This should provide ample cranking time for difficult starts, but is limited to 4 seconds to
help prevent damage to the starter from over cranking.
1) If engine starts on 2nd or 3rd attempt, see steps 4 & 5 of "Successful Start" on page 7.
2) If Third attempt fails to start engine, the system will turn off and doors will remain locked. NO FURTHER
ATTEMPTS WILL BE MADE AUTOMATICALLY
TURNING OFF A REMOTE STARTED ENGINE:
1) Engine is running in Remote Start (Parking lights ON).
2) Press and release the remote start button or double press (If option #6 is on).
3) Engine & parking lights OFF, Doors re-lock/re-arm.
ENTERING YOUR REMOTE STARTED VEHICLE:
1) With engine running, Unlock system with remote (If equipped) or open door with key.
2) Enter vehicle and be careful not to step on brake pedal! (Remote Start Reset)
3) Turn Ignition to ON/RUN position, then press brake pedal to reset the Remote Starter & Shift out of park.
4) Remote starter will reset instantly when the brake is pressed. Parking lights will turn off and the ignition key is
now controlling your vehicle.
REMOTE START RUN TIME RESET:
The Remote Start Run Time is adjustable from 5 to 30 minutes (option # 20). Some local cities
have a run time limit for unattended vehicle. You can now reset the engine-run timer to allow for more running
time after remote start has already occurred using the remote control. After a successful remote start, press
both the Lock & Unlock buttons together for at least 2 seconds. The parking lights will flash 3 times and
internal engine timer will reset back to zero minutes.
LOCK with REMOTE START and After REMOTE START ABORT:
Option # 8 controls whether the system will automatically lock during and after a remote Start abort or time-out. This
feature can be turned OFF. The default is Lock with Remote Start.
![](/img.php?id=2790779&img=bga.png)
10
REMOTE ENGINE CONTROL
IDLE DOWN MODE:
This mode allows the unit to take over operation of the parked vehicle while the ignition key is removed and you exit
the vehicle. The vehicle will remain running for the programmed time or until canceled. The Run Time choices are:
10, 20, 30 minutes or Infinity Run. Default = 20 minutes
Examples:
• You pull up to a convenience store for a quick stop, “Idle Down” mode keeps engine running when you exit the
vehicle, (with keys in hand) remote lock doors. When you return, unlock, turn ignition ON and drive away. NOTE:
If lock button is pressed twice in “Idle Down” mode, the remote start will abort.

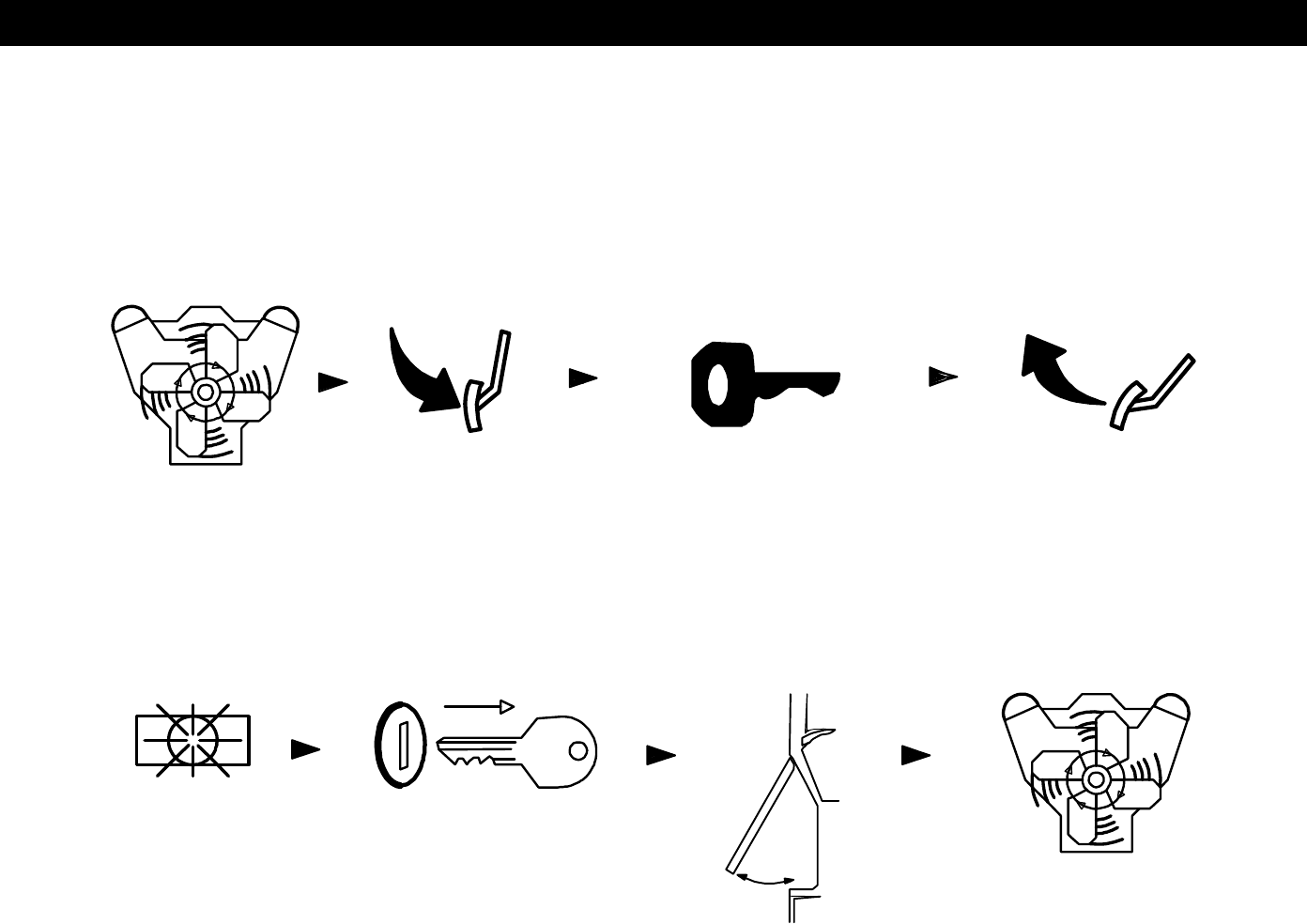

IDLE DOWN MODE - EXITING THE VEHICLE:
1) With vehicle engine running with key, press the Remote Start button for at least one second or twice if set for
Double press.
2) Parking Lights will turn ON.
3) Doors will unlock, or if brake pedal is being depressed, doors will unlock when it is released.
4) Turn OFF Ignition and remove key. Engine should remain running.
5) Exit vehicle and remote lock doors if desired. Locking doors a 2nd time aborts remote start.
6) Engine will remain running for programmed run time or until you return (whichever comes first).
IGN
SOLID
OFF
UNLOCK
PRESS START
IDLE DOWN INFINITY RUN MODE:
Idle Down can be programmed for INFINITY RUN. This allows the vehicle engine to remain running INDEFINITELY
without the ignition key in the switch. The parking lights continuously flash in this mode. This mode can be beneficial
to law enforcement or commercial trucks that need to remain running unattended for long periods of time.
![](/img.php?id=2790779&img=bgb.png)
11
REMOTE ENGINE CONTROL
SELECTABLE HOURLY COLD-START MODE (1-4 HOURS)
This mode allows the vehicle to be programmed to self-start every 1, 2, 3 or 4 hours and run for the programmed
run time. This can be helpful during extremely cold conditions where engine fluid freeze-up is a concern.

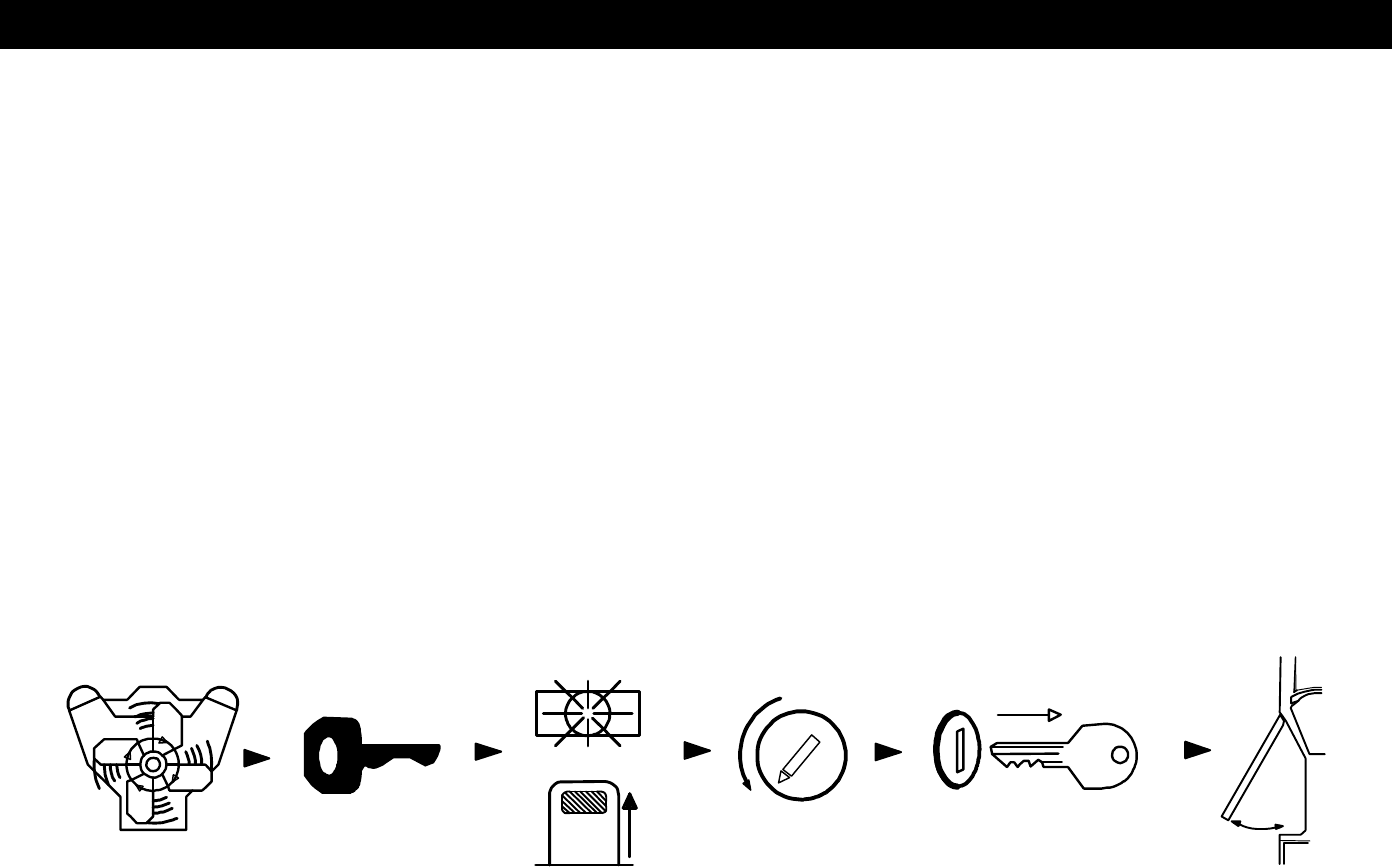

TIMED SELF-START MODE – Exiting the Vehicle:
1) Engine should be running with the Key. Press the Remote Start button for at least 1 second. Lights will turn on
signaling the remote start has turned on and doors will unlock.
2) Within 10 seconds press and release the valet/program button once for each hourly increment (1 time = 1hour,
2X = 2 hours, 3X = every 3 hours, 4X = every 4 hours).
3) Parking Lights will turn ON when the button is pressed and flash once for each consecutive button press.
4) Turn Ignition switch OFF, remove key and exit the vehicle. Engine should remain running.
5) Once outside the vehicle, press and release the remote start button to turn off engine. The parking lights will
flash the number of times indicating the hourly increment for confirmation. The vehicle will start by itself at the
selected hourly increment until driven with key or started via the remote control.
IGN
SOLID
OFF
UNLOCK
PRESS 1 - 4 X
WITHIN 10 SEC.
LIGHTS FLASH
for each press
ENGINE TURNS OFF
FLASH Hour Increment
RESETTING TIMED SELF-START MODE:
To reset the timed self-start mode, start vehicle using the ignition key or the remote control.
![](/img.php?id=2790779&img=bgc.png)
12

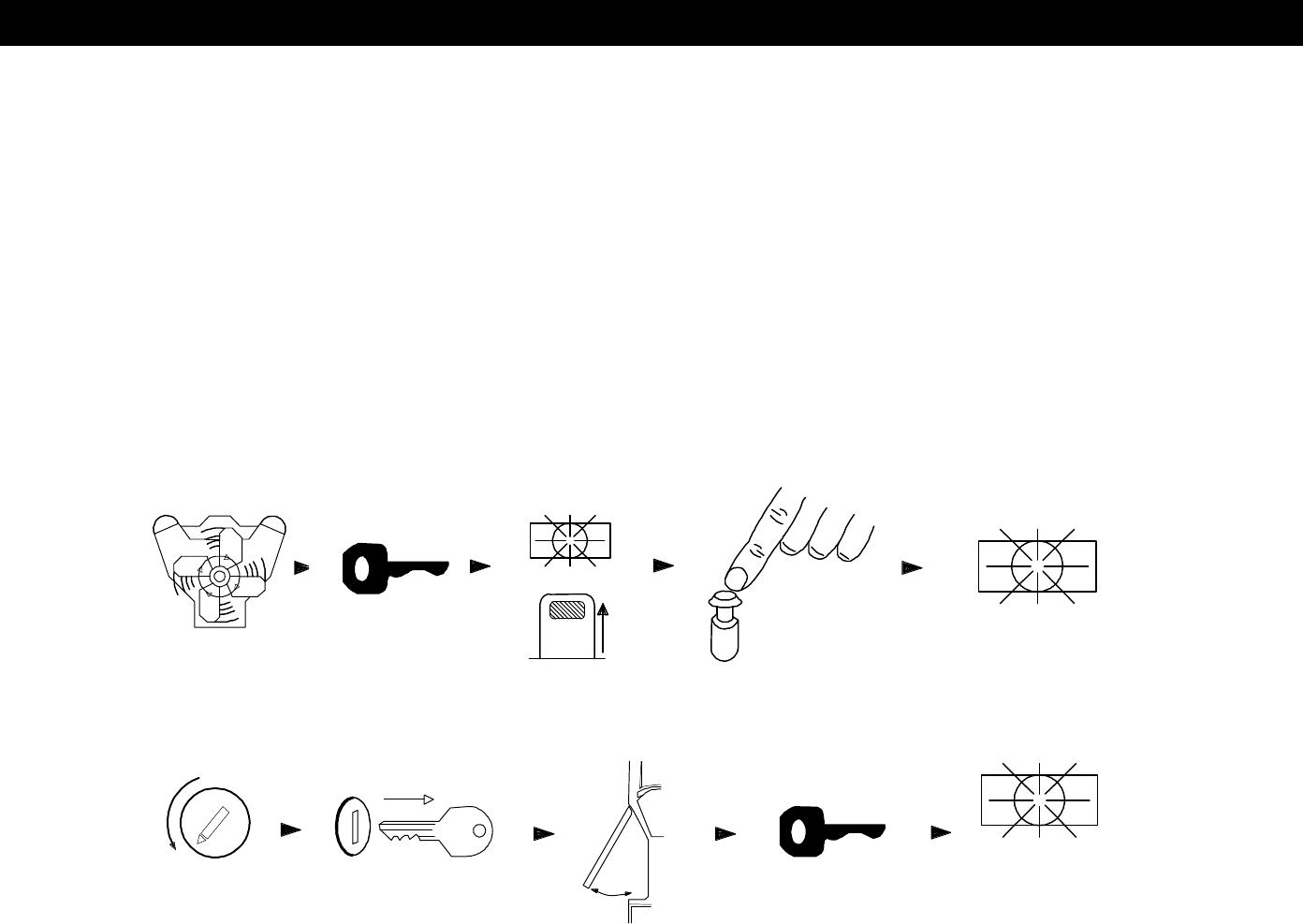

TURBO TIMER MODE (OPTION #22)
The optional Turbo Timer mode allows the CoolStart system to keep a Turbo or Turbo Diesel vehicle running
for 1, 3 or 5 minutes [selectively] after you remove the key and exit the vehicle. This is handy for turbo cool-
down without the need for expensive turbo timers. The Default = OFF.
To Activate Turbo Timer:
With the engine running by key, press Remote Start Button with brake pedal depressed. As you release the
brake pedal, the Parking Lights and Status LED will blink the number of minutes for the Turbo Timer setting.
The doors unlock after confirmation.
REMOVE KEY
FLASH 1-5X
EXIT VEH.
PRESS
AND HOLD
BRAKE
RUNNING RELEASE
BRAKE
LIGHTS
RUNNING
REMAIN
1-5 MIN.
PRESS START
![](/img.php?id=2790779&img=bgd.png)
13
MANUAL TRANSMISSION MODE (Option 11)
MANUAL TRANSMISSION EXIT PROCEDURE (Option #11-1, 11-3 & 11-4)
This system features a Manual Transmission Mode. When exiting the vehicle, there is safety check out
procedure required for the manual transmission mode to work. There are 3 choices of operation,
1. Option 11-1: With engine running and vehicle in neutral, set parking brake, then press “KEY” Icon on
transmitter. The remote starter will turn on and take over operation of the vehicle. Press lock button after
closing last door to finish exit procedure (same as steps a, b, c and d below).
2. Option 11-3: With engine running and vehicle in neutral, set parking brake, the remote starter will turn on and
take over operation of the vehicle.
a. Remove key, exit vehicle (remote starter unit must “SEE” door opened, then closed with engine
running).
b. Press Lock button within 10 seconds of closing door to “Arm with Idle Down” (engine stays running).
Press Lock a 2nd time to cancel “Idle Down” (engine turns off) and set up Manual Transmission Mode.
c. Press Lock button after 10 seconds to Arm system, lock the doors and shut down the engine. From this
point, you can remote start the engine unless a door is opened.
d. Press the Remote Start Button after closing door to set up Manual Transmission Mode without Arming
Alarm System.
3. Option 11-4: With engine running and vehicle in neutral, set parking brake, the remote starter will turn on and
take over operation of the vehicle. Remove Key and exit vehicle. When the last door of vehicle is closed, the
engine will turn off in 2 seconds and set up Manual Transmission Mode. You can arm the alarm system to
lock doors and protect vehicle.
TURBO TIMER in Manual Transmission Mode:
For Turbo Timer, press brake pedal before setting parking brake, then press the Remote Start Icon (requires Turbo
Timer Option # 22). After exiting vehicle, press lock button to set Manual Transmission Mode. The engine will
remain running for the Turbo Timer setting (1, 3 or 5 minutes). Turbo timer does not work with option 11-4 selected
REMOTE PANIC (Optional, horn must be connected)
For personal safety this unit now includes a panic feature. To sound the vehicle car horn, press the Lock Button on
the remote for more than 2 seconds. The vehicle horn will honk along with flashing parking lamps for 1 minute.
Reset Remote Panic by pressing either the lock or unlock button.
![](/img.php?id=2790779&img=bge.png)
14
CONVENIENCE AND SAFETY FEATURES
KEYLESS ENTRY (Power Door Locks, may require Data Module - Optional)
This system enables you to remotely lock and unlock the vehicle’s doors (if equipped with power locks) via remote
control for safety and convenience. Note: This feature may require extra labor and/or parts to install. Press the
Lock or Unlock transmitter button as you leave or come near the vehicle. Parking lights will flash once for Lock and
twice for Unlock. The parking lights will turn on for 30 seconds with Unlock to assist in locating and providing
illumination near your vehicle when approaching at night for safety. The parking light also turns off with ignition on. If
vehicle is running by the remote start system, the lights will flash, but return back to solid.
AUTO LOCK / UNLOCK (Option # 2)
The Auto Lock feature controls whether the doors will automatically lock/unlock on your vehicle when driving or with
turning the Ignition ON/OFF. If the Auto Lock feature is turned on, and your system is in “Tach” mode, then the
doors should automatically lock as the engine RPM’s increase (driving). If the Auto Lock feature is turned on, and
your system is in “Smart Tachless” mode, then the doors will lock a few seconds after the Ignition is turned on.
When the Auto Lock feature is turned on, the system will always unlock the doors when the Ignition is turned off.
With this feature turned OFF, the system will not automatically lock or unlock the vehicle. See your installer for
programming information on this feature.
HORN CHIRPS (Option # 7, 13 & 16)
If vehicle horns are connected to the system, they will provide audible confirmation chirps for lock and unlock and
remote start. The chirp sound can be programmed from short to long to adjust for different sounding horns. Pressing
the Lock or Unlock button (Programmable option for 1 or 2 Press) will provide a horn chirp for audible confirmation.
The system can also be programmed to provide 3 chirps when a remote start is requested using the remote. Note:
Horn honk/chirp feature may require extra labor and/or parts to install.
Option 7 = Chirps with Remote Start On/Off.
Option 13 = 1 or 2 button press for Chirp with Lock / Unlock.
Option 16 = Short, medium or long Chirp Pulse (15, 20 or 40 milliseconds).
OEM ALARM INTERFACE (May require optional Databus Module)
This feature is designed to Disarm and Re-arm Factory equipped security systems in conjunction with remote start
and keyless entry (if needed for your vehicle). This feature will maintain the original integrity and security of your
vehicle’s factory equipped systems before, during, or after remote start. Some vehicles require an optional Databus
module to operate a factory alarm or keyless entry.
![](/img.php?id=2790779&img=bgf.png)
15
CONVENIENCE AND SAFETY FEATURES
REMOTE TRUNK RELEASE OR DOMELIGHT ILLUMINATION (Option 9)
This system includes an output that can be programmed to remotely release a factory electronic trunk or illuminate
the interior light when you unlock your vehicle for lighted entry at night. If you have the optional trunk pop installed,
simply press and release the Trunk Button #3 on the transmitter to remotely open trunk. If your system is
programmed for Dome Light illumination, then it will work automatically lighting the dome light for 30 seconds when
you unlock your vehicle via the remote. The dome light will turn off after 30 seconds, or turning the key on
(whichever comes first). To eliminate the possibility of accidentally opening the trunk, there are (3) options for
button press selection. This option will allow you to change whether the Trunk release activates by a:
1. Double press (2 x ½ second presses).
2. Single ½ second press. *Default*
3. Press and Hold 2 seconds. This output stays on until trunk button is released.
VALET MODE
Before servicing your vehicle or handing the keys over to a Valet we recommend putting the unit into Valet Mode.
The Remote Start function WILL NOT operate when in Valet Mode.
1. To Activate Valet Mode Manually: Turn the ignition on and press the Valet button [about 5-6 seconds] until
the LED turns on solid. Repeat the process to exit VALET mode.
2. To Activate Valet Mode with the Remote (Selectable Option 27): Default = Press & Hold
Press both the Lock and Unlock Buttons and hold together for about 3-4 (or double press)
seconds until 3 chirps are heard (horn must be connected for chirps). Repeat this step to exit via the remote
transmitter. Lock / Unlock and AUX features will still operate in VALET Mode however Remote Start is
inhibited.
HOOD OPEN SAFETY (Requires hood pin switch)
This prevents remote starting engine when hood is open. It eliminates risk of injury to someone working under the
hood of the vehicle with a properly working hood pin installed. If Remote Start button is pressed with the hood open,
the parking lights will flash twice and the unit will not attempt a start. The system will abort Remote Start any time
the hood is opened. See Remote Start Diagnostics on page 19.
BRAKE PEDAL RESET:
Prevents remote starting or turns off a remote started vehicle when the brake pedal is pressed. This prevents
Unauthorized Driving of Vehicle. This circuit shuts the system down immediately when brake pedal is pressed. Turn
the ignition key to the “ON” position before the brake pedal is pressed.
![](/img.php?id=2790779&img=bg10.png)
16

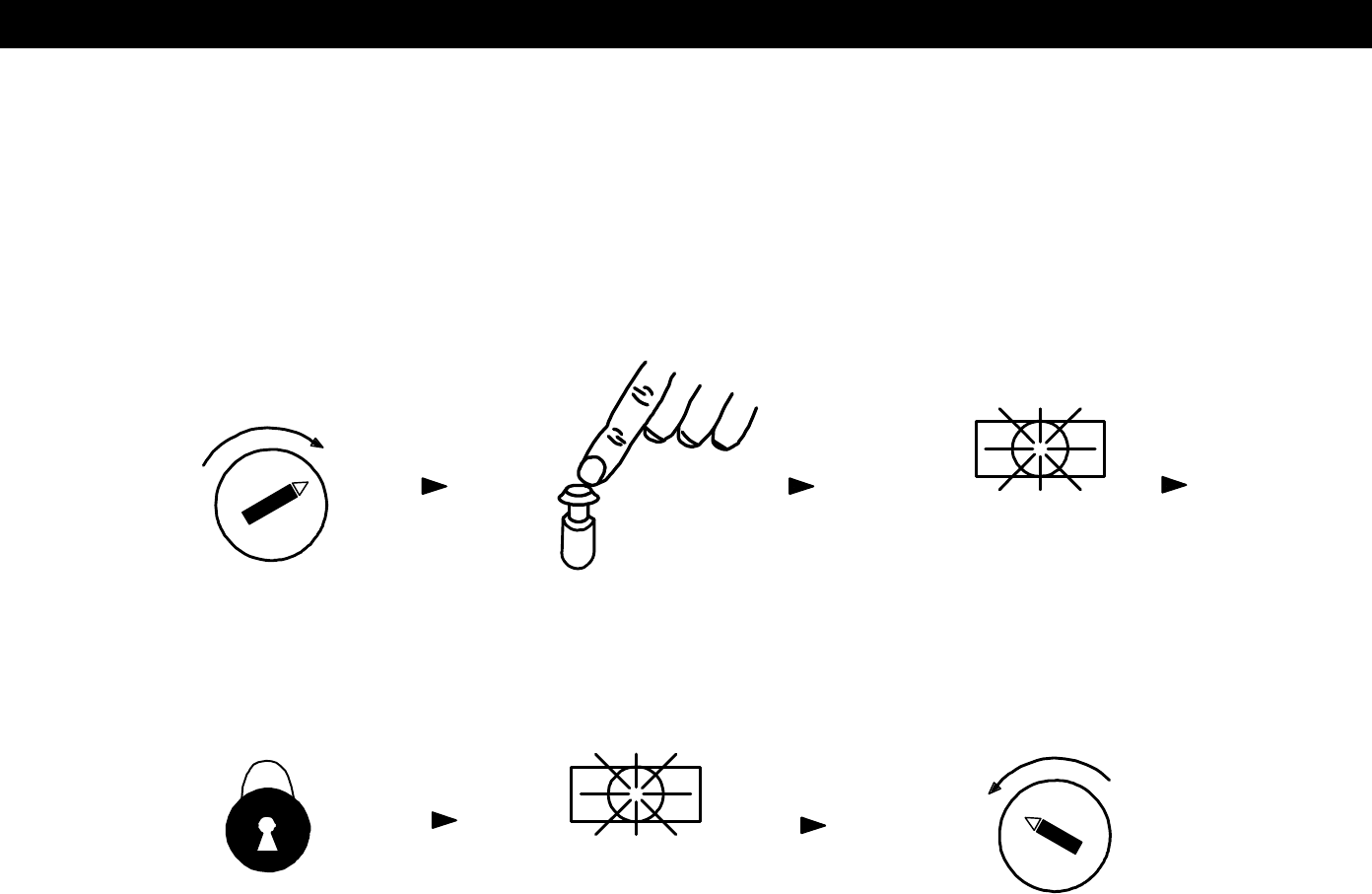

TRANSMITTER PROGRAMMING on 1 BUTTON
Note: All transmitter codes must be learned at time of programming!! The RS1-G5 learns up to 4 different
transmitter codes.
1. Turn Ignition Key to the ON position.
2. Press Programming button 4 times, then after a few seconds the unit flashes the parking lights 4 times.
3. Press the start button of the first transmitter. You should get 1 light flash confirming the remote is coded, then
press the start button of a second transmitter, the unit will flash 2 times confirming the remote is coded and so
on. If all 4 codes are learned, the unit will automatically exit code learning mode, otherwise turn key off. See
diagram below.
IGN
OFF
WAIT FOR
4 FLASHES
PRESS 4X's
FLASH 2, 3, or 4 X's
IGN
OFF
PRESS START BUTTON
![](/img.php?id=2790779&img=bg11.png)
17

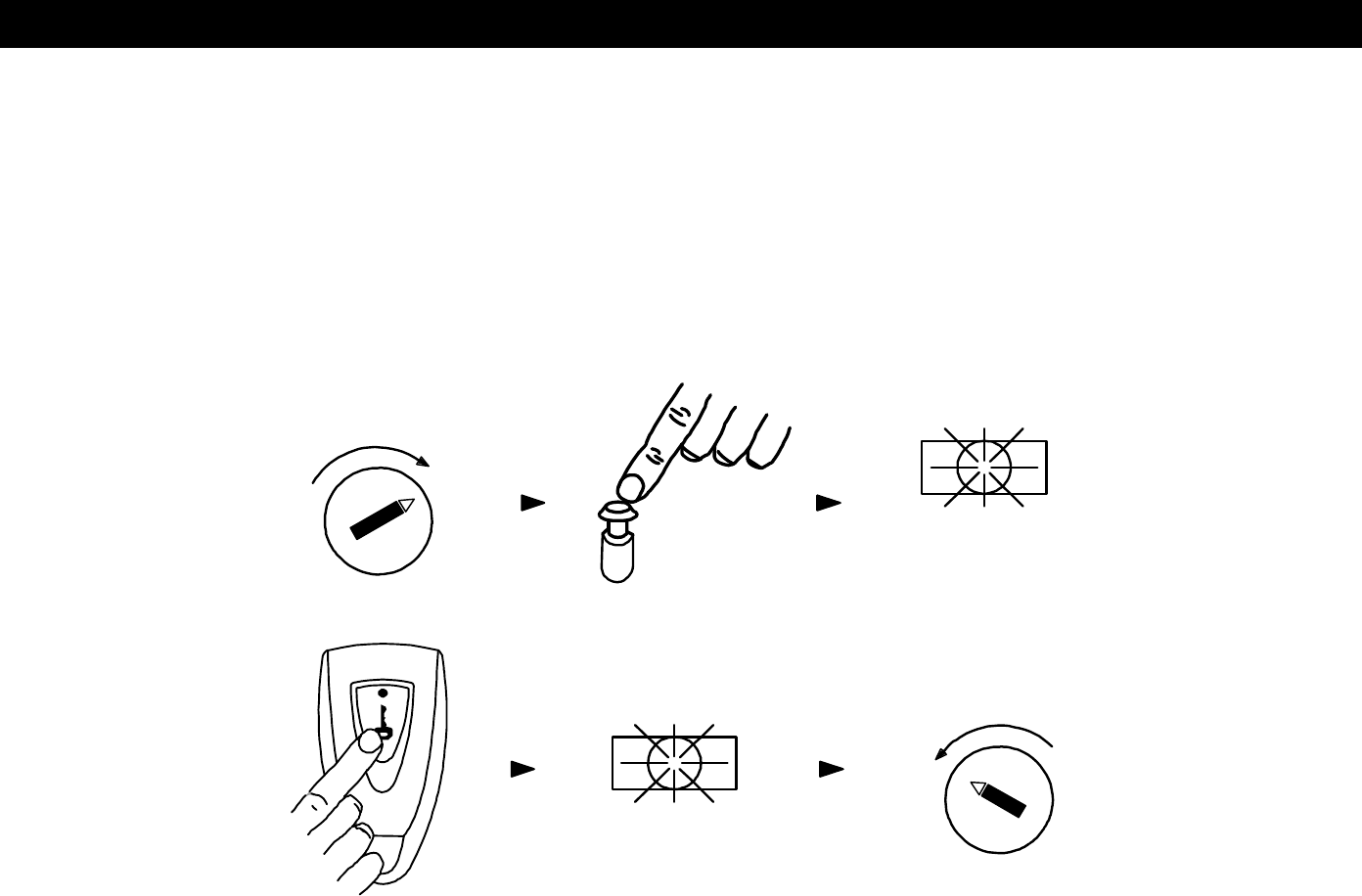

TRANSMITTER PROGRAMMING on 4 & 5 BUTTON
Note: All transmitter codes must be learned at time of programming!! The Cool Start system learns up to 4
different transmitter codes.
4. Turn ignition key to the ON position.
5. Press Programming button 4 times, after a few seconds the unit flashes the parking lights 4 times.
6. Press Lock button of the first transmitter. You should get 1 light flash confirming the remote is coded, then press
Lock button of a second transmitter, the unit will flash 2 times confirming the remote is coded and so on. If all 4
codes are learned, the unit will automatically exit code learning mode, otherwise turn key off. See diagram
below.
IGN
OFF
WAIT FOR
4 FLASHES
PRESS 4X's
FLASH 2, 3, or 4 X's
IGN
OFF
COMPLETE
PRESS LOCK
![](/img.php?id=2790779&img=bg12.png)
18
2 VEHICLE OPERATION
Your remotes have the ability to control a second vehicle with a Crimestopper system installed.
To set up the 2-Vehicle operation you must first program your remotes to Vehicle #2. Follow the “Transmitter
Programming” steps (Pg. 15) at the second vehicle and learn YOUR remote, along with vehicle #2’s existing
remotes.
2-VEHCLE NOTES:
(1) You do not have to switch between Vehicle “1” and “2” to get pages from each vehicle. Your remote pager
will receive pages from both cars regardless of which vehicle the pager is set to. The “1” or “2” icon will always
display with each page indicate which vehicle the page originated from.
(2) All 1-Way and 2-Way Pagers for that vehicle must be learned at the time of programming (up to 4). When you
program your remote at the second vehicle, that vehicle’s original remote must also be programmed. Your remote
should be set in Vehicle “2” and the vehicle’s original remote should be set in Vehicle “1”.
VEH 1 / VEH 2
CLOCK SET Push 2 Seconds
to change from
Vehicle 1 to 2
VEHICLE 1 = GREEN LED
VEHICLE 2 = RED LED
Push 2 Seconds
to change from
Vehicle 1 to 2 VEHICLE SELECT
Push VEH Button 5
Times to set Clock
VEHICLE 1 = 1 - 1
VEHICLE 2 = 2 - 1
1-Way FM REMOTE
LCD REMOTE
VEH
1-Way AM REMOTE
VEHICLE 1 = BLUE LED
VEHICLE 2 = RED LED
Note: Use can use Vehicle 2 Mode to turn off remote if there is no system installed in a 2nd vehicle.
AM SYSTEMS: Option 27-1 must be selected for 2-Vehicle Mode
VEHICLE
ICON
![](/img.php?id=2790779&img=bg13.png)
19
NO FACTORY KEYLESS ENTRY AFTER REMOTE START
Most new cars Do Not allow the factory Remote Keyless Entry to function with the Ignition ON. This means you can’t
use the factory remote to lock or unlock the doors. After remote start you have to use the keys to unlock the door.
Also, many new vehicles unlock the doors when disarming the factory alarm. This leaves the doors unlocked while
Remote Started. To resolve this problem, have your installer connect the door locks to the Remote Start Keyless
Entry. The Remote Starter will Re-Lock the doors after remote starting (programmable).
When you return to a remote started vehicle, just press the Unlock button on the remote control. On RS1-G5, the
Start button can be programmed to unlock the doors (option 23-1), Consult your installer.
Note: There are 3 Remote Start Options (see page 7). The options are: 1/2 second press (Default), 2 second
press or Double button press.
REMOTE START DIAGNOSTICS
If the system flashes the LED and Parking Lights one to seven times and doesn’t attempt remote start. The
LED will continue to flash the error code until the ignition is turned on, it means the following:
1 Parking Light Flash (1 LED Flash) = Problem with Brake Switch.
2 Parking Light Flashes (2 LED Flashes) = Problem with Hood Switch.
3 Parking Light Flashes (Solid LED) = Valet Service Mode.
5 Parking Light Flashes (5 LED Flashes) = Ignition or Tach Problem.
7 Parking Light Flashes (7 LED Flashes) = Manual Transmission Error.
Be sure to tell your installer the Diagnostic code when taking vehicle in for service
SYSTEM IS UNSUCCESSFUL AT REMOTE START DURING EXTREME COLD CONDITIONS:
Please be aware that during sub-freezing conditions your remote starter may take more that one attempt to start or it
may not successfully start the vehicle after 3 attempts. During these conditions the vehicle may not properly start
even using the key; therefore trying to start by the remote would also be unsuccessful.
![](/img.php?id=2790779&img=bg14.png)
20
2-Way DATA PORT
Some vehicles require a Databus Module to Bypass the factory Immobilizer and operate the keyless entry
Databus modules are used to communicate with the vehicles computer at the OBD2 Data connector or Canbus
wires. This reduces installation error. Crimestopper Systems with DP Series have a direct Data Port Plug-In for
the Databus bypass module. This eliminates conventional wiring between the Alarm/Remote Starter and the
bypass interface module.
Features Include
• Transponder Immobilizer.
• PassLock Immobilizer.
• O.E.M. Alarm Control.
• R.A.P. Shutdown.
• Power Door Locks.
• Priority Unlock.
• Trunk Release.
• Sliding Doors.
• Parking Lights.
• Courtesy Lights.
• Tachometer.
• Heated Seats.
• Rear Defrost.
• Driver 1 and 2 Memory presets.
The actual features controlled depend on the vehicle and Databus module.
SMART PHONE DATA PORT
This unit includes a Smart Phone Data Port. This is the white 4 pin plug on side of module, see page 25 for location.
This is “Direct Data to Data” Plug-In for the MS3 Smart Phone interface module. No other wiring is required. The
MS3 is purchased separately. This is an APP based system for a smart phone with the same functions as a normal
remote control.
![](/img.php?id=2790779&img=bg15.png)
21
BATTERY REPLACEMENT on 1 BUTTON REMOTE
To replace the battery: Simply remove the screw on back of the transmitter and slide the case apart as shown.
Remove the two CR-1620 Lithium batteries and replace. Put case back together and tighten screw.
![](/img.php?id=2790779&img=bg16.png)
22
BATTERY REPLACEMENT on 4 BUTTON REMOTE
To Replace the Battery:
The Remote Control uses two CR-2025 Lithium 3 Volt Batteries. Simply remove the Phillips screw located behind key ring (see
diagram below). Use a small screw driver as shown in Figure 2 to remove the back cover. Slide old batteries out. Insert the new
batteries into plastic cover and slide into place with the (+) end facing up. The plastic cover keeps the batteries from shorting out
against the side of metal housing.
CR2025
Remove
Screw
VEH
![](/img.php?id=2790779&img=bg17.png)
23
BATTERY REPLACEMENT on 5 BUTTON REMOTE
To Replace the Battery:
The Remote Control uses two CR-2025 Lithium 3 Volt Batteries. Simply remove the Phillips screw located behind
key ring (see diagram below). Use a small screw driver as shown in Figure 2 to remove the back cover. Slide old
batteries out. Insert the new batteries into plastic cover and slide into place with the (+) end facing up. The plastic
cover keeps the batteries from shorting out against the side of metal housing.
VEH
UNLOCK
START
DISARM /
ARM /
LOCK
TRUNK
Vehicle Select CR2025
2 Screws
Back Cover
Remove
2 Screws &
Slide Key Ring Off
Blue / Red
or
Green / Red
![](/img.php?id=2790779&img=bg18.png)
24
w
CRIMESTOPPER SECURITY PRODUCTS
600 S. ROCKFORD DR. TEMPE, AZ 85281
ww.crimestopper.com
© Crimestopper Security Products
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
