STEINEL 8303 5.8GHz Homodyne Doppler Radar Module User Manual INST HFLUM indd

STEINEL GmbH 5.8GHz Homodyne Doppler Radar Module INST HFLUM indd

user manual

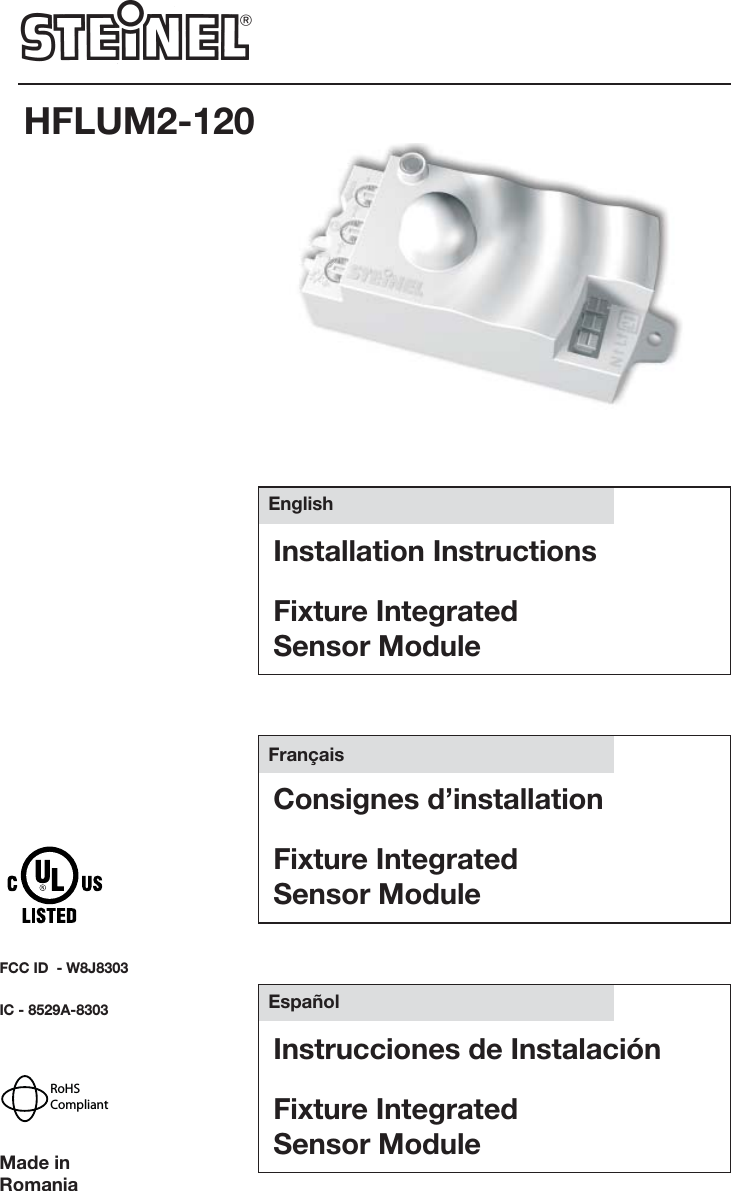

Installation InstructionsFixture Integrated Sensor ModuleConsignes d’installationFixture Integrated Sensor ModuleInstrucciones de InstalaciónFixture Integrated Sensor ModuleHFLUM2-120 EnglishMade in RomaniaFCC ID - W8J8303 IC - 8529A-8303 Français EspañolRoHSCompliant

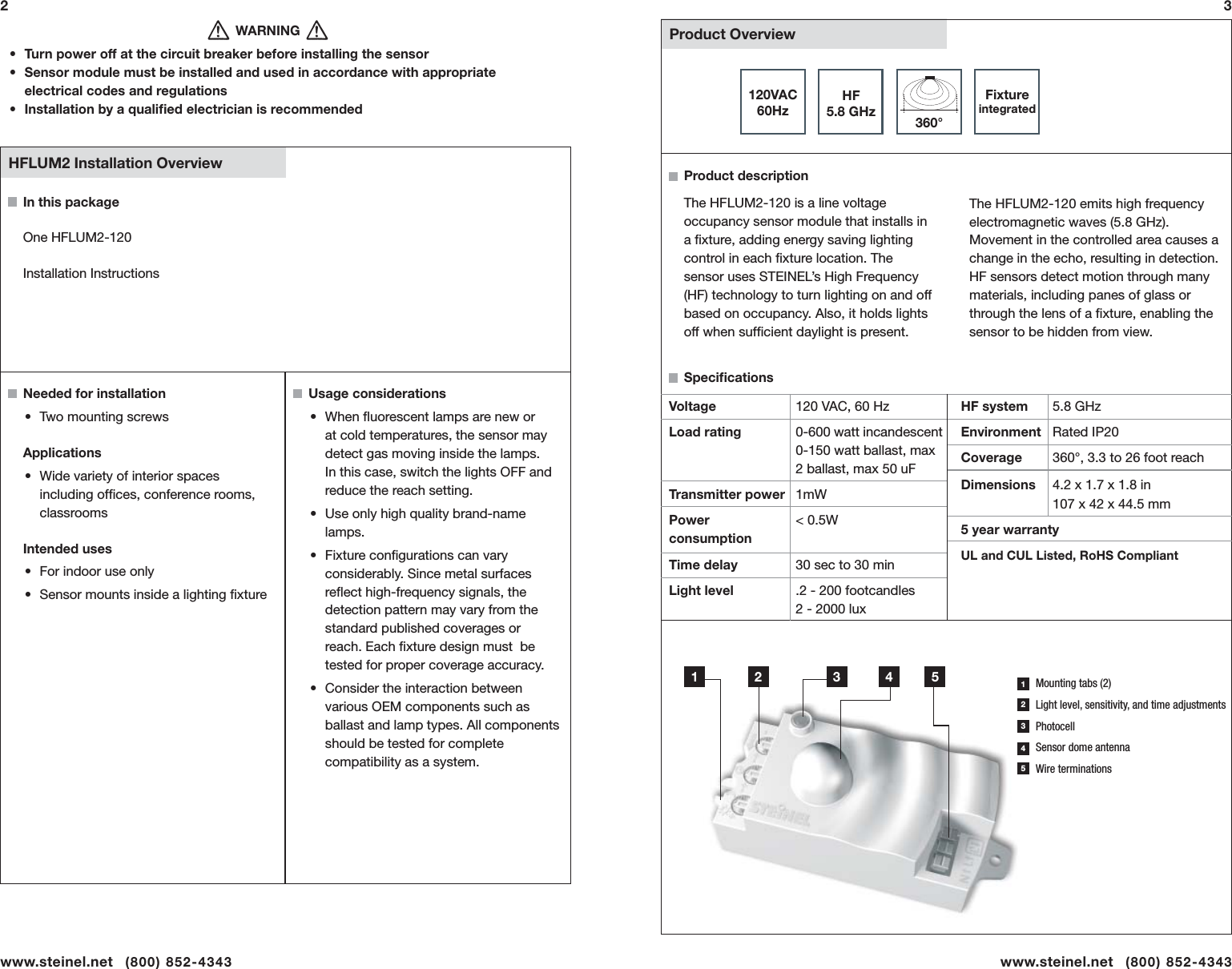

Product Overview120VAC60HzHF5.8 GHz 360°Usage considerations • When fl uorescent lamps are new or at cold temperatures, the sensor may detect gas moving inside the lamps. In this case, switch the lights OFF and reduce the reach setting.• Use only high quality brand-name lamps. • Fixture confi gurations can vary considerably. Since metal surfaces refl ect high-frequency signals, the detection pattern may vary from the standard published coverages or reach. Each fi xture design must be tested for proper coverage accuracy.• Consider the interaction between various OEM components such as ballast and lamp types. All components should be tested for complete compatibility as a system.In this packageOne HFLUM2-120Installation InstructionsNeeded for installation• Two mounting screwsApplications • Wide variety of interior spaces including offi ces, conference rooms, classroomsIntended uses• For indoor use only• Sensor mounts inside a lighting fi xture HFLUM2 Installation Overviewwww.steinel.net (800) 852-4343 WARNING• Turn power off at the circuit breaker before installing the sensor• Sensor module must be installed and used in accordance with appropriate electrical codes and regulations• Installation by a qualifi ed electrician is recommendedHF system 5.8 GHzEnvironment Rated IP20 Coverage 360°, 3.3 to 26 foot reachDimensions 4.2 x 1.7 x 1.8 in 107 x 42 x 44.5 mm5 year warrantyUL and CUL Listed, RoHS CompliantVoltageLoad rating Transmitter powerPower consumptionTime delayLight level120 VAC, 60 Hz0-600 watt incandescent 0-150 watt ballast, max 2 ballast, max 50 uF1mW< 0.5W 30 sec to 30 min.2 - 200 footcandles 2 - 2000 luxProduct descriptionSpecifi cationsThe HFLUM2-120 is a line voltage occupancy sensor module that installs in a fi xture, adding energy saving lighting control in each fi xture location. The sensor uses STEINEL’s High Frequency (HF) technology to turn lighting on and off based on occupancy. Also, it holds lights off when suffi cient daylight is present.www.steinel.net (800) 852-434323Fixture integratedMounting tabs (2)Light level, sensitivity, and time adjustmentsPhotocellSensor dome antennaWire terminations1 2 3 4 521345The HFLUM2-120 emits high frequency electromagnetic waves (5.8 GHz). Movement in the controlled area causes a change in the echo, resulting in detection. HF sensors detect motion through many materials, including panes of glass or through the lens of a fi xture, enabling the sensor to be hidden from view.

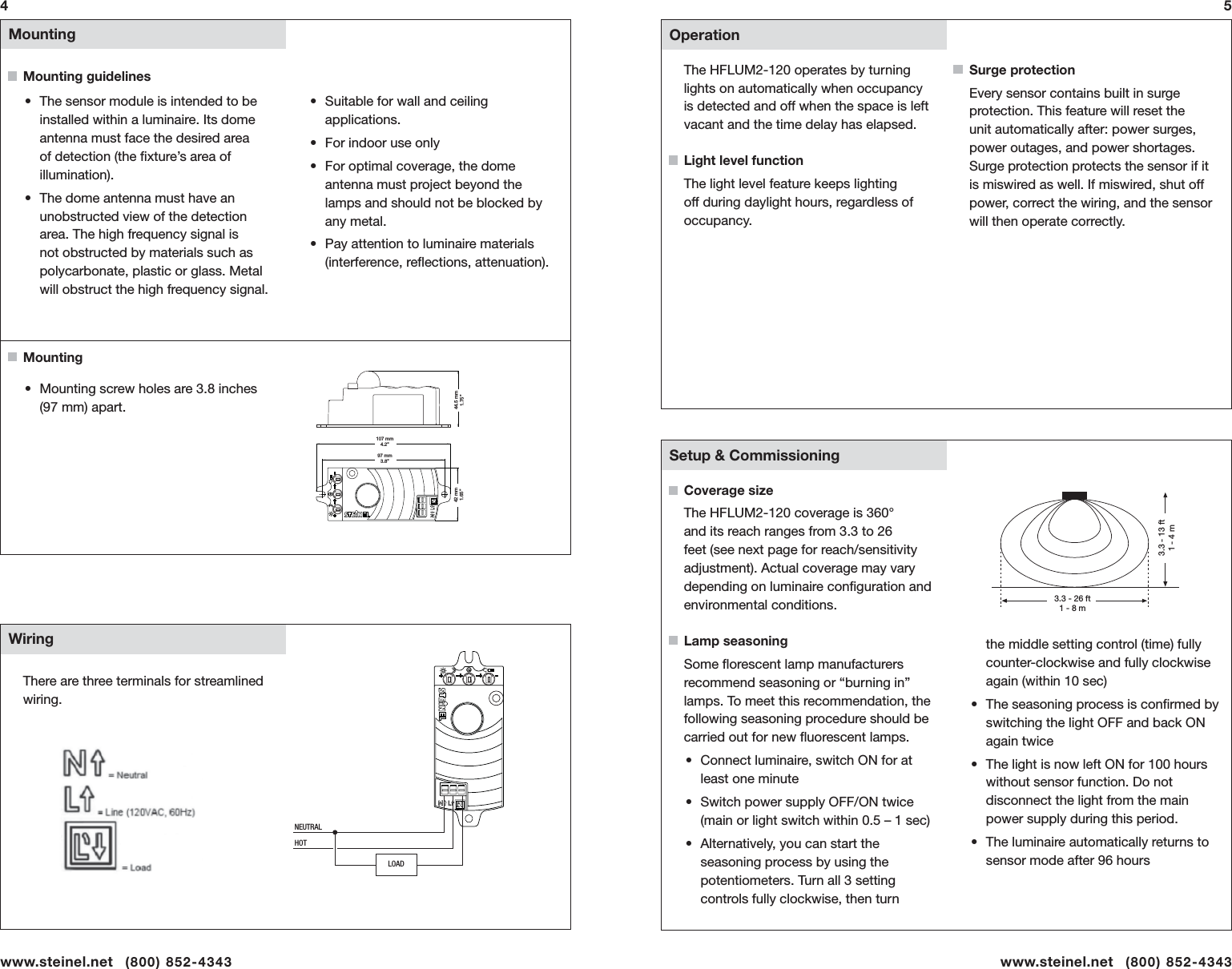

Mounting Wiring• The sensor module is intended to be installed within a luminaire. Its dome antenna must face the desired area of detection (the fi xture’s area of illumination).• The dome antenna must have an unobstructed view of the detection area. The high frequency signal is not obstructed by materials such as polycarbonate, plastic or glass. Metal will obstruct the high frequency signal. MountingMounting guidelines4• Mounting screw holes are 3.8 inches (97 mm) apart.• Suitable for wall and ceiling applications. • For indoor use only• For optimal coverage, the dome antenna must project beyond the lamps and should not be blocked by any metal. • Pay attention to luminaire materials (interference, refl ections, attenuation).5There are three terminals for streamlined wiring. Operation Setup & CommissioningThe HFLUM2-120 operates by turning lights on automatically when occupancy is detected and off when the space is left vacant and the time delay has elapsed. Light level functionThe light level feature keeps lighting off during daylight hours, regardless of occupancy. Coverage size The HFLUM2-120 coverage is 360° and its reach ranges from 3.3 to 26 feet (see next page for reach/sensitivity adjustment). Actual coverage may vary depending on luminaire confi guration and environmental conditions.Lamp seasoningSome fl orescent lamp manufacturers recommend seasoning or “burning in” lamps. To meet this recommendation, the following seasoning procedure should be carried out for new fl uorescent lamps. • Connect luminaire, switch ON for at least one minute• Switch power supply OFF/ON twice (main or light switch within 0.5 – 1 sec)• Alternatively, you can start the seasoning process by using the potentiometers. Turn all 3 setting controls fully clockwise, then turn Surge protectionEvery sensor contains built in surge protection. This feature will reset the unit automatically after: power surges, power outages, and power shortages. Surge protection protects the sensor if it is miswired as well. If miswired, shut off power, correct the wiring, and the sensor will then operate correctly.the middle setting control (time) fully counter-clockwise and fully clockwise again (within 10 sec)• The seasoning process is confi rmed by switching the light OFF and back ON again twice• The light is now left ON for 100 hours without sensor function. Do not disconnect the light from the main power supply during this period.• The luminaire automatically returns to sensor mode after 96 hours107 mm4.2”97 mm3.8”44.5 mm1.75”42 mm1.65”3.3 - 26 ft1 - 8 m3.3 - 13 ft1 - 4 mwww.steinel.net (800) 852-4343 www.steinel.net (800) 852-4343LOADNEUTRALHOT

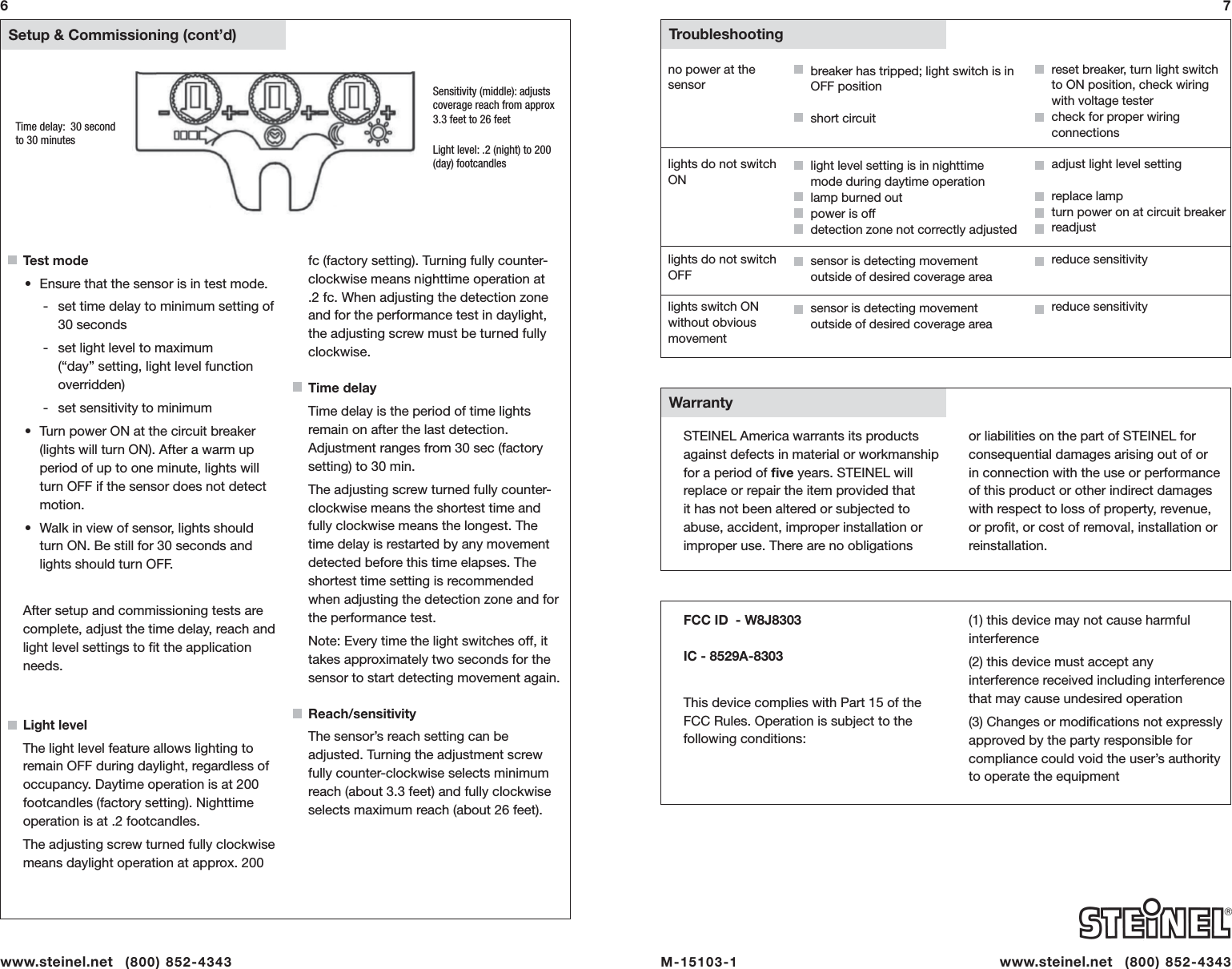

Setup & Commissioning (cont’d)Test mode• Ensure that the sensor is in test mode. - set time delay to minimum setting of 30 seconds - set light level to maximum (“day” setting, light level function overridden) - set sensitivity to minimum• Turn power ON at the circuit breaker (lights will turn ON). After a warm up period of up to one minute, lights will turn OFF if the sensor does not detect motion.• Walk in view of sensor, lights should turn ON. Be still for 30 seconds and lights should turn OFF. After setup and commissioning tests are complete, adjust the time delay, reach and light level settings to fi t the application needs.Light levelThe light level feature allows lighting to remain OFF during daylight, regardless of occupancy. Daytime operation is at 200 footcandles (factory setting). Nighttime operation is at .2 footcandles. The adjusting screw turned fully clockwise means daylight operation at approx. 200 fc (factory setting). Turning fully counter-clockwise means nighttime operation at .2 fc. When adjusting the detection zone and for the performance test in daylight, the adjusting screw must be turned fully clockwise.Time delayTime delay is the period of time lights remain on after the last detection. Adjustment ranges from 30 sec (factory setting) to 30 min.The adjusting screw turned fully counter-clockwise means the shortest time and fully clockwise means the longest. The time delay is restarted by any movement detected before this time elapses. The shortest time setting is recommended when adjusting the detection zone and for the performance test. Note: Every time the light switches off, it takes approximately two seconds for the sensor to start detecting movement again. Reach/sensitivityThe sensor’s reach setting can be adjusted. Turning the adjustment screw fully counter-clockwise selects minimum reach (about 3.3 feet) and fully clockwise selects maximum reach (about 26 feet). 7Time delay: 30 seconds to 30 minutes Light level: .2 (night) to 200 (day) footcandlesSensitivity (middle): adjusts coverage reach from approx 3.3 feet to 26 feet6no power at the sensorlights do not switch ONlights do not switch OFFlights switch ON without obvious movementbreaker has tripped; light switch is in OFF positionshort circuitlight level setting is in nighttime mode during daytime operationlamp burned outpower is offdetection zone not correctly adjustedsensor is detecting movement outside of desired coverage area sensor is detecting movement outside of desired coverage areareset breaker, turn light switch to ON position, check wiring with voltage testercheck for proper wiring connectionsadjust light level settingreplace lampturn power on at circuit breakerreadjustreduce sensitivityreduce sensitivity Troubleshooting WarrantySTEINEL America warrants its products against defects in material or workmanship for a period of fi ve years. STEINEL will replace or repair the item provided that it has not been altered or subjected to abuse, accident, improper installation or improper use. There are no obligations FCC ID - W8J8303 IC - 8529A-8303 This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:M-15103-1 www.steinel.net (800) 852-4343or liabilities on the part of STEINEL for consequential damages arising out of or in connection with the use or performance of this product or other indirect damages with respect to loss of property, revenue, or profi t, or cost of removal, installation or reinstallation. (1) this device may not cause harmful interference(2) this device must accept any interference received including interference that may cause undesired operation(3) Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipmentwww.steinel.net (800) 852-4343
