INSTALLATION OF STI-9729 WIRE GUARD DAMAGE STOPPER®

All specifications and information shown were current as of publication and are subject to change without notice.

9729 AUG2015

Safety Technology International, Inc.

2306 Airport Road • Waterford, Michigan 48327-1209

Phone: 248-673-9898 • Fax: 248-673-1246

Toll Free: 800-888-4784 • E-mail: info@sti-usa.com

Web: www.sti-usa.com

Safety Technology International (Europe) Ltd.

Unit 49G Pipers Road • Park Farm Industrial Estate • Redditch

Worcestershire • B98 0HU • England

Tel: 44 (0) 1527 520 999 • Fax: 44 (0) 1527 501 999

E-mail: info@sti-europe.com • Web: www.sti-europe.com

INSTALLATION INSTRUCTIONS

1. Center and place wire guard over device or product to be protected

and mark all 4 hole locations with pencil or marker.

2. Drill all 4 holes using 1/4” diameter drill 1-1/2” deep.

3. Insert anchors into drilled holes.

4. Place wire guard in position, insert screws and tighten.

NOTES:

THERE WILL BE:

• (4) MOUNTING BRACKETS

• (4) SCREWS

• (4) ANCHORS

DIMENSIONS ARE TO CENTER LINE

MATERIAL - HARD DRAWN STEEL WIRE 1008/1010

THICKNESS - 9 GAGE (.148 in. DIA.)

FINISH -

• PRODUCT CLASS - POLYESTER POWDER COATING.

• PRODUCT COLOR - SKY WHITE

• HMIS CODE - 010E

• NON CARCINOGEN

• THICKNESS - TOTAL DIA. NOT TO EXCEED .187 in.

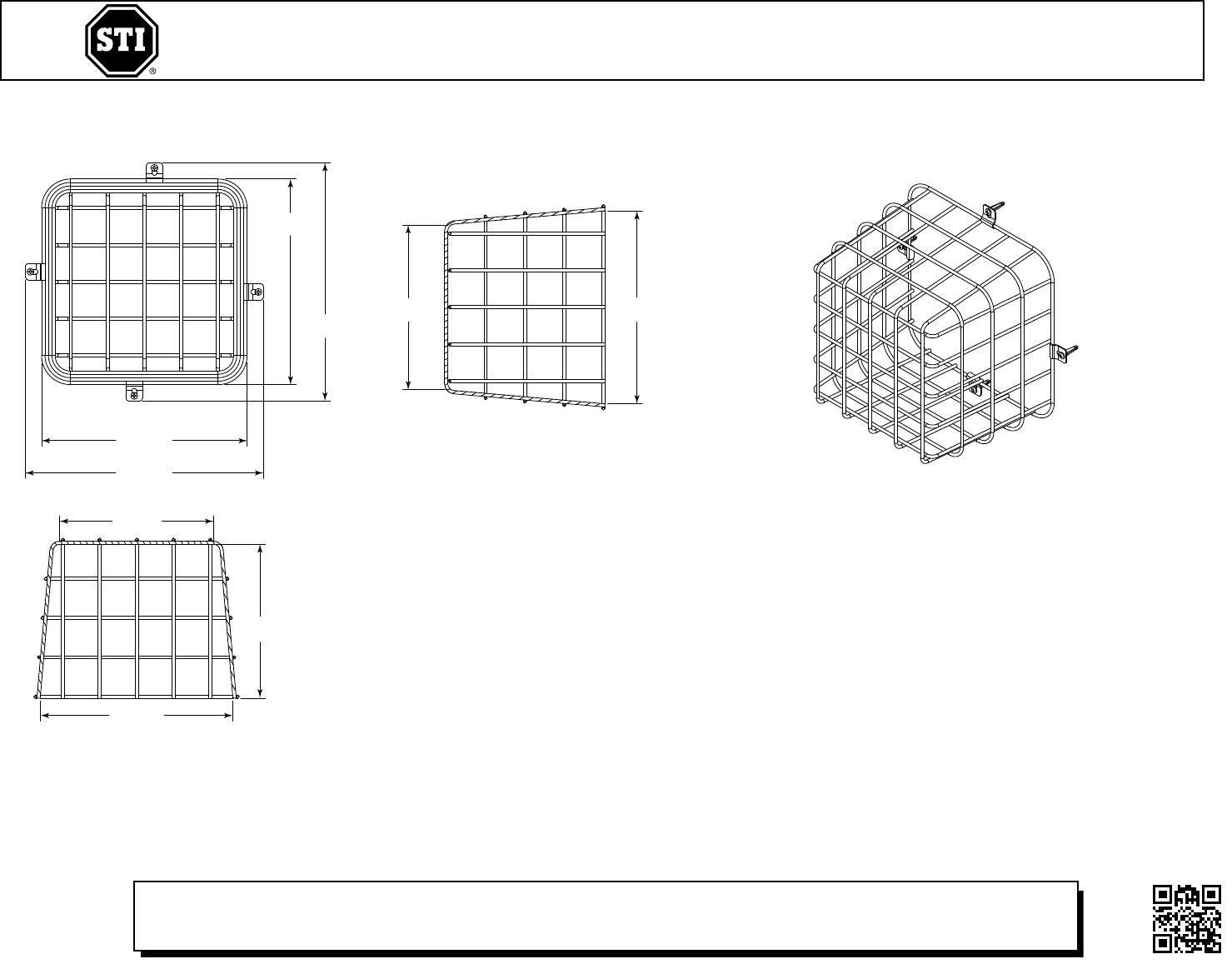

SECTION B-B

SCALE 1/2

SECTION A-A

SCALE 1/2

7 in.

(178mm)

7 in.

(178mm)

8.78 in.

(223mm)

8.78 in.

(223mm)

10.83 in.

(275mm)

9.36 in.

(238mm)

10.84 in.

(275mm)

9.36 in.

(238mm)

7.49 in.

(190mm)

NOTES:

THERE WILL BE:

• (4) MOUNTING BRACKETS

• (4) SCREWS

• (4) ANCHORS

DIMENSIONS ARE TO CENTER LINE

MATERIAL - HARD DRAWN STEEL WIRE 1008/1010

THICKNESS - 9 GAGE (.148 in. DIA.)

FINISH -

• PRODUCT CLASS - POLYESTER POWDER COATING.

• PRODUCT COLOR - SKY WHITE

• HMIS CODE - 010E

• NON CARCINOGEN

• THICKNESS - TOTAL DIA. NOT TO EXCEED .187 in.

SECTION B-B

SCALE 1/2

SECTION A-A

SCALE 1/2

7 in.

(178mm)

7 in.

(178mm)

8.78 in.

(223mm)

8.78 in.

(223mm)

10.83 in.

(275mm)

9.36 in.

(238mm)

10.84 in.

(275mm)

9.36 in.

(238mm)

7.49 in.

(190mm)

NOTES:

THERE WILL BE:

• (4) MOUNTING BRACKETS

• (4) SCREWS

• (4) ANCHORS

DIMENSIONS ARE TO CENTER LINE

MATERIAL - HARD DRAWN STEEL WIRE 1008/1010

THICKNESS - 9 GAGE (.148 in. DIA.)

FINISH -

• PRODUCT CLASS - POLYESTER POWDER COATING.

• PRODUCT COLOR - SKY WHITE

• HMIS CODE - 010E

• NON CARCINOGEN

• THICKNESS - TOTAL DIA. NOT TO EXCEED .187 in.

SECTION B-B

SCALE 1/2

SECTION A-A

SCALE 1/2

7 in.

(178mm)

7 in.

(178mm)

8.78 in.

(223mm)

8.78 in.

(223mm)

10.83 in.

(275mm)

9.36 in.

(238mm)

10.84 in.

(275mm)

9.36 in.

(238mm)

7.49 in.

(190mm)

NOTES:

THERE WILL BE:

• (4) MOUNTING BRACKETS

• (4) SCREWS

• (4) ANCHORS

DIMENSIONS ARE TO CENTER LINE

MATERIAL - HARD DRAWN STEEL WIRE 1008/1010

THICKNESS - 9 GAGE (.148 in. DIA.)

FINISH -

• PRODUCT CLASS - POLYESTER POWDER COATING.

• PRODUCT COLOR - SKY WHITE

• HMIS CODE - 010E

• NON CARCINOGEN

• THICKNESS - TOTAL DIA. NOT TO EXCEED .187 in.

SECTION B-B

SCALE 1/2

SECTION A-A

SCALE 1/2

7 in.

(178mm)

7 in.

(178mm)

8.78 in.

(223mm)

8.78 in.

(223mm)

10.83 in.

(275mm)

9.36 in.

(238mm)

10.84 in.

(275mm)

9.36 in.

(238mm)

7.49 in.

(190mm)

SECTION B-B

SECTION A-A

Three year warranty or a one year limited warranty (from

date of purchase) on most products. See website for details.

Electronic warranty form at www.sti-usa.com/wc14.

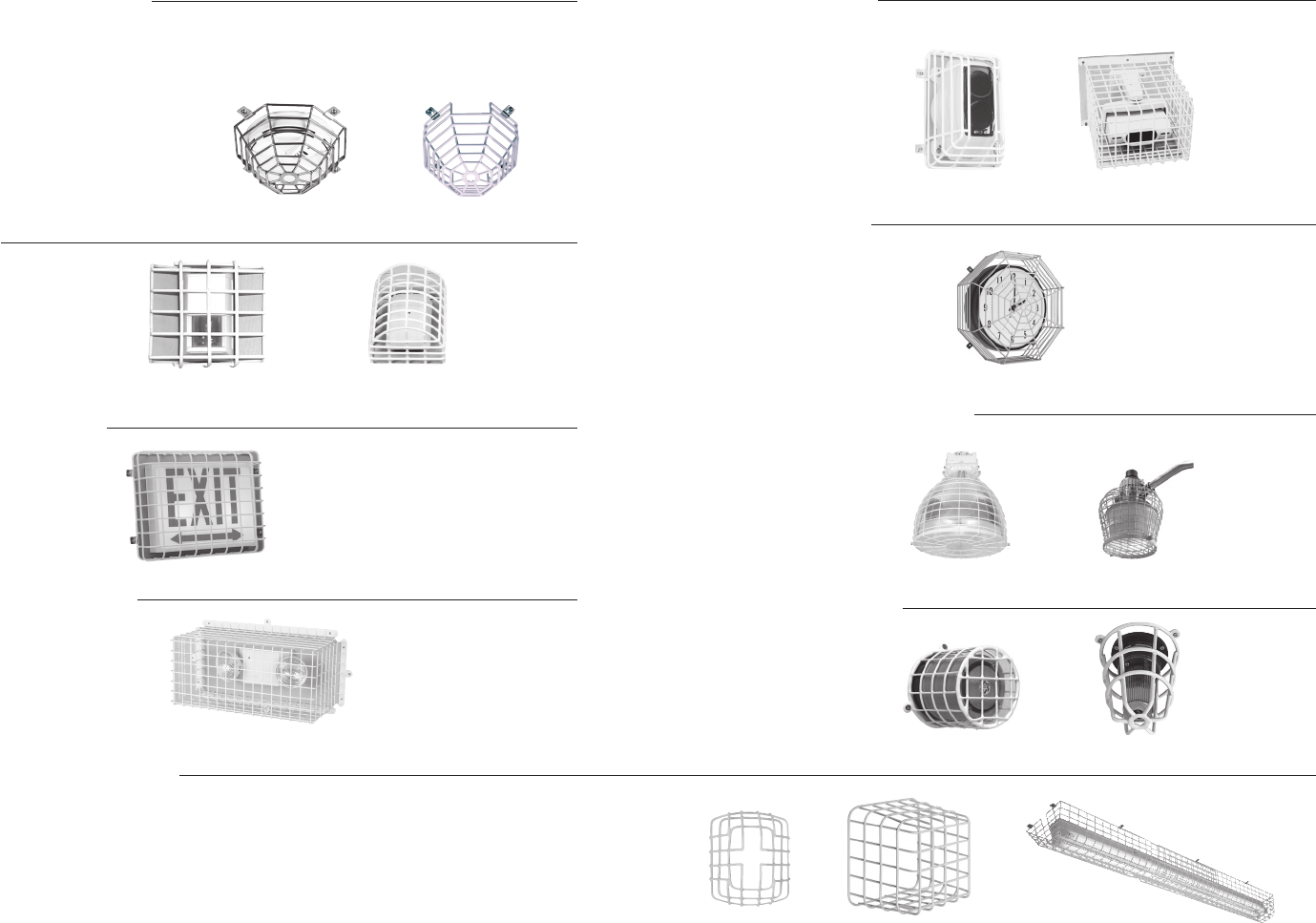

ADDITIONAL WIRE GUARDS AVAILABLE

Visit www.sti-usa.com for complete details

SMOKE DETECTOR GUARDS

PIR GUARDS

EXIT SIGN WIRE CAGES

EMERGENCY LIGHT CAGES

MISCELLANEOUS WIRE CAGES

BEAM SMOKE DETECTORS

CLOCK/BELL WIRE CAGES

BAY & OUTDOOR LIGHT WIRE CAGES

BEACON & SOUNDER CAGES

STI-9601 8.25 x 2.75”

STI-9601-SS 8.25 x 2.75”

STI-9602 8.25 x 4.25”

STI-9604 7 x 3.25”

STI-9604-SS 7 x 3.25”

STI-9605 7.125 x 4.5”

STI-9605-SS 7.125 x 4.5”

STI-9609 8.25 x 4.6”

STI-9609-SS 8.25 x 4.6”

STI-9610 8.25 x 6”

STI-9712 6.87 x 4.53”

STI-9713 6.87 x 2.50”

STI-9605

STI-9604-SS

STI-9618 4.62 x 5.37 x 3”

STI-9619 7.75 x 5.37 x 5.62”

STI-9620 6.25 x 4 x 2.25”

STI-9621 7 x 5.75 x 4.50”

STI-9622 8.75 x 4 x 3.75” STI-9618 STI-9621

STI-9640 10.5 x 13.75 x 2.75”

STI-9740 15.5 x 20.5 x 6”

STI-9741 14.80 x 16.09 x 5.35”

STI-9742 15.59 x 16.09 x 3.30”

STI-9640

STI-9641 19.7 x 14.6 x 4”

STI-9644 8.7 x 17.7 x 5”

STI-9645 13.8 x 21.7 x 5.9”

STI-9649 10.75 x 24.75 x 11.25”

STI-9703 5 x 13.5 x 4” STI-9649

STI-9623 7.75 x 6 x 6”

STI-9624 8.875 x 5.5 x 4.75”

STI-9625 7.875 x 10.25 x 12.625”

STI-9706 10.82 x 9.32 x 4”

STI-9707 11 x 9.62 x 5.5”

STI-9840 6.61 x 5.78”

STI-9841 11.52 x 10 x 3.58”

STI-9845 6.7 x 9.2 x 4.07” STI-9624 STI-9625

STI-9631 10.5” Diameter

STI-9631-SS 10.5” Diameter

STI-9631-R 10.5” Diameter

STI-9632 16.5” Diameter

STI-9632-SS 16.5” Diameter

STI-9633 20” Diameter STI-9632

STI-9702 21.43 x 22.50”

STI-9709 24.5 x 26”

STI-9796 14 x 16”

STI-9702 STI-9796

STI-9614 7.9 x 6”

STI-9615 3.7 x 3.5”

STI-9617 5.9 x 4.9”

STI-9664 3.86 x 6.18”

STI-9665 7 x 8.43” STI-9615 STI-9664

STI-9651 29.5 x 53.5 x 4”

STI-9705 7.4 x 6.15 x 3.39”

STI-9708 7.49 x 6.74 x 6.09”

STI-9711 8.26 x 8.26 x 3.54”

STI-9714 8.55 x 8.55 x 6.23”

STI-9716 17 x 17 x 25”

STI-9717 6.1 x 9.3 x 2.4”

STI-9720 6.1 x 9.3 x 4.9”

STI-9729 7 x 7 x 7”

STI-9730 12 x 12 x 12”

STI-9796 21.43 x 22.5”

STI-9880 10.45 x 62.75 x 6.2”

STI-9881 10.45 x 98.25 x 6.2” STI-9705 STI-9729 STI-9880
