SUNVALLEYTEK BH09 Bluetooth Earphone User Manual
SUNVALLEYTEK INTERNATIONAL, INC. Bluetooth Earphone Users Manual
User Manual
TT-BH10 specification
1
1 Outlooking parameter and instruction

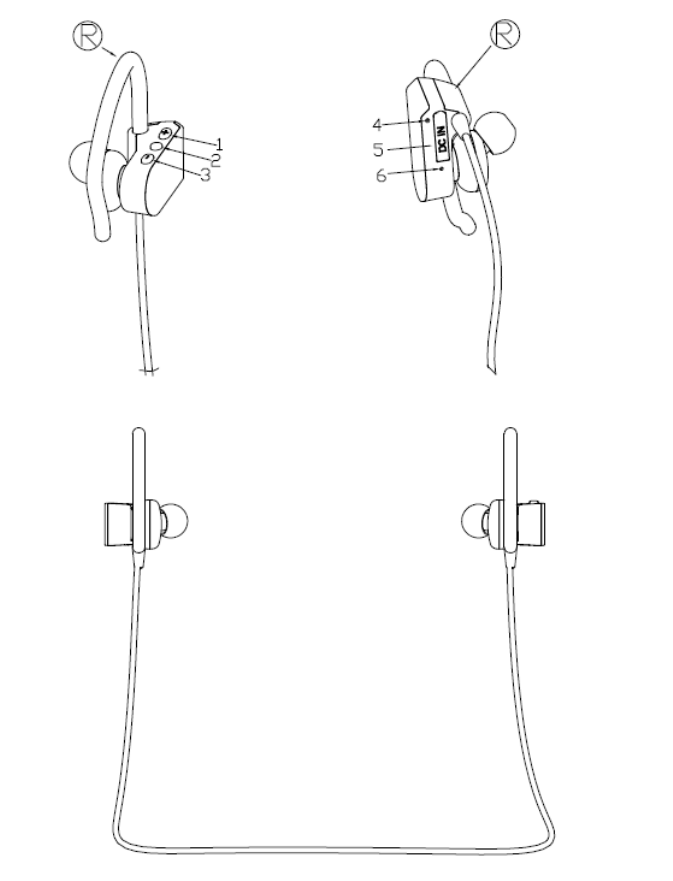

Button instruction:
1.Volume +
2.Multi-function
3. Volume -
4.LED
5.MIC
6.MICRO USB
2
2.Basic parameter
Product size: 625*17*22mm
Product weight：18g（bare）
Working voltage：3.7 V
Successive working time： Around 5~6 hours
Charging time：1~2 hours
Charging current：80mA
No connected will be power off automatically：5 minutes
Support 1pcs earbuds connect 2pcs smart phones
Support APTX
3.1 Bluetooth
Bluetooth chipset
CSR8645A04
Bluetooth version
4.1
Profile
A2DP AVRCP HSP HFP
RF
2402~2480MHz
Receiving distance
360° 10meter
3.2 MIC
MIC SPEC:3.7*2.2*1.1mm MEMS MIC
Sensitivity：-42±3dB
3.3 Battery
Battery Spec：3.7V 95mAh
Battery size：6.0 * 12 * 20mm
Battery life：300 times
3.4 Speaker
Speaker OD：Φ14.2mm
Speaker impedance：32Ω
Rated power：10mW (Max power: 15mW)
Frequency response：100～4.5KHz；
Sensitivity：110dB±3dB；

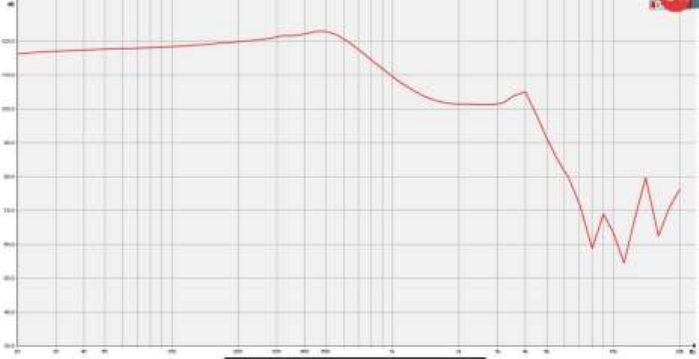

Speaker curve：
3
4 Operation
Power on：Press and hold down the power button till a blue light appears
Power off：Press and hold down the power button till a red light appears
Paring： Press and hold down the power button 6~8 seconds till red and blue light flashing
Volume adjust: Press and Hold down the volume + to increase volume or Volume - to decrease the volume
Music track choose：Press Volume - shortly to select previous track, and Volume + to select the next track.
Pause/play: When the bluetooth headset is connected with mobile phone, press the power button once to
play music, press power button quickly to pause the music.
Answering/ending the call：Press the power button once to answering or end the call
Reject calling：Press the power button 1~2 seconds
Redialing a call: Press the power button twice to redial the last dialed phone number on your mobile phone.
5 LED instruction
Charging： Red LED when charing, after full charge, blue LED
Paired：Blue Led flashing slow
Paring：Red and blue LED flashing alternate
6. Voice reminder
POWER On
POWER OFf
Connected
Pairing
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. This device complies with Part
15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
