TaoTronics Wireless Stereo Earphones
Model: TT-BH15
Thank you for choosing the TaoTronics TT-BH15 Wireless Stereo Earphones. Please read this
manual carefully for future reference.

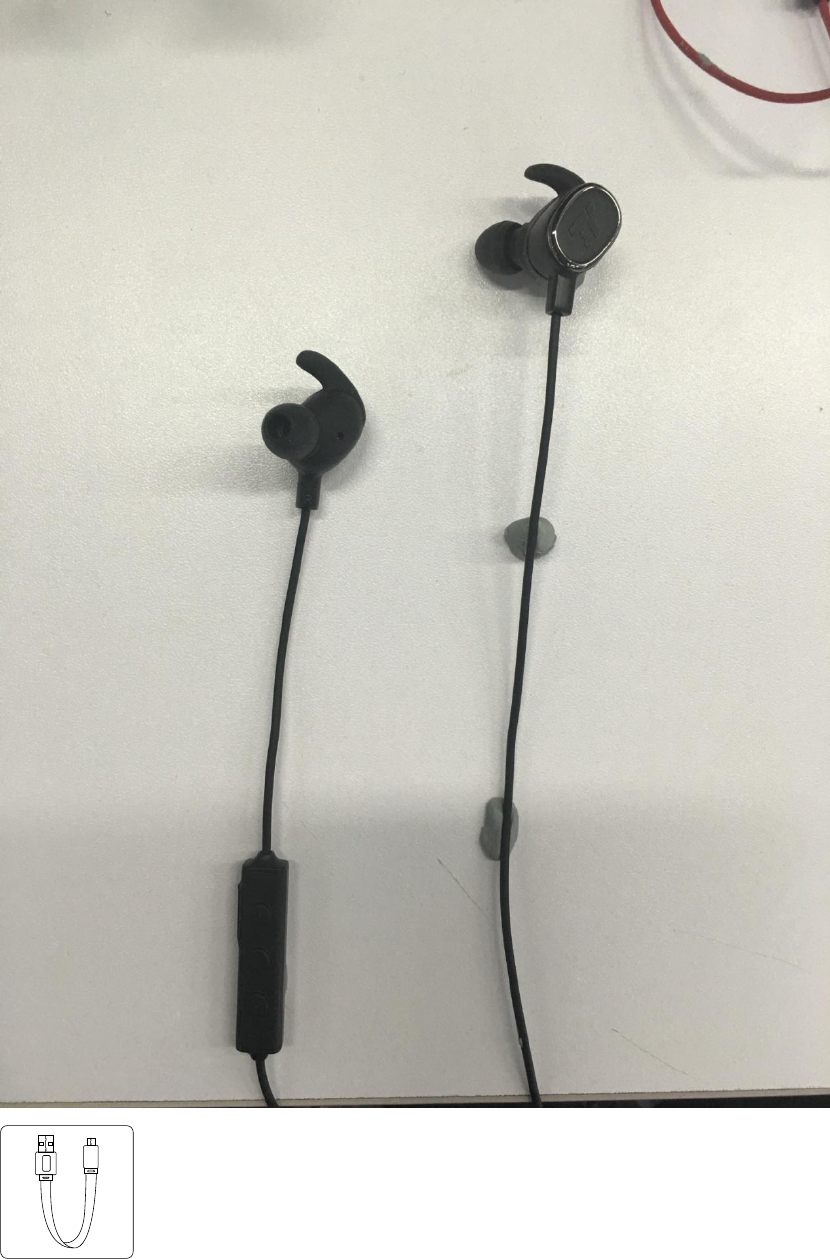

Package Contents
1 x TaoTronics Wireless Stereo Earphones
1 x USB Charging Cable
6 x Ear Buds (two are equipped on the earphones)

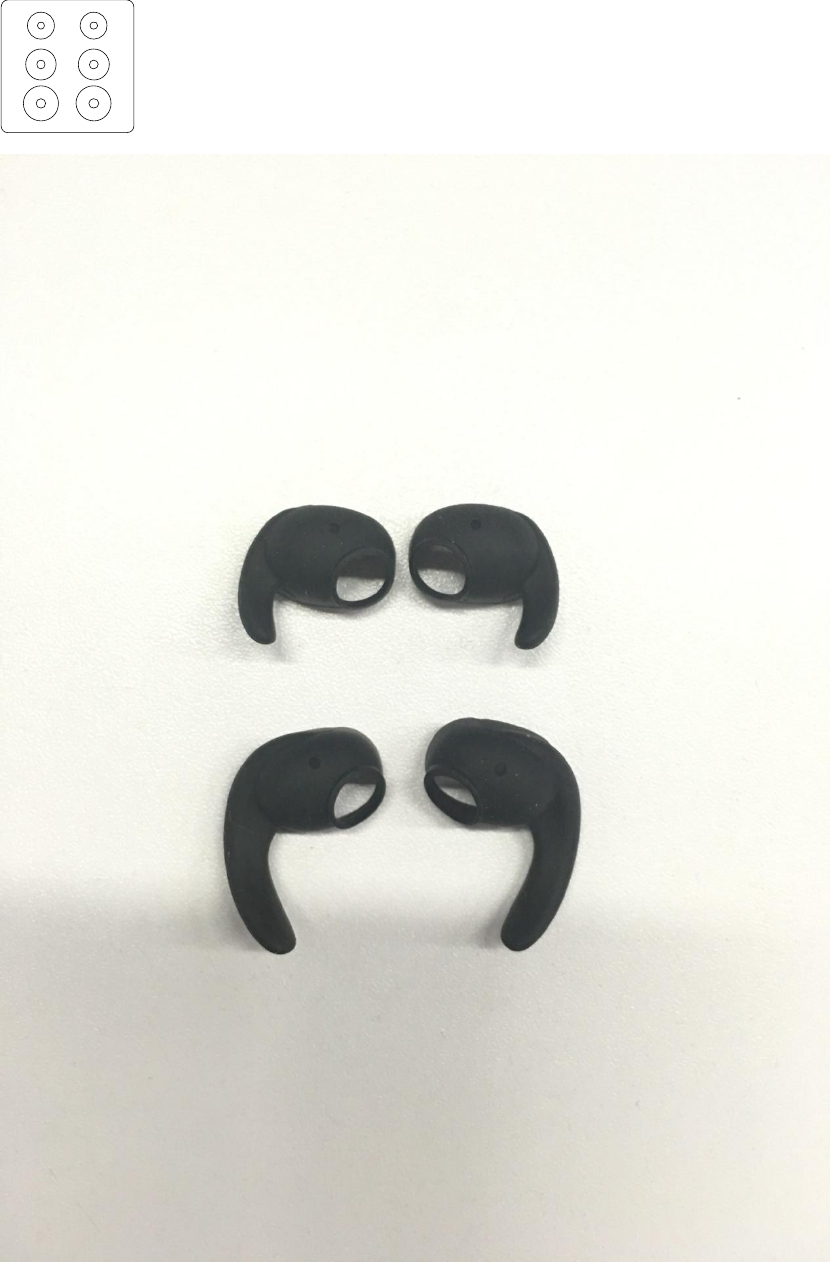

6 x Ear Hooks (two are equipped on the earphones)
1 x User Guide
![](/img.php?id=3133862&img=bg2.png)
![](/img.php?id=3133862&img=bg3.png)
![](/img.php?id=3133862&img=bg4.png)
Package Diagram
1. LED Indicator
2. USB Charging Port
3. Volume + / Next Track
4. Multifunction Button
5. Volume - / Previous Track
6. Microphone
Button Controls
Power On
Press and hold the Multifunction Button for 3 seconds
Power Off
Press and hold the Multifunction Button for 3 seconds
Play / Pause
Press the Multifunction Button once
Volume Increase / Decrease
Press the Volume + / - Button once
Next / Previous Track
Press the Volume + / - Button for 2 seconds
![](/img.php?id=3133862&img=bg5.png)
Answer Phone Call
Press the Multifunction Button once
Hang Up Phone Call
During a call, press the Multi-function Button once
Reject Phone Call
Press the Multifunction Button twice
Activate Voice Control
Press the Multifunction Button twice
Note:
During a phone call, press the Multifunction Button twice to switch the call
between your phone and the earphones.
The availability of Voice Control functionality depends on your smartphone.
Specifications
Bluetooth Version
V4.1
Bluetooth Profile
A2DP, AVRCP, HSP, HFP
Audio Codec
aptX
Range
33 feet (10 meters)
Charging Input
DC 5V
Working Time
Approx. 7 hours
Charging Time
2 hours
Dimensions
67.5 x 2.6 x 2.75 cm
26.57 x 1.02 x 1.08 in
Weight
14.6 g / 0.48 oz
LED Indicators
LED Indicator
Status
Red LED on
Charging
LED off
Fully charged or off
Flashes blue and red
In Pairing mode
Flashes blue once every 3
seconds
Disconnected from the Bluetooth device
Flashes blue twice every 5
seconds
Paired with a Bluetooth device
Slowly flashes red
Low battery
Fast flashes blue
Incoming call
▲Note: The earphones will not automatically connect to a
Bluetooth®
device
when switched on, please read the next section on how to connect to your
Bluetooth®
device.
How to Use
1. Charging
1) Connect the charging port with any USB charging adapter or active
computer USB port.
2) Charging will start automatically with the LED indicator turning red.
3) The earphones are fully charged when the LED indicator turns off.
2. Pairing
1) Make sure the earphones and your
Bluetooth®
device are next to each other
(within 3 feet / 1 meter).
2) Press and hold the Multifunction Button for 5 seconds to bring the earphones
into pairing mode with the LED indicator flashing blue and red.
3) Activate the
Bluetooth®
function on your phone and search for nearby
Bluetooth®
connections:
For iOS: Settings > Bluetooth > On
For Android: Settings >Bluetooth: On > Scan for devices
4) Find “TaoTronics TT-BH15” in the search results. Tap on the name to connect.
Once connected, the blue LED will flash twice every 5 seconds.
Note:
If a PIN code is required for pairing, try “0000” (four zeroes).
The Bluetooth earphones can remember previously paired devices. If you have
previously paired the earphones with a device, simply turn on your device and
the earphones (by pressing the Multifunction Button for 3 seconds to turn on),
they will connect to the last connected device automatically without going into
pairing mode.
3. Pairing with two devices at the same time
Although you can pair with two devices, only one of them can play music or make
phone calls with the headphone at any time. To pair with two devices:
![](/img.php?id=3133862&img=bg7.png)
1) Follow the previous instructions in the “Pairing” section to pair the TT-BH15
with your first device.
2) Turn off the
Bluetooth®
function of your first device and follow the “Pairing”
instructions again to pair and connect to your second device.
3) With the
Bluetooth®
function on both devices turned on, switch between the
two paired devices by pausing the music on the first device and playing music
on the second device.

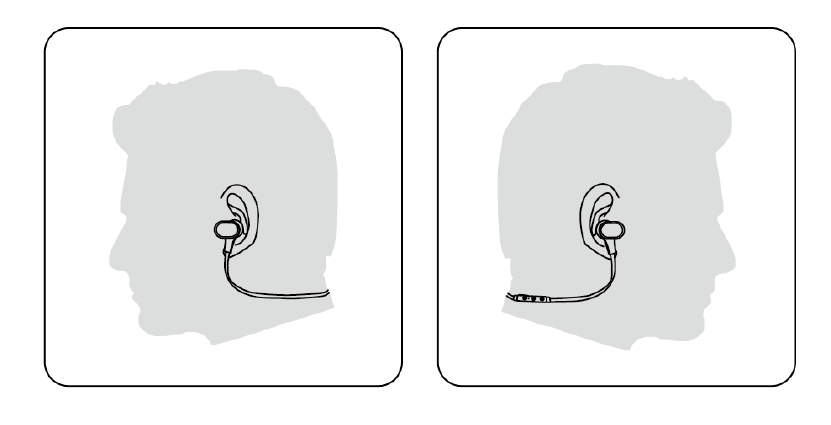

4. How to Wear
Please wear the earphones as shown in the diagram:
Note:
Please note the “L” and “R” markings on the earphones, they correspond
to your left side and right side respectively.
In addition to the earphones, two extra pairs of different sized ear buds are
included in the package. Please try them out and find the most comfortable fit
for you.
Troubleshooting
Q: My earphones will not switch on.
A: Please recharge it and make sure it has enough power. Plug the unit to a charger
and see if the power button becomes solid red.
Q: Why can’t I pair the earphones with other
Bluetooth®
devices?
A: Please check the following points:
Make sure your
Bluetooth®
device supports A2DP.
Make sure the earphones and your device are next to each other or within 3
feet / 1 meter.
You must get the earphones into pairing mode with the indicator flashing
blue and red.
Try to reboot your
Bluetooth®
device.
Q: After connecting and pairing with my
Bluetooth®
device, I cannot hear any
music from the earphones.
A: Please check the following:
Your sound system is connected to the earphones (if the LED indicator flashes
blue once every 5 seconds, then they are connected).
Make sure the music volume is at audible level on both your
Bluetooth®
device and earphones.
Make sure your
Bluetooth®
device is playing music.
Care and Maintenance
Charge the earphones at least once every 6 months.
Keep the earphones away from heat and humidity.
Do not put the product under direct sunlight or hot areas. High
temperatures will shorten the lifespan of the earphones and its battery.
Do not try to take the product apart.
Do not drop or knock your earphones on hard surfaces.
Do not use chemicals or detergents to clean the product.
Do not scrape the surface with sharp objects.
Warranty
TaoTronics earphones are covered by the TaoTronics Parts and Labor Warranty for
12 months from the date of their original purchase. If the device becomes
defective, please contact TaoTronics Support to launch warranty claim. We will
instruct you on how to return the defective unit back to us for repair and
replacement.
The following are excluded from the TaoTronics warranty:
Device purchased as 2nd hand, used or from unauthorized sellers
Damage resulted from misuse and abusive action
Damage resulted from chemical, fire, radioactive substance, poison, liquid
Damage resulted from natural disaster
Damage caused to any 3rd party / person / object and beyond
![](/img.php?id=3133862&img=bga.png)
No return will be accepted without seller authorization.
Statement
We can only provide after sale services for products that are sold by TaoTronics or
TaoTronics authorized retailer and distributor. If you have purchased your unit from
a different place, please contact the seller for return and warranty issues.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and(2) this device must accept any
interference received, including interference that may cause undesired operation.
